Analysis of symptomatic recurrences of common bile ducts stones after endoscopic removal
Factors related to early or multiple recurrences
Department of Internal Medicine, College of Medicine, The Catholic University of Korea, Seoul, Republic of Korea.
Abstract
Early or multiple recurrences of symptomatic common bile duct (CBD) stones are troublesome late complications after endoscopic stone removal. We aimed to determine the factors related to early or multiple recurrences of CBD stones.
We retrospectively analyzed patients who underwent endoscopic CBD stone extraction in a single institute between January 2006 and December 2015. Patients were divided into 2 groups according to the number and interval of CBD stone recurrences: single versus multiple (≥2) and early (<1.5 years) versus late (≥1.5 years) recurrence.
After exclusion, 78 patients were enrolled and followed up for a median of 1974 (IQR: 938–3239) days. Twenty-seven (34.6%) patients experienced multiple recurrences (≥2 times), and 26 (33.3%) patients experienced early first recurrence (<1.5 years). In the multivariate analysis, CBD angulation was independently related to multiple CBD stone recurrence (OR: 4.689, P = .016), and endoscopic papillary large balloon dilation was independently related to late first CBD stone recurrence (OR: 3.783, P = .025). The mean CBD angles were more angulated with increasing instances of recurrence (0, 1, 2, 3, and ≥4 times) with corresponding values of 150.3°, 148.2°, 143.6°, 142.2°, and 126.7°, respectively (P = .011). The period between the initial treatment and first recurrence was significantly longer than the period between the first and second recurrence (P = .048).
In conclusion, greater CBD angulation is associated with the increased number of CBD stone recurrence, and EPLBD delays the recurrence of CBD stones after endoscopic CBD stone removal.
Untitled section
Keywords: choledocholithiasis, common bile duct, endoscopic retrograde cholangiopancreatography, recurrence
Article notes
Untitled section
Received 2021 Jun 30; Revised 2021 Dec 26; Accepted 2022 Jan 6; Collection date 2022 Jan 21.
1.Introduction
Endoscopic retrograde cholangiopancreatography (ERCP) has been adopted as a standard treatment for common bile duct (CBD) stones since the introduction of endoscopic sphincterotomy.[1] ERCP is a minimally invasive procedure that allows patients to recover earlier than surgery or percutaneous transhepatic biliary drainage. As more ERCP procedures have been performed for CBD stones, recurrence of CBD stones has become a well-established troublesome late complication.[2] Although the incidence of recurrent CBD stones after ERCP varies according to studies, the reported incidence is 7% to 21%, which is not uncommon.[2–5] Several studies, including our previous study, have evaluated the factors related to CBD stone recurrence.[4,6–8] Related probable risk factors are multiple or large CBD stones, intrahepatic stones, pneumobilia, dilated or sharp angles of the CBD, gallstones in the gallbladder in situ, delayed biliary emptying, periampullary diverticulum, duodenobiliary reflux, papillary or biliary stricture, systemic disease (e.g., hemolytic anemia), and so on. Although the risk factors associated with CBD stone recurrence have been studied, those related to early or multiple recurrences have not been studied thus far. Therefore, we focused on the interval and multiplicity of CBD stone recurrences and aimed to determine which characteristics are related to early or multiple recurrences in patients who underwent endoscopic CBD stone removal.
2.Material and methods
2.1.Patients

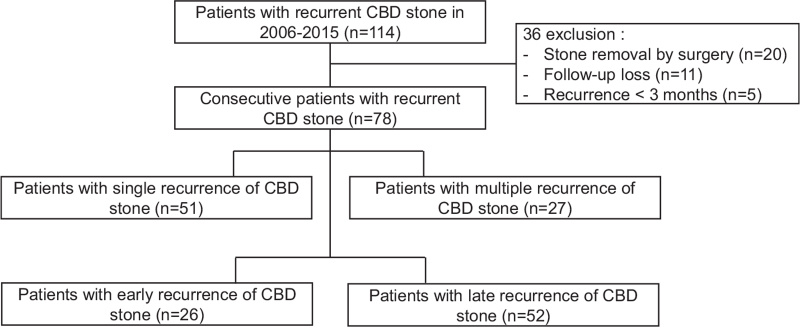

Patients who underwent CBD stone removal by ERCP in a single institute between January 2006 and December 2015 were evaluated. Among them, 114 patients encountered recurrence of CBD stones within the follow-up period. We performed magnetic resonance cholangiopancreatography (MRCP) (n = 71) and/or abdominal ultrasonography (n = 31) for patients to confirm the existence of gallbladder stone. CT scan was performed for all patients (n = 78). Thirty-six patients were excluded from this study due to surgical removal of CBD stones during follow-up (n = 20), follow-up loss (n = 11), and recurrence less than 3 months after ERCP (n = 5) (Fig. 1). Finally, 78 patients were enrolled and divided into two groups based on recurrence number and period: single versus multiple (≥2 times) recurrence and early (<1.5 years) versus late (≥1.5 years) recurrence. For comparison of CBD angles with the recurrence group, 59 patients without recurrence, who underwent endoscopic CBD stone removal between 2010 and 2012 and were followed up until 2020, were consecutively selected.
2.2.Endoscopic extraction of common bile duct stones
ERCP was performed with a duodenoscope (JF 260; Olympus Optical Co., Ltd., Tokyo, Japan). All patients underwent endoscopic sphincterotomy prior to stone extraction. Papillary balloon dilation was considered for the patients with large CBD stones (≥10 mm), periampullary diverticulum, or bleeding tendency. Endoscopic papillary large balloon dilation (EPLBD) (10–18 mm) was executed with a controlled radial expansion balloon dilator (CRE; Boston Scientific Co., Natick, MA). The CBD stones were extracted with a basket and/or a retrieval balloon catheter. When a stone basket was trapped by a large stone, a mechanical lithotripsy was performed. To exclude residual stones after ERCP stone removal, we placed an endoscopic nasobiliary drainage catheter and performed a follow-up cholangiogram the day after the procedure in case of multiple CBD stones.
2.3.Clinical information and definitions
We retrospectively interrogated the patients’ clinical information from the archived computer databases. Whenever hospitalized for a procedure, the patient's clinical information, such as age, sex, underlying disease, and use of medication, was recorded and reinforced prospectively on our computerized charts. A CBD angle was estimated on fluoroscopic images using the ViewRex viewer program as the most acute angle along the CBD from the bifurcation to the papilla as introduced by Keizman (Fig. 2).[9] The CBD diameter was determined by estimation of the largest diameter of the CBD on coronal images of MRCP or CT scans. Additionally, the size and number of CBD stones were measured in the same manner. EPLBD was defined as dilation of the major ampulla by the balloon with a diameter greater than 10 mm. The classification of periampullary diverticulum was divided into types 1 (intradiverticulum), 2 (diverticular margin), and 3 (extradivertiulum) as the location of the major ampulla relative to the diverticulum.[10]
2.4.Ethics statement
A patient's anonymity was carefully protected, and all study protocols were in complete compliance with the declaration of Helsinki. Ethics committee approval was received for this study from the Institutional Review Board of Bucheon St. Mary's hospital (No. HC20RISI0110).
2.5.Statistical analysis
Categorical clinical data from the two groups are expressed as numbers and percentages and were compared with Pearson's chi-square test. Continuous clinical data are shown as the mean ± standard deviation or median ± interquartile range and were compared with Student's t test or one-way ANOVA. In multivariate analysis for determination of the factors associated with early or multiple recurrence of CBD stones, logistic regression analysis (enter method) was conducted on both patient-related and ERCP-related variables. The odds ratios and 95% confidence intervals were calculated. A P value <.05 was regarded to be significant. All statistical analyses were performed using SPSS version 20 (SPSS, Inc., Chicago, IL).
3.Results
3.1.Baseline characteristics
The mean age of the patients when CBD stones first occurred was 66.5 (range: 48–83), and the male/female ratio was 40/38 (51%/49%) (Table 1). Regarding comorbidity, 41 (53%) patients had hypertension and 21 (27%) had diabetes. The patients were followed up for a median of 1974 (IQR 938–3239) days. Cholecystectomy was performed in 53 (68%) patients. It was performed before enrollment in 23 (29%) patients and after enrollment in 30 (38%) patients. Among 78 patients with recurrence, 27 (34%) patients experienced multiple recurrences (≥2 times) of CBD stones. Fifth, sixth, and seventh recurrences were observed in 4 (5%), 3 (4%), and 2 (3%), respectively (Fig. 3). Of the 78 patients with recurrent CBD stones, 35 patients underwent ERCP twice, 19 underwent ERCP three times, 10 underwent ERCP 4 times, 6 underwent ERCP 5 times, 4 underwent ERCP 6 times, and 4 underwent ERCP more than 7 times. The maximum number of ERCPs in 1 patient was 11.
| Characteristics | n = 78 |
| Age, mean ± SD | 66.5 ± 11.9 |
| Male | 40 (51.3%) |
| Alcohol | 15 (19.2%) |
| Smoking | 12 (15.4%) |
| Diabetes | 21 (26.9%) |
| Hypertension | 41 (52.6%) |
| Cholecystectomy | |
| Overall | 53 (67.9%) |
| Previous | 23 (39.5%) |
| Billroth subtotal gastrectomy | 1 (5.1%) |
| Follow-up duration, median (IQR), days | 1974 (938–3239) |
3.2.Single versus multiple recurrences of common bile duct stones

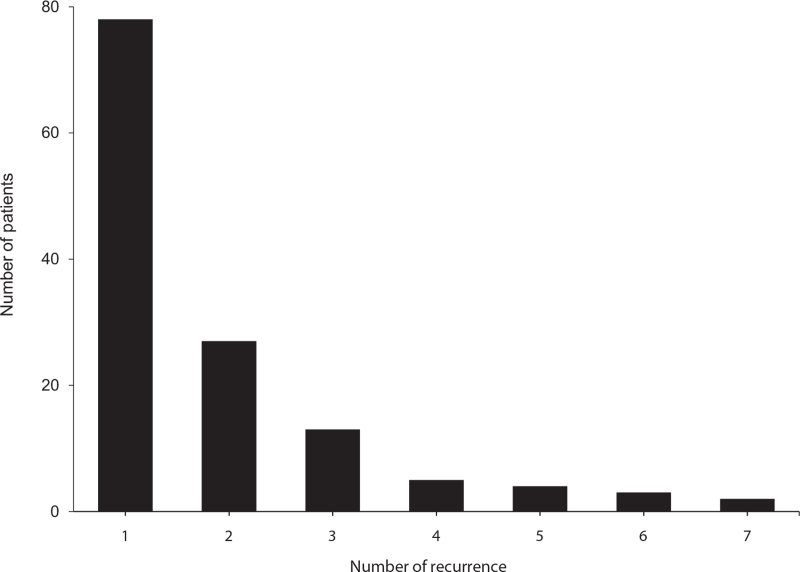

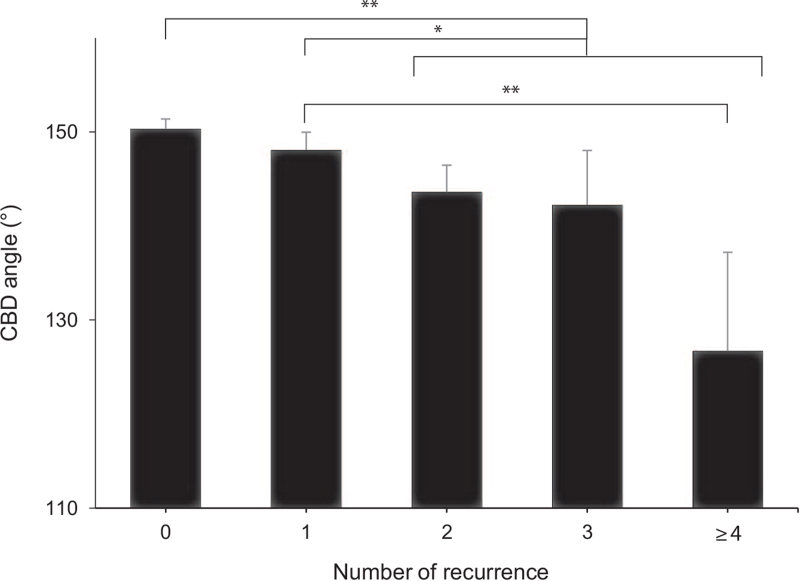

Fifty-one (65%) patients experienced a single recurrence of CBD stones, and 27 (35%) patients experienced multiple recurrences (≥2 times). Age, sex, gallbladder stones, cholecystectomy, use of ursodeoxycholic acid, number and size of CBD stones, CBD diameter, EPLBD, and periampullary diverticulum, post-ERCP complications did not differ between the single and multiple recurrence groups (Table 2). However, CBD was more angulated in the multiple recurrence group than in the single recurrence group (140.1° ± 16.0 vs 148.2° ± 13.1, P = .019). Moreover, patients with more recurrences had more oblique CBDs: the mean CBD angles according to recurrence numbers (0, 1, 2, 3, and ≥4 times) were 150.3°, 148.2°, 143.6°, 142.2°, and 126.7°, respectively (P = .011) (Fig. 4). In comparison with the no recurrence group, the CBDs of patients with multiple recurrences were significantly more oblique than the CBDs of patients without recurrence (140.1° vs 150.3°, P = .001). Intrahepatic stones was also more common in the multiple recurrence group than in the single recurrence group (30% vs 10%, P = .025). In the multivariate analysis, angulated CBD (<135°) and intrahepatic stones were independently related to multiple recurrences of CBD stones (OR: 4.689, 95% CI: 1.331–16.52, P = .016 and OR: 3.962, 95% CI: 1.091–14.40, P = .036) (Table 3). For post-procedural complications, one patient had post-ERCP bleeding, and 11 patients developed mild post-ERCP pancreatitis.
| CBD stone recurrence | P | ||
| Single (n = 51) | Multiple (n = 27) | ||
| Age, mean ± SD (yr) | 67.7 ± 12.0. | 64.2 ± 11.6 | 0.213 |
| Male | 28 (55%) | 12 (44%) | 0.379 |
| Follow-up time, mean ± SD (days) | 1877 ± 1557 | 1857 ± 1498∗ | 0.957 |
| Gallbladder stone† | 8 (16%) | 2 (7%) | 0.480 |
| Cholecystectomy | |||
| Prior to ERCP | 14 (28%) | 9 (33%) | 0.588 |
| Overall | 32 (63%) | 21 (78%) | 0.176 |
| Billroth subtotal gastrectomy | 3 (6%) | 1 (4%) | 1.000 |
| UDCA and/or Rowachol medication | 44 (86%) | 26 (96%) | 0.250 |
| Initial ERCP findings | |||
| Intrahepatic stones | 5 (10%) | 8 (30%) | 0.025 |
| No. of CBD stones | 0.352 | ||
| 1 | 19 (37%) | 13 (48%) | |
| ≥2 | 32 (63%) | 14 (52%) | |
| Size of the largest CBD stone, mean ± SD (mm) | 10.5 ± 5.8 | 12.2 ± 9.5 | 0.340 |
| <15 | 37 (73%) | 18 (67%) | 0.588 |
| ≥15 | 14 (27%) | 9 (33%) | |
| CBD diameter, mean ± SD (mm) | 15.6 ± 4.7 | 17.5 ± 5.3 | 0.110 |
| <15 | 24 (47%) | 11 (41%) | 0.594 |
| ≥15 | 27 (53%) | 16 (59%) | |
| CBD angle, mean ± SD (°) | 148.2 ± 13.1 | 140.1 ± 16.0 | 0.019 |
| <135 | 5 (10%) | 9 (33%) | 0.010 |
| ≥135 | 46 (90%) | 18 (67%) | |
| EPLBD | 23 (45%) | 10 (37%) | 0.493 |
| Size of papillary balloon dilation, mean ± SD (mm) | 12.6 ± 2.8 | 12.8 ± 2.7 | 0.850 |
| Mechanical lithotripsy | 2 (4%) | 2 (7%) | 0.606 |
| Periampullary diverticulum | 0.234 | ||
| None | 17 (33%) | 11 (41%) | |
| Type 1 | 8 (16%) | 7 (26%) | |
| Type 2 | 10 (20%) | 6 (22%) | |
| Type 3 | 16 (31%) | 3 (11%) | |
| CBD stricture | 0 (0%) | 1 (4%) | 0.351 |
| More than one ERCP to clear CBD | 8 (16%) | 4 (15%) | 1.000 |
| Post-ERCP complication | 6 (12%) | 6 (22%) | 0.223 |
| Factors | OR (95% CI) | P |
| Intrahepatic stones (yes vs no) | 3.962 (1.091–14.40) | 0.036 |
| CBD angle (<135° vs ≥135°) | 4.689 (1.331–16.52) | 0.016 |
3.3.Early versus late recurrence of common bile duct stones
Twenty-six (33%) patients experienced early first recurrence (<1.5 years) and 52 (67%) patients experienced late first recurrence (≥1.5 years). Age, sex, gallbladder stones, cholecystectomy, use of ursodeoxycholic acid, intrahepatic stones, number and size of CBD stones, diameter and angle of CBD, and periampullary diverticulum did not differ between the early and late first recurrence groups (Table 4). However, EPLBD was performed at a higher rate in the late recurrence group (52%) than in the early recurrence group (23%) (P = .015). In the multivariate analysis, only EPLBD was significantly related to late recurrence (OR: 3.783, 95% CI: 1.183–12.098, P = .025) (Table 5).
| 1st recurrence interval | P | ||
| Early (n = 26) | Late (n = 52) | ||
| Age, mean ± SD (yr) | 66.6 ± 12.0 | 66.5 ± 12.0 | 0.968 |
| Male | 15 (58%) | 25 (48%) | 0.423 |
| Gallbladder stone∗ | 5 (19%) | 5 (10%) | 0.231 |
| Cholecystectomy | |||
| Prior to ERCP | 6 (23%) | 17 (33%) | 0.380 |
| Overall | 19 (73%) | 34 (65%) | 0.493 |
| Billroth subtotal gastrectomy | 1 (4%) | 3 (6%) | 1.000 |
| UDCA and/or Rowachol medication | 25 (96%) | 45 (87%) | 0.257 |
| Initial ERCP findings | |||
| Intrahepatic stones | 4 (15%) | 9 (17%) | 1.000 |
| No. of CBD stones, mean ± SD | |||
| 1 | 11 (42%) | 21 (40%) | 0.871 |
| ≥2 | 15 (58%) | 31 (60%) | |
| Size of the largest initial CBD stone, mean ± SD (mm) | 11.2 ± 9.8 | 11.1 ± 5.7 | |
| <15 | 17 (65%) | 38 (73%) | 0.926 |
| ≥15 | 9 (35%) | 14 (27%) | 0.599 |
| CBD diameter, mean ± SD (mm) | 16.9 ± 6.0 | 15.9 ± 4.4 | 0.435 |
| <15 | 15 (58%) | 20 (38%) | 0.107 |
| ≥15 | 11 (42%) | 32 (62%) | |
| CBD angle, mean ± SD (°) | 148.2 ± 12.7 | 144.0 ± 15.4 | 0.237 |
| <135 | 5 (19%) | 9 (17%) | 0.835 |
| ≥135 | 21 (81%) | 43 (83%) | |
| EPLBD | 6 (23%) | 27 (52%) | 0.015 |
| Size of papillary balloon dilation, mean ± SD (mm) | 12.9 ± 2.7 | 12.6 ± 2.7 | 0.802 |
| Mechanical lithotripsy | 2 (8%) | 2 (4%) | 0.597 |
| Periampullary diverticulum | 0.868 | ||
| None | 8 (31%) | 20 (38%) | |
| Type I | 6 (23%) | 9 (17%) | |
| Type II | 5 (19%) | 11 (21%) | |
| Type III | 7 (27%) | 7 (13%) | |
| CBD stricture | 0 (0%) | 1 (2%) | 1.000 |
| More than one ERCP to clear CBD | 2 (8%) | 10 (19%) | 0.318 |
| Post-ERCP complication | 6 (23%) | 6 (12%) | 0.183 |
| Factors | OR (95% CI) | P |
| CBD diameter (≥15 mm vs <15 mm) | 1.270 (0.430–3.751) | 0.666 |
| EPLBD (yes vs no) | 3.783 (1.183–12.10) | 0.025 |
3.4.Recurrence interval based on the number of recurrence events

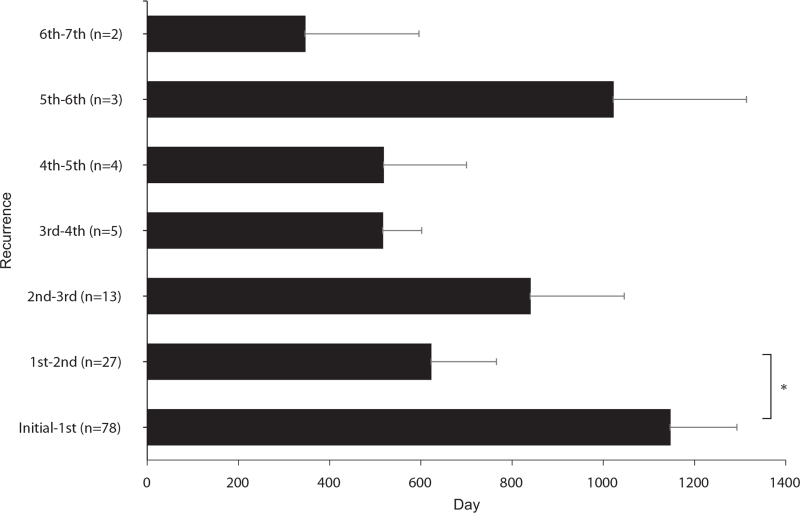

The mean interval between the initial to the first recurrence was 1148 ± 1285 days. This was significantly longer than that between the first and second recurrence (623 ± 740 days, P = .048) (Fig. 5). The recurrence intervals after the second recurrence did not differ significantly, but have a tendency to shorten.
4.Discussion
CBD stones may recur even though complete removal of CBD stones by ERCP. Unfortunately, some patients experience multiple recurrences and a short recurrence interval. In these cases, the patients suffer from multiple procedures and a high healthcare cost burden.
Multiple recurrences of CBD stones have been reported in a few previous studies. Nzenza et al showed that 51% (26/51) of patients with recurrent CBD stones required three or more ERCP procedures, and up to 11 ERCP procedures were performed for the removal of CBD stones in a single patient.[2] Konstantakis et al reported that multiple recurrences occurred in 33% of patients, and the maximum number of ERCP sessions was 6 in 1 patient.[7] Our study presented that multiple recurrences occurred in 27 (35%) patients, and the maximum number of recurrences of CBD stones was 8 in 1 patient.
In the present study, multiple recurrences were related to CBD angle and intrahepatic duct stones in univariate analysis, and both were independently related to multiple recurrences in multivariate analysis. CBD angulation was associated with recurrence of CBD stones in the previous studies.[9,11,12] Theoretically, angulated CBD may interfere with the flow of bile, and it is a favorable condition for the formation of primary CBD stones. Moreover, our study showed that more multiple recurrences occur in patients with more angulated CBDs, which suggests that patients with more angulated CBDs require special attention and careful follow-up. In terms of angulated CBD, previous studies used criteria of angulated CBD as 145° or 135°.[9,12] Our study chose CBD angle of 135° as the criterion of angulated CBD to maximize the difference between the 2 groups.
Early recurrence is another troublesome problem for both clinicians and patients alike. Although the definition of early recurrence has not been established, the first recurrence within a year or 2 is considered early recurrence.[7] We defined early recurrence as recurrence within 1.5 years as approximately half of the first recurrence interval. Harada et al showed that EPLBD reduced the recurrence of CBD stones by Kaplan–Meier analysis.[13] In addition, Ha et al demonstrated that recurrence was lower in patients with periampullary diverticulum and EPLBD treatment.[14] Our study revealed that EPLBD was performed significantly more often in the late recurrence group. Although EPLBD was generally performed in patients with periampullary diverticulum or large CBD stones in the present study, periampullary diverticulum or large CBD stones were not related to the recurrence interval. Therefore, EPLBD itself facilitates the flow of bile and can reduce early recurrence of CBD stones or delay the recurrence time after endoscopic removal of CBD stones.
A few studies have reported regarding recurrence interval of CBD stones. Tanaka et al demonstrated that the average time from receiving ERCP to recurrence was 33 months (range, 6–199 months), and most recurrences occurred within 3 years, with 13 (30%) patients experiencing recurrence after 5 years and 5 (11%) patients experiencing recurrence after more than 10 years.[15] Konstantakis et al reported that the first recurrence interval was 35 ± 17 months, the second recurrence interval was 35 ± 23 months, and the third recurrence interval was 17 ± 15 months.[7] Our study showed that the mean interval until the first recurrence was 38 months. This is similar to previous studies, reported as 33 and 35 months. The second recurrence interval (21 months) was significantly shorter than the first recurrence interval. Then, there were no differences of recurrence interval after the second recurrence. A previous study reported that the period between initial and first recurrence (4.4 years) was longer than the period between the first and second recurrence (3.4 years).[16] Furthermore, a third recurrence occurred relatively frequently (10%) and early (3.0 years). This may indicate that the recurrence interval becomes shorter after the first recurrence, as shown by our results.
Biliary stone formation is associated with multiple factors. One study involving 43,141 twin pairs showed that genetic effects, shared environmental effects, and unique environmental effects accounted for 25%, 13%, and 62% of gallstones, respectively.[17] As genetic factors, several gallstone-predisposing gene mutations have been reported, such as mutations of ABCB4 and ABCG5/G8 genes.[18,19] Among non-genetic factors, biliary stasis (delayed biliary emptying and/or impaired biliary flow) is an important factor in the pathogenesis of bile duct stone. CBD angulation, CBD dilation, periampullary diverticula, billiary strictures, papillary stenosis, and cholocystectomy have been associated with biliary stasis.[7] Angulation along CBD may predispose an individual to bile stasis, leading to higher bile concentration and increase of cholesterol saturation. This could promote stone formation and recurrence as demonstrated in a meta-analysis of eight randomized trials (1776 patients).[20] Since there is still a lack of basic research on bile kinetics, further studies on bile kinetics are needed to clarify the pathogenesis of bile duct stone formation.
There are limitations in the present study. First, the study has a retrospective design. A few data points could have been missed, and some further data collection could not be performed due to the study design. Second, it might not be completely excluded that there are secondary or residual stones after ERCP. In patients with gallbladders in situ, old or newly developed gallstones can migrate to the CBD and become secondary CBD stones. In our study, cholecystectomy was performed in 53 (68%) patients and gallbladder stones were in 10 (13%) patients. However, cholecystectomy or gallbladder stones was not associated with the interval or multiplicity of CBD stone recurrence. Therefore, secondary CBD stones might be few in number, so the effects were minimal in the present study. Regarding residual CBD stones, we excluded patients who had recurrence within 3 months after ERCP and confirmed that there were no residual CBD stones by endoscopic nasobiliary drainage catheter cholangiography the day after ERCP in patients with multiple CBD stones. It might exclude the residual stones in our study. Third, intrahepatic duct stones as well as CBD angle were associated with multiple recurrences in the present study. Since intrahepatic duct stones are very rare in European and North American populations, this result may be more relevant for Asiatic ethnicity.
In conclusion, greater CBD angulation is associated with the increased number of CBD stone recurrence, and EPLBD delays the recurrence time of CBD stones after endoscopic extraction in patients with recurrent CBD stones. We expect a further study with a large number of patients in the near future.
