Detection of Alzheimer’s disease (AD) specific tau pathology with conformation-selective anti-tau monoclonal antibody in co-morbid frontotemporal lobar degeneration-tau (FTLD-tau)
Department of Pathology and Laboratory Medicine, Institute on Aging and Center for Neurodegenerative Disease Research, 3600 Spruce St. 3 Maloney, Philadelphia, PA 19104 USA
Department of Neurology, University of Pennsylvania School of Medicine, Philadelphia, PA 19104 USA
Abstract
Pathological tau aggregates in Alzheimer’s disease (AD) and frontotemporal lobar degeneration-tau (FTLD-tau) adopt distinct conformations differentiated by the AD-tau specific monoclonal antibody (mAb) GT-38 that are not readily visualized using phosphorylation-specific anti-tau mAbs. To determine the extent of co-morbid AD-tau pathology in FTLD-tau, we performed immunohistochemical (IHC) staining with GT-38 and assigned Braak stages of AD-tau in a cohort 180 FTLD-tau cases consisting of corticobasal degeneration (CBD; n = 49), progressive supranuclear palsy (PSP; n = 109), and Pick’s disease (PiD; n = 22). Nearly two-thirds of patients (n = 115 of 180, 63.8%) with FTLD-tau had some degree of comorbid AD-tau pathology and 20.5% of the FTLD-tau cohort had Braak stage ≥B2, consistent with medium-to-high-level AD neuropathological change (ADNPC). The PSP group had the highest frequency of medium-high AD-tau pathology compared to other tauopathies (PSP = 31/109, 28.4%; Picks = 2/22, 9.1%, CBD = 4/49, 8.2%) but neuropathological diagnosis was not found to be a significant independent predictor of medium-high AD Braak stage in a multivariate model after accounting for age at death (OR = 1.09; 95% CI = 1.03–1.15; p = 0.002) and CERAD plaque scores (OR = 3.75, 95% CI = 1.58–8.89; p = 0.003), suggesting there is no predilection for a specific FTLD tauopathy to develop AD-tau co-pathology after accounting for age. Patients with FTLD-tau who had, clinically significant, medium-high AD-tau pathology had significantly higher antemortem CSF levels of both total-tau (t-tau; mean = 89.98 pg/ml, SD = 36.70 pg/ml) and phosphorylated-tau (p-tau; mean = 20.45 pg/ml, SD = 9.31 pg/ml) compared to patients with negligible-low AD-tau, t-tau (mean = 43.04 pg/ml, SD = 25.40 pg/ml) and p-tau (mean = 11.90 pg/ml, SD = 4.48 pg/ml) (p ≤ 0.001 both). Finally, in an exploratory analysis in our largest pathology group (PSP) we find an association of GT-38 AD-tau Braak stage with lower baseline MMSE (p = 0.03). Together, these finding validate the use of GT-38 to selectively detect AD-tau pathology in the context of FTLD-tau and provides a novel tool to investigate associations of clinical phenotypes amongst co-morbid tauopathies.
Untitled section
Keywords: Alzheimer’s disease, Frontotemporal lobar degeneration, Tau, Tauopathy, Monoclonal antibody
Article notes
Untitled section
Received 2019 Feb 22; Accepted 2019 Feb 23; Collection date 2019.
Introduction
Pathological aggregates of tau protein within the central nervous system are a neuropathological hallmark of a heterogeneous class of diseases termed tauopathies [39]. The normal function of tau is to stabilize microtubules within axons in the central nervous system, mediated by microtubule binding domain (MTBRs) [11, 24]. Tau is natively unstructured and expressed as 6 isoforms in the adult human brain as the result of alternative splicing and contains either 0-2 N-terminal acidic domains (0-2N) and 3 or 4 MTBRs (3R or 4R) [20]. Although primarily expressed in neurons, there is evidence of low levels of tau expression in glial cells [4, 41, 56]. Mutations of the tau encoding MAPT gene on chromosome 17 are responsible for familial frontotemporal lobar degeneration-tau (FTLD-tau); formerly referred to as frontotemporal degeneration and parkinsonism linked to chromosome 17 (FTDP-17) [16, 26, 27]. Under pathological conditions, imparted by MAPT mutations or sporadically, tau adopts a beta-sheet structure and forms amyloid-fibrils within neurons and glia [19, 57].
Alzheimer’s disease (AD) and FTLD-tau including corticobasal degeneration (CBD), progressive supranuclear palsy (PSP) and Pick’s disease (PiD) are composed of morphologically and cell-type-specific pathological tau aggregates [39]. Growing evidence supports the notion that distinct tauopathies are composed of “strains” of tau that represent structural polymorphisms, or conformations, that can be stably passaged in cell culture and in vivo. For instance, insoluble paired helical filaments (PHF) of tau derived from post-mortem tissue of humans with AD (AD-tau) are internalized by wildtype murine primary neurons and recruit endogenous mouse tau, propagating insoluble fibrils [23]. On intracerebral injections of insoluble tau derived from humans with CBD or PSP into wildtype mice, endogenous mouse tau is recruited into tau aggregates that recapitulate the cell-type specificity and morphology of their human tauopathy counterparts [44]. Furthermore, tau aggregates derived from different tauopathies have unique trypsin-resistant fragments characterized by mass-spectrometry suggesting tau adopts distinct conformations with varying accessibility to trypsin digestion sites [53]. Finally, pathological tau strains may be defined by isoform composition in addition to structural conformations since tau aggregates in CBD and PSP are composed primarily of 4R tau isoforms, whereas PiD aggregates are composed primarily of 3R tau isoforms [29].
Post-mortem neuropathological analysis of tau by immunohistochemistry is performed using standard diagnostic antibodies that detect phosphorylated tau (AT8 or PHF1) or the pathological conformation of tau aggregates (MC1) [6, 37]. The stereotypical spread of tau pathology from the locus coeruleus and trans entorhinal cortex to the hippocampus and eventually multiple cortical regions allows for the designation of 6 stages of pathological tau in AD (Braak stages I-VI) [7]. Since both AD-tau and FTLD-tau share many post-translational modifications, previously available tau antibodies failed to distinguish between these forms of tauopathy confounding the assessment of Braak AD-tau staging in patients with co-existent FTLD-tau [30, 31, 36, 47]. This limitation has been addressed partially by utilizing the amyloid-binding dye Thioflavin S (Thio S), in which AD tauopathy has robust reactivity to amyloid-binding dyes while FTLD-tau does not [33]. However, this approach has limitations since Thio S is an amyloid binding dye that is not specific for tau and also detects amyloid beta and rare subsets of TDP-43, as well as alpha-synuclein aggregates [32]. Thus, a marker specific to AD-tau has the potential to improve neuropathological diagnoses and could potentially be extended into in vivo studies to differentiate tauopathies during life. Therefore, we developed anti-tau conformation-selective mAbs, GT-7 and GT-38, that selectively detect AD-tau but not CBD, PSP, or PiD by immunizing mice with human brain derived AD-tau enriched extracts comprised of both 3R and 4R tau [18]. To assess the prevalence of AD-tau co-pathology in FTLD-tau we performed immunohistochemical analysis with GT-38 to determine for the first time the AD-tau Braak stage in a cohort of 180 patients with neuropathologically confirmed FTLD-tau. We then extended these findings to a subset of the same patients from whom we obtained CSF during life that were analyzed for levels of tau and Aβ.
Materials and methods
Patients
Cases of FTLD-tau were selected from the University of Pennsylvania Center for Neurodegenerative Disease Research (CNDR) brain bank following neuropathological diagnostic evaluation according to current neuropathological criteria as described [1, 15, 28, 29, 42, 55]. Patient demographics, post-mortem interval, a pathological diagnosis were obtained from the Integrated Neurodegenerative Disease Database (INDD) at CNDR [59]. Clinical diagnoses and baseline Folstein mini-mental state examination (MMSE) scores were extracted from INDD in our largest pathology group (PSP) for exploratory clinicopathological correlations.
Co-immunofluorescent (co-IFC) and immunohistochemical (IHC) staining
Tissue obtained at autopsy was fixed in 70% ethanol and 150 mM sodium chloride or 10% neutral buffered formalin, paraffin embedded, and cut into 6 μm thick sections. Tissue was deparaffinized in xylene and rehydrated in ethanol (100%-70%) and treated with 7.5% hydrogen peroxide in methanol for 30 min at room temperature then washed in water 10 min as described for IHC [18]. Antigen retrieval was performed with citric acid unmasking solution (H-3300, Vector Laboratories) heated at 95°C for 15 min and allowed to slowly cool to room temperature. Tissue was blocked with 2% FBS in 100 mM Tris pH 7.2 for 5 min at room temperature. Co-IFC was performed using IgG2a GT-38 at a final concentration of 2 μg/mL and mouse IgG1 isotype antibodies specific to 3R tau, RD3 (05-803, Millipore), and 4R tau, RD4 (05-804, Millipore), diluted 1:1,000 in 2% FBS 0.1 M Tris pH 7.2 at 4°C overnight. Fluorescent conjugated secondary antibodies, anti-mouse IgG2a 488 and anti-mouse IgG1 594 were diluted 1:1,000 in 2% FBS 0.1 M Tris pH 7.2 and incubated for 2 hr at room temperature. Tissue was washed twice for 5 min in 0.1 M Trish pH 7.2 and autofluorescence quenched by 20 sec incubation in Sudan Black solution followed by 5 sec rinse in 70% ethanol and 10 min wash in water. Slides were coverslipped with Fluoromount containing DAPI (0100-20, Southern Biotech).
For IHC, GT-38 IgG1 was used at a final concentration of 2 μg/mL and PHF1 IgG1 (gift of Peter Davies) was diluted 1:1,000 in in 2% FBS 0.1 M Tris pH 7.2 and incubated at 4°C overnight. Binding was detected with biotinylated anti-mouse secondary antibody (BA-2000, Vector Laboratories) and developed with Vectastain ABC kit (PK-6100, Vector Laboratories) and ImmPACT DAB (SK-4105 Vector Laboratories) for 5 min. Tissue was dehydrated in a series of ethanol (70%-100%) and xylene, then coverslipped with Cytoseal 60 (8310-4, Thermo).
Cerebrospinal fluid (CSF) analysis
CSF was collected from living patients in accordance with standard operating procedures as previously described [34]. Total tau (t-tau), phosphorylated (p-tau) tau, and amyloid-β 1-42 (Aβ1-42) were determined using either the Innotest enzyme linked immunosorbent assay (ELISA); Fujirebio-Europe or INNO-BIA AlzBio 3x MAP Luminex platforms. Absolute values from different platforms were transformed into equivalent xMAP units for comparison using previously reported validated algorithms [14, 52, 58].
Statistical analysis
Patient demographic variables were assessed for normal distribution with Shapiro-Wilk normality test. Differences in demographics between FLTD-tau subtypes were tested by Kruskal-Wallis test for non-normally distributed data with Dunn’s multiple comparison post-hoc test and ANOVA with Bonferroni’s multiple comparisons test for normally distributed data. Chi-squared test was used to assess the distribution of Braak stages among categorical diagnostic categories of FTLD-tau subtypes (i.e. PSP, CBD, PiD) and Consortium to Establish a Registry for Alzheimer’s Disease (CERAD) plaque score stages. We used the collapsed Braak I-VI stages where I-II are referred to as B1, III-IV as B2, and V-VI as B3. Based on standard neuropathological criteria and the low number of individual patients with AD Braak stages B2 and B3, we compared Braak stages B0/B1 with negligible-low AD-tau compared to Braak stages B2/B3 with medium-high levels of AD-tau pathology sufficient to contribute to clinical dementia [42]. Moreover, we collapsed categorical CERAD stages into C0/C1 and C2/C3 based on the small sample size of patients with high CERAD scores. Multivariate regression models were used to test the association of the outcome of medium-high level AD (B2/B3) vs. negligible-low AD-tau (B0/B1) co-pathology as the dependent variable of logistic regressions with either age at death, age at onset, FTLD-tau subtype (PSP, CBD, PiD), sex and CERAD score (C0/1 vs. C2/3) as independent predictors. We used Bayesian information criteria (BIC) to guide model selection for the optimal multivariate model reported. Mann-Whitney rank sum test was used to assess differences of total tau, phosphorylated tau, and Aβ1-42 CSF levels between negligible-low AD-tau and medium-high AD-tau groups. For clinicopathological correlations of baseline MMSE in PSP we collapsed Braak B3 group (n=1) with Braak B2 for Kruskal-Wallis analysis across B0, B1, B2/3 groups with planned post-hoc Mann-Whitney U analyses between individual groups.
Results
Detection of comorbid AD-tau pathology in FTLD-tau
We recently reported the AD-tau specific mAb GT-38 selectively detects AD-tau pathology but not tau pathology diagnostic of CBD, PSP, or PiD [18]. We expanded on these findings in a cohort of patients with neuropathologically diagnosed FTLD-tau to evaluate the selectivity of GT-38 to detect AD-tau pathology in the context of comorbid FTLD-tau. GT-38 selectively detected typical AD-tau morphologies including neurofibrillary tangles (NFTs), neuritic plaques, and neuropil thread tau pathology in the entorhinal cortex and CA regions of the hippocampus in cases of FTLD-tau (Fig. 1). The phospho-tau diagnostic antibody PHF1 revealed additional intracellular tau inclusions in the molecular layer of the dentate gyrus in PiD and to a lesser extent in PSP while astrocytic plaques were apparent in CBD, all of which were negative for GT-38. Neuronal and astrocytic tau inclusions were present in the pons in cases of CBD and PSP that were similarly negative for GT-38. These results verify the selectivity of GT-38 for AD-tau pathology in the presence of comorbid FTLD-tau pathology.
GT-38 binding requires 3R and 4R tau isoforms in pathological tau aggregates
To further validate GT-38 selectivity, we performed co-immunofluorescent (co-IFC) staining with GT-38 and 3R- or 4R-tau specific antibodies since AD-tau NFTs are comprised of all six human tau isoforms, including both 3R- and 4R- tau, while PiD aggregates are comprised primarily of 3R-tau and CBD and PSP are comprised of primarily 4R-tau. Previously, co-IFC labeling with isoform specific 3R- and 4R-tau antibodies was hindered by the fact that GT-38, RD3, and RD4 were all mouse IgG1 isotype [18]. Therefore, we generated a mouse IgG2a version of GT-38 containing the identical variable heavy (VH) and variable light (VL) domains as the original GT-38 hybridoma clone.
To directly assess the isoform specificity of GT-38 binding, we performed co-IFC staining of tissue sections from patients with AD, CBD and PSP using the IgG2a version of GT-38 in combination with mouse IgG1 3R- or 4R-tau specific antibodies. In AD tissue, GT-38 highly colocalized with both 3R- and 4R-tau, particularly in dense NFTs (Fig. 2a), while colocalization was also observed in neuropil threads and neuritic plaques. In early-stage regions of AD-tau deposition [7], we often found GT-38 reactivity in the form of NFTs and threads, suggesting co-morbid AD-tau pathology in FTLD-tau. In PiD GT-38 did not detect the 3R-tau positive Pick bodies, but completely colocalized with 4R-tau positive NFT-tau pathology (Fig. 2b). In CBD and PSP, GT-38 did not detect the astrocytic 4R tau pathology, yet stained intraneuronal NFTs in regions positive for 3R-tau pathology that completely co-localize with GT-38 (Fig. 2b). In PiD hippocampal sections with dense 3R-tau positive Pick bodies and no 4R-tau staining, GT-38 was negative and in CBD and PSP hippocampal regions with 4R-tau predominant astrocytic and neuronal pathology without 3R-tau inclusions, GT-38 staining was negative (Fig. 2c). Together, these findings indicate that GT-38 selectively detects pathological tau aggregates comprised of both 3R- and 4R-tau but does not detect pathological FTLD-tau associated aggregates containing only 3R- or 4R-tau alone. Importantly, these studies further validate GT-38 selectively detects AD-tau pathology in the presence of co-morbid FTLD-tau.
Braak staging AD-tau in comorbid FTLD-tau
Based on the unique selectivity of GT-38 for AD-tau pathology, our goal was to determine the extent of co-morbid AD in a cohort of 180 people with neuropathologically confirmed FTLD-tau. We first verified that GT-38 detects AD-tau pathology with similar sensitivity to the current benchmark diagnostic antibody, PHF1, which detects tau phosphorylated at Ser396 and Ser404 [21]. We examined the immunoreactivity of GT-38 and PHF1 to pathological tau aggregates in CA1 of the hippocampus from a cohort of patients with AD and no cognitive impairment to assess the concordance of these antibodies in a range of varying Braak stages (Fig. 3). We found similar sensitivity for detection of tau NFTs between GT-38 and PHF1, neuritic plaques were also detected by GT-38, whereas neuropil staining was abundantly stained by PHF1 and to a lesser extent by GT-38. These findings supported the use of GT-38 for Braak staging and demonstrated similar sensitivity as PHF1 for detection of AD-tau.

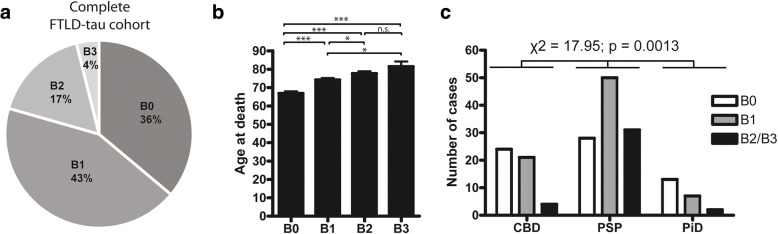

We next performed GT-38 IHC staining to assigned Braak stages of AD-tau in a cohort of 180 patients with FTLD-tau and tissue available in our brain bank. Demographics of the FTLD-tau patient cohort are shown in (Table 1) including, age at death, sex, disease duration, post mortem interval (PMI), clinical phenotypes, APOE haplotype, CERAD score as measure of Aβ plaque load, and GT-38 defined AD-tau Braak stages determined in this study. Detailed clinical variant subtypes of PSP have been defined in accordance with the recent Movement Disorder Society clinical diagnosis criteria for PSP [25]. Based on GT-38 staining of AD-tau pathology in hippocampus, entorhinal cortex, and visual cortex, Braak staging was performed in accordance with standard diagnostic criteria that previously utilized phospho-tau specific antibodies [6]. GT-38 Braak staging and CERAD scores were evaluated to designate the level of AD neuropathological change (ADNCP) as “no”, “low”, “intermediate”, or “high” based on NIA-AA guidelines for the neuropathological assessment of AD [42].
| CBD N = 49 | PSP N = 109 | PiD N = 22 | |
|---|---|---|---|
| Sex | M = 19 | M = 69 | M = 13 |
| F = 30 | F = 40 | F = 9 | |
| Age at death (years) | 67.5 (9.5) | 76 (71, 81)a | 67 (61, 74) |
| Age at onset (years) | 61.6 (9.3) | 67 (62,74)a | 57.8 (11.1) |
| Disease duration (years) | 6.0 (2.5) | 7 (4, 10)b | 9.0 (4.0) |
| PMI (hours) | 11 (5, 17) | 12 (6, 19) | 12.5 (7, 20) |
| Brain weight (g) | 1139 (139) | 1213 (1121, 1304)a | 1026 (161) |
| Clinical phenotype | CBS = 18 | PSP-RS = 61 | CBS = 2 |
| PSP = 12 | PSP-SL = 6 | PPA = 1 | |
| PPA = 9 | PSP-CBS = 8 | bvFTD-FTLD = 8 | |
| bvFTD-FTLD = 3 | PSP-F = 14 | FTD-NOS = 10 | |
| FTD- NOS = 4 | PSP-P = 8 | DLB = 1 | |
| AD = 1 | PSP-PGF = 1 | ||
| DLB = 1 | Other cognitive = 8 | ||
| Undetermined = 1 | Other motor = 3 | ||
| APOE haplotype | E2/E2 = 0 | E2/E2 = 2 | E2/E2 = 1 |
| E2/E3 = 8 | E2/E3 = 16 | E2/E3 = 1 | |
| E2/E4 = 0 | E2/E4 = 5 | E2/E4 = 0 | |
| E3/E3 = 33 | E3/E3 = 63 | E3/E3 = 16 | |
| E3/E4 = 7 | E3/E4 = 12 | E3/E4 = 3 | |
| E4/E4 = 1 | E4/E4 = 3 | E4/E4 = 0 | |
| N/A = 0 | N/A = 8 | N/A = 1 | |
| CERAD | 0 = 31 | 0 = 53 | 0 = 17 |
| 1 = 9 | 1 = 15 | 1 = 1 | |
| 2 = 3 | 2 = 14 | 2 = 1 | |
| 3 = 2 | 3 = 17 | 3 = 2 | |
| N/A = 4 | N/A = 10 | N/A = 1 | |
| Thal phase | 0 = 27 | 0 = 37 | 0 = 14 |
| 1 = 16 | 1 = 32 | 1 = 3 | |
| 2 = 3 | 2 = 21 | 2 = 4 | |
| 3 = 3 | 3 = 16 | 3 = 1 | |
| N/A = 0 | N/A = 3 | N/A = 0 | |
| Braak stage | B0 = 24 | B0 = 28 | B0 = 13 |
| B1 = 21 | B1 = 50 | B1 = 7 | |
| B2 = 4 | B2 = 25 | B2 = 1 | |
| B3 = 0 | B3 = 6 | B3 = 1 | |
| AD Neuropathological change | Not = 27 | Not = 38 | Not = 14 |
| Low = 19 | Low = 50 | Low = 7 | |
| Intermediate = 3 | Intermediate = 15 | Intermediate = 0 | |
| High = 0 | High = 4 | High = 1 |
FTLD-tau patient groups did not differ in postmortem interval yet there were statistically significant differences in age at onset (p < 0.001), disease duration (p = 0.012), and age at death (p < 0.001) across the three FTLD-tau groups. Planned post-hoc tests between individual groups revealed that PSP had later age at onset and age at death compared to CBD and PiD and no statistically significant differences between CBD and PiD. Brain weight of PiD and CBD cases were reduced in comparison to PSP (p < 0.01). Overall, AD-tau pathology was detected in 64% of FTLD-tau cases (43% with B1, 17% with B2 and 4% with B3) (Fig. 4a). Patients with higher Braak stages were significantly older at the time of death (Fig. 4b). To test whether AD-tau co-pathology was more frequent within a specific FTLD-tau subtype, we assessed the distribution of Braak stages in each FTLD-tau subtype. Braak stage B2 and B3 groups were combined due to low frequency and chi squared test was performed. This analysis found increased frequency of high Braak stages in the PSP group compared to CBD and PiD (χ2(4, n=180) =17.95; p = 0.0013) (Fig. 4c).
CSF and pathological AD-tau

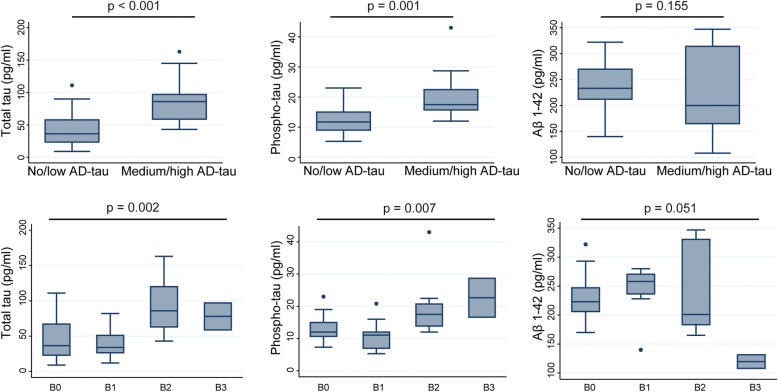

Antemortem CSF measurement of p-tau, t-tau, and Aβ1-42 were available for a subset of the FTLD-tau cases Braak staged with GT-38. We previously reported higher CSF tau levels in FTLD-tau with AD co-pathology detected by Thioflavin-S and amyloid IHC [33, 54]. Here we test the association of AD co-pathology detected by GT-38 in FTLD-tau with antemortem CSF tau measurements for cross-validation of our approach to AD Braak tau staging in FTLD-tau. There was significantly greater levels of t-tau (mean=89.98 pg/ml, SD=36.70 pg/ml) and p-tau (mean=20.45 pg/ml, SD=9.31 pg/ml) in CSF of patients with medium-high AD-tau pathology, than patients with negligible-low AD-tau t-tau (mean=43.04 pg/ml, SD=25.40 pg/ml) and p-tau (mean=11.90 pg/ml, SD=4.48 pg/ml) (p≤0.001 both) (Fig. 5). There was a non-statistically significant trend towards decreased Aβ1-42 CSF levels between groups (n=19 negligible-low AD-tau, n=10 medium-high AD-tau; p=0.155 Mann-Whitney Rank Sum test). Lastly, patients with the most severe AD-tau Braak stage B3 had lower Aβ1-42 CSF (mean=119.75 pg/ml, SD=16.61) compared to those without AD-tau (mean=232.32, SD=42.38).
Clinicopathological correlation
In an exploratory clinicopathological analysis, we examined available baseline MMSE scores in our largest FTLD-tau pathology group (PSP) across GT-38 defined AD-tau Braak stages (Braak B0 n=6 median/IQR=28.5/27.25-29.25 ; Braak B1 n=18, median/IQR=26.0/22.5-27.0; Braak B2/3 n=9, median/IQR=27.0/25.5-28.5) and found a significant association of AD Braak stage with lower MMSE score at baseline (H=6.8, df=2, p=0.03). Planned post-hoc comparisons between groups found that Braak B0 had a higher baseline MMSE compared to B1 (Z=2.4, p=0.02) and to the combined GT-38 AD-tau co-pathology group (i.e. B1-3 n=27, median/IQR=26.0/23.0-28.0 ; Z=2.2, p=0.03). We did not find an association of GT-38 AD Braak groups with clinical phenotype (λ2=0.9, p>0.1) or age at testing (H=4.2, df=2, p>0.1).
Discussion
Here we studied AD co-pathology in a large autopsy cohort of FTLD-tau using a novel mAb specific for AD-tau pathology. We find that AD-tau co-pathology is common in FTLD-tau and is associated with age and Aβ plaque co-pathology. Further, we find converging evidence for specificity for GT-38 to detect postmortem AD-tau through comparison with antemortem CSF tau levels. Finally, we find preliminary data to suggest AD-tau co-pathology in PSP may influence cognitive outcomes. These data add to the growing literature of mixed pathology in age-associated neurodegenerative diseases and have important clinical implications.
These studies provide essential validation of GT-38 as a novel tool to elucidate the currently understudied neuropathological co-occurrence of AD in other tauopathies. While AD-tau pathology can be partially differentiated from FTLD-tau based on regional distribution, cell type specificity, and morphology, this distinction is often challenging using morphological criteria alone as intraneuronal inclusions are also common in CBD, PSP, and PiD [29]. Previous studies have utilized Thio S amyloid binding dye to determine the Braak stage of AD-tau in a small cohort of patients with FTLD-tau and Lewy body disorders [33, 35]. However, Thio S is not specific for tau and binds to Aβ and TDP-43 [3, 38]. Alternatively, 3R- and 4R-tau specific antibodies can be used to determine the isoform composition of tau pathologies but requires staining with multiple antibodies, are fixation condition dependent, and stain non-pathological tau to an extent [13]. A rare subset of FTDP-17 cases containing MAPT mutations contain 3R- and 4R-tau isoform bearing inclusions and based on limited availability, we have not been able to fully characterize the selectivity of GT-38 towards these tau aggregates [16, 43, 48]. Nevertheless, GT-38 provides a robust, single mAb to selectively detect 3R- and 4R-tau pathology for assessment of Braak staging in the presence of co-morbid FTLD-tau.
Co-morbid AD-tau pathology was present in 64% of patients of FTLD-tau examined, albeit mostly low level Braak B1 restricted to regions of the entorhinal cortex and CA1 of the hippocampus. Predictably, age at death was the strongest predictor of AD-tau pathology among the FTLD-tau cohort in univariate logistic regression models, as aging is the greatest risk factor for development of AD [22, 45]. Furthermore, the presence of amyloid plaques was a strong predictor of AD-tau pathology strengthening confidence in GT-38 selective detection of AD relevant pathological tau species since Aβ plaque deposition generally precedes tau aggregates in neocortex of patients with AD [51]. PSP cases more frequently displayed high Braak stage AD-tau compared to CBD or PiD, however this effect was non-significant when accounting for age at death and CERAD score in a multivariate logistic regression model. This finding indicates that the advanced age of the PSP cohort was likely influential for our observations of increased frequency of comorbid AD-tau rather than an underlying biological association of PSP related tauopathy to potentially enhance or initiate AD-related tauopathy. Further work in animal and cell models of tau propagation are needed to test the potential for FTLD-tau strains or pathological conformers to interact with AD related tau pathology. In our optimal multivariate logistic regression model to predict high Braak stage AD-tau pathology we found both age at death and CERAD score as significant predictors, suggesting that both age and amyloid-related mechanisms could contribute to AD related-tauopathy in FTLD-tau. However, of these FTLD-tau cases with significant AD-tau copathology we found 7 of 31 PSP and 1 of 4 CBD cases with Thal amyloid and CERAD plaque scores of 0 or 1, which meet diagnostic criteria for probable or possible PART [9]. The pathological distinction of AD and PART, remains controversial but both are distinct processes from FTLD tauopathy that are important to distinguish in postmortem tissue [12].
Here our detection of AD-tau copathology by GT-38 has demonstrable biomarker alterations during life, as GT-38 identified AD-tau pathology correlated with increased t-tau and p-tau in CSF. Despite the fact that CSF tau fragments may not be directly incorporated into tangle pathology, postmortem neuropathological assessment and in vivo positron emission tomography (PET) find AD-tau pathology are related to increased CSF t-tau and p-tau levels [5, 8, 17, 33]. Previously we have shown AD copathology can influence CSF values in FTLD, and these data cross validate the specificity for AD-tau and further emphasize the need for detection of AD copathology in vivo [33, 54]. While p-tau, t-tau, and Aβ levels in CSF differentiate AD from healthy controls and FTLD-tau to an extent, future efforts using tau strain specific mAbs to detect AD-tau in CSF has potential to provide great diagnostic value for living patients [2, 10, 50, 52]. Although great progress has been made identifying tau specific PET ligands, there are still challenges of off-target binding and high-inter patient variability, therefore a need exists for additional ligands and GT-38 provides a potential approach to develop AD-tau specific targeted PET ligands [40, 46, 49].
The common co-occurrence of overlapping neuropathologies confounds the clinical diagnoses of various dementia [34]. In our preliminary analysis using rare, autopsy-confirmed, neuropsychological data in a general screening tool for global cognition (MMSE) we found an association of worse performance at baseline with the presence of AD-tau co-pathology in PSP as detected by GT-38. While our PSP group was clinically heterogeneous (Table 1), we did not find an association between cognitive vs motor clinical phenotypes or age in our data set. While this important data represents coordinated effort of capturing harmonized clinical assessments across cognitive and motor subspecialty clinics, we had limited overall MMSE data and lacked sufficient data to test specific cognitive domains in this cohort. Future work with detailed prospective antemortem clinical assessments capturing the broad range of clinical expression of dementia in FTLD-tau (i.e. social cognition, language, spatial functioning, apraxia) followed to autopsy are needed to determine the specific clinical features of dementia associated with AD co-pathology in FTLD-tau. Nevertheless, these initial results suggest AD-tau co-pathology may influence cognitive outcomes in FTLD-tau.
Conclusion
The data presented here demonstrate the utility of AD-tau specific mAb GT-38 for Braak staging AD pathology in the context of FTLD-tau. GT-38 staining provides a robust and simple tool to neuropathologically differentiate AD specific tau pathology to further elucidate the contribution of AD-tau in comorbid neurodegenerative diseases. In addition, it remains to be determined whether the 3R- and 4R-tau epitope present in AD is recapitulated in other non-age related tauopathies comprised of six tau isoforms such as traumatic brain injury (TBI) or chronic traumatic encephalopathy (CTE). The findings presented here, validate the use of GT-38 in postmortem autopsy tissue and suggest exciting potential for detection of AD-tau in living subjects via CSF or as a PET ligand.
Acknowledgements
We thank Mendy Liang, Theresa Schuck, and Catherine Casalnova for technical assistance tissue sectioning. We thank the patients who contributed CSF and autopsy tissue for these studies and their families.
Funding
This study was supported by National Institutes of Health grants AG53036 (GSG), NS088341 (DJI), AG17586 (VMYL), AG10224 (JQT), Penn Institute on Aging, Wyncote Foundation, BrightFocus Foundation.
Availability of data and materials
The datasets generated during this study are available from the corresponding author on reasonable request.
Untitled section
Ethics approval and consent to participate
All procedures were performed with informed consent in accordance with state laws and institutional review board guidelines of the University of Pennsylvania.
Competing interests
The authors declare that they have no competing interests.
Publisher’s Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
