Direct Stimulatory Effects of the CB2 Ligand JTE 907 in Human and Mouse Islets
Department of Diabetes, School of Life Course Sciences, King’s College London, Guy’s Campus, London SE1 1UL, UK; patricio.atanes_juiz@kcl.ac.uk (P.A.); guo.huang@kcl.ac.uk (G.C.H.); bo.2.liu@kcl.ac.uk (B.L.)
Abstract
Aims: The endocannabinoid system is a complex cell-signaling network through which endogenous cannabinoid ligands regulate cell function by interaction with CB1 and CB2 cannabinoid receptors, and with the novel cannabinoid receptor GPR55. CB1, CB2, and GPR55 are expressed by islet β-cells where they modulate insulin secretion. We have previously shown that administration of the putative CB2 antagonist/inverse agonist JTE 907 to human islets did not affect the insulinotropic actions of CB2 agonists and it unexpectedly stimulated insulin secretion on its own. In this study, we evaluated whether the lack of antagonism could be related to the ability of JTE 907 to act as a GPR55 agonist. Materials and Methods: We used islets isolated from human donors and from Gpr55+/+ and Gpr55−/− mice and quantified the effects of incubation with 10 μM JTE 907 on dynamic insulin secretion, apoptosis, and β-cell proliferation by radioimmunoassay, luminescence caspase 3/7 activity, and immunofluorescence, respectively. We also measured islet IP1 and cAMP accumulation using fluorescence assays, and monitored [Ca2+]i elevations by Fura-2 single cell microfluorometry. Results: JTE 907 significantly stimulated insulin secretion from islets isolated from human donors and islets from Gpr55+/+ and Gpr55−/− mice. These stimulatory effects were accompanied by significant elevations of IP1 and [Ca2+]i, but there were no changes in cAMP generation. JTE 907 also significantly reduced cytokine-induced apoptosis in human and mouse islets and promoted human β-cell proliferation. Conclusion: Our observations show for the first time that JTE 907 acts as a Gq-coupled agonist in islets to stimulate insulin secretion and maintain β-cell mass in a GPR55-independent fashion.
Untitled section
Keywords: human islets, insulin secretion, apoptosis, proliferation, cannabinoid G protein-coupled receptors
Article notes
Untitled section
Received 2021 Feb 2; Accepted 2021 Mar 19; Collection date 2021 Mar.
1. Introduction
Islets of Langerhans contain specialised β-cells that are capable of synthesising and secreting insulin into the bloodstream to rapidly counteract high blood glucose levels. Failure of appropriate β-cell function causes type 2 diabetes (T2D), a chronic disease that results in severe hyperglycaemia [1]. The mechanisms underlying the regulation of β-cell function and mass are of major research interest as advances in understanding will underpin development of novel pharmacological therapies for T2D [2]. In this context, the endocannabinoid system (ECS) is of particular interest since it was targeted by the cannabinoid (CB) receptor type 1 (CB1) antagonist rimonabant to aid weight loss and improve glycaemic control [3,4,5]. The ECS is a cell-signaling network formed by endogenous ligands, named endocannabinoids, their enzymes of synthesis and degradation, and their receptors [6,7,8,9]. Phospholipid-derived endocannabinoids such as 2-arachidonoylglycerol and anandamide act as activators of the canonical CB1 and CB2 receptors [6]. Both receptors belong to the seven-transmembrane G protein-coupled receptor (GPCR) conserved family and they are distributed centrally and peripherally in active metabolic tissues [6,9].
Several studies have demonstrated that islets express elements of the ECS [6,8,10,11,12,13,14]. Furthermore, there are reports that cannabinoid receptor ligands can regulate insulin secretion and cell viability [9,11,12,13,14,15,16,17], which are the desired pathways to be enhanced under conditions of impaired glucose tolerance or T2D [1]. However, a growing number of studies concerning cannabinoid ligand off-target effects highlight the complex pharmacology surrounding the ECS [9,15,18,19]. To date, use of synthetic cannabinoid ligands has indicated a lack of affinity of some of them for the main cannabinoid CB1/CB2 receptors, outlining independent cascades that involve other receptors with potential connections to the ECS [9,15,20]. Thus, other receptors, such as GPR55 (G protein-coupled receptor 55), have been implicated in mediating endocannabinoid effects [6,9,15,20] and playing regulatory roles in islet function and glucose homeostasis [9,15,20,21,22,23].
We have previously shown that administration of the CB2 antagonist/inverse agonist N-(1,3 benzodioxol-5-ylmethyl)-1,2-dihydro-7-methoxy-2-oxo-8-(pentyloxy)-3-quinolinecar boxamide, also named JTE 907 (Supplementary Figure S1), to human islets failed to inhibit the insulinotropic effects of CB2 agonists, but JTE 907 alone stimulated insulin secretion [10]. The stimulatory mode of action of JTE 907 in islets is unknown, so in the current study, we evaluated whether the increase in insulin secretion could be related to the ability of JTE 907 to activate the novel cannabinoid receptor GPR55. We therefore examined the functional effects of JTE 907 on insulin secretion, apoptosis, and β-cell proliferation and cAMP, IP1, and [Ca2+]i signaling in islets isolated from wild-type and GPR55 null mice, and from human donors.
2. Materials and Methods
2.1. Materials
Culture media and supplements, collagenase type XI, histopaque-1077, DMSO, EDTA, IBMX, carbachol, clonidine, Accutase, Fura-2 AM, tolbutamide, LiCl, exendin-4, forskolin, agarose, bionic buffer, and BSA were obtained from Sigma-Aldrich (Dorset, UK). JTE 907 was from Tocris Bioscience (Abingdon, UK). Rabbit anti-Ki67 primary antibody was from Abcam (Cambridge, UK). cAMP HiRange and IP-one (IP1) assays were from Cisbio (Codolet, France). HEPES, HBSS, and DAPI were from Thermo Fisher Scientific (Paisley, UK). Caspase-Glo 3/7 was from Promega (Southampton, UK). Recombinant TNFα, IFNγ, and IL-1β were from PeproTech EC (London, UK). Guinea pig anti-insulin was purchased from Dako (Cambridge, UK). Alexa Fluor 488- and Alexa Fluor 594-conjugated secondary antibodies were from Jackson ImmunoResearch Laboratories (Newmarket, UK).
2.2. Animals
Gpr55 knockout (Gpr55−/−) mice were generated by homologous recombination, with a loxP-flanked Neo cassette replacing a single GPR55 coding exon and backcrossed for 11 generations towards C57BL/6J. Mice heterozygous for the deletion were inter-crossed to produce homozygous C57BL/6J Gpr55−/− offspring [24]. The success of this approach was verified by Western blotting [22] and confirmed by PCR-based genotyping using specific primers [9]. The Gpr55−/− mouse colony was maintained at King’s College London and provided with water and food ad libitum. Age-matched wild-type (Gpr55+/+) male C57BL/6J mice were purchased from Envigo (Bicester, UK) and maintained in the same conditions as the Gpr55−/− mice prior to islet isolation. All animal procedures were approved by the King’s College London Ethics Committee and carried out in accordance with the UK Home Office Animals (Scientific Procedures) Act 1986 (Project Licence number PBCFBE464: Improving therapies for diabetes).
2.3. Isolation of Human and Mouse Islets
Human islets were isolated from 11 non-diabetic (Supplementary Table S1), heart-beating pancreas donors (3 male, 8 female) at the King’s College Hospital Islet Transplantation Unit [25], with appropriate ethical approval (KCL Human Islet Research Tissue Bank, IRAS project ID: 244510). The average age (±SEM) of the donors was 41.7 ± 3.6 years and the body mass index (BMI) was 27.8 ± 1.7 kg/m[2]. Islets were isolated from 8- to 12-week old male Gpr55−/− C57BL/6J mice and age-matched Gpr55+/+ mice via collagenase injection into the common bile duct [26], yielding ~350 islets per mouse. Isolated mouse and human islets were maintained in culture overnight (human: CMRL-1066; mouse: RPMI-1640) at 37 °C, 95% air/5% CO2 prior to experimentation [27].
2.4. Dynamic Insulin Secretion
Groups of 55 human or 45 mouse islets were perifused with a physiological salt solution [28] supplemented with 2 mM or 20 mM glucose in the absence or presence of 10 µM JTE 907 using a temperature-controlled perifusion system [27]. Perifusate fractions were collected at 2-min intervals and secreted insulin was quantified by radioimmunoassay [26]. JTE 907 was dissolved to 10 µM in DMSO with a final DMSO concentration of 0.1% (v/v), which was also used as a control (vehicle) in the perifusions with human islets.
2.5. Caspase 3/7 Activities
Groups of 5 mouse or human islets were maintained in culture for 24 h in the absence or presence of 10 μM JTE 907, then incubated for a further 20 h in RPMI-1640 with 2% (v/v) FBS (mouse) or CMRL with 0.2% (v/v) albumin (human), supplemented with a cytokine cocktail (0.025 U/μL IL-1β, 1 U/μL TNFα, and 1 U/μL IFNγ). Pro-apoptotic activity was determined using the Caspase-Glo 3/7 assay [26,27].
2.6. Islet β-Cell Proliferation
Groups of 250 mouse or human islets were incubated for 48 h at 37 °C (95% air/5% CO2) in RPMI-1640 with 2% (v/v) FBS (mouse) or CMRL with 0.2% (v/v) albumin (human), supplemented with 10 JTE 907 or vehicle (0.0001% v/v DMSO). Human islets were also incubated with 20 nM exendin-4 as a positive control. Islets were fixed with 4% (w/v) paraformaldehyde and embedded in paraffin. Sections of 5 μm thickness were dewaxed, then antigens were retrieved using citrate buffer (10 mM citric acid, 0.05% v/v Tween 20, pH 6.0). For double immunofluorescence, sections were first incubated overnight at 4 °C with primary anti-insulin (guinea pig) and anti-Ki67 (rabbit) antibodies at 1:200 dilution followed by the corresponding Alexa Fluor 488/594 secondary antibodies (1:150 dilution) for 1 h at room temperature [9]. The primary and secondary antibodies used are listed in Supplementary Table S2. Human islet sections were examined under a confocal laser microscope (Nikon A1 Inverted) and mouse samples were visualised using a fluorescence microscope (Nikon Eclipse TE2000-U). Images were analysed blindly before quantification using Fiji Image J software (https://fiji.sc) [9,15]. Proliferating β-cells were quantified by counting the number of cells double-stained with Ki67 and insulin; the number of β-cells per islet was quantified by counting the number of insulin-positive cells and islet area was calculated by selecting islets with the Image J freehand selections tool and setting the scale according to the microscope objective used. For each experiment, the images were acquired with the same settings and histological quantifications were performed in paraffin sections that had been immunostained under the same conditions.
2.7. IP1 and Cyclic AMP Accumulation
Groups of 7 human islets or 5 mouse islets were transferred to 96-well plates in HBSS medium supplemented with 10 mM HEPES, 0.2% (w/v) BSA, and 2 mM IBMX for quantification of cAMP [26] or 50 mM LiCl for assay of IP1 [9]. Consequently, islets were incubated for 1 h at room temperature (cAMP) or at 37 °C (IP1) in the absence or presence of test agents, and islet cAMP or IP1 levels were quantified by measuring the fluorescence emission intensity ratio at 665/620 nm using a Pherastar FS microplate reader (BMG Labtech Ltd., Aylesbury, UK).
2.8. Single Cell Calcium Microfluorimetry
Mouse islets were dissociated by short-term incubation with the proteolytic enzyme Accutase. Groups of approximately 100,000 dispersed mouse islet cells were seeded onto glass coverslips, maintained in culture overnight, then loaded with 5 μM Fura-2 AM for 30 min. Cells on coverslips were perifused (37 °C, 1 mL/min) with a physiological salt solution [28] containing 2 mM glucose in the absence or presence of test agents. Real-time changes in [Ca2+]i were determined by illuminating cells alternately at 340 nm and 380 nm, with the emitted light being filtered at 510 nm and data were recorded with a CCD camera every 3 s [26].
2.9. Statistical Analyses
All data were analyzed by unpaired Student’s t-test comparisons or one-way ANOVA with repeated measures followed by post hoc tests, as appropriate, using GraphPad Prism 8.0 (GraphPad Software, Inc.). All numerical values are presented as mean + SEM and p < 0.05 was considered statistically significant.
3. Results
3.1. JTE 907 Stimulates Insulin Secretion in a GPR55-Independent Manner

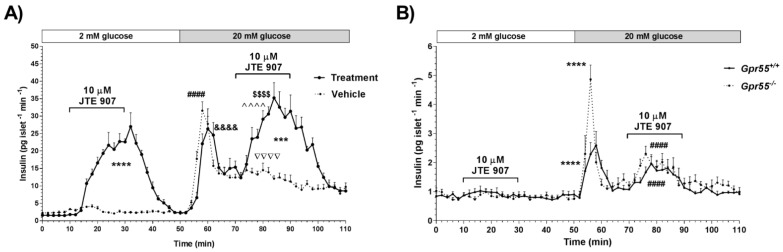

In an earlier study, we demonstrated that JTE 907 did not inhibit insulin secretion induced by the CB2 agonist JWH 015 in human islets, and it had independent stimulatory effects on insulin release that were similar to those of JWH 015 [10]. Here, we analysed dynamic insulin secretion from human and mouse islets perifused with buffers supplemented with 2 mM glucose followed by 20 mM glucose in the absence or presence of 10 µM JTE 907. Figure 1A indicates that JTE 907 induced significant, reversible elevations in insulin secretion from human islets during perifusion at both 2 mM and 20 mM glucose, compared to islets treated with vehicle alone. To evaluate whether this direct stimulation of insulin release could be related to the ability of JTE 907 to act as a GPR55 agonist in islets, we examined dynamic insulin profiles using wild-type mice and those null for GPR55, and found that JTE 907 significantly promoted glucose-stimulated insulin secretion in both Gpr55+/+ and Gpr55−/− mouse islets (Figure 1B). Potentiation of glucose-induced insulin secretion from Gpr55−/− islets by JTE 907 thus ruled out the involvement of GPR55 signaling in its insulin secretagogue effects.
3.2. JTE 907 Protects Human and Mouse Islets from Cytokine-Induced Apoptosis

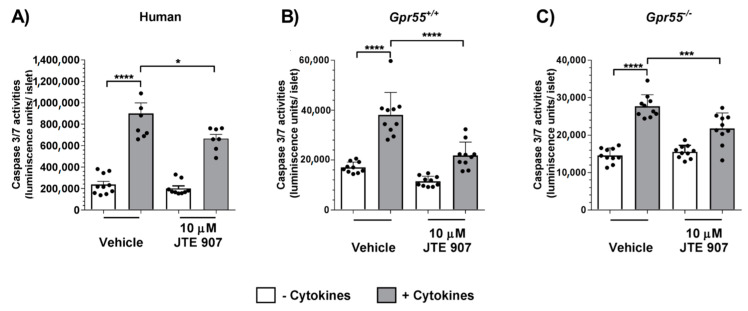

To examine whether the insulinotropic effects of JTE 907 in human and mouse islets were accompanied by alterations in islet apoptosis, we evaluated whether exposure of islets to JTE 907 affected basal or cytokine-induced caspase 3/7 activities in islets isolated from human donors and from Gpr55+/+ and Gpr55−/− mice. In these experiments, 10 µM JTE 907 significantly decreased apoptosis stimulated by cytokines in human islets (Figure 2A). Moreover, JTE 907 also inhibited cytokine-induced apoptosis in islets isolated from Gpr55+/+ mice (Figure 2B), and these anti-apoptotic properties were also observed in islets from Gpr55−/− mice (Figure 2C). However, although this ligand had protective effects against cytokines, it did not significantly reduce basal levels of apoptosis in the absence of cytokines in either human or mouse islets.
3.3. JTE 907 Induces Human β-Cell Proliferation

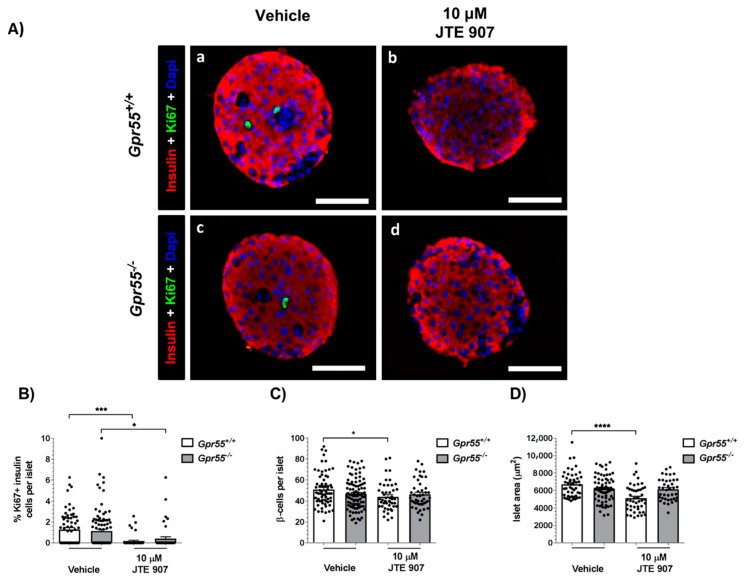

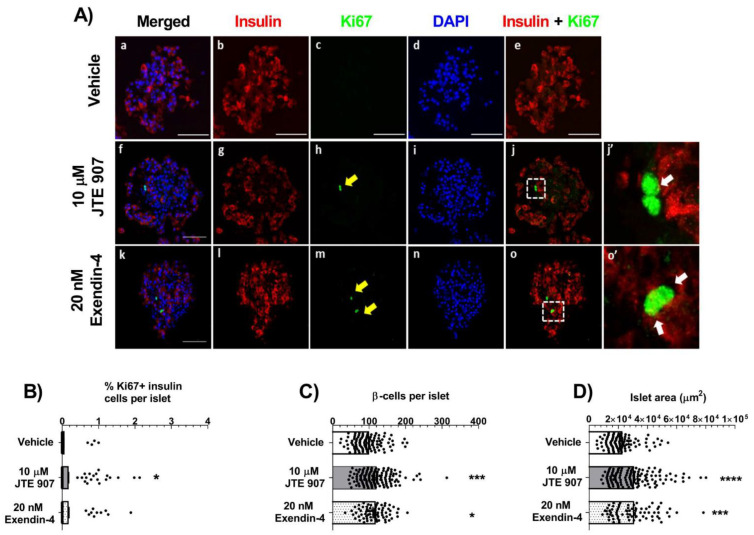

The role of the JTE 907 in regulating adult β cell-proliferation was investigated by co-staining of insulin and the proliferative marker Ki67 in human and mouse isolated islets. Mean analysis of islets from three separate donors revealed that exposure to 10 µM JTE 907 for 48 h significantly increased the small percentage of insulin-positive cells expressing Ki67 (Figure 3A,B). This increased human β-cell proliferation was associated with small increases in the number of β-cells per islet (Figure 3C) and in islet area (Figure 3D). The GLP-1 analogue, exendin-4, also significantly stimulated human islet β-cell proliferation (Figure 3A,B) and increased β-cell number (Figure 3C) and islet area (Figure 3D). When the effects of JTE 907 were analysed in islets from individual donors, it was found that it had pro-proliferative effects in two batches of islets but not in the third (Supplementary Figure S2), suggesting that the ability of JTE 907 to stimulate human β-cell proliferation is variable. In contrast to the data obtained with human islets, the β-cell proliferation rates in vehicle-treated Gpr55+/+ and Gpr55−/− mouse islets were significantly decreased after exposure to 10 μM JTE 907 for 48 h (Figure 4A,B). Regarding β-cell mass, 10 μM JTE 907 also had a small impact, reducing the number of β-cells per islet (Figure 4C) and islet area (Figure 4D) in islets isolated from Gpr55+/+ mice. However, no significant changes in the number of β-cells per islet (Figure 4C) or islet area (Figure 4D) were identified in Gpr55−/− islets following 48 h exposure to 10 μM JTE 907.
3.4. JTE 907 Is Not Coupled to Gs or Gi Signaling in Human and Mouse Islets

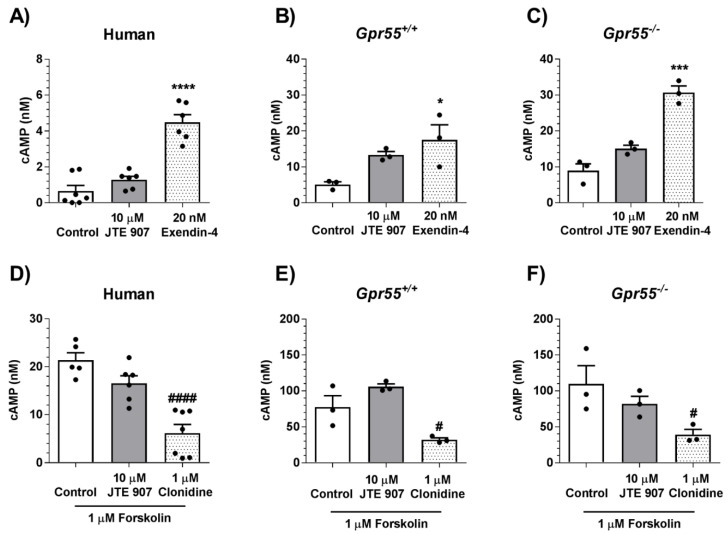

In an attempt to delineate the downstream mechanisms activated by JTE 907 in human and mouse islets, we measured cAMP accumulation to examine whether it was coupled to Gs signaling. However, 10 µM JTE 907 did not significantly stimulate cAMP elevations in human islets nor islets isolated from Gpr55+/+ and Gpr55−/− mice (p > 0.05 for all comparisons), whereas the GLP-1 analogue exendin-4 (20 nM) significantly increased cAMP accumulation, as expected (Figure 5A–C). In human (Figure 5D) and mouse islets (Figure 5E,F), 10 µM JTE 907 also failed to significantly inhibit forskolin-elevated cAMP accumulation, confirming that it does not couple to Gi or signal via GPR55. As expected, the α2-adrenergic agonist clonidine significantly inhibited forskolin-induced elevation in cAMP in both human and mouse islets (Figure 5D–F).
3.5. JTE 907 Increases Islet IP1 Levels in Human and Mouse Islets

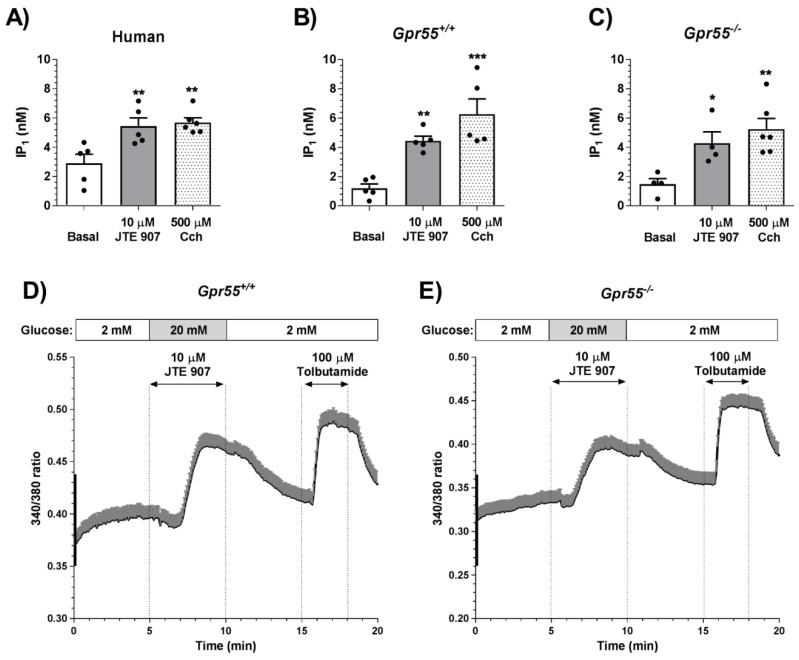

We also determined the effects of JTE 907 on Gq coupling in islets by quantifying levels of the stable IP3 metabolite, IP1. In human (Figure 6A) and mouse (Figure 6B,C) islets, 10 µM JTE 907 significantly increased IP1 levels, as did the muscarinic receptor agonist carbachol, which signals via Gq-coupled M3 receptors in islets [29]. JTE 907 also significantly elevated IP1 in islets in which GPR55 had been deleted (Figure 6C), consistent with the maintenance of its stimulation of insulin secretion and protection against cytokine-induced apoptosis in islets from Gpr55−/− mice. In parallel experiments, we performed single cell calcium microfluorimetry measurements in Fura-2-loaded mouse islet cells. These experiments indicated that 10 µM JTE 907 elevated [Ca2+]i in islet cells from both Gpr55+/+ (Figure 6D) and Gpr55−/− (Figure 6E) mice at 20 mM glucose, in agreement with the islet IP1 measurements. In all tested batches of islets, the ATP-sensitive K+ channel blocker, tolbutamide, stimulated reversible increases in [Ca2+]i, demonstrating that the ability to control the membrane potential was preserved after exposure to JTE 907.
4. Discussion
There are many studies indicating that effects of cannabinoid ligands are not limited to the classical CB1 and CB2 receptors, and it has been suggested that off-target effects of cannabinoids may be mediated by the novel cannabinoid receptor GPR55 [30]. We, and others, have shown that GPR55 is expressed by mouse and human β-cells where it is coupled to the stimulation of insulin secretion [15,21,22]. We have previously reported that JTE 907, a CB2 antagonist/inverse agonist, unexpectedly had direct insulinotropic effects in human islets when it was administered alone, similar to those of the CB2 agonist JWH 015 [10]. In the current study, we evaluated whether JTE 907 acted through GPR55-dependent coupling in islets to promote insulin secretion, and we also investigated its effects on human and mouse β-cell mass.
We identified that JTE 907 reversibly stimulated insulin output from isolated human and mouse islets, confirming our earlier observation of insulinotropic effects induced by JTE 907 in dynamic secretion experiments with human islets [10]. JTE 907 also evoked significant stimulation of insulin from human islets at 2 mM glucose, but had no effects in mouse islets under these hypoglycaemic conditions. The capacity of JTE 907 to initiate insulin secretion from human islets at sub-stimulatory glucose indicates that this drug would not be suitable for in vivo delivery as there would be the potential risks of hypoglycaemic episodes with its use. The reasons underlying the disparity in the glucose-dependent effects of JTE 907 between human and mouse islets are unclear, but it could be a consequence of inter-species differences in islet architecture, where human islets contain proportionally more α-cells than do mouse islets [31,32], or it could reflect species-dependent differences in metabolic requirements [33,34]. It is also possible that JTE 907 has more than one mode of action, and the mechanism through which it elevates basal insulin secretion is present in human, but not mouse, islets while the potentiating pathway is common to both. Further research is required to fully define signaling downstream of JTE 907 in mouse and human islets, as discussed below. Nonetheless, the maintenance of the stimulatory effects of JTE 907 in perifused islets isolated from Gpr55−/− mice demonstrated that its ability to induce insulin secretion is not dependent on GPR55 activation.
In the current study, we also showed that, in addition to stimulating insulin secretion, JTE 907 has direct anti-apoptotic effects in isolated human islets. It is possible that, although it does not signal via GPR55 in islets to increase insulin secretion, JTE 907 could activate this receptor to protect β-cells against cytokine-induced apoptosis. Thus, it is known that GPR55 activation protects against cytokine-induced apoptosis in human islets [15] and it has anti-apoptotic, anti-inflammatory and cytoprotective effects in mouse islets [15,20]. However, although JTE 907 also reduced cytokine-induced caspase 3/7 activities in mouse islets, the use of islets from Gpr55−/− mice indicated that, as for stimulation of insulin secretion, this was through a GPR55-independent cascade.
Immunohistochemical analyses of Ki67 and insulin staining indicated that JTE 907 significantly increased the low rate of adult human β-cell proliferation, to a similar extent to that seen with the GLP-1 analogue exendin-4. We have previously demonstrated that the putative CB1 antagonist LH-21 acted as a GPR55 agonist to induce mouse β-cell proliferation [15]. In the current study, we therefore expanded the investigation into the potential effect of JTE 907 on mouse β-cell proliferative activity and determined whether this ligand mediated its actions via GPR55. However, in contrast to the data obtained with human islets, JTE 907 reduced the mouse β-cell proliferation index in islets isolated from Gpr55+/+ mice, and this was associated with small decreases in the number of β-cells per islet and islet area. A similar JTE 907-induced inhibition of β-cell proliferation was observed in islets from Gpr55−/− mice, but β-cell number or islet area were not affected. It is unlikely that this reflects GPR55-dependent effects of JTE 907 since it inhibited β-cell proliferation to a similar extent in Gpr55+/+ and Gpr55−/− islets. This suggests that the balance of decreased proliferation and decreased apoptosis that we observed in response to JTE 907 resulted in an overall lack of effect on β-cell number or islet area. The reasons underlying the differences in the proliferative effects of JTE 907 in human and mouse islets are not immediately obvious: the protocols were standardised, but while the mice used for islet isolation in this study were male 8–12 weeks old, fed on a standard chow diet, donors of human islets for research are generally middle-aged and overweight or obese. In particular, the islets used for our proliferation experiments were from obese female donors, with mean age and BMI of 38.0 ± 2.9 and 35.5 ± 2.8, respectively (see Supplementary Table S1). It is known that β-cells exhibit better proliferation potential in obesity [35], so this may have increased the opportunity to detect elevated proliferation with JTE 907 in our experiments. Our analysis of the effects of JTE 907 on β-cell proliferation in islets from individual donors supported this, with the most marked stimulatory effects of JTE 907 observed in islets obtained from a donor with a BMI of 39.5 (Donor 10 in Supplementary Table S1, panels D–F in Supplementary Figure S2). The individual data also indicated that there are inter-donor differences in responses to both JTE 907 and exendin-4. It was not possible to define the variabilities in islet donor characteristics that could affect experimental outcomes in this study, but there may have been differences in the metabolic status of the donors or in the proportion of β-cells per islet, despite the donors being well matched for gender, age, and BMI. We did not have sufficient samples to address whether there were gender- or age-dependent effects on human β-cell proliferation in the absence and presence of JTE 907, nor whether JTE 907 also induced proliferation in islets from lean donors, and these are experiments that would be useful for future studies.
Our experiments indicating that JTE 907 does not antagonize CB2-mediated signaling in islets [10], together with our current demonstration that JTE 907 has direct effects on islet function that is maintained in islets in which GPR55 is absent, are consistent with JTE 907 having CB2- and GPR55-independent signaling in islets. We therefore quantified cAMP and IP1 levels to determine whether JTE 907 was signaling via traditional GPCR cascades in human and mouse islets. Quantification of cAMP levels indicated that JTE 907 did not act via Gs to transduce adenylate cyclase-mediated cAMP accumulation, demonstrating that it was not activating receptors involving stimulatory Gs signaling. The CB2 inverse agonist action of JTE 907 is associated with enhanced forskolin-stimulated cAMP generation [36], but this was not observed in islets, again confirming that JTE 907 was not acting via CB2 in islets. Furthermore, we ruled out an effect of JTE 907 via Gi activation in human and mouse islets since it did not inhibit cAMP accumulation in the presence of forskolin. This fits with the physiological effects of JTE 907 to increase insulin secretion, which would not be compatible with Gi-coupled signaling.
JTE 907 significantly elevated IP1 levels in human and mouse islets implying activation of Gq and phospholipase C-mediated hydrolysis of phosphatidylinositol 4,5-bisphosphate to generate IP3 and diacylglycerol. This signaling cascade is known to be coupled to increased insulin secretion, protection against apoptosis, and stimulation of proliferation in islets [9,15,22,37], so it seems likely that the effects of JTE 907 that we have presented here are mediated by activation of a Gq-coupled GPCR. GPR55 signals via Gq, but, consistent with our functional data, JTE 907 did not act via GPR55 to elevate IP1 since its stimulatory effects were maintained in islets from Gpr55−/− mice. In addition, JTE 907 induced intracellular [Ca2+]i elevations in islet cells from both Gpr55+/+ and Gpr55−/− mice, in agreement with GPR55-independent Gq coupling. The receptor responsible for mediating the effects of JTE 907 in islets is unknown. There are several GPCRs that have been implicated in cannabinoid signaling: we have ruled out GPR55 in the current experiments, GPR119 is not a candidate since it is Gs-coupled, but GPR18 and GPR92 are Gq-coupled and can be activated by some cannabinoids [38,39]. However, we have previously reported that GPR18 is not expressed by human islets [40], so this receptor could not have been mediating the effects of JTE 907 in human islets that we report here. In addition, although GPR92 appears to be a plausible candidate, its activation is reported to lead to elevations in cAMP [41], which we did not observe here with JTE 907. Human islets express nearly 300 GPCRs [40], so it is clear that further work is required to define the GPCR responsible for the effects of JTE 907.
5. Conclusions
Our study, using isolated human and mouse islets, demonstrates that the CB2 antagonist/inverse agonist JTE 907 has direct effects to stimulate insulin secretion and preserve β-cell mass, which are independent of CB2 or GPR55 signaling. We have identified that JTE 907 activates Gq coupling in islets, but the GPCR through which it acts has not yet been identified.
Acknowledgments
We thank the families of the pancreas donors and the Cell Therapy Unit in the NIHR/Wellcome King’s CRF that houses the clinical islet isolation laboratory for making islets available for this research. We also thank Professor David Baker, Blizard Institute, Barts and The London School of Medicine and Dentistry, London, UK, for providing Gpr55−/− mice to establish our colony.
Abbreviations
| BMI | body mass index |
| BSA | bovine serum albumin |
| cAMP | 3′,5′-cyclic adenosine monophosphate |
| Cch | carbachol |
| CB1 | canonical cannabinoid receptor type 1 |
| CB2 | canonical cannabinoid receptor type 2 |
| CMRL | Connaught Medical Research Laboratories |
| DAPI | 4′,6-diamidino-2-phenylindole |
| DMSO | dimethyl sulfoxide |
| ECS | endocannabinoid system |
| EDTA | ethylenediaminetetraacetic acid |
| FBS | fetal bovine serum |
| GLP-1 | glucagon-like peptide-1 |
| GPCR | G protein-coupled receptor |
| GPR55 | G protein-coupled receptor 55 |
| Gq | Gq alpha subunit |
| Gs | Gs alpha subunit |
| HBSS | Hank’s Balanced Salt Solution |
| HEPES | 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid |
| HTRF | Homogeneous Time Resolved Fluorescence |
| IBMX | 3-isobutyl-1-methylxanthine |
| IFNγ | interferon gamma |
| IL-1β | interleukin-1 beta |
| IP1 | inositol-1-phosphate |
| IP3 | inositol trisphosphate |
| JTE 907 | N-(1,3 benzodioxol-5-ylmethyl)-1,2-dihydro-7-methoxy-2-oxo-8-(pentyloxy)-3-quinolinecar boxamide |
| JWH 015 | (2-Methyl-1-propyl-1H-indol-3-yl)-1-naphthalenylmethanone |
| LH-21 | 5-(4-chlorophenyl)-1-(2,4-dichlorophenyl)-3-hexyl-1H-1,2,4-triazole |
| M3 | muscarinic receptors |
| RIA | radioimmunoassay |
| RPMI | Roswell Park Memorial Institute |
| Rimonabant (SR141716A) | 5-(4-chlorophenyl)-1-(2,4-dichloro-phenyl)-4-methyl-N-(piperidin1-yl)-1H-pyrazole-3-carboxamide |
| TNFα | tumor necrosis factor alpha |
| T2D | type 2 diabetes |
Supplementary Materials
The following are available online at https://www.mdpi.com/2073-4409/10/3/700/s1, Figure S1: Chemical structure of JTE 907, Figure S2: Effects of JTE 907 on human-cell proliferation in islets from individual donors, Table S1: Human islet preparations obtained from non-diabetic donors used in this study, Table S2: List of primary and secondary antibodies used for the immunofluorescence staining methods.
Funding
The study was funded by Diabetes UK (11/0004307) and by the Society for Endocrinology through an Early Career Grant (2019–2020) to I.R.M.
Institutional Review Board Statement
Human islets were isolated from heart-beating pancreas donors at the King’s College Hospital Islet Transplantation Unit with appropriate ethical approval (KCL Human Islet Research Tissue Bank, IRAS project ID: 244510). All animal procedures were approved by the King’s College London Ethics Committee and carried out in accordance with the UK Home Office Animals (Scientific Procedures) Act 1986 (Project Licence number PBCFBE464: Improving therapies for diabetes).
Informed Consent Statement
Informed consent was obtained from all subjects involved in the study.
Data Availability Statement
Data available upon request.
Conflicts of Interest
The authors have no conflict of interest to declare.
Footnotes
Footnote Group
References
Untitled section
References
- 1.Frank J.A., Broichhagen J., Yushchenko D.A., Trauner D., Schultz C., Hodson D.J. Optical tools for understanding the complexity of beta-cell signalling and insulin release. Nat. Rev. Endocrinol. 2018;14:721–737. doi: 10.1038/s41574-018-0105-2.
- 2.Persaud S.J. Islet G-protein coupled receptors: Therapeutic potential for diabetes. Curr. Opin. Pharmacol. 2017;37:24–28. doi: 10.1016/j.coph.2017.08.001.
- 3.Despres J.P., Golay A., Sjostrom L. Effects of rimonabant on metabolic risk factors in overweight patients with dyslipidemia. N. Engl. J. Med. 2005;353:2121–2134. doi: 10.1056/NEJMoa044537.
- 4.Van Gaal L.F., Rissanen A.M., Scheen A.J., Ziegler O., Rossner S., RIO-Europe Study Group Effects of the cannabinoid-1 receptor blocker rimonabant on weight reduction and cardiovascular risk factors in overweight patients: 1-year experience from the RIO-Europe study. Lancet. 2005;365:1389–1397. doi: 10.1016/S0140-6736(05)66374-X.
- 5.Pi-Sunyer F.X., Aronne L.J., Heshmati H.M., Devin J., Rosenstock J., RIO-North America Study Group Effect of rimonabant, a cannabinoid-1 receptor blocker, on weight and cardiometabolic risk factors in overweight or obese patients: RIO-North America: A randomized controlled trial. JAMA. 2006;295:761–775. doi: 10.1001/jama.295.7.761.
- 6.Li C., Jones P.M., Persaud S.J. Role of the endocannabinoid system in food intake, energy homeostasis and regulation of the endocrine pancreas. Pharmacol. Ther. 2011;129:307–320. doi: 10.1016/j.pharmthera.2010.10.006.
- 7.Li C., Vilches-Flores A., Zhao M., Amiel S.A., Jones P.M., Persaud S.J. Expression and function of monoacylglycerol lipase in mouse beta-cells and human islets of Langerhans. Cell Physiol. Biochem. 2012;30:347–358. doi: 10.1159/000339069.
- 8.Li C., Bowe J.E., Jones P.M., Persaud S.J. Expression and function of cannabinoid receptors in mouse islets. Islets. 2010;2:293–302. doi: 10.4161/isl.2.5.12729.
- 9.Ruz-Maldonado I., Liu B., Atanes P., Pingitore A., Huang G.C., Choudhary P., Persaud S.J. The cannabinoid ligands SR141716A and AM251 enhance human and mouse islet function via GPR55-independent signalling. Cell Mol. Life Sci. 2020:1–15. doi: 10.1007/s00018-019-03433-6.
- 10.Li C., Bowe J.E., Huang G.C., Amiel S.A., Jones P.M., Persaud S.J. Cannabinoid receptor agonists and antagonists stimulate insulin secretion from isolated human islets of Langerhans. Diabetes Obes. Metab. 2011;13:903–910. doi: 10.1111/j.1463-1326.2011.01422.x.
- 11.Nakata M., Yada T. Cannabinoids inhibit insulin secretion and cytosolic Ca2+ oscillation in islet beta-cells via CB1 receptors. Regul. Pept. 2008;145:49–53. doi: 10.1016/j.regpep.2007.08.009.
- 12.Juan-Pico P., Fuentes E., Bermudez-Silva F.J., Javier Diaz-Molina F., Ripoll C., Rodriguez de Fonseca F., Nadal A. Cannabinoid receptors regulate Ca2+ signals and insulin secretion in pancreatic beta-cell. Cell Calcium. 2006;39:155–162. doi: 10.1016/j.ceca.2005.10.005.
- 13.Bermudez-Silva F.J., Suarez J., Baixeras E., Cobo N., Bautista D., Cuesta-Munoz A.L., Fuentes E., Juan-Pico P., Castro M.J., Milman G., et al. Presence of functional cannabinoid receptors in human endocrine pancreas. Diabetologia. 2008;51:476–487. doi: 10.1007/s00125-007-0890-y.
- 14.Matias I., Gonthier M.P., Orlando P., Martiadis V., De Petrocellis L., Cervino C., Petrosino S., Hoareau L., Festy F., Pasquali R., et al. Regulation, function, and dysregulation of endocannabinoids in models of adipose and beta-pancreatic cells and in obesity and hyperglycemia. J. Clin. Endocrinol. Metab. 2006;91:3171–3180. doi: 10.1210/jc.2005-2679.
- 15.Ruz-Maldonado I., Pingitore A., Liu B., Atanes P., Huang G.C., Baker D., Alonso F.J., Bermudez-Silva F.J., Persaud S.J. LH-21 and abnormal cannabidiol improve beta-cell function in isolated human and mouse islets through GPR55-dependent and -independent signalling. Diabetes Obes. Metab. 2018;20:930–942. doi: 10.1111/dom.13180.
- 16.Kim W., Doyle M.E., Liu Z., Lao Q., Shin Y.K., Carlson O.D., Kim H.S., Thomas S., Napora J.K., Lee E.K., et al. Cannabinoids inhibit insulin receptor signaling in pancreatic beta-cells. Diabetes. 2011;60:1198–1209. doi: 10.2337/db10-1550.
- 17.Gonzalez-Mariscal I., Montoro R.A., Doyle M.E., Liu Q.R., Rouse M., O’Connell J.F., Santa-Cruz Calvo S., Krzysik-Walker S.M., Ghosh S., Carlson O.D., et al. Absence of cannabinoid 1 receptor in beta cells protects against high-fat/high-sugar diet-induced beta cell dysfunction and inflammation in murine islets. Diabetologia. 2018;61:1470–1483. doi: 10.1007/s00125-018-4576-4.
- 18.Soethoudt M., Grether U., Fingerle J., Grim T.W., Fezza F., de Petrocellis L., Ullmer C., Rothenhausler B., Perret C., van Gils N., et al. Cannabinoid CB2 receptor ligand profiling reveals biased signalling and off-target activity. Nat. Commun. 2017;8:13958. doi: 10.1038/ncomms13958.
- 19.Morales P., Reggio P.H. An Update on Non-CB1, Non-CB2 Cannabinoid Related G-Protein-Coupled Receptors. Cannabis Cannabinoid Res. 2017;2:265–273. doi: 10.1089/can.2017.0036.
- 20.Romero-Zerbo S.Y., Ruz-Maldonado I., Espinosa-Jimenez V., Rafacho A., Gomez-Conde A.I., Sanchez-Salido L., Cobo-Vuilleumier N., Gauthier B.R., Tinahones F.J., Persaud S.J., et al. The cannabinoid ligand LH-21 reduces anxiety and improves glucose handling in diet-induced obese pre-diabetic mice. Sci. Rep. 2017;7:3946. doi: 10.1038/s41598-017-03292-w.
- 21.Liu B., Song S., Jones P.M., Persaud S.J. GPR55: From orphan to metabolic regulator? Pharmacol. Ther. 2015;145:35–42. doi: 10.1016/j.pharmthera.2014.06.007.
- 22.Liu B., Song S., Ruz-Maldonado I., Pingitore A., Huang G.C., Baker D., Jones P.M., Persaud S.J. GPR55-dependent stimulation of insulin secretion from isolated mouse and human islets of Langerhans. Diabetes Obes. Metab. 2016;18:1263–1273. doi: 10.1111/dom.12780.
- 23.Zhong B., Ma S., Wang D.H. TRPV1 mediates glucose-induced insulin secretion through releasing neuropeptides. In Vivo. 2019;33:1431–1437. doi: 10.21873/invivo.11621.
- 24.Sisay S., Pryce G., Jackson S.J., Tanner C., Ross R.A., Michael G.J., Selwood D.L., Giovannoni G., Baker D. Genetic background can result in a marked or minimal effect of gene knockout (GPR55 and CB2 receptor) in experimental autoimmune encephalomyelitis models of multiple sclerosis. PLoS ONE. 2013;8:e76907. doi: 10.1371/journal.pone.0076907.
- 25.Huang G.C., Zhao M., Jones P., Persaud S., Ramracheya R., Lobner K., Christie M.R., Banga J.P., Peakman M., Sirinivsan P., et al. The development of new density gradient media for purifying human islets and islet-quality assessments. Transplantation. 2004;77:143–145. doi: 10.1097/01.TP.0000100401.62912.B2.
- 26.Atanes P., Ruz-Maldonado I., Olaniru O.E., Persaud S.J. Assessing mouse islet function. Methods Mol. Biol. 2020;2128:241–268. doi: 10.1007/978-1-0716-0385-7_17.
- 27.Pingitore A., Chambers E.S., Hill T., Maldonado I.R., Liu B., Bewick G., Morrison D.J., Preston T., Wallis G.A., Tedford C., et al. The diet-derived short chain fatty acid propionate improves beta-cell function in humans and stimulates insulin secretion from human islets in vitro. Diabetes Obes. Metab. 2017;19:257–265. doi: 10.1111/dom.12811.
- 28.Gey G.O., Gey M.K. The maintenance of human normal cells and tumor cells in continuous culture: I. Preliminary report: Cultivation of mesoblastic tumors and normal tissue and notes on methods of cultivation. Am. J. Cancer. 1936;27:45–76. doi: 10.1158/ajc.1936.45.
- 29.Gilon P., Henquin J.C. Mechanisms and physiological significance of the cholinergic control of pancreatic beta-cell function. Endocr Rev. 2001;22:565–604. doi: 10.1210/edrv.22.5.0440.
- 30.Henstridge C.M., Balenga N.A., Kargl J., Andradas C., Brown A.J., Irving A., Sanchez C., Waldhoer M. Minireview: Recent developments in the physiology and pathology of the lysophosphatidylinositol-sensitive receptor GPR55. Mol. Endocrinol. 2011;25:1835–1848. doi: 10.1210/me.2011-1197.
- 31.Cabrera O., Berman D.M., Kenyon N.S., Ricordi C., Berggren P.O., Caicedo A. The unique cytoarchitecture of human pancreatic islets has implications for islet cell function. Proc. Natl. Acad. Sci. USA. 2006;103:2334–2339. doi: 10.1073/pnas.0510790103.
- 32.Dolensek J., Rupnik M.S., Stozer A. Structural similarities and differences between the human and the mouse pancreas. Islets. 2015;7:e1024405. doi: 10.1080/19382014.2015.1024405.
- 33.Da Silva Xavier G., Rutter G.A. Metabolic and functional heterogeneity in pancreatic beta cells. J. Mol. Biol. 2020;432:1395–1406. doi: 10.1016/j.jmb.2019.08.005.
- 34.Pingitore A., Ruz-Maldonado I., Liu B., Huang G.C., Choudhary P., Persaud S.J. Dynamic profiling of insulin secretion and ATP generation in isolated human and mouse islets reveals differential glucose sensitivity. Cell Physiol. Biochem. 2017;44:1352–1359. doi: 10.1159/000485532.
- 35.Linnemann A.K., Baan M., Davis D.B. Pancreatic beta-cell proliferation in obesity. Adv. Nutr. 2014;5:278–288. doi: 10.3945/an.113.005488.
- 36.Iwamura H., Suzuki H., Ueda Y., Kaya T., Inaba T. In Vitro and in vivo pharmacological characterization of JTE-907, a novel selective ligand for cannabinoid CB2 receptor. J. Pharmacol. Exp. Ther. 2001;296:420–425.
- 37.Sassmann A., Gier B., Grone H.J., Drews G., Offermanns S., Wettschureck N. The Gq/G11-mediated signaling pathway is critical for autocrine potentiation of insulin secretion in mice. J. Clin. Investig. 2010;120:2184–2193. doi: 10.1172/JCI41541.
- 38.Console-Bram L., Brailoiu E., Brailoiu G.C., Sharir H., Abood M.E. Activation of GPR18 by cannabinoid compounds: A tale of biased agonism. Br. J. Pharmacol. 2014;171:3908–3917. doi: 10.1111/bph.12746.
- 39.Pertwee R.G., Howlett A.C., Abood M.E., Alexander S.P., Di Marzo V., Elphick M.R., Greasley P.J., Hansen H.S., Kunos G., Mackie K., et al. International union of basic and clinical pharmacology. LXXIX. Cannabinoid receptors and their ligands: Beyond CB(1) and CB(2) Pharmacol. Rev. 2010;62:588–631. doi: 10.1124/pr.110.003004.
- 40.Amisten S., Atanes P., Hawkes R., Ruz-Maldonado I., Liu B., Parandeh F., Zhao M., Huang G.C., Salehi A., Persaud S.J. A comparative analysis of human and mouse islet G-protein coupled receptor expression. Sci. Rep. 2017;7:46600. doi: 10.1038/srep46600.
- 41.Lee C.W., Rivera R., Gardell S., Dubin A.E., Chun J. GPR92 as a new G12/13- and Gq-coupled lysophosphatidic acid receptor that increases cAMP, LPA5. J. Biol. Chem. 2006;281:23589–23597. doi: 10.1074/jbc.M603670200.
