Significance of Competing Metabolic Pathways for 5F-APINACA Based on Quantitative Kinetics
1Department of Chemistry and Biochemistry, Harding University, Searcy, AR 72149, USA; apinson@harding.edu
2College of Medicine, University of Arkansas for Medical Sciences, Little Rock, AR 72205, USA; DLPouncey@uams.edu
3Department of Biochemistry and Molecular Biology, University of Arkansas for Medical Sciences, Little Rock, AR 72205, USA; MADavis@uams.edu (M.A.S.); RadominskaAnna@uams.edu (A.R.-P.)
4Department of Pharmacology and Toxicology, University of Arkansas for Medical Sciences, Little Rock, AR 72205, USA; WEFantegrossi@uams.edu (W.E.F.); PratherPaulL@uams.edu (P.L.P.)
5Department of Environmental and Occupational Health, University of Arkansas for Medical Sciences, Little Rock, AR 72205, USA; GBoysen@uams.edu
*Correspondence: millergroverp@uams.eduAbstract
In 2020, nearly one-third of new drugs on the global market were synthetic cannabinoids including the drug of abuse N-(1-adamantyl)-1-(5-pentyl)-1H-indazole-3-carboxamide (5F-APINACA, 5F-AKB48). Knowledge of 5F-APINACA metabolism provides a critical mechanistic basis to interpret and predict abuser outcomes. Prior qualitative studies identified which metabolic processes occur but not the order and extent of them and often relied on problematic “semi-quantitative” mass spectroscopic (MS) approaches. We capitalized on 5F-APINACA absorbance for quantitation while leveraging MS to characterize metabolite structures for measuring 5F-APINACA steady-state kinetics. We demonstrated the reliability of absorbance and not MS for inferring metabolite levels. Human liver microsomal reactions yielded eight metabolites by MS but only five by absorbance. Subsequent kinetic studies on primary and secondary metabolites revealed highly efficient mono- and dihydroxylation of the adamantyl group and much less efficient oxidative defluorination at the N-pentyl terminus. Based on regiospecificity and kinetics, we constructed pathways for competing and intersecting steps in 5F-APINACA metabolism. Overall efficiency for adamantyl oxidation was 17-fold higher than that for oxidative defluorination, showing significant bias in metabolic flux and subsequent metabolite profile compositions. Lastly, our analytical approach provides a powerful new strategy to more accurately assess metabolic kinetics for other understudied synthetic cannabinoids possessing the indazole chromophore.
1. Introduction
Synthetic cannabinoid abuse has become the center of a drug crisis in the past decade. As of January 2020, synthetic cannabinoids account for nearly one-third of all new drugs appearing on the global market [1]. In the United States, it was recently estimated that 36 million people have experimented with these drugs in their lives [2]. A driver in this crisis is the constant evolution of newer generations of illicit drugs to evade detection and litigation, thus leading to creation of the N-(1-alkyl)-1-pentyl-1H-indazole-3-carboxamide family of synthetic cannabinoids. These potent drugs share a central indazole core modified with an N-pentyl group and linked to a second alkyl group through a carbonyl bond. A later generation of the drug involved introduction of fluorine at the pentyl terminus, creating N-(1-adamantyl)-1-(5-pentyl)-1H-indazole-3-carboxamide (5F-APINACA, also known as 5F-AKB48). The fluorine increases drug lipophilicity to increase drug distribution across the blood–brain barrier, and thus improve access and high-affinity [3,4,5] binding to cannabinoid type 1 receptors (CB1Rs) in the central nervous system, as shown by in vitro cell culture [3,6] and in vivo rodent studies [7,8]. Those qualities may facilitate the toxic effects such as nausea, vomiting, tachycardia, and occasionally death resulting from exposure [9]. On the other hand, metabolism counters these effects by altering drug structure, often resulting in decreased affinity toward CB1Rs [6] and facilitating elimination. Knowledge of which metabolic pathways exist and their relative significance is then critical for understanding biological and toxicological responses to 5F-APINACA and other synthetic cannabinoid exposures. Moreover, metabolic information will likely provide a critical mechanistic basis for interpreting and predicting the impact of clinical factors such as age, sex, genetic polymorphisms, and drug–drug interactions on 5F-APINACA response among abusers.
5F-APINACA undergoes extensive metabolism including oxidative defluorination of the N-pentyl group and hydroxylation of the adamantyl moiety. In vitro studies with human liver microsomes provide insights into the occurrence of those reactions and enzymes likely responsible for them [8,10,11]. Presence of the resulting metabolites in urine surveys from abusers provides clinical evidence for those specific metabolic pathways [10,12]. Those analyses did not involve authentic standards for 5F-APINACA metabolites due to their lack of availability. Generation of standards incurs significant investments in time, effort and resources, and thus this approach is not practical for widespread use in studies. Consequently, 5F-APINACA studies rely on inference of metabolite levels assuming the mass spectroscopic (MS) response is the same among them and the parent drug. Nevertheless, other research studies with a structurally diverse array of drugs and associated metabolites have shown that this assumption is not true in most cases [13,14]. Specifically, MS response varies significantly among metabolites and parent drugs, so “semi-quantitative” studies using MS response to infer levels of metabolites relative to one another often lead to inaccurate results. In following, prior research on 5F-APINACA metabolism identified possible metabolic pathways but not the relative significance of those steps. Kinetic studies provide a tractable approach to scale the efficiencies of reactions impacting drug structure and hence, potency and response; however, published microsomal studies for 5F-APINACA were not carried out under steady-state conditions [8,10,11], so the relative efficiencies of reaction steps and pathways, and thus their relevance remain unknown.
As an alternative for metabolic studies on synthetic cannabinoids, we capitalized on the spectral properties of 5F-APINACA for quantitation while leveraging MS techniques to characterize individual metabolite structures. Like many synthetic cannabinoids, 5F-APINACA possesses a central indazole core with absorbance and fluorescence properties suitable for quantitation. If metabolism does not alter the chromophore, then the spectral response does not change for the metabolites relative to substrate. In following, substrate spectroscopic response can be used for inferring the quantitation of its metabolites in the absence of authentic standards for them. Reports validate the rigor of this approach in multiple metabolism studies [15,16,17] including applications in drug metabolism, such as glucuronidation by UDP-glucuronosyltransferases [18]. In practice, we employ a two-step strategy for estimating metabolite levels from microsomal reactions. First, we confirm the absence of chromophore modifications using MS techniques to characterize metabolite structures. Second, we chromatographically resolve metabolites to visualize their respective responses based on absorbance and fluorescence. We can then infer metabolite quantitation using the corresponding spectral response of the substrate. For this study, we hypothesized that this approach would yield steady-state mechanisms and constants describing efficiencies of metabolic steps that collectively determine the importance of competing and intersecting metabolic pathways for 5F-APINACA.
Herein, we are the first to measure steady-state kinetics for 5F-APINACA using a powerful combination of analytical approaches that obviated the need for authentic metabolite standards. As a model for the average adult liver, we carried out metabolic reactions with 5F-APINACA using pooled human liver microsomes. After establishing steady-state conditions, a critical early step involved maximizing chromatographic resolution of individual metabolites to make quantitation by absorbance and fluorescence possible. Next, we characterized metabolite structures by MS and ascribed them to steps within metabolic pathways. In the process, we determined whether these reactions altered the indazole chromophore as an assessment of the reliability of inferring metabolite levels based on the absorbance or fluorescence response of the substrate. Subsequent steady-state analyses for 5F-APINACA provided insights on the mechanisms and constants determining the relative significance of steps in its overall metabolism. Collectively, we were then able to use the kinetic data for constructing the network of competing and intersecting metabolic steps that determine the metabolic flux of 5F-APINACA down detoxification and clearance pathways.
2. Results
2.1. Absorbance but Not MS Proved Reliable for Inferring Quantitation of Five 5F-APINACA Metabolites

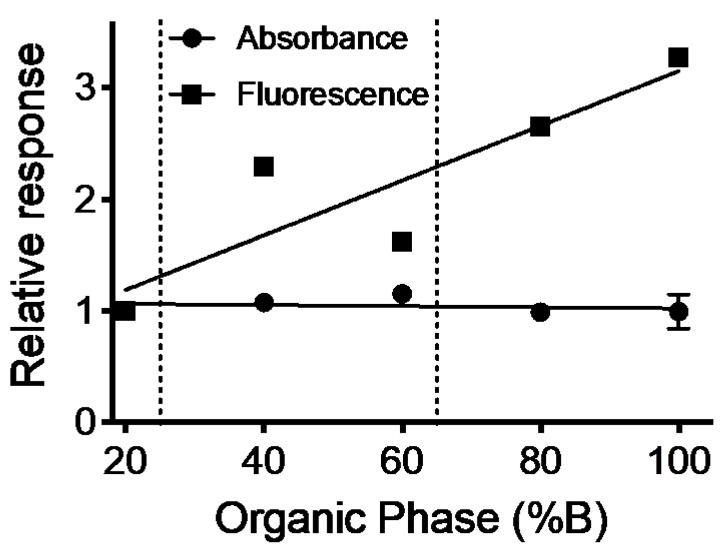

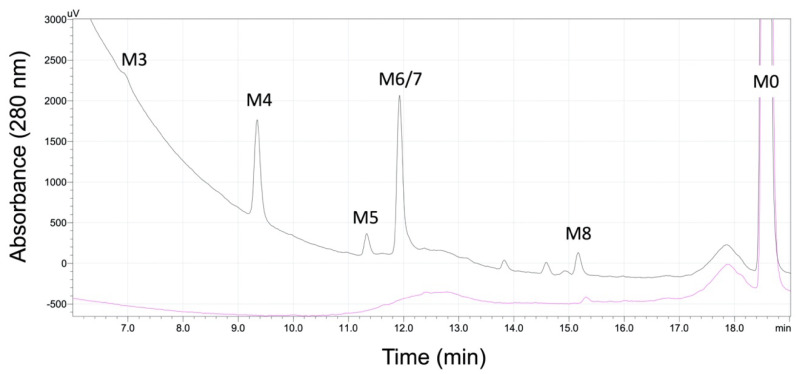

We carried out and analyzed initial metabolic reactions for 5F-APINACA to develop a chromatographic method for maximizing analyte resolution, and thus render identification and quantitative assessment of metabolites possible. The use of a spectroscopic signal for inferring quantitation requires the spectral response to be independent of analytical conditions for all analytes. As a test, we determined the effect of organic solvent (1:1 methanol:acetonitrile) on absorbance and fluorescence of 5F-APINACA as expected during chromatographic resolution of analytes. The fluorescence response increased positively and linearly with the percent of organic solvents while absorbance response did not change significantly (Figure A1). Consequently, all quantitative inference for kinetic studies relied on the absorbance response, which was similar in sensitivity to that for fluorescence. After optimization analyte resolution, the final chromatogram in Figure 1 shows absorbance peaks for 5F-APINACA (M0) and five metabolites.

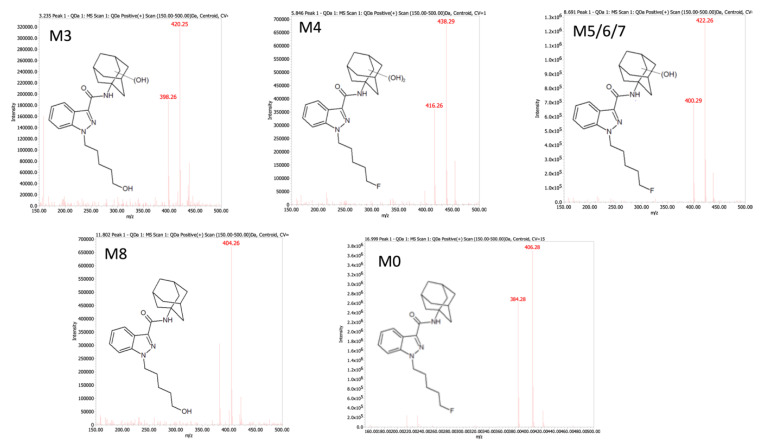

From the QDa single quadrupole detector, the corresponding parent masses (m/z) for five analytes are listed in Table 1 and spectra shown in Figure A2. Differences in mass between metabolites and parent drug were consistent with oxidative defluorination and hydroxylations; however, it was not possible to assign regiospecificity of hydroxylations based solely on parent mass. We then ported this chromatographic method to our Agilent Technologic 1290 Infinity HPLC with a 6490 Triple Quad MS, which has higher sensitivity and the capacity to fragment ions for a more thorough analysis. There was a slight shift in retention time for analytes between the instruments, yet the pattern and parent masses matched those from the previously determined chromatogram. This secondary analysis yielded eight observable metabolites and the parent drug serving as the basis for numbering metabolites in this study. By comparison, the lower number of observable metabolites by absorbance and fluorescence indicated that (1) M1 and M2 were low-yield metabolites below the detection limit of the detectors and (2) M6 and M7 co-eluted into a single peak (hence, the label M6/M7 in further discussions).
We characterized specific metabolites from 5F-APINACA reactions based on reported characteristic MS features [8,10,19,20]. First, loss of the adamantyl group (m/z 153.1) is a dominant fragment ion for unmetabolized 5F-APINACA as well as its metabolites. Monohydroxylation of the adamantyl group yields fragment ions at m/z 151.1 for the monohydroxy adamantyl cation and m/z 133.1 after the sequential loss of a water molecule. The pattern for the dihydroxy adamantyl group is m/z 167.1 with m/z 149.1 and m/z 131.1 ions reflecting sequential losses of water. Second, oxidative defluorination of 5F-APINACA yielded the loss of fluorine and addition of a hydroxyl group at the terminus of the N-pentyl group. Unfortunately, our attempts to obtain fragments other than the N-fluoropentyl indazole acylium ion (m/z 233.0) were unsuccessful in line with observations by others [8,10,19,20].

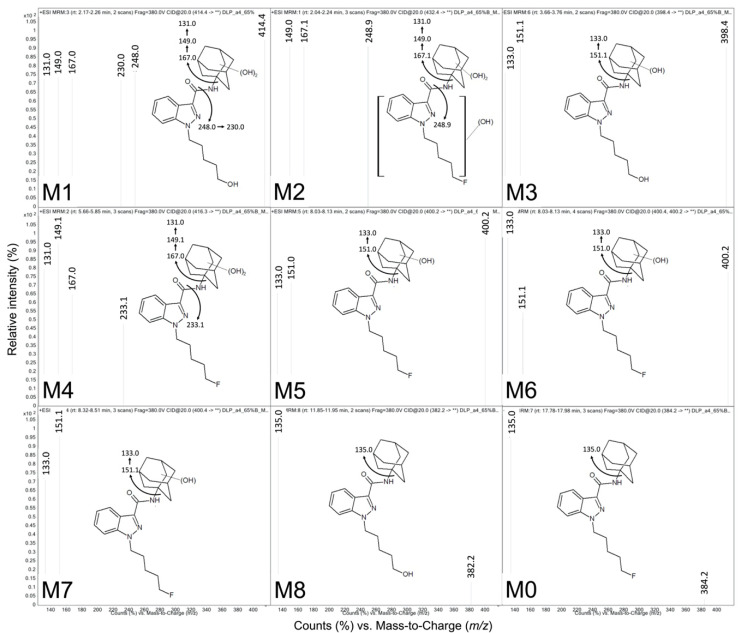

The observed fragment ions and details are listed in Figure 2 and Table 1, while parent mass peaks from the product ion chromatograms are included in Figure A3. M3, M5, M6 and M7 metabolites possessed fragment ions indicating monohydroxylation of the adamantyl group, while M1, M2, and M4 metabolites shared the pattern for dihydroxylation of the adamantyl moiety. The differences in parent mass from the parent drug to M1, M3 and M8 were consistent with oxidative defluorination. M1 displayed a probable dehydration reaction of the 248.0 m/z fragment ion to yield one at 230.0 m/z. For M2, there was an additional hydroxylation distal to the adamantyl ring, and thus residing on the indazole or N-alkyl group. The parent drug possessed the expected fragment ion for the unmodified adamantyl group. Moreover, the same fragmentation pattern and similar elution times for M5, M6 and M7 suggests that they are hydroxy adamantyl isomers as observed in a previous study [10]. The identity and order of elution of these metabolites matched previous reports under similar chromatographic conditions [8,10,11] as further support for their assignments. Taken together, we classified the order of metabolites as primary (M5, M6, M7 and M8), secondary (M3 and M4), and tertiary (M1 and M2) based on the respective structural modifications. Importantly, all metabolite peaks observed by absorbance and fluorescence corresponded to metabolites lacking modification of the indazole ring, and thus we can accurately infer quantitation of metabolites for kinetic studies based on the indazole chromophore.

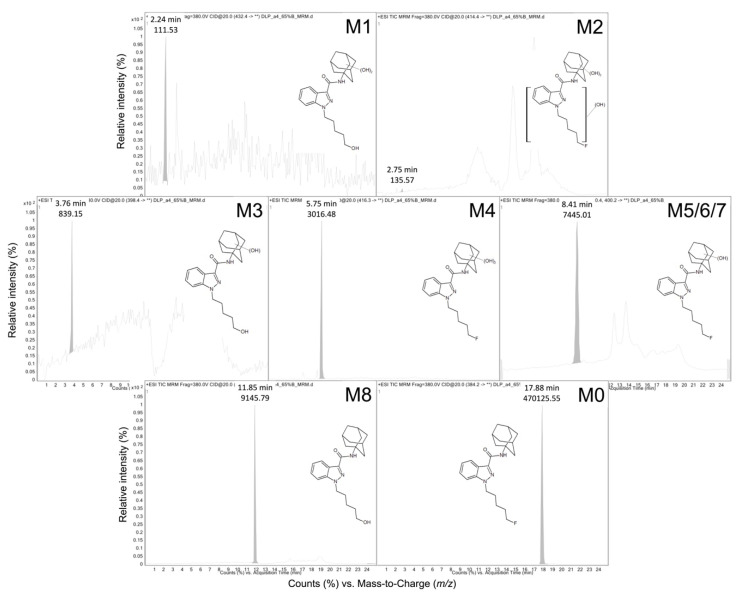

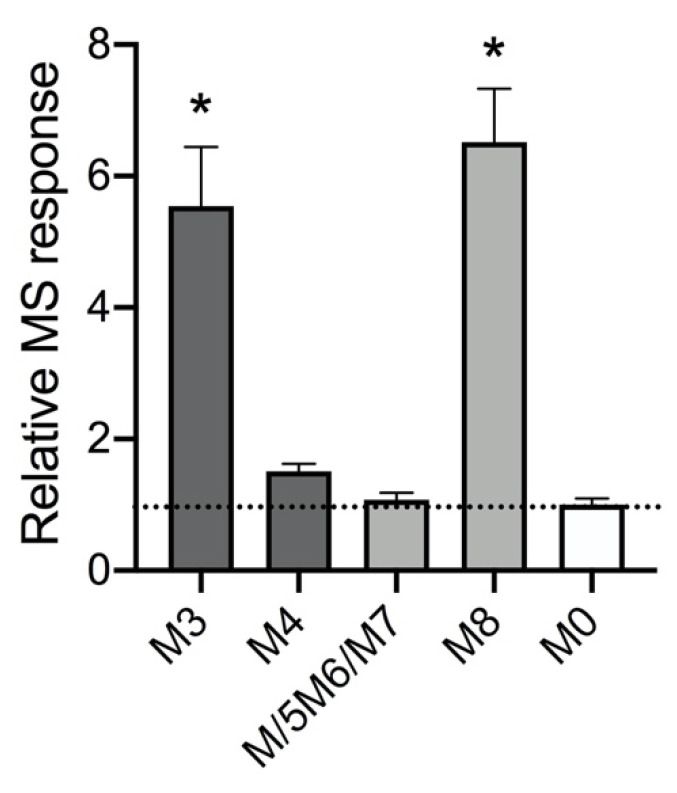

Given this knowledge, we assessed MS responses among the metabolites relative to the parent drug as employed in common “semi-quantitative” metabolism studies [13,14]. After conducting a 200 μM 5F-APINACA reaction, peak areas for each analyte were calculated from the corresponding extracted ion chromatogram generated with the total ion scan (Figure A3) and then divided by concentrations as inferred from analyte analyses by absorbance (vide supra). Resulting MS response values were then normalized to parent drug response as a measure of their relative variability. This analysis was possible only for metabolites observable by absorbance, i.e., parent (M0), primary metabolites (M5/M6/M7 and M8), and secondary metabolites (M3 and M4). Peak areas were summed together for all three hydroxy adamantyl metabolites (M5/M6/M7) due to co-elution of M6 and M7 when measuring absorbance and observation of only M6 by MS. As shown in Figure 3, the type and/or location of metabolism impacted the MS response for metabolites when compared to the parent drug. Oxidative defluorination (M3 and M8) led to an approximate 6-fold increase in response relative to parent, while hydroxylation of the adamantyl group had little to no impact on MS response (M4 and M5/M6/M7) (p < 0.0001 based on one-way ANOVA). Taken together, significant variability in metabolite MS responses relative to parent 5F-APINACA demonstrated the unreliability of MS response for inferring metabolite levels.
2.2. Steady-State Kinetics Revealed Relative Importance of Binding and Chemistry in Metabolism
Under steady-state conditions, we measured kinetics for primary and secondary metabolites of 5F-APINACA metabolism. Trace levels of tertiary metabolites were detectable, but their responses were not sufficient for measuring kinetics. Initial control experiments revealed that oxidative defluorination occurred in the absence of NADPH, which is typically used to initiate reactions. Thus, substrate was added last for more accurate measures of initial reaction rates. Oxidative defluorination (M8) was biphasic reflecting the contribution of two kinetically distinct activities (Figure 4, Panel A; Table 2). The maximal turnover rate (Vmax) for the higher affinity activity was one-third of that for the lower affinity activity. Despite a higher Vmax, the Km was 35-fold higher than the higher affinity activity, making it much less efficient.

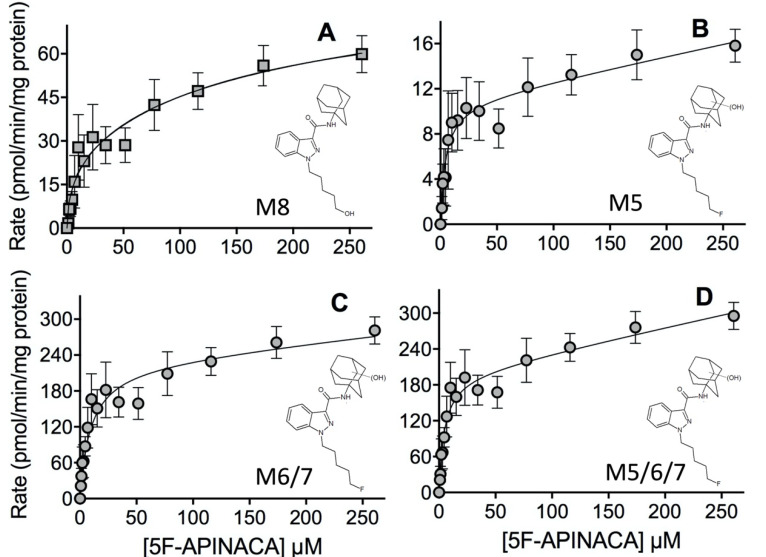

Monohydroxylation of the adamantyl group led to formation of isomers (M5 and M6/M7) with the same kinetic mechanisms but with different kinetic constants. The kinetic profiles reflected a high-affinity, saturable metabolism that fit to a Michaelis–Menten model followed by an unsaturable, low capacity linear contribution (Figure 4, Panels B and C; Table 2). The earlier eluting M5 bound to enzyme with high affinity that led to low maximal turnover. In contrast, the metabolite isomers (M6/M7) were metabolized at a 20-fold higher rate, with only a 2-fold decrease in binding (Km), so this pathway was much more efficient. Of note, the secondary MS analysis resolved all three isomers and indicated that the response for M6 was much higher than that for M5 and M7 indicating a clear preference in regiospecificity for the reaction. Taken together, these primary metabolites reflect a common first step in 5F-APINACA metabolism, and thus we combined data sets and determined the mechanism and constants as a global assessment of this reaction step. The respective data sets differed in magnitude, so we added average rates at each substrate concentration and then propagated the corresponding standard deviations for the final plot (Figure 4, Panel D). These data fit best to the same mechanism as for individual metabolites reflecting a high-affinity and a saturable turnover rate followed by an unsaturable linear rate (Table 2).

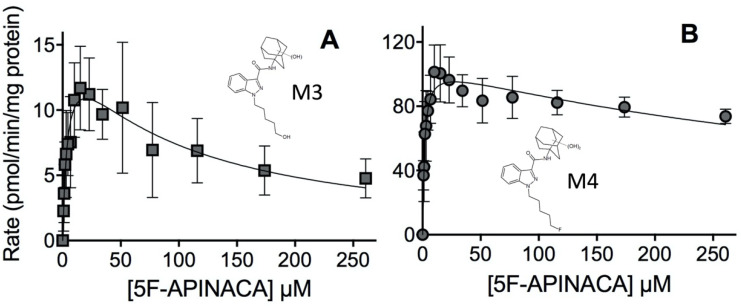

The kinetics for both secondary metabolites (M3 and M4) involved substrate inhibition. The combination of oxidative defluorination and adamantyl monohydroxylation involved high-affinity reactions but low turnover as well as moderate substrate inhibition (Figure 5, Panel A; Table 2). These kinetics for M3 reflected the least efficient step in 5F-APINACA metabolism under steady-state reaction conditions. On the other hand, further hydroxylation of M5 or M6/M7 led to the dihydroxy adamantyl metabolite (M4). The kinetics corresponded to the lowest Km value in this study and a high maximal rate of turnover followed by a very weak contribution of substrate binding (Figure 5, Panel B; Table 2). Given this reaction requires the initial hydroxylation step, we combined and analyzed kinetic data for M4, M5 and M6/M7 to determine the efficiency of the overall pathway for adamantyl hydroxylation as shown in Figure 6 and Table 2. The efficiency of this reaction (Vmax/Km, 91) is 17-fold greater than that observed for oxidative defluorination (Vmax/Km, 5.2) among the competing 5F-APINACA metabolic pathways.
3. Discussion
4. Materials and Methods
4.1. Materials
All chemical solvents, salts and buffers were purchased from Thermo Fisher Scientific (Waltham, MA, USA). NADPH-regenerating system components NADP disodium salt, glucose-6-phosphate dehydrogenase, and glucose-6-phosphate were purchased from Millipore-Sigma (St Louis, MO, USA), while magnesium chloride salt was purchased from Thermo Fisher Scientific. The substrate 5F-APINACA was provided by Dr. William Fantegrossi. Human liver microsomes pooled from 150 individuals were purchased from Corning (Corning, NY, USA). Dansylamide, used as the internal standard, was purchased from Millipore-Aldrich (St. Louis, MO, USA). ACD/ChemSketch 2017.2.1 software (Toronto, ON, Canada) was used for rendering structures of molecules.
4.3. HPLC Resolution and Analysis of 5F-APINACA Analytes from Reactions
Sample reactions were analyzed to quantitate metabolites by fluorescence and then characterize their structures by mass spectrometry. As a first step, we designed an HPLC method to resolve the complex mixture of 5F-APINACA and its metabolites and enable their individual quantification. Analytes were separated on a Waters XBridge BEH C18 3.5 μM column (4.6 mm × 100 mm) using two LC instruments due to differences in attached detectors. A Shimadzu UHFLC was equipped with an SPD-10A UV–Vis (280 nm) and RF-10AXL fluorescence (excitation 280 nm, emission 650 nm) detectors. Alternatively, we used a Waters Acquity UPLC equipped with a 2475 FLR fluorescence (excitation 280 nm, emission 650 nm) and QDa single quadrupole detectors. QDa cone voltage was 20 V and the detector was set to detect a range from 150–650 m/z in the positive ion mode. The mobile phase consisted of solvent A (10% solvent B, 90% water) and solvent B (0.1% formic acid/acetonitrile). A gradient method started at 75% solvent A for the first minute, then decreased to 35% for the next 14 min. The method held 35% A for 3 min before returning to 75% over 3 min and holding for the final 4 min. The flow rate was 1.2 mL/min for a total run time of 25 min. Parent drug and metabolite responses were normalized to the internal standard dansyl amide and quantitated using a standard curve generated with 5F-APINACA assuming absence of any modification of the indazole ring to impact relative response. This assumption was validated by subsequent MS analysis of metabolites (vide supra).
The identity of the metabolites relied on two levels of mass spectral analyses. First, coupling of detectors with the Waters Acquity system provided a way to match fluorescent chromatographic peaks to parent masses for the analytes using the QDA single quadrupole detector. Second, a more detailed characterization of structure involved further MS analyses. For these assessments, sample supernatants after the previously described centrifugation step were transferred to a 96 well full-volume microplate and evaporated to dryness using an Organomation Microvap Nitrogen Evaporator System (Organomation Associates, Inc., Berlin, MA, USA). Dried wells were then resuspended in the mobile phase and the prepared samples were injected onto an Agilent Technologic 1290 Infinity HPLC using the same chromatographic method and column as described previously. Analytes were scanned with the Agilent Technologic 6490 Triple Quad LC–MS. The ESI source was operated in the negative and positive ion mode, and ion spectra were acquired in the full scan mode, monitoring the m/z range of 100–1200 amu. Subsequently, product ion spectra were generated from precursor ions with multiple reaction monitoring for fragmentation by collision-induced dissociation (20 eV) with a range of 45–1000 amu in the positive ion mode.
5. Conclusions

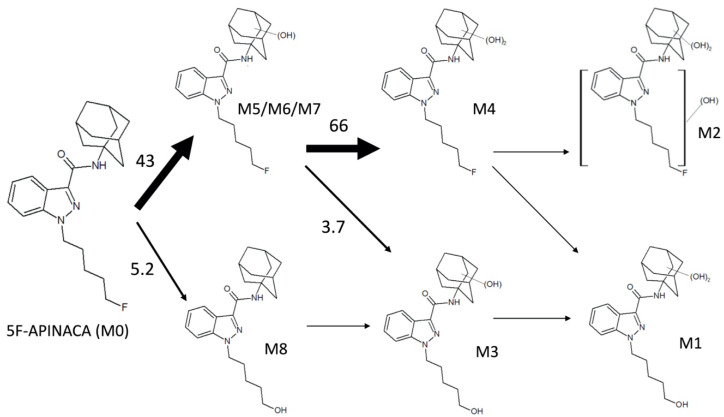

For the first time, we report the kinetics determining the metabolic flux of 5F-APINACA that alter its structure and, in doing so, determine potency and elimination for potential abusers. Based on observed regiospecificity of reactions, information on factors impacting hydroxylation of the adamantyl group and resulting effects on drug potency for CB1 interrogation are essential for understanding the effects on abuse response. Unfortunately, those types of studies have primarily focused on N-pentyl modifications that may not contribute significantly to outcomes due to its less significant occurrence in metabolism. More research is clearly needed in this area. This critical guiding insight was made possible from the novel application of an analytical approach to infer metabolite levels for kinetic studies. We leveraged the unmetabolized central indazole core of 5F-APINACA for quantitation by absorbance rather than the commonly used MS response. In fact, we showed how MS responses varied among metabolites. Consequently, its use in “semi-quantitative” inference studies over- or under-predicts actual metabolites levels, leading to inaccuracies in the data. Importantly, the indazole chromophore for 5F-APINACA is common among synthetic cannabinoids. Our novel application could then be applied universally to generate more accurate assessments of synthetic cannabinoid metabolism, and thus develop more appropriate models to interpret and predict abuser outcomes from these illicit drugs.
Funding
Research reported in this publication was supported by the National Institute of Health and National Institute on Drug Abuse [Award DA039143] and a joint effort from the Drug Enforcement Agency and Federal Drug Administration [Award HHSF223201610079C]. A.O.P. was supported by summer research internship funded from the IDeA Networks of Biomedical Research Excellence (INBRE) Program of the Institute of General Medical Sciences [Award P20GM103429]. M.A.S. is partially supported by the National Institute of General Medical Sciences [Award T32GM106999]. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health.
Conflicts of Interest
The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.
Appendix Group
Appendix A
| ID | tR a | QDa b Precursor [M + H]+ (m/z) | QQQ c Precursor [M + H]+ (m/z) | Product Ions (m/z) | Proposed Modifications | Metabolite Order |
|---|---|---|---|---|---|---|
| M1 | 2.17 | ND | 414.4 | 131.0, 149.0, 167.0, 230.0, 248.0 | Dihydroxy adamantyl Oxidative defluorination | Tertiary |
| M2 | 2.24 | ND | 432.4 | 248.9, 167.1, 149.0 | Dihydroxy adamantyl Other hydroxylation | Tertiary |
| M3 | 3.76 | 398.26 | 398.4 | 151.1, 133.0 | Monohydroxy adamantyl Oxidative defluorination | Secondary |
| M4 | 5.66 | 416.26 | 416.3 | 233.1, 167.0, 149.1, 131.0 | Dihydroxy adamantyl | Secondary |
| M5 | 8.32 | 400.29 d | 400.4 | 151.1, 133.0 | Monohydroxy adamantyl | Primary |
| M6 | 8.42 | 400.29 d | 400.2 | 151.0, 133.0 | Monohydroxy adamantyl | Primary |
| M7 | 9.10 | 400.29 d | 400.2 | 151.0, 133.0 | Monohydroxy adamantyl | Primary |
| M8 | 11.9 | 404.28 | 382.2 | 135.0 | Oxidative defluorination | Primary |
| M0 | 17.9 | 384.28 | 384.2 | 135.0 | None | Parent |
| Peak ID | Mechanism | Kinetic Constants | ||||
|---|---|---|---|---|---|---|
| Vmax | Km (μM) | Ki (μM) | Vmax2 | Km2 (μM) | ||
| M3 | Substrate inhibition | 16 | 4.3 | 92 | - | - |
| (12–19) | (1.8–6.8) | (39–145) | ||||
| M4 | Substrate inhibition | 106 | 1.6 | 480 | - | - |
| (98–114) | (1.1–2.1) | (270–700) | ||||
| M5 | Michaelis–Menten + linear | 11 | 4.4 | - | 0.021 | - |
| (9.0–12) | (2.7–6.9) | (0.012–0.030) | ||||
| M6/M7 b | Michaelis–Menten + linear | 230 | 9.7 | - | 0.18 | - |
| (227–234) | (9.1–10) | (0.16–0.20) | ||||
| M5 + M6/M7 c | Michaelis–Menten + linear | 200 | 4.6 | - | 0.41 | - |
| (170–230) | (2.8–7.4) | (0.20–0.60) | ||||
| M4 + M5 + M6/M7 d | Michaelis–Menten + linear | 280 | 3.1 | - | 0.38 | - |
| (250–320) | (2.0–4.6) | (0.16–0.60) | ||||
| M8 | Biphasic | 22 | 4.2 | - | 60.1 | 149 |
| (21–23) | (3.9–4.6) | (59.7–60.6) | (143–157) | |||
