Longitudinal Synaptic Loss in Primary Tauopathies: An In Vivo [ 11C]UCB‐J Positron Emission Tomography Study
Department of Clinical Neurosciences, University of Cambridge, Cambridge Biomedical Campus, Cambridge, United Kingdom
Cambridge University Hospitals NHS Foundation Trust, Cambridge, United Kingdom
Department of Psychiatry, University of Cambridge, School of Clinical Medicine, Cambridge Biomedical Campus, Cambridge, United Kingdom
Wolfson Brain Imaging Centre, University of Cambridge, Cambridge, United Kingdom
Department of Clinical and Movement Neurosciences, UCL Queen Square Institute of Neurology, London, United Kingdom
Medical Research Council Cognition and Brain Sciences Unit, University of Cambridge, Cambridge, United Kingdom
Abstract
Background
Synaptic loss is characteristic of many neurodegenerative diseases; it occurs early and is strongly related to functional deficits.
Objective
In this longitudinal observational study, we determine the rate at which synaptic density is reduced in the primary tauopathies of progressive supranuclear palsy (PSP) and corticobasal degeneration (CBD), and we test the relationship with disease progression.
Methods
Our cross‐sectional cohort included 32 participants with probable PSP and 16 with probable CBD (all amyloid‐negative corticobasal syndrome), recruited from tertiary care centers in the United Kingdom, and 33 sex‐ and age‐matched healthy control subjects. Synaptic density was estimated by positron emission tomography imaging with the radioligand [11C]UCB‐J that binds synaptic vesicle 2A. Clinical severity and cognition were assessed by the PSP Rating Scale and the Addenbrooke's cognitive examination. Regional [11C]UCB‐J nondisplaceable binding potential was estimated in Hammersmith Atlas regions of interest. Twenty‐two participants with PSP/CBD had a follow‐up [11C]UCB‐J positron emission tomography scan after 1 year. We calculated the annualized change in [11C]UCB‐J nondisplaceable binding potential and correlated this with the change in clinical severity.
Results
We found significant annual synaptic loss within the frontal lobe (−3.5%, P = 0.03) and the right caudate (−3.9%, P = 0.046). The degree of longitudinal synaptic loss within the frontal lobe correlated with the rate of change in the PSP Rating Scale (R = 0.47, P = 0.03) and cognition (Addenbrooke's Cognitive Examination–Revised, R = −0.62, P = 0.003).
Conclusions
We provide in vivo evidence for rapid progressive synaptic loss, correlating with clinical progression in primary tauopathies. Synaptic loss may be an important therapeutic target and outcome variable for early‐phase clinical trials of disease‐modifying treatments. © 2023 The Authors. Movement Disorders published by Wiley Periodicals LLC on behalf of International Parkinson and Movement Disorder Society.
Untitled section
Keywords: [11C]UCB‐J PET, primary tauopathies, longitudinal
Article notes
Untitled section
Revised 2023 Mar 22; Received 2023 Feb 4; Accepted 2023 Apr 10; Issue date 2023 Jul.
1.Introduction
The primary tauopathies of progressive supranuclear palsy (PSP) and corticobasal degeneration (CBD) are devastating and rapidly progressive neurodegenerative diseases with a poor prognosis and common diagnostic delays. 1 , 2 The pathologies of PSP and CBD cause diverse clinical syndromes, with a combination of movement and cognitive impairment, 3 , 4 , 5 , 6 including clinical PSP and the corticobasal syndrome (CBS; in the absence of Alzheimer's disease pathology, CBD pathology is the most common underlying cause of the CBS). 7 Pathologically, PSP and CBD are associated with accumulation of hyperphosphorylated 4‐repeat tau, 8 , 9 , 10 , 11 inflammation, 12 , 13 , 14 and severe synaptic loss, 15 , 16 , 17 ultimately all leading to neuronal loss. Cognitive dysfunction is an early symptom in people with PSP/CBD, with subtle manifestations apparent 8 years before diagnosis. 18
Synaptic dysfunction is proposed as a key pathogenic mechanism underlying cognitive dysfunction, 19 , 20 via changes in network physiology. 21 In preclinical tauopathy models, severe synaptic loss can occur before neuronal loss. 22 As such, the pathways involved in synaptic function, plasticity, and stability are of importance for understanding the early phases of neurodegeneration and as potential early therapeutic targets. It is encouraging that in the alternative tauopathy of Alzheimer's disease, in vivo synaptic imaging, with [11C]UCB‐J positron emission tomography (PET), is sensitive to progressive changes in synaptic density and response to early‐phase trials, for example, the synaptic modulator saracatinib 23 and the modulator of synaptic vesicle glycoprotein 2A SDI‐118. 24
The aim of this study was to test the hypothesis that cognitive and functional decline in PSP/CBD is related to progressive synaptic loss. Cryoelectron microscopy studies and astrocytic pathology indicate differences between PSP and CBD pathology. 11 However, we consider them jointly here because of downstream convergence in secondary pathological processes and overlapping clinical features. 25 We used [11C]UCB‐J PET, which targets presynaptic vesicle glycoprotein SV2A, to estimate synaptic density in vivo. 26 Using this PET radioligand, we recently reported a widespread baseline in vivo synaptic loss (up to 30%) in a smaller cross‐sectional cohort of patients with PSP and CBD. The most severe reductions were in the basal ganglia, thalamus, insula, and frontal and temporal lobes, and these correlated with cognition and disease severity. 17 Based on the average symptom duration of 4 to 6 years in that study, we predicted that synaptic loss in PSP/CBD progresses at a rate of ~3% to 4% per year, with faster synaptic loss being seen in basal ganglia and frontal cortex. 9
2.Subjects and Methods
2.1.Participants and Study Design
2.1.1.Recruitment
For the cross‐sectional cohort, we used the 2017 diagnostic criteria for patients with probable PSP–Richardson syndrome 5 and the Armstrong criteria for patients with probable CBS. 4 Thirty‐two people with probable PSP–Richardson syndrome and 25 people with probable CBS were recruited from a regional specialist National Health Service clinic at the Cambridge University Center for Parkinson‐plus; people with CBS were also recruited from the National Hospital for Neurology and Neurosurgery at Queen Square, London. Patients with CBS underwent amyloid PET imaging using Pittsburgh Compound B ([11C]PiB). Only those with a negative amyloid status (16/25 participants) are included in subsequent analysis, because we aimed to exclude patients with CBS caused by Alzheimer's disease. We interpret and refer to the amyloid‐negative CBS cohort as having CBD, although we acknowledge that other pathologies are possible. 7 Thirty‐three healthy volunteers were recruited from the UK National Institute for Health Research Join Dementia Research register. Participants were screened using the inclusion/exclusion criteria set out in Holland et al. 17 Fourteen of 32 patients had passed away by study endpoint (August 2022), with nine brains subsequently donated to our local Cambridge Brain Bank. Three of nine are confirmed as having PSP at postmortem, with more recent donations awaiting neuropathological confirmation.
For the follow‐up cohort, 22 participants (16 with PSP and 6 with CBD) remained well enough over 1 year to be reassessed in the longitudinal arm of the study.
2.1.2.Neurocognitive and Imaging Assessments
Eligible participants underwent clinical and cognitive assessments (Table 1), as previously described by Holland et al. 17 Participants underwent simultaneous 3‐T magnetic resonance imaging (MRI) and [11C]UCB‐J PET. Our follow‐up cohort underwent repeat MRI, [11C]UCB‐J PET, and neurocognitive assessment at 1 year.
| Parameters | Control‐N | PSP‐N | CBD‐N | F(P) a | PSP‐BL | CBD‐BL | F(P) b | PSP‐FU | CBD‐FU | F(P) c |
|---|---|---|---|---|---|---|---|---|---|---|
| N | 31 | 16 | 10 | – | 16 | 6 | – | 16 | 6 | – |
| Male:female | 20:11 | 8:8 | 6:4 | – | 7:9 | 2:4 | – | 7:9 | 2:4 | – |
| Age at baseline (y) | 71.0 (8.5) | 71.7 (8.24 | 70.7 (7.2) | ns | 72.1 (8.1) | 71 (10.8) | ns | – | – | – |
| Education (y) | 14.4 (3.4) | 11.4 (4.0) | 12.5 (2.5) | 5.7 ( 0 . 005 ) | 11.1 (2.3) | 12 (2.5) | ns | – | – | – |
| Symptom duration (y) | – | 4.15 (2.3) | 4.3 (2.8) | ns | 4.2 (1.9) | 5.2 (4.1) | ns | 5.4 (1.8) | 6.4 (4.1) | – |
| UCB‐J scan interval at FU (months) | – | – | – | – | – | – | – | 13.8 (5.5) | 14 (4.3) | – |
| UCB‐J injected activity (MBq) | 306 (129) | 268 (107) | 271 (89) | ns | 334 (105) | 293 (66) | ns | 262 (84) | 258 (74) | ns |
| Total MMSE (max. 30) | 29.5 (1.1) | 27.0 (3.4) | 25.0 (4.6) | 9.5 (<0 . 001 ) | 27.6 (2.2) | 24.5 (5.8) | ns | 26.4 (5.6) | 24.6 (3.4) | ns |
| Total ACE‐R (max. 100) | 96.3 (2.7) | 80.8 (13.4) | 76.8 (15.4) | 20.3 (<0.0001) | 84.3 (8.3) | 69.7 (19.7) | ns | 73.9 (18.7) | 74.8 (8.8) | ns |
| Attention + Orientation (max. 18) | 17.9 (0.3) | 16.3 (2.8) | 16.1 (2.2) | 5.7 (<0 . 01 ) | 16.9 (1.6) | 15.5 (3) | ns | 15.8 (2.2) | 15.2 (2.3) | ns |
| Language (max. 26) | 25.7 (0.8) | 6.5 (3.4) | 6.9 (3.45) | 6.2 (<0 . 01 ) | 23.6 (2.1) | 18.2 (8.8) | ns | 21.1 (6.4) | 23.4 (3.2) | ns |
| Fluency (max. 14) | 12.4 (1.5) | 23.2 (4.3) | 21.6 (6.0) | 36.9 (<0 . 0001 ) | 7.9 (2.5) | 5.8 (3.3) | ns | 5.9 (3.5) | 6 (2.2) | ns |
| Memory (max. 26) | 24.6 (1.9) | 21.7 (3.7) | 20.5 (4.7) | 8.6 (<0 . 01 ) | 22.1 (3.4) | 19.2 (3.8) | ns | 19.7 (5.2) | 18.4 (3.8) | ns |
| Visuospatial (max. 16) | 15.6 (0.6) | 13.1 (3.1) | 11.8 (4.5) | 11.1 (<0 . 0001 ) | 13.8 (2.1) | 11 (6.3) | ns | 10.9 (4.3) | 11.8 (2.8) | ns |
| Total PSP Rating Scale | ‐ | 34.0 (9.7) | 26.4 (13.0) | ns | 29.5 (8.5) | 34.8 (12.7) | ns | 44.6 (16.8) | 50.2 (19.3) | 15.5 (<0 . 01 ) |
| Total CBI | ‐ | 47.4 (34.0) | 37.8 (21.4) | ns | 44 (33.2) | 39 (8) | ns | 58.7 (33.4) | 46.7 (19.8) | ns |
| Total CDR | ‐ | 8.5 (5.1) | 6.9 (5.2) | ns | 5.6 (3.8) | 7 (4.3) | ns | 10.6 (4.1) | 8.5 (5.3) | 10.3 (<0.01) |
The research protocol was approved by the Cambridge Research Ethics Committee (reference 18/EE/0059) and the UK Administration of Radioactive Substances Advisory Committee. All participants provided written informed consent in accordance with the Declaration of Helsinki.
2.2.Imaging Data Acquisition and Preprocessing
2.2.1. PET and MRI
We first corroborated our cross‐sectional findings in Holland et al 17 with this larger cohort of healthy control and patient participants. The procedures for [11C]UCB‐J synthesis, PET data acquisition, image reconstruction, and kinetic analysis were the same as in Holland et al. 17 In brief, dynamic PET data acquisition was performed on a GE SIGNA PET/MR (GE Healthcare, Waukesha, WI, USA) for 90 minutes immediately after injection, with attenuation correction using a multisubject atlas method 27 and improvements to the MRI brain coil component. 28 Emission image series were aligned using SPM12 (www.fil.ion.ucl.ac.uk/spm/software/spm12/) and rigidly registered to the contemporaneously acquired T1‐weighted MRI during PET data acquisition, allowing for more accurate coregistration and reduced scanning sessions from two separate scans to one combined session (repetition time = 3.6 ms, echo time = 9.2 ms, 192 sagittal slices, in‐plane resolution 0.55 × 0.55 mm, interpolated to 1.0 × 1.0 mm; slice thickness 1.0 mm). The Hammersmith atlas (http://brain-development.org) with modified posterior fossa regions was nonrigidly registered to the T1‐weighted MRI of each participant using spatial normalization parameters determined with Advanced Normalization Tools (ANTs) software. 29
2.2.1.1.Regional Analysis
Regional time‐activity curves were extracted after the application of cerebrospinal fluid (CSF) partial volume correction (PVC) to each dynamic PET image. To assess the impact of PVC, we also extracted time‐activity curves from the same region of interests without the application of PVC (discussed in Supporting Information as “without partial volume correction”).
To quantify SV2A density, we determined [11C]UCB‐J nondisplaceable binding potential (BPND) using a basis function implementation of the simplified reference tissue model, 30 with the reference tissue defined in the centrum semiovale. 31 , 32 [11C]UCB‐J BPND from the following Hammersmith atlas regions was not used: lateral ventricles (frontal and temporal horns), third ventricle, pituitary gland, and the corpus callosum. We excluded two subcortical gray matter regions from the PET analysis (substantia nigra, nucleus accumbens) because of their very small volume. Three participants from the follow‐up cohort (two with PSP and one with CBD) had a reduced emission duration of 60 minutes at follow‐up. For these individuals, their baseline binding potentials were recalculated using 60 minutes (rather than 90 minutes) to eliminate any duration‐induced bias in the comparison of baseline and follow‐up BPND values.
Gray matter volumes were extracted from the unsmoothed gray matter segmentation maps from SPM12 within each Hammersmith regions of interest in native space, at baseline and follow‐up. All regions, except those in the earlier‐mentioned “excluded” regions, were taken forward to the subsequent statistical analyses.
2.2.1.2.Voxelwise analysis
The T1‐weighted images were first processed using the Computational Anatomy Toolbox (CAT12.8.1; http://www.neuro.uni-jena.de/cat12) and the Segment Longitudinal Data module of SPM12 (v.7771; www.fil.ion.ucl.ac.uk/spm/software/spm12/). A pairwise unbiased pipeline was performed using the T1‐weighted images to bring all images into a standard space, including [11C]UCB‐J BPND maps produced using the same kinetic modeling approach as for the regional analysis. The T1‐weighted image pairs were iteratively warped to produce single‐subject templates, which were subsequently processed with CAT12 Segment. Next, the tissue segments were applied to the templates to create skull‐stripped single‐subject templates, which were warped to a group average space. The group template was warped to the MNI152NL in 2009 Asym template in CAT12 (MNI, Montreal Neurological Institute). Finally, all warps and linear transformations were combined, and Jacobians were created to enable the gray matter images to be modulated and warped to MNI space. The [11C]UCB‐J BPND images were linearly coregistered to the contemporary T1‐weighted images using FreeSurfer's mri_coreg function. Each output linear transformation matrix was converted to ITK (Interoperability Toolkit) format, which could be read by ANTs tools. This transform was combined with the warps and linear transforms created in the ANTs pipeline to place the [11C]UCB‐J BPND images in MNI space.
2.2.1.3.[11C]PiB PET
2.3.Statistical Analyses
2.3.1.Regional
We first corroborated the results in Holland et al 17 using a larger cross‐sectional cohort. We compared demographic and clinical variables between patients and control subjects in this larger sample, using analysis of covariance and chi‐square tests where appropriate. We also presented the baseline characteristics of the 22 participants who completed the longitudinal arm of the study separately and compared their demographics with patients who completed only the cross‐sectional arm. We compared cross‐sectional regional [11C]UCB‐J BPND between patients and control subjects using analysis of covariance with age and total intracranial volume in the case of gray matter volume comparisons as covariates of no interest, adjusting for multiple comparisons (false discovery rate method; results for analyses without PVC are shown in the Supporting Information in Data S1).
In the longitudinal cohort, the proportional change in [11C]UCB‐J BPND was calculated as follows: proportional change in [11C]UCB‐J BPND = (follow‐up UCB‐J BPND – baseline UCB‐J BPND)/baseline UCB‐J BPND. Proportional changes in [11C]UCB‐J BPND were adjusted for the time interval between [11C]UCB‐J PET scans. Although most patients were rescanned ~12 months after baseline, some were scanned later because of the COVID‐19 pandemic—proportional changes are therefore presented as the annualized proportional change in [11C]UCB‐J BPND.
A one‐sample t test was used across all the regional annualized proportional changes in [11C]UCB‐J BPND, testing whether the overall mean change was smaller than zero (ie, synapse loss). Next, a two‐way paired‐sample analysis of variance (ANOVA) design was used to test for any region‐by‐visit interaction with visit (baseline vs. follow‐up) and region as within‐subject variables; a post hoc analysis was carried out to interrogate any significant interactions (correcting for multiple comparisons using the false discovery rate).
Given the smoothness and expected spatial contiguity of pathology, we performed a principal‐component analysis to identify principal components that correlated with changes in neurocognitive measures over time (including the PSP Rating Scale and the Addenbrooke's Cognitive Examination–Revised [ACE‐R]). The same approach was used to assess changes in gray matter volume over time. Principal‐component analysis captures the majority of variance in a low‐dimensional space, minimizing the problem of multiple comparisons and providing greater clarity in spatial patterns of pathology/atrophy.
Statistical analyses were implemented in R (version 4.2.0; R Core Team 2021; https://www.R-project.org/).
2.3.2.Voxelwise Analysis Statistics
The warped, modulated gray matter image differences were smoothed (8‐mm full‐width at half‐maximum), divided by the interscan interval, and subsequently compared using a one‐sample t test in FSL randomized (FSL v6.0.5.1; fsl.fmrib.ox.ac.uk) with threshold‐free cluster enhancement and 10,000 permutations. Clusters were deemed significant at the P < 0.05 corrected level. In addition, covariate analyses (PSP Rating Scale and the ACE‐R) were performed comparing the difference in covariate score with the gray matter difference images. The analysis was repeated for the [11C]UCB‐J BPND images by creating BPND difference images between baseline and follow‐up. Images were scaled by the group mean global BPND across both time points to reduce the level of noise. To match the smoothness of the gray matter on MRI, we smoothed BPND images by a further 5.3‐mm full‐width at half‐maximum.
3.Results
3.1.Demographics
We observed typical cognitive profiles in the cross‐sectional cohort of patients (who completed only the cross‐sectional arm of the study): patients were impaired on memory, verbal fluency, language and visuospatial domains of the ACE‐R, and the Mini‐Mental State Examination. There were high endorsements on the Cambridge Behavioral Inventory, and high scores on the Clinical Dementia Rating scale sum of boxes. The baseline neurocognitive profile of the 22 patients in the longitudinal arm (16 with PSP and 6 with CBD) was similar to those patients who completed only the cross‐sectional arm of the study. Importantly, the two groups did not differ in their average symptom duration or severity (Table 1). Within our longitudinal cohort, the average time interval between the baseline and follow‐up scan was 13.8 (±5.5) and 12.0 (±4.3) months in the PSP and CBD cohorts, respectively. Our longitudinal cohort scored higher on both the PSP and the Clinical Dementia Rating Scales at follow‐up: mean increases of 13.6 (±10.2) and 4.33 (±3.15), respectively. The average annual decline in the ACE‐R score was −6.9 points (±14.5).
3.2.Widespread Severe Reductions in Regional [ 11C]UCB‐J BPND Beyond Gray Matter Atrophy: Cross‐Sectional Cohort

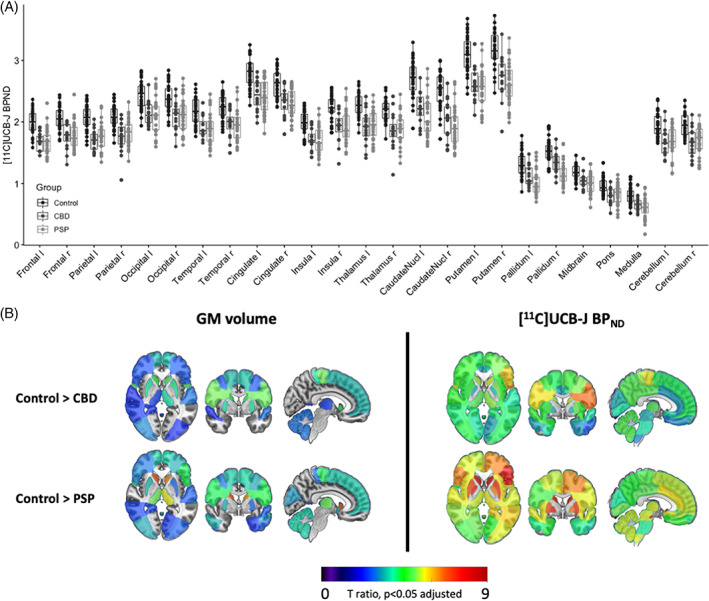

Synaptic loss was widespread across all major cortical and subcortical areas; [11C]UCB‐J binding potentials are shown in Figure 1A, and t statistics comparing synaptic density and gray matter volume against controls at adjusted P < 0.05 are shown in Figure 1B. Mean regional Z scores were calculated against the control cohort. In CBD, severe reductions were seen in the thalamus (mean Z score −1.8), parietal lobe (mean Z score −1.8), caudate (mean Z score −1.6), frontal lobe (mean Z score −1.6), cerebellum (mean Z score −1.6), and putamen (mean Z score −1.5). In PSP, severe reductions were seen in the caudate nucleus (mean Z score −2.1), pallidum (mean Z score −1.9), thalamus (mean Z score −1.6), frontal lobe (mean Z score −1.6), midbrain (mean Z score −1.6), and cingulate (mean Z score −1.6). Gray matter volume loss was also widespread but less severe (Fig. 1B). Mean Z scores for the most atrophied brain regions in CBD are putamen (−1.4), frontal lobe (−1.3), caudate nucleus (−1.3), and parietal lobe (−1.3); and in PSP are caudate nucleus (−1.5), thalamus (−1.3), frontal lobe (−1.1), and cerebellum (−1). Similar results were obtained using BPND without PVC (Supporting Information Fig. S1 in Data S1).
3.3.Longitudinal Changes in the PSP Rating Scale and the ACE‐R

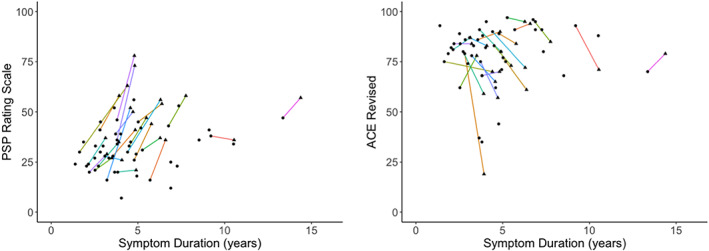

Our patients presented with an average symptom duration of 4.6 years at baseline (range: 1.4–13.4 years), with an average score of 31.5 on the PSP Rating Scale (range: 7–56) and an average cognitive performance of 79.4 on the ACE‐R (range: 35–97) (circles in Fig. 2). Most patients had deteriorated cognitively and had more severe symptoms at follow‐up (triangles in Fig. 2). Our follow‐up patients had an average increase of 13.6 points on the PSP Rating Scale (range: −2.2 to 37) and a decline in their ACE‐R scores of −6.9 (range: −55.4 to 17.5) points over 1 year (Fig. 2).
3.4.Longitudinal Changes in [ 11C]UCB‐J BPND and Gray Matter Volume, and Correlations With Change in Symptom Severity Over Time
There was a significant overall reduction in [11C]UCB‐J BPND over 1 year (P = 0.013). A paired‐sample, two‐way ANOVA, testing for a difference in [11C]UCB‐J BPND between baseline and follow‐up visits, confirmed a significant region‐by‐visit interaction (P = 0.01). Post hoc paired‐sample ANOVA by region between visits confirmed significant reductions in [11C]UCB‐J BPND within the left presubgenual frontal cortex (−3.5%, P = 0.03) and the right caudate (−3.9%, P = 0.046), unadjusted; there was also a trend reduction in the left pallidum (−4.2%, P = 0.08). A summary of annual percentage change in [11C]UCB‐J BPND in all relevant Hammersmith atlas regions of interest is given in Supporting Information Table S1 in Data S1. The earlier analysis with gray matter volume also showed reductions over time; the most significant reductions were within the right thalamus (−11.8%, P = 0.002), precentral gyrus (−7.1%, P = 0.004), caudate nucleus (−7.5%, P = 0.009), and cerebellar gray matter (−2.8%, P = 0.04). A summary of regional gray matter annual percentage change is given in Supporting Information Table S2 in Data S1.

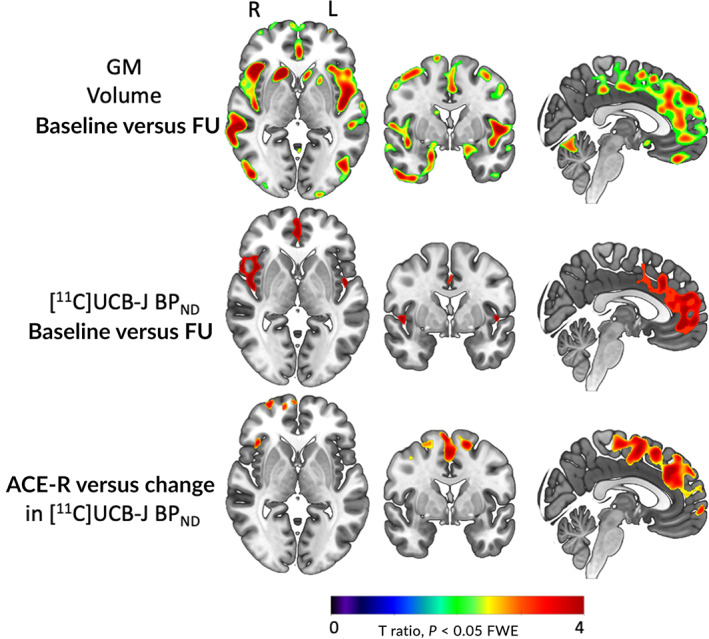

Voxelwise results were in accord with the regional analysis. We confirm significant loss of gray matter volume and [11C]UCB‐J BPND at follow‐up, with the latter showing a more focal distribution but higher effect size than gray matter loss; P < 0.05, Family‐Wise Error (FWE) corrected. In voxelwise analysis, the correlation between gray matter loss and the PSP Rating Scale and ACE‐R scores was not significant. However, reductions in [11C]UCB‐J BPND within the frontal lobe were associated with poorer performance on the ACE‐R over time, but not the PSP Rating Scale (Fig. 3).
3.5.Faster Reductions in Frontal [ 11C]UCB‐J BPND Are Associated With Faster Symptom Progression: Principal‐Component Analysis

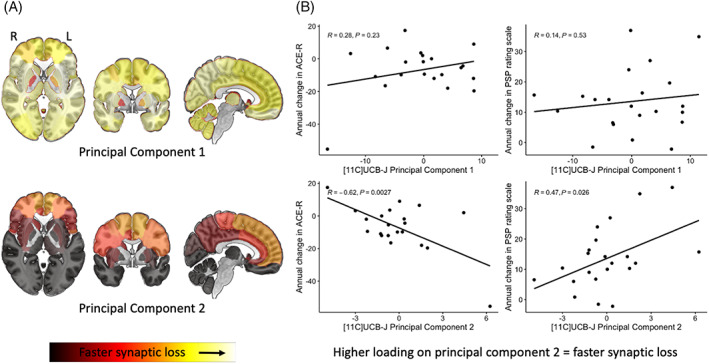

We identified two principal components (with an eigenvalue >1), accounting for 80% of the variance in the annual change in regional [11C]UCB‐J BPND. The first component constitutes a global reduction in [11C]UCB‐J BPND across the brain. The second component loads onto the frontal lobe, cingulate, and the postcentral gyrus. Principal‐component weightings projected on brain maps are shown in Figure 4 (and in Supporting Information Fig. S2 in Data S1 for BPND without PVC).
We applied a general linear model to individual loadings on principal components and the annual change in the PSP Rating Scale/ACE‐R scores. We found that individuals with higher loading on principal component two (therefore faster synaptic loss within the frontal lobe, motor strip, and cingulate regions) had a faster progression on the PSP Rating Scale (R = 0.47, P = 0.03) and faster decline in ACE‐R scores (R = −0.62, P = 0.003; scatterplots in Fig. 4; Supporting Information Fig. S2 in Data S1). We also applied a robust general linear model to downweigh the effect of outlying individuals and obtained the same significant correlation. Repeating this approach with gray matter volume, we identified five principal components collectively explaining more than 80% variance in the volumetric data, but none correlated with a progression in the PSP Rating Scale or the ACE‐R, echoing our voxelwise findings.
4.Discussion
There are three main findings of this study. First, there is widespread severe synaptic loss in patients with PSP and CBD (inferred in vivo from amyloid‐negative CBS). Second, synaptic loss progresses markedly even over 1 year, with 3% to 4% reduction in the frontal lobe and caudate nucleus. Third, this longitudinal synaptic loss correlates with clinical decline in cognition and global clinical severity.
The widespread synaptic loss in the current 48 patients affirms the results of a previous smaller cross‐sectional cohort. 17 Synaptic loss is seen both in regions affected in early stages of disease (eg, basal ganglia, thalamus, and frontal lobe) and in those affected in later stages (eg, occipital lobe), and it is more severe and extensive than MRI measures of gray matter atrophy. This study goes beyond the former work in the longitudinal phase. We observed an average increase of 13.6 points in the PSP Rating Scale, similar to previous longitudinal studies of PSP. 2 , 34 Based on an average baseline symptom duration of 4 to 6 years and a mean baseline synaptic reduction of ~11% to 25% (vs. controls), we predicted a 3% to 4% annual synaptic loss. This was confirmed in the longitudinal cohort, at least for the caudate and frontal cortex. In the Kovacs staging of tau pathology in PSP, neuronal pathology progresses from pallidum, midbrain tegmentum and pons, then striatum, and only in stage 4 in the prefrontal cortex. Astroglial pathology also affects the frontal cortex and thalamus by stage 3. 9 Synaptic loss follows a similar pattern of reduction, with the most severe reductions seen in the basal ganglia, thalamus, and frontal lobes; our longitudinal observations are consistent with this spatiotemporal progression of pathology.
Synaptic loss is a common convergence point in many neurodegenerative proteinopathies with in vivo evidence available in people with frontotemporal dementia, 35 , 36 Alzheimer's disease, 37 , 38 Lewy body dementia, and Parkinson's disease, 39 correlating with worse performance on cognitive tasks. The evidence for progressive in vivo synaptic loss, as measured with longitudinal [11C]UCB‐J PET imaging, is however limited. Vanderlinden and colleagues 40 have recently reported significant progressive reductions (6%–9%) in patients with amnestic mild cognitive impairment, over 2 years, correlating with cognitive decline. Venkataraman and colleagues 41 observed reduced baseline [11C]UCB‐J binding potential in disease‐specific areas in eight patients with Alzheimer's disease, but they did not find significant progressive loss over 12 to 18 months of follow‐up. Similarly, although Delva and colleagues 42 illustrate significant baseline synaptic loss within the substantia nigra of 27 patients with early and mild Parkinson's disease, they did not observe significant progression over 2 years despite deteriorations in motor symptoms.
There are several explanations for the variability in the findings between our study in PSP/CBD and studies of other dementias. First, synaptic loss is related to severity of clinical signs and symptoms; people with PSP and CBD have marked cognitive deficits and rapid progression. 1 , 2 For other disorders with either normal cortical synaptic density at baseline and/or slow clinical progression, the power to detect longitudinal change will be greatly reduced. For example, the cohort of people with (mild and early) Parkinson's disease in Delva and colleagues' study 42 did not have significant cortical synaptic loss or cognitive symptoms at baseline or at follow‐up, unlike people with Lewy body dementia and Parkinson's disease with dementia who show significant baseline cortical synaptic loss. 43 In Alzheimer's disease, cognitive symptoms are prominent 44 and correlate with baseline synaptic loss. 37 However, in Venkataraman and colleagues' 41 cohort of eight people with Alzheimer's disease, although [11C]UCB‐J binding was reduced in all examined regions of interest at follow‐up, none was statistically significant, likely because of a limited sample size.
Second, there are technical issues in measuring change in [11C]UCB‐J binding over time. Our study uses the simplified tissue reference model to determine BPND of [11C]UCB‐J. Although in a recent test–retest validation study this method is reported as the most optimal to obtain quantitatively accurate and repeatable parametric images for [11C]UCB‐J binding, Tuncel and colleagues 45 , 46 report high regional variability in test–retest measures in healthy volunteers and patients alike. This variance may therefore explain differential sensitivity to progression in diseases that vary in their principal functional anatomical distributions. Even when expected mean changes in synaptic density are of the order of 3% to 4%, low reliability will greatly reduce power to detect within‐subject decline. The midbrain, a key area affected by PSP pathology, 9 is particularly affected by this technical limitation. The applicability of [11C]UCB‐J imaging to the midbrain therefore raises interesting issues. The gray matter volumes in the midbrain are small compared with other gray matter dense brain regions that are affected by PSP/CBD (eg, basal ganglia, thalamus, cortex). One result is that gray matter segmentation of this region is challenging, which in turn affects the midbrain‐derived [11C]UCB‐J binding potential. Given this, we expect variability in our binding potentials between patients and within patients across longitudinal assessment. At a group level, the effect size for synaptic reduction compared with controls is large despite the challenges posed by the variability cross‐sectionally. Progressive midbrain atrophy, a hallmark imaging finding in PSP, 34 includes both reduced gray matter volume and significant loss of white matter integrity and volume. The observed lack of change in midbrain synaptic density over time (Supporting Information Tables S1 and S3 in Data S1) may well be related to low signal‐to‐noise ratio rather than true stability in synaptic density (high variability in the synaptic signal from gray matter and small expected percentage change in synaptic density over time).
Although we observed significant gray matter atrophy over time, our principal‐component analysis and voxelwise analysis show that faster loss of synapses within the frontal lobe, but not gray matter volume, correlates with progression of symptoms. That synaptic loss is better correlated with symptom progression and severity than gray matter volume echoes postmortem findings in the 4R primary tauopathies and human Alzheimer's disease tauopathy, 47 , 48 , 49 as well as in animal models of tauoapathy. 50
There are limitations to our study. First, our longitudinal cohort is modest in size (n = 22), and delays resulting from the COVID‐19 pandemic increased the scanning interval from 12 to 16 months and increased dropout of participants. Despite this, our 22 patients are similar in their baseline characteristics to those in the baseline‐only study. This reduces the potential bias toward patients with milder disease. Second, clinical diagnostic criteria for PSP–Richardson's syndrome and amyloid‐negative CBS (here inferred as CBD) were used to select a clinical cohort with likely a 4R‐tauopathy as the underlying pathological diagnosis. Although both PSP–Richardson's syndrome and amyloid‐negative CBS are highly correlated with 4R‐tauopathy at postmortem, 7 , 51 , 52 other pathologies are possible. Third, in PET studies of neurodegeneration with atrophy, gray matter volume loss can affect the interpretation of PET signals. However, synaptic loss in PSP and CBD occurs even in areas of the brain without discernible atrophy on MRI. 17 , 53 Nonetheless, we used PVC to minimize the effect of atrophy on binding estimates and obtained similar results in all the main analyses (Supporting Information Fig. S1, Fig. 3, and Table S3 in Data S1).
In conclusion, we found severe and progressive synaptic loss in a cohort of patients with PSP and amyloid‐negative CBS. We confirmed our prediction that synaptic loss occurs at a rate of ~3% to 4% per year in disease‐related areas. The individual variability in the rate of synaptic loss is associated with how quickly patients deteriorate over time. Future studies are required to examine the in vivo relationship between longitudinal changes in synaptic loss and the temporal distribution of tau pathology. With the pathogenic conversion of toxic oligomers, mitochondrial stress, and inflammation on synaptic toxicity, we propose that synaptic loss is a functionally relevant intermediate marker of disease severity and suitable as either a target or an outcome measure in future trials of disease‐modifying agents in PSP/CBD.
Financial Disclosures
N.H. is funded by National Institute for Health Research and the Association of British Neurologists—Patrick Berthoud Charitable Trust. P.S.J., G.S., and M.N. have no financial disclosures to report. M.M. is funded by the Alzheimer's Research UK Race Against Dementia Fellowship and has no financial disclosures to report. D.J.W., D.S., P.S., Y.T.H., T.D.F., E.M., and K.P.B. have no financial disclosures to report. T.R. received funding from the Cambridge Center for Parkinson‐Plus, the Cambridge NIHR Biomedical Research Center, UK Alzheimer's Society, and the Medical Research Center Sprint Fund. J.T.O. provides consultancy to Alliance Medical, Merck, Roche, and Biogen; he has received honoraria from GE Healthcare and is the Research Strategy Council Chair at the UK Alzheimer's Society. J.B.R. serves as an associate editor to Brain and is a non‐remunerated trustee of the Guarantors of Brain and the PSP Association (UK). He provides consultancy to Asceneuron, Astex, Curasen, WAVE, Cumulus, and UCB.
Supporting information
Acknowledgments
The authors thank the research participants and caregivers, the staff at the Wolfson Brain Imaging Center, and the staff at the Cambridge Center for Parkinson‐Plus. We thank UCB Pharma for providing the precursor for [11C]UCB‐J.
Untitled section
Untitled section
Footnote Group
Data Availability Statement
The data that support the findings of this study are available from the corresponding author, upon reasonable request. Raw data and clinical data requests may be subject to restrictions required to preserve participant confidentiality. A data transfer agreement may be required.
References
Untitled section
References
- 1. Coyle‐Gilchrist ITS, Dick KM, Patterson K, et al. Prevalence, characteristics, and survival of frontotemporal lobar degeneration syndromes. Neurology 2016;86:1736–1743.
- 2. Jabbari E, Holland N, Chelban V, et al. Diagnosis across the spectrum of progressive supranuclear palsy and corticobasal syndrome. JAMA Neurol 2020;77(3):377–387.
- 3. Burrell JR, Hodges JR, Rowe JB. Cognition in corticobasal syndrome and progressive supranuclear palsy: a review. Mov Disord 2014;29:684–693.
- 4. Armstrong MJ, Litvan I, Lang AE, et al. Criteria for the diagnosis of corticobasal degeneration. Neurology 2013;80:496–503.
- 5. Höglinger GU, Respondek G, Stamelou M, et al. Clinical diagnosis of progressive supranuclear palsy: the movement disorder society criteria. Mov Disord 2017;32:853–864.
- 6. Litvan I, Agid Y, Calne D, et al. Clinical research criteria for the diagnosis of progressive supranuclear palsy (Steele‐Richardson‐Olszewski syndrome): report of the NINDS‐SPSP International Workshop; 1996. 47:1–9.
- 7. Alexander SK, Rittman T, Xuereb JH, Bak TH, Hodges JR, Rowe JB. Validation of the new consensus criteria for the diagnosis of corticobasal degeneration. J Neurol Neurosurg Psychiatry 2014; 85:923–927.
- 8. Rösler TW, Tayaranian Marvian A, Brendel M, et al. Four‐repeat tauopathies. Prog Neurobiol 2019;180:101644.
- 9. Kovacs GG, Lukic MJ, Irwin DJ, et al. Distribution patterns of tau pathology in progressive supranuclear palsy. Acta Neuropathol 2020;140(2):99–119.
- 10. Zhang W, Tarutani A, Newell KL, et al. Novel tau filament fold in corticobasal degeneration. Nature 2020;580:283–287.
- 11. Scheres SH, Zhang W, Falcon B, Goedert M. Cryo‐EM structures of tau filaments. Curr Opin Struct Biol 2020;64:17–25.
- 12. Kovacs GG. Astroglia and Tau: new perspectives. Front Aging Neurosci 2020;12:96.
- 13. Vogels T, Murgoci AN, Hromádka T. Intersection of pathological tau and microglia at the synapse. Acta Neuropathol Commun 2019;7:109.
- 14. Malpetti M, Passamonti L, Rittman T, et al. Neuroinflammation and tau colocalize in vivo in progressive supranuclear palsy. Ann Neurol 2020;88:1194–1204.
- 15. Bigio EH, Vono MB, Satumtira S, et al. Cortical synapse loss in progressive supranuclear palsy. J Neuropathol Exp Neurol 2001;60:403–410.
- 16. Lipton AM, Munro Cullum C, Satumtira S, et al. Contribution of asymmetric synapse loss to lateralizing clinical deficits in frontotemporal dementias. Arch Neurol 2001;58:1233–1239.
- 17. Holland N, Jones PS, Savulich G, et al. Synaptic loss in primary Tauopathies revealed by [11C]UCB‐J positron emission tomography. Mov Disord 2020;35(10):1834–1842.
- 18. Street D, Whiteside D, Rittman T, Rowe JB. Prediagnostic progressive supranuclear palsy—insights from the UK biobank. Parkinsonism Relat Disord 2022;95:59–64.
- 19. Südhof TC. The synaptic vesicle cycle. Annu Rev Neurosci 2004;27:509–556.
- 20. De Wilde MC, Overk CR, Sijben JW, Masliah E. Meta‐analysis of synaptic pathology in Alzheimer's disease reveals selective molecular vesicular machinery vulnerability. Alzheimers Dement 2016;12:633–644.
- 21. Adams NE, Jafarian A, Perry A, et al. Neurophysiological consequences of synapse loss in progressive supranuclear palsy. Brain 2022;awac471.
- 22. Kaniyappan S, Chandupatla RR, Mandelkow EM, Mandelkow E. Extracellular low‐n oligomers of tau cause selective synaptotoxicity without affecting cell viability. Alzheimers Dement 2017;13:1270–1291.
- 23. Toyonaga T, Smith LM, Finnema SJ, et al. In vivo synaptic density imaging with 11C‐UCB‐J detects treatment effects of saracatinib in a mouse model of Alzheimer disease. J Nucl Med 2019;60:1780–1786.
- 24. Botermans W, Koole M, Van Laere K, et al. SDI‐118, a novel procognitive SV2A modulator: first‐in‐human randomized controlled trial including PET/fMRI assessment of target engagement. Front Pharmacol 2022;13:1066447.
- 25. Murley AG, Coyle‐Gilchrist I, Rouse MA, et al. Redefining the multidimensional clinical phenotypes of frontotemporal lobar degeneration syndromes. Brain 2020;143:1555–1571.
- 26. Finnema SJ, Nabulsi NB, Eid T, et al. Imaging synaptic density in the living human brain. Sci Transl Med 2016;8:348ra96.
- 27. Burgos N, Cardoso MJ, Thielemans K, et al. Attenuation correction synthesis for hybrid PET‐MR scanners: application to brain studies. IEEE Trans Med Imaging 2014;33:2332–2341.
- 28. Manavaki R, Hong Y, Fryer TD. Brain MRI coil attenuation map processing for the GE SIGNA PET/MR: impact on PET image quantification and uniformity. In: IEEE Nuclear Science Symposium and Medical Imaging Conference Proceedings ; 2019.
- 29. Avants BB, Epstein CL, Grossman M, Gee JC. Symmetric diffeomorphic image registration with cross‐correlation: evaluating automated labeling of elderly and neurodegenerative brain. Med Image Anal 2008;12:26–41.
- 30. Wu Y, Carson RE. Noise reduction in the simplified reference tissue model for neuroreceptor functional imaging. J Cereb Blood Flow Metab 2002;22(12):1440–1452.
- 31. Koole M, van Aalst J, Devrome M, et al. Quantifying SV2A density and drug occupancy in the human brain using [11C]UCB‐J PET imaging and subcortical white matter as reference tissue. Eur J Nucl Med Mol Imaging 2019;46:396–406.
- 32. Rossano S, Toyonaga T, Finnema SJ, et al. Assessment of a white matter reference region for 11C‐UCB‐J PET quantification. J Cereb Blood Flow Metab 2020;40(9):1890–1901.
- 33. Jack CR, Wiste HJ, Weigand SD, et al. Age‐specific and sex‐specific prevalence of cerebral β‐amyloidosis, tauopathy, and neurodegeneration in cognitively unimpaired individuals aged 50–95 years: a cross‐sectional study. Lancet Neurol 2017;16:435–444.
- 34. Höglinger GU, Schöpe J, Stamelou M, et al. Longitudinal magnetic resonance imaging in progressive supranuclear palsy: a new combined score for clinical trials. Mov Disord 2017;32(6):842–852.
- 35. Malpetti M, Holland N, Jones PS, et al. Synaptic density in carriers of C9orf72 mutations: a [11C]UCB‐J PET study. Ann Clin Transl Neurol 2021;8:1515–1523.
- 36. Malpetti M, Jones PS, Cope TE, et al. Synaptic loss in frontotemporal dementia revealed by [11C]UCB‐J PET. Ann Neurol 2023;93(1):142–154.
- 37. Chen MK, Mecca AP, Naganawa M, et al. Assessing synaptic density in Alzheimer disease with synaptic vesicle glycoprotein 2A positron emission tomographic imaging. JAMA Neurol 2018;75:1215–1224.
- 38. Mecca AP, Chen MK, O'Dell RS, et al. In vivo measurement of widespread synaptic loss in Alzheimer's disease with SV2A PET. Alzheimers Dement 2020;16:974–982.
- 39. Matuskey D, Tinaz S, Wilcox KC, et al. Synaptic changes in Parkinson disease assessed with in vivo imaging. Ann Neurol 2020;87:329–338.
- 40. Vanderlinden G, Ceccarini J, Vande Casteele T, et al. Spatial decrease of synaptic density in amnestic mild cognitive impairment follows the tau build‐up pattern. Mol Psychiatry 2022;27(10):4244–4251.
- 41. Venkataraman AV, Mansur A, Rizzo G, et al. Widespread cell stress and mitochondrial dysfunction occur in patients with early Alzheimer's disease. Sci Transl Med 2022;14(658):eabk1051.
- 42. Delva A, Van Laere K, Vandenberghe W. Longitudinal positron emission tomography imaging of presynaptic terminals in early Parkinson's disease. Mov Disord 2022;37(9):1883–1892.
- 43. Andersen KB, Hansen AK, Damholdt MF, et al. Reduced synaptic density in patients with Lewy body dementia: an [11C]UCB‐J PET imaging study. Mov Disord 2021;36:2057–2065.
- 44. De Strooper B, Karran E. The cellular phase of Alzheimer's disease. Cell 2016;164(4):603–615.
- 45. Tuncel H, Boellaard R, Coomans EM, et al. Kinetics and 28‐day test–retest repeatability and reproducibility of [11C]UCB‐J PET brain imaging. J Cereb Blood Flow Metab 2021;41(6):1338–1350.
- 46. Tuncel H, Boellaard R, Coomans EM, et al. Validation and test–retest repeatability performance of parametric methods for [11C]UCB‐J PET. EJNMMI Res 2022;12(1):3.
- 47. DeKosky ST, Scheff SW. Synapse loss in frontal cortex biopsies in Alzheimer's disease: correlation with cognitive severity. Ann Neurol 1990;27:457–464.
- 48. Scheff SW, Price DA, Schmitt FA, DeKosky ST, Mufson EJ. Synaptic alterations in CA1 in mild Alzheimer disease and mild cognitive impairment. Neurology 2007;68(18):1501–1508.
- 49. Scheff SW, Price DA, Schmitt FA, Mufson EJ. Hippocampal synaptic loss in early Alzheimer's disease and mild cognitive impairment. Neurobiol Aging 2006;27:1372–1384.
- 50. Crimins JL, Rocher AB, Luebke JI. Electrophysiological changes precede morphological changes to frontal cortical pyramidal neurons in the rTg4510 mouse model of progressive tauopathy. Acta Neuropathol 2012;124(6):777–795.
- 51. Respondek G, Kurz C, Arzberger T, et al. Which ante mortem clinical features predict progressive supranuclear palsy pathology? Mov Disord 2017;32:995–1005.
- 52. Respondek G, Grimm MJ, Piot I, et al. Movement disorder society‐endorsed progressive supranuclear palsy study group. validation of the movement disorder society criteria for the diagnosis of 4‐repeat tauopathies. Mov Disord 2020;35(1):171–176.
- 53. Mak E, Holland N, Jones PS, et al. In vivo coupling of dendritic complexity with presynaptic density in primary tauopathies. Neurobiol Aging 2021;101:187–198.
