Quantification of ∆9-tetrahydrocannabinol, 11-OH-THC, THC-COOH, hexahydrocannabinol, and cannabidiol in human plasma and blood by liquid chromatography–tandem mass spectrometry
Institute of Legal Medicine, Medical University of Innsbruck, Muellerstrasse 44, Innsbruck 6020, Austria
*Corresponding author. Institute of Legal Medicine, Medical University of Innsbruck, Muellerstrasse 44, Innsbruck 6020, Austria. E-mail: florian.pitterl@i-med.ac.atAbstract
Ongoing legalization of cannabis for recreational use contributes to increasing numbers not only of incidents of driving under the influence, but within all forensic fields. In addition, newly emerging cannabinoids such as hexahydrocannabinol (HHC) and the increasing use of cannabidiol (CBD) products have to be addressed. The aims of this study were first to extend laboratory analysis capacity for the “established” cannabinoid ∆9-tetrahydrocannabinol (THC) and its metabolites 11-OH-THC and THC-COOH in human plasma/blood, and second to develop analytical procedures concerning HHC and CBD. An LC–MS–MS method based on the available (low-end) instrumentation was used. Samples (250 µl) were prepared by protein precipitation and solid-phase extraction. Chromatographic separation was achieved on a reversed-phase C18 column within 15 min. Detection was performed on a 3200 QTRAP instrument (Sciex) in positive multiple reaction monitoring (MRM) mode. Matrix-matched six-point calibrations were generated applying deuterated internal standards for all analytes except HHC. The method was fully validated according to GTFCh guidelines. Linear ranges were 0.5–25 µg/l for THC, 11-OH-THC, HHC and CBD, and 2.0–100 µg/l for THC-COOH, respectively. Limits of detection and limits of quantification were 0.5 and 1.0 µg/l (THC, 11-OH-THC, HHC, CBD), and 2.0 and 4.0 µg/l (THC-COOH). Applicability of plasma calibrations to blood samples was demonstrated. Acceptance criteria for intra- and inter-day accuracy, precision, extraction efficiency, and matrix effects were met. No interfering signals were detected for 80 exogenous compounds. The presented method is sensitive, specific, easy to handle, and does not require high-end equipment. Since its implementation and accreditation according to ISO 17025, the method has proven to be fit for purpose not only in driving under the influence of drug cases but also within postmortem samples. Furthermore, the design of the method allows for an uncomplicated extension to further cannabinoids if required.
Introduction
Psychoactive effects after consumption of “hemp” have been known for centuries, as well as its medicinal action [1]. The first isolated cannabinoids were cannabinol (CBN) and cannabidiol (CBD), presented in 1940; albeit both showed no obvious “marihuana activity” [2]. In the meantime, more than 60 cannabinoids have been isolated from plant species Cannabis sativa and thoroughly investigated [3]. In order to distinguish them from endocannabinoids, such as anandamide and 2-arachidonoyl glycerol [4], they are often called phytocannabinoids [5]. The primary—if not exclusive—target of endocannabinoids as well as psychoactive phytocannabinoids is the cannabinoid receptor type-1 (CB1). CB1 are G protein-coupled receptors that are densely expressed in the central nervous system [6, 7], but were also detected in peripheral tissues such as Leydig cells in testis [8] or in cardiac muscle [9, 10]. CB1 are believed to regulate cognitive processes as well as behavioral procedures such as locomotion, pain sensation, catalepsy, and regulation of body temperature [11]. CB1-specific binding patterns in brain were shown to be consistent with the known behavioral effects using cannabis products [12] and suggest that CB1 is involved in the CNS effects experienced by cannabis users [6].
It became common knowledge that delta9-tetrahydrocannabinol (THC, IUPAC classification (6aR,10aR)-6,6,9-trimethyl-3-pentyl-6a,7,8,10a-tetrahydro-benzo[c]chromen-1-ol) is the major psychoactive component in cannabis products [13], acting via CB1 receptors [4, 14, 15]. It may be mentioned that THC also targets CB2 receptors that show some homology to CB1 and are primarily located in peripheral tissue [16–18], and on immune cells such as B cells and macrophages [19]. It was shown that CB2 agonists lead to anti-inflammatory responses and improve symptoms of inflammatory diseases [20], and studies showed promising anxiolytic-like effects of CB2 agonists [21]. Both receptors are involved in pain regulation [22–24] and were studied for anticancer purposes [25].
After smoking marijuana, THC can be detected up to 5–8 h in plasma, depending on the frequency of cannabis use and the application route [26, 27]. However, heavy users may exhibit THC-levels in plasma for >24 h resembling concentrations that infrequent users show after acute cannabis use [28]. Metabolic pathways of THC in the human body have been extensively studied, revealing phase I and phase II metabolites such as the main psychoactive metabolite 11-hydroxy-delta9-tetrahydrocannabinol (11-OH-THC) [29–31], and the nonpsychoactive 11-nor-9-carboxy-delta9-tetrahydrocannabinol (THC-COOH) in urine with a urinary excretion half-life ranging from 0.8–9.8 days [32], as well as in plasma [26, 33]. After oral ingestion, very little unchanged THC was present in plasma [34], and 80–90% of THC metabolites are excreted within 5 days, as the bioavailability of THC is only 4–12%, as compared to 10–35% after smoking [35]. Explanations are acidic degradation in the gastrointestinal tract and extensive first-pass liver metabolism of THC, respectively [36].
Detection of THC and 11-OH-THC in plasma or blood proves impairment at the time of sample drawing, albeit the self-reported “high” effect after consumption seems to lag somewhat behind the measured plasma levels [37]. In contrast detection of the non-psychoactive THC-COOH only proves that consumption has taken place. This is true in general if substances and/or their metabolites are detected in urine, and not in blood/plasma samples.
Over the years, CBD (IUPAC classification 2-[(1 R,6 R)-3-methyl-6-prop-1-en-2-ylcyclohex-2-en-1-yl]-5-pentylbenzene-1,3-diol) also has gained more and more attention. CBD is a high potency CB1 antagonist [38] and mediates several other mechanisms, e.g. serotonin-receptor-related neurotransmission [39]. In 2020, the European Court of Justice stated that CBD extracted from plants should not be considered a drug under the 1961 United Nations Single Convention on Narcotic Drugs [40]. It has been studied for medical purposes, especially CNS disorders [41], and has gained importance as preparation Epidiolex/Epidyolex for treatment of seizures associated with several syndromes in children such as Lennox-Gastaut, Dravet, or tuberous sclerosis [42, 43]. Otherwise, it is widely promoted for having anti-inflammatory, relaxing, antidepressive, anxiolytic, and pain-relieving effects without any relevant side effects [44], albeit serious scientific studies showed that consumption of CBD is not risk-free, especially in combination with other applied drugs [45, 46]. Altogether, the sale of low-THC cannabis products, containing mainly CBD, has been steadily increasing in central Europe since a few years, starting in Switzerland and soon after in neighbouring countries as well, such as Italy and Austria [47], where currently increasing business volumes of about 1.4% per year are expected [48].
Recently also hexahydrocannabinol (HHC, IUPAC classification 6,6,9-trimethyl-3-pentyl-6a,7,8,9,10,10a-hexahydrobenzo[c]chromen-1-ol) has gained broader public attention. The term HHC commonly summarizes the two stereoisomers (9 R)-HHC and (9S)-HHC. It was first described as component in hemp extract as early as in 1940 [1], and further chemical characteristics of HHCs were specified soon after [2]. HHC and derivatives thereof were found to be potent CB1 agonists in vitro [49] as well as in vivo in rodents, displaying cannabimimetic effects in usual tests such as the tail-flick assay for antinociceptive responses, or hypothermic effects that are associated with CB1 receptor binding [50, 51]. This is not surprising, as HHC represents a hydrogenated analog of THC. However, it has been indicated that HHC derivatives exhibit a slower onset of action in comparison to THC, as shown in rodents after injection [50], albeit the CB1 binding affinity of THC was shown to be less potent than that of (9 R)-HHC with binding affinity constants of 27.3 nM and 19 nM, respectively [52].
After entering the drug market as alternative to THC in the USA, it was first identified in Europe in 2022 in a food product marketed as sleep aid [53]. In the meantime, it has been detected in hemp-derived resin [54], in vaping devices typically containing cannabis-oil cartridges [55] and in food products, so called edibles [53]. Semisynthetic large-scale production of HHC can be done using CBD as pre-precursor [56]. Usually, CBD undergoes acid-catalyzed intramolecular cyclization in a first step to delta8-THC as main product [57, 58]. In a second step, HHC is produced by catalytic hydrogenation of mainly delta8-THC, leading to different ratios of (9S)- and (9 R)-HHC depending on the catalyst used [54, 59], with (9 R)-HHC being the substantially more active isomer [60].
In the beginning in 2021, HHC was offered as legally available substance since it has not been clearly regulated by most national legislations, albeit it has been monitored as “new psychoactive substance” since 2022 within the EU [53]. However, HHC and its derivatives have been regulated since March 2023 by the Austrian New Psychoactive Substances Act [61] and by the Swiss Narcotic Act [62].
Cannabis consumption impairs driving skills [63, 64] and is associated with an increased risk of road traffic accidents [65]. However, in a more recent study, no significant impact on driving abilities was found in 33 volunteers after smoking of “CBD-rich” marijuana with a CBD concentration of 16.6% [66]. Consequently, it seems necessary to survey drivers participating in road traffic concerning possible drug consumption, especially cannabis products of all sorts. Furthermore, highly increasing numbers of driving under the influence of drugs (DUID) cases have been observed in recent years, showing an increase of ∼10% from 2019 to 2020 for cannabinoids [67], Austria being no exception with an estimated increase of 15% from 2017 to 2022 [68]. Main explanations are extended police and medical resources as well as improved training of police officers involved in vehicle and driver inspections. The number of DUID cases analyzed at the Institute of Legal Medicine in Innsbruck, covering Western Austria with an estimated population of 1.15 million, has multiplied by a factor of about 10 in the last 5 years. Not surprisingly, cannabis impairment was the predominant result among these cases, in accordance with previous studies [69, 70]. Furthermore, it can be expected that further legalization of cannabis consumption, e.g. as in Germany in 2024, will lead to yet another overall rise of cannabis positive cases. Accordingly, keeping pace with increasing sample numbers requires extended laboratory analytical capacity. Simultaneously, reasonably available resources have to be considered. This does not only apply exclusively for the “established” cannabinoid THC and its main metabolites 11-OH-THC and THC-COOH, but also for other emerging cannabinoids such as HHC and CBD, requiring adapted analytical procedures.
Our aim was therefore to establish an efficient and robust liquid chromatography–tandem mass spectrometry (LC–MS–MS) method based on easily available (low-end) instrumentation enabling the simultaneous determination of THC, 11-OH-THC, THC-COOH, HHC, and CBD in plasma and whole-blood. We are aware that a number of methodological papers for quantitative analysis of HHC and HHC-metabolites and/or other cannabinoids have been published by now. However, they are either covering a subset of analytes, e.g. focusing on HHC and its metabolites [71, 72], and/or apply GC–MS(–MS) techniques requiring derivatization steps prior to GC analysis [73, 74]. The presented method is fully validated, robust, efficient, and fit for purpose of unambiguous and reliable differentiation between traditional cannabis consumption and consumption of HHC and/or CBD products. Another aim of this study was to prove the applicability of the method not only in DUID cases, but also in postmortem samples, thus fully covering usual forensic routine.
Experimental methods
Chemicals and reagents
Water, methanol, acetonitrile, and acetone (all HPLC grade) were purchased from Honeywell (Seelze, Germany). Acetic acid and heptafluorobutyric acid (both purissima, p.a.) were obtained from Sigma-Aldrich (St. Louis, MO, USA). Reference standards and deuterated internal standards for THC, 11-OH-THC, THC-COOH, and CBD as well as a delta8-THC reference standard were purchased from Lipomed (Arlesheim, Switzerland). Reference standards of (9 R)- and (9S)-hexahydrocannabinol were obtained from Cayman Chemical (Ann Arbor, Michigan, USA). Validation procedures were performed using the (9 R)-hexahydrocannabinol standard (HHC).
Blank human plasma and whole-blood samples were obtained from the blood bank of the Innsbruck University hospital and were evaluated for absence of investigated analytes prior to use.
Instrumentation
All experiments were performed on a Sciex 3200 QTRAP triple–quadrupole mass spectrometer equipped with a TurboV ESI source (Sciex, Foster City, CA, USA). The mass spectrometer was interfaced with a 1100 HPLC system (Agilent, Waldbronn, Germany) consisting of a 1100 pump, a 1100 four-channel degasser, and a 1100 column oven. An HTS PAL autosampler (CTC Analytics, Zwingen, Switzerland) equipped with a 20 µl injection loop was applied.
Sample evaporation under nitrogen was performed using an EVA EC1 evaporator (VLM, Bielefeld, Germany).
Procedures
Preparation of standard solutions
A stock solution containing 500 µg/l of THC, 11-OH-THC, CBD, HHC, and 2000 µg/l THC-COOH, respectively, was prepared in methanol/water (75/25, v/v) and stored at −20°C. Dilutions of the stock solution with methanol/water (75/25, v/v) created calibrators at 0.5, 1.0, 2.5, 5.0, 10.0, 25.0 μg/l (THC, 11-OH-THC, CBD, HHC), and 2.0, 4.0, 10.0, 20.0, 40.0, 100 μg/l (THC-COOH), respectively, when fortifying 25 μl of standard solution into 250 μl of blank human plasma or whole blood. Quality control (QC) samples were prepared in methanol/water (75/25, v/v) from different vials than utilized for preparing standards. Low- and high QCs were prepared across the linear dynamic range of the assay at 1.0 µg/l and 10 µg/l (THC, 11-OH-THC, CBD, HHC) and 4.0 µg/l and 40 µg/l (THC-COOH), respectively.
Internal standard (IS) solution was prepared by diluting 100 µg/ml solutions of THC-d3, 11-OH-THC-d3, CBD-d3 and THC-COOH-d3 with methanol/water (75/25, v/v) resulting in concentrations of 0.1 µg/ml for THC-d3, 11-OH-THC-d3 and CBD-d3, and 0.4 µg/ml for THC-COOH-d3. IS solution was stored at −20°C and 25 μl of the solution was added to each 250 μl plasma or blood sample, providing final IS concentrations of 10 μg/l for THC-d3, 11-OH-THC-d3 and CBD-d3 and 40 µg/l for THC-COOH-d3. Since deuterated HHC was commercially not available during method development THC-d3 was used as IS for HHC quantification.
Sample preparation
Plasma or blood samples (250 µl) were mixed with 25 µl IS solution. For protein precipitation, 0.75 ml acetonitrile were added. The mixture was vortexed for 20 s and centrifuged for 5 min at 4000 × g. The supernatant was separated, diluted with 2 ml of a 0.1 M aqueous acetic acid solution and submitted to solid-phase extraction (SPE) employing Chromabond Drug II cartridges (45 µm, 200 mg, 3 ml, Macherey-Nagel, Dueren, Germany). The cartridges were equilibrated with 2 ml methanol and 2 ml water. After sample application, the cartridges were washed twice with 3 ml water each. To remove water, cartridges were placed in test tubes and centrifuged for 5 min at 4000 × g, and dried with nitrogen at 60°C for 20 min. Elution was accomplished with 2 ml acetone/acetic acid (99/1, v/v). The eluate was evaporated to dryness with nitrogen at 60°C and reconstituted in 35 µl of methanol/water (75/25, v/v).
Liquid chromatography
Chromatographic separation was accomplished on a Eurosphere II C18 column (100 × 2 mm, 5 μm, Knauer, Berlin, Germany) protected by a 0.2 µm stainless steel filter frit (Vici, Schenkon, Switzerland). The column oven temperature was 50°C throughout the analysis. The PAL autosampler was operated at room temperature, and the injection volume was 10 µl. Separations were performed using a 2 min gradient of 70–100% methanol in aqueous solution containing 0.5% acetic acid and 0.005% heptafluorobutyric acid (both v/v). The flow rate was set to 200 µl/min and the total run time was 15 min. The column outlet was directly connected to the electrospray ionization (ESI) source.
Mass spectrometry
Mass spectrometric data were acquired with ESI in positive ionization mode. MS–MS parameter settings (Table 1) were optimized via direct infusion of individual analytes (500 μg/l in initial mobile phase) at 10 µl/min. Optimized source parameters were as follows: spray voltage 5.5 kV, gas flows of 60 arbitrary units (gas 1 and gas 2) and 45 arbitrary units (curtain gas), respectively. Collision cell gas (CAD) was set to “medium” and the source temperature was adjusted to 500°C. Unit resolution was used for all experiments. Mass spectrometric data were recorded and analyzed on a personal computer with Analyst software 1.5 (Sciex).
| Analyte | Retention time (min) | Q1 Mass (m/z) | Q3 Mass (m/z) | Dwell Time (ms) | DP (V) | EP (V) | CEP (V) | CE (V) | CXP (V) |
|---|---|---|---|---|---|---|---|---|---|
| THC | 6.87 | 315.0 | 193.4 | 150 | 50 | 4.5 | 17.0 | 30 | 3.0 |
| 315.0 | 123.2 | 50 | 55 | 3.7 | 25.0 | 44 | 4.0 | ||
| THC-d3 | 6.86 | 318.3 | 196.1 | 50 | 50 | 4.5 | 17.0 | 30 | 3.0 |
| 11-OH-THC | 5.94 | 331.0 | 193.3 | 500 | 45 | 4.0 | 20.0 | 34 | 7.9 |
| 331.0 | 313.5 | 50 | 45 | 4.0 | 20.0 | 16 | 3.6 | ||
| 11-OH-THC-d3 | 5.92 | 334.0 | 316.5 | 200 | 45 | 4.0 | 20.0 | 16 | 3.6 |
| HHC | 7.06 | 317.4 | 193.2 | 50 | 50 | 4.5 | 17.0 | 30 | 3.0 |
| 317.4 | 137.2 | 50 | 50 | 3.7 | 25.0 | 44 | 4.0 | ||
| CBD | 6.17 | 315.0 | 193.4 | 150 | 50 | 4.5 | 17.0 | 30 | 3.0 |
| 315.0 | 123.2 | 50 | 55 | 3.7 | 25.0 | 44 | 4.0 | ||
| CBD-d3 | 6.14 | 318.3 | 196.1 | 50 | 50 | 4.5 | 17.0 | 30 | 3.0 |
| THC-COOH | 6.05 | 345.5 | 299.5 | 50 | 60 | 5.0 | 13.3 | 30 | 5.1 |
| 345.5 | 327.5 | 150 | 60 | 5.0 | 15.0 | 20 | 5.2 | ||
| THC-COOH-d3 | 6.04 | 348.2 | 330.1 | 50 | 60 | 5.0 | 15.0 | 20 | 5.2 |
Method validation
The method was fully validated for human plasma according to the guidelines of the German Society of Toxicological and Forensic Chemistry (GTFCh) [75]. Evaluated parameters included linearity, sensitivity, specificity, selectivity, intra- and inter-day precision, accuracy, carry-over, dilution integrity, matrix effects, extraction efficiency as well as autosampler and freeze–thaw stability. The applicability of the method to the analysis of whole-blood samples was evaluated and validated regarding selectivity, accuracy and precision, freeze–thaw stability, matrix effects, and extraction efficiency.
Linearity of the method was evaluated by analyzing seven replicates of spiked human plasma samples on seven different days at 0.5, 1.0, 2.5, 5.0, 10.0, 25.0 μg/l (THC, 11-OH-THC, CBD, HHC) and 2.0, 4.0, 10.0, 20.0, 40.0, 100 μg/l (THC-COOH), respectively. Peak area ratios of target analytes and their respective internal standards versus the nominated concentration of the levels were fitted in a nonweighted linear calibration model for all analytes. Linearity was expressed by the squared correlation coefficient (R2) and evaluated visually using residual plots.
Sensitivity was investigated by determining limits of detection (LOD) and limits of quantification (LOQ). LOD and LOQ were calculated from the linear calibration functions according to DIN 32 645 using the software SQS 2013 Version 1.00 for analytical method validation.
Endogenous interferences were assessed in six independent blank sources of human plasma and seven independent blank sources of human blood. Interferences were also assessed in blood and plasma fortified with internal standard. In addition, plasma was fortified with 80 illicit and common therapeutic drugs, metabolites, and related compounds including selected synthetic cannabinoids and analyzed for interfering signals (Supplementary Table S1). Specificity was based on retention time as well as on intensity ratios of two MRM transitions per analyte. Retention times for QC and authentic specimens were required to be within ±0.05 min of the mean calibrator retention time and the peak area ratios had to be within ±20% of the mean calibrator intensity ratio.
Accuracy and precision of the method were assessed by analyzing QC samples at low (low QC, corresponding LOQ) and high concentrations (high QC: 10 µg/l for THC, 11-OH-THC, CBD, HHC and 40 µg/l for THC-COOH). For plasma intra- and inter-day precision and accuracy were assessed by six determinations per concentration within one day and by nine determinations per concentration on nine different days whereas blood intra-day precision and accuracy was evaluated by seven determinations per concentration within one day. Precision was expressed as relative standard deviation (RSD %), which should be <15% at each concentration and <20% at LOQ level. Accuracy was expressed as a relative error (%), which was required to be within ±15% at each concentration and within ±20% at LOQ level.
Carryover was assessed in triplicate by analyzing negative blank matrix (internal standard only) after the highest calibrator. Carryover was considered insignificant if no peaks eluted at the analytes’ expected retention time (±0.05 min) and any signal present was less than LODs.
Dilution integrity of the method was assessed with three blank plasma specimens fortified with two-fold concentrations of the highest calibrator (50 and 200 µg/l for THC, 11-OH-THC, CBD, HHC and THC-COOH, respectively). Specimens were diluted with additional blank plasma at 1:5 ratios to yield a 250 μl volume. Samples and specimens were further processed as normal.
Extraction efficiency and matrix effects for each analyte were evaluated at two concentration levels (low QC and high QC) in six replicates according to the design of Matuszewski et al. [76] for plasma and blood. For determination of extraction efficiency, quality control standard solution was added prior to or following SPE. Extraction efficiency in percent was expressed as the mean analyte area of samples with control solution added before SPE (n = 6) divided by the mean analyte area of samples with control solution added after SPE (n = 6). Matrix effect was investigated by comparing analyte peak areas of extracted blank samples that were fortified after SPE versus analyte peak areas of neat samples prepared in methanol/water (75/25, v/v) at equivalent concentrations and was calculated by dividing the analyte areas of blank samples fortified after SPE by areas of neat samples, expressed as percent.
Processed sample stability for plasma samples while stored in the autosampler at room temperature was evaluated. Ten replicates of extracted low and high QC samples were analyzed repeatedly after ∼4 h resulting in an overall investigated time frame of 41.5 h. Processed samples were considered stable if peak area loss was <15%. Freeze-thaw analyte stability was evaluated for plasma and whole blood at low QC and high QC concentrations with six replicates each, prior and after three freeze–thaw cycles (one cycle corresponds to 20 h freeze and 1 h thaw at room temperature). All samples were quantified from the calibration curve initially analyzed.
Results and discussion
Method development
The aim of the current work was to establish and validate an efficient and robust LC–MS–MS method based on the available low-end instrumentation enabling the simultaneous determination of THC, 11-OH-THC, THC-COOH, HHC, and CBD in human plasma and blood. Main requirements of the newly developed method were better sensitivity and higher sample throughput in combination with less hands-on time as compared to the previously available GC–MS method. Another key prerequisite was the unambiguous and reliable differentiation between “traditional” cannabis consumption and consumption of HHC and/or CBD products. Essentially, artificial transformation of CBD to THC, which can be observed in GC–MS workflows depending on the conditions of sample preparation, derivatization and/or GC–MS analysis, had to be eliminated.
MS–MS conditions were optimized by direct infusion of solutions of each individual analyte and internal standard. Source parameters are detailed in the “Experimental methods” section and MRM parameters are listed in Table 1. Two MRM transitions for each analyte were monitored for unambiguous identification. For quantification the highlighted (bold font) MRM transition (see Table 1) was used. Notably, identical MRM conditions are mentioned for THC and CBD as well as for the respective internal standards. THC and CBD are structurally related compounds, with CBD being considered the open-chain form and THC the related cyclic form. The two compounds exhibit a high degree of similarity of fragment ion mass spectra, which leads to interference in the MRM traces. As the presented chromatographic method clearly differentiates the two cannabinoids with CBD eluting 0.60 min earlier than THC (Fig. 1f and i), identical MRM settings can be applied for monitoring both, THC and CBD as well as their deuterated analogs. Thereby mass spectrometric detection is taking advantage of “saving” cycle time which is beneficial using an instrument with limited scan speed.
Optimization of chromatographic conditions was restricted because other accredited routine applications were performed on the same LC–MS–MS system as well. Applying the established reversed phase column and mobile phases enabled the separation of target analytes within a runtime of 15 min with exception of the two HHC diastereomers. 9 R- and 9S-HHC eluted at identical retention times regardless of the applied methanol gradient, column temperature and flow rate. Hence, the procedure determines “total HHC concentrations” in biological samples, not distinguishing 9 R- and 9S-HHC. Likewise, the present chromatographic system enabled only partial separation of delta9- and delta8-THC. Delta8-THC eluted 0.1 min later than delta9-THC but baseline separation of the two isomers was not achieved. Therefore, delta8-THC was omitted from the validated method. However, for casework analysis misidentification of the two isomers can be excluded due to a retention time difference larger than ±0.05 min, which is the chromatographic identification criterion for all analytes included in the validated method.
As solvent mixture for reconstitution of extracts methanol/water (75/25, v/v) was used, as higher methanol percentage impaired chromatographic behavior and lower methanol content reduced solubility of analytes. The injection volume of 10 µl was a compromise between signal intensity and saving of extract volume for potentially needed repeating injections.
In the course of method development different sample preparation techniques were evaluated including liquid–liquid extraction, supported liquid extraction, protein precipitation as well as solid-phase extraction. Attempts of performing one-step sample preparation compromised analytical performance of the method. Finally, the presented elaborate workflow including protein precipitation and consecutive solid-phase extraction generates clean extracts showing little endogenous interferences. Low noise in MRM traces combined with reasonable extraction efficiency enabled sensitive and selective detection of all analytes even at low concentrations with low sample volume input on the available low-end instrumentation.
Method validation
The method was validated according to the criteria described in the “Experimental” section. Calibration curves (Table 2) showed excellent linearity (R2 > 0.999, no weighting) over the concentration range of 0.5–25 µg/l for THC, 11-OH-THC, HHC, and CBD, and 2.0–100 µg/l for THC-COOH, respectively. Visual evaluation of calibrations using residual plots suggested that linear calibration models were appropriate as individual residuals showed equal variances across the calibration range and random distribution around the zero line. Back-calculated concentrations were all within 85%–115% of the nominal concentrations.
| Analyte | Internal standard | LOD (µg/l) | LOQ (µg/l) | Slope ± SD (n = 7) | y-int ± SD (n = 7) | R 2 ± SD (n = 7) | Linear range (µg/l) |
|---|---|---|---|---|---|---|---|
| THC | THC-d3 | 0.13 | 0.65 | 0.065 ± 0.001 | 0.005 ± 0.009 | 0.999 ± 0.001 | 0.5–25 |
| 11-OH-THC | 11-OH-THC-d3 | 0.04 | 0.20 | 0.036 ± 0.001 | 0.002 ± 0.001 | 1.000 ± 0.000 | 0.5–25 |
| HHC | THC-d3 | 0.13 | 0.67 | 0.280 ± 0.004 | 0.020 ± 0.004 | 0.999 ± 0.001 | 0.5–25 |
| CBD | CBD-d3 | 0.07 | 0.36 | 0.061 ± 0.001 | 0.002 ± 0.005 | 0.999 ± 0.001 | 0.5–25 |
| THC-COOH | THC-COOH-d3 | 0.72 | 3.61 | 0.023 ± 0.001 | 0.002 ± 0.018 | 0.999 ± 0.000 | 2.0–100 |
Statistically determined values for LOD and LOQ (Table 2) were clearly below 0.5 and 1.0 µg/l (THC, 11-OH-THC, HHC, CBD) and 2.0 and 4.0 µg/l (THC-COOH) which are comparable to recently published methods [71–74] and applicable limits in forensic caseworks, fulfilling the requirements regarding sensitivity.

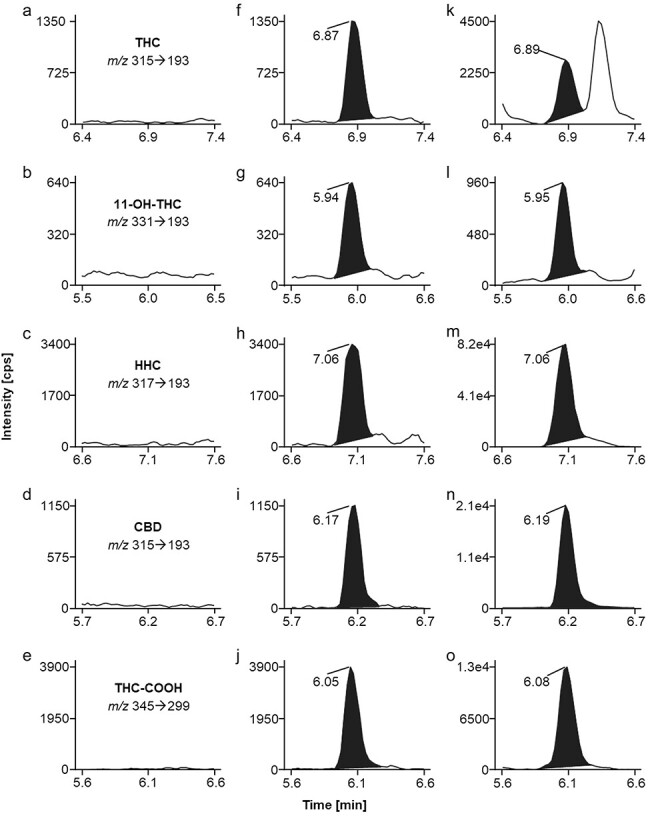

No interfering signals were detected for all analytes in six independent sources of plasma. Figure 1(a–e) depicts representative clean MRM chromatograms of an extracted blank plasma sample, proving selectivity of the method. Apparently, potentially interfering endogenous species are effectively removed during the applied sample preparation steps. Furthermore, no chromatographic peaks were observed for plasma samples fortified with 80 potentially interfering exogenous substances (Supplementary Table S1). The exception was the naturally occurring cannabinoid cannabigerol that is structurally related to HHC, with cannabigerol being considered the open-chain form and HHC the related cyclic form. These two compounds exhibit a high degree of similarity of fragment ion mass spectra, which may lead to interference in the MRM traces. However, the presented chromatographic method clearly differentiates the two cannabinoids with cannabigerol eluting 0.90 min earlier than HHC.
Possible carryover in a negative blank matrix following a specimen spiked at the upper limit of quantification level was assessed. Any signal present was less than each LOD, suggesting that the current method application was devoid of carryover.
In the course of method validation, the required identification criteria were met for all analytes.
Table 3 shows accuracy and precision data evaluated for each analyte at two concentration levels in human plasma. The intra-day accuracy, calculated as the relative error of target concentrations, ranged from −7.0% to 5.6%. The maximum intra-day precision (% RSD) was 13.0%. The inter-day accuracy ranged from −11.8% to 11.3%. Inter-day precision (% RSD) was ≤12.7%.
| Intra-day (n = 6) | Inter-day (n = 9) | |||||||
|---|---|---|---|---|---|---|---|---|
| Precision (% RSD) | Accuracy (rel. error, %) | Precision (% RSD) | Accuracy (rel. error, %) | |||||
| Analyte | Low | High | Low | High | Low | High | Low | High |
| THC | 5.1 | 7.3 | 1.0 | −6.8 | 11.5 | 7.3 | −5.0 | −7.5 |
| 11-OH-THC | 9.4 | 9.1 | 4.0 | 5.2 | 12.7 | 7.6 | 7.0 | 8.0 |
| HHC | 11.6 | 13.0 | 1.0 | 5.6 | 11.6 | 4.8 | 1.0 | −4.0 |
| CBD | 6.1 | 11.9 | 1.0 | −1.4 | 12.6 | 6.2 | −1.0 | −11.8 |
| THC-COOH | 8.6 | 8.6 | −7.0 | 0.8 | 9.2 | 11.0 | −7.8 | 11.3 |
Extraction efficiency and matrix effect data for plasma samples are presented in Table 4. The mean extraction efficiency of target analytes ranged from 73.8% to 82.6%, suggesting that the developed sample preparation procedure had good extraction efficiency. The matrix effect at two concentration levels was in the range of 76.0%–92.6%, which suggested that co-eluting substances had only minor effects on the ionization of target analytes.
| Extraction efficiency (%, n = 6) | Matrix effect (%, n = 6) | |||
|---|---|---|---|---|
| Analyte | Low | High | Low | High |
| THC | 77.2 | 79.1 | 77.4 | 77.3 |
| 11-OH-THC | 78.1 | 81.3 | 77.4 | 76.0 |
| HHC | 73.8 | 74.4 | 84.7 | 85.2 |
| CBD | 79.1 | 79.6 | 81.5 | 78.6 |
| THC-COOH | 75.3 | 82.6 | 87.2 | 92.6 |
Accuracy, precision data, extraction efficiency, and matrix effect data were comparable to published data [71–74, 77].
Dilution integrity was maintained up to five times dilution with blank plasma and all analytes were quantified within 20% of the theoretical concentration. This proved that high concentrations of target analytes that are occasionally observed in casework samples following cannabis smoking can be reliably measured.
Stability of extracted plasma specimens at room temperature on the autosampler was determined for 41.5 h. All analytes were stable under these conditions over the investigated time frame as there was no significant decrease (<15%) of peak areas observed. In fortified plasma samples at low and high QC concentrations (six replicates), all analytes were stable during three freeze–thaw cycles.
Applicability to whole-blood samples
Separation of plasma is not always possible due to hemolysis especially in postmortem blood samples, or due to low sample volume. This means that a significant number of whole-blood samples are regularly received in forensic laboratories. Therefore, one essential aspect during validation was the applicability of the method to blood samples. Seven independent sources of whole-blood samples were extracted and analyzed in order to assess selectivity. No interferences were detected. Potentially interfering endogenous species were obviously effectively removed during the applied sample preparation steps.
In order to assess the applicability of matrix-matched plasma calibrations for analyte quantitation, low and high QC specimens were generated in seven independent blood samples and analyzed. Quantitative results for each analyte were determined applying the respective plasma calibration, and accuracy and precision were calculated for both concentration levels (Table 5). Relative errors were within −15% to 4.2% for all analytes and precision (% RSD) was less than 8.3%. These results prove that analysis of blood samples by applying matrix matched plasma calibrations was valid.
| Extraction efficiency (%, n = 6) | Matrix effect (%, n = 6) | Precision (% RSD, n = 7) | Accuracy (rel. error, %, n = 7) | |||||
|---|---|---|---|---|---|---|---|---|
| Analyte | Low | High | Low | High | Low | High | Low | High |
| THC | 72.2 | 81.9 | 98.6 | 93.7 | 5.5 | 1.4 | −3.0 | −8.0 |
| 11-OH-THC | 72.5 | 78.2 | 80.4 | 83.1 | 3.5 | 2.9 | 4.0 | 13.0 |
| HHC | 62.0 | 73.2 | 115.2 | 106.3 | 8.3 | 5.8 | −11.0 | 4.0 |
| CBD | 71.9 | 84.4 | 94.8 | 85.5 | 6.1 | 4.4 | 0.0 | −15.0 |
| THC-COOH | 62.9 | 79.7 | 105.1 | 100.6 | 5.5 | 6.6 | 2.0 | 4.2 |
Mean extraction efficiency and matrix effect data for blood samples are also presented in Table 5. Mean extraction efficiency of target analytes ranged from 62.0% to 84.4% and show that the applied sample preparation procedure has acceptable extraction efficiency also for whole-blood samples. Matrix effects were in the range of 80.4% to 115.2%, which suggests that co-eluting substances have only minor to moderate effects on the ionisation of target analytes.
In fortified whole blood at low and high QC concentrations (six replicates), all analytes were stable during three freeze–thaw cycles. Average concentrations of stability samples were within 90–110% of the respective control samples.
Furthermore, applicability of the method to blood samples was demonstrated by regular successful participation in proficiency tests.
Limitations of the method
The application of deuterated HHC as internal standard for HHC quantitation would be beneficial for compensation of matrix effects and extraction efficiency fluctuations, especially for the analysis of blood samples (Table 5). During method development and validation no deuterated analogues of HHC had been commercially available. Meanwhile, this has changed and the inclusion of HHC-d9 to the presented method is scheduled.
The presented method determines total HHC concentrations in biological samples. This analytical limitation could be overcome by applying an alternative reversed phase chromatographic system [71] or by applying chiral chromatography [72]. Currently, no differentiation between the two HHC diastereomers is stated in the Austrian legislation regarding legal consequences for the driver [61].
At the current stage of development, delta8-THC is not included in the validated method due to insufficient chromatographic separation from delta9-THC. Although baseline separation is not achieved, the chromatographic method distinguishes reliably the two isomers due to differing retention times.
The method covers metabolites of THC but not of CBD and HHC. Monitoring metabolites of these two targets would further improve the method. For the respective carboxy-metabolites, higher concentrations and/or longer detection windows compared to their precursors are observed in biological samples [71, 78]. Thereby carboxy-metabolites of HHC and CBD can be considered as appropriate markers for proving the intake of the respective cannabinoid. Additionally, chronic consumption can be differentiated from single-dose users according to levels of carboxy-metabolites, which can be important information in forensic casework. Applying the present method in CBD positive samples putative signals of CBD-COOH were detected in the MRM traces of THC-COOH due to a high degree of similarity of fragment ion mass spectra. Again, the two analytes were unequivocally differentiated by chromatography, with CBD-COOH eluting 2.5 min earlier than THC-COOH.
Casework analysis
Application to casework samples proved the robustness and capacity of the method in a forensic routine laboratory. It was fully accredited according to EN ISO/IEC 17 025. Since its implementation in routine work about one thousand DUID cases were analyzed until the end of 2023. The majority of samples, about 80%, was tested positive for THC and/or its main metabolites, with THC concentrations above LOQ ranging from 1.0 to 200 µg/l (mean 8.1 µg/l). In Austria, no threshold values for illicit drugs are defined in the road traffic act. This means that the presence of a substance in blood, independent of its concentration, leads to legal consequences for the driver. Having this in mind, the applied LOQs of the presented method, namely 1.0 µg/l for the psychoactive cannabinoids, is reasonable and in good accordance with international THC limits such as the commonly applied analytical limit of 1.0 µg/l in Germany [79] or 1.5 µg/l in Switzerland [80].
A small number of DUID samples was tested positive for CBD (n = 33) with concentrations ranging from 1.0 to 27.0 µg/l. Measured levels above 5.0 µg/l are concordant with concentrations that were observed within 1–2 h after smoking CBD joints [81]. The majority of these samples were concomitantly tested positive for THC, indicating that an exclusive consumption of pure CBD products is rare, at least among DUID cases.
Even fewer samples contained HHC (n = 6). Obviously, HHC has lost importance at least in Austria. It can be only speculated if the reason for this may be truly found in the Austrian HHC regulation by law [61]. Measured plasma concentrations ranged from 2.1 to 37.0 µg/l. HHC plasma levels seem to be similar to THC levels, and the observed HHC concentrations are in good accordance with published data [71–73]. It can be reasonably assumed that the highest measured value of 37.0 µg/l is observed shortly after consumption, especially in regard to measured levels of about 4.0 µg/l (9 R + 9S) HHC in a user stating regular consumption of HHC products [74]. In all of the six HHC positive cases, plasma as well as blood samples were available and consequently analyzed. Measured blood levels ranged from 0.6 to 9.1 µg/l and a blood to plasma (b/p) ratio of 0.28 (0.24–0.39) was determined for HHC, which is about half the THC b/p ratio of 0.5–0.6 [82].
Figure 1(k–o) shows MRM ion chromatograms of a DUID casework plasma sample that contained all analytes covered by the presented method. The obtained concentrations were 2.3 µg/l THC, 1.3 µg/l 11-OH-THC, 37.0 µg/l HHC, 22.0 µg/l CBD, and 14.3 µg/l THC-COOH, respectively. Apparently, the three cannabinoids THC, HHC as well as CBD had been consumed. Concerning the observed plasma levels the user had potentially intended to take an HHC and/or CBD containing product, which was contaminated with THC. However, no further information about consuming habits and/or time range between vehicle control and blood sampling were available.
The presented method was additionally applied to postmortem blood and plasma samples. The analysis of such samples can be challenging, due to matrix effects dependent on the time interval between time of death and blood sampling. Sample preparation was successfully performed according to standard procedure. Target analytes were detected, and no interference with putrefaction products was observed. However, in none of the examined postmortem cases HHC and CBD were present.
Conclusion
A fully validated, sensitive, and specific analytical LC–MS–MS method for simultaneous determination of THC, 11-OH-THC, THC-COOH, HHC, and CBD in human blood and plasma samples is presented. The method is easy to handle, requires reasonable sample volumes and does not need high-end analytical equipment. Since its implementation and accreditation according to ISO 17 025, the method has proven to be robust and fit for purpose in long-term routine analysis not only in DUID cases but also with postmortem samples. Furthermore, the design of the method allows for an easy and uncomplicated extension to further cannabinoids and/or their main metabolites, if required, thus being prepared for new challenges within a quickly changing cannabis market including semisynthetic cannabinoids.
