Association between plasma concentrations of linoleic acid-derived oxylipins and the perceived pain scores in an exploratory study in women with chronic neck pain
Department of Occupational and Public Health Sciences, Centre for Musculoskeletal Research, University of Gävle, SE 907 13 Umeå, Sweden
Department of Chemistry, Umeå University, SE-901 87 Umeå, Sweden
Department of Pharmacology and Clinical Neuroscience, Umeå University, SE-901 87 Umeå, Sweden
Department of Community Medicine and Rehabilitation, Umeå University, Umeå, Sweden
Abstract
Background
Chronic musculoskeletal pain may be associated with changes in the balance of algogenic and anti-nociceptive compounds, and such changes may be visible in plasma samples. We have undertaken an exploratory study to measure the levels of endocannabinoids, related N-acylethanolamines and oxylipins (primarily those derived from linoleic acid) in plasma samples from women with chronic neck pain (NP) and chronic widespread pain (CWP), and to investigate whether the observed levels are associated with the pain experienced by these women.
Methods
Blood samples from 35 women with NP, 15 with CWP and 27 age-matched controls were analysed for the lipids using ultra performance liquid chromatography coupled to tandem mass spectrometry. Current pain (“NRSday”) and the average pain during the last week (“NRSweek”) were rated by the participants using a numerical rating scale.
Results
There were no significant differences in the plasma concentrations of the fifteen lipids investigated between the women with pain and the controls. However, significant correlations were seen for the NP group between the NRSday scores and the plasma concentrations of the linoleic acid derivatives 9- and 13-hydroxy-octadecadienoic acid (Spearman’s rho values 0.51 [P = 0.0016]) and 0.53 [P = 0.0011], respectively).
Conclusions
The data obtained in this exploratory study indicate that although no group differences are seen in plasma lipid concentrations, there is an association between the NRSday scores and the 9- and 13-hydroxy-octadecadienoic acid levels. Whether or not the association reflects a causality (i.e. that the circulating lipids contribute to the perceived pain of the pain participants), requires further investigation.
Untitled section
Keywords: Musculoskeletal disorders; chronic neck pain; chronic widespread pain; endocannabinoids; N-acylethanolamines; oxylipins; 9-hydroxy-10E,12Z-octadecadienoic acid; 13-hydroxy-9Z,11E-octadecadienoic acid
Article notes
Untitled section
Received 2015 Oct 17; Accepted 2016 Feb 17; Collection date 2016.
Background
Chronic pain is a very common condition with a large cost to society both in economic and personal terms. Chronic pain, which most often presents as musculoskeletal pain, can be either localised to defined structures or areas or have a more widespread occurrence. Localised pain may be both specific and nonspecific, i.e. the presence of specific diagnosis or not. Pain localised to the neck (NP) was the fourth ranked disorder with respect to years lived with disability in the USA during the period 1990–2010 [1]. Chronic widespread pain (CWP), defined by the American College of Rheumatology as pain present on both sides of the body as well as both above and below the waist [2, 3] is also very common, with a prevalence in the range 4.8–7.4 % of the population [4]. The pain in CWP and NP has both central and peripheral components, and at the level of the muscle, higher levels of algogenic compounds like glutamate and lactate have been reported in these conditions [5]. Interestingly, the raised interstitial concentrations of glutamate and lactate seen in muscle dialysates from CWP patients were also seen in plasma from the same individuals [5]. In another microdialysis study investigating controls and individuals with trapezius myalgia, a positive correlation was seen between baseline pain and the interstitial levels of serotonin, an important pain-signalling molecule [6].
Endogenous pain modulation is not restricted to glutamate, lactate and serotonin alone, and there are a number of lipids, including N-acylethanolamines (NAEs), endocannabinoids and oxylipins derived from linoleic acid that affect pain perception. With respect to the NAEs, the most well-studied is arachidonoylethanolamide (AEA, anandamide), which produces its actions in the body primarily via effects upon cannabinoid (CB) receptors, although it can also act upon transient receptor potential vanilloid 1 (TRPV1) receptors, particularly under conditions of inflammation [7]. A related compound, 2-arachidonoylglycerol (2-AG) is also an endocannabinoid, and compounds inhibiting the hydrolysis of either AEA or 2-AG are active in a wide variety of animal models of pain [8, 9]. The NAE palmitoylethanolamide (PEA) is not an endocannabinoid, but produces analgesia purportedly by activation of peroxisome proliferator-activated receptor α [10]. Oleoylethanolamide (OEA) also affects pain, albeit by a mechanism independent of peroxisome proliferator-activated receptor α [11]. In addition to its analgesic effects, PEA is anti-inflammatory, a property shared by stearoylethanolamide (SEA) [12]. Other members of the NAE family, such as linoleoylethanolamide (LEA), are less well investigated.
Relatively little is known about NAE/2-AG levels in human musculoskeletal pain. However, in trapezius muscle microdialysates, levels of PEA and SEA are increased in chronic neck/shoulder pain, but not in CWP [13]. It is not known whether changes in the levels of these NAEs are seen in the plasma of individuals with CWP and/or chronic neck pain (NP). A large increase in plasma AEA, however, has been reported in patients with fibromyalgia [14].
Oxylipins derived from linoleic acid are another important class of biologically active lipids. In plasma, among the most prevalent are 9-HODE (9-hydroxy-10E,12Z-octadecadienoic acid) and 13-HODE (13-hydroxy-9Z,11E-octadecadienoic acid). To our knowledge, it is not known whether plasma/serum levels of the HODEs or related lipids are changed in human musculoskeletal pain, but they are increased in other pain conditions, such as Achilles tendinopathy [15]. Given the ability of these compounds to activate TRPV1 receptors involved in pain transmission [16, 17], it is possible that the increased levels of these lipids may contribute to the pain found in these disorders.
From the above, it can be argued that chronic musculoskeletal pain may be associated with changes in the balance of algogenic and anti-nociceptive compounds, and that such changes may be visible in plasma samples. In consequence, given the lack of knowledge in this area, we have undertaken an exploratory study to measure the levels of AEA, 2-AG, related NAEs and linoleic acid-derived oxylipins in plasma samples from healthy women, women with CWP and NP, and to investigate whether the observed levels are associated with the pain experienced by these individuals.
Methods
Subjects
Female participants of age range 20–65 years were consecutively recruited during the period June 2011–March 2012. Twenty-seven healthy controls and 36 subjects with NP (of whom data from 35 are reported here) were recruited from a randomized controlled trial (Current Controlled Trials registration ISRCTN49348025; the trial comprised 120 subjects with NP and 40 healthy controls) [18]. Seventeen subjects with CWP (of whom data from 15 are reported here) were recruited via contact with the local patient organisation and/or advertising in local newspapers. Ethical approval for this project was granted by the ethical committee of Uppsala University (registration number 2011/081). All subjects participated voluntarily after informed written consent. For the NP group, inclusion criteria were more than 6 weeks of non-specific neck-shoulder pain (indicated as dominant pain area in a pain drawing), more than “no disability” but less than “complete disability” according to the Neck Disability Index (NDI), and self-reported impaired productivity to work the preceding month (for details see [18]). The CWP group had obtained their diagnosis using the American College of Rheumatology criteria for fibromyalgia [2] albeit without the requirement of at least 11/18 trigger points. Subjects with rheumatoid arthritis, systemic lupus erythematosus, Bechterew’s disease, multiple sclerosis, epilepsy or Parkinson’s disease, type I-diabetes, cardiovascular disease or endocrine diseases were excluded, as were subjects who did not eat either fish or meat on a regular basis.
All participants were asked not to use any pain medications except for paracetamol preparations three days before the blood sampling and to avoid intake of caffeine, nicotine and wholegrain during the 12 h prior to blood sampling. The subjects were allowed water alone during the last two hours of this period and were also asked not to perform any shoulder or neck-straining exercises for the last two days prior to blood sampling, except for ordinary daily work and/or leisure activities. All subjects rated the current pain (“NRSday”) and the average pain during the last week (“NRSweek”) on a numerical rating scale [19] (0–10, where 0 is no pain and 10 is the worst pain imaginable) at the time of blood sample collection. NRS is adjudged to have a higher validity than several other commonly used pain scores [20].
Blood sampling procedure
Blood was sampled either during the morning (between 07:30 and 11:30) or afternoon (between 12:00 and 15:00). After arrival at the laboratory, subjects were allowed to rest for 15 min before venous blood was drawn into Li-Heparin prepared Vacutainer tubes from the bend of the arm while the subjects were in a sitting position. Blood for plasma analysis were treated according to a standardised protocol, whereby the Vacutainer tube was turned 10 times during a 30 s period at room temperature before being immediately centrifuged at 4 °C for 5 min at 2500 rpm. Supernatants were aliquoted (500 μL) into pre- labelled homopolymer tubes and frozen at −80 °C until analysis. Thus, the lipid analyses conducted here were undertaken on previously unthawed samples.
Chemicals and reagents for lipid analyses
The following native and deuterated standards were purchased from Cayman Chemical (Ann Arbor, MI, USA): 2-AG, AEA, PEA, SEA, OEA, LEA, 9-HODE, 13-HODE, 9(10)-DiHOME (9(10)-dihydroxy-12Z-octadecenoic acid), 12(13)-DiHOME (12(13)-dihydroxy-9Z-octadecenoic acid), 13-oxo-ODE (13-oxo-9Z,11E-octadecadienoic acid), 5-HETE (5-hydroxy-6E,8Z,11Z,14Z-eicosatetraenoic acid), 8,9-DiHETrE (8,9-dihydroxy-5Z,11Z,14Z-eicosatrienoic acid), 12-[[(cyclohexylamino)carbonyl]amino]-dodecanoic acid (CUDA), 2-AG-d8, AEA-d8, PEA-d4, SEA-d3, OEA-d4, TXB2-d4, 12(13)-DiHOME-d4, 9(S)-HODE-d4, 20-HETE-d4, 5(S)-HETE-d8 and 12(13)-EpOME-d4. 9,10,13-TriHOME (9,10,13-trihydroxy-11-octadecenoic acid) and 9,12,13-TriHOME (9,12,13-trihydroxy-10E-octadecenoic acid) were obtained from Larodan (Sweden, Malmö). Butylhydroxytoluene (BHT) was obtained from the Cayman Chemical Co. All solvents and chemicals used were of HPLC grade or higher. A Milli-Q Gradient system (Millipore, Milford, MA, USA) was used to purify water.
The deuterated compounds were used as internal standards and added prior to extraction to mimic the isolation of the endogenous compounds from the plasma samples. For each native compound, a suitable internal standard was selected based on structural similarities for quantification purposes. Recovery rates of each internal standard were calculated by adding a known amount of the recovery standard CUDA in the last step before injection. The recovery rates (%, means ± SD) of the internal standards in the present study were: 2-AG-d8 (92.3 ± 13.3, N = 74), AEA-d8 (70.7 ± 11.3, N = 74), PEA-d4 (70.0 ± 21.8, N = 74), SEA-d3 (71.2 ± 6.2, N = 74), OEA-d4 (62.1 ± 13.7, N = 74), TXB2-d4 (71.7 ± 16.6, N = 74), 12(13)-DiHOME-d4 (77.2 ± 10.2, N = 74), 9(S)-HODE-d4 (67.5 ± 16.4, N = 74), 20-HETE-d4 (101.3 ± 12.2, N = 74), 5(S)-HETE-d8 (81.1 ± 14.7, N = 74) and 12(13)-EpOME-d4 (103.7 ± 13.7, N = 74).
Lipid extraction and analyses
A previously reported and validated SPE protocol was used for isolation of the lipids [21]. In brief, plasma samples (400 μL) were thawed on ice and spiked with 10 μL internal standards solutions and 10 μL antioxidant (0.2 mg/mL BHT/EDTA in methanol:water (1:1)) solution before being extracted using Waters Oasis HLB cartridges (60 mg of sorbent, 30 μm particle size). Eluates were reconstituted in 100 μL of MeOH spiked with 10 μL CUDA (0.05 μg/mL) and transferred to vials before analysis using an ultra performance liquid chromatography coupled to tandem mass spectrometry (UPLC-MS/MS) method.
Lipid analyses were undertaken on an Agilent UPLC (Infinity 1290) coupled with an electrospray ionization (ESI) source to an Agilent 6490 Triple Quadrupole system equipped with the iFunnel Technology (Agilent Technologies, Santa Clara, CA, USA). Analyte separation was achieved using a Waters BEH C18 column (2.1 mm x 150 mm, 130 Å, 1.7 μm particle size) according to a previously validated analytical protocol [21]. Injection volumes of 10 μL were employed, and the mobile phases consisted of (A) 0.1 % acetic acid in MilliQ water and (B) acetonitrile:isopropanol (90:10). For the endocannabinoids and related NAEs, the system operated in positive mode (ESI+) with the following gradient: 0.0–2.0 min 30–45 % B, 2.0–2.5 min 45–79 % B, 2.5–11.5 min 79 % B, 11.5–12 min 79–90 % B, 12–14 min 90 % B, 14–14.5 min 90–79 % B, 14.5–15.5 min 79 % B, 15.6–19 min 30 % B. For the linoleic acid- and arachidonic acid-derived oxylipins, the negative ionisation mode was used (ESI-), with the following gradient: 0.0–3.5 min 10–35 % B, 3.5–5.5 min 40 % B, 5.5–7.0 min 42% B, 7.0–9.0 min 50 % B, 9.0–15.0 min 65 % B, 15.0–17.0 min 75 % B, 17.0–18.5 min 85 % B, 18.5–19.5 min 95 % B, 19.5–21 min 95-10 % B, 21.0–25.0 min 10 % B. The dynamic multiple reaction monitoring (dMRM) option was performed for the lipids with optimized transitions and collision energies [21]. All peaks were integrated manually using the MassHunter Workstation software, and the stable isotope dilution method was used to quantify the peaks using calibration curves of peak areas of native compounds divided by the corresponding IS peak areas. Accuracy and precision for the method is described elsewhere [21], but in general at the levels detected in the current study the precision ranged from 4.6–9.8 % (endocannabinoids and related NAEs) and 2.1–11.2 % (oxylipins) and accuracies ranged from 98–119 % (endocannabinoids and related NAEs) to 100–111 % (oxylipins).
Statistics
Groups (both patient characteristics and outcome variables) were tested for normal distribution using the D’Agostino and Pearson normality test and differences between groups were tested using Kruskal-Wallis test, Mann Whintney U-test or Chi squared test, all using GraphPad Prism v. 6 for the Macintosh (GraphPad Software Inc., San Diego, CA, USA). Statistical analysis of the effects of sampling time and pain group upon the observed lipid concentrations were undertaken using two-way robust Wilcoxon analyses (available with the function raov in the Rfit package version 0.22 of the R computer programme [22, 23]). Correlations between AEA, 2-AG, related NAEs and linoleic acid-derived oxylipins and self rated pain scores were conducted with Spearman’s correlation coefficients (GraphPad Software). For comparison between independent correlation coefficients, the standard Fisher’s transformation was used with an on-line calculator (http://vassarstats.net/index.html, URL checked on 19 February 2016). The false discovery rate (FDR) by Benjamin and Hochberg [24] was used to control for the expected proportion (5 %) of incorrectly rejected null hypotheses (i.e. false discoveries) due to multiple comparisons.
Results
Subject characteristics
Subject characteristics are presented in Table 1. There were no significant differences in the distribution of the time of day of sampling (morning vs. afternoon), the body weight, BMI and number of nicotine users among the subjects. A significant group difference for age was seen, due to a difference between the CWP and NP groups (CWP > NP, P < 0.05, Dunn’s multiple comparisons post-hoc test). The scores for the average pain during the last week (“NRSweek”) were greater for the CWP group than the NP group, whereas the current pain scores (“NRSday”) were not significantly different between the two groups.
| Control (n = 27) | Localised neck pain (NP, n = 35) | Chronic widespread pain (CWP, n = 15) | P-value | |
|---|---|---|---|---|
| Age [years] | 52 (25–61) | 49 (26–64) | 58 (41–65) | 0.029a |
| Height [cm] | 166 (158–180) | 167 (156–177) | 168 (153–177) −2 | 0.73a |
| Weight [kg] | 64 (50–88) -1 | 64 (51–100) −1 | 67 (55–110) −2 | 0.82a |
| BMI [kg x m2] | 23 (19–31) −1 | 24 (19–32) −1 | 24 (21–38) −2 | 0.59a |
| NRSday | - | 2 (1–6) | 3 (1–8) | 0.28b |
| NRSweek | - | 4 (1–8) | 6 (2–7) | 0.016b |
| Pain duration [months] | - | 42 (5–288) −1 | 222 (120–420) −1 | <0.0001b |
| Nicotine users [No.] | 4 (15 %) | 4 (11 %) | 3 (20 %) | 0.73c |
| Sampling timed | 15 M, 12A | 17 M, 17A−1 | 5 M, 9A−1 | 0.48c |
Plasma levels of endocannabinoids, related NAEs and linoleic acid-derived oxylipins in controls and subjects with CWP and NP
Plasma levels of fifteen lipids (AEA and 2-AG, four related NAEs, and seven linoleic acid-derived oxylipins including 9- and 13-HODE, and two arachidonic acid-derived oxylipins, 5-HETE and 8,9- DiHETrE) were quantified in serum samples from 27 controls, 15 women with CWP and 35 women with NP. The plasma concentrations of 9- and 13-HODE were highly correlated for all three groups (P for Spearman rank correlation coefficients <0.001, Fig. 1a) and a similar pattern was seen for the correlation between the two NAEs PEA and SEA (Fig. 1b). In contrast, the plasma concentrations of the two endocannabinoids were not significantly correlated (Fig. 1c). This is not merely a reflection of potential quantification issues for the low abundant AEA, since 9,10,13-TriHOME, which has a similar abundance to AEA, is very highly correlated to 9,12-13-TriHOME, which has a similar abundance to 2-AG (Fig. 1d).
The median values and interquartile ranges are shown for all fifteen lipids in Table 2, stratified both on the basis of the condition (control, NP, CWP) and of the time of sampling (morning and afternoon). The P values for two-way robust Wilcoxon analyses [22, 23] are also given in the Table. In no case did the ANOVA P values for the condition as main effect reach significance. Significant interactions were seen for the condition × time of sampling for LEA (P = 0.024) and 13-oxo-ODE (P = 0.047), but these levels were below the threshold for significance upon implementation of the false discovery rate approach of Benjamini and Hochberg [24]. A similar result was seen when the cases were stratified into two BMI groups: BMI in the normal range (18.5–24.9 kg/m2; N = 57 in total) and overweight/obese (BMI ≥25 kg/m2; N = 22 in total; only 6 individuals were obese [BMI ≥30 kg/m2] and this was adjudged to be a too small sample size). The main effect of condition again did not reach significance for any of the lipids (P > 0.27) and the only significant finding was an interaction condition × BMI for AEA (P = 0.027, otherwise P > 0.14 for the interactions, two-way robust Wilcoxon analyses).
| Morning sampling | Afternoon sampling | |||||
|---|---|---|---|---|---|---|
| Lipid | Condition | Median | iqr | Median | iqr | P value |
| 2-AG | Control | 5382 | 4342 | 6386 | 11471 | C: 0.35 |
| NP | 4325 | 4139 | 4820 | 3483 | T: 0.047 | |
| CWP | 3279 | 2865 | 8303 | 14621 | C x T: 0.17 | |
| AEA | Control | 179 | 63 | 189 | 140 | C: 0.14 |
| NP | 260 | 195 | 217 | 121 | T: 0.50 | |
| CWP | 156 | 215 | 221 | 227 | C x T: 0.21 | |
| PEA | Control | 1930 | 714 | 2728 | 1197 | C: 0.35 |
| NP | 3153 | 1531 | 2726 | 1263 | T: 0.19 | |
| CWP | 2084 | 1510 | 2961 | 2266 | C x T: 0.074 | |
| SEA | Control | 8439 | 5048 | 11220 | 5427 | C: 0.97 |
| NP | 9060 | 5435 | 9982 | 5219 | T: 0.072 | |
| CWP | 11310 | 11256 | 10690 | 7528 | C x T: 0.56 | |
| OEA | Control | 926 | 1685 | 1767 | 988 | C: 0.20 |
| NP | 1861 | 1145 | 1761 | 1009 | T: 0.81 | |
| CWP | 1760 | 1364 | 1291 | 1875 | C x T: 0.080 | |
| LEA | Control | 619 | 184 | 950 | 455 | C: 0.39 |
| NP | 961 | 425 | 780 | 431 | T: 0.32 | |
| CWP | 619 | 806 | 710 | 1220 | C x T: 0.024 | |
| 9-HODE | Control | 13247 | 31114 | 26587 | 20201 | C: 0.75 |
| NP | 23724 | 11755 | 13251 | 16879 | T: 0.73 | |
| CWP | 23943 | 36239 | 17527 | 29853 | C x T: 0.11 | |
| 13-HODE | Control | 35679 | 43458 | 43935 | 37629 | C: 0.22 |
| NP | 39311 | 13634 | 20330 | 17000 | T: 0.49 | |
| CWP | 24137 | 44109 | 17188 | 36591 | C x T: 0.12 | |
| 9,10-DiHOME | Control | 4498 | 12601 | 7585 | 12910 | C: 0.49 |
| NP | 6494 | 8772 | 4056 | 4132 | T: 0.39 | |
| CWP | 3294 | 13986 | 2054 | 4791 | C x T: 0.32 | |
| 12,13-DiHOME | Control | 15725 | 15768 | 15935 | 14365 | C: 0.24 |
| NP | 13637 | 7522 | 10021 | 11471 | T: 0.57 | |
| CWP | 9716 | 14338 | 5342 | 12263 | C x T: 0.70 | |
| 9,10,13-TriHOME | Control | 214 | 189 | 284 | 144 | C: 0.63 |
| NP | 201 | 239 | 289 | 209 | T: 0.36 | |
| CWP | 210 | 171 | 221 | 163 | C x T: 0.85 | |
| 9,12,13-TriHOME | Control | 2131 | 3191 | 3731 | 4845 | C: 0.98 |
| NP | 1657 | 4282 | 4173 | 6797 | T: 0.41 | |
| CWP | 3007 | 2834 | 2761 | 5927 | C x T: 0.51 | |
| 13-oxo-ODE | Control | 1485 | 1002 | 1477 | 1799 | C: 0.51 |
| NP | 1781 | 1513 | 1146 | 1498 | T: 0.64 | |
| CWP | 1188 | 2179 | 1280 | 1423 | C x T: 0.049 | |
| 5-HETE | Control | 718 | 437 | 1065 | 761 | C: 0.93 |
| NP | 907 | 692 | 766 | 538 | T: 0.28 | |
| CWP | 745 | 770 | 852 | 822 | C x T: 0.10 | |
| 8,9-DiHETrE | Control | 145 | 55 | 146 | 45 | C: 0.39 |
| NP | 180 | 74 | 156 | 56 | T: 0.18 | |
| CWP | 164 | 171 | 125 | 123 | C x T: 0.77 | |
Association of the plasma levels of endocannabinoids, related NAEs and linoleic acid-derived oxylipins with the NRS pain scores for the CWP and NP patients
The patients were asked to rate their pain on the day of blood sampling (“NRSday”) and for the week prior to the blood sampling (“NRSweek”). The NRSday and NRSweek scores (median, with range in brackets) for the NP group were 2 (1–6) and 4 (1–8), respectively. The corresponding scores for the CWP group were 3 (1–8) and 6 (2–7), respectively (Table 1).

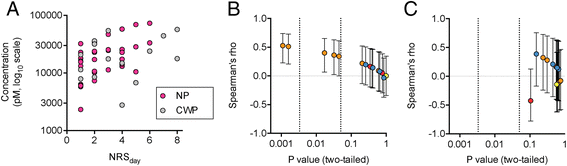

Bivariate (zero-order) Spearman rank correlation coefficients were calculated for the correlations between the lipid concentrations and the NRSday scores for the CWP and NP patients. An example of the raw data is shown for 9-HODE in Fig. 2a, and the correlation coefficients are given in Table 3 and presented visually in Fig. 2b and c. The data points are colour coded on the basis of their group (orange for the linoleic acid-derived oxylipins, red for the endocannabinoids, blue for the related NAE’s and yellow for the two arachidonic acid-derived oxylipins). Given that there are multiple comparisons, we have presented the significance levels “as is”, showing two vertical lines: one at P = 0.05, and one at P = 0.0033, which represents the limit using the false discovery rate approach of Benjamini and Hochberg [24] for the 30 comparisons. For the NP cases, five of the linoleic acid-derived oxylipins (from left to right in Fig. 2b: 13-HODE, 9-HODE, 13-oxo-ODE, 12,13-DiHOME and 9,10-DiHOME) reached significance at the P < 0.05 level, and the P values for the two HODEs were smaller than the 5 % Benjamini and Hochberg [24] cut-off value. For the CWP cases, none of the correlations reached significance (Fig. 2b). However, it is important to consider the significance of the difference rather than the difference in the significance [25]. Using the Fisher r-to-z transformation, the significance of the differences for the correlation coefficients for 9- and 13-HODE, 9,10- and 12,13-DiHOME and 13-oxo-ODE were determined. In no case was the difference significant (P > 0.13). In consequence, we have also presented the data for the combined NP + CWP groups in Table 3.
| Parameter: | NRSday | NRSday | NRSday | NRSweek | Pain duration | ||
|---|---|---|---|---|---|---|---|
| Pain Group: | NP | CWP | NP + CWP | NP + CWP | NP + CWP | ||
| Controlling for: | - | time | BMI | - | - | - | - |
| N: | 35 | 31 | 34 | 15 | 50 | 50 | 48 |
| 2-AG | 0.05 | 0.06 | 0.14 | −0.43 | −0.10 | −0.08 | 0.07 |
| AEA | 0.16 | 0.13 | 0.23 | 0.14 | 0.11 | 0.22 | −0.05 |
| PEA | −0.03 | 0.03 | −0.01 | 0.21 | 0.01 | 0.12 | −0.10 |
| SEA | 0.14 | 0.23 | 0.18 | 0.12 | 0.13 | 0.05 | −0.07 |
| OEA | 0.20 | 0.23 | 0.16 | 0.39 | 0.25 | 0.16 | −0.10 |
| LEA | 0.08 | 0.14 | 0.05 | 0.15 | 0.11 | 0.23 | −0.17 |
| 9-HODE | 0.51** | 0.49** | 0.56*** | 0.28 | 0.43** | 0.06 | 0.06 |
| 13-HODE | 0.53** | 0.54** | 0.54** | 0.13 | 0.35* | −0.01 | −0.12 |
| 9,10-DiHOME | 0.34* | 0.33 | 0.30 | −0.13 | 0.11 | 0.06 | −0.19 |
| 12,13-DiHOME | 0.36* | 0.34 | 0.33 | −0.10 | 0.13 | 0.07 | −0.16 |
| 9,10,13-TriHOME | 0.09 | 0.06 | 0.05 | 0.32 | 0.13 | −0.10 | −0.08 |
| 9,12,13-TriHOME | 0.22 | 0.14 | 0.20 | 0.16 | 0.19 | −0.08 | 0.01 |
| 13-oxo-ODE | 0.40* | 0.38* | 0.46** | −0.08 | 0.23 | 0.05 | −0.15 |
| 5-HETE | 0.00 | −0.06 | 0.04 | −0.14 | −0.03 | 0.02 | 0.08 |
| 8,9-DiHETrE | 0.15 | 0.11 | 0.18 | 0.15 | 0.12 | 0.09 | −0.01 |
Table 3 also presents the first-order Spearman rank correlation coefficients for the NP cases taking into account the exact time of sampling (N = 31; in the remaining four cases, the exact time of sampling was not available in the dataset) and the BMI (N = 34). The correlation coefficients were very similar to the bivariate coefficients between the lipids and the NRSday scores, indicating that the findings described above are retained when controlled for time of sampling or for the BMI of the individuals. Further, first-order Spearman rank correlation coefficients for the NP cases were not changed when controlling for either age (0.52 and 0.56, N = 35) or pain duration (0.52 and 0.53, N = 34; data for 9- and 13-HODE, respectively).

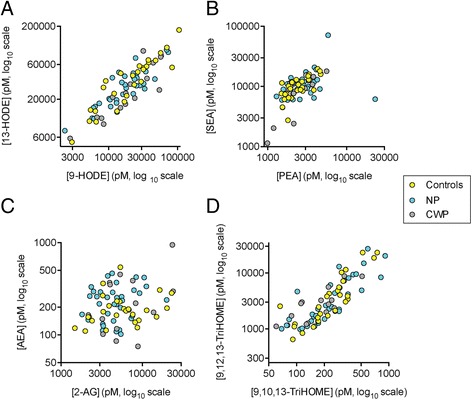

Spearman rank correlation coefficients were also calculated for the NP, CWP and NP + CWP groups for the correlation between all the lipid concentrations and the NRSweek scores and pain duration. In no case was a significant correlation found (see Table 3 for the combined NP + CWP groups).
Discussion
In the present study, we have utilised a series of blood plasma samples to assess whether differences in endocannabinoids, related NAEs and/or linoleic acid-derived oxylipins are seen in participants with NP or CWP, and whether the blood plasma levels of these lipids are associated with the pain experienced by the participants. The participants were well-characterised with respect both to their current pain and to their ongoing pain, and a strict blood sampling protocol was used whereby blood was rapidly cooled, processed at 4 °C and stored at −80 °C. Limitations of the study are the relatively small sample sizes, given its exploratory nature, and the fact that since the samples were originally taken as part of a different study, the time of sampling was not optimised for an analysis of the lipids investigated here. However, we have controlled for this by including morning/afternoon as a factor in our analyses of the whole group and by undertaking first order correlations between the NRSday scores with the lipid levels controlling for the exact time of sampling for the CWP group. A similar approach was also used to rule out BMI as a potential confounding factor. Nevertheless, effects of other factors, such as differences in food intake, physical activities and other comorbid disease upon the observed plasma levels of the lipids cannot be ruled out.
With respect to the comparisons between controls and the pain groups, no significant changes in lipid levels were seen. The only study, to our knowledge, investigating the current lipids in blood from cases of this type was that of Kaufmann et al. [14], who found a considerably higher AEA concentration in the plasma of 22 individuals with fibromyalgia (17 ♀, 5 ♂, average age 51 years) than for 22 healthy volunteers (17 ♀, 5 ♂, average age 53 years). Although that study used volunteers of both genders, whereas our study was confined to women, the most likely explanation for the difference between their findings and the present study is the choice of the patients. Both studies investigated participants with long-standing disease (>10 years). The individuals in the Kaufmann et al. [14] study scored highly in the fibromyalgia impact questionnaire and had subjective pain scores of 6.4 ± 1.4 (mean ± SEM) as assessed by a visual analogue scale. Our study investigated patients defined as CWP rather than specifically as fibromyalgia, i.e. a potentially more heterogeneous population, and had median NRSday scores of 3.
Perhaps the most interesting result of the present study is the positive association between 9- and 13-HODE levels and the NRSday scores. The fact that both HODEs reached similar significances is not surprising given the high correlation between their plasma values (Fig. 1a). As pointed out earlier, a significant association does not imply causality, and so both NRSday scores → HODE levels and HODE levels → NRSday scores should be considered, as should the possibility that a third factor affects both NRSday scores and HODE levels, thereby inducing a significant correlation between these two variables. A recent report in this Journal presented evidence of ongoing inflammatory processes in individuals with work related neck/shoulder complaints [26]. In healthy individuals and in patients with asthma, a chronic inflammatory disease, provocation by exposure to subway air leads to increased levels of linoleic acid-derived oxylipins in bronchoalveolar lavage samples [27]. Abnormal levels of linoleic acid-derived oxylipins are seen in blood serum from patients with Achilles tendinopathy [15], and an increased rate of oxylipin production from linoleic acid is seen in dental pulp samples from patients with inflammatory dental pain [28]. However, in the present study, plasma HODE levels were not significantly different between groups and in participants with pain. In any case, the source of these lipids is not solely from the affected region of the body, and so the data cannot shed light upon the underlying pathology of the pain conditions.
With respect to HODE levels → NRSday scores, both 9- and 13-HODE are capable of activating TRPV1 receptors on capsaicin-sensitive trigeminal neurons [16] and the use of either antibodies to the two HODE derivatives or a TRPV1 antagonist reduces the allodynia produced by thermal injury to the rat paw [29]. In our view, a more likely explanation of our findings, given that hyperalgesia is a feature of neck pain [30], is that the participants with pain are more sensitive than the healthy controls to the local nociceptive effects of normal levels of circulating HODEs upon TRPV1 receptors, and thereby show the associations that we have found. Certainly, in animal models, persistant nociception triggered by nerve growth factor results in increased nociceptive responses to TRPV1 activation by capsaicin [31], and inflammation of the masseter muscle increases TRPV1 expression in the inflamed muscle, but not in the contralateral muscle [32]. Although this is an attractive (albeit tenuous) hypothesis, it is based on our exploratory data and further investigations, preferably in studies with longitudinal designs, into the link between musculoskeletal pain and circulating oxylipins are clearly necessary.
Conclusions
The present study has reported an association between the NRSday scores and the plasma levels of two linoleic acid derivatives, 9- and 13-HODE, in individuals with localised musculoskeletal pain. These data motivate further studies into the role(s) of these oxylipins in musculoskeletal pain.
Acknowledgments
This study was supported by grants from the Swedish Research Council (Grant no. 12158, medicine), AFA Insurance (Grant no. 090288), the Swedish Research Council Formas and the Research Funds of the Medical Faculty of Umeå University.
Abbreviations
- 12(13)-DiHOME
- 12(13)-dihydroxy-9Z-octadecenoic acid
- 13-HODE
- 13-hydroxy-9Z,11E-octadecadienoic acid
- 13-oxo-ODE
- 13-oxo-9Z,11E-octadecadienoic acid
- 2-AG
- 2-arachidonoylglycerol
- 5-HETE
- 5-hydroxy-6E,8Z,11Z,14Z-eicosatetraenoic acid
- 8,9- DiHETrE
- 8,9-dihydroxy-5Z,11Z,14Z-eicosatrienoic acid
- 9,10,13-TriHOME
- 9,10,13-trihydroxy-11-octadecenoic acid
- 9,12,13-TriHOME
- 9,12,13-trihydroxy-10E-octadecenoic acid
- 9(10)-DiHOME
- 9(10)-dihydroxy-12Z-octadecenoic acid
- 9-HODE
- 9-hydroxy-10E,12Z-octadecadienoic acid
- AEA
- arachidonoylethanolamide, anandamide
- BHT
- butylhydroxytoluene
- CB
- cannabinoid
- CUDA
- [[(cyclohexylamino)carbonyl]amino]-dodecanoic acid
- CWP
- chronic widespread pain
- ESI
- electrospray ionization
- LEA
- lenoleoylethanolamide
- NAE
- N-acylethanolamine
- NDI
- Neck Disability Index
- NP
- chronic neck pain
- NRSday
- current pain on a numeric rating scale
- NRSweek
- average pain during the last week on a numerical rating scale
- OEA
- oleoylethanolamide
- PEA
- palmitoylethanolamide
- SEA
- stearoylethanolamide
- TRPV1
- transient receptor potential vanilloid
- UPLC-MS/MS
- ultra performance liquid chromatography coupled to tandem mass spectrometry
