Laparoscopic choledocholithotomy and transductal T-tube insertion with indocyanine green fluorescence imaging and laparoscopic ultrasound: A case report
Yoo D. Laparoscopic choledocholithotomy for bile duct stones
Department of Surgery, Seoul Soonchunhyang University Hospital, Seoul 04401, South Korea. yoodaegwang@naver.com
Abstract
BACKGROUND
Laparoscopic choledocholithotomy for a large impacted common bile duct (CBD) stone is a challenging procedure because of the technical difficulty and the possibility of postoperative complications, even in this era of minimally invasive surgery. Herein, we present a case of large impacted CBD stones.
CASE SUMMARY
A 71-year-old man showed a distal CBD stone (45 mm × 20 mm) and a middle CBD stone (20 mm × 15 mm) on computed tomography. Endoscopic retrograde cholangiopancreatography failed due to the large size of the impacted stone and the presence of a large duodenal diverticulum. Laparoscopic choledocholithotomy was decided, and we used a near-infrared indocyanine green fluorescence scope to detect and expose the supraduodenal CBD more accurately. Then, the location, size, and shape of the stones were detected using a laparoscopic intraoperative ultrasound. The CBD was opened with a 2-cm-sized vertical incision. After irrigating several times, two CBD stones were removed with the Endo BabcockTM. T-tube insertion was done for postoperative cholangiography and delayed the removal of remnant sludge. The patient had no postoperative complications.
CONCLUSION
Laparoscopic choledocholithotomy by transcholedochal approach and transductal T-tube insertion is a safe and feasible option for large-sized impacted CBD stones.
Core Tip: Laparoscopic choledocholithotomy for a large impacted common bile duct (CBD) stone is a challenging procedure, even in this era of minimally invasive surgery. A 71-year-old man showed a distal CBD stone (45 mm) and a middle CBD stone (20 mm). Laparoscopic choledocholithotomy was performed with a near-infrared indocyanine green fluorescence scope and laparoscopic intraoperative ultrasound. Two CBD stones were successfully removed with the Endo BabcockTM, and T-tube insertion was done. This case shows that laparoscopic choledocholithotomy by the transcholedochal approach and transductal T-tube insertion is a safe and feasible option for large-sized impacted CBD stones.
INTRODUCTION
Treatment options for choledocholithiasis include endoscopic retrograde cholangiopancreatography (ERCP), with or without endoscopic sphincterotomy (EST), percutaneous transhepatic cholangiography (PTC), and operative choledocholithotomy. ERCP has been considered the first-line treatment for choledocholithiasis because it has shown a high success rate (90%-100%) for common bile duct (CBD) stones[1,2]. However, the success rate of stone removal in patients with large stones is lower (68%-87.6%). The post-procedure complication rate, including pancreatitis, cholangitis, and bleeding, was reported to be 5%-10%, and the mortality rate was 0.2%-0.5%[2,3]. Also, the physiological function of the sphincter of Oddi can be destroyed by EST, and functional recovery is impossible after this procedure[4-7]. PTC is usually reserved for patients in whom ERCP cannot be performed safely, such as patients with impossible ampullary cannulation.
Traditionally, choledocholithiasis that could not be treated by ERCP or PTC has been managed by open choledocholithotomy, even after laparoscopic surgery was adopted in the hepatobiliary surgery field, because of the technical challenges involved[4,8,9]. However, advances in laparoscopic skills and technology have allowed surgeons to perform laparoscopic choledocholithotomy in patients with choledocholithiasis[8]. Several recent studies have also shown laparoscopic choledocholithotomy to be safe and feasible for these patients[4-7].
Many surgeons were reluctant to try laparoscopic choledochotomy in the early period of laparoscopic surgery because of the anticipated difficulties in patients with large CBD stones who could not be treated by laparoscopic transcystic CBD exploration[8,9]. Even in this era of minimally invasive surgery, laparoscopic choledochotomy for large impacted CBD stones is still a very challenging procedure because of the technical difficulty and possibility of postoperative complications, such as bile duct injury, which can result in diversion surgery (e.g., choledochojejunostomy).
In this case, we performed laparoscopic choledocholithotomy with transductal choledochotomy and T-tube insertion for large impacted CBD stones using indocyanine green (ICG) fluorescence imaging and intraoperative ultrasound. As this report was based on the retrospective analysis of de-identified patient data and did not involve any interventions or interactions, it was exempt from institutional review board review.
CASE PRESENTATION
Chief complaints
A 71-year-old man visited our outpatient clinic due to right upper quadrant pain and jaundice.
History of present illness
The patient had right upper quadrant pain.
History of past illness
The patient’s medical history included paroxysmal atrial fibrillation, hypertension, and diabetes mellitus.
Personal and family history
The patient had no previous history of tuberculosis, hepatitis, or allergies. He also had no history of abdominal surgery.
Physical examination
His abdomen was soft and flat, and mild tenderness was observed on the right upper quadrant.
Laboratory examinations
The patient was admitted to our center for further examinations. The total serum bilirubin concentration was 5.5 mg/dL, and aspartate aminotransferase (AST) and alanine aminotransferase (ALT) concentrations were 60 and 81 U/L, respectively. The gamma-GTP concentration was 619 U/L, and alkaline phosphatase was 351 U/L. The C-reactive protein concentration was 6.56 mg/dL. Complete blood count and electrolyte values were within normal limits. The carbohydrate antigen 19-9 level was 251.5 U/mL.
Imaging examinations

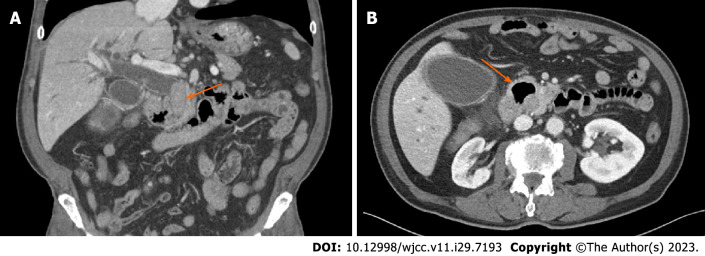

The patient underwent abdominal computed tomography (CT), in which one large stone (45 mm × 20 mm) impacting the distal CBD and another stone (20 mm × 15 mm) in the middle CBD were found (Figure 1A). The diameter of the CBD was 24 mm. Gallbladder (GB) stones with tensile distension of the GB and diffuse wall thickening were also noted on the CT scan.
MULTIDISCIPLINARY EXPERT CONSULTATION
Initially, we planned to perform ERCP first, followed by laparoscopic cholecystectomy. The gastroenterologist tried ERCP to treat the stones but failed due to their large sizes and the presence of a large duodenal diverticulum (Figure 1B). The success rate of ERCP is low, and the complication rate is high when the papilla is located close to a periampullary diverticulum[10,11]. However, the gastroenterologist successfully inserted a plastic stent into the CBD. The total serum bilirubin level decreased to 1.7 mg/dL, and the AST and ALT levels were 26 and 44 U/L, respectively. The patient was transferred to the hepatobiliary pancreatic surgery department. We planned laparoscopic choledocholithotomy with cholecystectomy and transductal T-tube insertion.
FINAL DIAGNOSIS
Large-sized impacted CBD stones.
TREATMENT

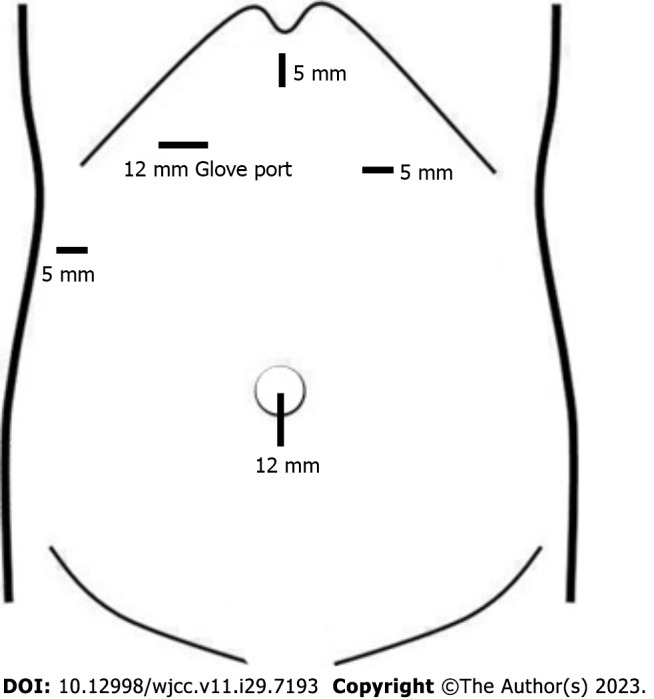

Five trocars were inserted during surgery, including one multilumen port (Glove portTM, Nelis Medical; Bucheon-si, South Korea) in the right upper quadrant (Figure 2). A near-infrared ICG fluorescence scope (10 mm, 30° scope; Stryker, MI, United States) was used to detect and expose the supraduodenal CBD more accurately. The near-infrared ICG fluorescence scope effectively showed the exact anatomy of the biliary tree and dilatation of the CBD in light green color during the surgery. After ligation of the cystic artery, we sutured the GB to the anterior abdominal wall with a barbed suture (StratafixTM; Johnson and Johnson Company, New Brunswick, NJ, United States) for traction and straightening of the CBD (Figure 3A). Then the location, size, and shape of the stones were detected using laparoscopic intraoperative ultrasound (Figure 3B). Surgical gauze was located at the right entrance of the foramen of Winslow to prevent the stones from slipping into the lesser sac. Next, the CBD was opened with a 2-cm-sized vertical incision. After irrigating several times, two CBD stones were removed with the Endo BabcockTM (Medtronic, Minneapolis, MN, United States) (Figure 3C and D). A choledochoscope was used to explore whether stones remained in the CBD. A T-tube was inserted and removed through the right upper quadrant trocar site. CBD closure around the T-tube insertion site was performed with nonabsorbable monofilament 5-0 interrupted sutures (Figure 3E). The near-infrared ICG fluorescence scope confirmed that there was no bile leakage from the suture site. Possible injury to the other site of the bile duct was checked, and no injury was found.
OUTCOME AND FOLLOW-UP
The patient had no postoperative complications. On the third postoperative day, the total serum bilirubin level was decreased to 1.1 mg/dL, and the AST and ALT levels were 13 and 12 U/L, respectively. After 2 mo, cholangiography was done through the T-tube, and remnant sludge and small stones were found and removed through a choledochoscope by a gastroenterologist.
DISCUSSION
No standard treatment exists for large CBD stones. Many authors defined a stone larger than 15-28 mm in diameter as a large CBD stone and reported low removal success rates with ERCP (68%-87.6%)[2,3]. Although open CBD exploration has been traditionally performed for large CBD stones, laparoscopic choledocholithotomy has become increasingly popular with the perfection of laparoscopic skills and the development of laparoscopic instruments[12,13].
At present, laparoscopic choledocholithotomy can be divided into two approaches: transcystic and transcholedochal[14]. The transcystic approach was preferred in many studies because it is less invasive and technically easy to perform[14,15]. However, this approach has limitations because it cannot be performed in patients with variations in the cystic duct, friable cystic duct, very large-sized CBD stones, and impacted distal CBD stones[8,14,16-19]. The size of the stone is an especially important risk factor in the failure of the transcystic approach, and the failure rate of the approach increases when the size of the stone is larger than the cystic duct diameter or over 5 mm[8,19]. The transcholedochal approach is done by laparoscopic choledochotomy and requires advanced skills in laparoscopic surgery. However, it can be performed regardless of the location of the CBD stone and is possible even for sizable stones.
Since Deaver et al first used and reported on the modified T-tube drain in 1904, transductal T-tube drain insertion after choledocholithotomy (open or laparoscopy) has been commonly used worldwide[4,20]. The transductal T-tube enables efficient postoperative decompression of the CBD and can decrease the possibility of bile leakage caused by high intraductal pressure[8]. Postoperative cholangiography can be done through the transductal T-tube, and the percutaneous removal of residual stones with a choledochoscope is also possible if tract maturation is completed after 4-8 wk post-surgery[8,17,21]. However, laparoscopic transductal T-tube insertion needs high skillfulness in laparoscopic manipulation and suturing. Postoperative complications, such as bile leakage or tube dislodgement, can occur in the case of incomplete fixation suturing around the T-tube insertion site.
ICG fluorescence guidance during laparoscopic surgery has been used in laparoscopic cholecystectomy[22-24]. ICG is a water-soluble molecule and binds to protein after intravenous administration[23]. It is exclusively metabolized by the liver and excreted primarily through the biliary system[23]. Because ICG fluorescence provides improved visualization of the biliary system, it also has many advantages in laparoscopic choledocholithotomy[22,24]. Since the location of the choledochotomy is very important for laparoscopic choledocholithotomy, ICG fluorescence guidance enables easier exposure of the supraduodenal CBD and helps to identify the choledochotomy site more accurately[22]. ICG fluorescence can also be used to confirm the secure closure of the choledochotomy site to prevent postoperative bile leakage[22]. Although adverse reactions to ICG can occur, the adverse reaction rate is 0.2% to 0.34%, and the allergic reaction rate is approximately 0.05%[25-27]. Also, the cost of a 10 mL vial of ICG is approximately $80, so the cost is not burdensome compared to its efficacy[28].
Laparoscopic intraoperative ultrasound has been used in laparoscopic biliary surgery in a variety of fields since its introduction[29-31]. Several studies have reported that laparoscopic intraoperative ultrasound can be used as an alternative to magnetic resonance cholangiopancreatography or intraoperative cholangiography[29,30]. With the aid of laparoscopic ultrasound, surgeons can detect the CBD stone’s exact location, size, shape, and number. It helps to decide the accurate level of choledochotomy and the CBD incision size. While ICG fluorescence can show the exact anatomy of the biliary tree in superficial depth, deep structures can be detected by laparoscopic ultrasound. The detection of bile leakage is one of the unique features of ICG fluorescence guidance, whereas laparoscopic ultrasound provides a way to check the flow in vascular structures using the Doppler mode.
In our case, the patient had two CBD stones, including a very large-sized stone (45 mm). The larger stone was impacted in the distal CBD. He also had a large duodenal diverticulum near the ampulla of Vater, so endoscopic removal of the stone was almost impossible. Therefore, a laparoscopic transcholedochal approach was decided preoperatively. During surgery, the level and size of the choledochotomy were decided with the aid of ICG fluorescence guidance and laparoscopic intraoperative ultrasound. Although the large stone was not broken during surgery, some fragments were found in the distal CBD intraoperatively. Therefore, transductal T-tube insertion was performed. Choledochoscopic removal of remnant stones was performed after 8 weeks, and no postoperative complications occurred.
CONCLUSION
Laparoscopic choledocholithotomy by the transcholedochal approach and transductal T-tube insertion with ICG fluorescence imaging and laparoscopic ultrasound are safe and feasible options for patients with very large-sized and impacted CBD stones.
