Identification of Tetrahydrocannabidiol Metabolites in Human Urine
Institute of Forensic Medicine, Forensic Toxicology and Chemistry University of Bern Bern Switzerland
Department of Chemistry, Biochemistry and Pharmaceutical Sciences University of Bern Bern Switzerland
* Correspondence:Willi Schirmer (willi.schirmer@irm.unibe.ch)
ABSTRACT
Tetrahydrocannabidiol (H4CBD) is an emerging semisynthetic cannabinoid, which has been known since 1940. Like hexahydrocannabinol (HHC), it is easily obtained by hydrogenation of available phytocannabinoids, in the case of H4CBD by hydrogenation of cannabidiol (CBD). H4CBD shows a weak affinity for the CB1 receptor, but it is unclear if H4CBD shows psychoactive properties, as reports from users are divided. Only a few countries have placed H4CBD under their narcotic substance law, for example, France and Switzerland. The aim of this study was to identify human Phase I and II metabolites in urine as potential forensic targets. The H4CBD used for this study was bought from an online store and analyzed beforehand using GC–MS. The Phase I and II metabolites were identified using LC‐HR‐MS/MS and GC–MS after trimethylsilylation. The found H4CBD metabolites were carboxylated, hydroxylated, and bishydroxylated species and their glucuronides with hydroxylation and carboxylation positions on the alicyclic moiety and on the side chain. The tentatively identified metabolites were the carboxylic acids 5″‐COOH‐H4CBD and 7‐COOH‐H4CBD, the hydroxylated metabolites (1R,6R)‐OH‐H4CBD, (1R,6S)‐OH‐H4CBD, two epimers of 2″‐OH‐H4CBD, and both epimers of 7‐OH‐H4CBD. The identified bishydroxylated metabolites were side‐chain hydroxylated derivatives of 7‐OH‐H4CBD. Various other hydroxylated metabolites were found, but their exact hydroxylation positions could not be determined. Some ESI+ spectra of the metabolites showed very unusual fragmentation patterns, like the loss of both oxygens from the resorcinol moiety with subsequent ring contraction and the appearance of radical cations for Phase II metabolites. These unusual patterns were noticed for H4CBD and its side‐chain‐altered metabolites.
Graphical
The detection of Phase I and II metabolites of tetrahydrocannabidiol (H4CBD) in urine after oral ingestion of 25‐mg H4CBD by a volunteer is described. The proposed metabolite structures are based on ESI+ spectra recorded by HPLC‐HRMS and EI spectra after trimethylsilylation recorded by GC–MS.
Boxed Text
Article notes
W. Schirmer , I. Mösch , S. Schürch , and W. Weinmann , “Identification of Tetrahydrocannabidiol Metabolites in Human Urine,” Drug Testing and Analysis 17, no. 12 (2025): 2333–2346, 10.1002/dta.3945.PMC1268924540897389
1Introduction
Tetrahydrocannabidiol (H4CBD, also named H4‐CBD or THD) is a fully hydrogenated derivative of cannabidiol (CBD) and was first described in 1940. Jacob and Todd isolated CBD from Egyptian hashish and observed that CBD reacts with two equivalents of hydrogen, indicating the two nonaromatic double bonds of CBD [1]. With the rise and fall of hexahydrocannabinol (HHC) in Europe, other semisynthetic cannabinoids emerged to replace the widely banned HHC. H4CBD is one of these successors, which is easily obtained by hydrogenation of CBD. From CBD, it is known that it acts as a negative allosteric modulator at the CB1 receptor, acting antagonistically [2]. In contrast to CBD, H4CBD (epimeric mixture of (R)‐ and (S)‐H4CBD) has a weak affinity of 145 nM at the CB1 receptor [3]. Δ9‐Tetrahydrocannabinol (Δ9‐THC), the main psychoactive phytocannabinoid, in comparison, has an affinity of 40.7 nM at CB1 [4]. It is therefore assumed that H4CBD might have cannabimimetic effects in higher doses. However, a recent study showed that neither of the H4CBD epimers showed significant CB1 activation in comparison to Δ9‐THC. (S)‐H4CBD showed the strongest CB2 activation of the screened semisynthetic cannabinoids, whereas (R)‐H4CBD showed no significant CB2 activation in comparison with CP55,940 [5]. User reports from drug forums are inconsistent. Some users noted mild psychoactive effects, whereas others reported no effects at all after consumption. It is not clear if the users who noticed psychoactive effects consumed solely H4CBD, as these products are often wrongly declared [6, 7]. In a recent study in Germany in which 79 confiscated samples were analyzed, H4CBD was the most frequently detected semisynthetic cannabinoid apart from HHC [8], probably because, like HHC, it can easily be produced from CBD, whereas other semisynthetic cannabinoids are not obtained from phytocannabinoids [9, 10, 11]. Products containing H4CBD were also reported in Japan and Denmark [7, 12]. Switzerland scheduled H4CBD under its narcotic substance law directory on October 9, 2023 [13].
In analogy to the metabolism of Δ9‐THC, CBD undergoes hydroxylation on the allylic methyl group at C7 to form the metabolite 7‐OH‐CBD, which is further oxidized to the corresponding acid 7‐COOH‐CBD. These metabolites were found in rat liver after in vitro metabolism and after in vivo experiments in mice liver after application of a CBD suspension [14, 15]. The same metabolites were later found in the urine of a dystonic patient who received treatment with CBD [16]. 7‐OH‐CBD and 7‐COOH‐CBD are commonly used as analytical targets after the consumption of CBD [17, 18, 19]. The aim of this study was to identify urinary Phase I and II metabolites of H4CBD and provide analytical targets for the proof of consumption.
2Materials and Methods
H4CBD was bought from a Swiss online shop before the substance was banned. The product was declared as pure H4CBD and was a reddish resin. It contained 34% (R)‐H4CBD and 23% (S)‐H4CBD, quantified by GC–MS using a single five‐point calibration (see Figure S1). Deionized water (18.2 MΩ·cm) was produced from a Millipore Milli‐Q IQ 7000 system (Billerica, MA, United States). N‐methyl‐N‐trimethylsilyltrifluoracetamide (MSTFA) (≥ 98.5%), n‐butyl acetate (n‐BuOAc) (≥ 99.7%), the n‐alkane standard (C7‐C40, 1000 μg/mL), and ammonium formate (≥ 99.0%) were purchased from Sigma‐Aldrich (Buchs, Switzerland). Ethyl acetate (EtOAc) (for liquid chromatography) and methanol (MeOH) (≥ 99.9%) were purchased from Carl Roth (Karlsruhe, Germany). Formic acid (50%, in water) and acetic acid (AcOH) were purchased from Grogg Chemie (Stettlen, Switzerland). Acetonitrile (MeCN) (≥ 99.9%) was purchased from Thermo Fisher Scientific (Reinach, Switzerland). Chromabond C18 SPE cartridges (3 mL, 500 mg) were purchased from Macherey‐Nagel (Önsingen, Switzerland). (R)‐Tetrahydrocannabidiol ((R)‐H4CBD) and (S)‐tetrahydrocannabidiol ((S)‐H4CBD) were purchased from Cayman Chemical (Ann Arbor, MI, United States). The internal standard (−)‐Δ9‐trans‐tetrahydrocannabinol‐D3 (THC‐D3) was purchased from Cerilliant (Round Rock, TX, United States). Instant buffer I and β‐glucuronidase (BGTurbo) from Finden KURA were used, which were purchased from Specialty Diagnostix (Passau, Germany). An aqueous solution of MeCN (60 V%) and formic acid (0.1 V%) was used for the reconstitution of LC–MS samples.
2.1Self‐Administration Experiment
In a self‐experiment, a cannabis‐abstinent volunteer (60‐year‐old male) orally ingested 25 mg of a well‐characterized H4CBD product after dissolving it in olive oil. Urine samples were collected for 3 days after ingestion, and the first sample was collected 1 h after ingestion. Further samples were collected 3, 13, 17, 27, and 48 h after oral ingestion. The described metabolites were detected in the urine sample 3 h after consumption. No cannabimimetic effects were noticed.
2.2LC‐QqTOF
Urine sample preparation was performed according to Schirmer et al. [20]. For the analysis of Phase I metabolites, 800‐μL urine, 100‐μL instant buffer I, and 5‐μL β‐glucuronidase were incubated for 15 min at 50°C. The solution was extracted with 1‐mL n‐BuOAc by shaking it for 10 min, centrifuging for 10 min (13,000 rpm [17,190 g], 8°C), and separating the organic layer. The organic phase was evaporated to dryness at 50°C under a stream of nitrogen and reconstituted in a 100‐μL reconstitution solution. For the analysis of Phase II metabolites, 800‐μL urine was mixed with 100 μL of an ammonium formate (10 M) solution and extracted with 1‐mL cold MeCN. The organic layer was evaporated to dryness and dissolved with 200‐μL reconstitution solution. Samples were analyzed on a Dionex Ultimate 3000 HPLC system (Thermo Fisher Scientific, Reinach, Switzerland), which was coupled to a TripleTOF 5600 mass spectrometer (Sciex, Toronto, Canada). For the data acquisition, Analyst TF software (Version 1.7) was used, and data processing was performed with Peak View (Version 1.2.0.3) and Sciex OS (Version 2.0.0.45330). Mass spectra were acquired in positive ionization mode (ESI+) using an IonDrive Turbo V ion source with a TurboIonSpray probe. The curtain gas and the ion source gases 1 and 2 were set to 55.0 psi, the ion spray voltage floating was 5500 V, and the source temperature was 650°C. Chromatography was performed on a Kinetex C8 column, 50 × 2.1 mm, 2.6 μm, 100 Å. For the analysis of Phase I metabolites after deglucuronidation, a gradient method consisting of mobile phase A (0.1% aqueous formic acid [%V]) and mobile phase B (MeCN with 0.1% formic acid [%V]) with the following gradient was used: 0–5 min, 45%–62% B; 5–14.5 min, 62% B; 14.5–14.6 min, 62%–45% B; and 14.6–15 min, 45% B. The flow rate was 0.3 mL/min, the injection volume was 2.5 μL, and the column oven was set to 25.0°C. For the analysis of Phase II metabolites, the gradient was changed to the following: 0–5 min, 30%–40% B; 5–14.5 min, 40% B; 14.5–14.6 min, 40%–30% B; and 14.6–15 min, 30% B. The instrument was operated in IDA (information‐dependent data acquisition) and in SWATH mode (sequential window acquisition of all theoretical mass spectra). A survey scan from m/z 100 to 950 was applied for IDA, which triggered the acquisition of product ion mass spectra from m/z 50 to 950. For SWATH mode, a mass range was scanned from m/z 100 to 950, acquiring product ion spectra in windows of 35 Da from m/z 50 to 950. A collision energy with a collision energy spread of 35 ± 15 V was used for IDA and SWATH mode [21].
3LC‐QqLIT
The sample solutions after deglucuronidation as described above were analyzed using a Dionex Ultimate 3000 HPLC system (Thermo Fisher Scientific, Reinach, Switzerland) coupled to a QTRAP 4500 mass spectrometer (Sciex, Toronto, Canada), which was equipped with an IonDrive Turbo V ion source with TurboIonSpray probe. The curtain gas and the ion source gases 1 and 2 were set to 35.0 psi, the source temperature was 600°C, and the ion spray voltage was 5500 V. The column, mobile phases, injection volume, column oven temperature, flow rate, and gradient are the same as described for the analysis of deglucuronidated samples (Phase I metabolites) in the LC‐QqTOF section. Mass spectra were acquired in positive ionization mode (ESI+). A multiple reaction monitoring method was developed for the detection of H4CBD and its metabolites, and the relevant transitions with their corresponding potentials are shown in Table 1.
| Q1/Da | Q3/Da | DP/V | ce/V | CXP/V | Name |
|---|---|---|---|---|---|
| 318.2 | 196.3 | 88 | 32 | 7 | THC‐D3 MRM 1 |
| 318.2 | 123.0 | 100 | 43 | 8 | THC‐D3 MRM 2 |
| 319.2 | 83.0 | 60 | 24 | 16 | H4CBD MRM 1 |
| 319.2 | 55.0 | 60 | 60 | 13 | H4CBD MRM 2 |
| 319.2 | 181.0 | 60 | 20 | 9 | H4CBD MRM 3 |
| 335.3 | 271.2 | 60 | 20 | 10 | H4CBD‐OH MRM 1 |
| 335.3 | 137.0 | 60 | 20 | 10 | H4CBD‐OH MRM 2 |
| 335.3 | 193.1 | 60 | 20 | 10 | H4CBD‐OH MRM 3 |
| 335.3 | 191.1 | 60 | 20 | 10 | H4CBD‐OH MRM 4 |
| 349.2 | 193.1 | 60 | 20 | 10 | H4CBD‐COOH MRM 1 |
| 349.2 | 211.1 | 60 | 20 | 10 | H4CBD‐COOH MRM 2 |
| 349.2 | 139.2 | 60 | 20 | 10 | H4CBD‐COOH MRM 3 |
4GC–MS
Sample preparation and analysis were performed according to Schirmer et al. [20]. Reference solutions were prepared by evaporating 50 μL of a 10‐μg/mL solution under a stream of nitrogen to dryness. To the residue, 25‐μL MSTFA and 25‐μL EtOAc were added. The solutions were incubated at 90°C for 40 min. The sample solutions were prepared by incubating 1‐mL urine with 100‐μL instant buffer I and 5‐μL β‐glucuronidase at 50°C for 15 min. The mixture was extracted twice with 500 μL n‐BuOAc by shaking for 10 min and centrifuging for 10 min (13,000 rpm [17,190 g], 8°C). The organic phases were combined and evaporated to dryness under a stream of nitrogen. The residue was dissolved in 1‐mL MeCN, diluted with 2‐mL water, and purified by solid‐phase extraction. The Chromabond C18 cartridges (3 mL, 500 mg) were conditioned with 2‐mL MeOH and 2‐mL AcOH (0.1 M). The sample solutions were loaded onto the cartridges, and they were washed with 1‐mL AcOH (0.1 M), 1‐mL aqueous MeCN (40 V%), and 1‐mL aqueous MeCN (70 V%). For the elution, 1.5‐mL MeCN was used, and the eluate was evaporated to dryness under a stream of nitrogen at 70°C. 25‐μL MSTFA and 25‐μL EtOAc were added, and the mixture was incubated at 90°C for 40 min. The extracts and reference solutions were analyzed using an 8890 gas chromatograph with a 7693A autosampler coupled to a 5977B mass selective detector (Agilent, Basel, Switzerland). MassHunter Workstation GCMS Data Acquisition (Version 10.1.49) was used for acquisition and Enhanced ChemStation (F.01.03.2357) (Agilent) for data analysis. A 5% phenylmethylsiloxane column (HP‐5 ms Ultra Inert, 30 m, 250 μm i.d., 0.25‐μm film thickness; Agilent J&W) was used. Helium with a constant flow of 1 mL/min was used as the carrier gas. The injection volume was 1 μL in pulsed splitless mode. The oven temperature started at 80°C and was ramped with 10°C/min to 300°C and held for 1 min, resulting in a total separation time of 23 min. The quadrupole temperature was 150°C, and the source temperature was 230°C. EI mass spectra were obtained with an ionization energy of 70 eV. The scan range was from m/z 40 to 650, with a scan speed of 1.562 s−1.
5Investigated H4CBD Product
The investigated H4CBD resin “for recreational use” was analyzed by GC–MS: (R)‐H4CBD and (S)‐H4CBD were quantified using a single 5‐point calibration, and a single determination was performed. THC‐D3 was used as an internal standard. The quantification was run on another GC–MS device using identical instruments (Agilent 8890 gas chromatograph coupled to a 5977B mass spectrometer). This sample contained stearic acid and palmitic acid, presumably from the extraction of CBD from CBD‐rich Cannabis plants. In addition, not fully hydrogenated CBD was detected (H2CBD) in the product.
6Results and Discussion
An overview of the Phase I and II metabolites that were identified by LC‐QqTOF can be found in Table 2. Table 2 shows the retention times and relevant ions of the metabolites. The trimethylsilyl derivatives of Phase I metabolites, which were identified by GC–MS, are found in Table 3. The Kováts indices [22], retention times, and relevant fragment ions are listed. The Kováts indices were calculated according to van Den Dool and Kratz [23].
| Metabolite | Glucuronide | R t /min | Relevant ions/Da |
|---|---|---|---|
| M1, (R,S)‐H4CBD | 9.35 | 319.2632, 181.1223, 139.1481, 97.1012, 83.0855, 69.0699, 57.0699, 55.0542 | |
| M2, 7‐COOH‐H4CBD | 3.12 | 349.2373, 331.2268, 313.2162, 303.2319, 285.2213, 227.1794, 137.1325 | |
| M3, 5″‐COOH‐H4CBD | 4.51 | 349.2373, 331.2268, 313.2162, 303.2319, 211.0965, 193.0859, 139.1481, 83.0855 | |
| M4, OH‐H4CBD a | 7.74 | 335.2573, 271.2420, 197.1172, 179.1067, 137.1325, 83.0855, 81.0699 | |
| M5, OH‐H4CBD a | 7.13 | 335.2573, 271.2420, 197.1172, 179.1067, 137.1325, 83.0855, 81.0699 | |
| M6, 2″OH‐H4CBD | 4.87 | 335.2573, 317.2475, 261.1849, 179.1067, 137.1325, 123.0441, 83.0855 | |
| M7, 2″OH‐H4CBD | 4.56 | 335.2573, 317.2475, 261.1849, 179.1067, 137.1325, 123.0441, 83.0855 | |
| M8, 7‐OH‐H4CBD | 4.37 | 335.2573, 317.2475, 193.1223, 181.1223, 137.1325, 123.0441, 95.0855, 81.0699 | |
| M9, 7‐OH‐H4CBD | 3.64 | 335.2573, 317.2475, 193.1223, 181.1223, 137.1325, 123.0441, 95.0855, 81.0699 | |
| M10, diOH‐H4CBD b | 1.96 | 351.2530, 333.2424, 315.2319, 287.2369, 269.2264, 193.1223, 137.1325, 81.0699 | |
| M11, H4CBD | M1 | 11.34 | 495.2952, 459.2741, 384.2659•, 319.2632 |
| M12, H4CBD | M1 | 11.82 | 495.2952, 459.2741, 384.2659•, 319.2632 |
| M13, 5″‐COOH‐H4CBD | M3 | 10.04 | 525.2694, 414.2401•, 349.2373, 331.2268, 211.0965, 193.0859, 139.1481, 83.0855 |
| M14, 7‐COOH‐H4CBD | M2 | 9.39 | 525.2694, 457.1857, 349.2373, 331.2268, 303.2319, 281.1536, 193.1223, 181.1223 |
| M15, OH‐H4CBD a | M6 | 5.07 | 511.2902, 400.2608•, 335.2573, 317.2475, 261.1849, 179.1067 |
| M16, OH‐H4CBD | 5.79 | 511.2902, 335.2573, 317.2475, 193.1223, 181.1223 | |
| M17, OH‐H4CBD | 7.18 | 511.2902, 335.2573, 317.2475, 193.1223, 137.1325 | |
| M18, 7‐OH‐H4CBD | M8, M9 | 8.59 | 511.2902, 443.2064, 335.2573, 317.2475, 193.1223, 181.1223 |
| M19, 7‐OH‐H4CBD | M8, M9 | 9.32 | 511.2902, 443.2064, 335.2573, 317.2475, 193.1223, 181.1223 |
| M20, OH‐H4CBD a | 12.41 | 511.2902, 335.2573, 317.2475, 299.2369, 271.2420, 197.1172, 179.1067, 137.1325 | |
| M21, OH‐H4CBD a | 12.67 | 511.2902, 335.2573, 317.2475, 299.2369, 271.2420, 197.1172, 179.1067, 137.1325 | |
| M22, OH‐H4CBD a | 14.43 | 511.2902, 335.2573, 317.2475, 299.2369, 271.2420, 197.1172, 179.1067, 137.1325 | |
| M23, diOH‐H4CBD b | 3.51 | 527.2851, 351.2530, 333.2424, 193.1223, 181.1223 | |
| M24, diOH‐H4CBD c | 5.25 | 527.2851, 351.2530, 333.2424, 137.1325 | |
| M25, diOH‐H4CBD c | 5.67 | 527.2851, 351.2530, 333.2424, 193.1223, 137.1325 |
| Metabolite (trimethylsilylated) | R t /min | RRI | Relevant ions/Da (70 eV) |
|---|---|---|---|
| M26, (R)‐H4CBD | 17.03 | 2235 | 462, 377, 337 |
| M27, (S)‐H4CBD | 17.66 | 2307 | 462, 377, 337 |
| M28, 7‐COOH‐H4CBD | 19.70 | 2560 | 564, 447, 337, 317 |
| M29, 5″‐COOH‐H4CBD | 20.30 | 2640 | 564, 479, 439, 354, 214 |
| M30, (1R,6S)‐OH‐H4CBD | 18.62 | 2424 | 550, 476, 392, 377, 342 |
| M31, OH‐H4CBD a | 19.01 | 2473 | 550, 465, 425 |
| M32, (1R,6R)‐OH‐H4CBD | 19.03 | 2475 | 550, 377, 350, 337, 173 |
| M33, 7‐OH‐H4CBD | 19.15 | 2491 | 550, 447, 337 |
| M34, 7‐OH‐H4CBD | 19.55 | 2541 | 550, 447, 337 |
| M35, OH‐H4CBD a | 19.59 | 2547 | 550, 465, 425 |
| M36, diOH‐H4CBD b | 20.86 | 2716 | 638, 535, 465, 425, 372, 357 |
| M37, diOH‐H4CBD b | 21.37 | 2787 | 638, 535, 499, 425 |
6.1LC‐QqTOF Phase I Metabolites

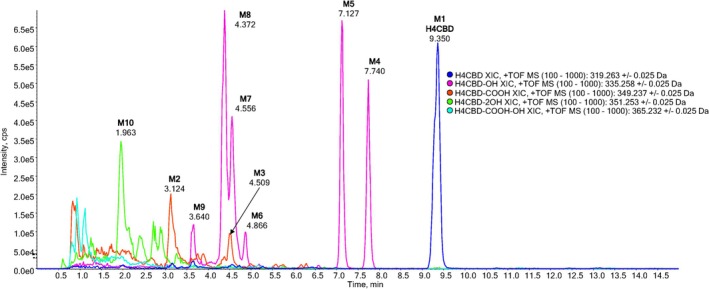

The chromatogram of an extract from a deglucuronidated urine sample 3 h after ingestion showed H4CBD (M1), carboxylated metabolites (M2 and M3), hydroxylated metabolites (M4–M9), and bishydroxylated metabolites (M10) (see Figure 1). A chromatogram of an extract from a deglucuronidated urine sample prior to H4CBD ingestion is shown in Figure S2. The corresponding spectra of H4CBD and its Phase I metabolites are found in Figures S3–S13. Reference spectra of (S)‐ and (R)‐H4CBD are shown in Figures S44 and S45.
Metabolite M1 is H4CBD, eluting as an unresolved double peak at 9.35 min. The ESI+ product ion spectra of (R)‐H4CBD and (S)‐H4CBD are indistinguishable and show only a few characteristic ions; see Figures S3 and S4. The base peak of the spectrum is the molecular ion (m/z 319.2632). The fragment ion with the highest abundance is the cyclohexylium ion (m/z 83.0855), which derives from the alicyclic moiety of the molecule. The most abundant ions in the spectrum of H4CBD are smaller fragments from the alicyclic moiety, which are not very characteristic, such as a butenylium ion (m/z 55.0542), a butylium ion (m/z 57.0699), a pentenylium ion (m/z 69.0699), and a methylcyclohexylium ion (m/z 97.1012). The characteristic ions are a methyl‐isopropyl‐cyclohexylium ion (m/z 139.1481) and a protonated olivetol ion (m/z 181.1223). Some very characteristic ions for CBD are not found for H4CBD, probably due to the lack of an olefinic group, which can be protonated under ESI+ conditions and initiate characteristic fragmentation patterns. The tropylium ions (m/z 193.1223 and m/z 123.0441), the former being the base peak of the CBD product ion spectrum, are absent in the spectrum of H4CBD. The ions resulting from partial fragmentation of the terpene moiety (m/z 259.1693 and m/z 217.1223), presumably chromenylium ions, are also not found in the product ion spectrum of H4CBD.
6.1.2Hydroxylated Metabolites

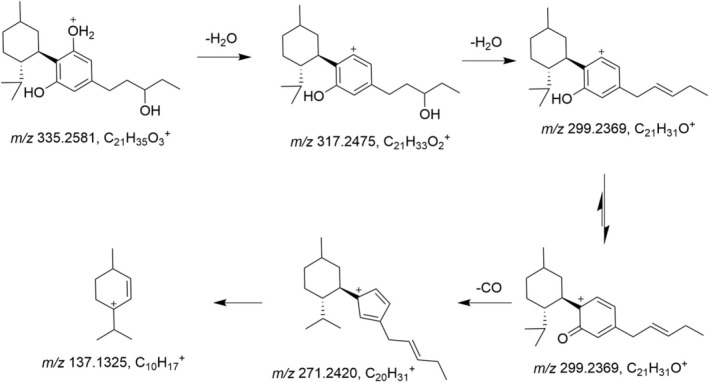

The metabolite M4 eluting at 7.74 min shows the [M + H]+ ion at m/z 335.2581 (C21H35O3 +, 5.7 ppm); see Figure S7. An ion after the loss of a H2O molecule can be observed at m/z 317.2475 (C21H33O2 +, 3.8 ppm), and an ion after a second loss of H2O is present at m/z 299.2369 (C21H31O+, 2.7 ppm). An ion can be observed at m/z 271.2420 (C20H31 +, 4.4 ppm), and this ion results from the formal loss of CH4O3, presumably from the loss of two H2O and one CO. The loss of CO likely occurs from the phenol cation (m/z 299.2369), which tautomerizes to an oxocyclohexadienylium ion, stabilizing the positive charge on a sp3‐carbon. Elimination of CO from this ion leads to a ring contraction and to the formation of a cyclopentadienyl cation (m/z 271.2420). The ion at m/z 137.1325 (C10H17 +, 4.4 ppm) results from the alicyclic part of the molecule, and this ion might form after a 1,3‐H shift of the cyclopentadienyl cation and subsequent elimination of the cyclopentadiene moiety. It is not an indicator for the hydroxylation position in this case. The ions at m/z 81.0699 (C6H9 +, 3.7 ppm) and m/z 83.0855 (C6H11 +, 2.4 ppm) result from two different processes, but their simultaneous presence is most likely indicative of a hydroxylation position on the side chain of the molecule. Two characteristic ions are found at m/z 197.1172 (C11H17O3 +, 3.0 ppm) and its anhydrate at m/z 179.1067 (C11H15O2 +, −1.1 ppm). These ions are a protonated olivetol with a hydroxylated side chain and its anhydrate. They are characteristic of side‐chain hydroxylated metabolites. A suggested fragmentation pathway is shown in Figure 2.
The metabolite M5 eluting at 7.13 min shows the same ions as described for the metabolite M4, and the corresponding product ion spectrum is found in Figure S8. The presence of the ions m/z 179 and m/z 197 and the absence of the ion m/z 181 indicate that this metabolite is hydroxylated on the side chain. The base peak m/z 271 indicates that this ion emerged after the loss of CO from an oxocyclohexadienylium, a tautomer of the phenol cation.

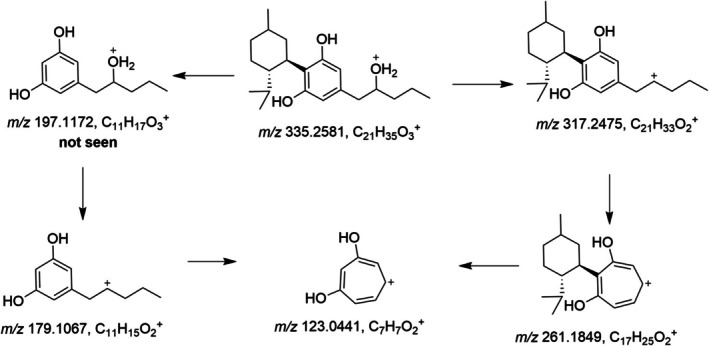

The minor metabolite M6 eluting at 4.87 min shows the ion at m/z 179.1067 (C11H15O2 +, 7.3 ppm), indicating that this metabolite is hydroxylated on the side chain; see Figure S9. The fragment ion at m/z 261.1849 (C17H25O2 +, 7.3 ppm) might result from a tropylium ion, which is formed after degradation of the side chain, and a hydroxy group at C2 seems plausible. Further fragmentation of this ion leads to the tropylium ion with m/z 123.0441 (C7H7O2 +, −2.4 ppm), which could also be formed from the ion with m/z 179 after elimination of n‐butene from the side chain. The fragment ion m/z 137.0592 (C8H9O2 +, 8.0 ppm) is from the aromatic part. The characteristic ion m/z 139.1481 (C10H19 +, −2.2 ppm) is present but very low in abundance, indicating that hydroxylation took place on the side chain. The metabolite M6 was tentatively identified as 2″OH‐H4CBD, and a suggested fragmentation pathway is shown in Figure 3.
The metabolite M7 eluting at 4.56 min shows the same ions as M6, and it is therefore assumed that these two compounds are diastereomers, showing a different configuration at either C1, the hydroxylation position C2″, or at both positions. The corresponding product ion spectrum is shown in Figure S10.
The metabolite M8 (see Figure S11) eluting at 4.37 min shows the protonated olivetol ion at m/z 181.1223 (C11H17O2 +, 0.6 ppm), indicating a hydroxylation position on the alicyclic moiety of the molecule. In addition, a tropylium ion at m/z 193.1223 (C12H17O2 +, 0.0 ppm) is present, which fragments further by loss of the side chain, seen at m/z 123.0441 (C7H7O2 +, −1.6 ppm). The presence of the ion at m/z 193.1223 is a further indicator of the hydroxylation on the alicyclic moiety. This tropylium ion has a saturated pentyl side chain, and it can only be formed if the hydroxylation position is found on the alicyclic moiety.
A minor metabolite M9 can be seen at 3.64 min, which shows a very similar mass spectrum to the metabolite M8, probably a diastereomer. The product ion spectrum is shown in Figure S12.
6.2LC‐QqTOF Phase II Metabolites

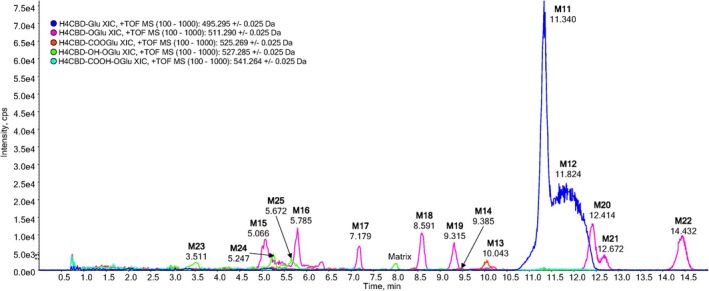

Several glucuronidated metabolites were found in an extract of the urine sample 3 h after the ingestion of H4CBD. The most abundant metabolites in urine after 3 h were the glucuronides of H4CBD (M11 and M12). The glucuronides of carboxylated (M13 and M14), hydroxylated (M15–M22), and bishydroxylated metabolites (M23–M25) of H4CBD are present as well. A chromatogram is shown in Figure 4, and a chromatogram prior to H4CBD ingestion can be found in Figure S14.

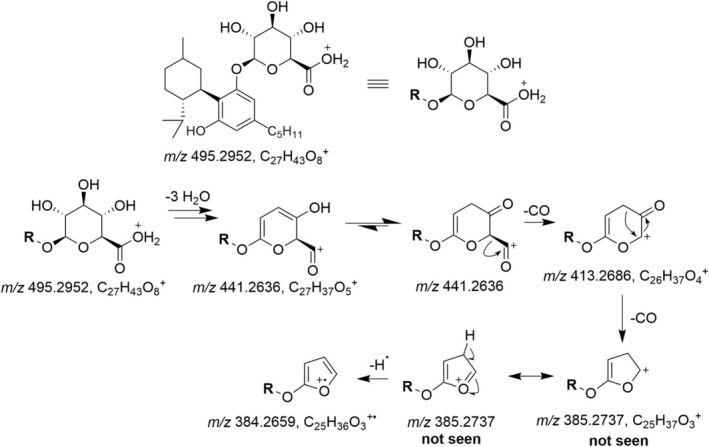

The epimers of H4CBD glucuronide eluted at 11.34 min (M11) and 11.82 min (M12). Their product ion spectra are shown in Figures S15 and S16. The [M + H]+ ion can be found at m/z 495.2952 (C27H43O8 +, −4.2 ppm), and the loss of two H2O molecules is seen at m/z 459.2741 (C27H39O6 +, −2.6 ppm). An odd‐electron fragment is present at m/z 384.2659 (C25H36O3 +•, −4.4 ppm), which results from the fragmentation of the glucuronide moiety, and a H4CBD‐furanyl radical cation seems to be a plausible structure for this fragment ion. A postulated fragmentation pathway is shown in Figure 5. The base peak of the spectrum is the protonated aglycone found at m/z 319.2632 (C21H35O2 +, −3.1 ppm). The lower mass fragments, discussed earlier for the fragment ions of H4CBD, are of low abundance.
6.2.1Carboxylated Glucuronides
The metabolite M13 eluting at 10.04 min shows the [M + H]+ ion at m/z 525.2694 (C27H41O10 +, 24.7 ppm); see Figure S17. An odd‐electron fragment ion can be seen at m/z 414.2401 (C25H34O5 +•, 0.5 ppm), which results from the fragmentation of the glucuronide moiety. The base peak of this spectrum is the protonated aglycone at m/z 349.2373 (C27H41O10 +, −0.9 ppm). The same lower fragment ions can be seen as in the mass spectrum of the Phase I metabolite 5″‐COOH‐H4CBD (M3), namely, m/z 331.2268 (C21H31O3 +, 1.5 ppm), m/z 211.0965 (C11H15O4 +, 3.3 ppm), m/z 193.0859 (C11H13O3 +, 3.6 ppm), m/z 139.1481 (C10H19 +, −6.5 ppm), and m/z 83.0855 (C6H11 +, −9.6 ppm). This metabolite was tentatively identified as 5″‐COOH‐H4CBD glucuronide.
Another glucuronidated carboxylic metabolite (M14) eluted at 9.39 min, and a product ion spectrum is shown in Figure S18. The [M + H]+ ion is seen at m/z 525.2694 (C27H41O10 +, 27.6 ppm). An ion at m/z 457.1857 (C25H29O8 +, 0.2 ppm) and its deglucuronidated species at m/z 281.1536 (C19H21O2 +, −8.9 ppm) are present, representing formal losses of C2H12O2 (two H2O and two CH4) from the [M + H]+ ion and the protonated aglycone, respectively. Their structures are unknown. Interestingly, the ion at m/z 281.1536 does only appear if the metabolite was priorly glucuronidated. The formation of the ion at m/z 169.1223 (C10H17O2 +, −6.5 ppm) is unknown. It further decomposes by the loss of H2O at m/z 151.1117 (C10H15O+, 6.6 ppm) and the loss of CO at m/z 123.1168 (C9H15 +, −4.1 ppm). Additionally, the tropylium ion at m/z 193.1223 (C12H17O2 +, −8.8 ppm) and the protonated olivetol ion at m/z 181.1223 (C11H17O2 +, 4.4 ppm) appear in the mass spectrum, indicating that this metabolite is carboxylated at the alicyclic moiety. This metabolite was tentatively identified as the glucuronide of 7‐COOH‐H4CBD.
6.2.2Hydroxylated Glucuronides
The metabolite M15 eluting at 5.07 min shows the [M + H]+ ion at m/z 511.2902 (C27H43O9 +, −26.4 ppm); see Figure S19. Loss of three H2O can be observed (m/z 493.2796, C27H41O8 +, −13.8 ppm; m/z 475.2690, C27H39O7 +, −3.4 ppm; m/z 457.2585, C27H37O6 +, 10.5 ppm). The characteristic odd‐electron fragment ion at m/z 400.2608 (C25H36O4 +•, −4.2 ppm) and its anhydrate at m/z 382.2502 (C25H34O3 +•, 4.4 ppm) can be found. The protonated aglycone is found at m/z 335.2581 (C21H35O3 +, −1.2 ppm), and its anhydrate at m/z 317.2475 (C21H33O2 +, −0.9 ppm) forms the base peak of this spectrum. The protonated and unsaturated olivetol ion at m/z 179.1067 (C11H15O2 +, 1.1 ppm) is present, indicating that this metabolite was hydroxylated on the side chain. A very low‐abundant ion with m/z 261.1849 (C17H25O2 +, −10.0 ppm) is seen. This metabolite might be the glucuronide of the metabolite M6.
The metabolite eluting M16 at 5.79 min shows the [M + H]+ ion at m/z 511.2902 (C27H43O9 +, 4.7 ppm); see Figure S20. The base peak of this spectrum is the protonated aglycone at m/z 335.2581 (C21H35O3 +, −2.4 ppm), and the anhydrate at m/z 317.2475 (C21H33O2 +, 6.9 ppm) is also present. The tropylium ion at m/z 193.1223 (C12H17O2 +, −3.6 ppm) and the protonated olivetol ion at m/z 181.1223 (C11H17O2 +, 11.0 ppm) are characteristic ions for a hydroxylation position on the alicyclic moiety. The product ion spectrum is shown in Figure S20.
At 7.18 min, the metabolite M17 can be seen, and a product ion spectrum is found in Figure S21. It shows the [M + H]+ ion at m/z 511.2902 (C27H43O9 +, −5.1 ppm). The protonated aglycone at m/z 335.2581 (C21H35O3 +, 0.6 ppm) and the anhydrate at m/z 317.2475 (C21H33O2 +, −7.9 ppm) are present, and the latter forms the base peak of this spectrum. The tropylium ion at m/z 193.1223 (C12H17O2 +, 9.3 ppm) and the ion at m/z 137.1325 (C10H17 +, −10.2 ppm) are indicative of a hydroxylation on the alicyclic moiety.
The metabolite M18, eluting at 8.59 min, shows the [M + H]+ ion at m/z 511.2902 (C27H43O9 +, −2.5 ppm) and its anhydrates at m/z 493.2796 (C27H41O8 +, 8.7 ppm) and at m/z 475.2690 (C27H39O7 +, 0.0 ppm); see Figure S22. An ion can be seen at m/z 443.2064 (C25H31O7 +, −8.1 ppm) representing a formal loss of C2H12O2, the same formal loss as observed for the glucuronidated carboxy metabolite M14. The base peak of the spectrum is the deglucuronidated molecule, seen at m/z 335.2581 (C21H35O3 +, 2.7 ppm), and its anhydrate is seen at m/z 317.2475 (C21H33O2 +, 5.0 ppm). The presence of the tropylium ion at m/z 193.1223 (C12H17O2 +, −2.6 ppm), the protonated olivetol ion at m/z 181.1223 (C11H17O2 +, −1.7 ppm), and the ion at m/z 137.1325 (C10H17 +, −2.9 ppm) are indicative of a metabolite that is hydroxylated on the alicyclic moiety. The same lower fragment ions appear as in the mass spectrum of the Phase I metabolites M8 and M9. This metabolite was tentatively identified as 7‐OH‐H4CBD glucuronide.
The metabolite M19 eluting at 9.32 min shows the same fragment ions as the metabolite M18, indicating that these two metabolites are diastereomers; see Figure S23. This metabolite was therefore tentatively identified as the other epimer of 7‐OH‐H4CBD glucuronide.
The metabolite M20 eluting at 12.41 min shows the [M + H]+ ion at m/z 511.2902 (C27H43O9 +, 1.6 ppm), shown in Figure S24. The protonated aglycone at m/z 335.2581 (C21H35O3 +, 3.9 ppm) forms the base peak of the spectrum. Repetitive loss of two H2O molecules resulting in the ions at m/z 317.2475 (C21H33O2 +, −0.6 ppm) and at m/z 299.2369 (C21H31O+, 4.3 ppm) is present. Further loss of CO at m/z 271.2420 (C20H31 +, 1.5 ppm) is also present. The ion at m/z 137.1325 (C10H17 +, −2.9 ppm) is not indicative of a hydroxylation on the alicyclic moiety in this case, as the ions at m/z 197.1178 (C11H17O3 +, 5.1 ppm) and at m/z 179.1065 (C11H15O2 +, −16.7 ppm) are present but not very abundant. The same lower fragment ions appear as in the mass spectrum of the Phase I metabolites M4 and M5, and the product ion spectrum of the metabolite M20 is found in Figure S24.
The mass spectrum of the metabolite M21 eluting at 12.67 min is very similar to the mass spectrum of the metabolite M20, and the same fragment ions appear in similar abundances. The product ion spectrum is found in Figure S25.
The mass spectrum of the metabolite M22 (see Figure S26) eluting at 14.43 min is similar to the mass spectra of the metabolites M20 and M21, but only the aglycone at m/z 335.2581 (C21H35O3 +, 4.5 ppm) is of high abundance. The other fragment ions are even less abundant than in the spectra of the metabolites M20 and M21.
6.2.3Bishydroxylated Glucuronides
A glucuronidated bishydroxylated metabolite M23 eluted at 3.51 min; a product ion spectrum is found in Figure S27. The [M + H]+ ion at m/z 527.2851 (C27H43O9 +, 6.6 ppm) and loss of two H2O molecules are seen at m/z 509.2745 (C27H41O8 +, −4.1 ppm) and at m/z 491.2639 (C27H39O7 +, −11.4 ppm). The protonated aglycone at m/z 351.2530 (C21H35O4 +, 5.1 ppm) and loss of two H2O molecules are seen at m/z 333.2424 (C21H33O3 +, 4.8 ppm) and m/z 315.2319 (C21H31O2 +, 14.6 ppm). The tropylium ion at m/z 193.1223 (C12H17O2 +, 4.1 ppm) and the protonated olivetol ion at m/z 181.1223 (C11H17O2 +, 2.8 ppm) can be observed. The ion at m/z 153.1274 (C10H17O+, −3.3 ppm) and its anhydrate at m/z 135.1168 (C10H15 +, −20.7 ppm) are present, indicating two hydroxylation sites on the alicyclic moiety of the molecule. The ion at m/z 137.1325 (C10H17 +, 2.9 ppm) might result from a coeluting metabolite, as it is indicative of a metabolite that is hydroxylated on the alicyclic moiety and the side chain of the molecule.
Another glucuronidated bishydroxylated metabolite M24 eluted at 5.25 min; the product ion spectrum is found in Figure S28. The [M + H]+ ion at m/z 527.2851 (C27H43O9 +, 12.1 ppm) is seen. The deglucuronidated ion at m/z 351.2530 (C21H35O4 +, −0.6 ppm) and the loss of two H2O molecules are seen at m/z 333.2424 (C21H33O3 +, 7.8 ppm) and m/z 315.2319 (C21H31O2 +, 4.1 ppm). An ion from the alicyclic moiety can be seen at m/z 137.1325 (C10H17 +, −8.0 ppm), indicating that this metabolite is hydroxylated on the alicyclic moiety and on the side chain.
Another bishydroxylated glucuronide M25 eluted at 5.67 min; the product ion spectrum is seen in Figure S29. The [M + H]+ ion at m/z 527.2851 (C27H43O9 +, −2.8 ppm) and its anhydrate at m/z 509.2745 (C27H41O8 +, −9.4 ppm) are observable. The base peak of the spectrum is the protonated aglycone at m/z 351.2530 (C21H35O4 +, −3.7 ppm). Two losses of H2O at m/z 333.2424 (C21H33O3 +, 0.3 ppm) and at m/z 315.2319 (C21H31O2 +, −5.7 ppm) are observed. The hydroxylated olivetol ion at m/z 197.1172 (C11H17O3 +, 0.5 ppm) indicates that this metabolite had a hydroxylation site on the alicyclic moiety and on the side chain. The tropylium ion at m/z 193.1223 (C12H17O2 +, 7.2 ppm) derives from a metabolite that bears two hydroxylation positions on the alicyclic moiety, which leads to the assumption that coelution of metabolites is likely in this case.
6.3GC–MS Phase I Metabolites (TMS Derivatives)
6.3.1Fragmentation Patterns of H4CBD and Its Trimethylsilylderivatives
The electron impact (EI) mass spectra of (R)‐H4CBD and (S)‐H4CBD are indistinguishable. They show the molecular ion at m/z 318. The main fragments are the dihydrochromenylium ion at m/z 233 and the tropylium ion at m/z 193. The dihydrochromenylium ion in hydrogenated cannabinoids like H4CBD or HHC is of high abundance. In their unsaturated analogs, CBD and the isomers of THC, the analogous chromenylium ion m/z 231 usually forms the base peak and is often the only highly abundant ion due to its simple formation and aromatic stability [24, 25, 26]. The tropylium ion forms the base peak of the H4CBD epimers as it does for the HHC epimers [24, 26, 27, 28].
The spectra of the trimethylsilylated H4CBD epimers are indistinguishable as well; see Figures S30 and S31. The most common fragments are the trimethylsilylated derivatives of the dihydrochromenylium ion m/z 377 and the trimethylsilylated tropylium ion m/z 337 discussed previously. The trimethylsilylated metabolites (R)‐H4CBD TMS (M26) and (S)‐H4CBD (M27) can be seen at 17.03 and 17.66 min, respectively (see Figure 6).
6.3.3Hydroxylated Metabolites, Trimethylsilylated
Metabolites that are hydroxylated on the side chain can be recognized by the presence of the ions with m/z 425 and m/z 465, whereas the ions with m/z 337 and m/z 377 are absent [29]. The former ions have an additional trimethylsilyloxy group on the side chain.

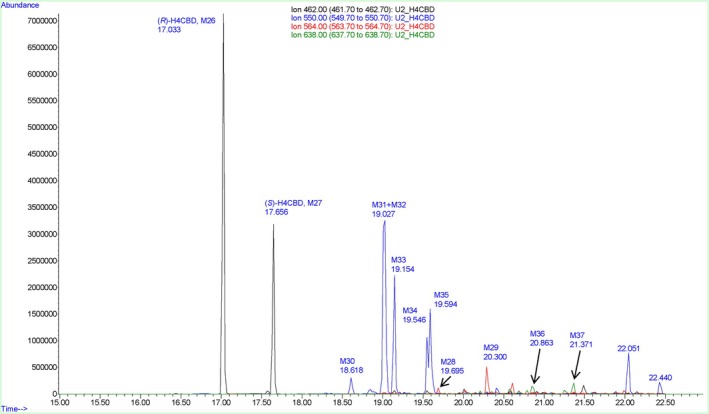

Five different hydroxylated metabolites of H4CBD are seen in the extracted ion chromatogram (XIC m/z 550). The minor metabolite M30 eluting at 18.62 min shows the dihydrochromenlyium ion m/z 377 as the base peak, indicating that this metabolite is hydroxylated on the alicyclic moiety (see Figure S34). The presence of the ion at m/z 392 might be indicative that this metabolite was hydroxylated on C6, synperiplanar to the methyl group at C1. Elimination of trimethylsilanol and subsequent retro‐Diels‐Alder reaction would lead to a fragment ion with m/z 392, a similar mechanism as shown in Figure 7. A plausible structure of this metabolite might be (1R,6S)‐OH‐H4CBD or (1S,6R)‐OH‐H4CBD, and the latter shows higher 1,3‐diaxial strain in the conformation in which trimethylsilanol could be eliminated due to bulky axial groups. The EI mass spectrum is shown in Figure S34.
At 19.0 min, two different metabolites are almost coeluting; the first metabolite M31 at 19.01 min shows the ions m/z 465 and m/z 425, indicating that this metabolite is a side‐chain hydroxylated metabolite. The hydroxylation position is unknown; a mass spectrum is shown in Figure S35.

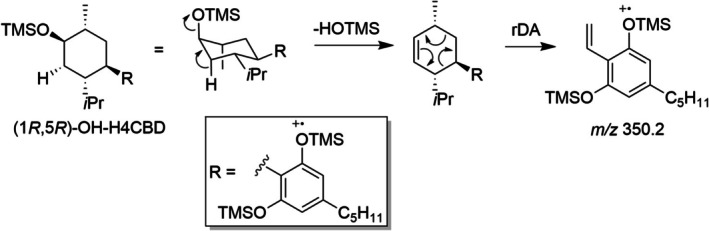

The other metabolite M32 at 19.03 min shows the fragment ions m/z 377 and m/z 337, indicating a metabolite that is hydroxylated on the alicyclic part (see Figure S36). In addition, this metabolite shows a quite abundant fragment ion with m/z 350. This might be indicative that the hydroxylation position is either antiperiplanar to the methyl group or to the iso‐propyl group. The tentative metabolite (1R,6R)‐OH‐H4CBD has a stable chair conformation in which the iso‐propyl group and the aromatic moiety are equatorial substituents. In this conformation, the metabolite could eliminate trimethylsilanol, resulting in the formation of a 3,4,6‐trisubstituted cyclohexene intermediate, which can fragment further to a styrene ion with m/z 350 after retro‐Diels‐Alder reaction. The potential metabolites (1S,5S)‐OH‐H4CBD, (1R,4S)‐OH‐H4CBD, and (1S,4S)‐OH‐H4CBD might undergo the same reaction cascade, but in these molecules, the conformation in which the elimination of trimethylsilanol could occur would have three bulky axial substituents, resulting in a high 1,3‐diaxial strain. A possible fragmentation pathway is shown in Figure 7.
The mass spectra of the metabolites M33 and M34 eluting at 19.15 and 19.55 min are identical, showing the molecular ion at m/z 550 and two abundant ions at m/z 447 and m/z 337; see Figures S37 and S38. The ion with m/z 447 forms the base peak of their spectra and might form after the loss of a trimethylsilyl radical and formaldehyde. A primary alcohol is therefore suspected. The ion m/z 337 is the tropylium ion that is also present in the mass spectra of the H4CBD epimers, indicating that these metabolites were hydroxylated on the alicyclic moiety of the molecule. Hydroxylation position on C7 seems plausible; this would explain why the characteristic dihydrochromenylium ion m/z 377 is not present. These metabolites were therefore tentatively identified as 7‐OH‐(R)‐H4CBD and 7‐OH‐(S)‐H4CBD. The same fragmentation reactions occur in the TMS derivative of the analogue 7‐OH‐CBD, where the ion m/z 443 (unsaturated analogue of m/z 447) forms after the loss of a trimethylsilyl radical and formaldehyde; the ion m/z 337 is also present. An additional ion is formed in 7‐OH‐CBD with m/z 478, which cannot be formed from 7‐OH‐H4CBD, as this ion occurs from a retro‐Diels‐Alder pathway [14].
The metabolite M35 eluting at 19.59 min shows the ions m/z 465 and m/z 425 (see Figure S39). These are the discussed dihydrochromenylium ion (m/z 377) and tropylium ion (m/z 337) with an additional trimethylsilyloxy group, indicating that this metabolite is hydroxylated on the side chain.
7Conclusions
The epimers of H4CBD and their respective glucuronides can be used as analytical targets, but might not be present because of metabolization, depending on the time between consumption and urine sampling. In this case, the side‐chain hydroxylated metabolites M4 and M5, and the metabolite M8, which is presumably an epimer of 7‐OH‐H4CBD, might be better targets as they were very abundant in the chromatogram. Further investigations are needed to elucidate the structures of the very abundant side‐chain hydroxylated metabolites M4 and M5. A method for the determination of H4CBD and its metabolites should also include the carboxylic acids 7‐COOH‐H4CBD and 5″‐COOH‐H4CBD, and it is assumed that they accumulate after frequent H4CBD consumption. The same metabolites can be analyzed as TMS derivatives by GC–MS. Glucuronides of the discussed metabolites would also suit as forensic markers. Currently, no analytical standards for the proof of H4CBD consumption are available besides (R)‐H4CBD and (S)‐H4CBD.
Conflicts of Interest
The authors declare no conflicts of interest.
Supporting information
Acknowledgments
PD Dr. Urs Duthaler and Dr. Vanessa Hofmann from the Institute of Forensic Medicine Basel are acknowledged for providing product ion spectra of 7‐COOH‐CBD, which are shown in Figures S42 and S43. Open access publishing facilitated by Universitat Bern, as part of the Wiley ‐ Universitat Bern agreement via the Consortium Of Swiss Academic Libraries.
Data Availability Statement
The data that support the findings of this study are available from the corresponding author upon reasonable request.
