Cannabinoids as anticancer drugs: current status of preclinical research
grid.10493.3f0000000121858338Institute of Pharmacology and Toxicology, Rostock University Medical Centre, Schillingallee 70, 18057 Rostock, Germany
Abstract
Drugs that target the endocannabinoid system are of interest as pharmacological options to combat cancer and to improve the life quality of cancer patients. From this perspective, cannabinoid compounds have been successfully tested as a systemic therapeutic option in a number of preclinical models over the past decades. As a result of these efforts, a large body of data suggests that the anticancer effects of cannabinoids are exerted at multiple levels of tumour progression via different signal transduction mechanisms. Accordingly, there is considerable evidence for cannabinoid-mediated inhibition of tumour cell proliferation, tumour invasion and metastasis, angiogenesis and chemoresistance, as well as induction of apoptosis and autophagy. Further studies showed that cannabinoids could be potential combination partners for established chemotherapeutic agents or other therapeutic interventions in cancer treatment. Research in recent years has yielded several compounds that exert promising effects on tumour cells and tissues in addition to the psychoactive Δ9-tetrahydrocannabinol, such as the non-psychoactive phytocannabinoid cannabidiol and inhibitors of endocannabinoid degradation. This review provides an up-to-date overview of the potential of cannabinoids as inhibitors of tumour growth and spread as demonstrated in preclinical studies.
Background
History
The use of the cannabis plant for medicinal and ritual purposes dates back several thousand years. Accordingly, the psychoactive effect of cannabis is already mentioned in the Pen-ts’ao ching, the oldest pharmacopoeia in the world [1, 2]. Further evidence for a millennia-old use is based on cannabis-containing grave goods found in archaeological investigations of an Ukok ‘princess’ from the Pazyryk culture [3] or the remains of cannabis fruits identified in archaeobotanical investigations at the Laoguanshan cemetery from the Han dynasty in Chengdu, South China [4]. The introduction of cannabis into European medicine can be attributed to the Irish physician William B. O’Shaughnessy, who published a groundbreaking study on hemp in 1839 with his work ‘On the preparations of the Indian hemp or gunjah’ [5]. Although the isolation of a substance called ‘cannabinol’ from the exuded resin of Indian hemp dates back to a communication published in 1899 [6], it was not until the 1960s that Raphael Mechoulam and his collaborators published a series of studies that elucidated the chemical structure and activity of Δ9-tetrahydrocannabinol (THC), cannabidiol (CBD), and other cannabinoids [7–10].
Endocannabinoid system
The entry of the endocannabinoid (EC) system into modern research as a potential target of pharmacotherapeutic intervention began with the discovery and cloning of specific Gi/o protein-coupled cannabinoid receptors, termed CB1 and CB2 [11, 12]. While CB1 receptors are primarily localised in the central nervous system, CB2 receptors are mostly expressed on cells of the immune system. Other components of the EC system discovered in the 1990s are N-arachidonoylethanolamine (anandamide, AEA) and 2-arachidonoylglycerol (2-AG), two endogenously synthesised agonists at cannabinoid receptors [13, 14]. Scientific attention has also been paid in recent years to substances with structural similarities to the aforementioned ECs, such as the cannabinoid receptor ligands 2-arachidonoyl glycerol ether (noladin ether), O-arachidonoylethanolamine (virodhamine), N-arachidonoyldopamine and oleic acid amide (oleamide) (reviewed in ref. [15]). However, the available data on their biological role are very limited. Furthermore, a number of N-acylethanolamines structurally similar to ECs, so-called EC-like substances, such as N-palmitoylethanolamine (PEA) and N-oleylethanolamine (OEA), have been described, which use the biosynthesis and degradation enzymes of ECs, but do not trigger cannabinoid receptor activation (reviewed in ref. [15]).
Around the turn of the millennium, the non-selective cation channel transient receptor potential vanilloid 1 (TRPV1) was described as an additional receptor target for several cannabinoids such as AEA [16] and the non-psychoactive phytocannabinoid CBD [17]. Among the phytocannabinoids, THC exhibits the properties of an agonist at the CB2 receptor and a partial agonist at the CB1 receptor [18], as well as an agonist at the G protein-coupled receptor (GPR) 55 [19]. In contrast to the high-affinity CB1 and CB2 receptor binding of THC with Ki values in the low nanomolar range, CBD has been demonstrated to have weaker affinities with Ki values in the micromolar range and non-competitive antagonistic effects at both CB1 and CB2 receptor [18]. In addition, CBD shows a binding preference to the CB2 receptor [20] and an antagonistic effect at GPR55 [19]. Among a variety of receptor interactions of CBD, the compound has been shown to increase the transcriptional activity of peroxisome proliferator-activated receptor γ (PPARγ) [21].
Other important elements affecting the tone of the EC system are EC-synthesising and -degrading enzymes. In this context, N-acyl-phosphatidylethanolamine-specific phospholipase D (NAPE-PLD), α/β-hydrolase domain-containing 4 (ABHD4), glycerophosphodiesterase-1 (GDE1), and tyrosine protein phosphatase non-receptor type 22 (PTPN22) have been described to contribute to AEA biosynthesis. Diacylglycerol lipase α and -β (DAGLα and -β) have been identified as 2-AG-producing enzymes (reviewed in ref. [22]). The degradation of AEA and 2-AG is endogenously mediated by the enzyme fatty acid amide hydrolase (FAAH) [23], whereas the hydrolysis of 2-AG proceeds mainly via monoacylglycerol lipase (MAGL) [24] with contribution of several other hydrolytic enzymes (ABHD6, ABHD12, FAAH). In addition, ECs can be degraded by enzymes of the arachidonic acid cascade, i.e. cyclooxygenase-2 (COX-2) and lipoxygenases (reviewed in ref. [22]).
It is worth noting that the definition of the EC system has been subject to evolution over time. Thus, the classical EC system only includes the two ECs AEA and 2-AG, their anabolic and catabolic enzymes, and the two cannabinoid receptors CB1 and CB2. However, as more became known about its complex networks over time, the term and concept of the EC system was expanded accordingly, leading to the definition of an “endocannabinoidome” [25]. This now includes also other EC-like lipid mediators, metabolic enzymes and novel cannabinoid targets such as GPRs (GPR18, GPR55, GPR119) and members of the transient receptor potential cation channel subfamily (TRPV1, TRPV2, TRPV4) (reviewed in ref. [15, 25]).
Anticancer effect of cannabinoids—pioneering work and research strategies
The discovery of the anticarcinogenic effect of cannabinoid compounds can be dated back to Munson et al. [26], who were able to show in the mid-1970s that THC, Δ8-THC and cannabinol inhibit Lewis lung adenocarcinoma growth in mice. However, the discovery of cannabinoid receptors years later was only the starting point for an extensive and detailed investigation of the anticarcinogenic mechanisms of cannabinoid action. For example, a study at the turn of the millennium showed that intratumoural administration of THC and the synthetic cannabinoid agonist WIN 55,212-2 induced a considerable regression of malignant gliomas in Wistar rats and in mice deficient in recombination activating gene 2 [27]. A growth inhibitory effect of cannabinoids against glioma cells was confirmed shortly thereafter for the selective CB2 agonist JWH-133 [28]. With the discovery of a possible role of the EC system as a factor in cancer progression, numerous studies have also addressed a possible link between the regulation of cannabinoid receptors, ECs, and EC-synthesising and -degrading enzymes on the one side and disease severity and survival on the other (reviewed in ref. [15]). However, no clear correlation between the regulation of these parameters in tumour tissue and disease severity could be found, so that the aforementioned factors therefore do not show suitability as reliable biomarkers.
In addition to the activation of cannabinoid receptors by exogenously applied agonists, newer approaches to pharmacotherapeutic intervention by blocking EC turnover have been pursued and further developed in recent years, such as the blockade of MAGL by the selective MAGL inhibitor JZL184 [29]. In the context of potential cancer-preventive effects, knockdown or pharmacological inhibition of MAGL have been associated with decreased tumour cell invasion [30–32], metastasis [32] and tumour growth [30, 31]. This inhibitory effect on cancer progression by MAGL inhibition appears to be due to a dual-mode effect in prostate cancer cells involving both activation of CB1 receptor by increasing 2-AG levels and reduction of protumorigenic free fatty acids resulting from MAGL activity [30], whereas for the anti-invasive effect on lung cancer cells, only CB1 receptor involvement has been demonstrated [32]. On the other hand, a recent publication concluded that inhibition of MAGL promotes rather than retards cancer progression in mice and that knockout of MAGL is associated with increased incidence of lung adenocarcinoma [33]. With regard to the tumour suppressor function of MAGL, it was shown in this context that MAGL can inhibit the transactivation of epidermal growth factor receptor (EGFR)-associated signalling pathways as well as proinflammatory proteins such as COX-2 and tumour necrosis factor (TNF)-α. Accordingly, it is reasonable to assume that MAGL acts as a tumour suppressor or oncoprotein depending on the tissue type. Finally, inhibition of FAAH has also been shown to mediate cancer-limiting effects with growth inhibitory [34, 35] as well as anti-invasive and antimetastatic properties [36]. The preclinical work on the inhibition of FAAH and MAGL in cancer has been summarised elsewhere (reviewed in ref. [15]).
Recently, further substances from Cannabis sativa L., which are also found in other plants, have been investigated for their anti-cancer effects. This concerns, for example, the sesquiterpene β-caryophyllene, a potent CB2 agonist [37]. In the hitherto performed studies, β-caryophyllene showed antiproliferative and proapoptotic properties on various cancer cell lines [38, 39] and enhanced the cytostatic effects of classical chemotherapeutic agents such as doxorubicin [40] and sorafenib [41].
The first pilot clinical trial of cannabinoids as cancer treatment in 9 glioblastoma patients was published in 2006 and found that intracranially administered THC was safe [42]. Recently, the results of a randomised, placebo-controlled phase 1b study with nabiximols oromucosal spray (standardised extract of Cannabis sativa L. with an approximate 1:1 ratio of THC and CBD) in combination with dose-intense temozolomide in patients with recurrent glioblastoma multiforme were published [43]. Of the 21 patients in this study, survival at one year was 83% in the 12 patients treated with nabiximols, while it was significantly lower at 44% in the 9 patients treated with placebo, leading the authors to recommend further exploration in an adequately powered randomised controlled trial. So far, however, randomised, placebo-controlled studies with a larger number of cancer patients are lacking at all.
The following chapters provide an overview of the preclinical evidence on the effect of cannabinoids on cancer growth and metastasis, with the most relevant cannabinoid targets summarised in Fig. 1 (tumour cell proliferation, apoptosis and autophagy) and Fig. 2 (tumour cell invasion, angiogenesis).

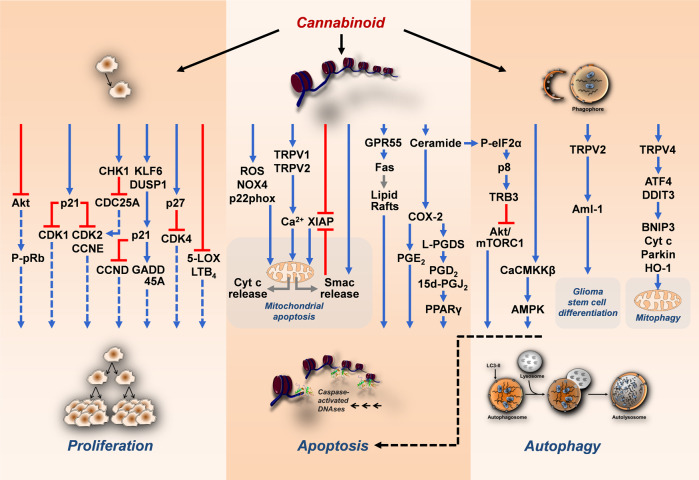

Tumour cell proliferation, apoptosis and autophagy
Publications on growth inhibitory effects of cannabinoids have accumulated over the last two decades. The dominant cellular model used for this purpose in the 2000s was glioma cells. However, over time, a wide range of different tumour cell lines of various entities have been tested. Whereas early work focused on mechanisms leading to cannabinoid-induced apoptosis and cell cycle arrest of cancer cells, these investigations were complemented later by studies dealing with autophagy effects. Due to the large amount of data, only a selection could be made here.
Tumour cell proliferation
As mentioned earlier, the description of the tumour regressive effects of THC and WIN 55,212-2 on rat and mouse glioma xenografts represents the first comprehensive study in this century investigating cannabinoids as potential anticancer drugs [27]. Since then, several mechanisms by which cannabinoids inhibit tumour growth have been elucidated. Among these, inhibition of protein kinase B (Akt) appears to be an important mechanism. Accordingly, the antiproliferative action of cannabinoids on melanoma cells has been linked to cell cycle arrest at the G1/S transition via inhibition of the prosurvival protein Akt and hypophosphorylation of the retinoblastoma protein (pRb) tumour suppressor protein [44]. Furthermore, CB2 receptor-mediated inhibition of Akt has been reported in ErbB2-positive breast cancer progression in mouse mammary tumour virus (MMTV)/neu transgenic mice as a syngeneic tumour model [45]. Meanwhile, publications have confirmed that inactivation of the Akt pathway is also involved in the antitumour activity of cannabinoids on human gastric cancer [46], non-small cell lung cancer [47] and hepatocellular carcinoma (HCC) cells [48]. In breast cancer cells, features of cell cycle arrest induced by cannabinoid treatment include blockade of the G1/S transition through downregulation of cyclin-dependent kinase 1 (CDK1), induction of p21 [49], or induction of p27kip1, decrease in cyclin (CCN) A and E, degradation of cell division cycle 25 A (CDC25A) and inactivation of CDK2 [50]. Furthermore, in prostate cancer cells, WIN 55,212-2 was shown to reduce proliferation and to arrest cells in the G0/G1 phase via CB2 receptor-dependent signalling [51]. Studies of the underlying mechanism showed an upregulation of p27 and a reduction in CDK4 expression and phosphorylated pRb (P-pRb) when cells were treated with the cannabinoid.
CBD appears to inhibit cancer cell proliferation primarily via apoptosis signalling. Thus, in a recent study [52], CBD suppressed the proliferation and growth of head and neck squamous cell carcinomas by inducing the apoptotic and autophagy activity of DUSP1 (Dual Specificity Phosphatase 1), which is known to interfere as a negative regulator with EGFR-initiated mitogen-activated protein kinase (MAPK) signalling and associated proliferation. Furthermore, increased expression levels of p21, Kruppel-like factor 6 (KFL6) and growth arrest and DNA damage-inducible protein α (GADD45A) were observed, for which antiproliferative effects were also described. Another recent study investigating the in vitro effects of CBD on human gastric cancer cells revealed an antiproliferative effect accompanied by significant upregulation of ataxia telangiectasia mutated (ATM) gene and p21 protein expression and downregulation of p53 protein expression, which subsequently resulted in decreased levels of CDK2 and CCNE and cell cycle arrest in the G0/G1 phase [53]. Finally, a contribution of the eicosanoid system was also supported by the observation that CBD reduced the activity and content of 5-lipoxygenase (5-LOX) and its end product leukotriene B4 in the tumour tissue of nude mice xenografted with human glioma cells [54]. In addition, a synergism of the viability-reducing effect of CBD and the 5-LOX inhibitor MK-886 could be shown in vitro, which also argues for a modulatory effect of 5-LOX on glioma cell fate.
Conversely, a recent study has demonstrated that the CB1 agonist arachidonyl-2’-chloroethylamide (ACEA), the selective CB2 agonist HU308 and THC promoted rather than inhibited the progression of human papillomavirus-positive squamous cell carcinomas of the head and neck, with THC-treated tumour xenografts growing faster than controls [55]. This work is in line with previous in vitro studies by other authors [56–58], who also found proliferative effects on cancer cells triggered by submicromolar concentrations of various cannabinoids, with corresponding THC effects associated with transactivation of EGFR in one paper [56]. Some other studies, in contrast, failed to observe mitogenic effects of THC when nanomolar concentrations were tested [42, 59, 60]. Overall, however, these results seem worth reconsidering, as peak plasma concentrations of THC after inhalation or oral administration do not indeed exceed 1 μM [55]. In fact, many experimental studies investigating proapoptotic effects of cannabinoids have been conducted with concentrations above 1 µM, which, on the other hand, could well be achieved with intratumoral administration [27]. Interestingly, hardly any mitogenic effects can be observed in the case of CBD (reviewed in ref. [61]).
Tumour cell apoptosis
An important role in cannabinoid-induced apoptosis is played by the proapoptotic sphingolipid ceramide. Initial studies showed that THC and other cannabinoids cause the death of glioma cells via cannabinoid receptor-dependent de novo synthesis of ceramide [27, 28, 62]. The importance of ceramide for cannabinoid-induced cytotoxic autophagy was discovered later in 2009 [63]. Further apoptosis mechanisms were described with CB2 receptor-dependent induced apoptosis of glioma cells associated with an increase in the stress-associated transcriptional coactivator p8 as an upstream regulator of the endoplasmic reticulum (ER) stress-related proteins activating transcription factor (ATF)-4 and tribbles pseudokinase 3 (TRB3) [64]. A similar apoptotic effect was found for CB1 receptor-induced growth inhibition in response to Akt inhibition in translocation-positive rhabdomyosarcoma cells [65]. Here, cannabinoid-induced loss of viability was suppressed by transfection of p8 siRNA.
Depending on the substance and cell type, the eicosanoid system also revealed to play an important role in the proapoptotic effect of cannabinoids. Thus, in temporal relation to the first mechanistic findings on cannabinoid-induced glioma cell death, ceramide synthesised de novo by R(+)-methanandamide (Met-AEA) in neuroglioma cells was shown to lead to an induction of COX-2 expression [66], which contributes to Met-AEA-induced cell death via proapoptotic prostaglandin (PG) E2 [67]. Thereby, Met-AEA-triggered apoptosis was found to be independent of cannabinoid receptor and TRPV1 activation. The influence of COX-2 on cancer cell fate was also addressed in follow-up work on the effect of Met-AEA [68] and the established chemotherapeutic agents paclitaxel, cisplatin and 5-fluorouracil [69] on human cervical carcinoma cells. Here, the PPARγ-activating eicosanoids PGD2 and 15-deoxy-Δ12,14-PGJ2 could be identified as apoptosis mediators, whereby post-transcriptional knockdown of COX-2, downstream lipocalin-type PGD synthase (L-PGDS) and transcription factor PPARγ led to inhibition of apoptosis triggered by Met-AEA and chemotherapeutic agents. A functional role of the aforementioned PPARγ-activating PGs could also be proven for the CBD-triggered cannabinoid receptor and TRPV1-independent apoptotic death of lung cancer cells [70]. CBD also led to an upregulation of COX-2 and PPARγ in tumour tissue in A549-xenografted nude mice and to tumour regression, which was reversed by a PPARγ antagonist [70].
As already mentioned above, cannabinoid receptors CB1 and CB2 do not necessarily have to be involved in the apoptosis induction of a cannabinoid. In a previous study, AEA was demonstrated to induce apoptotic death of human neuroblastoma and lymphoma cells via TRPV1, which was paralleled by an increase in intracellular calcium, mitochondrial uncoupling and cytochrome c (Cyt c) release [71]. In other studies, AEA has been shown to induce receptor-independent apoptosis of non-melanoma cancer cells via ER stress [72] and to elicit reduced viability of cholangiocarcinoma cells via activation of GPR55, with the latter eliciting increased recruitment of the death receptor Fas in membrane lipid rafts [73]. Furthermore, activation of TRPV2 has been revealed to be involved in the proapoptotic effect of CBD on human bladder cancer cells [74]. Mostly, however, the proapoptotic effects of CBD have been associated with receptor-independent mechanisms, although corresponding inhibitor experiments with receptor antagonists have not always been performed. This applies, for example, to some studies in which CBD elicited apoptosis of mammary carcinoma [75] and human gastric cancer cells [53] via the formation of reactive oxygen species (ROS). Interestingly, however, CBD induced a CB2 receptor-dependent mitochondrial apoptosis in human leukaemia cells, which was accompanied by ROS production, increased expression of the NAD(P)H oxidases Nox4 and p22phox and release of Cyt c [76]. In a recently published study [77], CBD was also shown to promote apoptosis of gastric cancer cells by suppressing X-linked inhibitor apoptosis (XIAP), a member of the IAP protein family. Thereby, CBD reduced XIAP protein levels while increasing ubiquitination of the protein. In addition, CBD increased the interaction between XIAP and Smac by inducing the release of Smac from mitochondria into the cytosol and promoted mitochondrial dysfunction. Finally, recent evidence suggests that CBD at a relatively high concentration of 30 µM switches the mitochondrial voltage-dependent anion channel (VDAC) from fully open to major subconductance state, thereby arresting the Ca2+-permeable state of this channel and inducing a severe oxidative stress, mitochondrial Ca2+ overload, Cyt c release into the cytosol as well as induction of LC3-phosphatidylethanolamine conjugate (LC3-II) and caspase activation in leukaemia cells [78].
Tumour cell autophagy
Autophagy can lead to survival or death of cells. Research in recent years has shown that autophagy signalling pathways may also play an important role in the toxicity of cannabinoid compounds on cancer cells. Initial experiments conducted by Salazar et al. [63] demonstrated that THC induces death of human glioma cells via stimulation of autophagy. In this process, THC led to ceramide accumulation and phosphorylation of eukaryotic translation initiation factor 2α (eIF2α), a subsequent ER stress response and, via this, finally to the induction of autophagy via the TRB3-dependent inhibition of the Akt/Mammalian Target of Rapamycin Complex 1 (mTORC1) axis. In the processes described, autophagy preceded apoptosis. In another work, proautophagic effects of THC and the CB2 agonist JWH-015 in human HCC cells were reported [79]. Here, autophagy was due to upregulation of TRB3 and subsequent inhibition of the Akt/mTORC1 axis and adenosine monophosphate-activated kinase (AMPK) stimulation, with Ca2+/calmodulin-activated kinase kinase β (CaCMKKβ) being responsible for cannabinoid-induced AMPK activation and autophagy. Importantly, the tumour regressive effects of THC and JWH-015 on subcutaneous HCC xenografts were abolished in vivo when autophagy was genetically or pharmacologically inhibited [79]. A functional link between autophagic signalling pathways and cannabinoid-induced apoptosis was confirmed by several other studies. Accordingly, in melanoma cells, co-treatment of THC with the autophagic flux inhibitor chloroquine or knockdown of autophagy-related 7 (Atg7), an essential molecule for induction of autophagy, resulted in suppression of THC-induced autophagy as well as cell death [80]. Consistent with this, inhibition of CBD-induced autophagy by chloroquine also led to a significant increase in the viability of CBD-treated human squamous cell carcinomas of the head and neck [52].
On the other side and in contrast to previous studies on glioma cells, a recent study reported that knockdown of autophagy genes led to enhancement of WIN 55,212-2-induced apoptotic cell death of human glioblastoma cells [81]. The authors concluded that autophagy induced by cannabinoid treatment is a protective mechanism and autophagy inhibitors may be potential agents to enhance cannabinoid action. Evidence of cannabinoid-protective autophagy was also provided by a glioblastoma cell culture study in which the addition of chloroquine led to an increase in CBD-induced cell death [82].
In glioma stem cells, a cell subpopulation of glioblastoma multiforme implicated in chemoresistance, CBD was further shown to induce a TRPV2-dependent autophagic process that stimulates glioma stem cell differentiation via induction of a splice variant of the acute myeloid leukaemia transcription factor (Aml-1), thereby abrogating their chemoresistance to carmustine [83]. In breast cancer cells, CBD-induced intrinsic apoptosis was associated with autophagy and decreased levels of mTOR, its downstream effector eukaryotic initiation factor 4E binding protein 1 (4EBP1) and CCND1 [75]. Finally, in a recent study, a significant increase in LC3-II levels as an autophagy marker was observed in two out of three medulloblastoma cell lines after CBD and THC exposure, which was accompanied by an increase in poly(ADP-ribose) polymerase (PARP) cleavage [84]. However, these findings did not translate to in vivo models in mice, as the survival rate of the animals did not change.
As another cannabinoid-triggered upstream ion channel a recent investigation found TRPV4 and a signalling pathway including ATF4, DNA Damage Inducible Transcript 3 (DDIT3), TRB3, Akt and mTOR as mediators of CBD-induced mitophagy in glioma cells [85]. Mitophagy involves the selective degradation of mitochondria by autophagy and is manifested in mitophagy-related proteins such as BCL2 interacting protein 3 (BNIP3), Cyt c, Parkin and engulfed mitochondria, with mitochondrial dysfunction and overactivation of heme oxygenase-1 (HO-1) acting synergistically in lethal mitophagy [86].

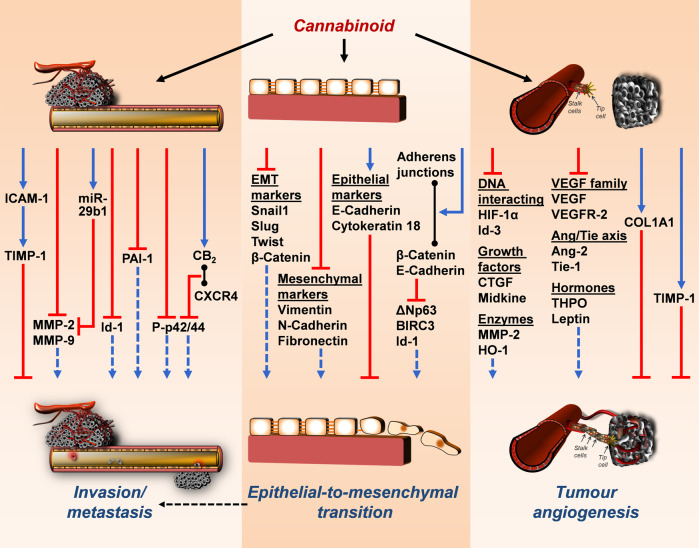

Tumour angiogenesis
Several studies have shown that cannabinoid compounds inhibit tumour neovascularisation in mouse models with xenografts (reviewed in ref. [117]). However, data on the exact mechanisms underlying these effects, especially with regard to tumour-stroma interactions, are still scarce. Early reports on the effect of cannabinoid compounds on tumour formation found a regressive effect based on anti-angiogenic effects through the downregulation of a number of proangiogenic parameters such as vascular endothelial growth factor (VEGF), placental growth factor (PlGF), angiopoietin-2 (Ang-2) [118, 119] and MMP-2 [119]. The same group later revealed that the CB2 receptor agonist JWH-133 modulates several hypoxia-related angiogenesis markers, most of which are associated with the VEGF pathway [120]. Thus, downregulation of VEGF-A and -B, hypoxia-inducible factor-1α (HIF-1α), connective tissue growth factor (CTGF), midkine, Id-3, Ang-2 and its receptor tyrosine kinase with immunoglobulin-like and EGF-like domains 1 (Tie-1), and HO-1 was detected, while upregulation was found for the type I procollagen α1 chain (COL1A1) [120]. Remarkably, the authors of the latter study found VEGF receptor (VEGFR)-2 downregulation in response to JWH-133 in experimental glioma xenografts in mice. In another paper, inhibition of MMP-2 expression in human umbilical vein endothelial cells (HUVEC) was confirmed as part of the anti-angiogenic effects of CBD [121]. Consistent with the aforementioned direct anti-angiogenic effects, a further investigation identified the hexahydrocannabinol analogues LYR-7 [(9S)-3,6,6,9-tetramethyl-6a,7,8,9,10,10a-hexahydro-6H-benzo[c]chromen-1-ol] and LYR-8 [(1-((9S)-1-hydroxy-6,6,9-trimethyl-6a,7,8,9,10,10a-hexahydro-6H-benzo[c]chromen-2-yl)ethanone)] as inhibitors of VEGF-induced proliferation, migration and capillary-like tube formation of human endothelial cells as well as VEGF-induced blood vessel formation in the chorioallantoic membrane assay and VEGF release from cancer cells [122]. Thereby, the effects of the test substances on cell proliferation and tube formation were not abolished by cannabinoid receptor antagonists, suggesting a cannabinoid receptor-independent mechanism.
A number of studies have also demonstrated indirect effects of cannabinoids on endothelial cells through cannabinoid-mediated modulation of the secretome of tumour or other non-endothelial cells. Thus, conditioned media from AEA-treated breast cancer cells showed an inhibitory effect on endothelial cell proliferation associated with an approximate halving of the VEGF concentration, but also in a significant reduction of other proangiogenic factors such as leptin and thrombopoietin (THPO) [123]. A further indirect effect, here mediated by cannabinoid-induced increased formation of anti-angiogenic TIMP-1, was reported for the effect of conditioned media from CBD-, THC-, Met-AEA- and JWH-133-treated lung cancer cells on tube and sprout formation and endothelial cell migration [124]. A recent report also dealt with the effect of cannabinoids on human neutrophils with special regard to the regulation of angiogenic factors. Thereby, submicromolar concentrations of ACEA and JWH-133 inhibited lipopolysaccharide (LPS)-induced VEGF-A release, which was accompanied by a decrease in LPS-induced angiogenic effects on bovine aortic endothelial cell tube formation [125].
Divergent findings have been published regarding the direct effects of cannabinoid compounds on endothelial cells, which depend on the cellular system, the substance and the concentration used. Thus, in a previous study, inactivation of the CB1 receptor with the antagonist SR141716 as well as CB1 knockdown using siRNA caused inhibition of basic fibroblast growth factor (bFGF)-induced proliferation, migration and capillary-like tube formation of HUVEC [126] through pathways involving decreased activation of focal adhesion kinase, c-Jun N-terminal kinase, RhoA and MMP-2. Moreover, CB1 antagonism was confirmed in vivo to inhibit bFGF-induced neovascularisation in the rabbit cornea [126]. As for the direct effects of ECs on endothelial cells, it has been shown that bFGF-stimulated proliferation of HUVEC is upregulated by nanomolar concentrations of AEA [126], while in another work of the same group, micromolar proapoptotic concentrations of the AEA analogue Met-F-AEA inhibited bFGF-stimulated proliferation of porcine endothelial cells in a CB1 receptor-dependent manner [127]. In a further study, no anti-angiogenic effects of ECs on endothelial proliferation were observed and proangiogenic effects of THC and CBD were found at nanomolar concentrations [128]. Others reported that CBD, THC, Met-AEA and JWH-133 (3 µM each) exhibited pro- rather than anti-angiogenic effects in HUVEC directly exposed to these substances [124]. Finally, AEA was demonstrated to induce endothelial cell tube formation and proliferation, with both effects being reversed by inactivation of TRPV1 [129]. The authors assumed a TRPV1-dependent uptake of AEA into endothelial cells, which subsequently causes a proangiogenic effect on endothelial cells via the activation of intracellular cannabinoid receptors.
In terms of the direct influence of CBD on the endothelium, a recent study should also be mentioned which showed that CBD promotes ROS-dependent HO-1 expression in HUVEC, followed by HO-1-dependent cytoprotective autophagy [130]. This protection was maintained up to a certain CBD concentration (in the cited study up to 6 µM), but was then no longer sufficient to protect the cells from apoptotic cell death, which was also HO-1-dependent. The proapoptotic concentration of 10 µM CBD registered in this work is within the concentration range of the previously shown anti-angiogenic effects of CBD at concentrations ≥ 9 µM [121]. In the latter study, however, cytostasis, but not the induction of apoptosis, was associated with the decrease in metabolic activity. In this context, the use of different supplements leading to phenotypic heterogeneity [131] could explain the study-dependent varying sensitivity of HUVEC to high CBD concentrations.

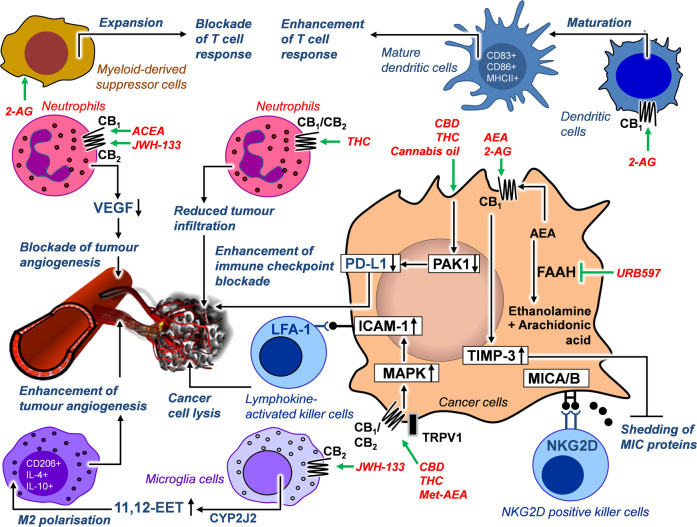

Interactions with the immune system
As stromal cells in the tumour microenvironment are targets for therapeutic intervention, the role of immune cells as an important part of the tumour stroma has been brought into focus in recent years in relation to cannabinoid effects on cancer progression (Fig. 3). In this context, single-cell transcriptome profiling revealed that THC significantly affects transcriptomic subclusters in immune cell types [132]. A recent study showed inhibition of Kras-activated signalling pathways by p21 activated kinase 1 (PAK1) after treatment of cells with CBD and THC. Cannabinoids were found to reduce expression of programmed death ligand 1 (PD-L1) via decreasing PAK1 activity, thereby enhancing immune checkpoint blockade of pancreatic cancer cells [133]. For other peripheral cells, such as neutrophil granulocytes, their ability to produce proangiogenic factors such as VEGF after exposure to LPS was shown to be blocked by treatment with CB1 (ACEA) and CB2 agonists (JWH-133), which in turn led to decreased tumour growth via inhibition of angiogenesis [125].
Regarding the effect of ECs, one study investigated the influence of 2-AG on different subpopulations of immune cells involved in the progression of pancreatic ductal adenocarcinoma using an orthotopic mouse model. Here, 2-AG increased the proportion of CD83+, CD86+ and MHCII+ cells in CD11C+ cell populations in the spleen of mice [134]. Dendritic cells promoted to maturation by 2-AG exhibited higher expression of proinflammatory cytokines (IL-6, IL-12, interferon-α) mediated by activation of the CB1 receptor and subsequent upregulation of the phosphorylated form of signal transducer and activator of transcription 6 (STAT6). A concomitant activation of T cells in the spleen was not observed. On the other hand, in spleen and tumour tissue of mice, 2-AG also induced the proliferation of myeloid-derived suppressor cells, which are known to suppress the T cell response thereby promoting an immunosuppressive microenvironment. Nevertheless, the antiproliferative effect of 2-AG on cancer cells ultimately led to an overall tumour-regressive effect in vivo [134].
In vivo experiments with murine melanoma models indicated that WIN 55,212-2 inhibited cancer growth more efficiently in immunocompetent compared to immunodeficient mice [44]. A further in vivo study reported reduced infiltration of macrophages and neutrophils into experimental skin tumours after treatment of mice with THC [135]. As THC did not inhibit cancer cell proliferation in this work, the authors concluded that THC causes inhibition of cancer growth in vivo due to its cannabinoid receptor-activating properties in the tumour microenvironment and not in the tumour itself. In a further study the in vitro interaction of lung cancer cells with lymphokine-activated killer cells was addressed [136]. Here, prior treatment of cancer cells with CBD, THC and Met-AEA led to increased killer cell-mediated lysis of lung cancer cells. As a cause, an ICAM-1 upregulation on tumour cells induced by the tested cannabinoids could be identified with the consequence of an increased cross-linking with the lymphocyte function-associated antigen-1 (LFA-1) on the surface of natural killer cells [136]. Yet another work showed that inhibition of endogenous AEA degradation enhanced interaction with the tumour immune system. Accordingly, the FAAH inhibitor URB597 suppressed the shedding of the proteins major histocompatibility complex class I polypeptide-related sequence A (MICA) and B (MICB) on the surface of human HCC cells [137]. Since MICA/B proteins are recognised by cytotoxic lymphocytes expressing the natural killer group 2D (NKG2D) receptor and tumour cells are subsequently eliminated, preventing the shedding of MICA/B proteins can improve antitumour immunity. In the paper presented here, the effect was indirect, and was shown to be due to increased expression of TIMP-3. The authors further found AEA, 2-AG and the CB2 receptor agonist AM1241 to enhance TIMP-3 expression accompanied be a reduction of MICA/B shedding. Noteworthy, the TIMP-3 inducing and inhibitory action on MICA/B shedding upon treatment with URB597 was partially prevented by the CB1 receptor antagonist rimonabant.
In contrast to these positive effects, however, another early study on this topic reported that THC increases breast cancer growth and promotes tumour cell spread by inhibiting the antitumour immune response via enhancement of Th2-associated cytokines [138]. However, the study design used here was to exclude the direct growth inhibitory effect of cannabinoids on tumour cells in order to focus on the cannabinoid effect on the immune system. For this reason, tumour cells whose expression of cannabinoid receptors was low to undetectable were used in the experiments. This report was consistent with another, even earlier study that had observed tumour growth accelerating effects of THC based on reduced tumour immunogenicity [139]. A recent publication further reported that as a result of CB2 receptor-induced microglial M2 polarisation, conditioned media of cannabinoid-treated microglial cells increased rather than inhibited the angiogenic capacities of human brain microvascular endothelial cells [140]. The M2 polarisation induced by JWH-133 was demonstrated here by mRNA analyses showing increased levels of the M2 subtype markers CD206, arginase-1 (Arg1) and the chitinase-like protein Ym1 and decreased levels of the M1 subtype markers CD68, CD86 and inducible nitric oxide synthase (iNOS). M2 polarisation also proved to be the mechanism by which the CB2 agonist JHW-133 attenuated its own tumour-regressive effect in nude mice with intracranial glioma xenografts, which was only fully expressed by knockdown of cytochrome P450 2J2 (CYP2J2), which mediates the proangiogenic effect [140]. As a functional mediator of CB2 receptor-dependent CYP2J2-induced M2 polarisation, the authors pointed to increased synthesis of 11,12-epoxyeicosatrienoic acid (11,12-EET) by CYP2J2.
Combination partners in anticancer treatments
Although some newly approved anticancer drugs are also used as monotherapy for certain indications, it seems more likely that cannabinoid compounds will be used as a combination and add-on option with currently employed cytostatics, assuming successful clinical trials. Against this background, THC and CBD, which are currently being tested in some studies as combination, have been preclinically shown to enhance the effect of various cytostatics, such as for vinca alkaloids, cytarabine, doxorubicin, mitoxantrone, carmustine, temozolomide, bortezomib, carfilzomib and cisplatin (reviewed in ref. [111, 141]). Thereby, combined administration of CBD and temozolomide in patient-derived neurosphere cultures and orthotopic mouse models was demonstrated to exert a significant synergistic effect in both reducing tumour size and prolonging survival [85]. Of particular importance for the use of cannabinoids in the treatment of glioblastoma is that the aforementioned booster effect on temozolomide action was previously confirmed in elaborate in vivo mouse models [59]. In glioblastoma cells, CBD has also been shown to enhance the effect of cisplatin [142]. Recently, a synergistic effect was also confirmed for the tumour regressive effect of CBD and cisplatin in a murine model of squamous cell carcinoma of the head and neck as well as for the in vitro cytotoxicity of CBD in combination with cisplatin, 5-fluorouracil or paclitaxel on human squamous cell carcinoma cells of the head and neck [52]. However, the mechanisms of these synergies are not yet fully understood. In this context, one study has shown that cannabinoid-mediated enhancement of the effect of vinblastine in resistant leukaemia cells was accompanied by THC- and CBD-induced downregulation of P-glycoprotein [143], while the synergistic cannabinoid effect over mitoxantrone in embryonic fibroblasts occurred via inhibition of ATP-binding cassette transporters (ABC)G2 [144]. Another study focusing on the effect of THC on the sensitisation of leukaemia cells to treatment with cytarabine, doxorubicin and vincristine showed reduced p42/44 MAPK activity as the underlying mechanism of THC-induced enhancement of the respective cytostatic effect [145]. In addition, a number of mechanistic studies have found a CBD-mediated increase in tumour cell susceptibility to the proteasome inhibitor bortezomib [146, 147], doxorubicin [148, 149] as well as temozolomide and carmustine [148]. There has also been a report that CBD increases the uptake into and toxicity on glioma cells of doxorubicin, temozolomide and carmustine via an increase in TRPV2 activity and associated increased calcium influx [148], with these results also confirmed for doxorubicin in triple negative breast cancer cells [149]. With regard to the synergistic effect with bortezomib, it was also shown that the combination of CBD and THC inhibits the expression of the immunoproteasome subunit β5i in multiple myeloma cells [147]. In addition, the synergistic effect of the combination of CBD and THC should also be mentioned here, which for example induces autophagy-dependent necrosis in multiple myeloma cells and inhibits cellular migration by downregulating the expression of the chemokine receptor CXCR4 and the plasma membrane glycoprotein CD147 [147]. However, in contrast to the results of these studies, which showed an enhancement of cytostatic effects when combined with cannabinoid compounds, a recently published paper did not find a survival benefit in the cannabinoid treatment group in combination with cyclophosphamide in an in vivo medulloblastoma model [84].
In addition, several studies suggest that cannabinoid treatment causes glioma cells to become more sensitive to ionising radiation, as shown for the combination of THC and CBD [60] and the combination of CBD with heat shock inhibitors [150]. Increased radiosensitivity was confirmed in CBD-treated glioma cells in another study [151], with the same group later reporting the underlying mechanism to involve inhibition of ATM kinase, a serine/threonine protein kinase that is recruited and activated by DNA double-strand breaks [152].
Conclusion
Given a considerable number of in vitro and animal studies showing that cannabinoid compounds exert tumour growth inhibitory and antimetastatic effects, cannabinoid compounds may represent a useful additional therapeutic option to currently used cytostatic drugs. This view is also supported by studies indicating a synergistic effect of cannabinoids in combination with currently used chemotherapeutic agents and other therapeutic options. Furthermore, data increasingly suggest that cannabinoids may additionally function as antimetastatic and anti-angiogenic tumour therapy and support the immune system in its defence against tumours.
In addition to the partially divergent preclinical studies already mentioned, some epidemiological studies should also be included in the critical assessment of the potential use of cannabinoids as systemic therapy options. Thus, a recently published prospective observational study showed that cannabis use significantly shortens the time to tumour progression and overall survival of cancer patients [153]. This study illustrates that cannabis use, in this case via modulation of the immune system, can lead to negative and thus life-threatening effects for cancer patients. In addition, a retrospective observational study showed a reduction in the response rate to nivolumab, although the addition of cannabis here had no effect on progression-free survival or overall survival [154]. However, it is worth noting that the administration of cannabinoids in these studies conducted in relatively small patient groups was through the consumption of cannabis oil or smoked/inhaled cannabis, and in many cases the cannabis products were also changed during the course of the study.
On the other hand, these data are counterbalanced by an overwhelming number of studies that clearly show that activation of the EC system is an important factor in tumour defence and thus could serve as a promising target for pharmacological anticancer interventions. In this context, a collection of case reports involving 119 patients also presented impressive examples of breast cancer and glioma patients treated with pharmaceutical-grade synthetic CBD, demonstrating a reduction in circulating tumour cells or a reduction in tumour size by repeat scans [155]. Furthermore, the results of the well-conducted but very small randomised, placebo-controlled phase 1b trial in patients with recurrent glioblastoma multiforme mentioned at the beginning of this article and the higher survival rate shown here in patients taking nabiximols instead of placebo in combination with dose-intense temozolomide [43] provide the rationale for larger and thus adequately powered randomised placebo-controlled trials.
In summary, the property of cannabinoids, in particular, to induce inhibition of tumour growth and spread at multiple levels of tumour progression argues for the use of these substances as an add-on option in tumour treatment. However, it should also be noted that research into the efficacy, dosage and drug safety of cannabinoids in tumour therapy still has a long way to go, especially with regard to clinical trials to be conducted, through which alone the benefits and advantages for cancer patients but also possible risks can be defined.
Acknowledgements
The corresponding author’s preclinical experimental work on the effects of cannabinoids and chemotherapeutic agents is currently funded by the German Research Foundation (DFG, HI 813/9-1), the joint research project ONKOTHER-H (supported by the European Social Fund, reference: ESF/14-BM-A55-0002/18, and the Ministry of Education, Science and Culture of Mecklenburg-Vorpommern, Germany) and by the joint research projects RESPONSE FV18 (reference: 03ZZ0928A) and RESPONSE TV3 (reference: 03ZZ0933A) of the Federal Ministry of Education and Research (BMBF), Germany.
Funding
Open Access funding enabled and organized by Projekt DEAL.
Data availability
Not applicable.
Ethics approval and consent to participate
Not applicable.
Consent to publish
Not applicable.
Competing interests
The authors declare no competing interests.
