Systematic Bias in Clinical Decision Instrument Development: A Quantitative Meta-Analysis
1University of California, Berkeley
2University of California, San Francisco
3Microsoft Research
*Corresponding author; email: jedkeenan.obra@ucsf.eduAbstract
Clinical decision instruments (CDIs) face an equity dilemma. On the one hand, they often reduce disparities in patient care through data-driven standardization of best practices. On the other hand, this standardization may itself inadvertently perpetuate bias and inequality within healthcare systems. Here, we quantify different measures of potential for implicit bias present in CDI development that can inform future CDI development. We find evidence for systematic bias in the development of 690 CDIs that underwent validation through various analyses: self-reported participant demographics are skewed—e.g. 73% of participants are White, 55% are male; investigator teams are geographically skewed—e.g. 52% in North America, 31% in Europe; CDIs use predictor variables that may be prone to bias—e.g. 13 CDIs explicitly use Race and Ethnicity; outcome definitions may further introduce bias—e.g. 28% of CDIs involve follow-up, which may disproportionately skew outcome representation based on socioeconomic status. As CDIs become increasingly prominent in medicine, we recommend that these factors are considered during development and clearly conveyed to clinicians using CDIs.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
Research reported in this publication was supported by Eunice Kennedy Shriver National Institute of Child Health and Human Development of the National Institutes of Health under award number K23HD110716 (AK). This information or content and conclusions are those of the author and should not be construed as the official position or policy of, nor should any endorsements be inferred by HRSA, HHS or the U.S. Government.
Introduction
Clinical decision instruments (CDIs) are tools used in healthcare to assist clinicians in diagnosing conditions, predicting patient outcomes, or guiding treatment decisions based on clinical data. These instruments are widely used with the aim of improving patient care through data-driven standardization.1,2 While CDIs generally enhance clinical care, this standardization may inadvertently perpetuate inequality within healthcare systems.3–6 As data-driven CDIs become more prominent in medicine, care must be taken to ensure that they not perpetuate (implicit) bias—meaning that these tools should not unintentionally provide less accurate or effective guidance for patients across different socio-economic, racial, ethnic, or other demographic groups, as shaped by systemic inequities and social constructs.
Various factors can introduce implicit bias during the CDI development process. Perhaps most importantly, failing to enroll diverse populations in development cohorts can lead to inaccuracies, disproportionately affecting minority groups.7 Beyond enrollment, bias can arise from the predictor variables included in the CDI (e.g. Race)7–9 or in the definition of the outcome itself, which may skew the representation of different groups.10,11 Similarly, the regional affiliations and demographics of investigator teams may influence the perspectives and biases embedded in these instruments.12
Here, we take a closer look at these disparate factors contributing to CDI bias. Specifically, we analyze the CDIs in MDCalc13, an online tool that hosts hundreds of widely used CDIs. We find potential for bias introduced through four factors: patient cohort demographics, predictor variables, outcome definitions, and author demographics. Going forward, we recommend that these factors (in addition to standard best practices14) are conveyed clearly to clinicians, e.g. in a model card.15 Moreover, the CDI development process for new CDIs should carefully consider these sources of implicit bias in order to design equitable CDIs that work for diverse populations.
Methods
Inclusion criteria for primary studies on CDIs
To identify signals of bias within CDI development, we analyzed studies detailing the procedures by which CDI developers used to create their instruments. Using web data extraction, we collected studies from the MDCalc website (MDCalc.com, July 26, 2023) under the Evidence and Original/Primary Reference sections. We then manually searched and retrieved CDI primary literature using PubMed with the same title, authorship, and Digital Object Identifier (DOI). For studies that were not available on PubMed, we used the Bioscience, Natural Resources & Public Health Library of University of California, Berkeley to find full-texts of the primary references. Two team members reviewed each text to confirm primary literature of CDI. We excluded primary development literature that (i) was not written in English, (ii) exclusively described a validation study, (iii) used a textbook reference or established guideline (DSM-V) was used instead of a development research study, or (iv) was not available in library databases. Methodological standards were verified with the Prisma 2020 statement paper for systematic reviews of studies16.
Characterizing participant demographics in primary studies
To identify subject characteristics that may be overrepresented, we collected participant count, biological sex, and racial/ethnic demographic info of participant cohorts. Keywords include, Asian, Caucasian, Hispanic, Latino, African, etc. To verify the accuracy of web extraction data and missing information, we verified participant demographic data by direct examination of the article. The keywords male, female, sex, and gender were manually searched to identify count and biological sex. Primary literature uses both sex and gender terminology to describe biological sex of their participant cohorts as well as race and/or ethnicity to describe groups of participants connected by common descent. Aligned with the Journal of the American Medical Association (JAMA)17,18, we solely use the term sex to report biological factors, gender to report gender identity, and race and ethnicity to describe major groupings assigned in the literature while recognizing the origin of these terms as social constructs differentiating common descent and cultural identity.
Characterizing investigator demographics in primary studies
Authors, affiliations, and year of publication for each primary reference CDI study were identified from Pubmed. We excluded 125 CDIs in which the author’s name could not be analyzed (e.g. only initials available on authorship creditation). We used ChatGPT (GPT-3.5-Turbo, accessed through OpenAI’s python interface19 to automatically infer the gender identity of each author and to identify the country name corresponding to their affiliation. Specifically, we prompt ChatGPT with the input, Return whether the name ‘{name}’ is more common for a male or a female. Answer with one word, ‘Male’ or ‘Female’. To ensure that ChatGPT sex categorizations are reliable, the ChatGPT output was validated by matching the gender pronouns given on an author’s homepage. We searched 150 randomly selected author name/affiliation pairs (75 predicted as male, and 75 predicted as female) and 81 ground truth author sex were available from author homepages. 80 of 81 (99%) author sexes were correctly identified by ChatGPT.
Predictor variables and categorization
We used curated information from MDCalc contributors to identify CDI predictor variables and classify CDI by disease, system, purpose, chief complaint, and specialty. Predictor variable names used in each CDI were also identified from each CDI’s MDCalc page. The predictor variables were grouped by mode of collection. Age, sex, weight, BMI, and race and ethnicity were considered patient-level variables. Nausea/vomiting, abdominal pain, fever, etc. were considered signs and symptoms variables. Vital signs and Glasgow Coma Scale score were considered physical examination findings.
Due to variability in predictor variable nomenclature between CDIs measuring identical values (e.g. “Systolic Blood Pressure” and “sBP”), naming modifications were applied upon data extraction to rename these predictor variables to match each other (e.g. “Systolic Blood Pressure” → Systolic BP; “sBP” → Systolic BP). All nomenclature modifications are displayed in Table A3. We defined other variables that may cause bias, such as those related to pain (e.g. Abdominal Pain) and family history. Family history is defined by the presence of chronic illness within the participant’s family resulting in a factor within the CDI’s algorithm calculation. CDIs with biased predictor variables, such as family history and race and ethnicity, were grouped and shown in Tables A1 and A2.
Outcome variables
Outcome definitions and measures were manually identified from the text of each study. Outcome definitions describe the intended purpose or measurement of the CDI. These goals aim to include recommendations of medical treatment, diagnostic measure, or prognosis upon participant diagnosis. Outcome measures are defined as the benchmark measures used during the CDI’s development to test CDI internal validity. Recorded outcome measures include gold standard measures, previously validated measures from past literature, and/or reference measures. Outcome measures were not recorded if primary literature was a review, meta-analyses without explicit outcome measure description, or a descriptive article.
Determining inclusion of follow-up methodology as part of the outcome definition was conducted by assessing CDI study methodology for the implementation of recording data between at least 2 time points. Keywords assessed in methodology include follow up, follow, database, dataset, phone, etc. Direct follow-up was defined by in-person or telephone follow up specifically for participation within study outcome. Indirect follow-up was defined by researcher usage of databases or registries to identify patient data or health outcomes. Prospective observational studies were determined to be indirect follow-up. Primary literature that were meta-analyses were excluded from this analysis due to differences in study methods within these articles. At least 2 study team members separately reviewed each outcome measure to determine if follow-up was involved. A third study team member reconciled any conflicting determination of follow-up.
Results
Overview and characteristics of analyzed CDIs

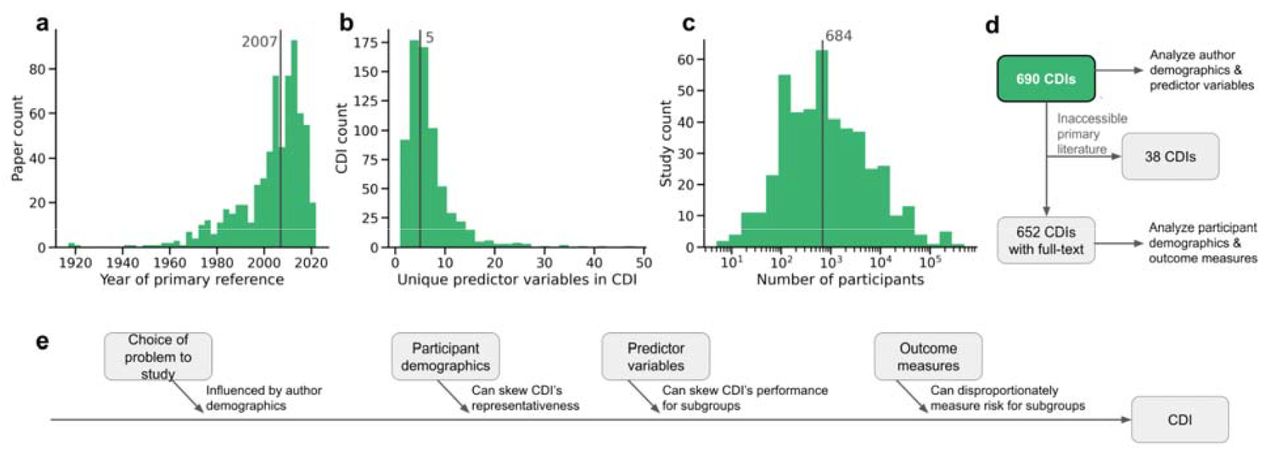

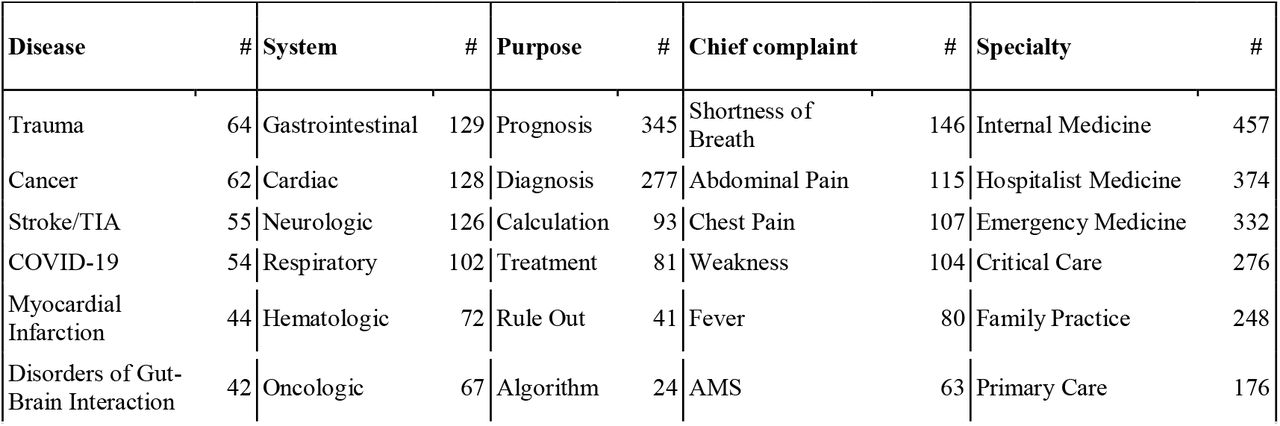

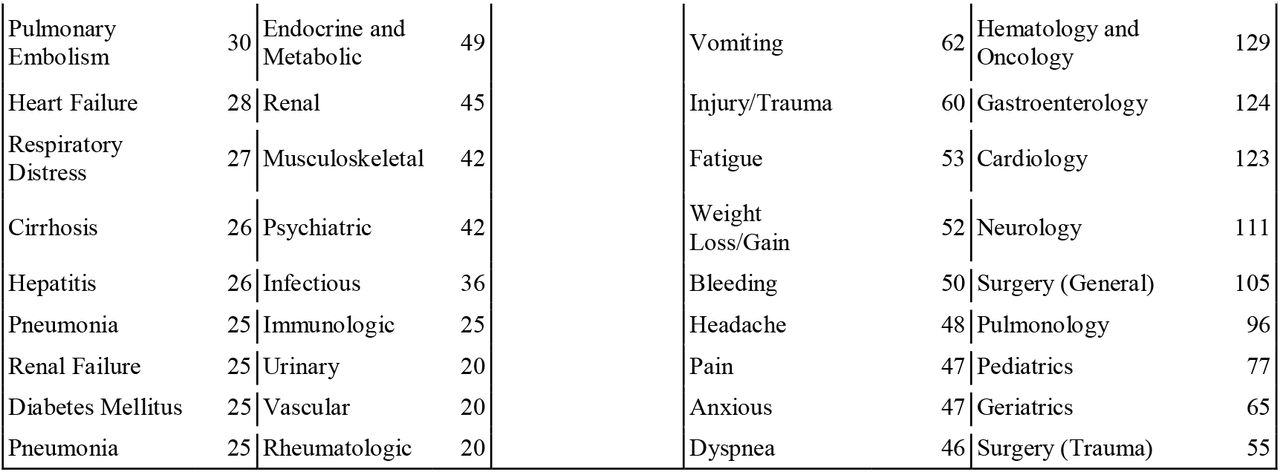

We conducted a comprehensive analysis of CDIs by collecting key data for all CDIs available on the MDCalc website as of March 17, 2023. This process yielded a dataset of 690 CDIs, categorized by disease, system, purpose, chief complaint, and specialty according to MDCalc’s classification (Table 1). The CDIs included in the analysis exhibited diversity across several relevant characteristics. Most CDIs are fairly recent (median publication year 2017; see Fig. 1a), although the earliest publication in our data dates back to 1917. The number of new CDIs added each year has generally increased over time, with a recent decline corresponding to CDIs awaiting validation for inclusion in MDCalc. The number of predictor variables in the CDIs varied, with a median of 5 and a maximum of 48 (Fig. 1b). Additionally, the size of the development cohorts used to develop the CDIs varied widely (minimum 5, median 853, maximum 490,768; see Fig. 1c).
To further analyze these 690 CDIs, we collected the full-text of the primary study whenever it i available, resulting in 652 CDIs with primary text (Fig. 1d); the 38 CDIs without accessible primary development literature are shown in Table A7. In what follows, we analyze four factors that may introduce bias during CDI development (Fig. 1e).
Participant demographics

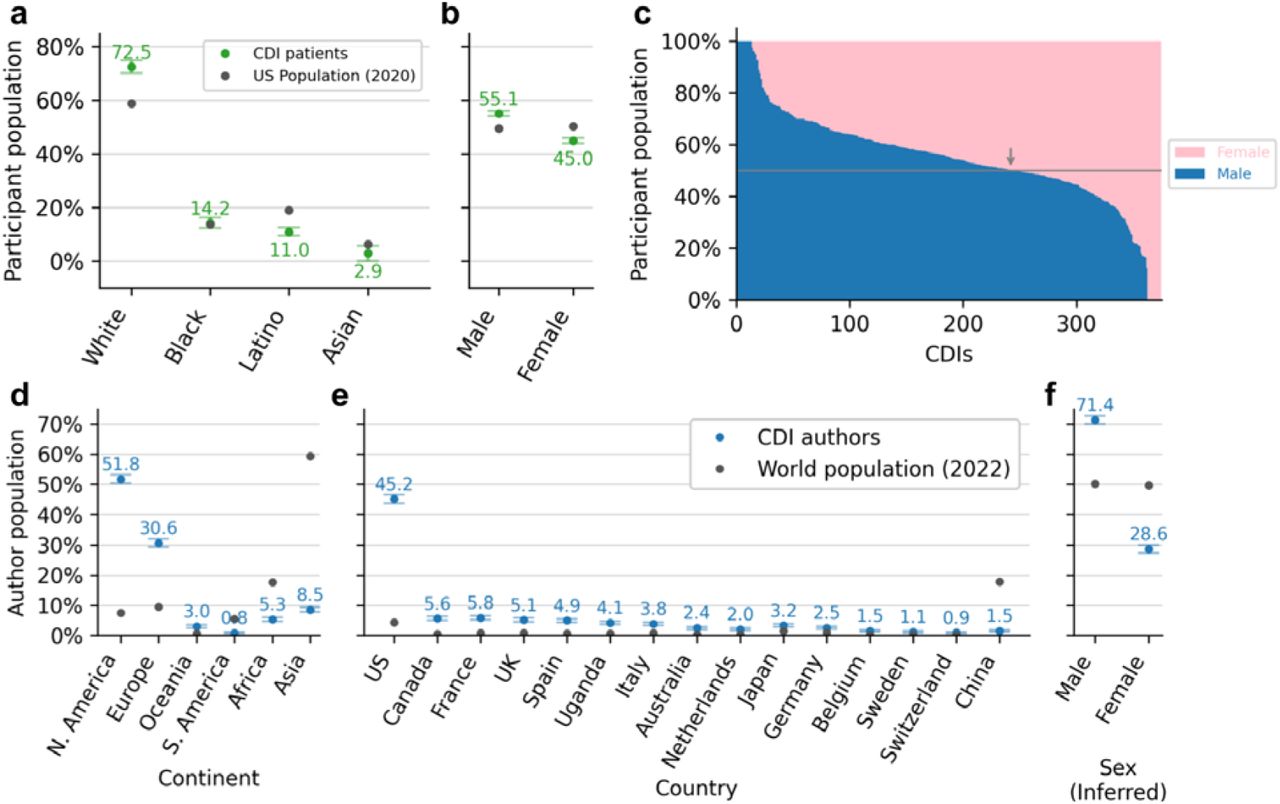

We evaluated the demographics of participant cohorts used in CDI development to assess potential implicit bias. Fig. 2a compares the racial and ethnic distributions of CDI participant cohorts with the U.S. population in 202020. Note that different CDIs may be suitable for different populations, but as these are not marked consistently in the manuscripts or on MDCalc, we compare participant data to US population demographics. CDI cohorts significantly over-represent White-only participants (p=0.012) and significantly under-represent Latino populations (p=0.002). All p-value were calculated using 1-sample t-test with Benjamini-Hochberg false discovery rate correction21.
We further examined the sex distribution of participants in CDI development cohorts (Fig. 2b) and found a significant over–representation of male participants compared to female participants (p<10−5). As shown in Fig. 2c, 65% (242/374) of CDIs had a higher proportion of male participants than female participants. Additionally, 25 CDIs included participants of only one sex: 13 comprised exclusively male participants, and 12 comprised exclusively female participants. While most of these single-sex cohorts were for sex-specific conditions (e.g. testicular torsion22 or ovarian cancer23), some were not (e.g. HAM-D scale for depression24); see Table A4 for a list of all CDIs with single-sex cohorts.
Predictor Variables
We further investigated predictor variables that may be susceptible to introducing bias within CDIs, i.e. unintentionally providing less accurate or effective guidance for patients in particular subgroups. However, note that any of these predictor variables may not introduce bias, or may even correct for unintentional biases if used carefully.29

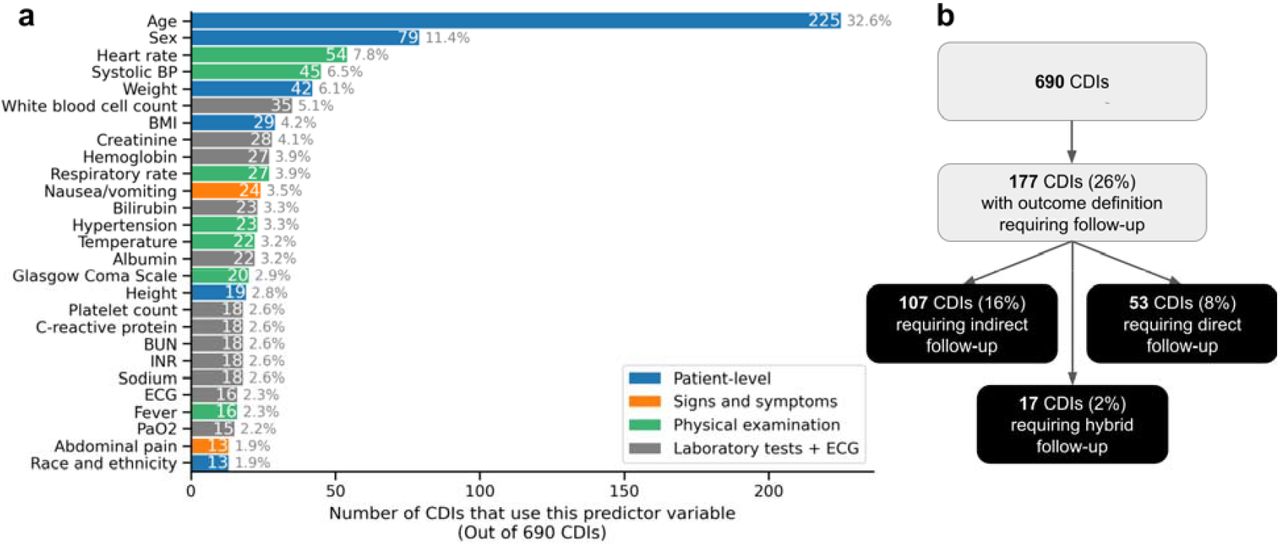

Fig 3a shows the most frequently used predictor variables in the MDCalc CDIs. We identify three common predictor variables which may be susceptible to introducing bias. First, Abdominal pain (present in 1.9% of CDIs) may be susceptible to clinical misinterpretation when severity is coded by a clinician rather than patient. Second, Race and Ethnicity (present in 1.9% of CDIs) may inadvertently skew predictions for racial groups, depending on its usage during CDI development. Third, Family History (present in 1.4% of CDIs) may indirectly be influenced by past familial medical knowledge, leading to differing impacts. We list the CDIs that explicitly use these predictor variables in Tables A1 and A2. The most common variable is Age (present in 32.6% of CDIs); we find that many of the most frequent predictor variables, e.g. Sex, tend to not contribute significant influence to the CDI to determine its outcome measure (see Fig A1). Quantifying this frequency helps identify variables that may be more important to study when understanding potential bias introduced by the variables within the CDI algorithm.
Outcome measures
Finally, we investigated the outcome definition itself as a source of CDI bias. While there are many potential factors of the outcome definition, we specifically focused on the presence of follow-up in the outcome definition. Access to follow-up can vary by subgroup due to socioeconomic constraints30, which can lead to differential verification bias. For example, the Canadian CT Head Rule31, excluded patient data from analysis if investigators could not reach patients for follow-up. We define follow-up as a continuous recording of health data following an initial care visit. Follow-up can be “direct”, described as telephone or in-person visits, or “indirect”, described by health information present in a database. This factor potentially introduces bias, as wealthier participants are more likely to receive follow-up and meet the criteria for the outcome definition. We manually identified 177 CDIs (26%) that involve follow-up as part of the primary outcome definition (Fig 3b). Of these, 53 require direct follow-up and 17 require hybrid follow-up (together 10% of CDIs), both categories that are more prone to bias than indirect follow-up. See Table A6 for a full list of these CDIs involving follow-up.
Discussion
Our study analyzes 690 MDCalc CDIs and provides the first quantitative meta-analysis of bias in CDIs. The work here adds to a growing literature that finds broad evidence for implicit bias in data-driven clinical algorithms and recommends improvements in best practices for CDI development.2,32–36 We now briefly discuss the four factors related to CDI development we analyzed along with concrete takeaways for developers and users of CDIs.
Participant and investigator demographics
The over-representation of male participants in developing CDIs has various explanations and may raise concerns about the broader applicability of particular CDIs. The male skew may be rooted in past Western regulatory policies advising the exclusion of women of childbearing potential from studies.37 This skew may have persisted past these policies, as investigators sought to maintain consistency with prior male-only clinical trials.38,39 Today, quantifying this skew can be challenging, as literature often fails to report results by sex and other demographics, even after guidance and mandates from the NIH.40,41 Going beyond enrollment, many studies may specifically focus on male-specific health issues, e.g. testicular torsion and prostate cancer. Therefore, we recommend that bias mitigation starts as early as designing the enrollment process for participants to optimize the generalizability of the CDI.
The demographic and geographic skews we observed in CDI development (Fig 2) can harm the global generalizability of CDIs. Specifically, CDIs are largely developed in Western countries and often used in non-Western countries with differing populations and disease profiles.42 For example, the Kruis Score for diagnosing irritable bowel syndrome (IBS) enrolled a development cohort that overrepresented women, which is consistent with the higher prevalence of IBS in women in Western countries.43 However, IBS prevalence has been shown to be equally common between males and females in Asia, highlighting how risk factors can be limited by the regional demographics of a study population.44 To mitigate the effects of these demographic skews, we recommend that CDI developers should disclose awareness of risk factors for disease in their methodology for enrolling participants to highlight the limited generalizability of their instrument. Moreover, to reduce potential harm in CDI usage, validation studies should be conducted to test CDIs on underrepresented populations of the development cohort to assess generalizability prior to being officially approved for use in clinical settings.
Predictor variables
The inclusion of predictor variables which are susceptible to bias is nuanced, and therefore should be treated with caution. For example, Race as a predictor variable has been subject to a great deal of scrutiny,45,7,8 even leading to modern revisions for some instruments without Race, e.g. in eGFR measurement for kidney function46 or prediction of vaginal birth after cesarean delivery47. However, these same race adjustments, if used correctly in a CDI, may help correct for racial disparities in data quality.48 CDI developers and clinicians should be aware of the potential bias introduced through race variables (in line with MDCalc’s Statement on Race49). Going beyond Race, CDIs should communicate to clinicians the biases that particular predictor variables may be susceptible to introducing, e.g. clinician perceptions of pain.
Outcome measures
Outcome measures are a prevalent and often understudied source of bias in clinical algorithms30. We limited our analysis to studying follow-up (both direct and indirect) as an alternative reference standard for the primary outcome. However, there may be systemic implicit bias related to follow-up procedures that unintentionally limit the types of participants to those who can comply with follow–up methodology for the primary outcome. Direct follow-up poses concern for bias as in-person visits and telephone communication can be limited by transportation and phone accessibility, low-income status, physical disability, and language barriers. To deal with this, some analyzed CDI development studies needed to either exclude patient data (e.g. HEART Score50) or input assumed data (e.g. Modified NIH Stroke Scale/Score51) to retain appropriate presence within the study dataset for patients who lack follow-up data. Indirect follow-up raises different concerns with the wide usage of research databases within CDI development. While these databases often hold large sets of patient information, they are subject to biases that include missing data, sample size and underestimation, and measurement errors.32 Switching clinicians and areas of living may lead to their data being stored in multiple electronic databases that do not communicate with each other. CDI developers must remain aware of data fragmentation among patients with transient living situations.
Limitations
Our study has several important limitations. First, we only analyzed primary literature within MDCalc, which may not provide a perfectly accurate representation of the international landscape of CDI development and usage. Moreover, we perform analysis using metadata but do not look directly at underlying data and algorithms used to develop CDIs. It is possible that direct or indirect follow-up was included in CDI studies but were not discussed or specified within the study methods. We compared CDI participant data to US population data because it was difficult to get worldwide data on racial and ethnic demographics. However, it is clear that disparities from the representation of minority groups are exacerbated when comparing CDI populations to worldwide populations (e.g. White over-representation and Asian under-representation). Bias can manifest itself in many ways beyond the components of CDI development that we study here including the validation and formulation phases. Future research should explore other potential signals of bias such as subjective clinician assessments and the use of costly diagnostic tests in CDI development.
Concrete recommendations
In conclusion, we found CDIs may be biased at the patient, author, predictor, and outcome level. We recommend that implicit bias is taken into consideration by all parties involved in CDI usage: (i) investigators developing and validating CDIs, (ii) services implementing CDIs, e.g. MDCalc, and (iii) clinicians using CDIs. Investigators creating CDIs must consider and report numerous factors, including the demographics of their enrollment cohort and their predictor/outcome variables. Once a CDI has been developed, the addition of model cards can be an effective strategy to showcase the CDI model for describing its benefits (intended uses, target population, and efficacy evaluations) and limitations (risks, inappropriate settings, and generalizability).15 While CDIs hold great potential for enhancing patient care through data-driven standardization, our findings underscore the need for careful consideration of bias in their development. By addressing these biases, we can work towards the development of more equitable and effective CDIs, ultimately contributing to more inclusive healthcare systems. Future research should continue to explore and quantify potential roots of bias in CDI development, and work towards developing strategies to mitigate these biases.
Supporting information
Data Availability
All data and code for reproducing the results in this manuscript is made publicly available through MDCalc and processed data is made available at https://github.com/csinva/clinical-rule-analysis.
Code Availability
All code for reproducing the results in this manuscript is made publicly available at https://github.com/csinva/clinical-rule-analysis.
Acknowledgements
The authors declare no conflicts of interest exist. We thank the MDCalc team for creating a valuable resource for organizing CDIs.
Competing Interests
All authors declare no financial or non-financial competing interests.
