Pharmacological Blockade of Cannabinoid CB1 Receptors in Diet-Induced Obesity Regulates Mitochondrial Dihydrolipoamide Dehydrogenase in Muscle
Anti-Obesity Role of CB1 Receptor in Muscle Metabolism
UGC Salud Mental, Instituto de Investigación Biomédica de Málaga (IBIMA), Universidad de Málaga-Hospital Universitario Regional de Málaga, Málaga, Spain
CIBER OBN, Instituto de Salud Carlos III, Madrid, Spain
Department of Neurosciences, University of the Basque Country UPV/EHU, Leioa, Spain
ECAI de Proteómica, Instituto de Investigación Biomédica de Málaga (IBIMA), Universidad de Málaga, Málaga, Spain
Departamento de Biología Molecular y Bioquímica, Instituto de Investigación Biomédica de Málaga (IBIMA), Universidad de Málaga, Málaga, Spain
Departamento de Biología Celular, Genética y Fisiología, Instituto de Investigación Biomédica de Málaga (IBIMA), Universidad de Málaga, Málaga, Spain
University of Aberdeen, Rowett Institute of Nutrition & Health, Aberdeen, United Kingdom
Laurentian University, CANADA
* E-mail: juan.suarez@ibima.eu (JS); fernando.rodriguez@ibima.eu (FRF)Abstract
Cannabinoid CB1 receptors peripherally modulate energy metabolism. Here, we investigated the role of CB1 receptors in the expression of glucose/pyruvate/tricarboxylic acid (TCA) metabolism in rat abdominal muscle. Dihydrolipoamide dehydrogenase (DLD), a flavoprotein component (E3) of α-ketoacid dehydrogenase complexes with diaphorase activity in mitochondria, was specifically analyzed. After assessing the effectiveness of the CB1 receptor antagonist AM251 (3 mg kg-1, 14 days) on food intake and body weight, we could identified seven key enzymes from either glycolytic pathway or TCA cycle—regulated by both diet and CB1 receptor activity—through comprehensive proteomic approaches involving two-dimensional electrophoresis and MALDI-TOF/LC-ESI trap mass spectrometry. These enzymes were glucose 6-phosphate isomerase (GPI), triosephosphate isomerase (TPI), enolase (Eno3), lactate dehydrogenase (LDHa), glyoxalase-1 (Glo1) and the mitochondrial DLD, whose expressions were modified by AM251 in hypercaloric diet-induced obesity. Specifically, AM251 blocked high-carbohydrate diet (HCD)-induced expression of GPI, TPI, Eno3 and LDHa, suggesting a down-regulation of glucose/pyruvate/lactate pathways under glucose availability. AM251 reversed the HCD-inhibited expression of Glo1 and DLD in the muscle, and the DLD and CB1 receptor expression in the mitochondrial fraction. Interestingly, we identified the presence of CB1 receptors at the membrane of striate muscle mitochondria. DLD over-expression was confirmed in muscle of CB 1 -/- mice. AM251 increased the pyruvate dehydrogenase and glutathione reductase activity in C2C12 myotubes, and the diaphorase/oxidative activity in the mitochondria fraction. These results indicated an up-regulation of methylglyoxal and TCA cycle activity. Findings suggest that CB1 receptors in muscle modulate glucose/pyruvate/lactate pathways and mitochondrial oxidative activity by targeting DLD.
Data Availability
All relevant data are within the paper and its Supporting Information file.
Introduction
The endocannabinoid signaling system (ECS) plays a fundamental role in the onset of obesity and metabolic disorders, implicating central and peripheral mechanisms predominantly via the activation of the cannabinoid CB1 receptors [1–4]. Obesity is associated with an increase in circulating endocannabinoid levels as a consequence of an altered expression of the endocannabinoid-metabolizing enzymes [5,6]. CB1 receptors are mainly expressed in the brain, but also in many peripheral organs involved in energy metabolism, including striate muscle and adipose tissue [7–9]. We now know that cannabinoids facilitates energy intake and, perhaps even more important, enhance energy storage into adipose tissue and reduce energy expenditure in muscle via lipid and glucose metabolism [5,10]. The endocannabinoid anandamide can modify β-oxidation pathways in the striate muscle, suggesting that CB1 receptor antagonism could be an important strategy in the regulation of energy expenditure needed to fight obesity [11]. Importantly, metabolic alterations related to obesity, due to an increased nutrient intake and/or a decreased fatty acid oxidation, are associated with insulin resistance, with direct effects on glucose uptake, energy expenditure and mitochondrial function in myocytes [12,13]. As a consequence, deficiency in the skeletal muscle activity produced by insulin resistance and obesity-linked metabolic dysfunction can be a major risk factor in the development of the so-called metabolic syndrome, leading to important diseases, such as type 2 diabetes mellitus or cardiovascular diseases [14,15].
CB1 receptor antagonists (e.g. Rimonabant, AM251) were developed as anti-obesity drugs, as they are able to antagonize hyperphagia, lead to weight loss and improve cardiometabolic risk profile and insulin resistance in genetic and dietary animal models of obesity [16–18]. However, SR141716A, which revealed metabolic benefits and body weight reduction in overweight and obese human subjects [19,20], induced psychiatric side effects, such as depression and anxiety, likely derived from a central CB1 receptor inverse agonist activity and leading to the withdrawal of the drug from the market [21,22]. These adverse effects highlighted the importance of limiting CB1 receptor antagonism to peripheral organs in order to reduce potential central risks and enhance peripheral energy balance [23]. However, information is lacking regarding the impact of CB1 receptors on the peripheral molecular mechanisms of glucose utilization and energy expenditure, which largely depend on muscle metabolism [8].
Here, we identified and evaluated changes in the expression profile of proteins involved in muscle metabolism, induced by CB1 receptor blockade in the presence or absence of diet-induced obesity (DIO). We firstly evaluated the most effective dose at which the CB1 receptor antagonist AM251 reduced food intake. After confirming that the repeated administration (14 days) of AM251 (3 mg kg-1) reduced food/caloric intake and body weight gain in rats fed with a high-fat diet (HFD) and a high-carbohydrate diet (HCD) for 10 weeks, we then analyzed both protein and gene expression of key enzymes involved in the regulation of the glucose/pyruvate/TCA pathways in the abdominal (rectus abdominis) striate muscle. Muscle dihydrolipoamide dehydrogenase was identified as a relevant mitochondrial enzyme of the TCA cycle regulated by CB1 receptors. This target was then corroborated in the striate muscle of CB 1 -/- mice, and the mitochondria of striate muscle cell of HCD-fed rats. Finally, results were evaluated in conjunction with changes in the diaphorase/oxidative, pyruvate dehydrogenase and glutathione reductase activity in an in vitro model, using mytube-differentiated C2C12 cells and its mitochondria. These results were finally interpreted regarding the subcellular localization of the CB1 receptors in the striate muscle and its potential role in the mitochondrial oxidative metabolism.
Materials and Methods
Ethics statements
Experimental procedures with animals were carried out in strict accordance with the recommendations in the European Communities directive 2010/63/EU and Spanish legislation (Real Decreto 53/2013, BOE 34/11370-11421, 2013) regulating the care and use of laboratory animals. The protocol was approved by the Ethics Committee for Animal Experiments of the University of Malaga (Permit number: 2014/0003). All efforts were made to minimize animal suffering and to reduce the number of animals used.
Animals
Ten-weeks-old male Wistar rats (Charles Rivers) and 7-weeks-old male CB 1 -/- mice on a C57BL/6NCrl background [24] were individually housed in standardized conditions of animal facilities: water ad libitum, 20±2°C room temperature, 40±5% relative humidity and a 12-hours light/dark cycle (off at 8 pm) with dawn/dusk effect.
Diet-induced obesity (DIO)
Rats were fed ad libitum for 12 weeks with three diets (n = 16): a standard diet (STD; Harlam), a high-fat diet (HFD, 60% fat diet; D12492, Research Diets Inc), or a high-carbohydrate diet (HCD, 70% carbohydrate diet; D12450B, Research Diets Inc). The HFD and HCD were used in order to induce obesity following previous studies [10]. See S1 Text for extended methodology.
AM251 treatment
A dose-response study was firstly tested to select the most effective treatment for the repeated study. Rats (n = 8) fed with STD received one intraperitoneal (i.p.) injection of either vehicle (1 mL kg-1 of 10% Tocrisolve in saline) or CB1 receptor antagonist AM251 [N-(piperidin-1-yl)-5-(4-iodophenyl)-1-(2,4dichlorophenyl-4-methyl-1H-pyrazole-3-carboxamide] (Tocris; PubChem, CID:2125) at doses of 0.3, 1, 3 and 10 mg kg-1 of body weight. The cumulative food intake was measured over a time course of 30, 60, 120 and 240 minutes in rats previously food-deprived for 24 hours with ad libitum access to water. The minimal dose at which treatment showed a robust effect on food intake was selected for the repeated treatment experiment.
For repeated treatment, rats (n = 8) fed with STD and HFD for 10 weeks received a daily i.p. injection of vehicle or AM251 at a dose of 3 mg kg-1 over 14 days. Food intake and body weight were monitored every two days along feeding and treatment. We generated six experimental groups (n = 8): STD-vehicle, STD-AM251, HFD-vehicle, HFD-AM251, HCD-vehicle and HCD-AM251.
Sample collection
Striate muscle from abdominal wall was dissected and frozen at -80°C until mRNA or protein analyses. Muscle samples were also fixed in 4% formaldehyde for 24 hours and embedded in paraffin for histology. Haematoxylin and eosin staining was used for the evaluation of muscle fiber size, structure and inflammatory state.
Preparation of soluble protein fraction and two-dimensional (2D) electrophoresis
Abdominal muscle samples were placed on a homogenization buffer supplemented with a protease inhibitor cocktail (Roche Complete tablets). Then, 100 μl of 2.5 M sucrose was added and centrifuged at 6,400 g for 5 minutes, and then at 40,000 g for 45 minutes at 4°C. The supernatant, correspondent to the cytoplasm fraction of proteins, was measured using the Bradford assay and frozen at -20°C until the 2D electrophoresis analysis.
Triplicate 2D polyacrylamide gels were performed for each animal (n = 6) to minimize the effects of intra-assay variation. Isoelectric focusing (IPG) was performed with a Protean IEF cell (BioRad) using IPG gel strips. Protein extracts (30 μg) were added to a rehydration buffer (see S1 Text for extended methodology) and added to strips (rehydrated for 18 hours, 50 V and focused at 40 kV h-1, 20°C). The strips were incubated in two equilibration buffers containing 130 mM dithiothreitol and 135 mM iodoacetamide respectively. The 2-D was performed on Criterion XT Bis-Tris 12% polyacrylamide gels (80V, 20 minutes and 160V, 70 minutes, 20°C). The gels were fixed (40% ethanol, 10% acetic acid) for 16 hours, stained using a MS compatible method (Dodeca™ silver stain kit, Bio-Rad) and analyzed using PDQuest® Software v7.1 (Bio-Rad). Normalization of spots was made to compare the optic densities (OD) of the same spot (amount of protein) on other gels regarding the total density in gel image.
MALDI-TOF and LC-ESI trap MS analyses
Spots with different OD were excised from the gels and trypsinized using the MassPrep Station (Waters, Micromass) protocol. Extracted peptides (1 μL) were applied to a 96×2 teflon MALDI target plate (Applied Biosystems), dried to ~50% of the original volume and placed in a α-cyano-4-hydroxycinnamic acid matrix solution. Gel plugs were also analyzed by nano-HPLC/ESI ion trap MS, using manual in-gel trypsin digestions of destained spots after reduction and alkylation with DTT and iodoacetamide, as described above (see S1 Text for extended methodology). MALDI-TOF mass spectrometry was performed using an Applied Biosystems Voyager-DE PRO in reflectron mode, as was described previously [25]. LC-ESI MS analysis was performed using an Agilent 1200 nano-HPLC system equipped with both PepMap100 C-18 trap and analytic columns [26].
RNA isolation and qRT-PCR analysis

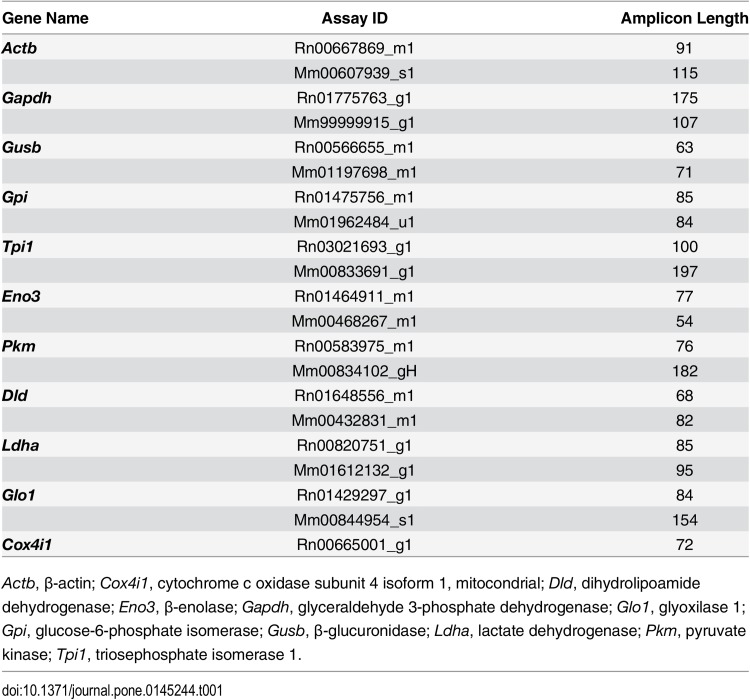

Total RNA was extracted from the abdominal muscle (∼100 mg) by using the Trizol method, as previously described [5]. Purified RNA (1 μg) and random hexamers were used to generate first strand cDNA using transcriptor reverse transcriptase. cDNA was used as a template for quantitative real-time PCR. The relative quantification was normalized to the expression of the housekeeping gene Gapdh and calculated by using the ΔΔCt method. Primers used for the qRT-PCR reaction were obtained based on TaqMan® Gene Expression Assays (Life Technologies) (Table 1).
| Gene Name | Assay ID | Amplicon Length |
|---|---|---|
| Actb | Rn00667869_m1 | 91 |
| Mm00607939_s1 | 115 | |
| Gapdh | Rn01775763_g1 | 175 |
| Mm99999915_g1 | 107 | |
| Gusb | Rn00566655_m1 | 63 |
| Mm01197698_m1 | 71 | |
| Gpi | Rn01475756_m1 | 85 |
| Mm01962484_u1 | 84 | |
| Tpi1 | Rn03021693_g1 | 100 |
| Mm00833691_g1 | 197 | |
| Eno3 | Rn01464911_m1 | 77 |
| Mm00468267_m1 | 54 | |
| Pkm | Rn00583975_m1 | 76 |
| Mm00834102_gH | 182 | |
| Dld | Rn01648556_m1 | 68 |
| Mm00432831_m1 | 82 | |
| Ldha | Rn00820751_g1 | 85 |
| Mm01612132_g1 | 95 | |
| Glo1 | Rn01429297_g1 | 84 |
| Mm00844954_s1 | 154 | |
| Cox4i1 | Rn00665001_g1 | 72 |
Total protein extraction and Western blot analysis
Protein extracts (75 μg) from mouse abdominal muscle were separated in gradient SDS-PAGE gels and electroblotted onto nitrocellulose membranes [10]. Specific proteins were detected by overnight incubation in the corresponding primary antibodies (Table 2). Then, a HRP-conjugated anti-rabbit IgG (H+L) or anti-mouse secondary antibodies (Promega) diluted 1:10,000 was added for 1 h at room temperature. After the enhanced chemiluminiscence detection (Santa Cruz) in an Autochemi-UVP Bioimaging System, bands were quantified by ImageJ software (Rasband, W.S., ImageJ, U.S., NIH, http://imagej.nih.gov/ij, 1997–2012).

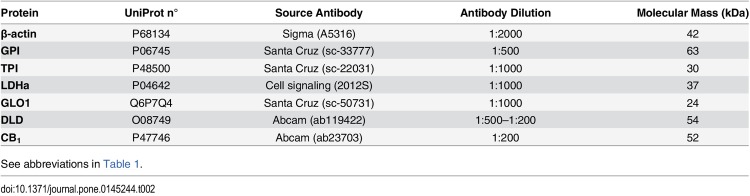

| Protein | UniProt n° | Source Antibody | Antibody Dilution | Molecular Mass (kDa) |
|---|---|---|---|---|
| β-actin | P68134 | Sigma (A5316) | 1:2000 | 42 |
| GPI | P06745 | Santa Cruz (sc-33777) | 1:500 | 63 |
| TPI | P48500 | Santa Cruz (sc-22031) | 1:1000 | 30 |
| LDHa | P04642 | Cell signaling (2012S) | 1:1000 | 37 |
| GLO1 | Q6P7Q4 | Santa Cruz (sc-50731) | 1:1000 | 24 |
| DLD | O08749 | Abcam (ab119422) | 1:500–1:200 | 54 |
| CB 1 | P47746 | Abcam (ab23703) | 1:200 | 52 |
Isolation of rat muscle mitochondria for protein (Western blot) analysis
The isolation of muscle mitochondria was realized as described previously [27] with modifications. Abdominal muscle was collected in isolation medium I (210 mM mannitol, 70 mM sucrose, 50 mM Trizma and 10 mM EDTA) and digested with trypsin (Gibco) at 0.5 mg g-1 for 30 minutes. Then, the reaction was stopped with a trypsin inhibitor and centrifuged at 1,000 g for 5 minutes. The supernatant was filtered and centrifuged at 7,000 g for 10 minutes. The obtained pellet was resuspended in an isolation medium II (225 mM mannitol, 75 mM sucrose, 10 mM Trizma and 0.1 mM EDTA) and centrifuged at 1,000 g for 5 minutes. The resulting supernatant was centrifuged at 7,000 g for 10 minutes. The obtained pellet (purified mitochondrial fraction) was resuspended in 50 μl of isolation medium II. Then, samples were homogenized by sonication and protein concentration was measured using the Bradford method with BSA as standard.
Western blotting of the mitochondrial protein extracts (30 μl) was performed as was described above. DLD and CB1 proteins were detected by overnight incubation in the corresponding primary antibodies diluted 1:200 (Table 2).
Cell culture and treatment
C2C12 mouse C3H muscle myoblasts (cat. no. 91031101, Sigma-Aldrich) were cultured as previously described [28]. Proliferating C2C12 cells were propagated in DMEM (ThermoFisher) supplemented with 5% fetal bovine serum (FBS), 20 mM HEPES, 100 U ml-1 penicillin, 100 μg ml-1 streptomycin and 1% L-glutamine in a humidified atmosphere of 95% air/5% CO2 at 37°C. Differentiation was achieved upon exposure of proliferating C2C12 cells to a differentiation medium (DM) containing DMEM (25 mM glucose) supplemented with 2% horse serum, 20 mM HEPES, 100 U ml-1 penicillin, 100 μg ml-1 streptomycin and 1% L-glutamine for six days. To assess C2C12 myotube treatment, cells were first synchronized in fresh DM for 24 hours and then treated with the CB1 receptor agonist ACEA or the CB1 receptor antagonist AM251 at concentrations of 20, 50, 500, 103 and/or 5∙103 nM for 2 hours. After treatment, the cells were first cultured in fresh DM without serum for 2 hours and then incubated in 10 nM insulin for 10 minutes. Finally, 0.2 mg ml-1 Nitroblue Tetrazolium (NBT) was also added into the medium for a 3-hours incubation at 37°C in order to detect diaphorase/oxidative reaction at an optic density of 560 nm (VersaMax Absorbance Microplate Reader, Molecular Devices).
Isolation of C2C12 myotube mitochondria
Mitochondrial extraction from differentiated C2C12 cells was realized as described previously [29] with modifications. Cells were trypsinised and centrifuged at 1,000 g for 10 minutes. The pellet was resuspended in a buffer I containing 210 mM mannitol, 70 mM sucrose, 5 mM HEPES, 1 mM EDTA and 0.5% BSA supplemented with 0.5 mM Tx100. After 15 minutes, permeabilization was verified using trypan blue. Samples were centrifuged at 625 g for 5 minutes and the pellet was resuspended in 10 ml of buffer I and homogenized with 60 gentle strikes in a glass potter. Membrane disruption was verified under the microscope, and cells were centrifuged at 625 g for 5 minutes. The supernatant was centrifuged at 10,000 g for 20 minutes, and the pellet (purified mitochondrial fraction) was resuspended in 100 μl of a respiration buffer (75 mM mannitol, 25 mM sucrose, 100 mM KCl, 10 mM Tris-HCl pH 7.4, 50 μM EDTA and 10 mM sodium pyruvate). Protein concentration was measured using the Bradford method with BSA as standard. Approximately, 1.1 mg of mitochondrial proteins per 106 cells was recovered.
Diaphorase activity measurement of C2C12 mitochondrial fraction
Mitochondrial samples at a final protein concentration of 0.2 mg ml-1 were incubated in respiration buffer for 10 minutes at 37°C. Samples were first treated with AM251 or ACEA at 20, 50, 500, 103 and 5∙103 nM for 30 minutes. Then, NBT were added for an overnight incubation at 37°C in order to detect diaphorase/oxidative reaction. Finally, samples were homogenized by sonication and measured at an optic density of 560 nm.
Measurement of pyruvate dehydrogenase and glutathione reductase activity in C2C12 myotubes
Myotubes were first synchronized in fresh DM for 24 hours and then treated with ACEA at 1 μM or AM251 at 50 nM for 2 hours. Then, the cells were first cultured in fresh DM without serum for 2 hours and then incubated in 10 nM insulin for 10 minutes. Finally, the cells were processed following the protocols described in the respective commercial assay kits in order to kinetically detect pyruvate dehydrogenase reaction (cat. no. MAK183, Sigma-Aldrich), glutathione reductase reaction (OxiSelectTM GR, cat. no. STA-812, Cell Biolabs, Inc.) and total glutathione content (OxiSelectTM GSSG/GSH, cat. no. STA-312, Cell Biolabs, Inc.) at an optic density of 450, 405 and 405 nm respectively. One unit of pyruvate dehydrogenase is the amount of enzyme that generates 1 μmole of NADH per minute at pH 7.5 at 37°C. Pyruvate dehydrogenase activity was reported as nmole/min/mL relative to control group. Glutathione content was kinetically determined from the production rate of reduced glutathione (GSH) from oxidized glutathione (GSSG) for 12 minutes in presence of glutathione reductase and NADPH. Glutathione reductase activity was reported as mU/min/mL in presence of GSSG and NADPH.
Electron microscopy
A preembedding silver-intensified immunogold method was used for the localization of CB1 protein as was described [30]. Fifty μm-thick-sections of muscular tissues were first incubated in primary goat CB1 polyclonal antibodies (2μg ml-1; CB1-Go-Af450-1; Frontier Science Co. Ltd) and then in a secondary 1.4 nm gold-labeled rabbit anti-goat IgG (Fab' fragment, 1:100, Nanoprobes Inc.). Gold particles were silver-intensified with a HQ Silver kit (Nanoprobes Inc.). Osmicated, plastic-embedded flat in Epon 812. 65 nm ultrathin sections were stained with uranyl acetate and examined in a Philips EM208S electron microscope.
Statistical analysis
Data were expressed as the mean ± standard error of the mean (s.e.m.) of 6–8 determinations per experimental group. Statistical analysis were performed using one or two-way ANOVA with diet (STD, HFD and HCD) and treatment (vehicle and AM251) factors, followed by Bonferroni post-hoc test for multiple comparisons, or one-tailed Student’s t-test with the Welch correction. A P-value below 0.05 was considered statistically significant.
Results

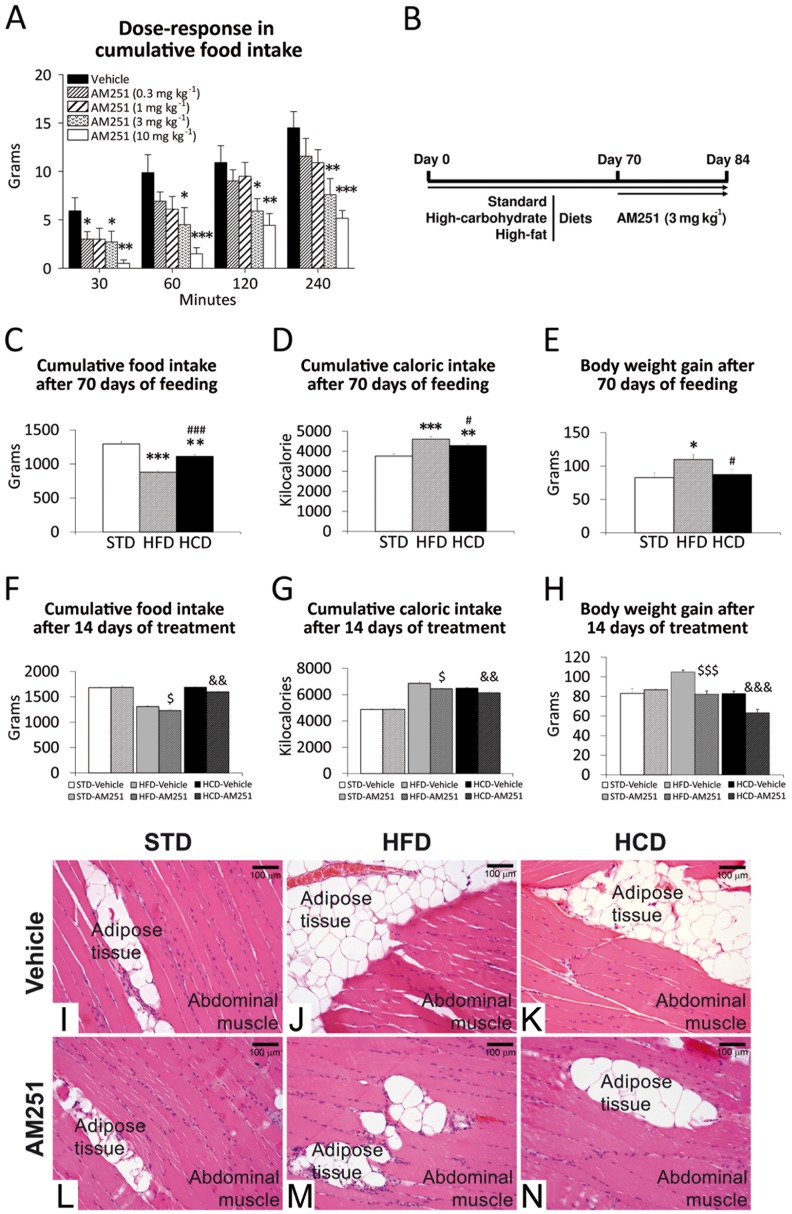

AM251 effectiveness on food intake and body weight in DIO rats
AM251 administered at 3 and 10 mg kg-1 were the most effective doses on reducing cumulative food intake over 240 minutes of STD feeding in rats that had been previously food-deprived for 24 hours feeding (Fig 1A). So, the minimal dose of 3 mg kg-1 was selected for the repeated-treatment experiment (Fig 1B). After 70 days of HFD and HCD feeding to induce obesity (Fig 1C–1E), AM251 repeatedly administered at 3 mg kg-1 for 14 days produced significant reductions in cumulative food/caloric intake and body weight gain in a hypercaloric diet-independent manner (Fig 1F–1H). Haematoxylin and eosin staining in the abdominal muscle showed an apparent increase in the amount of adipose tissue located between the muscle fibers of the rats fed with HFD and HCD (Fig 1I–1K). However, the extension of adipose tissue located between the muscle fibers seemed to be reduced after the repeated administration of AM251 (Fig 1L–1N).

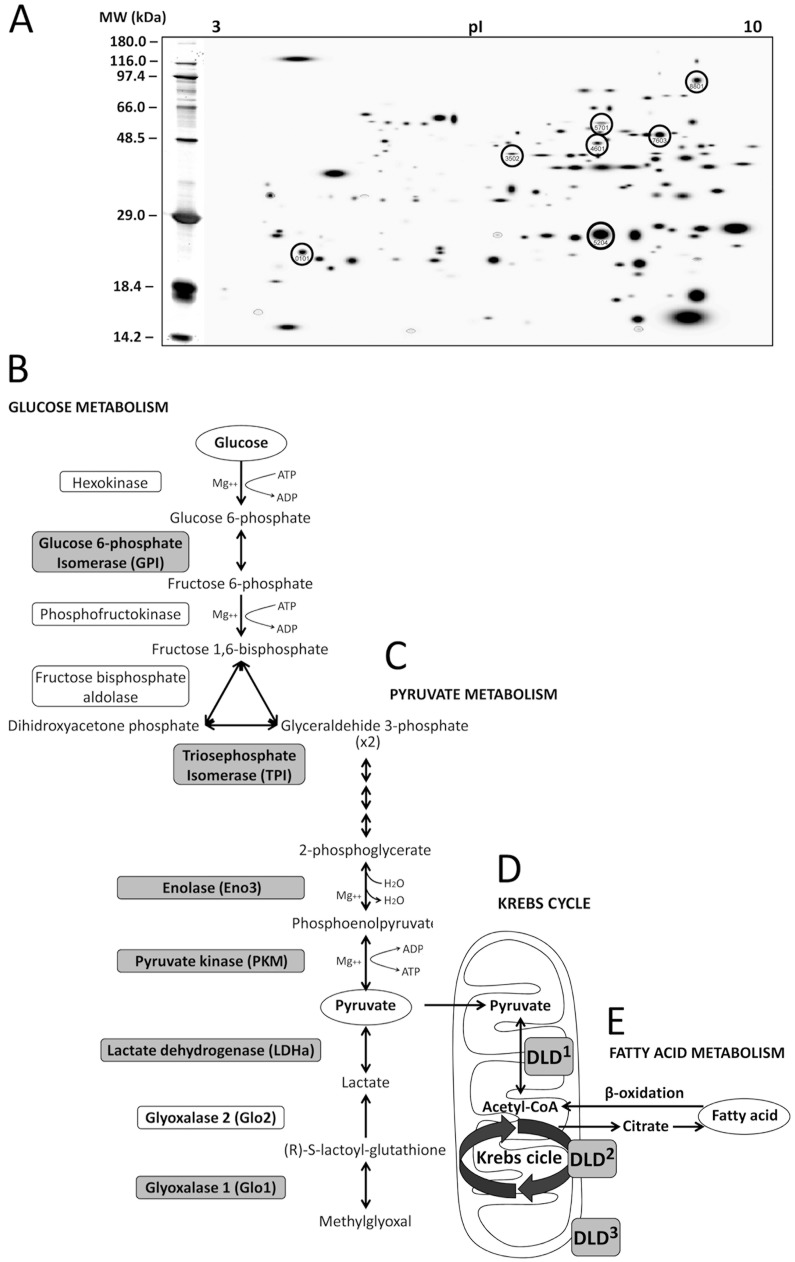

Protein identification and characterization in muscle of DIO rats treated with AM251
Through comprehensive proteomic approaches involving 2D electrophoresis in the rat muscle of the six experimental groups (STD-vehicle, STD-AM251, HFD-vehicle, HFD-AM251, HCD-vehicle and HCD-AM251), we selected 7 spots from up to 300 spots analyzed in each 2D gel, whose average of optic densities (protein content) significantly changed when the experimental groups were compared (Fig 2A). Each spot represented a single protein showing specific electrochemical properties and molecular weight. MALDI-TOF and LC-ESI MS analyses identified the same protein hits for the 7 spots: Mascot score, number of peptides, peptide coverage, molecular weight and isoelectric point, among other parameters, which are highly associated to the characteristics and the identity of 7 known proteins (Table 3). The 7 proteins identified in the abdominal muscle were glucose-6-phosphate isomerase (GPI), triosephosphate isomerase (TPI), beta-beta muscle specific enolase or enolase-3 (Eno3), pyruvate kinase isozyme M1 (PKM1), lactate dehydrogenase A-chain (LDHa), glyoxalase-1 (Glo1), and dihydrolipoamide dehydrogenase (DLD). These 7 proteins are key regulatory enzymes of the glucose, pyruvate and lactate metabolism as well as branched-chain amino acids of the tricarboxylic acid (Krebs) cycle in the striate muscle (Fig 2B–2E).

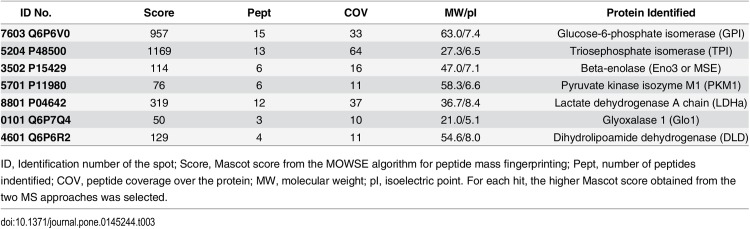

| ID No. | Score | Pept | COV | MW/pI | Protein Identified |
|---|---|---|---|---|---|
| 7603 Q6P6V0 | 957 | 15 | 33 | 63.0/7.4 | Glucose-6-phosphate isomerase (GPI) |
| 5204 P48500 | 1169 | 13 | 64 | 27.3/6.5 | Triosephosphate isomerase (TPI) |
| 3502 P15429 | 114 | 6 | 16 | 47.0/7.1 | Beta-enolase (Eno3 or MSE) |
| 5701 P11980 | 76 | 6 | 11 | 58.3/6.6 | Pyruvate kinase isozyme M1 (PKM1) |
| 8801 P04642 | 319 | 12 | 37 | 36.7/8.4 | Lactate dehydrogenase A chain (LDHa) |
| 0101 Q6P7Q4 | 50 | 3 | 10 | 21.0/5.1 | Glyoxalase 1 (Glo1) |
| 4601 Q6P6R2 | 129 | 4 | 11 | 54.6/8.0 | Dihydrolipoamide dehydrogenase (DLD) |

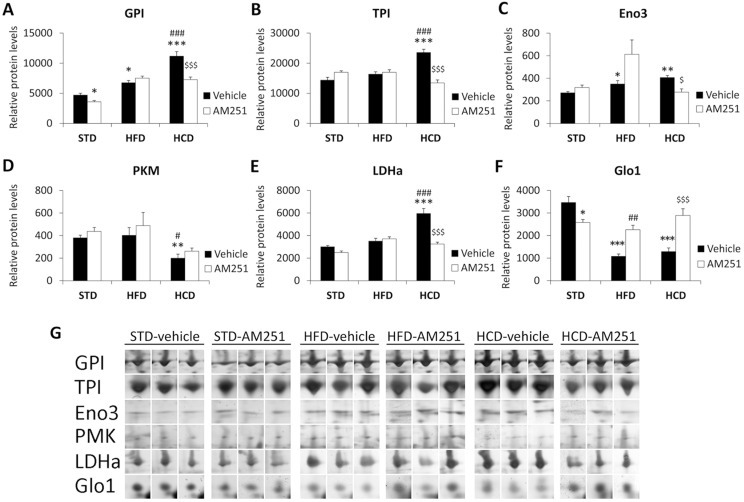

AM251 regulates the protein expressions of glucose/pyruvate-metabolizing enzymes in the abdominal muscle of HCD-fed rats
The expression of most proteins identified in muscle was mainly affected by the HCD and the AM251 treatment (Fig 3). Two-way ANOVA showed a diet effect on the protein expressions of GPI, TPI, LDHa and Glo1 (GPI/LDHa/Glo1: F 1,30>13.88, P<0.001; TPI: F 1,30 = 9.83, P<0.01). A treatment effect on the expressions of all proteins identified was observed (GPI/LDHa/Glo1: F 2,30>22.28, P<0.0001; Eno3/PKM1: F 2,30>5.43, P<0.01; TPI: F 2,30 = 5.26, P = 0.011). Interactions between diet and treatment were detected for the protein expressions of GPI, TPI, Eno3, LDHa and Glo1 (GPI/TPI/LDHa/Glo1: F 2,30>13.15, P<0.0001; Eno3: F 2,30 = 5.59, P<0.01), indicating that the repeated AM251 administration differentially modified their protein expression in a diet-dependent manner.
Regarding Bonferroni test (Fig 3), we observed an increased GPI and Eno3 expressions in HFD-fed rats as well as a higher significance of the increased GPI, TPI, Eno3 and LDHa expressions in HCD-fed rats (*/**/***P<0.05/0.01/0.001) (Fig 3A–3C and 3E). Increased GPI, TPI and LDHa expressions were also observed in HCD-fed rats compared with HFD ones (### P<0.001) (Fig 3A, 3B and 3E). Thus, these glucose/pyruvate metabolism enzymes were up-regulated as a consequence of a hypercaloric carbohydrate diet. In contrast, we detected a decreased Glo1 expression in HFD-fed rats as well PKM1 and Glo1 in HCD-fed rats (**/***P<0.01/0.001) (Fig 3D and 3F). Additionally, decreased PKM1 expression was also detected in HCD-fed rats compared with HFD ones (# P<0.05) (Fig 3D). Thus, methylglyoxal pathway key enzymes were down-regulated after a hypercaloric carbohydrate diet.
AM251 decreased the GPI and Glo1 expressions in STD-fed rats (*P<0.05) (Fig 3A and 3F). AM251 also decreased the GPI, TPI, Eno3 and LHDa expressions specifically in HCD-fed rats ($/$ $ $ P<0.05/0.001) (Fig 3A–3C and 3E). Thus, the expressions of these glucose/pyruvate metabolism enzymes were specifically blocked after AM251 treatment in a highly-carbohydrate context. In contrast, AM251 increased the Glo1 expression in HFD (## P<0.01) and HCD ($ $ $ P<0.001) (Fig 3F).

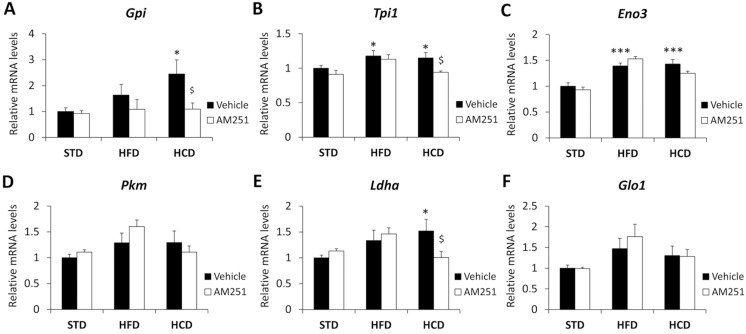

AM251 regulates the gene expressions of glucose/pyruvate-metabolizing enzymes in the abdominal muscle of HCD-fed rats
Two-way ANOVA only showed a diet effect on the Gpi and Tpi expressions (F 1,38>5.12, P<0.027) (Fig 4). A treatment effect on the Tpi, Eno3, Pkm and Glo1 expressions were also observed (Tpi/Pkm/Glo1: F 2,37>3.69, P<0.034; Eno3: F 2,39 = 33.02, P<0.0001). Interaction was only detected for the Ldha expression (F 2,39 = 3.44, P = 0.041), indicating that AM251 treatment differentially modified its gene expression of in a diet-dependent manner.
Regarding Bonferroni test (Fig 4), we observed an increased Tpi and Eno3 expressions in HFD-fed rats as well as Gpi, Tpi, Eno3 and Ldha in HCD-fed rats (*/***P<0.05/0.001) (Fig 4A–4C and 4E). AM251 only decreased the Gpi, Tpi and Ldha expressions in HCD-fed rats ($ P<0.05) (Fig 4A, 4B and 4E).

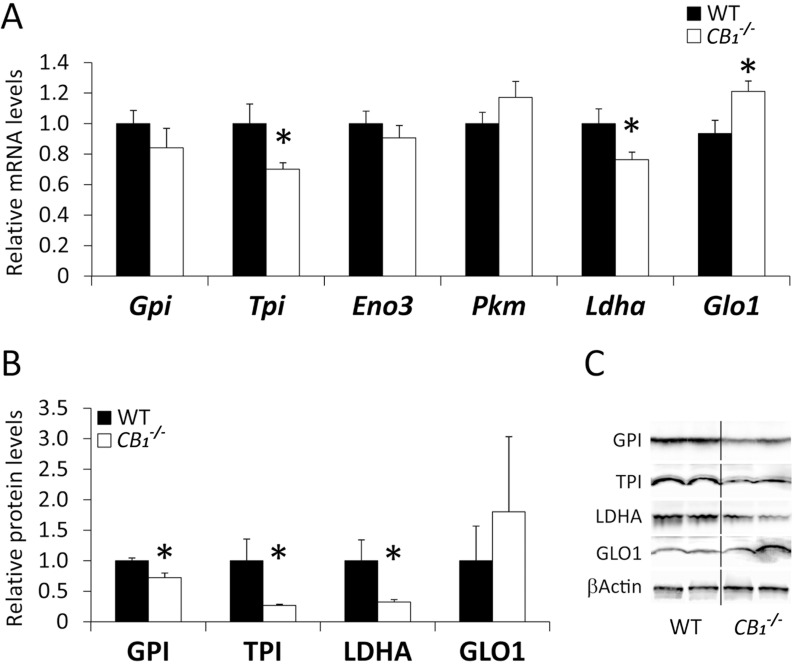

The expression of the metabolic enzymes in the abdominal muscle of CB 1 -/- mice was altered
To assess the results obtained in the AM251-treated DIO rats, the muscles of CB 1 -/- mice were also analyzed by qRT-PCR and Western immunoblotting (Fig 5). CB 1 -/- mice showed a decreased gene expression of Tpi1 and Ldha (*P<0.05) (Fig 5A), which were confirmed regarding their protein expression (*P<0.05) (Fig 5B and 5C). We also observed an increased gene expression of Glo1 (*P<0.05) (Fig 5A) and a decreased protein expression of GPI in CB 1 -/- mice (*P<0.05) (Fig 5B).

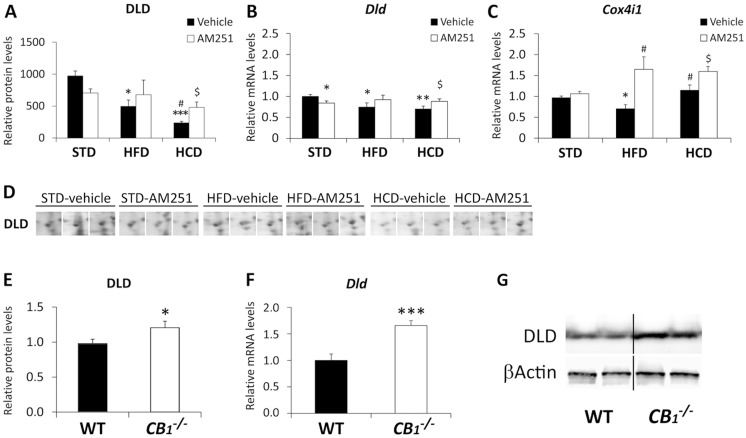

AM251 regulates the expression of DLD and Cox4i1 in the abdominal muscle of HCD-fed rats
We analyzed the muscle expression of DLD enzyme, an E3 component of the mitochondrial pyruvate/α-ketoglutarate dehydrogenase complexes, which regulates TCA cycle activity and cellular respiration (Fig 6). Two-way ANOVA showed a treatment effect on the DLD protein expression (F 2,30 = 8.47, P = 0.0012). Interaction in Dld expression (F 2,37 = 3.24, P = 0.05) indicated that AM251 differentially modified its expression in a diet-dependent manner. Regarding Bonferroni test, both HFD and HCD decreased the protein and gene expressions of DLD (*/**/***P<0.05/0.01/0.001) (Fig 6A and 6B). Decreased protein expression of DLD in HCD-fed rats compared with HFD ones (# P<0.05) was also observed. Increased protein and gene expressions of DLD was specifically detected in the muscle of AM251-treated HCD-fed rats ($ P<0.05) (Fig 6A and 6B) and confirmed in CB 1 -/- mice (*/***P<0.05/0.001) (Fig 6D and 6E).
We also analyzed the gene expression of Cox4i1, a mitochondrial respiratory chain enzyme (Fig 6C). Two-way ANOVA showed a diet effect on Cox4i1 expression (F 1,40 = 15.66, P = 0.0003). The presence of interaction (F 1,40 = 3.8, P = 0.03) indicated that AM251 differentially modified the Cox4i1 expression in a diet-dependent manner. Thus, HFD induced a decreased Cox4i1 expression when it was compared with STD and HCD (*/# P<0.05). However, AM251 increased the Cox4i1 expression in both HFD and HCD-fed rats (#/$ P<0.05) (Fig 6C).

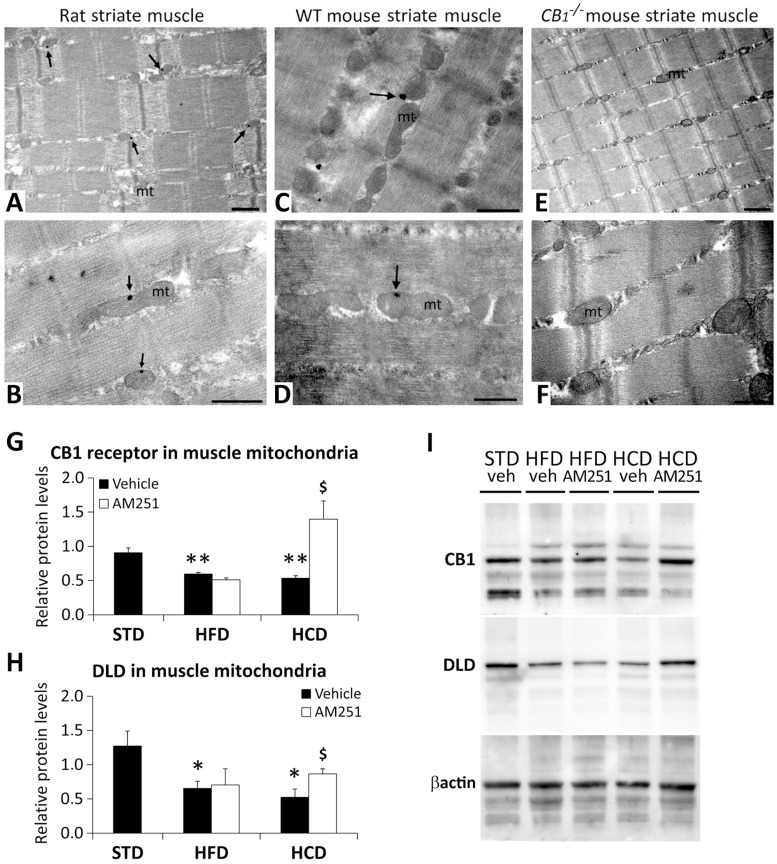

Localization of the CB1 receptors in the rodent striate muscle
Little is known concerning the expression and subcellular distribution of CB1 receptors in muscles. Therefore, we set to analyze CB1 receptor expression in the muscle abdominalis using immunogold electron microscopy (Fig 7). Interestingly, images showed immunogold particles labeling CB1 receptors in the outer membrane of the mitochondria of the rat and mouse striate muscle (Fig 7A–7D), whereas no electrodense particles were found in the striate muscle of CB 1 -/- mouse (Fig 7E and 7F). Thus, the above-described effects of the CB1 receptor antagonist AM251 on glucose/pyruvate/lactate pathways might be partially mediated by direct modulation of mitochondrial functions.
AM251 increases the protein expression of CB1 receptor and DLD in the muscle mitochondria of HCD-fed rats
To assess the above affirmation, the presence and protein expression of the CB1 receptor and DLD in the mitochondrial fraction of muscle of AM251-treated DIO rats were evaluated by Western immunoblotting (Fig 7G–7I). Two-way ANOVA showed diet and treatment effects, and interaction between factors on CB1 receptor expression in the muscle mitochondria (F 1,12 = 8.20, P = 0.014; F 1,12 = 9.22, P = 0.010; F 1,12 = 12.18, P = 0.004 respectively). No significant effect on the DLD protein expression was observed. Regarding Bonferroni test, both HFD and HCD decreased the protein expression of CB1 receptor and DLD (*/**P<0.05/0.01) (Fig 7G and 7H). However, AM251 specifically increased the protein expression of CB1 receptor and DLD in the muscle mitochondria of HCD-fed rats ($ P<0.05) (Fig 7G and 7H).

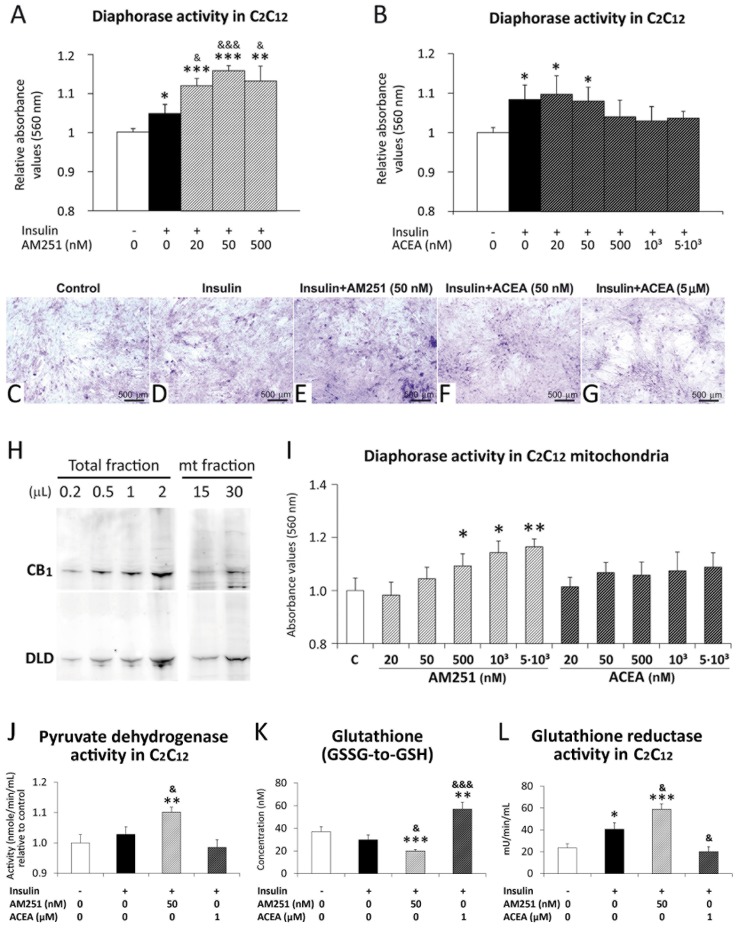

AM251 increased diaphorase/oxidative activity in the C2C12 cell mitochondria

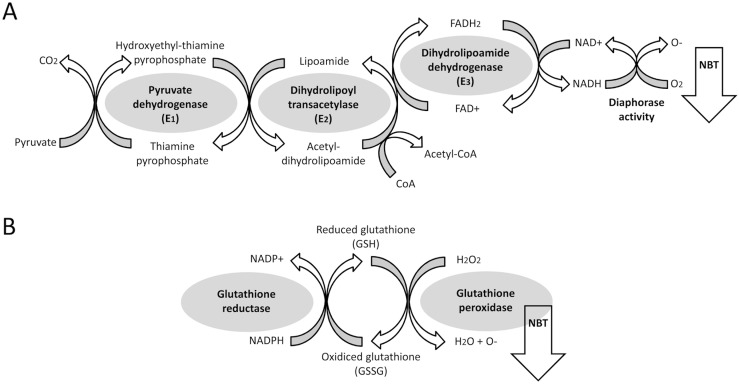

Given that the diaphorase/oxidative activity of the DLD enzymes plays a critical role through redox reactions in the TCA cycle, we aimed at clarifying the biological significance of the increased DLD expression in the muscle mitochondria after CB1 receptor pharmacological blockade. To this end, we first investigated the effect of the CB1 receptor blockade (AM251) and activation (ACEA) on the diaphorase activity of C2C12 myotubes in culture (Fig 8A–8G). Under conditions of basal oxidative state, insulin induced an increase of diaphorase/oxidative activity (*P<0.05) (Fig 8A and 8B). AM251 produced an enhancement of this effect when it was compared with either control group (**/***P<0.01/0.001) or insulin group (&/&&& P<0.05/0.001) (Fig 8A and 8C–8E). Moreover, AM251 at a dose of 50 nM showed a maximal increase of the diaphorase/oxidative activity (Fig 8A and 8E). However, no specific effect or an opposed effect on the diaphorase/oxidative activity were observed when the C2C12 myotubes were treated with increased concentrations of ACEA (Fig 8B, 8F and 8G).
After checking the protein expression of CB1 receptor and DLD in the mitochondrial fraction of C2C12 myotubes (Fig 8H), we then investigated the effect of the CB1 receptor blockade (AM251) and activation (ACEA) on the diaphorase activity of C2C12 myotube mitochondria in vitro (Fig 8I). AM251 produced a dose-response increase of diaphorase/oxidative activity when it was compared with the control group (*/**P<0.05/0.01). However, no effect was observed when the mitochondrial fractions of C2C12 myotubes were incubated with ACEA (Fig 8I).
AM251 increased pyruvate dihydrogenase and glutathione reductase activity in the C2C12 myotubes
To further assess the increased diaphorase activity and the putative mitochondrial ROS production in the C2C12 myotubes after CB1 receptor pharmacological blockade, we evaluated the pyruvate dehydrogenase and glutathione reductase activity (Fig 8J–8L). Under conditions of basal oxidative state, insulin induced an increase of glutathione reductase activity (*P<0.05) (Fig 8L). AM251 at 50 nM induced an enhancement of pyruvate dehydrogenase and glutathione reductase activity, and showed a lower GSSG-to-GSH rate (as a consequence of a low GSSG content), when it was compared with either control group (**/***P<0.01/0.001) or insulin group (& P<0.05) (Fig 8J–8L). In contrast, ACEA at 1μM produced an increased GSSG-to-GSH rate (elevated GSSG content) and a decreased activity of glutathione reductase, when it was compared with either control group (**P<0.01) or insulin group (&/&&& P<0.05/0.001) (Fig 8K and 8L).
Discussion
Here we demonstrated that the expression of relevant metabolic enzymes involved in the regulation of glucose (GPI, TPI), pyruvate (Eno3, PKM1, LDHa), glyoxalase-1 (Glo1) and TCA and amino acid catabolism (DLD) pathways in the abdominal rat muscle was altered in a hypercaloric diet-dependent manner. The significant alteration in the protein expression of GPI, TPI, Eno3, LDHa, Glo1 and DLD showed a complete normalization after the systemic administration of the CB1 receptor antagonist AM251 at the effective dose of 3 mg kg-1 for 14 days in the obese rats specifically fed with a HCD. AM251 effects on muscle metabolism should be associated with a reduction in food/caloric intake and body weight gain [5,6,10]. Firstly, we observed that AM251 amended the HCD-induced increase of the protein expression of GPI, TPI, Eno3 and LDHa, and alleviated the HCD-induced decrease of the protein expression of Glo1. Secondly, we described that both CB1 receptor antagonism and deletion (CB 1 -/-) specifically displayed similar changes in the expression of the muscle DLD, an E3 component of the mitochondrial pyruvate/α-ketoglutarate/branched-chain keto acid (BCKDC) dehydrogenase complexes with dehydrogenase/diaphorase activity (Fig 9A). Thus, AM251 counteracted the HCD-induced decrease in the protein and gene expression of DLD in rat muscle, an effect that was confirmed after the protein analysis of DLD in the muscle mitochondrial fraction. Thirdly, we identified the presence of CB1 receptors at the outer membrane of striate muscle mitochondria, as was previously described in brain, suggesting a direct endocannabinoid regulation of mitochondrial activity in the muscle [31]. Moreover, we showed that AM251 reversed the HCD-induced decrease in the protein expression of CB1 receptor in the muscle mitochondrial fraction. Finally, regarding these results and the relevance of the redox activity of DLD in the TCA cycle, we evaluated the influence of the CB1 receptor blockade (AM251) and activation (ACEA) in the dehydrogenase and diaphorase/oxidative activity that can be detected in vitro in a cell model of differentiated C2C12 myotubes. We observed that AM251, but not ACEA, induced an enhancement of the diaphorase activity detected in the mitochondria of myotube- differentiated C2C12 cells, which was in accordance with the increased activity of pyruvate dehydrogenase and glutathione reductase in the C2C12 myotubes (Fig 9).
These results agree with the fact that CB1 receptor antagonism has a direct effect on peripheral energy utilization [4]. Although the ECS has been shown to be expressed in the skeletal muscle [5,7], little information about the effects of CB1 receptor blockade on muscle oxidative pathways and energy expenditure have been reported [8]. The present study demonstrated the ability of the CB1 receptor antagonist AM251 to restore the expression levels of specific enzymes, such as GPI, TPI, Eno3 and LDHa, related with glucose and pyruvate metabolism in an insulin-highly sensitive tissue (striate muscle), which have been specifically increased after the chronic administration of a high-carbohydrate diet. We interpreted that the up-regulation of the glucose/pyruvate metabolism enzymes can be a response to catalyze the excess of glucose availability. Consequently, the down-regulation of these metabolic enzymes by AM251 under a highly-carbohydrate context can be contributing to the improved glycaemia and insulin resistance described in previous studies [19,32]. Both mitochondrial respiratory activity and biogenesis were decreased in the skeletal muscle of obese/diabetic animal models and humans [33,34]. Thus, CB1 receptor activation impaired mitochondrial biogenesis in peripheral tissues, whereas the blockade showed opposite effects [35,36]. Because the cannabinoid receptor blockade has been implicated in the regulation of mitochondrial function, we focused in the mitochondrial candidate identified by the proteomic approach: the DLD, a relevant TCA cycle enzyme with NADH-related diaphorase activity coupled to mitochondrial respiration. We demonstrated that both HFD and HCD decreased the mitochondrial DLD expression in muscle. However, the abdominal muscle of HFD-fed rats, but not HCD-fed rats, showed a decreased expression of the mitochondrial respiratory chain gene Cox4i1. These results can be interpreted as the mitochondrial bioenergetics is particularly impaired after an excess of fatty acid availability by the diet, but seems less relevant in a highly-carbohydrate context [34]. In contrast, AM251 increased the Cox4i1 gene expression in both HFD and HCD-fed rats, but it only increased the mitochondrial DLD expression in HCD-fed rats. In this case, the net effect of AM251-induced blockade of CB1 receptor in muscle might be an activation of mitochondrial respiration and, as a consequence, a potential increase in energy expenditure under a highly-carbohydrate context. Nonetheless, these potential effects on mitochondrial respiration need to be confirmed in future experiments.
DLD and Cox41i up-regulation by AM251 must be coupled to the increased diaphorase/oxidative, pyruvate dehydrogenase and gluthatione reductase activity specifically detected in C2C12 myotubes under an elevated availability of glucose (25 mM) in the differentiation culture medium. We propose that a higher production of NADH by the pyruvate dehydroganase activity and the increased diaphorase/oxidative activity, probably partaken by DLD, can be a response to the increased acidification of the mitochondrial matrix [37]. In our study, a higher level of protons in the mitochondrial matrix can be deduced from the up-regulation of the mitochondrial respiratory chain gene Cox41i. It has been described that the skeletal insulin resistance and the onset of type 2 diabetes produced an impairment of pyruvate dehydrogenase activity, which is, in turn, potently activated by exercise [38]. Our results suggest that the CB1 receptor antagonist AM251 could also counteract this deleterious effect on pyruvate dehydrogenase activity. We detected an increased activity of glutathione reductase after AM251 treatment. Because this enzyme is a key cellular antioxidant, our results suggest that the CB1 receptor inhibition can boost the breakdown of dangerous reactive molecules such as hydrogen peroxide [39,40].
Until recently, the effects of cannabinoids on oxidative metabolism were interpreted either as an indirect activation of plasma membrane CB1 receptors, or as unspecific alterations of the mitochondrial membranes [41]. However, novelty studies [31,42] challenged this concept as CB1 receptors are also present in the mouse neuronal mitochondria and can directly modulate neuronal energy metabolism. For instance, different CB1 receptor agonists (THC, WIN55,212–2, HU210) couldn’t decrease respiration rates of purified brain mitochondria from CB 1 -/- mice [31]. We demonstrated that CB1 receptors are also present in the muscle mitochondria by using immunogold electron microscopy. As a consequence, in agreement with previous studies, we suggest that CB1 receptor might directly regulate mitochondrial metabolism in muscle by targeting the pyruvate dehydrogenase activity and the diaphorase/oxidative activity, probably partaken by DLD [43,44]. The confirmation of this hypothesis will be addressed in future studies.
In conclusion, we evidenced that the pharmacological blockade of CB1 receptors by AM251 at an effective dose of 3 mg kg-1 preferably modulates the muscle expression of selected glucose/pyruvate metabolic enzymes and the mitochondrial TCA cycle (and amino acid oxidation) enzyme DLD, which can promote an increased diaphorase/oxidative activity in response to an excess of carbohydrate availability. These results coupled to the presence of CB1 receptors in the muscle mitochondria demand further studies in order to support a new mechanism of action on energy expenditure through the muscle mitochondrial metabolism.
Supporting Information
Acknowledgements
The authors are indebted to Dr. Giovanni Marsicano for kindly providing the CB 1 -/- mice.
Abbreviations
- ACEA
- arachidonyl-2’-chloroethylamide
- Actb
- β-actin
- CB1
- cannabinoid receptor type 1
- Cox4i1
- cytochrome c oxidase subunit 4 isoform 1, mitochondrial
- DLD
- dihydrolipoamide dehydrogenase
- ECS
- endocannabinoid system
- Eno3
- β-enolase
- GADPH
- glyceraldehyde 3-phosphate dehydrogenase
- Glo1
- glyoxilase 1
- GPI
- glucose-6-phosphate isomerase
- GSH
- reduced glutathione
- GSSG
- oxidized glutathione
- Gusb
- β-glucuronidase
- HCD
- high carbohydrate diet
- HFD
- high fat diet
- HPLC-ESI MS
- high-performance liquid chromatography-electrospray ionization mass spectrometry
- LDHa
- lactate dehydrogenase
- MALDI-TOF MS
- matrix-assisted laser desorption/ionization time-of-flight mass spectrometry
- NADPH
- nicotinamide adenine dinucleotide phosphate
- NBT
- nitroblue tetrazolium
- PKM
- pyruvate kinase
- STD
- standard diet
- TPI
- triosephosphate isomerase 1
