The endocannabinoid anandamide is an airway relaxant in health and disease
grid.5570.70000 0004 0490 981XDepartment of Systems Physiology, Medical Faculty, Ruhr University of Bochum, Bochum, Germany
grid.10388.320000 0001 2240 3300Institute of Physiology I, Life&Brain Center, Medical Faculty, University of Bonn, Bonn, Germany
grid.410607.4Institute of Physiological Chemistry, University Medical Center of the Johannes Gutenberg University of Mainz, Mainz, Germany
Abstract
Chronic obstructive airway diseases are a global medical burden that is expected to increase in the near future. However, the underlying mechanistic processes are poorly understood so far. Herein, we show that the endocannabinoid anandamide (AEA) induces prominent airway relaxation in vitro and in vivo. In contrast to 2-arachidonlyglycerol-induced airway relaxation, this is mediated by fatty acid amide hydrolase (FAAH)-dependent metabolites. In particular, we identify mouse and also human epithelial and airway smooth muscle cells as source of AEA-induced prostaglandin E2 production and cAMP as direct mediator of AEA-dependent airway relaxation. Mass spectrometry experiments demonstrate reduced levels of endocannabinoid-like compounds in lungs of ovalbumin-sensitized mice indicating a pathophysiological relevance of endocannabinoid signalling in obstructive airway disease. Importantly, AEA inhalation protects against airway hyper-reactivity after ovalbumin sensitization. Thus, this work highlights the AEA/FAAH axis as a critical regulator of airway tone that could provide therapeutic targets for airway relaxation.
Web Summary
Obstructive lung diseases are a frequent cause of morbidity worldwide. Here, the authors identify the endocannabinoid anandamide (AEA) as an airway relaxant under physiological and pathophysiological conditions that can be locally applied to the lung as an aerosol in mice.
Introduction
Endocannabinoids are endogenously produced lipophilic compounds that can exert similar effects as tetrahydrocannabinol (THC), the main constituent of the cannabis plant. Originally, they had been identified as important regulators in the central and peripheral nervous system affecting memory, appetite and pain sensation1. Later, it has become clear that endocannabinoids also modulate the homeostasis of other organs. High concentrations of endocannabinoids have been detected in the lung2,3. In this organ endocannabinoids also display functional effects on vessels as anandamide (AEA) and 2-arachidonlyglycerol (2-AG) were demonstrated to control pulmonary arterial tone. In isolated pulmonary arteries (PAs) of different species endocannabinoids were reported to induce vasorelaxation4–7. Interestingly, in murine and rabbit2 whole lung preparations ex vivo as well as in mouse in vivo8, we and others found a strong pulmonary vasoconstriction by AEA mediated by fatty acid amide hydrolase (FAAH). Our experiments revealed that this effect was specific for AEA and not found for 2-AG. In addition, we could show that this response is of physiological relevance as FAAH-dependent AEA degradation proved to be a central mechanism of hypoxia-dependent vasoconstriction8. Because of its important physiological function in pulmonary vessels we then wondered if AEA can also affect airways and if this is of pathophysiological relevance. A previous study provided hints that endocannabinoids may influence cough and airway tone under very special circumstances3 but it is still unclear how a potential tone regulatory effect is mediated and if this pathway provides therapeutic targets. Current treatment regimens for obstructive airway disease mainly rely on airway relaxation by beta2 adrenergic agonists. However, this strategy is limited since long term use of these compounds results in desensitization or even induces adverse effects9. Thus, there is an urgent need for alternative pharmacological strategies for obstructive airway disease. In this study we can show by various in vitro, ex vivo and in vivo approaches that AEA is a strong airway relaxant via FAAH-dependent arachidonic acid (AA), PGE2 and cAMP generation in mouse and human. The compound can be locally applied via inhalation and does not induce cardiovascular side effects nor desensitization. Moreover, it prevents airway constriction not only in healthy but also in ovalbumin (OVA)-sensitized mice. Thus, this study highlights the AEA/FAAH pathway as a central regulator of airway tone.
Results

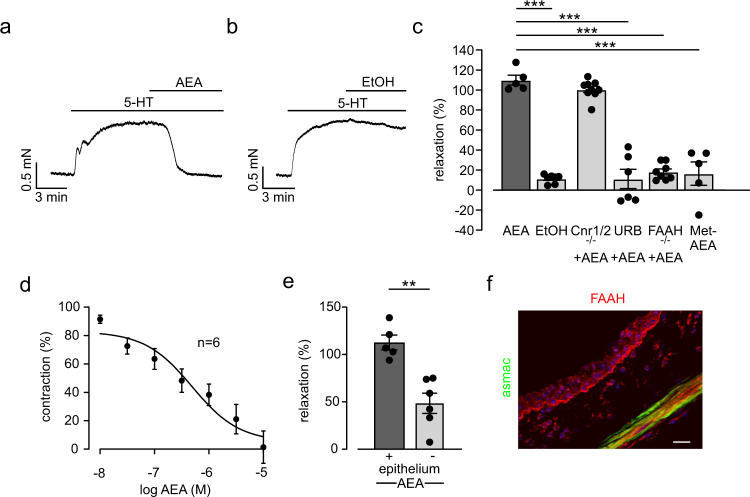

Anandamide induces airway relaxation
First, we examined the effect of anandamide (AEA) on airway tone in isometric force measurements of mouse tracheal rings in a wire-myograph. When applied to baseline force, single dose application of AEA (10 µM) had no effect (Supplementary Fig. 1a). In contrast, after pre-constriction single dose application of AEA (10 µM) induced a very strong airway relaxation (Fig. 1a, c) irrespective of the type of pre-constrictor (Supplementary Fig. 1b). This relaxation was not found in response to the solvent ethanol (EtOH) (Fig. 1b, c). Relaxation by AEA was dose-dependent starting at 10 nM (Supplementary Fig. 1c and Fig. 1d) which is in the range of AEA concentrations reported for human plasma10.

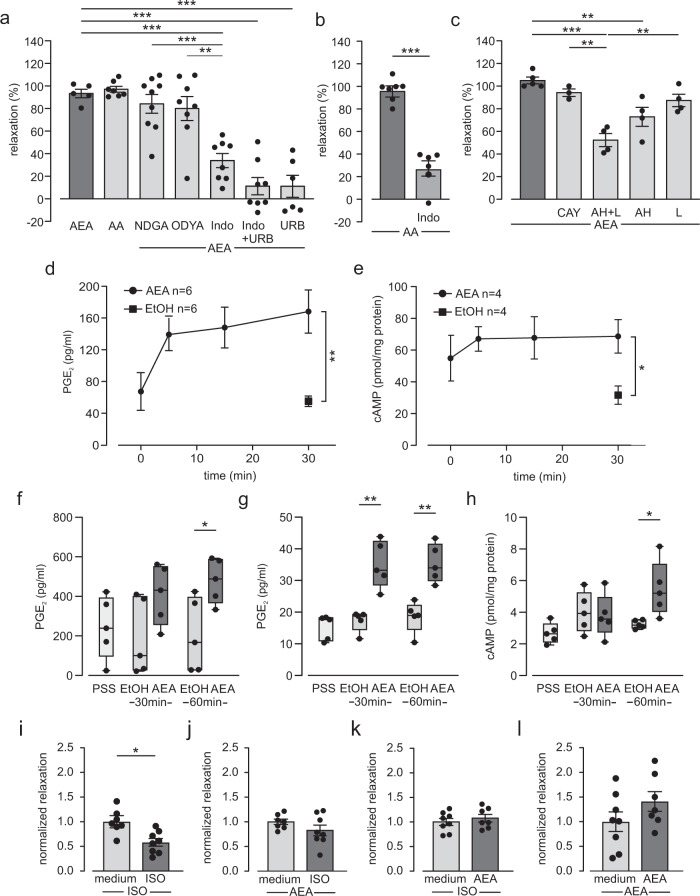

AEA induces airway tone decrease by activation of EP2 and EP4 receptors
To investigate in detail the role of FAAH-dependent hydrolysis in AEA-induced airway relaxation we applied the direct AEA metabolite arachidonic acid (AA, 10 µM) in the wire-myograph. This compound induced a strong airway relaxation similar to AEA (Fig. 2a). We also tested ethanolamine, the FAAH-dependent metabolite that is produced together with AA when AEA is degraded. Application of ethanolamine (10 µM) alone on basal airway tone induced a small bronchoconstriction (0.6 ± 0.4 mN, n = 7). Because AA can be further metabolized by cyclooxygenases (COX), 5-lipoxygenase (5-LOX) and CYP450 enzymes we also applied the respective pharmacological inhibitors in isometric force measurements with AEA, all inhibitors applied showed no effect on baseline tone. We found that the 5-LOX inhibitor nordihydroguaiaretic acid (NDGA, 10 µM) and the CYP450 inhibitor 17-octadecynoic acid (ODYA, 1 µM) had no effect, while the COX inhibitor indomethacin (Indo, 10 µM) strongly reduced AEA-dependent airway relaxation (Fig. 2a). These data suggest that AEA induces airway relaxation via its FAAH-dependent hydrolysis to AA and AA metabolites. COX can also directly metabolize AEA unrelated to FAAH-dependent hydrolysis to AA11. To corroborate that FAAH is involved in AEA-dependent relaxation we first combined inhibition of FAAH by URB597 and inhibition of COX by Indo and tested the bronchorelaxing effect by AEA. Our data reveal that the additional application of Indo did not further reduce AEA-dependent relaxation when compared with URB597 alone (Fig. 2a) indicating that COX is downstream of FAAH mediating this response. Next, we determined the effect of Indo on AA-induced bronchorelaxation to compare the effects of COX inhibition on AEA- and AA-induced bronchorelaxation. The results demonstrate that Indo reduces relaxation by AA to a similar extent as relaxation by AEA (Indo + AEA 33.9 ± 6.2% n = 8 (Fig. 2a); Indo+AA 27.3 ± 7.9% n = 6 (Fig. 2b), p > 0.05). Together with the almost complete abrogation of relaxation by URB597 (Fig. 1c) these data further confirm that COX acts downstream of AA in AEA-dependent airway relaxation. Of course we cannot rule out a contribution of direct COX-dependent metabolization of AEA completely. COX is known to generate the smooth muscle relaxants prostacyclin (PGI2) and prostaglandin E2 (PGE2) from AA and these compounds act via IP or EP receptors, respectively. Therefore, we then tested the contribution of these pathways to AEA-dependent airway relaxation. We found that IP, EP1, EP2, EP3, and EP4 receptors are all expressed in mouse trachea (Supplementary Fig. 2a). As activation of IP, EP2, and EP4 receptors has been already reported to mediate airway relaxation12,13 we analyzed their role in AEA-dependent tone decrease in detail. The IP receptor blocker CAY10441 (3 µM) had almost no effect on AEA-dependent relaxation. In contrast, the EP2 receptor blocker AH6809 (10 µM) and especially the combination of AH6809 and the EP4 receptor blocker L161,982 (2 µM) strongly diminished airway relaxation by AEA (Fig. 2c). These results indicate that AEA induces airway relaxation at least in part by EP2 and EP4 receptor activation.
AEA enhances PGE2 and cAMP production in airways
Since EP2/EP4-dependent airway relaxation by AEA is most likely induced by PGE2 we then quantified PGE2 generation in response to AEA application in trachea. For that purpose, tracheal rings were treated with AEA (10 µM) and the supernatant was collected after 0, 5, 15, and 30 min for ELISA measurements. We found increasing PGE2 concentrations in the supernatant over time resulting in a significant difference compared to solvent application after 30 min (Fig. 2d). Because PGE2 is known to evoke intracellular cAMP increases via EP2 and EP4 activation we have also assessed cAMP concentrations in tissue homogenates of AEA-treated tracheas. In these experiments we found elevated levels of cAMP 30 min after AEA application (10 µM) when compared to solvent control (Fig. 2e) as well. To identify the cell type/s generating PGE2 in trachea and to transfer our results to the human system we analyzed human tracheal epithelial cells (hTEPC) and human airway smooth muscle cells (hASMC). Immunostainings revealed FAAH expression in both cell types (Supplementary Fig. 2b, c). The specificity of the FAAH antibody was shown in HUVECs using a lentiviral shRNA strategy (Supplementary Fig. 2d). PCR analysis demonstrated EP2 and EP4 receptor expression in hTEPC (Supplementary Fig. 2e) and hASMC (Supplementary Fig. 2f). Cells were treated with AEA (10 µM) for 30 and 60 min and then supernatants as well as cell homogenates were used for ELISA measurements. PGE2 levels were found to be elevated in the supernatant of hTEPC after 60 min (Fig. 2f) and in hASMC after 30 and 60 min (Fig. 2g) indicating that both cell types can generate PGE2 in response to AEA treatment. Moreover, cAMP levels were enhanced in hASMC 60 min after AEA administration (Fig. 2h) confirming that AEA induces the production of the relaxant molecule cAMP in this cell type. These results demonstrate that the AEA-induced signaling pathway we identified in mouse trachea is also relevant in cells from human airways. CAMP is also a mediator of the adrenergic signaling pathway that physiologically induces airway relaxation. To test if FAAH-dependent airway relaxation is regulated by critical physiological mediators of airway tone we incubated mouse tracheal rings for 1 h with the adrenergic bronchorelaxant isoproterenol (ISO, 10 µM) or the cholinergic bronchoconstrictor agonist methacholine (MCh, 10 µM). Quantitative PCR (qPCR) and activity measurements revealed that both compounds had neither an effect on FAAH expression (Supplementary Fig. 3a, b) nor FAAH activity (Supplementary Fig. 3c) in the airways. Then, we also examined a potential functional interaction of ISO and AEA signaling during long-term treatment. Therefore, tracheal rings were incubated for 18 h in medium supplemented with or without AEA (10 µM) or ISO (10 µM) and then analyzed in the wire-myograph. Our results demonstrate that prolonged treatment with ISO reduced subsequent relaxation by ISO (Fig. 2i) but not by AEA (Fig. 2j), while incubation with AEA neither affected ISO (Fig. 2k)- nor AEA (Fig. 2l)-dependent tone decrease. These findings illustrate that there is no functional interaction of beta adrenergic and AEA/FAAH signaling related to bronchorelaxation. Interestingly, in contrast to airway relaxation by beta agonists AEA/FAAH-dependent bronchorelaxation is not subject to desensitization during long-term treatment.

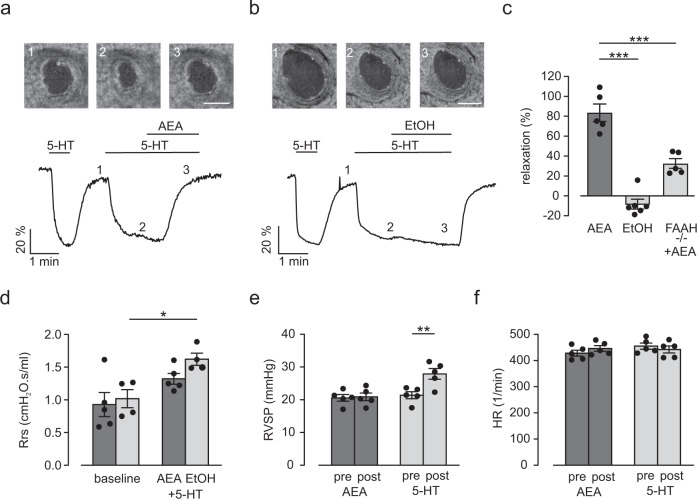

AEA induces airway relaxation in precision-cut lung slices and reduces airway resistance in vivo

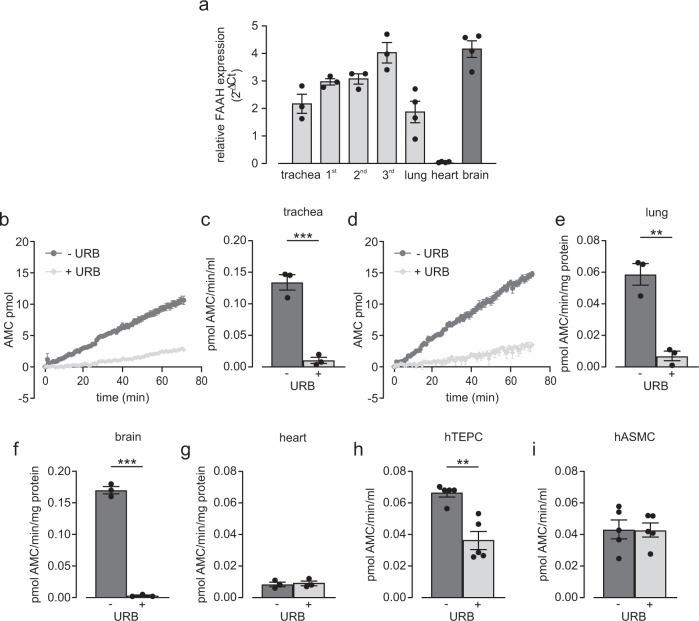

Then, we wanted to know if AEA also induces airway relaxation in smaller intrapulmonary airways. First, we analyzed FAAH expression along the airway tree and found increasing expression in higher generations of airways reaching similar levels as found in the brain, the positive control. Interestingly, FAAH was expressed much stronger in airways and lung when compared to the heart suggesting a functional role in the lung (Fig. 3a). FAAH expression does not necessarily correspond to FAAH activity. Therefore, we also examined FAAH activity in lung tissue and cells and used again brain and heart as positive and negative controls, respectively. Our data reveal that there is FAAH activity in mouse trachea (Fig. 3b, c), lung (Fig. 3d, e) and in particular in the brain (Fig. 3f) that can be abolished by the FAAH inhibitor URB597 (URB, 10 µM). Interestingly, we could not detect FAAH activity in the heart (Fig. 3g), which corresponds to low FAAH expression in this organ. We also found FAAH activity in hTEPC (Fig. 3h) but not in hASMC (Fig. 3i), which in the latter cell type is most likely due to FAAH activity below the detection limit of the assay. Then, we tested the functional effect of AEA on intrapulmonary airways. Therefore, we applied precision-cut lung slices in which changes of airway lumen area can be monitored by phase contrast microscopy. As expected serotonin (5-HT, 0.1 µM) induced bronchoconstriction, which is reflected by reduced lumen areas of intrapulmonary airways. After the additional application of AEA (10 µM, Fig. 4a, c) we found almost complete relaxation of intrapulmonary airways, the solvent EtOH had no effect (Fig. 4b, c). This response was not detected in lung slices derived from FAAH−/− animals again confirming the involvement of FAAH-dependent metabolites (Fig. 4c).
After we found that AEA induced relaxation in small intrapulmonary airways ex vivo we wondered if AEA may be also effective in vivo. To test this we assessed the effect of AEA on airway mechanics in anaesthetized and ventilated mice using the low-frequency forced oscillation technique using the flexiVent system. To minimize potential adverse effects we applied AEA (0.5 µg per mouse) to the lung via inhalation as an aerosol. When comparing AEA with the solvent EtOH these experiments demonstrate that starting from similar baseline resistances AEA prevented the increase of airway resistance in response to 5-HT (25 mg/ml) (Fig. 4d). For control, in another experiment we applied the non-hydrolyzable analog Met-AEA (0.5 µg per mouse) as an aerosol. As expected, this compound could not inhibit the elevation of airway resistance in response to 5-HT indicating that the bronchorelaxing effect of AEA is mediated via its FAAH-dependent metabolites also in vivo (Supplementary Fig. 4a). Even though we applied AEA to the lungs locally we wanted to rule out potential side effects on the pulmonary circulation. To exclude that inhalation of AEA affects pulmonary vascular pressure we monitored right ventricular pressure and heart rate using a small Millar catheter in the right ventricle of anaesthetized mice. AEA at the concentration found to reduce airway resistance (0.5 µg per mouse, Fig. 4d) was applied via a nebulizer. The analysis revealed that neither AEA nor the solvent EtOH affected right ventricular systolic pressure (RVSP) (Fig. 4e and Supplementary Fig. 4b) or heart rate (Fig. 4f and Supplementary Fig. 4c) thereby excluding adverse effects on the pulmonary circulation. As expected, positive controls demonstrated an increased RVSP by inhalation of the constrictor 5-HT (50 mg/ml) (Fig. 4e and Supplementary Fig. 4b), which confirmed the efficacy of aerosol application to the lung. Thus, inhalation of AEA prevents airway constriction in vivo without cardiovascular side effects.

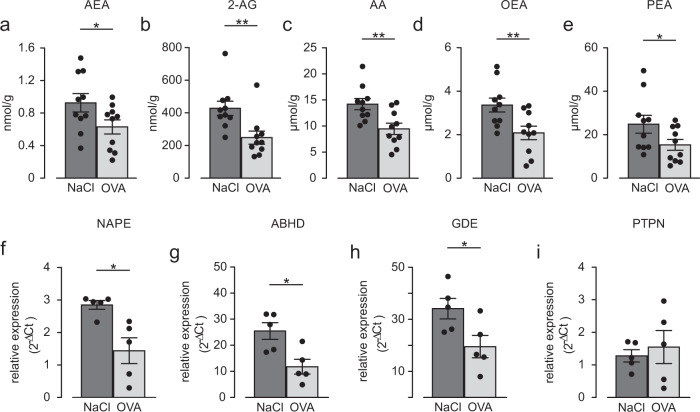

AEA levels and synthesis enzymes are reduced in the OVA-induced asthma model
As AEA is known to be endogenously produced within the body, we wondered if the airway relaxing effect of AEA may also play a pathophysiological role in airway regulation e.g. in obstructive airway disease. To investigate this we have chosen the well-characterized OVA-induced asthma model. Mice were sensitized and then the levels of endocannabinoids and fatty acid amides were quantified in lung homogenates by LC-MRM. These experiments revealed reduced concentrations of AEA (Fig. 5a) and also of 2-arachidonylglycerol (2-AG) (Fig. 5b), AA (Fig. 5c), oleoylethanolamine (OEA) (Fig. 5d), and palmitoylethanolamine (PEA) (Fig. 5e) in OVA-sensitized mice when compared to controls. We hypothesized that this may be due to reduced synthesis of the compounds. The main enzymes synthesizing AEA are N-acyl-phosphatidyl-ethanolamine phospholipase D (NAPE-PLD), a/b-hydrolase domain-containing protein 4 (ABDH4), glycerophosphodiesterase 1 (GDE1) and protein tyrosine phosphatase nonreceptor type 22 (PTPN22). These all we found to be expressed in airway tissues and cells such as trachea (Supplementary Fig. 5a), hTPEC (Supplementary Fig. 5b) and hASMC (Supplementary Fig. 5c) even though to a different extent. We again determined activity of NAPE-PLD, the best-characterized biosynthetic enzyme of AEA, in the lung (Supplementary Fig. 5d) and the control organs brain (Supplementary Fig. 5e) and heart (Supplementary Fig. 5f). In all tissues examined we found NAPE-PLD activity that could be strongly reduced by the inhibitor combination of LEI-410 (LEI, 33 µM) and bithionol (Bith, 15 µM)14,15 confirming the endogenous generation of AEA in particular in the lung. We also compared expression of these enzymes in the lungs of healthy and OVA-sensitized mice and found reduction of NAPE-PLD (Fig. 5f), ABDH4 (Fig. 5g), and GDE1 (Fig. 5h) but not PTPN22 (Fig. 5i) in asthmatic lung tissue. These results suggest that reduced expression levels of enzymes responsible for AEA synthesis in OVA asthma are related to diminished AEA tissue levels, which contributes to the hypercontractile phenotype of sensitized airways. Our endocannabinoid measurements in the lung revealed that also 2-AG levels were decreased in OVA-sensitized mice and 2-AG is also known to release AA upon hydrolysis. Therefore, we wondered if 2-AG can be a source of bronchorelaxing AA generation. To test this, we performed isometric force measurements in tracheal rings of mouse and found that 2-AG, in fact, induced a strong airway relaxation. However, this could neither be blocked by the monoacylglycerol lipase (MAGL) inhibitor MJN110 (MJN, 10 µM) nor the FAAH inhibitor URB597 (URB, 10 µM) (Supplementary Fig. 6a). To exclude that this is due to a lack of enzyme expression/activity of the 2-AG synthesis or degradation machinery in the lung we analyzed this and found DAGLalfa/beta expression (Supplementary Fig. 6b, c) as well as MAGL expression (Supplementary Fig. 6d) and activity (Supplementary Fig. 6e) in this organ, MAGL activity we also found in our control organs brain (Supplementary Fig. 6f) and heart (Supplementary Fig. 6g). These data indicate that airway relaxation by 2-AG is not mediated via AA; thus, bronchorelaxation via AA appears to be specifically induced by AEA.

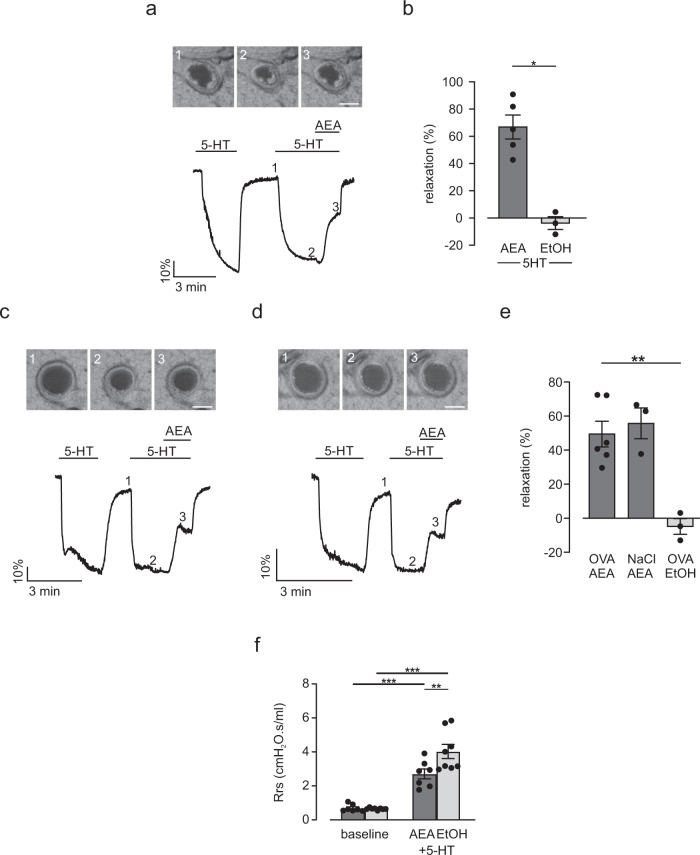

AEA induces airway relaxation and limits airway hyperresponsiveness in the OVA-induced asthma model
Due to diminished AEA tissue levels in asthmatic lungs we wondered if exogenous stimulation of the AEA/FAAH axis may also reduce airway tone in OVA asthma. First, we tested this in precision-cut lung slices ex vivo. Since our functional lung slice experiments shown in Fig. 4 had been exerted in C57BL/6 mice and OVA-dependent sensitization is mostly performed in Balb/c mice, we initially analyzed the effect of AEA in healthy Balb/c mice. As expected, also in this strain we found a prominent airway relaxation by AEA (Supplementary Fig. 6h, i). Then, we generated precision-cut lung slices of OVA-sensitized Balb/c mice. H&E stainings of cryosections confirmed the successful induction of acute and chronic asthma in these lungs by inflammatory cell invasion around the airways (Supplementary Fig. 6j–l). Next, we tested the functional effect of AEA on airway lumen area in precision-cut lung slices after induction of acute asthma. We found that AEA but not the solvent EtOH induced airway relaxation to a comparable extent as in healthy Balb/c mice (Fig. 6a, b). Also in the chronic OVA model we found a strong relaxation of intrapulmonary airways by AEA (Fig. 6c, e) but not the solvent EtOH (Fig. 6e); moreover, the relaxation was similar to that in non-sensitized control animals receiving NaCl instead of OVA (Fig. 6d, e). This indicates that the airway relaxing potential of AEA is preserved in asthmatic animals. To assess the effect of AEA on airway hyperresponsiveness in vivo, we again determined airway mechanics using low force frequency measurements in OVA mice. First baseline resistance was recorded and then AEA or EtOH were applied together with 5-HT as an aerosol via a nebulizer. We found that baseline resistances were similar in both groups of animals. When 5-HT was applied the concomitant administration of AEA strongly reduced the enhancement of airway resistance by 5-HT in OVA-sensitized mice when compared to control (Fig. 6f). Thus, AEA is a prominent airway relaxant in asthmatic mice ex and in vivo.
Discussion
Traditional Asian and African medicine applied cannabis in neurological disorders, infections and also lung disease such as bronchitis and asthma16. Also more recent reports suggest a potential beneficial effect of plant-derived THC in human asthmatics17 even though also deleterious effects of marijuana smoking have been found. However, it is unclear which of the ingredients of the plant is responsible for these reactions. Because cannabinoids can be also endogenously produced in the body and have an important role in organ homeostasis, we investigated the impact of the endocannabinoid AEA on tone regulation in healthy airways and the well-characterized OVA-induced asthma model. Our ex and in vivo results demonstrate that AEA induces a powerful airway relaxation in health and disease that is mediated by FAAH-dependent metabolites. While FAAH was previously only considered as an enzyme that inactivates AEA, there is now accumulating evidence by us and others that also FAAH-dependent AEA metabolites initiate important signaling pathways8,18. We found very strong FAAH expression in murine lung, in particular in the airways. FAAH expression levels in the airways are much higher than in other peripheral organs (e.g., heart). Our RNA and protein expression analyses reveal that FAAH is found in mouse and also human airway smooth muscle and epithelial cells. The relevance of FAAH signaling in the lung was also corroborated by FAAH activity measurements in lung tissues and cells. These findings suggest a potential key role for FAAH in airway function. FAAH is known to metabolize AEA to arachidonic acid (AA) which is then further degraded via cyclooxygenase (COX), lipoxygenase (LOX), and cytochrome P450 enzymes to various eicosanoids19. Also AA proved to be a very strong airway relaxant in our experiments while the other FAAH-dependent metabolite ethanolamine induced a small bronchoconstriction. Importantly, in our myograph experiments there was a net bronchorelaxing effect of AEA degradation to AA and ethanolamine indicating that the airway relaxing effect of AA strongly outweighs ethanolamine-dependent constriction. Interestingly, with NAAA there is also an alternative enzyme known that can degrade AEA20. It has been shown to be strongly expressed and to be active in the lung21,22. However, it is mainly localized in alveolar macrophages23 and therefore unlikely to regulate the tone of isolated healthy airways. In fact, our data show that NAAA inhibition does not affect AEA-dependent bronchorelaxation. A potential role of NAAA in asthmatic lung inflammation has to be investigated in future studies. Because we found that AEA evokes bronchorelaxation via its FAAH-dependent metabolite AA and because 2-AG can also release AA upon hydrolysis, we wondered if 2-AG can relax airways via its MAGL or FAAH-dependent degradation. However, our data suggest that 2-AG-dependent airway relaxation is not mediated via AA and future studies will have to characterize the underlying signaling pathway in detail. As direct mediator of AEA-induced airway relaxation we could identify PGE2 acting via EP2 and EP4 receptors. Accordingly, PGE2 has been reported to be a strong airway relaxant in human, mouse, pig, and monkey via these receptors before12,24,25.
The AEA/FAAH pathway may be also of pathophysiological relevance in the lung as we found reduced levels of AEA and other fatty acid amides in the lungs of OVA-sensitized mice. The lack of these compounds and/or their metabolites could contribute to airway hyperreactivity in this disease. As a short term effect of allergen instillation in humans enhanced AEA levels were found in the BAL after 24 h26. In the light of our results this could be considered as an acute compensatory reaction in the lung to limit tone increase. In any case this finding confirms that AEA is involved in allergen-dependent signaling in human lungs. As a potential reason for the long-term reduction of AEA levels in OVA-sensitized mice in our experiments we identified reduced expression of enzymes responsible for AEA production such as NAPE-PLD, ABDH4, and GDE127. This is in accordance with the reported diminished transcription of NAPE-PLD in response to inflammatory stimuli in macrophages28. While also other endocannabinoids may affect airway tone, the exogenous application of AEA or its FAAH-dependent metabolites can be an option to restore diminished AEA levels or metabolites to acutely counteract airway constriction. As a potential side effect, we have excluded pulmonary vasoconstriction of AEA inhalation in the lung at the concentration required for airway relaxation. Interestingly, similar to our finding for AEA also hypoxia has been reported to induce relaxation in airways29,30. In a previous study we could show that hypoxia evokes AEA production in the lung8. Hence it can be hypothesized that AEA is one of the mediators of this effect. Why AEA differentially regulates tone in pulmonary arteries and airways is currently unknown. One option may be different activities of COX, LOX and CYP450 enzymes in these tissues, but this aspect needs to be examined more in detail in future studies. Given that the AEA/FAAH pathway is not under control of beta adrenergic or cholinergic signaling it appears to be an additional endogenous airway tone modulating pathway with (patho)physiological relevance. This could be also of therapeutic value in airway obstruction. However, future studies will have to assess which mediator (AEA and/or metabolite/s) is best suited for in vivo application. Moreover, potential effects of AEA/FAAH signaling on other features of asthma are of interest. While acute single dose application of AEA in the current study was not expected to affect inflammation and remodeling this should be investigated in detail in a future approach with chronic AEA administration. In addition, a potential impact of AEA/FAAH signaling on other types of obstructive lung disease such as COPD may be of therapeutic relevance. Thus, we have identified the AEA/FAAH axis as an important determinant of airway tone and AEA as a strong bronchorelaxant in large and small airways in health and disease.
Methods
Isometric force measurements of murine trachea
Isometric force measurements were performed as described previously31,32. In detail, mouse tracheas were isolated and in some tracheas the epithelium was mechanically removed. Then they were cut into rings in cold low-calcium PSS, containing 118 mM NaCl, 5 mM KCl, 1.2 mM MgCl2, 1.5 mM NaH2PO4, 0.16 mM CaCl2, 10 mM glucose, and 24 mM Hepes (pH 7.4). Rings were mounted on a wire myograph (Multi Myograph 620 M, Danish Myo Technology, Aarhus, Denmark) and pre-stretched to 5 mN in PSS, containing 118 mM NaCl, 5 mM KCl, 1.2 mM MgCl2, 1.5 mM NaH2PO4, 1.6 mM CaCl2, 10 mM glucose, and 24 mM Hepes (pH 7.4). After equilibration for 20 min maximal constriction was induced by 5-HT (10 µM, 8367.1, Carl Roth, Germany) or methacholine (MCh, 10 µM, A2251, Sigma-Aldrich, Germany). For analysis LabChart 8 (ADInstruments, Oxford, UK) was used. Forces were determined 3 min after drug application. These drugs were used: Anandamide (AEA, 1339, Tocris, Germany), arachidonic acid (AA, 90010, Cayman Chemical, USA), AH6809 (AH, 14050, Cayman Chemical, USA), 2-Arachidonylglycerol (2-AG,1298, Tocris, Germany), ARN726 (ARN, 24259, Cayman Chemical, USA), CAY10441 (CAY, 10005186, Cayman Chemical, USA), Indometacin (Indo, 70270, Cayman Chemical, USA), KCl (P9333, Sigma-Aldrich, Germany), L-161,982 (L, 10011565, Cayman Chemical, USA), MJN110 (MJN, 17583, Cayman Chemical, USA), Nordihydroguaiaretic Acid (NDGA, 70300, Cayman Chemical, USA), 17-Octadecynoic acid (ODYA, 90270, Cayman Chemical, USA), URB597 (URB, 10046, Cayman Chemical, USA).
Short and long-term treatment of tracheal rings
For qPCR and FAAH activity assays short term incubation of tracheal rings (qPCR: 4 h, 37 °C; activity assay: 1 h, 37 °C) was performed in PSS with or without isoprenaline (ISO, 10 µM), acetyl-β-methylcholine chloride (MCh, 10 µM, A2251, Sigma-Aldrich, Germany) or URB597 (10 µM, 10046, Cayman Chemical, USA). In order to test a potential functional desensitization in response to ISO (10 µM) or anandamide (AEA, 10 µM, 1339, Tocris, Germany) long-term incubation of tracheal rings (18 h, 37 °C) was performed in Dulbecco’s modified eagle´s medium (DMEM) containing 10% fetal calf serum (FCS), 1% penicillin/streptomycin (P/S), 1% non essential amino acids and 0.1% β-mercaptoethanol. After that tracheal rings were transferred to the wire-myograph and isometric force measurements were executed.
Precision cut lung slices
Precision cut lung slices were generated as described previously33,34. In detail, mice were sacrificed, the trachea was cannulated and the lungs were filled with a warm solution of 4% low-melting point agarose (6351.5, Carl Roth, Germany) by use of a Saf-T-Intima catheter (Becton Dickinson GmbH, Germany). The agarose was flushed into the alveoli by a small volume of air. Warm gelatin solution (6%, G2500, type A, porcine skin; Sigma-Aldrich, Germany) was applied into the pulmonary vasculature via the right ventricle in order to fill small arteries. After gelling of agarose and gelatin at 4 °C in a fridge, lungs were removed and single lobes were separated. 200 µm thick lung slices were cut using a vibratome (VT1200S, Leica, Germany) and then they were incubated over night at 37 °C in serum-free medium. The next day, slices were studied by perfusion with pharmacological compounds on the stage of an inverted microscope. Pictures of small intrapulmonary airways were taken with a CCD camera. Changes in lumen area of the small airways were determined by a custom-written software (Lumen Calc 2.4, National Instruments, Texas, USA).
Cell culture
Human tracheal epithelial cells (hTEPC, SC-3220), human airway smooth muscle cells (hASMC, SC-3400), human umbilical vein endothelial cells (HUVEC, SC-8000) were obtained from Provitro (Provitro AG, Berlin, Germany). They were cultivated in medium supplied by the manufacturer. All cell lines were passaged once a week until passage 9. To detach the cells, accutase™ solution (hTEPC, HUVEC) (SCR005, STEMCELL Technologies Germany GmbH, Germany) or Trypsin/EDTA (hASMC) (0.05%, 25300-054, Thermo Fisher Scientific, USA) was used.
Reverse transcription PCR
RT-PCR was performed as described before35,36. In detail, for reverse transcription PCR (RT-PCR) experiments total RNA of hTEPC, hASMC and mouse tracheas was extracted with the Direct-zol RNA Miniprep Kit (Zymo Research, Germany). CDNA was generated using the SuperScript VILO Kit (Invitrogen, USA). Following primers were applied: murine FAAH: 5′-CTCTGGGTTTAGGACCTGAC-3′ (forward) and 5′-GAGTGGGACTGGTGTAGTTG-3′ (reverse); murine CB1: 5′-TCGCTGCCTCTACCTTCTCC-3′ (forward) and 5′-AGGCCAGGCTCAACGTGAC-3′ (reverse); murine CB2: 5′-GGACAAGGCTCCACAAGAC-3′ (forward) and 5′-GCTGCTGATGAACAGGTACG-3´ (reverse); murine IP: 5′-CAGTCTCATGGCCCTGTTG-3′ (forward) and 5′-CACCCAGCTCCCTTCCTTAG-3′ (reverse); murine EP1: 5′-CCTCGTCTGCCTCATCCATC-3′ (forward) and 5′-GAAACCACTGTGCCGGGAAC-3′ (reverse); murine EP2: 5′-GAAGAAGCCGCTGCGGATTG-3′ (forward) and 5′- ACTGGCACTGGACTGGGTAG-3′ (reverse); murine EP3: 5′-CTTCGCTGAACCAGATCTTG-3′ (forward) and 5′-CTTCACAGGAACCAGCTAAC-3′ (reverse); murine EP4: 5′-GATGAACGGCCTCAGGTCAG-3′ (forward) and 5′-CTCAGGCCTCAGATGTTCAGG-3′ (reverse); murine GAPDH: 5′-GTGTTCCTACCCCCAATGTG-3′ (forward) and 5′-CTTGCTCAGTGTCCTTGCTG-3´ (reverse); human EP2: 5′-TTGTTCCACGTGCTGGTGAC-3′ (forward) and 5′-AGGATGGCAAAGACCCAAGG-3′ (reverse); human EP4: 5′-TCCTGCCAGACCTCTCACTG-3′ (forward) and 5′-GTCATAGTGGGGTAGCATCCG-3′ (reverse); human GAPDH: 5′-CCATCACTGCCACCCAGAAG-3´ (forward) and 5′-CCACCACCCTGTTGCTGTAC −3′ (reverse).
Quantitative PCR
HTEPC and hASMC as well as mouse tracheas, lungs, hearts and brains were homogenized in TRIzol (Invitrogen, USA) using the TissueLyser LT (Qiagen, Germany). RNA was extracted with the Direct-zol RNA Miniprep Kit (hTEPC, hASMC, trachea, Zymo Research, Germany) or TRIzol reagent (lung, heart, brain). For cDNA generation the SuperScript VILO Kit (Invitrogen, USA) was used. For expression analysis QuantiTect Primer Assays (Qiagen, Germany) for ABDH4 (QT00112917), DAGLα (QT00167706), DAGLβ (QT00173453), FAAH (QT00149520), GDE1 (QT00160552), NAPE-PLD (QT00141729), MAGL (QT01163428), and PTPN22 (QT00103943) were applied. As housekeeper 18s rRNA (QT01036875) was used. QPCR was performed with the CFX96 Touch Real-Time PCR Detection System (Bio-Rad Laboratories GmbH, Hercules, CA, USA).
PGE2 and cAMP ELISA
Mouse tracheas were isolated and cut into three rings in cold low-calcium PSS. HTEPC and hASMC were cultivated on 6-well plates until they reached 90% confluency. Then, tracheal rings or cells were incubated in PSS containing 3-Isobutyl-1-methylxanthin (IBMX, 10 µM, 15879, Sigma-Aldrich, Germany) for 30 min at 37 °C. After that, AEA (10 µM, 1339, Tocris, Germany), ethanol or forskolin (positive control for cAMP, 10 µM, F6886, Sigma-Aldrich, Germany) were applied. For PGE2 measurements the supernatant was collected after further 5, 15 or 30 min (tracheal rings) or 30 or 60 min (cells). For cAMP measurements the same samples were used: Tracheal rings were lysed in HCl (0.1 M)/Triton X-100 (0.5%) with the help of two 7 mm stainless steel beads in the TissueLyser LT. Cells were also lysed with HCl/Triton X-100. Then, samples were centrifuged with 15,871×g for 10 min at 4 °C and the supernatant was further treated with ultrasound in an ice-cold bath for 15 min. Total protein concentration of all samples was determined with the Pierce BCA Protein Assay Kit (23225, Thermo Fisher Scientific, USA). PGE2 was quantified in the supernatants using the Prostaglandin E2 ELISA Kit – Monoclonal (514010, Cayman Chemical, USA) and cAMP concentrations of tissue or cell lysates were determined with the Direct cAMP ELISA Kit (ADI-900-006, Enzo Life Sciences, Germany) according to the manufacturer’s instructions.
Histology
After isometric force measurements, tracheas were kept in Z-Fix for 24 h at 4 °C and then rinsed with water for 1 h. Tracheas were stored at 4 °C in 70% ethanol until paraffin embedding. In all, 10 µm thin slices were generated by a microtome (Leica, Germany) and H&E staining was performed. Tracheal sections were investigated with an Axiostar plus microscope and pictures generated with the AxioVision Rel. 4.8 software (Carl Zeiss, Germany).
Activity assays of FAAH and MAGL
In order to determine FAAH or MAGL activity the FAAH activity assay kit (fluorometric) (ab252895, abcam, United Kingdom) or the MAGL activity assay kit (fluorometric) (ab273326, abcam, United Kingdom) was used according to manufacturer´s instructions. Mouse tissues (lung, trachea, brain and heart) were isolated, cut into small pieces and transferred into PSS with or without the FAAH inhibitor URB597 (10 µM, 10046, Cayman Chemical, USA) or the MAGL inhibitor MJN110 (10 µM, 17583, Cayman Chemical, USA). After incubation for 1 h at 37 °C tissues were transferred to 120 µl assay buffer with or without the inhibitors and lyzed with the help of two 7 mm stainless steel beads in a TissueLyser LT (Qiagen, Germany). Afterwards samples were kept on ice for 10 mins, centrifuged at 10,000×g for 5 min at 4 °C and supernatant was transferred to a fresh tube. Total protein concentration was determined with the Pierce BCA Protein Assay Kit (Thermo Fisher Scientific, USA). For FAAH activity measurements of cells hASMC (50,000) and hTEPC (90,000) were seeded on a T-25 culture flask. After 6 days culture medium was changed to PSS with or without URB597 (10 µM, 10046, Cayman Chemical, USA) and the cells were incubated for 1 h. Then, cells were detached by a scraper, centrifuged and resuspendend in 120 µl assay buffer. After lysis in the TissueLyzer LT (see above) 50 µl of the supernatant was used for activity measurements. Fluorescence was recorded over time by a Tecan Infinite M1000 Pro reader (i-control software, Tecan Austria GmbH, Austria).
NAPE-PLD surrogate substrate activity assay
The NAPE-PLD activity assay was performed in accordance to a previously described method with small changes37. Mouse tissues (lung, brain and heart) were isolated and cut into small pieces. These were incubated in PSS for 1 h (37 °C) with or without the NAPE-PLD inhibitor combination LEI-401 (LEI, 33 µM, 31108, Cayman Chemical, USA) and bithionol (Bith, 15 µM, 31622, Sigma-Aldrich, Germany) that was recently reported to provide prominent NAPE-PLD inhibition in HEK293 and HepG2 cells14,15. Then samples were transferred into assay buffer (50 mM Tris-HCl pH 7.5, 150 mM NaCl, and 0.02% v/v Triton X-100) containing the inhibitors and lyzed by 7 mm stainless steel beads in a TissueLyser LT. Supernatant was transferred to a fresh tube. A 1 mM stock solution of the substrate PED6 (Invitrogen, D23739) in DMSO was prepared and further diluted in DMSO (1/10) and assay buffer (1/10) to generate the 10 µM working solution. NAPE-PLD activity measurement was performed at a PED6 concentration of 1 µM in a final volume of 100 µl within a black Greiner 96-well plate (flat bottom). Fluorescence was measured using a Tecan Infinite M1000 Pro reader at 37 °C. Assay buffer with or without the inhibitors was used for background substraction. The enzymatic rate (relative fluorescence units (RFU)/min) was determined in the linear range of the curves and normalized to the protein content of the samples.
Immunohistochemistry
HTEPC, hASMC or HUVEC were cultivated on glass cover slips until 75% confluency. Tracheal cryosections were generated by a cryotome. After permeabilization with Triton X-100 (0.2%, v/v) (Carl Roth, Germany) cells or sections were blocked with donkey serum (5%, w/v). For immunohistochemistry, primary antibodies against fatty acid amide hydrolase (FAAH) (sections: 1:50, 101600, Cayman) (1:100) and α-smooth muscle actin (asmac) (1:800, A5228, Sigma-Aldrich, Germany) were used. Secondary antibodies conjugated with Cy3 and Cy5 (1:400, 711-175-152, Jackson ImmunoResearch Laboratories, USA) were applied. For nuclear staining Hoechst 3342 (1:1000, B2261, Sigma-Aldrich, Germany) was used.
Liquid chromatography-multiple reaction monitoring (LC-MRM) experiments of endocannabinoids
LC-MRM measurements were performed as described before8. In detail, frozen lung lobes were homogenized in cold extraction tubes with ceramic beads containing spiking solution (deuterated endocannabinoids in acetonitrile), 0.1 M formic acid (buffer) and ethylacetate/hexane (9:1). After homogenization with Precellys 24 samples were centrifuged and kept at −20 °C for 10 min to freeze the aqueous phase. Then, the upper organic phase was recovered, evaporated under a gentle stream of nitrogen at 37 °C and reconstituted in a solution of water/acetonitrile (1:1). The aqueous phase was used for determination of protein concentration. For LC-MRM, samples were injected and separated on a Phenomenex Luna 2.5-µm C18(2) HST column combined with a SecurityGuard precolumn (Phenomenex Inc., USA). Separated endocannabinoids were flow-through analyzed by MRM with the 5500 QTrap triple-quadrupole linear ion trap mass spectrometer armed with a Turbo V Ion Source (AB Sciex Germany GmbH, Germany). For quantification of the endocannabinoids in lung tissues, triplicate calibration curves were used. Protein concentrations of lung samples were determined using the Pierce BCA Assay Kit (Thermo Fisher Scientific, USA) and the endocannabinoid concentrations were normalized to total protein.
Ovalbumin-induced asthma model
For acute asthma experiments, 8 weeks old female Balb/c (Janvier Labs, France) mice were sensitized on days 0 and 14 with 20 µg ovalbumin (OVA, A5503, Sigma-Aldrich, Germany) or NaCl (control) supplemented with 2 mg/ml Imject Alum (77161, Thermo Fisher Scientific, USA) by i.p. injection of 100 µl per mouse. On days 21, 22 and 23 the mice were challenged for 30 min by nebulization of 1% OVA (5 ml) or NaCl (control). On days 24 and 25 analysis was performed. For chronic asthma, OVA challenge was continued for 2 more weeks (days 28–30, 35–37). Then, analysis was performed on days 38 and 39.
Lung function measurements
Lung function experiments were performed with the flexiVent system (Scireq, Canada) using the Flexiware 8 software as described previously38. In detail, 30 min before anesthesia carprofen (5 mg/kg s.c.) was applied. Mice were anesthetized by an i.p. injection of fentanyl (50 µg/kg), medetomidine (0.5 mg/kg), and midazolam (5 mg/kg). As a muscle relaxant vecuronium (0.1 mg/kg) was used. After tracheotomy, the trachea was cannulated and mice were ventilated with a tidal volume of 10 ml/kg at 150 breaths/min and a positive end-expiratory pressure of 2.5 cmH2O. An airway recruitment maneuver, consisting of two deep inflations, was performed before the measurements. Airway resistance was automatically calculated by the flexiWare 8 software. To challenge the airways, either a solution of AEA (0.5 µg/mouse, 10 µl, 1% EtOH in 0.9% NaCl) in 5-HT (25 mg/ml, 8367.1, Carl Roth, Germany), Met-AEA (0.5 µg/mouse, 10 µl, 1121, Tocris, Germany, 1% EtOH in 0.9% NaCl) in 5-HT (25 mg/ml) or the solvent ethanol in 5-HT (25 mg/ml) was applied as an aerosol via a nebulizer (AG-AL1100, Aerogen, Ireland).
Right ventricular catheter measurements
Catheter measurements were performed as described previously33. Briefly, analgesia was induced by ketamine (50 mg/kg, i.p.) and xylazine (5 mg/kg, i.p.) and anesthesia was performed with 1.5% isoflurane (3% for induction, 1.5% during experiment). Then mice were intubated and ventilated by a rodent ventilator (Minivent, Hugo Sachs Elektronik, Germany). The thorax was opened and a Millar catheter (1 F) (Millar, USA) was inserted into the right ventricle. Pressure was recorded with the Millar Aria 1 system and either AEA (0.5 µg/mouse, 50 µl) or EtOH (1%, 50 µl) was applied as an aerosol via a nebulizer (AG-AL1000). For analysis, the LabChart 8 software was applied and pressure values at 2 min after application were determined. As positive control 5-HT (50 mg/ml) was nebulized at the end of each experiment. Only mice with a heart rate of more than 400 beats per min were analyzed.
Animals
Animal experiments were performed in compliance with the guidelines of the German law and were approved by the LANUV (Landesamt für Natur, Umwelt und Verbraucherschutz NRW, Germany). For experiments 8- to 12-week-old female C57BL/6J (Charles River, Germany) and Balb/c (Janvier Labs, France) mice were used. Female FAAH−/− 39 and Cnr1/Cnr2−/− 40 mice (both C57BL/6 background) with an age of 8- to 12-weeks were kindly provided by the Institute of Molecular Psychiatry of the University Hospital Bonn. All mice were housed in standard cages on a 12 h light-dark cycle at 21 °C and 50% humidity and had ad libitum access to food and water. Mice were monitored on a daily basis. Euthanasia was performed by cervical dislocation, then, organs were removed and further processed.
Statistical analysis
Statistical analysis was performed using GraphPad Prism 5.0 (GraphPad Software, San Diego, USA) or Excel 365 (Microsoft), and data are indicated as mean ± SEM. Figures were generated with Corel Draw 18 (Corel Corporation, Ottawa, CA). Wire myograph measurements were fitted to a sigmoidal dose-response curve with variable slope. Statistical differences of more than two experimental groups were determined by one or two way (repeated measures) ANOVA together with Tukey’s or Bonferroni’s post hoc test. For comparison of two groups, unpaired, two-tailed Student’s t test was used. Differences were considered significant when P < 0.05, *p < 0.05, **p < 0.01, ***p < 0.001.
Reporting summary
Further information on research design is available in the Nature Research Reporting Summary linked to this article.
Supplementary information
Untitled section
Appendix Group
Appendix
Source data
Supplementary information
The online version contains supplementary material available at 10.1038/s41467-022-34327-0.
Acknowledgements
We thank Caroline Geisen and Patricia Freitag (University of Bonn, Germany) for help with primer design and Andreas Zimmer (University of Bonn, Germany) for providing FAAH−/− and Cnr1/2−/− mice. We are grateful to Sarah Rieck (University of Bonn, Germany) for support with lentiviral transduction. In addition, we thank Claudia Schwitter (University of Mainz, Germany) and Stefanie Darnauer (University of Bochum, Germany) for excellent technical assistance. The project was funded by the Deutsche Forschungsgemeinschaft DFG (German Research Foundation, No. WE4461/1-1) to D.W. We acknowledge support by the DFG Open Access Publication Funds of the Ruhr-Universität Bochum.
Peer review
Peer review information
Nature Communications thanks Kevan Roberts and Mauro Maccarrone for their contribution to the peer review of this work. Peer reviewer reports are available.
Funding
Open Access funding enabled and organized by Projekt DEAL.
Data availability
All data supporting the findings from this study are available within the manuscript and its supplementary information. Source data are provided with this paper.
Competing interests
The authors declare no competing interests.
