Tracking metal presence in cannabis vaping products from source to inhalation
National Research Council Canada, Metrology, 1200 Montreal Rd., Ottawa, ON K1A 0R6 Canada
Natural Resource Canada, 601 Booth St., Ottawa, ON K1A 0E8 Canada
Tobacco Control Directorate, Controlled Substances and Cannabis Branch, Health Canada, 150 Tunney’s Pasture Driveway, Ottawa, K1A 0K9 ON Canada
Office of Cannabis Science and Surveillance, Controlled Substances and Cannabis Branch, Health Canada, 150 Tunney’s Pasture Driveway, Ottawa, ON K1A 0K9 Canada
Abstract
Vaping cannabis liquids is a convenient method of cannabis consumption, and is considered to be a less harmful alternative to smoking cannabis. However, vaping cannabis carries its own health risks, with many uncertainties, especially concerning the presence of metal particles in vape liquids. The heterogeneous distribution of these particles within the liquid matrix poses analytical challenges in measurement reproducibility. In this study, total metals analysis was performed on five samples from six different legal Canadian cannabis vape liquid products. The results indicated that metals from the vaping device components, cobalt (Co), nickel (Ni), and zinc (Zn) significantly contributed to within-batch variability. In contrast, all analyzed metals showed significant variability among tested products. Single-particle ICP-MS detected metal particles of aluminum (Al), Co, chromium (Cr), copper (Cu), Ni, tin (Sn), and Zn in the vape liquids. To assess potential consumer exposure, cannabis cartridges were vaped using a vaping machine and the resulting aerosol was analyzed. Although the number of detected emitted particles was below the limit of quantitation, all samples produced aerosols containing metal particles of Co, Cr, Ni, lead (Pb), Sn, and Zn. Further analysis using SEM-EDS on the emptied cartridges showed cracking on the connector pin of an unused device, suggesting a potential source of contamination during use and storage. The elemental composition of the metal components in the cartridges matched the detected particles, providing strong evidence that cannabis vape liquids are contaminated by the metal components of vaping devices.
Supplementary Information
The online version contains supplementary material available at 10.1038/s41598-025-17004-2.
Untitled section
Keywords: Cannabis vape liquids, Metal nanoparticles, Single particle ICP-MS, Aerosol characterization, Heavy metals, Vape cartridge contamination, Trace element analysis, Public health exposure
Untitled section
Subject terms: Risk factors, Chemistry, Nanoscience and technology
Article notes
Untitled section
Received 2025 Jun 27; Accepted 2025 Aug 20; Collection date 2025.
Introduction
Cannabis vape cartridges are electronic devices designed to produce an aerosol for vaping cannabis. The aerosol is generated by heating a resistance coil with a battery, causing the cannabis vape liquid to volatilize for inhalation. Unlike traditional cannabis smoking, which involves combustion, cannabis vape devices allow for prolonged use, are portable, discrete, and offer temperature control. They also do not produce strongly odorous smoke, and added flavors can enhance the taste of the aerosol. Additionally, vaping is considered a less harmful alternative to smoking because it does not involve combustion and generation of polycyclic aromatic hydrocarbons, which are known carcinogens and mutagens, among other harmful chemicals. These factors make vaping cannabis liquids a convenient and appealing method of cannabis consumption, contributing to the growing popularity of cannabis vaping1,2.
However, despite being considered less harmful than smoking, vaping still poses health risks, some of which are still being discovered. The cannabis plant is a known hyperaccumulator of metals3, leading to regulatory limits on metal contaminants in many jurisdictions where cannabis production is regulated. For example, in Canada, the Cannabis Regulations require cannabis products to meet the generally accepted tolerance limits for chemical contaminants based on Pharmacopoeia standards4. For cannabis vape liquids, these reference standards set maximum permitted levels (permitted daily exposures) for 24 elemental impurities5. In establishing these levels, inhalation studies using soluble salts (when available) were preferred over studies using particulates for inhalation safety assessment and derivation of the inhalation permitted daily exposures5; however, evidence suggests that cannabis vape liquids can also contain metals in particulate form6,7. Although substantial studies on human or animal exposures to vaped cannabis aerosols are lacking, evidence available to date on inhaled metal nanoparticles (NPs) shows they can penetrate deep into the lungs, triggering respiratory inflammation, and due to their high reactivity, may also affect extrapulmonary organs8,9.
Metal contamination in vape liquids, whether cannabis- or nicotine-based, is generally assumed to occur during manufacturing, which is why it is important to test products before sale and first use or activation. However, recent studies have shown that metals can also leach into nicotine vape liquids during operation10,11, providing clear evidence that contact with metal components in the device during use can contribute to contamination. Unfortunately, information regarding the metal composition of the individual device components is not disclosed publicly and can be difficult or impossible to find, making it challenging to trace the sources of metal contaminants in vape liquids without an analysis of the elemental composition of the device components. While some studies have investigated the elemental composition of vape devices12–15 or reported signs of corrosion16, the rapid evolution of vape device designs makes it challenging to generalize these findings.
The presence of metal contaminants in vape liquids raises potential health concerns. However, contamination alone does not necessarily imply exposure, as metals may not be transported into the aerosol which is inhaled. Nonetheless, experiments with nicotine vape pens have demonstrated the presence of metal contaminants in aerosol, in both ionic17 and particulate16 forms. While these studies have limitations and may not always be directly comparable, they indicate that consumers are indeed exposed to metals through inhalation when vaping nicotine products. Similar studies have yet to be conducted on cannabis vape liquids. To date, only a few publications have investigated metal contaminants in cannabis products6,7,18,19, reporting metals typically associated with resistance wires and other metal components of vaping devices. Poor reproducibility between repeated samples of the same product has been observed in these studies, which could be due to the heterogeneous distribution of metal NPs in the vape liquid. A recent publication using an analytical method for detecting metal NPs in cannabis vape liquids confirmed that these products can contain significant number of metal NPs7.
This publication examines the variability in metal content among cannabis vape cartridges within the same production lot, aiming to assess how representative the analysis of individual cartridges is for the entire batch. To date, no studies have evaluated both within-batch and between-product variations, an important gap with implications for regulatory agencies and the development of robust sampling protocols. Additionally, the presence and composition of metal NPs in cannabis vape liquids and their resulting aerosols are analyzed using single-particle inductively coupled plasma mass spectrometry (sp-ICP-MS). Existing data on aerosol composition remains limited, and current collection protocols present significant challenges. Here, we introduce a simplified aerosol collection method using a cannabis matrix-compatible solvent. To help identify the source of detected metal NPs, components of cannabis vape devices are also analyzed for their elemental composition using scanning electron microscopy coupled with energy-dispersive X-ray spectroscopy (SEM-EDS).
Materials and methods
Chemicals and reagents
Analytical grade nitric acid (HNO3) (J. T. Baker, VWR) was purified in-house by sub-boiling distillation using a high purity quartz still (duoPUR, Milesone) in a class 100 clean room and used for all aqueous sample and standard preparations. Elemental stock standards (1−100 ng g− 1) from Inorganic Ventures were obtained from Delta Scientific (Canada) and contained V, Cr, Mn, Co, Ni, Cu, Zn, As, Se, Mo, Cd, Hg, Tl, Pb, Ru, Rh, Pd, Sn, Sb, Te, Hf, Ir, Pt, and Au, which were traceable to NIST- standard reference material (SRM). Conostan S-21 multi-elemental standard (100 mg kg− 1), PremiSolv solvent, and HU-1 (used oil) reference material were obtained from SCP Science (Canada). Dodecanethiol and propylene glycol monomethyl ether (PGME) were obtained from Millipore-Sigma (Canada), and toluene and trichloromethane were obtained from Fisher Scientific (Canada). Citrate-stabilized 60 nm silver (Ag) nanoparticles (BioPuire™, 59 ± 6 nm, 1 mg mL− 1) and polystyrene coated 100 nm gold (Au) NPs (NanoXact™, 95 ± 13 nm, 1 mg mL− 1) in toluene were obtained from NanoComposix (USA). A standard solution of Au (1000 mg kg− 1) in hydrocarbon oil was obtained from LGC (UK). NIST SRM 1634c (trace elements in fuel oil) was obtained from National Institute of Standards and Technology (USA). Fish protein certified reference material (NRC DORM-5 CRM) was obtained from the National Research Council Canada. Cannabis samples were purchased from the Ontario Cannabis Store (www.ocs.ca) and available information on THC/CBD content, method of extraction, and additives can be found in Table 1. Deionized water (> 18 MΩ cm Milli-Q Element, Millipore) was used in all experiments.
| Sample ID | Packaging date | Amount (g) | THC | Total THC | CBD | Total CBD | Extract type | Ingredients |
|---|---|---|---|---|---|---|---|---|
| A | 17-Jul-22 | 1 | 838.6 | 838.6 | < 2.5 | < 2.5 | CO2 | Cannabis extract, botanical terpenes |
| B | 14-Nov-22 | 1 | 800 | 800 | 0 | 0 | CO2 | Cannabis distillate, botanical terpenes |
| C | 15-Nov-22 | 0.95 | 835 | 835 | 1.9 | 2.2 | EtOH | Cannabis distillate, botanical terpenes |
| D | 15-Aug-22 | 0.4 | 783.61 | 783.61 | < 5.00 | < 5.00 | EtOH | THC distillate, flavouring agents |
| E | 29-Nov-22 | 1 | 860 | 860 | 2 | 2 | CO2 | Cannabis distillate, natural flavouring |
| F | 27-Jul-22 | 1 | 847.3 | 847.3 | 3.4 | 3.4 | CO2 | Cannabis extract, terpenes, natural flavours |
Cannabis vape liquid collection
Using two separate vice grips, the mouthpiece of the vape cartridge was carefully removed from the body. The remainder of the cartridge, containing the cannabis vape liquid, was inverted and placed in a disposable 5 mL pipette tip, with the tip positioned within a 2 mL Eppendorf vial. This entire assembly was secured inside a 50 mL centrifuge tube and centrifuged at 4000 g for 5 min. Due to variations in the viscosity of the cannabis vape liquids, cartridges were inspected after each 5 min cycle to determine if additional cycles were required. Once most or all of the liquid had been collected in the Eppendorf vial, the vial was sealed and stored at room temperature until analysis.
Aerosol generation
Aerosol was generated using a CETI-8, eight port vaping machine (Cerulean, USA), equipped with automatic button activator. Most of the vape pens (vape cartridge connected to a battery for operation) were connected to the vaping machine using standard 7.50–10.00 mm mouthpiece adaptors. Custom adaptors were 3D printed and customized in the laboratory to ensure an appropriate seal around the mouthpiece for the samples requiring non-standard mouthpiece adaptors. Vape cartridges were kept upright for at least 24 h before vaping to allow the viscous liquid to cover the maximum contact surface of the heating coil. The ISO 20768:2018 vaping regime was followed to generate the aerosols and consisted of the following puffing parameters: puff duration = 3 s, puff volume = 55 mL, and puff interval (time delay between puffs) = 30 s. Products were vaped at a 45° angle. Accurate puff volume was verified using calibrated soap bubble meters (Cerulean, USA). Each sample was used to generate 30 or 50 puffs per puffing session. Puffing sessions for certain samples, where sample volume allowed, were repeated 3 or 5 times for a total of 150 puffs for 510-thread cartridges or 250 puffs for closed-pod cartridges, with a 10 min rest period between puffing sessions. For each experiment, products were vaped until the majority of sample and/or sufficient concentrate had been consumed and the aerosol was collected using two impingers connected in tandem, each containing 30 mL of PremiSolv. The outflow of the second impinger was connected to a HEPA filter. All aerosol capture experiments were performed in triplicate except sample A. Air blanks were obtained by setting up the same experimental collection system without connecting a vape pen and drawing in ambient air during the vaping process. After aerosol was collected, all pieces of connector tubing, the mouth piece and impingers were step-wise rinsed thoroughly with MilliQ water, methanol, and hexane. A conditioning puffing regime was carried out before each puffing session in order to prime and activate the devices. The batteries of the vaping devices were always fully charged (100%) before starting a puffing regime.
Scanning electron microscopy analysis
Scanning electron microscope (SEM) imaging and chemical analysis via energy dispersive X-ray spectroscopy (EDS) were performed at the Geological Survey of Canada’s Microbeam Laboratory using a Zeiss EVO 50 SEM equipped with an Oxford Instruments X-Max 150 silicon drift X-ray detector. Uncoated samples were analyzed in variable pressure mode at a chamber pressure of 10 Pa. Analytical conditions included an accelerating voltage of 20 kV, a probe current of 750 pA, and a working distance of 8.5 mm. X-ray mapping was conducted using a pixel dwell time of 5 ms. Spot EDS analyses were performed on features of interest based on the X-ray map results using an analysis time of 3 s.
Results and discussion
Total metals analysis
The mass fractions of the measured Class 1 contaminants (As, Cd, and Pb) in the studied cannabis vape liquids were within the Pharmacopoeia tolerance limits5. The highest As mass fraction (17.6 ± 20.4 µg kg− 1, Table S1) was observed in a single sample, while the median mass fractions were generally below 5 µg kg− 1 (Table 2). Cadmium was detected above the method’s LOD (0.49 µg kg− 1) in only half of the studied samples, with the highest mass fraction reaching 3.20 µg kg− 1 (Table S1). Lead was detected in one full set of samples (Sample D) but remained below the LOD in several cartridges within each set or across entire sets. The highest Pb mass fraction measured was 69.3 ± 6.2 µg kg− 1 (Sample D, Table S1), which is consistent with previously reported values in cannabis vape liquids6,18. Regarding variability within products from the same production lot, As and Cd showed a narrow-measured range. However, assessing Pb variability was not possible due to the large number of samples with Pb mass fractions below the method’s LOD (5.5 µg kg− 1).
| Element | Sample A | Sample B | Sample C | Sample D | Sample E | Sample F |
|---|---|---|---|---|---|---|
| Median (IQR) | Median (IQR) | Median (IQR) | Median (IQR) | Median (IQR) | Median (IQR) | |
| Al | 293.9 (179–421) | 236.3 (171–319) | 184 (129–255) | 589.7 (398–1680) | 243.9 (217–291) | 169.9 (124–633) |
| As | 4.1 (2.7–5.3) | 4.1 (2.6–5.3) | 3.7 (2.9–5.0) | 6.2 (5.6–9.2) | 2.0 (1.5–2.2) | 2.3 (2.0–2.6) |
| Cd | 2.5 (1.7–4.0) | 2.7 (1.6–3.7) | 2.6 (1.6–3.5) | 1.0 (0.7–2.1) | 1.2 (0.7–1.9) | 1.0 (0.5–1.2) |
| Co | 31 (27–37) | 8.2 (5.5–12) | 10.9 (6.1–12) | 13.2 (11–27) | 16.6 (14–27) | 4.4 (4.0–4.9) |
| Cr | 337.8 (247–400) | 268.6 (219–384) | 307.7 (230–336) | 174 (157–226) | 341.8 (313–358) | 278.5 (266–334) |
| Fe | 350.4 (301–500) | 315.4 (242–382) | 378.1 (310–533) | 903.2 (702–1225) | 194.5 (112–373) | 267 (245–376) |
| Mn | 17.7 (15–22) | 15.1 (13–19) | 8.1 (6.8–12) | 28.9 (22–43) | 17.8 (13–19) | < LOD |
| Ni | 49 (34–55) | 51.2 (30–240) | 46 (33–62) | 92.8 (34–135) | 35.8 (27–627) | 42.4 (31–63) |
| Pb | 37 (29–40) | 16.5 (12–86) | < LOD | 62.7 (49–66) | < LOD | < LOD |
| Sn | 35.6 (28–56) | 147.4 (135–167) | 33.7 (21–110) | 52.2 (30–65) | 83.2 (34–419) | 32.5 (18–109) |
| V | 2.0 (1.8–2.8) | 2.3 (1.7–3.1) | 3.2 (2.1–4.1) | 5.2 (4.2–6.2) | 1.5 (1.2–2.2) | 1.4 (1.0–1.7) |
| Zn | 651.8 (517–901) | 280.2 (202–609) | 160.2 (141–258) | 1666 (1158–2177) | 322.4 (222–712) | 1063 (927–1144) |
Mass fractions of Co were below 50 µg kg− 1, with low variation within individual sample sets but notable differences between product sets (Table 2). The measured Co values were significantly lower than those reported in our previous study6, though they overlapped with the mass fractions reported by Kubachka et al.18. In contrast, Cr mass fractions were consistent both within and between sample sets, averaging around 300 µg kg− 1. Compared to previous studies6, Cr demonstrated a narrow-measured range of the mass fractions in five of the six studied products. The highest mass fractions of both analytes were measured in Sample E, with Co at 91.5 ± 11 µg kg− 1 and Cr at 359.0 ± 16.2 µg kg− 1. The analysis further identified Al, Fe, Ni, Sn, and Zn in most of the studied samples. Both Al and Fe were most abundant in Sample D, reaching 2055 ± 359.4 µg kg− 1 and 1831 ± 1366 µg kg− 1, respectively. Nickel and Sn mass fractions were highest in Sample E, reaching 1140 ± 720.3 and 474.9 ± 48.1 µg kg− 1, respectively, while Zn was highest in Sample C at 6041 ± 11,847 µg kg− 1 (Table S1). A previous study on metal contamination in nicotine vape liquids reported Al mass fractions in vape cartridges ranging from 17.5 to 128 µg kg− 110, which is substantially lower than the values observed in this study (range: 221–2055 µg kg− 1, Table S1). The mass fractions of Sn and Zn varied significantly across studies6,10,18,20; however, the values reported in Table 2 are within the previously published range. Nickel is commonly associated with filaments or resistance wires in vaping cartridges13–15 and the reported mass fractions in the literature vary significantly, 0.04 ± 0.016–677 ± 2.0 mg kg− 16 or 0.05–477 ± 21 mg kg− 118.
Manganese was consistently detected only in Sample D, with the highest detected value at 63.6 ± 55.8 µg kg− 1 (Table S1). In the remaining samples, Mn mass fractions were either below the LOD for the entire product set or detected sporadically. Vanadium was detected in four of the six product sets, with mass fractions typically below 5 µg kg− 1, which is consistent with previously published results6,21.
Five of the studied samples were housed in 510-thread cartridges, and of these, three (Samples A, B, and E) were marketed to contain ceramic heating coils/elements, while Sample D was in a closed-pod system cartridge. Ceramic coils are made of a porous ceramic material that either encases a resistance wire or functions as a heating element itself. It could be argued that ceramic coil designs may reduce the risk of metal contamination by minimizing direct contact between metallic components and the vaping liquid. However, the results obtained in this study (Table 2) do not support this argument, no significant differences in total mass fractions of metal typically found in coils (Al, Co, Cr, Ni, Zn) were observed between products utilizing 510-thread cartridges, regardless of the marketed coil material. Interestingly, the highest mass fractions of Sn were measured in Samples B and E, the samples that were marketed as being equipped with a ceramic heating element. In contrast, the closed-pod system used in Sample D employs a design in which the resistance wire remains fully submerged in the vape liquid. If the vape liquid facilitates corrosion of the metal components, then this design would be expected to exhibit higher levels of metal contamination. Indeed, Sample D contained the highest median for eight of the twelve measured metals, with Al, Fe, and Zn being the most abundant (Table 2). Another factor that may have impacted the concentration of metal contamination in Sample D could be the vaping liquid volume; it contained less than half the liquid of the other products and if leaching or corrosion rates between products is comparable, it would be expected that Sample D would have a correspondingly higher concentration of metal contamination in its smaller volume.
Although the Class 1 metals As, Cd, Hg, and Pb are the primary metals typically monitored for in vaping products, studies indicate that exposure to other metals through inhalation may also present health risks22,23. Using the U.S. Pharmacopoeia’s permitted levels of elemental impurities in inhaled products with a 10 g maximum daily dose (Table S2) as a reference24, Cr was found to exceed the concentration limit of 0.3 µg g− 1 in over 50% of the studied products, with at least one cartridge per lot exceeding this limit. In addition, Ni mass fractions exceeded the concentration limit of 0.5 µg g− 1 in two cartridges from different products (Table S1).

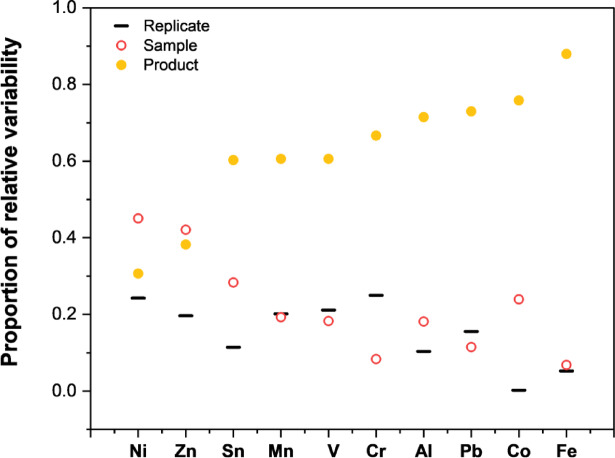

To assess variability between identical products, five vape cartridges from the same production lot were analyzed in triplicate. Additionally, to assess variation between different products, six different cannabis vape liquids were studied. Figure 1 illustrates comparisons of mass fractions among individual sampling replicates from each cartridge (solid line), between cartridges from the same production lot (open circles), and between different products (closed circles), as calculated by two-way ANOVA with replicates. When the solid line and open circles are closely aligned, as observed for Mn, V, Pb, and Fe, minimal within-batch variation was detected. However, most analytes exhibited some degree of variability, either within replicate samplings of the same cartridge (Cr) or between cartridges from the same production lot (Ni, Zn, Sn, Al, and Co). Furthermore, substantial variation was observed between different products for most elements, except for Ni and Zn, where within-batch variability was the primary source of variation. Elements that were detected close to the method LOD (As and Cd) were excluded from this comparison as their variability may primarily be driven by measurement uncertainty. The presented data suggests that the mass fractions of the studied elements are product-dependent, thus challenging general assumptions about metal content across cannabis vape liquids. This variability therefore poses concerns with regards to representative sampling protocols for regulatory testing, as compliance with Pharmacopeia-established maximum tolerated limits may not always be reliably ensured across all individual cartridges of a product within the same lot. Even if several cartridges from a single lot meet the established limits, the high degree of variation suggests there is a risk that others in the batch may not comply.

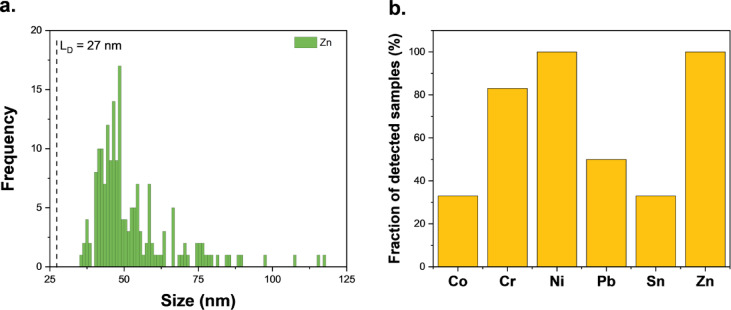

Cannabis aerosol particles analysis
The analysis of metal particles in cannabis vape liquids revealed significant variation in PNC both within and between product batches, making any methodological approach to aerosol analysis extremely challenging. There is no guarantee that two identical products will contain similar PNC values, and no direct correlation can be established between the PNC in cannabis vape liquid removed from a cartridge and that in the generated aerosol, as measurements cannot be performed on the same device. Therefore, the aim of the aerosol analysis was to determine whether metal particles present in cannabis vape liquids can be transported into the aerosol generated during vaping. The vaping session for 510-thread cartridges consisted of 150 puffs, resulting in an average consumption of 0.35 g of cannabis vape liquid. The closed-pod system cartridges were designed to operate at lower temperature settings, requiring vaping sessions with a higher number of puffs to aerosolize a higher mass of cannabis liquid. However, even with 250 puffs, the average mass of consumed cannabis liquid was only 0.063 g. As shown in Fig. 2a, metal particles were detected in the collected aerosol; however, the PNC in all samples was below the MNDP. Additionally, Fe, Al, and Cu particles measured in the aerosols could not be distinguished from the particles present in the blank samples and were therefore excluded from the discussion. Aerosol generated from all samples contained Ni and Zn particles, while Cr particles were detected in 80% of the studied samples. Particles containing Co, Pb, and Sn were detected in ≤ 50% of vaped cartridges (Fig. 2b).
The generated aerosol was collected in two open-ended impingers connected in tandem, containing an organic solvent (PremiSolv) miscible with cannabis vaping liquids. During preliminary experiments, the contents of the second impinger were analyzed for metal particles; however, none were detected. Consequently, only the contents of the first impinger were reported. Previously published studies have used two techniques for collecting cannabis aerosol: tandem impingers or a condensation tube19,26. In both studies, acetone was used either as the collection solvent in the impingers or as a washing solvent for the condensation tube. However, the authors reported clogging of the fritted impinger with cannabis matrix, which could be expected as the cannabis matrix is not miscible with such a polar solvent. Similarly, washing the condensation tube with acetone may not have effectively removed all of the condensed aerosol from the tube walls, potentially leading to an underestimation of metal content. Additionally, the high vapor pressure of acetone (31 kPa) required keeping the impingers in an ice bath, which subsequently cooled the glassware and may have led to condensation points along the aerosol pathway. In contrast, the solvent used in the current study had a significantly lower vapor pressure (0.03–0.06 kPa), allowing aerosol collection to be conducted at room temperature. Furthermore, a preliminary visual examination of the connectors and tubing pathways leading to the impinger showed no condensation points or aerosol accumulation.
In previous studies, cannabis aerosol was subjected to acid digestion followed by total metal quantitation, without analysis of metal particles19,26. The only published study analyzing metal particles generated by vaping devices was performed on nicotine products16. The authors reported significantly higher PNCs detected in aerosols than those observed in the current work. However, as discussed earlier, direct comparison of PNC values between published research is not feasible due to the large within- and between-batch and product variations demonstrated in this study, in addition to the matrix induced differences between cannabis and nicotine vape liquids.
Users of cannabis vape liquids may be exposed to metals in two physical forms: ionic and particulate. Ionic metals may leach from the hardware components or originate as contaminants introduced during cannabis vape liquid production, storage, or filling of the cartridge. These metal ions can evaporate directly27 and may subsequently enter the aerosol phase via recondensation as vapor cools upon exiting the vape chamber28. In contrast, particulate metals, being non-volatile, are unlikely to undergo evaporation-recondensation. Instead, these particulate metals likely enter the aerosol phase through bubble bursting.
Bubble bursting is when, during vaping, bubbles form within milliseconds at the heated surface of the vape liquid, where local temperatures rise only a few kelvin above the liquid’s boiling point29, via nucleate boiling. Nucleate boiling can occur even at relatively low power settings, such as the 5–10 W used in cannabis vape devices (power was calculated using Ohm’s law, P = V2/R, with typical values of R = 1.5 Ω and V = 2.8–3.8 V, for the battery). Rapid heating of the coil results in extremely heterogeneous temperature distributions30, promoting nucleate bubbling. These bubbles detach from the heater-liquid interface, travel to the air-liquid interface, and burst, generating airborne liquid droplets (aerosols)31. Some of these aerosols may contain particulate metals. This hypothesized bubble-bursting mechanism is supported by data from Floyd et al.32, who observed a nonlinear increase in the relative number of > 0.5 μm aerosol particles with increasing vaping power, while the size of approximately 0.2 μm aerosol particles remained constant. This discrepancy implies a shift in the physical mechanism of aerosol particle generation, such as increased bubble generation and bursting, as opposed to a simple linear increase in condensation.
Previous work on nicotine vape devices has shown that metal emissions from the heating element increases as the device’s power supply increases30. This finding aligns with the larger aerosols observed by Floyd et al.32 and further supports the proposed bubble-bursting mechanism. Therefore, it can be inferred that operating cannabis vape devices at lower power settings likely reduces exposure to inhaled particulate metals.

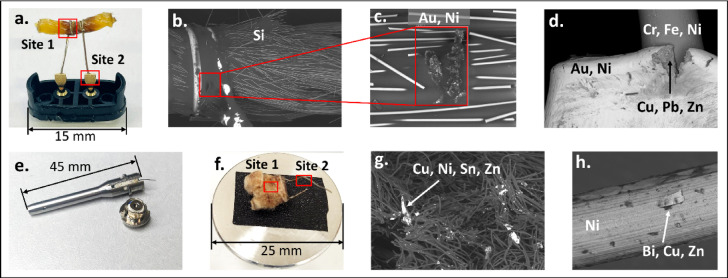

Scanning electron microscopy (SEM) of unused cartridge components
Individual vape cartridges were disassembled for component analysis using SEM, with subsequent elemental analysis via energy dispersive X-ray spectroscopy (EDS). According to the manufacturer specifications, Samples A, B and E were expected to contain ceramic heating coils; however, their components did not appear different from those of the other disassembled 510 thread cartridges. Samples D (closed-pod system) and F (510-thread cartridge) were analyzed to identify possible metal particles and determine the elemental composition of individual cartridge components. As shown in Fig. 3a, two key sites on Sample D were closely examined. Site 1, the contact interface between the wick and heating wire, and Site 2, the connector pin linking the battery and the heating wire. The wick was heavily coated with cannabis vape liquid, which made finding metal particles within the matrix challenging. The matrix was intentionally left intact to avoid removing any particles that may have been lodged in the wick structure. Despite the matrix coating, a particle containing Au and Ni was identified on the surface of the wick (Fig. 3b,c). The metal composition of this particle corresponded with that of the connector pins, which were plated with Au and Ni. Closer examination of the connector pins revealed cracking on the surface (Fig. 3d). Elemental analysis within the crack, representing the core material of the connector pins, identified an alloy composed of Cu, Pb, and Zn. The heating wire itself has shown inconsistencies in its elemental composition. The parts that were wrapped around the wick were composed of Fe, Cr, and Ni, however further away from the wick, closer to the connector pins, the analysis have shown primarily Ni (Figure S1 and S2). Thus, it is possible that the heating wire was Ni plated, and the coating was heterogeneous or the Ni coating was partially corroded in the area wrapped around the wick, what resulted in leaching of metals into the cannabis vape liquid. The metal composition of these cartridge parts correlated well with the metal particles found in the aerosol of Sample D, mainly Zn, Ni, and Pb. As it can be seen in Table 3, Cu particles were also present in the cannabis vape liquids; however, they could not be distinguished from the blank in the collected aerosol.
Disassembly of Sample F, a 510-thread cartridge, was more challenging due to the design of the central channel, which required cutting (Fig. 3e) to gain access to the heating wire and wick. The wicking material, along with the heating wire, was mounted on the SEM holder, and two sites were examined (Fig. 3f). Site 1 corresponded to the wicking material, which was generally free of the hydrocarbon cannabis vaping liquid matrix, while Site 2 corresponded to the heating wire. As shown in Fig. 3g, the wicking material contained numerous metal particles, visible as brightly illuminated spots in the SEM image. The main elemental composition of these particles consisted of Cu, Ni, Sn, and Zn, while the wicking material itself was most probably made of cotton fibers. The surface of the heating wire was composed of Ni (Fig. 3h); however, small flake-like particles containing Cu, Zn, and Bi were also observed on its surface.
The composition of the metal components was consistent with previous reports on both cannabis13 and nicotine vape devices13,15,16,33. The metal particles detected in the studied cannabis vape liquids by sp-ICP-MS consisted of the same elements as those found in the vaping cartridges, strongly suggesting that contamination originated from the device itself. However, the exact mechanism of contamination remains unclear. It is possible that the metal particles observed in the SEM images of Sample F (Fig. 3g) resulted from contamination introduced during the disassembly process, particularly due to the incision into the inner channel of the cartridge to access the wicking material. However, in Sample D, which did not require forceful manipulation, metal particles were still found on the wick surface. A crack was observed on the connector pin of Sample D, and possible signs of corrosion were found. Cracking on the connector of nicotine vape devices has been previously reported, along with the detection of large numbers of metal particles in collected aerosols, with corrosion becoming evident after device use16. Other studies have also shown increased metal concentrations in nicotine vape liquids following a vaping session14,19. These findings suggest that device operation can influence the stability of metal components. However, this would not account for the presence of metal particles in unused cartridges containing cannabis vape liquids. It is possible that some mechanical abrasion may occur during the manufacturing process, such as during alloy machining/casting, assembly of the hardware, and/or cutting of the resistance wire. Such contamination introduced during cartridge manufacturing is likely not removed prior to filling. These factors may lead to metal contamination of the vape liquids prior to vaping, requiring further investigation.
Conclusion
Cannabis vape liquids are increasingly popular cannabis products34, but their consumption may have adverse health effects yet to be characterized. These liquids contain metal particles of varying sizes and compositions, which are transported to consumers in the generated aerosol and inhaled. Given the metal composition of these particles, it is highly likely that they originate from the metal components of the vape devices. Furthermore, surface cracking observed in the studied products suggests that further metal leaching may also occur during device use. The presence of metal particles complicates comparisons of total metal mass fractions both between and within production batches, as these levels are not determined by the manufacturing of the cannabis vape liquids themselves but rather by the quality of the vaping hardware. Findings to date show that the quality of nicotine vaping devices has not improved over the time, highlighting the importance of continued quality control and monitoring of cannabis vaping devices. Results presented in this study have shown contamination of cannabis vape liquids with metal particles containing Al, Co, Cr, Cu, Ni, Sn, and Zn. Particles containing some of these metals were also found in the collected aerosols, highlighting the importance of characterizing these metal hazards in cannabis vaping liquids to ensure the risks posed by them can be properly understood and addressed where necessary. Importantly, the concern is not merely the presence of metal particles in the liquid but their transport in the aerosol and subsequent inhalation, which may pose health risks that remain to be fully characterized and understood. Development and selection of devices that minimize or eliminate metal transport into the aerosol and ultimately to consumers should be considered. Additionally, ensuring accurate product marketing, such as heating coil composition, is important as this information may be a pre-determining factor for consumer choice and product safety. The mismarketing of coil types observed in this study not only limited our ability to compare different product designs but also raised broader concerns about the reliability and transparency of product marketing within the industry. Addressing these inconsistencies is essential to improving consumer safety, ensuring product performance, and strengthening regulatory compliance.
Supplementary Information
Below is the link to the electronic supplementary material.
Funding
This research received no external funding.
Data availability
All data generated or analyzed during this study are included in this published article (and its Supplementary Information files).
Declarations
Competing interests
The authors declare no competing interests.
Footnotes
Footnote Group
References
Untitled section
References
- 1.Fataar, F. & Hammond, D. The prevalence of vaping and smoking as modes of delivery for nicotine and cannabis among youth in canada, England and the united States. Int. J. Environ. Res. Public Health. 16, 4111 (2019).
- 2.Fischer, B. et al. Lower-Risk cannabis use guidelines (LRCUG) for reducing health harms from non-medical cannabis use: A comprehensive evidence and recommendations update. Int. J. Drug Policy. 99, 103381 (2022).
- 3.Guo, Y., Wen, L., Zhao, X., Xing, C. & Huang, R. Industrial hemp (Cannabis sativa L.) can utilize and remediate soil strongly contaminated with cu, as, cd, and Pb by Phytoattenuation. Chemosphere358, 142199 (2024).
- 4.Department of Justice Canada. Cannabis regulations (SOR/2018 – 144). (2018). https://laws-lois.justice.gc.ca/eng/regulations/SOR-2018-144/
- 5.International Council for Harmonisation. ICH Harmonised Guideline: Guideline for Elemental Impurities Q3D (R1). (2019). https://www.ich.org/page/quality-guidelines
- 6.Gajdosechova, Z. et al. Evidence that metal particles in cannabis vape liquids limit measurement reproducibility. ACS Omega. 7, 42783–42792. 10.1021/acsomega.2c03797 (2022).
- 7.Gajdosechova, Z. & Marleau-Gillette, J. Single particle analysis of polydisperse metal-bearing particles in cannabis vape liquids by organic mode ICP-MS. J. Anal. Spectrom.39, 1482–1492 (2024).
- 8.Elder, A. et al. Translocation of inhaled ultrafine manganese oxide particles to the central nervous system. Environ. Health Perspect.114, 1172–1178 (2006).
- 9.Oberdörster, G., Oberdörster, E. & Oberdörster, J. Nanotoxicology: An emerging discipline evolving from studies of ultrafine particles. Environ. Health Perspect.113, 823–839 (2005).
- 10.Olmedo, P. et al. Metal concentrations in e-cigarette liquid and aerosol samples: The contribution of metallic coils. Environ. Health Perspect.126, 027010 (2018).
- 11.Olmedo, P. et al. Metal exposure and biomarker levels among e-cigarette users in Spain. Environ. Res.202, 111667. 10.1016/j.envres.2021.111667 (2021).
- 12.Mulder, H. A. et al. Characterization of e-cigarette coil temperature and toxic metal analysis by infrared temperature sensing and scanning electron microscopy–energy-dispersive X-ray. Inhalation Toxicol.32, 447–455 (2020).
- 13.Wagner, J., Chen, W. & Vrdoljak, G. Vaping cartridge heating element compositions and evidence of high temperatures. PLoS ONE. 15, e0240613 (2020).
- 14.Omaiye, E. E., Williams, M., Bozhilov, K. N. & Talbot, P. Design features and elemental/metal analysis of the atomizers in pod-style electronic cigarettes. PLoS ONE. 16, e0248127 (2021).
- 15.Turner, A., Scott, J. W., Backshall-Kennedy, T. & Dabrowski, M. C. Deconstructing contemporary disposable vapes: A material and elemental analysis. Sci. Total Environ.954, 176292 (2024).
- 16.Pappas, R. S., Gray, N., Halstead, M., Valentin-Blasini, L. & Watson, C. Toxic metal-containing particles in aerosols from pod-type electronic cigarettes. J. Anal. Toxicol.45, 337–347 (2021).
- 17.Soulet, S. & Sussman, R. A. A critical review of recent literature on metal contents in e-cigarette aerosol. Toxics10, 510 (2022).
- 18.Kubachka, K. M. & Wilson, R. A. Elemental analysis of tetrahydrocannabinol and nicotine E-Liquids related to EVALI. ACS Omega. 6, 32090–32100 (2021).
- 19.McDaniel, C., Mallampati, S. R. & Wise, A. Metals in cannabis vaporizer aerosols: Sources, possible mechanisms, and exposure profiles. Chem. Res. Toxicol.34, 2331–2342 (2021).
- 20.Gray, N. et al. Analysis of toxic metals in liquid from electronic cigarettes. Int. J. Environ. Res. Public Health. 16, 4450 (2019).
- 21.Beauval, N. et al. Trace elements in e-liquids-development and validation of an ICP-MS method for the analysis of electronic cigarette refills. Regul. Toxicol. Pharm.79, 144–148 (2016).
- 22.Medici, S., Peana, M., Pelucelli, A. & Zoroddu, M. A. in Seminars in Cancer Biology. 17–26 (Elsevier).
- 23.Bakand, S., Hayes, A. & Dechsakulthorn, F. Nanoparticles: A review of particle toxicology following inhalation exposure. Inhalation Toxicol.24, 125–135 (2012).
- 24.United States Pharmacopeial Convention. Elemental impurities—Limits (USP < 232>). In United States Pharmacopeia 43–National Formulary 38. Rockville, MD: United States Pharmacopeial Convention (2020).
- 25.Currie, L. A. Limits for qualitative detection and quantitative determination. Application to radiochemistry. Anal. Chem.40, 586–593. 10.1021/ac60259a007 (1968).
- 26.Mallampati, S. R., McDaniel, C. & Wise, A. R. Strategies for nonpolar aerosol collection and heavy metals analysis of inhaled cannabis products. ACS Omega. 6, 17126–17135 (2021).
- 27.Nguyen, S. & Fenn, J. B. Gas-phase ions of solute species from charged droplets of solutions. Proc. Natl. Acad. Sci.104, 1111–1117 (2007).
- 28.Tröstl, J. et al. The role of low-volatility organic compounds in initial particle growth in the atmosphere. Nature533, 527–531 (2016).
- 29.Dhir, V. K. Mechanistic prediction of nucleate boiling heat transfer–achievable or a hopeless task? ASME J. Heat Transfer128(1), 1–12 (2005).
- 30.Ko, T. J. & Kim, S. A. Effect of heating on physicochemical property of aerosols during vaping. Int. J. Environ. Res. Public Health. 19, 1892 (2022).
- 31.Bird, J. C., De Ruiter, R., Courbin, L. & Stone, H. A. Daughter bubble cascades produced by folding of ruptured thin films. Nature465, 759–762 (2010).
- 32.Floyd, E. L., Queimado, L., Wang, J., Regens, J. L. & Johnson, D. L. Electronic cigarette power affects count concentration and particle size distribution of vaping aerosol. PLoS ONE. 13, e0210147 (2018).
- 33.Williams, M., Bozhilov, K., Ghai, S. & Talbot, P. Elements including metals in the atomizer and aerosol of disposable electronic cigarettes and electronic hookahs. PLoS ONE12, e0175430 (2017).
- 34.Government of Canada. Canadian Cannabis Survey 2024: Summary. Health Canada. Canadian Cannabis Survey 2024: Summary - Canada.ca (Accessed: 01 May 2025) (2024).
Associated Data
Supplementary Materials
Data Availability Statement
All data generated or analyzed during this study are included in this published article (and its Supplementary Information files).
