Neuronal versus Glial CB2 Receptors: Insights from a Novel CB2-KO-eGFP Reporter Mouse Line
National Institute on Drug Abuse
National Institute on Drug Abuse
National Institute on Drug Abuse
National Institute on Drug Abuse
National Institute on Drug Abuse
National Institute on Drug Abuse
National Institute on Drug Abuse
NIDA / NIH
National Institute on Drug Abuse
National Institute on Aging, National Institutes of Health
zxi@intra.nida.nih.govAbstract
The cannabinoid CB2 receptor (CB2R) has emerged as a promising therapeutic target for pain and central nervous system disorders, yet its brain expression has remained controversial due to low basal levels and the lack of reliable antibodies. Previous green fluorescent protein (GFP) reporter mouse lines have produced conflicting findings, possibly because GFP was either randomly inserted into the genome or placed in the 3'-untranslated region of the CB2R gene (Cnr2), complicating interpretation. Here, we report a new CB2-KO-eGFP mouse line in which the endogenous Cnr2 coding region was precisely replaced with enhanced GFP through targeted knock-in, generating a combined CB2R knockout and GFP reporter. Loss of CB2R expression was confirmed by qRT-PCR, RNAscope in situ hybridization, and cannabinoid pharmacological assays. GFP-immunostaining was detected across multiple brain regions, including cingulate cortex, hippocampus, red nucleus, and cerebellum, and in several cell types such as microglia, astrocytes, and neurons. Flow cytometry revealed strong GFP signals in spleen and blood cells and quantifiable GFP expression in brain tissue. Notably, ~ 70% of microglia and ~ 4% of neurons in cortex and hippocampus expressed GFP under normal physiological conditions. These findings demonstrate that CB2R is indeed expressed in healthy brain tissue and across multiple neural and glial cell types, resolving long-standing uncertainty regarding CB2R localization. Functionally, CB2R deletion reduced cannabinoid-induced analgesia, hypothermia, and catalepsy, confirming the receptor’s physiological relevance. This new mouse line provides a reliable and highly informative tool for defining CB2R expression and function in both the brain and peripheral immune system.
Introduction
The CB2 receptor (CB2R), encoded by CNR2, is a G protein-coupled receptor predominantly found in immune cells, where its activation regulates cytokine release and suppresses inflammation1, 2. CB2R was once considered a peripheral receptor3. However, recent studies also identified low level CB2R expression in the brain, where it modulates neuronal activity, neurotransmission, and neuroinflammation1, 4, 5. The minimal psychoactive effects of CB2R ligands in healthy subjects and the inducible expression of CB2R under pathological conditions make CB2R a unique therapeutic target with few adverse effects6-8. Extensive research highlights its role in neuroinflammation, and in neurodegenerative and neuropsychiatric disorders, positioning CB2R as a promising target for treating CNS diseases such as chronic pain, Alzheimer’s and Parkinson’s diseases, multiple sclerosis, schizophrenia, depression, and substance use disorders1, 9-14.
Despite significant progress in identifying CB2R function, its presence and cellular distribution in the brain under physiological and pathological conditions have been on debate for over three decades1, 4, 7, 15-17. This uncertainty is largely due to the low basal levels of CB2R expression in healthy brains18-20 and the poor specificity of many commercially available anti-CB2 antibodies17, 21, 22. When CB2R was first cloned in 1993, it was found primarily in peripheral immune cells3. Early follow-up studies supported this finding, failing to detect Cnr2 expression in the healthy brain although CB2R was detected in the brain under pathological conditions such as Alzheimer’s and Parkinson’s diseases, and multiple sclerosis15, 23, 24. This view was challenged in 2005 by the discovery of Cnr2 mRNA and protein in the brainstem neurons of rats, mice and ferrets under non-pathological conditions25. Since then, advances in genetic and molecular techniques have pointed to CB2R’s presence in various brain cell types – including microglia, neurons and astrocytes – and in diverse brain regions such as the striatum, cerebral cortex, hippocampus, midbrain, and amygdala 1, 4, 5, 18, 19, 26-28.
To further investigate the functional role of CB2R in the brain, several genetic approaches have been used, but two CB2R-driven GFP reporter mouse strains have yielded conflicting results. In the CB2-GFPTg line29, GFP expression was detected in microglia not in neurons, whereas in the CB2EGFP/f/f line16, no GFP signal was observed in the healthy brain. Notably, GFP immunoreactivity in the latter strain was observed in hippocampal microglia of 3-month-old 5×FAD mice, a model of Alzheimer’s disease. The lack of detectable GFP expression in neurons and microglia under normal conditions has fueled long-standing skepticism about whether functional CB2R is truly present in the brain. Consequently, the identity and expression pattern of brain CB2R has remained contentious for more than 30 years, highlighting the need to understand the reasons behind these contradictory findings.
To help resolve these discrepancies, we examined the GFP knock-in strategies used in the two reporter strains. In the CB2-GFPTg line29, a GFP reporter cassette replaces the Cnr2-coding sequence within a bacterial artificial chromosome (BAC) that includes the CB2R promoter and regulatory elements. This BAC construct is then microinjected into embryos and randomly integrated into the genome, enabling GFP expression to be driven by the CB2R regulatory sequences within the transgene (Suppl. Figure 1A). Although GFP was detected in microglia, the endogenous Cnr2 gene remained intact, raising the possibility that transgene-driven GFP expression may not accurately reflect endogenous CB2R expression.
In the CB2EGFP/f/f line16, an internal ribosomal entry site (IRES) followed by the EGFP gene (IRES-EGFP) was inserted downstream of the Cnr2 stop codon within the 3' untranslated region (3'-UTR), flanked by two loxP sites (Suppl. Figure 1B). This dual CB2-Cre and GFP reporter mouse line can be used for both conditional CB2R deletion and reporter studies. A major limitation of the IRES-EGFP strategy is that, although GFP is transcribed under the control of the endogenous CB2R promoter, its translation is driven by a viral-derived IRES. This configuration decouples GFP translation from endogenous CB2R regulation due to the presence of a stop codon between the CB2R coding region and the inserted IRES-EGFP cassette (Suppl. Figure 1B). Furthermore, insertion of loxP sites within the Cnr2 gene may affect transcription. Therefore, GFP expression in this line may not accurately represent endogenous CB2R protein expression.
To overcome these limitations, we generated a new CB2-KO-eGFP mouse line (Ingenious Targeting Laboratory, https://www.genetargeting.com/). In this line, the entire Cnr2 coding sequence (open reading frame, ORF) was replaced with enhanced GFP (eGFP) via homologous recombination, while preserving all native regulatory elements (Suppl. Figure 1C). This design produces a dual CB2R-knockout and GFP reporter line in which GFP expression is driven by the endogenous Cnr2 promoter and translational control sequences, which should faithfully reflect native expression patterns.
To characterize this line, we used quantitative RT-PCR, RNAscope in situ hybridization, and cannabinoid pharmacology assays to confirm Cnr2 deletion in both spleen and brain tissues. Immunohistochemistry (IHC) was then performed to assess GFP expression across brain regions and cell types, while flow cytometry quantified GFP-positive cells in both peripheral and brain tissues. We observed complete loss of CB2R expression and function, strong GFP signals in peripheral immune cells, and weaker but distinct expression in the cortex and hippocampus. Approximately 70% of microglia and ~ 4% of neurons and astrocytes were GFP-positive, compared with wild-type control mice. Behaviorally, CB2-KO-eGFP mice displayed increased basal locomotor activity and greater age-related weight gain as well as reduced behavioral and functional responses to D9-THC.
These new findings in the CB2-KO-eGFP mouse line help resolve a long-standing, three-decade debate over whether functional CB2R is expressed in the healthy, non-pathological brain and whether it is present in both glial cells and neurons. This genetically precise reporter line provides a reliable and physiologically relevant model for investigating CB2R expression and function across the central nervous system as well as in peripheral tissues.
Results

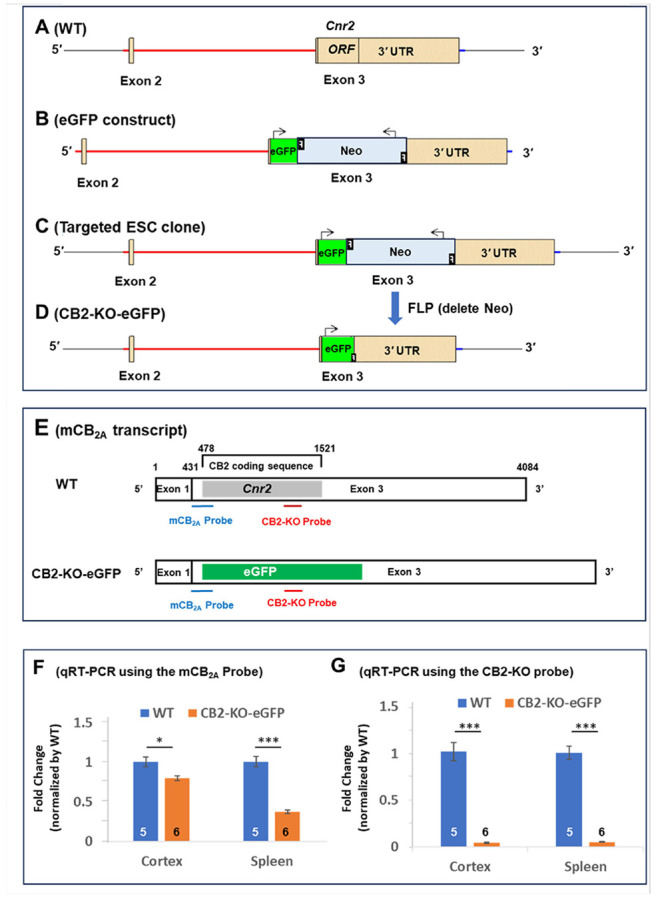

Generation of CB2-KO-eGFP Mice
We generated the CB2-KO-eGFP mouse line through a contract with Ingenious Targeting Laboratory (genetargeting.com). To create this line, a genetically engineered mouse embryonic stem cell (ESC) line was used (Fig. 1). A custom targeting vector (eGFP construct) (Fig. 1B) was designed to replace the coding sequence (e.g. open reading frame, ORF) of exon 3 with the intact endogenous translation initiation site and stop codons of the mouse Cnr2 gene encoding for CB2R (Fig. 1A). This knock-in eGFP was followed by a flippase recognition target (FRT)-flanked Neo selection cassette and the endogenous 3' untranslated region (UTR) (Fig. 1C). The targeting vector included a long homology arm (~ 5 kb) and a short homology arm (~ 2.6 kb) (Suppl. Figure 2) and was constructed by subcloning from a positively identified C57BL/6 fosmid clone using homologous recombination techniques (see the Supplementary Information (SI) – The eGFP-KI Strategy). Each modification step was validated by restriction analysis and sequencing.
The targeting vector was linearized and electroporated into a FLP 129 × C57BL/6 hybrid ESC line. After G418 antibiotic selection, resistant colonies were expanded and screened via PCR and sequencing to identify homologous recombinants. The Neo cassette was excised using flippase (FLP) recombinase during ESC expansion (Fig. 1D). Successfully targeted ESC clones (Fig. 1C) were microinjected into CD1 blastocysts and implanted into foster mothers. Chimeric offspring with high agouti coat color were bred with C57BL/6N WT mice. Tail biopsies were genotyped to confirm germline transmission of the targeted allele. Heterozygous CB2-KO-eGFP mice were then transferred to the NIDA IRP animal facility, where they were bred with C57BL/6N mice for up to 10 generations. Homozygous CB2-KO-eGFP mice were subsequently used for experiments. Heterozygous CB2-KO-eGFP mice were occasionally used for comparison of GFP expression with homozygous mice in the immunostaining experiment. Detailed eGFP-KI procedures are provided in the SI – The eGFP-KI Strategy.
Validation of Loss of CB2R-Coding Sequence in CB2-KO-eGFP Mice
To validate Cnr2 gene deletion, we performed qRT-PCR using two distinct TaqMan probes targeting different regions of the gene (Fig. 1E). Both probes detected Cnr2 mRNA in the spleen and cortex of WT mice (Fig. 1F, G) (Suppl. Table 1). In CB2-KO-eGFP mice, results varied by probes. The mCB2A probe, which spans the junction between the remaining Cnr2 and GFP (Fig. 1E), showed significantly reduced CB2R mRNA levels compared to WT littermates (Fig. 1F). In contrast, the CB2-KO probe – specific to the deleted region of Cnr2 – detected CB2R mRNA only in WT mice, with barely detectable signal in CB2-KO-eGFP mice (Fig. 1G). These findings confirm successful deletion of the CB2R in the new transgenic line.
RNAscope ISH Shows Absence of CB2R mRNA in CB2-KO-eGFP Mice
We next used RNAscope in situ hybridization (ISH) to assess Cnr2 mRNA expression at the cellular level in peripheral (spleen) tissue and brain [ventral tegmental area (VTA) dopaminergic (DA) neurons] of CB2-KO-eGFP and WT mice. Midbrain DA neurons were selected due to their reliable labeling with tyrosine hydroxylase (TH), a specific neuronal marker.
Suppl. Figure 3A shows the mCB2A transcript (isoform) structure and the RNAscope probe targeting the deleted exon 3 region of Cnr2. Using this probe, we observed Cnr2 mRNA expression in the splenocytes of WT mice (Suppl. Figure 3B), but not in CB2-KO-eGFP mice (Suppl. Figure 3C). In the VTA, CB2R mRNA was detected at lower but consistent levels in TH+ DA neurons of WT mice (Suppl. Figure 3D), whereas no signal was observed in CB2-KO-eGFP mice (Suppl. Figure 3E). These results align with previous findings18, 30 and confirm the successful deletion of CB2R in this new CB2-KO-eGFP mouse strain.

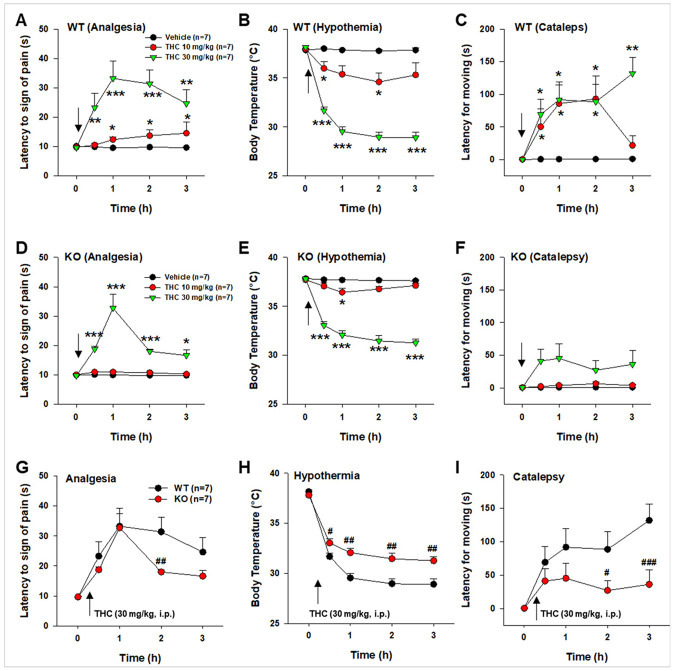

CB2-KO-eGFP Mice Exhibit Blunted Behavioral and Functional Responses to Δ9-THC
To assess the functional loss of CB2R in this mouse line, we evaluated the classic Δ9-THC-induced triad effects: analgesia, hypothermia, and catalepsy (Fig. 2). Systemic administration of Δ9-THC produced significant, dose-dependent effects in each measurement in both WT (Fig. 2A-C) and CB2-KO-eGFP mice (Fig. 2D-F). Two-way repeated measures (RM) ANOVA revealed significant Δ9-THC treatment main effect, time main effect, and treatment × time interactions in both genotypes (see Suppl. Table 2 for detailed F and p values). Post hoc pairwise analyses confirmed significant Δ9-THC effects in both groups (*p < 0.05, **p < 0.01, ***p < 0.001, compared to baseline, Fig. 2A-F).
However, compared to WT mice, CB2-KO-eGFP mice exhibited significantly attenuated responses to Δ9-THC across all three measurements (Fig. 2G-I). Two-way RM ANOVA revealed significant main effects of genotype, time, and genotype × time interactions (see Suppl. Table 2 for detailed F and p values). Post hoc analyses confirmed genotype differences in response magnitude (#p < 0.05, ##p < 0.01, ###p < 0.001, compared to WT, Fig. 2G-I).
We also compared open-field locomotor responses to Δ9-THC. Both groups of mice exhibited comparable Δ9-THC-induced hypoactivity, with no significant differences between genotype (Suppl. Figure 4), suggesting that deletion of CB2R does not significantly alter cannabinoid effects on open-field locomotor activity.
GFP Expression Across Multiple Brain Regions
To assess GFP expression in the brain, we performed IHC using an anti-GFP antibody conjugated to Alexa® Fluor 647 (AF-647). Supplementary Fig. 5 shows GFP immunostaining across whole coronal brain sections from WT and CB2-KO-eGFP mice, illustrating the regional distribution of GFP signal in the latter. Low-density, but reliably detectable GFP signals were observed in several brain regions of CB2-KO-eGFP mice, but not in WT mice, including the cingulate cortex, hippocampus (Hipp), midbrain red nucleus (RN) and mammillary body (MB) (Suppl. Figure 5).
Figure 3 presents high-magnification (10×) images from the same mouse, highlighting methodin the cingulate cortex (Fig. 3A), RN (Fig. 4B), hippocampus (Fig. 3C), and cerebellum (Fig. 3D) of homozygous (Hom) CB2-KO-eGFP mice. Clear qualitative differences in GFP expression were observed when comparing CB2-KO-eGFP mice with wild-type controls, particularly in the cingulate cortex and red nucleus (RN) (Supplementary Fig. 6) as well as in the VTA and NAc (Supplementary Fig. 7).
We also compared GFP signal intensity in the hippocampus and cerebellum between heterozygous (Het) and homozygous (Hom) CB2-KO-eGFP mice. GFP expression in the hippocampus was comparable between Het and Hom mice (Suppl. Figure 8A, B), whereas Hom mice showed stronger GFP signals in Purkinje cell somata and the granular layer of the cerebellar cortex (Suppl. Figure 8C, D). These results indicate that CB2R is actively or tonically expressed under physiological conditions and suggest that both Het and Hom reporter mice are suitable for studying CB2R expression in the brain.
GFP Expression in Both Neurons and Glial Cells in CB2-KO-eGFP Mice
Previous studies using IHC and RNAscope ISH have reported CB2R expression in neurons18, 30-35; however, visualizing CB2R signals in glial cells remains technically challenging due to their small size (e.g. microglia), low expression levels under physiological conditions36 and the lack of specific CB2R antibodies17, 22. In contrast, GFP reporter mice circumvent the need for CB2R antibodies, allowing direct visualization of promoter-driven GFP. This approach enables detection of glial CB2R expression, including low or diffuse signals that may fall below the threshold of conventional methods.
We validated the expression of GFP in glial cells and neurons (Fig. 4). Immunostaining for microglia using CD11b antibody revealed colocalization with GFP in CD11b+ microglia in the cortex (Fig. 4A) and hippocampus (Fig. 4B) (Suppl. Figure 9). Immunostaining for astrocytes revealed GFP expression in glial fibrillary acidic protein (GFAP)+ astrocytes in the hippocampus of normal brains although at lower levels (Fig. 4C, D; Suppl. Figure 10).
In contrast, stronger GFP signals were observed in hippocampal neurons, particularly in the CA2 and CA3 cellular layers (Fig. 4C, D; Suppl. Figure 10). These observations in CB2-eGFP reporter mice are consistent with those using other approaches indicating CB2R gene and protein expression in midbrain dopaminergic neurons neurons18, 30, 37, RN glutamatergic neurons31, and NAc GABAergic neurons 32 in healthy adult mice. Together, these results indicate that both glial cells and neurons express CB2R under physiological conditions.

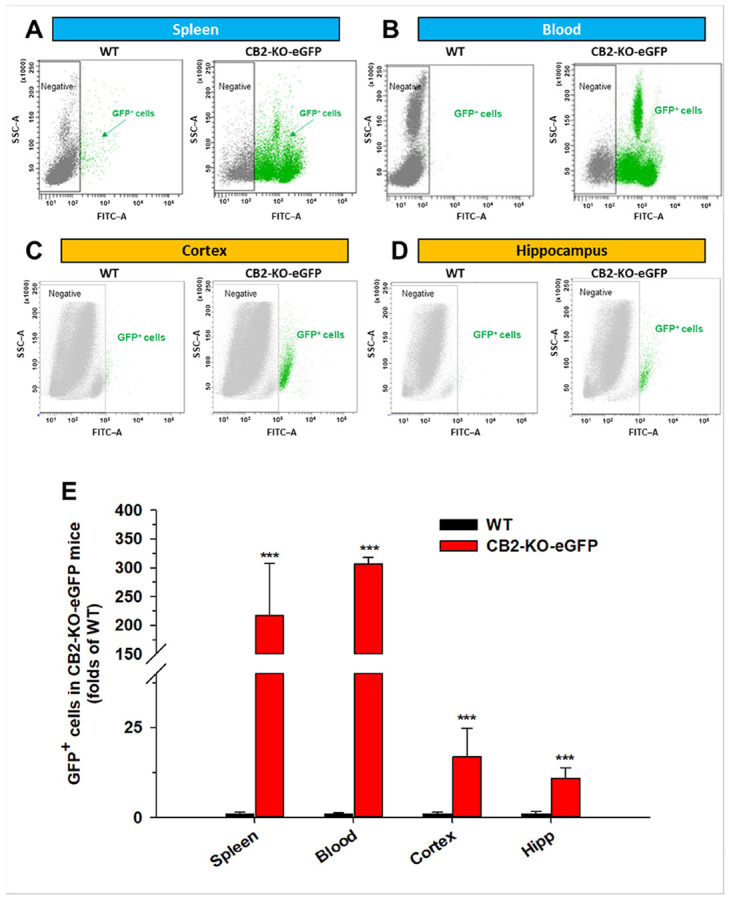

Flow Cytometry Reveals GFP Cells in Peripheral and Brain Tissues
Because GFP+ neurons and glial cells are often co-localized within the same brain regions and have complex morphologies, quantitative analysis by IHC is technically challenging. To overcome this, we used flow cytometry to assess GFP+ cells in peripheral and brain tissues and to quantify the proportions of dissociated neurons, microglia, and astrocytes expressing GFP using cell type–specific markers
We first assessed the ability of flow cytometry to identify GFP+ cells in peripheral and brain tissues. Figure 5 shows GFP+ cells dissociated from the spleen, blood and brain tissues of WT and CB2-KO-eGFP mice. The results illustrate that a high density of GFP+ cells was observed in spleen and blood samples (Fig. 5A, B), while lower but clearly detectable GFP+ cells were also observed in brain regions such as the cingulate cortex (Fig. 5C) and hippocampus (Fig. 5D) in CB2-KO-eGFP mice. Such GFP+ cells were absent or barely detectable in WT controls. Quantitative analyses confirmed significantly higher numbers of GFP+ cells in both peripheral and brain tissues of CB2-KO-eGFP mice compared with WT mice (Fig. 5E).
Supplementary Fig. 11 presents the same results using alternative flow cytometry plots, showing a high density of GFP+ cells detected in the spleen and blood samples, and relatively lower levels of GFP+ cells in the cortex and hippocampus of CB2-KO-eGFP mice, wereas GFP+ cells were nearly undetectable in WT controls.

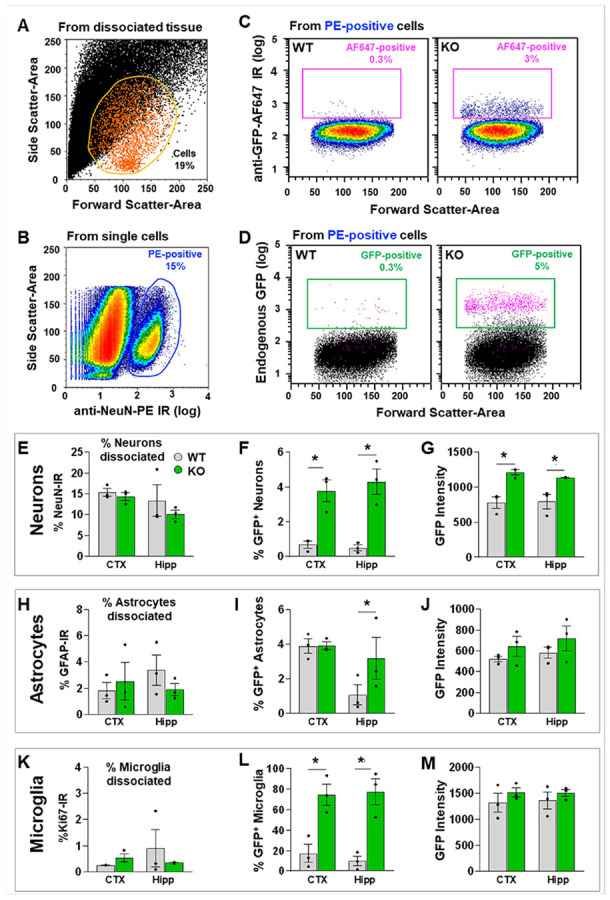

Cellular Distribution of GFP Signal Using Cell Type-Specific Markers
To further characterize GFP-expressing cell types in CB2-KO-eGFP mice, we performed flow cytometry using fluorescent phycoerythrin (PE)-conjugated antibodies against NeuN (neurons), Ki67 (microglia), and GFAP (astrocytes), together with an Alexa® Fluor 647–conjugated anti-GFP (AF647) antibody. PE+ and GFP+ cell populations were quantified from dissociated brain tissues.
Representative plots from single-cell suspensions are shown in Fig. 6A-D. We identified 19% DAPI+ cells (Fig. 6A) and 15% PE–NeuN+ neurons (Fig. 6B). Using AF647 anti-GFP, ~ 0.3% of NeuN+ neurons were GFP+ in WT mice versus ~ 3% in CB2-KO-eGFP mice (Fig. 6C). Without antibody amplification, endogenous GFP fluorescence showed similar results: ~0.3% GFP+ neurons in WT versus ~ 5% in CB2-KO-eGFP mice (Fig. 6D), confirming native GFP expression.
Quantitative analyses from three independent samples (two pooled mice per sample) are summarized in Fig. 6E-G. Among 10-15% NeuN+ neurons sorted (Fig. 6E), ~ 0.3% were GFP+ in WT cortex and hippocampus, compared with ~ 4% in CB2-KO-eGFP mice (Fig. 6F), a significant increase. GFP mean fluorescence intensity was also significantly higher in CB2-KO-eGFP mice (Fig. 6G).
Using the same approach (Suppl. Figure 12A–D), 2–3% of dissociated cells were GFAP+ astrocytes (Fig. 6H). In the hippocampus, ~ 3.5% of GFAP+ astrocytes were GFP+ in CB2-KO-eGFP mice versus < 1% in WT (Fig. 6I). No significant differences were detected in cortical astrocytes (Fig. 6I, J).
Flow cytometry also showed that 0.3–1% of cells were Ki67+ microglia (Fig. 6K; Suppl. Figure 12E–H). Among Ki67+ microglia, ~ 70% were GFP+ in the cortex and hippocampus of CB2-KO-eGFP, compared with 10–15% in WT mice (Fig. 6L). GFP mean fluorescence intensity did not differ significantly (Fig. 6M).
CB2-KO-eGFP Mice Exhibit Baseline Hyperactivity and Increased Body Weight
Lastly, we compared behavioral phenotypes between CB2-KO-eGFP mice and their WT littermates. CB2-KO-eGFP mice showed signsignificantly increased baseline locomotor activity in the open-field test (Suppl. Figure 13A, B) and displayed greater body weight beginning around 6 months of age (Suppl. Figure 13C, D). Despite these weight differences, food intake and feeding behavior were comparable between genotypes (Suppl. Figure 13E). Nociceptive responses, assessed by the hot-plate test, also did not differ between CB2-KO-eGFP and WT mice (Suppl. Figure 13F).
Discussion
In this study, we generated and validated a novel CB2-KO-eGFP mouse line in which the Cnr2 open reading frame was replaced with an eGFP reporter. Molecular assays (qRT-PCR, RNAscope) and cellular analyses (IHC, flow cytometry) confirmed complete loss of CB2 receptor expression and robust GFP labeling in splenocytes, neurons, and microglia, with lower expression in astrocytes across multiple brain regions. Behaviorally, CB2-KO-eGFP mice showed increased baseline locomotion, elevated body weight, and markedly blunted behavioral and functional responses to Δ9-THC, supporting an essential role for CB2 receptors in basal physiology and cannabinoid signaling.
CB2R in Neuropsychiatric Disorders
Over the past three decades, CB2R signaling has been implicated in multiple neuropsychiatric disorders1, 7, 9, 13. Clinical studies have linked elevated CB2R expression or CNR2 polymorphisms to altered risk or symptom severity in schizophrenia38, depression20, Parkinson’s39 and Alzheimer’s diseases40. Postmortem analyses show CB2R upregulation or downregulation in microglia-rich brain regions, correlating with neuropathological severity40, 41. In animal models, CB2R activation reduces neuroinflammation, rescues synaptic plasticity, and alleviates stress-induced behavioral deficits42, 43. In schizophrenia-like states, CB2R agonists regulate dopaminergic and glutamatergic signaling, improving cognition and social function27, 38, 44. In substance use models, CB2R activation reduces self-administration and relapse-like behavior35, 45, 46, whereas CB2R deletion promotes drug-seeking1, 47. Neurodegenerative models show CB2R-mediated neuroprotection via suppression of microglial overactivation, enhancement of toxic aggregate clearance, and preservation of neuronal integrity48, 49. Given its relatively low brain expression compared to CB1R, CB2R is considered a promising therapeutic target with minimal psychoactive liability15. Numerous selective CB2R agonists have demonstrated therapeutic efficacy and favorable safety profiles in preclinical and clinical studies targeting chronic pain, neuroinflammation, and addiction1, 11, 12, 14. Nonetheless, the neural mechanisms underlying CB2R’s therapeutic effects remain incompletely understood.
The “Identity Crisis” of Brain CB2R for Three Decades
CB2R was once thought to be absent from the brain3, but accumulating evidence now demonstrates its presence in microglia, astrocytes, and neurons under both physiological and pathological conditions1, 4, 5, 15, 18, 25, 50. In the healthy brain, CB2R expression is generally low but inducible during neuroinflammatory, pharmacological treatment, and neurodegenerative states4, 7, 32, 49, 51, 52. Functional studies suggest that CB2R modulates neuroimmune signaling, synaptic plasticity, and neurotransmitter release1, 18, 27, 33, 53, thereby influencing cognition, mood, and reward processing.
Despite these findings, the presence of CB2R in the brain remains controversial due to persistent methodological limitations. Many commercially available CB2R antibodies lack specificity, often producing signal even in CB2-KO tissue15, 21, 22. PET imaging with CB2R-selective ligands also shows minimal binding in healthy brains but robust increases during neuroinflammation. However, interpretation of these PET findings is complicated by radioligand off-target binding and species-dependent differences in ligand affinity54, 55. Moreover, two CB2-GFP reporter mouse lines have yielded inconsistent results, as we described above. These discrepancies have fueled debate over whether microglial CB2R expression is constitutive or only induced in reactive states, and whether CB2R is expressed in neurons and contributes to physiological and pathological conditions. Such uncertainties have hindered mechanistic understanding and translational progress.
Discovery of Neuronal and Glial GFP Expression in This New Reporter Mice
The reasons underlying inconsistent findings from previous CB2R reporter lines remain unclear. Closer examination of their GFP knock-in strategies reveals inherent limitations, as noted above, suggesting that the GFP expression observed in those lines may not accurately report endogenous CB2R expression.
To address these issues, we generated a new CB2-KO-eGFP strain using homologous recombination in embryonic stem cells (ESG). The entire coding sequence of exon 3 of Cnr2 was replaced with an eGFP-Neo cassette flanked by FRT sites, leaving endogenous promoter and untranslated regions intact. After FLP-mediated excision of the Neo cassette, targeted ESCs were used to generate germline-transmitting chimeras, which were subsequently backcrossed onto a C57BL/6N background for over 10 generations. This design preserves physiological promoter regulation of the reporter while creating a functional CB2R null allele.
Extensive molecular validation confirmed the deletion of Cnr2 transcripts in homozygous mice and robust GFP expression in peripheral and brain tissues, including the cingulate cortex, hippocampus, red nucleus, and cerebellum. GFP signal was detected in microglia, astrocytes, and neurons. Flow cytometry analysis revealed that ~ 70% of Ki67+ microglia expressed GFP, along with smaller but significant proportions of neurons (~ 4%) and astrocytes (~ 4%), greatly exceeding baseline levels (< 1%) in WT controls. These findings support the existence of tonic CB2R expression across multiple cell types under physiological conditions.
We note that the proportion of GFP+ neurons (~ 4%) measured by flow cytometry is lower than that observed by IHC and RNAscope, both in this study and prior worlk18, 22, 30, 33. The reasons are unclear, but differential susceptibility to enzymatic and mechanical dissociation likely contribute56, 57. Neurons and astrocytes are more vulnerable to cell loss or quenching of GFP fluorescence during dissociation, whereas microglia remain robust and maintain strong GFP signal. Consequently, single-cell suspensions may not fully capture all cell populations or their intact fluorescence. Thus, the low percentages of GFP+ neurons or astrocytes may in part reflect technical underdetection.
Functionally, CB2-KO-eGFP mice exhibited baseline hyperactivity, increased body weight, and attenuated Δ9-THC-induced analgesia, hypothermia, and catalepsy. These findings align with our previous report demonstrating that deletion of CB2R in another CB2-KO strain similarly reduced cannabinoid-induced behavioral responses58. Notably, both genotypes showed comparable reductions in Δ9-THC–induced open-field locomotion. Together, these results validate the functional knockout and underscore the role of CB2R in modulating cannabinoid-induced analgesia, thermoregulation, and motor suppression, but not in basal locomotor activity.
Advantages and disadvantages of the New CB2-KO-eGFP Mice
This targeted knock-in strategy offers several key advantages over existing CB2R reporter mice. Unlike BAC transgenic lines, it avoids random genomic insertion and dependence on non-native promoters. In contrast to IRES-based knock-ins, it eliminates translation-level decoupling by replacing the entire CB2R-coding sequence with a single eGFP reporter under the control of the endogenous Cnr2 promoter. This design ensures faithful visualization of Cnr2 transcriptional activity while simultaneously generating a complete functional knockout, enabling integrated anatomical, molecular, and behavioral analyses within the same animal.
Several limitations should be acknowledged. First, all experiments were performed in healthy mice; GFP expression dynamics under pathological conditions remains unexplored. Second, strong GFP signals were observed in the cerebellum and midbrain red nucleus relative to the cortex and hippocampus, but the proportion of GFP+ neurons in these GFP-rich regions was not quantified by flow cytometry. The percentage of GFP+ neurons or astrocytes may be higher than that in the cortex or hippocampus. Third, the embryonic deletion of Cnr2 may induce compensatory changes during development that alter GFP expression or cellular phenotypes.
In summary, the CB2-KO-eGFP mouse offers a powerful tool for resolving the long-standing controversy surronding CB2R expression in the brain. By coupling endogenous promoter–driven GFP reporting with a genetic knockout, this model enables precise identification of CB2R-expressing cells while allowing direct functional assessment of CB2R loss. Its dual capacity for cell-type–specific localization and mechanistic interrogation should greatly advance understanding of CB2R biology in both peripheral and central systems. Ultimately, this strain is well positioned to accelerate discoveries in neuroimmune research, clarify CB2R contributions to CNS disorders, and guide CB2R-based therapeutic development.
Materials and Methods
Animals
Male and female CB2-knockout-eGFP reporter (CB2-KO-eGFP) mice, age of 8–24 weeks, generated by Ingenious Targeting Laboratory (Ronkonkoma, NY, USA) (https://www.genetargeting.com/) (see SI for the detail procedures), and their wildtype littermates were used in this study. Animals were housed in climate-controlled animal colony rooms on a 12-hr reversed light-dark cycle (lights on at 7:00 p.m., lights off at 7:00 a.m.) with free access to food and water throughout the study. The housing conditions and animal care were consistent with the Guide for the Care and Use of Laboratory Animals (National Research Council, 2011). All experimental procedures were approved by the National Institute on Drug Abuse Animal Care and Use Committee.
Experiment 1: qRT-PCR
The quantitative real-time PCR (qRT-PCR) assay of brain CB2 mRNA levels was performed as described previously 18, 20. Because immune cells in blood contain a high density of CB2R, all mice used for qRT-PCR were perfused transcardially with 30–50 mL 0.9% saline under deep anesthesia, to prevent contamination of brain tissue by blood cells. Then brain and spleen were removed, and the prefrontal cortex and spleen were dissected. Two specific CB2R probes were used: mCB2A TaqMan probe (Mm00438286_m1 that targets to the region 69–160 bp of X86405.1 (https://www.ncbi.nlm.nih.gov/nuccore/X86405.1) and a custom-designed CB2-KO TaqMan probe that recognizes the Cnr2 gene-replaced region (1,877–2,820 bp of the Mus Cnr2 mRNA sequence) in the exon 3 of Cnr2 gene in CB2-KO-eGFP mice18. Mouse Gapdh mRNA detected by a commercially available Gapdh TaqMan probe (Mm99999915_g1) served as an endogenous control. The specific base pair sequences of the minor groove binder (MGB)-TaqMan probes and the primers used to detect CB2R mRNAs are listed in Suppl. Table S1.
Experiment 2: RNAscope In Situ Hybridization (ISH)
RNAscope ISH was performed as previously described18, 30. RNAscope in situ hybridization of mouse brain and spleen sections was performed to further confirm CB2R gene loss in the present strain of CB2-KO-eGFP mice. Mice (WT and CB2-KO-eGFP; 3 mice aged 2–3 months of each genotype) were deeply anesthetized, and the whole brain was removed and rapidly frozen on dry ice. Fresh-frozen tissue sections (16–18 μm thick) were mounted on positively charged microscopic glass slides (Fisher Scientific) and stored at − 80°C until RNAscope ISH assays could be performed. A mouse Cnr2-specific RNA probe (RNAscope probe: Mm-Cnr2-O2, cat# 436091) that targets coding sequence (291–719 bp) of the Mus Cnr2 mRNA sequence (NM_009924.3) and a TH-specific RNAscope probe (Cat #: 317621-C2, targeting 483–1,603 bp of the Mus musculus TH mRNA sequence, NM_009377.1) were designed and provided by Advanced Cell Diagnostics (Newark, CA, USA). The RNAscope mRNA-staining steps were performed following the manufacturer’s protocols. After a short incubation with DAPI (30 s), each slide received fluorescent mounting medium (Fluoro-Gel; #17 985, Electron Microscopy Science) and a coverslip. A Keyence BZ-X800 Fluorescence Microscope was used to take images at 60× magnification. Image Processing and Analysis by Java (ImageJ, NIH) software was used to quantify mRNA signals in the sections.
Experiment 3: GFP-Immunohistochemistry
Mice were anesthetized with isflourane gas and intracardially perfused with ice-cold 0.9% saline then 4% PFA. Brains were removed and placed in 4% PFA overnight. The following morning, the tissue was transferred to a 20% sucrose solution in PB for 24 hours then a 30% sucrose solution in PB. After 48 hr in sucrose, brains were frozen and sliced in 30 μm coronal sections. Free floating slices were rinsed in PB (x5, 10 min each) and blocked in a 5% donkey serum and 0.3% Triton X-100 solution in PB for 1 hr with agitation. Sections were shielded from light and incubated overnight at 4°C on a shaker with two primary antibodies in PB containing 3% donkey serum and 0.3% Triton X-100. The following antibodies were selected: 1) Alexa Fluor® 647 anti-GFP Antibody (1:200, BioLegend, Cat. # 338006), 2) Alexa Fluor® 488 anti-Tyrosine Hydroxylase Antibody (1:1500, Biolegend, Cat. # 818005). Sections were rinsed in PB (x3, 10 min each) and mounted on gelatin-coated slides. Dapi-Fluoromount-G™ (Electron Microscopy Sciences, Cat. # 17984-24) was applied, and slides were cover slipped and allowed to dry in a dark place. Images were obtained using the Leica THUNDER microscope at 40x to create stitched images. The large volume computational clearing (LVCC) software on the THUNDER imager was also used.
To assess GFP colocalization with TH, CD11b (a microglial marker), or GFAP (an astrocytic marker), mouse brains were sectioned at 40 μm thickness using a Vibratome. Free-floating sections were washed three times in 1× PBST (1× PBS with 0.3% Triton X-100; 15 min each) and then incubated at room temperature for 2 h in blocking solution (10% normal donkey serum in 1× PBST). Sections were subsequently incubated overnight at 4°C with rabbit anti-GFP (Invitrogen, A-11122, 1:500) together with one of the following primary antibodies: mouse anti-TH (Millipore Sigma, T-1299, 1:1,000), mouse anti-CD11b (Cell Signaling, 46512S, 1:500), or mouse anti-GFAP (Invitrogen, A-21282, 1:1,000). The next day, sections were washed three times in 1× PBST (15 min each) and incubated for 2 h in the dark with Alexa Fluor 488- or 555-conjugated secondary antibodies. Finally, sections were mounted using Vectashield Vibrance® Antifade Mounting Medium with DAPI (Vector Laboratories, Cat# H-1800). Confocal images were acquired on a Zeiss LSM 510 confocal microscope at the Light Imaging Facility, National Institute of Neurological Disorders and Stroke (NINDS).
Experiment 4: Flow Cytometry
Peripheral Blood Cell Preparation
Wild-type (WT) and CB2-KO-eGFP mice were anesthetized with isflourane and euthanized by decapitation within 60 seconds. Approximately 100 μl of peripheral blood was collected into EDTA-coated tubes to prevent coagulation, gently inverted several times to ensure proper mixing, and either processed immediately or stored on ice. Blood samples were transferred into 10 ml of ACK (Ammonium-Chloride-Potassium) lysing buffer (Cat# A1049201, ThermoFisher) and incubated at room temperature for 30 minutes to lyse red blood cells. Following lysis, samples were washed by filling the tube with PBS and centrifuging at 500 × g for 5 minutes. The resulting cell pellet was resuspended in 20 ml PBS and centrifuged again to halt further lysis. After removing the supernatant, the pellet was gently resuspended in ~ 500 μl PBS and kept on ice until flow cytometry analysis.
Peripheral Tissue Preparation
To assess the presence of GFP+ cells in other CB2-rich peripheral immune tissues, mice were perfused with saline to remove circulating immune cells. Spleen was collected, finely minced on ice using razor blades, and transferred to 1 ml of ice-cold Hibernate A (HA-if; Brain Bits). After centrifugation at 110 × g for 2 minutes at 4°C, 1 ml of Accutase (SCR005; Millipore) was added, gently mixed by pipetting four times, and incubated for 30 min at 4°C with end-over-end rotation. Samples were then centrifuged at 960 × g for 2 minutes at 4°C, and the pellet was resuspended in 0.6 ml ice-cold Hibernate A. Cells were dissociated by sequential trituration using fire-polished glass pipettes with decreasing inner diameters (1.3 mm, 0.8 mm, and 0.4 mm), followed by three additional rounds using 0.4 mm pipettes. Each trituration step consisted of 10 gentle passes and a 2-minute rest on ice to allow debris to settle. Supernatants were pooled, yielding ~ 3.6 ml of dissociated cells.
After centrifugation (1,700 × g, 4 min, 4°C), the pellet was resuspended in 0.7 ml cold PBS and filtered sequentially through 100 μm and 40 μm cell strainers (BD Biosciences).
Brain Tissue Preparation
Brain dissection and cell preparation followed previously published protocols 59-61, with minor modifications. Mice were deeply anesthetized with isflourance, then perfused with cold PBS for 3 min to flush out blood cells. Immediately after brain extraction, 2-mm thick coronal sections containing cortical and hippocampal regions (Bregma − 4.4 mm to − 2.4 mm) were sliced. The cingulate cortex and CA1/CA2 hippocampus were dissected on ice and transferred into a 1.5 ml microtube containing 1 ml of ice-cold Hibernate A.
Tissues from two mice were pooled and manually triturated using a plastic pipette tip, followed by serial trituration with fire-polished glass pipettes of decreasing diameters (1.3 mm, 0.8 mm, and 0.4 mm). Each step involved 10 gentle passes to generate a cloudy suspension of dissociated cells. Samples were split into two tubes for fixation/permeabilization by adding an equal volume of 100% cold ethanol (− 20°C), incubated on ice for 7 minutes with inversion after 3 minutes. After centrifugation (1,700 × g, 4 minutes, 4°C), the pellet was resuspended in 0.7 ml cold PBS and filtered through 100 μm cell strainers.
Neuron and Glial Cell Immunostaining
To determine the proportion of GFP-expressing neurons and glial cells, immunostaining with fluorescent antibodies was performed. The cell suspension was divided into three 1.5 ml microtubes and incubated for 30 minutes at 4°C in 0.7 ml PBS with the following antibodies: All tubes, Alexa® Fluor 647-conjugated anti-GFP antibody (1:250, BioLegend, #338006); Tube 1, PE-conjugated anti-NeuN antibody (1:500, Millipore, FCMAB317PE) for neurons; Tube 2, PE-conjugated anti-GFAP antibody (1:500, Cell Signaling, #12389) for astrocytes; Tube 3, PE-conjugated anti-Ki67 antibody (1:500, Cell Signaling, #12160) for microglia. After incubation, cells were washed twice with 0.8–1 ml cold PBS (1,300 × g, 3 minutes, 4°C), resuspended in 0.5 ml cold PBS, and filtered through 40 μm cell strainers for sorting.
Flow Cytometry
Cell sorting was performed using a FACSAria Fusion SORP flow cytometer (BD Biosciences). DAPI (1 μg/ml) was used to identify nucleated cells, with ~ 80–90% of events in the ‘Cell’ gate being DAPI-positive. Doublets were excluded using a restricted gate based on forward scatter width vs. height, with > 95% of events confirmed as single, DAPI-positive cells. Final gating and data analysis were conducted offline using FCS Express 7 (De Novo Software).
Experiment 5: Open-field locomotion
To determine whether CB2R deletion alters locomotor response to Δ9-THC, we injected vehicle or Δ9-THC (0, 10, and 30 mg/kg) to CB2-KO-eGFP mice and their wildtype littermates and measured locomotion behavior in the open-field test. Animals were given two consecutive day sessions (1 hr) in the open-field chambers for habituation and minimization of novelty exploratory behavior. Then, on the following test days, animals were placed in the open-field chambers for 1 hr prior i.p. injections for baseline locomotion measurements. After baseline, animals were injected with one dose of Δ9-THC or vehicle and then immediately placed in the open-field apparatus to obtain locomotion measurements after injections for 2 hrs. The experiment was conducted in a within-subjects design with Δ9-THC doses counterbalanced and at least 2–3 days of time interval between test days.
Experiment 6: Food pellet self-administration
To determine whether deletion of CB2R alters food taking and body weight, mice were trained on a daily 1 h FR1 schedule for 1–2 weeks until reliable response was achieved. A rodent diet food pellet (LabTab Ain-76A, TestDiet) served as a reinforcer. Each pellet is 45 mg and contains 5.1% fat, 65.2% carbohydrate, 4.8% fiber, and 2.9% ash contents. For each session, both response levers extended into the chamber. The light cue-paired “active” lever delivered 1 pellet per press and the “inactive” lever failed to elicit cues or reward delivery. Sessions were terminated upon reaching the pellet delivery maximum (60 pellets) or after 1 h had elapsed.
Experiment 7: Δ9-THC-induced triad effects
The procedures for measurement of THC-induced triad effects were the same as we previously reported 62. Briefly, CB2-KO-eGFP and their wildtype littermates (n = 8 per group) were treated with vehicle or Δ9-THC (10 or 30 mg/kg, i.p.) to measure cannabinoid-induced analgesia, catalepsy, and hypothermia. Measurements were taken 0.5 hr before and 0.5, 1, 1.5, and 2 hrs post Δ9-THC injection on the testing day. The order of testing was counterbalanced. Time intervals between test days were two to three days.
Analgesia
Thermal nociception was measured using a hot plate device (Model 39, IITC Life Science Inc., CA). Mice were placed on a hot plate heated to 52°C with a transparent barrier in place. The latency to exhibit the first thermal nociceptive sign, including paw licking, stomping or shaking hind paws, and jumping, was recorded to the nearest hundredth of a second. Mice were removed from the hot plate immediately after the first thermal nociceptive sign or, if no thermal nociceptive signs occurred, at 60 seconds to avoid tissue damage.
Hypothermia
To measure changes in body temperature, the RET-2 rectal probe (Harvard Apparatus, Holliston, MA) was lubricated with seed oil and gently inserted 2 cm into the rectum. Temperature was recorded once the measurement stabilized, to the nearest tenth of a °C.
Catalepsy
Cataleptic behavior was measured using an elevated bar test. Subjects’ front paws were placed on a metal bar at a height where their hind paws just reached the ground. The latency for the mice to remove both front paws from the bar and place them on the ground was recorded to the nearest tenth of a second, with a cutoff of 120 s.
Drugs
D9-THC was obtained through the NIDA Pharmacy and was dissolved in 5% Cremophor.
Data analysis
All data are represented as the mean ± SEM. Animal group sizes were chosen based on power analysis (n ≥ 8 per group) and extensive previous experience with the animal models used. The group size is the number of independent values (individual animal). To validate the use of parametric statistics, we ensured that the residuals were normally distributed (Shapiro Wilk Test for normality; p > 0.05) and variances of the differences across all groups were equal (Levene’s test for homogeneity for between-subject ANOVA, p > 0.05). Statistical analysis was done using the independent values coming from individual animals in each group. One-way ANOVA (between-subjects design) was used to measure the AUC data in open-field locomotion, while two-way repeated measures ANOVA (within-subjects design) were utilized to analyze behavioral and functional effects of different Δ9-THC doses on locomotion, analgesia, catalepsy, or body temperature. Post hoc analyses were done using Student-Newman-Keuls method compared to vehicle/baseline control group. The value of p< 0.05 was used to indicate statistically significant differences among or between groups. All tests were performed using SigmaStat 12.5 for Windows. The investigators were blinded to the group allocation during the experiments and data analysis.
Acknowledgement
This research was supported by the Intramural Research Program of the National Institute on Drug Abuse (NIDA), Addiction Biology Unit (Z1A DA000633, Z.X.X.), within the Molecular Targets and Medications Discovery Branch. The contributions of the NIH-affiliated authors were made as part of their official duties as federal employees, in accordance with agency policy requirements, and are considered Works of the United States Government. The findings and conclusions presented in this paper, however, are those of the author(s) and do not necessarily reflect the views of the NIH or the U.S. Department of Health and Human Services.
We extend our sincere thanks to Dr. Amy Newman of the Medicinal Chemistry Section and the Medication Development Program, NIDA IRP for her personal, financial, and mentoring support. We also thank Dr. Josephine M. Egan of the National Institute on Aging for her guidance, advice, and critical reading of the manuscript, and Dr. Omar Soler-Cedeno at NIDA IRP for his assistance in preparing brain samples for flow cytometry assays.
Data availability statement:
All the data are presented in the main manuscript and the additional supporting files. They will be deposited in a publicly available repository (GitHub) after publication.
