The effects of cannabidiol via TRPV2 channel in chronic myeloid leukemia cells and its combination with imatinib
MAGGI et al.
Department of Molecular Medicine Sapienza University Rome Italy
Immunopathology Laboratory School of Pharmacy University of Camerino Camerino Italy
School of Biosciences and Veterinary Medicine University of Camerino Camerino Italy
* CorrespondenceConsuelo Amantini, School of Biosciences and Veterinary Medicine, University of Camerino, Camerino, Italy.
Email: consuelo.amantini@unicam.it
Abstract
Chronic myeloid leukemia (CML) is a myeloproliferative disorder characterized by accumulation of immature cells in bone marrow and peripheral blood. Although successful results were obtained with tyrosine kinase inhibitors, several patients showed resistance. For this reason, the identification of new strategies and therapeutic biomarkers represents an attractive goal. The role of transient receptor potential (TRP) ion channels as possible drug targets has been elucidated in different types of cancer. Among natural compounds known to activate TRPs, cannabidiol (CBD) displays anticancer properties. By using FACS analysis, confocal microscopy, gene silencing, and cell growth assay, we demonstrated that CBD, through TRPV2, inhibits cell proliferation and cell cycle in CML cells. It promoted mitochondria dysfunction and mitophagy as shown by mitochondrial mass reduction and up‐regulation of several mitophagy markers. These effects were associated with changes in the expression of octamer‐binding transcription factor 4 and PU.1 markers regulated during cellular differentiation. Interestingly, a synergistic effect by combining CBD with the standard drug imatinib was found and imatinib‐resistant cells remain susceptible to CBD effects. Therefore, the targeting of TRPV2 by using CBD, through the activation of mitophagy and the reduction in stemness, could be a promising strategy to enhance conventional therapy and improve the prognosis of CML patients.
Graphical
Our data showed that cannabidiol, via TRPV2, induces cell proliferation blockage, mitophagy, and changes in the expression of differentiation markers in chronic myeloid leukemia cells. Cannabidiol acts synergistically with imatinib and it also reduces cell viability of imatinib‐resistant cells.
Boxed Text
Article notes
Maggi F , Morelli MB , Tomassoni D , et al. The effects of cannabidiol via TRPV2 channel in chronic myeloid leukemia cells and its combination with imatinib. Cancer Sci. 2022;113:1235–1249. doi:10.1111/cas.15257 PMC899086734971020
Footnote Group
- [Ca2+]i
- Ca2+ influx
- ∆Ψm
- mitochondrial transmembrane potential
- ATG16L1
- autophagy protein 16 like 1
- ATG5‐ATG12
- autophagy protein 12
- BAF
- bafilomycin A
- CBD
- cannabidiol
- CI
- combination index
- CML
- chronic myeloid leukemia
- COX IV
- cytochrome c oxidase subunit 4
- DCFDA
- 2′,7′‐dichlorofluorescin diacetate
- H2O2
- hydrogen peroxide
- JC‐1
- 5,5′,6,6′‐Tetrachloro‐1,1′,3,3′‐tetraethylbenzimidazolocarbocyanine iodide
- K562 IR
- K562 imatininb‐resistant
- LC3
- microtubule‐associated protein‐1 light chain 3
- MFI
- mean fluorescence intensity
- OCT4
- octamer‐binding transcription factor 4
- PI
- propidium iodide
- pink1
- PTEN induced putative kinase 1
- qRT‐PCR
- quantitative real‐time PCR
- ROS
- reactive oxygen species
- TKIs
- tyrosine kinase inhibitors
- TRP
- transient receptor potential
1INTRODUCTION
Chronic myeloid leukemia (CML) is a hematologic malignancy which progresses in stages termed chronic phase, accelerated phase, and blast. 1 In addition to allogeneic stem cell transplantation or interferon administration, TKIs are the current approved therapy. However, the resistance to TKIs represents a limit that leads to therapy discontinuity associated with reduced survival of patients. 1 , 2 Consequently, the development of new therapeutic strategies and the identification of new therapeutical targets is getting attention.
In this regard, the role of ion channels belonging to the TRP family as possible targets, being implicated in cancer growth, metastasis, and chemoresistance, 3 has been established. The clear association with cancers and the possibility to control their functions by several modulators make them attractive targets for pharmacological intervention. 4
Few data are present about the involvement of TRP channels in hematological malignancies. The expression of several members of the TRP family in different lymphoid and myeloid leukemia has been demonstrated. 5 , 6 In fact, it has been shown that TRPV5 and 6‐induced [Ca2+]i stimulates cell cycle arrest in myeloid leukemia cell lines. 7 The inhibition of TRPM7 reduces cell proliferation and promotes erythroid differentiation in K562 CML cells. 8 Moreover, in this cell line, TRPV2 channel shows altered gene expression profile that is in part involved in the growth of blast cells. 9
Several natural compounds are known to modulate the TRP activities 10 and among them cannabidiol (CBD), a no‐psychoactive phytochemical extracted from Cannabis sp., has recently attracted consideration for its ability to act as an agonist for TRPV1 and TRPV2, while it has no affinity for the endocannabinoid CB1 and CB2 receptors. 11
CBD has been shown to reduce cell viability in immortalized human T lymphocyte cells and acute leukemic T cells 12 ; however, findings about the anticancer properties of CBD in CML cells are still missing.
Thus, this study investigated the effects induced by CBD treatment via activating TRPV2 in CML cell lines. In particular, given that in hematological malignancies the targeting of mitochondria increases the therapy efficacy, 13 we focused the attention on the mitophagy and the modulation of markers involved in the differentiation of CML cells. Finally, the combination of CBD with imatinib was also studied.
2MATERIALS AND METHODS
2.1Cell lines
Human K562, KU812 and MOLM‐6 CML cell lines, from DSMZ–German Collection of Microorganisms and Cell Cultures GmgH, were maintained in RPMI1640 medium (Euroclone) supplemented with 10% FBS (Euroclone), 2 mM l‐glutamine, 100 IU/mL of penicillin, and 100 μg/mL of streptomycin. K562 IR was developed by exposing cells to a concentration of 1 µM imatinib for 10 days. 14
Human acute leukemia THP‐1 cell line, provided by IFOM (Rome, Italy), was cultured in RPMI‐1640 Medium supplemented as above described and with 2‐mercaptoethanol (0.05 mM).
Cell lines were cultured at 37°C, 5% CO2 and 95% of humidity.
Blood of healthy donors, provided by Macerata Hospital (Italy) after authorization, was used to isolate PBMCs/red blood cells by Ficoll paque (Cederlane) and to obtain an enrichment of normal myeloid cells by a Rosette SepTM HLA Myeloid Cell Enrichment Kit (StemCell Technologies).
A CD38 Micro Bead Kit (Miltenyi Biotech Inc.) was used to isolate CD38+ common myeloid progenitors from human cord blood CD34+ progenitor cells (Sigma Aldrich). 15
2.2Reagents
Capsazepine, PI, imatinib mesylate, ionomycin and DCFDA were from Sigma Aldrich. BAF, Fluo‐3 AM, JC‐1, and DAPI were from ThermoFisher Scientific. CBD was from ENECTA. Tranilast was from Bio‐Techne SRL. CBD, tranilast, capsazepine and BAF were dissolved in DMSO used as vehicle (maximum 0.05%, considered no toxic). 16 Abs used according to datasheet: anti‐LC3, anti‐COX IV, anti‐OCT4, anti‐ATG16L1, anti‐ATG5‐ATG12, anti‐pink1, anti‐parkin, anti‐caspase 3, anti‐GAPDH, anti‐optineurin and anti‐PU.1 were from Cell Signaling Technology (1:1000); rabbit anti‐human TRPV1 (1:1000) was from Invitrogen and goat anti‐human TRPV2 (1:50) was from Santa Cruz Biotechnology).
Secondary Abs used: HRP‐conjugated anti‐rabbit IgG (1:5000; Jackson ImmunoResearch Europe Ltd), HRP‐conjugated anti‐mouse IgG (1:2000; Cell Signaling Technology), PE‐conjugated goat anti‐rabbit Ab (1:40; BD Biosciences), FITC‐conjugated goat anti‐mouse Ab (1:40; BD Biosciences), Alexa Fluor‐594‐conjugated goat anti‐rabbit Ab (1:100; Cell Signaling Technology), and Alexa Fluor‐488‐conjugated donkey anti‐goat Ab (1:100; Invitrogen).
2.3Quantitative real‐time PCR
Total RNA from CD34+CD38+ progenitors was extracted by SingleShot Cell Lysis Kit (BioRad) whereas the RNeasy Mini Kit (Qiagen) was used for all the other cells. cDNA was synthesized using the iScript Advanced cDNA Synthesis Kit (BioRad). qRT‐PCR reactions were performed with QuantiTect Primer Assays (Qiagen) for human TRPV1 (QT00046109), TRPV2 (QT00035987) and GAPDH (QT00079247), which was used as reference gene, using the iQ5 Multicolor Real‐Time PCR Detection System (BioRad). The PCR parameters were according to the primer datasheet. All samples were assayed in triplicate.
2.4FACS analysis
Cells, fixed in paraformaldehyde 4% and permeabilized with cold methanol and permeabilization solution (1% FBS, 0.1% saponin, 0.1% sodium azide in PBS) were incubated with anti‐TRPV1, anti‐TRPV2, anti‐COX IV or anti‐OCT‐4 Abs. Cells were then incubated with fluorochrome‐conjugated secondary Abs and analyzed by FACS and CellQuest software (Beckton Dickinson).
2.5Confocal microscope analysis
Chronic myeloid leukemia cells were fixed with 4% paraformaldehyde for 10 minutes and cytospin was performed. Cells were permeabilized using cold methanol and incubated with 5% of BSA and 0.1% of Tween‐20 in PBS for 1 hour at room temperature. After, cells were co‐labeled with anti‐TRPV1 Ab and anti‐TRPV2 Ab followed by fluorochrome‐conjugated secondary Abs. Nuclei were stained with DAPI. Slides were analyzed with C2 Plus confocal microscope (Nikon Instruments). Magnification = 100×.
Cells, treated or not with CBD at IC50 dose for 24 hours, were labelled with PU.1 Ab.
2.6Intracellular calcium influx [Ca2+]i
1.5 × 106/mL CML cells were washed in calcium and magnesium free PBS supplemented with 4.5 g/L of glucose and then incubated with Fluo 3‐AM according to datasheet. After washing, cells, resuspended in PBS/glucose medium containing 2 mmol/L Ca2+, were stimulated with CBD (IC50 dose) or vehicle up to 3 minutes. Cells were also pretreated with tranilast before CBD. Ionomycin (5 µg/mL) treatment was used as positive control. Fluo 3‐AM fluorescence was measured by FACS and CellQuest Software.
2.7Gene silencing

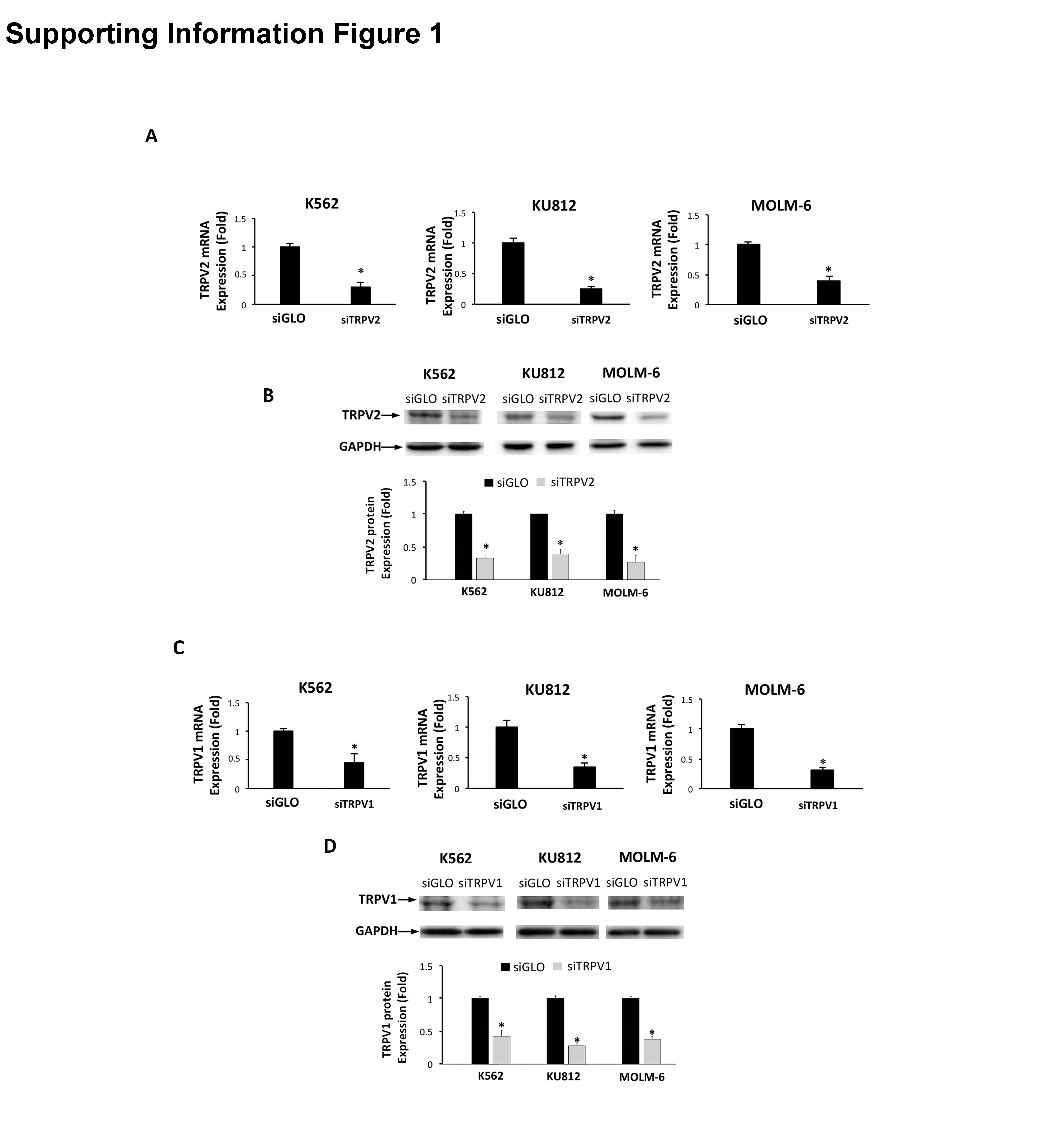

siTRPV2, siTRPV1 and siGLO nontargeting siRNA (used as control) FlexiTube siRNA were from Qiagen. CML cells were plated at 6 × 105/mL for 24 hours; the day after, cells were plated at the density of 4 × 105/mL and siTRPV2, siTRPV1 or siGLO (50 nM) were added, following the HiPerfect transfection reagent (Qiagen). Cells were harvested at 48 hours post‐transfection. Silencing efficiency was evaluated by qRT‐PCR and western blot. No differences were observed comparing siGLO transfected with untransfected cells.
2.8Cell viability assay
2 × 105 CML cells/mL were plated in a 12‐well plate. The day after, CBD (10‐75 μM) or vehicle was added for 24 hours. Then, cells were stained with trypan blue and counted by using the TC20 automated cell counter (BioRad). Three replicates were used for each treatment. IC50 values were calculated using GraphPad Prism® 5.0 (GraphPad Software).
Chronic myeloid leukemia cells were also pretreated with tranilast (10 μM) or with capsazepine (10 μM) for 1 hour before the addition of CBD for 24 hours. Cell counting was performed in siTRPV2, siTRPV1 or siGLO CML cells treated with CBD (IC50) or vehicle. CBD was used in combination with imatinib mesylate for 24 hours. Synergistic activity of the CBD/imatinib combination was determined by the isobologram analysis and combination index (CI) methods (CompuSyn Software, ComboSyn, Inc.). The CI was used to express synergism (CI < 1), additivity (CI = 1) or antagonism (CI > 1).
Cell growth was measured in: cells pretreated with BAF (25 nM) for 1 hour and then treated with CBD (IC50 dose) for 24 hours, in K562 IR or K562 treated with imatinib (0.01‐10 μM) and in K562 IR cells treated for 24 hours with different doses of CBD.
2.9Western blot analysis
Lysate from CML cells, treated or not with CBD at IC50 dose, was extracted by using lysis‐buffer (10 mM Tris, 100 mM sodium chloride, 1 mM EDTA, 1 mM EGTA, 1 mM sodium fluoride, 20 mM sodium pyrophosphate, 2 mM sodium orthovanadate, 1% Triton X‐100, 10% glycerol, 0.1% SDS, 0.5% deoxycholate, and 1 mM PMSF) containing protease‐inhibitor cocktail (EuroClone). Proteins were separated on 8%‐14% SDS polyacrylamide gels and transferred. Blocking was with 5% low‐fat dry milk or 5% BSA in PBS 0.1% Tween 20. Membranes were incubated with anti‐TRPV1, anti‐TRPV2, anti‐LC3, anti‐ATG16L1, anti‐ATG12, anti‐PINK1, anti‐optineurin, anti‐PU.1, anti‐parkin or anti‐GAPDH Abs followed by corresponding HRP‐conjugated secondary Abs. Analysis was performed by LiteAblot PLUS kit, Chemidoc and the Quantity One software (BioRad).
Lysates from CML cells treated with CBD at IC50 dose in combination with BAF for 12 hours or from siTRPV2 and siGLO (control) CML cells treated or not with CBD were incubated with anti‐LC3. Lysates from KU812 cells treated or not with CBD 15 µM for 24 hours were used for caspase‐3 analysis.
2.10Cell cycle analysis
Chronic myeloid leukemia cells treated or not with CBD at IC50 dose for 24 hours were fixed in cold 70% ethanol, treated for 30 minutes at 37°C with 100 μg/mL ribonuclease A solution, stained for 30 minutes at room temperature with PI 20 μg/mL, and analyzed by FACS. CML cells were also pre‐treated with tranilast (10 μM) for 1 hour before the addition of CBD at dose IC50 for 24 hours.
2.11BrdU assay
Cell proliferation was evaluated using BrdU staining kit (ThermoFisher Scientific) according to the company protocol. Cells were then analyzed by FACS and CellQuest software.
2.12Cell death analysis
Cells, treated or not with CBD at IC50 dose for 24 hours, were incubated with 2 μg/mL PI for 30 minutes at 37°C. After washing, fluorescence was analyzed by FACS and CellQuest software. PBMCs or red blood cells were treated with CBD 25 µM or not for 24 hours and then Annexin V and/or PI staining was performed according to the datasheet (Enzo Life Science). As positive control, PBMCs and red blood cells were treated with hydrogen peroxide (H2O2). 17 , 18
2.13Reactive oxygen species production
Oxidative stress levels in CML cells after treatment with CBD (IC50) was assessed by staining with 20 μM DCFDA for 20 minutes. After washing, the fluorescence was assayed using FACS and CellQuest software. Moreover, oxidative stress was evaluated in CBD (25 µM)‐treated red blood cells. As positive control, red blood cells were treated with H2O2. 18
2.14Mitochondrial transmembrane potential (∆Ψm) and mitochondrial integrity
∆Ψm was evaluated by JC‐I staining according to the company protocol in CML cells, treated with CBD at IC50 dose or not for 8, 12 and 24 hours. Samples were then analyzed by FACS and CellQuest software. The drop of ∆Ψm was also evaluated in siGLO and siTRPV2 cells treated with vehicle or with CBD (IC50) for 12 hours.
Moreover, JC‐1 was used to evaluate ∆Ψm in healthy PBMCs treated or not with CBD (25 µM). The mitochondrial integrity was also investigated by labeling cells with Mitobright (Dojindo Molecular Technologies) according to instructions.
2.15Mitophagy assay
Mitophagy in CML cells, treated with CBD at IC50 dose or with vehicle for 24 hours, was detected using the Mtphagy detection kit® (Dojindo Molecular Technologies). CML cells (105 cells/well) were labeled with 100 nM Mtphagy Dye for 15 minutes before the addition of CBD for 24 hours. Then cells were analyzed by FACS and CellQuest software. Confocal microscopy was also used. CML cells, stained with Mtphagy dye and treated with CBD as above described, were finally labelled with 1 µM Lyso Dye. After washes, cytospin was performed. Nuclei were counteracted with DAPI before the analysis with C2 Plus confocal laser scanning microscope by using 100× magnification.
2.16Colony formation assay
The clonogenic activity of CML cells was measured with the Human Colony‐Forming Unit (CFU) Assay using MethoCult kit (StemCell Technologies). CML cells were treated for 24 hours with CBD (IC50 dose) or vehicle and then 2000 cells/well were plated according to the datasheet. After 10 days, colonies were visualized and counted by inverted bright field microscope. Each sample was assayed in triplicate.
2.17Statistical analysis
The statistical significance was determined by Student's t test and by ANOVA with Bonferroni's post‐test. No statistically significant differences were found between untransfected and siGLO‐transfected CML cells, untreated with vehicle‐treated cells or vehicle‐treated cells at different times (data not shown). Given that no differences were found between vehicle‐treated cells at different times, for simplicity, as control, in time course analysis, vehicle‐treated cells for 24 h were shown.
3RESULTS
3.1CBD, by activating TRPV2, affects CML cell viability

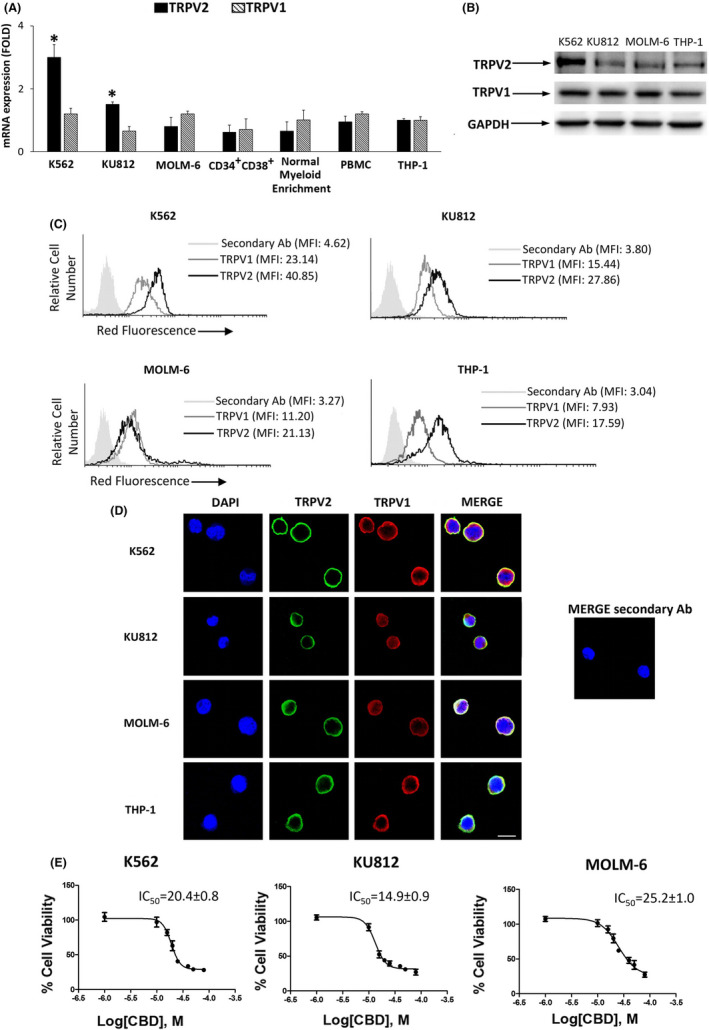

We evaluated the expression of TRPV1 and TRPV2 in K562, KU812, MOLM‐6 CML cell lines, CD34+CD38+ common myeloid progenitors, normal myeloid cells, PBMCs and THP‐1 cells used as control. 9 , 19 TRPV1 and TRPV2 are expressed at mRNA level in all analyzed cells with TRPV2 that is expressed at higher levels in K562 and KU812 cells respect to THP‐1 (Figure 1A). The expression was also confirmed at protein levels by immunoblotting and cytofluorimetric analysis (Figure 1B,C). Moreover, confocal microscopy showed that TRPV1 and TRPV2 partially colocalize (Figure 1D). Given that CBD is able to activate both TRPV1 and TRPV2, 20 , 21 CML cells were treated with CBD (10‐75 μM) for 24 hours and analyzed by cell viability assay. CBD induced a significant decrease of cell viability with an IC50 of 20 μM (K562), 15 μM (KU812), and 25 μM (MOLM‐6) (Figure 1E). The IC50 doses of CBD were used for the subsequent experiments.

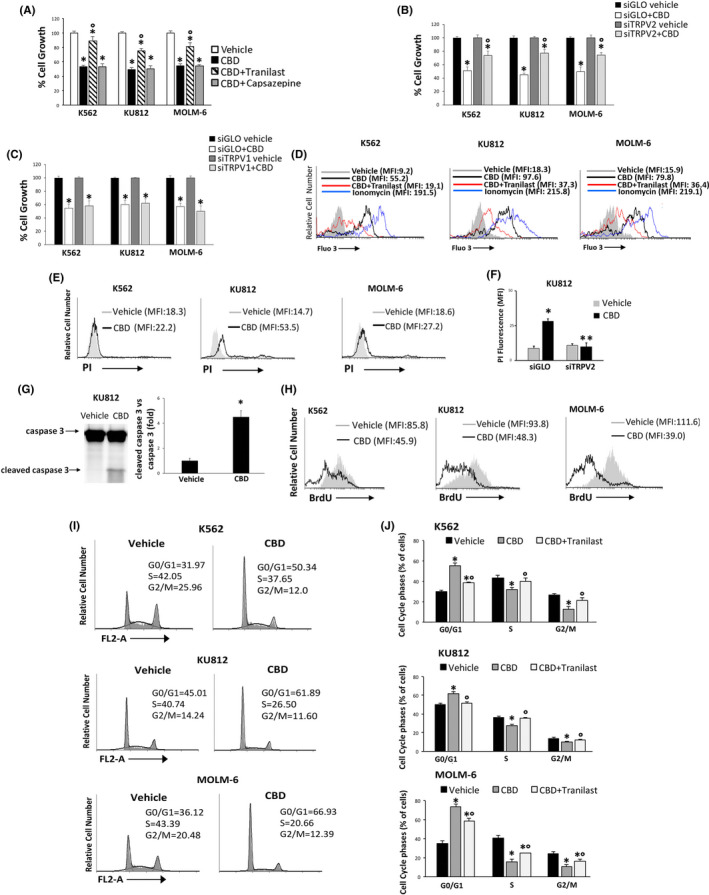

Cell viability assay was also performed in CML cells pretreated with 10 μM capsazepine (TRPV1‐antagonist) 22 and 10 μM tranilast (TRPV2‐antagonist) 21 before the addition of CBD for 24 hours. Only tranilast was able to revert the CBD effects (Figure 2A), suggesting the TRPV2 involvement. This was confirmed by using TRPV1 and TRPV2 gene silencing (Figure S1A‐D) and cell viability assay (Figure 2B,C). The CBD‐induced effects were reduced in siTRPV2, but not in siTRPV1, with respect to siGLO cells. Previous findings showed that CBD does not target normal hematopoietic progenitor cells. 23 However, we performed Annexin V/PI staining in PBMCs treated or not with CBD at 25 µM. Data showed that CBD does not induce cell death (Figure S2A,B). Moreover, given that the conventional treatments provoke erythrocyte toxicity, 24 apoptosis and oxidative stress were also evaluated in healthy erythrocytes. No enhancement in the Annexin V fluorescence or ROS production was found in CBD‐respect to vehicle‐treated erythrocytes (Figure S2C‐F).
Since TRPV2 is a calcium permeable channel, 9 we performed [Ca2+]i assay up to 3 minutes (data not shown). Our results showed that CBD induced a rapid increase in [Ca2+]i 1 minute after the stimulation. This effect was inhibited by tranilast supporting the TRPV2 involvement (Figures 2D and S2G). Moreover, the calcium overload was associated with a marked enhancement in ROS production after 1 hour of CBD treatment (Figure S2H,I).
3.2CBD inhibits cell proliferation

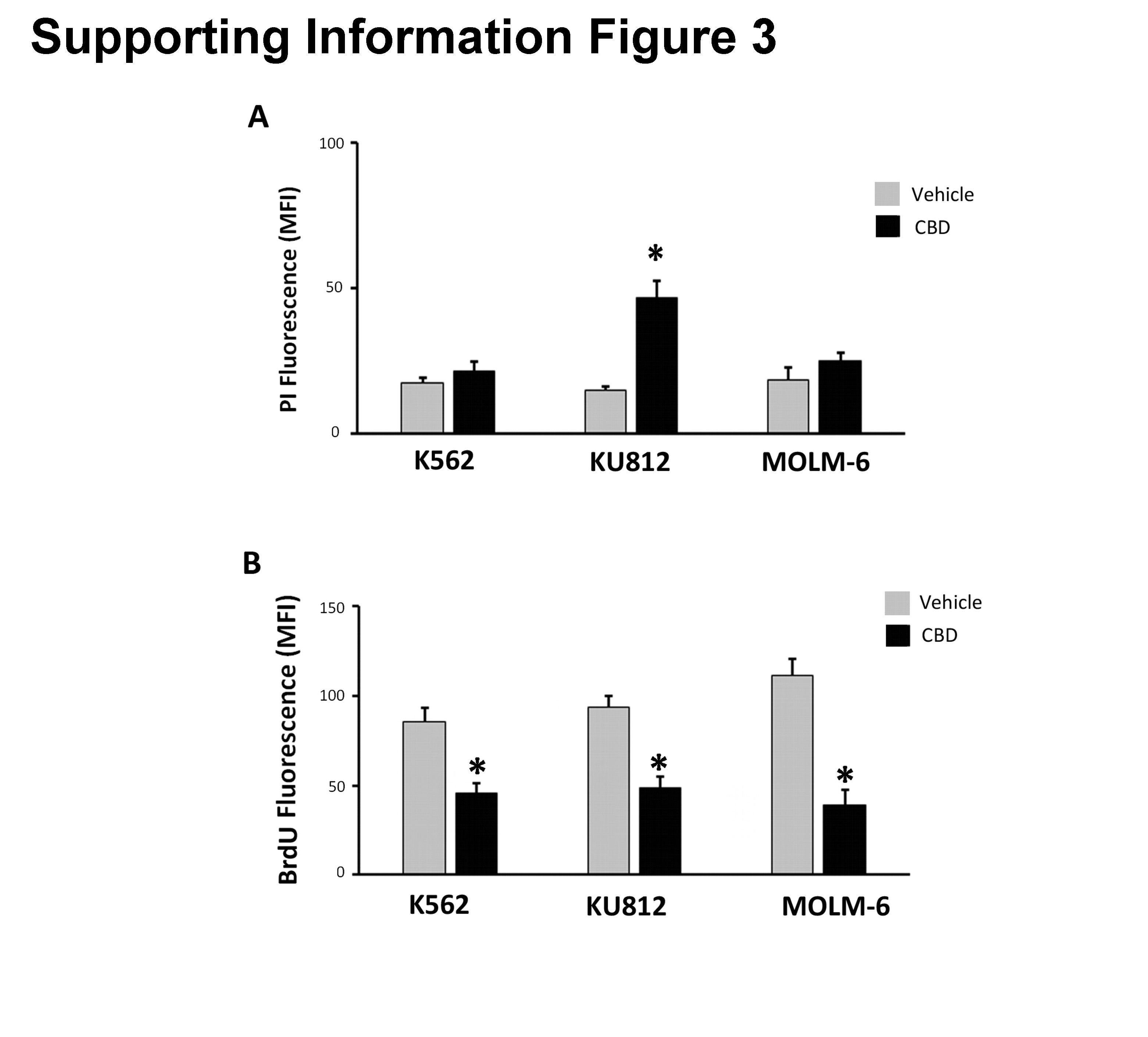

Cytofluorimetric analysis, performed in CML cells treated for 24 hours with CBD and stained with PI, demonstrated that CBD mildly stimulates cell death only in KU812 cells. CDB‐induced cell death was reverted in siTRPV2 KU812 cells, underlying the involvement of this channel (Figures 2E,F and S3A). The presence of cleaved caspase 3 fragment in CBD‐treated KU812 cells was found indicating apoptosis (Figure 2G). Moreover, CBD markedly inhibited BrdU incorporation (Figures 2H, and S3B) in all CML lines indicating that the reduction in cell viability is associated with a strong decrease in cell proliferation. CBD treatment also induced a TRPV2‐dependent cell cycle arrest by increasing the percentage of cells in the G0/G1 phase (Figure 2I,J).
3.3The CBD‐induced effects are associated with mitochondria impairment

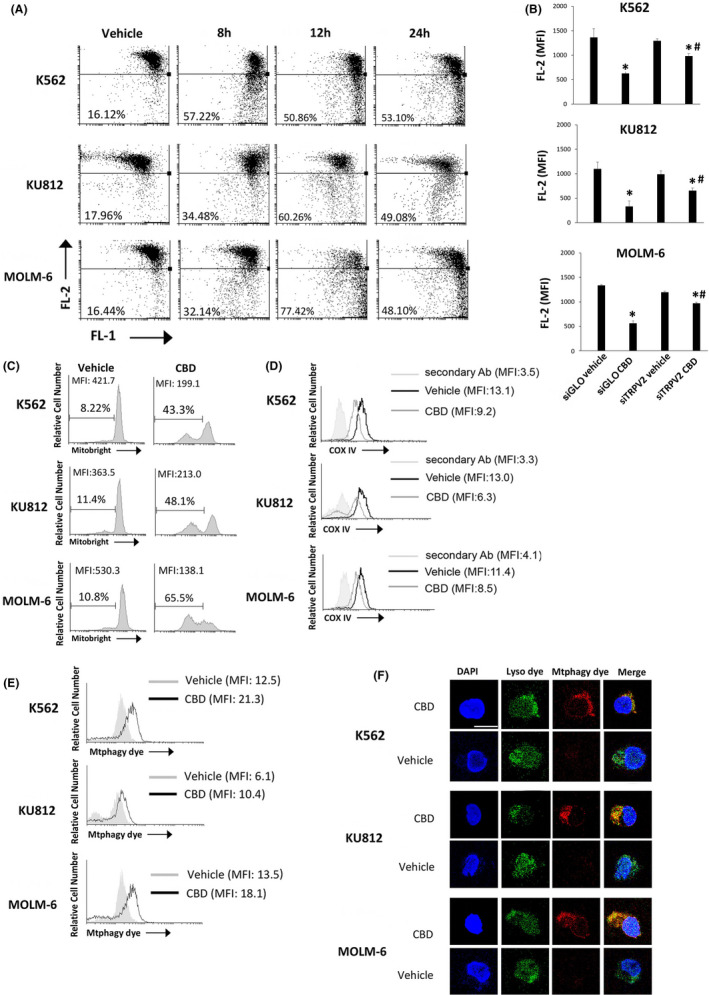

Calcium overload and ROS production play a pivotal role in the mitochondria dysfunction. 25 Thus, by using JC‐1 staining, we found that the treatment of CML cells with the IC50 dose of CBD induces a time‐dependent ΔΨm that was evident at 8 hours, increased at 12 hours, and slightly decreased at 24 hours (Figures 3A and S4A). In PBMCs treated with the highest dose of CBD, data showed the absence of cells with depolarized mitochondria (decrease in red fluorescence) (Figure S4B). To further support the role of TRPV2, we evaluated the drop of ΔΨm in siGLO and siTRPV2 cells treated with vehicle or with CBD (IC50 dose) for 12 hours. Our results showed that the CBD‐induced mitochondrial impairment is markedly reduced in siTRPV2 respect to siGLO cells (Figure 3B). Moreover, a marked reduction in Mitobright fluorescence and an increased cell percentage with diminished green fluorescence in CBD‐ respect to vehicle‐treated cells were found, indicating mitochondrial impairment (Figures 3C and S4C).
3.4CBD induces mitophagy in CML cells
We then labeled cells with the specific anti‐COX IV Ab, used as mitochondrial mass marker. 26 A marked down‐regulation in COX IV expression in CBD‐ respect to vehicle‐treated CML cells was found demonstrating the mitochondria removal (Figures 3D and S4D). Thus, mitophagy assay was performed. An increase of the Mtphagy dye fluorescence in CBD‐ respect to vehicle‐treated CML cells was found as shown by the MFI values (Figures 3E and S4E). To corroborate the fusion of Mtphagy dye‐labeled mitochondria with lysosomes, cells were also stained with Lyso dye and then analyzed by confocal microscopy. The analysis confirmed the strongly enhancement in Mtphagy dye fluorescence and the colocalization between Mtphagy and Lyso dyes in CBD‐ respect to vehicle‐treated cells indicating that damaged mitochondria are driven inside lysosomes (Figure 3F).
3.5The CBD‐induced mitophagy is TRPV2‐dependent in CML cells

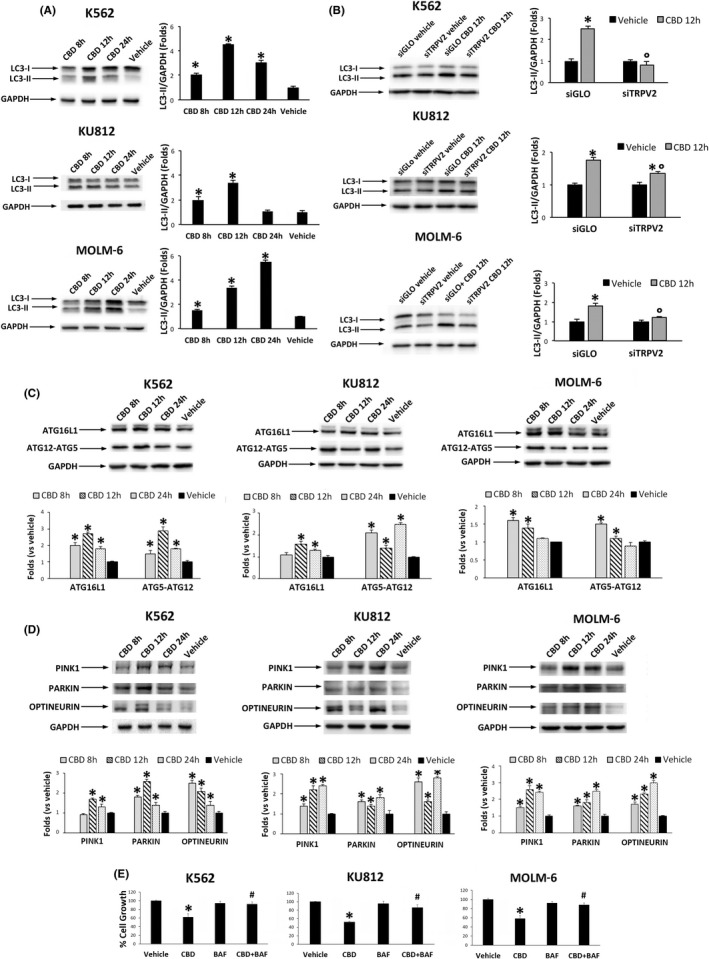

Mitophagy is a cargo‐specific autophagy 27 so we examined the conversion of the soluble form of LC3‐I to the lipidated and autophagosome‐associated form (LC3‐II).
CBD treatment increased the expression of LC3‐II in all CML cell lines (Figure 4A). The autophagy inhibitor BAF, by blocking the autophagic degradation activity, increased the LC3‐II form (Figure S4F) demonstrating that LC3‐II levels were dependent from the autophagic flux and not the result of protein synthesis. In addition, in siTRPV2 cells, CBD was unable to markedly increase the expression of LC3‐II respect to vehicle‐treated cells with comparable level detected in siGLO cells, supporting the involvement of TRPV2 (Figure 4B). CBD induced up‐regulation of ATG16L1 and ATG5/ATG12 expression indicating the execution of autophagy (Figure 4C). 28 Given that mitophagy of optineurin‐labeled mitochondria is regulated by parkin and PINK1, 29 we evaluated the expression of these proteins in CML cells treated or not with CBD. Our findings showed that CBD stimulates an increased expression of parkin, PINK1, and optineurin (Figure 4D).
Moreover, the inhibition of autophagy strongly reverted the CBD‐induced cell growth inhibition (Figure 4E) supporting the role of autophagy in the CBD‐mediated effects.

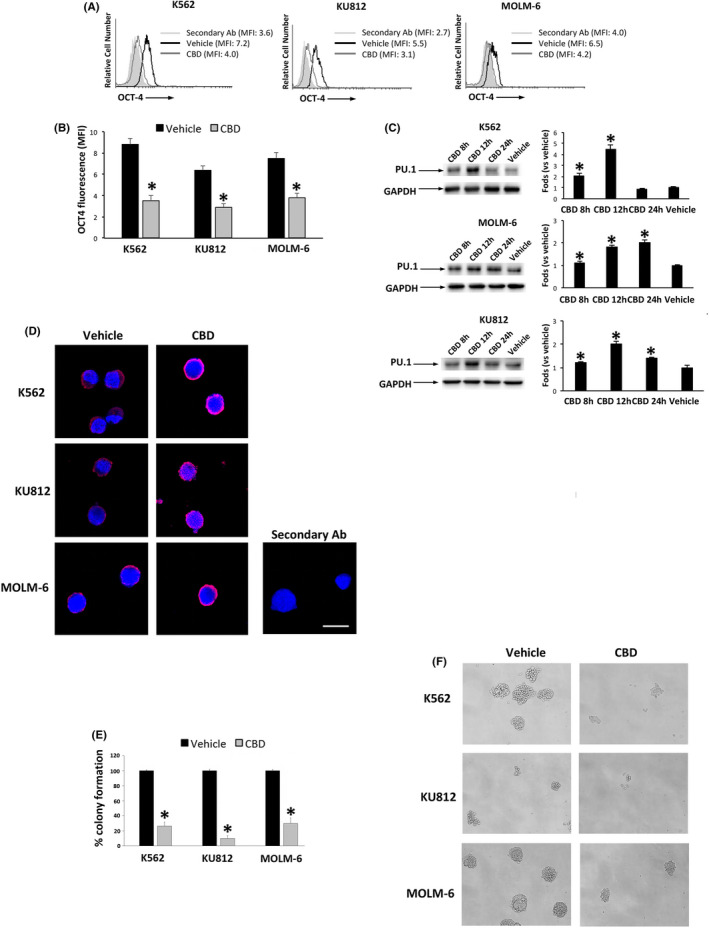

Autophagy can modulate the levels of pluripotency‐associated proteins. 30 Thus, we investigated the expression of transcription factors involved in the maturation of CML cells. CBD reduced the expression of the stemness‐related protein OCT‐4, comparing CBD‐ respect to vehicle‐treated cells (Figure 5A,B). By western blot analysis and confocal microscopy, we also demonstrated that CBD increases the expression of PU.1, essential for myeloid cell development 31 indicating an enhancement in CML cell maturation (Figure 5C,D). The ability of CBD to stimulate a more differentiated state was also evaluated by colony forming assay, useful to test the clonogenic activity of undifferentiated cells. 32 We demonstrated that CBD strongly reduces the ability to form colonies in all CML cell lines (Figure 5E,F).
3.6CBD synergizes with imatinib in reducing cell viability in CML cell lines

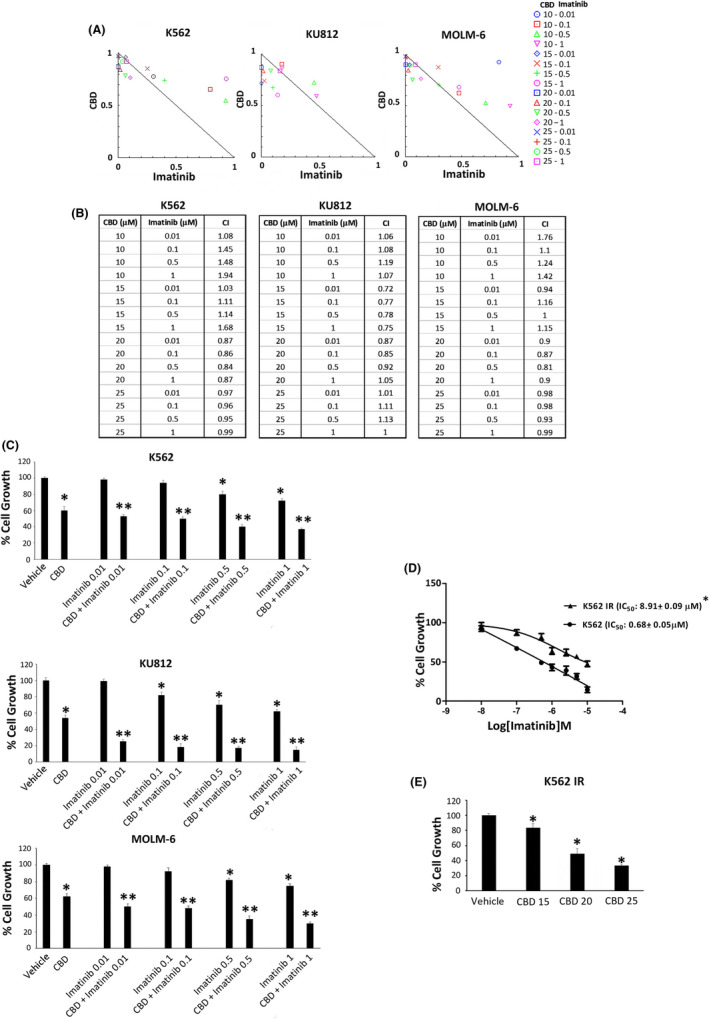

Currently, the standard therapy of CML consists of TKIs such as imatinib. We evaluated the possible synergism between CBD and imatinib in all CML cell lines. Cells were exposed to various concentrations of CBD and imatinib for 24 hours. The isobologram analysis showed that several combinations of the two drugs induce increased levels of cytotoxicity, as compared with single treatments (Figure 6A).
The CI values obtained by combining the CBD at IC50 dose with imatinib are <1, indicating from slight to moderate synergistic effects (Figure 6B). In fact, the percentage of cell growth was markedly reduced when imatinib, even at the lowest dose, is combined with CBD at IC50 dose (Figure 6C). To strengthen these data, we also performed cell viability assay in K562 IR treated with different doses of CBD for 24 hours. After confirmation of the resistant phenotype in K562 IR (Figure 6D), as shown in Figure 6E, we found that CBD treatment also inhibits cell growth in this resistant cell model.
4DISCUSSION
Chronic myeloid leukemia is a myeloproliferative disorder originating from an incomplete differentiation process of hematopoietic progenitor to adult cells with consequent accumulation of immature ones. Although successful results were obtained with TKIs in therapy, several patients show or develop resistance. 1 , 2 Thus, the discovery of new anticancer compounds and the identification of new drug targets represent an interesting challenge.
CBD is considered a promising anticancer drug alone or in combinations with conventional chemotherapies. In fact, findings demonstrated that CBD induces cell death and inhibits cell migration and vascularization in glioma models, and similar results have been obtained in other cancer types. 33 , 34 , 35
Few data on CBD‐mediated effects in leukemia and lymphoma have been provided 1 , 2 , 36 , 37 , 38 and no findings are present about the role of TRPV2 in CBD‐induced effects on CML cells.
Although CBD belongs to the family of phytocannabinoids able to bind the CB1 and CB2 receptors, the idea that CBD has no affinity for these receptors is gaining strength. 11 Instead, it has been accepted that it is an agonist for TRPV1 and TRPV2. 20 , 21 TRPV1 and TRPV2, ion channels involved in the regulation of calcium signaling, are expressed on normal immune cells 39 , 40 and in some leukemia cells. 9 , 19 , 41 , 42 Our data support the expression of both receptors in the three CML cell lines in common myeloid progenitors and normal myeloid cells, suggesting the importance of TRPV channels in the modulation of immune activities. In particular, TRPV2 is implicated phagocytosis, degranulation, chemotaxis, cytokine secretion, and proliferation. Little is known about the TRPV2 role in the leukemogenesis. An oncogenic function related to its involvement in cell proliferation has been suggested. 9
Although TRPV2 expression is higher in K562 respect to KU812 and MOLM‐6 cells, the ability of CBD to inhibit cell growth is very similar among the three CML lines. mRNA and protein expression levels are not enough to suppose differences in the TRPV functionality. In fact, the status of TRPV2 activation is influenced by post‐translational modifications such as glycosylation, phosphorylation, and binding with lipids. 43
Interestingly, we demonstrated that CBD, by activating TRPV2, induces inhibition of cell proliferation and blockage of the cell cycle. Also, our previous conclusions in glioma cells indicating that the CBD‐induced effects are TRPV2‐dependent 21 suggest its relevant role in the CBD‐stimulated signaling pathways.
We showed for the first time that the CBD‐induced TRPV2 dependent inhibition of cell proliferation is associated with mitophagy in CML cells. The ability of CBD to cause mitochondrial damage and to interact directly with isolated mitochondria was recently investigated in Jurkat cells. 12 Here we demonstrated that CBD stimulates, via TRPV2, calcium overload, and oxidative stress strongly leading to the mitochondrial dysfunction. 25 Mitochondria dynamics is essential to regulate cellular metabolism, ATP production, and redox homeostasis. 13 It has been found that the number of mitochondria and the total mitochondrial mass are increased in chronic lymphatic leukemia with respect to normal naïve B lymphocytes. 44 Moreover, the targeting of mitochondrial enzymes represents an effective therapeutic strategy for leukemia cells since they have more mitochondria compared with normal hematopoietic stem cells. 45 The upregulation of mitochondrial mass associated with chemoresistance has been found in lymphoma. 46 Thus, our data showing that CBD treatment induces mitochondria dysfunction and promotes mitophagy meet the overall need to use therapies inhibiting exaggerated mitochondrial activity in leukemia. 13
Mitophagy is responsible for the removal of damaged mitochondria. 27 , 38 ATG family proteins such as LC3, ATG5, ATG12, and ATG16‐L1 regulate the autophagy by participating in autophagosome formation. 47 , 48 In our study, the CBD treatment, via TRPV2, increased the expression of LC3‐II. It also enhanced ATG16‐L1 and ATG5‐ATG12 complex levels, indicating the stimulation of the autophagy. These results are in agreement with previous findings demonstrating the upregulation of these proteins after inducing photodamages in mitochondria. The pink1 and parkin upregulation and accumulation on mitochondria are essential to promote mitophagy. 49 Mitophagy is also regulated by optineurin that binds damaged mitochondria and increases their autophagic engulfment. 31 Similarly, we demonstrated that CBD enhances the expression of pink1, parkin, and optineurin.
Although findings suggest that mitophagy plays a role in the maintenance of cancer stem cells, 50 it is also well accepted that mitophagy participates in cellular differentiation. 51 In agreement, we showed that cell cycle arrest and mitophagy induced by CBD in CML cells are associated with changes in the differentiation markers OCT‐4 and PU.1 involved in leukemogenesis and myeloid differentiation. 52 , 53 We found a reduction of the stem‐associated marker OCT‐4 level and the enhancement of PU.1, suggesting that CBD drives CML cells to a more differentiated state. This was also confirmed by colony formation assay that demonstrates the ability of CBD treatment to reduce the clonogenic activity of CML cells.
The presence of poorly differentiated cells is associated with chemoresistance. TKI resistance develops due to secondary BCR‐ABL mutations and/or an independent mechanism. 54 Several studies have suggested that TKI treatment, surprisingly, induces stemness in CML cells, 55 thus the need to develop new targeted therapies that could overcome these stemness‐promoting effects is attractive. In this regard, we highlighted the ability of CBD to act synergistically with imatinib and reduce the cell viability of IR cells. Overall, given that CBD is characterized by a favorable safety and tolerability profile, 56 the use of CBD as adjuvant to enhance conventional therapy and improve the prognosis of patients by modulating TRPV2 activity is very promising in CML clinical therapy.
DISCLOSURE
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supporting information
DATA AVAILABILITY STATEMENT
Data supporting the conclusions of this article will be made available by the authors.
