Interacting binding insights and conformational consequences of the differential activity of cannabidiol with two endocannabinoid-activated G-protein-coupled receptors
Dávila et al.
1 School of Chemical Sciences, Meritorious Autonomous University of Puebla (BUAP), University City, Puebla, Mexico
2 Neuropharmacology Laboratory, School of Chemical Sciences, Meritorious Autonomous University of Puebla (BUAP), University City, Puebla, Mexico
3 Chemistry Center, Science Institute, Meritorious Autonomous University of Puebla (BUAP), University City, Puebla, Mexico
*Correspondence: Jose Manuel Perez-Aguilar, jmanuel.perez@correo.buap.mx; Brenda L. Sanchez-Gaytan, brendale.sanchez@correo.buap.mxAbstract
Cannabidiol (CBD), the major non-psychoactive phytocannabinoid present in the plant Cannabis sativa, has displayed beneficial pharmacological effects in the treatment of several neurological disorders including, epilepsy, Parkinson’s disease, and Alzheimer’s disease. In particular, CBD is able to modulate different receptors in the endocannabinoid system, some of which belong to the family of G-protein-coupled receptors (GPCRs). Notably, while CBD is able to antagonize some GPCRs in the endocannabinoid system, it also seems to activate others. The details of this dual contrasting functional feature of CBD, that is, displaying antagonistic and (possible) agonistic ligand properties in related receptors, remain unknown. Here, using computational methods, we investigate the interacting determinants of CBD in two closely related endocannabinoid-activated GPCRs, the G-protein-coupled receptor 55 (GPR55) and the cannabinoid type 1 receptor (CB1). While in the former, CBD has been demonstrated to function as an antagonist, the way by which CBD modulates the CB1 receptor remains unclear. Namely, CBD has been suggested to directly trigger receptor’s activation, stabilize CB1 inactive conformations or function as an allosteric modulator. From microsecond-length unbiased molecular dynamics simulations, we found that the presence of the CBD ligand in the GPR55 receptor elicit conformational changes associated with antagonist-bound GPCRs. In contrast, when the GPR55 receptor is simulated in complex with the selective agonist ML186, agonist-like conformations are sampled. These results are in agreement with the proposed modulatory function of each ligand, showing that the computational techniques utilized to characterize the GPR55 complexes correctly differentiate the agonist-bound and antagonist-bound systems. Prompted by these results, we investigated the role of the CBD compound on the CB1 receptor using similar computational approaches. The all-atom MD simulations reveal that CBD induces conformational changes linked with agonist-bound GPCRs. To contextualize the results we looked into the CB1 receptor in complex with a well-established antagonist. In contrast to the CBD/CB1 complex, when the CB1 receptor is simulated in complex with the ligand antagonist AM251, inactive conformations are explored, showing that the computational techniques utilized to characterize the CB1 complexes correctly differentiate the agonist-bound and antagonist-bound systems. In addition, our results suggest a previously unknown sodium-binding site located in the extracellular domain of the CB1 receptor. From our detailed characterization, we found particular interacting loci in the binding sites of the GPR55 and the CB1 receptors that seem to be responsible for the differential functional features of CBD. Our work will pave the way for understanding the CBD pharmacology at a molecular level and aid in harnessing its potential therapeutic use.
1 Introduction
The endocannabinoid system is a signaling apparatus that regulates a variety of widespread functions in the central nervous system including, synaptic plasticity, learning, sleep, eating, inflammation, immune responses, and pain and temperature control, to mention a few (Lu and MacKie, 2016). The plethora of cellular functions associated with the endocannabinoid systems makes it an attractive pharmacological target. The endocannabinoid system comprises several cellular entities including the endocannabinoids, which are endogenous cannabinoid compounds that modulate the signaling system, as well as various biomacromolecules, i.e., receptors and enzymes. In addition to the enzymes that synthesize and decompose the endocannabinoids, various receptors constitute the endocannabinoid system including two G-protein-coupled receptors, namely, the cannabinoid type 1 (CB1) and type 2 (CB2) receptors. In addition to CB1 and CB2, other receptors have been proposed to participate as mediators of the effects of the cannabinoid ligands including the G-protein-coupled receptor 55 (GPR55) (Ryberg et al., 2007; Kapur et al., 2009).
Among the different ligands able to modulate the cannabinoid receptors, those present in the C. sativa plant exhibit a significant interest not only because of their role as possible therapeutic agents but also because of their increasing recreational use which may also pose a public health issue (Hall and Lynskey, 2016; Wilkinson et al., 2016). Knowing the details of the stimulation of different cannabinoid receptors by phytocannabinoid compounds may provide pharmacological tools to finely tune the endocannabinoid system. Among the compounds able to modulate the cannabinoid receptors, cannabidiol (CBD), one of the major constituents in the Cannabis plant, has attracted significant industrial and medical attention because of its non-psychoactive properties. Yet, the molecular determinants of the CBD interaction with receptors stimulated by endocannabinoids remain poorly understood. In this work and using computational methods, we investigate the interaction of CBD with two endocannabinoid-activated receptors, the GPR55 receptor and the prototypical CB1 receptor. While in the former, CBD is known to antagonize the receptor, that is, maintain the receptor’s inactive conformations, the way by which CBD modulates the latter system remains debatable. That is, CBD has been suggested to directly trigger the activation the CB1 receptor (Navarro et al., 2020), inactivate the receptor (Grotenhermen, 2004; Batalla et al., 2021; Śmiarowska et al., 2022), or play a role as an allosteric modulator (Shao et al., 2019; Batalla et al., 2021; Austrich-Olivares et al., 2022). First, we looked into the modulation of the CBD ligand on the GPR55 receptor using computational methods. To put our findings in context, we also investigated the GPR55 receptor in complex with a selective agonist. The computational methods utilized are able to capture the ligand-dependent conformational details in the two GPR55 complexes, showing that CBD stabilizes inactive conformations of the receptor while the ML186 agonist favors active-like conformations. Next, we investigated the role of CBD in directly modulating the CB1 receptor by placing the ligand in the orthosteric binding site based on the chemical homology of CBD to other CB1 ligands (Hua et al., 2017). Our results suggest that CBD is able to stabilize the receptor’s structural changes associated with agonist-bound conformations. Based on these results and similarly to the case of the GPR55, we looked into the CB1 receptor in complex with a well-established CB1 antagonist, the AM251 ligand. Furthermore, the computational methods utilized here are able to capture the ligand-dependent conformational details in the two endocannabinoid-activated GPCRs and provide a view of the main differential interactions involved in the CBD protein complexes.
2 Materials and methods
2.1 Homology modeling of the GPCR structures
We decided to model the receptor’s structures of Rattus norvegicus to better correlate our findings with the experimental results from our animal models. Additionally, the sequence similarity with Homo sapiens is high (around 97% sequence identity in the CB1 system and around 74% sequence identity in the GPR55). The sequence for both receptors are shown in Supplementary Figure S1.
2.2 GPR55 receptor structures
Thus far, there is no experimentally-determined structural information regarding the GPR55 receptor. Hence, the structure of the rat GPR55 receptor was built using the homology modeling technique (Eswar et al., 2006). To identify possible adequate templates for GPR55, the Swiss-Model server was used (Waterhouse et al., 2018). The selected system was the lysophosphatidic acid receptor 6 (LPA6) which displays a sequence identity with GPR55 of about 30% (PDB ID code 5XSZ). The sequences of the LPA6 template and the rat GPR55 receptors were obtained from UNIPROT (with the codes Q08BG4 and F1MAK4, respectively). The sequences were aligned using BLASTp (Altschul et al., 1990) with subsequent manual adjustments. The pairwise sequence alignment is presented in Supplementary Figure S2. To generate 3D structural models of the rat GPR55 receptor, we used the Modeller 9.23 protocol (Šali and Blundell, 1993). 100 models of the R. norvegicus GPR55 receptor were generated and a representative structure was selected based on energetic considerations, that is, using the Modeller’s scoring function (see Supplementary Figure S3).
2.3 CB1 receptor structures
To model the structures for the rat CB1 receptor we used different templates for each receptor’s functional state. In the case of the CB1 receptor that will form a complex with CBD (an tentative agonist for CB1), the template utilized was the agonist-bound human CB1 receptor (PDB ID code 5XRA). In the case of the CB1 receptor that forms a complex with AM251 (an antagonist for CB1), two structures of the antagonist-bound human CB1 receptor were used as templates (PDB ID code 5U09 and code 5TGZ). In both cases, 100 models of the R. norvegicus CB1 structures were modeled via homology modeling using the Modeller 9.23 protocol (Šali and Blundell, 1993). The sequences of the human and rat CB1 receptors were obtained from UNIPROT (with the codes P21554 and P20272, respectively). Based on energetic considerations, a representative structure of the rat CB1 receptor was selected in each case for further analysis, see Supplementary Figure S4.
2.4 CBD/GPR55 complex structures (inactive-like GPR55 system)
To identify possible molecular poses for the CBD/GPR55 complex, blind docking calculations were performed using the Autodock-Vina software (Trott and Olson, 2009). The selected molecular pose for the CBD/GPR55 complex is shown in Supplementary Figure S3. Chemical structure of the ligands are displayed in Supplementary Figure S5.
2.5 ML186/GPR55 complex structures (active-like GPR55 system)
Similar to the aforementioned case of the CBD/GPR55 complex, molecular poses for the ML186/GPR55 complex were identified via docking calculations using Autodock Vina (Trott and Olson, 2009). The selected molecular pose for the ML186/GPR55 complex is shown in Supplementary Figure S3.
2.6 CBD/CB1 complex structures (active-like CB1 system)
To predict possible molecular poses for the CBD ligand in the structural framework of the CB1 receptor, docking studies were carried out using Autodock Vina (Trott and Olson, 2009). In addition to the energetic considerations (the scoring function of Autodock Vina), we used the structure of the AM11542/CB1 complex (PDB ID code 5XRA), as a guide to select a representative structure of the CBD/CB1 complex (see Supplementary Figure S4). The structure of the AM11542/CB1 complex was selected based on the similarity of the CBD ligand and the AM11542.
2.7 AM251/CB1 complex structures (inactive CB1 system)
Similar docking calculations were utilized in the case of the AM251 antagonist. In this case, in addition to Autodock Vina’s scoring function, the structure of the AM6538/CB1 complex (PDB ID code 5TGZ), was used as a guide due to the similarity between the AM251 ligand and the AM6538 ligand. The selected structure is indicated in Supplementary Figure S4.
2.8 All-atom molecular dynamics simulations
To provide the interacting ligand binding determinants of the protein systems (CBD/GPR55, ML186/GPR55, CBD/CB1, and AM251/CB1) and the concomitant conformational consequences, we performed all-atom molecular dynamics (MD) simulations in each of the four protein complexes. Similar general preparation for the systems has been previously used for GPCRs (Perez-Aguilar et al., 2014; Perez-Aguilar et al., 2019; Dror et al., 2011; Lee and Lyman, 2012; Méndez-Luna et al., 2015) and other membrane proteins (Rangel-Galván et al., 2021). Briefly, using the structural information from the docking calculations as the initial complex structure, hydrogen atoms were included representing the most probable protonation states for all the amino acids residues at neutral pH. The protein complexes were embedded in a hydrated symmetric POPC (1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine) membrane, where sodium and chlorine ions were included so as to have a physiological salt concentration (0.15 M). Preparation steps that include the imposition of structural force restraints to avoid unrealistic conformation of the system (e.g., water penetration to the lipid membrane) were carried out (Perez-Aguilar et al., 2014; Perez-Aguilar et al., 2019; Rangel-Galván et al., 2021). Next, unbiased MD simulations were carried out for one microsecond (1.0 μs) at a constant temperature and pressure (37°C and 1 atm, respectively).
2.9 Class A GPCR position numbering
To define the position of each residue, we will be using the Ballesteros-Weinstein numbering as superscript. In this nomenclature, the first number indicates the transmembrane helix (from one to seven) whereas the second number indicates the residue position relative to the most conserved residue, which is assigned to the number 50 (Ballesteros and Weinstein, 1995).
2.10 Structural analysis
The analyses herein were performed using the program VMD and in-house TCL scripts (Humphrey et al., 1996).
3 Results
To shed light on the differential activity of CBD in the two endocannabinoid-activated receptors aforementioned, we utilized computational techniques to characterize four protein complexes, CBD/CB1, ML186/GPR55, CBD/GPR55, and AM251/CB1.
3.1 Interacting determinants in the CBD/GPR55 and ML186/GPR55 complexes
3.1.1 The CBD/GPR55 system
As described in the Methods section, the initial model of the CBD/GPR55 was obtained from docking approaches using the crystal structure of the lysophosphatidic acid receptor 6 (LPA6, 5XSZ.pdb) to model the structure of the GPR55 receptor. The initial structure of the model is shown in Supplementary Figure S3 and was used as the starting point to investigate the CBD/GPR55 complex by unbiased all-atom MD simulations. Figures 1A,B shows a representative final complex structure after 1 μs simulation, where the interactions that stabilized the CBD molecular pose are displayed.

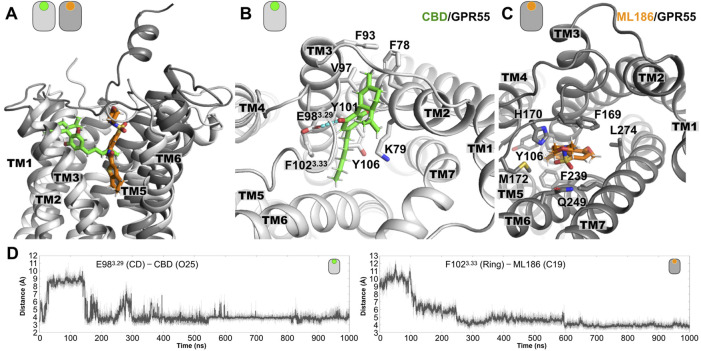

The molecular pose of CBD in the ligand binding site of GPR55 is located mainly in the vicinity of TM2 and TM3, and close to the conserved disulfide bond formed by C943.25 and C168ECL2. In particular, the terpenoid ring moiety of CBD inserts in between TM2 and TM3 as indicated in Figure 1B. In this position, the CBD ligand is flanked by two charged residues, i.e., K792.60 and E983.29. CBD forms polar interaction with the side chain of E983.29 via one of the hydroxyl (OH) groups. The time evolution of this distance along the entire MD simulations is shown in Figure 1D. As for residue K792.60, it interacts with CBD using its aliphatic side chain [(CH2)4]. Residues that delineate the ligand binding site of CBD are indicated in Figure 1B.
3.1.2 The ML186/GPR55 system
To put our findings in context, we also investigate the interactions of the GPR55 selective agonist ML186. A representative structure of the ML186/GPR55 complex at the final stages of the 1 μs simulation is illustrated in Figures 1A,C. In contrast to the location of the CBD ligand in the GPR55 binding site, the ML186 agonist positions in proximity to TM3, TM6 and TM7. The binding site of the selective agonist is partially formed by three bulky aromatic residues, namely F1023.33, Y1063.37, and F2396.48. F1023.33 positions along the main axis of the ligand where it established aromatic interactions with the highly delocalized electron (aromatic) region of the molecule, see the right panel in Figure 1D. Residues Y1063.37 and F2396.48 formed the lowest region of the ligand binding site. In particular, position 6.48 has been denominated “toggle switch” and associated with class A GPCR activation (see below for more details). The sulfonyl functional group (SO2) group of the agonist forms polar interactions with residue Q2496.58 in the extracellular part of TM6. Finally, in comparison with the relatively shallow position of the CBD, the ML186 agonist places into a deep molecular pose in the GPR55 ligand binding site (Figure 1A).
3.2 Structural consequences observed in the GPR55 receptor by the presence of the ligands
In order to understand the structural consequence of the presence of CBD ligand in the receptor’s conformations, we analyze several structural motifs associated with GPCR activation. One particular locus linked with GPCR activation is position 6.48, the so-called toggle switch, which usually bears the aromatic residue tryptophan (W6.48). Upon activation, there is a structural rearrangement in the vicinity of this residue, that seems to propagate conformational changes towards the intracellular side (Zhou et al., 2019). At this position, the GPR55 receptor contains another aromatic residue, the F2396.48. In this context, we analyzed the conformations of this residue in the CBD-bound and ML186-bound GPR55 systems, particularly the rotameric states explored by the bulky F2396.48 residue. As observed by the dihedral angles values of the angle defined by the N-CA-CB-CG atoms, in the case of the CBD/GPR55 complex, the distribution of the values explored by the receptor along the simulated trajectory are mainly distributed around 280°–320° (unimodal distribution, see Figure 2A). In the case of the agonist-bound GPR55 complex, the presence of the ML186 ligand provokes a change in the position of the F2396.48 residue, as indicated by the bimodal distribution of the N-CA-CB-CG dihedral angle (Figure 2A). Experimental evidence indicates that a more dynamic and heterogeneous conformational behavior of the receptor is attributed to the binding of an agonist ligand (Manglik et al., 2015; Latorraca et al., 2017). It this case, the bimodal distribution observed in the ML186/GPR55 system at this position may be associated with active-like conformations while the unimodal distribution of this dihedral angles in the CBD/GPR55 complex are attributed to a GPCR’s inactive conformations. This behavior may be attributed to the thiophene-containing fused-rings moiety of the ML186 agonist, which directly contacts the side chain of the F2396.48 residue (Figure 1A). These results are in good agreement with the current notion that CBD is an antagonist of the GPR55 receptor while ML186 exhibits agonistic function on the GPR55 (Ryberg et al., 2007; Ross, 2009; Sharir and Abood, 2010).

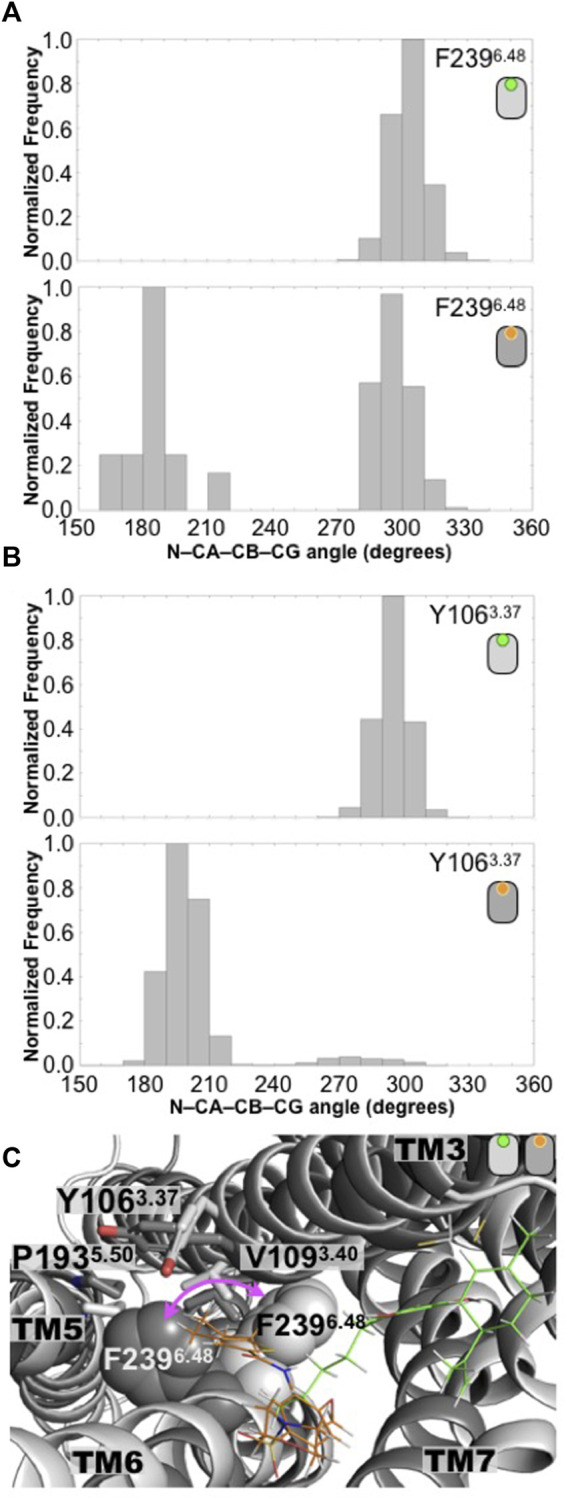

Additionally, it has been suggested that conformational changes in position 6.48 with residues in TM3 and TM6 occur upon activation (Zhou et al., 2019; Hilger, 2021). Our simulations suggest that the conformational changes of the F2396.48 residue are in close relation with those of two other aromatic residues, the bulky aromatic residues Y1063.37 and F2356.44. Analysis of the equivalent Y1063.37 dihedral angle (N-CA-CB-CG atoms) indicates a drastic change in the rotameric states sampled by this residue. While in the CBD/GPR55 system, which displays the unimodal distribution of F2396.48, the Y1063.37 dihedral angle (N-CA-CB-CG atoms) also indicates that this aromatic residue samples a one-peak distribution conformations (Figure 2A). The more dynamic behavior of F2396.48 causes a significant change in the distribution of rotameric states that explores the Y1063.37 dresidue (Figure 2B).
Lastly, the changes in the GPR55 toggle switch causes F2356.44 to follow similar trend, that is, the CBD/GPR55 displays an unimodal distribution of the dihedral angle define by the N-CA-CB-CG atoms while the ML186/GPR55 complex displays a more heterogenic distribution (Supplementary Figure S6).
The significant conformational response of the GPR55 receptor to the presence of the CBD antagonist and the ML186 agonist on structural motifs known to play a role on activation, seems to be in good agreement with the experimental evidence linked to these two ligands [Ryberg et al., 2007; Ross, 2009; Sharir and Abood, 2010; Kotsikorou et al., 2013; Anderson et al., 2021; Heynen-Genel et al., 2010 September 29 (updated 26 May 2011); Sharir. et al., 2012; Kotsikorou. et al., 2011]. Furthermore and regarding the known modulatory properties of the two ligands, CBD (antagonist) and ML186 (agonist), our computational approaches were able to distinguish the distinct GPR55 conformations elicited by the presence of each ligand (Figure 2C).

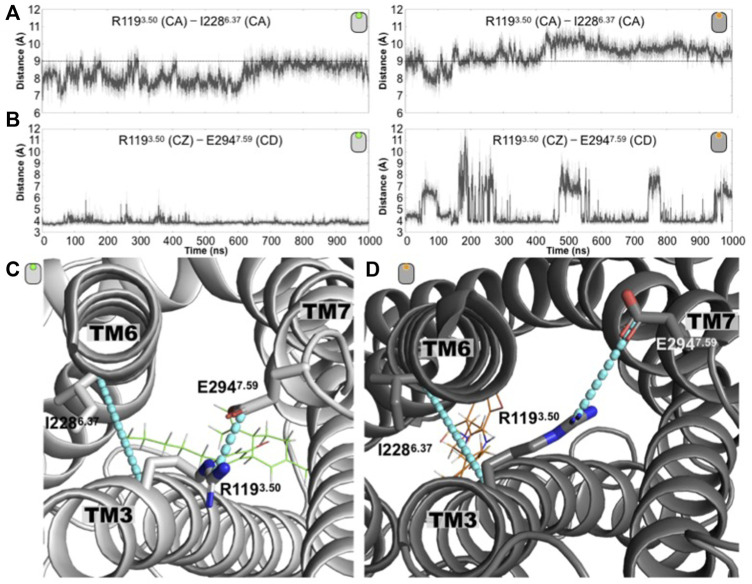

In addition to the aforementioned toggle switch residue, another structural feature that is a hallmark of class A GPCR activation is the presence of an charge-charge intracellular interaction, the so-called ionic lock, formed by R3.50 and D/E6.30 (Zhou et al., 2019). Upon activation, this ionic lock needs to be broken so that an outward shift of TM6 is possible (Zhou et al., 2019). Although there is an arginine residue at position 3.50 in GPR55 (R1193.50), no acidic residue is present at position 6.30. Nevertheless, to have a sense of the relative displacement of the intracellular segment of TM6 from TM3, we calculate the distance between the CA atoms of R1193.50 and I2286.37. Position 6.37 was selected since its CA atom is located around the same plane as the CA atom from position 3.50. As indicated in Figure 3A, the R1193.50 (CA) and I2286.37 (CA) distance in the antagonist-bound receptor barely samples values longer than 9 Å. In contrast, in the agonist-bound receptor, most of the time this distance overpasses the 9 Å value even reaching 11 Å values. Our calculations reveal that R1193.50 forms a salt bridge interaction with residue E2947.59. Indicative of this interaction, the time evolution of the R1193.50 (CZ)—E2947.59 (CD) distance is shown in Figure 3B. In the CBD/GPR55 complex, the salt-bridge interaction remains very stable along the entire simulation, however, in the case of the ML186/GPR55 system, the break of this interaction is frequently observed. Again, the computational approaches capture distinctive conformations adopted by the receptor in the presence of different ligands, either antagonist or agonist (Figures 3C,D).
Hence, in the case of the GPR55, the structural consequences of the presence of CBD suggests that the ligand stabilizes the receptor’s inactive conformations, which is in good agreement with the suggested antagonistic activity of CBD on the GPR55 (Ryberg et al., 2007; Ross, 2009; Sharir and Abood, 2010). On the other hand, the presence of the selective ML186 agonist favors structural changes linked to GPCR’s active-like conformations, again, in good agreement with the functional properties of the ligand [Kotsikorou et al., 2013; Anderson et al., 2021; Heynen-Genel et al., 2010 September 29 (updated 26 May 2011); Sharir et al., 2012; Kotsikorou et al., 2011)
3.3 Interacting determinants of the CBD ligand in the CB1 receptors
Since our computational approaches were able to distinguish the conformational consequences of each of the ligands, either agonist or inverse agonist, for the case of the GPR55 receptor, we decided to apply similar approaches to shed light on the yet-unclear functional activity of CBD on the prototypical CB1 receptor. Based on the structural similarity of CBD with different cannabinoid ligands (Hua et al., 2017) including the structure of the phytocannabinoid delta-9-tetrahydrocannabinol (∆9-THC), which exhibits partial agonism at the CB1 receptor (Pertwee, 2008; Dutta et al., 2022a), we decided to select molecular poses from our docking calculations that places the CBD compounds in the orthosteric binding site of CB1.
As described in the Methods section, the initial model of the CBD/CB1 was obtained from docking approaches. In this case, the information from the crystal structure of the CB1 receptor in complex with an agonist ligand that shares structural similarities with the CBD ligand (5XRA.pdb accession code), was used as reference to evaluate the ligands poses (Supplementary Figure S5). The CBD/CB1 system was investigated by unbiased all-atom MD simulations using protocols previously described for transmembrane proteins (see Methods). Figure 4A displays a representative final structure of both CBD complexes at the final stages of the 1 μs simulation. Residues that delineate the CBD binding site are also indicated.

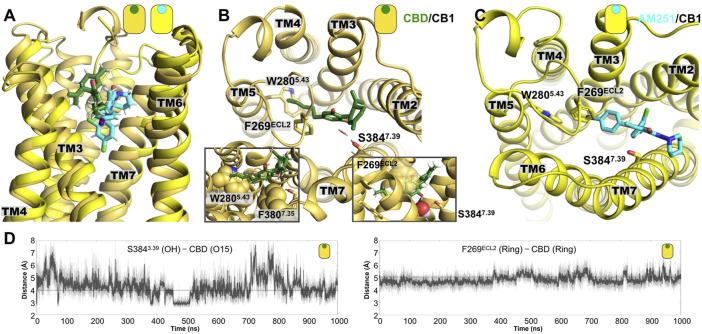

In the case of the CBD/CB1 complex, the main interactions that stabilized the ligand in the putative orthosteric binding site of CB1 are indicated. The time evolution of distance representing two of the main interactions are indicated in Figure 4D. As observed, most of the interactions are aliphatic with a particularly relevant aromatic interactions between the aromatic ring of CBD and the side chain of residue F269ECL2, which is located in the extracellular loop 2 (right inset Figure 4B) and the side chain of residue F3807.35 in TM7 (left inset Figure 4B). The relevance of the latter interaction has been documented for CB1 agonists, showing the mutation for alanine reduces agonist’s potency (Hua et al., 2017). Interestingly, the alkyl tail of CBD directly contacts the bulky side chain of residue W2805.43 in TM5. Lastly, one of the OH groups in CBD forms a polar interaction, sometimes mediated by a water molecule, with residue S3847.39 (insets Figure 4B). Notably, the presence of this polar residue, S3847.39, has been found to be relevant in the interaction of CB1 with cannabinoid-like agonists, since the removal of the hydroxyl group (mutation for alanine) reduced the potency of this type of ligands (Hua et al., 2017).
3.4 Structural consequence observed by the presence of CBD in the CB1 receptor
The presence of CBD would elicit conformational changes in the CB1 that stabilize either active-like or inactive conformations (Navarro et al., 2020; Grotenhermen, 2004; Batalla et al., 2021; Śmiarowska et al., 2022; Pertwee, 2008).

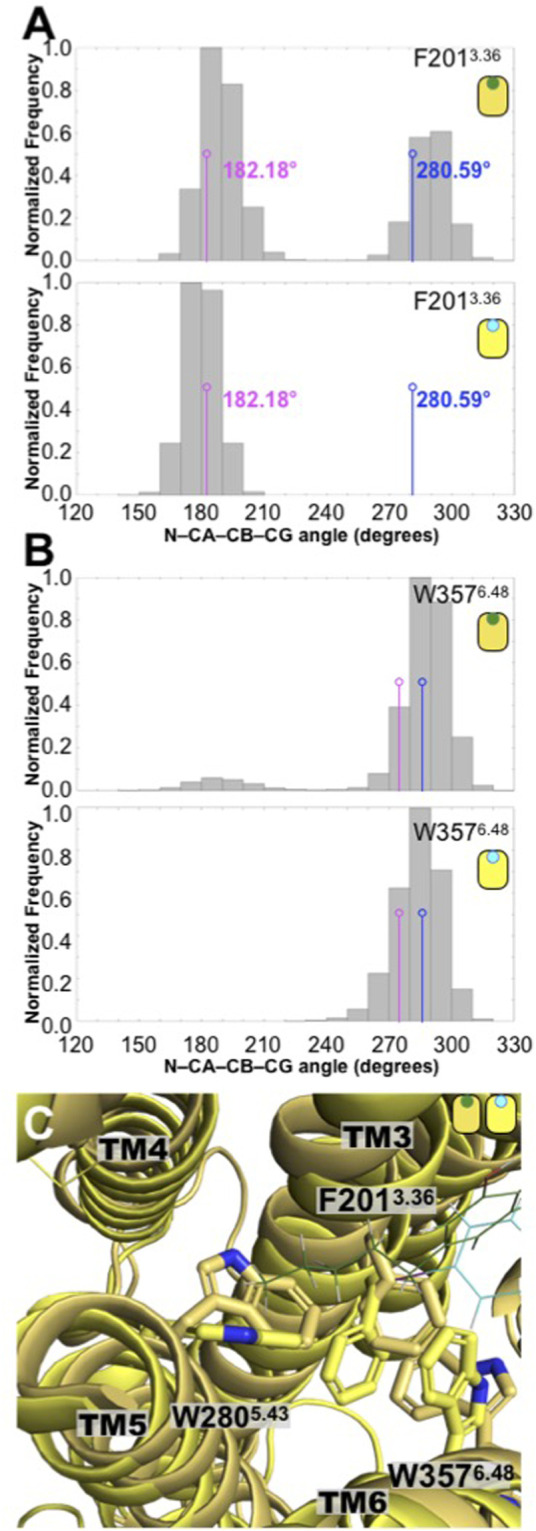

To see the consequences of the presence of CBD on the CB1, first we analyzed the conformation of two bulky hydrophobic residues, which has been linked to CB1 activation, that is, the F2013.36 and W3576.48 residues. These two “bulky” residues are sometimes denominated a “twin toggle switch,” since a conformational change in their rotameric state has been proposed to be essential for the receptor activation (Hua et al., 2017). The distribution of the dihedral angle values formed by the (N-CA-CB-CG atoms of each residue are plotted in Figure 5. We can see that, in the presence of CBD, the F2013.36 residue explores two distinctive values (bimodal distribution). The first distribution peak overlaps with the value of the antagonist-bound CB1 receptor [5TGZ.pdb; F3.36(N-CA-CB-CG) dihedral angle of 182.18°] (Hua et al., 2016), however, the second distribution peak overlaps with the value observed in the agonist-bound CB1 receptor [5XRA.pdb; F3.36(N-CA-CB-CG) dihedral angle of 280.59°] (Hua et al., 2017). To put our results in context, we investigated the CB1 receptor in complex with a well-known antagonist, the AM251 ligand using atomistic MD simulations (Figure 4C). In stark contrast with the CBD/CB1 case, in the presence of the AM251 antagonist, only one conformation was observed (unimodal distribution) that overlaps with the antagonist-bound CB1 receptor. This particular conformation of the F3.36 has been associated with the inactive state of the receptor. Moreover, in the presence of CBD, the W3576.48 residue also explores two distinct conformations (bimodal distribution) although the first peak is barely sampled by the system. Once again, in the presence of the AM251 antagonist, only one conformation was observed, which has been associated with the inactive state of the receptor (unimodal distribution). Finally, this conformational difference in the residues that constitute the twin toggle switch are related with the rotameric states explored by the bulky residue W2805.35. As observed in Figure 4B, the alkyl tail of CBD contacts the side chain of W2805.35 which could facilitate the changes identified in the twin toggle switch. Hence, the presence of CBD causes the receptor to adopt active-like conformations (twin toggle switch) that are associated with agonist-bound systems. In contrast, the results for the simulation of the AM251/CB1 complex indicate that the conformations adopted by the receptor in the presence of the antagonist ligand are linked to inactive conformations of the receptors. Thus, our computational methods correctly differentiate the structural changes in CB1 elicit by the different ligands, that is, CBD and AM251 (CB1 antagonist). Moreover, our results suggest that CBD may act as an agonist on the CB1 receptor.

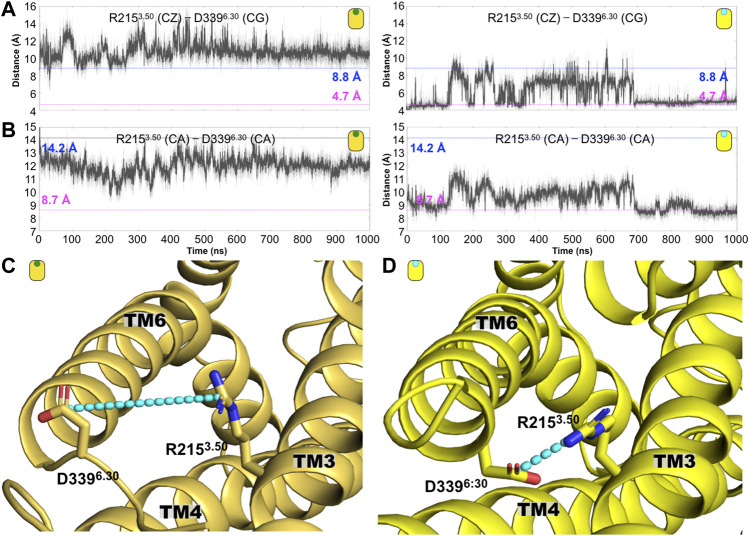

As mentioned before, one of the hallmarks of GPCR activation is the polar interaction commonly formed by two charged residues located at the intracellular segment of TM3 and TM6. In the case of the CB1 receptor, this so-called ionic lock is formed by residues R2153.50 and D3396.30 (see figure Figure 6). As indicated in Figure 6A, along the simulation time, we observed the disruption of the ionic lock, which has been established as a prerequisite for the interaction of the GPCR with its respective G-protein. Indicated by the distance between the R2153.50(CZ)-D3396.30(CG), our results indicate that the values for this distance remains larger that 8.8 A, which is the distance observed in the case of the agonist-bound CB1 complex (AM11542/CB1, PDB ID code 5XRA). This result indicates that in the presence of CBD, the ionic lock displays conformations associated with agonist-bound states. Similarly, we calculate the same distance, R2153.50(CZ)-D3396.30(CG), for the case of the AM251/CB1 complex (the antagonist-bound system). As indicated in Figure 6A, the ionic lock remains close, around 4.5/4.7 Å (distances observed in antagonist-bound CB1 complexes, 5TGZ.pdb/5U09.pdb) and almost never explores distances longer that 8.8 Å. Along the same lines, the R2153.50(CA)-D3396.30(CA) also indicates the formation of the ionic lock in the antagonist-bound system (AM251/CB1 complex) but not in the case of the CBD/CB1 complex, again, suggesting that CBD may act as an agonist on the CB1 receptor (Figure 6B). Structures illustrating the ionic lock motif for the CBD/CB1 and AM231/CB1 complexes are shown in Figures 6C,D, respectively.
3.5 The unbiased MD simulations suggest a sodium-binding site located in the extracellular domain of the CB1 receptor

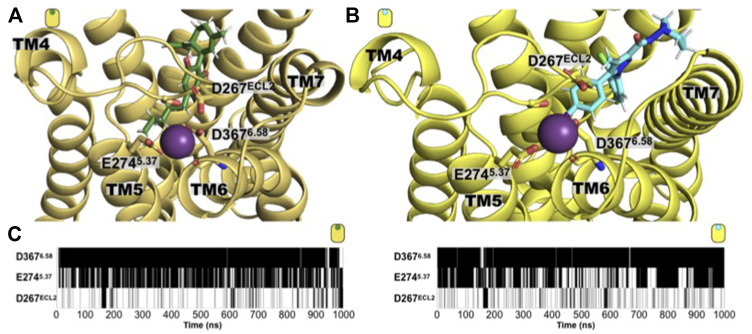

Additionally to the detailed description of the ligand binding determinants and the receptor’s structural consequence, our simulations also identified a sodium-binding site located in the extracellular side. Previously, the location of a binding-site at the TM domain of the CB1 receptor has been identified (Dutta et al., 2022b; Katritch et al., 2014). From our unbiased MD simulations and in both CB1 complexes, we observed the formation of this extracellular sodium-binding site formed by residues located in the extracellular segment of TM5 and TM6, and the extracellular loop 2. D267ECL2, E2745.37, and D3676.58. As shown in Figure 7, along the microsecond MD simulations, the residues D267ECL2, E2745.37, and D3676.58 are in contact with a sodium ion forming a sodium-binding site at the receptor’s extracellular side, regardless of the characteristics of the ligand. The functional consequences of this site need to be further evaluated for a possible exploitation of this tentative allosteric site. Interestingly, no sodium-binding site at the extracellular site was observed in the case of the GPR55 systems.
4 Discussion
An integral description of the protein’s function is fundamental to understand the involvement of these biomacromolecules in different cellular activities. Moreover, discerning how different biochemical entities, including exogenous ligands, ions, peptides, and lipids, to mention a few, regulate the protein’s function is needed to finely modulate the cellular response of the proteins.
In this context, computational methods offer tailored tools adapted to investigate at a molecular detail, the function of different biomacromolecules, including proteins. Additionally, computational-based techniques also provide detailed information of the way protein function is modulated by the aforementioned biochemical entities (Almeida et al., 2017; Klepeis et al., 2009; Arinaminpathy et al., 2009; Samish et al., 2011; Hollingsworth and Dror, 2018; Pagadala et al., 2017).
Here we exploit the power of atomistic computer simulations to investigate the role of cannabidiol (CBD), a major cannabinoid compound from the Cannabis plant that is closely-related to the well-known delta-9-tetrahydrocannabinol (∆9-THC), but lacks its psychoactivity. CBD has attracted great attention in recent years as a possible pharmacological tool to treat different neurological disorders. Additionally, the growing use of CBD as a recreational substance makes it important to understand how this compound interacts with different cellular entities. We applied unbiased all-atom molecular dynamics simulations to investigate the interacting determinants as well as the conformational consequences of CBD in two closely related endocannabinoid-activated GPCRs, the G-protein-coupled receptor 55 (GPR55) and the cannabinoid type 1 receptor (CB1). Our results in the GPR55 complexes indicate that the computational methods correctly differentiate the structural changes associated with the presence of each ligand, an antagonist (CBD) and an agonist (ML186). That is, the utilized computational methods identified conformational changes in the GPR55 receptors associated with antagonist-bound receptors (the case of the CBD/GPR55 complex) and agonist-bound receptors (the case of the ML186/GPR55); this is in good agreement with the known modulatory function of these ligands in the GPR55 receptor. Prompted by these results, we subsequently applied similar computational methods to shed light into the role of CBD in the CB1 receptor, one of the most abundant GPCRs receptors in the CNS. Our results suggest that the presence of CBD causes conformational changes in the CB1 linked to agonist-bound systems. Currently, the role of CBD in the CB1 receptor remains debatable, i.e., CBD has been suggested to activate the receptor, to favor CB1 inactive conformations or to function as an allosteric modulator. From our investigation we propose that CBD triggers activation of the CB1 receptor, nonetheless, we cannot exclude the possibility that CBD may bias either homo- or hetero-dimerization of the CB1 receptor and consequently regulate its function in a different way as the agonistic role proposed here. Furthermore, if CBD indirectly modulates the function of the CB1, it also remains a possibility that our results cannot be excluded. Yet, we are providing strong evidence that CBD is able to trigger changes in the CB1 receptor associated with agonist-bound GPCRs. The detail of our work aids to suggest an unknown sodium-binding site located at the extracellular side of the receptor and formed mainly by residues located at the extracellular termini of TM5 and TM6.
Our investigation shows that computational-based methods are able to correctly distinguish the conformational changes attributed to either an agonist-bound or antagonist-bound GPCRs.
Acknowledgements
JP-A acknowledges the computing time granted by the LANCAD on the supercomputer xiuhcoatl at CGSTIC CINVESTAV, members of the CONACyT network of national laboratories. JP-A thanks the Laboratorio Nacional de Supercómputo del Sureste de México (LNS-BUAP) of the CONACyT network of national laboratories for the computer resources and support provided.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.
Funding
The work was supported by the PRODEP Academic Group BUAP-CA-263 (SEP, México). ED, FP, MR-B, DG-G, and JH thank CONACYT-México for financial support (Ph.D. fellowship Nos 758730 and 732793, respectively).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphar.2022.945935/full#supplementary-material
