Cannabinoid receptor 1 positive allosteric modulator ZCZ011 shows differential effects on behavior and the endocannabinoid system in HIV-1 Tat transgenic female and male mice
CB1 allosteric modulator: A potential treatment for HAND
Department of Psychology and Neuroscience, University of North Carolina at Chapel Hill, Chapel Hill, North Carolina, United States of America
Department of Pharmacology and Toxicology, Virginia Commonwealth University, Richmond, Virginia, United States of America
Department of Pharmaceutical Sciences, Texas A&M, College Station, Texas, United States of America
Neuronal Rhythms in Movement Unit, Okinawa Institute of Science and Technology, Okinawa, Japan
University of Brescia: Universita degli Studi di Brescia, ITALY
* E-mail: barkhaj@email.unc.eduAbstract
The cannabinoid receptor type 1 (CB1R) is a promising therapeutic target for various neurodegenerative diseases, including HIV-1-associated neurocognitive disorder (HAND). However, the therapeutic potential of CB1R by direct activation is limited due to its psychoactive side effects. Therefore, research has focused on indirectly activating the CB1R by utilizing positive allosteric modulators (PAMs). Studies have shown that CB1R PAMs (ZCZ011 and GAT211) are effective in mouse models of Huntington’s disease and neuropathic pain, and hence, we assess the therapeutic potential of ZCZ011 in a well-established mouse model of neuroHIV. The current study investigates the effect of chronic ZCZ011 treatment (14 days) on various behavioral paradigms and the endocannabinoid system in HIV-1 Tat transgenic female and male mice. Chronic ZCZ011 treatment (10 mg/kg) did not alter body mass, locomotor activity, or anxiety-like behavior regardless of sex or genotype. However, differential effects were noted in hot plate latency, motor coordination, and recognition memory in female mice only, with ZCZ011 treatment increasing hot plate latency and improving motor coordination and recognition memory. Only minor effects or no alterations were seen in the endocannabinoid system and related lipids except in the cerebellum, where the effect of ZCZ011 was more pronounced in female mice. Moreover, AEA and PEA levels in the cerebellum were positively correlated with improved motor coordination in female mice. In summary, these findings indicate that chronic ZCZ011 treatment has differential effects on antinociception, motor coordination, and memory, based on sex and HIV-1 Tat expression, making CB1R PAMs potential treatment options for HAND without the psychoactive side effects.
Data Availability
All relevant data are within the manuscript and its Supporting Information files.
Introduction
According to the World Health Organization, in 2022, there were approximately 39 million people infected with human immunodeficiency virus type-1 (HIV-1) globally [1]. The development of combined antiretroviral therapies (cART) over the past four decades has significantly increased the life expectancy of people living with HIV (PLWH) [2], and therefore, it is no longer considered a death sentence but a chronic disease [3,4]. However, as cART does not eradicate the virus, and due to low brain penetration of cART across the blood-brain barrier, low levels of viral replication and chronic immune activation still linger [5]. As a consequence, PLWH on cART display synaptodendritic damage underlying the neurocognitive impairments known as HIV-associated neurocognitive deficits (HAND) [6,7]. Although the virus does not directly infect neurons, neural damage and injury occurs indirectly through the toxic substances from infected microglia, viral proteins, cytokines/chemokines, and free radicals [8–10]. The HIV-1 transactivator of transcription (Tat) protein is a neurotoxin that plays a major role in the pathogenesis of HAND [11–15]. It is known that Tat directly dysregulates the α-amino-3-hydroxy-5-methyl-4-isoxazolepropionic acid / N-methyl-d-aspartate (AMPA/NMDA) receptor causing increased intracellular sodium and calcium leading to enhanced cellular excitation and loss of dendritic structures [16–21]. Additionally, Tat promotes neuroinflammatory signaling [22–25], which is a critical component of HAND pathogenesis [26]. The persistence of HAND in the cART era provokes questions about the potential treatment of HIV-1-related brain disorders and whether cognitive deficits are reversible [7]. One avenue for treating HAND, that has recently received a lot of attention, involves the modulation of the endocannabinoid system.
The cannabinoid receptor type-1 (CB1R) is the most abundant G-protein coupled receptor in the central nervous system (CNS) that is mainly expressed in neurons and astrocytes [27,28]. CB1Rs on neurons primarily modulate neurotransmission, whereas CB1Rs on astrocytes regulate intracellular calcium and facilitate neural communication [29,30]. Endogenous cannabinoids [N-arachidonoylethanolamine (anandamide, AEA) and 2-arachidonoylglycerol (2-AG)] are released on demand in response to various stimuli and exert their effects mainly via CB1Rs [31]. Numerous studies have shown that CB1R activation offers neuroprotective effects by inhibiting the synaptic release of glutamate [32–35] and downregulating NMDA receptor activity [36–40]. Further, endocannabinoids have been reported to be upregulated in neurodegenerative disorders such as Parkinson’s and Alzheimer’s diseases and reduce unwanted effects or slow disease progression [41,42]. Additionally, CB1Rs have also been reported to be upregulated in the CNS of PLWH [43] and in simian immunodeficiency virus (SIV) encephalitis [44].
Although CB1R agonists are effective therapeutic targets in neurodegenerative and neuroinflammatory diseases [45,46], their cannabimimetic side-effects, including abuse liability and dependence, limit their therapeutic use [47–49]. CB1R agonists such as Δ9-tetrahydrocannabinol (THC) and CP55940 directly bind to the orthosteric binding pocket and initiate global activation of the receptor; therefore, it is difficult to isolate the desired effects from the side-effects by direct CB1R activation. One approach, to reduce the unwanted side-effects, is by indirectly modulating the activity of CB1Rs using allosteric modulators. Allosteric modulators bind to topographically distant sites from the orthosteric site on the receptor. They do not activate the receptor directly but induce a conformational change by binding to an allosteric site that alters ligand potency and/or efficacy [50–53]. It is hypothesized that CB1R-positive allosteric modulators (PAMs) would show neuroprotective effects in the context of HAND and bypass the cannabimimetic side effects [53–56].
ZCZ011 belongs to the 2-phenylindole class of compounds and is one of the first CB1R positive allosteric modulators reported in the literature [55,57]. Studies have reported ZCZ011 as an ago-PAM, which defines a PAM with intrinsic efficacy in the absence of orthosteric ligand [55]. In vitro data show that ZCZ011 increased the binding of CB1R agonist [3H]CP55940 and potentiated AEA signaling [55]. Additionally, ZCZ011 alone was found to be an agonist in the cAMP assay and a weak agonist in β-arresting recruitment assay [55]. On the contrary, a recent study showed ZCZ011 to behave as an allosteric agonist with an in vitro signaling profile similar to THC [57]. In in vivo studies, ZCZ011 alone significantly reversed mechanical and cold allodynia in neuropathic pain model without any cannabimimetic effects [55]. Although CB1R PAMs show protective effects in various neuropathologies [55,56,58–60], their use as a potential therapeutic target for HAND is unknown.
In this study, we employed HIV-1 Tat transgenic mice to assess the chronic effects (over 14 days) of racemic ZCZ011 (at a dose of 10 mg/kg) on various behavioral aspects, such as pain sensitivity, motor activity, motor coordination, anxiety, and object recognition memory. The rationale for using the Tat transgenic mouse model is two-fold: first, it is a well-established model for neuroHIV since their pathologies mirror those observed in PLWH under cART with HAND [61,62] which affects the frontostriatal pathways [63–65]. Additionally, studies have shown that Tat plays a critical role in the neurotoxicity and cognitive impairment evident in neuroHIV [15,62]. Second, it is an inducible model compared to others where HIV proteins are expressed at birth (e.g., gp120, HIV Tg26) which is more clinically relevant. Additionally, we examined the impact of prolonged ZCZ011 treatment on the endocannabinoid system in different regions of the CNS, including the prefrontal cortex, striatum, cerebellum, and spinal cord. This was achieved by measuring the levels of endogenous cannabinoids and cannabinoid-like compounds using ultraperformance liquid chromatography/tandem mass spectrometry (UPLC-MS/MS). Western blot analysis was conducted to quantify cannabinoid receptors, and endocannabinoid degradative enzymes in various CNS regions (Fig 1). Here, we demonstrate the first evidence for therapeutic potential of a CB1R PAM (ZCZ011) in the context of neuroHIV.
Material and methods
All experiments were approved by the University of North Carolina at Chapel Hill and conducted following the National Institutes of Health Guide for the Care and Use of Laboratory Animals. The method section describes the experimental design used for this study.
Animals
Doxycycline (DOX)-inducible, brain-restricted HIV-1IIIB Tat1-86 transgenic mice were developed on a hybrid C57BL/6J background as described in detail previously [64,66]. Studies have shown DOX-induced Tat induction in the brain in both, the DOX chow model [64,66] as well as the DOX intraperitoneal injection model [62]. Tetracycline-responsive promoter controlled by glial fibrillary acidic protein (GFAP) expression is responsible for Tat expression, which was induced with a special formulated chow containing 6 mg/g DOX (product TD.09282; Envigo, Indianapolis, IN).At four weeks of age, genotyping was performed to identify the Tat(+) and Tat(−) mice. Inducible Tat(+) transgenic mice express both GFAP-rtTA and TRE-tat genes, whereas control Tat(−) transgenic mice express only the GFAP-rtTA genes. Tat transgenic mice [n = 32, (16f); 10 months of age] were held on ad libitum DOX chow for 2 months prior the behavioral experiments and were housed on a reversed 12 h light/dark cycle. Following the behavioral experiments animals were deeply anesthetized with isoflurane. Using the toe pinch-response method the depth of anesthesia was determined. When the animals were unresponsive, they were then rapidly decapitated and the brain and the spinal cord were harvested for further analysis. The method of animal sacrifice is in compliance with and approved by the Institutional Animal Care and Use Committee at the University of North Carolina at Chapel Hill
Drug treatment
For behavioral experiments, animals were chronically injected subcutaneously (s.c.) for 14 days with either vehicle [1:1:18; ethanol, Kolliphor, 0.9% saline] or 10 mg/kg ZCZ011 dissolved in vehicle. A previously published high-performance liquid chromatography tandem mass spectrometry study has detected and quantified ZCZ011 in the brain tissue of mice [67], suggesting that ZCZ011 has the ability to cross the blood brain barrier making it an ideal candidate for the present study. The dose of ZCZ011 was selected based on a previous study [68]. Administration of vehicle or ZCZ011 was done 1 h before behavioral tests via s.c. injections at a volume of 10 mL/g of body mass.
Experimental design

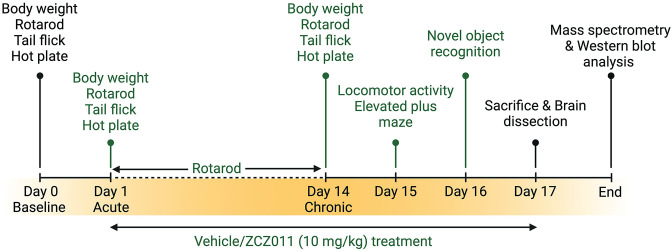

The experimental design and timeline is outlined in Fig 1. All animals were trained on the rotarod for three days (3 trials per day). Baseline performance was taken on day 0 for body weight, hot-plate and tail-flick assays, and rotarod. Vehicle or ZCZ011 treatment were started on Day 1 and 1 h following treatment animals underwent body weight, hot plate, tail flick, and rotarod tests to assess acute effects of vehicle or ZCZ011. Mice were treated for 14 days with appropriate treatment with continued rotarod assessment (1 trial per day). On day 14, mice undertook another body weight, hot plate, tail flick, and rotarod test to assess chronic effects of vehicle or ZCZ011 treatment. Additionally, mice were habituated to the open field for evaluating locomotor activity. After 24 h (day 15) mice were treated with vehicle or ZCZ011 and 1 h later mice were evaluated in the locomotor activity and elevated plus maze (EPM) tasks. Additionally, the novel object recognition (NOR) task was conducted on Day 16 with either vehicle or ZCZ011 injection administered after NOR training and 1 h prior NOR testing. Lastly, on Day 17, mice received their last treatment and were sacrificed 1 h after. Brains and spinal cord were dissected and snap frozen for further evaluation. The right and left hemisphere of the brain were used for mass spectrometry and western blot analysis, respectively.
Behavioral procedure
Spontaneous heat-evoked nociception
The hot-plate and tail-flick assays were used to evaluate spontaneous heat-evoked nociception with an emphasis on supraspinal- and spinal-related pathways, respectively [69].
For the tail-flick assay, the distal 1/3rd of the tail of each mouse was dipped in a water bath (Thermo Scientific, Precision General-Purpose Water Bath, Model 181, MA, USA) maintained at 56 ± 1°C. A maximum cut-off latency of 10 s was used to prevent tissue damage. The mouse’s latency to flick and remove the tail from the water bath was recorded as a measure of nociception. Following the tail-flick assay, the hot-plate assay was conducted. Each mouse was placed on the hot-plate surface (IITC Inc., MOD 39, CA, USA) within a Plexiglas™ cylinder (15 cm height, 10 cm diameter) to avoid escape. The hot plate was maintained as 55 ± 1°C and a 15 s cut-off latency was used to prevent tissue damage. Mice were immediately removed after displaying behaviors such as paw withdrawal, licking, or jumping, and the total time was recorded as an indicator of nociception.
Motor coordination
A rotarod test was used to evaluate motor function and coordination as previously described [70]. The rotarod apparatus (Harvard Apparatus, #76–0770, MA, USA) consists of a raised, rubber-covered rod (30 mm diameter, elevated 18 cm) divided into five sections (50 mm wide each) to allow for simultaneous testing of multiple animals. Mice were trained on the rotarod for three consecutive days (3 trials/day) prior testing. On test days, mice were placed on the rod and allowed to habituate for 1 min before starting the test (1 trial). The accelerating rod is initially rotated at 2 rotations per minute (rpm) and the speed is increased by 1 rpm every 7 s up to 60 rpm which was reached by 7 min. Animals’ performance on the rotarod was continued to be assessed over the 14-day treatment period. The amount of time (s) each animal remained on the rotating rod without falling was recorded for Days 0, 1, and 14.
Locomotor activity
Spontaneous motor activity was evaluated using the open field activity chamber (SD Instruments, Photobeam Activity System–Open Field, CA, USA). Mice were habituated to the chamber 24 h prior testing. The activity chamber consists of 16” x 16” cm Plexiglas™ enclosure that is wired with 16 photo-beam cells (each x- and y-axis) connect to a computer console. The photo-beams accurately record the ambulatory movements of the animal contained with the enclosure. On the test day, ambulatory movements (locomotor activity) were recorded for a 5 min period. The habituation and the locomotor activity testing was conducted in a dark room.
Elevated plus maze
The elevated plus maze (EPM) task is a widely used measure of anxiety-like behavior. In this task, increased anxiety in mice is indicated by a greater preference for the darker, enclosed spaces [71]. Mice were placed in the center of an elevated, plus-shaped maze consisting of two closed-arms with sheltered beige walls (15 cm tall) and two open-arms (unsheltered). All arms were 30 cm long, 5 cm wide, and 38 cm elevated. The EPM was placed under indirect lighting illuminating all four walls consistently between animals. Mice were free to explore the apparatus for 10 min and their behavior was recorded with a video camera (GoPro, Hero 6 Black, v2.10, CA, USA) mounted over the EPM maze. Numerical data were generated from videos by a team of 3 trained experimenters blinded to treatment condition. The time spent in the open arms was used as indices of open space-induced anxiety. Data are presented as percent time spent in the open arms from total exploration time.
Novel object recognition task
The novel object recognition (NOR) task is a well-established task to measure object recognition memory which relies upon the natural tendency of mice to explore new objects or stimuli [72,73]. The NOR task was conducted in the open field activity chamber (SD Instruments, Photobeam Activity System–Open Field, CA, USA) used for the locomotor activity task. The task consisted of three phases: habituation, training, and testing as previously described [73]. The locomotor activity test on Day 15 was used as the habituation phase for NOR training and testing on Day 16. In the training phase, two identical (familiar) objects were presented and mice were left to explore the arena for 10 min. Following the training phase, mice were treated with vehicle or ZCZ011 and returned to the home cage. Testing phase began 60 min after training and treatment. For the testing phase, one of the familiar objects was replaced (randomized for each mouse) by a new (novel) object and mice were allowed to explore the arena for 10 min to assess object recognition memory. Photo-beam breaks were used to record the time that mice spent exploring the familiar and novel object during the session. As mice show an innate preference for novelty, their preference for the novel object was used to quantify successful object recognition memory [72]. The objects used in the task were approximately of equal size but of different shape and color and no natural significance to mice. Total exploration time (s) of both familiar and novel objects were calculated to assess object exploration time. Discrimination between the objects was measured using a discrimination index (DI), calculated as [(time spent exploring the novel object)–(time spent exploring the familiar object)] / total time spent exploring both objects. A discrimination index of 0 indicated no preference, 1 indicates complete preference for the novel object, and –1 indicates complete preference for the familiar object.
Western blot analysis
CNS regions, including prefrontal cortex, striatum, hippocampus, cortex, cerebellum, brain stem from the left hemisphere, and spinal cord samples of female and male Tat transgenic mice were quantified for cannabinoid receptor protein expression, including cannabinoid type 1 and 2 receptors (CB1 and CB2R), and endocannabinoid degradative enzymes, including fatty acid amide hydrolase (FAAH) and monoacylglycerol lipase (MAGL). Samples were homogenized on ice in an appropriate volume of ice-cold Pierce™ RIPA lysis and extraction buffer (Thermo Scientific, Cat# 89900, USA) with Halt™ phosphatase (Thermo Scientific, Cat# 78420, USA) and protease inhibitor cocktail (Thermo Scientific, Cat# 87786, USA) followed by centrifugation at 10,000 g for 10 min at 4°C. Protein concentration in the tissue lysates were determined by Pierce™ BCA protein assay kit (Thermo Scientific, Cat# 23227, USA). Protein lysates were suspended in sample buffer containing NuPAGE™ LDS Sample Buffer (Invitrogen™, Cat# NP0007, USA) and XT Reducing Agent (BioRad, Cat# 1610792, USA) in 1:2.5 ratio and denatured at 85°C for 10 min. Equal amounts of protein (20 μg/lane) were resolved in 10% Bis-Tris Criterion™ XT Precast Gels and XT MOPS running buffer (BioRad, Cat# 1610799, USA) at 120 volts for 1.5 h using Criterion™ vertical electrophoresis cell (BioRad, Cat# 1656001, USA). The resolved proteins were transferred from the gel to Immobilon®-P PVDF membranes (Millipore Sigma, Cat# IPVH00010, USA) in 10x Tris/Glycine buffer (BioRad, Cat# 1610734) at 1–4°C and 100 volts for 1 h using Criterion™ blotter with wire electrodes (BioRad, Cat#1704071, USA). Blots were rinsed with phosphate-buffered saline (PBS), incubated with Intercept® blocking buffer (LI-COR Biosciences, Cat# 727–70001) at room temperature for 1 h followed by overnight incubation with primary antibodies overnight at 4°C in Intercept® blocking buffer with 0.2% Tween-20. Primary antibodies used in this study were, anti-CB1R (rabbit polyclonal; Proteintech, Cat# 17978-1-AP, 1:1000 dilution), anti-CB2R (rabbit polyclonal; AbClonal, Cat# A1762, 1:1000 dilution), anti-FAAH (mouse monoclonal; Abcam, Cat# ab54615, 1:1000 dilution), and anti-MAGL (rabbit polyclonal; Abcam, Cat# ab24701, 1:1000 dilution). Anti-GAPDH antibody (mouse monoclonal; Abcam, Cat# ab125247, 1:15,000 dilution) was used as a loading control. Following primary antibody incubation, the blots were washed 3x with PBST (PBS with 0.1% Tween-20) and incubated with IRDye® 680RD Donkey anti-Mouse IgG (LI-COR Biosciences, Cat# 926–68072, 1:15,000 dilution) and IRDye® 800CW Donkey anti-Rabbit IgG (LI-COR Biosciences, Cat# 925–32213, 1:15,000 dilution) secondary antibodies at room temperature for 1 h in Intercept® blocking buffer with 0.2% Tween-20 and 0.01% SDS. The blots were washed 3x with PBST and bands were detected using Odyssey® CLx infrared imaging system (LI-COR Biosciences, USA) and analyzed in Empiria studio® software version 2.3.0 (LI-COR Biosciences, USA). Data presented are normalized to the housekeeping gene GAPDH.
Statistical analysis
All data are presented as mean ± the standard error of the mean (SEM). Baseline data for behavioral measures (body weight, motor coordination, tail flick, hot plate, and rotarod) were analyzed using a two-way analysis of variances (ANOVAs) with sex (2 levels: females, males) and genotype [2 levels: Tat(–), Tat(+)] as between-subjects factors. Main or interaction effects, were followed by Tukey’s post hoc tests when appropriate. Four-way mixed ANOVAs were conducted on acute and chronic drug treatments with time (2 levels: Day 1, Day 14) as a within-subjects factor, and sex (2 levels: females, males), genotype [2 levels: Tat(–), Tat(+)], and treatment (2 levels: vehicle, ZCZ011) as between-subjects factors. Main or interaction effects for sex were followed up by separate three-way ANOVAs for females and males. Follow-up Tukey’s post hoc tests were conducted when appropriate. Additionally, one-sample t-tests were conducted for acute and chronic drug treatments and compared to the baseline (set at 100%). Group comparisons were corrected for multiple comparisons with Tukey’s-adjusted p values reported. Behavioral experiments (locomotor activity, elevated plus maze, novel object recognition) and protein quantification data (UPLC-MA/MS and western blot) were analyzed by three-way ANOVAs with sex (2 levels: females, males), genotype [2 levels: Tat(–),Tat(+)], and treatment (2 levels: vehicle, ZCZ011) as between-subjects factors. Main or interaction effects were followed up by separate two-way ANOVAs for females and males. Note, that for rotarod and the novel object recognition task, non-significant interaction trends were also followed up by separate two-way ANOVAs for females and males. Follow-up Tukey’s post hoc tests were conducted when appropriate. An alpha level of p ≤ 0.05 was considered significant for all statistical tests. SPSS Statistics 25 (IBM, Chicago, IL) and Prism GraphPad 8.0 (San Diego, CA) was used for data analysis and data graphing, respectively.
Results
Body mass

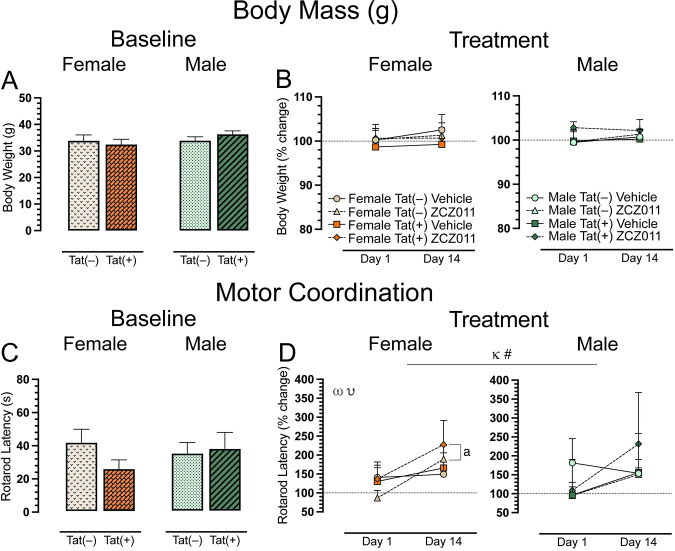

Body mass (g) of all animals was taken to ensure the experimental design did not affect animal’s health. Animals were weighed at baseline (Day 0, Fig 2A) and after acute (Day 1) and chronic (Day 14) vehicle or ZCZ011 (10 mg/kg) treatment (Fig 2B). A two-way ANOVA for baseline and a four-way mixed ANOVA for acute and chronic treatment did not show any significant effects or interactions.
Motor coordination
The rotarod test was conducted to investigate effects of ZCZ011 treatment (60 min following injection) on motor coordination and function. Baseline assessment revealed no significant effects for rotarod latency (Fig 2C). For acute and chronic treatment (Fig 2D), a four-way mixed ANOVA revealed a significant main effect of time, F(1, 24) = 6.6, p = 0.01, with latency to stay on the rotarod increasing over time (Day 1 vs. Day 14). A non-significant trend for time x drug interaction was noted, F(1,24) = 3.1, p = 0.08, with drug treatment trending to show differential effects on rotarod latency based on acute (Day 1) compared to chronic (Day 14) treatment. Separate ANOVAs for sex, demonstrated for females, a main effect of time, F(1,24) = 6.6, p = 0.01, with an increase in rotarod latency over time, that was significantly altered by drug, drug x time interaction, F(1,12) = 4.5, p = 0.05. Follow-up Tukey’s post hoc tests demonstrated that chronic ZCZ011 treatment significantly increased rotarod latency compared to acute ZCZ011 treatment (p = 0.002). This increase in rotarod latency for females was true for both genotypes, Tat(–) females (p = 0.01) and Tat(+) females (p = 0.02). No significant effects were seen for male mice. One sample t-tests did not reveal any significant differences from baseline for females or males.
Spontaneous heat-evoked nociception

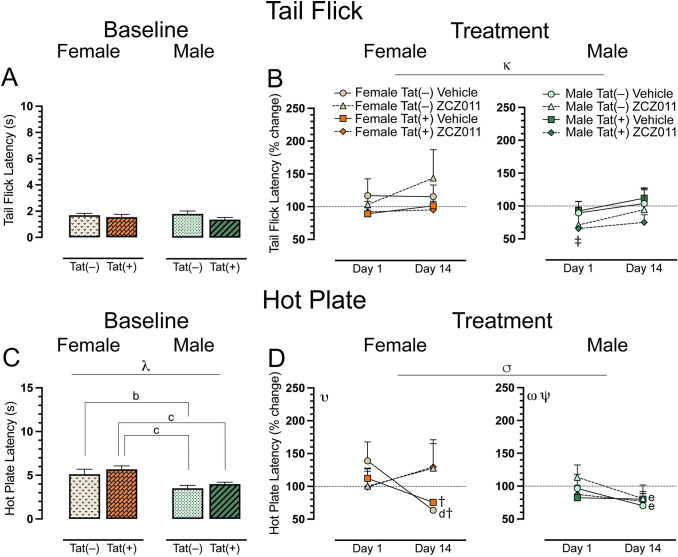

The tail-flick and hot-plate assays were conducted for baseline, acute, and chronic ZCZ011 treatment after rotarod performance, to evaluate heat-evoked pain-like behaviors. For the spinal-related tail-flick assay, a two-way ANOVA demonstrated no significant effect at baseline (Fig 3A). For acute and chronic treatment, a four-way mixed ANOVA revealed a significant main effect of time, F(1, 24) = 6.7, p = 0.01, where tail-flick latency was increased following chronic treatment (Day 14) compared to acute treatment (Day 1). Interestingly, one sample t-tests revealed that acute ZCZ011-treated Tat(+) males demonstrated hypersensitivity compared to baseline, t(3) = -9.5, p = 0.008 (Fig 3B).
The hot-plate assay was used to assess supraspinal-related spontaneous nociception. A two-way ANOVA for the baseline hot-plate latency revealed a significant main effect of sex, F(1, 28) = 6.7, p < 0.001, with female mice showing higher latencies to withdrawal or lick their paws (Fig 3C). A follow up Tukey’s post hoc test revealed significant differences in hot-plate latency based on sex and genotype with Tat(–) females showing higher latency as compared to Tat(–) males (p = 0.04), and Tat(+) females displaying higher hot-plate latency as compared to both Tat(–) (p = 0.004) and Tat(+) (p = 0.03) males. For acute and chronic treatment, a four-way mixed ANOVA indicated a significant time x drug interaction, F(1,24) = 8.3, p = 0.008, with treatment decreasing hot plate latency over time (Fig 3D). Separate three-way mixed ANOVAs for each sex demonstrated for females a significant time x drug interaction, F(1,12) = 10.9, p = 0.006. Follow-up Tukey’s post hoc tests indicated significant differences between acute and chronic vehicle-treated female mice, specifically found in Tat(–) female mice (p = 0.02), with significantly increased hypersensitivity in the hot-plate assay on Day 14. Moreover, the latency for chronically vehicle-treated Tat(–) and Tat(+) females significantly reduced as compared to baseline, t(3) = -13.0, p = 0.002, and, t(3) = -5.4, p = 0.048, respectively. For males, we found a main effect of time, F(1,12) = 12.1, p = 0.005, and a time x genotype interaction, F(1,12) = 5.1, p = 0.04, with hot plate latency decreasing at Day 14. Tukey’s post hoc test revealed that Tat(–) males showed a significant difference between acute and chronic treatment, for both vehicle (p = 0.02) and ZCZ011 (p = 0.008) treatments. A significant reduction in hot-plate latency was noted in Tat(–) male mice after chronic treatment with either vehicle or ZCZ011. This effect was not seen in Tat(+) male mice. One sample t-tests did not reveal any significant differences from baseline for males.
Locomotor activity

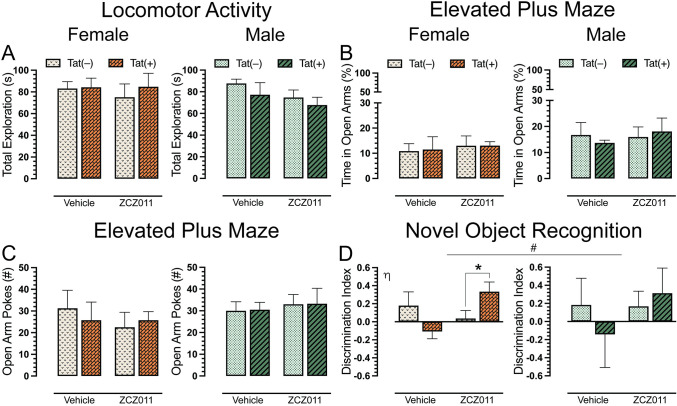

To evaluate the effects of chronic ZCZ011 exposure on overall activity in Tat transgenic mice, we assessed locomotor activity 60 min after injection. A three-way ANOVA demonstrated no significant effects for locomotor activity after chronic ZCZ011 treatment (Fig 4A).
Anxiety-like behavior
Following the locomotor activity assessment, Tat transgenic mice were tested in elevated plus maze task for anxiety-like behavior. Dependent measures included the percentage of time spent in open arms and the number of pokes into open arms. For percent time spent in open arms (Fig 4B), a three-way ANOVA did not show any significant sex, genotype or treatment effect. Similarly, for number of pokes (Fig 4C), no significant effects were noted.
Novel object recognition
A novel object recognition (NOR) task was performed to access recognition memory in Tat transgenic mice following chronic ZCZ011 treatment. Discrimination index was used to measure the animal’s preference between a familiar and novel object, with 1 indicating a complete preference for the novel object, 0 equals no preference, and -1 indicating a complete preference for the familiar object. The three-way ANOVA, revealed a non-significant trend for drug x genotype interaction, F(1,24) = 2.9, p = 0.09, with ZCZ011 trending to differentially affect recognition memory in Tat(–) and Tat(+) mice. Based on the trend and previously published data [76], a separate three-way ANOVA for sex was conducted. For females, a significant drug x genotype interaction was observed, F(1,12) = 6.9, p = 0.02, with ZCZ011 treatment differentially affecting recognition memory based on genotype (Fig 4D). Follow-up Tukey’s post hoc tests showed that ZCZ011 significantly improved recognition memory in Tat(+) female mice compared to Tat(–) females (p = 0.01). No significant effects were observed for male mice.
CNS levels of endocannabinoids and related lipids

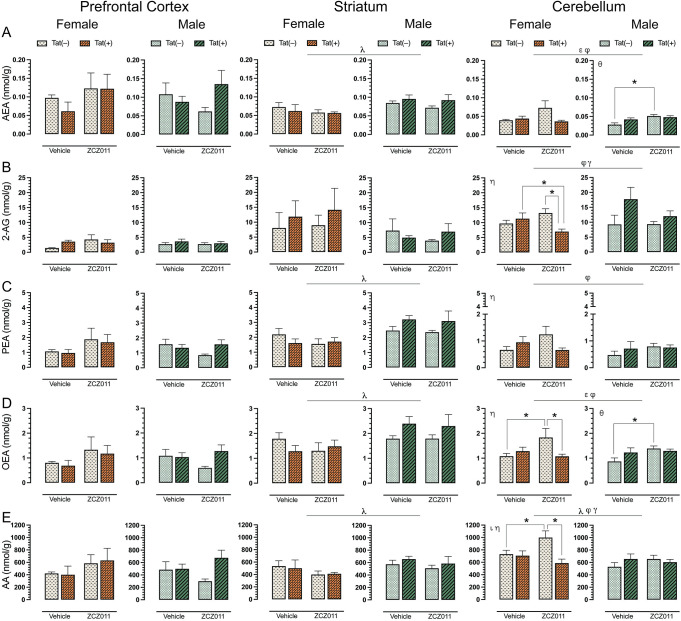

To assess the impact of chronic ZCZ011 (10 mg/kg) exposure on the endocannabinoid system, alterations in levels of AEA, 2-AG, PEA, OEA, and AA were assessed following behavioral experiments in CNS regions, including prefrontal cortex, striatum, cerebellum, and spinal cord of Tat transgenic female and male mice. Fig 5 shows data from prefrontal cortex, striatum, and cerebellum only, all other data can be found in S1 Table. One-way repeated ANOVAs for each lipid revealed that lipid molecule concentration (nmol/g) differed significantly between CNS regions; AEA, F(3,93) = 29.3, p <0.001, demonstrated differences in expression levels between prefrontal cortex, cerebellum, and spinal cord (p’s <0.001), with highest levels of AEA being found in the prefrontal cortex followed by striatum and cerebellum, and the lowest found in the spinal cord. 2-AG, F(3,93) = 54.3, p <0.001, was found to be highest in the spinal cord followed by cerebellum, striatum and prefrontal cortex (p’s <0.001). PEA, F(3,93) = 23.5, p <0.001, was found to be higher in the spinal cord as compared to cerebellum and spinal cord (p’s <0.001). OEA, F(3,93) = 10.8, p <0.001, was highest in the striatum, followed by spinal cord, cerebellum, and prefrontal cortex (p’s <0.001). Lastly, AA, F(3,93) = 8.2, p <0.001, showed highest levels in cerebellum, followed by striatum, prefrontal cortex, and spinal cord (p’s <0.001).
For AEA (Fig 5A), no significant effects were noted in the prefrontal cortex. In the striatum, a three-way ANOVA revealed a main effect of sex, F(1,24) = 9.9, p = 0.004, with male mice displaying higher levels of AEA as compared to females. No other interactions were observed in the striatum. Additionally, a separate two-way ANOVA for each sex did not show any significant effects in AEA levels for female or male mice. In the cerebellum, a main effect of drug, F(1,24) = 6.0, p = 0.02, was noted with ZCZ011 treatment increasing AEA levels as compared to vehicle. Further, a drug x genotype interaction, F(1,24) = 6.9, p = 0.01, was noted, with ZCZ011 treatment differentially affecting AEA levels in Tat(–) and Tat(+) mice. A separate two-way ANOVA for each sex did not show any significant effects in AEA levels for female mice; however, for males a significant effect of drug, F(1,12) = 11.0, p = 0.006, was noted, with ZCZ011 treatment increasing AEA levels in male mice. A follow-up Tukey’s post hoc test revealed that AEA levels were increased in ZCZ011-treated Tat(–) males as compared to vehicle-treated Tat(–) males (p = 0.003).
For 2-AG (Fig 5B), both prefrontal cortex and striatum, did not show any significant effects. In the cerebellum, a drug x genotype interaction, F(1,24) = 4.9, p = 0.03, and a genotype x sex interaction, F(1,24) = 6.6, p = 0.01, were noted, with Tat expression differentially affecting 2-AG levels based on treatment and sex. A separate two-way ANOVA for each sex revealed a drug x genotype interaction in female mice, F(1,12) = 7.7, p = 0.01, with ZCZ011 treatment decreasing 2-AG levels as compared to vehicle. A follow-up Tukey’s post hoc test indicated that ZCZ011 treatment decreased 2-AG levels in Tat(+) females as compared to vehicle-treated Tat(+) females (p = 0.05) and ZCZ011-treated Tat(–) females (p = 0.009). Male mice did not show any main or interaction effects.
For PEA (Fig 5C), no significant effects were noted in the prefrontal cortex. In the striatum, a main effect of sex was noted, F(1,24) = 16.0, p <0.001, with male mice displaying higher levels of PEA as compared to females. A separate two-way ANOVA for each sex did not show any significant effects for female or male mice. In the cerebellum, a drug x genotype interaction was observed, F(1,24) = 4.8, p = 0.03, with ZCZ011 treatment differentially affecting PEA levels in Tat(–) and Tat(+) mice. A two-way ANOVA for each sex indicated a drug x genotype interaction for females, F(1,12) = 4.6, p = 0.05, with ZCZ011 treatment increasing PEA levels in Tat(–) females and decreasing levels in Tat(+) females. However, follow-up Tukey’s post hoc test did not show any significant differences. Additionally, no significant effects were observed for male mice.
For OEA (Fig 5D), no significant changes were seen in the prefrontal cortex. In the striatum, a main effect of sex was noted, F(1,24) = 9.5, p <0.001, with male mice displaying higher levels of PEA as compared to females. A separate two-way ANOVA for each sex did not show any significant effects in OEA levels for female and male mice. In the cerebellum, a main effect of drug, F(1,24) = 5.0, p = 0.03, and drug x genotype interaction, F(1,24) = 8.0, p = 0.009, were noted, with ZCZ011 treatment differentially affecting OEA levels for Tat(–) and Tat(+) mice. A separate two-way ANOVA for each sex showed a significant drug x genotype interaction F(1,12) = 5.3, p = 0.04 in female mice. A follow-up Tukey’s post hoc test indicated that ZCZ011 treatment increased OEA levels in Tat(–) females as compared to vehicle-treated Tat(–) females (p = 0.01) and decreased OEA levels in Tat(+) females as compared to ZCZ011-treated Tat(–) females (p = 0.02). In males, a significant drug effect was seen, F(1,12) = 4.6, p = 0.05, with ZCZ011 treatment increasing OEA levels as compared to vehicle. Follow-up Tukey’s post hoc test showed that chronic ZCZ011 treatment increased OEA levels in Tat(–) males as compared to vehicle-treated Tat(–) males (p = 0.01), but not in Tat(+) males.
For AA (Fig 5E), no significant effects were observed in the prefrontal cortex. In the striatum, a main effect of sex was noted, F(1,24) = 4.3, p <0.001, with male mice exhibiting higher levels of AA as compared to females. A separate two-way ANOVA for each sex did not show any significant effects in PEA levels for female and male mice. In the cerebellum, a main effect of sex was observed, F(1,24) = 7.7, p = 0.01, with females showing higher levels of AA as compared to males. Moreover, a drug x genotype interaction, F(1,24) = 7.3, p = 0.01 and a genotype x sex interaction, F(1,24) = 6.0, p = 0.02, were also seen, with Tat expression differentially affecting AA levels based on treatment and sex. A separate two-way ANOVA for each sex indicated, a genotype effect, F(1,12) = 7.3, p = 0.01, and a drug x genotype interaction, F(1,12) = 5.7, p = 0.03 for females. A follow-up Tukey’s post hoc tests demonstrated that ZCZ011 treatment increased AA levels in Tat(–) females as compared to vehicle-treated Tat(–) females (p = 0.03) and decreased AA levels in Tat(+) females as compared to ZCZ011-treated Tat(–) females (p = 0.003). No significant effects were seen in male mice.
Overall, chronic ZCZ011 treatment did not change the levels of endocannabinoids and related lipids in the prefrontal cortex. In the striatum, except for 2-AG, males displayed higher levels of AEA, PEA, OEA, and AA levels as compared to females. Lastly, ZCZ011 had differential effects in the cerebellum where the levels of endocannabinoids and related lipids were dependent on sex and genotype.
CNS expression levels of cannabinoid receptors, CB1R and CB2R

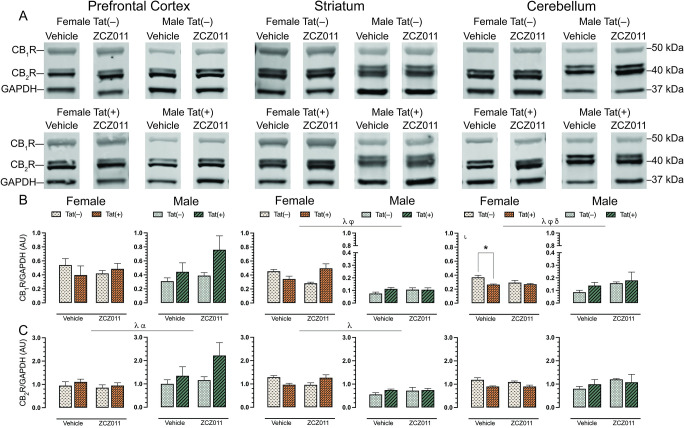

To evaluate the effect of chronic ZCZ011 (10 mg/kg) exposure on the endocannabinoid system, alterations in levels of cannabinoid receptors, CB1R and CB2R, were assessed in CNS regions, including prefrontal cortex, striatum, hippocampus, cortex, cerebellum, brainstem, and spinal cord of Tat transgenic female and male mice. Fig 6 shows data from the prefrontal cortex, striatum and cerebellum only, due to their relevance to the behavioral studies, the data for other CNS regions can be found in S2 Table. Representative bands from each group is shown in Fig 6A and raw and unedited blots can be found in Supporting information. One-way repeated ANOVAs for CB1R, F(6,186) = 9.1, p < 0.001, and CB2R, F(6,186) = 3.4, p = 0.003, demonstrated significant differences between various CNS regions. The order of CB1R expression from highest to lowest is as follows, prefrontal cortex > brainstem > spinal cord > hippocampus > striatum > cerebellum > cortex. Similarly, the order of CB2R expression from highest to lowest is, cortex > prefrontal cortex > brainstem > cerebellum > striatum > hippocampus > spinal cord.
For CB1R (Fig 6B), no significant effects were observed in the prefrontal cortex. In the striatum, a three-way ANOVA displayed a main effect of sex, F(1,24) = 183.0, p < 0.001, with females exhibiting higher levels of CB1R as compared to males. Additionally, a drug x genotype interaction was seen, F(1,24) = 10.9, p = 0.003, with ZCZ011 treatment differentially affecting CB1R levels based on genotype. A separate two-way ANOVA for each sex did not show any significant effects in CB1R expression for female or male mice. In the cerebellum, a main effect of sex was observed, F(1,12) = 54.5, p <0.001, with females showing higher CB1R expression as compared to males. Moreover, a drug x sex interaction, F(1,12) = 4.5, p = 0.04, and a genotype x sex interaction, F(1,12) = 5.4, p = 0.02, were noted, with ZCZ011 treatment and Tat expression differentially affecting CB1R expression based on sex. A separate two-way ANOVA for each sex, demonstrated a genotype effect for females, F(1,12) = 7.8, p = 0.01, with lower CB1R expression in Tat(+) females as compared to Tat(–) females. A follow-up Tukey’s post hoc test displayed that CB1R expression was reduced in vehicle-treated Tat(+) females (p = 0.007) as compared to Tat(–) female mice. No significant changes were observed in CB1R expression in male mice.
For CB2R (Fig 6C), a three-way ANOVA exhibited a main effect of sex, F(1,24) = 4.7, p = 0.04, with male mice displaying higher levels of CB2R as compared to females, and a main effect of genotype, F(1,24) = 4.73, p = 0.04, with Tat(+) mice showing higher levels of CB2R compared to Tat(–) mice. A separate three-way ANOVAs for each sex did not indicate any significant effects for either females or males. For the striatum, a main effect of sex was observed, F(1,12) = 44.8, p <0.001, with females displaying significantly higher levels of CB2R as compared to males. A separate two-way ANOVA for each sex did not indicate any significant effects. In the cerebellum, CB2R expression was not significantly altered.
In summary, CB1R and CB2R expression was not altered in the prefrontal cortex and cerebellum, respectively. Further, CB1R (in the striatum and cerebellum) and CB2R (in the prefrontal cortex) expression was altered based on sex, genotype, and treatment.
CNS expression levels of endocannabinoid degradative enzymes, FAAH and MAGL

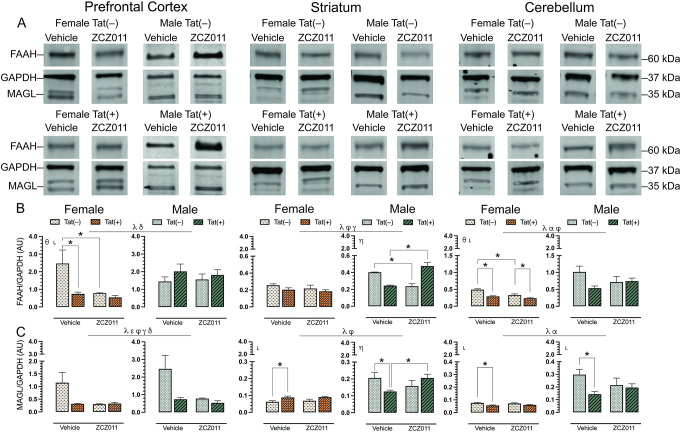

To assess the effect of chronic ZCZ011 (10 mg/kg) exposure on the endocannabinoid system, changes in levels of endocannabinoid degradative enzymes, FAAH and MAGL, were evaluated in CNS regions, including prefrontal cortex, striatum, hippocampus, cortex, cerebellum, brainstem, and spinal cord of Tat transgenic female and male mice. Fig 7 shows data from the prefrontal cortex, striatum and cerebellum only, due to their relevance to the behavioral studies. Data for other CNS regions can be found in S2 Table. Representative bands from each group is shown in Fig 7A and raw and unedited blots can be found in Supporting information. One-way repeated ANOVAs for FAAH, F(6,186) = 14.1, p < 0.001, and MAGL, F(6,186) = 11.3, p < 0.001, demonstrated significant differences between various CNS regions. The order of FAAH and MAGL expression from highest to lowest is as follows: FAAH: prefrontal cortex > cortex > hippocampus > cerebellum > spinal cord > striatum > brainstem, and MAGL: cortex > hippocampus > spinal cord > prefrontal cortex > brainstem > cerebellum > striatum.
For FAAH (Fig 7B), a three-way ANOVA demonstrated a main effect of sex in the prefrontal cortex, F(1,24) = 5.0, p = 0.03, with males displaying higher levels as compared to females, and a genotype x sex interaction, F(1,24) = 7.4, p = 0.01, with FAAH levels being altered based on sex and genotype. A separate two-way ANOVA for each sex indicated a drug effect for females, F(1,24) = 5.8, p = 0.03, with ZCZ011 treatment decreasing FAAH expression in females as compared to vehicle, and a genotype effect, F(1,12) = 6.3, p = 0.02, with FAAH expression being lower in Tat(+) females as compared to Tat(–) females. Follow-up Tukey’s post hoc tests demonstrated that FAAH expression was significantly reduced in ZCZ011-treated Tat(–) females (p = 0.01) and vehicle-treated Tat(+) females (p = 0.009) as compared to vehicle-treated Tat(–) females. No significant effects were noted in males. In the striatum, a main effect of sex was seen, F(1,24) = 43.5, p <0.001, with males showing higher levels of FAAH expression as compared to females. Moreover, a drug x genotype interaction, F(1,24) = 30.39, p <0.001, and a genotype x sex interaction, F(1,24) = 4.93, p = 0.03, was observed, suggesting that Tat expression has differential effects based on ZCZ011 treatment and sex. A separate two-way ANOVA for each sex did not show any significant effects in female mice; however, for male mice, a drug x genotype interaction, F(1,12) = 54.07, p <0.001, was noted, with ZCZ011 treatment showing differential effects in Tat(–) and Tat(+) males. Follow-up Tukey’s post hoc tests indicated that ZCZ011 treatment reduced FAAH expression in Tat(–) males as compared to vehicle-treated Tat(–) males (p <0.001), but increased FAAH expression in Tat(+) males as compared to vehicle-treated Tat(+) males (p <0.001). In the cerebellum, a main effect of sex, F(1,24) = 37.7, p <0.001, and a main effect of genotype, F(1,24) = 7.5, p = 0.01, were observed, with males and Tat(–) mice displaying higher levels of FAAH expression as compared to females and Tat(+) mice, respectively. Additionally, a drug x genotype interaction was seen, F(1,24) = 5.1, p = 0.03, with ZCZ011 treatment differentially affecting FAAH expression in Tat(–) and Tat(+) mice. A separate two-way ANOVA for each sex showed a genotype effect in females, F(1,12) = 30.8, p <0.001, and a drug effect, F(1,12) = 16.7, p = 0.001, with decreased FAAH expression found in Tat(+) females and upon ZCZ011 treatment, respectively. Follow-up Tukey’s post hoc tests demonstrated that FAAH expression was reduced in both vehicle- (p <0.001) and ZCZ011-treated (p = 0.02) Tat(+) females as compared to vehicle- and ZCZ011-treated Tat(–) females, respectively. Additionally, ZCZ011-treated Tat(–) mice had significantly lower expression of FAAH (p <0.001) as compared to vehicle-treated Tat(–) female mice. Male mice did not show any significant effects.
For MAGL (Fig 7C), in the prefrontal cortex a main effect of sex, F(1,24) = 23.3, p <0.001, and a main effect of drug, F(1,24) = 4.1, p = 0.05, were observed, with males and vehicle-treated mice showing higher expression of MAGL. Additionally, interactions including drug x genotype, F(1,24) = 4.30, p = 0.04, drug x sex, F(1,24) = 4.23, p = 0.05, and genotype x sex, F(1,24) = 4.14, p = 0.05, were also found. A separate two-way ANOVA for each sex did not indicate any significant effects in either male or female mice. In the striatum, a main effect of sex, F(1,24) = 49.9, p <0.001, with males showing higher levels of MAGL as compared to females, and a drug x genotype interaction, F(1,24) = 5.8, p = 0.03, were seen, with ZCZ011 treatment differentially affecting MAGL expression in Tat(–) and Tat(+) mice. A separate two-way ANOVA for each sex indicated a genotype effect in female mice, F(1,12) = 9.71, p = 0.009, with Tat(+) females demonstrating higher MAGL levels as compared to Tat(–) females. Follow-up Tukey’s post hoc tests indicated that MAGL level were increased in vehicle-treated Tat(+) females as compared to vehicle-treated Tat(–) females (p = 0.03). For males, a drug x genotype interaction was observed, F(1,12) = 5.91, p = 0.03, with ZCZ011 treatment differentially affecting MAGL expression based on genotype. Follow-up Tukey’s post hoc tests indicated that MAGL expression was reduced in vehicle-treated Tat(+) males as compared to vehicle-treated Tat(–) males (p = 0.05), and as compared to ZCZ011-treated Tat(+) males (p = 0.05). Finally, in the cerebellum, a two-way ANOVA demonstrated a main effect of sex, F(1,24) = 54.3, p <0.001, and a main effect of genotype, F(1,24) = 6.6, p = 0.01, with males and Tat(–) expressing significantly higher levels of MAGL as compared to females and Tat(+) mice, respectively. A separate two-way ANOVA for each sex indicated a main genotype effect for both females, F(1,12) = 12.6, p = 0.003, and males, F(1,12) = 4.8, p = 0.04 with decreased MAGL expression in Tat(+) mice as compared to Tat(–) mice. Follow-up Tukey’s post hoc tests demonstrated MAGL expression was reduced in vehicle-treated Tat(+) females (p = 0.006) and vehicle-treated Tat(+) males (p = 0.01) as compared to their respective vehicle-treated Tat(–) counterparts.
Overall, males displayed higher levels of FAAH and MAGL in the prefrontal cortex, striatum, and cerebellum as compared to females. Additionally, ZC011 treatment differentially affected FAAH and MAGL expression based on sex and genotype.
Relationship between endocannabinoid and related lipids and motor coordination

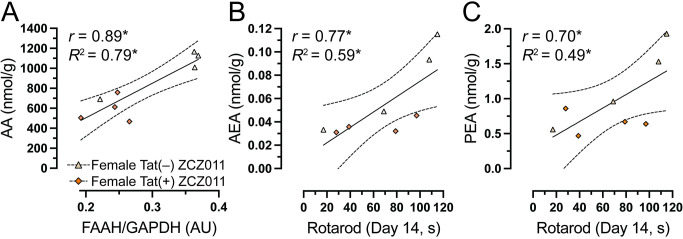

As the most prominent findings were noted in the cerebellum, we assessed the relationship between FAAH expression and AA levels, in the cerebellum. As no effects were noted in males, correlation studies were only done in females. Pearson correlation were conducted specifically in the cerebellum. Data indicated that in the cerebellum, no correlations were observed in the vehicle-treated females. Moreover, in ZCZ011-treated females a significant positive relationship was noted with higher levels of FAAH expression being associated with higher levels of AA in the cerebellum (Fig 8A). Significant correlations were further evaluated by simple regression analysis. Results indicate predictability of AA levels by FAAH expression, F(1,6) = 23.6, p = 0.002, accounting for 80% in the cerebellum of ZCZ011-treated female mice. Next, we were interested in exploring the relationship between the endocannabinoid and related lipids expression in the cerebellum and the rotarod performance on Day 14 in females. Person correlation did not reveal any correlation in vehicle-treated females; however, in ZCZ011-treated females, a significant positive relationship was observed with higher levels of AEA (Fig 8B) and PEA (Fig 8C) in the cerebellum being associated with improved rotarod performance. A simple linear regression demonstrated predictability of rotarod performance by AEA and OEA levels. Specifically, in the cerebellum of ZCZ011-treated females, AEA predicted 59% of total variance in rotarod performance data, F(1,6) = 8.7, p = 0.02 and PEA predicted 49% of total variance in rotarod performance, F(1,6) = 5.7, p = 0.05.
Discussion
This is the first study to explore the effects of a CB1R PAM in the context of neuroHIV. The unwanted side effects of CB1R limit its potential to be targeted for its neuroprotective effects; however, PAMs can bypass these adverse effects and harness the neuroprotective effects of the CB1R, making it possible to explore the CB1R indirectly. Here, we report the effects of chronic ZCZ011, a CB1R PAM, on various behavioral measures and the endocannabinoid system in HIV-1 Tat transgenic mice. Behavioral assessments demonstrated that chronic ZCZ011 treatment enhanced motor coordination and decreased hot plate latency in female mice. Differential effects of chronic ZCZ011 were found for the novel object recognition task upon Tat induction in female mice, with no effects in male mice. Moreover, ZCZ011 treatment altered the endocannabinoid system, dependent on sex, genotype, treatment, and CNS region.
Since PAMs increase the signaling of the endogenous ligand at a receptor, it is essential to evaluate its effect on locomotor activity. A study evaluating GAT211 has shown that, unlike WIN55212, a potent cannabinoid receptor agonist, GAT211 did not alter motor performance, induce immobility, or CB1R-dependent withdrawal symptoms in MAGL knockout and FAAH knockout mice [77]. Another study indicated that GAT229 did not produce changes in locomotor activity [78]. Similarly, in the present study, ZCZ011 treatment for over two weeks did not produce any changes in locomotor activity. In the diseased R6/2 mouse model of Huntington’s disease, which shows hypolocomotion, GAT211, GAT228, and GAT229 increased the total distance traveled [79]. Another study has demonstrated that the NMDA antagonist, MK801, produces hyperlocomotion in rats, which was significantly decreased by GAT211 treatment [80]. A potential mechanism by which GAT211 reduced the MK801-induced hyperlocomotion is by inhibiting CB1Rs on dysregulated glutamatergic and GABAergic neurons that are involved with modulating motor activity in the cortico-striatal-limbic circuitry responsible for hyperarousal [81,82]. These data suggest that CB1R PAMs can potentially normalize locomotor activity in diseased states, making them an attractive target for treating locomotor activity-related deficits, even though several studies have shown Tat-induced hypolocomotion [83–85]. The lack of Tat effects on locomotor activity may be related to immune tolerance seen with prolonged Tat exposure [86].
High prevalence of depressive and anxiety disorders in PLWH is supported by past studies [87–89], in the current study, there was no effect of sex or Tat induction on anxiety-like behavior. However other studies have shown increased anxiety-like behavior in Tat transgenic mouse model [90–92], which may be due to longer duration of Tat induction (up to 6 months as compared to 2 months in the present study) [90] and at higher doses (via DOX injections as compared to DOX food) [90,91,93]. Previous studies from our lab have shown that in the Tat transgenic mouse model, female mice displayed more anxiety than male mice [76]. With regards to CB1R PAMs, a previous study in Huntington’s disease mouse model has shown that GAT211, GAT228, and GAT229 increased amount of time mice spent in the central quadrant of the open field test, modeling an anxiolytic effect [79]. On the other hand, GAT211 failed to reduce startle reactivity and prepulse inhibition, a measure of anxiety [94] in MK0801-treated rats [80]. In the present study, no significant differences were seen for the time spent in open arms, and the number of pokes in the open arms, which may be due different neuropathology (Hungtington’s disease vs. HIV-1 Tat) or simply due to different efficacy of CB1R PAMs (GAT211 vs ZCZ011). Furthermore, approximately 30–50% of PLWH display memory and learning-related deficits [4,95,96]. Tasks related to the prefrontal cortex, such as the novel object recognition task, typically reveal impairments in recognition memory in mice exposed to Tat. [62,97]. In the present study, these effects are only supported in female mice. No effects were seen for males, which may be due to the lack of alterations in the endocannabinoid system or similarities of chosen objects [98,99]. Additionally chronic ZCZ011 treatment showed differential effects with improving recognition memory only in Tat(+) female mice. ZCZ011 treatment reversed the memory deficits seen in female Tat(+) mice which may be mediated by the endocannabinoid system; however, in the present study no alterations were noted in the endocannabinoids and related lipids in the prefrontal cortex; therefore, additional studies are necessary to decipher the mechanism of action that least to memory related neuroprotective effects.
Alterations in the endocannabinoid system have been reported in the brain of PLWH [43,100]. Changes in the CB1R and CB2R expression in the frontal cortex have been reported in postmortem tissue samples of PLWH [43,100] and FAAH upregulation in cortical postmortem tissue samples of rhesus macaques [44]. Additionally, preclinical studies have also shown Tat-induced changes in endocannabinoid levels and related lipids [65,101,102], CB1R, CB2R, and FAAH expression [76,103]. However, in the present study we did not see Tat-induced changes in endocannabinoids and related lipids in CNS regions which is similar to a recent study [104] and maybe due to the immune tolerance caused by prolonged Tat exposure [86]. Moreover, not much is known about sex-dependent effects on the endocannabinoid system and its relationship to neuroinflammation and HAND. However, it is known that women show more pronounced HAND symptoms [105–108] and higher immune activation [109,110]. In the present study, sex-dpendent alterations were noted for AEA, PEA, OEA, and AA levels in the striatum. Similar to previous study [111], the current study displayed higher AA levels in males compared to females in the prefrontal cortex and striatum, which is not surprising as males also displayed higher levels of AEA, OEA, and PEA, which are metabolized into AA. Moreover, even though CB1R and CB2R expression was not affected by Tat, females demonstrated higher levels of cannabinoid receptors (CB1R and CB2R) in prefrontal cortex, striatum, and cerebellum whereas males displayed higher levels of degradative enzymes (FAAH and MAGL). Studies have reported that the endocannabinoid system exhibit sexual dimorphism with females reaching peak CB1R levels earlier than males [112,113], also females showing higher levels of CB1 and CB2R mRNA levels in all brain regions [114]. Additionally, the levels of estradiol strongly influence the endocannabinoid tone with the receptor numbers and mRNA levels fluctuating across the estrous cycle in females [115–117]. All these studies suggest that sex differences in the endocannabinoid system develop early and are dependent on circulating hormone levels which may be responsible for the differential effects seen in studies.
Little is known about the effect of CB1R PAMs on the endocannabinoid system. A study evaluating mRNA levels of the cannabinoid receptors in Huntington’s disease R6/2 mouse model found that in the diseased model, CB1R and CB2R mRNA levels were normalized to the wildtype levels in the striatum and cortex of GAT211-treated mice [79]. This suggests that CB1R PAMs have the ability to normalize the hyperactivation of the endocannabinoid system in a diseased state. In the present study ZCZ011 treatment displayed a differential effect in the levels of endocannabinoids and related lipids, cannabinoid receptors, and degradative enzymes. Chronic ZCZ011 treatment did not alter CB1R or CB2R levels in either females or males. Interestingly, ZCZ011 altered the AA levels in the cerebellum of female mice which was positively correlated with FAAH levels in the cerebellum. AEA is metabolized by FAAH into AA and ethanolamine [118], therefore higher levels of FAAH would indicate increased levels of AA which is in line with our findings. Additionally, AEA and PEA levels in females were positively correlated with the rotarod performance suggesting that the improved rotarod performance seen in females may be due to increased levels of AEA in the cerebellum. Studies have suggested that females produce overall higher levels of CB1 and CB2R mRNA levels as compared to males [114], including cerebellum [119]. Similarly, the present study also indicated that females had higher levels of CB1R in the cerebellum as compared to the males and although literature shows that CB1R is not expressed in the Purkinje cells in rodents [120], the presence of CB1R surrounding area may play a role in regulating the function of the Purkinje cells in the cerebellar cortex [121,122]. Although we did not see a direct correlation between CB1R and the rotarod performance, there is a possibility that the higher levels of CB1R causes increase in AEA expression responsible for improving motor coordination which is only observed in females.
The findings for body mass indicated that chronic ZCZ011 treatment did not affect body mass for either female or male Tat transgenic mice. Studies have shown that ZCZ011 has a CB1R-mediated effect in attenuating naloxone-related weight loss [123]. It was observed that in ZCZ011-treated mice, rimonabant (CB1R antagonist), but not SR14428 (CB2R antagonist), blocked the protective effect of ZCZ011 on naloxone-induced body mass loss. Further, it was also observed that the protective effects of ZCZ011 in attenuating naloxone-related weight loss were lost entirely in CB1R knockout mice, which again solidifies that the mechanism of action of ZCZ011 is CB1R mediated [123]. Another study showed that in a mouse model for Huntington’s disease CB1R PAMs, GAT211, and GAT229 promoted normal weight gain and increased body fat content in R8/2 mice, which is critical, as patients suffering from Huntington’s disease experience a failure to gain weight and body fat content [79]. The current study also found that chronic ZCZ011 treatment improved motor coordination only in female mice. Although no other studies have evaluated CB1R PAMs in wildtype mice for motor coordination, in Fisher 344 x Brown Norway F1 rats, a rat model to study age related cognitive deficits, the latency to fall for female mice or rats is higher than that of males [124]. Another study demonstrated that in MAGL knockout and FAAH knockout mice, GAT211 increased immobility time; however, it did not affect motor performance [77]. The increase in rotarod latency for females in the present study may also be due to alterations in the endocannabinoid levels seen in the cerebellum of female mice.
Finally, the spontaneous evoked nociception experiments, including tail-flick and hot-plate assays, were interesting as we saw that repeated ZCZ011 treatment increased the tail flick latency in Tat transgenic female and male mice, whereas, for the hot plate, the latency to withdraw or lick their paws was increased only in female mice. It was also observed that the hot-plate latency was reduced in males and vehicle-treated females, possibly due to behavioral tolerance. Behavior tolerance is a learned behavior response that leads to diminished reaction times with repeated measures [125]. Numerous studies in the past have reported a decrease in hot plate latency upon repeated testing [126–128]; however, it has also been proven that this decrease does not influence the antinociceptive potency of an analgesic compound [129]. Only a handful of studies have evaluated the effects of CB1R PAMs with regard to pain. One study has shown that ZCZ011 effectively blocked neuropathic pain and produced anti-allodynic effects in a chronic constriction injury model of neuropathic pain [55]. Additionally, studies using another CB1R PAM, GAT211, have been proven to be a very effective and safe analgesic strategy without any dependence and abuse liability [77]. GAT211 exhibited dose-dependent CB1R-mediated antinociceptive effects in inflammatory and neuropathic pain models [77]. The current study also demonstrated that the therapeutic efficacy for ZCZ011 was maintained after 14 days of repeated treatment, similar to other CB1R PAM studies [55,77]. Tolerance rapidly develops against CB1R agonists [130] and MAGL inhibitors at high doses [131,132], and the lack of tolerance for CB1R PAMs makes them superior targets for antinociceptive properties over traditional targets.
There are several limitations to this study which should be taken into consideration when applying these findings to the therapeutic potential of CB1R allosteric modulators in the context of HIV. First, is the use of HIV Tat transgenic mouse model. Even though Tat transgenic mouse model is a well-established neuroHIV model, it only expresses one of the many HIV proteins. Therefore, this should be considered when generalizing findings to HIV-1 infection, as different viral proteins may interact and target various signaling pathways in the CNS and behavior in different ways as compared to a single viral protein. Moreover, ZCZ011’s efficacy and safety should be tested in other neuroHIV models including EcoHIV and HIV Tg26 transgenic mice in the future to better understand the global effects of the virus on HAND. Second, using doxycycline to induce Tat expression in our Tat transgenic mouse model is a limitation, as doxycycline has been shown to have neuroprotective effects [133]. In order to control for this confound and minimize bias, both Tat(–) and Tat(+) groups were fed the same doxycycline chow throughout the study. Third, in the present study ZCZ011 was administered alone and subcutaneously as compared to previous studies [55,123] where intraperitoneal route was used and ZCZ011 was administered along with a CB1R orthosteric ligand [55]. These differences in the methodologies may have led to only subtle changes in behavior and the endocannabinoid system following chronic ZCZ011 treatment.
Conclusion
In conclusion, the present study demonstrated differential effects of chronic ZCZ011 on selected behaviors in a neuroHIV mouse model, which were mediated by sex and HIV Tat expression. Specifically, chronic ZCZ011 treatment improved motor coordination and recognition memory in female mice only. Additionally, chronic Tat expression had some effect on the endocannabinoid system with downregulating CB1R, FAAH, and MAGL expression in the cerebellum of female mice. Future studies should be directed towards investigating the role of the estrous cycle and sex hormones that may be responsible for these sex-based effects in the context of HIV. Lastly, as the current study used a racemic mixture, it would be interesting to evaluate the two enantiomers of ZCZ011 to assess if they behave like true PAM and allosteric-agonists similar to GAT211 enantiomers.
Supporting information
Acknowledgements
The authors would also like to acknowledge the work of animal care technician DeVeda Eubanks for her role in maintaining the welfare of our animals through the studies
