Identification of a new cannabidiol n-hexyl homolog in a medicinal cannabis variety with an antinociceptive activity in mice: cannabidihexol
Department of Life Sciences, University of Modena and Reggio Emilia, Via Campi 103, 41125 Modena, Italy
Mediteknology (CNR Spin-Off Company), Via Arnesano, 73100 Lecce, Italy
CNR NANOTEC, Istituto di Nanotecnologia, Via Monteroni, 73100 Lecce, Italy
Department of Chemistry, Sapienza University of Rome, Piazzale Aldo Moro 5, 00185 Rome, Italy
Division of Pharmacology, Università degli studi della Campania “L. Vanvitelli”, Via Costantinopoli, 16, 80138 Naples, Italy
Abstract
The two most important and studied phytocannabinoids present in Cannabis sativa L. are undoubtedly cannabidiol (CBD), a non-psychotropic compound, but with other pharmacological properties, and Δ9-tetrahydrocannabinol (Δ9-THC), which instead possesses psychotropic activity and is responsible for the recreative use of hemp. Recently, the homolog series of both CBDs and THCs has been expanded by the isolation in a medicinal cannabis variety of four new phytocannabinoids possessing on the resorcinyl moiety a butyl-(in CBDB and Δ9-THCB) and a heptyl-(in CBDP and Δ9-THCP) aliphatic chain. In this work we report a new series of phytocannabinoids that fills the gap between the pentyl and heptyl homologs of CBD and Δ9-THC, bearing a n-hexyl side chain on the resorcinyl moiety that we named cannabidihexol (CBDH) and Δ9-tetrahydrocannabihexol (Δ9-THCH), respectively. However, some cannabinoids with the same molecular formula and molecular weight of CBDH and Δ9-THCH have been already identified and reported as monomethyl ether derivatives of the canonical phytocannabinoids, namely cannabigerol monomethyl ether (CBGM), cannabidiol monomethyl ether (CBDM) and Δ9-tetrahydrocannabinol monomethyl ether (Δ9-THCM). The unambiguously identification in cannabis extract of the n-hexyl homologues of CBD and Δ9-THC different from the corresponding methylated isomers (CBDM, CBGM and Δ9-THCM) was achieved by comparison of the retention time, molecular ion, and fragmentation spectra with those of the authentic standards obtained via stereoselective synthesis, and a semi-quantification of these cannabinoids in the FM2 medical cannabis variety was provided. Conversely, no trace of Δ9-THCM was detected. Moreover, CBDH was isolated by semipreparative HPLC and its identity was confirmed by comparison with the spectroscopic data of the corresponding synthetic standard. Thus, the proper recognition of CBDH, CBDM and Δ9-THCH closes the loop and might serve in the future for researchers to distinguish between these phytocannabinoids isomers that show a very similar analytical behaviour. Lastly, CBDH was assessed for biological tests in vivo showing interesting analgesic activity at low doses in mice.
Untitled section
Subject terms: Analytical chemistry, Medicinal chemistry, Organic chemistry, Chemistry, Asymmetric synthesis, Natural product synthesis
Article notes
Untitled section
Received 2020 Jul 31; Accepted 2020 Nov 30; Collection date 2020.
Introduction
Cannabis research has made great progresses in the latest years in both clinical and academic field. For example, new cannabis based drugs, like Epidiolex, have been placed on the market for the treatment of severe forms of infant epilepsy not responding to conventional therapies1. In the academic research, new insights on cannabis chemistry have been disclosed thanks to the high-performing technological platforms for the identification of new compounds2–6. Although there is still much to do in the cannabis chemistry research, almost 150 phytocannabinoids can be count on the most updated inventory7. Our most recent works have disclosed the existence of new phytocannabinoids series besides those of the orcinoids, varinoids and olivetoids, belonging to the cannabidiol (CBD) and Δ9-tetrahydrocannabinol (Δ9-THC) type cannabinoids4,8. The new series of phytocannabinoids share the terpenophenolic core of CBD and Δ9-THC and differ for the length of the linear alkyl side chain; specifically, cannabidibutol (CBDB), and Δ9-tetrahydrocannabutol (Δ9-THCB) have a n-butyl side chain8, whereas cannabidiphorol (CBDP) and Δ9-tetrahydrocannabiphorol (Δ9-THCP) have a n-heptyl side chain4. The discovery of new phytocannabinoids, which were both directly isolated from the plant and synthetically prepared in the lab, has opened new gaps on their still unexplored biological activity, making us wondering about their pharmacological effects on humans.
To further complicate the already intricate scenario, we report a new series of phytocannabinoids that fills the gap between the pentyl and heptyl homologs of CBD and Δ9-THC, bearing a n-hexyl side chain on the resorcinyl moiety. At the best of our knowledge and according to the literature, no case of hexyl derivatives of cannabinoid has been reported so far. Conversely, cannabinoids with the same molecular formula and molecular weight have been classified as monomethyl ether derivatives of canonical phytocannabinoids, namely cannabigerol monomethyl ether (CBGM), cannabidiol monomethyl ether (CBDM) and Δ9-tetrahydrocannabinol monomethyl ether (Δ9-THCM)9. Whilst CBGM and CBDM have been already isolated and characterized10,11, Δ9-THCM has been detected in cannabis smoke12 and some authors reported that it is present in the plant, but they were not able to isolate it due to chromatographic issues13. Our findings on the presence of the hexyl homologs of CBD and Δ9-THC, which we named cannabidihexol (CBDH) and Δ9-tetrahydrocannabihexol (Δ9-THCH) respectively, were supported by the stereoselective synthesis of the corresponding pure standards that are found in the plant prior to decarboxylation.
Results
Identification of CBD and Δ9-THC hexyl homologs by UHPLC-HESI-Orbitrap

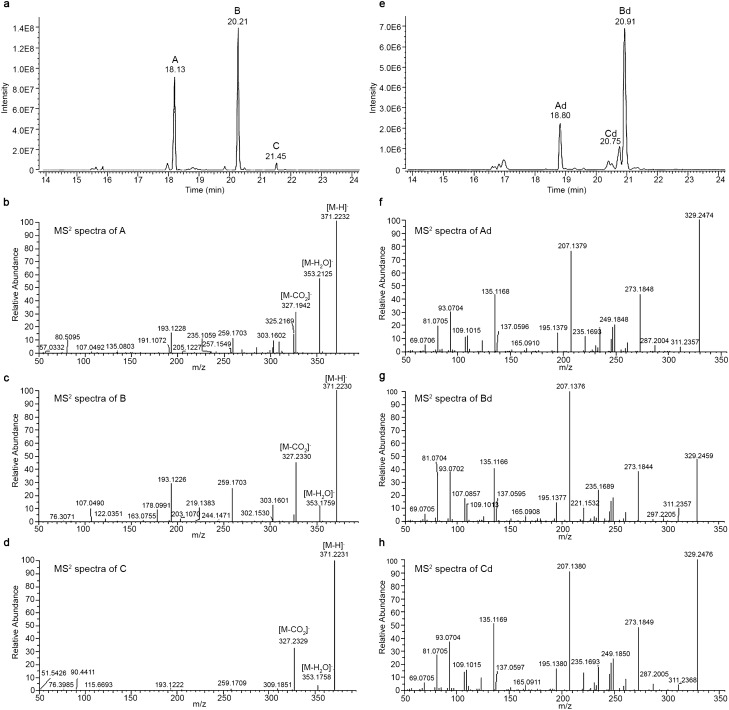

In the attempt to provide a complete characterization of the FM2 cannabis variety, we noticed the presence of two major peaks at 18.13 and 20.21, and a minor one at 21.46 min, corresponding to the molecular formula C23H32O4, suggesting the presence of the carboxylic group. The analysis of the fragmentation spectra in negative ionization mode confirmed this hypothesis but showed three different fragmentation patterns (Fig. 1A). The two major peaks A and B presented very similar spectra differing only for the relative intensity of the fragments, whereas the minor peak C showed very poor fragmentation. Peak A at 18.13 min could be associated to a CBDA-like molecule (Fig. 1B), while peak B at 20.21 min had lower intensity for the fragment corresponding to [M–H2O]− at m/z 353 and presented a new fragment at m/z 178, not found in the other spectra (Fig. 1C). Peak C at 21.46 min showed a THCA-like fragmentation characterized by the very low intensity of the fragment [M–H2O]− and the absence of other major fragments besides the one corresponding to [M-CO2]− at m/z 327 (Fig. 1D).
In order to identify these compounds, but being unable to isolate acidic species, we moved to work on the decarboxylated forms of such cannabinoids. Therefore, the ethanolic extract of FM2 was heated and the new mixture was analysed employing the same conditions by UHPLC-HESI-Orbitrap. As expected, in place of the previously detected peaks, three new peaks appeared at different retention times, 18.62, 20.62, and 20.77 min, with the molecular formula C22H32O2 corresponding exactly to the loss of a CO2 molecule. Figure 1E shows a second chromatogram with the decarboxylated compounds Ad, Bd, and Cd. Surprisingly, peaks Bd and Cd had inverted elution order and peaks Ad and Cd presented superimposable fragmentation spectra in positive ionization mode with the same pattern as CBD and THC. Moreover, peaks Ad and Bd were very similar and differed for the relative intensity of the molecular ion [M+H]+ at m/z 329 and the base peak at m/z 207. We concluded that peak A and B could be acidic CBD-type cannabinoids, whereas peak C could be an acidic THC-type cannabinoid (Fig. 1F–H).
According to the literature, cannabinoids with such molecular formula and molecular ions are reported as monomethyl ethers of CBDA and THCA, named cannabidiolic acid monomethyl ether (CBDMA) and tetrahydrocannabinolic acid monomethyl ether (THCMA). Similarly, cannabinoids with molecular formula C22H32O2 could be the corresponding decarboxylated derivatives, the already known cannabidiol monomethyl ether (CBDM) and the putative tetrahydrocannabinol monomethyl ether (THCM). However, we found three peaks corresponding to the same formula but different MS2 spectra. By a comparison with other CBD and THC homologs present in our spectral library, such as cannabidivarin (CBDV), cannabidibutol (CBDB), cannabidiphorol (CBDP), Δ9-tetrahydrocannabivarin (Δ9-THCV), Δ9-tetrahydrocannabutol (Δ9-THCB), and Δ9-tetrahydrocannabiphorol (Δ9-THCP), we were able to putatively identify two new homologs of CBD and THC with a hexyl side chain. As shown in Fig. 2, the new compounds differ exactly by a –CH2 unit (14 amu) from the corresponding pentyl (CBD and Δ9-THC) and the recently identified heptyl homologs (CBDP and THCP), not only for the molecular ion [M+H]+ but also for all fragments. For both CBD (Fig. 2A) and THC (Fig. 2B) homologs, it was evident that the molecular ion [M+H]+ and the base peak inverted their relative intensity as the length of the side chain increased from the propyl to the heptyl homologs, most likely due to the increasing stability of the molecular ion.

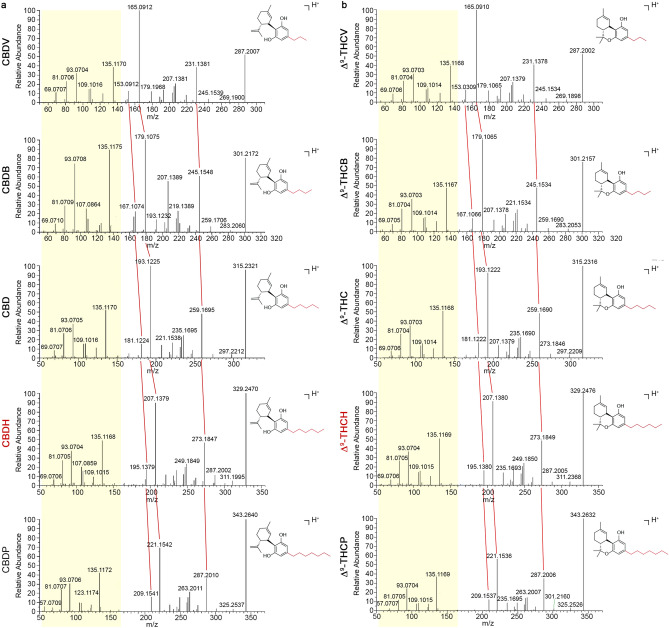

In order to confirm the identity of these two new cannabinoids and unambiguously identify peak Bd, a stereoselective synthesis of the putatively identified cannabinoids, which for sake of simplicity and consistency were called cannabidihexol (CBDH) and Δ9-tetrahydrocannabihexol (Δ9-THCH), and the monomethyl ether derivatives of CBD and Δ9-THC (CBDM and Δ9-THCM) was performed.
Identification of CBGM by UHPLC-HESI-Orbitrap
Given the results obtained for CBD and Δ9-THC, we hypothesized the presence in the FM2 variety of the hexyl homolog of CBG, which has a molecular formula C22H34O2 and [M+H]+ ion at m/z 331.2632. Only one peak resulted from the specific ion search, thus instilling the doubt about its identity as hexyl or methyl ether derivative. The fragmentation spectrum of its acidic precursor in the FM2 native extract showed a pattern different from that of cannabigerolic acid (CBGA), for which the analytical standard was available, and from those reported in the literature for the other series of CBG like cannabigerovarin (CBGV)14 and cannabigerobutol (CBGB)9. The match of retention time (20.98 min) and fragmentation spectrum with those of synthetic CBGM and the comparison with spectral data reported in the literature for the same cannabinoid confirmed that the additional methyl group was attached to the oxygen of the resorcinyl moiety and was not part of the alkyl side chain.
Stereoselective synthesis of CBDH, Δ9-THCH and monomethyl derivatives CBDM, Δ9-THCM and CBGM

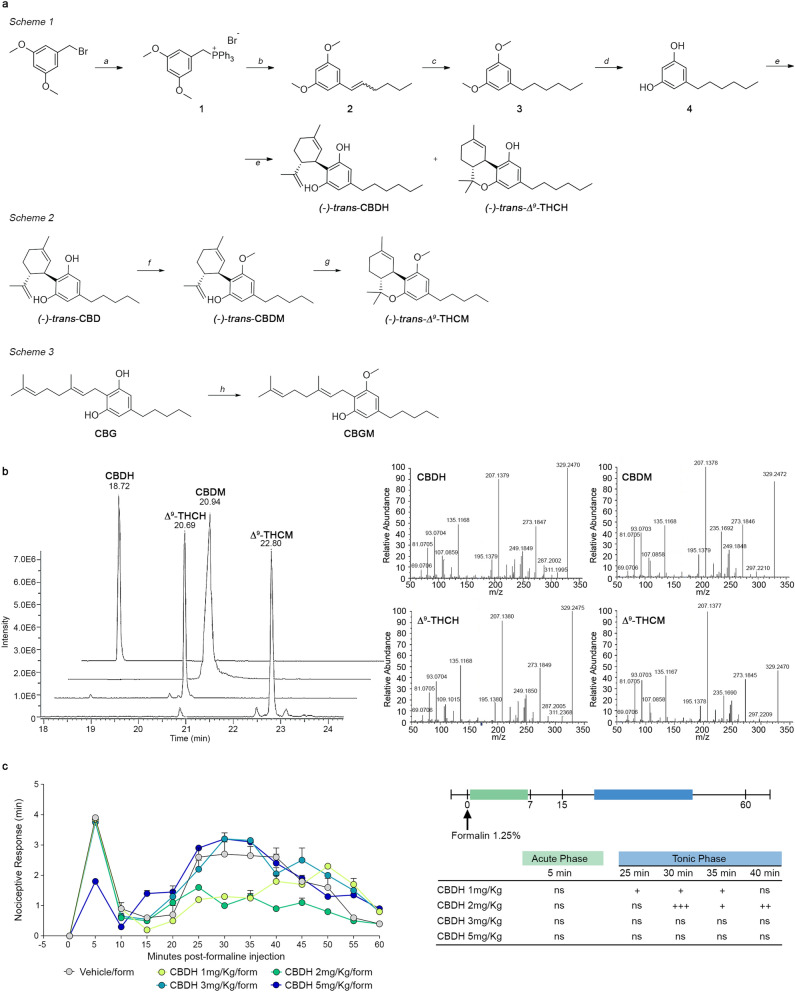

The stereoselective synthesis of (−)-trans-cannabidihexol ((−)-trans-CBDH) and (−)-trans-Δ9-tetrahydrocannabihexol ((−)-trans-Δ9-THCH) was performed as previously reported for the synthesis of the corresponding homologs (−)-trans-CBDB, (−)-trans-CBDP, (−)-trans-Δ9-THCB and (−)-trans-Δ9-THCP2–4,8. The appropriate 5-hexylbenzene-1,3-diol (4) was prepared first as reported in Fig. 3A, Scheme 1. (3,5-dimethoxybenzyl)triphenylphosphonium bromide (1) was easily prepared in quantitative yield by reaction of 1-(bromomethyl)-3,5-dimethoxybenzene with triphenylphosphine in refluxing toluene for 6 h. Wittig’s reaction between 1 and valeraldehyde in 0.1 M K2CO3 aqueous solution at reflux for 24 h gave 1-(hex-1-en-1-yl)-3,5-dimethoxybenzene (2) as a 55:45 E/Z mixture which was hydrogenated using the ThalesNano H-Cube flow reactor, to give the corresponding 1-hexyl-3,5-dimethoxybenzene (3) in 91% yield. The demethylation performed using BBr3 in anhydrous DCM, overnight at room temperature and under nitrogen atmosphere, gave 5-hexyl-resorcinol (4) in quantitative yield. In our previous works CBDB and CBDP were synthesized first by condensation of the appropriate resorcinol with (1S,4R)-1-methyl-4-(prop-1-en-2-yl)cycloex-2-enol, using pTSA as catalyst and stopping the reaction before CBDs evolve to THCs in the same conditions. Conversely, for the selective synthesis of (−)-trans-Δ9-THCB and (−)-trans-Δ9-THCP a longer procedure was adopted. The appropriate resorcinol was condensed with (1S,4R)-1-methyl-4-(prop-1-en-2-yl)cycloex-2-enol in the same condition described above for a longer reaction time (usually 48 h). In this way, the CBDs were quantitatively converted into the corresponding Δ8-THCs. Hydrochlorination of the Δ8 double bond of (−)-trans-Δ8-THCs, allowed to obtain (−)-trans-HCl-THCs, which were successively converted to (−)-trans-Δ9-THCs by selective elimination on position 2 of the terpene moiety using potassium t-amylate as base. Although this procedure allowed to selectively prepare (−)-trans-Δ9-THCs, it has the inconvenience to be time consuming, and with low atom economy. Because the conversion of CBDs to Δ8-THCs passes through the formation of Δ9-THCs first, for the synthesis of (−)-trans-CBDH and (−)-trans-Δ9-THCH we evaluated the possibility to stop the reaction before Δ9-THCH starts to convert into Δ8-THCH. Therefore, 5-hexyl-resorcinol (4) was condensed with (1S,4R)-1-methyl-4-(prop-1-en-2-yl)cycloex-2-enol using pTSA as catalyst and the progression of the reaction was monitored every 15 min by HPLC–UV/Vis. After approximately 2 h, almost the 50% of (−)-trans-CBDH converted in (−)-trans-Δ9-THCH, but no traces of Δ8-THCH were detected. The reaction was therefore stopped and (−)-trans-CBDH and (−)-trans-Δ9-THCH were purified as reported in Material and Methods section. (−)-trans-CBDH and (−)-trans-Δ9-THCH were obtained in 17% and 20% yield, respectively. The total yield of the two phytocannabinoids was 37%, which is in line with the yield obtained for the sole synthesis of CBDB or CBDP using the same procedure, but quenching the reaction after the consumption of the starting materials and before that CBDs started to isomerize into THCs (usually 30 min–1 h). Therefore, strictly monitoring the condensation of the appropriate resorcinol with (1S,4R)-1-methyl-4-(prop-1-en-2-yl)cycloex-2-enol it is possible to prepare in one-pot reaction both (−)-trans-CBDs and (−)-trans-Δ9-THCs, avoiding cumbersome and longer procedure to selectively prepare the (−)-trans-Δ9-THCs, without the awkward formation of their Δ8 isomers. The synthesis of the monomethyl ether derivatives of CBD, THC and CBG is reported in Fig. 3A, Scheme 2. (−)-trans-CBDM and CBGM were easily prepared by methylation of the commercially available CBD and CBG by reaction with 0.5 equivalents of dimethylsulfate, in DMF at room temperature, using K2CO3 as base (Fig. 3A, Scheme 3). In contrast (−)-trans-Δ9-THCM was prepared from (−)-trans-CBDM, through cyclization catalyzed by pTSA (Fig. 3A, Scheme 2). The chemical identification of synthetic (−)-trans-CBDH, (−)-trans-Δ9-THCH, (−)-trans-CBDM, (−)-trans-Δ9-THCM and CBGM, and their unambiguous 1H and 13C assignments were achieved by NMR spectroscopy (Figure SI-1–5, Supporting Information). In particular for (−)-trans-CBDH and (−)-trans-Δ9-THCH, as already stated during the synthesis of (−)-trans-CBDB, (−)-trans-CBDP, (−)-trans-Δ9-THCB and (−)-trans-Δ9-THCP, and by comparison with the well-known homologs (CBD, CBDV, Δ9-THC, and Δ9-THCV) no significant differences in the proton and carbon chemical shifts of the terpene and aromatic moieties were observed among CBD and Δ9-THC homologs. The sole exception observed regards the integration of the multiplet in the range 1.4–1.2 ppm in the 1H spectra and the number of carbon signals in the range 20–30 ppm of the 13C spectra, corresponding to the central methylene units of the alkyl chain on the resorcinyl moiety. The perfect match in the chemical shift of the terpene and aromatic moieties between the synthesized (−)-trans-CBDH and (−)-trans-Δ9-THCH and the respective homologues2–4,8, combined with the mass spectra and fragmentation pattern, allowed us to unambiguously confirm the chemical structures of the two new synthetic cannabinoids.The trans (1R,6R) configuration at the terpene moiety was confirmed by optical rotatory power. The new cannabinoids (−)-trans-CBDH, (−)-trans-Δ9-THCH, (−)-trans-CBDM and (−)-trans-Δ9-THCM showed an [α]D20 of − 146°, − 166°, − 113° and − 161°, respectively, in chloroform. The [α]D20 values were in line with those of the homologs2,8,15, suggesting a (1R,6R) configuration for the four phytocannabinoids. Lastly, the perfect superimposition between the 1H and 13C NMR spectra of both synthetic and extracted (−)-trans-CBDH was observed, confirming the identity of the new cannabinoids identified in the FM2 cannabis variety (Figure SI-6, Supporting Information).
A comparison of the retention time, molecular ion and fragmentation spectra of each pure synthesized standard with those found in FM2 led us to conclude that the first peak Ad could be assigned to CBDH and the second one Bd to CBDM (Fig. 3B). The third peak Cd could most likely be associated to Δ9-THCH although its very low abundance and the presence of other interferents in the fragmentation spectrum from the FM2 extract did not allow an unambiguous assignment of its chemical structure (Fig. 3B). Moreover, no trace of Δ9-THCM was found. Fragmentation in negative ionization mode helped us to distinguish between CBDH and Δ9-THCH, which were identical in positive ionization mode, whereas no ionization was obtained in negative mode for Δ9-THCM due to the lack of free hydroxyl groups to be deprotonated (Fig. 3B). Confirmation of the identification of CBDH was achieved by isolation of pure fractions from the FM2 extract containing the acidic precursor CBDHA by semipreparative liquid chromatography. The pure compound was decarboxylated by heat and analysed by UHPLC-HESI-Orbitrap. Unfortunately, it was not possible to isolate fractions of FM2 containing THCHA due to its very low abundance. However, the stereoselective synthesis of Δ9-THCH allowed to assign a certain chemical structure to the corresponding peak in the FM2 sample.
Semi-quantification of CBDH and Δ9-THCH in the FM2 extract
Thanks to the synthetically prepared analytical standards of CBDH, Δ9-THCH, CBDM and CBGM, we were able to provide a semi-quantification of these cannabinoids in the FM2 cannabis variety by building the corresponding calibration curves. The results of concentration were in the order of the µg/g, while the main cannabinoids CBD and Δ9-THC were in the order of the mg/g (56 and 39 mg/g respectively). In particular, the hexyl homologs of CBD and Δ9-THC resulted 27 µg/g and 7 µg/g, while the methyl ether derivatives CBDM and CBGM were 50 µg/g and 102 µg/g. No Δ9-THCM was detected in the FM2.
Effects of CBDH on the formalin test in mice
Formalin paw injection is a solid and widely used model of nociception with high face validity when tested with analgesic drugs. A nociceptive response to subcutaneous formalin induced an early, short-lasting first phase (0–7 min) followed by a quiescent period, and then a second, prolonged phase (15–60 min) of tonic hyperalgesia (Fig. 3C). In the tonic phase, two-way ANOVA revealed that CBDH (1, 2 mg/kg, i.p.) significantly reduced the late phase of the formalin-induced nocifensive behavior when compared to the vehicle-treated group (treatment F(4,288) = 17.32, P < 0.0001, time F(12,288 ) = 67.80, P < 0.0001 and interaction F(48,288) = 3.02, P < 0.0001); also, the dose of 2 mg/kg had a significant antinociceptive effect as compared to the vehicle group. The doses of 3 and 5 mg/kg had no effect on the formalin test (Fig. 3C).
Discussion
The comprehensive characterization of the chemical profile of a cannabis variety is a rather arduous task as the analytical tools in the chemist’s hand are not able to cover such a broad range of compounds. However, the high sensitivity and selectivity of the high-resolution mass spectrometry, for example those achieved with the Orbitrap technology, can enable the identification of a reasonable number of molecules, even when present in very small traces. This approach allowed for the identification of new series of cannabinoids, CBD and THC homologs, with different lengths of the alkyl side chain, which were recently reported by our group2–4,8. The present work expanded the scope of cannabinoids identification completing the series of homologs with different alkyl side chain from three to seven methylene units. Up to now, only cannabinoids with an odd number of carbon atoms on the side chain have been reported and those with an even number of carbon atoms have been supposed to be artifacts derived from fungal ω-oxidation of their corresponding homologs7. The investigation of the origin of these species, such as those with a butyl and hexyl side chain, is beyond the scope of this work, but, although surprising, it is certain that such cannabinoids are actually present in a medicinal cannabis variety. The literature reports the existence of monomethyl ether derivatives of the canonical pentyl cannabinoids to justify the presence of compounds bearing an additional methyl group. Although on one side the structural identity of such derivatives was confirmed, our findings pointed out a new series of cannabinoids with the same molecular formula of the monomethyl ethers but with a different arrangement. Their origin, whether it is from the plant or from microorganisms, should be investigated as this might disclose new insights in the cannabis biochemistry. It is certainly important to underline that it is very easy to confuse CBDH and CBDM, as well as Δ9-THCH and Δ9-THCM. However, the match of the high-resolution fragmentation patterns with their pure synthetic standards was determinant to assign the respective chemical structure. This work might serve in the future for any researcher to distinguish between two species that show a very similar analytical behaviour. In a similar way, the methyl ether derivative of CBG was also identified (CBGM).
It is worth noting that no Δ9-THCM was detected in the FM2 variety. On the other hand, both CBDM and CBGM showed a high peak as well as their native precursors CBDMA and CBGMA. Achieved results are in accordance with what reported by Lumır Ondrej Hanus et al., which showed that the cannabigerol monomethyl ether is always presents in greater quantities than its products, THCMA and CBDMA7,16.
de Meijer et al. demonstrated that the cannabinoid acid synthases (THCAS, CBDAS) show a different affinity for CBGA alkyl homologues. This concept would explain the achieved results. CBDAS could be competitively stronger than THCAS when the substrate is CBGMA17,18.
The comparison of the results obtained for the concentrations of unorthodox cannabinoids in the FM2 variety suggested that there is no relationship between the different series as the same CBD to THC ratio is not respected. Considering our recent work on the heptyl derivatives of CBD and Δ9-THC, CBDP and Δ9-THCP were found in the FM2 at the concentration of 243 µg/g and 29 µg/g4; whereas, in the same cannabis variety, the butyl series of CBD and THC was found at the concentration of 500 µg/g and 400 µg/g for CBDB and Δ9-THCB respectively8. In this work, we found 27 µg/g and 7 µg/g for CBDH and Δ9-THCH respectively. However, this data should be verified considering a larger number of different varieties in order to provide a reliable statistical significance.
The CBDH could have pleiotropic mechanisms of action through which it can exert its pharmacological effect. We found that the doses of the 1 and 2 mg/Kg significantly reduced the late phase of the formalin-induced nocifensive behavior, whereas the higher doses 3 and 5 mg/Kg were uneffective. This could be due, at least in part, assuming that at these doses CBDH can activate receptor facilitating nociception such as TRPV1 or other channels. On the other hand, we can speculate that CBDH at the higher doses could block receptors involved in antinociception such as CB1 or CB2. However, further pharmacological studies are needed to better investigate the pharmacodynamics profile of this interesting compound.
Another piece of knowledge towards understanding Cannabis Sativa L. cannabinoma has been added with this work. In particular, clarity has been made about the possible confusion between phytocannabinoids with a 6-term alkyl chain (CBDH, THCH) and those with a methylated resorcinolic hydroxyl group (CBDM, THCM). Furthermore, two new phytocannabinoids CBDH and THCH have been identified in the FM2 variety by comparison with their respective authentic synthesized compounds. In particular, CBDH has been isolated and its pharmacological activity has been evaluated in vivo in mice. At extremely low doses (1 mg/kg) it showed an interesting nocifensive activity. However, the CBDH concentration of 27 μg/g found in the FM2 variety is too low to exert the pharmacological effect but it is not excluded that other cannabis varieties may contain higher concentrations. More in-depth pharmacological studies are currently underway to clarify the mechanism of action of this new phytocannabinoid.
Methods
Plant material
FM2 cannabis variety is produced from the strain CIN-RO bred by the Council for Agricultural Research and Economics (CREA) in Rovigo (Italy) and supplied to the Military Chemical Pharmaceutical Institute (MCPI, Firenze, Italy). Experiments on FM2 inflorescence (batch n. 6A32/1) were performed with the authorization of the Italian Ministry of Health (prot. n. SP/062). Two 5 g packs were finely grinded (< 2 mm particle size) and divided into two batches: 500 mg were extracted with 50 mL of ethanol 96% according to the procedure reported in the monograph of Cannabis Flos of the German Pharmacopoeia19 and analyzed by UHPLC-HESI-Orbitrap without further dilution. The remaining 9.5 g were treated according to the protocol of Pellati et al. with minor changes20. Briefly, freeze-dried plant material was sonicated with 400 mL of n-hexane for 15 min in an ice bath. After centrifugation for 10 min at 2000 × g the pellets were discarded. The same procedure was repeated twice more. The supernatants were then dried under reduced pressure and resuspended in 10 mL of acetonitrile, filtered and passed through a semi-preparative liquid chromatography for the isolation of the acidic species of the cannabinoids of interest.
Isolation of natural CBDH
A semi-preparative LC system (Octave 10 Semba Bioscience, Madison, USA) was used to separate the FM2 mixture into 80 fractions in a total run time of 80 min. The chromatographic conditions used are reported in the paper by Citti et al.4. A Luna C18 with a fully porous silica stationary phase (Luna 5 µm C18(2) 100 Å, 250 × 10 mm) (Phenomenex, Bologna, Italy) was the column employed and a mixture of acetronitrile:0.1% aqueous formic acid 70:30 (v/v) was used as mobile phase at a constant flow rate of 5 mL/min. The fractions containing CBDHA (retention time 13.0 min) was isolated as reported in our previous work2. The fractions containing CBDHA (13.0 min) were analyzed by UHPLC-HESI-Orbitrap and dried on the rotavapor at 70 °C. The residue was placed in an oven at 120 °C for 2 h to achieve decarboxylation. An amount of about 0.3 mg of CBDH was obtained.
Synthetic procedure
The reagents and the solvents used for the synthesis of the analytical standards were purchased from Sigma-Aldrich and VWR, respectively. In the synthetic procedures, the solvents were abbreviated as following: acetonitrile (ACN); chloroform (CHCl3); cyclohexane (CE); dichloromethane (DCM); diethyl ether (Et2O); dimethyl sulfoxide (DMSO); ethyl acetate (AcOEt). The reactions were monitored by thin-layer chromatography (TLC) using 60F-254 silica gel plates (from Merck) and inspected with UV lamp, or alkaline KMnO4 stain. Purification of the synthesized products was performed by flash chromatography on silica gel (40–63 μm). The mobile phase is specified in the respective following monographies. NMR spectra were recorded on a Bruker 400 (at 400.134 MHz for 1H and 100.62 MHz for 13C) or on a Bruker 600 (at 600.130 MHz for 1H and 150.902 MHz for 13C) spectrometer. Chemical shifts (δ) are reported in parts per million (ppm) and referenced to the solvent residual peaks. Coupling constants are reported in hertz (Hz) and the splitting pattern is reported as: singlet (s), doublet (d), triplet (t), quartet (q), double doublet (dd), quintet (quin), multiplet (m), broad signal (b). Monodimensional and bidimensional spectra were acquired using the same parameters previously reported3–5,8. Optical rotation (α) was acquired with a Polarimeter 240C from Perkin–Elmer (Milan, Italy), using a cell with a length of 100 mm, and a volume 1 mL.
Synthesis of (3,5-dimethoxybenzyl)triphenylphosphonium bromide (1)
Triphenylphosphine (6.3 g, 23.8 mmol, 1.1 equiv.) was added to a stirred solution of 1-(bromomethyl)-3,5-dimethoxybenzene (5.0 g, 21.6 mmol, 1 equiv.), in 30 mL of toluene and refluxed for 6 h. After standing at room temperature overnight, the precipitate formed was collected by filtration, washed with diethyl ether and dried to give 10.4 g of a white solid (quant. yield).
1H-NMR (400 MHz, CDCl3) δ 7.78–7.76 (m, 9H), 7.66–7.63 (m, 6H), 6.35 (t, 2H, J = 2.3 Hz), 6.30 (q, 1H, J = 2.3 Hz), 5.32 (d, 2H, J = 14.3 Hz), 3.54 (s, 6H).
Synthesis of (E/Z)-1-(hexyl-1-en-1-yl)-3,5-dimethoxybenzene (2)
Valeraldehyde (0.48 mL, 4.56 mmol, 1.5 equiv.) was added to a stirred suspension of 1 (1.5 g, 3.04 mmol, 1 equiv.) in 20 mL of aqueous 0.1 M K2CO3. The mixture was refluxed overnight and chilled down at 0 °C. Cyclohexane (20 mL) was added, and the biphasic mixture was vigorously stirred in the same condition for two hours in order to precipitate triphenylphosphine oxide. The solid was removed by filtration and the organic phase separated. The aqueous layer was extracted two more times with cyclohexane. The combined organic phase was washed with brine, dried over anhydrous Na2SO4 and concentrated to give 540 mg (81% yield) of a yellow oil. The product was obtained as a 55:45 E/Z mixture of alkene, pure enough to be used in the next step without further purification.
1H NMR (400 MHz, CDCl3, Z-isomer) δ 6.43 (d, 2H, J = 2.2 Hz), 6.35 (t, 1H, J = 2.2 Hz), 6.31 (d, 1H, J = 11.5 Hz), 5.66 (dt, 1H, J = 11.5, 7.0 Hz), 3.79 (s, 6H), 2.37–2.30 (m, 2H), 1.47–1.31 (m, 4H), 0.90 (t, 3H, J = 7.1 Hz); 1H NMR (400 MHz, CDCl3, E-isomer) δ 6.51 (d, 2H, J = 2.2 Hz), 6.29 (bm, 1H), 6.21 (dt, 1H, J = 15.9, 6.85 Hz), 3.79 (s, 6H), 2.24–2.18 (m, 2H), 1.47–1.31 (m, 4H, overlap with the same signals of Z-isomer), 0.92 (t, 3H, J = 7.1 Hz).
Synthesis of 1-hexyl-3,5-dimethoxybenzene (3)
The mixture of (E/Z)-1-(hept-1-en-1-yl)-3,5-dimethoxybenzene (2), solubilized in EtOH, was selectively reduced at the double bond by hydrogenation with the flux reactor H-Cube Mini Plus ThalesNano using the following conditions: temperature 30 °C, H2 20 psi, cartridge Pd/C, solvent EtOH, flow 1 mL/min. The solvent was evaporated obtaining 495 mg (91% yield) of a colourless liquid pure enough to be used in the next step without further purification.
1H NMR (400 MHz, CDCl3) δ 6.37 (d, J = 2.3 Hz, 2H), 6.32 (t, J = 2.3 Hz, 1H), 3.80 (s, 6H), 2.57 (t, J = 7.48 Hz, 2H), 1.61 (qnt, 2H, J = 6.9 Hz), 1.39–1.28 (m, 6H), 0.91 (t, J = 6.4 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 160.67, 145.43, 106.48, 97.55, 55.23, 36.32, 31.73, 31.25, 29.02, 22.61, 14.10.
Synthesis of 5-hexylbenzene-1,3-diol (4)
3 (495 mg, 2.23 mmol, 1 equiv.) was solubilized in anhydrous DCM at − 15 °C and under argon atmosphere, and a 1 M solution of BBr3 in anhydrous DCM (5 mL, 4.9 mmol, 2.2 equiv.) was added dropwise over a period of 30 min. The mixture was stirred at room temperature overnight and quenched with an aqueous saturated solution of NaHCO3. The organic phase was washed with water, brine, dried over anhydrous Na2SO4 and concentrated to give 430 mg (99% yield) of an orange liquid which crystalized upon standing.
1H NMR (400 MHz, CDCl3) δ 6.24 (d, 2H, J = 2.3 Hz), 6.17 (t, 1H, J = 2.3 Hz), 4.71 (bs, 2H), 2.49 (t, 2H, J = 8.0 Hz), 1.57 (qnt, 2H, J = 8.0 Hz), 1.35–1.23 (bm, 6H), 0.88 (t, 3H, J = 6.8 Hz). 13C NMR (101 MHz, CDCl3) δ 156.57, 146.16, 108.04, 100.12, 35.82, 31.74, 31.01, 28.94, 22.59, 14.09.
Synthesis of (1′R,2′R)-4-hexyl-5′-methyl-2′-(prop-1-en-2-yl)-1′,2′,3′,4′-tetrahydro-[1,1′-biphenyl]-2,6-diol, (−)-trans-CBDH and (6aR,10aR)-3-hexyl-6,6,9-trimethyl-6a,7,8,10a-tetrahydro-6H-benzo[c]chromen-1-ol, (−)-trans-Δ9-THCH
(1S,4R)-1-methyl-4-(prop-1-en-2-yl)cycloex-2-enol (304 mg, 2.0 mmol, 0.9 eq.), solubilized in 20 mL of anhydrous DCM, was added dropwise over a period of 20 min to a stirred solution of 5-hexylbenzene-1,3-diol (1) (433 mg, 2.23 mmol, 1 eq.) and p-toluenesulfonic acid (40 mg, 0.2 mmol, 0.1 eq.) in anhydrous DCM (20 mL) at room temperature and under argon atmosphere. The reaction was stirred in the same conditions and monitored every 15 min by HPLC, following the same chromatographic method using for the analytic characterization. After for 2 h, the putative ratio between CBDH and THCH was almost 1:1 and no traces of Δ8-THCH were detected. The reaction was therefore quenched with 20 mL of a saturated aqueous solution of NaHCO3. The organic layer was washed with brine, dried over anhydrous Na2SO4 and evaporated. The crude was chromatographed over silica gel (ratio crude:silica 1/150, eluent: CE:DCM 8/2). All the chromatographic fractions were analyzed by HPLC–UV and UHPLC-HESI-Orbitrap and only the fractions containing exclusively CBDH and THCH were separately collected to give 65 mg of CBDH as colorless oil (10% yield, purity > 99%) and 71 mg of THCH as a light purple oil (11% yield, purity > 99%). These two fractions were used as pure analytic standards for spectroscopic and analytic characterization. The chromatographic fraction containing both CBDH and THCH (c.a. 150 mg) was purified by semipreparative HPLC on a C18 reverse phase using ACN:water 70:30 as mobile phase. Two other aliquots of CBDH (45 mg) and THCH (60 mg) were obtained.
(−)-trans-CBDH: colorless oil. 110 mg (17% yield). 1H NMR (400 MHz, CDCl3) δ 6.10–6.32 (bm, 2H), 5.97 (bs, 1H), 5.57 (s, 1H), 4.73–4.59 (bm, 2H), 4.56 (s, 1H), 3.88–3.81 (m, 1H), 2.46–2.36 (m, 3H), 2.27–2.20 (m, 1H), 2.09 (ddt, J = 2.4, 5.0, 18.0 Hz, 1H), 1.85–1.76 (m, 5H), 1.65 (s, 3H), 1.58–1.51 (m, 2H), 1.31–1.25 (m, 6H), 0.87 (t, J = 6.7 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 156.14, 153.98, 149.54, 143.20, 140.19, 124.26, 113.89, 110.97, 109.78, 108.12, 46.29, 37.42, 35.65, 31.86, 31.05, 30.54, 29.09, 28.54, 23.82, 22.73, 20.67, 14.22. HRMS m/z [M+H]+ calcd. for C22H33O2+: 329.2475. Found: 343.2629; [M−H]− calcd. for C22H31O2−: 327.2330. Found: 341.2482. [α]D20 = −146° (c = 1.0, ACN).
(−)-trans-Δ9-THCH: light purple oil. 131 mg (20% yield). 1H NMR (400 MHz, CDCl3) δ 6.30 (bt, 1H), 6.27 (bd, 1H), 6.14 (bd, 1H), 4.78 (s, 1H), 3.20 (dt, J = 2.5, 10.8 Hz, 1H), 2.43 (t, J = 7.5 Hz, 2H), 2.16–2.18 (m, 2H), 1.95–1.88 (m, 1H), 1.71–1.65 (m, 4H), 1.58–1.51 (m, 2H), 1.43–1.36 (m, 4H), 1.34–1.24 (m, 6H), 1.09 (s, 3H), 0.88 (t, J = 6.8 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 154.91, 154.29, 142.97, 134.54, 123.87, 110.24, 109.17, 107.69, 77.35, 45.95, 35.66, 33.72, 31.88, 31.31, 31.08, 29.16, 27.71, 25.16, 23.51, 22.73, 19.41, 14.25. HRMS m/z [M+H]+ calcd. for C22H33O2+: 329.2475. Found: 343.2629; [M−H]− calcd. for C22H31O2−: 327.2330. Found: 341.2482. [α]D20 = −166° (c 1.0, ACN).
Synthesis of (1′R,2′R)-6-methoxy-5′-methyl-4-pentyl-2′-(prop-1-en-2-yl)-1′,2′,3′,4′-tetrahydro-[1,1′-biphenyl]-2-ol, (−)-trans-CBDM
To a solution of (−)-trans-CBD (500 mg, 1.6 mmol, 1 equiv.) in dry DMF (5 mL), K2CO3 (414 mg, 3.2 mmol, 2 equiv.) and dimethylsulphate (76 μL, 0.8 mmol, 0.5 equiv.) were added and stirred at room temperature overnight. The mixture was quenched with water and extracted with Et2O. The organic phase was washed with brine, dried over anhydrous Na2SO4 and concentrated. The titled compound was purified by column chromatography (eluent CE:AcOEt 95:5) to give 162 mg (31% yield) of an amber liquid.
1H NMR (400 MHz, CDCl3) δ 6.30 (s, 1H), 6.22 (s, 1H), 5.99 (bs, 1H), 5.57 (bs, 1H), 4.49 (s, 1H), 4.32 (s, 1H), 3.99 (bd, 1H), 3.70 (s, 3H), 2.49 (t, J = 7.6 Hz, 2H), 2.43–2.37 (m, 1H), 2.25–2.19 (m, 1H), 2.07 (bdt, 1H), 1.80–1.74 (m, 6H),1.65 (s, 3H), 1.62–1.55 (m, 3H), 1.35–1.26 (m, 4H), 0.87 (t, J = 6.8 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 158.31, 155.88, 147.41, 142.82, 139.70, 124.68, 115.20, 111.02, 109.67, 103.27, 55.70, 46.81, 36.16, 35.65, 31.71, 30.97, 30.51, 28.26, 23.84, 22.70, 18.87, 14.19. HRMS m/z [M+H]+ calcd. for C22H33O2+: 329.2475. Found: 343.2629; [M−H]− calcd. for C22H31O2−: 327.2330. Found: 341.2482. [α]D20 = −113° (c 1.0, ACN).
Synthesis of (E)-2-(3,7-dimethylocta-2,6-dien-1-yl)-3-methoxy-5-pentylphenol (CBGM)
The title compound was synthesized and purified according to the procedure described for (−)-trans-CBDM.
Yellow liquid (57% yield). 1H NMR (400 MHz, CDCl3) δ 6.33 (s, 1H), 6.31 (s, 1H), 5.24 (dt, J = 7.6, 1.6 Hz, 1H), 5.20 (s, 1H), 5.05 (dt, J = 7.6, 1.6 Hz, 1H), 3.80 (s, 3H), 3.38 (d, J = 7.2 Hz, 2H), 2.51 (t, J = 7.2 Hz, 2H), 2.10–2.03 (m, 4H), 1.79 (s, 3H), 1.67 (s, 3H), 1.64–1.57 (m, 5H), 1.34–1.29 (m, 4H), 0.89 (t, J = 6.8 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 157.84, 155.54, 142.67, 138.09, 131.98, 124.08, 122.34, 112.42, 109.04, 103.71, 55.62, 39.87, 36.21, 31.73, 31.14, 26.63, 25.80, 22.71, 22.21, 17.83, 16.28, 14.18. HRMS m/z [M+H]+ calcd. for C22H35O2+: 331.2632. Found: 343.2629; [M−H]− calcd. for C22H33O2−: 329.2486. Found: 341.2482.
Synthesis of (6aR,10aR)-1-methoxy-6,6,9-trimethyl-3-pentyl-6a,7,8,10a-tetrahydro-6H-benzo[c]chromene, (−)-trans-THCM
To a solution of (−)-trans-CBDM (100 mg, 0.32 mmol, 1 equiv.) in dry DCM (10 mL), at room temperature and under nitrogen atmosphere, pTSA (5 mg, 0.03 mmol, 0.1 equiv.) was added. The solution was stirred in the same condition, monitoring the progress of the reaction by HPLC–UV/Vis in order to avoid the further conversion of the forming (−)-trans-Δ9-THCM into the Δ8 isomer. After 1 h, the conversion is completed, and the reaction was quenched with NaHCO3 aqueous. The organic phase was washed with brine, dried over anhydrous Na2SO4 and concentrated. The crude was purified by column chromatography (eluent CE:DCM 9:1) to give 45 mg (43% yield) of colorless liquid.
1H NMR (400 MHz, CDCl3) δ 6.30 (s, 1H), 6.26 (s, 1H), 6.23 (s, 1H), 3.84 (s, 3H), 3.17 (dt, J = 11.8, 2.0 Hz, 1H), 2.50 (t, J = 7.6 Hz, 2H), 2.16–2.14 (m, 2H), 1.93–1.88 (m, 1H), 1.70–1.57 (m, 7H), 1.43–1.30 (m, 11H), 1.08 (s, 3H), 0.89 (t, J = 6.4 Hz, 3H). 13C NMR (101 MHz, CDCl3) δ 158.52, 154.50 142.70, 133.59, 124.98, 110.52, 110.37, 103.07, 55.31, 46.05, 36.19, 34.06, 31.76, 31.44, 30.98, 27.72, 27.07, 25.30, 23.55, 22.71, 19.29, 14.18. HRMS m/z [M+H]+ calcd. for C22H33O2+: 329.2475. Found: 343.2629; [M−H]− calcd. for C22H31O2−: 327.2330. Found: 341.2482. [α]D20 = −161° (c 1.0, ACN).
Formalin test in mice
The formalin test assay was performed as previously reported in Linciano et al.8. In detail, male C57BL/6J mice, 6–8 weeks (Envigo, Italy), were housed under controlled conditions (12 h light/12 h dark cycle; temperature 20–22 °C; humidity 55–60%) with chow and tap water available ad libitum. All surgeries and experimental procedures were approved by the Animal Ethics Committee of the University of Campania “L. Vanvitelli”, Naples (prot. no. 1066/2016 PR). Animal care was in compliance with Italian (D.L. 116/92) and European Commission (O.J. of E.C. L358/1 18/12/86) regulations on the protection of laboratory animals. Efforts were made to minimize animal suffering and to reduce the number of animals used. All experiments were performed in a randomized manner by the same operator blind to pharmacological treatments. Mice were used after a 1-week acclimation period and received formalin (1.25% in saline, 30 μL) in the dorsal surface of one side of the hind paw. Each mouse, randomly assigned to one of the experimental groups (n = 5–6), was placed in a plexiglass cage and allowed to move freely for 15–20 min. A mirror was placed at a 45° angle under the cage to allow full view of the hind paws. Lifting, favoring, licking, shaking, and flinching of the injected paw were recorded as nocifensive behavior. The total time of the nociceptive response was measured every 5 min for 1 h and expressed in minutes (mean ± SEM). Mice received vehicle (0.5% DMSO in saline) or different doses of CBDH (1,2, 3, and 5 mg/kg, i.p.) 20 min before formalin injection8.
Supplementary Information
Untitled section
Acknowledgements
This work was supported by UNIHEMP research project “Use of iNdustrIal Hemp biomass for Energy and new biocheMicals Production” (ARS01_00668) funded by Fondo Europeo di Sviluppo Regionale (FESR) (within the PON R&I 2017-2020—Axis 2—Action II—OS 1.b). Grant decree UNIHEMP prot. n. 2016 of 27/07/2018; CUP B76C18000520005. We are also thankful to the Military Chemical Pharmaceutical Institute of Florence for providing the FM2 cannabis inflorescence.
Competing interests
The authors declare no competing interests.
