The Role of Cannabinoids in Bone Metabolism: A New Perspective for Bone Disorders
1Department of Pathology, University of Pisa, 56100 Pisa, Italy; federica.saponaro@unipi.it (F.S.); francesca.gado@for.unipi.it (F.G.); beatrice.polini@farm.unipi.it (B.P.); alessandro.saba@unipi.it (A.S.)
2Department of Pharmacy, University of Pisa, 56100 Pisa, Italy; rebecca.ferrisi@phd.unipi.it
*Correspondence: clementina.manera@unipi.it (C.M.); grazia.chiellini@unipi.it (G.C.)Abstract
Novel interest has arisen in recent years regarding bone, which is a very complex and dynamic tissue deputed to several functions ranging from mechanical and protective support to hematopoiesis and calcium homeostasis maintenance. In order to address these tasks, a very refined, continuous remodeling process needs to occur involving the coordinated action of different types of bone cells: osteoblasts (OBs), which have the capacity to produce newly formed bone, and osteoclasts (OCs), which can remove old bone. Bone remodeling is a highly regulated process that requires many hormones and messenger molecules, both at the systemic and the local level. The whole picture is still not fully understood, and the role of novel actors, such as the components of the endocannabinoids system (ECS), including endogenous cannabinoid ligands (ECs), cannabinoid receptors (CBRs), and the enzymes responsible for endogenous ligand synthesis and breakdown, is extremely intriguing. This article reviews the connection between the ECS and skeletal health, supporting the potential use of cannabinoid receptor ligands for the treatment of bone diseases associated with accelerated osteoclastic bone resorption, including osteoporosis and bone metastasis.
1. Introduction
The skeleton is an extremely specialized and dynamic organ that undergoes continuous regeneration. The maintenance of physiological bone remodeling and systemic mineral homeostasis requires a fine balance between bone formation and bone resorption. This process involves the concerted actions of two types of bone cells: osteoblasts (OBs), which belong to stromal cells and have the capacity to produce new bone, and osteoclasts (OCs), which are derived from monocytes and remove old bone [1]. The bone remodeling process is a cycle consisting of an initial resorption phase, driven by the multinucleate OCs digesting mineralized tissue, a reversal phase with mononuclear cells on the bone surface, and a bone formation phase with the OBs that lay down a new mineralized matrix. The resorption and formation phases are tightly coupled thanks to the receptor activator of the nuclear factor-κB (RANK)/RANK Ligand (RANKL)/osteoprotegerin (OPG) axis [2] (Figure 1). The bone remodeling process occurs simultaneously in different foci in the skeleton, and it is crucial to save bone from damages, to respond to mechanical and loading stimuli, and to control calcium homeostasis [3,4]. In healthy bone, RANKL, which is primarily expressed in OBs, promotes osteoclastogenesis following its binding with the specific receptor RANK onto the OCs precursors’ surface. This binding induces the maturation of preosteoclasts into mature OCs, resulting in the resorption of bone tissue and the release of growth factors, such as the transforming growth factor-β1 (TGF-β1), which in turn stimulate the OB formation. A key preliminary step in downstream signaling after RANKL ligation to RANK consists of the binding of TNF receptor-associated factors (TRAFs). Among TRAFs, TRAF6 has an essential function in the OCs and leads to the activation of mitogen-activated protein kinases (MAPKs) and the transcription factors nuclear factor-κB (NF-κB) and activator protein-1 (AP-1). The subsequent signaling process is characterized by the amplification of the c-Fos expression, which interacts with the nuclear factor of activated T-cells cytoplasmic 1 (NFATc1) to trigger the transcription of the osteoclastogenic gene [5].

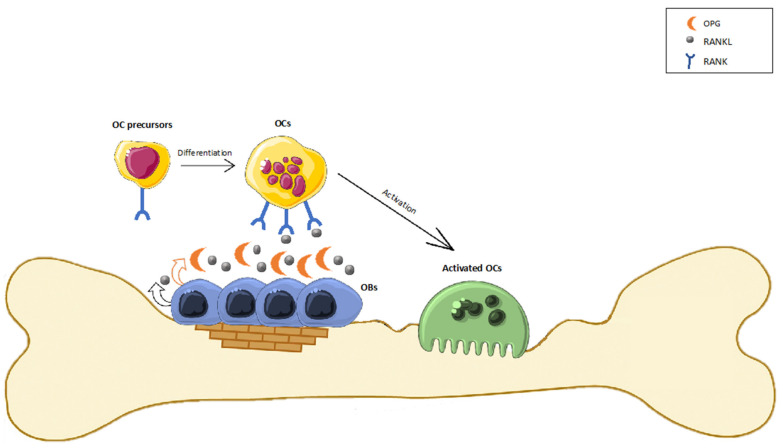

RANK/TRAF-mediated protein kinase signaling activates at least seven signaling pathways: four directly mediate OC formation (inhibitor of NF-κB kinase (IKK)/NF-κB, c-Jun N-terminal kinase (JNK)/activator protein-1 (AP-1), c-myc, and calcineurin/NFATc1), and three mediate OC activation (Src and MKK6/p38/MITF) and survival (Src and extracellular signal-regulated kinase) [6,7]. OBs also produce OPG, which acts as a decoy receptor for RANKL, inhibiting OC formation by blocking RANKL binding to RANK and stimulating OCs to induce apoptosis.
Bone remodeling is a tightly controlled process, which involves both local and systemic factors, including growth factors and hormonal regulators, with Calcitonin (CT), parathyroid hormone (PTH), 1,25(OH)2 vitaminD3, and sex hormones being the major hormonal regulators of osteoclastic bone resorption [8,9]. In particular, lipopolysaccharide (LPS), Vitamin D3, and pro-inflammatory cytokines can increase OC formation via up-regulating the expression of RANKL and/or down-regulating OPG in the OBs; in contrast, the OPG expression is decreased by prostaglandin E2 (PGE2), PTH, glucocorticoids, and the insulin-like growth factor-1 (IGF-1) [10]. RANKL and RANK are under the tight control of the female sex hormones estradiol and progesterone. Estradiol promotes bone formation by increasing OPG expression. When circulating estradiol levels drop during menopause, RANKL-stimulated osteoclast activity increases, leading to a progressive decrease in bone mass [11]. Undeniably, an imbalance of the RANK/RANKL/OPG signaling pathway leads to pathological processes, including postmenopausal osteoporosis, hypogonadism, androgen deprivation therapy (ADT)-induced bone loss, and rheumatoid arthritis. In addition, the triad RANK/RANKL/OPG plays a key role in oncological phenomena, modulating cancer cells migration and angiogenesis and thus controlling the development of bone metastases.

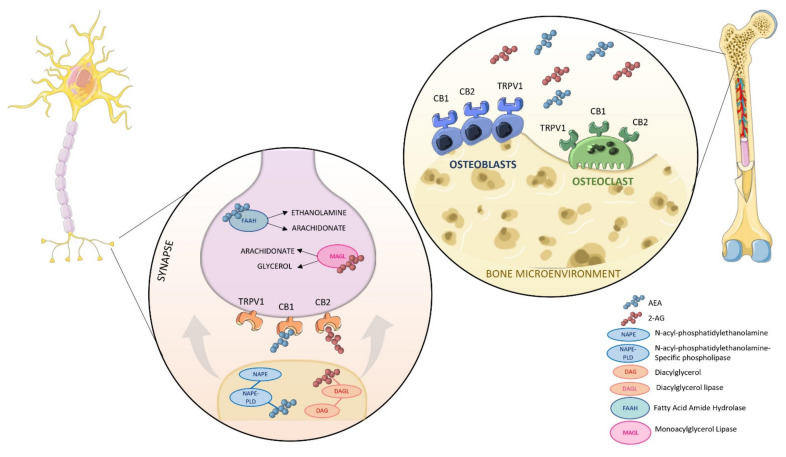

There is accumulating evidence to suggest that the endocannabinoid system (ECS) is involved in the regulation of bone cell activity and bone remodeling and thus plays an important role in the regulation of bone disease, including cancer-induced bone disease (CIBD) [12,13,14]. This review summarizes in vitro and in vivo findings on the action of the cannabinoid receptor ligands in skeleton health and pathology, associated with recent advances in the development of highly sensitive analytical methods for the determination and quantization of endogenous cannabinoid ligands (ECs) in plasma and tissue samples.
2. An Overview of the Endocannabinoids System (ECS)
The ECS is a complex lipid signaling system recognized for playing an important role in all aspects of mammalian physiology and pathology, ultimately contributing to the homeostasis of the organism, which encompasses the brain, endocrine, and immune system, to mention a few [15]. It comprises cannabinoid receptors (CBRs), endocannabinoid ligands (ECs), and the enzymatic machinery that drives the biosynthesis, degradation, and transport of ECs [16,17]. CBRs belong to an extensive family of class-A G-protein coupled receptors (GPCR) and include two principal subtypes: cannabinoid receptor type 1 (CB1R), and cannabinoid receptor type 2 (CB2R), which were isolated and cloned only during the 1990s [18]. Moreover, the existence of additional CB-like receptors is well-documented. Among them, the transient receptor potential vanilloid type-1 (TRPV1) and the orphan GPCRs, GPR55, and GPR18 are all activated by cannabinoids and therefore considered atypical CBRs [19].
The CB1R has a ubiquitous distribution. It is predominantly expressed in all brain structures as the “brain cannabinoid receptor”, but it is also found in peripheral organs and tissues, including the gastrointestinal tract and the cardiovascular and reproductive systems, as well as the skeletal muscle, bone, and adipose tissue [20]. CB1R has been implicated in various disorders. However, the direct modulation of CB1R by agonists or antagonists has been associated with adverse psychiatric effects, such as depression, anxiety and suicidal ideation, thus limiting the clinical development of such agents [21].
Besides the canonical long-form, recent research has demonstrated alternative splicing of the CB1R gene, resulting in two isoforms, CB1aR and CB1bR, which differ in their N-terminus sequence, affecting their pharmacologic properties [22]. Characterization of the expression patterns of these isoforms has revealed that the full-length CB1R represents the dominant isoform in the brain and is responsible for the behavioral and psychotropic effects evoked by cannabinoids; the isoform CB1aR is predominantly expressed in the central nervous system, although its levels are negligible compared to the central CB1R, and the isoform CB1bR is highly expressed in pancreatic β-islet cells and hepatocytes and is involved in regulating metabolism [23,24].
The CB2R was first detected in peripheral cells and tissues belonging to the immune system, but over time, its expression has also been clearly documented in the central nervous system (CNS), e.g., in the microglial cells, astrocytes, and some subpopulations of neurons, particularly under neuroinflammatory conditions [25].
Although many features of the CB2R gene structure, regulation, and variation remain poorly characterized in comparison to the CB1R, some studies have led to the identification of two different human CB2R isoforms (CB2aR and CB2bR). While CB2aR expression was predominantly observed in the testis and in the brain, suggesting a major involvement in neuroprotection, isoform CB2bR was mainly detected in the spleen and leukocytes. Similarly to CB1R, the identification of CB2R isoforms should be taken into account while developing CB2R-based therapeutic agents [22,26].
CB1R and CB2R signal through Gi/o proteins and are thereby negatively coupled to adenylyl cyclase (AC), leading to a decrease in intracellular cAMP levels and the subsequent inhibition of protein kinase A (PKA). In addition, they stimulate mitogen-activated protein kinases (MAPK) signaling pathways, including extracellular signal-regulated kinase 1/2 (ERK1/2), c-Jun N-terminal kinase (JNK), and p38. CBRs are able to modulate cell growth and death not only via MAPK signaling but also via the phosphoinositide 3-kinase (PI3K)/protein kinase B (AKT) pathway [22,27]. Moreover, CBRs inhibit certain voltage-sensitive calcium channels, stimulate inwardly rectifying potassium channels (GIRKs), and recruit β-arrestins, among other actions [28].

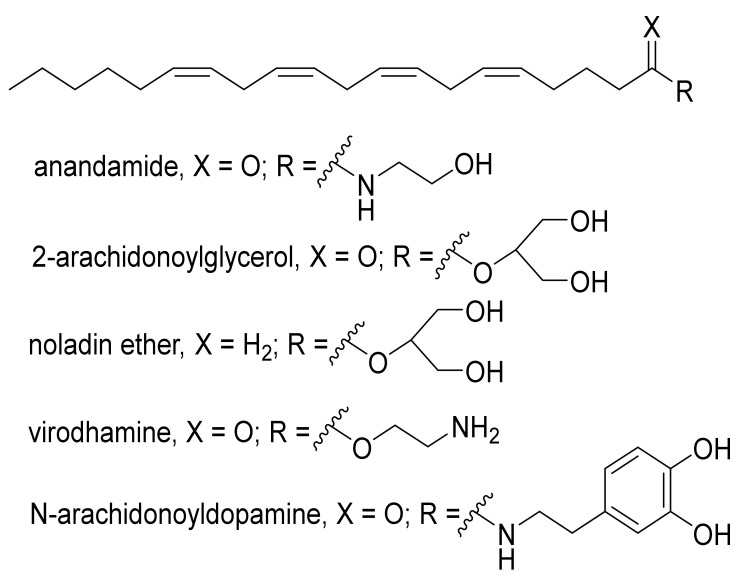

CBRs are activated by ECs, a class of endogenous lipid messengers which are synthesized from the phospholipids of the cell membrane. The main ECs are N-arachidonoylethanolamine (anandamide, AEA) and 2-arachidonoylglycerol (2-AG) (Figure 2). Although both contain arachidonic acid in their structures, their routes of synthesis and degradation in vivo are almost completely distinct and are mediated by different enzymes. Briefly, AEA is synthetized by the N-acyl phosphatidylethanolamine phospholipase D (NAPE-PLD) enzyme from N-arachidonoyl phosphatidylethanolamine, and then, it is degraded by membrane-associated fatty-acid amide hydrolase (FAAH). 2-AG is produced from 2-arachidonoyl-containing phospholipids, primarily arachidonoyl-containing phosphatidyl inositol bis-phosphate (PIP2), under the action of phospholipase C (PLC) and the diacylglycerol lipases alpha and beta (DAGLα and DAGLβ) and hydrolyzed by monoacylglycerol lipase (MAGL) [29]. These ligands have complementary as well as divergent features which lead them to have distinct physiological roles. 2-AG functions as a full agonist of both CBRs, while AEA is a partial agonist for CB1R and CB2R [30]. It is important to notice that 2-AG, in addition to serving as an endogenous ligand for the CBRs, is an important source of arachidonic acid used for prostaglandin synthesis in the brain, liver, and lung but not in the gut, heart, kidney, or spleen. Thus, the management of 2-AG synthesis and degradation can have effects that are independent of the ECS [31]. Other lesser-known ECs also interact with the CBRs, including virodhamine, N-arachidonoyldopamine (NADA), and noladin ether (Figure 2).
3. Detection of ECs in Biological Fluids, Hair, and Tissues
Over the years, many analytical methods for the quantification of the main physiologically occurring cannabinoids, namely AEA and 2-AG, in different biological samples, such as plasma, serum, tissues, saliva, cerebrospinal fluid, and hair from humans, rats, and mice, have been reported in the literature, providing important insights into the physiology and pathology of the ECS and offering new therapeutic perspectives. These analytical methods are essentially based on high-performance liquid chromatography with UV (HPLC-UV) or fluorescence (HPLC-FL) detection, HPLC or ultra-high performance liquid chromatography (UHPLC) coupled with mass spectrometry, or GC coupled with mass spectrometry (GC-MS) [32,33,34,35,36,37]. Among these methods, tandem mass spectrometry, coupled to HPLC or UHPLC-MS with stable isotope dilution, is mostly used as the lack of chromophoric or fluorescent functional groups, as well as the very low concentrations in most biological samples, makes necessary the chemical derivatization of the molecules of interest prior to the analysis, either in the HPLC-UV or the HPLC-FL analytical method. Although not strictly necessary, a proper derivatization could also offer increased volatility and sensitivity in GC–MS. Nevertheless, the quantification of ECs is typically carried out by tandem mass spectrometry coupled to HPLC or UHPLC-MS with stable isotope dilution, which, as it does not need complicated sample preparations, offers high sensitivity and selectivity [35–37]. However, pretreatment of the sample may still be necessary in order to efficiently remove interfering compounds causing ion suppression or enhancement, which in electrospray ionization (ESI) and atmospheric pressure chemical ionization (APCI) cannot be avoided, possibly leading to chemical and physical sample degradations. In addition, 2-AG spontaneously isomerizes to 1-AG (1-arachidonoylglycerol) through an acyl group migration, and this process is augmented under elevated temperatures and high pH values. On the other hand, toluene used as a solvent for liquid-liquid extraction (LLE) minimizes the matrix-effect, thus reducing 2-AG isomerization and degradation, keeping a high extraction yield in the analysis of human plasma and urine samples [38,39,40]. In contrast, AEA is quite stable under common experimental conditions (i.e., methanol/chloroform extraction solvents) [39]. Sample preparation largely depends on the nature of the biological sample. However, the above-mentioned LLE and solid-phase extraction (SPE) are probably the most used techniques for lipid removal from the matrix [27,39,41,42,43,44]. The usual LLE protocols make use of chloroform/methanol, mixed in several ratios, to isolate all classes of lipids in the samples, including the phospholipids that contribute to the matrix-effects. Mixtures of ethyl acetate/hexane, acetate/heptanes, or acetone/toluene have been used too, as well as pure toluene, which offers the advantage of a minimal isomerization of 2-AG to 1-AG [32]. Many SPE materials are also available for the typical off-line sample preparation; among them, lipophilic reverse- and mixed-phase materials, such as octadecyl silica (C18) or copolymer- and normal-phase materials such as silica, provide good results [27]. This technique is particularly convenient when a full automation through on-line coupling with LC–MS/MS devices is possible as it improves the method throughput. Commercial devices from different producers, or custom-assembled devices, can be used for this purpose. The latter include devices outfitted with an on-line cleanup/enrichment section such as that used by Fanelli et al. [34], which was strictly derived from the high throughput SPE-HPLC-MS/MS equipment utilized by Koal et al. for the quantification of immunosuppressants in whole blood samples [35] and by Saba et al. for the quantification of cortisol and of some of its metabolites in urine [36]. The cleanup/enrichment stage made use of an Applied Biosystems (Waltham, MA, USA) POROS perfusion column as an SPE cartridge, which worked on the basic principle of the well-known high-turbulence liquid chromatography online extraction developed by Cohesive Technologies [37]. However, the on-line purification process was preceded by LLE with toluene, which improved the analyte extraction, recovery, and selectivity and minimized the 2-AG isomerization with respect to the different extraction solvents. Besides AEA, 2-AG, and its isomerization product, 1-AG, Fanelli et al. also monitored some of the bioactive lipids in human plasma, namely N-acylethanolamines (NAEs), such as N-palmitoylethanolamine (PEA) and N-oleoylethanolamine (OEA), which are produced through the same biosynthetic pathway as AEA and have negligible or only weak affinity for both the CB1 and the CB2 receptors, but can indirectly modulate CBR activity by interfering with endocannabinoid metabolism [45,46]. The analytical method, which was based on positive MRM and made use of the stable isotope-labelled internal standards of all analytes, provided very good lower limits of quantification (LLOQ) [41], i.e., 0.020, 0.078, 0.078, 0.195, and 0.049 pmol/mL for AEA, 2-AG, 1-AG, PEA, and OEA, respectively. Concentration values in healthy, normal-weight females (F, n = 76) and males (M, n = 45) ranged in the following intervals: AEA, 0.40–1.65 pmol/mL (F) and 0.41–1.88 pmol/mL (M); 2-AG, 0.69–3.44 pmol/mL (F) and 0.71–5.40 pmol/mL (M); 1-AG, 0.21–1.09 pmol/mL (F) and 0.26–1.78 pmol/mL (M); PEA, 7.28–28.8 pmol/mL (F) and 8.01–21.0 pmol/mL (M); and OEA, 2.41–10.20 pmol/mL (F) and 2.41–9.06 pmol/mL (M) [34]. A simpler sample preparation based on off-line SPE was proposed by Gachet et al. In addition to the aforementioned AEA, 2-AG, PEA, and OEA, they assayed for additional NAEs in human plasma, including N-stearoylethanolamine (SEA) and N-linoleoylethanolamine (LEA), prostanoids, and steroids, as well as arachidonic acid, which is functionally interlinked with different lipid signaling networks [47]. Thus, the sample extraction was based on C18 Sep-Pak SPE cartridges from Waters (Milford, MA, USA), and the following tandem mass spectrometry quantification was carried out in both the positive and the negative MRM, depending on the chemical structures of the analytes. The method was less sensitive compared to that of Fanelli et al. as the LLOQ were 0.288, 8.465, 10.702, and 0.712 pmol/mL for AEA, 2-AG, PEA, and OEA, respectively (1-AG was not taken into consideration). Nevertheless, the sensitivity was good enough to measure endogenous concentrations in plasma samples from healthy volunteers, which were 1.7 ± 0.4, 16.5 ± 5.3, 23 ± 5.2, and 9.9 ± 2.4 pmol/mL (mean concentrations) for AEA, 2-AG, PEA, and OEA, respectively. Using liquid-liquid extraction combined with UHPLC coupled to tandem mass spectrometry, Ney et al. quantified AEA, 2-AG, and OEA, along with cortisol and progesterone, in plasma samples from 121 healthy subjects, 48 females and 73 males [48]. The mean concentrations ±SD detected for AEA, 2-AG, and OEA were 0.26 ± 0.17, 14.23 ± 21.40, and 1.38 ± 0.60 pmol/mL, respectively, with males displaying higher AEA and 2AG than females in the plasma. The LLE was carried out with a 50:50 ethyl acetate:cyclohexane mixture after protein precipitation. As with Gachet et al., this assay also did not monitor the possible isomerization of 2-AG to 1-AG, which often occurs when organic solvents are used. The LLOQ were 0.069, 4.921, and 0.043 pmol/mL for AEA, 2-AG, and OEA, respectively, while the mean concentrations ±SD detected in real samples from 121 healthy subjects, 48 females and 73 males, were 0.26 ± 0.17, 14.23 ± 21.40, and 1.38 ± 0.60 pmol/mL, respectively, with males displaying higher AEA and 2AG than females in the plasma. Although no reliable plasma reference ranges are available in the literature, these results are comparable with those found by Fanelli et al. and Gachet et al., as well as other groups. Ney et al. assayed the same analytes in saliva samples from 90 healthy subjects, 55 females and 35 males, by using a method strictly derived from that used for plasma, except for the LLE, which made use of a freezer-cold 50:50 ethyl methanol:acetone mixture [48]. The LLOQ were 0.012 (LOD 0.006), 0.741, and 0.006 pmol/mL for AEA, 2-AG, and OEA, respectively, while the mean concentrations ± SD detected in real samples from 90 healthy subjects, 55 females and 35 males, were, respectively, 0.01 ± 0.01 approximately, 1.80 ± 3.07, and 0.41 ± 0.34 pmol/mL. The same research group also quantified the same compounds in hair, using liquid-liquid extraction combined with UHPLC-MS/MS [49]. Two extraction processes were needed: extraction from the hair samples and selective LLE of the analytes of interest from the hair extract. The former extraction was performed overnight with methanol, after a hair sample washing with an iso-propanol:hexane mixture, while the latter was carried in two consecutive extraction steps, with acetonitrile and chloroform, respectively. The procedure was very efficient for the ECs and NAE and good enough for cortisol and progesterone. The method offered the LLOQ of 1.15, 7.01, and 1.42 pmol/mL for AEA, 2-AG, and OEA, respectively, while the mean concentrations ± SD detected in real samples from females (n. 25) and males (n. 3) were 2.19 ± 2.16, 24.55 ± 8.60, and 353.76 ± 546.85 fmol/mg for AEA, 2-AG, and OEA, respectively.
Several methods for tissue ECs extraction have been described in the literature. The most widely used are based on those described for lipids by Folch [50] and by Bligh and Dyer [51], which have been adapted to different tissues for the assessment of ECs with mass spectrometry [27,52]. In 2019, Ita and Kelly described the characterization of cerebral cortical endocannabinoid levels in rats using liquid chromatography–tandem mass spectrometry (LC–MS/MS) [53]. Their results indicated that the physiological concentrations for AEA, 2-AG, PEA, and OEA were 0.03–0.04, 1.54–1.91, 0.46–0.56, and 0.19–0.22 nmol/g, respectively. The sample preparation included homogenization in acetonitrile in an ultrasonic bath after the addition of known fixed amounts of the stable isotope-labeled internal standards of AEA, 2-AG, PEA, and OEA, centrifugation, evaporation to dryness of the supernatant, and resuspension in 65% acetonitrile prior to the injection into the HPLC-MS/MS system. The method LLOQ were 1.32, 12.1, 1.5, and 1.41 pmol/g for AEA, 2-AG, PEA, and OEA, respectively, and the indicative ranges of the physiological concentrations deduced from the bar graphs in the paper were, respectively, 0.03–0.04, 1.54–1.91, 0.46–0.56, 0.19–0.22 nmol/g. In summary, the availability of highly sensitive analytical tools allowed a reliable determination of ECs in plasma and tissue samples and can provide a fundamental contribution to the understanding of the physiological and pathophysiological role of the ECS and its potential in the treatment of a large variety of disorders, including neurodegenerative, cardiovascular, metabolic, and bone diseases.
5. Cannabinoid Receptors as Therapeutic Target for Bone Diseases
As illustrated above, in vitro and animal models provide compelling evidence that ECs play important roles in bone formation, bone resorption, and skeletal growth, showing a great promise in the treatment of bone diseases associated with accelerated osteoclastic bone resorption, including osteoporosis and bone metastasis.
5.1. Osteoporosis
Osteoporosis is a bone metabolic disease, characterized by progressive impairment in bone quantity and quality, which finally results in high morbidity and mortality related to fractures. Primary osteoporosis is a major health problem in elderly patients, but secondary osteoporosis can also affect young individuals. The most common cause is post-menopausal osteoporosis in women, where estrogen deficiency enhances a rapid increase in bone resorption followed by a reduction in bone formation, with a progressive decrease in bone density and strength [90]. Moreover, in postmenopausal osteoporosis, hypovitaminosis D (25hydroxyvitamin D or 25OHD less than 20 or 30 ng/mL, according to different guidelines) has been identified as one of the most important contributors [91]. Vitamin D is a hormone whose main effect on the skeleton is due to the stimulation of calcium absorption by the gut. Vitamin D deficiency induces secondary hyperparathyroidism with osteomalacia, bone loss, impaired bone strength, and osteoporotic fragility fractures. Vitamin D treatment has been shown to significantly improve bone density indices and reduce the incidence of osteoporosis [92]. Therefore, it is highly recommended that continuous and regular treatment with vitamin D supplements be performed, especially in women and the elderly, to prevent and even improve osteoporosis. Other risk factors for osteoporosis may include poor physical activity, low calcium intake, and obesity. It is well-established that increasing physical activity positively affects bone health, while reductions in physical activity can result in bone loss [93,94,95]. Therefore, physical activity is a viable strategy for the prevention and treatment of low bone mass and may represent an attractive alternative to medication for the treatment of osteoporosis [96]. Several lines of evidence indicate that exercise may prevent body fat accumulation while increasing bone mass. The association between the bone and adipose tissue is complex and not fully understood. The latter has recently been associated with bone microarchitecture impairment due to sarcopenic muscles, low grade systemic inflammatory status, and increased bone marrow adipogenesis, which are harmful for bone [97]. Nevertheless, a better understanding of the association between adipose and bone tissue would promote the identification of new molecular therapeutic targets that will enhance osteoblastic activity and/or inhibit adipogenesis and osteoclastic activity.
Secondary osteoporosis is mainly due to corticosteroids iatrogenic administration, endocrinological diseases, such as primary hyperparathyroidism [98,99], or other inflammatory and autoimmune diseases which negatively affect bone [100]. Despite the availability of several effective therapies, osteoporosis is an extensive problem that will greatly benefit from the development of new therapeutic approaches aimed at novel targets. The ECS could be a valid candidate, considering the above mentioned implications in bone-health maintenance [101].
Even though the connection between the ECS and bone is clear, the complexity of these interactions represents a challenge that still needs to be unraveled. Indeed, the pharmacological modulation of the ECS receptors by CBR agonists and antagonists showed different results, depending on the model in which they were tested, their selectivity on CB1R or CB2R, as well as additional cell- and time-related factors. At present, none of the several modulators that have been studied has reached human experimentation.
CB2R specific ligands are very promising as they could exert a beneficial effect on bone loss, without effects on the central nervous system. Ofek et al. tested a synthetic specific CB2R agonist, namely HU-308 with a molecular weight of 414, in an animal model of osteoporosis induced by ovariectomy (C3H mice) [65]. HU-308 was daily injected intraperitoneally at a dosage of 10 mg/kg/day for 4 weeks, starting immediately after ovariectomy, to evaluate the “preventive” potential of the drug in bone-loss attenuation. The results showed a trabecular bone loss of 41% in untreated mice and a 27% reduction in the loss in treated mice. The beneficial effect of HU-308 was shown to be related to a decrease in OC activity and OC resorption together with OB-stimulated bone apposition [65]. The same group also tested a “rescue” approach with the same CB2R analogue, HU-308, administered starting 6 weeks after ovariectomy for 4–6 weeks; in this case HU-308 was also able to attenuate ovariectomy-induced bone loss [102]. The advantage of a positive modulation of peripheral CB2R is consistent with the only available human studies on patients, which showed that genetic defects of the CB2 gene are related to osteoporosis. The CB2 gene is located on chromosome 1p36, and it is constituted by a single coding exon (exon 2) and an upstream noncoding exon (exon 1); its analogue in mice resides on chromosome 4QD3. These regions were found to be related to BMD or osteoporosis in association studies by Devoto et al. [103,104,105]. Subsequently, in 2005 Karsak et al. evaluated 168 women with osteoporosis and 220 matched controls in whom were analyzed the difference in the distribution of 26 single nucleotide polymorphism (SNPs) distributed into the CB2 gene and in the surrounding genomic region (300 kb around). Many of the evaluated SNPs were found to be associated with the osteoporosis phenotype. Moreover, the best statistical association was present for the two SNPs present in the coding region of the CB2 gene, and the lumbar spine BMD was significantly lower in patients harboring these specific SNPs as compared to the others. The functional hypothesis from the authors was that at least some of the evaluated SNPs could alter the receptor function as two of the selected SNPs associated with osteoporosis were missense variants with amino acid substitutions (His316Thyr and Gln63Arg). On the other hand, in the same study the CB1 gene was also analyzed, but no association was found between selected SNPs and the osteoporosis phenotype [106]. The same group performed another study with a family-based design, in a population of 574 adults, 277 women, and 290 men aged 18–90 years, all belonging to Chuvashians families from the same area of Russia and showing very stable genotypic characteristics and environmental conditions. They found a significant association between the two, among 16, CB2 SNPs evaluated and the bone features risk indexes, namely the radiographic hand BMD and the breaking bending resistance index (BBRI), which are indicators of bone strength or fragility [107].
In order to assess the susceptibility to osteoporosis in patients carrying CB2 SNPs, Yamada et al. designed a prospective study in which they evaluated 1110 women and 1128 Japanese men aged 40–79 years for the association between BMD at different sites and the presence of SNP rs2501431, which was the most promising in the Karsak cohort [108]. Rs2501431 leads to a change of A- > G, and the GG genotype was found to be associated with significantly lower BMD at the distal radius, lumbar spinal, and femoral neck compared to the AA genotype in pre- and postmenopausal women [108].
There are two more studies that confirmed the same findings: in a Chinese study from Huang et al., they studied four genes on chromosome 1p36, namely TNFRSF1B, PLOD, CNR2 (CB2), and MTHFR in a large case-control population of 1243 subjects. Among the evaluated genes, CB2 SNP rs2501431 (A592G; G155G) were found to be associated with femoral neck BMD [109]. In a more recent study on a Korean cohort of 470 post-menopausal women, CB2 rs2501431, rs3003336, rs2229579, and rs4237 polymorphisms showed an association with lumbar spine BMD. In particular, women harboring rs3003336 and rs4237 SNPs had significantly lower BMD compared with the others. In this study, bone turnover markers were also measured but did not show any association with the genetics of CB2 [110].
5.2. Bone Cancer
Cancer-induced bone disease (CIBD) is a common and severe complication of cancer, which is burdened by high morbidity and mortality due to disabilities, bone pain, immobilization, nerve impairment, fragility fractures, and malignant hypercalcemia [111]. CIBD is generally secondary to bone metastases by primary solid tumors, such as breast or prostate cancer, which metastasize in bone in up to 80% of cases; less frequently, it is due to primary bone cancer and hematological malignancies [112]. Regardless of the phenotype of bone metastases (i.e., osteolytic vs. osteoblastic), they are the result of a severe deregulation of the bone remodeling process that results in a “vicious cycle” between bone and tumor cells [113] (Figure 5). The release of tumor-derived factors, such as parathyroid hormone-related protein (PTHrP), interleukin 6 (IL-6), tumor necrosis factor (TNF), and transforming growth factor β (TGF-β), activates OC differentiation and bone-resorbing activity. Bone resorption results in the release of bone-derived growth factors, cytokines, bone extracellular matrix components, further supporting tumor proliferation and bone destruction [114].

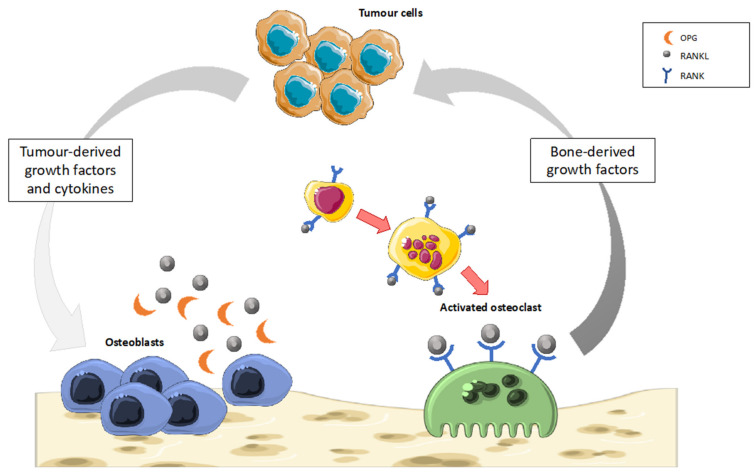

This mechanism increases RANKL-mediated osteoclast activity, leading to osteolytic lesions, which are typical, for instance, in breast cancer metastases [115]. In contrast, there are OB phenotypes that secrete growth factors, such as endothelin-1 (ET-1) and bone morphogenic proteins (BMPs) that selectively stimulate osteoblastic proliferation, leading to increased bone formation. This mechanism instead decreases RANKL-mediated osteoclast activity, leading to osteoblastic lesions, which are typical, for instance, in prostate cancer metastases [116]. Therefore, the cancer cells disrupt the balance between RANKL and OPG in the bone environment, leading to an excess of bone resorption and loss (osteolytic lesions) or apposition of abnormal bone (osteoblastic lesions) [117]. The RANKL level is upregulated in osteolytic lesions associated with malignant tumors, whereas the OPG level is upregulated in osteoblastic lesions [118]. Current available therapies mainly inhibit osteoclastic bone resorption due to the tumor but are not very effective in controlling bone pain. The ECS is known to be implicated in the cancer growing process, in pain regulation, and metastasis induction, and the modulation of CB2R could be a potential novel therapeutic target for CIBD [119].
Evidence has been reported that CB2R agonists have an inhibitory effect on tumor cell growth and lead to tumor cell death in vivo and in vitro: the mechanisms responsible for these actions are not fully elucidated but have been related to the inhibition of vascular growth factor (VEGF) produced by tumor cells, reduction in the proteolytic matrix metalloproteinases MMP1, MMP2, and MMP9, and inhibition of angiopoietin 2 [120,121]. The selective agonists of CB2R, namely JWH-133, have been demonstrated to reduce tumor growth and invasion in different osteosarcoma cell line models, alone or as a beneficial co-adjuvant of bortezomid, a potent proteasome inhibitor drug [69,122]. Moreover, JWH-133, as well as HU308, have been demonstrated to decrease osteotropic breast cancer cell proliferation (4T1 mice cell line and MDA-MB-231 human cell line) in a dose-dependent manner [67]. The selective agonist JWH015 demonstrated a very interesting anti-proliferative effect as it significantly reduced the number of breast cancer cell line 66.1 after injection into the intramedullary cavity of mice to mimic bone metastasis [123]. Anandamide itself, which is a non-selective CBR agonist, has been proven to induce apoptosis in osteosarcoma cell lines by p38 MAPK and caspase-3 activation intracellular signaling [124]. In line with a previously demonstrated activity of CBRs to activate the autophagy mechanism in vitro, another non-selective agonist for CB1R and CB2R, namely WIN55,212–2, showed a beneficial effect in inducing osteosarcoma cell death by the autophagy mechanism and was a potent adjuvant of other anticancer drugs, such as Adriamycin [61,125].
Modulation of CB2R also seems to play a role in the regulation of bone-cancer-induced osteolysis. Indeed, JWH015 was tested in a mouse model of breast cancer in which it was able to reduce bone metastases, fracture from bone metastasis, and markers of bone turnover. AM1241 had similar beneficial effects on bone osteolytic damage and fracture in a mouse model of sarcoma. Unfortunately, to date the mechanism for the action of these CB2R modulators on bone is not fully understood as it is also not clear whether they act as partial/full agonist or antagonists of CB2R [111,123,126].
6. Conclusions
Considering the involvement of the ECS in bone remodeling, pharmacological modulation of the ECS could offer a possible treatment for pathological conditions where an altered OB/OC activity is observed. A large variety of ECS synthetic modulators is currently available. Among them, CB2R specific ligands are very promising for their beneficial action on bone loss, without causing adverse psychotropic effects. However, before large-scale human studies can be conducted, further investigations in animals are needed to delineate their pharmacokinetic properties, as well as the safety and toxicity profiles.
In human studies, CB2R activation has been shown to protect from osteoporosis. In addition, the polymorphism in the CB2 gene has been proposed as a diagnostic tool to detect genetic predisposition to osteoporosis in humans. Moreover, increasing evidence suggest that agents that target CB2R in the skeleton have the potential to reduce the skeletal complications associated with cancer. Therefore, the development and testing of CB2R selective ligands in preclinical models of metastatic cancer will pave the way for future research that will advance our understanding about the mechanism(s) by which the ECS regulates cancer metastasis and offer novel therapeutic options to reduce skeletal tumor burden.
Funding
This work was supported by University of Pisa Research Project Funding (PRA_2020_77) and MIUR “National Interest Research Projects (PRIN 2017, Grant 2017SA5837)”.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Not applicable.
Conflicts of Interest
The authors declare no conflict of interest.

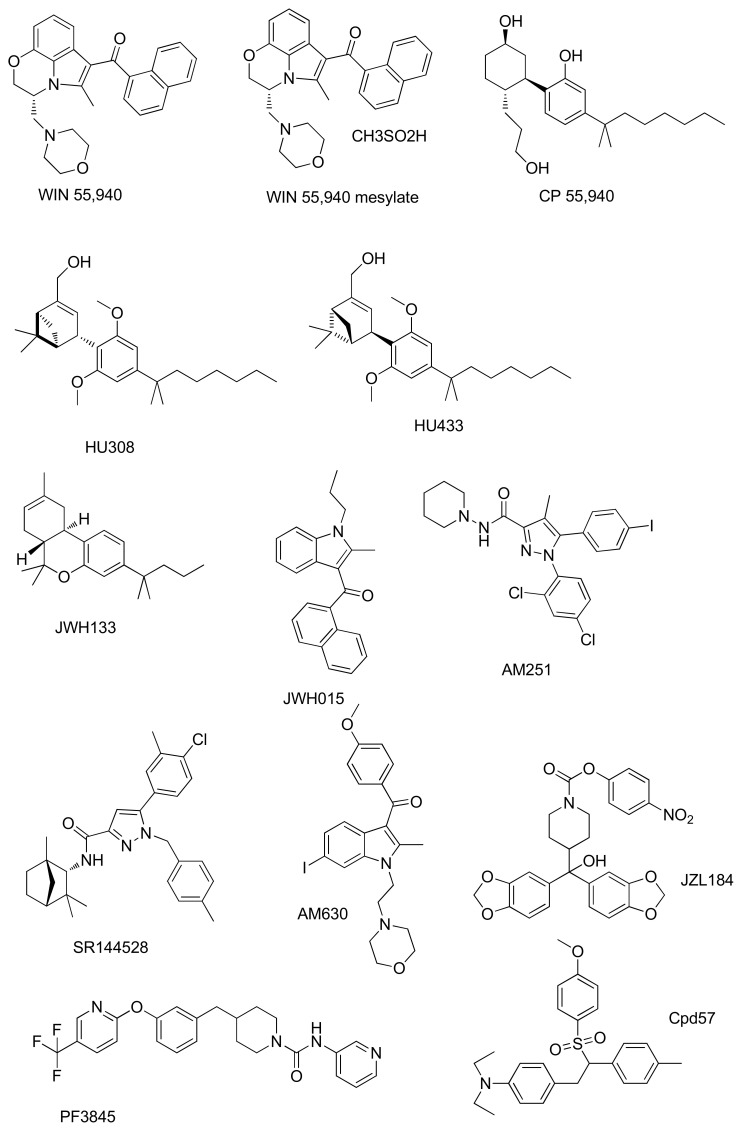

| Compound | Activity | Experimental Model | Effect on Bone | References |
|---|---|---|---|---|
| WIN55,212 | CB1R agonism | Murine MC3T3-E1 osteoblasts. | Glucocorticoid-induced inhibition of mineralization in MC3T3-E1 osteoblasts | [60] |
| CBR agonism | MG-63 human osteosarcoma cell line. | Antitumor activity and its combined effect with adriamycin against the MG-63 human osteosarcoma cell line | [61] | |
| WIN55,212-2 mesylate | CBR agonism | Human chondrocytes. | Prevention of cartilage breakdown in arthritis | [62] |
| CP55940 | CB1R agonism | Bone marrow mouse cell. | Stimulation of bone nodule formation | [63] |
| CB2R agonism | Human osteoclasts. | Inhibition of human and mouse osteoclast formation Stimulation of human osteoclast polarization and resorption | [64] | |
| HU308 | CB2R agonism | Bone-marrow-derived osteoblasts/stromal cells. Osteoblasts isolated from mouse calvarial bones | Increased osteoblast differentiation and activity | [65,66] |
| OVX C3H mouse model of postmenopausal osteoporosis. | Prevention of osteoporosis in ovariectomized rats | [14,65,66] | ||
| M-CSF-generated osteoclasts | At low concentration stimulation of osteoclast formation. At high concentrations of inhibition of osteoclast formation | [14] | ||
| 4T1 mice cell line and MDA-MB-231 human cell line | Reduction in osteotropic breast cancer cells proliferation | [67] | ||
| HU433 | CB2R agonism | Newborn mouse calvarial osteoblasts | Stimulation of osteoblast proliferation | [68] |
| Osteoclastogenic cultures from bone marrow-derived monocytes | Increase in osteoclast apoptosis | |||
| Ovariectomized-mouse model | Prevention of osteoporosis in ovariectomized mouse | |||
| JWH 133 | CB2R agonism | M-CSF-generated osteoclasts | Stimulation of osteoclast formation | [14] |
| Six different OS cell lines | Anti-proliferative, pro-apoptotic, anti-invasive effect. | [69] | ||
| 4T1 mice cell line and MDA-MB-231 human cell line | Reduction in osteotropic breast cancer cells proliferation | [67] | ||
| JWH015 | CB2R agonism | Human osteoclasts | Stimulation of human osteoclast polarization and resorption | [64] |
| AM251 | CB1R antagonism | Mouse osteoclast cultures | Inhibition of osteoclast formation | [70] |
| Ovariectomized-mouse model | Protection against ovariectomy induced bone loss | |||
| SR144528 | CB2R antagonism | Mouse osteoclast cultures | Inhibition of osteoclast formation | [70] |
| Ovariectomized-mouse model | Protection against ovariectomy induced bone loss | |||
| AM630 | CB2R antagonism | Mouse osteoclast cultures | Inhibition of osteoclast formation | [70] |
| Cpd 57 | CB2R inverse agonism | Osteoclast from RAW 264.7 cells | Inhibition of osteoclast formation | [71] |
| JZL184 | MAGL inhibition | Osteoclast from RAW 264.7 cells | At low concentration stimulates osteoclast formation. At high concentrations inhibits osteoclast area | [72] |
| Human osteoblast-like cells Saos-2 | Inhibition of osteoblastic bone formation No effect to mature or form bone nodules | |||
| Bone marrow macrophages (BMMs) | Suppression of osteoclast differentiation and function | [73] | ||
| C57BL/6 mice | Reduction OVX-Induced Bone Loss | |||
| PF-3845 | FAAH inhibition | Osteoclast from mouse bone marrow macrophages | Suppression of osteoclast differentiation. Anti-resorptive activity prevents alveolar bone loss | [74] |
| male C57BL/6 mice | Prevention alveolar bone loss |
