Human tauopathy-derived tau strains determine the substrates recruited for templated amplification
Department of Brain and Neurosciences, Tokyo Metropolitan Institute of Medical Science, Tokyo 156-8506, Japan
Laboratory of Neuropathology and Neuroscience, Graduate School of Pharmaceutical Sciences, The University of Tokyo, Tokyo 113-0033, Japan
Division of Neurology, Sagamihara National Hospital, Kanagawa 252-0392, Japan
Department of Neuropathology, Institute for Medical Science of Aging, Aichi Medical University, Aichi 480-1195, Japan
Department of Neuropathology, Tokyo Metropolitan Institute of Gerontology, Tokyo 173-0015, Japan
Department of Pathology and Laboratory Medicine, National Center Hospital, National Center of Neurology and Psychiatry, Tokyo 187-8551, Japan
Brain Bank for Neurodevelopmental, Neurological and Psychiatric Disorders, United Graduate School of Child Development, Osaka University, Osaka 565-0871, Japan
Faculty of Biology, Medicine and Health, School of Biological Sciences, Division of Neuroscience and Experimental Psychology, The University of Manchester, Salford Royal Hospital, Salford M6 8HD, UK
Abstract
Tauopathies are a subset of neurodegenerative diseases characterized by abnormal tau inclusions. Specifically, three-repeat tau and four-repeat tau in Alzheimer’s disease, three-repeat tau in Pick’s disease (PiD) and four-repeat tau in progressive supranuclear palsy (PSP) and corticobasal degeneration (CBD) form amyloid-like fibrous structures that accumulate in neurons and/or glial cells. Amplification and cell-to-cell transmission of abnormal tau based on the prion hypothesis are believed to explain the onset and progression of tauopathies. Recent studies support not only the self-propagation of abnormal tau, but also the presence of conformationally distinct tau aggregates, namely tau strains. Cryogenic electron microscopy analyses of patient-derived tau filaments have revealed disease-specific ordered tau structures. However, it remains unclear whether the ultrastructural and biochemical properties of tau strains are inherited during the amplification of abnormal tau in the brain. In this study, we investigated template-dependent amplification of tau aggregates using a cellular model of seeded aggregation. Tau strains extracted from human tauopathies caused strain-dependent accumulation of insoluble filamentous tau in SH-SY5Y cells. The seeding activity towards full-length four-repeat tau substrate was highest in CBD-tau seeds, followed by PSP-tau and Alzheimer’s disease (AD)-tau seeds, while AD-tau seeds showed higher seeding activity than PiD-tau seeds towards three-repeat tau substrate. Abnormal tau amplified in cells inherited the ultrastructural and biochemical properties of the original seeds. These results strongly suggest that the structural differences of patient-derived tau strains underlie the diversity of tauopathies, and that seeded aggregation and filament formation mimicking the pathogenesis of sporadic tauopathy can be reproduced in cultured cells. Our results indicate that the disease-specific conformation of tau aggregates determines the tau isoform substrate that is recruited for templated amplification, and also influences the prion-like seeding activity.
Untitled section
Keywords: tau, prion-like propagation, tauopathy, strains
Teaser
Tarutani et al. show that pathogenic tau seeds extracted from the brains of patients with tauopathies induce disease-specific seeded tau aggregation and filament formation in cultured cells. The results indicate that template-dependent tau aggregation is key to the development of various types of tauopathy.
Article notes
Untitled section
Received 2020 Aug 26; Revised 2021 Feb 14; Accepted 2021 Feb 25; Collection date 2021 Aug.
Introduction
Abnormal proteins that accumulate in the brain of patients with neurodegenerative diseases form amyloid-like cross-β structures, and exhibit prion-like properties, including detergent-insolubility and protease resistance, which enable them to convert normal proteins to an abnormal form.1 Tau, which is one of these prion-like proteins, is a microtubule-associated protein encoded by the MAPT gene.2 In the adult human brain, tau exists in six isoforms composed of 352–441 residues with the different amino acid numbers arising from alternative splicing of exon 2, exons 2 and 3, or exon 10.3 These tau isoforms can be classified into three-repeat tau (3R tau) and four-repeat tau (4R tau) isoforms according to the number of repeats (R1–R4) in the microtubule-binding domain, and the two types are expressed in the adult human brain at a ratio of ∼1:1.4 Under physiological conditions, tau is localized mainly in axons as a soluble, natively unfolded protein, and functions to polymerize tubulins and stabilize microtubules.5 On the other hand, accumulated pathological tau in the brains of patients exists as filamentous insoluble forms that are hyperphosphorylated and partially ubiquitinated, and have lost the ability to bind to microtubules.6
Neurodegenerative diseases in which tau inclusions are observed in neurons and/or glial cells are referred to as tauopathies. In Alzheimer’s disease and chronic traumatic encephalopathy, six isoforms of tau accumulate as neurofibrillary tangles in neuronal cell bodies and neuropil threads in neurites.7 Astrocytic tangles are also a neuropathological feature in chronic traumatic encephalopathy.8 In Pick’s disease (PiD), 3R tau is observed in neurons as Pick bodies.7 In progressive supranuclear palsy (PSP) and corticobasal degeneration (CBD), 4R tau accumulates in neurons and glial cells.9 Although coiled bodies in oligodendrocytes are observed in both diseases, tufted astrocytes observed in PSP and astrocytic plaques observed in CBD are neuropathological indicators that enable each disease to be distinguished.10 Argyrophilic granular dementia and globular glial tauopathy are also categorized as 4R tauopathies.9 While most cases of tauopathy are sporadic, mutations in the MAPT gene cause the onset of familial frontotemporal dementia and parkinsonism linked to chromosome 17 (FTDP-17T).11-14 Multiple missense mutations have been found in and around the microtubule-binding domain, and affect the structure of tau and its binding to microtubules.15,16 In addition, mutations in exon 10 and intron 10 often alter the pattern of alternative splicing and lead to unequal ratios of 3R tau and 4R tau, resulting in the onset of tauopathy, depending on the increased tau isoform.
Histopathological studies indicate that the tau pathology observed in the brain of patients with Alzheimer’s disease and argyrophilic granular dementia correlates with clinical symptoms and spreads in the brain in a stereotypic manner.17,18 It has also been reported that PiD, PSP and CBD patients present with clinical symptoms related to the brain region in which tau pathology is observed.19 A possible mechanism to explain this intracerebral expansion of tau pathology is prion-like propagation, in which abnormal tau self-amplifies and spreads in the brain.20,21 Although the molecular mechanism of cell-to-cell transmission is poorly understood, numerous reports of experimental transmissions of abnormal tau in vitro and in vivo support this hypothesis.22,23 Recently, it was also proposed that the variety of clinical symptoms and pathologies in tauopathies can be explained by the involvement of distinct tau ‘strains’, which is a characteristic of prions. Biochemical analysis of patient-derived sarkosyl-insoluble tau shows that human tauopathies are characterized by distinct banding patterns of the C-terminal tau fragments (tau-CTFs) and trypsin-resistant tau.24,25 Moreover, tau filaments extracted from the brains of patients exhibit various ultrastructural properties depending on the tauopathy involved, and cryogenic electron microscopy (cryo-EM) of these tau filaments has revealed disease-specific ordered core structures at the atomic level.26–28 In experimental models of prion-like propagation, the physical and pathological properties of tau strains are inherited during the amplification of seeds and the formation of tau pathology.29–34 Thus, it has been suggested that the diversity of ultrastructural and biochemical properties of tau strains is the key to the formation of disease-specific tau pathology. However, the molecular mechanisms of formation of tau strains have not yet been elucidated, and it is not clear how the prion-like properties of tau strains are maintained during self-templated amplification and spreading in the brain.
In this study, we investigated template-dependent amplification of abnormal tau by introducing patient-derived tau strains into SH-SY5Y cells. Tau aggregates extracted from Alzheimer’s disease, PiD, PSP, and CBD cases caused isoform-dependent accumulation of insoluble filamentous tau, and these abnormal tau species showed ultrastructural and biochemical properties akin to those of the original seeds. Our results indicate that distinct conformations of patient-derived tau strains are involved in disease-specific tau filament formation.
Materials and methods
Ethics statement
Post-mortem brain tissues, which had been neuropathologically diagnosed as Huntington’s disease, Alzheimer’s disease, PiD, PSP, CBD and FTDP-17T, were obtained from the Brain Banks at the University of Manchester, Tokyo Metropolitan Geriatric Hospital and Institute of Gerontology, National Center of Neurology and Psychiatry, and Aichi Medical University. The study protocol was approved by the ethics committees of Tokyo Metropolitan Institute of Medical Science (18-9) and the University of Tokyo (30-7). All methods were performed in accordance with the relevant guidelines and regulations. All brain tissues used in this study were anonymized.
Antibodies
Anti-tau antibodies used in this study were as follows: T46 (epitope: 404–441; Thermo Fisher Scientific), pS396 (epitope: p-Ser-396; Calbiochem), RD3 (epitope: 209–224; Millipore), Anti-4R (epitope: 275–291; Cosmo Bio), TauC (epitope: 429–441; Cosmo Bio), AT8 (epitope: p-Ser-202 and p-Thr-205; Thermo Fisher Scientific), tau 360–380 (epitope: 360–380; Cosmo Bio), pS262/pT263 (epitope: p-Ser-262 and p-Thr-263; abcam). Polyclonal anti-α-synuclein (α-syn) 131–140 antibody was obtained from Cosmo Bio. Monoclonal anti-α-tubulin antibody (T9028), monoclonal and polyclonal anti-HA antibodies (H3663 and H6908), and polyclonal anti-FLAG antibody (F7425) were obtained from Sigma.
Preparation of sarkosyl-insoluble fractions from patients’ brains
Sarkosyl-insoluble fractions were prepared from patients’ brains as described25 and resuspended in saline by sonication for 15 s and used for electron microscopy or introduction into SH-SY5Y cells. For immunoblotting, sarkosyl-insoluble fractions were added to SDS-sample buffer and boiled for 3 min. The samples were separated on 4–20% gradient polyacrylamide gel (Wako) and immunoblotting was performed as described.35 For immunodepletion of tau from the sarkosyl-insoluble fraction, a mixture of AT8, tau 360–380 and TauC antibodies or anti-α-syn 131–140 antibody was coupled to PierceTM NHS-Activated Magnetic Beads (Thermo Scientific) according to the manufacturer’s instructions. The sarkosyl-insoluble fraction suspended in Tris-buffered saline with Tween-20 was incubated with tau antibody-coupled beads or α-syn antibody-coupled beads at 4°C overnight. The unbound sample was further incubated with new antibody-coupled beads as before. The resulting supernatant was collected as an immunodepleted sample and used for introduction into cells. α-Syn-depleted samples were used as a control. Trypsin treatment of the sarkosyl-insoluble fraction was performed as described.25 Trypsin was added at a final concentration of 0.1 mg/ml and incubated at 37°C for 30 min, and then the digestion was stopping by boiling.
Quantification of total tau by ELISA
The concentrations of total tau in sarkosyl-insoluble fractions extracted from human brain samples were determined by sandwich ELISA. Wako human tau ELISA kit was purchased from FUJIFILM and used according to the manufacturer’s instructions.
Electron microscopy
Sarkosyl-insoluble fractions extracted from Alzheimer’s disease, PiD, PSP, CBD and FTDP-17T patients’ brains were dropped onto carbon-coated 300-mesh copper grids (Nissin EM) and negatively stained as described.36 For immunostaining, sarkosyl-insoluble fractions extracted from transfected SH-SY5Y cells or patients’ brains were dropped onto grids and dried. The grids were immunostained with appropriate primary antibodies (1:50–100) and secondary antibodies conjugated to 10 nm gold particles (BBI Solutions, 1:50), 6 nm gold particles (abcam, 1:50) or 5 nm gold particles (Cytodiagnostics, 1:50) as described.36 Electron micrograph images were recorded with a JEOL JEM-1400 electron microscope.
Cell culture, transfection of plasmids and introduction of pathogenic proteins into cells
Human neuroblastoma SH-SY5Y cells were maintained as described.37 Cells were cultured to 40–50% confluence in 6-well or 12-well plates and transfected with plasmids using X-tremeGENETM 9 (Roche Life Science) according to the manufacturer’s instructions. We used non-tagged human tau 3R1N, 4R1N, haemagglutinin (HA)-tagged human tau 3R1N, 4R1N, and FLAG-tagged human tau 3R1N, 4R1N in the pCDNA3.1 vector. After transfection of plasmids, cells were incubated for 6–8 h, and pathogenic tau seeds (2 μl for 6-well plate or 1–2μl for 12-well plate) were introduced using MultiFectam (Promega) according to the manufacturer’s instructions. Transfected cells were incubated for 3 days.
Preparation of sarkosyl-insoluble fractions from transfected cells and immunoblotting
Transfected SH-SY5Y cells were collected and extracted with 1 ml for a 6-well plate or 0.5 ml for a 12-well plate of 1% sarkosyl in A68 buffer (10 mM Tris-HCl pH 7.5 containing 10% sucrose, 0.8 M NaCl, 1 mM EGTA). Cell extracts were sonicated for 15 s. After incubation for 30 min at 37°C, cell extracts were ultracentrifuged at 113 000g for 20 min at 25°C. The supernatants were removed and collected as sarkosyl-soluble fractions, then the pellets were washed with 30 mM Tris-HCl (pH 7.5) and ultracentrifuged as before. The resulting pellets were collected as sarkosyl-insoluble fractions, resuspended in 30 mM Tris-HCl (pH 7.5) and sonicated for 15 s. These fractions were used for immunoelectron microscopy and as seeds for multiple passages of insoluble tau in SH-SY5Y cells. Sarkosyl-insoluble and soluble fractions were added to SDS-sample buffer and boiled for 3 min, and immunoblotting was performed. Monoclonal anti-α-tubulin was used to obtain a loading control. The protein concentrations of samples were determined with a Pierce BCA Protein Assay Kit (Thermo Fisher Scientific). All experiments were performed at least three times. The band intensities of immunoblots were quantified using ImageQuant TL (cytiva) and were analysed using Prism software (GraphPad Software).
Confocal immunofluorescence microscopy
Transfection of plasmids and introduction of pathogenic tau seeds were conducted as described above, using SH-SY5Y cells grown on coverslips. After incubation for 3 days, cells were fixed with 4% paraformaldehyde and treated with AT8 and TauC antibodies and the secondary antibodies (anti-mouse IgG-conjugated Alexa-488 and anti-rabbit IgG-conjugated Alexa-568, Invitrogen) as described.37 The cells were mounted and analysed using a LSM780 confocal laser microscope (Carl Zeiss).
Statistical analysis
Welch’s modified t-test was performed for Fig. 2B. Unpaired t-test was carried out for SupplementaryFig.3DandG. In all cases, a P-value < 0.05 was regarded as statistically significant. Statistical analyses were performed using Prism software (GraphPad Software).
Data availability
All raw data used for figure generation in this study can be obtained by contacting the corresponding author.
Results

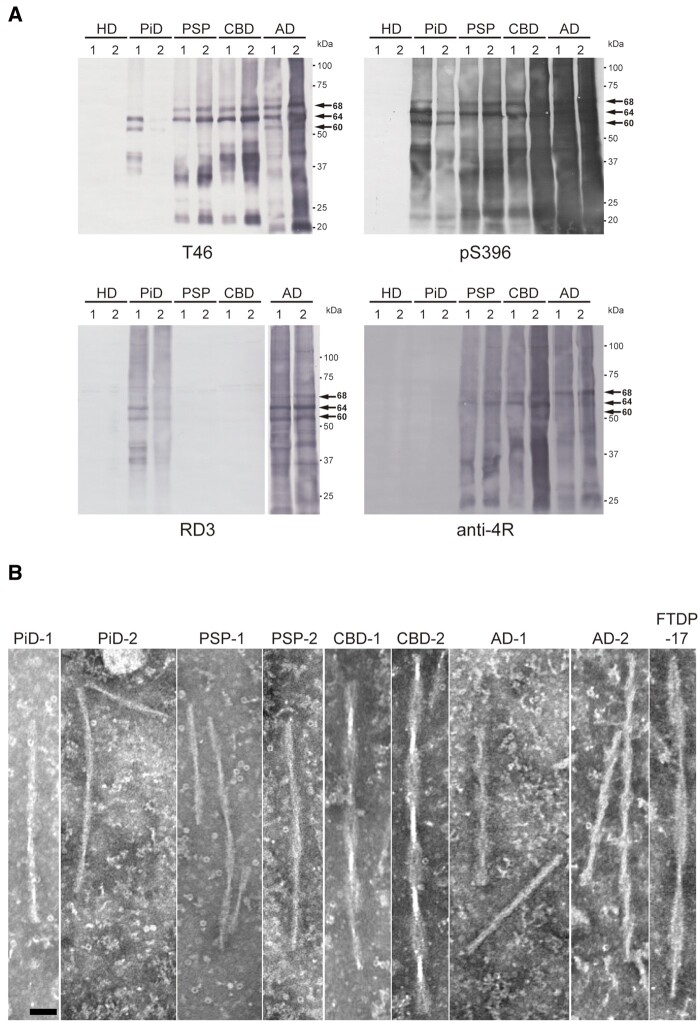

Biochemical and ultrastructural characterization of patient-derived tau aggregates
First, we prepared the sarkosyl-insoluble fractions from the brains of patients neuropathologically diagnosed as Alzheimer’s disease, PiD, PSP and CBD, and investigated the biochemical and ultrastructural properties of tau aggregates contained in these fractions (Supplementary Table 1). Immunoblot analysis of sarkosyl-insoluble fractions with T46, which recognizes the C-terminal tau (404–441), and pS396 tau antibodies showed that different tau isoforms accumulated in each tauopathy: there were two major bands at 60 and 64 kDa in PiD, two major bands at 64 and 68 kDa in PSP and CBD, and three major bands at 60, 64 and 68 kDa in Alzheimer’s disease, which represent hyperphosphorylated full-length tau proteins (Fig. 1A and Supplementary Fig. 1). As reported previously,24,25 disease-specific tau-CTFs, 21, 34 and 39 kDa tau in PiD, 22 and 33 kDa tau in PSP, 22, 37–40 and 43 kDa tau in CBD and 19, 22, 25, 30, 36 and 40 kDa tau in Alzheimer’s disease were also detected (Fig. 1A and Supplementary Fig. 1). We also confirmed the identities of the tau isoforms accumulated in each case using tau isoform-specific antibodies, RD3 and anti-4R (Fig. 1A and Supplementary Fig. 1).38 Abnormal tau was not detected in the sarkosyl-insoluble fractions extracted from two cases with Huntington’s disease, and these cases were used as a control not containing abnormal tau in subsequent experiments (Fig. 1A).
Furthermore, the sarkosyl-insoluble fractions were negatively stained and observed by electron microscopy (Fig. 1B). In PiD cases, straight filaments with 13–17 nm diameter and twisted filaments with 129.8 [±5.0, mean standard deviation (SD)] nm periodicity were observed. In PSP cases, thin filaments with wide regions of 14.9 (±1.7) nm diameter and narrow regions of 7 nm diameter were loosely twisted with 108.7 (±4.5) nm periodicity. Tau aggregates derived from CBD cases are characterized by wider filaments than those in PSP, and CBD filaments with wide regions of 28.9 (±3.2) nm diameter and narrow regions of 8.5 nm diameter were twisted with 138.9 (±11.7) nm periodicity. Ribbon-like filaments with wide regions of 25.2 (±6.7) nm diameter and narrow regions of 7 nm diameter were twisted with 236.5 (±21.2) nm periodicity in the case of FTDP-17T with intron 10 mutation +16, which increases the expression of 4R tau, indicating the diversity of tau filament structures within 4R tauopathy. In Alzheimer’s disease cases, straight filaments with 14.4 (±1.6) nm diameter and paired helical filaments (PHFs) with wide regions of 19.3 (±2.1) nm diameter and narrow regions of 10 nm diameter, which were twisted with 81.7 (±6.6) nm periodicity, were observed. These ultrastructural properties of tau aggregates derived from human tauopathies are consistent with previous electron microscopy observations of patient-derived tau filaments.26,27 These results indicate that tau aggregates extracted from the Alzheimer’s disease, PiD, PSP, and CBD cases used in this study are distinct tau strains having different biochemical and ultrastructural properties.

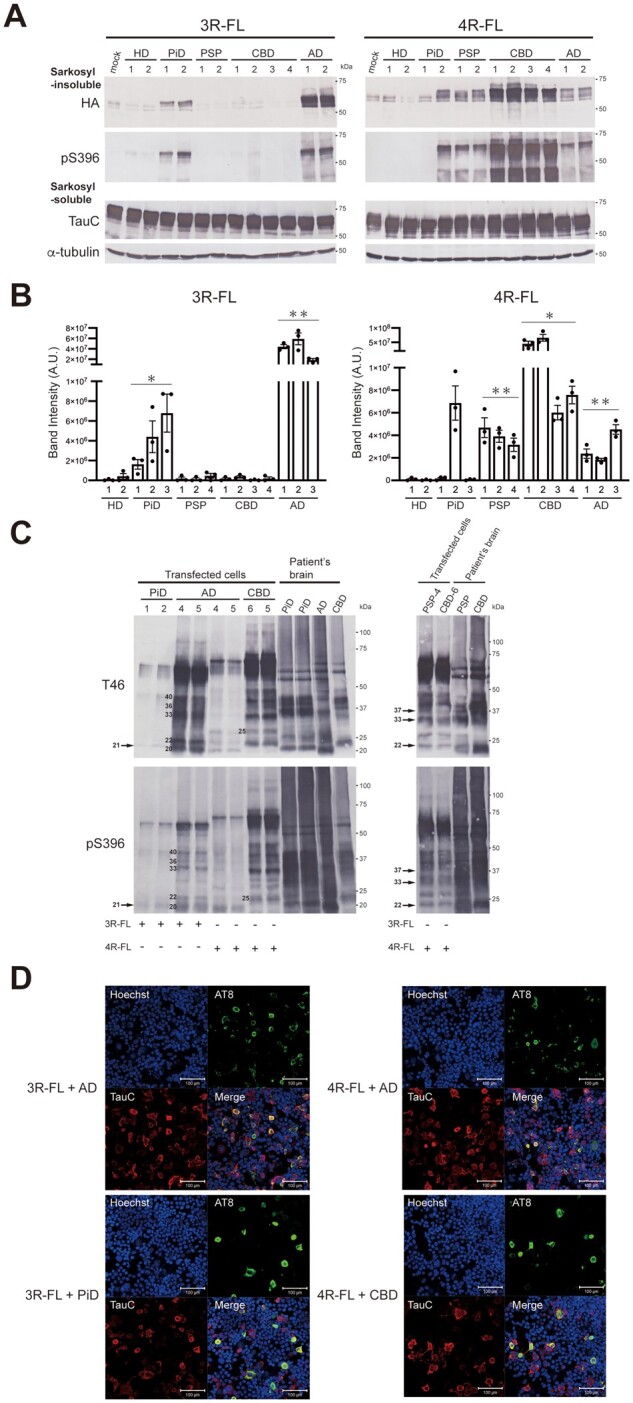

Seeded tau aggregation induced by patient-derived tau strains in SH-SY5Y cells
To characterize the prion-like properties of tau strains derived from human tauopathies, we investigated cellular seeded tau aggregation induced by the introduction of pathogenic tau seeds. The sarkosyl-insoluble fractions derived from Alzheimer’s disease, PiD, PSP, CBD and Huntington’s disease patients’ brains were introduced into SH-SY5Y cells transiently expressing HA-tagged human full-length 3R tau (3R-FL) and 4R tau (4R-FL) without pathogenic mutations. We used the 1N isoform with exon 2 inserted, which shows the highest expression level in the human adult brain.39 Three days after the introduction of the seeds, the sarkosyl-insoluble fractions were extracted from transfected cells, and the accumulation of insoluble tau was evaluated by immunoblotting using anti-HA and pS396 antibodies (Fig. 2A and B). Introduction of pathogenic tau seeds into SH-SY5Y cells without transient expression of tau did not induce seeded accumulation of insoluble tau, and the added seeds themselves were also not detected (Supplementary Fig. 2A). Alzheimer’s disease, PiD, PSP and CBD-derived tau seeds caused strain-dependent seeded tau aggregation in SH-SY5Y cells (Fig. 2A, B and Supplementary Fig. 2B). PiD-tau seeds induced seeded aggregation of 3R tau in cells expressing 3R-FL, while PSP- and CBD-tau seeds caused seeded aggregation of 4R tau only in cells expressing 4R-FL. Insoluble tau accumulated in cells expressing 3R-FL or 4R-FL after introduction of Alzheimer’s disease (AD)-tau seeds. Huntington’s disease seeds did not cause seeded aggregation of either 3R-FL or 4R-FL. Such isoform-specific seeded tau aggregation induced by tau from human tauopathies was also observed in SH-SY5Y cells expressing non-tagged human full-length tau (Supplementary Fig. 2C). Furthermore, the amount of accumulated insoluble full-length tau generated by the addition of patient-derived tau seeds varied depending on the strain. The seeding activity of AD-tau seeds for 3R-FL was higher than that of PiD-tau seeds (Fig. 2B). In addition, CBD-tau seeds tended to exhibit higher seeding activity towards 4R-FL as compared to PSP- and AD-tau seeds (Fig. 2B). These differences were independent of the tau concentration in seeds (Supplementary Table 2). Unexpectedly, PiD-tau seeds from the PiD-2 case caused isoform-independent tau aggregation. Although immunoblotting with anti-4R (Fig. 1A) did not detect 4R tau in the PiD-2 case, PiD-tau seeds derived from this case induced the accumulation of insoluble tau not only in cells expressing 3R-FL, but also in cells expressing 4R-FL (Fig. 2A and B). To investigate whether this isoform-independent tau aggregation was caused by non-tau contamination in the sarkosyl-insoluble fraction, we further purified this fraction. CBB staining of purified samples obtained by resuspension and additional ultracentrifugation showed a decrease in the α- and β-tubulin bands at ∼50 kDa, one of the major contaminants in the insoluble fraction extracted from human brains (Supplementary Fig. 3A).40 Therefore, the unpurified PiD-1 and PiD-2 seeds or the purified PiD-2 seeds, whose total tau concentration was adjusted to 2 ng/μl, were introduced into cells expressing HA-tagged 3R-FL or 4R-FL and accumulation of insoluble tau was evaluated. Although the same amount of abnormal tau was introduced, the addition of the purified PiD-2 seeds significantly reduced the accumulation of 4R tau compared to the unpurified PiD-2 seeds (Supplementary Fig. 3B–D). These results suggest that the accumulation of insoluble 4R tau induced by the unpurified PiD-2 seeds was caused by some brain-derived contaminant(s), not by cross-seeding. Furthermore, tau-depleted samples from the sarkosyl-insoluble fraction were introduced into cells expressing HA-tagged 3R-FL or 4R-FL (Supplementary Fig. 3E–G). Accumulation of insoluble tau in cells introduced with tau-depleted samples was significantly reduced compared to cells introduced with control samples, suggesting that insoluble tau contained in the sarkosyl-insoluble fraction induced tau aggregation (Supplementary Fig. 3F and G). In addition, the C-terminal banding pattern of insoluble tau extracted from transfected cells was compared with that of patient-derived insoluble fractions used as seeds (Fig. 2C). Immunoblotting with T46 and pS396 antibodies of sarkosyl-insoluble fractions extracted from transfected cells detected CTFs of 21 kDa in cells with introduced PiD-tau seeds and 22, 33 and 37 kDa in cells with PSP- and CBD-tau seeds. Although these CTFs resembled patient-derived CTFs, CTFs derived from transfected cells with introduced PSP- and CBD-tau seeds were not clearly distinguishable. In the case of introduction of AD-tau seeds, CTFs of 20, 22, 30, 36, 40 kDa were detected in insoluble fractions extracted from cells expressing 3R tau, and CTFs of 20, 22, 25, 36, 40 kDa were detected in insoluble fractions extracted from cells expressing 4R tau. Tau-CTFs resembling patient-derived tau-CTFs were also detected in insoluble tau accumulated in transfected cells expressing non-tagged 3R-FL or 4R-FL (Supplementary Fig. 2D). These results indicate that the abnormal tau amplified in SH-SY5Y cells inherits the ultrastructural properties of patient-derived tau seeds. Immunohistological staining with AT8, which is the most frequently used antibody in the pathological diagnosis of tauopathies, showed that tau aggregates were formed in TauC-positive cells with introduced patient-derived tau seeds, consistent with the accumulation of insoluble tau detected by immunoblotting (Fig. 2D). On the other hand, AT8-positive tau was not detected in cells without transient expression of tau, mock cells co-expressing both 3R tau and 4R tau, or transfected cells without transient expression of tau with introduced AD-tau seeds (Supplementary Fig. 4). Thus, the sarkosyl-insoluble fractions extracted from the brains of patients with tauopathies caused strain-dependent seeded aggregation of full-length tau substrates, except for the insoluble fraction derived from the PiD-2 case. These results indicate that disease-specific amplification of tau seeds that occurs in the brains of patients with tauopathies was reproduced in cultured cells, and distinct patient-derived strains exhibited a diversity of prion-like properties, including isoform specificity and seeding activity. To investigate the effect of N-terminal and C-terminal tau regions (fuzzy coat) that are not a part of the fibrous core on seeded aggregation, the sarkosyl-insoluble fractions extracted from the patient’s brain were treated with trypsin and the resulting trypsinized tau seeds were introduced into cells (Fig. 3). The trypsinized tau seeds induced seeded aggregation similarly to non-trypsinized tau seeds, indicating that the trypsin-resistant fibrous core contributes to the prion-like properties (Fig. 3B).25

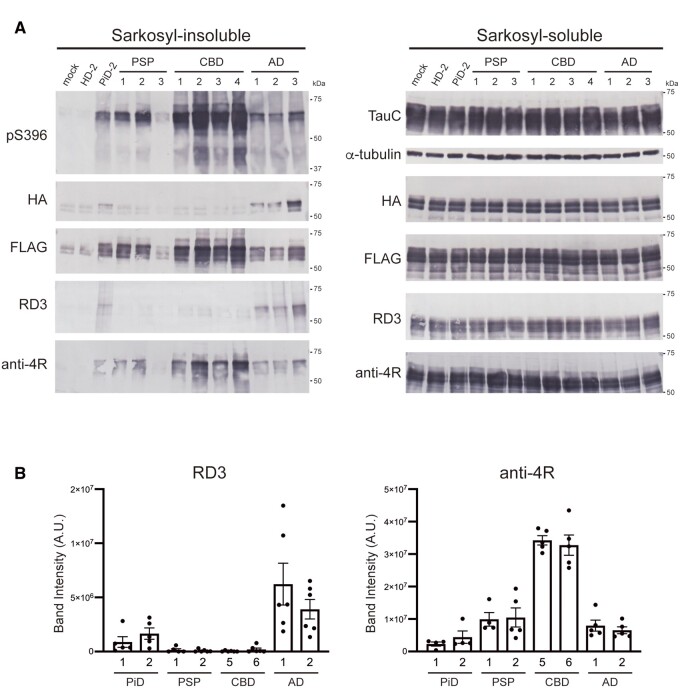

Isoform-specific seeded tau aggregation in the presence of both 3R tau and 4R tau substrates
We next investigated whether strain-dependent seeded tau aggregation induced by the introduction of patient-derived tau seeds occurs in the presence of both 3R tau and 4R tau substrates. Pathogenic tau seeds were introduced into SH-SY5Y cells co-expressing HA-tagged 3R-FL and FLAG-tagged 4R-FL, and seeded tau aggregation was evaluated (Fig. 4). Accumulation of insoluble 3R tau detected with anti-HA and RD3 antibodies was observed in cells with introduced PiD- and AD-tau seeds. Insoluble 4R tau was detected with anti-FLAG and anti-4R antibodies in cells with introduced PSP-, CBD- and AD-tau seeds (Fig. 4A). Evaluation of the insoluble fractions extracted from transfected cells with RD3 and anti-4R antibodies also showed that the tau seeds derived from human tauopathies caused isoform-specific seeded tau aggregation in the presence of both 3R tau and 4R tau substrates, except for the accumulation of insoluble 4R tau induced by the unpurified PiD-2 seeds (Fig. 4B and Supplementary Fig. 5). These results indicate that pathogenic tau seeds recruit tau isoforms for seeded aggregation in a substrate-selective manner, that is, the conformations of patient-derived tau strains determine which tau isoforms are selectively accumulated.

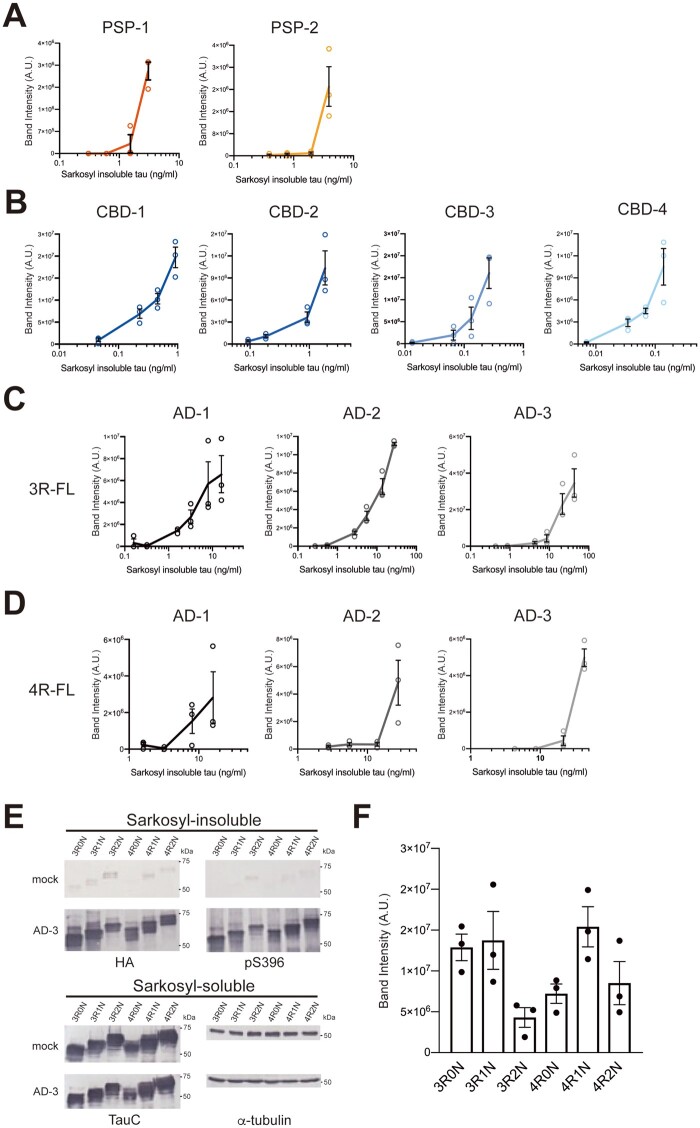

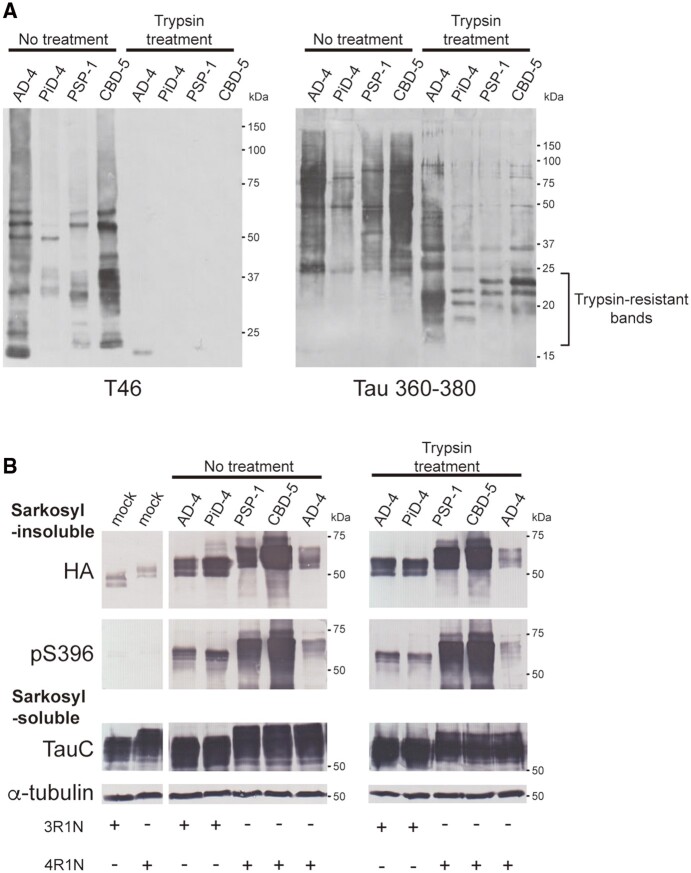

Evaluation of prion-like seeding activities of patient-derived tau strains
Further, we examined whether pathogenic tau seeds derived from human tauopathies exhibit the seeding activities that characterize the tau strains. Total tau concentration contained in the sarkosyl-insoluble fraction was determined by sandwich ELISA using antibody that recognizes C-terminal tau as a capture antibody. Serial dilutions of PSP- and CBD-tau seeds were introduced into SH-SY5Y cells expressing HA-tagged 4R-FL, and the seeding activity was evaluated (Fig. 5A, B and Supplementary Fig. 6A and B). PSP-tau seeds derived from PSP-1 and PSP-2 cases showed high seeding activity at total tau concentrations in the seeds of 3.8 ng/ml and 5.8 ng/ml, respectively, but the seeds had almost no seeding activity at the tau concentration of 1 ng/ml or less (Fig. 5A and Supplementary Fig. 6A). On the other hand, CBD-tau seeds derived from Cases CBD-1–4 showed high seeding activity at 1 ng/ml or higher concentration, while the seeding activity decreased at 0.1 ng/ml or lower concentration (Fig. 5B and Supplementary Fig. 6B). CBD-tau seeds derived from the CBD-4 case showed the highest seeding activity, being effective even at 0.1 ng/ml, while the activity decreased at 0.04 ng/ml or less (Fig. 5B). Thus, tau seeds derived from PSP and CBD cases vary by 10- to 100-fold in their prion-like seeding activity. Furthermore, we prepared serial dilutions of AD-tau seeds and introduced them into SH-SY5Y cells expressing HA-tagged 3R-FL or 4R-FL (Fig. 5C, D and Supplementary Fig. 6C and D). In the presence of 3R tau substrate, AD-tau seeds derived from Cases AD-1–3 showed high seeding activity at 1.6 ng/ml, 2.76 ng/ml and 8.62 ng/ml, respectively, while the seeding activity was completely lost at 0.32 ng/ml, 0.55 ng/ml and 4.31 ng/ml, respectively (Fig. 5C and Supplementary Fig. 6C). In the presence of 4R tau substrate, AD-tau seeds derived from the Cases AD-1–3 showed high seeding activity at 19.2 ng/ml, 27.57 ng/ml and 43.11 ng/ml or higher, respectively, and the seeding activity was lost below 3.84 ng/ml, 13.78 ng/ml and 8.6 ng/ml, respectively (Fig. 5D and Supplementary Fig. 6D). Prion-like seeding activity of AD-tau seeds towards 3R-FL was more than 10 times higher than that towards 4R-FL in the three Alzheimer’s disease cases and consequently the seeding activity of AD-tau seeds towards 4R tau substrate was lower than that of PSP-tau seeds. For PiD-tau seeds, the total tau concentrations used in this study are the detection limits for induction of seeded aggregation, and the amount of insoluble tau accumulated in cells was much less than that observed in cells with introduced AD-tau seeds of the same tau concentration (Figs 2A, B and 5C). Furthermore, addition of AD-tau seeds derived from the AD-3 case to SH-SY5Y cells expressing each of six human tau isoforms showed that AD-tau seeds have the ability to induce seeded aggregation of all tau isoforms (Fig. 5E and F). Similarly, we confirmed that PiD-tau seeds derived from the PiD-2 case and CBD-tau seeds derived from the CBD-4 case induced seeded aggregation of the three 3R tau isoforms and three 4R tau isoforms, respectively (Supplementary Fig. 7AandB). These results suggest that different conformations of patient-derived tau strains may exert distinct prion-like seeding activities. In addition, although the accumulation ratio of insoluble 3R tau and 4R tau induced by AD-tau seeds was almost the same in the presence of both 3R tau and 4R tau (Fig. 4A and Supplementary Fig. 8B), AD-tau seeds exhibited higher seeding activity in the presence of only 3R tau substrate than in the presence of only 4R tau substrate.
Template-dependent tau filament formation in transfected cells with patient-derived tau strains
We also examined the prion-like properties of tau aggregates amplified in SH-SY5Y cells with introduced patient-derived tau strains. To clarify the ultrastructural features of tau aggregates accumulated in SH-SY5Y cells, immunolabelling of the sarkosyl-insoluble fractions extracted from transfected cells using anti-HA, anti-FLAG, TauC and pS396 antibodies was performed. Abundant amyloid-like filamentous structures labelled with anti-HA, pS396 and TauC antibodies were observed in the insoluble fractions extracted from transfected cells expressing either HA-tagged 3R-FL or 4R-FL with introduced PiD-, PSP-, CBD- and AD-tau seeds (Fig. 6A and Supplementary Fig. 8A). HA-labelled filamentous structures with wide regions of 14.2 (±2.0, mean SD) nm, 13.0 (±1.2) nm, and 14.0 (±2.0) nm diameter and narrow regions of 6.7 (±1.2) nm, 4.6 (±0.8) nm and 5.9 (±0.6) nm diameter were observed in insoluble fractions from SH-SY5Y cells with introduced PiD-, PSP- and CBD-tau seeds, respectively (Fig. 6A and Supplementary Fig. 8A). Tau filaments extracted from cells with introduced PiD- and PSP-tau seeds resembled those extracted from the patients’ brains, but tau filaments from cells with introduced CBD-tau seeds were thinner than those in the brain. PHF-like structures were observed in transfected cells expressing either 3R-FL or 4R-FL with AD-tau seeds. These filaments showed wide regions of 17.9 (±2.6) nm and 19.0 (±1.8) nm diameter and narrow regions of 6.9 (±1.1) nm and 6.2 (±0.6) nm diameter, respectively, and were twisted with 94.9 (±9.8) nm and 93.8 (±10.0) nm periodicity (Fig. 6A and Supplementary Fig. 8A). PHF-like filaments positive for anti-HA, pS396 and TauC antibodies, which contained wide regions of 17.0 (±2.9) nm diameter and narrow regions of 7.0 (±1.3) nm diameter and were twisted with 83.7 (±3.7) nm periodicity, were also observed in the insoluble fraction extracted from transfected cells expressing both HA-tagged 3R-FL and 4R-FL (Fig. 6B and C). These HA-labelled tau filaments are akin to PHFs observed in the brain of patients with Alzheimer’s disease, suggesting that AD-tau seeds could work as a template to form PHF-like filaments in SH-SY5Y cells. Furthermore, strain-dependent seeded tau aggregation is induced not only in cells expressing HA-tagged tau, but also cells expressing FLAG-tagged tau. Introduction of AD-tau seeds into cells expressing FLAG-tagged 3R-FL or 4R-FL, or both resulted in the accumulation of phosphorylated insoluble FLAG-tagged tau (Supplementary Fig. 8B). Immunolabelling of these insoluble fractions revealed PHF-like filaments labelled with anti-FLAG antibody (Fig. 6D and Supplementary Fig. 9C). PHF-like filaments were seen in all cases of expression of FLAG-tagged tau, as observed in cells expressing HA-tagged tau. These fibrils showed wide regions of 20.6 (±2.1, mean SD) nm, 17.5 (±2.6) nm and 22.4 (±2.1) diameter and narrow regions of 6.4 (±0.7) nm, 6.3 (±1.8) nm and 7.9 (±1.2) nm diameter, respectively, and were twisted with 86.6 (±8.3) nm, 89.9 (±5.0) nm and 88.2 (±8.9) nm periodicity. Similarly, PiD-, PSP-, and CBD-tau seeds were added to cells expressing either FLAG-tagged 3R-FL or 4R-FL, and isoform-dependent seeded tau aggregation was detected, as observed in cells expressing HA-tagged tau (Supplementary Fig. 9A). No amyloid-like fibrous structure was observed in the insoluble fraction extracted from cells with introduced Huntington’s disease seeds (Supplementary Fig. 9B). FLAG-labelled amyloid-like filaments with wide regions of 14.7 (±1.9) nm, 13.8 (±1.3) nm and 14.1 (±1.1) nm diameter and narrow regions of 6.5 (±0.7) nm, 5.4 (±0.5) nm and 6.5 (±0.5) nm diameter were observed in cells with introduced PiD-, PSP- and CBD-tau seeds, respectively (Supplementary Fig. 9D). These results indicate that patient-derived tau seeds act as a template, and intracellular HA- or FLAG-tagged tau forms amyloid-like filaments similar to those derived from patients’ brains, which accumulate in the cells.

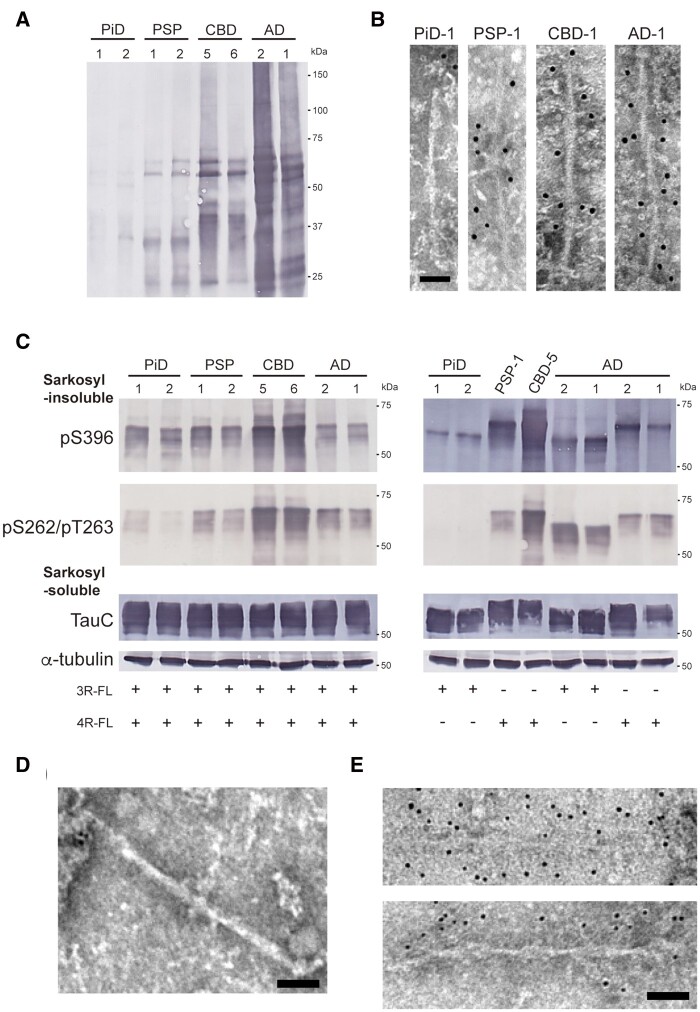

Absence of phosphorylation at Ser262 of abnormal tau amplified in transfected cells with PiD-tau seeds
The tau aggregates derived from the brains of tauopathy patients contain diverse post-translational modifications. It has been reported that Ser262 is not phosphorylated in abnormal tau accumulated in the brain of PiD patients, probably because it is located in the core structure of tau filaments, where it is inaccessible.41,42 We performed immunoblotting and immunolabelling with pS262/pT263 antibody of patient-derived tau seeds used in this study, and confirmed that the PiD-tau seeds are pS262-negative (Fig. 7A andB). To examine whether insoluble tau extracted from cells with introduced PiD-tau seeds inherits pS262-negativity, immunoblotting and immunolabelling were performed using the insoluble fractions extracted from cells with introduced patient-derived tau strains. Immunoblotting of insoluble fractions extracted from transfected cells showed that insoluble tau from cells treated with PSP-, CBD-, and AD-tau seeds was pS262-positive, while that from cells treated with PiD-tau seeds was pS262-negative (Fig. 7C and Supplementary Fig. 7C). Furthermore, PHF-like filaments derived from cells with introduced AD-tau seeds were labelled with pS262/pT263 antibody, while filament structures derived from cells with introduced PiD-tau seeds were not (Fig. 7D and E). These results suggested that the abnormal tau amplified and accumulated in the transfected cells inherited the biochemical properties of the patient-derived tau strains.

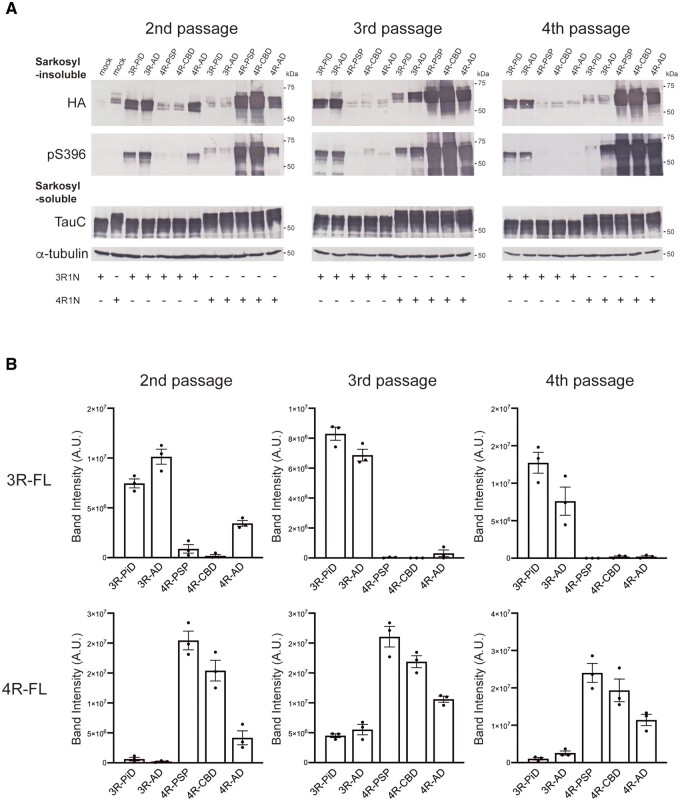

Inheritance of prion-like seeding properties through multiple passages of insoluble tau in SH-SY5Y cells
Lastly, we investigated whether abnormal tau amplified in cells introduced with patient-derived tau seeds possesses seeding activity and inherits the prion-like properties of the original seeds. The insoluble fraction extracted from the transfected cells was introduced as secondary seeds into SH-SY5Y cells expressing HA-tagged 3R-FL or 4R-FL. Secondary seeds derived from cells introduced with patient-derived tau seeds caused the strain-dependent accumulation of insoluble tau in the same manner as the original seeds (Fig. 8). Secondary PiD-tau (3R-PiD) and AD-tau (3R-AD) seeds derived from cells expressing 3R-FL induced seeded aggregation of 3R tau. Secondary PSP-tau (4R-PSP), CBD-tau (4R-CBD) and AD-tau (4R-AD) seeds derived from cells expressing 4R-FL involved only 4R tau in seeded aggregation. Intriguingly, secondary 3R-PiD seeds extracted from cells with introduced unpurified PiD-2 seeds induced seeded aggregation of only 3R tau, and accumulation of 4R tau was not detected (Fig. 8). This supports the idea that accumulation of insoluble 4R tau induced by tau seeds derived from the PiD-2 case shown in Figs 2–4 was due to contamination. In addition, the strain-specific tau aggregation induced by cell-derived insoluble tau was maintained after two additional passages (Fig. 8). These results indicate that the tau seeds amplified in the cells inherit the prion-like seeding activity of the original seeds, and the isoform specificity is also retained in subsequent seeding.
Discussion
We investigated seeded tau aggregation caused by tau strains derived from the brains of patients with tauopathy and the prion-like properties of patient-derived tau strains in cellular model. Pathogenic tau seeds induced disease-specific seeded tau aggregation and filament formation in SH-SY5Y cells. The 3R and 4R tau isoforms, which form the frameworks of tau filaments accumulated in the brains of patients with tauopathies, are key determinants of the neuropathology. PiD-, PSP- and CBD-tau seeds used in this study induced isoform-dependent tau aggregation in SH-SY5Y cells expressing 3R-FL or 4R-FL individually, or co-expressing both 3R-FL and 4R-FL (Figs 2A, B and 4). This isoform-dependent tau aggregation is also reproduced in SH-SY5Y cells with introduced synthetic 3R1N and 4R1N fibrils.43 On the other hand, AD-tau seeds composed of six tau isoforms recruited both 3R tau and 4R tau into abnormal tau, in contrast to a previous report that AD-tau seeds were unable to infect HEK293 cells expressing either 3R tau or 4R tau (Figs 2A, B, 4 and 5C–F).44 These results indicate that the pathogenic tau seeds extracted from patients’ brains retain structural information as a template for tau substrates. Furthermore, template-dependent tau filament formation was observed in SH-SY5Y cells with introduced patient-derived tau strains (Fig. 6 and Supplementary Figs 8 and 9). Interestingly, AD-tau seeds showed different recruitment efficiencies for 3R-FL and 4R-FL substrates (Fig. 5C and D). These differences in seeding activity may be due to the weak interaction of 3R tau with microtubules compared to that of 4R tau, which affects the rate and amount of intracellular accumulation of insoluble tau (Fig. 2A and B).45 However, high seeding activity of AD-tau seeds towards 3R tau has also been reported in an in vitro assay using real-time quaking-induced conversion (RT-QuIC).46 This assay is an experimental model that is not affected by binding to microtubules or other cellular environments, and the high recruitment efficiency of AD-tau seeds for 3R tau substrate in our cellular model indicates that the difference in conformation between normal 3R tau and 4R tau alters the interaction with AD-tau seeds.
What drives the isoform specificity of pathogenic tau seeds derived from human tauopathies? Atomic-level structural studies of tau filaments extracted from human tauopathies strongly support the strain-dependent nature of seeded tau aggregation observed in our cellular model. Cryo-EM analysis revealed that tau filaments extracted from brains of Alzheimer’s disease, chronic traumatic encephalopathy, PiD and CBD patients had disease-specific core structures, and patients in the same disease group showed identical folds.42,47–50 The core region of Alzheimer’s disease filaments is G273-E380 in 3R tau and G304-E380 in 4R tau, which covers the microtubule-binding domain including V306-K311, that is known to be important for tau aggregation.51 The structural evidence that the Alzheimer’s disease fold involves the common parts of 3R tau and 4R tau may explain why PHF-like filaments induced by AD-tau seeds were observed not only in cells expressing both 3R tau and 4R tau, but also in cells expressing 3R tau or 4R tau individually (Fig. 6C, D and Supplementary Fig. 9C). In vitro PHF-like filament formation of truncated tau C291-P397 in the absence of heparin also supports the idea that PHF-like filament formation induced by AD-tau seeds is not restricted by the substrate tau isoforms.52,53 The PiD and CBD folds have the core regions of K254-F378 containing R1, and K274-E380 containing the last single amino acid of R1 and the whole region of R2, respectively, and both cover the core region of the Alzheimer’s disease fold consisting of R3 and R4. These folds can account for the isoform specificity of patient-derived tau strains, i.e. that AD-tau seeds recruit both 3R tau and 4R tau for seeded aggregation, while PiD- and CBD-tau seeds selectively recruit 3R tau or 4R tau. It is important for the isoform specificity that the core structures of the PiD and CBD folds contain K254-G272 and K274-G303, respectively. This is supported by the ability of trypsinized patient-derived tau seeds to induce strain-specific tau aggregation (Fig. 3). Template-substrate mismatches caused by a lack or an excess of microtubule-binding repeats in substrates would lead to structural instability and would not promote polymerization. A substrate that covers the entire region of the template is essential for prion-like templated amplification, and partial identity of the amino acid sequence is insufficient. Although the core region of the PSP fold has not yet been determined, most of the core regions identified by cryo-EM analysis correspond to the trypsin-resistant regions of sarkosyl-insoluble tau derived from the brains of patients with tauopathy. Different trypsin-resistant core regions have been identified between CBD and PSP, indicating that the conformational difference between PSP- and CBD-tau seeds causes the observed distinct seeding activity.25
Pathogenic tau seeds derived from human tauopathies showed disease-specific seeding activities towards full-length tau substrates (Fig. 2A and B). In our cellular model, PiD-tau seeds exhibited lower activity than AD-tau seeds towards the 3R-FL tau substrate. On the other hand, the seeding activity for the 4R-FL tau substrate was in the order of CBD-tau seeds > PSP-tau seeds > AD-tau seeds (Fig. 5). As previously mentioned, it is clear that the disease-specific core structures of tau filaments affect the prion-like seeding activity, but what factors cause the formation of distinct tau strains with different ordered structures? One of these factors is the difference in the cellular environment in which normal tau forms the primary seeds. CBD- and PSP-tau seeds, which are characterized by accumulation of abnormal tau in glial cells, showed higher seeding activity than AD-tau seeds that accumulate in neurons (Fig. 5). Furthermore, the higher seeding activity of CBD-tau seeds compared to PSP seeds suggests that the formation of distinct 4R tau strains may depend on whether 4R tau aggregation occurs in the distal dendrite or central parts of astrocytes (Fig. 5A and B).10 It has been reported that tau seeds derived from the brain of a globular glial tauopathy case in which 4R tau accumulated in glial cells exhibited higher seeding activity than tau seeds derived from other tauopathies.54 High prion-like seeding activity of abnormal α-syn derived from multiple system atrophy cases characterized by accumulation of α-syn in glial cells has also been reported, indicating that abnormal proteins derived from glial cells tend to show higher seeding activity than those derived from neurons.37,55,56 Cryo-EM analysis of patient-derived filaments revealed the presence of cofactors besides tau and α-syn in the core structures of filaments derived from chronic traumatic encephalopathy, CBD and multiple system atrophy cases, but not Alzheimer’s disease and PiD cases.49,50,57 Although it is not yet clear exactly what is the key difference in the cellular environment between neurons and glial cells, the cofactors incorporated into these core structures are derived from glial cells and may contribute to the formation of distinct strains. Regarding the CTFs of abnormal tau linked to the structural diversity of patient-derived tau filaments, insoluble tau derived from cells introduced with patient-derived tau strains showed banding patterns of CTFs similar to those of the patient-derived CTFs, though the banding patterns of CTFs derived from cells with introduced PSP- and CBD-tau seeds were indistinguishable (Fig. 2C and Supplementary Fig. 2D). The reason for this may be that the SH-SY5Y cells used in this study are derived from neurons, and this is consistent with the idea that certain differences in the cellular environment influence the conformation of tau filaments formed in SH-SY5Y cells. It is necessary to investigate whether these disease-specific CTFs are reproduced in glial cells and mouse brain. The effect of cellular environment on template-dependent tau filament formation could also be clarified by cryo-EM analysis of tau filaments derived from cells introduced with patient-derived tau strains and comparison of their structures with those of patient-derived tau filaments. Furthermore, post-translational modifications may be involved in the formation of distinct tau strains, because abnormal tau species derived from human tauopathies show different post-translational modification patterns depending on the disease.58 We confirmed that pS262-negativity in PiD cases is inherited in cellular seeded aggregation (Fig. 7). Moreover, the predominance of tau isoforms in neurons and glial cells may be important for the formation of tau strains that selectively recruit normal 3R tau or 4R tau for conversion to abnormal forms. The formation of the PiD fold may be attributed to the predominant expression of 3R tau in interneurons, in where Pick bodies are frequently observed.59 Similarly, the accumulation of 4R tau in PSP and CBD cases may be related to the predominant expression of 4R tau in glial cells. In addition, we performed serial passage experiments to investigate whether various strains formed in the patient’s brain change as they are amplified and spread in the brain. The tau seeds extracted from transfected cells with patient-derived tau seeds or cell-derived tau seeds retained similar isoform specificity to the original seeds (Fig. 8). It is suggested that the prion-like seeding properties of the original seeds are maintained during the intracerebral expansion of the pathology.
Thus, we have shown that pathogenic tau seeds from human tauopathies cause strain-dependent seeded tau aggregation in SH-SY5Y cells. We wish to emphasize the importance of using patient-derived pathogenic seeds in prion-like propagation experimental models. The method for preparing tau filaments from the patient’s brain is also important, and the use of highly purified patient-derived protein seeds greatly contributes to the accurate reproduction of the patient’s brain pathology, as shown by the effect of contaminants in PiD-2 seeds on seeded aggregation (Supplementary Fig. 3A–D). Furthermore, we clarified that the difference in prion-like seeding properties of tau from human tauopathy was observed in cells expressing full-length tau (Fig. 5). The inadequacy of CTFs containing only the microtubule-binding domain is supported by studies showing that the core structures of patient-derived tau filaments are composed of microtubule-binding domain and the additional C-terminal region. It has also been reported that the FRET-based tau seeding assay does not replicate template-dependent tau filament formation.60 Therefore, our cellular model of seeded tau aggregation using biochemically and ultrastructurally well-characterized pathogenic tau seeds derived from human tauopathies is expected to be useful as a prion-like propagation model that mimics the pathogenesis of sporadic tauopathy.
Supplementary Material
Acknowledgements
We are grateful to the patients and their families for making brains available for research. We also thank Dr Fuyuki Kametani for helpful comments.
Funding
This work was supported by Japan Science and Technology Agency, CREST Grant Number JPMJCR18H3 (to M.H.), Japan Agency for Medical Research and Development (AMED) under Grant Numbers JP18ek0109391, JP18dm0207019 (to M.H.), JP18dm0107103 (to Y.S.) and JP18dm0107106 (to S.M.), JSPS KAKENHI Grant Numbers JP20K16482 (to A.T.) and JP16H06277 (to Y.S. and S.M.), and Intramural Research Grant 342 (30-8) for Neurological and Psychiatric Disorders of National Center of Neurology and Psychiatry (to Y.S. and S.M.). The work of Manchester Brain Bank is supported by Alzheimer’s Research UK and Alzheimer’s Society through the Brains for Dementia Research Programme.
Competing interests
The authors report no competing interests.
Supplementary material
Supplementary material is available at Brain online.
Glossary
- CBD
- corticobasal degeneration
- CTF
- C-terminal fragment
- PHF
- paired helical filament
- PiD
- Pick’s disease
- PSP
- progressive supranuclear palsy
References
Untitled section
References
- 1.Prusiner SB.Shattuck lecture–neurodegenerative diseases and prions. N Engl J Med. 2001;344(20):1516–1526.
- 2.Weingarten MD, Lockwood AH, Hwo SY, Kirschner MW.. A protein factor essential for microtubule assembly. Proc Natl Acad Sci U S A. 1975;72(5):1858–1862.
- 3.Goedert M, Spillantini MG, Jakes R, Rutherford D, Crowther RA.. Multiple isoforms of human microtubule-associated protein tau: Sequences and localization in neurofibrillary tangles of Alzheimer's disease. Neuron. 1989;3(4):519–526.
- 4.Goedert M, Jakes R.. Expression of separate isoforms of human tau protein: Correlation with the tau pattern in brain and effects on tubulin polymerization. EMBO J. 1990;9(13):4225–4230.
- 5.Wang Y, Mandelkow E.. Tau in physiology and pathology. Nat Rev Neurosci. 2016;17(1):5–21.
- 6.Iqbal K, Liu F, Gong CX.. Tau and neurodegenerative disease: The story so far. Nat Rev Neurol. 2016;12(1):15–27.
- 7.Goedert M, Spillantini MG.. Pathogenesis of the tauopathies. J Mol Neurosci. 2011;45(3):425–431.
- 8.McKee AC, Cairns NJ, Dickson DW, et al. ; TBI/chronic traumatic encephalopathy group. The first NINDS/NIBIB consensus meeting to define neuropathological criteria for the diagnosis of chronic traumatic encephalopathy. Acta Neuropathol. 2016;131(1):75–86.
- 9.Forrest SL, Kril JJ, Halliday GM.. Cellular and regional vulnerability in frontotemporal tauopathies. Acta Neuropathol. 2019;138(5):705–727.
- 10.Dickson DW.Neuropathologic differentiation of progressive supranuclear palsy and corticobasal degeneration. J Neurol. 1999;246 (Suppl 2):II6–II15.
- 11.Hutton M, Lendon CL, Rizzu P, et al. Association of missense and 5'-splice-site mutations in tau with the inherited dementia FTDP-17. Nature. 1998;393(6686):702–705.
- 12.Spillantini MG, Murrell JR, Goedert M, Farlow MR, Klug A, Ghetti B.. Mutation in the tau gene in familial multiple system tauopathy with presenile dementia. Proc Natl Acad Sci U S A. 1998;95(13):7737–7741.
- 13.Poorkaj P, Muma NA, Zhukareva V, et al. An R5L tau mutation in a subject with a progressive supranuclear palsy phenotype. Ann Neurol. 2002;52(4):511–516.
- 14.Ghetti B, Oblak AL, Boeve BF, Johnson KA, Dickerson BC, Goedert M.. Invited review: Frontotemporal dementia caused by microtubule-associated protein tau gene (MAPT) mutations: A chameleon for neuropathology and neuroimaging. Neuropathol Appl Neurobiol. 2015;41(1):24–46.
- 15.Hasegawa M, Smith MJ, Goedert M.. Tau proteins with FTDP-17 mutations have a reduced ability to promote microtubule assembly. FEBS Lett. 1998;437(3):207–210.
- 16.Goedert M, Jakes R, Crowther RA.. Effects of frontotemporal dementia FTDP-17 mutations on heparin-induced assembly of tau filaments. FEBS Lett. 1999;450(3):306–311.
- 17.Braak H, Braak E.. Neuropathological stageing of Alzheimer-related changes. Acta Neuropathol. 1991;82(4):239–259.
- 18.Saito Y, Ruberu NN, Sawabe M, et al. Staging of argyrophilic grains: An age-associated tauopathy. J Neuropathol Exp Neurol. 2004;63(9):911–918.
- 19.Dickson DW, Kouri N, Murray ME, Josephs KA.. Neuropathology of frontotemporal lobar degeneration-tau (FTLD-tau). J Mol Neurosci. 2011;45(3):384–389.
- 20.Jucker M, Walker LC.. Self-propagation of pathogenic protein aggregates in neurodegenerative diseases. Nature. 2013;501(7465):45–51.
- 21.Goedert M.Neurodegeneration. Alzheimer's and Parkinson's diseases: The prion concept in relation to assembled Abeta, tau, and alpha-synuclein. Science. 2015;349(6248):1255555.
- 22.Goedert M, Masuda-Suzukake M, Falcon B.. Like prions: The propagation of aggregated tau and alpha-synuclein in neurodegeneration. Brain. 2017;140(2):266–278.
- 23.Mudher A, Colin M, Dujardin S, et al. What is the evidence that tau pathology spreads through prion-like propagation? Acta Neuropathol Commun. 2017;5(1):99.
- 24.Arai T, Ikeda K, Akiyama H, et al. Identification of amino-terminally cleaved tau fragments that distinguish progressive supranuclear palsy from corticobasal degeneration. Ann Neurol. 2004;55(1):72–79.
- 25.Taniguchi-Watanabe S, Arai T, Kametani F, et al. Biochemical classification of tauopathies by immunoblot, protein sequence and mass spectrometric analyses of sarkosyl-insoluble and trypsin-resistant tau. Acta Neuropathol. 2016;131(2):267–280.
- 26.Crowther RA, Goedert M.. Abnormal tau-containing filaments in neurodegenerative diseases. J Struct Biol. 2000;130(2-3):271–279.
- 27.Arima K.Ultrastructural characteristics of tau filaments in tauopathies: Immuno-electron microscopic demonstration of tau filaments in tauopathies. Neuropathology. 2006;26(5):475–483.
- 28.Scheres SH, Zhang W, Falcon B, Goedert M.. Cryo-EM structures of tau filaments. Curr Opin Struct Biol. 2020;64:17–25.
- 29.Clavaguera F, Bolmont T, Crowther RA, et al. Transmission and spreading of tauopathy in transgenic mouse brain. Nat Cell Biol. 2009;11(7):909–913.
- 30.Clavaguera F, Akatsu H, Fraser G, et al. Brain homogenates from human tauopathies induce tau inclusions in mouse brain. Proc Natl Acad Sci U S A. 2013;110(23):9535–9540.
- 31.Sanders DW, Kaufman SK, DeVos SL, et al. Distinct tau prion strains propagate in cells and mice and define different tauopathies. Neuron. 2014;82(6):1271–1288.
- 32.Guo JL, Narasimhan S, Changolkar L, et al. Unique pathological tau conformers from Alzheimer's brains transmit tau pathology in nontransgenic mice. J Exp Med. 2016;213(12):2635–2654.
- 33.Kaufman SK, Sanders DW, Thomas TL, et al. Tau prion strains dictate patterns of cell pathology, progression rate, and regional vulnerability in vivo. Neuron. 2016;92(4):796–812.
- 34.Narasimhan S, Guo JL, Changolkar L, et al. Pathological tau strains from human brains recapitulate the diversity of tauopathies in nontransgenic mouse brain. J Neurosci. 2017;37(47):11406–11423.
- 35.Shimonaka S, Nonaka T, Suzuki G, Hisanaga S, Hasegawa M.. Templated aggregation of TAR DNA-binding protein of 43 kDa (TDP-43) by seeding with TDP-43 peptide fibrils. J Biol Chem. 2016;291(17):8896–8907.
- 36.Tarutani A, Suzuki G, Shimozawa A, et al. The effect of fragmented pathogenic alpha-synuclein seeds on prion-like propagation. J Biol Chem. 2016;291(36):18675–18688.
- 37.Tarutani A, Arai T, Murayama S, Hisanaga SI, Hasegawa M.. Potent prion-like behaviors of pathogenic alpha-synuclein and evaluation of inactivation methods. Acta Neuropathol Commun. 2018;6(1):29.
- 38.Dan A, Takahashi M, Masuda-Suzukake M, et al. Extensive deamidation at asparagine residue 279 accounts for weak immunoreactivity of tau with RD4 antibody in Alzheimer's disease brain. Acta Neuropathol Commun. 2013;1:54.
- 39.Andreadis A.Tau splicing and the intricacies of dementia. J Cell Physiol. 2012;227(3):1220–1225.
- 40.Wenborn A, Terry C, Gros N, et al. A novel and rapid method for obtaining high titre intact prion strains from mammalian brain. Sci Rep. 2015;5:10062.
- 41.Arai T, Ikeda K, Akiyama H, et al. Different immunoreactivities of the microtubule-binding region of tau and its molecular basis in brains from patients with Alzheimer's disease, Pick's disease, progressive supranuclear palsy and corticobasal degeneration. Acta Neuropathol. 2003;105(5):489–498.
- 42.Falcon B, Zhang W, Murzin AG, et al. Structures of filaments from Pick's disease reveal a novel tau protein fold. Nature. 2018;561(7721):137–140.
- 43.Nonaka T, Watanabe ST, Iwatsubo T, Hasegawa M.. Seeded aggregation and toxicity of {alpha}-synuclein and tau: Cellular models of neurodegenerative diseases. J Biol Chem. 2010;285(45):34885–34898.
- 44.Woerman AL, Aoyagi A, Patel S, et al. Tau prions from Alzheimer's disease and chronic traumatic encephalopathy patients propagate in cultured cells. Proc Natl Acad Sci U S A. 2016;113(50):E8187–E8196.
- 45.Butner KA, Kirschner MW.. Tau protein binds to microtubules through a flexible array of distributed weak sites. J Cell Biol. 1991;115(3):717–730.
- 46.Wu L, Wang Z, Ladd S. et al. Human tau isoform aggregation and selective detection of misfolded tau from post-mortem Alzheimer’s disease brains. bioRxiv. [Preprint] doi:10.1101/2019.12.31.876946
- 47.Fitzpatrick AWP, Falcon B, He S, et al. Cryo-EM structures of tau filaments from Alzheimer's disease. Nature. 2017;547(7662):185–190.
- 48.Falcon B, Zhang W, Schweighauser M, et al. Tau filaments from multiple cases of sporadic and inherited Alzheimer's disease adopt a common fold. Acta Neuropathol. 2018;136(5):699–708.
- 49.Falcon B, Zivanov J, Zhang W, et al. Novel tau filament fold in chronic traumatic encephalopathy encloses hydrophobic molecules. Nature. 2019;568(7752):420–423.
- 50.Zhang W, Tarutani A, Newell KL, et al. Novel tau filament fold in corticobasal degeneration. Nature. 2020;580(7802):283–287.
- 51.von Bergen M, Friedhoff P, Biernat J, Heberle J, Mandelkow EM, Mandelkow E.. Assembly of tau protein into Alzheimer paired helical filaments depends on a local sequence motif ((306)VQIVYK(311)) forming beta structure. Proc Natl Acad Sci U S A. 2000;97(10):5129–5134.
- 52.Al-Hilaly YK, Pollack SJ, Vadukul DM, et al. Alzheimer's disease-like paired helical filament assembly from truncated tau protein is independent of disulfide crosslinking. J Mol Biol. 2017;429(23):3650–3665.
- 53.Al-Hilaly YK, Foster BE, Biasetti L, et al. Tau (297-391) forms filaments that structurally mimic the core of paired helical filaments in Alzheimer's disease brain. FEBS Lett. 2020;594(5):944–950.
- 54.Chung DC, Carlomagno Y, Cook CN, et al. Tau exhibits unique seeding properties in globular glial tauopathy. Acta Neuropathol Commun. 2019;7(1):36.
- 55.Woerman AL, Stohr J, Aoyagi A, et al. Propagation of prions causing synucleinopathies in cultured cells. Proc Natl Acad Sci U S A. 2015;112(35):E4949–E4958.
- 56.Peng C, Gathagan RJ, Covell DJ, et al. Cellular milieu imparts distinct pathological alpha-synuclein strains in alpha-synucleinopathies. Nature. 2018;557(7706):558–563.
- 57.Schweighauser M, Shi Y, Tarutani A, et al. Structures of alpha-synuclein filaments from multiple system atrophy. Nature. 2020;585(7825):464–469.
- 58.Kametani F, Yoshida M, Matsubara T, et al. Comparison of common and disease-specific post-translational modifications of pathological tau associated with a wide range of tauopathies. Front Neurosci. 2020;14:581936.
- 59.Arima K, Oyanagi S, Kosaka K, Matsushita M.. Distribution of Pick bodies in the central nervous system of Pick's disease with special reference to their association with neuronal loss. Seishin Shinkeigaku Zasshi. 1987;89(1):43–72.
- 60.Kaniyappan S, Tepper K, Biernat J, et al. FRET-based Tau seeding assay does not represent prion-like templated assembly of Tau filaments. Mol Neurodegener. 2020;15(1):39.
Associated Data
Supplementary Materials
Data Availability Statement
All raw data used for figure generation in this study can be obtained by contacting the corresponding author.
