Lnc-ITM2C-1 and GPR55 Are Proviral Host Factors for Hepatitis C Virus
Institute of Biochemistry, Medical Faculty, Justus-Liebig-University, Friedrichstrasse 24, 35392 Giessen, Germany; gesche.gerresheim@gmx.de (G.K.G.); ludmilashalamova@gmail.com (L.A.S.)
Universities of Giessen and Marburg Lung Center (UGMLC), German Center for Lung Research (DZL), 35392 Giessen, Germany; jochen.wilhelm@patho.med.uni-giessen.de
Abstract
Multiple host factors are known to play important roles in hepatitis C virus (HCV) replication, in immune responses induced by HCV infection, or in processes that facilitate virus escape from immune clearance, while yet only few studies examined the contribution of long non-coding RNAs (lncRNAs/lncRs). Using microarrays, we identified lncRNAs with altered expression levels in HCV replicating Huh-7.5 hepatoma cells. Of these, lncR 8(Lnc-ITM2C-1/LOC151484) was confirmed by quantitative real-time PCR (qRT-PCR) to be upregulated early after HCV infection. After suppressing the expression of lncR 8, HCV RNA and protein were downregulated, confirming a positive correlation between lncR 8 expression and HCV replication. lncR 8 knockdown in Huh-7.5 cells reduced expression of the neighboring gene G protein-coupled receptor 55 (GPR55) mRNA level at early times, and leads to increased levels of several Interferon stimulated genes (ISGs) including ISG15, Mx1 and IFITM1. Importantly, the effect of lncR 8 on ISGs and GPR55 precedes its effect on HCV replication. Furthermore, knockdown of GPR55 mRNA induces ISG expression, providing a possible link between lncR 8 and ISGs. We conclude that HCV induces lncR 8 expression, while lncR 8 indirectly favors HCV replication by stimulating expression of its neighboring gene GPR55, which in turn downregulates expression of ISGs. The latter fact is also consistent with an anti-inflammatory role of GPR55. These events may contribute to the failure to eliminate ongoing HCV infection.
Untitled section
Keywords: HCV, replication, lncRNA, LOC151484, innate immunity, GPR55, cannabinoid receptor
Article notes
Untitled section
Received 2019 Apr 15; Accepted 2019 Jun 12; Collection date 2019 Jun.
1. Introduction
First identified in 1989, Hepatitis C virus (HCV) is an enveloped virus belonging to the Flaviviridae family [1,2]. The components of the HCV virion particle include the 9.6 kb single-stranded HCV RNA genome of positive polarity and some HCV non-structural proteins [3,4]. The HCV RNA moves to ribosomes after viral entry, and serves as a messenger RNA (mRNA) for translation of the viral proteins [3,5,6]. The encoded polyprotein is processed by viral and host proteases into 10 mature proteins, core, E1, E2, p7, NS2, NS3, NS4A, NS4B, NS5A, and NS5B [7,8,9]. Negative strand RNA intermediates are generated which then act as templates for the synthesis of new positive strand genomic RNA at the endoplasmic reticulum(ER)-derived membranous webs [3,7]. Viral assembly and release are the last steps of a complete HCV viral life cycle [3,5,6,7].
During its life cycle, the cell develops several mechanisms to recognize the virus and fight against it. The tightly coordinated innate immune signaling pathways in the liver provide the first and significant line of host defense against HCV [10,11], while the adaptive immune response emerges over several weeks [12]. Upon HCV infection, specific pathogen-associated molecular patterns (PAMPs) of HCV can be sensed by different pattern recognition receptors (PRRs), like retinoic acid-inducible gene I (RIG-I), melanoma differentiation factor 5 (MDA5), and toll-like receptor 3 (TLR3), leading to the production of pro-inflammatory cytokines, chemokines, and interferon (IFN), which include Type I IFN (IFNα, IFNβ, and others), Type II IFN (IFNγ), and Type III IFN (IFNλ) [12,13,14,15]. After triggering the JAK-STAT signaling pathway, the final outcome of the IFN signaling is the induction of hundreds of IFN-stimulated genes (ISGs), which serve as direct effectors of the IFN antiviral defense [10,12,14,15]. Antiviral ISGs may target many steps in the HCV life cycle to limit viral replication or promote the IFN antiviral ability [13,14,16]. IFN signaling and the subsequent expression of ISGs are central in this antiviral defense [17]. Only combined ISGs can induce a strong antiviral response, while the effect of a single ISG is weak [14,18].
In spite of activated immune response, 70–80% of infected patients develop chronic infection without clearance of HCV, including chronic hepatitis, cirrhosis and hepatocellular carcinoma (HCC). HCV remains a global health issue affecting approximately 2% of the global population [1,14,19]. The co-existence of high viral loads and high ISG expression reflects the failure of the innate immune response in clearing HCV [10], suggesting strategies used by HCV to evade the host immune response [11]. It was shown that the ineffectiveness of the innate immune response can be achieved by cleavage of MAVS by NS3/4A protease, by an ISG translation block mediated by the noncanonical cellular sensors dsRNA-activated protein kinase R (PKR) and DEAD box RNA helicase 3 (DDX3X), or by ISGs like ubiquitin specific peptidase 18 (USP18) that downregulates the IFN pathway response as a negative feedback to ensure homeostasis of the cellular immune response [4,11,13,14,16,20]. Autophagy induced by HCV might also be involved in the suppression of type I IFN production [18]. Moreover, HCV related exosomes also contribute to the immune escape [20].
Constituting about 65% of the human transcriptome, long non-coding RNA (lncRNA) is defined as RNA with more than 200 nucleotides in length and lacking protein coding capacity or only containing small open reading frames (ORFs) [4]. LncRNAs can regulate chromatin remodeling, transcription in cis or trans, translation, or serve as enzyme cofactors [21]. Increasing evidence suggests that cellular lncRNAs may be deregulated in response to viral replication or to the antiviral pathways induced by infection [4,13]. They may function in the HCV life cycle, the antiviral immune response induced by HCV, or in HCV immune escape, finally exerting a proviral or antiviral role [4,14]. LncRNAs, like growth arrest-specific 5 (GAS5), BST2 interferon stimulated positive regulator (BISPR), lncRNA#32/LUARIS, and lncITPRIP-1 can suppress HCV replication by different mechanisms. GAS5 binds HCV NS3 protein to inhibit its functions or binds miR-222 to release p27 protein, lncITPRIP-1 enhances the innate immune response by MDA5 oligomerization and activation [22,23,24]. LncRNA#32/LUARIS controls the expression of several ISGs [25], while BISPR appears to increase the expression of a single target gene, ISG BST2, and thereby leads to decreased virion release [13]. In fact, GAS5 was also reported to positively regulate IFN responses in esophageal squamous cell carcinoma [26]. In contrast, negative regulator of interferon response (NRIR) (also known as lncRNA-CMPK2) and eosinophil granule ontogeny transcript (EGOT) are proviral lncRNAs which negatively regulate ISGs and thus antagonize the antiviral response [4,14,15]. NORAD binds miR-373, resulting in release of their common target Wee1 and thereby deregulation of cell growth in HCV infected cells [27]. Interestingly, BISPR and NRIR are also bona-fide ISGs themselves [14]. In fact, investigation in esophageal squamous cell carcinoma also supports that GAS5 is an ISG which regulates the expression of other ISGs [26]. Taken together, accumulating data suggest a critical role of lncRNAs during HCV infection. However, only a small number of lncRNAs, even less for HCV-related lncRNAs, has been functionally studied [14].
In this study, we examined cellular lncRNAs with altered expression after fully established infection with HCV to identify additional lncRNAs that may regulate different steps of the HCV life cycle and the innate immune response. Two novel lncRNA candidates identified in this study, with anti- or proviral function for HCV replication, underline an involvement of lncRNAs in the battle of HCV and host cells.
2. Materials and Methods
2.1. Cell Culture
Human hepatocarcinoma derived Huh-7.5 cells and naïve Huh-7 cells, kindly provided by Charles Rice (Rockefeller University, New York, USA)and Ralf Bartenschlager (Heidelberg, Germany) respectively, were maintained in Dulbecco’s modified Eagle’s medium (DMEM) (Life Technology) supplemented with 10% fetal bovine serum (FBS) and 1% penicillin–streptavidin (10,000 U/mL), and grown at 37 °C in a 5% CO2 incubator.
2.2. Plasmid and In Vitro Transcription
Plasmid pFK-JFH1-J6 C-846_dg (briefly: Jc1) as previously described [28], kindly provided by Ralf Bartenschlager (Heidelberg, Germany), was used to generate full-length HCV Jc1 genomes(J6/JFH1 chimeric genotype 2a) by in vitro transcription.
The Jc1 plasmid was first digested with Mlu I-HF (NEB) for 2 hours (hrs) at 37 °C. Linearized DNA was purified by phenol/chloroform extraction and ethanol precipitation. Then, the concentration of dissolved DNA was measured by Qubit 2.0 Fluorimeter (ThermoFisher). The DNA size and linearization were checked on agarose gels.
In vitro transcription was performed using T7 RNA Polymerase (ThermoFisher) in the presence of 3.75 mM of each NTP, additional 5 mM MgCl2 and 10 mM DTT, and 30 ng/µL of linearized plasmid DNA. After 2 h of incubation at 37 °C, another 1 U/µL of T7 RNA Polymerase was added for 2 h more. Template DNA was then digested by 2 U RNase-free DNase I (NEB) per 1 µg of DNA for 1 h at 37 °C. HCV full-length Jc1 RNA transcripts were dissolved in equal amounts of RNase-free water. After removing the enzymes using GeneJET RNA Clean-up Kit (ThermoFisher), transcripts were checked for integrity by agarose gel electrophoresis and quantified by Qubit Fluorimeter.
2.3. Infectious HCV in Cell Culture
The Jc1 in vitro-transcribed RNA was transfected into Huh-7.5 cells by electroporation. The culture supernatants collected at 6 day (d) after transfection were distributed into split Huh-7.5 cells. After additional multiplication passages on naïve cells, the cell-free supernatants containing HCV were concentrated approximately 50-fold using Amicon Ultra-15 Centrifugal Filters (Millipore, Billerica, MA, USA). Aliquots were stored at −80 °C until use. Virus titers were determined by focus-forming units (FFU) assay. Huh-7.5 cells were seeded at 0.25 × 105 cells per well in 24-well plates and cultured overnight. Test samples were diluted serially 10-fold and each dilution was inoculated into the cells. After incubation for 4 h at 37 °C, the cells were supplemented with fresh complete DMEM and cultured for 48 h. The cells were then immunofluorescence-stained for HCV NS5A. HCV-positive foci were manually counted under a fluorescence microscope. The virus titer was expressed as focus-forming units per milliliter of supernatant (FFU/mL), as determined by the average number of NS5A-positive foci detected in a whole well.
2.4. Oligonucleotides (Oligos)
miR-122 RNA oligos were supplied by biomers.net (Germany). The sequences were: miR-122 mat, 5′-(phos) UGGAGUGUGACAAUGGUGUUUG-3′, miR-122*, 5′-(phos) AACGCCAUUAUCACACUAAAUA-3′. Duplexes were formed by annealing same amounts of the guide (mat) and its complementary passenger strand (*) in a thermocycler by a steady temperature decrease from 90 °C to 4 °C (1 °C per minute).
The Locked nucleic acid (LNA) mixmer oligo for sequestering miR-122 was ordered from Exiqon (Denmark). The sequence was:
5′-+C*C*A*+T*T*G*+T*C*A*+C*A*C*+T*C*+C-3′, where (+) indicates a following LNA residue and G*, A*, T*, C* indicate phosphorothioate DNA bases.
LNATM long RNA GapmeR (GmR) oligos targeting different lncRNA candidates were designed using online Antisense GmR Designer (https://www.qiagen.com/de/shop/genes-and-pathways/custom-products/custom-assay-products/antisensegapmerdesigner/) and purchased from Qiagen (Germany). The sequences of the GmRs were:
- GmR Negative Control A (Neg. ctr. GmR): 5′-AACACGTCTATACGC-3′;
- GmR 1 for lncR 3/LINC00222 (lncR 3-GmR 1): 5′-GCGTGATTAAATGGAT-3′;
- GmR 2 for lncR 3/LINC00222 (lncR 3-GmR 2): 5′-GACGATAAGAGGTAAC-3′;
- GmR 1 for lncR 7/Lnc-SLC12A7-4 (lncR 7-GmR 1): 5′-TGATTAACAGAACGGA-3′;
- GmR 2 for lncR 7/Lnc-SLC12A7-4 (lncR 7-GmR 2): 5′-ATAAGTGTCTAGTTAG-3′;
- GmR 1 for lncR 8/Lnc-ITM2C-1(lncR 8-GmR 1): 5′-GTTACCAGTGAAGCGG-3′;
- GmR 2 for lncR 8/Lnc-ITM2C-1 (lncR 8-GmR 2): 5′-TCGGATTGGTCACATG-3′;
- GmR 1 for lncR 10/ZNF252P-AS1 (lncR 10-GmR 1): 5′-GTTAATCTGATCTTGC-3′;
- GmR 2 for lncR 10/ZNF252P-AS1 (lncR 10-GmR 2): 5′-TCTGAGCTTGATCACT-3′;
- GmR 1 for GPR55 (GPR55-GmR 1): 5′-GGCGAATCAGATTAAT-3′;
- GmR 2 for GPR55 (GPR55-GmR 2): 5′-AGGACCATCTTGAATG-3′;
Primers were purchased from biomers.net. Primers used for reverse-transcription (RT) reaction and qRT-PCR of lncRNA candidates are listed in Table 1 (Primers for lncRs 1, 4, 5, 6, and 9 with failed amplification are not shown). Primers for other genes are listed in Table 2. Most primers were designed by the PrimerPremier5 program (United Kingdom). Primers to amplify GAS5, small nucleolar RNA U99, H/ACA box 57 (snoRNA U99, U99), ISG15 ubiquitin-like modifier (ISG15), MX dynamin like GTPase 1 (Mx1), and interferon induced transmembrane protein 1 (IFITM1) fragments were obtained from previous reports [15,22,29,30]. Primers for Integral membrane protein 2C (ITM2C), G protein-coupled receptor 55 (GPR55), C-X-C motif chemokine ligand 10 (CXCL10), melanoma differentiation-associated protein 5 (MDA5, also named IFIH1), interferon beta 1, fibroblast (IFN-β) were from PrimerBank (https://pga.mgh.harvard.edu/primerbank/). Two different sets of primers targeting two sites of the sequences were designed for lncRs 3, 7, 8, and 10. qRT-PCR detecting expression after miR-122 with or without HCV treatment, and detecting cytoplasm/nucleus location were performed using 5′ side primers. To test the effect after GmR knockdown, 5′ side primers for lncRs 3 and 7, 3′ side primers for lncRs 8 and 10 were used.
| Target Gene | Primer Sequences (5′-3′) | Amplicon Size (bp) |
|---|---|---|
| LncR 2 | F: CTCCCAGAACCTATCGGCAT | 130 |
| R: CACAAAGCCTGCGTTCATTC | ||
| LncR 3 | F: AGGATGTGACTGCCAGGTAATG | 100 |
| R: CAGACCCAGCCTAGCACACAG | ||
| LncR 33′ | F: GTGACCCAACTAGAGCCAATAGG | 135 |
| R: CTCAAATCAGCTCATGACCATAAG | ||
| LncR 7-1 | F: AGGCTACAGGAGGCACTGAGGG | 144 |
| R: GGAGCCATCTGGGAGAATGAAATAC | ||
| LncR 7-2 | F: GAGGCTACAGGAGGCACTCTTTG | 79 |
| R: GGAGCCATCTGGGAGAATGAAATAC | ||
| LncR 73′ | F: TCGGGTTCTTGATTTGATTCTC | 142 |
| R: TGGACCAAGTATCCTCTAAAAATG | ||
| LncR 8 | F: GGTTTTTTGACCTTGGCAATG | 102 |
| R: GTGACCCTTGGTGGCTGTTTAT | ||
| LncR 83′ | F: GATTCTGTCTCATCCAATCAAGACT | 123 |
| R: GTTGTGCTGAGGATTCTGGGT | ||
| LncR 10 | F: CGGAAATGCCTAATCTGAACTT | 80 |
| R: TAGAGCGGACCCACGAAAC | ||
| LncR 103′ | F: CCCCTGATGCTTCATAATGG | 111 |
| R: AGTTCTAACCTAATTTCCCATCAC |
| Target Gene | Primer Sequences (5′-3′) | Amplicon Size (bp) |
|---|---|---|
| GAPDH | F: GAGTCAACGGATTTGGTCGT | 224 |
| R: GATCTCGCTCCTGGAAGATG (= RT) | ||
| U6 | F: CTCGCTTCGGCAGCACA | 94 |
| R: AACGCTTCACGAATTTGCGT | ||
| U99 | F: CCTCCTTTTCTTGGCGGGGA | 138 |
| R: CGTTTGAGGATAGAACCAGC | ||
| β-actin | F: CATGTACGTTGCTATCCAGGC | 250 |
| R: CTCCTTAATGTCACGCACGAT | ||
| Jc1-NS3 | RT: GTATGCCACGGCATTCAAG | 190 |
| F: GATATAGGTCGACGGCTCCA | ||
| R: TTCCTCGGAACAACCATCTC | ||
| GAS5 | F: CCTGTGAGGTATGGTGCTGG | 383 |
| R: GGTCCAGGCAAGTTGGACTC | ||
| ITM2C | F: GTGGTGTGCTGTATGAGGACT | 93 |
| R: CGTAGTTCTCGTCGAGGTAGAT | ||
| GPR55 | F: GAAAACCCTACAGTTTGCAGTCC | 123 |
| R: GAGGTGGCAGCATAATCGGG | ||
| CXCL10 | F: GTGGCATTCAAGGAGTACCTC R: TGATGGCCTTCGATTCTGGATT | 198 |
| ISG15 | F: ACTCATCTTTGCCAGTACAGGAG R: CAGCATCTTCACCGTCAGGTC | 88 |
| Mx1 | F: TGCATCGACCTCATTGACTC R: ACCTTGCCTCTCCACTTATC | 218 |
| IFITM1 | F: ACTCCGTGAAGTCTAGGGACA R: AGAGCCGAATACCAGTAACAG | 149 |
| MDA5 | F:TCGAATGGGTATTCCACAGACG | 152 |
| R:GTGGCGACTGTCCTCTGAA | ||
| IFN-β | F:GCTTGGATTCCTACAAAGAAGCA | 166 |
| R:ATAGATGGTCAATGCGGCGTC | ||
| IFN-α | F: GGAGGTTGTCAGAGCAGA | 150 |
| R: AATGACAGAATTCATGAAAGCGT | ||
| IL28A | F: CAGCCTCAGAGTGTTTCTTCT | 117 |
| R: TCCAGTCACGGTCAGCA |
2.5. Cell Treatment
To identify HCV altered transcriptome, transfection of 500 ng miR-122 duplex into Huh-7.5 cells in T175 flask was performed using Lipofectamine 2000 (Invitrogen) 24 h prior to HCV RNA electroporation. Cells were transfected at about 70% confluency. Oligos and Lipofectamine were first prepared as master mixtures in separate tubes in serum/antibiotic-free DMEM (50 μL/reaction). After 5 minutes (min) at room temperature, each sample was mixed together with Lipofectamine and incubated for 15 min. Then, 100 μL Lipofectamine-oligo mixed solution was carefully applied to the cells dropwise. At 3 h post transfection, the cells were washed in phosphate buffered saline (PBS), and fresh medium was added. The in vitro transcribed Jc1 HCV RNA together with miR-122 duplex, or miR-122 duplex only, were transfected into 400 µL of cells at 1.0 × 107 cells/ml by electroporation one day later. miR-122 duplexes with or without 8 µg HCV RNA were separately prepared for each treatment. Anti-miR-122 LNA mixmer, which sequesters endogenous miR-122 and by that disables HCV replication, was also used to treat cells alone or with HCV transfection. The setting for Gene Pulser Xcell (Biorad, USA) was: square wave, 270 V, 20 ms, 1 Pulse, 4 mm cuvette. The cells were washed with PBS to remove dead cells at 6 h post incubation (hpi). Cells were further incubated with complete DMEM for 72 h, and another round of miR-122 duplex transfection was carried out to compensate for miR-122 loss and degradation after three days incubation in cells. HCV infection was allowed to proceed and cells were harvest 48 h later (i.e., 6 d after HCV RNA transfection).
For knockdown experiments, cells were seeded at 1.5 × 105 cells/mL in 12-well plates 24 h before GmR treatment. 50 pmol of GmRs targeting lncRNA candidates in a final volume of 1 mL were transfected with Lipofectamine 2000 24 h prior to HCV transfection or infection. The medium was not supplemented with antibiotics. Medium from the cells was then substituted by fresh DMEM supplemented with antibiotics and FBS, and full-length HCV genome was transfected at 0.375 µg/well using Lipofectamine 2000. Cells were harvested after 12, 24, and 48 h incubation.
To study HCV infection, cells were infected with HCV at the multiplicity of infection (moi) of 0.3 for 4 h. After 4 h of infection, medium supernatants were removed and fresh medium was added to the cells. Cell supernatants and pellets were harvested at the indicated times post-infection. A replication defective mutant version of the HCV genome (NS5B replicase inactivating "GND" mutation) was also prepared to infect cells. Pathogen associated molecular pattern (PAMP) poly (I:C) (Invivogen) was also used to treat Huh-7.5 cells and Huh-7 cells at 2.5 µg or 5 µg per well for 8 h. In experiments with Janus kinase/signal transducers and activators of transcription (JAK–STAT) inhibitor, Huh-7.5 cells were treated with the JAK inhibitor ruxolitinib (Invivogen) (0.8 µM) for 1 h, with a subsequent treatment with IFN-α2 (100 units/mL) or mock control for 8 h followed by harvest of RNA.
2.6. RNA Samples, DNA Removal, and cDNA Preparation
Total RNA was isolated from cells using TRIzol (Invitrogen). After DNase I treatment, the total RNA was purified using GeneJET RNA Clean-up Kit. Nuclear and cytoplasmic cell fractionation was obtained using the Paris kit following the manufacturer’s instructions (Life Technologies). RNA integrity was checked by agarose gel electrophoresis, and RNA concentrations were measured by Qubit 2.0. Reverse transcription (RT) was performed using the qScript Flex cDNA Kit (Quanta Biosciences). Random primers or Gene-specific primers were used in the RT reaction. To determine whether lncRNA candidates are polyadenylated, cDNA with oligo dT primer was also prepared.
Total RNA for microarray was lysed by using a protocol combining TRIzol Reagent and RNeasy Kit (Qiagen). Next, total RNA was resuspended in RNase-free water. The quality of the RNA was analyzed by Bioanalyzer (Agilent Technologies, Santa Clara, CA, USA). Only RNAs with RNA Integrity Number (RIN) >9.5 were used for subsequent experiments.
2.7. Microarrays
Purified total RNAs after miR-122 with or without HCV treatment were amplified and Cy3-labeled using the LIRAK kit (Agilent Technologies) following the kit instructions. Per reaction, 200 ng of total RNA was used. The Cy3-labeled RNA was hybridized overnight to 8 × 60K 60mer oligonucleotide spotted microarray slides (Agilent Technologies, design ID 072363). Hybridization and subsequent washing and drying of the slides were performed following the Agilent hybridization protocol. The dried slides were scanned at 2 µm/pixel resolution using the InnoScan 900 (Innopsys, Carbonne, France). Image analysis was performed with Mapix 6.5.0 software, and calculated values for all spots were saved as GenePix results files. Stored data were evaluated using the R software [31] and the limma package [32] from BioConductor [33]. Mean spot signals were background corrected with an offset of 1 using the NormExp procedure on the negative control spots. The logarithms of the background-corrected values were quantile-normalized [32,34]. The normalized values were then averaged for replicate spots per array. From different probes addressing the same NCBI gene ID, the probe showing the maximum average signal intensity over the samples was used in subsequent analyses. Genes were ranked for differential expression using a moderated t-statistic [32]. Pathway analyses were done using gene set tests on the ranks of the t-values [32]. Z value was calculated according to formula: Z = (E − )/SD, where E is the quantile-normalized log2 signal intensity, is the mean value of E, SD indicates the standard deviation across the samples.
2.8. Quantitative Real Time-PCR (qRT-PCR)
qRT-PCR was performed with the PerfeCTa SYBR Green FastMix (Quanta Biosciences) according to the manufacturer’s instructions in the StepOnePlus™ Real-Time PCR System (Applied Biosystems) with the following temperature setting: initial denaturation for 20 s at 95 °C; 40 cycles of subsequent denaturation (3 s at 95 °C) and elongation (30 s at 60 °C); melting curve for 20 min. The secondary products and primer-dimers were excluded via melting curve and agarose gel electrophoresis. The specificity of amplification was verified by the presence of a single peak in the melting curve and also by sequencing (Microsynth SeqLab, Germany). Glyceraldehyde 3-phosphate dehydrogenase (GAPDH) mRNA levels were evaluated in all cases as a reference, and other expression results were normalized to GAPDH. Amplification efficiencies (E) of each primer pair were calculated using the following formula: E = 10(-1/slope). The E of primers used in this study was within the range of 1.8-2.2 [35]. To calculate the relative RNA levels in cytoplasmic/nuclear fractions, 2−∆Ct was used, where Ct is the threshold cycle number, ∆Ct = Ct of the gene in nucleus-Ct in cytoplasm. The expression fold change compared to control group was obtained using calculation: Fold change = (Etarget)^∆Cttarget(control-sample)/(Eref)^∆Ctref(control-sample), where Etarget and Eref are the respective amplification efficiencies of target genes and reference gene GAPDH; ∆Ct = Ct of the control sample - Ct of the treatment sample. The relative expression level of lncRNAs after GmR knockdown was presented as 1000*2−∆Ct, ∆Ct = Ct of the target gene - Ct of the reference gene GAPDH. The results of all biological replicates (minimum of three) and technical replicates (minimum of two) were used to derive the final data with standard error of the mean (SEM) graphed as error bars.
2.9. Immunofluorescence
One day before transfection, coverslips were heated in pure Ethanol and covered for 30 min with 0.1 mg/mL Poly-L-Lysin (30000-70000). Two days after transfection of HCV full-length Jc1 genomes, cells were washed with PBS and fixed with 4% paraformaldehyde for 10 min. Cells were washed again 3 times (×) with ice cold PBS, permeabilized with cold acetone for 10 min at −20 °C and again washed. Then, cells were incubated with 1% BSA, 22.5 mg/mL glycine in PBST (1 × PBS, 0.5% Tween 20) (Glycin-PBST) for 10 min. For staining, cells were incubated with a 1:500 dilution of Anti-HCV NS3 antibody (8 G-2, Abcam) in 1% BSA for 1 h at room temperature. Cells were washed 3 × with Glycin-PBST and then incubated with a 1:200 dilution of the secondary antibody (goat anti-mouse IgG1, Alexa Fluor® 488 conjugate) for 1 h at 37 °C in the dark. Cells were again washed 3 × with Glycin-PBST, incubated with Fluoroshield Mounting Medium With DAPI(Abcam)for 5 min. Fluorescent images were obtained with a fluorescent microscope (Olympus).
2.10. Western Blot
Cell pellets for western blots were lysed in 200 µL buffer (25 mM Tris-HCl (pH 7.5), 150 mM KCl, 2 mM EDTA (pH 7.5), 0.5 mM DTT, 0.5% NP-40). Following the pelleting of cell debris, 10 µL protein extracts were mixed with SDS loading buffer, denatured at 95 °C for 10 min, and subjected to 12% SDS-polyacrylamide gel electrophoresis. Next, proteins were transferred onto a PVDF membrane (Immobilon). Membranes were blocked with 7.5% milk in TBST for 1 h and incubated with monoclonal antibodies against GAPDH diluted 1:15000 (clone GAPDH-71.1, Sigma-Aldrich), Anti-HCV NS3 antibody 8G-2 (Abcam) diluted 1:500. After washing, membranes were incubated for another 1 h with a secondary goat-anti-mouse IgG HOR antibody conjugated with peroxidase diluted 1:40000 (Sigma-Aldrich). Western blots were developed with SuperSignal West Femto Chemiluminescent substrate (Pierce). The quantification of protein bands from western blotting films was performed by using Image J (NIH) (https://imagej.nih.gov/ij/index.html). The expression level was presented as IntDen ratio of each NS3 band relative to each GAPDH band.
2.11. Protein-Coding Potential
The features of lncRNA candidates, including the reference sequence, the length, Gene symbol and located chromosome of these lncRNAs were collected from NCBI (https://www.ncbi.nlm.nih.gov/) and are listed in Table 3. The names used in this study were based on LNCipedia gene ID or HGNC Gene Symbol.
| lncRNA | Ref. | Chr | Length(bp) | Gene Symbol | Name |
|---|---|---|---|---|---|
| lncR 3 | NR_033376.1 | 6 | 1753 | lincRNA 222 | LINC00222 |
| lncR 7-2 | NR_104615.1 | 5 | 3451 | LOC100506688 | Lnc-SLC12A7-4:5 |
| lncR 8 | NR_038238.1 | 2 | 1893 | LOC151484 | Lnc-ITM2C-1 |
| lncR 10 | NR_026974.1 | 8 | 3250 | ZNF252P antisense RNA 1 | ZNF252P-AS1 |
Coding potential of lncRNA candidates was evaluated by Open reading frame Finder (https://www.ncbi.nlm.nih.gov/orffinder/), and by searching the LNCipedia 5.2 (http://www.lncipedia.org) for the presence of our candidates in the Pride proteomics database and the Lee lists of novel coding RNAs or Bazzini lists of lncRNAs containing small open reading frames (smORFS) obtained in ribosome profiling experiments. The evaluation of our candidates by Phylogenetic Codon Substitution Frequencies (PhyloCSF) and the coding potential assessment tool (CPAT) were also included [29,36]. Results from LNCipedia are listed in Table 4.
| Metric | lncR 3 | lncR 7-2 | lncR 8 | lncR 10 |
|---|---|---|---|---|
| CPAT coding probability | 1.33% | 10.83% | 69.31% | 80.45% |
| PhyloCSF score | −67.4569 | 13.6639 | −112.1426 | 11.7381 |
| PRIDE reprocessing 2.0 | 0 | 0 | 0 | 0 |
| Lee translation initiation sites | 0 | 0 | 0 | 0 |
| Bazzini small ORFs | 0 | 0 | 0 | 0 |
2.12. Statistical Analysis
The graphs showed mean and standard error of mean (Mean ± SEM) of at least three independent experiments. SEM is represented by error bar. Comparisons between groups were performed using two-tailed Student’s t-test by GraphPad. p-values lower than 0.05 were considered with statistical significance. * denotes p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001, and **** p ≤ 0.0001.
3. Results

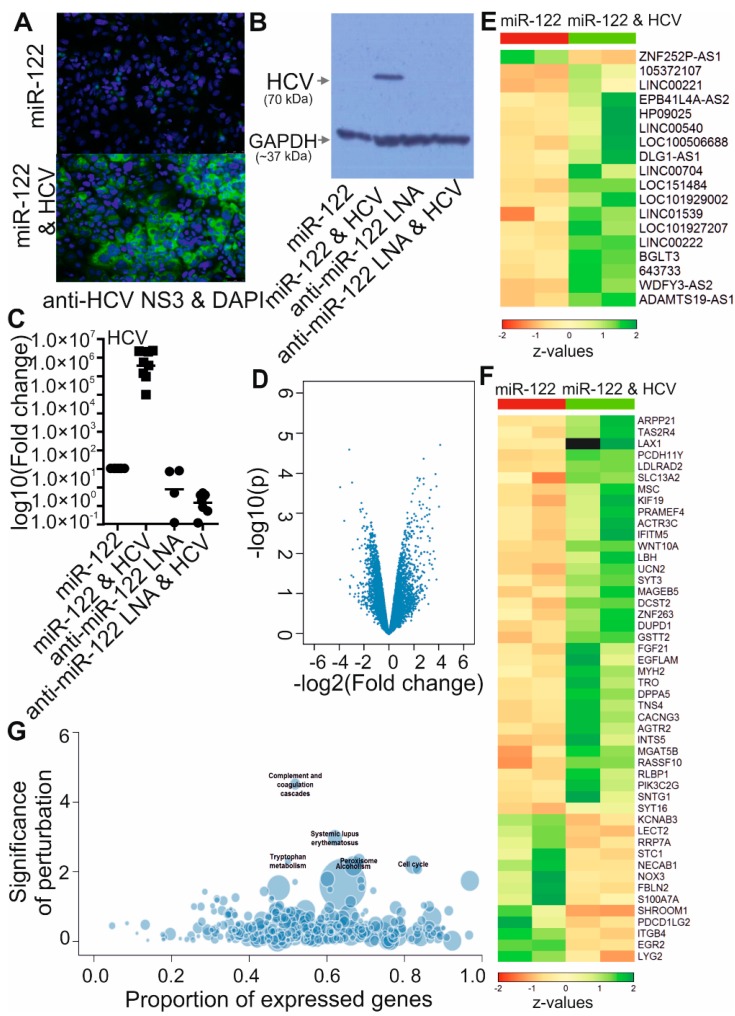

3.1. Identification of lncRNAs Deregulated by HCV Replication
To identify deregulated lncRNAs induced by HCV replication, we carried out a gene expression microarray assay. Huh-7.5 cells were electroporated either with miR-122 only or with miR-122 plus HCV full-length genomic RNA, and then left for 6 days. Since Huh-7.5 cells contains somewhat lower levels of miR-122 than primary hepatocytes, miR-122 transfection was performed one day before and three days after the electroporation of HCV RNA to mimic a high level of miR-122, which is essential for HCV replication [37,38,39,40]. The 6-day duration of HCV replication was chosen to analyze the changes in expression levels of low abundance lncRNAs under conditions similar to long-term infection. A large fraction of the cells contained replicating virus at the harvest day, as evaluated by immunofluorescence and western blotting against HCV protein (Figure 1A,B) and by qRT-PCR targeting HCV RNA in the NS3 coding region (Figure 1C).
RNA samples from two independent biological replicates were used to hybridize an array in the Human G3 v3 Microarray Kit. Analysis of the expression changes in transcripts showed 68 deregulated genes with fold changes > 4 and p ˂ 0.01 (log fold change > 2, log10P value > 2) in HCV treated cells compared to control cells (Figure 1D). They were involved in different cellular process including immune response, amino acid metabolism, cell cycle, lipid homeostasis and alcoholism according to the KEGG analysis (Figure 1G). Eighteen putative lncRNAs and 48 protein coding mRNAs showed a significant change of expression level in Huh-7.5 cells upon HCV replication (Figure 1E,F; fold change > 4, p ˂ 0.01).

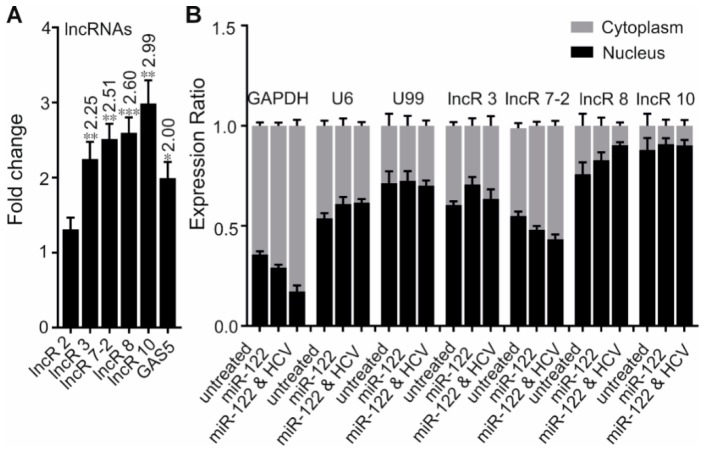

3.2. HCV Replication Increases the Expression of Four lncRNAs
In total, 11 lncRNAs (here renamed to lncR 1-10, nine upregulated and one downregulated in response to HCV replication; whereby lncR 7 has two variants, labeled as lncR 7-1 & 2) were selected for further investigation. To our knowledge, none of them had been functionally studied to date. Changes of the transcript levels observed in HCV replicating samples versus control were verified by qRT-PCR. GAS5 [22] was used as a positive control. Two variants of lncR 7 have 70 bp difference in sequence, they were amplified separately by variant specific primers (see Table 1). Six candidates were discarded due to failed (lncR 5, 6) or poor amplification (lncR 1, 4, 7-1, 9), which is mainly caused by their very low expression levels. A consistent result between the data of the qRT-PCR and microarray analysis was observed for lncR 3, 7-2, and 8 (Figure 2A). Samples after HCV or mock treatment without adding ectopic miR-122 were also prepared. Similar upregulation of lncR 8 was also observed in samples added ectopic miR-122 but only containing endogenous miR-122 (Figure S2B). LncR 2 expression was not altered by HCV replication, while lncR 10 was upregulated (Figure 2A), showing a result opposite to the microarrays (Figure 2E). In this context, it is interesting to note that lncR 10 was reported to be upregulated in hepatocellular carcinoma (HCC) tissues compared to adjacent non-tumor tissues in another study [41]. Concerning this possible link between HCV infection and HCC, we therefore also proceeded with lncR 10.
3.3. Low Protein Coding Potential and Subcellular Localization of lncRNAs
ORF Finder (NCBI) was used to determine all possible ORFs in four candidate lncRNAs. Putative ORFs longer than 100 amino acids (aa), which was set as a noncoding threshold, were screened for the presence of Kozak sequences (A/GCCACC or A/GCC) at the initiation codon. No results indicating coding capacity for these four lncRNA candidates were obtained (Data not shown). LncR 8/Lnc-ITM2C-1 was predicted as a coding gene according to CPAT (69.31%) but not interpreted as coding RNA according to PhyloCSF (-112.1426), and it was also not present in the PRIDE archive, and not in the Lee and the Bazzini coding RNA lists (Table 4). LncR 3, 7-2, and 10 were all described as non-coding RNA in LNCipedia, indicating a very low probability for coding (Table 4).
The preference of nuclear or cytoplasmic location can give clues for the function of a lncRNA [14,41,42]. To gain insight into the potential roles of the lncRNAs, we evaluated the subcellular localization of lncRs 3, 7-2, 8, and 10 in untreated Huh-7.5 cells and Huh-7.5 cells treated with miR-122 alone or miR-122 plus HCV. As expected, GAPDH reference transcripts accumulate preferentially in the cytoplasm in treated or untreated Huh-7.5 cells (Figure 2B). In contrast, more U6 RNA was found to be in the nucleus compared to cytoplasm. The relatively high ratio of U6 reference transcripts in the cytoplasm may be due to a leakage during nucleus/cytoplasm fractionation, which was also found in a previous study [43]. Therefore, we used U99 RNA as an additional control; U99 RNA was more localized in the nucleus. Importantly, lncR 8 and 10 were dominantly accumulated in the nucleus, while LncR 3 and 7-2 were found in both fractions. The nuclear enrichment of lncR 8 and 10 further confirmed their noncoding nature. No obvious difference in subcellular translocation due to the treatment with miR-122 or with HCV was observed. Thus, the different subcellular locations of our lncRNA candidates indicate different function and regulation mechanisms. In particular, lncR 8 (which is further analyzed below) is localized in the nucleus.

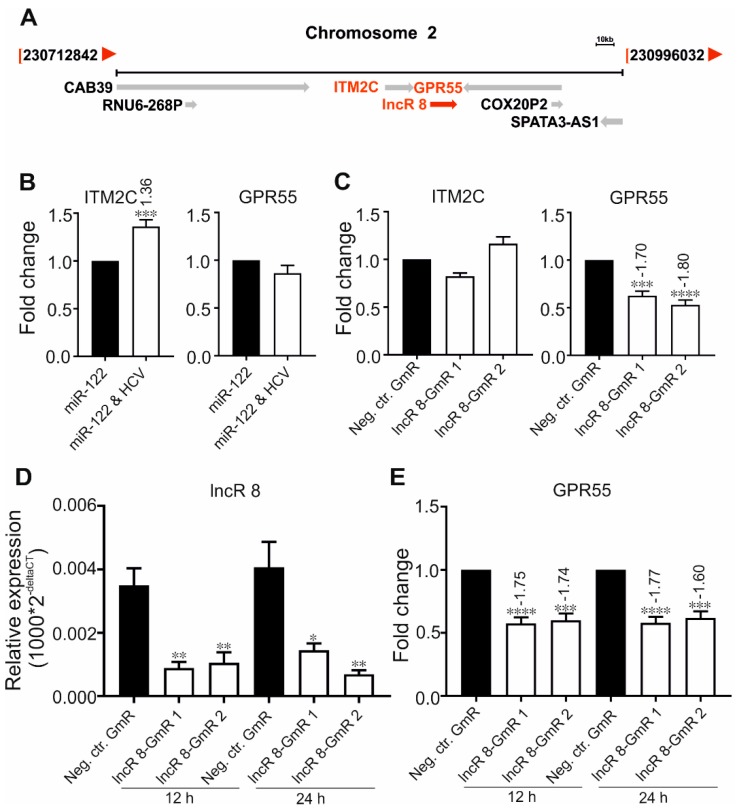

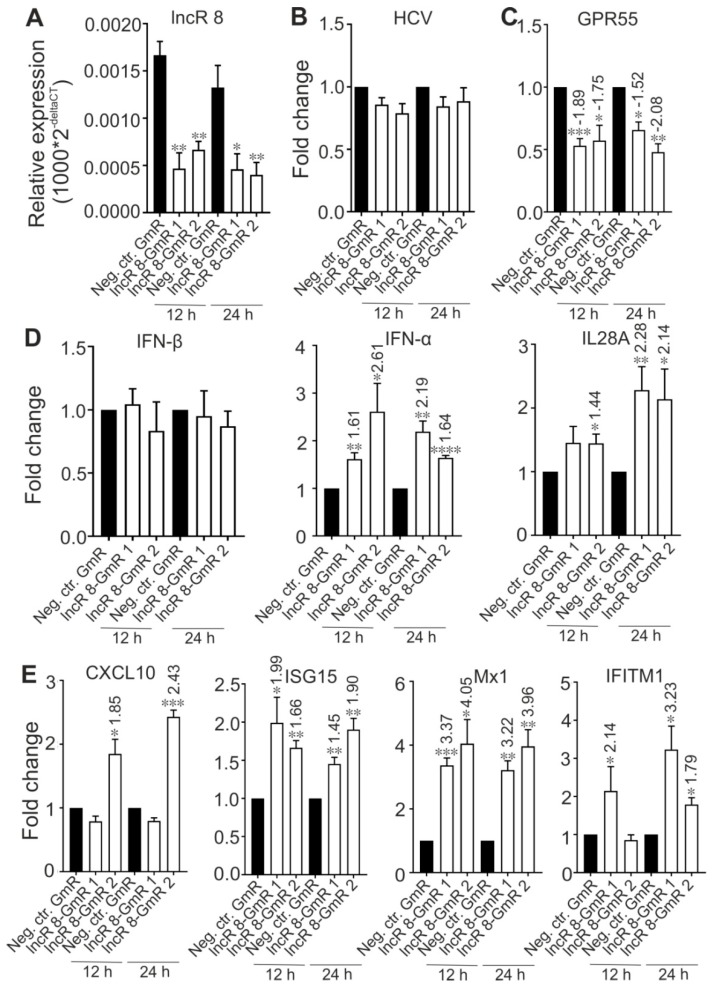

3.5. LncR 8/Lnc-ITM2C-1 Is a Short-Term Cis-Acting Regulator of Its Neighbor GPR55
Previous studies showed that lncRNAs can regulate neighboring genes [47]. The genes for Integral Membrane Protein 2C (ITM2C) and G protein-coupled receptor 55 (GPR55) are within 10 kb distance of lncR 8 in the genome (Figure 4A). To gain further insight into the regulatory mechanism of lncR 8, we evaluated the expression of neighboring genes at 6 days after HCV RNA transfection as well as 2 days after lncR 8 suppression in Huh-7.5 cells. Though ITM2C was identified with high expression level in HCV-induced HCC tissues compared to HCV-induced HCC non-tumor liver tissues [48], we found only a very mild increase of ITM2C induced by HCV replication in Huh-7.5 cells (Figure 4B). Furthermore, no change of ITM2C mRNA levels was observed after lncR 8 knockdown (Figure 4C). This rules out a cis-regulatory activity of lncR 8 on ITM2C during HCV replication.
The mRNA expression of the other neighboring gene GPR55 was not significantly altered after 6 days of HCV replication (Figure 4B). HCV triggered lncR 8 expression but did not change GPR55 expression after 6 days, on first glance arguing against a correlation between lncR 8 and GPR55. However, lncR 8 knockdown suppressed GPR55 expression at 48 h post GmR and HCV treatment in Huh-7.5 cells (Figure 4C). In addition, samples after lncR 8-GmRs treatment and further HCV transfection for 12 h and 24 h were examined. Downregulation of GPR55 mRNA levels was also observed at these early time points when lncR 8 was suppressed efficiently (Figure 4D,E). These data strongly indicate a positive regulation of GPR55 by lncR 8 in HCV transfected cells. Considering the different time length in the experimental settings, we hypothesize that lncR 8 controls GPR55 at early times (12, 24, 48 h), while at late times (6 d) the effect of lncR 8 on GPR55 expression may be counteracted by other mechanisms. Taken together, the positive effect of lncR 8 on GPR55 by cis-regulation may act only within a short time period after HCV replication.

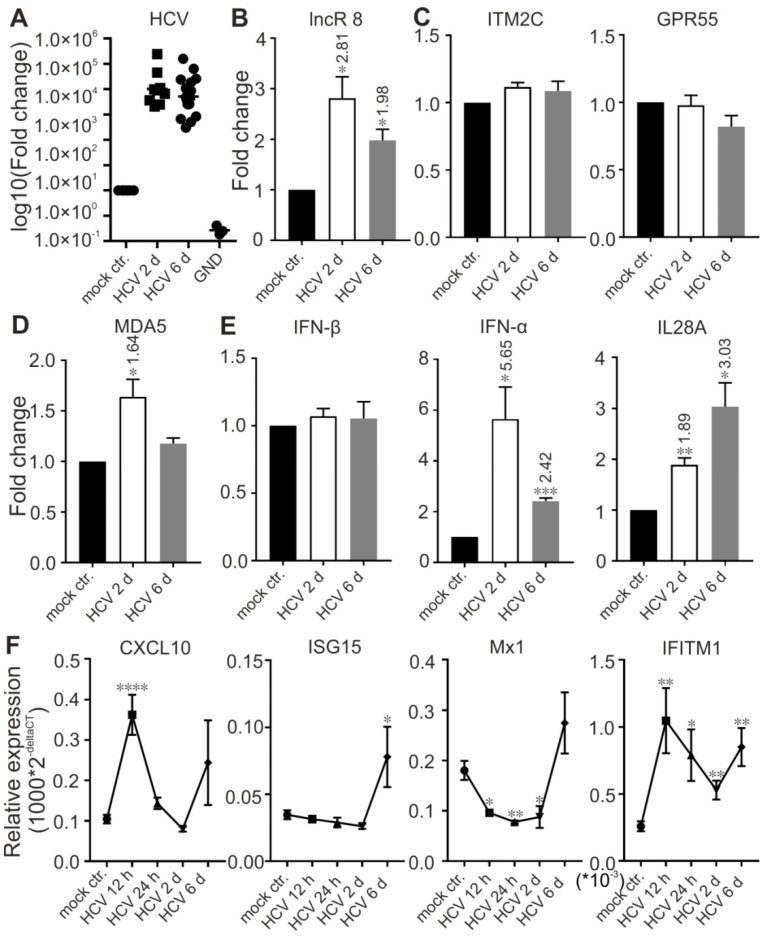

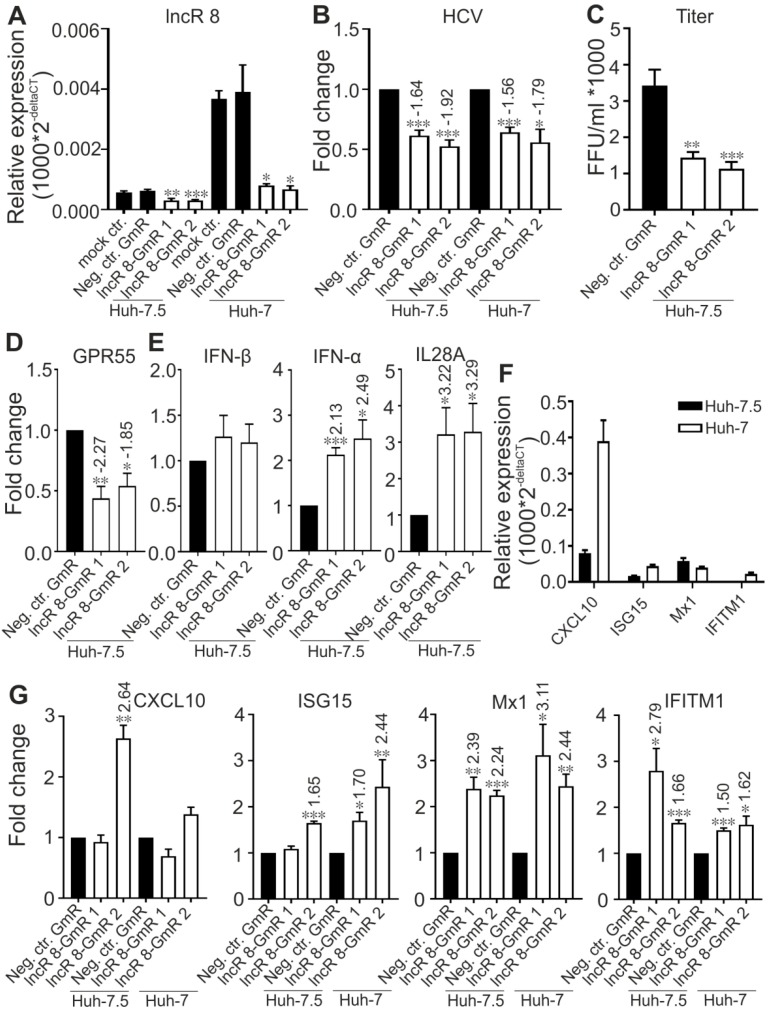

3.7. LncR 8/Lnc-ITM2C-1 Is Upregulated by HCVcc Infection and Facilitates HCV Infection
To understand the function of lncR 8 in real HCV infection, HCV infectious particles were prepared and used to infect Huh-7.5 cells at MOI of 0.3 for 12 h, 24 h,2 d, and 6 d. lncR 8 and MDA5 were upregulated by HCV infection for 2 d. However, this effect disappears at 6 d post infection (Figure 7B,D). IFN-β was not changed due to HCV infection, while another type I IFN, IFN-α, and type III IFN, IL28A, were upregulated at 2 d and 6 d post infection (Figure 7E). ISG15 and IFITM1 were upregulated at 6 d post HCV infection (Figure 7F), similar to that we observed after HCV RNA transfection (Figure 5A). At earlier time, IFITM1 expression level was also increased due to HCV infection, while CXCL10 was only induced at 12 h post HCV infection, and Mx1 was downregulated after HCV infection for 12 h, 24 h, and 2 d but increased only after 6 d.

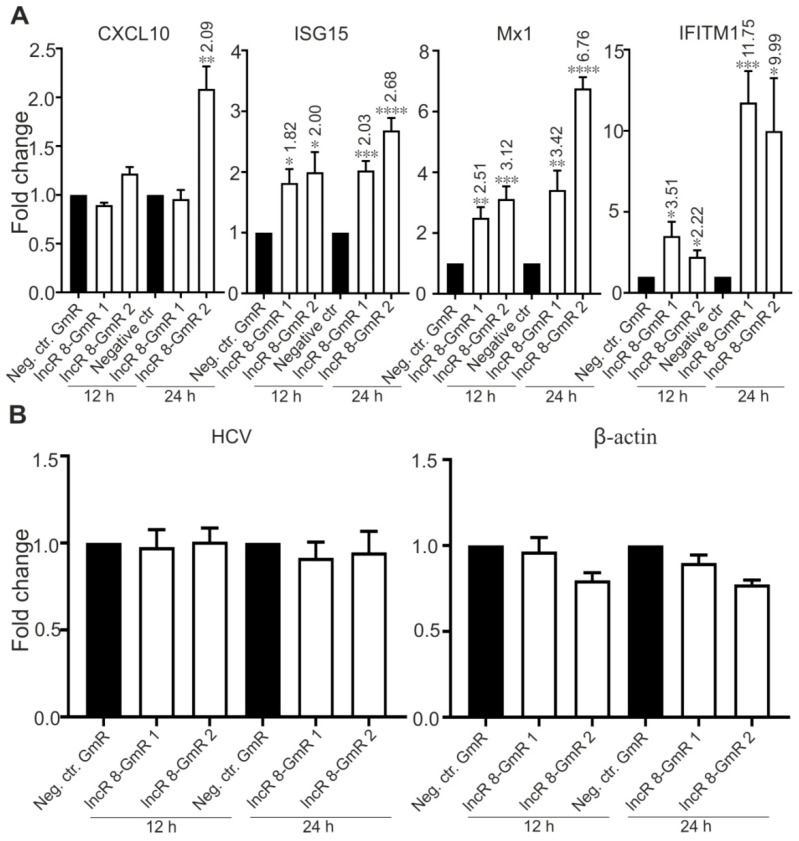

In cells first treated with GmR for 24 h and then infected with HCV for 48 h, HCV viral genome and titer was decreased in samples when lncR 8 was decreased by GmRs (Figure 8A–C). Representative ISGs were upregulated in HCV infected cells with lncR8-GmR treatment compared to negative control (Figure 8G). Similar upregulation of ISGs and downregulation of HCV NS3 expression by lncR 8 knockdown were also observed in Huh-7 cells (Figure 8B,G). Similar to the results observed when treated with HCV in vitro transcribed RNA (Figure 6A), the upregulation of ISGs expression was observed early at 12 h post GmR treatment and HCV infection (Figure 9E), while the downregulation of HCV RNA only occurred at 48 h, indicating that the downregulation on ISGs expression by lncR 8 happened earlier than the downregulation on HCV infection. GPR55 was downregulated by lncR 8 knockdown at all the time points we tested (Figure 8D and Figure 9C), similar to what we observed when cells were transfected with HCV RNA (Figure 4C,E). Though IFN-β was not influenced by lncR 8 change at the time points we tested, both IFN-α and IL28A were upregulated by lncR 8 inhibition in Huh-7.5 cells (Figure 8E and Figure 9D). Taken together, lncR 8 is positively regulated by HCV and has a role in stimulating HCV replication by suppression of interferon responses.

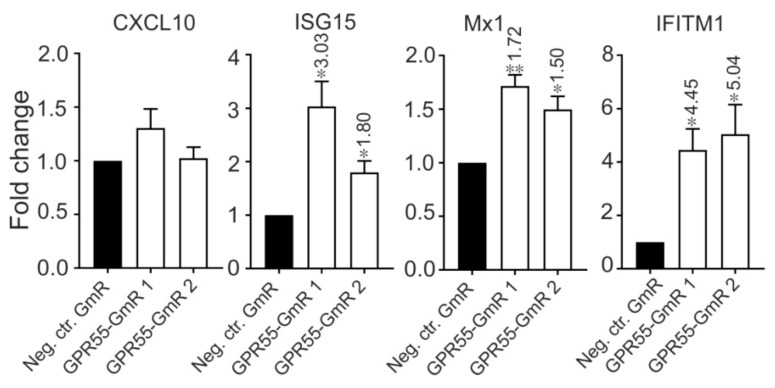

3.8. GPR55 Negatively Regulates ISGs
Since both GPR55 and ISGs are negatively regulated by lncR 8, it is interesting to know whether there is a correlation between GPR55 and ISGs. Therefore, GPR55 expression was inhibited by two different GmRs in Huh-7.5 cells for 48 h. Suppression of GPR55 promotes the expression of ISG15, Mx1, and IFITM1 (Figure 10). This finding provides a possible link between lncR 8 and ISGs expression.

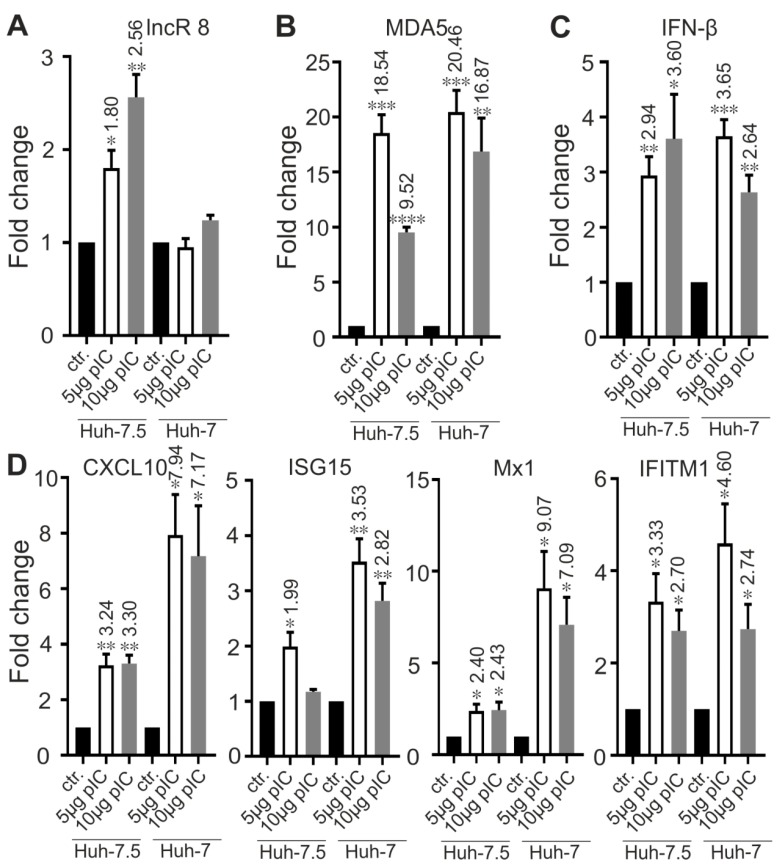

3.9. LncR 8/Lnc-ITM2C-1 Is Induced by polyIC
Poly(I:C) is a synthetic analog of double-stranded RNA (dsRNA), a molecular pattern associated with viral infection that induces the innate immune response. When Poly(I:C) was used to treat Huh-7.5 and Huh-7 cells, increasing expression level of ISGs were observed in both cells. lncR 8 was upregulated in Huh-7.5 cells (Figure 11A), which suggests that lncR 8 is not induced specifically by HCV. However, lncR 8 was not changed after poly(I:C) treatment in Huh-7 cells (Figure 11A), indicating different responses in these two cells. Poly(I:C) is known to trigger MDA5-mediated interferon signaling [50]. MDA5 and IFN-β showed upregulation both in Huh-7.5 and Huh-7 cells treated with poly(I:C) (Figure 11B,C). Relatively lower levels of ISGs were induced by poly(I:C) treatment in Huh-7.5 cells compared to that in Huh-7 cells (Figure 11D), which is consistent with both the general induction of ISGs in the cells and the higher permissiveness of Huh-7.5 cells for HCV replication compared with Huh-7 cells.

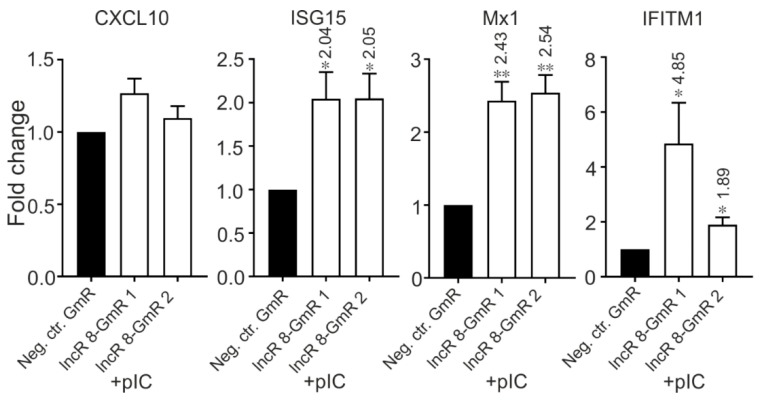

Importantly, when Huh-7.5 cells were treated with poly(I:C) in combination with lncR 8 GapmeRs for lncR 8 knockdown for 8 h, the ISGs showed increased expression level even compared with control cells with only poly(I:C) treatment (Figure 12). This shows that lncR 8 negatively regulates representative ISGs expression when poly(I:C) was used instead of HCV.

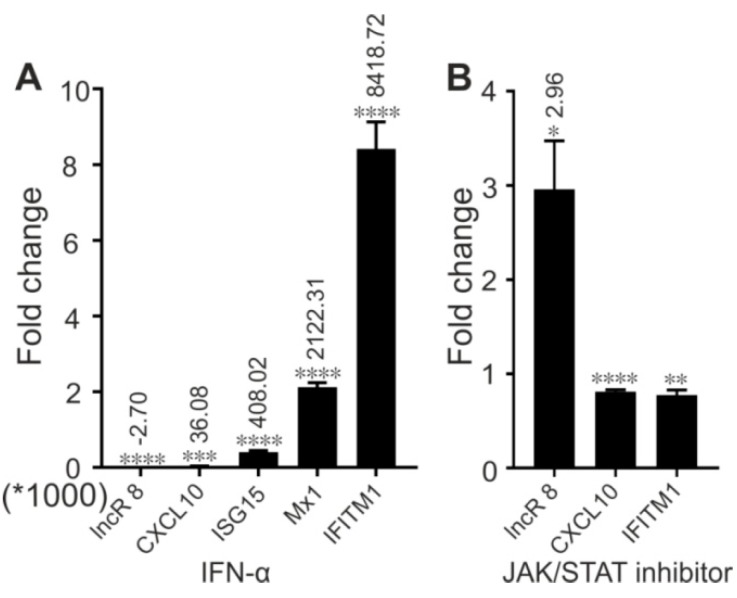

3.10. LncR 8/Lnc-ITM2C-1 Is Downregulated by JAK/STAT Pathway
To learn whether lncR 8 is an ISG, which can be induced by IFN-α, like other known lncRNAs, Huh-7.5 cells were treated with IFN-α and collected after 8 h. qRT-PCR results show that lncR 8 was negatively regulated by IFN-α (Figure 13A). To determine whether the negative regulation of lncR 8 by IFN-α is dependent on JAK-STAT pathway, we treated the Huh-7.5 cells with or without the JAK inhibitor, ruxolitinib, followed by IFN-α treatement. Increased lncR 8 expression was observed when ruxolitinib was added (Figure 13B), indicating that lncR 8 is not an ISG but is negatively regulated by the immune response through the JAK-STAT signaling pathway.
4. Discussion
By using microarray assays, 68 transcripts showed altered expression level upon HCV treatment in Huh-7.5 cells (log fold change > 2, log10P value > 2) (Figure 1D). Compared to the lncRNAs identified in the study of Carnero and coworkers [29], the number we obtained is much lower. Surprisingly, among the 68 altered candidates, no overlapping genes were found between these two studies (Carnero et al., 2016) (Figure 1F,G). It is reasonable to believe that the different experimental conditions in these two studies are the major reason for this difference. Consistent with other previous studies, the coding genes we identified as HCV-upregulated (Figure 1G), like wingless-type MMTV integration site family member 10A (WNT10A), dual specificity phosphatase and pro isomerase domain containing 1 (DUPD1), and fibroblast growth factor 21 (FGF21), were previously described to be upregulated by HCV [51,52,53]. Phosphatidylinositol-4-phosphate 3-kinase catalytic subunit type 2 gamma (PIK3C2G) is required for HCV replication [54]. Downregulated leukocyte cell-derived chemotaxin 2 (LECT2) is a direct target of Wnt/β-catenin signaling in HCC and could be a potential biomarker of HCC in patients [55,56]. Thus, our findings of most coding genes we identified are conformed to previous studies. In contrast, not in line with previous data and also not consistent with our qRT-PCR results [14], ISGs CXCL10, ISG15, Mx1, and IFITM1 were not found to be deregulated in the microarrays. MDA5, which is the main sensor in RIG-I defective Huh-7.5 cells [50], was not detected to be differentially regulated in the microarrays (data not shown). Known lncRNAs like GAS5 and EGOT did not show changes due to HCV replication, which is in contrast to previous studies [22,29]. Despite the different experimental settings, the discrepancy between our microarray results with previous studies and our qRT-PCR results can be caused by several other factors. In the first place, low abundancies of lncRNAs could cause high variance of sequencing results [13]. Perhaps even more importantly, low reproducibility of microarray results can occur when experiments are performed by different laboratories, or in the same laboratory but not in a close time period [57]. Adequate number of biological replicates is needed to exclude major sources of variances and exert reliable biological effects [57,58,59]. Except for what mentioned above, different sequencing methods could also lead to largely different results, like the candidates that were obtained by next generation sequencing (NGS) in our recently published paper [60].
Nevertheless, four lncRNA candidates identified by microarray assays, lncRs 3, 7-2, 8, and 10, were verified by qRT-PCR to be HCV-upregulated lncRNAs (Figure 2A). We performed knockdown experiments of lncRNAs to address their effect on HCV replication. Suppressing lncRs 3, 7-2, and 10 did not change the expression of HCV RNA genome, except that lncR 3-GmR 2 induced a moderate increased level of HCV RNA (Figure 3B). Upregulation of HCV protein expression was observed after knockdown of lncR 7 by two GmRs (Figure 3C). These results pointed out an antiviral role of lncR 7-2 by negatively regulating HCV translation, but not replication. In addition, the presence of lncR 7-2 in both nucleus and cytoplasm fractionation (Figure 2B) indicates that lncR 7-2 may regulate mRNA stability or translation, protein transport or post-translational modifications, in addition to regulation of nuclear events [41,42]. Previously, lncR 7-2 was reported to be a direct target of Notch and was positively regulated in T-cell acute lymphoblastic leukemia [61]. Since hepatitis C virus NS3 protein can activate the Notch-signaling pathway [62], upregulated lncR 7-2 may be the result of the activated Notch pathway that was induced by HCV. Further investigation is still needed to decipher the regulation mechanism of lncR 7 by HCV.

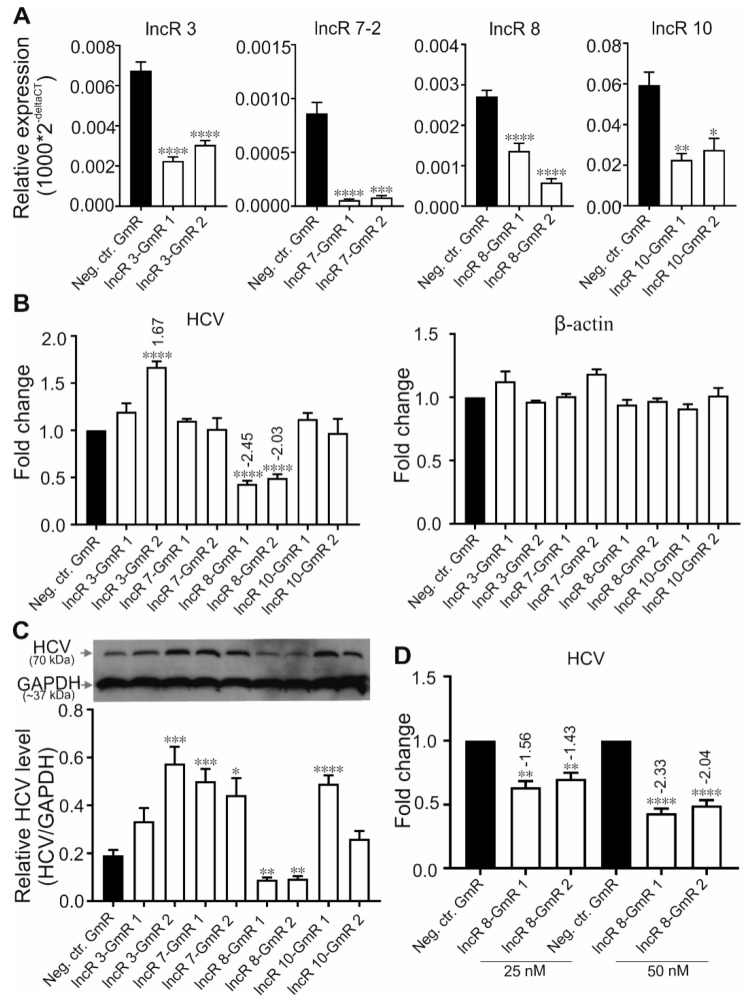

In contrast, lncR 8 suppression with two independent GmRs consistently decreased HCV genomic RNA and protein production (Figure 3B,C), indicating that lncR 8 is required for HCV replication in Huh-7.5 cells. In this study, we further investigated lncR 8. LncRNAs can often regulate their neighboring genes in cis, so we examined the expression of nearby genes, ITM2C and GPR55. GPR55 was downregulated after lncR 8 suppression at 12, 24, and 48 h in HCV-transfected cells (Figure 4C,E), though this regulation was apparently not maintained at later times since no change of GPR55 expression was observed when lncR 8 was upregulated 6 days post HCV replication (Figure 2A and Figure 4B). Thus, lncR 8 may regulate GPR55 by cis-regulation only within a short period after HCV replication. Similar results were observed when cells were infected with HCV virus instead of RNA transfection (Figure 7C, Figure 8D and Figure 9C).

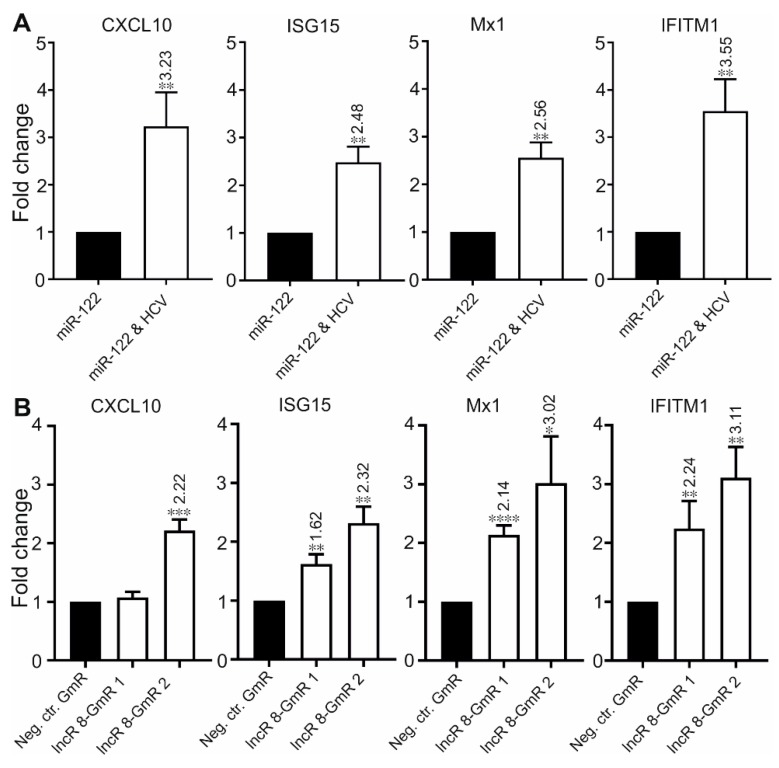

To elucidate the mechanism of proviral activity of lncR 8, ISGs expression were examined after lncR 8 suppression. Surprisingly, two selected ISGs in this study, Mx1 and IFITM1, were upregulated after lncR 8 knockdown in both HCV RNA transfected and virus infected Huh-7.5 cells (Figure 5B and Figure 8G). This suggests that lncR 8 negatively regulates Mx1 and IFITM1 during HCV replication and infection. Moreover, the negative effect of lncR 8 on ISGs was also observed at early times when HCV RNA genome abundance was not yet changed (Figure 6A,B and Figure 9E), suggesting that the HCV suppression was probably caused by ISGs increase induced by lncR 8 knockdown. HCV infection of Huh-7.5 cells for 2 days triggered increase of lncR 8 expression compared to uninfected cells, while this regulation was not observed in cells infected with HCV for 6 days. Interestingly, though HCV RNA transfection can induce increased ISGs expression despite of the negative regulation of lncR 8 on ISGs (Figure 5A), HCV infection did not trigger increase of CXCL10 and Mx1 in Huh-7.5 cells (Figure 7F). Since transfection sends the HCV RNA directly into the cells, successfully bypassing the membrane recognition and fast immune response induced by membrane receptors, this may lead to longer survival time of HCV replication. Furthermore, it is RIG-I but not MDA5 that recognize in vitro transcribed RNAs in the cytosol [63], while MDA5 is crucial for interferon production against the infection of picornaviruses [64]. It is worth noting that Huh-7.5 cells have impaired RIG-I pathways. Thus, HCV RNA added through transfection failed to be recognized by RIG-I in the Huh-7.5 cells cytosol. Taken together, these findings may explain, on the one hand, the presence of lncR 8 induction in Huh-7.5 cells transfected with HCV RNA and, on the other hand, the absence of lncR 8 induction in cells infected HCV virus at later time points. This may directly lead to the upregulation of ISGs levels in HCV transfected cells, and unaffected level of ISGs mRNA in HCV infected cells. Similar upregulation of ISGs and downregulation of HCV NS3 expression by lncR 8 knockdown were also observed in Huh-7 cells (Figure 8A,G), indicating that lncR 8 is also required for HCV infection in Huh-7 cells and this regulation is independent of RIG-I.

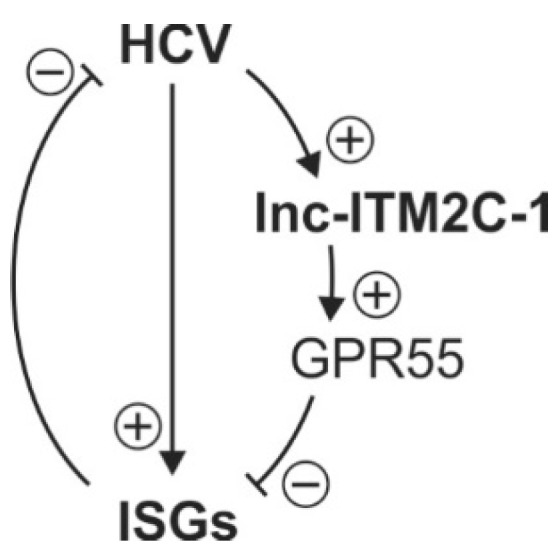

Considering the different chromosome locations of ISGs and lncR 8, the negative regulation on ISGs by lncR 8 must occur through a trans-acting mechanism, which resembles the effect of EGOT and lncRNA-CMPK2/NRIR on HCV [15,29]. Enrichment of lncR 8 in the nucleus (Figure 2B) suggests that the regulation on ISGs could be through regulation of a nuclear event like transcriptional regulation, epigenetic DNA/chromatin modification, or control of pre-mRNA splicing [14,42,47]. To elucidate the possibility that lncR 8 regulates ISGs through its neighboring gene GPR55, GPR55 was inhibited by two different GmRs in Huh-7.5 cells for 48 h. Interestingly, suppression of GPR55 promotes the expression of ISG15, Mix1, and IFITM1 (Figure 10). This finding provides a possible link between lncR 8 and ISGs expression, indicating that lncR 8 favors HCV replication by regulating its neighboring gene GPR55, which in turn negatively regulates expression of ISGs (Figure 14). Recently, GPR55 has gained much attention due to its activation by endogenous cannabinoids (EC) and a proinflammatory role in innate immunity [65,66,67]. ECs have been associated with fibrosis progression in HCV-infected patients [68]. On the other hand, elevated levels of ECs were reported in plasma of patients with chronic hepatitis C and indicated potential immunosuppressive and profibrogenic roles [69]. GPR55 is a third cannabinoid receptor which is novel because it is different from the other two classical receptors, CB1 and CB2 [67]. High levels of GPR55 were found in monocyte and natural killer (NK) cells. GPR55 enhances IL-12 and TNF-α production in monocytes and stimulates signature cytokines as well as cytolytic activity in NK cells [66]. While the detailed function of GPR55 during HCV replication remains to be determined, the involvement of GPR55 in the negative regulation of ISGs by lncR 8 indicates a potential anti-inflammatory role of GPR55 and lncR 8 during early HCV replication.
Unlike other lncRNAs that can be induced by IFN-α, lncR8 is negatively regulated by IFN-α (Figure 13A) through the JAK-STAT pathway (Figure 13B). We speculated that lncR 8 is normally maintained at low expression level because of IFN-α inhibition. However, we know that irrespective of persistent immune and inflammatory response induced by HCV in vivo, HCV survives in the infected cell. This indicates that HCV develops strategies to bypass the immune response, i.e. release lncR 8 from the control of IFN-α. The innate immune response is insufficient to control viral replication. In the battle of HCV and host cells, increased levels of ISGs should be induced by the immune response against HCV. Most ISGs function by increasing the antiviral response or by inhibiting viral replication. Nevertheless, lncR 8 induced by HCV helps HCV replication by positively regulating its neighboring gene GPR55, which in turn negatively regulates ISGs, like ISG15, Mx1, and IFITM1, at early time points. By this mechanism, lncR 8 may contribute to the failure of interferon action and elimination of ongoing HCV infection. Despite of the upregulation of lncR 8 after HCV infection, the IFITM1 level was still increased at early times (Figure 7F), indicating an involvement of other regulation factors. Though further studies will be required to elucidate the underlying mechanisms, our study benefits a better understanding of lncRNAs in the HCV-host battle.
Acknowledgments
We thank Ralf Bartenschlager (Heidelberg, Germany) for the Jc1 clone, Charles M. Rice (New York, USA) for Huh-7.5 cells, and Selena Guggenberger and Tim Schneider (Giessen, Germany) for experimental help.
Supplementary Materials
The following are available online at https://www.mdpi.com/1999-4915/11/6/549/s1, Figure S1: Materials related to Figure 3A. Figure S2 (related to Figure 1C, Figure 2A, Figure 4B and Figure 5B). ISGs were upregulated after HCV transfection. (A) HCV NS3 level, (B) lncR 8, (C) lncR 8 neighboring genes ITM2C and GPR55, and (D) indicated ISGs in samples treated as described in Figure 1 but without miR-122 were measured 6 days after HCV transfection. qRT-PCR data was normalized to GAPDH. The data are shown as the mean ± SEM of at least three independent experiments. * p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001, and **** p ≤ 0.0001.
Funding
This research was funded by a Land Hessen LOEWE grant (Medical RNomics) (P.H. and M.N.), Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) – Project Number 197785619 – SFB 1021 (J.W., G.K.G., L.A.S., and M.N.), and ECCPS/DZL (J.W.).
Conflicts of Interest
The authors declare no conflict of interest.
