Biosynthesis of the Novel Endogenous 15-Lipoxygenase Metabolites N-13-Hydroxy-octodecadienoyl-ethanolamine and 13-Hydroxy-octodecadienoyl-glycerol by Human Neutrophils and Eosinophils
1Centre de Recherche de l’Institut Universitaire de Cardiologie et de Pneumologie de Québec, Faculté de Médecine, Université Laval, Québec City, QC G1V 4G5, Canada; Anne-Sophie.archambault@criucpq.ulaval.ca (A.-S.A.); FrancescoTinto88@gmail.com (F.T.); Elizabeth.Dumais@criucpq.ulaval.ca (É.D.); Volatiana.Rakotoarivelo@criucpq.ulaval.ca (V.R.); cyril.martin@criucpq.ulaval.ca (C.M.); Melissa.Simard@criucpq.ulaval.ca (M.S.); Cristoforo.Silvestri@criucpq.ulaval.ca (C.S.); Michel.Laviolette@criucpq.ulaval.ca (M.L.); lpboulet@med.ulaval.ca (L.-P.B.); vincenzo.dimarzo@criucpq.ulaval.ca (V.D.)
2Canada Excellence Research Chair on the Microbiome-Endocannabinoidome Axis in Metabolic Health (CERC-MEND), Université Laval, Québec City, QC G1V 0A6, Canada
3Endocannabinoid Research Group, Institute of Biomolecular Chemistry, Consiglio Nazionale Delle Ricerche (CNR), 80078 Pozzuoli, Italy; m.kostrzewka@gmail.com (M.K.); rmvitale@icb.cnr.it (R.M.V.); aligresti@icb.cnr.it (A.L.)
4Institut sur la Nutrition et les Aliments Fonctionnels, Centre NUTRISS, École de Nutrition, Faculté des Sciences de L’agriculture et de L’alimentation, Université Laval, Québec City, QC G1V 0A6, Canada; pier-luc.plante.1@ulaval.ca
5Faculté de Pharmacie de l’Université Laval and Centre de Recherche en Organogénèse Expérimentale de l’Université Laval/LOEX, Axe Médecine Régénératrice, Centre de Recherche du CHU de Québec-Université Laval, Québec City, QC G1V 0A6, Canada; Roxane.Pouliot@pha.ulaval.ca
6Joint International Unit between the Consiglio Nazionale delle Ricerche (CNR), 80078 Pozzuoli, Italy
7Canada on Chemical and Biomolecular Research on the Microbiome and Its Impact on Metabolic Health and Nutrition (UMI-MicroMeNu), Université Laval, Québec City, QC G1V 0A6, Canada
*Correspondence: Nicolas.Flamand@criucpq.ulaval.ca; Tel.: +1-418-656-8711 (ext. 3733)Abstract
The endocannabinoids 2-arachidonoyl-glycerol and N-arachidonoyl-ethanolamine are lipids regulating many physiological processes, notably inflammation. Endocannabinoid hydrolysis inhibitors are now being investigated as potential anti-inflammatory agents. In addition to 2-arachidonoyl-glycerol and N-arachidonoyl-ethanolamine, the endocannabinoidome also includes other monoacylglycerols and N-acyl-ethanolamines such as 1-linoleoyl-glycerol (1-LG) and N-linoleoyl-ethanolamine (LEA). By increasing monoacylglycerols and/or N-acyl-ethanolamine levels, endocannabinoid hydrolysis inhibitors will likely increase the levels of their metabolites. Herein, we investigated whether 1-LG and LEA were substrates for the 15-lipoxygenase pathway, given that both possess a 1Z,4Z-pentadiene motif, near their omega end. We thus assessed how human eosinophils and neutrophils biosynthesized the 15-lipoxygenase metabolites of 1-LG and LEA. Linoleic acid (LA), a well-documented substrate of 15-lipoxygenases, was used as positive control. N-13-hydroxy-octodecadienoyl-ethanolamine (13-HODE-EA) and 13-hydroxy-octodecadienoyl-glycerol (13-HODE-G), the 15-lipoxygenase metabolites of LEA and 1-LG, were synthesized using Novozym 435 and soybean lipoxygenase. Eosinophils, which express the 15-lipoxygenase-1, metabolized LA, 1-LG, and LEA into their 13-hydroxy derivatives. This was almost complete after five minutes. Substrate preference of eosinophils was LA > LEA > 1-LG in presence of 13-HODE-G hydrolysis inhibition with methyl-arachidonoyl-fluorophosphonate. Human neutrophils also metabolized LA, 1-LG, and LEA into their 13-hydroxy derivatives. This was maximal after 15–30 s. Substrate preference was LA ≫ 1-LG > LEA. Importantly, 13-HODE-G was found in humans and mouse tissue samples. In conclusion, our data show that human eosinophils and neutrophils metabolize 1-LG and LEA into the novel endogenous 15-lipoxygenase metabolites 13-HODE-G and 13-HODE-EA. The full biological importance of 13-HODE-G and 13-HODE-EA remains to be explored.
1. Introduction
The endocannabinoids 2-arachidonoyl-glycerol (2-AG) and N-arachidonoyl-ethanolamine (AEA) are bioactive lipids mediating their effects mostly by activating the cannabinoid receptors CB1 and CB2. As such, they modulate several physiological responses, the most recognized ones being nociception, appetite, adipogenesis, and inflammation [1,2]. The levels of 2-AG and AEA are tightly regulated. As such, 2-AG is hydrolyzed into arachidonic acid (AA) by at least six lipases, notably the MAG lipase [3,4,5,6,7,8], while AEA is hydrolyzed into AA by the fatty acid amide hydrolases (FAAH)-1 and -2 and the N-acylethanolamine acid amidase (NAAA) [9,10,11]. Once hydrolyzed into AA, notably by leukocytes, 2-AG can be further metabolized into eicosanoids such as prostaglandins and leukotrienes [12,13,14]. Apart from being hydrolyzed into AA, 2-AG and AEA can also be directly metabolized by eicosanoid biosynthetic enzymes, the most documented metabolites being the cyclooxygenase-2-derived prostaglandins-glycerols (PG-G) and prostamides, respectively [15], as well as by CYP450 enzymes [16]. The 12- and the 15-lipoxygenase (LO) pathways were also shown to metabolize AEA and 2-AG into their 12-hydroxy and 15-hydroxy derivatives [17,18,19,20].
The 15-LO pathway is particularly relevant when investigating 2-AG, AEA, and their congeners from the monoacylglycerol and N-acyl-ethanolamine families. Indeed, human 15-LO-1 and 15-LO-2 metabolize numerous unsaturated fatty acids possessing a 1Z,4Z-pentadiene motif [20] and recent data indicate that additional N-acyl-ethanolamines are also metabolized by human 15-LOs. Indeed, LEA is notably metabolized into N-13-hydroxy-octoceaenoyl-ethanolamine (13-HODE-EA) by human recombinant 15-LO-1 and -2 [21], while N-docosahexaenoyl-ethanolamine (DHEA) is metabolized into 17-hydroxy-DHEA, 4,17-dihydroxy-DHEA, and 10,17-dihydroxy-DHEA by human neutrophils [22].
Human eosinophils and neutrophils express 15-LOs, eosinophils mainly expressing the 15-LO-1, and neutrophils mainly expressing the 15-LO-2 and/or possibly another LO [20]. As such, both leukocyte types biosynthesize 13(S)-hydroxy-octodecadienoic acid (13-HODE) from linoleic acid (LA) [20,23,24]. Moreover, human recombinant 15-LO-1 and 15-LO-2 can biosynthesize 13-HODE-EA from N-linoleoyl-ethanolamine (LEA) [21]. We thus postulated that 1-linoleoyl-glycerol (1-LG) would be metabolized into 13-hydroxy-octodecadienoyl-glycerol (13-HODE-G) and that eosinophils and neutrophils would biosynthesize 13-HODE-G and 13-HODE-EA in response to 1-LG and LEA, respectively. The chemical structures of 13-HODE, 13-HODE-G, and 13-HODE-EA are shown in Figure 1.
Herein, we show that (1) the synthesis of 13-HODE-G was obtained from 1-LG using a strategy similar to what we recently reported for 13-HODE-EA [21]; (2) human recombinant 15-LO-1 and -2 biosynthesized 13-HODE-G and 13-HODE-EA from 1-LG and LEA, respectively; (3) human eosinophils and neutrophils metabolize 1-LG and LEA into 13-HODE-G and 13-HODE-EA, respectively; (4) serine hydrolase inhibition with MAFP is required to evaluate the ability of leukocytes to biosynthesize 13-HODE-G and (5) 13-HODE-G can be detected in several human and mouse tissues but, is unable to activate the same receptors as 1-LG.
2. Materials and Methods
2.1. Materials
DMSO, Dextran, LC-MS grade MeOH, acetic acid, MeCN, water, and chloroform were purchased from Thermo Fisher Scientific (Ottawa, ON, Canada). HPLC water was purified with a Milli-Q system (Millipore, Oakville, ON, Canada). Lymphocyte separation medium was from Corning (Corning, NY, USA) and HBSS from Wisent Bioproducts (St-Bruno, QC, Canada). Methyl-arachidonoyl-fluorophosphonate (MAFP), linoleic acid, linoleoyl-glycerol, and linoleoyl-ethanolamine were purchased from Cayman Chemicals (Ann Arbor, MI, USA). Soybean lipoxygenase Type I-B, deuterated solvents, and all the reagents used for synthesis were purchased from Sigma Aldrich (Oakville, ON, Canada) unless otherwise specified and used without further purification. Anti-CD16 conjugated with MicroBeads and MACS columns were purchased from Miltenyi Biotec (Auburn, CA, USA).
2.2. Synthesis and Purification of 1-LG-d5
For the synthesis of 1-LG-d5, we followed a previously documented strategy involving the enzyme Novozym 435 [25]. In brief, LA and glycerol-d5 (0.2 and 0.6 mmol, respectively) were dissolved in tert-butanol (1.2 mL). Then, molecular sieves and Novozym 435 (24 mg, 40% w/w) were added to the mixture. The reaction was initiated by placing the mixture in a thermoconstant orbital shaker (New Brunswick Scientific™, Edison, NJ, USA) and shook at 200 rpm (5 h, 60 °C). This led to the synthesis of 0.18 mmol of 1-LG-d5. After cooling at room temperature, removal of the solvents was performed under reduced pressure. Purification of 1-LG-d5 was achieved by silica gel chromatography using CHCl3-MeOH (98:2, v/v).
2.3. Synthesis and Purification of 13-HODE-G and 13-HODE-G-d5
Our strategy to synthesize 13-HOGE-G (and 13-HODE-G-d5) was elaborated based on the fact that soybean lipoxygenase can transform N-linoleoyl-ethanolamine (LEA) into 13-HODE-EA [26], a process we could repeat [21]. In brief, 0.01 mmol of 1-LG or 1-LG-d5 was diluted in 100 mL of Na2B4O7 (50 mM, pH 12). The reaction was initiated by adding 20 mg of soybean lipoxygenase (0.2 mg/1 mL) and stirred for 15 min at room temperature. The hydroperoxides were then reduced by adding 2 mL of a freshly prepared sodium borohydride solution (1 M in ethanol). The solution was acidified by the dropwise addition of glacial acetic acid (500 µL over 1 min) and gently stirred 15 min until foaming stopped. The resulting reaction products were then extracted with 300 mL CHCl3, dried by adding Na2SO4, filtered, and concentrated in vacuo. The resulting residue was filtered over glass wool and purified by RP-HPLC as previously described [21] and showed a retention time of 9.0 min. The solvent was evaporated under vacuum and the purified product was weighted.
2.4. Characterization with 1D and 2D NMR
All products and synthetic intermediate structures were assigned using 1H, 13C, COSY, HSQC NMR spectra, and were recorded in 5 mm tubes on an Agilent 500 MHz DD2 system (Agilent NMR System, Santa Clara, CA, USA) with a OneNMR probe. 1H NMR and 13C NMR chemical shifts are referenced to residual protons in deuterated solvents. Multiplicities are reported as singlet (s), doublet (d), triplet (t), quintet (q), multiplet (m), broad (br), or overlapping (ov). Chemical shifts are reported in ppm. Coupling constants are reported in Hz. Protons were assigned using integrated 1H-NMR and 2D 1H, 1H-gCOSY spectra to detect correlation between neighboring protons. The quaternary carbon was determined using the 1D 13C experiments. Protons were then assigned to carbons using 2D 1H, 13C-HSQC spectra showing single through-bond relationships and CH were discriminated from CH2 and CH3 with crosspeaks of different colors.
2.5. Characterization with HR-ESI-MS/MS Spectrometry
High-resolution mass spectrometry was performed on a Thermo Orbitrap Fusion tribrid mass spectrometer (Thermo Scientific, Bremen, Germany) using a Chemyx F100T2 syringe pump (Chemyx Inc., Stafford, TX, USA) running at 5 uL/min. The mass spectrometer was operated in positive or negative ionization modes using the orbitrap detector at a resolution of 60,000. For CID, the collisional energy was set between 0 and 50 eV.
2.6. Enzymatic Assays
Recombinant human 15-LO-1 and 15-LO-2 enzymes were added to HEPES 25 mM + 0.01% Triton (14 μg/mL for 15-LO-1, 56 μg/mL for 15-LO-2). A total of 10 μM of the fatty acids were added to the buffer for 5 min (15-LO-1) or 15 min (15-LO-2), at 37 °C. The final volume of the reaction mix was 100 µL. After the incubation, 50 µL of NaBH4 1M was added to the reaction, for 5 min at 37 °C. The reactions were stopped by adding 0.5 mL of cold (−20 °C) methanol +0.01% acetic acid and kept at −30 °C until further processing.
2.7. Analysis of 13-HODE-G and 13-HODE-EA by LC-MS/MS
For tissues samples, ~10 mg of tissue was put in 500 µL of Tris Buffer, crushed with a pestle, mixed with 500 µL of cold (−20 °C) MeOH containing the internal standards, centrifuged at 10,000× g and the supernatant collected. All Samples were processed by adjusting the final volume to 1 mL (incubation buffer-MeOH mixture, 1/1, v/v plus the internal standards). Samples (1 mL) were acidified with 0.575% of acetic acid and mixed with 1 mL CHCl3. Samples were then vortexed for 1 min, then centrifuged at 3000× g for 5 min. The organic phase (lower phase) was harvested, dried under a stream of nitrogen and reconstituted with 25 μL of solvent A (H2O containing 1 mM of ammonium hydroxide and 0.05% of acetic acid) and 25 μL of solvent B (MeCN/H2O, 95/5, v/v containing 1 mM of ammonium hydroxide and 0.05% of acetic acid). A total of 40 μL of the samples were injected onto an HPLC column (Kinetex C8, 150 × 2.1 mm, 2.6 μm, Phenomenex, Torrance, CA, USA) and eluted at a flow rate of 0.4 mL/minute using a discontinuous gradient as described previously [27]. The HPLC system was interfaced with the electrospray source of a Shimadzu 8050 triple quadrupole mass spectrometer and mass spectrometric analysis was done in the negative or positive ion mode using multiple reaction monitoring for the specific mass transition of the metabolites (Table 1). 15-LO metabolites were quantified using calibration curves, as described before [20].
2.8. Isolation of Human Neutrophils and Eosinophils
Neutrophils and eosinophils were isolated from the peripheral blood of healthy volunteers as described before [28]. First, platelet-rich plasma was discarded by centrifugation and erythrocytes were sedimented using HBSS containing 6% of dextran. Then, granulocytes were separated from mononuclear cells using a discontinuous gradient with the Lymphocyte separation medium. Residual erythrocytes were removed by hypotonic lysis with sterile water. Eosinophils and neutrophils were separated using magnetic bead conjugated anti-CD16 and MACS column, according to the manufacturer’s instructions. Purity and viability were >95% and were assessed by Diff-Quick coloration and Trypan blue exclusion, respectively.
2.9. Cell Stimulations
Prewarmed (37 °C) suspensions of human neutrophils (5 × 106 cells/mL) or eosinophils (106 cells/mL) in HBSS containing 1.6 mM CaCl2 were incubated with 1 µM MAFP for 5 min before the addition of LA, 1-LG, or LEA for different times or concentrations (see legends of Figures 3–8). Adenosine deaminase (0.3 U/mL) was added to neutrophil suspensions 10 min before the addition of the stimuli in order to remove the inhibitory constraint that adenosine has on their numerous responses [29]. Incubations were stopped by adding one volume of cold (−20 °C) MeOH containing the internal standards (Table 1). Samples were then kept at −30 °C until further processing. Lipids were extracted and quantified by LC-MS/MS as described above.
2.10. CB1 and CB2 Binding Assays
The analysis of CB1 and CB2 receptor binding was performed exactly as described in [21].
2.11. Analysis of PPAR-α, PPAR-γ and TRPV1 Functional Activity
These assays we preformed exactly as described in [21].
2.12. Computational Analysis of PPAR-α Binding
13-HODE was retrieved from Pubchem (CID: 5282947). 13-HODE was then fully optimized using the GAMESS program [30] at the Hartree–Fock level with the STO-3G basis set and subjected to HF/6-31G*/STO-3G single-point calculations to derive the partial atomic charges using the RESP procedure [31]. Docking studies were performed with AutoDock v4.2 [32] by using the PPAR-α crystallographic structure (PDB ID: 2P54). Protein and ligands were processed with AutoDock Tools (ADT) package version 1.5.6rc1 [32] to merge non-polar hydrogens and calculate Gasteiger charges. Grids for docking evaluation with a spacing of 0.375 Å and 60 × 60 × 60 points, centered on the ligand binding site, were generated using the program AutoGrid v4.2 included in Auto-dock v4.2 distribution. A total of 100 molecular docking runs for each docking calculation were performed adopting a Lamarckian Genetic Algorithm (LGA) and the protocol already published [33]. Flexibility was used for all rotatable bonds of the docked ligands. For each docking run, the representative poses were selected on the basis of best binding energy values and visual inspection and underwent energy minimization with Amber16 package [34] using ff14SB version of AMBER ff14SB force field for the protein and gaff parameters for the ligand. To perform molecular dynamics simulations in solvent, the complexes were confined in TIP3P water periodic truncated octahedron boxes exhibiting a minimum distance between solute atoms and box surfaces of 10 Å, using the leap module of the AmberTools16 package. Molecular dynamics simulations were performed using a protocol published elsewhere [33]. Production runs were carried out for 100 ns. The cpptraj module of AmberTools16 and program UCSF Chimera v1.10.1 were used to perform molecular dynamics analysis and to draw the figures, respectively.
2.13. Ethics Committee Approval
This study was approved by the local ethics committee (Comité d’éthique de la recherche de l’Institut universitaire de cardiologie et de pneumologie de Québec-Université Laval) and all participants signed an informed consent form.
3. Results
3.1. Synthesis of 1-LG-d5, 13-HODE-G, and 13-HODE-d5
We recently developed a strategy to synthesize 13-HODE-EA and 13-HODE-EA-d4 from LEA and LEA-d4, respectively [21]. We basically applied a similar strategy to synthesize 1-LG-d5, 13-HODE-G-d5, and 13-HODE-G (Figure S1). First, we synthesized 1-LG-d5 with Novozyme435, given that this compound was not commercially available. This reaction was very efficient (~90% yield), and we confirmed the molecular structure of the latter using 1H and 13C NMR (Figures S2 and S3). We next performed the lipoxygenation of 1-LG and 1-LG-d5 using soybean lipoxygenase (Figure S1). The yield of this reaction was 30 and 40% for 13-HODE-G and 13-HODE-d5, respectively. 13-HODE-G (and 13-HODE-d5) was easily separated from 13-HODE by RP-HPLC and led to increased UV absorbance at 235 nm, indicating the formation of a conjugated diene. (Figure 2A). Of note, the elution peak of 13-HODE-G consisted of a mixture of the sn-2 and -1(3) isomers.
The structure of the conjugated diene of 13-HODE-G and 13-HODE-G-d5 were confirmed by NMR as cis-trans on the basis of the coupling constants at positions 9–12. Indeed, the value of J9–10 was 11.0 Hz, indicating the presence of a cis configuration double bond, whereas the coupling constant of J11–12 was 15.2 Hz, characteristic of trans geometry (Table 2, Figures S4, S5, S8 and S9).
In contrast to 1-LG-d5, for which the signal of H13 was visible, the same signal in the 1H-NMR spectra of 13-HODE-G was completely overlapped by the 2′-CH2 signal of the glycerol. Therefore, HSQC and COSY experiments were set up to elucidate the presence of the hydroxyl group bound to the C13. The HSQC data showed a direct correlation C13-H13 (δH 4.16 ppm, δC 72.9 ppm) and the value of the δC was typical of a carbon directly linked to hydroxyl group for the lipoxygenase metabolites (Figures S6 and S10). The COSY data showed crosspicks between H13-H14 (δH-13 4.20, δH-14 1.25) and H13-H12 (δH-13 4.20, δH-12 5.67), which led to define the exact position of the hydroxyl group on the C13 (Figures S7 and S11).

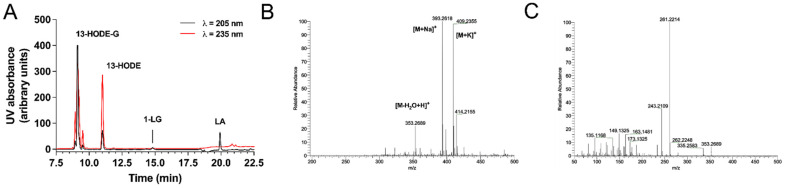

We next performed a high-resolution scan of 13-HODE-G. Positive electrospray ionization mass spectrometry (ESI+) of 13-HODE-G yielded three main cations, i.e., the protonated molecule with loss of water [M-H2O+H]+ at 353.2689, as well as sodium adduct [M+Na]+ at m/z 393.2618 and a potassium adduct [M+K]+ with K+ at m/z 409.2355 (Figure 2B). The collision-induced decomposition (CID) of the [M-H2O+H]+ ion at m/z 353.2689 yielded the predominant product ion at m/z 261.2213 ([13-HODE-G-H2O-glycerol]+), which is produced by loss of the hydroxyl group at C13 combined with the neutral loss of the glycerol (Figure 2C), as described for 2-AG [35].
3.2. Biosynthesis of 13-HODE-G by Human Recombinant 15-LO-1 and 15-LO-2
We next assessed whether human recombinant 15-LO-1 and 15-LO-2 could biosynthesize 13-HODE-G from 1-LG, given that 2-LG is rapidly isomerized into 1-LG in the presence of water and that the experiments were done in aqueous buffers. In these experiments, the LA-induced 13-HODE synthesis was used as positive control (Figure 3A,E).

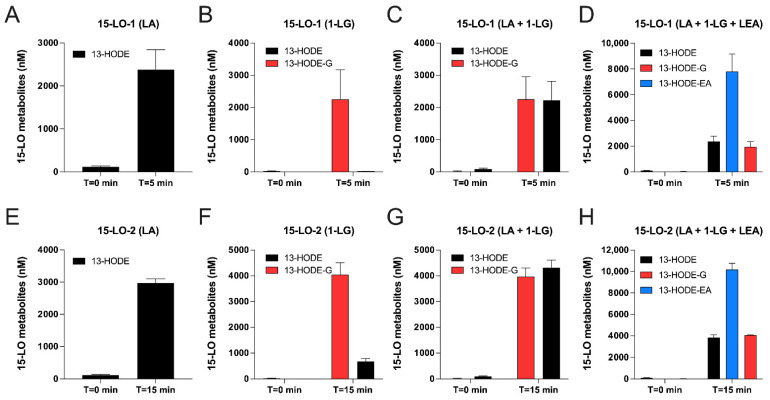

Both 15-LO-1 and 15-LO-2 biosynthesized 13-HODE-G from 1-LG (Figure 3B,F). At 10 µM 1-LG, the efficacy of the reaction was 23% for 15-LO-1 and 40% for 15-LO-2. Of note, the 13-HODE-G:13-HODE ratio was 1:1 for both enzymes, indicating that they metabolized 1-LG and LA to comparable levels. (Figure 3C,G). Given that both enzymes can also biosynthesize 13-HODE-EA from LEA [21], we also tested the impact of a combination of LA, 1-LG, and LEA on the biosynthesis of 13-HODE, 13-HODE-G, and 13-HODE-EA, respectively. The combination of LA, 1-LG, and LEA led to the biosynthesis of 13-HODE-EA > 13-HODE-G = 13-HODE for both 15-LO-1 and 15-LO-2 (Figure 3D,H). In these experiments, the incubation of 1-LG and/or LEA in absence of enzyme did not lead to the production of 13-HODE-G and/or 13-HODE-EA.
3.5. Substrate Preference of Eosinophils and Neutrophils

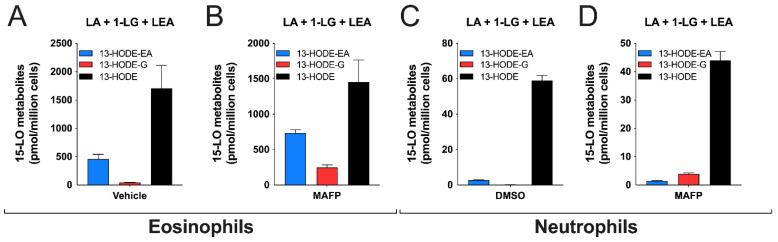

We recently showed that when investigating the biosynthesis of 15-LO metabolites by eosinophils and neutrophils, combining different substrates together does not drastically impact substrate preference vs. recombinant enzymes [20]. We thus performed another series of experiments in which we treated eosinophils and neutrophils from the same donors with a combination of LA, 1-LG, and LEA, at 3 µM each (Figure 8). Eosinophils were consistently better at converting the three substrates than neutrophils, with ~500 times more 13-HODE-EA, ~60 times more 13-HODE-G, and ~30 times more 13-HODE. Interestingly, the 13-HODE:13-HODE-EA:13-HODE-G ratio was 6:3:1 for MAFP-treated eosinophils and 30:1:3 for neutrophils, supporting the above finding that among the LA-containing lipids we tested, LA was most strongly metabolized by the two cell types.
3.6. Inhibition of 13-HODE-EA and 13-HODE-G Biosynthesis by BLX-3887 and NDGA

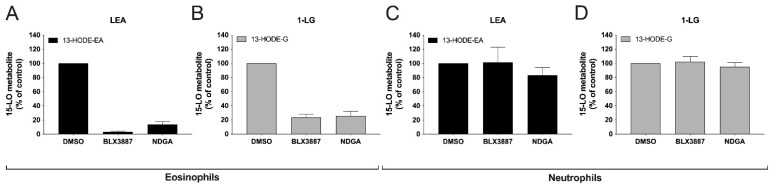

We next investigated if the biosynthesis of 13-HODE-EA and 13-HODE-G was the consequence of 15-LO-1 activity by performing a series of experiments in presence of the 15-LO-1-selective inhibitor BLX-3887 [38] or the LO inhibitor NDGA [39,40]. As expected, the treatment of eosinophils with BLX-3887 (10 µM) strongly inhibited the 1-LG-induced 13-HODE-G biosynthesis by ~75% and the LEA-induced 13-HODE-biosynthesis by ~95% (Figure 9A,B). In contrast, the incubation of neutrophils with BLX-3887 or NDGA did not inhibit the biosynthesis of the investigated 15-LO metabolites (Figure 9C,D). This was expected as we previously reported, as BLX-3887 and NDGA did not inhibit the biosynthesis of 15-LO metabolites from exogenously added fatty acids in neutrophils [20].
3.7. Detection of 13-HODE-G In Vivo
We previously documented that 13-HODE-EA was found in human saliva and skin samples [21]. While we could not detect 13-HODE-G in human saliva samples, we found this metabolite in human epidermis samples (21.9 ± 6.2 fmol/mg tissue, mean ± SEM, n = 5). Furthermore, 13-HODE-G was found in other tissues from mice, notably the gastrointestinal tract (Table 3), the liver and the adipose tissue [41], indicating that 13-HODE-G is also an endogenous mediator.
3.8. Binding Assays

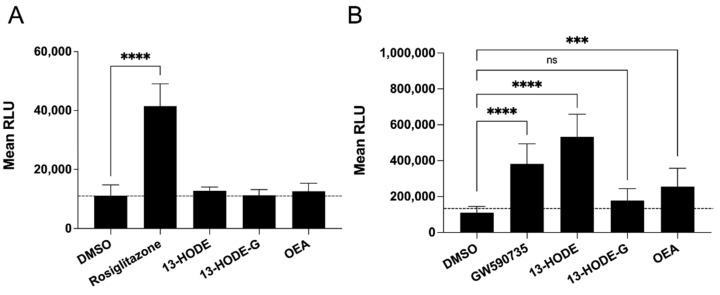

We next sought to determine whether 13-HODE-G could bind/activate receptors belonging to the endocannabinoidome, notably the CB1, CB2, and TRPV1, as well as PPAR-α and -γ. Given that 13-HODE-G appears to be rapidly hydrolyzed into 13-HODE (Figure 4, Figure 6 and Figure 8), we also tested the impact of 13-HODE in our different assays. To this end, we first performed binding assays for the CB1 and CB2 receptors. While 1-AG was bound to both receptors, 1-LG was only bound to the CB1 receptor. In contrast, neither 13-HODE nor 13-HODE-G exhibited any binding affinity for the CB1 and CB2 receptors up to 10 µM (Table 4). As for TRPV1, while 1-AG and 1-LG displayed functional activity toward this channel, neither 13-HODE-G nor 13-HODE activated that receptor again (Table 5). Finally, 13-HODE-G did not stimulate the transcriptional activity of PPAR-α or -γ, in contrast to robust effect of 13-HODE on PPAR-α (Figure 10B).
3.9. Theoretical Complex of PPARα with 13-HODE

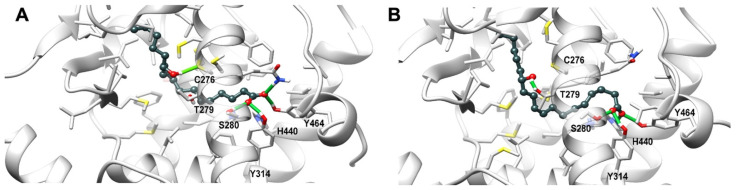

To get insight into the binding mode of 13-HODE into PPARα ligand binding domain (LBD) a molecular docking plus molecular dynamics simulations has been carried out. Two docking starting poses, i.e., pose I and pose II, sharing the orientation of the carboxylate group, which points toward the polar residues in the LBD, that is His440 (helix H10/11), Ser208 (Helix H3), and Tyr464 (helix H12), but differing in the conformation of the alkyl chain, were selected for the subsequent molecular dynamics simulations. The representative frames from molecular dynamics for each pose are shown in Figure 11. Both poses stably engages a network of H-bonds between the carboxylic group and His440 (helix H10/11), Ser208 (Helix H3), Tyr314 (helix H5), and Tyr464 (helix H12), a residue critical for a complete activation of PPAR-α, while the hydroxyl group forms a stable H-bond either with Cys276 or Thr279 (helix H3) sidechain in pose I and pose II, respectively (Figure 11). The alky chain is hosted in the hydrophobic pocket formed by the helix bundle and the β-sheet and wraps around helix H3 in a horseshoe conformation.
4. Discussion
Over the last forty years, several studies have been documenting that the 15-LO pathway participates in the biosynthesis of numerous oxylipins from various substrates. However, while it has been documented that 15-LO enzymes can metabolize the endocannabinoids 2-AG and AEA into 15-HETE-G and 15-HETE-EA, respectively [1,18,20,42], there is a knowledge gap regarding the biosynthesis of 15-LO-derived metabolites of other monoacylglycerols and N-acyl-ethanolamines, the lipid families to which 2-AG and AEA belong. In this regard, we recently documented the metabolism of the endocannabinoidome mediator LEA into 13-HODE-EA by human recombinant 15-LO-1 and 15-LO-2 [21]. In this study, we aimed at documenting if 1-LG could also be metabolized by the 15-LO pathway and if LEA and 1-LG could be metabolized by 15-LO-expressing leukocytes.
The data presented herein show that (1)1-LG and 1-LG-d5 can be synthesized using soybean LO into 13-HODE-G and 13-HODE-G-d5, respectively; (2) recombinant 15-LO-1 and 15-LO-2 have the ability to metabolize 1-LG into 13-HODE-G; (3) human eosinophils and neutrophils metabolize LEA into 13-HODE-EA and 1-LG into 13-HODE-G in a time- and concentration-dependent manner; (4) the biosynthesis of 13-HODE-G can only be correctly assessed in presence of the serine hydrolase inhibitor MAFP in both eosinophils and neutrophils; (5) in presence of an equal concentrations of substrates, the ratio of 13-HODE:13-HODE-EA:13-HODE-G biosynthesis was 6:3:1 in eosinophils and 30:3:1 in neutrophils; (6) the biosynthesis of the investigated 15-LO metabolites was blocked by the 15-LO-1 inhibitor BLX3887 in eosinophils but not in neutrophils; (7) 13-HODE-G is very weakly active or inactive at targets shown previously and here to be activated by its parent compound. 1-LG, i.e., CB1, CB2, TRPV1, and PPAR-α or -γ, whereas 13-HODE was found here to activate PPAR-α; and (8) 13-HODE-G was found in numerous tissues from mice and humans.
Odaneth and colleagues previously showed that stearoyl-glycerol synthesis was successfully achieved by performing an esterification using glycerol and stearic acid [25]. Herein, we adapted this strategy that was key for the synthesis of 1-LG-d5, the latter being commercially unavailable. This latter compound was then used here for the quantitative analysis of 1-LG by LC-MS/MS. The yield was very good (~90%) and 1-LG-d5 was easily separated from LA by RP-HPLC. In addition, we provide compelling evidence that soybean lipoxygenase allows the synthesis of 13-HODE-G and 13-HODE-G-d5 from 1-LG and 1-LG-d5, respectively. The yields of the reactions were lower, under the experimental conditions described, than what we reported for 13-HODE-EA (~45%; [21]). Indeed, the reaction of 1-LG with soybean lipoxygenase also led to the production of 13-HODE and LA, indicating that the basic conditions in which the reaction occurs (pH = 12), results in the chemical hydrolysis of 1-LG into LA and glycerol. Whether 13-HODE-G is hydrolyzed into 13-HODE under basic conditions has not been explored in depth to date. However, the detection of 13-HODE and LA in our reaction mixtures indicates that pH might be an important issue to consider, notably for the long-term storage of purified 13-HODE-G (and 13-HODE-G-d5).
The results obtained here with human recombinant 15-LO-1 and -2 data (Figure 3) indicated that both enzymes metabolize 1-LG and LA to the same extent. Interestingly, when added simultaneously, LEA was preferentially metabolized over LA and 1-LG by either enzyme. This finding is consistent with those of our previous publication, in which we observed a 13-HODE-EA/13-HODE ratio of ~3.5 for 15-LO-1 and ~3 for 15-LO-2 [21], and is also in agreement with the data from Ivanof et al. who found that human 15-LOs better oxidized AEA over AA [43]. While Ivanof also documented a slight preference of 2-AG vs. AA, we did not observe such preference for 1-LG vs. LA, under the conditions utilized. Further enzymatic experiments (Vmax and Km calculations) would be a key addition to further characterize the substrate preference of 15-LO-1 and 15-LO-2.

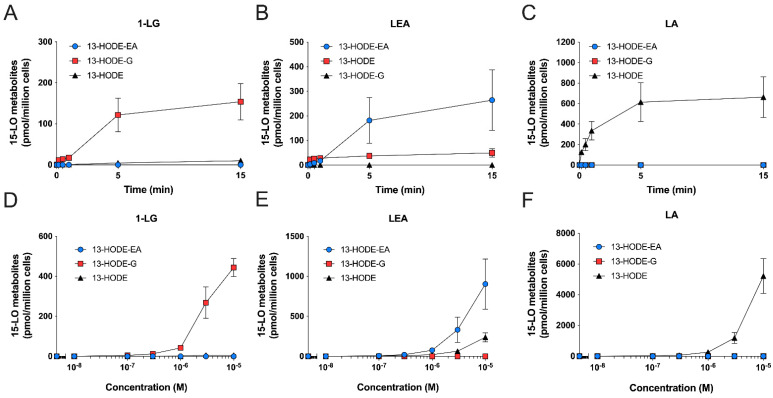

Human eosinophils and neutrophils biosynthesized 13-HODE-G in response to 1-LG in a time- and concentration-dependent manner (Figure 5 and Figure 7). This biosynthesis was dramatically enhanced by the serine hydrolase inhibitor MAFP in both cell types (Figure 4, Figure 6 and Figure 8). This was expected as we previously showed that the 15-LO metabolite of 2-AG, 15-hydroxy-eicosatetraenoyl-glycerol, was hydrolyzed to the same extent as 2-AG in both neutrophil and eosinophil suspensions, a phenomenon that was prevented by MAFP [36]. Herein, MAFP also diminished and or prevented the hydrolysis of 13-HODE-G and 1-LG by eosinophils and neutrophils (data not shown). This indicates that MAFP also interferes with the hydrolysis of both 1-LG and 13-HODE-G, and that preventing such a reaction increases the levels of these compounds in cellulo and possibly in vivo, as previously suggested [27,36].
Human eosinophils and neutrophils also biosynthesized 13-HODE-EA in response to LEA. This was not modulated by MAFP, in agreement with the inability of the latter to enhance the AEA-induced 15-HETE-EA biosynthesis [20]. However, different biosynthetic profiles were observed when comparing human eosinophils and neutrophils. Indeed, while LEA-stimulated eosinophils biosynthesized 13-HODE-EA and 13-HODE in a 5.3:1 ratio, LEA-stimulated neutrophils biosynthesized 13-HODE-EA and 13-HODE in 1:0.37 ratio (Figure 4 and Figure 6). The hydrolysis of 13-HODE-EA into 13-HODE is very unlikely the main cause of 13-HODE presence in LEA-treated neutrophils, as 13-HODE-EA was not hydrolyzed rapidly, with 60% remaining after 15 min. 13-HODE-EA was even more stable in our eosinophil preparation with 90% of the added 13-HODE-EA remaining after 15 min, although this difference might be the consequence of a lower cell concentration of eosinophils (106 cells/mL) vs. neutrophils (5 × 106 cells/mL). Another explanation for the presence of 13-HODE in these reactions is, therefore, that LEA is hydrolyzed into LA, and then metabolized into 13-HODE. However, the half-life of LEA and the production of LA was similar between neutrophils and eosinophils. Furthermore, when we incubated eosinophils with the 15-LO-1 specific inhibitor BLX-3887 and LEA, we inhibited the biosynthesis of 13-HODE-EA, but not that of 13-HODE, suggesting that the production of 13-HODE from LEA is not 15-LO-1-dependent. It was previously reported that LA can be oxidized into 13-HpODE, a precursor of 13-HODE, but this process was reported after longer incubations with LA than the 15 min time point we evaluated [44]. The incubation of eosinophils and neutrophils led to a small release of LA (150 and 30 pmol/million cells respectively) Thus, we cannot exclude that this 13-HODE production in LEA-treated neutrophils and eosinophils is the consequence of a non-enzymatic oxidation of LA nor can we exclude a potential role of the NAAA, which is not inhibited by MAFP.

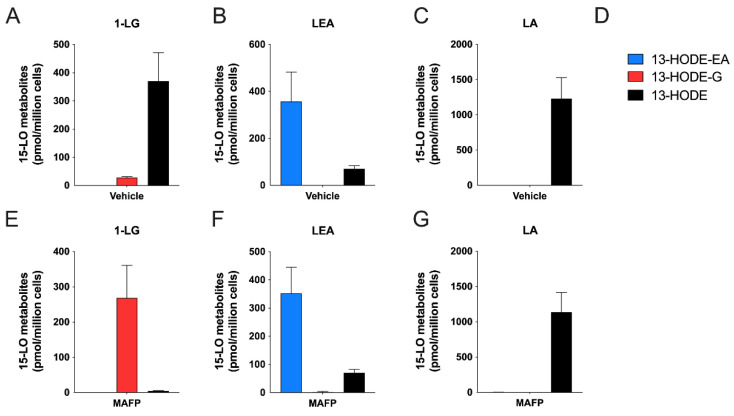

In experiments in which MAFP-treated human eosinophils were independently treated with LA, LEA, or 1-LG, they biosynthesized 13-HODE, 13-HODE-EA, and 13-HODE-G at a 4:1:1 ratio (Figure 4). When the experiments were repeated by simultaneously treating human eosinophils with a combination of LA, LEA, and 1-LG, the 13-HODE:13-HODE-EA:13-HODE-G ratio was 6:3:1 (Figure 8). This indicates that human eosinophils better metabolize LA vs. LEA and 1-LG. This finding was unexpected, as it is in sharp contrast with the data obtained with human recombinant 15-LO-1 (Figure 3). Interestingly, our kinetic experiments showed that in contrast to the LA-induced 13-HODE biosynthesis, the 1-LG-induced 13-HODE-G and the LEA-induced 13-HODE-EA biosynthesis were delayed by ~1 min (Figure 5). Such a delay was previously observed by our group when we compared the AA- and the 2-AG-induced leukotriene B4 biosynthesis in human neutrophils [13]. This raises the possibility that like 2-AG, 1-LG and LEA do not penetrate/diffuse into eosinophil cell membranes as rapidly as LA and that perhaps, a cellular membrane transporter is needed to shuttle 1-LG/LEA within the cells, compared to fatty acids. It could also indicate that 1-LG or LEA do not reach the cellular 15-LO-1-containing compartments as rapidly as LA.

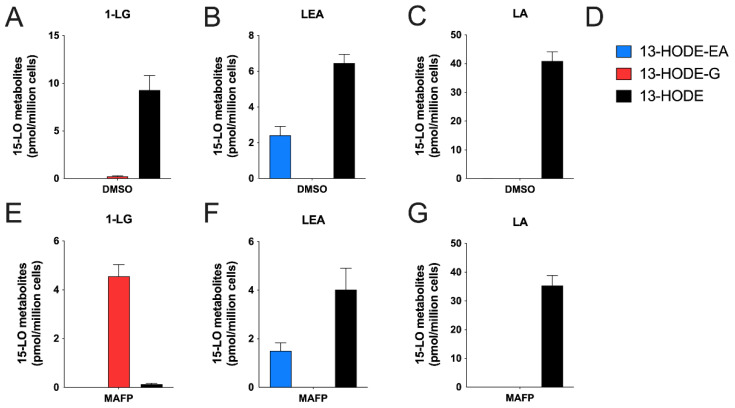

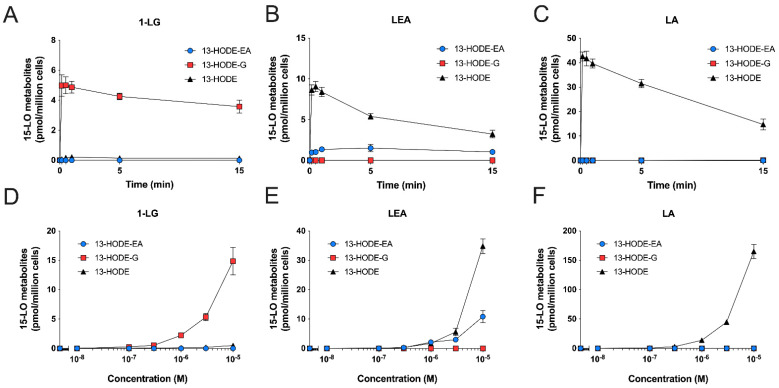

Human neutrophils also biosynthesized 13-HODE-G and 13-HODE-EA in response to 1-LG and LEA, respectively in a concentration-dependent manner. As for human eosinophils, MAFP was key for the assessment of 13-HODE-G biosynthesis. Moreover, LA was also a better substrate for neutrophils compared to 1-LG and LEA. Aside from these similarities, we also observed major differences between eosinophils and neutrophils. First, neutrophils produced around 100 times less 15-LO metabolites compared to eosinophils, in agreement with our previous study assessing the biosynthesis of 15-LO metabolites from fatty acids and endocannabinoids [20]. Second, the biosynthesis of 13-HODE, 13-HODE-G, and 13-HODE-EA was very rapid, reaching a maximal accumulation at 15 s and slowly decaying overtime (Figure 7), in contrast to eosinophils in which a delay was observed for the biosynthesis of 13-HODE-G and 13-HODE-EA. Furthermore, the biosynthesis of these mediators was not inhibited by the 15-LO-1 inhibitor BLX3887 (Figure 9). This is perfectly in line with our earlier study in which eosinophil-depleted neutrophils (which were also utilized herein) biosynthesized 15-LO metabolites, a phenomenon that was not prevented by 15-LO-1 inhibitors and poorly prevented by NDGA [20]. But again, we cannot exclude that the biosynthesis of 13-HODE, 13-HODE-G, and 13-HODE-EA by neutrophils is the consequence of a non-enzymatic oxidation of LA, 1-LG, and LEA respectively. Given that 15-LO-2 inhibitors are not commercially available, we did not investigate their involvement.
The binding/functional assays performed with a subset of endocannabinoidome-related receptors did not allow us to pinpoint which receptor is activated by 13-HODE-G, G, while we have previously shown that TRPV1 is a receptor for 13-HODE-EA [21]. Nonetheless, we found that 13-HODE is a good PPAR-α agonist, in agreement with a recent study from Kämmerer and colleagues [45]. This was also supported by the in silico analysis, where 13-HODE adopts a binding conformation in which the carboxylate group engages a network of stable H-bonds with the polar residue Ser280, Tyr314, His440, and Tyr464 sidechains, while the hydroxyl group is alternatively involved in a H-bond with Thr279 and Cys276 (Figure 11). The carboxylate H-bond network strongly contributes to the binding/activation of PPAR-α, an effect that is shared with canonical agonists, but hampered in 13-HODE-G, where the esterification by a glycerol moiety both deletes the negative charge and introduces steric clashes in the 13-HODE moiety arrangement. However, 13-HODE-G was found in almost all mouse tissues that we analyzed. Interestingly, we found that 13-HODE-G levels are reduced in the liver of ob/ob compared to db/db and lean mice [41], possibly suggesting its role in obesity-induced hepatic disorders (e.g., fatty liver and accompanying inflammation).
5. Conclusions
In conclusion, we have shown here that human eosinophils and neutrophils can metabolize 1-LG and LEA into the novel endogenous lipid mediators 13-HODE-G and 13-HODE-EA, respectively. This is the first study documenting the existence of 13-HODE-G and the ability of human neutrophils and eosinophils to biosynthesize this metabolite and its endogenous analogue, 13-HODE-EA. Deciphering the role of 13-HODE-G and 13-HODE-EA in heath and inflammatory diseases will be of interest, knowing that 15-LO-1 can be dysregulated in inflammation [46,47].
Acknowledgments
We would like to thank Hélène Villeneuve, Joanne Milot, and Johane Lepage for providing the blood samples. We also kindly thank Hans-Erik Claesson for providing the 15-LO-1 inhibitor BLX-3887 and Ted Holman for kindly providing human recombinant 15-LO-1 and 15-LO-2. ASA, ED, and NF are members of the Quebec Respiratory Health Research Network.
Appendix Group
Supplementary Materials
The following are available online at https://www.mdpi.com/article/10.3390/cells10092322/s1, Figure S1: Strategy to synthesize 1-LG-d5, 13-HODE-G and 13-HODE-G-d5, Figure S2: 1H-NMR in CDCl3 of 1-LG-d5, Figure S3: 13C-NMR in CDCl3 of 1-LG-d5, Figure S4: 1H-NMR in CDCl3 of 13-HODE-G, Figure S5: 13C-NMR in CDCl3 of 13-HODE-G, Figure S6: HSQC in CDCl3 of 13-HODE-G, Figure S7: COSY in CDCl3 of 13-HODE-G, Figure S8: 1H-NMR in CDCl3 of 13-HODE-G-d5, Figure S9: 13C-NMR in CDCl3 of 13-HODE-G-d5, Figure S10: HSQC in CDCl3 of 13-HODE-G-d5, Figure S11: COSY in CDCl3 of 13-HODE-G-d5.
Funding
This work was supported by grants to NF from The Natural Sciences and Engineering Research Council of Canada (RGPIN-2015-04728 and RGPIN-2021-03777) and The Joint International Research Unit for chemical and biomolecular research on the microbiome and its impact on metabolic health (UMI-MicroMeNu), which is funded by the Sentinel North Program of Université Laval. FT was supported by a postdoctoral award from the Joint International Research Unit on Chemical and Biomolecular Studies on the Microbiome and its Impact on Metabolic Health and Nutrition (MicroMeNu). ASA was supported by a PhD award from the Canadian Institutes of Health Research. ED and VR were supported by a Master and a postdoctoral award from the Québec Heart & Lung Institute Foundation respectively.
Institutional Review Board Statement
The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Ethics Committee of Centre de recherche de l’Institut Universitaire de Cardiologie et de Pneumologie de Québec.
Informed Consent Statement
Informed consent was obtained from all subjects involved in the study.
Data Availability Statement
The data presented in this study is contained within the article or supplementary material.
Conflicts of Interest
The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
| Lipid | Internal Standard Used | Q1 → Q3 | Retention Time (Min) | LLOQ (Fmol) |
|---|---|---|---|---|
| 13-HODE-d4 | - | 299.10 → 198.15 | 9.89 | - |
| 13-HODE-G-d5 | - | 358.00 → 261.30 | 8.76 | - |
| 13-HODE-EA-d4 | - | 326.30 → 66.20 | 7.72 | - |
| 13-HODE | 13-HODE-d4 | 295.5 → 277.30 | 9.94 | 25 |
| 13-HODE-G | 13-HODE-G-d5 | 353.20 → 261.2 | 8.80 | 25 |
| 13-HODE-EA | 13-HODE-EA-d4 | 322.00 → 62.2 | 7.76 | 25 |
| CARBON | 13-HODE-G (2) | |||
|---|---|---|---|---|
| N° | δ C (ppm) | δ H (ppm) | Features | J (Hz) |
| 1 | 174.3 | NA | NA | NA |
| 2 | 34.1 | 2.35 | t | 7.5 |
| 3 | 24.8 | 1.67–1.47 | 2H, br m | |
| 4 | 22.6 | 1.32 | m | |
| 5 | 28.9 | 1.32 | m | |
| 6 | 28.9 | 1.32 | m | |
| 7 | 28.9 | 1.32 | m | |
| 8 | 27.6 | 2.18 | m | |
| 9 | 132.8 | 5.44 | m | |
| 10 | 127.8 | 5.98 | t | 10.9 |
| 11 | 125.7 | 6.49 | dd | 15.2, 11.0 |
| 12 | 135.9 | 5.67 | dd | 15.2, 6.8 |
| 13 | 72.9 | 4.16 | 1H, overlapped m | |
| 14 | 37.3 | 1.67–1.47 | 2H, br m | |
| 15 | 29.7 | 1.32 | m | |
| 16 | 29.3 | 1.32 | m | |
| 17 | 25.1 | 1.32 | m | |
| 18 | 14.1 | 0.89 | t | 7 |
| 1’ | 70.3 | 3.93 | 1H, m | |
| 2’ | 65.2 | 4.16 | 2H, overlapped m | |
| 3’ | 63.3 | 3.65 | 2H, m | |
| Duodenum | Jejunum | Ileum | Caecum |
|---|---|---|---|
| 9746 ± 4360 | 4810 ± 2692 | 1165 ± 185 | 997 ± 317 |
| Compound | CB1 Receptor | CB2 Receptor | ||||
|---|---|---|---|---|---|---|
| IC50 (µM) | Ki (µM) | Max Tested (% Displacement) | IC50 (µM) | Ki (µM) | Max Tested (% Displacement) | |
| 13-HODE | >10 | >10 | 10 µM (7.56 ± 2.3) | >10 | >10 | 10 µM (38.34 ± 5.4) |
| 13-HODE-G | >10 | >10 | 10 µM (18.90 ± 6.1) | >10 | >10 | 10 µM (33.58 ± 21.3) |
| 1-AG | 1.32 ± 0.46 | 0.15 ± 0.05 | 10 µM (90.4 ± 1.3) | 1.02 ± 0.04 | 0.16 ± 0.01 | 10 µM (75.52 ± 2.4) |
| 1-LG | 2.81 ± 0.85 | 0.31 ± 0.15 | 10µM (95.8 ± 16.4) | >10 | >10 | 10 µM (28.45 ± 9.4) |
| Compound | Efficacy (% Max Response) | Potency (EC50 in µM) | Desensibilization 1 (IC50 in µM) |
|---|---|---|---|
| 1-AG | 58.9 ± 1.2 | 0.39 ± 0.03 | 1.1 ± 0.1 |
| 1-LG | 46.5 ± 0.9 | 0.23 ± 0.02 | 2.7 ± 0.3 |
| 13-HODE | < 10 | - | > 50 |
| 13-HODE-G | < 10 | - | > 50 |
