Deletion of Gpr55 Results in Subtle Effects on Energy Metabolism, Motor Activity and Thermal Pain Sensation
GPR55 Deficiency - Metabolism, Motor Activity & Pain
Discovery Sciences Transgenics, AstraZeneca R&D, Mölndal, Sweden
Cardiovascular and Metabolic diseases (CVMD) Innovative Medicines and early Development Biotech Unit, AstraZeneca R&D, Mölndal, Sweden
CVMD Translational Medicine Unit, Early Clinical Development AstraZeneca R&D, Mölndal, Sweden
Dept. of Molecular & Clinical Medicine, Inst. of Medicine, The Sahlgrenska Academy at Gothenburg University, Gothenburg, Sweden
Hospital Infantil Universitario Nino Jesus, SPAIN
* E-mail: Stephan.Hjorth@gu.seAbstract
The G-protein coupled receptor 55 (GPR55) is activated by cannabinoids and non-cannabinoid molecules and has been speculated to play a modulatory role in a large variety of physiological and pathological processes, including in metabolically perturbed states. We therefore generated male mice deficient in the gene coding for the cannabinoid/lysophosphatidylinositol (LPI) receptor Gpr55 and characterized them under normal dietary conditions as well as during high energy dense diet feeding followed by challenge with the CB1 receptor antagonist/GPR55 agonist rimonabant. Gpr55 deficient male mice (Gpr55 KO) were phenotypically indistinguishable from their wild type (WT) siblings for the most part. However, Gpr55 KO animals displayed an intriguing nocturnal pattern of motor activity and energy expenditure (EE). During the initial 6 hours of the night, motor activity was significantly elevated without any significant effect observed in EE. Interestingly, during the last 6 hours of the night motor activity was similar but EE was significantly decreased in the Gpr55 KO mice. No significant difference in motor activity was detected during daytime, but EE was lower in the Gpr55 KO compared to WT mice. The aforementioned patterns were not associated with alterations in energy intake, daytime core body temperature, body weight (BW) or composition, although a non-significant tendency to increased adiposity was seen in Gpr55 KO compared to WT mice. Detailed analyses of daytime activity in the Open Field paradigm unveiled lower horizontal activity and rearing time for the Gpr55 KO mice. Moreover, the Gpr55 KO mice displayed significantly faster reaction time in the tail flick test, indicative of thermal hyperalgesia. The BW-decreasing effect of rimonabant in mice on long-term cafeteria diet did not differ between Gpr55 KO and WT mice. In conclusion, Gpr55 deficiency is associated with subtle effects on diurnal/nocturnal EE and motor activity behaviours but does not appear per se critically required for overall metabolism or behaviours.
Data Availability
All relevant data are within the paper.
Introduction
Cannabinoids affect a large variety of physiological processes, including energy metabolism, appetite regulation, emesis and pain. Various cannabinoid molecules have been developed with aims to treat obesity, anorexia, neuralgia, inflammation, Parkinson’s and Alzheimer’s disease, epilepsy, cardiovascular disorders and cancer (reviewed in [1]). These multiple putative clinical indications suggest the existence of comprehensive and complex signalling systems for endogenous cannabinoid molecules (endocannabinoids) in peripheral tissues as well as in the central nervous system (CNS). GPCR′s identified that are activated by endocannabinoids, include the cannabinoid receptor 1 (CB1) [2, 3], 2 (CB2) [4], TRPV1 [5], GPR18 [6] GPR119 [7] and GPR55 [8].
Gpr55 is expressed in various tissues, including white adipose tissue, liver, adrenal glands, gastrointestinal tract, as well as in the hypothalamus, frontal cortex and other CNS structures [8–11]. The expression pattern together with previous literature supports a role for GPR55 in the regulation of components involved in the control of energy homeostasis, pain, motor function and behaviour [12–14].
Lysophophatidylinositol (LPI) is reported to be the main endogenous ligand for GPR55 [15], and other putative endogenous GPR55 ligands are also active on other receptors and channels in similar concentrations [16, 17]. Due to the lack of robust and specific GPR55 assays, there are no well-characterized ligands for this target. Hence, the biological role of GPR55 is not entirely clear. Gpr55 deficient mice have been developed and studied to understand the importance of the receptor in a variety of areas [18–21]. Wu et al. [14] reported that Gpr55 deficient mice do not display any gross abnormalities, and no significant effects were observed on body weight, grip strength nor on behaviour in models used to detect anxiolytic- or antidepressant-like action. However, these mice displayed a trend towards decreased horizontal activity in the open field test, and significantly shorter reaction time in the hot plate test, indicating thermal hyperalgesia [14]. Another recent study reported that Gpr55 deficient mice have unaltered body weight but when older (5–9 months) display increased fat mass and insulin resistance [12]. Moreover, this study also found that 5 months old Gpr55 deficient mice had unaltered energy intake and respiratory exchange ratio, but reduced energy expenditure and motor activity. Also, a number of other recent reports have pointed to a putative role of Gpr55 in metabolic disorder (see, e.g., [11, 22]).
In the present study, a new independent Gpr55 deficient mouse line was developed and studied to understand the importance of GPR55 in metabolism and behaviours in young animals under normal dietary conditions. In addition, separate cohorts of Gpr55 deficient mice were subjected to a longitudinal study during which high energy dense diets was provided followed by challenge with the CB1 receptor /GPR55 ligand rimonabant.
Methods
Generation of Gpr55 deficient mice
For targeting vector construction, a 1.98kb 5’ homology and a 5.11kb 3’ homology fragment was amplified by Pfu PCR from a bacterial artificial chromosome (BAC), which contained the mouse Gpr55 gene. Both fragments were sub-cloned and sequenced with 3100 BigDye terminator (v3.1 Matrix Standard, Applied Biosystems, Foster city, USA). A region containing the complete Gpr55 coding sequence (CDS) in exon 2 was replaced with a loxP-flanked Neo cassette (Fig 1A). The targeting vector was linearized and electroporated into embryonic stem (ES) cells (R1/E, Univ. Ave, Toronto, Canada) and selected with G418 (300 μg/ml). ES-cell clones that successfully underwent homologous recombination were identified by PCR screening, and then confirmed by Southern blotting (Fig 1B). Targeted ES-cell clones were injected into C57BL/6 blastocysts, which were subsequently implanted into pseudo pregnant female mice. Chimeric male offspring was bred to C57BL/6 mice to produce germ line transmitted N1 offspring. The Neo cassette was deleted by breeding the N1 mice with Rosa26Cre mice [23], having a pure C57BL/6 background. The Gpr55 mutant mice were obtained by intercrossing heterozygous mice. Genotyping of the offspring was performed by PCR to detect wild type and mutant alleles by using the following primers: 5′-ATGCGGAATTCCTGTTACCCA -3′ (forward), 5′-CACCCTAGGGCCTCAGTTGTA -3′ (reverse) and 5′-GGAAAGCTGAGATACAGACTT –3′ (reverse). Gpr55 deficiency was confirmed by RT-PCR analysis. Cerebrums were dissected from 8-week old littermates of Gpr55 KO homozygous, heterozygous and wild type mice. Reverse transcription was run with SuperScript First-Strand kit (Invitrogen, Carlsbad, USA) followed by a PCR using one primer located in the upstream exon 5'-GGAAAGGGGACTTCTCTTGG-3' and one primer in the deleted region 5'-CACTCCACCAGAGTGCAGAA-3’ (Fig 1C).
Animal care
All animal experiments were approved by the AstraZeneca internal committee for animal studies as well as the Gothenburg Ethics Committee for Experimental Animals, licence (no: 192–2006) compliant with EU directives on the protection of animals used for scientific purposes.
The animals used in these studies were crossed three generations towards C57Bl/6J (Harlan, the Netherlands). Control animals used throughout the experiments were wild-type (WT) littermates of the Gpr55 KO mice. All studies were performed on male mice. The mice were housed individually in a temperature controlled room (21°C) with a 12:12 hour light-dark cycle (dawn: 5.30am, lights on: 6.00am, dusk: 5.30pm, lights off: 6pm) and controlled humidity (45–55%). Except where otherwise stated, they had access to a normal chow diet (R36, Lactamin AB, Stockholm, Sweden) and water ad libitum. The R36 chow diet contained (weight %): 3.5% cellulose, (energy %): 22.9% protein, 67.1% carbohydrate and 9.6% fat. Environmental enrichment was provided (cartons, wooden tongue depressors & cotton nesting pads) in home cages unless otherwise stated. Upon completion of the studies, mice were fasted for 3h and euthanised by means of cardiac puncture under isoflurane inhalation anaesthesia.
Comprehensive characterization of Gpr55 deficient male mice
General phenotypic characterization of the Gpr55 KO mice followed the protocol previously described [24]. In short, the nose-anus length of mice was measured at 3, 7 and 9 weeks of age and their body weight assessed weekly from 3 to 7 weeks of age, and then in conjunction with in vivo experimentation. The condition of fur, nose, eyes and teeth was examined during this initial study period. Normal home cage behaviours, including nesting, grooming, sniffing, rearing and climbing, was monitored by cage-side observations, and basic sensory responses investigated by eye-blink, grip-strength, beam-walking (balance) and click-box (startle reaction) tests during the initial 7 weeks was studied as described [24]. Thermal sensory pain was investigated by the hot water (55°C) immersion tail flick test at 7 weeks of age.
The comprehensive laboratory animal monitoring system (CLAMS, Columbus Instruments, USA) was used to assess energy expenditure (EE), respiratory exchange ratio (RER), spontaneous locomotor activity, as well as diet and water consumption at thermoneutrallity (set for WT mice to be 29.5°C) as previously described [24]. The mice were placed in the CLAMS calorimeter chambers at 9 weeks of age with ad libitum access to diet and water for 72 hours. Faeces produced over the experimental time was sampled and energy content determined by a bomb calorimeter (C5000, IKA, Germany).
Rectal core body temperatures were recorded in conscious non-anaesthetised mice in room temperature at day-time (10.00–11.00 am) using a rectal probe.
Body composition was assessed by dual energy X-ray absorptiometry (DEXA, GE Lunar, Madison, USA) in isoflurane anaesthetised mice at 8 weeks of age as previously described [24].
Detailed day-time locomotor activity behaviour was monitored over 1h on two consecutive days in specially designed open field boxes in 10 week old animals, all as previously described [24]. In addition, the mice were assessed in behavioural models commonly used to detect anxiolytic-like (Zero maze system) and antidepressant-like (forced swim test system) drug properties, and a passive avoidance test (Shuttle box system) used to assess memory and learning abilities, according to protocols previously described [24].
Extended assessments during high fat diet and drug intervention
The Gpr55 KO and corresponding littermate WT control mice were studied during long-term (28 weeks) exposure to ad libitum choice of calorie-dense foodstuff (‘cafeteria diet’: cheese (38% fat, 1% carbohydrate, 20% protein; Arla Ost, Vaästervik, Sweden), milk chocolate (32% fat, 58% carbo- hydrate, 6% protein; Marabou®, Kraft Foods, Upplands Vaäsby, Sweden), nougat (39% fat, 47% carbohydrate, 6% protein; Odense Marcipan®, Odense, Denmark), and chocolate pastry (31% fat, 52% carbohydrate, and 5% protein; Delicato®, Huddinge, Sweden) along with standard R36 chow diet (Lactamin AB, Stockholm, Sweden) to assess any potential interactions of Gpr55 deficiency with body weight gain and body composition, assessed by DEXA. Furthermore, when in the diet-induced obesity (DIO) condition, Gpr55 KO and WT littermate control mice were subjected to a 14 days challenge with the CB1 antagonist/GPR55 ligand [8] rimonabant (20 μmol/kg p.o., once daily for 14 days) to examine the relative influence of the CB1 vs. GPR55 component in the well-established weight-reducing profile of this agent.
Statistical analysis
All values are given as group means ± SEM. The in vivo phenotyping parameters were compared between WT littermates and Gpr55 KO mice using Student’s t-test, or 2-way ANOVA for repeated measures. A linear regression model for adiposity with body weight and genotype as predictors was used to estimate relative adiposity between genotypes. Probability values p<0.05 were considered statistically significant. The data was log-normalized when appropriate.
Results
Generation of Gpr55 knockout mice

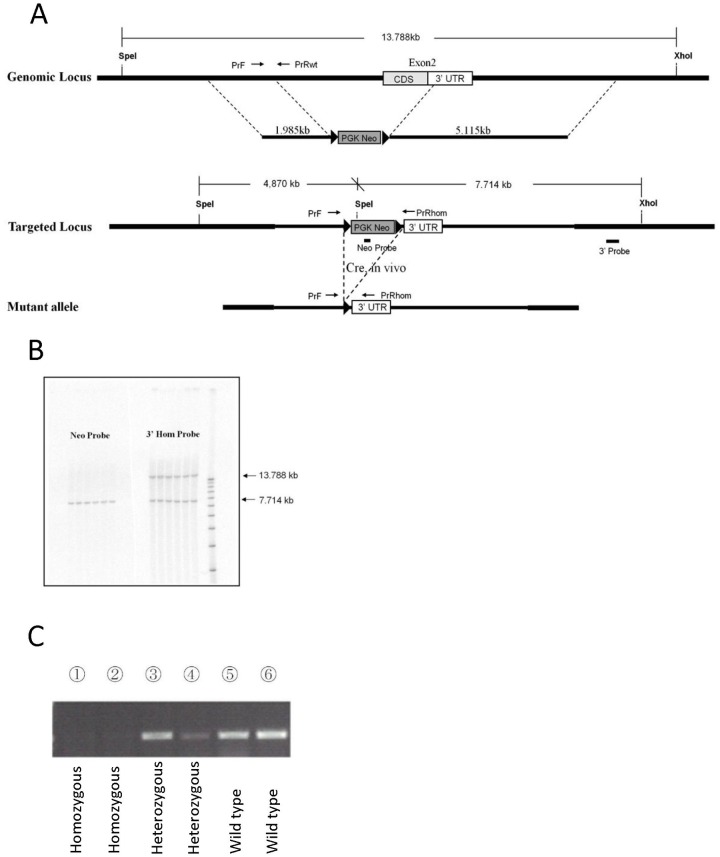

Gpr55 knock out (Gpr55 KO) mice were generated by targeted deletion of a 3.1 kb fragment of the coding region in exon 2 (Fig 1A). Mice that were heterozygote for the deletion were intercrossed to produce male homozygote for the deletion (Gpr55 KO) and wild type (WT) littermate control mice that were studied. Of 67 male pups, 18 were homozygote (27%), 39 were heterozygote (58%) and 10 were WT (15%). Female offspring was not counted or genotyped.
General characterization
No gross abnormalities were observed at birth, nor during growth, and no significant differences were observed in the condition of fur, nose, eyes and teeth upon ocular inspection comparison of Gpr55 KO and WT siblings throughout the life-span covering the experiments in the study. In respect to observed behaviours, nesting, grooming, rearing, grid grip strength and climbing demonstrated no differences between Gpr55 KO and WT control mice (not shown).
Assessments of behavior and thermal sensory pain
No significant differences were observed between Gpr55 KO and WT mice in the behavioural anxiolytic/antidepressant-like property assessment models (Zero Maze/Forced Swim Test), nor in the memory/learning ability (Passive Avoidance) paradigm (data not shown).

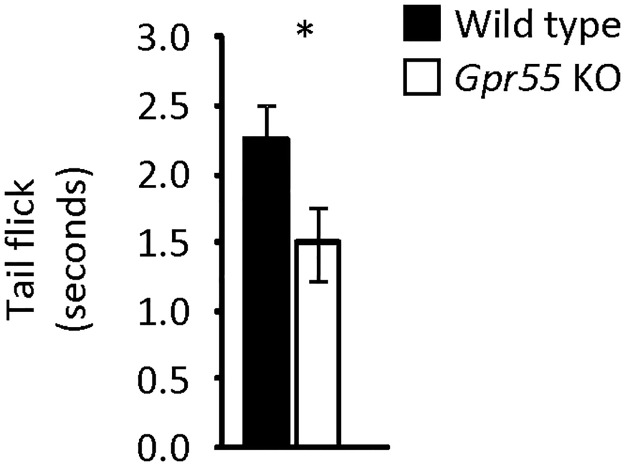

Gpr55 KO mice reacted significantly faster in the hot water immersion tail flick test (Fig 2), indicative of thermal hyperalgesia.
Body weight, body length and body composition
Although, at 3 weeks of age, the Gpr55 KO mice tended to be slightly shorter than their WT siblings (WT: 8.29 ± 0.09 cm, Gpr55 KO: 8.01 ± 0.10 cm; p = 0.06; n = 8 in both groups), no significant differences or tendencies were observed at any of the following assessment time points. In addition, no significant difference was observed regarding body weight gain (3–7 weeks of age). In line with this, neither lean mass, fat mass, nor gross bone mineral density or content (not shown) were significantly altered when Gpr55 KO and WT mice were compared at 8 weeks of age.

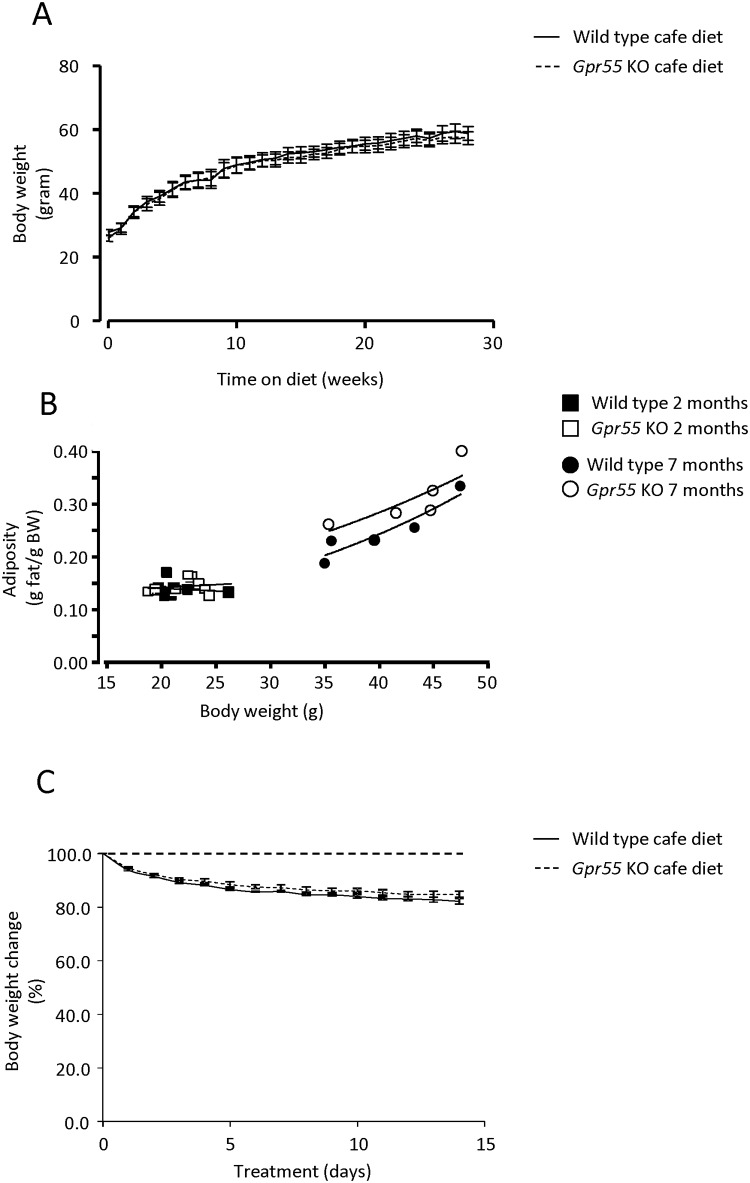

Consistent with the above, neither was there any significant difference in the rate or extent of body weight gain in Gpr55 KO mice relative to their WT littermates when fed a calorie-dense cafeteria diet for 28 weeks (Fig 3A, 2-way ANOVA for repeated measures with time and genotype as factors; time, F28, 280 = 423.8, p<0.0001; genotype, F1, 10 = 0.1030, N.S.; interaction F28, 280 = 0.3260, N.S.). Assessment by means of DEXA of body composition after the prolonged cafeteria diet access revealed no significant alterations in any of the parameters assessed, including fat mass, lean mass nor bone mass or bone density. However, a linear regression analysis indicated a slightly though non-significant (p ~ 0.10) increase in adiposity (fat mass relative to body weight) in the old (28 weeks) Gpr55 KO mice (Fig 3B). Subsequent pharmacological challenge with rimonabant (20 μmol/kg, p.o./q.d.) for 14 days significantly and comparably reduced body weight both in Gpr55 KO and WT mice by 15–18% from baseline (Fig 3C, 2-way ANOVA for repeated measures with time and genotype as factors; time F14, 126 = 162.6, p<0.0001, genotype F1, 9 = 0.0773, N.S., interaction F14, 126 = 0.2382, N.S.).
Indirect calorimetry, body temperature and locomotor activity

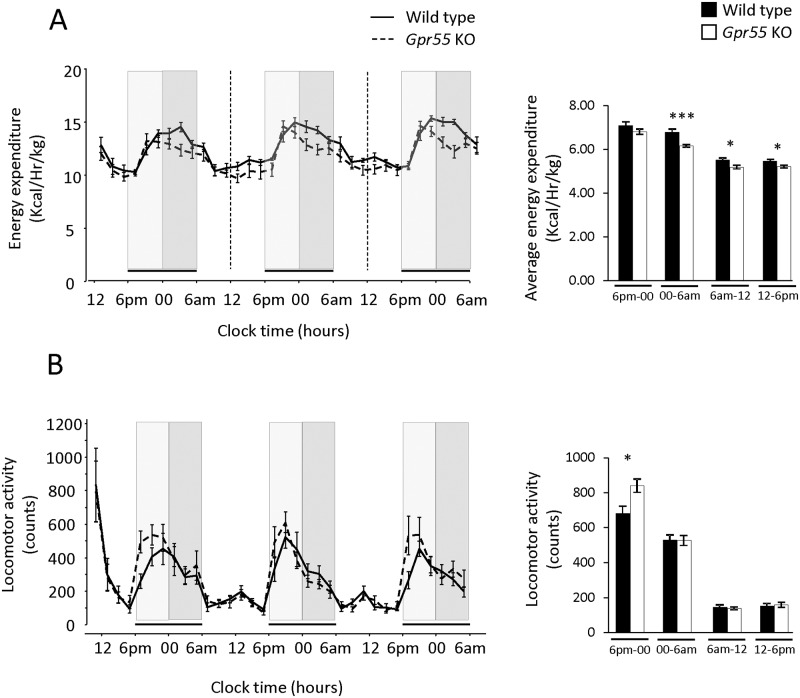

Indirect calorimetry, diet and water intake as well as day- and night-time locomotor activity was assessed in 9 week old Gpr55 KO and WT littermate control mice at thermoneutral ambient temperature (29.5°C).
No significant differences were observed in diet or water consumption or respiratory exchange ratio (RER), indicating unaltered relative usage of energy sources. Energy expenditure (EE, kcal/kg) tended to be lower over the duration of the experimental period for the Gpr55 KO mice. Although there was no significant difference in EE between Gpr55 KO and WT mice in the initial part of the night (6.00 pm—midnight) the Gpr55 KO mice displayed significantly reduced EE during the last 6 hours (midnight—6.00 am) of the dark period as well as during daytime (Fig 4A).
Energy intake and expenditure are typically adjusted to maintain body energy homeostasis. Surprisingly, energy intake or energy uptake (energy intake minus energy left in faeces) was not significantly different between Gpr55 KO and WT mice indicative of similar energy absorption in these two cohorts. The reduced EE was not correlated to reduced day-time core body temperature, which was not significantly altered in the Gpr55 KO mice (WT: 37.7 ± 0.2°C; Gpr55 KO: 37.8 ± 0.2°C).
Paradoxically, locomotor activity was significantly increased during the initial 6 hours of the night period (6.00 pm—midnight) in the Gpr55 KO mice, when EE was unaltered (Fig 4B). Locomotor activity was not significantly different between the cohorts the latter part of the night (midnight– 6.00 am) when EE was lower in the Gpr55 KO mice.

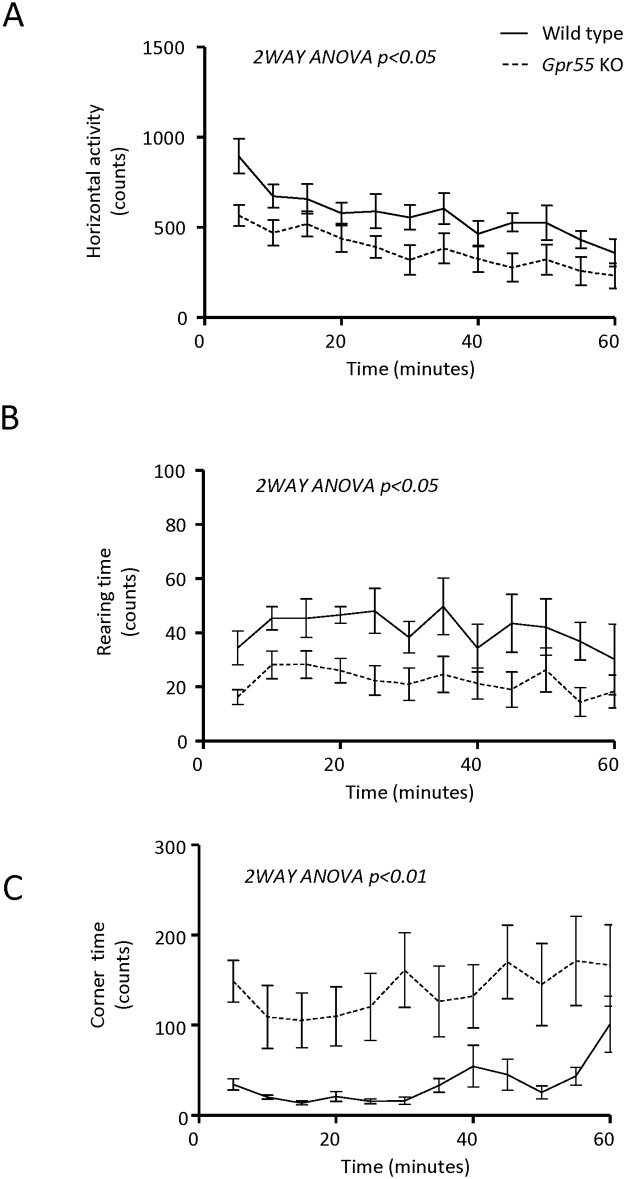

Locomotor activity was assessed both in conjunction with the indirect calorimetry measurements referred above over 72 continuous hours, as well as in separate 1h-sessions on two consecutive days in an open field activity system during day-time. In this latter model, performance in the arena on the initial experimental day, representing exploratory behaviour, was not significantly different between Gpr55 KO and WT mice (not shown). During the second day, representing locomotor activity after habituation, the Gpr55 KO mice displayed low activity and high corner time. In particular, 2-way ANOVA for repeated measures indicated significantly lower horizontal activity (F1, 14 = 5.120, p < 0.05) and rearing time (F1, 14 = 5.543, p < 0.05) and significantly increased corner time (F11, 154 = 10.75, p < 0.01) in the Gpr55 KO compared to the WT mice (Fig 5A, 5B and 5C). The increased corner time measure in particular is suggestive of more immobility for the Gpr55 KO compared to WT control mice. For the remainder of the parameters assessed, including peripheral activity and locomotion (sequential beam breaks), the Gpr55 KO mice appeared consistently less active and less prone to rear. Faeces production over the test period, often used as a measure of stress behaviour and emotionality [25], was not significantly different between Gpr55 KO and WT mice (not shown).
Discussion
Many of the CNS actions of both endogenous and exogenous cannabinoid ligands seem to derive from targets other than the commonly and most well documented CB1, CB2 and TRPV1 receptors. In the present paper we describe the phenotypical outcome of a mouse line carrying a disrupted gene encoding one of these alternative cannabinoid targets, Gpr55. Similarly to CB1, Gpr55 mRNA is widely distributed throughout the brain. However, compared to the CB1 receptors, Gpr55 generally displays lower expression levels, may be more heterogeneously distributed, and the actual CNS levels of receptor protein remains to be verified [26]. This notwithstanding, there is indications in the emerging literature for a possible involvement of GPR55 receptors in non-CB1/non-CB2/non-TRPV1 centrally and peripherally elicited responses to ligands otherwise primarily considered as cannabinoid receptor-active agents.
Since the first publication on GPR55, discussing the possibility that it might belong to the cannabinoid receptor family [8], several studies have been aimed at further understanding the pharmacology of this GPCR (reviewed in [27, 28]). The present report shows that deletion of Gpr55 produces no conspicuous gross phenotypical, behavioural or pathological changes. Interestingly however, we identified subtle yet significant differences with respect to motor and metabolic parameters between Gpr55 KO and corresponding WT mice.
Gross behavioural phenotyping showed that Gpr55 KO mice display similar body weight gain, body composition, energy intake and assimilation, water consumption as WT littermate mice. A slight non-significant shortening of the Gpr55 KO vs. WT mice was noted only at the 3 week time-point, an observation that may or may not be related to the suggested role of the receptor in bone physiology [21]. No significant differences were observed between the experimental and control cohorts in performance in behavioural tests commonly used to assess anti-anxiety, anti-depressive, cognition or anti-stress properties of drugs. These observations are generally also consistent with a previous study [14] performed in a different strain of Gpr55 KO mice. That Gpr55 KO mouse strain was generated by targeting the coding sequence of exon 2 of the Gpr55 gene and backcrossed to C57BL/6 genetic background, similar to the Gpr55 KO mouse strain described in the current paper.
Motor function
The present data and recent observations by others indicate that GPR55 plays a role in the control of central processes involved in behavioural and/or motor function. The data however are partly contradictory, seemingly at least depending on experimental model and conditions used for measurement. Firstly, as a general background, mice are nocturnal, and thus differ in their baseline motor activity across the day-night cycle. We therefore decided to monitor the potential role of GPR55 in two distinctly separate situations: the CLAMS cages (small confined area, thermoneutral temperature, habituation, continuous 72 hrs day & night), and an open field test (large arena, room temperature, 2 days to assess novel and habituated conditions, 1h-sessions during day-time). Assessment of motor activity in 9-week old Gpr55 KO mice over three consecutive day and night episodes in the CLAMS cages revealed consistently elevated horizontal motor activity during the initial 6-hour phase of the dark period. However, during the remainder of the night as well as during daytime, the motor activity did not differ from levels observed in WT mice. In contrast to these findings, the 1-hour open field, day-time light phase activity was indicative of reductions in overall mobility in the Gpr55 KO mice relative to WT littermates. The open field motor assessment is performed in a setting with a much larger arena, has greater resolution allowing for gauging motor activity patterns in a more detailed manner compared to the CLAMS cages, but may additionally involve a stress/emotional component to the response. For comparison, Meadows et al. [12] recently reported that 5-months old Gpr55 KO mice exhibited unaltered forced treadmill activity but reduced total 12h-accumulated night-time locomotor activity and voluntary wheel running, although it was not stated if during initial or later parts of the dark phase. Using the same strain of Gpr55 KO, Wu et al. [14] found that while gross motor activity assessed in the open field test was largely unaffected in 2–5 months old mice, a significant impairment was seen with respect to more challenging motor coordination responses, including rotarod and foot-slip test, tentatively in line with the lowered propensity to open field rearing activity observed in the current study. Taken together, the aforementioned motor activity studies thus display overlapping as well as contrasting outcomes. Methodological factors such as the phase of the day-night cycle, the size of the area utilized for assessment, ambient temperature, age, and tentatively also single- vs. group-housing of the animals (e.g., present study vs. [14]), may account for some of the discrepancies in this regard. Overall, however, it appears evident that GPR55 demonstrates a subtle but definite modulatory role impacting motor control, and consistent with the presence of GPR55 receptors in brain areas important to motor function (e.g., [14]). The possibility that GPR55 may play a role in CNS reward systems was also raised in this context by Meadows et al. [12], and remains a potential contributory factor to be explored further.
Pain
While GPR55 does appear to be involved in pain control, available data suggest a clear difference in its impact among different pain modalities (e.g., mechanical/inflammatory vs. thermic; [14, 20]; present data). Our studies showed that Gpr55 KO mice display a significantly shorter reaction time in respect to the tail-flick test. This is in line with findings by others using the hot-plate model [14, 20], and is indicative of a mild thermic hyperalgesia in the absence of the GPR55 receptor. Generally consistent with a potential analgesic role of GPR55 are also reports that intrathecal administration of AM251 or PEA (a CB1 antagonist and indirect-acting agonist, respectively, which both possess GPR55 agonist activity; e.g., [8]), results in analgesia in the formalin test [29]. However, in contrast, Gpr55 KO mice were reported to lack the typical inflammatory mechanical hyperalgesia following intraplantar administration of Freund's complete adjuvant [20]. Clearly, more work is warranted to define the role of GPR55 in relation to type and origin of pain stimulus and the anatomical level(s) involved (peripheral sensory, spinal and/or central).
Concluding remarks
The present study has pinpointed some of the subtle phenotypical traits in the mouse following genetic deletion of Gpr55. The data demonstrate clearly discernible alterations in motor, pain and metabolic variables. Several effects of cannabinoid-receptor active agents have defied full identification within a CB1 and/or CB2 receptor framework (cf. [27, 28]). As some such endogenous and exogenous CB receptor ligands are additionally known to interact with GPR55 sites in an agonist or antagonist capacity (reviewed by [11, 22]), it remains to be determined to what extent GPR55 may be involved in mediation of non-CB1/CB2 actions of these agents. Taken together, the modest (and temporally transient) magnitude of the effects seen in the Gpr55 deficient mice would appear to be in general agreement with the idea that GPR55 serves a modulatory role jointly with CB1 and/or CB2 receptors in central and/or peripheral control of motor, pain and metabolic function (cf., e.g., [26, 34]). It might be speculated that approaches involving more drastic experimental challenges would be required to reveal enhanced insight into the function of GPR55. Further studies are clearly required to unveil physiological/pathophysiological states in which GPR55 enhancement or blockade might become therapeutically exploitable.
Acknowledgements
The expert biostatistical analysis efforts of Janeli Sarv, AstraZeneca R&D, is gratefully acknowledged.
