Allosteric modulation of adenosine A1 and cannabinoid 1 receptor signaling by G‐peptides
Department of Genetics, Cell Biology, and Development, University of Minnesota, Minneapolis, MN, USA
Abstract
While allosteric modulation of GPCR signaling has gained prominence to address the need for receptor specificity, efforts have mainly focused on allosteric sites adjacent to the orthosteric ligand‐binding pocket and lipophilic molecules that target transmembrane helices. In this study, we examined the allosteric influence of native peptides derived from the C‐terminus of the Gα subunit (G‐peptides) on signaling from two Gi‐coupled receptors, adenosine A1 receptor (A1R) and cannabinoid receptor 1 (CB1). We expressed A1R and CB1 fusions with G‐peptides derived from Gαs, Gαi, and Gαq in HEK 293 cells using systematic protein affinity strength modulation (SPASM) and monitored the impact on downstream signaling in the cell compared to a construct lacking G‐peptides. We used agonists N6‐Cyclopentyladenosine (CPA) and 5’‐N‐Ethylcarboxamidoadenosine (NECA) for A1R and 2‐Arachidonoylglycerol (2‐AG) and WIN 55,212‐2 mesylate (WN) for CB1. G‐peptides derived from Gαi and Gαq enhance agonist‐dependent cAMP inhibition, demonstrating their effect as positive allosteric modulators of Gi‐coupled signaling. In contrast, both G‐peptides suppress agonist‐dependent IP1 levels suggesting that they differentially function as negative allosteric modulators of Gq‐coupled signaling. Taken together with our previous studies on Gs‐coupled receptors, this study provides an extended model for the allosteric effects of G‐peptides on GPCR signaling, and highlights their potential as probe molecules to enhance receptor specificity.
Untitled section
Keywords: adenosine‐5’‐(N‐ethylcarboxamide), GTP‐binding proteins, N(6)‐cyclopentyladenosine, receptor, adenosine A1, receptor, cannabinoid, CB1, SCH 442 416, signal transduction
Graphical

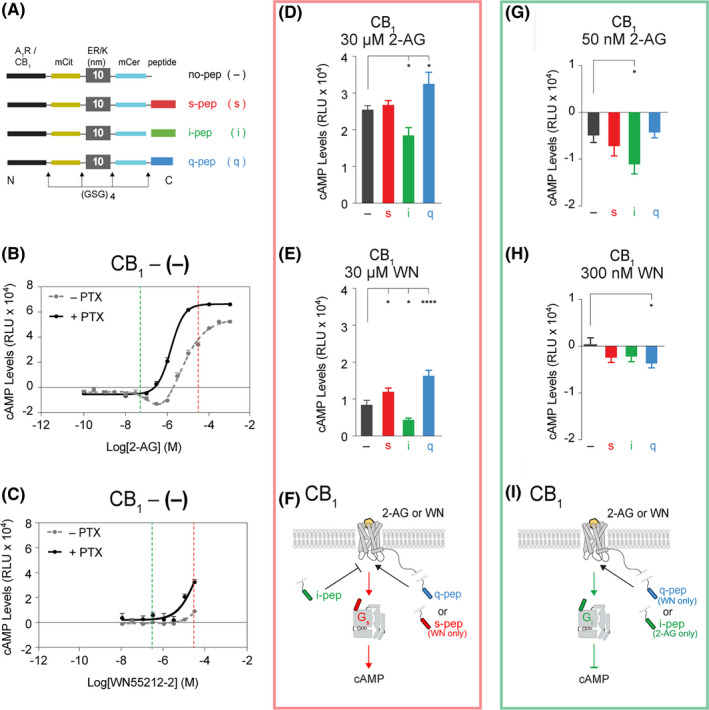

Gα peptides differentially impact Gs and Gi signaling in Cannabinoid (CB1) receptors.
Boxed Text
Article notes
Untitled section
Received 2020 Sep 11; Revised 2020 Sep 18; Accepted 2020 Sep 21; Collection date 2020 Dec.
- 2‐AG
- 2‐Arachidonoylglycerol
- A1R
- Adenosine type 1 receptor
- A2AR
- Adenosine type 2A receptor
- A2BR
- Adenosine type 2B receptor, β2‐AR, β2‐adrenergic receptor
- CB1
- cannabinoid type 1 receptor
- CPA
- N6‐Cyclopentyladenosine
- D1R
- Dopamine receptor
- G protein
- GTP‐binding protein
- GPCR
- G protein‐coupled receptor
- IP
- Inositol Phosphate
- NECA
- 5’‐N‐Ethylcarboxamidoadenosine
- PTX
- pertussis toxin
- SPASM
- systematic protein affinity strength modulation
- V1A‐R
- Vasopressin 1A receptor
- WN
- WIN 55,212‐2 mesylate
1.INTRODUCTION
G protein‐coupled receptors (GPCRs) have been the most successful class of drug targets in clinical medicine, due in part to their widespread distribution and important roles in physiology. 1 The pharmacological success of GPCRs derives from their selective coupling to specific heterotrimeric G proteins, triggering the corresponding physiological response. Recent drug discovery efforts have focused on the development of allosteric modulators for GPCRs. 2 Allosteric modulators have the potential to increase receptor specificity by targeting sequence motifs unique to receptor family subtypes and isoforms. Furthermore, allosteric modulators require the presence of an orthosteric ligand, providing physiological context‐dependent control of GPCR signaling. 3 Therefore, compared to orthosteric ligands, large doses of allosteric modulators can be administered with a lower risk of target‐based toxicity. 2 An emerging target site for allosteric modulators is the GPCR‐G protein‐binding interface. The GPCR‐G protein‐binding interface contains sequence divergent structural elements including three intracellular loops and the GPCR C‐tail. 4 However, the intrinsically disordered nature of the loop and C‐tail, combined with the potential for binders in these regions to disrupt GPCR‐G protein coupling has limited efforts to rationally design allosteric modulators that target the GPCR‐G protein interface. 5
In this study, we examine the potential for the G protein α subunit C‐terminus (G‐peptide) to serve as an allosteric modulator of GPCR signaling. The G‐peptide is a well‐established determinant of GPCR‐G protein coupling selectivity. 6 , 7 The G‐peptide interacts at the cytosolic GPCR‐G protein interface, which is distinct from the orthosteric ligand‐binding pocket. The GPCR interaction with a cognate G‐peptide triggers nucleotide exchange in the Gα subunit (GDP to GTP) resulting in G protein activation and downstream signaling. While interactions with noncognate G‐peptides do not precipitate G protein activation, we have recently shown that noncognate interactions alter receptor conformation resulting in enhanced ligand efficacy. 8 , 9 Previous studies show that while the noncognate G‐peptide interactions are transient, the GPCR conformational state persists following dissociation resulting in the allokairic modulation (AKM) of downstream signaling. 8 , 9 Allokairic modulators bind asynchronously with the ligand and rely on the temporal persistence of GPCR conformation to exert their influence on orthosteric ligand efficacy. 9 Our previous studies focused on the Gs‐coupled β2‐adrenergic (β2‐AR) and dopamine (D1R) receptors, which show enhanced cyclic AMP generation in the presence of a noncognate Gq protein. Likewise, the Gq‐coupled V1 vasopressin receptor (V1R) shows enhanced IP1 levels in the presence of the noncognate Gs protein. 8 In this study, we examine the potential for allokairic modulation of two canonical Gi‐coupled receptors, adenosine type 1 (A1R) and cannabinoid type 1 (CB1) using G‐peptides derived from Gs, Gi, and Gq subtypes.
While β2‐AR and D1R principally signal through Gs, and A1R and CB1 primarily signal through Gi. However, A1R and CB1 display signaling through multiple G proteins with A1R signaling through Gi and Gq, and CB1 signaling through Gi, Gq, and Gs. 10 , 11 , 12 , 13 CB1, the most widely expressed GPCR in the central nervous system, primarily signals through Gi producing euphoria and analgesia upon binding tetrahydrocannabinol (THC) in the brain. 14 , 15 CB1 has also been shown to signal through Gq in human embryonic kidney (HEK) 293 cells after treatment with WIN55,212‐2 (WN) 12 and through Gs in rat globus pallidus, HEK 293, COS‐7, CHO, and 3T3 cells after treatment with WN. 10 , 13 , 16 However, the physiological effects of CB1 signaling through Gs, Gq, and non‐G protein‐mediated pathways is less clear since there have not been biased ligands identified that specifically target these pathways. A1R is another example of a promiscuous receptor that can activate different signal transduction pathways in an agonist‐dependent manner. A1R is ubiquitously expressed and most well known for being antagonized by caffeine, producing stimulant effects. 17 While A1R canonically signals through Gi, there is evidence that A1R has a diverse G protein‐activating profile where A1R can adopt agonist‐specific conformations, arising from small changes in ligand structure, which lead to the differential activation of G proteins including Gi and Gq. 11 This promiscuity of coupling in these canonical Gi receptors allows us to examine the allosteric effects of the G‐peptide on multiple G protein signaling pathways.
The goal of this focused study is to examine the allosteric effects of G‐peptides derived from three distinct Gα C‐termini peptides (Gαs, Gαi, and Gαq) on signaling from two promiscuous Gi‐coupled receptors (A1R and CB1). The C‐termini of three G proteins, Gαs, Gαi, and Gαq, will be referred to as s‐pep, i‐pep, and q‐pep (or collectively as G‐peptides) throughout this manuscript. We expressed A1R and CB1 fusions with the s‐, i‐, or q‐pep in HEK 293 cells using systematic protein affinity strength modulation (SPASM) and monitored the impact on downstream signaling in the cell compared to a construct lacking this G‐peptide, referred to henceforth as no‐pep. We have extensively reported on this SPASM technique, which allows systematic control of the intramolecular interaction between a GPCR and a G‐peptide. 6 , 8 , 18 , 19 This technology allows us to directly compare the influence of different G‐peptides on the cognate G protein signaling pathways in cells. While this is a tethered system, we have shown that these engineered GPCR constructs yield similar results to reconstituted systems of GPCR membranes and recombinant G proteins with regards to allokairic modulation of G protein activation. 8 , 19 Hence, despite the synthetic nature of our approach, it provides insight into the impact of receptor interactions with G‐peptides on downstream signaling.
To investigate the allosteric effects of G‐peptides on Gi‐coupled receptors, we used N 6 ‐Cyclopentyladenosine (CPA) and 5’‐ N ‐Ethylcarboxamidoadenosine (NECA) for A1R and 2‐Arachidonoylglycerol (2‐AG) and WIN 55,212‐2 mesylate (WN) for CB1. Our current study confirms what we previously found in Gs‐coupled receptors β2‐AR and D1‐R, where s‐pep and q‐pep positively modulate canonical Gs signaling. 8 cAMP response at high concentrations of 2‐AG and WN is enhanced by q‐pep (~30% and 95% increase in cAMP, respectively). Likewise, cAMP stimulation by WN at CB1 is enhanced by s‐pep (~40% increase). In contrast, i‐pep diminishes cAMP response from CB1 for both 2‐AG and WN (30 and 50% decreases, respectively). At low concentrations of 2‐AG, WN, and CPA (nmol/L) we observed inhibition of cAMP, associated with signaling through Gi. We found that the presence of q‐pep or i‐pep enhanced canonical Gi signaling in A1R after activation by CPA (~35% increase), and in CB1 after activation by WN (~700% increase) and 2‐AG (~125% increase), respectively. These findings extend our previously reported allosteric effects of G‐peptides to Gi‐coupled signaling. 8 , 9 At high concentrations of 2‐AG, WN, CPA, or NECA (μmol/L), stimulation of inositol phosphate (IP1) is observed, associated with signaling through Gq. We found that the presence of different G‐peptides universally inhibits IP1 signaling through Gq (decreases ranging from 30% to 65%), with the exception of s‐pep (~50% increase) on CB1 following activation by WN. Taken together, our data provide an extended model for the allosteric effects of distinct G‐peptides on signaling through Gs, Gi, and Gq pathways and highlight the ability of G‐peptides to differentially impact signaling in a receptor and ligand‐dependent manner.
2.MATERIALS AND METHODS
2.1.Reagents and buffers
5’‐N‐Ethylcarboxamidoadenosine (NECA), pertussis toxin (PTX), and forskolin were purchased from Sigma‐Aldrich. 2‐Arachidonoylglycerol (2‐AG), N6‐Cyclopentyladenosine (CPA), WIN 55,212‐2 mesylate (WN), SCH 442416 (SCH), and PSB 1115 (PSB) were purchased from Tocris. cDNA encoding Gαi2 isoform 1, Gαq, and the long splice variant of Gαs were acquired from GE (Open Biosystems). Human A1R was acquired from DNASU Plasmid Repository. Mus musculus CB1 was acquired from transOMIC technologies. DNA transfection reagents X‐tremeGENE HP and Mirus‐LT DNA were purchased from Roche and Mirus, respectively. Buffer A is phosphate‐buffered saline (PBS pH 7.4; GibcoTM), 800 μmol/L ascorbic acid, and 0.2% dextrose (w/v). Buffer B (Stimulation Buffer 2; Cisbio) is 10 mmol/L HEPES, 1 mmol/L CaCl2, 0.5 mmol/L MgCl2, 4.2 mmol/L KCl, 146 mmol/L NaCl, 5.5 mmol/L glucose, 50 mmol/L LiCl2, pH 7.4.
2.2.Molecular cloning
For mammalian HEK 293 expression, all GPCR and Gα constructs were cloned into a PCDNA5/FRT vector (ThermoFisher). GPCR sensors were cloned with a modular scheme. Each GPCR sensor contained (from N‐ to C‐terminus): a full length GPCR (A1R or CB1), mCitrine, 10 nm ER/K linker, mCerulean, and a Gα subunit C‐terminal peptide corresponding to Gαs, Gαi, Gαq, (s‐pep, i‐pep, or q‐pep, respectively) or a control peptide (no‐pep), consisting of repeating (Gly‐Ser‐Gly)4 residues. A (Gly‐Ser‐Gly)4 linker was inserted between all protein domains as part of the primer sequence to allow for free rotation between domains. All sensors also contained either an N‐terminal HA‐tag or a His‐tag. All constructs were confirmed by sequencing.
2.3.Mammalian cell preparation and sensor expression
HEK293T‐Flp‐In (HEK293T, ThermoFisher) cells were cultured in DMEM media (ThermoFisher) supplemented with 10% FBS (v/v) (Millipore Sigma), 4.5/gL D‐glucose, 1% Glutamax (ThermoFisher), 20 mmol/L HEPES, pH 7.5 at 37°C in a humidified atmosphere at 5% CO2. HEK293T cells were plated onto six‐well tissue culture treated plates at ~30% confluence. Cells were transfected 16‐20 hours later with X‐tremeGENE HP DNA transfection reagent. Transfection conditions including the amount of DNA (1.4‐4 μg DNA + 4.2‐6 μL reagent) and the length of transfection (control no‐pep sensors: 18‐24 hours; sensors containing s‐, i‐, or q‐pep: 22‐32 hours) were optimized to consistently yield equivalent levels of sensor expression across different conditions. Where indicated, 12 hours after transfection, cells were incubated with 100 ng/mL PTX for 16 hours. Experiments were conducted at 60%‐80% transfection efficiency (evaluated on a Nikon tissue‐culture microscope enabled with fluorescence detection using 20x and 40× magnification). At the time of the experiment, 60%‐90% of transfected cells expressed predominantly plasma membrane localized sensor with minimal localization to the intracellular compartments. Sensor integrity, localization, and sensor expression were tracked for all experiments to ensure consistency. Each experiment was performed at equivalent sensor expression and matched OD of the cell suspension using the following steps. Cells were first resuspended by gentle pipetting into their original media, spun down (350 g, 3 minutes), and washed once with Buffer A or B for cAMP or IP1 assays, respectively. Subsequently, cells were resuspended in an appropriate volume of the same buffer to reach a 0.3 OD measured at A600 nm. Sensor expression was measured by mCitrine fluorescence. mCitrine fluorescence was held within 1.6‐2.4 × 106 counts‐per‐second (cps) for a cell OD of 0.3. Sensor integrity was confirmed by measuring the mCitrine (Horiba Fluoromax‐4; excitation 490 bandpass 8 nm; emission range 500‐600 bandpass 4 nm; emission maximum 525 nm) to mCerulean fluorescence ratio (excitation 430 bandpass 8 nm; emission range 450‐600 bandpass 4 nm; emission maximum 475 nm). Experiments were conducted at mCitrine to mCerulean fluorescence ratio of 1.7‐2.1.
2.4.cAMP assays
HEK293T cells expressing indicated sensor were harvested 28‐32 h posttransfection (X‐tremeGENE HP) to assess cAMP levels using the bioluminescent cAMP Glo assay (Promega). Cells were gently suspended in their original media, counted using a hemocytometer, and spun down (350 g, 3 minutes). Cells were resuspended in an appropriate volume of Buffer A to reach 4 × 106 cells/mL density. Cell suspensions were aliquoted into 384‐well opaque plates (5 μL per well). Where indicated, cells were preincubated with 100 nmol/L of the adenosine type 2A receptor (A2AR) selective antagonist, SCH 442416 (SCH), and 1 μmol/L of the adenosine type 2B receptor (A2BR) selective antagonist, PSB 1115 (PSB) in 10 μmol/L forskolin for 15 minutes at 37°C. Cells were incubated with CPA or NECA (for A1R) or 2‐AG or WN (for CB1) for 15 minutes with 10 μmol/L forskolin at 37°C. Subsequently, cells were lysed and the protocol was followed according to the manufacturer's recommendation (Promega). Luminescence was measured using a microplate reader (SpectraMax M5e, Molecular Devices). cAMP levels were evaluated by subtracting relative luminescence units (RLUs) in the absence and presence of agonists. Each experiment was performed in quadruplicate and independently repeated at least three times (N > 3). For experiments involving comparisons between multiple sensors, equivalent sensor expression was first verified using fluorescence measurements (see previous section) and data for all four sensors were collected together (Figure S3).
2.5.IP1 assays
HEK293T cells expressing the indicated sensor were harvested 28‐32 h posttransfection (X‐tremeGENE HP) to assess IP1 levels using the IP‐One HTRF assay kit (Cisbio). Cells were gently suspended in their original media, counted using a hemocytometer, and spun down (350 g, 3 minutes). An appropriate volume of Buffer B (StimB buffer) was added to reach 3 × 106 cells/mL density. Where indicated, cells were preincubated with 1 μmol/L of the A2BR selective antagonist, PSB 1115 (PSB) for 30 minutes at 37°C. Cells were incubated with 100 μmol/L of CPA or NECA (for A1R) or 100 μmol/L of 2‐AG or WN (for CB1) at 37°C for a total incubation time of 30 or 120 minutes. The manufacturer's protocol was modified to achieve a high signal to noise ratio as follows: 70 μL of suspension was incubated for 1 hour with 2 μL IP1 conjugated to d2 dye diluted in 13 μL of lysis buffer (Cisbio) and 2 μL terbium cryptate‐labeled anti‐IP1 monoclonal antibody also diluted in 13 μL of lysis buffer. 80 μL of each reaction suspension was then transferred and split between 4 wells (20 μL/well) on a 384‐well opaque plate. IP1 spectra were collected by exciting samples at 340 nm (bandpass 15 nm). Emission counts were recorded from 600 to 700 nm using a long pass 475 nm filter (FSQ GG475, Newport). Raw IP1 signal was calculated as the ratio of fluorescence emissions at 665nm and 620nm. Data were corrected by subtracting the untransfected IP1 ratio from cells expressing transfected sensor. Data are presented as a change in IP1 ratio following drug treatment. Each experiment included four repeats per condition and was independently repeated at least three times (N > 3).
2.6.Statistical analysis
Data are represented as mean values ± SEM. All experiments were repeated for at least three independent trials, with three to six technical repeats per condition (N > 3). Statistical analysis was performed using GraphPad Prism 7.0c (Graphpad Software, Inc). To assess significance across experimental repeats, pooled or un‐pooled data underwent subsequent pairwise ANOVA analysis. Tukey's post hoc test was performed to assess significance when evaluating comparisons between multiple conditions with P‐values *P ≤ .05; **P ≤ .01; ***P ≤ .001; ****P ≤ .0001; *****P ≤ .00001.
2.7.Nomenclature of targets and ligands
Key protein targets and ligands in this article are hyperlinked to corresponding entries in http://www.guidetopharmacology.org, the common portal for data from the IUPHAR/BPS Guide to PHARMACOLOGY, 20 and are permanently archived in the Concise Guide to PHARMACOLOGY 2019/20: G protein‐coupled receptors. 21
3.RESULTS
3.1.SPASM sensor design
SPASM sensors were developed for two cognate Gi‐coupled receptors, adenosine A1 receptor (A1R) and cannabinoid type 1 (CB1) (Figure 1A). From N‐ to C‐terminus, each SPASM sensor contains a GPCR, mCitrine (to monitor sensor integrity), 10 nm ER/K linker, mCerulean (for matching receptor expression), and a 27‐amino acid peptide derived from the α5‐helix at the C‐terminus of the Gα subunit (s‐pep, i‐pep, q‐pep, or no‐pep). We chose the 10 nm linker based on previous work, where we found that a shorter linker corresponded to a higher effective concentration of the protein interaction (Figure S1, left). 22 We had previously shown that a peptide derived from Gαs (s‐pep) could enhance Gs signaling through β2‐AR, and we confirmed this in Figure S1 with β2‐AR producing a significant increase in cAMP when tethered to the s‐pep (Sp) by either a 10 or 20 nm linker. 8 However, we observed no significant increase in cAMP production by β2‐AR when tethered to s‐pep by a 30 nm linker (Figure S1). We therefore used a 10 nm linker to tether peptides to GPCRs for subsequent experiments, since it appeared that the effective concentrations enforced by either a 10 or 20 nm linker were required to modulate signaling. The Gα C‐terminal peptides have been shown to be essential for activation by the GPCR but do not themselves trigger downstream effectors. 6 , 8 , 23 , 24 , 25 , 26 , 27 In previous studies we have shown the ability of SPASM sensors to be expressed and localized primarily to the plasma membrane in HEK 293 cells. 28 Our SPASM sensors are therefore designed to modulate the interaction between the attached receptor (A1R or CB1) and endogenous G proteins in cells, allowing one to study the impact of the tethered Gα peptides on canonical GPCR signaling. 19 SPASM A1R and CB1 constructs lacking a C‐terminal peptide (no‐pep) were used to measure background cAMP and IP1 levels and for characterization of ligand dose‐response.
3.2.Impact of Gα C‐terminal peptides on cAMP response in the Cannabinoid (CB1) Receptor
Cells expressing the CB1 sensor display potentiation of forskolin‐stimulated cAMP accumulation with signaling dominated by Gs in response to 30 μmol/L of the CB1 agonists 2‐Arachidonoylglycerol (2‐AG) (Figure 1B, red dashed line) or WIN 55,212‐2 mesylate (WN) (Figure 1C, red dashed line). 10 , 13 Representative dose‐response curves with untransfected HEK 293 cells are shown in Figure S2 with stimulation by 2‐AG (Figure S2, green) or WN (purple). We observed no potentiation of forskolin‐stimulated cAMP accumulation in untransfected HEK 293 cells in response to a range of 2‐AG and WN concentrations (Figure S2), suggesting any potentiation of forskolin‐stimulated cAMP accumulation can be attributed to transfected CB1 receptors rather than endogenous receptors in the HEK 293 cells. CB1 appeared to inhibit forskolin‐stimulated cAMP accumulation with signaling dominated by Gi in response to 50 nmol/L 2‐AG (Figure 1B, green dashed line) or 300 nmol/L WN (Figure 1C, green dashed line). To characterize Gi signaling in CB1, dose‐response curves were performed for both 2‐AG and WN (Figure 1B and C, respectively) in the presence (black lines) or absence (gray lines) of pertussis toxin (PTX). cAMP levels increased in response to PTX treatment in 2‐AG‐stimulated CB1 (Figure 1B, black line), indicating that cAMP inhibition in the absence of PTX is likely due to signaling through Gi. 2‐AG or WN can be used at high concentrations (30 μmol/L, Figure 1B and C, red dashed lines) to characterize the impact of peptides on cAMP stimulation and Gs signaling (Figure 1D and E) and at low concentration (50 or 300 nmol/L, Figure 1B and C, green dashed lines) to characterize cAMP inhibition and signaling through Gi in CB1 (Figure 1G and H).
We examined the allosteric modulation of Gαs, Gαi, and Gαq peptides on forskolin‐stimulated cAMP accumulation in the promiscuous Gi‐coupled receptor, cannabinoid type 1 (CB1). SPASM sensors with s‐, i‐, or q‐pep fusions, in addition to a no‐pep control (−), were expressed in HEK 293 cells as shown previously. 28 Cells expressing the CB1 sensors were treated with high concentrations (30 μmol/L) of 2‐AG (Figure 1D) or WN (Figure 1E) to stimulate cAMP production through the Gs pathway (Figure 1B and C). The q‐pep sensor was found to increase signaling through Gs in CB1, as evidenced by a significant increase in cAMP levels (Figure 1D and E, blue bars). This finding in a Gi‐coupled receptor extends our previous results where q‐pep exhibited enhanced signaling in the Gs pathway in Gs‐coupled receptors. 8 S‐pep sensors also increased signaling through Gs in CB1 after stimulation by WN (Figure 1E, red bar). In contrast, the presence of i‐pep inhibited Gs signaling in CB1 after stimulation by 2‐AG or WN, decreasing cAMP levels (Figure 1D and E, green bars). These findings are also summarized in the schematic (Figure 1F) with q‐pep (blue) and s‐pep (red) stimulating Gs signaling and i‐pep (green) inhibiting signaling through Gs.
Gα peptides affected signaling through Gi‐mediated inhibition of forskolin‐stimulated cAMP accumulation in CB1. To target Gi signaling, HEK 293 cells expressing CB1 SPASM sensors were treated with low concentrations of 2‐AG (50 nmol/L) or WN (300 nmol/L), conditions resulting in cAMP inhibition (Figure 1B and C). The i‐pep increased the inhibition of cAMP production after stimulation by 2‐AG (Figure 1G, green bar) compared to the no‐pep (−) sensor. Treatment with WN leads to an increase in Gi signaling with q‐pep but not with i‐pep (Figure 1H, blue bar). The agonist‐dependent enhancement of Gi signaling by both i‐pep and q‐pep is summarized in the schematic (Figure 1I).

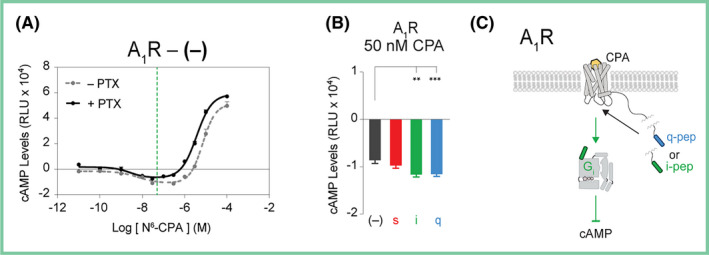

3.3.Impact of Gα C‐terminal peptides on cAMP inhibition in the Adenosine (A1R) Receptor
Cells expressing the A1R no‐pep (−) sensor display Gi‐mediated inhibition of forskolin‐stimulated cAMP accumulation after stimulation by 50 nmol/L of the A1R agonist, N6‐Cyclopentyladenosine (CPA) (Figure 2A, green dashed line). Pertussis toxin (PTX) treatment inhibits Gi signaling, allowing for differentiation between the Gs‐ and Gi‐mediated effects on cAMP. 29 cAMP levels increased in response to PTX treatment in CPA‐stimulated A1R (Figure 2A, black line), indicating that cAMP inhibition in the absence of PTX is likely due to signaling through Gi. To characterize the impact of different Gα peptides on Gi inhibition of forskolin‐stimulated cAMP accumulation in a promiscuous Gi‐coupled receptor, cells expressing the different A1R peptide sensors at equivalent levels were treated with 50 nmol/L of CPA resulting in cAMP inhibition, dominated by Gi (Figure 2B). The i‐pep and q‐pep both increased signaling through Gi in A1R after stimulation by CPA, as evidenced by a significant increase in cAMP inhibition (Figure 2B, green and blue bars, respectively). To address potential variability in individual sensor response, for each experiment equivalent sensor expression was verified using fluorescence measurements (see methods) and data for all four peptide sensors were collected together (supplemental Figure S3). This phenomenon is summarized in a schematic (Figure 2C) showing the presence of i‐pep (green) and q‐pep (blue) increasing signaling through Gi and inhibiting cAMP.
Despite the potentiation of forskolin‐stimulated cAMP accumulation at high concentrations of CPA (Figure 2A), the cAMP accumulation appears to be the result of stimulation of endogenous HEK 293 cell receptors rather than Gs signaling through A1R receptors. Untransfected HEK 293 cells treated with 30 μmol/L CPA showed higher potentiation of forskolin‐stimulated cAMP accumulation than was seen with HEK 293 cells transfected with A1R (Figure S4). Under the same conditions, pretreatment with 100 nmol/L of the A2AR selective antagonist, SCH 442 416 (SCH), and 1 μmol/L of the A2BR selective antagonist, PSB 1115 (PSB), resulted in complete inhibition of cAMP production. The slight decrease in forskolin‐stimulated cAMP accumulation in cells transfected with A1R without antagonist pretreatment can likely be attributed to increased Gi signaling by transfected A1R receptors. We performed the same control experiments with untransfected HEK 293 cells treated with 30 uM NECA and found equivalent potentiation of forskolin‐stimulated cAMP accumulation as compared to A1R‐transfected cells (Figure S4). Pretreatment with A2AR and A2BR selective antagonists, SCH and PSB, did not change cAMP accumulation in untransfected cells. However, pretreatment with SCH and PSB in A1R‐transfected cells reduced cAMP accumulation by 50%. In both cases, treatment with either 30 μmol/L CPA or NECA appears to increase forskolin‐stimulated cAMP accumulation due to endogenous receptors in the HEK 293 cells. A representative dose‐response curve shows potentiation of forskolin‐stimulated cAMP accumulation in untransfected HEK 293 cells in response to a range of CPA and NECA concentrations (Figure S2). We therefore could not characterize the impact of Gα peptides on Gs signaling in A1R.

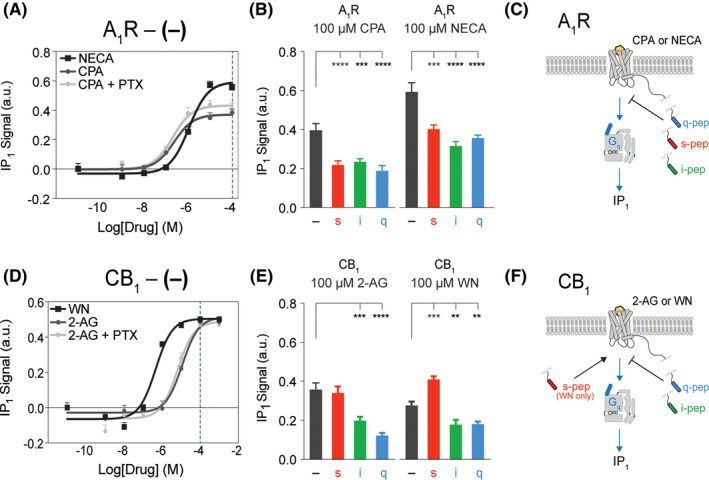

3.4.C‐terminal Gα Peptides Inhibit Gq Signaling from Promiscuous Receptors
Previous work from our lab suggests that the effect of noncanonical G proteins on IP1 signaling are more receptor specific. 8 We found that Gs enhances IP1 production and signaling through Gq in the vasopressin receptor (V1A‐R) but not the α1 adrenergic receptor (α1‐AR). 8 In the current study we examined the impact of Gα peptides on Gq signaling and IP1 production in A1R and CB1 receptors. A dose‐response study of NECA (Figure 3A, black line) and CPA (gray lines) with A1R no‐pep (−) sensors revealed maximum IP1 signal at 100 μmol/L ligand (blue dotted line). To rule out Gβγ‐dependent PLC‐β activation, we performed IP1 dose‐response assays in the absence (Figure 3A, dark gray line) and presence (light gray line) of pertussis toxin (PTX) treatment. Regardless of CPA concentration, no reduction in IP1 production was observed in PTX‐treated cells compared to untreated cells, suggesting the observed IP1 production is due to A1R signaling through the PTX‐insensitive Gq pathway. Additionally, to rule out Gq signaling through endogenous HEK 293 A2BR receptors, IP1 levels were assessed in untransfected HEK 293 cells after stimulation by 100 μmol/L CPA or NECA (Figure S5). Regardless of pretreatment with 1 μmol/L of the A2BR selective antagonist PSB 1115 (PSB), significant IP1 production occured in A1R transfected cells but not in untransfected HEK 293 cells, suggesting IP1 production resulted from Gq signaling through A1R and not endogenous A2BR (Figure S5). A1R SPASM sensors with tethered s‐, i‐, or q‐pep, in addition to a no‐pep (−) sensor lacking a peptide, were expressed in HEK 293 cells to equivalent levels. IP1 assays were performed with each of the A1R sensor constructs after stimulation by 100 μmol/L CPA (Figure 3B, left) or NECA (right). Constructs containing the s‐pep, i‐pep, or q‐pep inhibited IP1 production regardless of ligand, as summarized in the schematic (Figure 3C).
To examine the impact of the Gα peptides on Gq signaling in a second promiscuous receptor, CB1, we first performed assays to identify the optimal concentration of ligand to use for characterization. A dose‐response study of WN (Figure 3D, black line) and 2‐AG (gray lines) on CB1 no‐pep (−) sensors revealed maximum IP1 signal at 100 μmol/L ligand (blue dotted line). To rule out Gβγ‐dependent PLC‐β activation, we performed IP1 dose‐response assays in the absence (Figure 3D, dark gray line) and presence (light gray line) of pertussis toxin (PTX) treatment. Regardless of 2‐AG concentration, no reduction in IP1 production was observed in PTX‐treated cells compared to untreated cells, suggesting the observed IP1 production is due to CB1 signaling through the PTX‐insensitive Gq pathway. An IP1 assay was performed on HEK 293 cells expressing SPASM sensors with s‐, i‐, or q‐pep fusions, in addition to a sensor lacking a peptide no‐pep (‐), after stimulation by 100 μmol/L 2‐AG (Figure 3E, left) or WN (right). Consistent with A1R, the i‐pep and q‐pep inhibited signaling through Gq in CB1, as evidenced by reduction of IP1 signal (Figure 3E, green and blue bars, respectively). The s‐pep significantly enhanced signaling through Gq after stimulation by 100 μmol/L WN (Figure 3E, right, red bar). The influence of i‐pep, q‐pep, and s‐pep on Gq signaling and subsequent IP1 production in CB1 is summarized in the schematic (Figure 3F). We have summarized these findings in supplemental model Figure S6, highlighting how Gα C‐terminal peptides differentially influence signaling in each of these promiscuous receptors.
4.DISCUSSION
In this study we demonstrate the allosteric modulation of two Gi‐coupled receptors, A1R and CB1, using peptides derived from the C‐terminus of the Gα subunit (G‐peptides). G‐peptides derived from Gαi and Gαq (i‐pep and q‐pep) enhance agonist‐dependent cAMP inhibition, demonstrating their function as positive allosteric modulators of Gi‐coupled signaling. In contrast, i‐pep and q‐pep suppress agonist‐dependent IP1 levels suggesting that they function as negative allosteric modulators of Gq‐coupled signaling. Taken together with our previous studies focused on Gs‐coupled receptors, our findings reinforce the potential of G‐peptides to allosterically modulate signaling from class A GPCRs. 8 , 9 While allosteric modulation of GPCR signaling has gained prominence to address the need for receptor specificity, efforts have mainly focused on allosteric sites adjacent to the orthosteric ligand‐binding pocket and lipophilic molecules that target transmembrane helices. 2 In contrast, here we use as G‐peptides as probe molecules to demonstrate allosteric modulation through the GPCR‐G protein binding interface.
The two Gi‐coupled receptors (CB1 and A1R) examined in this study have also been reported to signal to varying degrees through other G proteins. 10 , 11 , 12 , 13 , 16 While traditionally described as a Gi‐coupled receptor, it has been demonstrated that A1R can couple to Gs and Gq in response to CPA or NECA, suggesting A1R can adopt agonist‐specific conformations arising from small differences in ligand structure leading to differential G protein activation. 11 However, previous studies emphasize A1R signaling through Gi and contradict signaling through Gs. 30 , 31 Our data suggest any apparent Gs signaling by A1R, measured by potentiation of forskolin‐induced cAMP production, cannot be distinguished from activation of endogenous A2AR or A2BR receptors by A1R agonists. We saw significantly higher potentiation of forskolin‐induced cAMP production in untransfected HEK 293 cells compared to A1R‐transfected HEK 293 cells in response to CPA, suggesting CPA is likely stimulating endogenous Gs‐coupled receptors (Figure S4). Further investigation revealed A2AR and A2BR specific antagonists could inhibit this potentiation of cAMP in untransfected cells, suggesting any potentiation of forskolin‐induced cAMP production likely resulted from stimulation of endogenous A2AR or A2BR receptors. Therefore, we could not independently examine A1R signaling through the Gs pathway. The A2BR receptor is also known for signaling through Gq, however, control experiments confirmed Gq signaling likely occurred through A1R and not A2BR since no significant IP1 production was seen in untransfected HEK 293 cells (Figure S5). In accordance with a previous studies, we confirmed CB1 did indeed signal through Gs, as no significant potentiation of forskolin‐induced cAMP production was observed in untransfected HEK 293 cells stimulated by the CB1 agonists 2‐AG or WN (Figure S2). 10 , 13 , 16 We therefore used CB1 to examine the impact of G‐peptides on Gs signaling, with findings consistent with our previous report for the Gs selective β2‐AR receptor (Figure 1D‐F). 8
Our data contrast with previous studies that report inhibition of GPCR signaling by native cognate G‐peptides. 32 , 33 , 34 In these studies, minigene vectors were used to overexpress cognate G‐peptides in cells at arbitrarily high concentrations, in order to identify and selectively inhibit cognate G protein engagement with the receptor. Accordingly, we have previously shown that high concentrations of cognate G‐peptides (100 μmol/L s‐pep) can competitively inhibit signaling from Gs‐coupled receptors. 8 , 9 In contrast, we find that noncognate G‐peptides can bind weakly to the receptor and serve as positive allosteric modulators. 8 , 9 While no significant positive allosteric effects were noted in studies with minigene vectors encoding noncognate G‐peptides, these could be attributed to the variation and/or lack of control in expression since saturating levels would result in inhibition. 32 , 33 , 34 To alleviate the confounding effects of G‐peptide concentration, we used the SPASM constructs to provide equivalent effective concentrations of distinct G‐peptides across different receptor‐ligand‐pathway combinations. Furthermore, the ER/K linker in the SPASM sensors provides an effective concentration of approximately 10 μmol/L, 18 which is significantly lower than our previously reported threshold for competitive inhibition by cognate G‐peptides. Using this technology, we observe differential effects of G‐peptides on distinct pathways emerging from the same receptor. Specifically, while both i‐pep and q‐pep augment Gi‐mediated cAMP inhibition, they suppress IP1 accumulation downstream of Gq activation. Given that sensor expression levels were matched between cAMP and IP1 assays and the ER/K linked G‐peptides (i‐pep and q‐pep) are presented at equal effective concentrations, it is unlikely that inhibition of Gq signaling stems from a simple competitive inhibition mechanism. Instead, the differential effects of G‐peptides likely stem from the dynamic conformational landscape of GPCRs. 35 , 36
We propose a model wherein transient interactions with G‐peptides alter receptor conformation. The receptor does not form a stable ternary complex with the G‐peptide and therefore at low concentrations (10 μmol/L) does not interfere with the kinetics of the receptor‐cognate G protein interaction. 9 However, the altered receptor conformation triggered by G‐peptide binding impacts ligand efficacy for cognate G protein activation, resulting in positive or negative allosteric modulation of downstream responses. The inability of the G‐peptides, especially those derived from noncognate G proteins, to form stable interactions with the receptor has been previously observed in A1R‐Gi fusions. 37 The lack of stable ternary complex formation with noncognate G proteins has been suggested as a kinetic proofreading mechanism to prevent noncognate GPCR‐G protein coupling. 37 Nonetheless, we have previously shown that both cognate and noncognate G‐peptide interactions influence receptor conformation. 9 Transient interactions of the G‐peptide at the cognate G protein binding site on the receptor stabilize a distinct receptor conformational state. This conformational state persists following G‐peptide dissociation enabling increased efficacy of subsequent cognate G protein coupling and enhanced downstream signaling. 9 Given that the G‐peptide and cognate G protein share the same binding site, albeit staggered in time, we propose that the G‐peptides function as allokairic modulators (AKMs) of cognate GPCR signaling. Allokairy is an established concept in enzymatic reactions, wherein increased substrate concentrations can increase maximal reaction rates, especially if the substrate stabilizes a distinct active enzyme conformation. 38 AKMs can bind asynchronously with the orthosteric ligand and rely on temporally persistent conformational states of the enzyme to exert their effects. 9 G‐peptides as AKMs provide access to the entire GPCR‐G protein interaction interface for allosteric modulation, without necessarily competing with cognate G protein coupling. Targeting the GPCR‐G protein interface offers the potential to enhance receptor specificity, especially given the three intrinsically disordered loop regions with considerable isoform specific sequence homogeneity.
5.ETHICS STATEMENT
No animals, human tissue, human volunteers, or patients were used in this study.
Supporting information
ACKNOWLEDGEMENTS
This work was supported by the National Institutes of Health National Institute of General Medical Sciences [Grant 1R35GM126940‐01 to SS] and the National Heart Lung and Blood Institute [5F30HL146089‐02 to A.T]. We thank Ansley Semack for technical assistance. We also thank Michael Ritt for helpful discussions in writing this manuscript.
Untitled section
Touma AM, Malik RU, Gupte T, Sivaramakrishnan S. Allosteric modulation of adenosine A1 and cannabinoid 1 receptor signaling by G‐peptides. Pharmacol Res Perspect. 2020;8:e00673 10.1002/prp2.673
Untitled section
Footnote Group
DATA AVAILABILITY STATEMENT
Additional information and requests for data and/or reagents should be directed to the corresponding author, Dr Sivaraj Sivaramakrishnan. Please contact sivaraj@umn.edu.
REFERENCES
Untitled section
References
- 1. Insel PA, Tang C‐M, Hahntow I, Michel MC. Impact of GPCRs in clinical medicine: monogenic diseases, genetic variants and drug targets. Biochim Biophys Acta. 2007;1768:994‐1005. 10.1016/j.bbamem.2006.09.029
- 2. Conn PJ, Christopoulos A, Lindsley CW. Allosteric modulators of GPCRs: a novel approach for the treatment of CNS disorders. Nat Rev Drug Discov. 2009;8:41‐54. 10.1038/nrd2760
- 3. Foster DJ, Conn PJ. Allosteric modulation of GPCRs: new insights and potential utility for treatment of schizophrenia and other CNS disorders. Neuron. 2017;94:431‐446. 10.1016/j.neuron.2017.03.016
- 4. Chung KY. Structural aspects of GPCR‐G protein coupling. Toxicol Res. 2013;29:149‐155. 10.5487/TR.2013.29.3.149
- 5. Wakefield AE, Mason JS, Vajda S, Keserű GM. Analysis of tractable allosteric sites in G protein‐coupled receptors. Sci Rep. 2019;9:6180 10.1038/s41598-019-42618-8
- 6. Semack A, Sandhu M, Malik RU, Vaidehi N, Sivaramakrishnan S. Structural elements in the Gαs and Gβq C termini that mediate selective G Protein‐coupled Receptor (GPCR) signaling. J Biol Chem. 2016;291:17929‐17940. 10.1074/jbc.M116.735720
- 7. Okashah N, Wan Q, Ghosh S, et al. Variable G protein determinants of GPCR coupling selectivity. Proc Natl Acad Sci USA. 2019;116:12054‐12059. 10.1073/pnas.1905993116
- 8. Gupte TM, Malik RU, Sommese RF, Ritt M, Sivaramakrishnan S. Priming GPCR signaling through the synergistic effect of two G proteins. Proc Natl Acad Sci USA. 2017;114:3756‐3761. 10.1073/pnas.1617232114
- 9. Gupte TM, Ritt M, Dysthe M, Malik RU, Sivaramakrishnan S. Minute‐scale persistence of a GPCR conformation state triggered by non‐cognate G protein interactions primes signaling. Nat Commun. 2019;10:4836 10.1038/s41467-019-12755-9
- 10. Bonhaus DW, Chang LK, Kwan J, Martin GR. Dual activation and inhibition of adenylyl cyclase by cannabinoid receptor agonists: evidence for agonist‐specific trafficking of intracellular responses. J Pharmacol Exp Ther. 1998;287:884‐888.
- 11. Cordeaux Y, Ijzerman AP, Hill SJ. Coupling of the human A 1 adenosine receptor to different heterotrimeric G proteins: evidence for agonist‐specific G protein activation. Br J Pharmacol. 2004;143:705‐714. 10.1038/sj.bjp.0705925
- 12. Lauckner JE, Hille B, Mackie K. The cannabinoid agonist WIN55,212–2 increases intracellular calcium via CB1 receptor coupling to Gq/11 G proteins. Proc Natl Acad Sci USA. 2005;102:19144‐19149. 10.1073/pnas.0509588102
- 13. Chen X, Yang W, Fan Y, et al. Structural determinants in the second intracellular loop of the human cannabinoid CB 1 receptor mediate selective coupling to G s and G i. Br J Pharmacol. 2010;161:1817‐1834. 10.1111/j.1476-5381.2010.01006.x
- 14. Agarwal N, Pacher P, Tegeder I, et al. Cannabinoids mediate analgesia largely via peripheral type 1 cannabinoid receptors in nociceptors. Nat Neurosci. 2007;10:870‐879. 10.1038/nn1916
- 15. Ibsen MS, Connor M, Glass M. Cannabinoid CB 1 and CB 2 Receptor Signaling and Bias. 2017. 10.1089/can.2016.0037
- 16. Maneuf YP, Brotchie JM. Paradoxical action of the cannabinoid WIN 55,212–2 in stimulated and basal cyclic AMP accumulation in rat globus pallidus slices. Br J Pharmacol. 1997;120:1397‐1398. 10.1038/sj.bjp.0701101
- 17. Jacobson KA, Gao ZG. Adenosine receptors as therapeutic targets. Nat Rev Drug Discov. 2006;5:247‐264. 10.1038/nrd1983
- 18. Swanson CJ, Sivaramakrishnan S. Harnessing the unique structural properties of isolated α‐helices. J Biol Chem. 2014;289:25460‐25467. 10.1074/jbc.R114.583906
- 19. Malik RU, Dysthe M, Ritt M, Sunahara RK, Sivaramakrishnan S. ER/K linked GPCR‐G protein fusions systematically modulate second messenger response in cells. Sci Rep. 2017;7:7749 10.1038/s41598-017-08029-3
- 20. Harding SD, Sharman JL, Faccenda E, et al. The IUPHAR/BPS Guide to PHARMACOLOGY in 2019: updates and expansion to encompass the new guide to IMMUNOPHARMACOLOGY. Nucleic Acids Res. 2018;46:D1091‐D1106. 10.1093/nar/gkx1121
- 21. Alexander SPH, Christopoulos A, Davenport AP, et al. THE CONCISE GUIDE TO PHARMACOLOGY 2019/20: G protein‐coupled receptors. Br J Pharmacol. 2019;176(S1):S21‐S141. 10.1111/bph.14748
- 22. Sivaramakrishnan S, Spudich JA. Systematic control of protein interaction using a modular ER/K α‐helix linker. Proc Natl Acad Sci USA. 2011;108:20467‐20472. 10.1073/pnas.1116066108
- 23. Hamm HE, Deretic D, Arendt A, Hargrave PA, Koenig B, Hofmann KP. Site of G protein binding to rhodopsin mapped with synthetic peptides from the α subunit. Science. 1988;241(4867):832‐835. 10.1126/science.3136547
- 24. Lambright DG, Noel JP, Hamm HE, Sigler PB. Structural determinants for activation of the α‐subunit of a heterotrimeric G protein. Nature. 1994;369:621‐628. 10.1038/369621a0
- 25. Rasenick MM, Watanabe M, Lazarevic MB, Hatta S, Hamm HE. Synthetic peptides as probes for G protein function: carboxyl‐terminal Gαs peptides mimic Gs and evoke high affinity agonist binding to β‐adrenergic receptors. J Biol Chem. 1994;269:21519‐21525.
- 26. Yang CS, Skiba NP, Mazzoni MR, Hamm HE. Conformational changes at the carboxyl terminus of Gα occur during G protein activation. J Biol Chem. 1999;274:2379‐2385. 10.1074/jbc.274.4.2379
- 27. Oldham WM, Hamm HE. Heterotrimeric G protein activation by G‐protein‐coupled receptors. Nat Rev Mol Cell Biol. 2008;9:60‐71. 10.1038/nrm2299
- 28. Malik RU, Ritt M, DeVree BT, Neubig RR, Sunahara RK, Sivaramakrishnan S. Detection of G protein‐selective G protein‐coupled receptor (GPCR) conformations in live cells. J Biol Chem. 2013;288:17167‐17178. 10.1074/jbc.M113.464065
- 29. Mangmool S, Kurose H. Gi/o protein‐dependent and ‐independent actions of pertussis toxin (ptx). Toxins (Basel). 2011;3:884‐899. 10.3390/toxins3070884
- 30. Freissmuth M, Schutz W, Linder ME. Interactions of the bovine brain A1‐adenosine receptor with recombinant G protein α‐subunits: selectivity for rG(iα‐3). J Biol Chem. 1991;275(Pt 3);651‐656. 10.1042/bj2750651
- 31. Jockers R, Linder ME, Hohenegger M, et al. Species difference in the G protein selectivity of the human and bovine A1‐adenosine receptor. J Biol Chem. 1994;269:32077‐32084.
- 32. Gilchrist A, Bünemann M, Li A, Hosey MM, Hamm HE. A dominant‐negative strategy for studying roles of G proteins. J Biol Chem. 1999;274:6610‐6616. 10.1074/jbc.274.10.6610
- 33. Gilchrist A, Vanhauwe JF, Li A, Thomas TO, Voyno‐Yasenetskaya T, Hamm HE. Gα minigenes expressing C‐terminal peptides serve as specific inhibitors of thrombin‐mediated endothelial activation. J Biol Chem. 2001;276:25672‐25679. 10.1074/jbc.M100914200
- 34. Gilchrist A, Li A, Hamm HE. G alpha COOH‐terminal minigene vectors dissect heterotrimeric G protein signaling. Sci STKE. 2002;2002(118):Pl1 10.1126/scisignal.1182002pl1
- 35. Nygaard R, Zou Y, Dror RO, et al. The dynamic process of β2‐adrenergic receptor activation. Cell. 2013;152:532‐542. 10.1016/j.cell.2013.01.008
- 36. Sandhu M, Touma AM, Dysthe M, Sadler F, Sivaramakrishnan S, Vaidehi N. Conformational plasticity of the intracellular cavity of GPCR−G‐protein complexes leads to G‐protein promiscuity and selectivity. Proc Natl Acad Sci USA. 2019;116:11956‐11965. 10.1073/pnas.1820944116
- 37. Waldhoer M, Wise A, Milligan G, Freissmuth M, Nanoff C. Kinetics of ternary complex formation with fusion proteins composed of the A1‐adenosine receptor and G protein α‐subunits. J Biol Chem. 1999;274:30571‐30579. 10.1074/jbc.274.43.30571
- 38. Hilser VJ, Anderson JA, Motlagh HN. Allostery vs. “allokairy”. Proc Natl Acad Sci USA. 2015;112:11430‐11431. 10.1073/pnas.1515239112
Associated Data
Supplementary Materials
Data Availability Statement
Additional information and requests for data and/or reagents should be directed to the corresponding author, Dr Sivaraj Sivaramakrishnan. Please contact sivaraj@umn.edu.
