Genomic surveillance framework and global population structure for Klebsiella pneumoniae
1Department of Infectious Diseases, Central Clinical School, Monash University, Melbourne, Victoria 3004, Australia
2Department of Biochemistry and Molecular Biology, Bio21 Molecular Science and Biotechnology Institute, University of Melbourne, Parkville, Victoria 3010, Australia
3London School of Hygiene & Tropical Medicine, London WC1E 7HT, UK
*Corresponding author: margaret.lam@monash.eduABSTRACT
K. pneumoniae is a leading cause of antimicrobial-resistant (AMR) healthcare-associated infections, neonatal sepsis and community-acquired liver abscess, and is associated with chronic intestinal diseases. Its diversity and complex population structure pose challenges for analysis and interpretation of K. pneumoniae genome data. Here we introduce Kleborate, a tool for analysing genomes of K. pneumoniae and its associated species complex, which consolidates interrogation of key features of proven clinical importance. Kleborate provides a framework to support genomic surveillance and epidemiology in research, clinical and public health settings. To demonstrate its utility we apply Kleborate to analyse publicly available Klebsiella genomes, including clinical isolates from a pan-European study of carbapenemase-producing Klebsiella, highlighting global trends in AMR and virulence as examples of what could be achieved by applying this genomic framework within more systematic genomic surveillance efforts. We also demonstrate the application of Kleborate to detect and type K. pneumoniae from gut metagenomes.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Footnote Group
TEXT
Klebsiella pneumoniae bacteria commonly colonize the mammalian gut, but are also recognized as a major public health threat due to their ability to cause severe infections in healthcare settings and their association with antimicrobial resistance (AMR)1,2. Reports of K. pneumoniae gut colonization frequencies vary by country and demographics, but prevalence rates as high as 87% have been reported3–6. K. pneumoniae colonization is implicated in chronic diseases of the gastrointestinal tract including inflammatory bowel disease and colorectal cancer7. There is also a growing body of evidence highlighting colonization as a reservoir for extraintestinal infections (urinary tract infection, pneumonia, wound or surgical site infections, sepsis) in vulnerable individuals such as neonates, the elderly, immunocompromized and hospitalized patients8. Treatment of healthcare-associated (HA) K. pneumoniae infections is often limited by multidrug resistance (MDR) resulting from the accumulation of horizontally-acquired AMR genes and mutations in core genes2. Treatment is further complicated by increasing frequencies of strains producing extended-spectrum β-lactamases (ESBL) and/or carbapenemases, prompting increased reliance on colistin and β-lactamase inhibitor combinations9,10. The World Health Organization has accordingly prioritized K. pneumoniae as a target for new drugs and therapies11.
Outside healthcare settings, K. pneumoniae is also recognized as a causative agent of community-acquired infections including urinary tract infection and pneumonia, but also invasive infections such as pyogenic liver abscess, endophthalmitis and meningitis12,13. Invasive community-acquired infections are generally associated with so-called hypervirulent K. pneumoniae (hvKp) and are most commonly reported in East and Southeast Asia, or in individuals with East Asian ancestry12. Features associated with hvKp include a K1, K2 or K5 polysaccharide capsule and horizontally-acquired virulence factors encoding the siderophores aerobactin (Iuc) and salmochelin (Iro), the genotoxin colibactin (Clb), and a hypermucoid phenotype (conferred by the rmpADC locus)14–18. HvKp are rarely MDR and most remain susceptible to drugs except ampicillin, to which K. pneumoniae are intrinsically resistant due to the chromosomally-encoded β-lactamase SHV19. However there have been increasing reports of hvKp carrying AMR plasmids and co-occurrence of AMR and virulence determinants in non-hvKp isolates. The convergence of AMR and virulence in K. pneumoniae potentiates invasive and difficult-to-treat infections, and at least one fatal outbreak has been documented in China where carbapenemase-producing hvKp are increasingly common20–24.
Research conducted in the pre-genomic era characterized 77 distinct capsular (K) serotypes25, nine O types26 and variable AMR profiles amongst the K. pneumoniae population27,28, indicating a diverse genetic and phenotypic landscape15,29. In recent years, genomic studies have provided key insights into the population structure of K. pneumoniae (recently summarized in Wyres et al16), revealing hundreds of deep-branching phylogenetic lineages comprising sequence types (STs) or clonal groups (CGs) defined by the seven-gene multi-locus sequence typing (MLST) scheme29. Some of these lineages correspond to lineages (i.e. STs and CGs) that have accumulated large numbers of AMR genes that have become globally distributed (e.g. CG258, CG15, ST307); these are dubbed MDR clones and have been linked with HA infections and hospital outbreaks worldwide30. Others carry a high load of virulence genes (e.g. CG23, CG65, CG86) and are recognized as hvKp associated with community-acquired infections. Further distinguishing MDR from hvKp clones are their K and O antigen profiles, with the former displaying a diverse range of K and O biosynthesis loci as a result of homologous recombination between strains, while hvKp rarely deviate from the K1, K2 or K5 types16.
Importantly, genomic characterization of clinical isolates identified as K. pneumoniae via biochemical tests or mass spectrometry (MALDI-TOF) has revealed the existence of multiple related species and subspecies, which together form the K. pneumoniae species complex (KpSC). These differ by 3-4% nucleotide divergence across core chromosomal genes, but share the same pool of AMR and virulence genes16. Infections and outbreaks caused by other KpSC members have been reported but they generally account for a significantly lower disease burden than K. pneumoniae (10-20%)19,31,32. Genomics has also clarified that the two K. pneumoniae subspecies originally defined by distinct and unusual disease manifestations (subsp. rhinoscleromatis which causes a progressive and chronic granulomatous infection known as rhinoscleroma, and subsp. ozaenae which causes atrophic rhinitis or ozena) actually represent CGs of K. pneumoniae (CG3 and CG90)15. Like hvKp clones, these strains also express specific capsule types (K3, K4 and K5) alongside aerobactin and another acquired siderophore, yersiniabactin (Ybt)16.
Due to its clinical importance and increasing AMR, K. pneumoniae is increasingly the focus of surveillance efforts and molecular epidemiology studies. The sheer volume of clinically-relevant molecular targets renders whole genome sequencing (WGS) the most cost-efficient characterization approach, however extracting and interpreting clinically important features is challenging. To address this, we have developed Kleborate, a genotyping tool designed specifically for K. pneumoniae and the associated species complex, which consolidates detection and genotyping of key virulence and AMR loci alongside species, lineage (ST) and predicted K and O antigen serotypes directly from genome assemblies. Here we describe Kleborate and demonstrate its utility by application to publicly available datasets. First, we show that Kleborate can rapidly recapitulate and augment the key findings from a recent large-scale European genomic surveillance study33. Next, we apply Kleborate to a curated collection of 13,156 publicly available WGS to further showcase its utility and derive novel insights into the global epidemiology of Klebsiella AMR, virulence and convergence. Finally, we show that Kleborate can also be applied to detect clinically relevant genotypes from meta-genome assembled genomes (MAGs).
RESULTS
Integrated genomic framework and genotyping tool

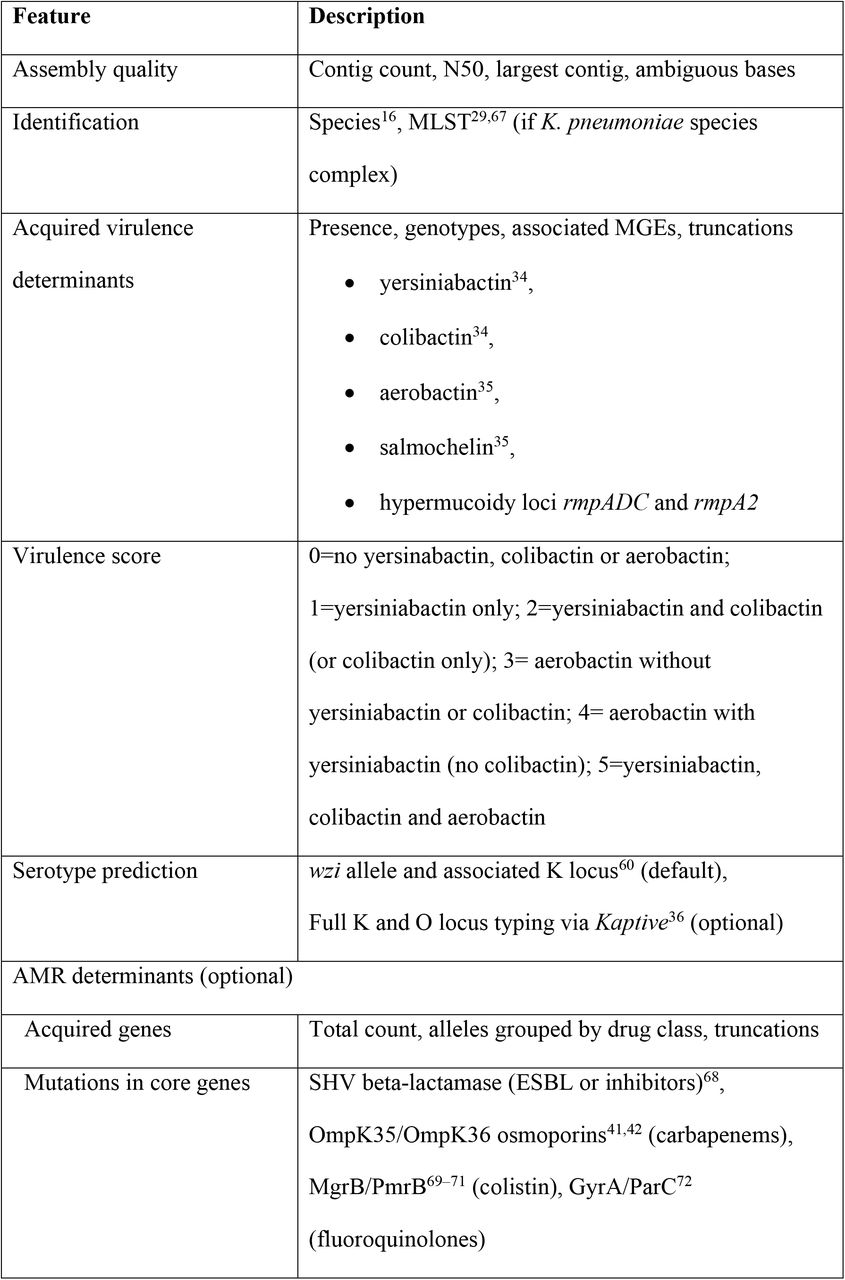

Our goal was to develop a single tool that can rapidly extract genotype information that is clinically relevant to K. pneumoniae and other members of the species complex in order to support genomic epidemiology and surveillance. We have previously reported genotyping schemes for the acquired K. pneumoniae virulence loci ybt, clb, iuc and iro34,35 (whose detection and typing is implemented in early versions of Kleborate), and also K and O antigen typing implemented in the software Kaptive36. Here we expand the Kleborate framework to include additional features including taxonomic assignment to species and subspecies, assignment to lineages via seven-locus MLST, detection and genotyping of the rmp hypermucoidy locus and the rmpA2 gene, and identification of AMR determinants (mutations and horizontally acquired genes, including assignment of SHV β-lactamase alleles as either ESBL, β-lactamase inhibitor resistance, or intrinsic ampicillin resistance only, see Methods and Supplementary text). Kleborate can optionally call Kaptive for K/O antigen prediction.
Unlike generic AMR or virulence typing tools, we include only genetic features for which there is strong evidence of an associated phenotype in K. pneumoniae that has confirmed clinical relevance. These are reported in a manner that facilitates interpretation, including summarizing virulence and AMR genotypes into scores that reflect escalating clinical risk in K. pneumoniae infections. Kleborate features are summarized in Table 1 and methodological details for genotyping are provided in Methods. For a typical 5.5 Mbp genome, a Kleborate run including AMR typing takes <10 seconds on a laptop, while robust K and O serotype prediction using Kaptive36 adds an additional ~1 minute. Results are output in tab-delimited format, making it easy to integrate Kleborate into existing workflows.
Species and subspecies assignment
The taxonomy of Klebsiella is rapidly evolving, with several new species and subspecies recently identified37–39. As a consequence, many genomes in public databases are incorrectly assigned. We therefore introduced a custom approach for rapid and accurate species and subspecies identification for Klebsiella, based on Mash distances40 to a taxonomically-curated genome set (representative tree in Figure S1A-B), avoiding the need for users to download large reference genome databases (see Methods). This approach was validated using a set of n=285 diverse clinical isolates and compared with species assignments based on the read-based taxonomic classifier Kraken2 (details in Supplementary Text, Table S1, Figure S1).
Virulence and AMR scores

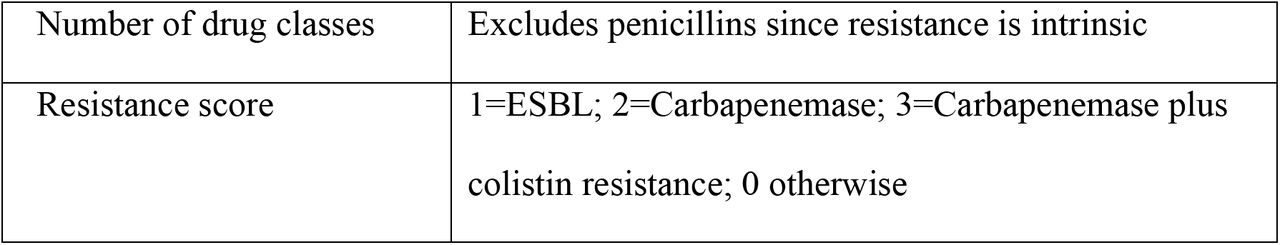

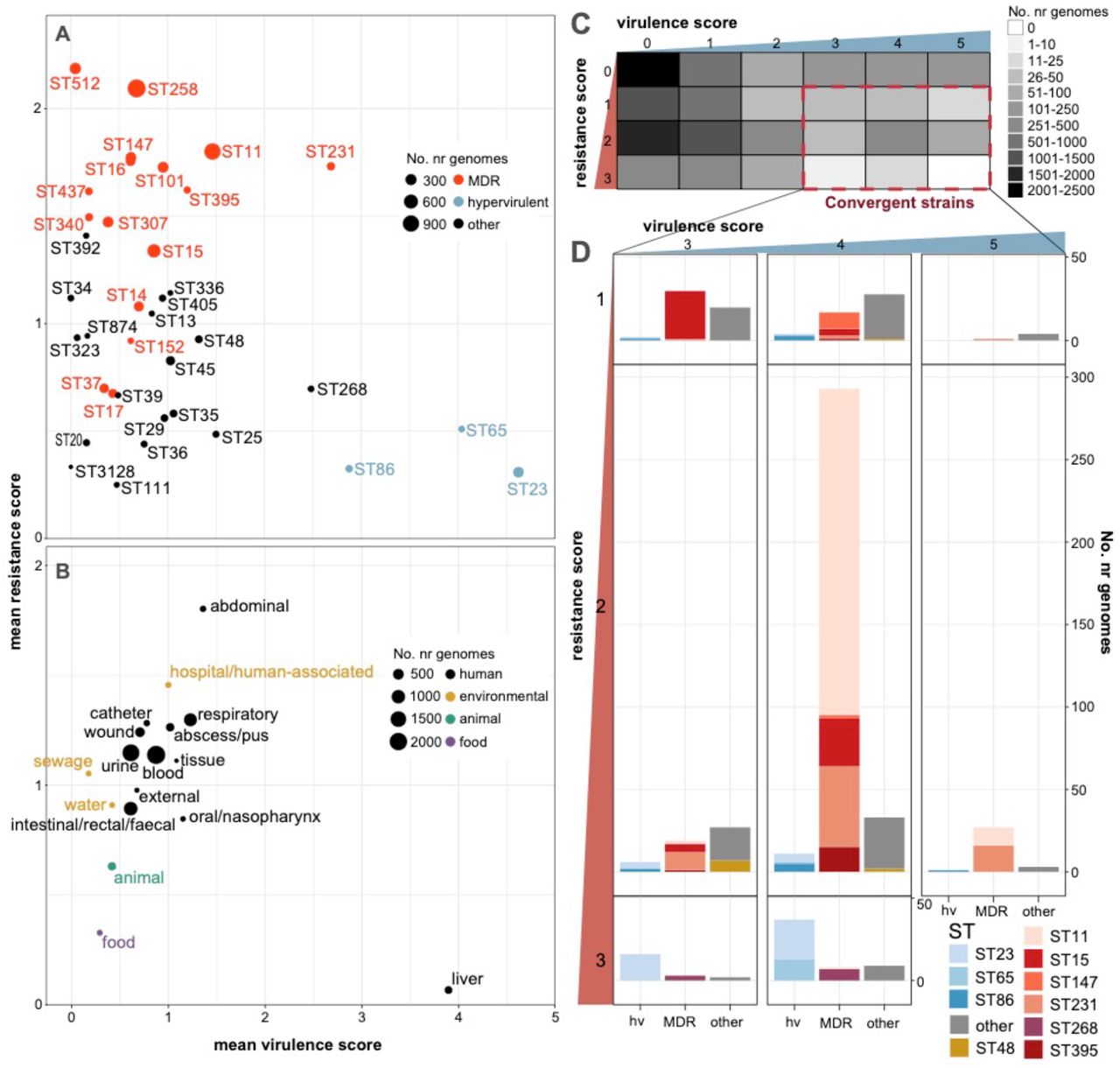

Genomes are scored according to the clinical risk associated with the AMR and virulence loci that are detected (see Methods). Here we take advantage of the structured distribution of AMR and virulence determinants within the K. pneumoniae population14 to reduce the genotyping data to simple numerical summary scores that reflect the accumulation of loci contributing to clinically relevant AMR or hypervirulence: virulence scores range from 0 to 5, depending on the presence of key loci associated with increasing risk (yersiniabactin < colibactin < aerobactin); resistance scores range from 0 to 3, based on detection of genotypes warranting escalation of antimicrobial therapy (ESBL < carbapenemase < carbapenemase plus colistin resistance, see Table 1). These simple numerical scores facilitate downstream analyses including trend detection. For example, analysis of a non-redundant subset of 9,705 publicly available K. pneumoniae genomes (see below, Table S2) showed increasing AMR and virulence scores over time (barplots in Figure 1A-B). The virulence and resistance scores were correlated not only with the prevalence of individual components that contribute to the scores, but also with other components that are co-distributed in the population (lines in Figure 1A-B). For example, the frequencies of rmpADC and rmpA2 loci over time were correlated with the virulence score (Figure 1A); and the resistance score was correlated with the mean number of acquired AMR genes and associated drug classes (excluding ESBLs, carbapenemases and colistin which contribute to the score) (Figure 1C). Consistent with this, genomes with resistance scores >0 (assigned based on the presence of ESBL and/or carbapenemase genes) typically carry many additional AMR genes conferring resistance to multiple drug classes (Figure 1D-E). Reducing the data to key axes of virulence and AMR also facilitates exploration of subpopulations associated with AMR, virulence or convergence of both traits; such as specific K. pneumoniae lineages or specimen types (see below).
Rapid genotyping of clinical isolates from a large-scale surveillance study

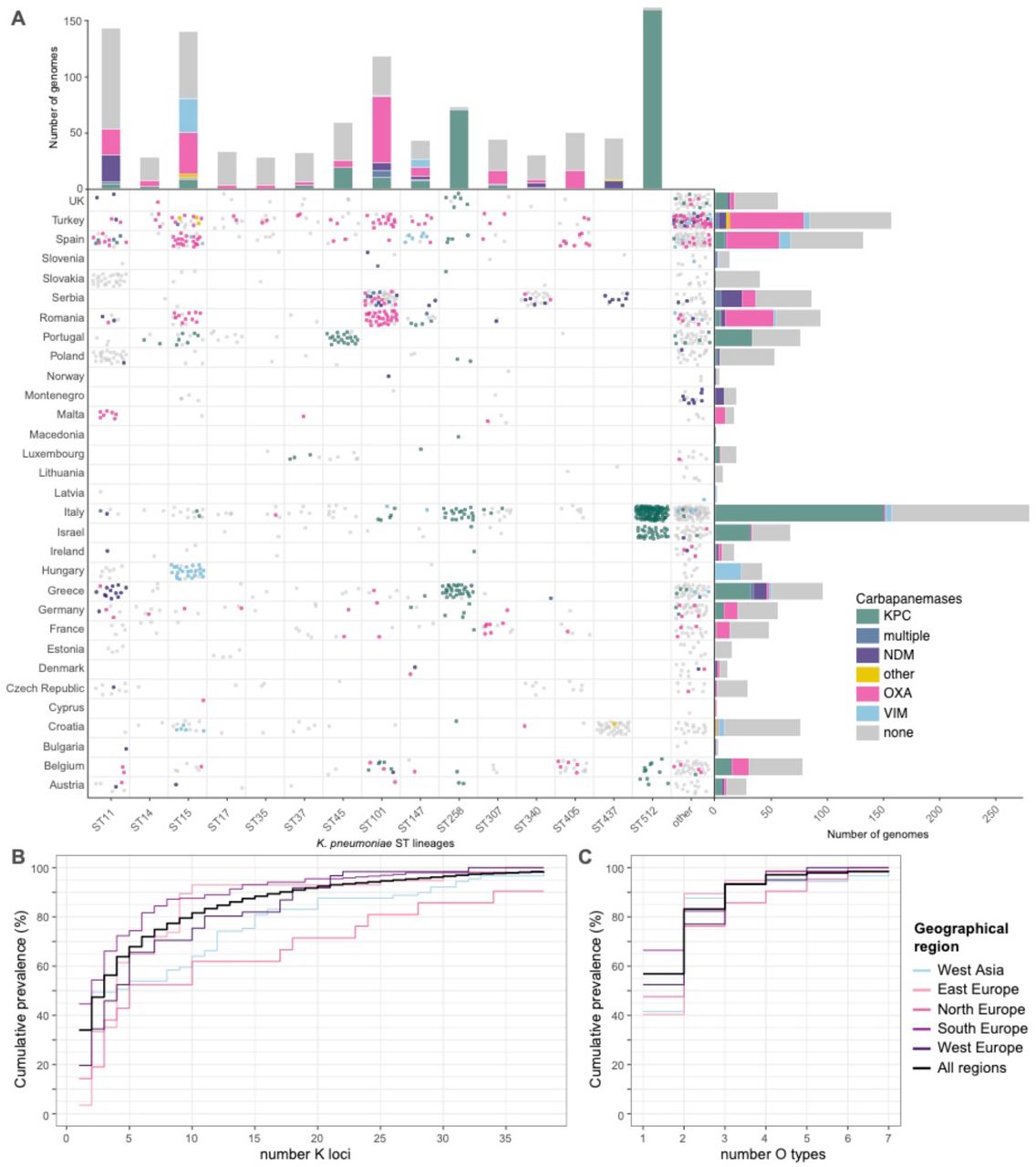

We applied Kleborate to analyse all K. pneumoniae clinical isolate genomes deposited in RefSeq by the EuSCAPE surveillance study (927 carbapenem-non-susceptible, 697 carbapenem-susceptible; see Table S2)33. Kleborate rapidly and accurately reproduced key findings from the original study, which were originally derived from multi-step analyses comprising five independent tools and four independent databases (each from a different public repository, one with additional manual curation): (i) 70.2% of carbapenem-non-susceptible genomes (n=651/927) carried carbapenemases, mainly KPC-3, OXA-48, KPC-2 and NDM-1; (ii) these were dominated by a few major clones, ST11, ST15, ST45, ST101, ST258, and ST512; (iii) individual countries were associated with specific carbapenemase/clone combinations (see Figure 2A). A detailed comparison of the results reported by Kleborate versus those reported in the original study is provided in Supplementary Text and Table S3.

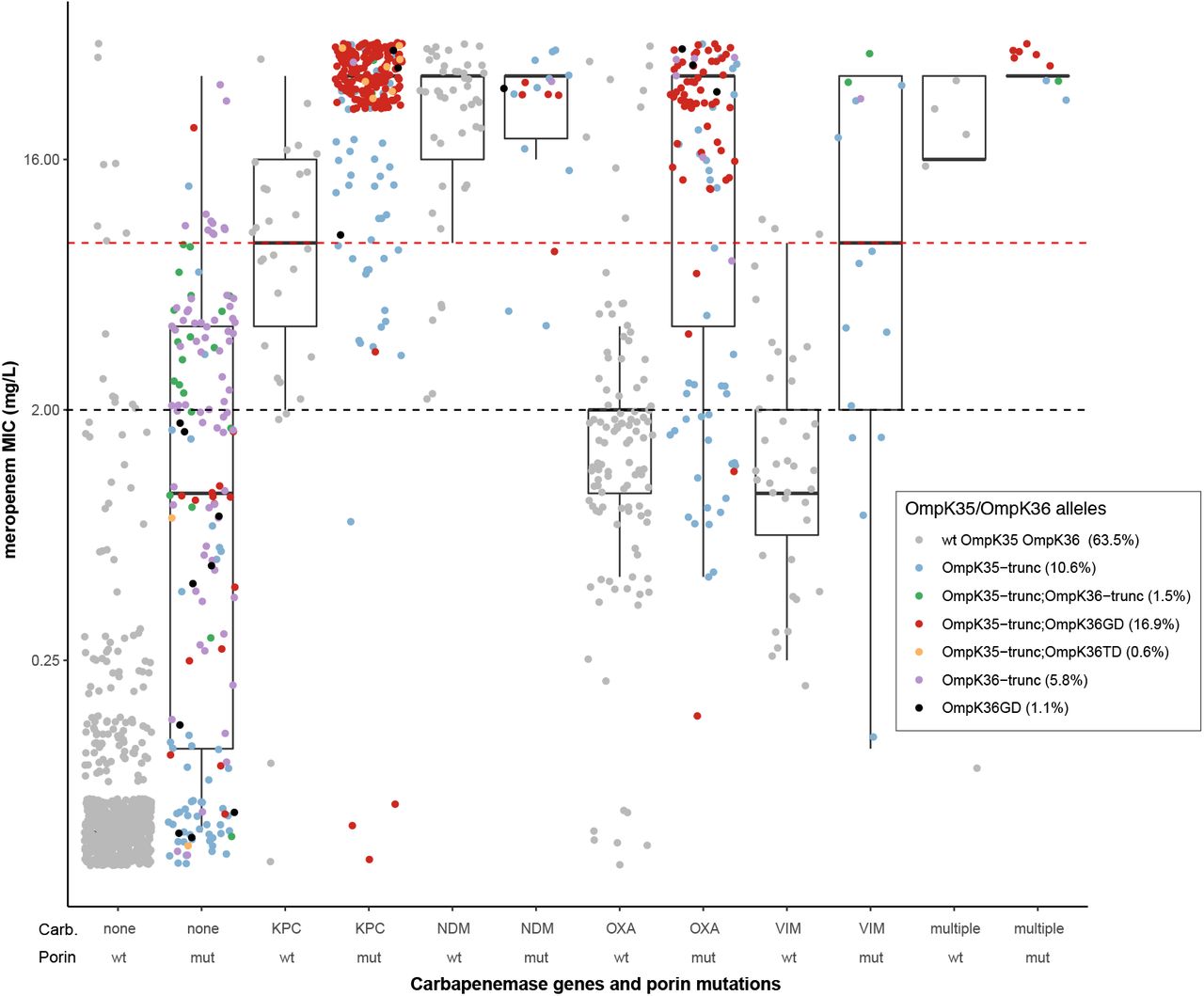

In addition to the detection of carbapenemase genes, Kleborate also identified porin defects, which are known to contribute to the carbapenem-resistance phenotype41,42, in 36.5% of EuSCAPE genomes (including 60% of those with carbapenemase genes and 19.9% of those without carbapenemase genes). These defects included truncation/deletion of OmpK35 and/or OmpK36 (also considered in the original study) as well as GD or TD insertions in the OmpK36 β-strand loop41 (not considered in original study, but here detected in 18.6% of genomes including 18 with no porin deletion). Figure 3 shows meropenem MICs stratified by porin defect-carbapenemase combinations identified by Kleborate, highlighting the importance of porin defects – including the OmpK36 β-strand loop insertions – for full expression of carbapenem resistance in K. pneumoniae.
The rise in carbapenem-resistant K. pneumoniae infections in hospitals and its associated morbidity and mortality43 has led to increased interest in alternative control strategies such as vaccines, phage therapy and antibody therapy, key targets for which are the K and O surface antigens44,45. Kleborate confidently identified K and O biosynthesis loci in 98.3% and 99.1% of EuSCAPE genomes, respectively, including 87 distinct K loci and 11 distinct O loci (Figures S2 and S3). Amongst carbapenem-non-susceptible isolates (meropenem MIC >2), 38 distinct K types were identified and the most common were KL107 (n=173), KL17 (n=67), KL106 (n=41), KL24 (n=35), KL15 (n=19) and KL36 (n=13). Seven distinct O types were detected among these genomes, and the most common were O2 (n=294), O1 (n=136) and O4 (n=52). Overall, the data suggest an intervention would need to be effective against six K types or two O types in order to provide coverage of 80% of carbapenem-resistant infections in Europe (Figure 2B-C). However, it is important to explore the impact of population structure on these findings, specifically the impact of local clonal expansions. Kleborate aides this type of analysis by providing ST and other genotyping information alongside the K and O locus types, which can be viewed in the context of geographic information. Doing so revealed that each of the top three K loci were dominated by a single ST (83.5% of KL107 were ST512; 93.0% of KL105 were ST11; 91.4% of KL17 were ST101). Importantly, the vast majority of ST512-KL107 genomes (75.3%) originated from Italy where this ST is known to be locally circulating46,47, while 58% of ST11-KL105 originated from Poland and Slovakia, and 56% of ST101-KL17 originated from Serbia and Romania. When these putative local expansions were excluded, the top 6 K loci were (KL24, KL15, KL2, KL112, KL107, KL151) and accounted for just 34% of the remaining genomes.
Global population snapshot of K. pneumoniae AMR and virulence
We applied Kleborate to analyse n=13,156 Klebsiella genomes (see Methods, Table S2). Here we provide a brief overview of the data followed by an exploration of AMR, virulence and the phenomenon of convergence, with the aim to highlight the rich information and types of inferences that can be derived from Kleborate output.
The genome data represented isolates collected from a range of sources in 99 countries between 1920–2020 (Table S4, although human isolates from the USA, China and UK dominated the data set accounting for n=4,702 genomes, 35.7% of total). The majority of these genomes were sourced from RefSeq, and among these Kleborate identified 1.0% (n=103/10,747) as a species other than the taxon recorded in NCBI; this is consistent with other studies and highlights the current confusion around taxonomic designations in Klebsiella. The most common species was K. pneumoniae (n=11,259, 86%); the rest comprised other KpSC species (9.4%), other members of the K. oxytoca species complex (3.1%) and K. aerogenes (1.9%) (Figure 4, Table S4). AMR and virulence genes were concentrated in the KpSC and particularly K. pneumoniae (Figure 4, Table S5).

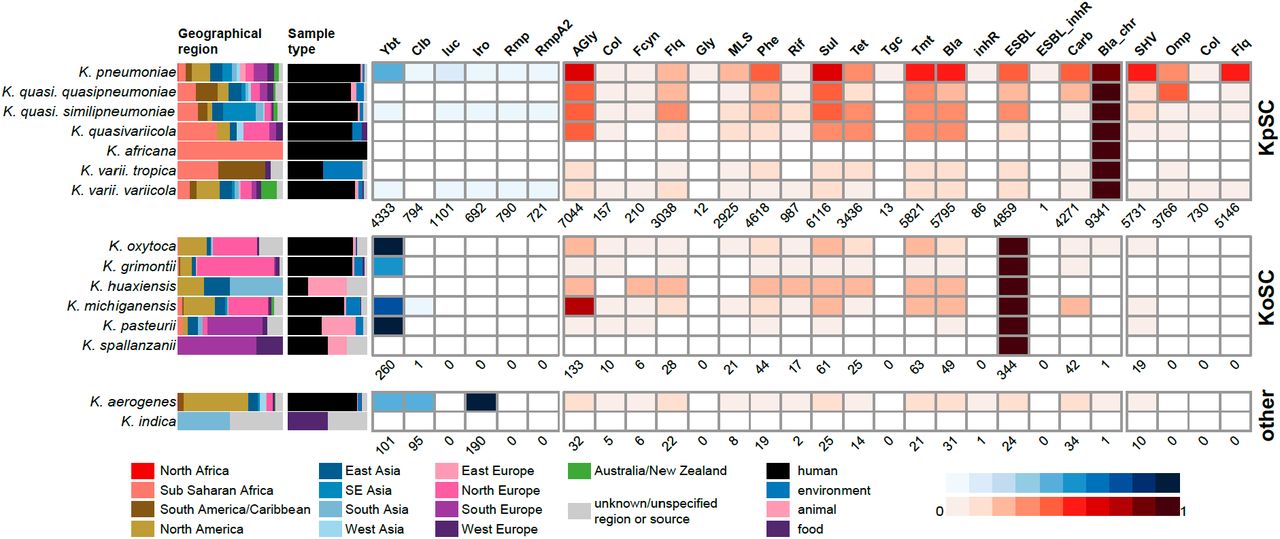

The collection captured extensive phylogenetic diversity across the K. pneumoniae species (see interactive phylogeny at http://microreact.org/project/JDyan46yctyDh6weEUjWN), and Kleborate assigned these genomes to ≥1,452 different STs (1,119 known STs across and at least 333 novel STs). Notably, 600 STs (41%) were represented by just a single genome each (accounting for 5.3% of all genomes). We detected n=4 ST67 (subspecies rhinoscleromatis) and n=3 ST90 (subspecies ozanae). A small number of STs were overrepresented, reflecting the bias towards sequencing MDR and hypervirulent isolates, as well as those causing hospital outbreaks. For example, 1,354 genomes (12.0%) represented the KPC-associated ST258, which is known to dominate carbapenem-resistant K. pneumoniae in the USA and southern Europe (where it has been the subject of intense genomic investigations) but is comparatively rare in other regions of the world16. To reduce the impact of these sampling biases in public genome collections, we down-sampled to a non-redundant set of 9,705 K. pneumoniae genomes representing unique combinations of ST, genetic subcluster (Mash distance <0.0003), virulence genotype, AMR genotype, specimen type, location and year of isolation (see Methods). However, we cannot fully correct for the sampling biases inherent in the public genome data and even after subsampling, the 30 most common STs accounted for 63.4% of genomes (n≥50 genomes each, n=6,151 total; see Figure S4). Figure 5 shows the distribution of AMR and virulence scores amongst non-redundant genomes from these 30 common K. pneumoniae STs (n>50 per ST), each of which displays high rates of AMR and/or virulence.
AMR determinants

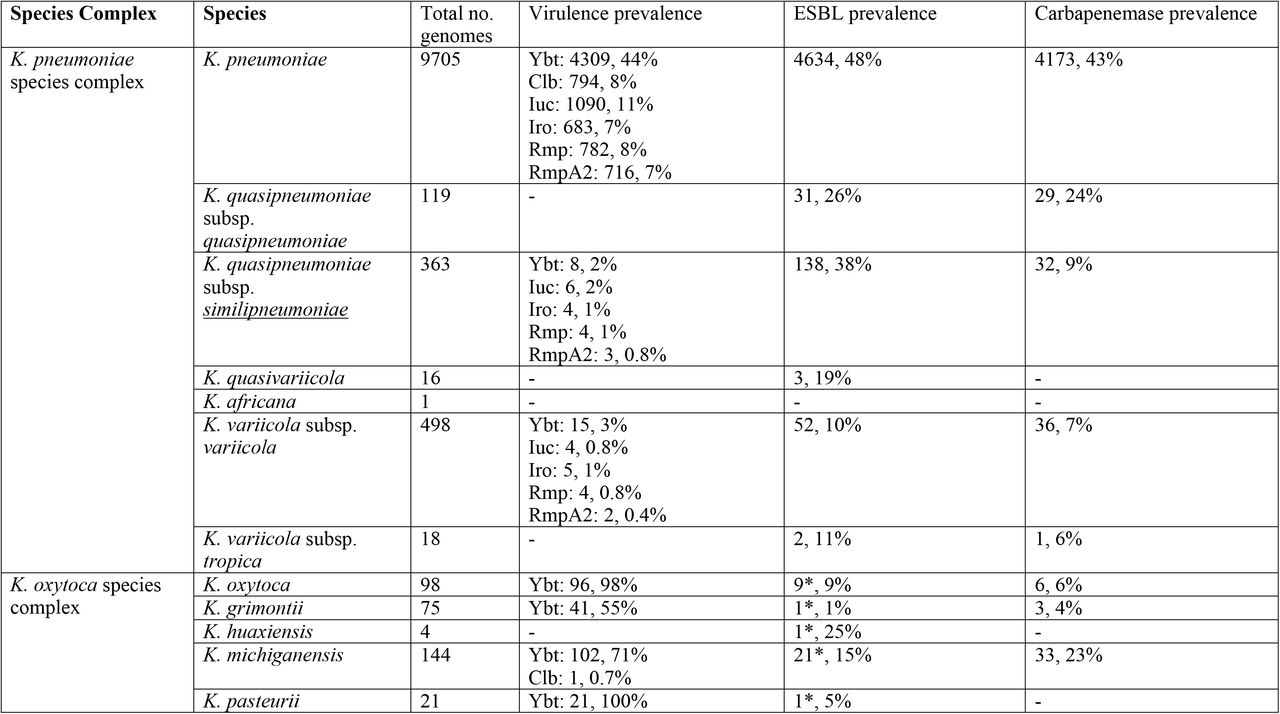

SHV β-lactamases conferring intrinsic resistance to the penicillins were detected in 85.9% of the 9,705 non-redundant K. pneumoniae genomes (ESBL forms of SHV were detected in 10.0%). Acquired AMR was widespread (77.1% of genomes had at least one gene or mutation conferring acquired AMR detected) and 71.6% of genomes were predicted to be MDR (acquired resistance to ≥3 drug classes48), a much higher rate than is reported in most geographical regions3,49–51, reflecting the bias within public genome collections. The majority of genomes had a non-zero resistance score, reflecting presence of ESBL and/or carbapenemase genes: 22.3%, 37.1% and 5.9% genomes had resistance scores of 1, 2 and 3 respectively. Mean resistance scores increased through time (Figure 1B). This trend could be an artefact of sampling bias towards the selective sequencing of AMR isolates, however it is consistent with the increasing AMR rates reported in surveillance studies globally52–54.

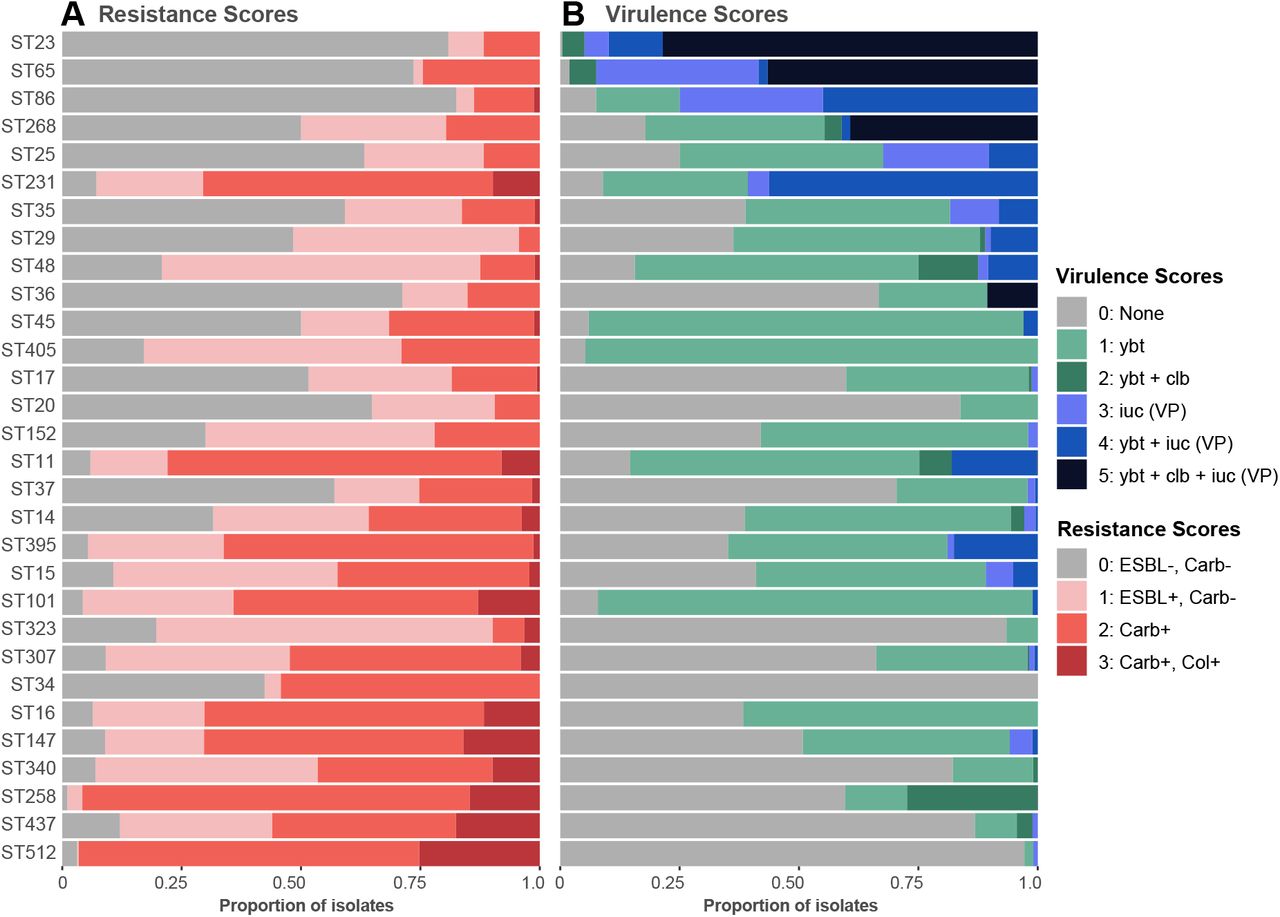

Comparatively higher prevalence of acquired AMR genes was observed in some STs (Figure S4). Many of these STs represent recognized MDR clones largely from clinical samples that were also associated with high mean resistance scores (Figures 6A-B), driven by high frequency of ESBL and carbapenemase genes (Figures 5, S5A-B). The most common ESBLs/carbapenemases were widely detected across the population (46-299 STs each), including amongst the top 30 common STs (prevalence range per ST, 0.1-100%; see Figure S5A-B), highlighting their mobile nature. The notable exception was CTX-M-65, which appeared to be largely clone specific, detected in only 9 STs and ST11 accounting for 96.7% of these genomes.
Colistin resistance determinants were detected in 8.7% of the non-redundant K. pneumoniae genomes. These were mostly nonsense mutations in MgrB or PmrB (83.5%) rather than acquisition of an mcr gene (15.8%, and an additional 6 genomes with both acquired mcr and truncated MgrB/PmrB). The rate of detection ranged from 0-25.2% for the 30 most common STs, and was highest amongst ST512, ST437, ST147, ST16 and ST258 (Figure S5C), each of which are also associated with high rates of carbapenem-resistance. Porin mutations were detected in 37.9% of genomes (34.0% OmpK35, 20.2% OmpK36, 16.3% both). High prevalence of specific porin defects have been reported previously in some clones41,42, and this was reflected in our analysis of ST258 and its derivative ST512. We observed OmpK35 truncations in 99.9% of non-redundant ST258 genomes (with or without truncations or substitutions in OmpK36), and truncations in OmpK35 and/or OmpK36 in all ST512 (99.4% with OmpK35 truncations, 94.4% with the OmpK36GD mutation, see Figure S5D).
Virulence loci

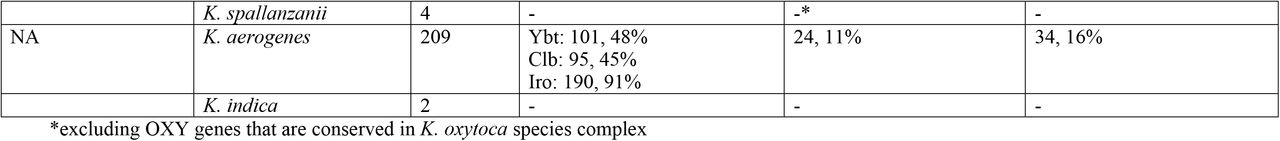

The prevalence of acquired siderophores and colibactin loci amongst non-redundant K. pneumoniae genomes was 44.4% ybt, 7.5% clb, 11.2% iuc and 7.0% iro. The loci were found across diverse K. pneumoniae STs (391 STs with ybt, 56 with clb, 144 with iuc, 108 with iro) but were rarely detected in other Klebsiella species (with the exception of ybt among the K. oxytoca species complex, see Figure 4) indicating frequent mobilisation within K. pneumoniae but not between species (Table S6, Figure S6). Mean virulence scores increased through time (Figure 1A). Figure 5B shows the frequency of virulence scores in the top 30 most common STs in the non-redundant genome set. Sixteen of these common STs had ≥40% of genomes carrying the ICEKp-associated ybt without the virulence plasmid-associated iuc locus (i.e. virulence score=1-2), including well known MDR clones ST258, ST11, ST14, ST15, ST101, ST147, ST152, ST395. Only the hvKp clones (ST23, ST86, ST65) and ST231 had a high frequency of iuc (virulence score ≥3).
In addition to detecting the presence of virulence loci, Kleborate reports on their completeness, genetic lineages and associated MGE variants, which can provide insights into their dissemination. Most of the virulence loci identified in the non-redundant K. pneumoniae data set (98%) matched one of the genetic lineages described previously34,35 (Table S6). Figure S7A shows the frequency of iuc lineages in K. pneumoniae STs with ≥20 non-redundant genomes and at least one genome harbouring iuc. There were four STs for which >60% genomes harboured iuc, and only a single iuc lineage was detected in each (iuc1 in ST23, ST65, ST86; iuc2A in ST82), consistent with long-term persistence of a specific virulence plasmid in these well-known hypervirulent clones. In contrast, iuc was less frequent among other STs, several of which were associated with multiple iuc lineages (e.g. ST231, ST25, ST35), consistent with more recent and/or transient virulence plasmid acquisitions (mostly iuc1, followed by iuc3 and iuc5).
Frameshift mutations (i.e. truncations) and/or incomplete loci (i.e. missing at least one gene) were detected in 10%, 28.5%, 13.6% and 17.7% of non-redundant K. pneumoniae genomes with ybt, clb, iuc and iro respectively (Table S7). While some of these may erroneously arise from contig breaks in draft genome assemblies, true truncations or missing genes may reflect a lack of function. The latter is likely true for instances where we observe conserved frameshift mutations across entire lineages, e.g. frameshift mutations were detected in iucA for all iuc3+ genomes and in iroC for all iro3+ and iro4+ genomes.
The hypermucoidy locus rmpADC was detected in 8.4% of non-redundant K. pneumoniae genomes (and just eight genomes of other KpSC species, Table S6). The majority of these genomes (67.2%, belonging to >79 STs) carried intact copies of all three genes, thus likely express the hypermucoid phenotype. Intact rmpADC was common in iuc-positive genomes of the hvKp clones ST23 and ST86, as well as MDR clones ST29 and ST101 (Figure S7B). Many other iuc-positive genomes carried rmpADC loci with truncated or missing genes, which likely do not confer the hypermucoid phenotype. Notably, these included hvKp clones ST65 and ST82, as well as MDR clones ST231, ST15 and ST14. The rmpA2 gene was detected in 7.4% of non-redundant K. pneumoniae genomes, but was mostly present in truncated form (89.0% of rmpA2+ genomes) due to frameshifts within a poly-G tract55. The latter highlights the importance of considering not only the presence/absence of a given gene, but also whether it encodes a full-length protein, which may have important clinical implications.
Facilitating detection of AMR-virulence convergence

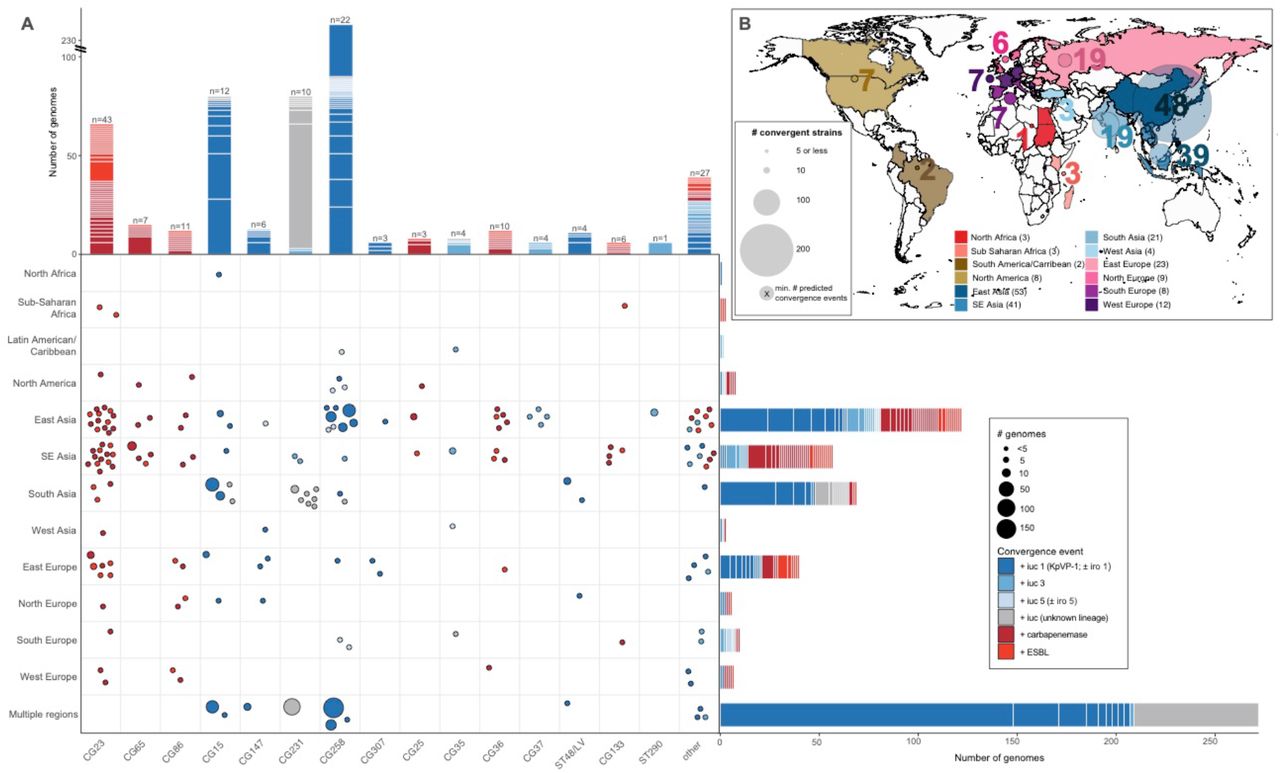

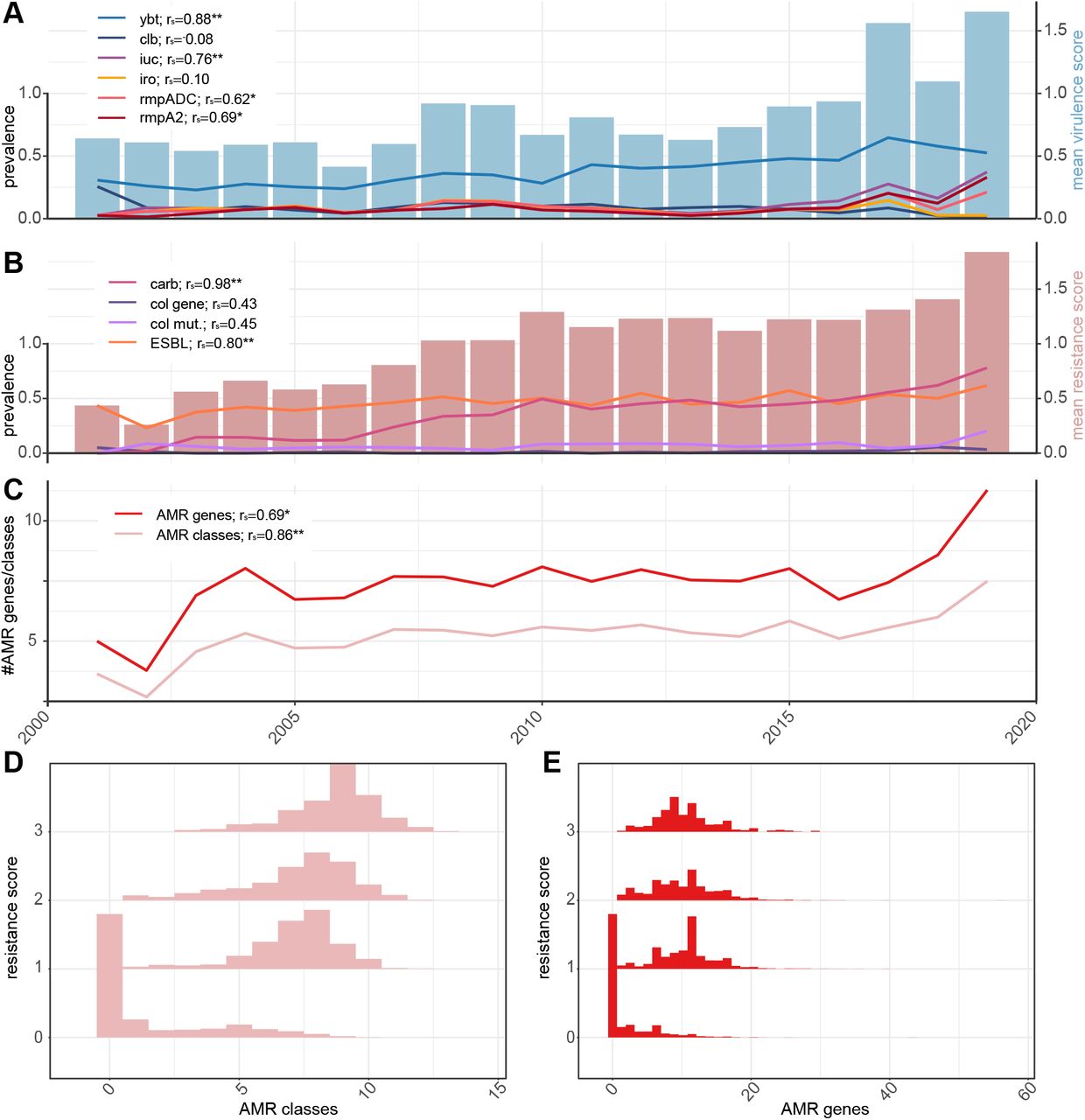

AMR and virulence determinants have until recently been segregated in non-overlapping K. pneumoniae populations14,19, as clearly indicated by the distributions of AMR and virulence scores among STs (Figures 5, 6A). However, reports of convergent AMR-virulent strains with the potential to cause difficult-to-treat infections are increasingly common16,56. Kleborate facilitates rapid identification of such strains on the basis of resistance and virulence scores (convergence defined as virulence score ≥3 and resistance score ≥1, Figure 6C). Based on these scores, we observed a total of 601 convergent K. pneumoniae (510 non-redundant) with the highest proportion corresponding to a virulence score of 4 (indicative of yersiniabactin plus aerobactin/virulence plasmid detection) and resistance score of 2 (carbapenem resistance).
The majority of convergent genomes (74.5%) were concentrated within a small number of STs comprising the well-known hypervirulent (ST23, ST86, ST65) and MDR lineages (ST11, ST15, ST231 and ST147) (Figures 6C-D, 7). We combined the genotyping data and information from a Mash-distance-based neighbour-joining tree (http://microreact.org/project/JDyan46yctyDh6weEUjWN) to define unique convergence events (defined as unique combinations of ST, virulence and resistance determinants, and phylogenetic cluster). This identified n=173 convergence events, accounted for by either acquisition of the virulence plasmid by MDR/other clones (n=84 events; 475 genomes), or acquisition of ESBLs/carbapenemases by hypervirulent clones (n=89 events; 126 genomes) (Figure 7, Table S8).
The most common virulence plasmid, KpVP-1 (iuc1 ± iro1), accounted for 54% of virulence plasmid acquisition events (n=45 acquisitions), while iuc3 plasmids, the E. coli derived iuc5 (±iro5) and iuc/iro unknown (i.e. novel or divergent iuc/iro loci) accounted for 21%, 11% and 14%, respectively (Figure 7). AMR acquisitions by hypervirulent clones involved the ESBL/carbapenemase genes that are most common in the general K. pneumoniae population: KPC-2 (26%), OXA-232 (17%) and CTX-M-15 (18%). The majority of convergence events (87%) were associated with just a small number of genomes (i.e. n≤3); however, five events were associated with >20 genomes in the complete dataset, which may indicate clonal expansion and dissemination of the corresponding convergent strains locally and/or between countries. One such event corresponded to the ST11-KPC + KpVP-1 deletion variant strain that was originally reported in 201720 and has since been recognized as widely distributed in China20–24. The complete public genome set (i.e. counting redundant genomes) included 148 genomes corresponding to this specific ST11 convergence event mostly from China but also from France (n=2). Notably though, this was only one of 50 convergence events that we detected in China, including 8 involving acquisition of iuc1 or iuc5 by ST11 (see Table S8, and interactive tree at http://microreact.org/project/JDyan46yctyDh6weEUjWN). Additional events associated with >20 genomes included (i) ST231-MDR + virulence plasmids carrying novel iuc lineages detected in India, Pakistan, Switzerland, Thailand and USA, (ii) ST15-CTX-M-15 + KpVP-1 in Pakistan, (iii) ST15-MDR + KpVP-1 in China and Nepal, and (iv) another distinct ST11-KPC-2 + KpVP-1 event in China. Including the above three examples, 11 convergence events appeared to involve intercountry expansion of which one has been previously documented57.
Overall, convergent genomes were detected originating from most geographical regions for which genome data was available, but some regions had many more events than others (Figure 7, Table S8). This uneven distribution may stem from a skew in the number of genomes available per region (e.g. due to variation in accessibility or application of genome sequencing). Nevertheless, the number of convergent genomes in the eastern, southeastern and southern parts of Asia were noticeably high, driven by the frequency of convergence events detected in China (n=50 events) and Thailand (n=26 events) as well as putative clonal expansions of these strains as discussed above (Figure 7). Of note, AMR acquisitions by hypervirulent lineages were particularly frequent within East and Southeast Asia where hypervirulent infections are most frequently reported, alongside countries from eastern and northern Europe.
Outside of K. pneumoniae, convergence events were rare: we detected n=2 K. quasipneumoniae subsp. similipneumoniae (ST367 with KpVP-1 and CTX-M-15; ST3387 with iuc3 and CTX-M-55) and n=2 K. variicola subsp. variicola (ST595 with KpVP-1 and KPC-2; ST1848 with iuc5 and KPC-2).
DISCUSSION
Whole genome sequencing is being increasingly implemented in research and public health labs as a cost- and time- effective option for tracking pathogens and AMR. However, identification of clinically-relevant features remains a key bottleneck that hinders widespread adoption of genome surveillance. We have presented a comprehensive framework and tool for rapid genotyping of Klebsiella species genomes: Kleborate is a single unified approach for species detection, MLST and genotyping of key virulence and AMR determinants. It focusses only on genomic features for which there is strong evidence of a clinically relevant phenotype in KpSC and presents the data in a readily interpretable format, with numerical summaries and categorical scores corresponding to measures of clinical risk.
A key strength of the Kleborate framework is its species-specific approach. This is particularly important for accurate interpretation of AMR and virulence gene screens from WGS, wherein the use of generic databases and tools can result in confusion. Notable examples include the intrinsic oqxAB and fosA alleles, which unlike for other Enterobacterales, do not confer resistance to quinolones and fosfomycin when expressed in KpSC. Kleborate does not report these intrinsic alleles, neither does it report intrinsic virulence determinants such as the siderophore enterobactin, which is known to play a role in KpSC pathogenicity but for which the presence alone cannot be considered to indicate enhanced virulence of one isolate over another. Correct taxonomic identification of K. pneumoniae can be difficult in itself, hence the inbuilt speciation tool is an important feature (and here identified nearly 100 RefSeq genomes with incorrect species/subspecies assignments).
Another strength of our approach is the rich data output by Kleborate, which facilitates in-depth investigation of population structure, AMR and virulence epidemiology. This allows rapid exploration and understanding of: (i) hypervirulence-associated loci and the molecular drivers of their dissemination (Figures S4 and S7); (ii) molecular mechanisms of complex AMR phenotypes e.g. carbapenem resistance (Figure 3); (iii) AMR and virulence trends (Figures 1, 5 and 6); (iv) emerging convergent AMR-virulent strains so that they can be targeted for surveillance and infection control (Figure 7); (v) overrepresented STs and genotypes, which may be indicative of transmission clusters that should be targeted for further investigation (as demonstrated for the EuSCAPE surveillance genomes, Figure 2A); (vi) surface antigen epidemiology, which can inform the design of novel vaccines and therapeutics (Figure 2B-C). Notably Kleborate can also yield useful genotyping results from metagenomics data (Figure S8), which is gradually being adopted for clinical and surveillance applications relevant to K. pneumoniae. User interpretation of Kleborate’s extensive data output can be guided by the accompanying web-based visualization app, Kleborate-Viz. Through this app, many of the analyses and plots presented in this manuscript can be rapidly replicated, and further explored in an interactive manner.
Kleborate is designed to facilitate detection and tracking of clinically relevant AMR and virulence traits from genome data, and analysis of public data not only identified specific clones and genes associated with one or the other of these traits (Figures 5, 6), but also 601 genomes in which the two converge (carrying iuc+ virulence plasmids and ESBL and/or carbapenemase genes; Figure 7). We estimated at least 173 unique AMR-hypervirulence convergence events; the majority were detected within a single isolate (n=119 events), but many others appear to be associated with local outbreaks or larger-scale spread and apparently across multiple countries (Table S8). Some of the convergence events in China and other countries in the neighbouring South and Southeast Asia regions have been extensively reported16,20,49,56, but to our knowledge a significant number had not been recognized previously. These include ST231-MDR (most with OXA-232, remainder with ESBL only) + iuc, which has been reportedly circulating in India49, and our analysis also detected in Pakistan, Thailand, Switzerland and USA.
Kleborate has already been widely adopted by the Klebsiella research community – at least 74 studies have reported using the Kleborate software package, including larger-scale genome surveillance studies in South and Southeast Asia, the Caribbean and the United States31,49,50 (full list in Table S11). Kleborate is freely available as a standalone command-line tool for local high-throughput analyses or incorporation into existing bioinformatics workflows (https://github.com/katholt/Kleborate), and can be easily accessed through the online tool PathogenWatch (https://pathogen.watch/). With such broad accessibility and utility, Kleborate is poised to become a cornerstone of the Klebsiella genomic surveillance toolkit that can help inform containment and control strategies targeting this priority pathogen.
METHODS
Kleborate software: implementation and genotyping logic
Kleborate (v.2) is a command-line tool written in Python and is freely available under the GNU v3.0 license at http://github.com/katholt/Kleborate. It takes as input one or more whole genome assemblies (FASTA format), types each one against a series of screening databases outlined in detail below, and returns results in a tab-delimited text file (one genome per row). On default settings, Kleborate will report assembly quality metrics, taxonomic assignment, MLST and virulence loci genotypes. Screening for AMR determinants, and/or K/O serotyping via Kaptive36, is optional (Table 1).
Assembly quality
Assembly quality metrics, reported to help users assess the reliability of genotyping results, are: contig count, contig N50, largest contig size, total genome size, and number of ambiguous bases (e.g. ‘N’). Low quality warnings are flagged if: (i) ambiguous bases are detected; (ii) assembly length falls outside the expected range of 4.5-7.5 Mbp; or (iii) N50 is below 10,000 bp. Users should carefully consider the genotyping outputs for low quality assemblies.
Taxonomic assignment
Kleborate’s species prediction function provides a convenient way to confirm species, including differentiating between the closely related members of the KpSC which are frequently misclassified using laboratory techniques. Kleborate calculates Mash40 distances between the input genome/s and a curated collection of reference assemblies from different Klebsiella and other Enterobacterales, and reports the species with the smallest distance. Mash distance ≤0.02 is reported as a strong match, ≤0.04 as weak (only when no strong matches are found, see Supplementary Text for further details).
MLST
Genomes assigned to species in the KpSC are assigned sequence types using nucleotide BLAST against the established K. pneumoniae chromosomal seven-locus MLST scheme29 described and maintained on the K. pneumoniae BIGSdb site hosted at the Pasteur Institute (http://bigsdb.pasteur.fr/klebsiella/klebsiella.html).
Virulence gene detection and typing
Virulence loci (ybt, iuc, iro, clb, rmpADC, rmpA2) are detected using nucleotide BLAST search against the database of known alleles. The best hit allele for each gene (with ≥90% identity and ≥80% coverage) is reported in the main virulence columns. If the majority of genes expected for the locus are present, then the alleles are used to calculate STs which are reported along with their associated lineage and MGE (based on previously defined schemes: YbST for ybt, CbST for clb, AbST for iuc, SmST for iro, according to the previously defined schemes34,35; and a novel RmST scheme for the rmpADC locus). To generate the RmST typing scheme we used the same 2,733 genomes from our original virulence plasmid study35 to screen and extract the sequences for rmpADC and define allele numbers and STs. These ST sequences cluster into four distinct lineages associated with distinct MGEs (rmp1 with KpVP-1, rmp2 with KpVP-2, rmp2A with the iuc2A virulence plasmids, and rmp3 with ICEKp1; to be described in detail elsewhere). Where the best hit for a gene is a weak match (80-90% identity, 40-80% coverage) this is reported in the ‘spurious hits’ column. Truncations are detected by translating the best-matching nucleotide sequence for each query gene into amino acids and comparing to the reference length (expressed as % amino acid length from the start codon, those <90% are reported). The presence of ybt, clb and iuc are used to assign a virulence score as follows: 0=none present, 1=yersiniabactin only, 2=colibactin without aerobactin (regardless of yersiniabactin, however ybt is almost always present when clb is), 3=aerobactin only, 4=aerobactin and yersiniabactin without colibactin, and 5= all three present. The presence of iro (salmochelin) is not used to calculate the virulence score because its presence is very strongly associated with aerobactin.
Detection and typing of antimicrobial resistance determinants
When AMR detection is switched on, Kleborate screens for known acquired AMR determinants using a curated version of the CARD AMR nucleotide database (v3.0.8 downloaded February 2020; see doi.org/10.6084/m9.figshare.13256759.v1 for full details on curation). Genes are identified using nucleotide BLAST (and amino acid search with tBLASTx if no exact nucleotide match is found). Gene truncations and spurious hits are identified as described above for virulence genes. Unlike the acquired forms, the intrinsic variants of oqxAB, chromosomal fosA and ampH are not associated with clinical resistance in KpSC and are therefore not reported. However, SHV, LEN or OKP β-lactamase alleles intrinsic to KpSC species are known to confer clinical resistance to penicillins and are reported in the Bla_chr column. Acquired SHV variants, and individual SHV sequence mutations known to confer resistance to extended-spectrum β-lactams or β-lactamase inhibitors, are reported separately (see Supplementary Text, Tables S12-S13 for details).
Chromosomally encoded mutations and gene loss or truncations known to be associated with AMR are reported for genomes identified as KpSC species. These include fluoroquinolone resistance mutations in GyrA (codons 83 and 87) and ParC (codons 80 and 84), and colistin resistance from truncation or loss of MgrB and PmrB (defined as <90% amino acid sequence coverage). Mutations in the OmpK35 and OmpK36 osmoporins reportedly associated with reduced susceptibility to β-lactamases41,42 are also screened and reported for KpSC genomes, and include truncation or loss of these genes and OmpK36GD and OmpK36TD transmembrane β-strand loop insertions41. SHV β-lactamase, GyrA, ParC and OmpK mutations are identified by alignment of the translated amino acid sequences against a reference using BioPython, followed by interrogation of the alignment positions of interest (see Supplementary Text, Tables S12-S13 for a list of relevant positions).
AMR genes and mutations are reported by drug class, with β-lactamases further categorized by enzyme activity (β-lactamase, ESBL or carbapenemase, with/without resistance to β-lactamase inhibitors). Horizontally acquired AMR genes are reported separately from mutational resistance and contribute to the AMR gene count; these plus chromosomal mutations count towards the number of acquired resistance classes (intrinsic SHV alleles, reported in Bla_chr column, are not included in either count). Resistance scores are calculated as follows: 0=no ESBL or carbapenemase, 1=ESBL without carbapenemase (regardless of colistin resistance); 2=carbapenamase without colistin resistance (regardless of ESBL); 3=carbapenemase with colistin resistance (regardless of ESBL).
Serotype prediction
By default, genomes are screened against the wzi database in the Klebsiella BIGSdb (using nucleotide BLAST) which is used to predict capsule (K) type based on a previously defined scheme60. This allows rapid typing however the relationship between wzi allele and K type is not one-to-one36. If surface antigen prediction is important to users they can obtain more robust identification of K and O antigen (LPS) loci by switching on serotype prediction with Kaptive36 (--kaptive), which adds a few minutes per genome to Kleborate’s runtime.
Data visualization
To facilitate interpretation of Kleborate’s rich data output we provide a web-based application (Kleborate-Viz, https://kleborate.erc.monash.edu/), implemented in R Shiny, which takes as inputs a Kleborate results file (required), sample metadata (CSV format, optional) and MIC data (CSV format, optional).
Genome analysis
The analyses reported here result from applying Kleborate v2.0.0 to publicly available genome collections. A total of 13,156 Klebsiella WGS assemblies, encompassing non-duplicate isolates with unique BioSample accessions identified from published studies (some deposited as read sets only, which were assembled using Unicycler v0.4.761, data sources summarized in Table S14) plus any additional genomes designated as Klebsiella in NCBI’s RefSeq repository of genome assemblies (as of 17th July 2020). In order to minimize the impact of sampling bias favouring common MDR and/or virulent lineages and those causing outbreaks, we subsampled the collection into a ‘non-redundant’ dataset of 11,277 genomes (9,705 K. pneumoniae) as follows. Pairwise Mash distances were calculated using Mash v2.1, and used to cluster genomes using single-linkage clustering with a threshold of 0.0003. These clusters were further divided into non-redundant groups with unique combinations of (i) Mash cluster, (ii) chromosomal ST, (iii) virulence gene profiles (i.e. presence of ybt/clb/iro/iuc loci and lineage assignment), (iv) AMR profiles, (v) year and country of isolation, and (vii) specimen type where available. For each resulting non-redundant group, one genome was selected at random as the representative for analyses. The full list of genomes, including database accessions, isolate information, cluster/group assignment, and Kleborate results are provided in Table S2. The subset of 1,624 K. pneumoniae assemblies deposited in RefSeq by the European EuSCAPE surveillance study33 (out of 1,649 reported in original study; Table S2) were used for the EuSCAPE analyses reported in Figures 2 and 3. The Kleborate-Viz web application is pre-loaded with the non-redundant and EuSCAPE WGS datasets reported in this paper, and can be used to reproduce the plots shown in Figures 1A-C, 2B-C, 3, 6A-B and to further explore the Kleborate results.
Statistical analysis
Statistical analyses and data visualisations were conducted using R v1.1.456. Figures were generated with ggplot v3.2.0 and pheatmap v1.0.12. Correlations between virulence and resistance scores, and the prevalence of virulence and resistance determinants over time, were analysed using Spearman’s rank-order correlation (i.e. non-parametric test).
