Genetic polymorphism of CYP2C19 and subcortical variability in the human adult brain
grid.412301.50000 0000 8653 1507Institute of Clinical Pharmacology, University Hospital of RWTH Aachen, Aachen, Germany
grid.414802.b0000 0000 9599 0422Research Division, Federal Institute for Drugs and Medical Devices, Bonn, Germany
grid.6582.90000 0004 1936 9748Psychiatry and Psychotherapy Clinic III, University of Ulm, Ulm, Germany
grid.5771.40000 0001 2151 8122Institute of Psychology, University of Innsbruck, Innsbruck, Austria
Abstract
Pharmacogenetic studies have shown involvement of cytochrome P450 enzymes in the metabolism of psychotropic drugs. However, expression and activity on endogenous substrates in the brain may underlie a constitutive role of these enzymes beyond drug metabolism. CYP2C19, which is expressed in the human fetal brain during neurodevelopment, shows affinity for endogenous compounds including monoaminergic neurotransmitters, steroid hormones, and endocannabinoids. In this study (N = 608), we looked at the genetic polymorphism of CYP2C19 and its potential associations with structural phenotypes of subcortical brain volume with structural imaging. Using two independent volume estimation techniques, we found converging evidence for a positive association between CYP2C19 activity scores, as inferred from the genotype, and basal ganglia and hippocampal volume. This association was present only in female individuals, raising the possibility that effects on brain morphology may arise through a mechanism involving the metabolism of estrogen steroids.
Introduction
CYP2C19 is a genetically polymorphic drug-metabolizing enzyme that, due to broad substrate specificity, metabolizes different classes of drugs including several psychotropic drugs, such as antidepressants (selective serotonin-reuptake inhibitors, tricyclic antidepressants), benzodiazepines, and antiepileptics. The genetic polymorphism influences the range in CYP2C19 enzyme activity in individuals from complete loss of functionality (poor metabolizer phenotype, CYP2C19*2/*2 carriers) to severalfold enhancement (ultrarapid metabolizers, CYP2C19*17 carriers [1]). Beside its role in xenobiotic metabolism, CYP2C19 is also involved in biotransformation of endogenous compounds such as neurotransmitters (e.g., hydroxytryptamine), steroid hormones (estrogen, progesterone, testosterone), fatty acids (cannabidiol), and arachidonic acid [2, 3]. While not highly expressed in extrahepatic tissues of the adult, transient CYP2C19 expression in the human fetal brain may play a role during embryogenesis and neurogenesis [4].
An important approach to documenting the role of CYP2C19 on brain structure and function is to look at individual differences associated with its genetic polymorphism. In a study by Jukic et al. of the functional phenotype of the CYP2C19*17 genotype predicting ultrarapid metabolic activity, elevated CYP2C19 expression was associated with depressive symptoms and higher tendencies to suicidal impulses in humans [5]. Furthermore, the poor metabolizer phenotype was shown in the same study to be associated with reduced volume of the hippocampus, a common finding in studies of depression [6]. In transgenic mice expressing the human CYP2C19 gene, impairment of hippocampal serotonin and BDNF homeostasis and increased anxiety has been shown to be involved in an anxious depressive phenotype [3, 5].
The mechanism behind the possible effects of CYP2C19 genotype on the brain, however, are not fully understood. An intriguing aspect of this issue is that CYP2C19 is not expressed or active as enzyme in the adult brain and in neuronal cells. However, CYP2C19 mRNA was detected during neurodevelopment in neuronal cells [7], a finding that has led to several hypotheses on the possible endogenous substrates of CYP2C19 involved in neurogenesis [4]. CYP2C19-mediated metabolism of cannabinoid compunds to the 6-alpha- and the 7-hydroxy-metabolites [8] may affect cannabinoid signaling in the developing brain [4, 9], as in the migration of GABA-ergic neurons to the hippocampus [10]. Also the affinity of CYP2C19 for steroid hormones (including endogenous estrogens such as estradiol [11, 12]) deserves to be brought to attention because of the large quantitative effects of sex on brain structure and the prominent role of estrogens in controlling sexual dimorphism in the fetal brain, where estradiol is also synthetized and metabolized locally [13].
In the present study, we looked at the genetic polymorphism of CYP2C19 and its potential associations with structural subcortical brain imaging phenotypes. While compatible with the findings of Jukic et al. [5], our data showed a more extensive involvement of subcortical volumes, which increased in association with higher CYP2C19 activity scores. Our data were also suggestive of an impact of CYP2C19 genotype on sexual dimorphism, pointing to a possible mechanism through which these effects are produced during brain development.
Methodologically, we verified the robustness of volumetric estimates of the hippocampi and other subcortical structures by employing two very different techniques: the first was the same used by Jukic et al. [5], based on segmenting subcortical volumes directly; the second was based on the amount of deformation required to register these structures to a common template [14, 15]. These two different approaches provided convergent assessments of the effect of CYP2C19 genotype on subcortical volumes.
Materials and methods
The study protocol was approved by the local ethics committees in Ulm and Bonn and the study was registered by the German Clinical Trials Register (DRKS-ID: 00011722, BrainCYP Study).
MRI data collection and pharmacogenetic analysis
The sample used in the study consisted of N = 608 healthy individuals obtained by pooling data from three samples (Allegra Ulm, N = 175, BrainCYP Ulm, N = 378, BrainCYP Bonn, N = 55). The final sample included 342 females (average age 24.1, std. deviation 4.3).
Healthy participants were recruited primarily from the local universities and by local announcements. Exclusion criteria were neurological or medical conditions, use of medication (except hormonal contraceptives and L-thyroxin), alcohol, or drug abuse or a history of mental illness. In order to minimize the risk of ethnic stratification, Caucasian descent was ascertained by asking about the genetic background of both parents. For more detail on cohort characteristics see Table 1.Genotype Activity score N N females N males *2/*2 (PM) 0 10 7 3 *2/*1 1 113 59 54 *2/*17 1 22 15 7 *1/*1 (WT) 2 263 156 107 *1/*17 3 167 89 78 *17/*17 (UM) 4 33 16 17
As a part of the study procedures, a 7 ml EDTA-blood sample was taken from all participants. For genotyping, genomic DNA was isolated from the biosamples using magnetic beads with the MagNA PureLC DNA Isolation Kit—Large Volume (Roche Diagnostics GmbH., Mannheim, Germany). Genotypes for CYP2C19, rs12248560 (C > T) (CYP2C19*17) and rs42442085 (G > A) (CYP2C19*2), were determined by real-time PCR using SimpleProbe® probes (LightSNiP assays), designed by TIB Molbiol (Berlin, Germany). To this end, 50 ng DNA were amplified using Lightcycler® FastStart DNA Master HybProbe Mix (Roche, Germany) and the respective LightSNiP Assay. The following PCR protocol was applied: 10 min at 95 °C, followed by 45 cycles for amplification: 10 s at 95 °C, 10 s at 60 °C, 15 s at 72 °C. Melting curve analysis was performed to distinguish between the different genotypes. We used a goodness-of-fit c2 test to evaluate agreement with Hardy–Weinberg expectations. CYP2C19 diplotypes were assigned activity scores as shown in Table 1. If no mutation for rs12248560 and rs42442085was detected, wild-type carrier status was assumed.
The first sample was collected with a Siemens Allegra 3-Tesla scanner on the premises of the Department of Psychiatry of the University of Ulm, Germany, as previously described [16]. Briefly, MPRAGE images were collected with size 256 × 256 × 208 voxels, voxel size 1 × 1 × 1 mm, TR/TE 3300/96, flip angle 90°, bandwidth 1220 Hz/pixel, and field of view of 240 × 240. The second sample was collected on the same premises from a 3-Tesla Siemens Prisma scanner, while the third sample was collected at the DZNE in Bonn, Germany with a 3-Tesla Skyra scanner using the same sequence on both sites (as previously described [17]). In brief, multi-echo MPRAGE images were collected with size 256 × 256 × 176, voxel size 1 × 1 × 1 mm, TR/TE 2500/1.48, 2.98, 4.48, 5.98, 7.48, flip angle 7°, bandwidth 780 Hz/pixel, and field of view of 256 × 256.
FIRST is a software package for the estimation the volumes of a set of subcortical structures (hippocampus, amygdala, caudate, nucleus accumbens, pallidum, putamen, thalamus, and brainstem) from T1-weighted structural images using a Bayesian approach [18]. The FIRST code is part of the FSL software package for the analysis of imaging data (https://fsl.fmrib.ox.ac.uk/fsl/fslwiki/FIRST). We used the default settings in this package to estimate volumes of these structures. FIRST computes a segmentation of these subcortical structures and counts the number of voxels in each of the segments. In the Results section, we refer to the count for all these structures as “subcortical volume”, a proxy for a global volumetric effect in FIRST analyses.
Deformation-based morphometry analyses were conducted with the SPM12 package (https://www.fil.ion.ucl.ac.uk/spm/) using the DARTEL diffeomorphic registration algorithm [19] after conducting a preliminary segmentation with the default settings provided in this package. This preliminary segmentation was also used to derive cranial and brain volume measures. The DARTEL procedure was subsequently applied to maps of gray and white matter intensities from the segmentation. To obtain estimates of subcortical volumes comparable to those obtained with FIRST, we preliminarily generated masks of subcortical structures by applying FIRST to segment the mean DARTEL-registered image. Since this image is the average from the whole sample, it includes no information on volumetric individual differences. Geometric means of the Jacobians of the deformation computed with DARTEL in each voxel were then computed for each of the subcortical masks. The geometric mean of the Jacobians for the voxels in all subcortical masks gave an estimate of “subcortical volume”.
Statistical analysis of volumetric data was conducted with the freely available statistical software R (version 3.5.2, The R Project for Statistical Computing, https://www.r-project.org/) on the logarithm of volume estimates (analyses on the data without taking the logarithms gave comparable results). Boxplots were drawn with the package ggplot2 by Hadley Wickham (https://github.com/tidyverse/ggplot2).
Voxel-based analyses were conducted using a permutation technique to estimate significance levels corrected for the region of interest of the hippocampus (8000 resamples [20]) after smoothing the Jacobian images outputted by DARTEL with an isotropic smoothing kernel FWHM 6 mm with the SPM12 software. Clusters were defined by the p < 0.01 threshold, uncorrected. In the text, k denotes the number of voxels composing the cluster. Overlays were drawn with the freely available display software MRIcron by Chris Rorden (http://www.mccauslandcenter.sc.edu/crnl/mricro).
Results

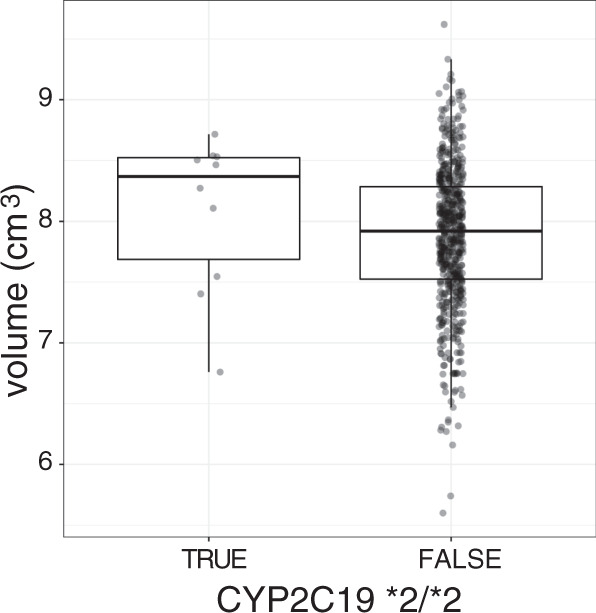

Jukic et al. [5] had shown in two independent samples that CYP2C19 poor metabolizers (homozygous carriers of the *2 allele) had a larger hippocampus than carriers of other genotypes after adjusting for subcortical volumetric effects and the confounds of sex, age, and scan hardware versions (for the sake of comparability, the term ‘subcortical volumes’ here refers to the volumes for which the package used by Jukic et al. [5] provides a volumetric estimate, as detailed in the Methods). In our data and using the same methodological approach to assess volumes, the hippocampal volume of poor CYP2C19 metabolizers was 2.5% larger than in the rest of the sample after adjusting for total subcortical volume, age, sex, and scanning site, but this effect failed to reach significance (t601 = 1.04, p = 0.15, one-tailed, Fig. 1). As detailed in the Methods, to verify robustness of volumetric estimates we conducted parallel analyses using a deformation-based method. In the deformation-based analysis of the same model, the effect of poor metabolizer status on hippocampal volume was significant (t601 = 1.71, p = 0.044, one-tailed). However, we noticed that the poor metabolizer phenotype was also weakly associated with subcortical volume as a whole (t602 = −1.46, p = 0.14), one of the adjustment terms in the model.

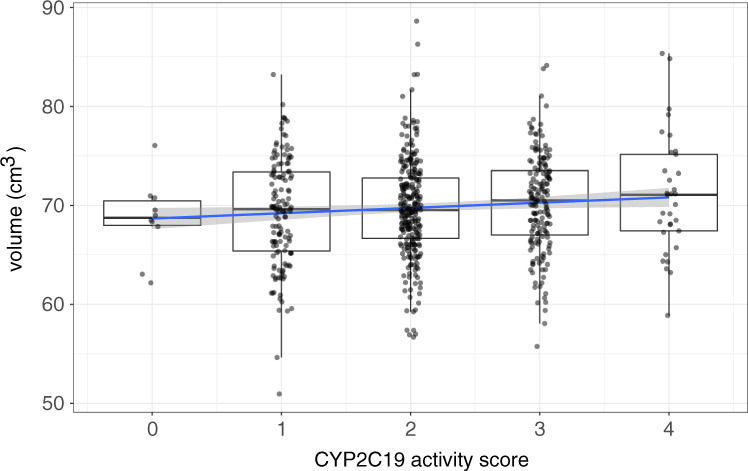

When considering subcortical volume in its own right, our data gave a different picture of the relationship between CYP2C19 genotype and brain structure. This association was significant when tested on the activity score as predicted by the genotype (i.e., when accounting for the effect of all genotypes: t602 = 2.24, p = 0.025; similar results were obtained with deformation-based technique, t602 = 1.82, p = 0.07). A unit difference in the activity score corresponded to an increment of about 0.8% in subcortical volume (giving a difference of 3.2% for the score range; Fig. 2).
This is of potential relevance because, together with the strong association between total subcortical volume and hippocampal volume (more than 90% in our data), it may affect estimates of the association between this latter and the ultrarapid metabolizer phenotype when adjusting for subcortical volume. Indeed, in a model without adjustment for subcortical volume, hippocampal volume was in our data positively associated with the CYP2C19 activity score (1% volume increment per activity score unit, t602 = 2.28, p = 0.023).
As one might surmise by these findings, in the absence of adjustment for subcortical volume the positive association between CYP2C19 activity scores and volume was present in most subcortical structures (see Table 2). Because the precision with which the volumes of anatomical structures are estimated varies, significance values do not necessarily correspond to the estimated size of effects.Region FIRST Deformation based % change t p % change t p Caudate 0.8 ± 0.5 1.72 0.086 0.8 ± 0.5 1.90 0.058 Nucl. acc. 1.5 ± 1.1 1.38 0.166 0.1 ± 0.4 0.24 n.s. Pallidum 0.9 ± 0.4 2.18 0.030 0.6 ± 0.4 1.84 0.066 Putamen 0.5 ± 0.4 1.18 0.239 0.4 ± 0.4 1.08 0.282 Thalamus 0.6 ± 0.4 1.57 0.117 0.7 ± 0.3 1.95 0.052 Hippocampus 1.1 ± 0.5 2.28 0.023 0.7 ± 0.3 2.29 0.022 Amygdala 1.1 ± 0.6 1.80 0.073 0.3 ± 0.4 0.90 n.s. Brainstem 0.9 ± 0.5 1.84 0.066 0.5 ± 0.3 1.41 0.160
The effects of CYP2C19 polymorphism on cranial or brain volume were less marked than those for subcortical volumes (cranial volume, 0.5% increase per score unit, t602 = 1.57, p = 0.12; brain volume, 0.3%, t602 = 1.06, n.s.), suggesting some degree of specificity of the effect on subcortical volumes. After adjusting for subcortical volume, there was no residual effect on the effect on cranial and brain volumes, which again suggests that the small effects on cranial and brain volume may be driven by the increase in the subcortical compartment. In line with this interpretation of the data, the effects CYP2C19 activity scores on the subcortical volume persisted when adjusting for brain (0.5% per unit score increase, t601 = 2.23, p = 0.02) or cranial volume (0.4%, t601 = 1.60, p = 0.06, one-tailed). In summary, the effects of CYP2C19 activity scores on subcortical volumes appeared to be specific and decoupled from effects (or lack thereof) on brain or cranial size.
Sex differences
Because of the involvement of CYP2C19 in the biotransformation of steroid hormones and estrogens, we were interested in looking at whether the effect of the genetic polymorphism was sensitive to sex differences. In our data, the association with subcortical volume was stronger in females (t337 = 2.74, p = 0.003), where one unit score corresponded to about 1.2% relative increment, than in males (0.2% increase per score unit, t261 = 0.41, n.s.), as shown in the interaction (t601 = 1.51, p = 0.065, one-tailed).

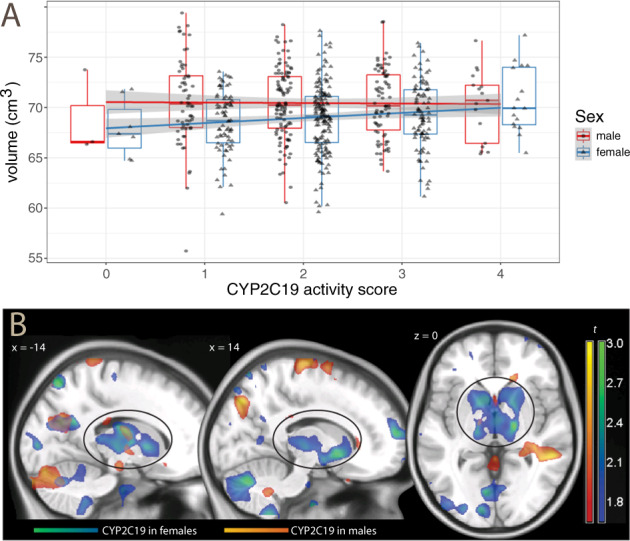

As in the data for the whole cohort, this interaction could not be attributed to a generic effect on cranial size reflected in the data for the subcortical volume. After adjusting for cranial volume, the interaction between subcortical volume, sex, and CYP2C19 activity score persisted (t600 = 1.69, p = 0.046; Fig. 3A). The deformation-based analysis gave very similar results (t600 = 1.68, p = 0.046). Visualization of the sex differences using the deformation-based data revealed a diffuse subcortical involvement in females, with more marked effects in the anterior pallidum and the thalamus (Fig. 3B).
Discussion
In this study of N = 608 healthy individuals we detected a significant association between CYP2C19 activity predicted by genotype and subcortical brain volume. This finding is consistent with previous reports on the existence of effects of CYP2C19 polymorphism and structural neuroimaging data [5, 21]. However, our analysis disclosed a more complex set of effects than previously surmised, for which three possible interpretations may be given.
First, while of only borderline significance, our data essentially replicated the finding reported by Jukic et al. [5] of larger hippocampal size in poor CYP2C19 metabolizers after adjusting for subcortical volume, and showed this effect to be robust relative to the specific technique used to assess hippocampal volume. This finding has been interpreted in support for an affective vulnerability phenotype of CYP2C19 poor metabolizers [3]. In our data, however, subcortical volume was itself associated with CYP2C19 activity scores; without adjustment, the association was in the other direction. This suggests that adjustment for subcortical volume may affect the relationship between individual structures and CYP2C19 polymorphism, rather than simply adjusting for a neutral baseline, thus accounting for the reversal of the sign of the association with and without adjustment.
A second interpretive line arises from noting that in our sample the CYP2C19 polymorphism effect on subcortical volume was more pronounced in women. The evidence for the interaction with sex was only suggestive in our data. However, it provides a potential mechanism for the effect of this polymorphism on brain size, because sex alone has a large effect on brain size [22]. This effect is thought to be mediated by the neurotrophic activity of sex hormones during gestation and adolescence [23, 24]. A distinction between sexual dimorphism in brain structure is usually made between a global effect, with ~10% larger brain size in males, and relative effects that affect most markedly the medial temporal lobe and the basal ganglia [24, 25]. In our sample, the interaction between CYP2C19 genotype and sex involved subcortical structures, while there was no evidence for a global effect on brain volume.
Several findings support the role of sex hormones in the effects of CYP2C19 polymorphism on brain structure. The role of CYP2C19 in estradiol biotransformation is important for endogenous as well as exogenous estrogens such as oral contraceptives. 17-beta-hydroxydehydrogenation and 16-alpha-hydroxylation of estradiol and similar compound is mediated by CYP2C19 [11, 12]. Therefore, lower activity of CYP2C19 may cause higher estrogen levels, and vice versa. Consistently with the notion that estrogen exposure is lower in carriers of the high-activity CYP2C19*17 allele, ultrarapid metabolizers have been shown to present lower incidence of breast cancer, and lower recurrences of hormonal sensitive breast cancer after treatment with tamoxifen [26, 27]. Furthermore, the expression of CYP2C19 is partially regulated through a mechanism elucidated recently. The estrogen receptor alpha specifically binds to the promotor of the CYP2C19 gene and leads to a decrease in enzyme activity through transcriptional downregulation of CYP2C19 gene expression, rather than direct estrogen-mediated steroid–protein interaction [28]. Interestingly, the activity of the CYP2C19*17 allele, which leads to ultrarapid metabolizer phenotypes by an increased transcription rate, is not affected by estrogen receptor alpha-mediated CYP2C19 inhibition as shown in vivo with oral contraceptives [29]. In normal and intermediate metabolizers, estrogen receptor-mediated CYP2C19 inhibition may lead to lower estrogen degradation, shifting activity towards the levels of poor metabolizers. In contrast, in carriers of the CYP2C19*17 allele, the ultrarapid metabolizer phenotype remains unaffected by estrogen receptor alpha-mediated CYP2C19 inhibition. Thus, the interaction with estrogen-mediated inhibition of the enzyme and estradiol biotransformation as a substrate of CYP2C19 may amplify the phenotypic expression of CYP2C19 genotypes in women. Hence, the association of subcortical volume with CYP2C19 activity scores in females may derive from overall estrogen exposure that is higher in poor metabolizers leading to an enhanced female dimorphism brain structural phenotype. In contrast, female CYP2C19*17/*17 carriers were like males with regard to the effects of this genotype on subcortical volume and hippocampus size.
Finally, the observed association between CYP2C19 genotype and subcortical volume affected specifically the basal ganglia. The function of these subcortical structures is predominantly dopaminergic with effects on reward or overall emotional processing. This hypothesis is consistent with the previously reported higher concentration of dopamine in the brain of transgenic mice expressing human CYP2C19 [21]. Several studies have documented sexual dimorphism in humans in basal ganglia dopamine function [30–32]; hence, this finding is not incompatible with the two previous hypotheses.
On a methodological note, we could show that volumetric assessment through MRI led to comparable results across studies irrespective of methodology. The apparent discrepancies in assessing relative effects of individual brain structures were due to issues intrinsic to the rationale for adjusting for global volumetric effects and not to methodology.
Funding information
This work was supported in part by a Neuron-ERANET grant (project ‘BrainCYP’, grant number BMBF 01EW1402B) and by collaborative grants from the Federal Institute for Drugs and Medical Devices (BfArM, Bonn, Germany, Grants No. V-15981/68502/2014-2017 and V-17568/68502/2017-2020). Open Access funding enabled and organized by Projekt DEAL.
Competing interests
The authors declare no competing interests.
