Functional Expression of IP, 5-HT4, D1, A2A, and VIP Receptors in Human Odontoblast Cell Line
1Department of Physiology, Tokyo Dental College, 2-9-18, Kanda-Misaki-cho, Chiyoda-ku, Tokyo 101-0061, Japan; kitayamaeri@tdc.ac.jp (E.K.);
2Department of Endodontics, Tokyo Dental College, 2-9-18, Kanda-Misaki-cho, Chiyoda-ku, Tokyo 101-0061, Japan
*Correspondence: tsumuramaki@tdc.ac.jp (M.K.); yshibuka@tdc.ac.jp (Y.S.); Tel.: +81-3-6380-9567 (M.K. & Y.S.)Abstract
Odontoblasts are involved in sensory generation as sensory receptor cells and in dentin formation. We previously reported that an increase in intracellular cAMP levels by cannabinoid 1 receptor activation induces Ca2+ influx via transient receptor potential vanilloid subfamily member 1 channels in odontoblasts, indicating that intracellular cAMP/Ca2+ signal coupling is involved in dentinal pain generation and reactionary dentin formation. Here, intracellular cAMP dynamics in cultured human odontoblasts were investigated to understand the detailed expression patterns of the intracellular cAMP signaling pathway activated by the Gs protein-coupled receptor and to clarify its role in cellular functions. The presence of plasma membrane Gαs as well as prostaglandin I2 (IP), 5-hydroxytryptamine 5-HT4 (5-HT4), dopamine D1 (D1), adenosine A2A (A2A), and vasoactive intestinal polypeptide (VIP) receptor immunoreactivity was observed in human odontoblasts. In the presence of extracellular Ca2+, the application of agonists for the IP (beraprost), 5-HT4 (BIMU8), D1 (SKF83959), A2A (PSB0777), and VIP (VIP) receptors increased intracellular cAMP levels. This increase in cAMP levels was inhibited by the application of the adenylyl cyclase (AC) inhibitor SQ22536 and each receptor antagonist, dose-dependently. These results suggested that odontoblasts express Gs protein-coupled IP, 5-HT4, D1, A2A, and VIP receptors. In addition, activation of these receptors increased intracellular cAMP levels by activating AC in odontoblasts.
1. Introduction
Plasma membrane ‘multistimulatory receptor proteins’, which are capable of receiving various external and internal stimuli, can be categorized as follows: G protein-coupled (metabotropic) receptors (GPCRs) or ligand-gated ion channels (ionotropic receptors). GPCRs activate the intracellular second messenger pathway to transmit cellular information via G protein activation. These G proteins are composed of α, β, and γ subunits and are identified by their Gα subunits. They are typically classified into four families; Gαs, Gαi, Gαq, and Gα12/13 [1,2], which are expressed in most cell types. There are two principal intracellular signaling pathways induced by GPCR activation: the cAMP and phosphatidylinositol signaling pathways. Both Gαs and Gαi affect cAMP-generating enzyme adenylyl cyclase (AC), whereas Gαq activates phospholipase Cβ, which divides phosphatidylinositol 4,5-bisphosphate into diacylglycerol and inositol 1,4,5-trisphosphate. Ligand binding to Gs protein-coupled receptors activates AC to catalyze the conversion of ATP to cAMP. cAMP regulates the actions of the four following proteins: protein kinase A, cAMP-dependent exchange protein, cyclic nucleotide-gated channels, and Popeye domain-containing proteins, and these specific downstream cAMP effectors play important roles in the regulation of various physiological functions [3,4], such as the regulation of hormone synthesis, thyroid cell mitogenesis, bone resorption, and cardiac excitation/contraction coupling by the sympathetic nervous system [2].
Ca2+ influx induced by activation of transient receptor potential (TRP) channels, such as TRP vanilloid subfamily member 1 (TRPV1), and by activation of mechanosensitive Piezo1 channels in odontoblasts plays a critical role in producing and transmitting sensations to dentin (‘odontoblast mechanosensory/hydrodynamic receptor model’) as well as in developmental, physiological, and pathological dentin formation [5,6,7]. The application of various stimuli, including thermal, osmotic, and chemical stimuli, induces membrane deformation via dentinal fluid movement. Membrane deformation is detected as a mechanical stimulus via TRPV1, TRPV2, TRPV4, TRP ankyrin subfamily member-1 (TRPA1), and Piezo channels in odontoblasts [5,6,7,8]. Ca2+ influx via the TRP and Piezo1 channels acts as the primary intracellular signal for ATP release from pannexin-1 (PANX-1) and glutamate from glutamate-permeable anion channels. The released ATP and glutamate act as neurotransmitters and activate the P2X receptor subtype 3 and metabotropic glutamate receptors in pulpal neurons, respectively. The activation of these receptors is involved in generating dentinal pain [6,7,9,10]. Functional crosstalk between cannabinoid 1 (CB1) receptors and TRPV1 channels in odontoblasts has also been demonstrated. CB1 receptors functionally couple primarily with Gi- and Gs-mediated pathways to regulate intracellular cAMP levels [11]. The application of 2-arachidonyl glycerol (2-AG) (a nonselective CB1 and CB2 receptor agonist, but not a TRPV1 agonist) increases the intracellular free Ca2+ concentration ([Ca2+]i) in rat odontoblasts. The increase in 2-AG-induced [Ca2+]i is significantly inhibited by a TRPV1 and TRP melastatin subfamily member 8 (TRPM8) channel antagonist, whereas a specific TRPM8 channel antagonist does not affect the increase in [Ca2+]i. In addition, this increase is significantly suppressed by a selective CB1 receptor antagonist and AC inhibitor, whereas no effect has been observed with a selective CB2 receptor antagonist. These results suggest that cAMP signals are produced by AC, which is activated by the CB1 receptor, resulting in enhanced Ca2+ influx via TRPV1 channel activation in odontoblasts [8]. These reports imply that intracellular cAMP levels are capable of mediating Ca2+ signaling and may participate in dentin formation and dentinal pain.
In addition, recent studies have shown that rat odontoblasts are immunoreactive to Gs protein-coupled β2 and calcitonin gene-related peptide (CGRP) receptor antibodies [12,13], and mouse odontoblasts express the parathyroid hormone receptor as observed in in situ hybridization assays [14]. The immunofluorescent expression of prostaglandin (PG) I2 (IP) receptors [15] and the mRNA expression of dopamine (DA) D1 (D1) receptors in rat odontoblasts have also been reported [16]. Human dental pulp cells express mRNAs of all four adenosine receptor subtypes (A1, A2A, A2B, and A3 receptors) in RT-PCR analysis. The expression levels of Gs protein-coupled A2A and Gs/q protein-coupled A2B receptor mRNA are higher than those of Gi/o protein-coupled A1 and A3 receptors [17]. Furthermore, the existence of nerve endings that are located near odontoblasts and that contain vasoactive intestinal polypeptide (VIP) implies the expression of VPAC1 and VPAC2 as subtypes of VIP receptors in odontoblasts [18]. Moreover, the 5-hydroxytryptamine (5-HT) receptors are involved in enamel morphogenesis and maturation in mice [19]. Among them, 5-HT4 is a ubiquitously expressed Gs protein-coupled receptor. However, the functional expression of Gs protein-coupled (IP, D1, A2A, VPAC1/2, and 5-HT4) receptors and the detailed intracellular cAMP signaling pathway following their receptor activation in odontoblasts remain unclear.
In the present study, we selected specific Gs protein-coupled receptors for screening based on their known morphological and mRNA expression patterns in odontoblasts and their anatomical/functional relationships; the intracellular cAMP dynamics involving these receptors were assessed in single, living odontoblasts.
2. Materials and Methods
2.1. Cell Culture
A human odontoblast cell line was obtained from a healthy third molar and immortalized by transfection with the human telomerase transcriptase gene [20,21,22]. This cell line represents a pure population of cells with odontoblast properties and exhibits the mRNA expression of dentin sialophosphoprotein (DSPP), type 1 collagen, and alkaline phosphatase [20]. Human odontoblasts were cultured in basal medium (pH 7.4) (alpha-minimum essential medium containing 10% fetal bovine serum, 100 U/mL penicillin-streptomycin (Thermo Fisher Scientific Inc., Waltham, MA, USA), and amphotericin B (Sigma-Aldrich, St. Louis, MO, USA)) at 37 °C in a 5% CO2 incubator for 48 h. The odontoblast suspension was adjusted to a density of 5 × 104 cells/mL.
2.2. Immunofluorescence
Human odontoblasts were cultured in eight-well glass chambers (Iwaki, Shizuoka, Japan) and maintained at 37 °C and 5% CO2. The cells were fixed with 4% paraformaldehyde (FUJIFILM Wako Pure Chemical Co., Osaka, Japan) and washed with 1× phosphate-buffered saline (PBS; Thermo Fisher Scientific, Inc.). Cells were permeabilized in PBS containing 0.1% Triton-X100 for 5 min. After 10–15 min of incubation with blocking buffer (Nacalai Tesque, Kyoto, Japan) at room temperature, the following primary antibodies were applied for 3–4 h, also at room temperature or overnight at 4 °C: rabbit polyclonal anti-DSPP (Bioss, Woburn, MA, USA; bs-8557R, 1:200), mouse monoclonal anti-nestin (Santa Cruz Biotechnology, Inc., Dallas, TX, USA; sc-23927, 10c2, 1:200), and mouse monoclonal anti-dentin matrix protein 1 (anti-DMP-1; Santa Cruz Biotechnology, Inc.; sc-73633, LFMb-31, 1:200), as odontoblast markers. Human odontoblasts were also stained immunohistochemically for the Gs protein-coupled receptors using the following primary antibodies: rabbit polyclonal anti-guanine nucleotide binding Gαs (ABclonal, Tokyo, Japan; A5546, 1:200), mouse monoclonal anti-A2A receptor (Santa Cruz Biotechnology, Inc., sc-32261, 7F6-G5-A2, 1:200), mouse monoclonal anti-D1DR (Santa Cruz Biotechnology, Inc., sc-33660, SG2-D1a, 1:200), mouse monoclonal anti-IP receptor (Santa Cruz Biotechnology, Inc., sc-365268, B-3, 1:200), mouse monoclonal anti-VPAC1 (Santa Cruz Biotechnology, Inc., sc-377152, B-4, 1:200), mouse monoclonal anti-VPAC2 (Santa Cruz Biotechnology, Inc., sc-52795, AS69, 1:200), and rabbit polyclonal anti-5-HT4 receptor (Bioss, bs-2127R, 1:200). Western blotting data is commercially available to validate the specificity of the primary antibodies for mouse monoclonal anti-A2A receptor, rabbit polyclonal anti-5-HT4 receptor, mouse monoclonal anti-D1DR, rabbit polyclonal anti-guanine nucleotide binding Gαs, mouse monoclonal anti-IP receptor, mouse monoclonal anti-VPAC1, mouse monoclonal anti-nestin, and mouse monoclonal anti-DMP-1. Previous studies have also validated the specificity of mouse monoclonal anti-VPAC2 and rabbit polyclonal anti-DSPP via Western blotting [23,24,25]. The secondary antibodies were applied for 1 h at room temperature. The following secondary antibodies were used for immunostaining: Alexa Fluor® 488 donkey anti-mouse (Thermo Fisher Scientific, Inc.), Alexa Fluor® 488 donkey anti-rabbit, and Alexa Fluor® 568 donkey anti-rabbit (Thermo Fisher Scientific, Inc.) antibodies. To verify the specificity of the immunoreactions, staining was controlled by omitting primary antibodies from the first incubation fluid. The stained samples were mounted in a mounting medium containing 4,6-diamidino-2-phenylindole (Abcam, Cambridge, UK). Images of immunostaining were obtained using a fluorescence microscope (BZ-X710; Keyence, Osaka, Japan).
2.3. Solutions and Reagents
A standard solution containing 136 mM NaCl, 5 mM KCl, 2.5 mM CaCl2, 0.5 mM MgCl2, 10 mM HEPES, 10 mM glucose, and 12 mM NaHCO3 (pH 7.4) was used as the extracellular solution for intracellular cAMP level measurements. Beraprost sodium, Ro1138452 hydrochloride, BIMU8, GR113808, SKF83959 hydrobromide, LE300, PSB0777 ammonium salt, ZM241385, VIP (human, rat, mouse, rabbit, canine, and porcine), and VIP(6-28) (human, rat, porcine, and bovine) were obtained from TOCRIS Bioscience (Bristol, UK). Stock solutions were prepared in dimethyl sulfoxide for beraprost, Ro1138452, BIMU8, GR113808, SKF83959, LE300, PSB0777, and ZM241385, and in MilliQ water for VIP and VIP(6-28). Stock solutions were diluted with standard solutions to the appropriate concentrations before use.
2.4. Measurement of Intracellular cAMP Level
For the live-cell cAMP sensor assay, the green upward cAMP BacMam sensor (green upward cAMP difference detector in situ; Montana Molecular, Bozeman, MT, USA) was used. The green upward cAMP BacMam sensor is a vector supplied as a nonreplicating baculovirus expressed by infecting the cells. The vector contains a gene encoding a fluorescent protein that functions as a transient cAMP-sensitive fluorescent biosensor. The fluorescence intensity of the protein increases when the vector specifically binds to cAMP in live mammalian cells. The cAMP sensor was transfected in human odontoblasts by incubation in basal medium containing 16.7% BacMam sensor and 0.4% Na-butyrate at 37 °C for 36 h. BacMam-sensor-transfected human odontoblasts were rinsed with fresh standard solution and then mounted on a dish on the stage of a microscope (IX73, Olympus, Tokyo, Japan) incorporated with HCImage software, an excited wavelength selector, and an intensified charge-coupled device camera system (Hamamatsu Photonics, Shizuoka, Japan). The green fluorescence emission was measured at 517 nm at an excitation wavelength of 506 nm. The intracellular cAMP levels were expressed as the fluorescence intensity ratio (F/F0 unit) of the fluorescence intensity (F) to the resting value (F0). The F/F0 baseline (F/F0 baseline) was denoted as the mean value for 30 s before the first application of each receptor agonist and was set at 1.0. To evaluate the pharmacological effect of the Gs protein-coupled receptor antagonist on its agonist-induced increase in cAMP levels, we first calculated the ΔF value by the following equation, where F/F0 peak is a peak F/F0 value and F/F0 baseline is F/F0 baseline by Gs protein-coupled receptor agonist application with or without its antagonist. We then normalized the ΔF value during agonist application with (ΔFantagonist) or without (ΔFagonist as 100%) antagonist application. A standard solution with or without each receptor agonist, antagonist, or SQ22536 was applied via superfusion using a rapid gravity-fed perfusion system (ValueLink8.2 Controller; AutoMate Scientific, Barkeley, CA, USA). A series of repeated applications (2 min) of each receptor agonist with or without the antagonist or SQ22536 was applied to the cells, and they were washed with standard solution until the F/F0 value returned to baseline. All experiments were performed at 28 ± 1 °C.
ΔF = (F/F0 peak) − (F/F0 baseline)2.5. Statistical Analysis
Data are expressed as the mean ± standard error of the mean of N observations, where N represents the number of independent experiments. One-way ANOVA with Tukey’s post-hoc test was used to determine the parametric statistical significance. Statistical significance was set at p < 0.05. All statistical analyses were performed using GraphPad Prism 7.0 software (GraphPad Software, La Jolla, CA, USA).
3. Results
3.1. Immunofluorescence Analysis of Human Odontoblast Markers
3.2. Human Odontoblasts Were Immunopositive for Gαs Protein and IP, 5-HT4, D1, A2A, and VIP Receptor Antibodies
Immunofluorescence analysis revealed that the human odontoblasts were immunopositive for Gαs protein (Figure 2A) and for IP (Figure 2B), 5-HT4 (Figure 2C), D1 (Figure 2D), and A2A (Figure 2E) receptors. The odontoblasts also showed immunoreactivity for VPAC1 (Figure 2F) and VPAC2 (Figure 2G), which are subtypes of the VIP receptor.
3.3. The IP Receptor Agonist Increased Intracellular cAMP Levels in Odontoblasts

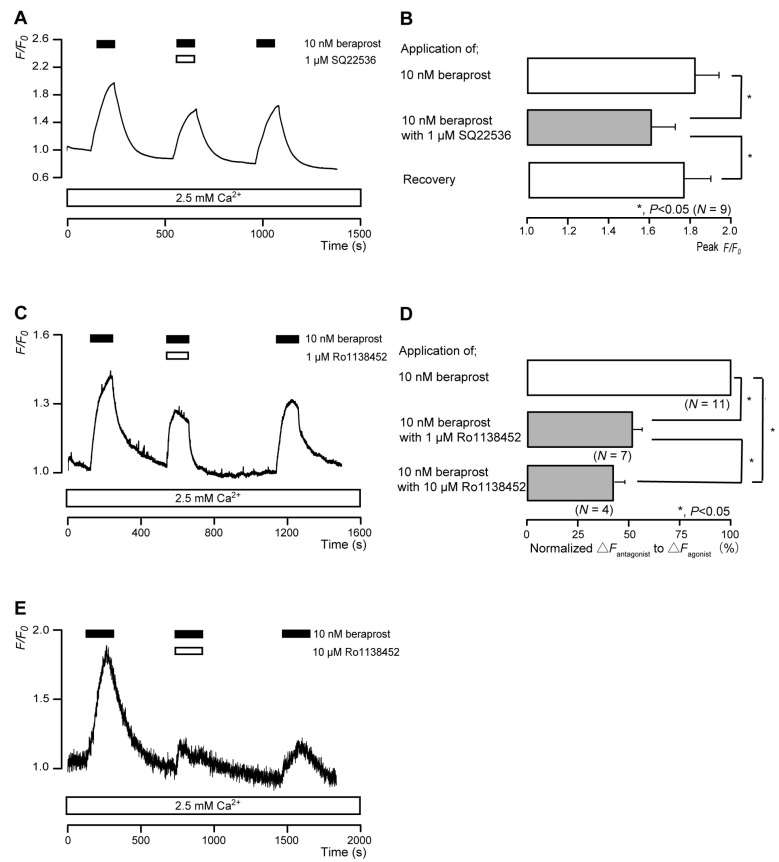

The intracellular cAMP levels in human odontoblasts were measured using an mNeon Green-based cAMP sensor. The application of 10 nM beraprost (a potent IP receptor agonist) to human odontoblasts transiently increased intracellular cAMP levels, which reached peak values of 1.82 ± 0.11 F/F0 units (N = 9; Figure 3A,B), 1.43 ± 0.03 F/F0 units (N = 7; Figure 3C), or 1.30 ± 0.16 F/F0 units (N = 4; Figure 3E). Beraprost-induced intracellular cAMP level increases were significantly and reversibly inhibited by an AC inhibitor (1 µM SQ22536). In addition, these heightened cAMP levels were significantly suppressed by a selective IP receptor antagonist (Ro1138452) to 51.8 ± 4.39% (N = 7; Figure 3C,D) with a 1 μM application and to 42.0 ± 5.55% (N = 4; Figure 3D,E) with a 10 μM application. Intracellular cAMP levels were recovered by removing SQ22536 and the IP receptor antagonist.
3.4. The 5-HT4 Receptor Agonist Increased Intracellular cAMP Levels in Odontoblasts

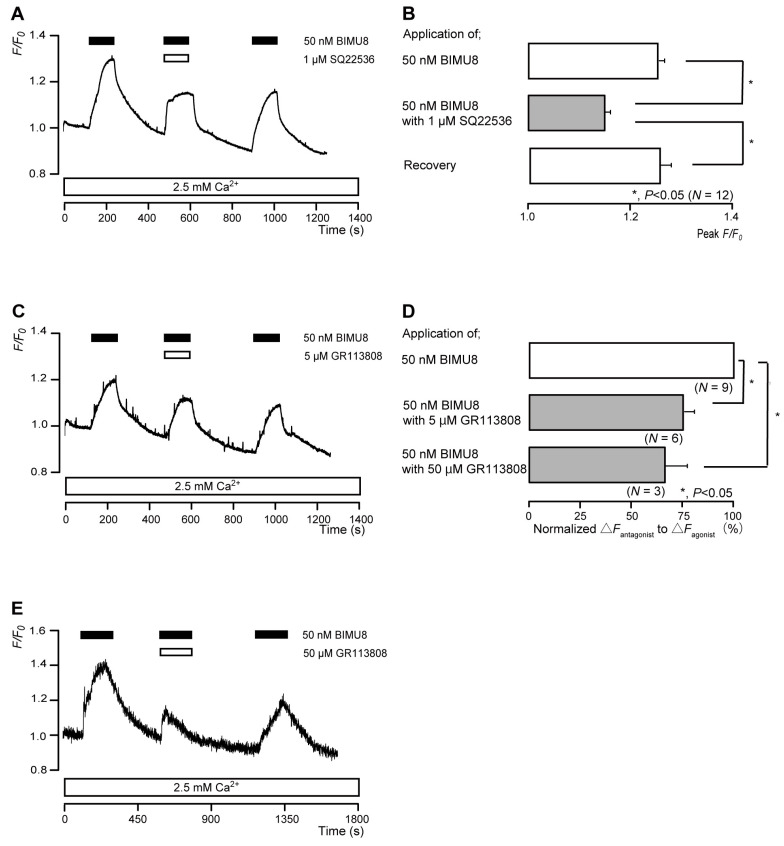

The application of 50 nM BIMU8 (a potent 5-HT4 receptor agonist) to human odontoblasts transiently increased intracellular cAMP levels to peak values of 1.26 ± 0.01 F/F0 units (N = 12; Figure 4A,B), 1.18 ± 0.02 F/F0 units (N = 6; Figure 4C), or 1.43 ± 0.18 F/F0 units (N = 3; Figure 4E). BIMU8-induced intracellular cAMP level increases were significantly and reversibly inhibited by an AC inhibitor (1 µM SQ22536). In addition, the application of selective receptor antagonist (GR113808) significantly suppressed BIMU8-induced increases in intracellular cAMP level to 74.3 ± 6.29% (N = 6; Figure 4C,D) with a 5 μM application and to 65.8 ± 10.8% (N = 3; Figure 4D,E) with a 50 μM application. Intracellular cAMP levels were recovered by removing SQ22536 and the 5-HT4 receptor antagonist.
3.5. The D1 Receptor Agonist Increased Intracellular cAMP Levels in Odontoblasts

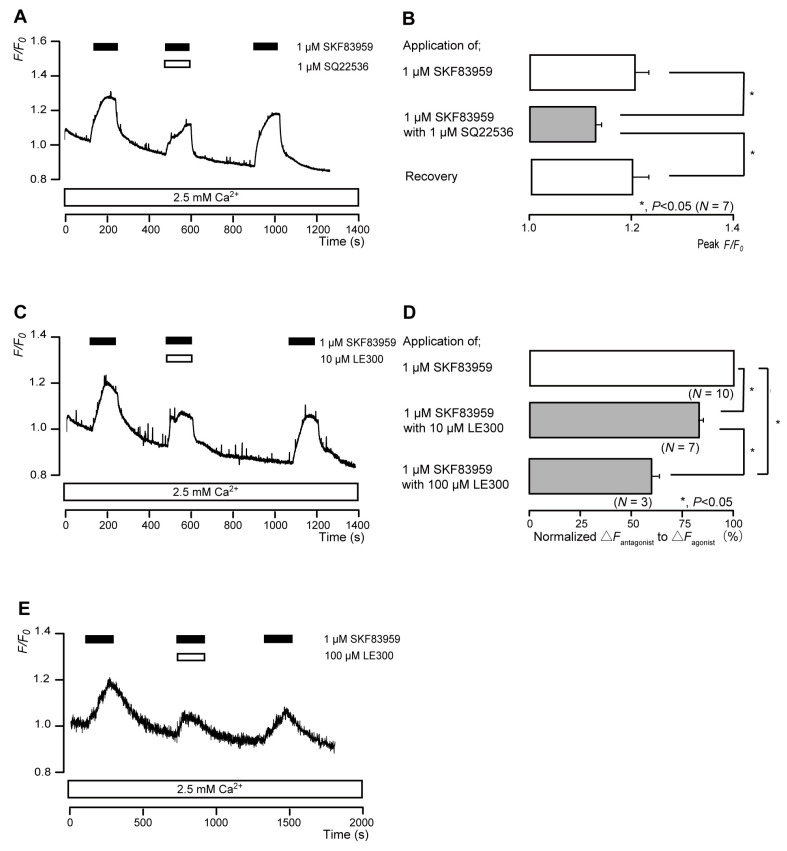

The application of 1 μM SKF83959 (a partial D1 receptor agonist) to human odontoblasts transiently increased intracellular cAMP levels to peak values of 1.21 ± 0.03 F/F0 units (N = 7; Figure 5A,B), 1.22 ± 0.22 F/F0 units (N = 7; Figure 5C), or 1.45 ± 0.22 F/F0 units (N = 3; Figure 5E). SKF83959-induced intracellular cAMP level increases were significantly and reversibly inhibited by an AC inhibitor (1 µM SQ22536). In addition, a potent D1 receptor antagonist (LE300) significantly suppressed SKF83959-induced increases in intracellular cAMP level to 83.0 ± 2.38% (N = 7; Figure 5C,D) with a 10 μM application and to 59.4 ± 3.59% (N = 3; Figure 5D,E) with a 100 μM application. Intracellular cAMP levels were recovered by removing SQ22536 and the D1 receptor antagonist.
3.6. The A2A Receptor Agonist Increased Intracellular cAMP Levels in Odontoblasts

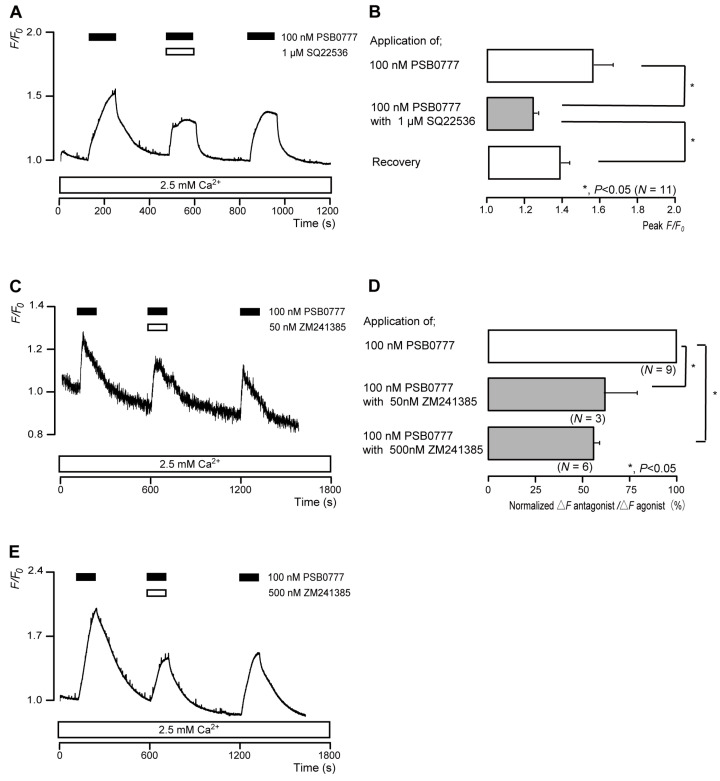

The application of 100 nM PSB0777 (a potent A2A receptor agonist) to human odontoblasts transiently increased intracellular cAMP levels to peak values of 1.57 ± 0.10 F/F0 units (N = 11; Figure 6A,B), 1.29 ± 0.02 F/F0 units (N = 3; Figure 6C), or 1.99 ± 0.09 F/F0 units (N = 6; Figure 6E). PSB0777-induced intracellular cAMP level increases were significantly and reversibly inhibited by an AC inhibitor (1 µM SQ22536). In addition, a potent and selective A2A receptor antagonist (ZM241385) significantly suppressed PSB0777-induced increases in intracellular cAMP level to 61.0 ± 16.9% (N = 3; Figure 6C,D) with a 50 nM application and to 54.6 ± 3.93% (N = 6; Figure 6D,E) with a 500 nM application. Intracellular cAMP levels were recovered by removing SQ22536 and the A2A receptor antagonist.
3.7. The Nonselective VIP Receptor Agonist Increased Intracellular cAMP Levels in Odontoblasts

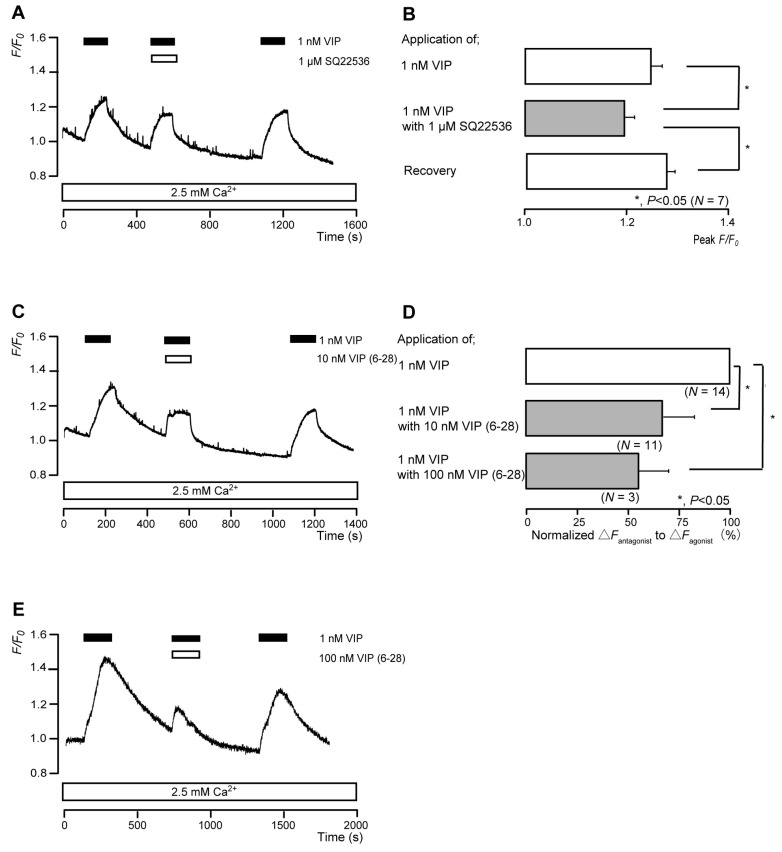

The application of 1 nM VIP transiently increased intracellular cAMP levels to peak values of 1.25 ± 0.02 F/F0 units (N = 7; Figure 7A,B), 1.30 ± 0.01 F/F0 units (N = 11; Figure 7C), or 1.45 ± 0.06 F/F0 units (N = 3; Figure 7E). VIP-induced intracellular cAMP level increases were significantly and reversibly inhibited by an AC inhibitor (1 µM SQ22536). In addition, a nonselective VIP receptor antagonist (VIP(6-28)) significantly suppressed VIP-induced increases in intracellular cAMP level to 66.4 ± 5.48% (N = 11; Figure 7C,D) with a 10 nM application and to 55.8 ± 14.2% (N = 3; Figure 7D,E) with a 100 nM application. Intracellular cAMP levels were recovered by removing SQ22536 and the VIP receptor antagonist.
4. Discussion
Here, the functional expression of the Gαs protein and the Gs protein-coupled IP, 5-HT4, D1, A2A, and VIP receptors in human odontoblasts was demonstrated. The activation of these Gαs protein-coupled receptors regulates the AC signal transduction pathway to induce cAMP production.
Prostanoids are cyclooxygenase metabolites of arachidonic acid and include PGs, PGD2, PGE2, PGF2α, PGI2, and thromboxane A2. These are synthesized and released upon cell stimulation and act on cells in the vicinity of their synthesis to exert their actions [26]. They also belong to a subclass of eicosanoids consisting of the prostaglandins, thromboxanes, and prostacyclins. Prostaglandins have a broad range of pathophysiological effects, including a contribution to inflammation and pain perception. The specific receptors for PGD2, PGE2, PGF2, PGI2, and TXA2 are termed the DP, EP, FP, IP, and TP receptors, respectively [26]. In human embryonic kidney 293 (HEK293) cells expressing IP receptors, beraprost dose-dependently increased cAMP levels with a half-maximal (50%) effective concentration (EC50) of 10.4 nM [27]. SQ22536 dose-dependently blocked cAMP level increase during platelet aggregation with a half-maximal (50%) inhibitory concentration (IC50) of 1 µM [28]. SQ22536 (1 µM) also suppressed the 2-AG-induced increase in [Ca2+]i in rat odontoblasts [8]. Ro1138452 is a potent and selective antagonist that has a high affinity for human IP receptors, but showed no significant potency for non-IP prostanoid receptors (EP1, EP3, FP, and TP receptors) [29]. The IC50 of Ro1138452 was 100 nM in IP-receptor-expressing CHO-K1 cells [29]. However, Ro1138452 has been used at higher concentrations, such as 1–10 µM, than the IC50 [30,31]. In this study, 10 nM beraprost, 1 µM SQ22536, and 1 µM Ro1138452 were used. Each concentration of these reagents was appropriate for activating or inhibiting the IP receptors or AC. PGI2 synthase (PGIS) immunoreactivity has been detected in odontoblasts and has been reported to increase with mechanical stimulation and maturation [32]. An experimental force was previously applied to the maxillary first and second molars by inserting an elastic band between them for 6–72 h; thereafter, the mRNA levels of PGIS, IP receptor, and TRPV1 were shown to be upregulated in rat molar pulp. In addition, rat odontoblasts showed PGIS, IP receptor, and TRPV1 immunoreactivities in that study, indicating the contribution of the PGIS–IP-receptor–TRPV1 axis to functional cellular processes in odontoblasts [15]. Extracellular PGI2 also potentiates/sensitizes TRPV1 channel activity via IP receptor activation and cAMP-dependent protein kinase A activity [33]. In our previous research, we found that TRPV1 channel activity (which is sensitive to mechanical stimulation) is closely involved in the generation of dentinal pain. Additionally, cAMP signals enhance Ca2+ influx via TRPV1 channel activation in odontoblasts [8]. Although further studies are required in this regard, IP receptor activation by extracellular PGI2 during inflammatory responses in dental pulp may modulate dentinal pain intensity by modulating mechanosensitive ion channels via cAMP signaling. Furthermore, Iloprost—a stable, long-acting PGI2 analog—enhances the mineralization of human dental pulp cells and reactionary dentin formation [34]. Our ongoing experiments aim to clarify the contribution of the IP receptor to odontoblast cellular functions, including dentin formation and sensory transduction in dentinal sensitivity.
DA, which is synthesized by tyrosine hydroxylase (TH), is the predominant catecholamine neurotransmitter in the brain, and it affects many physiological functions, such as the control of coordinated movements and hormone secretion as well as motivational and emotional behaviors. DA binds to DA receptors (D1–5 receptors), which are classified as either D1-like receptors (D1 and D5 receptors) or D2-like receptors (D2–4 receptors) [16]. SKF83959 is a D1-like receptor partial agonist that has shown very high D1 and D5 receptor affinity (Ki = 1.18 and 7.56 nM) compared to D2 (Ki = 920 nM) and D3 (Ki = 399 nM) [35]. LE300 is a potent D1 and D5 receptor antagonist with a Ki of 1.9 and 7.5 nM, respectively, and demonstrated 20-fold selectivity for human D1-like receptors compared to D2-like receptors [36,37]. LE300 (150–5000 nM) also suppressed SKF38393-induced cAMP accumulation in HEK293 cells expressing D1 receptors [36]. In this study, higher concentrations of SKF38393 (1 µM) and LE300 (10 µM and 100 µM) were used than those used in previous studies. These concentrations were sufficient to activate or antagonize both the D1-like and/or D2-like receptors. We showed D1 receptor immunoreactivity in human odontoblasts in the present study. Not only D5 receptor, but also D2-like receptors, might also be expressed in odontoblasts; however, further study will be needed. It has been reported that, in line with the present results, rat odontogenic stem cells express D1 and D3 receptors. These receptors appear to be functionally involved in tooth repair by transducing DA signals from pulp-injury-activated platelets [38]. Odontoblasts in both rat incisors and molars reportedly express DA and TH, and the DA promotes the odontoblastic differentiation of pre-odontoblasts through intracellular cAMP/protein kinase A (PKA) signaling via D1-like receptor activation on the odontoblast [16]. In previous studies, we have shown that Ca2+ signals following the mechanical stimulation of odontoblasts elicit the release of ATP via pannexin-1 and glutamate via glutamate-permeable anion channels, extracellularly [6,9,39]. The released ATP, glutamate, and ADP (which is subsequently hydrolyzed from ATP) establish a paracrine signaling network between odontoblasts through the activation of ionotropic ATP (P2X) receptors, metabotropic glutamate receptors, and metabotropic ADP (P2Y) receptors, respectively; an intercellular odontoblast paracrine/autocrine communication is thereby established. The expression of both DA and TH as well as the DA receptor in odontoblasts [16], taken together with the present results, suggests that DA-induced cAMP signaling following Gs protein-coupled DA receptor activation may establish intercellular odontoblast paracrine and/or autocrine communication to promote odontoblastic differentiation and dentinogenesis. However, further studies are required to confirm this hypothesis.
Four adenosine receptors (A1, A2A, A2B, and A3) have been cloned in a variety of species [40]. All adenosine receptors are seven-transmembrane GPCRs linked to a variety of intercellular, intracellular, and transmembrane signal transduction pathways [40]. PSB0777 exhibited high affinity for human A1 (Ki = 541 nM) and A2A (Ki = 360 nM) receptors, and no or negligible affinity for A2B and A3 receptors, indicating high selectivity for human A1 and A2A receptors [41]. In addition, PSB0777 dose-dependently accumulated cAMP with an EC50 of 117 nM in CHO cells stably expressing human A2A receptors. The pEC50 for cAMP production in HEK 293T cells expressing wild-type A2A receptors was 8.1 [42]. ZM241385 had a high affinity for A2A receptors in guinea pigs, with a pA2 of 8.5. ZM241385 had a low affinity for A1 and A2B receptors in guinea pigs with a pA2 of 7.06 and 5.95, respectively. ZM241385 has also shown a very low affinity for cloned rat A3 receptors in CHO cells, with a pIC50 of 3.82. Moreover, 250 nM ZM241385 reduced basolateral amygdala pyramidal cell intrinsic excitability, which is mediated by A2A receptor activation [43]. In addition, 100 nM ZM241385 significantly prevented CA1 pyramidal neuronal damage caused by oxygen glucose deprivation in a model of cerebral ischemia [44]. Thus, 100 nM PSB0777 as well as 50 and 500 nM ZM241385, which were used in the present study, were sufficient to activate or antagonize A2A receptors, respectively. Odontoblasts are mechanosensory receptor cells that can detect mechanical stimulation through dentinal fluid movement caused by stimuli applied to the dentin surface, and this process occurs via mechanosensitive TRP (TRPV1, TRPV2, TRPV4, and TRPA1) and Piezo1 channel activations. Ca2+ entry via TRP/Piezo1 channels activates the release of ATP from pannexin-1 channels into the extracellular space. The released ATP then activates the P2X receptor subtype 3 on the neurons that innervate the dental pulp, establishing intercellular synaptic-like communication between odontoblasts and neurons. This communication mediates the sensory signal transduction pathway in the generation of dentinal sensitivities, known as the ‘odontoblast mechanosensory/hydrodynamic receptor model’ [6,7,10]. The released ATP is also hydrolyzed to ADP by nucleoside triphosphate diphosphohydrolase-2 in Schwann cells or the odontoblast membrane [45]. ADP subsequently activates P2Y receptors in trigeminal ganglion (TG) neurons that innervate the dental pulp and neighboring odontoblasts to form paracrine signals. The activation of P2Y receptors establishes not only odontoblast–odontoblast but also odontoblast–TG neuron chemical communication, which may drive reactionary dentin formation and further sensory signal transduction [5,6,7,22]. Odontoblasts are known to express alkaline phosphatase (ALP) activity, which hydrolyzes ATP to adenosine; therefore, further studies should investigate whether ALP activity in odontoblasts contributes to the hydrolysis of ATP to adenosine, which then activates odontoblast A2A receptors to establish inter-odontoblast paracrine communication.
VIP is a neuropeptide that is widely distributed in the central and peripheral nervous systems. VIP triggers biological responses through interactions with two receptor subtypes, VPAC1 and VPAC2, which are mainly coupled to the Gαs protein and stimulate cellular AC activity [46]. VIP promotes cAMP production with an EC50 of 0.5–2 nM in COS cells (fibroblast-like cell lines derived from monkey kidney tissue) expressing chimeric VPAC1 receptors between humans and rats [47]. Applications of VIP (1–100 nM) caused reversible increases in [Ca2+]i in gonadotropin-releasing hormone (GnRH) neurons, and increases in [Ca2+]i did not show dose dependency [48]. VIP(6-28), has been used as a VPAC1 and VPAC2 receptor antagonist in various studies [48,49,50]. Moreover, 100 nM VIP(6-28) inhibits VIP-induced increases in GnRH neuronal firing [48]. In the present study, VIP (1 nM) and VIP(6-28) (10 nM and 100 nM) were used, and the concentrations of these reagents were appropriate for activating or inhibiting the VIP receptors. Neuropeptide VIP immunoreactivity is present in human dental pulp [51] and in TG neurons. VIP-positive nerve fibers project into the odontoblastic region and in the vicinity of blood vessels. Additionally, the levels of VIP in dental pulp tissue are higher in moderately carious teeth than in non-carious and grossly carious teeth [52]. Although further studies are needed to confirm this hypothesis, the distribution of VIP in dental pulp tissue of carious teeth and/or VIP released from nerve endings near the odontoblastic region may affect odontoblasts via the VIP–VPAC1 receptor axis, enhancing tertiary dentin formation and/or modulating the tooth pain threshold. We have previously shown that the mechanical stimulation of peptidergic C neurons of TG, which mimics increasing tissue pressure due to dental pulp inflammation, elicits CGRP release [13]. The released CGRP increases intracellular cAMP levels in rat odontoblasts via the CGRP–CGRP receptor axis, which may establish axon reflex in dental pulp. Additionally, TG neurons are capable of releasing adrenomedullin to establish intercellular neuron–endothelial cell communication as an axon reflex (our personal communication from YS). Therefore, our ongoing research will focus on the possible modification of odontoblast and/or dental pulp function(s) mediated by intercellular ‘retrograde’ communication from neurons to the odontoblasts via the VIP–VPAC1 receptor axis.
Serotonin (5-hydroxytryptamine; 5-HT) is a tryptophan-derived bioamine that acts as a neurotransmitter and mediates a wide variety of behavioral and physiological processes, such as sleep, memory, cognition, appetite, and mood. Peripheral 5-HT stored in platelet-dense granules is involved in the regulation of cardiovascular, gastrointestinal, smooth muscle, and endocrine functions [53]. 5-HT receptors are classified into seven main types (some are further divided into subtypes): 5-HT1 (5-HT1A/1B/1D/1F), 5-HT2 (5-HT2A/2B/2C), 5-HT3 (5-HT3A/3B/3C), 5-HT4, 5-HT5 (5-HT5A/5B, with 5-HT5A being functional but 5-HT5B being lost during mammalian evolution), 5-HT6, and 5-HT7 [54,55]. BIMU8 has shown a high affinity for guinea pig 5-HT4 receptors (pKi = 7.6–7.9; where Ki indicates dissociation constant in the radiographic binding assay) [56]. BIMU8 dose-dependently promoted 5-HT4 palmitoylation with an EC50 of 10 nM in Spodoptera frugiperda cells expressing 5-HT4 receptors [57]. It has been demonstrated that GR113808 is a highly potent and selective 5-HT4 receptor antagonist with pA2 being 9.2 in the guinea pig proximal colon and 9.5 in the rat esophagus, respectively (A2 indicates dissociation constant for antagonist) [56]. 5-HT (50 µM)-induced inward currents were inhibited by 5–10 µM GR113808 in mouse CA1 hippocampal neurons and rat hypothalamic paraventricular nucleus magnocellular neurons [58,59]. In the present study, BIMU8 (10 nM) and GR113808 (5 µM and 50 µM) were used as a 5-HT4 receptor agonist and antagonist, respectively. Each concentration of these reagents was adequate to activate or antagonize 5-HT4 receptors. Recently, activated blood platelets have been reported to release 5-HT and DA during dental pulp injury [60]. The co-released 5-HT and DA are necessary for recruiting odontogenic stem cells for tooth repair through signaling via 5-HT receptor subtypes (5-HT1D, 5-HT2B, and 5-HT7) and DA receptor subtypes (D1 and D3). Therefore, the 5-HT and DA released from platelets during pulp injury may possibly also activate Gs protein-coupled 5-HT4 receptors (which we examined in this study) in odontoblasts to regulate cellular function.
Overall, further studies need to clarify the cellular function(s) mediated by intracellular cAMP signaling following Gs protein-coupled receptor activation in odontoblasts, as well as to explore the origin of ligand synthesis in dental pulp, such as endothelial cells, fibroblasts, nerve terminals, or blood cells, for odontoblasts expressing the GPCR-regulated AC signal transduction pathway. Clarification of the intercellular communication pathways between ligand-releasing cells and odontoblasts is also of immense interest.
In conclusion, here, functional IP, 5-HT4, D1, A2A, and VIP receptor expression in human odontoblasts was demonstrated, which activates the intracellular cAMP signaling pathway.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
All data are presented in the article.
Conflicts of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be considered as potential conflicts of interest.
