Differential activation of G protein‐mediated signaling by synthetic cannabinoid receptor agonists
Department of Biomedical Sciences, Macquarie University, Sydney, NSW, Australia
The Lambert Initiative for Cannabinoid Therapeutics, Brain and Mind Centre, The University of Sydney, Sydney, NSW, Australia
School of Chemistry, The University of Sydney, Sydney, NSW, Australia
Abstract
Synthetic cannabinoid receptor agonists (SCRAs) are new psychoactive substances associated with acute intoxication and even death. However, the molecular mechanisms through which SCRAs may exert their toxic effects remain unclear—including the potential differential activation of G protein subtypes by cannabinoid receptor type 1 (CB1), a major target of SCRA. We measured CB1‐mediated activation of Gαs and Gαi/o proteins by SCRAs by examining stimulation (pertussis toxin, PTX treated) as well as inhibition (non‐PTX treated) of forskolin (FSK)‐induced cyclic adenosine monophosphate (cAMP) accumulation in human embryonic kidney (HEK) cells stably expressing CB1. Real‐time measurements of stimulation and inhibition of cAMP levels were made using a BRET biosensor. We found that the maximum concentration of SCRAs tested (10 µmol L−1), increased cAMP levels 12%‐45% above that produced by FSK alone, while the phytocannabinoid THC did not significantly alter cAMP levels in PTX‐treated HEK‐CB1 cells. All SCRAs had greater potency to inhibit FSK‐induced cAMP levels than to stimulate cAMP levels. The rank order of potencies for SCRA stimulation of cAMP (Gαs) was PB‐22 > 5F‐MDMB‐PICA > JWH‐018 ≈ AB‐FUBINACA > XLR‐11. By contrast, the potency of SCRAs for inhibition of cAMP (Gαi/o) was 5F‐MDMB‐PICA > AB‐FUBINACA > PB‐22 > JWH‐018 > XLR‐11. The different rank order of potency and EMax of the SCRAs to stimulate Gαs‐like signaling compared to Gαi/o signaling suggests differences in G protein preference between SCRAs. Understanding the apparent differences among these drugs may contribute to unravelling their complex effects in humans.
Untitled section
Keywords: cannabinoid receptor, G protein, signaling, synthetic cannabinoid receptor agonist, toxicity
Article notes
Untitled section
Received 2019 Nov 21; Revised 2020 Jan 23; Accepted 2020 Jan 27; Collection date 2020 Apr.
- 2‐AG
- 2‐arachidonoyl glycerol
- AC
- adenylyl cyclase
- BRET
- bioluminescence resonance energy transfer
- CAMYEL
- cAMP sensor YFP‐Epac‐Rluc
- CB1
- cannabinoid receptor type 1
- GIRK
- G protein‐gated inwardly rectifying K+ channel
- HA
- hemagglutinin
- HEK‐CB1
- human embryonic kidney cells stably transfected with HA tagged human CB1 receptors
- NPS
- novel psychoactive substances
- PEI
- polyethylenimine
- PTX
- pertussis toxin
- SCRA
- synthetic cannabinoid receptor agonists
- THC
- Δ9‐tetrahydrocannabinol
1.INTRODUCTION
The use of synthetic cannabinoid receptor agonist (SCRA) new psychoactive substances (NPS) is associated with significant morbidity and mortality compared to use of ∆9‐tetrahydrocannabinol (THC), the main psychoactive ingredient of cannabis.1, 2 SCRAs are linked to a wide range of toxic effects including seizures, agitation, hypertension, cardiotoxicity, kidney damage, and sometimes death.3, 4 There has been a rapid increase in the number of structurally diverse SCRAs since 2010, with little known about their pharmacology and toxicology at time of identification.5 The constant evolution of SCRA structures occurs in response to legislative restriction and development of urine drug screens for existing compounds.6, 7, 8 A time‐series of seizures (by tonnage) of NPS reported to the United Nations Office on Drug and Crime9 showed that the SCRAs dominated the synthetic NPS market over the period 2011‐2017.
SCRAs are usually agonists at both cannabinoid type‐1 and type‐2 receptors (CB1 and CB2, respectively10); with the psychoactive effects attributed to the activation of CB1.11 We have previously described the in vitro quantitative measurement of SCRA efficacy at CB1, where all SCRAs tested showed between 20‐ and 300‐fold greater agonist activity at CB1 compared to THC.12 Cannabinoid receptor‐mediated G protein signaling is predominantly through the Gαi/o protein family13; however, under some circumstances, CB1 can also stimulate adenylyl cyclase (AC) through Gαs‐proteins.14, 15, 16 For example, blockade of the canonical CB1‐Gαi pathway with pertussis toxin (PTX) or sequestration of CB1‐Gαi protein in the primary striatal rat neurons on coexpression with D2 results in an augmentation of cyclic adenosine monophosphate (cAMP) levels by cannabinoids, suggesting that CB1 couples to Gαs.14, 15 A recent study characterized the relationship between CB1 receptor expression and signaling, and showed that at very high receptor expression levels, the effect of CB1 activation on cAMP signaling was stimulatory, a phenotype that was reversed by systematic pharmacological knockdown at the receptor level.17 The idea that certain SCRAs may preferentially activate different CB1 Gα subtypes is not unprecedented18, 19, 20; in a study by Costain et al21 AB‐CHMINACA elicited an elevation in cAMP levels in both the absence and presence of forskolin (FSK) in human embryonic kidney (HEK) cells transiently expressing CB1, suggesting an AB‐CHMINACA‐specific CB1‐mediated activation of Gαs signaling.
The mechanism(s) through which SCRAs exert different behavioral and physiological effects remains unclear, and which pathways modulated by CB1 activation mediate the specific pharmacological effects of SCRAs is also unknown. Similarly, the question of whether these pathways are activated in a quantitatively or qualitatively similar way by SCRAs and THC is only beginning to be addressed.22 Finally, the question of whether SCRA activity at noncannabinoid receptors is also important for their pharmacological effects is very much open.23, 24, 25 With more than 250 SCRAs identified in the NPS market,9 elucidation of the differential molecular mechanisms by which these compounds can exert distinct pharmacology, including their signaling via CB1, is essential for understanding their adverse effects. This study examined whether SCRAs that are representative of structural classes confirmed in patients admitted to emergency departments with presumed SCRA toxicity stimulate Gαs‐like cAMP signaling via CB1. We measured the SCRA‐mediated stimulation as well as inhibition of FSK‐induced cAMP accumulation in HEK cells stably expressing CB1. We have observed SCRA‐specific CB1‐dependent activation of the two signaling pathways, but THC only coupled to inhibition, not stimulation of cAMP. While AB‐CHIMINACA, previously identified as having a unique profile among SCRAs for elevating cAMP, appeared to signal, in part, through non‐CB1 mechanisms.
2.MATERIALS AND METHODS
2.1.CB1 receptor transfection and cell culture
HEK 293 FlpIn cells with homogeneous G protein‐gated inwardly rectifying K+ (GIRK4) channel expression (the construction of these cells by Grimsey et al will be described elsewhere) were cotransfected with pcDNA5/FRT construct encoding hemagglutinin (HA)‐tagged human CB1 receptor cDNA and pOG44 (Flp recombinase plasmid) using the same random incorporation method of stable transfection as described previously for AtT‐20 pituitary tumor cells.26 Cells stably expressing the CB1 receptor were cultured in Dulbecco's Modified Eagle Media (Thermo Fischer Scientific) supplemented with 10% fetal bovine serum (FBS; Sigma‐Aldrich), 100 units mL−1 penicillin, 100 µg mL−1 streptomycin (Thermo Fischer Scientific), 400 µg mL−1 G418 (GIRK4 selection antibiotic) and 100 µg mL−1 hygromycin (CB1 selection antibiotic) up to passage 5 (selection phase). Hygromycin concentration was reduced to 80 µg mL−1 beyond passage 5 (maintenance phase). Cells were grown in 75 cm2 flask at 37°C/5% CO2 and passaged at 80% confluency as required. Assays were carried out on cells up to 25 passages.
2.2.Assay for cAMP measurement
Intracellular cAMP levels were measured using pcDNA3L‐His‐CAMYEL plasmid, which encodes the cAMP sensor YFP‐Epac‐RLuc (CAMYEL) as outlined in Ref. [27, 28] Cells were detached from the flask using trypsin/EDTA (Sigma‐Aldrich), and resuspended in DMEM supplemented with 10% FBS, 100 units mL−1 penicillin, and 100 µg mL−1 streptomycin. Cells were seeded in 10 cm dishes at a density of 7 000 000 such that they would be 60%‐70% confluent the next day. On the following day, the cells were transiently transfected with 5 µg of pcDNA3L‐His‐CAMYEL plasmid using the linear polyethylenimine (PEI, m.w. 25 kDa) (Polysciences). The PEI/DNA complex mixture was sequentially added to the cells at the ratio of 1:6, and cells were incubated in 5% CO2 at 37°C. Approximately 24 hours after transfection, the cells were then detached from the dish and the pellet was resuspended in Leibovitz's (L‐15—Thermo Fischer Scientific) media supplemented with 1% FBS, 100 units mL−1 penicillin, 100 µg mL−1 streptomycin and 15 mmol L−1 glucose. In the experiments with PTX to irreversibly uncouple Gαi proteins, the cells were resuspended in the media containing 200 ng mL−1 PTX. The PTX‐treated and control (non‐PTX treated) cells were plated at a density of 100 000 cells per well in poly D‐lysine (Sigma‐Aldrich) coated, white wall, clear bottomed 96‐well microplates. Cells were incubated overnight at 37°C in ambient CO2.
The day after plating, FSK (an activator of AC) was prepared in Hanks’ balanced salt solution (HBSS) composed of (mmol L−1) NaCl 145, HEPES 22, Na2HPO4 0.338, NaHCO3 4.17, KH2PO4 0.441, MgSO4 0.407, MgCl2 0.493, CaCl2 1.26, glucose 5.56 (pH 7.4, osmolarity 315 ± 15), and supplemented with 0.1% bovine serum albumin. All the drugs used for the series of real‐time measurements of stimulation and inhibition of cAMP levels were made in 3 µmol L−1 of FSK immediately before the assay. The concentration of DMSO (0.10%‐0.13%) was kept constant for all experiments, however this limited the maximum drug concentration that could be tested. Coelenterazine H substrate (NanoLight Technologies) was made in HBSS, and added to a final concentration of 5 µmol L−1 (10 µL per well) to the cells, and incubated for 5 minutes after which 10 µL of (10×) drug was added to each well to obtain the desired concentration. A vehicle (HBSS plus DMSO alone) was included in each column of a 96‐well microplate and routinely subtracted from the measurements. The PTX‐treated and control cells were compared side by side. Luminescence was measured using a PHERAstar plate reader (BMG Labtech) at 37°C. The cell signaling was measured at an emission wavelength of 475 and 535 nm simultaneously, and the readings were made every 40 seconds for approximately 20 minutes. A concentration response curve (CRC) for CP55940 and WIN55212‐2 inhibition of cAMP accumulation was performed for each experimental replicate as a reference standard (Figure 1). Day to day variation in the degree of Gs‐stimulation was observed, presumably arising in part from the transient transfections and subsequent PTX treatment required for each assay.
2.3.Data analysis
Raw data are presented as inverse bioluminescence resonance energy transfer (BRET) ratio of emission at 475/535 nm, such that an increase in ratio corresponds with increase in cAMP production. Real‐time (raw) cAMP time course data were then analyzed using area under curve analysis in GraphPad PRISM (Graph Pad Software Inc). Data were normalized to the change produced by FSK over 20 minutes (set as 100%) for each experiment. The percent change values were fit to three or four‐parameter non‐linear regression curves in PRISM to derive EC50 and E max. In the three parameter fit the Hill slope was constrained to 1, in the four parameter fit it was free to vary. All final datasets passed the Shapiro‐Wilk test for normality. Unless otherwise stated, the data represent mean ± SEM of at least five independent experiments, each conducted in duplicate. The differences between groups were tested using unpaired Student's t test, and one‐way ANOVA as appropriate when comparing multiple groups (PRISM). Statistical significance is defined as P < .05.
2.4.Materials
CP55940, WIN55212‐2, 2‐arachidonoylglycerol (2‐AG), CUMYL‐4CN‐BINACA, and SR141716A were purchased from Cayman Chemical, THC was from THC Pharm GmbH and was a kind gift from the Lambert Initiative for Cannabis Therapeutics (University of Sydney). PTX was from HelloBio, and FSK was from Ascent Scientific Ltd. All the SCRAs, unless otherwise stated, were synthesized by Dr Samuel D. Banister in the lab of Professor Michael Kassiou at Sydney University. Chemical structure of SCRAs can be found elsewhere.12 All the SCRAs were prepared in DMSO and stored in aliquots of 30 mmol L−1 in −30°C until needed.
3.RESULTS
3.1.Real‐time cAMP BRET measurement of the Gαs‐mediated signaling of SCRAs

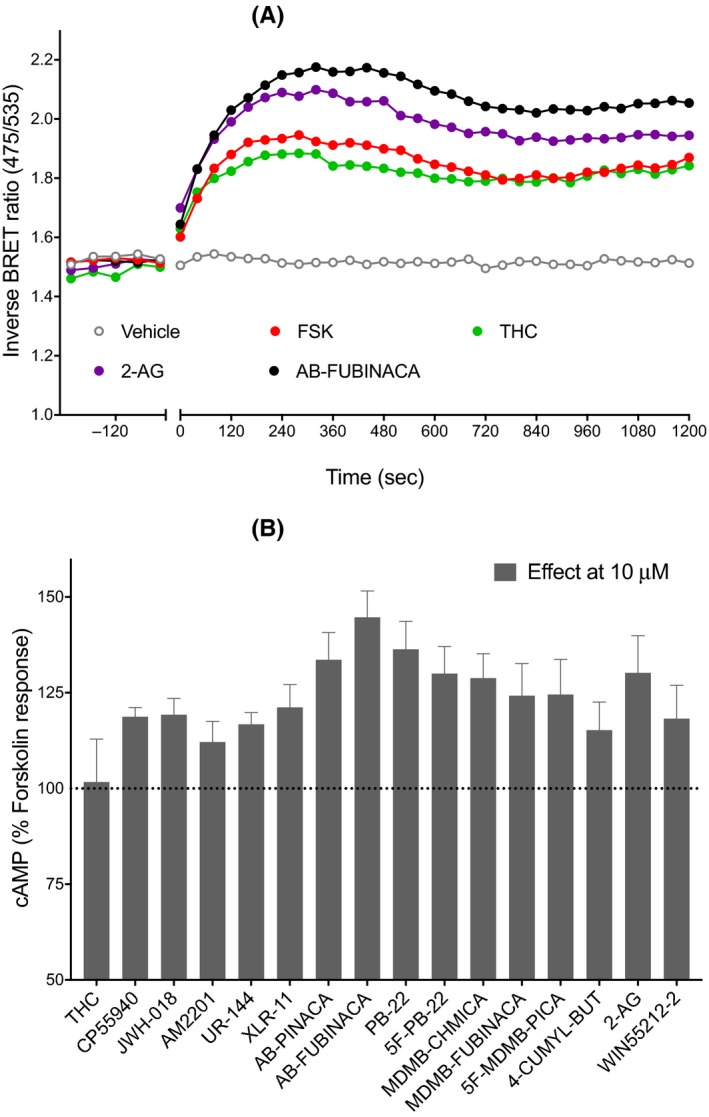

Using the CAMYEL assay, we measured the effect of seventeen cannabinoids (10 µmol L−1 each) on the FSK‐stimulated cellular cAMP levels in HEK‐CB1 cells following pretreatment with PTX. All the SCRAs produced an increase in cAMP levels above that produced by FSK alone (100%). Examples of raw traces are shown for some SCRAs (Figure 2A), note that the stimulation of cAMP by SCRAs in the presence of FSK and PTX plateaued approximately after 12 minutes, and maintained at that level for the entire course of the assay (20 minutes). The effects of SCRAs tested ranged from 12% to 45% increase in signal relative to FSK alone. Most of the SCRAs had approximately 1.5 times higher effect than CP55940 (19%) or WIN55212‐2 (18%), except for JWH‐018, UR‐144, AM‐2201, and CUMYL‐4CN‐BINACA, which showed similar or lower effect (Figure 2B). AB‐FUBINACA had up to 2.5 times higher effect than CP55940. In PTX‐treated cells, the endocannabinoid 2‐AG (10 µmol L−1) produced an increase in FSK‐stimulated cAMP levels approximately twice that of CP55940, while the phytocannabinoid THC did not significantly alter cAMP levels in the presence of FSK (compared to FSK alone Figure 2B, P > .05).
3.2.Differential SCRAs‐induced stimulation and inhibition of cAMP signaling in HEK‐CB1

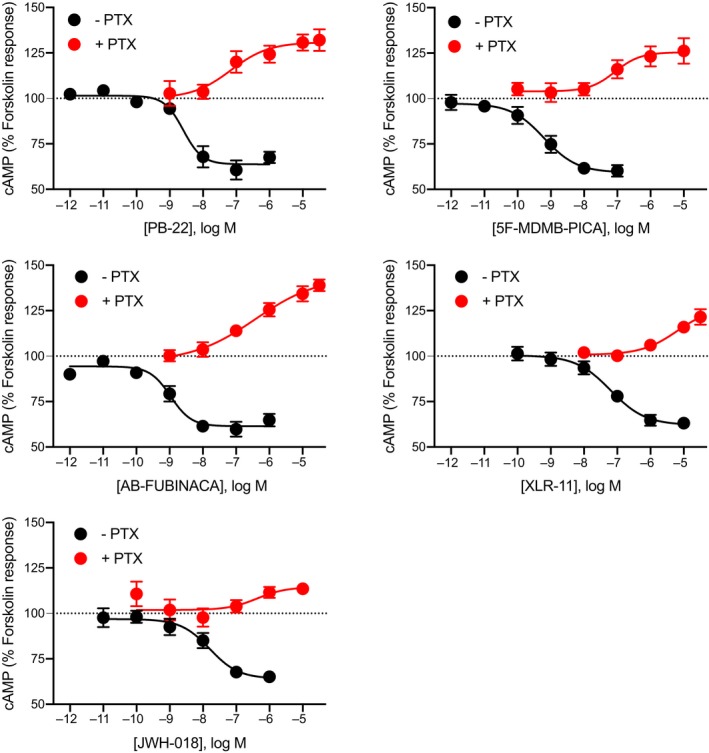

To assess whether there was any evidence of preferential coupling to Gαi/o over Gαs among SCRAs, we assessed the pharmacological activity (EC50 and E max) of a selection of SCRAs belonging to different structural classes (JWH‐018, PB‐22, AB‐FUBINACA, XLR‐11, and 5F‐MDMB‐PICA), to stimulate and inhibit cAMP in HEK‐CB1 cells. All the SCRAs tested activated CB1 through Gαi/o (inhibitory, non‐PTX treated), and Gαs (stimulatory, PTX treated) in a concentration‐dependent manner (Figure 3). As previously reported,29 treatment with CP55940 and WIN55212‐2 produced an immediate concentration‐dependent inhibition of FSK‐mediated cAMP production (pEC50 CP55940 8.1 ± 0.4, pEC50 WIN55212‐2 7.9 ± 0.4). All SCRAs had greater potency (0.62‐63 nmol L−1) for inhibition of FSK‐induced cAMP levels in non‐PTX‐treated HEK cells compared to their potency to stimulate cAMP levels (69‐4720 nmol L−1) (Table 1). The activation of CB1‐Gαs by SCRAs showed a wide variation in E max values, and there was a significant difference in efficacy between AB‐FUBINACA, XLR‐11 and JWH‐018 (one‐way ANOVA, P < .05). The rank order of efficacy for stimulation of Gαs was AB‐FUBINACA ≈ PB‐22 > 5F‐MDMB‐PICA > XLR‐11 > JWH‐018, whereas all the SCRAs were similarly effective at inhibiting cAMP production (Table 1). It should be noted that the CRC for the most efficacious compound tested at Gαs pathway, AB‐FUBINACA, may not have reached a plateau at highest concentration we could test, 30 µmol L−1, and that of XLR‐11 almost certainly had not. The first SCRA to be identified in spice, JWH‐018, caused partial (14% increase over FSK alone) activation of Gαs pathway, but produced greater inhibition of the FSK‐induced cAMP response (64% of FSK response). Whereas other SCRAs tested in this study induce moderate activation of Gαs pathway (26%‐36% relative to FSK) compared to their activity at Gαi/o inhibitory pathway (Figure 3). The rank order of potencies for SCRAs for inhibition of cAMP (Gαi/o) is 5F‐MDMB‐PICA > AB‐FUBINACA > PB‐22 > JWH‐018 > XLR‐11. By contrast, the potency of SCRAs for stimulation of cAMP (Gαs) is PB‐22 > 5F‐MDMB‐PICA > JWH‐018 ≈ ≥ AB‐FUBINACA > XLR‐11. The most efficacious SCRA at Gαs pathway (AB‐FUBINACA) was roughly 300 times less potent at Gαs than the Gαi/o‐pathway, while JWH‐018 was only 18 times less potent. XLR‐11 had much lower potency compared to all the other SCRAs for both Gαs pathway and Gαi/o pathway (Table 1).
| Compound | G i (‐PTX) | G s (+PTX) | G i (−PTX) selectivity | ||
|---|---|---|---|---|---|
| pEC50 (EC50, nmol L−1) | E max (% FSK) | pEC50 (EC50, nmol L−1 | E max (% FSK) | ||
| CP55940 | 8.1 ± 0.4 (7) | 58 ± 3 | — | — | — |
| WIN55212‐2 | 7.9 ± 0.4 (11) | 70 ± 4 | — | — | — |
| JWH‐018 | 7.8 ± 0.2 (16) | 64 ± 3 | 6.5 ± 0.7 (288) | 114 ± 4 | 18 |
| XLR‐11 | 7.2 ± 0.2 (63) | 63 ± 2 | 5.3 ± 0.8 (4720) | 124 ± 5 | 75 |
| PB‐22 | 8.6 ± 0.2 (2.5) | 64 ± 3 | 7.2 ± 0.5 (69) | 130 ± 3 | 28 |
| AB‐FUBINACA | 9.0 ± 0.2 (0.96) | 61 ± 2 | 6.4 ± 0.5 (278) | 144 ± 12 | 290 |
| 5F‐MDMB‐PICA | 9.2 ± 0.2 (0.62) | 60 ± 4 | 7.1 ± 0.4 (85) | 126 ± 5 | 137 |

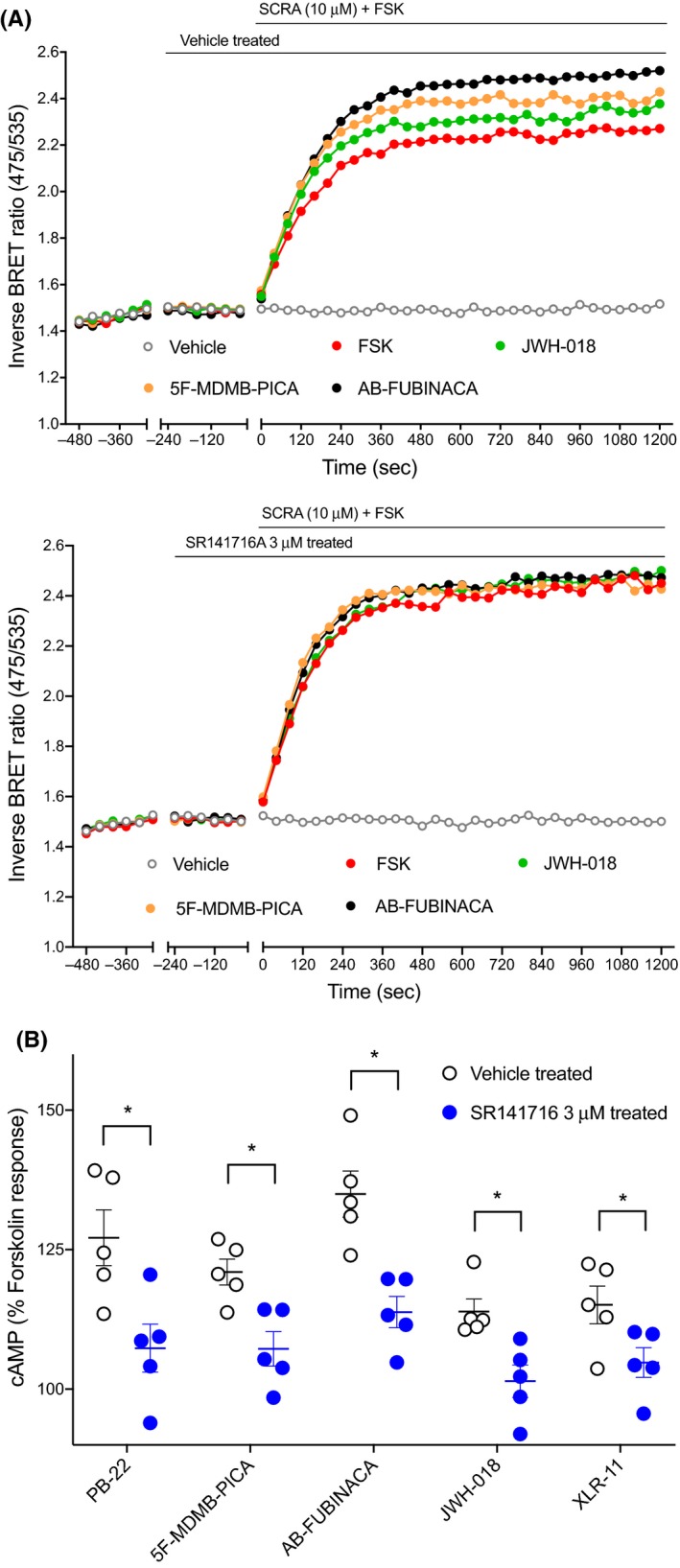

We then tested if the SCRA‐induced observed stimulatory effects were mediated through CB1 receptors. Pretreatment of HEK‐CB1 with SR141716A (3 μmol L−1, 5 minutes), a potent and selective CB1 antagonist,30 prevented the subsequent SCRA (10 µmol L−1)‐mediated stimulation of FSK‐induced cAMP response compared to the vehicle‐treated cells (Figure 4; P < .05). Consistent with Gαs CB1‐specific responses of SCRAs, pretreatment with SR141716A also blocked the inhibitory cAMP signaling induced by SCRAs (Figure S1; P < .05).

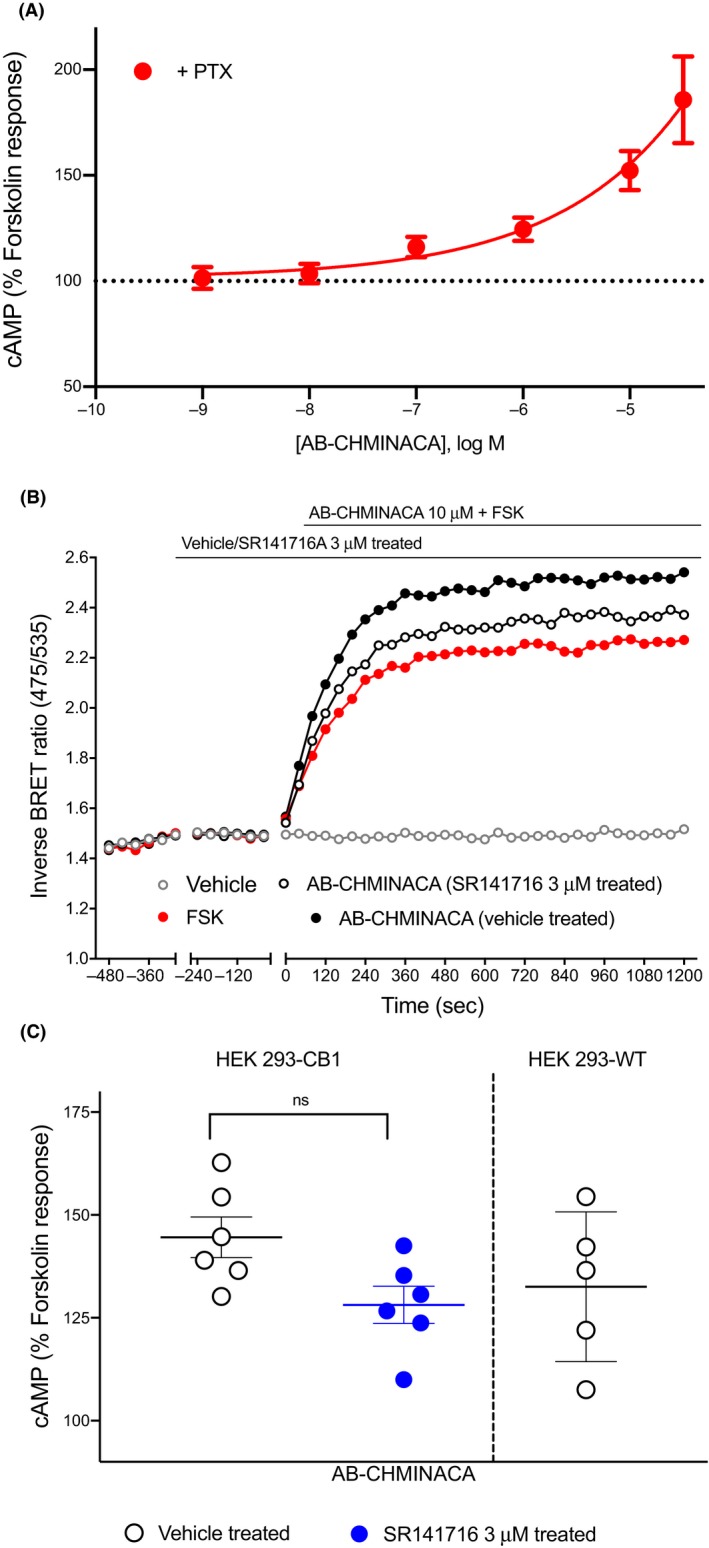

AB‐CHMINACA has previously been reported to stimulate Gαs‐like cAMP signaling pathway in a concentration‐dependent manner in HEK‐CB1 cells.21 Following PTX treatment, AB‐CHMINACA increased cAMP levels above that of FSK alone (Figure 5A) in a concentration‐dependent manner, with an increase of 86 ± 21% at 30 µmol L−1. However, in cells pretreated with SR141716A (3 μmol L−1, 5 minutes), the stimulatory effects of AB‐CHMINACA (10 µmol L−1) were only partially inhibited, in contrast to other SCRAs tested in this study (Figure 5B). To confirm that this response was at least in part non‐CB1‐mediated, AB‐CHMINACA was tested in HEK 293 wild‐type cells; in these cells, AB‐CHMINACA (10 µmol L−1) also produced a small increase in FSK‐stimulated cAMP accumulation (Figure 5C, 29 ± 10%), suggesting that some of these stimulatory effects were occurring via mechanism(s) unrelated to CB1 receptor activity.
4.DISCUSSION
In this study, we set out to systematically characterize the ability of several SCRAs to activate Gαs and Gαi/o proteins by examining stimulation as well as inhibition of FSK‐induced cAMP accumulation in HEK cells stably expressing CB1. Assays of cAMP signaling revealed that the maximum concentration of SCRAs tested (10 µmol L−1), increased cAMP levels 12%‐45% above that produced by FSK alone, while THC failed to increase cAMP levels, an observation consistent with the findings of Finlay et al17 To further investigate the differential response of SCRA‐induced activation and inhibition of cAMP production, we constructed the CRCs for SCRAs belonging to different structural classes (JWH‐018, PB‐22, AB‐FUBINACA, XLR‐11, and 5F‐MDMB‐PICA); the rank order of potency of these SCRAs to stimulate Gαs‐like cAMP signaling pathway was different from their activity in Gαi/o‐pathway (inhibition of cAMP), suggesting that some of these drugs differentially regulate G protein coupling to CB1.
SCRA‐mediated inhibition of cAMP has been extensively studied in cell models expressing cannabinoid receptors21, 24 but some studies have also demonstrated the ability of cannabinoids to stimulate Gαs‐like cAMP signaling downstream of CB1.14, 15, 16, 17 We found that, at a concentration of 10 µmol L−1, three of the fifteen SCRAs tested, AB‐FUBINACA, PB‐22, and AB‐PINACA, activated Gαs‐like CB1 signaling to more than 30% above the FSK response. In a previous study using AB‐CHMINACA, Costain et al21 showed similar increases in cAMP levels to that seen in this study without the need for FSK or PTX pretreatment. In our cells, none of the cannabinoids tested altered cAMP levels in the absence of FSK (data not shown). Costain et al21 performed their assays on HEK293T cells transiently transfected with CB1. Transient transfection of CB1 may have led to a higher level of receptor expression than in our cells, and high levels of CB1 receptor expression are sufficient to result in a switch in cAMP signaling from Gαi‐mediated (inhibitory) to Gαs‐mediated (stimulatory) nett effect.17 Costain et al 21 also used a GloSensor cAMP assay, wherein cannabinoid was added for 12 minutes prior to the addition of FSK (10 µmol L−1), and luminescence was monitored for 30 minutes.21 This may have contributed to the differences in the results of the two studies, but it is not immediately obvious why this would be. Finally, the HEK‐293 “T” subclone used in the previous study harbors considerable genomic differences to the parental HEK 293 cell line used in this study,31, 32 which may also contribute to altered cAMP responses (via different AC isoforms). However, our data, together with that of Costain et al21 suggest potentially different receptor/effector coupling pathways in the presence of some SCRAs (AB‐FUBINACA, PB‐22, and AB‐PINACA, AB‐CHMINACA) compared to other CB1 ligands.
We further sought to investigate SCRA differential activation of distinctive G protein subsets—inhibition and stimulation of FSK‐mediated cAMP signaling. The relative ability of SCRAs to induce inhibition of cAMP production via Gαi/o is very similar to that observed in previous studies in assays of membrane potential and [35S]GTPγS binding.12, 25, 33, 34 The similar E max observed for the SCRA‐mediated activation of Gαi/o‐CB1 signaling in this study probably reflects receptor reserve for inhibition of cAMP accumulation in these cells, wherein maximal responses are elicited at less than maximal receptor occupancy because the system maximum is already achieved.12 SCRA‐induced stimulation of cAMP showed significant differences in E max (Table 1), suggesting an absence of receptor reserve for most of the Gs‐dependent signaling we observed for the SCRA in these conditions. This may (at least for the drugs with a lower E max) reflect an accurate representation of intrinsic efficacy of the ligands at this pathway.35 The observed dynamic range of E max for cannabinoids is consistent with CB1 having low coupling efficiency to both Gαs pathway and β‐arrestin‐2 (as observed previously32), compared to that of Gαi pathway.17, 36, 37 Future studies could examine the structure of SCRA‐bound CB1‐Gαs complexes, which might assist in explaining the observed cAMP signaling profiles. This is particularly interesting given that the interaction of SCRA MDMB‐FUBINACA with the “toggle twin switch” in the CB1 binding pocket coupled to Gαi was recently studied.38 The rigid C‐shape geometry of MDMB‐FUBINACA along with the strong pi‐pi interaction of its indazole ring with “toggle twin switch” residues, might help distinguish the high efficacy agonist activity of SCRA from partial agonists like THC lacking “toggle twin switch” interaction.38 Promiscuous coupling to both Gαi and Gαs has been reported for multiple GPCRs (eg β2‐adrenergic receptor),39 while some receptors couple predominantly to one G protein subtype (eg μ‐opioid receptor coupling to the Gαi/o family40). The potential of cannabinoids to differentially activate one signaling cascade over another (functional selectivity41) may aid the development of new therapeutic compounds with reduced psychoactive effects; a research domain that has attracted much recent interest.42
Considering the adverse effects associated with SCRA use, it is important to continue characterizing the pharmacological profile of these compounds in order to understand the mechanisms driving their toxicity.43, 44 Although this study does not identify which pathway contributes to the toxic effects observed following SCRA consumption, our data do provide valuable insights into SCRA‐mediated stimulation and inhibition of cAMP signaling in vitro. Previous studies have shown that JWH‐018‐ AM‐2201‐, 5F‐AB‐PINACA‐, and CUMYL‐4CN‐BINACA‐induced seizures are CB1‐mediated in mice, which might explain some of the toxicity experienced by recreational users of these drugs.43, 44, 45, 46, 47, 48, 49 Our data shows that SCRA‐induced cAMP increase was abolished after SR141716A treatment, supporting the hypothesis that SCRAs Gαs‐like effects were mediated through CB1 receptor. All the SCRAs tested in this study exhibited greater potency at Gαi‐ than Gαs‐like pathways, and the efficacies of these SCRAs have previously been measured in response to Gαi‐mediated activation of GIRK channel in AtT20‐CB1 cells.12 The rank order of SCRA efficacy based on selectivity for Gαi‐GIRK signaling was found to be 5F‐MDMB‐PICA > XLR‐11 > AB‐FUBINACA > PB‐22 ≈ JWH‐018.12 5F‐MDMB‐PICA showed the highest efficacy for modulation of K channel activity via Gαi pathway in the former study, in contrast to the intermediate efficacy of 5F‐MDMB‐PICA to stimulate the Gαs‐like cAMP signaling pathway in this study. AB‐FUBINACA exhibited greater efficacy for the Gαs pathway compared to its Gαi‐mediated activity profile in the membrane potential assay.12 Evaluating the differences in G protein preference between SCRAs may be an important part of understanding the apparent differences in effect between these drugs in humans. However, the biological significance of SCRA‐mediated differential coupling of CB1 to Gi/o and Gs is not well understood. The Gs signaling of CB1 arises in circumstances where Gi/o is exhausted or sequestered, and has been measured after PTX treatment or when other Gi‐coupled receptors are concomitantly activated. The phenomenon was first observed in primary rat striatal neurons natively expressing CB1 and D2 receptors,14, 15 while a switch in Gi‐Gs signaling due to high CB1 expression has subsequently been defined in recombinant systems.17 The phenomenon of CB1‐Gs coupling may be relevant in specific cancer conditions where upregulation in CB1 receptor was reported (eg colorectal cancer, human epithelia ovarian tumors, and prostate cancer).17
Our study showed that SCRAs have significantly different pharmacological profiles (maximal activities and potencies) for the activation of CB1‐mediated G protein‐stimulation and ‐inhibition of FSK‐mediated cAMP signaling. Although it is speculated that the adverse effects of SCRAs are mediated by CB1,49, 50 based on the results presented here we wonder how the differential responses of SCRAs are related to the physiological effects resulting from the activation of each intracellular pathway, and if these may be correlated with the in vivo toxicity of SCRAs. The unique toxicological profile of SCRAs may result from a combination of factors; pharmacokinetic differences, activity at both cannabinoid and noncannabinoid targets, pharmacological activity of metabolites and thermolytic degradants.25, 37, 51, 52, 53 These findings may provide a starting point to help predict the pharmacological characteristics of SCRAs that demonstrate differential activation of Gαi vs Gαs coupling to CB1.
DISCLOSURES
The authors declare that they have no conflict of interest related to this work.
Supporting information
ACKNOWLEDGEMENTS
This work was supported by NHMRC Project Grant 1107088 awarded to MK, and MC. SS was supported by a Macquarie University Research Excellence Scholarship. The authors thank Dr Natasha Grimsey (Auckland University) for helpful advice on establishing the CAMYEL assay.
Untitled section
Sachdev S, Banister SD, Santiago M, Bladen C, Kassiou M, Connor M. Differential activation of G protein‐mediated signaling by synthetic cannabinoid receptor agonists. Pharmacol Res Perspect. 2020;8:e00566 10.1002/prp2.566
