Sulfation of the FLAG epitope is affected by co-expression of G protein-coupled receptors in a mammalian cell model
Department of Pharmacology and Clinical Pharmacology, University of Auckland, Auckland, New Zealand
Abstract
G protein-coupled receptors (GPCRs) are important therapeutic targets and therefore extensively studied. Like most transmembrane proteins, there has been considerable difficulty in developing reliable specific antibodies for them. To overcome this, epitope tags are often used to facilitate antibody recognition in studies on fundamental receptor signalling and trafficking. In our study of cannabinoid CB1/dopamine D2 interactions we sought to generate HEK293 cells expressing FLAG-tagged D2 for use in antibody-based assays of GPCR localisation and trafficking activity, however observed that stable FLAG-hD2 expression was particularly challenging to maintain. In contrast, when expressed in cell lines expressing hCB1 robust and stable FLAG-hD2 expression was observed. We hypothesised that co-expression of CB1 might stabilise surface FLAG-hD2 expression, and therefore investigated this further. Here, we describe the observation that co-expression of either cannabinoid CB1 or CB2 receptors in HEK293 decreases the sulfation of a FLAG epitope appended at the N-terminus of the dopamine D2 receptor. Sulfation alters epitope recognition by some anti-FLAG antibodies, leading to the detection of fewer receptors, even though expression is maintained. This demonstrates that cannabinoid receptor expression modifies posttranslational processing of the FLAG-hD2 receptor, and importantly, has wider implications for the utilisation and interpretation of receptor studies involving epitope tags.
Article notes
Untitled section
Received 2016 Mar 3; Accepted 2016 May 15; Collection date 2016.
G protein-coupled receptors (GPCRs) are a large family of proteins which are found embedded into cellular membranes, typically on the cell surface. The general structure of GPCRs is well conserved, with an extracellular N-terminal tail, seven transmembrane alpha-helices joined by intra- and extra-cellular loops, an intracellular eighth helix, and an intracellular C-terminal tail1. As their name suggests, GPCRs activate G proteins by acting as a cofactor for the exchange of GDP to GTP on the Gα subunit2.
GPCRs are able to function both as monomers, and in groups of two (dimers) or more (oligomers). Dimers and higher order oligomers may be composed of several different GPCRs (heterodimers, or “mosaics”)3,4. For most Class A GPCRs, it is unknown whether dimerisation is required for normal function. However, there is extensive description of heterodimer formation and function in mammalian cell systems (reviewed in5,6). Generally, GPCR heterodimers have a more restricted tissue distribution than their component receptors. Thus, therapeutics focusing on heterodimers may offer the opportunity to selectively target a specific subset of receptors within the body and exploit dimer-specific signalling pathways.
One such heterodimer consists of the cannabinoid receptor 1 (CB1) and dopamine receptor 2 (D2). There is considerable behavioural evidence that the cannabinoid and dopamine systems interact in the rodent and human brain, affecting motor functioning and the reward pathway7. CB1 and D2 are co-localised in GABAergic synapses in the prefrontal cortex8 and the nucleus accumbens9.
Although both CB1 and D2 canonically signal through Gαi pathways, this changes to an apparently Gαs signalling pathway when the receptors are co-stimulated in medium spiny neurons, which endogenously express both CB1 and D210. This signalling switch could be replicated in Human Embryonic Kidney cells (HEK293)11, and has been found to be dependent on the co-expression of these two receptors12, leading to the hypothesis that this was due to a direct physical interaction between the two receptors - i.e. heterodimerisation. Results consistent with heterodimerisation have been demonstrated by co-immunoprecipitation experiments11,13, fluorescence resonance energy transfer14,15,16 and bimolecular fluorescence complementation17. Furthermore, in medium spiny neurons, knockdown of either CB1 or D2 receptors reduced the expression of the other18, suggesting that protein levels are closely controlled by the activity of both receptors.
In our study of CB1/D2 interactions we sought to generate HEK293 cell lines expressing FLAG-tagged human (h) D2 for use in antibody-based assays of GPCR localisation and trafficking activity, however we observed that stable FLAG-hD2 expression was particularly challenging to maintain. When introduced alone, the long-term maintenance of a HEK293 cell line with measurable FLAG-hD2 expression proved apparently impossible. While we could transiently express the FLAG-hD2 construct easily in HEK293 wildtype cells, expression (as measured by antibody labelling) was very low immediately following antibiotic selection. However, we were interested to note that HEK293 cell lines which also expressed introduced hCB1 (with a triple HA tag “3HA”) exhibited robust FLAG-hD2 expression and stable lines were established with relative ease. We hypothesised that co-expression of the 3HA-hCB1 receptor might stabilise surface FLAG-hD2 expression, and therefore investigated this further.
Results
Antibody detection of FLAG-hD2 throughout the establishment of stable cell lines
In order to investigate whether FLAG-hD2 expression was facilitated by co-expression of hCB1, HEK293 cell lines (hereafter “HEK”) were transfected with the FLAG-hD2 pcDNA3.1+ plasmid and subjected to antibiotic selection to generate stable cell lines. The parental cell lines into which FLAG-hD2 was transfected were HEK wildtype (wt), or HEK stably transfected with either 3HA-hCB1 or 3HA-hCB2. A subset of transfected cells were also cultured without antibiotic selection. Antibody labelling was measured every second passage for 56 days in order to monitor FLAG-hD2 expression over time. A clonally-isolated positive control cell line, already characterised in our laboratory as expressing both 3HA-hCB1 and FLAG-hD2 (i.e., the expected result of the HEK 3HA-hCB1+ FLAG-hD2 transfection condition), was used as a labelling control, as this had already been demonstrated to exhibit anti-FLAG antibody labelling.

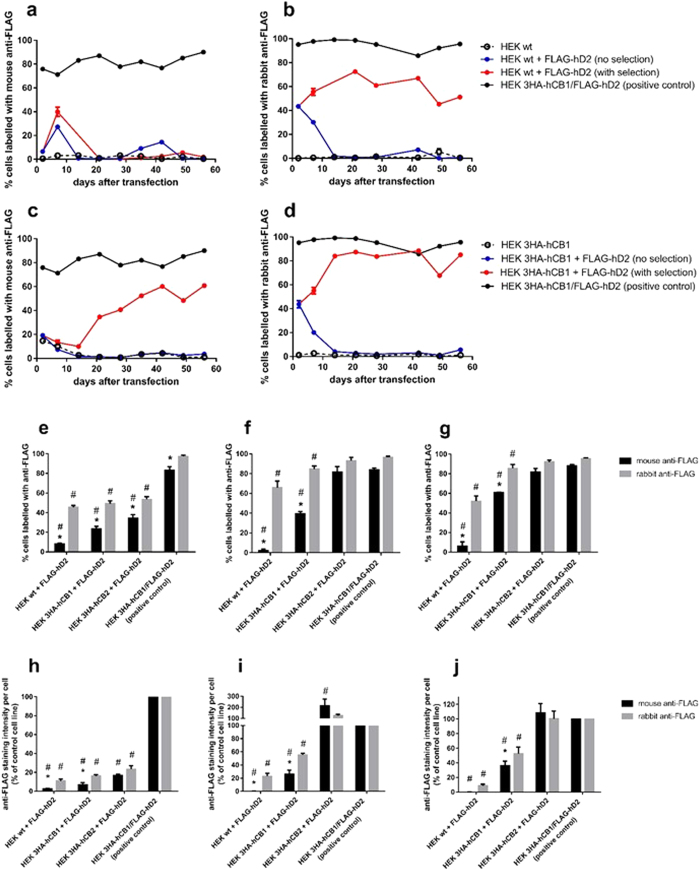

Utilising a mouse monoclonal anti-FLAG antibody, striking differences in the apparent proportion of cells expressing surface FLAG-hD2 were observed depending on the cell background utilised. Following transfection into HEK wt, transient FLAG-hD2 expression was detected during the first 10 days of culture, however the proportion of FLAG-hD2 positive cells subsequently decreased during antibiotic selection (which took approximately 14–18 days, as determined by the death of all cells in a flask of untransfected cells), after which FLAG labelling was nearly completely lost (Fig. 1a,f,g). Conversely, when transfected into a previously established HEK 3HA-hCB1 line19 detection of FLAG-hD2 was retained during the selection phase, and the proportion of expressing cells tended to increase with continued selection pressure, as is typically expected on the establishment of a cell line stably expressing the introduced gene of interest (Fig. 1c,f,g). A similar pattern was observed when FLAG-hD2 was transfected into a 3HA-hCB2-expressing HEK cell line, where the ability to detect FLAG-hD2 was retained with long term culture (Fig. 1e–g). We also noted that only approximately 80% of the positive-control HEK FLAG-hD2/3HA-hCB1 cell line was indicated to express FLAG-hD2, even though this line was derived by clonal isolation.
To validate these findings, and to permit co-labelling with mouse anti-HA antibody to detect 3HA-hCB1, we performed parallel immunocytochemistry experiments on the same cells as assayed above with a polyclonal rabbit anti-FLAG antibody. Surprisingly, labelling with this antibody indicated approximately equivalent proportions of FLAG-positive cells between the HEK wt, 3HA-hCB1 and 3HA-hCB2 cell backgrounds (Fig. 1b,d,e–g). After long-term culture (day 56, 16 passages post-transfection) the proportion of cells labelled with rabbit anti-FLAG remained approximately unchanged when compared to day 21, regardless of the parental cell line (comparison of rabbit anti-FLAG labelling on day 21 versus day 56 in HEK wt, HEK 3HA-hCB1, and HEK 3HA-hCB2; p > 0.05), although overall more cells were labelled with rabbit anti-FLAG antibody when the cell background contained 3HA-hCB1 or 3HA-hCB2, as compared with HEK wt cells (85 ± 3%, 93 ± 4% and 66 ± 7%, respectively; Fig. 1b,d–g). This antibody indicated that close to 100% of the positive-control HEK FLAG-hD2/3HA-hCB1 cells expressed FLAG-hD2, as was expected due to the clonal nature of this line.
Importantly, under the conditions utilised in these experiments neither anti-FLAG antibody labelled the untransfected parental cell lines, indicating a lack of non-specific binding (Fig. 1a–d).
The intensity of antibody labelling was also compared across the transfection conditions. Using the same microscopy images as were analysed to measure the proportion of positively stained cells, the total intensity of antibody labelling above background was averaged across all cells in the image. Since each anti-FLAG antibody provides a different absolute level of staining, labelling was normalised so that untransfected HEK wt cells were set to 0%, and the HEK 3HA-hCB1/FLAG-hD2 control line was set to 100% labelling for each anti-FLAG antibody.
The intensity analysis demonstrated differences in the degree of anti-FLAG labelling between the parental cell lines, but overall was in agreement with the prior measured proportions of positive cells. On day 2, in the transient transfection phase, there was low average FLAG-hD2 labelling (Fig. 1h). This is likely a reflection of the small proportion of cells which were initially transfected. By day 21, at the conclusion of antibiotic selection, the transfected HEK wt cell was essentially devoid of mouse anti-FLAG labelling, whereas a moderate degree of FLAG-hD2 labelling was detected in the 3HA-hCB1 line with this antibody (Fig. 1i). By comparison, the rabbit anti-FLAG antibody produced significantly more labelling than the mouse antibody. Though the indicated labelling per cell was considerably lesser than that of the positive control line, this was likely a result of these lines being mixed populations comprised of cells with a range of expression levels as opposed to the clonal HEK 3HA-hCB1/FLAG-hD2 control. Interestingly, FLAG-hD2 labelling by both antibodies was considerably higher in the HEK 3HA-hCB2 cell background than in the HEK 3HA-hCB1 background.
Due to the markedly different labelling observed with the rabbit anti-FLAG and mouse anti-FLAG antibodies, binding and functional studies were carried out as alternative means to determine FLAG-hD2 expression in the cell lines generated.
Determination of D2 expression by radioligand binding

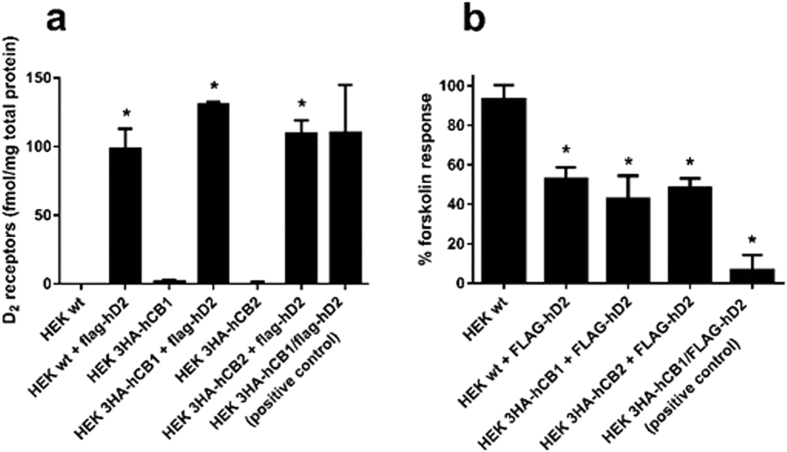

To determine receptor number, whole cell radioligand binding assays were performed 56–57 days (16 passages) post-transfection with [3H]-raclopride, a D2-selective antagonist. All cells transfected and selected for FLAG-hD2 expression contained approximately equivalent receptor levels of 98–131 fmol D2 receptors per mg of total cell protein (no statistically significant differences; Fig. 2a). Negligible specific binding was detected the cell lines not transfected with hD2, indicating that it was the introduced FLAG-hD2 transgene which conferred [3H]-raclopride binding in these samples.
Demonstration of FLAG-hD2 functionality by cAMP signalling assay
To determine receptor functionality, cAMP assays were performed 57 days/16 passages post-transfection with quinpirole, a D2-selective agonist. As shown in Fig. 2b, all transfected cells were responsive to quinpirole (100 nM) as indicated by a reduction in cAMP relative to forskolin alone (100%) and as expected for a Gαi-coupled receptor. FLAG-hD2-transfected cell lines which had originally contained 3HA-hCB1 or 3HA-hCB2 retained their responsiveness to CP55,940, a non-selective CB1/CB2 agonist (data not shown). All three experimental cell lines trended towards less responsiveness to quinpirole as compared to the HEK 3HA-hCB1/FLAG-hD2 positive control cell line. Though this difference was not statistically significant, this apparent lesser responsiveness was not unexpected given that the experimental cell lines were mixed populations with a range of receptor levels, compared to the clonal, high expressing HEK 3HA-hCB1/FLAG-hD2 cell line. However, the newly-generated FLAG-hD2-transfected cell lines exhibited an equivalent degree of D2-mediated signalling, regardless of whether hCB1, hCB2 or neither were expressed when hD2 was introduced.
Determination that antibody recognition is sensitive to sulfation
Having observed a stark contrast between the results of antibody labelling experiments (which suggested highly variable FLAG-hD2 expression between transfection conditions) and the radioligand binding and cAMP results (which indicated similar D2 expression in all transfection conditions), we hypothesised that the FLAG antibodies were differentially sensitive to a feature of the FLAG epitope which was present when D2 was expressed alone, but not when expressed with CB1 or CB2. The tyrosine residue in FLAG has previously been reported as being sulfated20,21, therefore we treated cells with sodium chlorate to inhibit sulfation22. Treated and untreated cells were then stained for cell surface FLAG epitope, and imaged by automated microscopy as above.

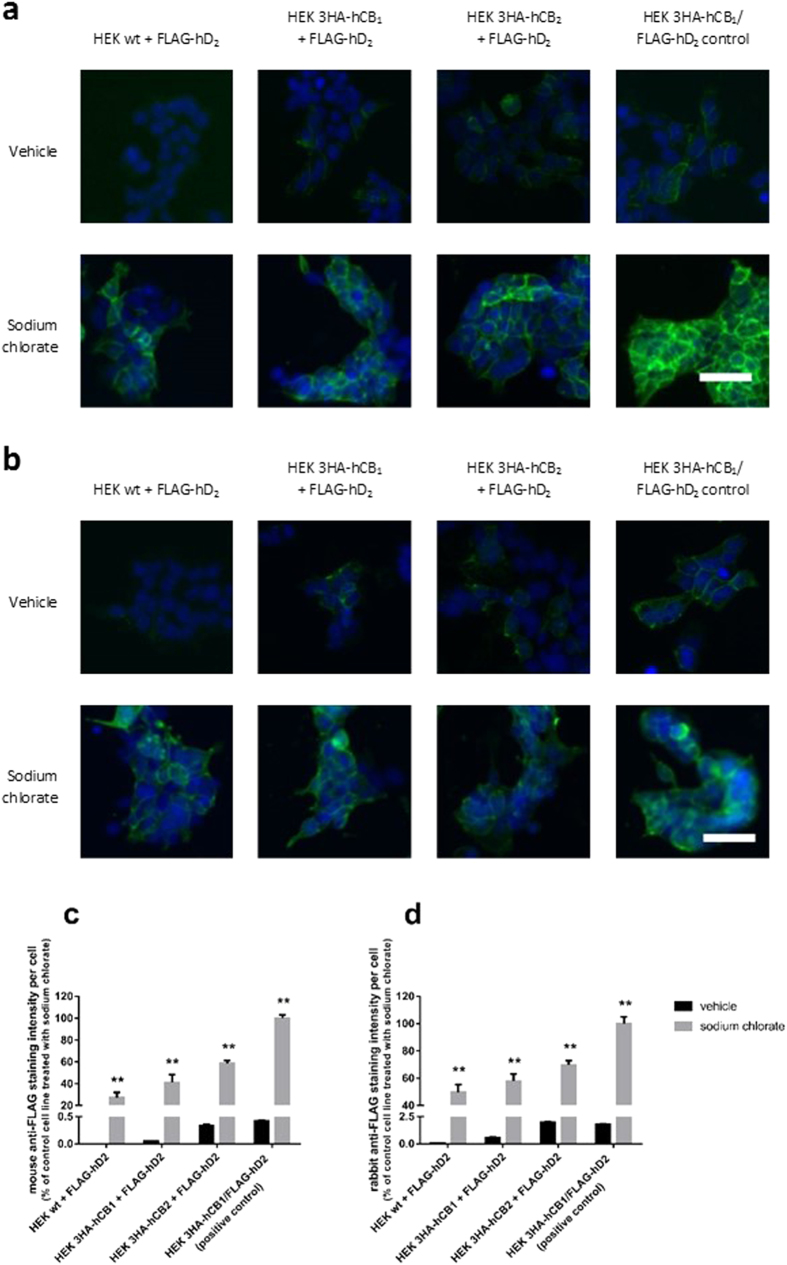

Vastly greater anti-FLAG labelling intensity was found in cells treated with sodium chlorate (Fig. 3). We verified that this treatment did not affect the nonspecific labelling of either antibody on untransfected cells. Qualitatively, these images demonstrate that anti-FLAG labelling (with both the mouse and rabbit antibodies) was increased in all FLAG-expressing cell lines when sulfation was inhibited using sodium chlorate. Importantly, following sodium chlorate treatment, both FLAG antibodies now indicate essentially equivalent FLAG-hD2 expression regardless of the cell background into which they were transfected. As well as now reflecting a consistent antibody labelling pattern between the two antibodies, this finding aligned with our radioligand binding and cAMP functional data that likewise indicated similar expression levels.
Discussion
Epitope tags are commonly used for experiments requiring immunocytochemical detection of exogenous GPCRs, primarily because antibodies are difficult to raise to endogenous GPCR epitopes23,24,25,26 and also to reduce reagent costs. The commercially-available antibodies to epitope tags such as haemagglutinin (“HA”) and DYKXXD (“FLAG”) are well established in the literature, making the use of epitope tags an attractive approach to experiments which would otherwise require the generation and validation of GPCR-specific antibodies.
The hD2 construct utilised in this study is N-terminally FLAG-tagged, and indeed “FLAG” has been specifically recommended for receptor internalisation assays27,28. Anti-FLAG antibodies were employed to label this FLAG-hD2 transgene with the aim of measuring relative protein expression. We were interested to observe that co-expression of either 3HA-hCB1 or 3HA-hCB2 influenced the degree of FLAG-hD2 labelling; seemingly indicating that co-expression with cannabinoid receptors may increase hD2 surface expression. This finding was re-capitulated with two different FLAG antibodies, though to differing extents.
The two commercially-available anti-FLAG antibodies we compared were polyclonal rabbit anti-FLAG (Sigma, cat. F7425) and monoclonal mouse anti-FLAG M2 (Sigma, cat. F1804). While there was negligible non-specific binding to untransfected cells, an important difference was seen between the ability of the antibodies to detect the FLAG epitope. The mouse anti-FLAG antibody essentially indicated a complete lack of FLAG-hD2 expression, unless the transgene was introduced into cells already expressing either 3HA-hCB1 or 3HA-hCB2. Although the rabbit anti-FLAG antibody could detect FLAG-hD2 transfected into the HEK wt line, labelling intensity was again greater in the 3HA-hCB1 and 3HA-hCB2 lines.
This interesting finding of an apparent cannabinoid receptor-induced alteration of hD2 expression was, however, called into question by our follow-up experiments examining D2-selective radioligand binding and cAMP signalling. These instead indicated that hD2 expression was equivalent between the cell backgrounds tested, irrespective of the presence of 3HA-hCB1 or 3HA-hCB2. Given these measures are a more direct indication of D2 expression and functionality than anti-FLAG labelling (and that a prior report had also suggested that D2 ligand binding is unaffected by CB1 co-expression11), we hypothesised that the the fidelity of the anti-FLAG labelling was questionable.
Some antibodies are known to be sensitive to epitope post-translational modifications, including the M2 mouse monoclonal antibody used in this study, which has been reported to be sensitive to sulfation20,21. Tyrosine sulfation occurs in the Golgi29, and is a common posttranslational modification of secreted and transmembrane proteins (reviewed in30). Tyrosine sulfation is more likely when the tyrosine residue is surrounded by acidic residues (summarised in31), making the FLAG epitope a likely target, as it contains one aspartic acid in the -1 position, and four aspartic acid residues in positions +2 to +5, relative to the tyrosine. Furthermore, the lysine in the +1 position is also consistent with a tyrosine sulfation site, as nearby polar residues are more permissive of this modification31. Sulfation of the FLAG epitope has been shown to prevent the mouse anti-FLAG M2 antibody from binding and reduces the binding of other anti-FLAG antibodies21,22. Indeed, sulfation of the N-terminus has been observed for several GPCRs, including the sphingosine 1-phosphate S1P1 receptor32, chemokine CCR2 receptor22, and complement component 5a C5aR1 receptor33. These previously-reported observations led us to test whether sulfation was a factor in antibody binding in our experimental system.
Cells were treated with sodium chlorate to reduce sulfation activity22,34,35,36, resulting in a considerable increase in labelling of both the mouse M2 monoclonal and rabbit polyclonal anti-FLAG antibodies. This is consistent with unmasking of the FLAG epitope by removal of sulfation. These results indicate that the predominant idiotypes in the polyclonal rabbit anti-FLAG are also unable to detect sulfated FLAG-hD2, thereby giving inconsistent and potentially misleading results when comparing cell lines or drug treatments where sulfation is occurring differently.
When we look specifically at D2, the addition of the FLAG epitope on the D2 N-terminus is a relatively common way of monitoring D2 receptor expression and trafficking (for example11,37,38,39,40), usually without a second antibody to compare labelling profiles. Additionally, the mouse M2 anti-FLAG antibody specifically has been used for detection of N-terminally-tagged FLAG-hD238,39,40,41, which this study has shown has a high sensitivity to the sulfation state of the FLAG-hD2 construct. In light of the results of this study, future work should be designed to avoid or account for this phenomenon.
The results of our stable transfection experiments showed that expression of 3HA-hCB1 or 3HA-hCB2 modifies the detectability of the FLAG-hD2 transgene. CB1 and D2 receptors are known to form a heterodimer, with many of these studies carried out in HEK293 cells11,13,14,15,17. It is possible that a physical interaction of CB1 and D2 while trafficking via the synthetic pathway protects the FLAG epitope in the FLAG-hD2 construct from sulfation, perhaps either by altering the conformation of the D2 N-terminal tail or by otherwise altering sulfotransferases’ access to the FLAG epitope. When designing these experiments, CB2 was chosen as a control cell line because we know of no published evidence suggesting that a CB2-D2 heterodimer exists. Therefore, it was a surprise to find that 3HA-hCB2 expression also altered FLAG-hD2 posttranslational modification. Although there are no reported studies describing CB2-D2 heterodimeric or signalling interactions, GPCRs can form non-physiologically relevant heterodimers in transfected cell lines (for example the dopamine D1-D2 heterodimer, which appears to have a distinct signalling phenotype but cannot be demonstrated in vivo42), and this may be occurring in our experimental system. We also observed that FLAG-hD2 was more readily detected by both anti-FLAG antibodies in the HEK 3HA-hCB2 parental cell line than in either of the other experimental cell lines, although all cell lines contained equivalent FLAG-hD2 expression. This difference in detection was maintained even after inhibition of sulfation, suggesting that the FLAG epitope was more accessible in this cell line in general. This may have occurred through a different pattern of receptor dimerization, altering the accessibility of the FLAG-hD2 N-terminus for antibodies.
Potentially, the similarity in the effects 3HA-hCB1 and 3HA-hCB2 have on FLAG-hD2 expression are due to altered cell signalling, rather than a direct heterodimerisation interaction. Both CB1 and CB2 receptors signal through Gαi-pathways, have similar functional effects in cAMP and pERK signalling43,44,45, and are known to exhibit constitutive signalling46,47,48,49, including in unstimulated HEK cells19,50. This constitutive signalling may alter the posttranslational modification repertoire of the cell, thus increasing the frequency of sulfation reactions. While we are not aware of any previous reports of signalling altering sulfation, certainly signalling-mediated changes in post-translational modifications have been reported (for example51,52).
We have demonstrated that in the HEK cell line, antibody detectability of the FLAG epitope in the FLAG-hD2 construct is altered when it is co-expressed with HA-tagged cannabinoid receptors, seemingly via inhibiting posttranslational modification of the FLAG epitope. It is unclear whether this is due to specific physical interactions between D2 and CB1/CB2, or an indirect influence of cannabinoid receptors on cellular function which may also affect other GPCRs and proteins. However, sulfation is a fundamental eukaryotic posttranslational modification which could well be influenced by various manipulations or drug treatments. There is therefore considerable potential for FLAG epitope detectability to be influenced unintentionally and this study suggests caution is required when utilising epitope tags, particularly FLAG, for detection of protein expression. Indeed, careful consideration of potential posttranslational modification sites in the target epitope is an important consideration when designing or utilising antibodies in general53. In this case our initial hypothesis - that coexpression of CB1 could stabilise D2 expression, potentially due to dimerization of the receptors - has transpired to be an artefact of the anti-FLAG antibody labelling that is differentially regulated by cannabinoid receptor expression. Given the widespread use of epitope tags in fundamental receptor studies, this finding has far-reaching consequences for the interpretation of these experiments.
Materials and Methods
Plasmid construction
The FLAG-hD2 pcDNA3.1+ construct was generated by chimerizing the FLAG epitope to the N-terminus of hD2 cDNA in pcDNA3.1+ (with the three amino acid linker sequence “EFT” between FLAG and hD2, and retaining the start codon of hD2; cDNA Resource Centre (www.cdna.org), #DRD0200001). 3HA-hCB1 pEF4 A and 3HA-hCB2 pEF4A constructs have been described previously19,54.
Cell culture
HEK cells were cultured in DMEM with 10% FBS, at 37 °C in 5% CO2. Stable cell lines expressing 3HA-hCB1 pEF4A and 3HA-hCB2 pEF4A constructs were generated by transfection with Lipofectamine 2000 following the manufacturer’s instructions and selected for using 350 μg/ml zeocin. These cells were clonally isolated (HEK 3HA-hCB1) or FACS sorted (HEK 3HA-hCB2) before use in further experiments.
For stable transfection time course experiments, replicate experiments were performed at least one week apart to ensure that time point observations remained independent. HEK wildtype (wt; ATCC #CRL-1573), HEK 3HA-hCB119 or HEK 3HA-hCB254 cell lines were transfected with FLAG-hD2 pcDNA3.1+ plasmid, using Lipofectamine 2000 following the manufacturer’s instructions. Two days after transfection, 550 μg/ml G418 was added to the growth media to select for cells harbouring stably-integrated plasmid. Cell lines were passaged twice-weekly, being allowed to get no more than 90% confluent before passaging, and remaining in 550 μg/ml G418 for the duration of the experiment.
Immunocytochemistry
Polyclonal anti-FLAG antibody (raised in rabbit) was obtained from Sigma-Aldrich (MO, USA; cat. F7425; lot numbers 001M4789 and 093M4798) and used at a 1:400 or 1:500 dilution respectively, depending on batch. Monoclonal “M2” anti-FLAG antibody (raised in mouse) was also obtained from Sigma-Aldrich (cat. F1804; lot numbers SLBH1191V and 080M6035), and used at approximately 2 ug/ml. Secondary antibodies were obtained from Molecular Probes, Life Technologies (CA, USA): anti-mouse Alexa 488 (cat. A11029), anti-mouse Alexa 594 (cat. A11032), anti-rabbit Alexa 594 (cat. A11037), all raised in goat and used at a 1:400 dilution.
Cells were seeded in poly-L-lysine or poly-D-lysine treated clear 96-well plates, at an appropriate density to ensure 50–80% confluency at the time of antibody application. When required, cells were grown in 50 mM sodium chlorate (in standard growth media) for 48 hours before immunocytochemistry. Primary antibody labelling was performed on live cells, allowing selective labelling of the surface receptor population. Cells were equilibrated with assay media (DMEM + 5 mg/ml BSA) for 30 minutes, then incubated with primary antibodies diluted in assay media for 30 minutes at 37 °C to label surface receptors. Cells were then washed twice with assay media before fixation with 50% methanol + 50% acetone at 4 °C for 10 minutes. Secondary antibodies were applied after fixation, and diluted in phosphate buffered saline containing 1% normal goat serum, 0.2% Triton X-100, and 0.4 mg/ml thiomersal. Finally, DNA was stained with Hoechst 33258 in phosphate buffered saline containing 0.2% Triton X-100.
Images were acquired using the ImageXpress Micro XLS (Molecular Devices, CA, USA) automated microscope, at 10× magnification, with four sites imaged per well. To analyse the proportion of cells exhibiting antibody labelling above background noise, images were analysed using the MetaXpress (version 5.3.0.4, Molecular Devices) “Multiwavelength cell scoring” function, or the MetaMorph (versions 6 and 10; Molecular Devices) “Cell scoring” function. These functions identify each cell by nuclear Hoechst staining, followed by segmentation of one or both wavelengths of interest in a user-defined “nucleus and cytoplasm” area.
To analyse the average intensity of labelling across the total population of cells, images were processed using MetaMorph software (versions 6 and 10), using the “Total Grey Value Per Cell” method described by Grimsey, et al.55 with some modifications56. This analysis paradigm measures the total intensity of fluorescent antibody labelling above background and averages this intensity of antibody labelling between the total number of nuclei counted per image, thereby provideing labelling intensity results as a population average.
Radioligand binding
Cells were seeded in poly-D-lysine treated 24-well plates and grown until 50–80% confluent. Cells were then incubated for 30 minutes at 37 °C with assay buffer (DMEM + 5 mg/ml BSA), followed by 30 minutes at 37 °C with [3H]-raclopride (Perkin Elmer, MA, USA) at 1.3 nM, with or without 10 μM unlabelled raclopride as a displacer. Assay buffer was removed and cells were washed twice in ice-cold phosphate buffered saline, then lysed in 0.1 M NaOH for 10–20 minutes. Lysate samples were then mixed with scintillation fluid and scintillation events were measured for 3 minutes per sample in a Wallac 1450 MicroBeta TriLux (Perkin Elmer, MA, USA). Lysate samples were also assayed in DC protein assay (Biorad, CA, USA) to enable normalisation to protein concentration.
cAMP signalling assay
Cells were transiently transfected using Lipofectamine 2000 with V8-CAMYEL, a bioluminescence resonance energy transfer (BRET)-based cAMP biosensor57. 48 hours after transfection, cells were equilibrated with assay buffer (HBSS + 1 mg/ml BSA) for 30 minutes, and then incubated for a further 5 minutes with the luciferase substrate coelenterazine h to a final concentration of 5 μM. Forskolin (an adenylate cyclase agonist) and quinpirole (a selective D2 agonist) were then added, and luminescence was detected immediately in a VictorXLight plate reader (Perkin Elmer, MA, USA), using 460/25 nm and 535/25 nm filter sets, with temperature control at 37 °C.
An inverse BRET ratio was calculated by dividing the donor signal by the acceptor signal, such that higher BRET ratio reflects greater cytoplasmic cAMP concentration. Inverse BRET ratio responses were measured for 15 minutes, and plotted as a function of time. The overall response over time was determined by an area under the curve calculation, representing the cumulative cAMP response. Data was processed and graphed using Prism (version 6, GraphPad, CA, USA), and agonist responses normalised to Vehicle (0%) and forskolin (100%).
Data analysis
Data were plotted and statistical analysis was performed using GraphPad Prism (version 6, GraphPad, CA, USA). The Brown-Forsythe test for equal variance was performed to ensure parametric testing was appropriate. Paired/repeated measures testing was performed in all experimental designs where matching was applicable. Results were analysed with one-way analysis of variance (ANOVA) with Tukey’s multiple comparisons post-hoc testing, or two-way ANOVA with Sidak’s multiple comparisons, as appropriate.
Additional Information
How to cite this article: Hunter, M. R. et al. Sulfation of the FLAG epitope is affected by co-expression of G protein-coupled receptors in a mammalian cell model. Sci. Rep. 6, 27316; doi: 10.1038/srep27316 (2016).
Acknowledgments
This work was funded by a grant from the Royal Society of New Zealand Marsden Fund.
