Structure–Activity Relationship Development Efforts towards Peripherally Selective Analogs of the Cannabinoid Receptor Partial Agonist BAY 59-3074
Center for Drug Discovery, RTI International, P.O. Box 12194, Research Triangle Park, NC 27709-2194, USA
Abstract
Selective modulation of peripheral cannabinoid receptors (CBRs) has potential therapeutic applications in medical conditions, including obesity, diabetes, liver diseases, GI disorders and pain. While there have been considerable efforts to produce selective antagonists or full agonists of CBRs, there has been limited reports on the development of partial agonists. Partial agonists targeting peripheral CBRs may have desirable pharmacological profiles while not producing centrally mediated dissociative effects. Bayer reported that BAY 59-3074 is a CNS penetrant partial agonist of both CB1 and CB2 receptors with efficacy in rat models of neuropathic and inflammatory pain. In this report, we demonstrate our efforts to synthesize analogs that would favor peripheral selectivity, while maintaining partial agonism of CB1. Our efforts led to the identification of a novel compound, which is a partial agonist of the human CB1 (hCB1) receptor with vastly diminished brain exposure compared to BAY 59-3074.
Untitled section
Keywords: CB1, cannabinoid, peripheral, CB2, partial, agonist, ligand
Article notes
Untitled section
Received 2022 Jul 29; Accepted 2022 Aug 29; Collection date 2022 Sep.
1. Introduction
Selective modulation of the peripheral G protein coupled cannabinoid receptors CB1 and CB2 has potential therapeutic applications in medical conditions, including obesity, diabetes, liver diseases, gastrointestinal (GI) disorders and pain [1,2,3]. There has been considerable effort to produce selective antagonists or full agonists of CBRs, but there have been limited reports on partial agonists, particularly peripherally selective partial agonists. Partial agonists of peripheral CBRs may have pharmacological profiles that mimic those of the partial agonist (−)-trans-Δ9-Tetrahydrocannabinol (THC), the principal psychoactive component of marijuana, but without the dissociative effects associated with activation of brain CB1 receptors [4,5]. Recently, a CB2-selective partial peripheral agonist was shown to have a protective effect in a mouse model of nephrotoxicity and to have a safe in vivo profile [6].
Previously, Bayer Pharmaceuticals had described the novel trifluoro sulfonate chemotype BAY 38-7271, which is a full agonist of both CB1 and CB2 [7]. This brain penetrant compound was demonstrated to be neuroprotective in subsequent studies [8,9]. The compound BAY 59-3074 (1, Figure 1) is a CNS active partial agonist of both human and rat CB1 and CB2 receptors based on this chemotype [10]. It was shown that this compound has efficacy in rat models of neuropathic and inflammatory pain [10]. Activation of CB1 in the brain causes adverse psychiatric effects. Further, full agonists of CB1 rapidly induce tolerance. While tolerance to THC has been described, development of tolerance is typically protracted in users [11]. Additionally, full agonists of CB1 often produce other physiological ill-effects, as has been noted of late with synthetic cannabinoids including cardiac arrest and death [12,13]. Therefore, development of novel partial agonists will afford researchers the opportunity to better understand and contrast the effects of this class of compounds to those of full agonists. These partial agonists with limited brain penetration may also be used as leads for eventual medications development.
2. Results
2.1. Compound Design and Synthesis
Analyses of clinical compounds reveal that discovering a drug-like compound that is peripherally selective and orally bioavailable is favored with a topological polar surface area (TPSA) of 80–140 Å, a molecular weight (MW) of 450–600 Da, inclusion of one or two hydrogen bond donors (H donors) and the logarithm of its partition coefficient between n-octanol and water (cLogP) of less than five [14,15,16,17]. BAY 59-3074 has physical properties (H donors = 0, cLogP = 5.1, TPSA = 76, MW = 453) that are not far from the targeted values, with the most notable deficiency being a lack of hydrogen bond donors.
Recent crystal structures of hCB1 and hCB2, coupled with docking studies of THC at the orthosteric binding site, show potential polar and nonpolar binding regions of importance [18,19,20,21,22]. We envisioned that 1 may be binding to hCB1 in such a way that the biphenyl ether is π-stacking with Phe268, the sulfonate ester alkyl chain is in the lipophilic channel, and the sulfonate linker is near to a polar residue. This was substantiated by docking studies of 1 with the orthosteric binding site of the hCB1 crystal structure (Figure 2). As noted in the initial published antagonist and agonist crystal/cyroEM structures of CB1, the binding site of CB1 is largely hydrophobic with only one or two polar sidechains [18,19,20,21]. We therefore conducted docking, induced fit, and molecular dynamics studies of 1 with the orthosteric binding site of the hCB1 crystal structure to identify potential interactions of the sulfonate linker with the receptor and facilitate identification of compounds with better drug-like properties while maintaining good hCB1 and hCB2 potency. Figure 2 shows that the best scoring GLIDE XP poses of the CB1 agonist 8D0 (the crystallographic ligand assigned name in the 5XR8 crystal structure corresponding to AM841: 6~{31}~{R},9~{R},10~{a}~{R})-9-(hydroxymethyl)-3-(8-isothiocyanato-2-methyl-octan-2-yl)-6,6-dimethyl-6~{a},7,8,9,10,10~{a}-hexahydrobenzo[c]chromen-1-ol) and 1 traverse the ligand binding site in a similar manner with π-stacking of the aromatic groups with one or more phenylalanines: F268ECL2, F1702.57, or F1742.61. The docked poses were found to be proximate to conserved aromatic toggle residues F2003.36 and W3566.48 in addition to W2795.43. In efforts to examine the temporal stability of a candidate ligand/GPCR-receptor initial docking/induced fit poses, we conducted 500–850 ns MD trajectories and illustrate our observations for 1 in Figure 2, panels C and D. The heatmap in Figure 2C color codes and shows the numerical percentage time that any of the atoms in each of the regions in 1 (molecular regions labeled S1 through S8, Figure 2) spend in contact within 4 Å binding site residues. This gives us a dynamic/temporal perspective akin to time-dependent pharmacophoric interactions. With an 850-nanosecond timespan, we see that the sulfonyl region of 1 does spend time in contact with T1973.33 and also spends some time getting close to the indole-NH of W2795.43 but it does not find robust direct hydrogen bonding. Instead, water percolation into the CB1 binding site through small fluctuations of the ligand leads to high occupancy of water molecules proximate to the sulfonyl. In Figure 2D, we show a structural snapshot at around 840 nanoseconds, with a water molecule forming a bridged hydrogen bond network linking the indole-NH of W2795.43 with one of the sulfonyl oxygens. The stabilization of transient water occupancy by polar residue sidechains leads to polar compensation for the negative charge density on the sulfonyl. These studies allowed us to design compounds based on computational observations.

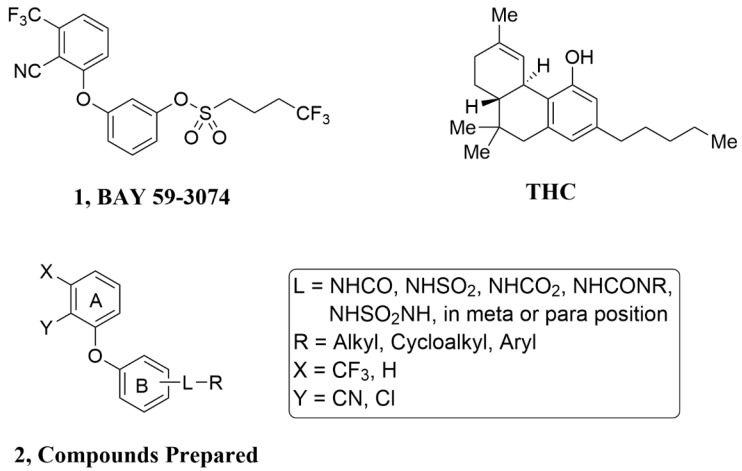

By targeting modification of the sulfonate linker, we hypothesized that it would be possible to identify compounds with peripheral selectivity while maintaining good hCB1 and hCB2 potency. In this report, we explored introducing at least one hydrogen bond donor by exchange of the sulfonate linker with a sulfonamide, amide, carbamate, urea or sulfamide (2, Figure 1). To further reduce cLogP, we investigated replacing the trifluoromethyl group of arene A with hydrogen. Potency and efficacy were explored with alkyl, cycloalkyl and aryl groups attached to the linker. We also investigated the effect of changing the substitution pattern of the phenyl core (B) from meta to para.

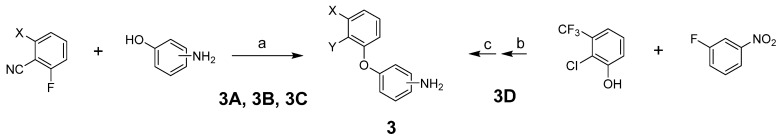

To prepare the targeted compounds, we first synthesized the penultimate aminobiphenyl ethers 3 (Scheme 1). One of two methods was used, depending on whether Y was CN or Cl. These methods used a straightforward displacement of an aryl fluoride by a phenol (Reactions (a) and (b)). Where indicated, the fluoride displacement was followed by a nitro reduction using tin chloride (Reaction (c)). Intermediate 3D was previously reported [23].

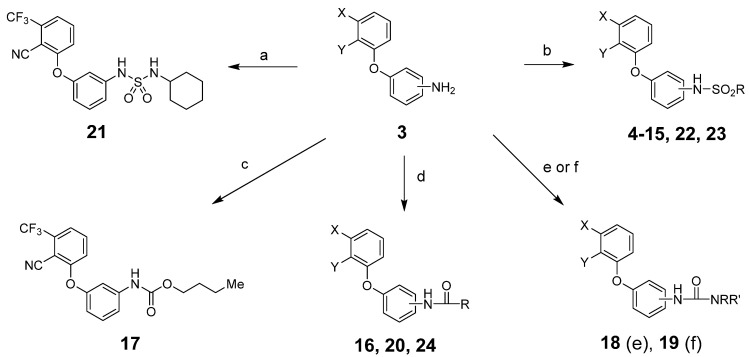

From intermediates 3, we prepared sulfonamides, amides, carbamates, ureas and sulfamides using standard procedures as shown in Scheme 2 and detailed in the experimental section.
2.2. Pharmacological Characterization
All target compounds were evaluated in a functional cAMP assay for hCB1 (Table 1 and Table 2). To peripheralize 1, we investigated analogs in which the sulfonate linker was replaced with a sulfonamide. This adds a hydrogen bond donor, significantly lowers the cLogP and modestly increases TPSA, all changes that favor peripherally selective analogs. A patent filed by Bayer suggested that such compounds would be active in the CB1 agonist assay [23]. Table 1 shows the in vitro data for sulfonamide analogs of 1. Compound 4 is the direct analog of 1 in which the sulfonate linker is replaced with a sulfonamide. This linker switch results in a favorable reduction in cLogP from 5.1 to 4.2 (see Supplemental Material, Table S1). We were encouraged to see that the hCB1 potency did not change much in the cAMP hCB1 assay. The efficacy, however, increased to provide full agonism. This unwanted result led us to investigate structure–activity relationships (SAR) to reduce hCB1 efficacy while retaining potency. Looking at the left side arene (A) of 4, replacement of the CN with Cl or removal of the CF3 was found to have little effect on the hCB1 potency or efficacy (see 5 and 6, Table 1, left section). The lack of improvement in efficacy led us to look at changes in other parts of the molecule. On the lipophilic sulfonamide group R, replacement of the CF3 of 4 with a methyl results in similar potency and modestly lower efficacy (see 7, Table 1, left section). Replacement of the linear alkyl chain of 4 with a benzyl group provided the benzylsulfonamide 8, which is similar in potency and efficacy to 4. With the benzylsulfonamide, we once again checked replacement of the aryl CN with Cl (9) or the CF3 with hydrogen (10). Once again, these changes resulted in compounds with similar potency, but the efficacy was modestly reduced compared to 8. Compound 10 was of interest because replacement of the trifluoromethyl group of arene A with hydrogen resulted in a significant drop in cLogP to 3.6, which could help to improve drug properties and attain peripheral selectivity, but the efficacy was still too high. The effect of chloro substitution of the benzylsulfonamide was examined. Surprisingly, ortho or meta substitution (11 and 12, Table 1, right section) resulted in loss of activity. Para-substitution (13), however, resulted in a compound that is about 10× more potent with modestly reduced efficacy, compared to the unsubstituted benzylsulfonamide 8. Arenesulfonamides with either a meta or para trifluoromethoxy group (14 and 15, Table 1, right section) were found to be inactive. In summary, these results indicate that it would be difficult to find a sulfonamide with the desired profile of being a peripheral partial agonist of hCB1 receptors. Compounds 6 and 10 have good physical properties to favor peripheral selectivity, but like the other sulfonamides tested, they are full agonists of hCB1.
| # | X | Y | R |
hCB1 cAMP
EC 50 (nM) Efficacy a | # | R |
hCB1 cAMP
EC 50 (nM) Efficacy a |
| 1 b | CF3 | CN | OSO2(CH2)3CF3 | 46 ± 5 39 ± 11% | 11 | Inactive | |
| 4 | CF3 | CN | NHSO2(CH2)3CF3 | 190 ± 46 96 ± 5% | 12 | Inactive | |
| 5 | CF3 | Cl | NHSO2(CH2)3CF3 | 175 ± 42 95 ± 9% | 13 | 25 ± 4 95 ± 3% | |
| 6 | H | CN | NHSO2(CH2)3CF3 | 106 ± 8 95 ± 8% | 14 | Inactive | |
| 7 | CF3 | CN | NHSO2(CH2)4Me | 248 ± 108 76 ± 20% | 15 | Inactive | |
| 8 | CF3 | CN | NHSO2CH2Ph | 228 ± 134 102 ± 14% | |||
| 9 | CF3 | Cl | NHSO2CH2Ph | 255 ± 62 78 ± 17% | |||
| 10 | H | CN | NHSO2CH2Ph | 164 ± 32 82 ± 8% | |||
| # | R |
hCB1 cAMP
EC50 (nM) Efficacy a | # | R |
hCB1 cAMP
EC50 (nM) Efficacy a |
| 16 | NHCO(CH2)4Me | Inactive | 22 | NHSO2(CH2)4Me | Inactive |
| 17 | NHCO2(CH2)3Me | Inactive | 23 | NHSO2CH2Ph | Inactive |
| 18 | NHCONH(CH2)3Me | Inactive | 24 | NHCOCH2Ph | 366 ± 136 36 ± 14% |
| 19 | NHCONMe(CH2)3Me | Inactive | |||
| 20 | NHCOCH2Ph | 474 ± 174 17 ± 3% | |||
| 21 | NHSO2NH(c-Hex) | 139 ± 24 27 ± 18% | |||
In addition to sulfonamide analogs of 1, we also investigated changing the linker to an amide, carbamate, urea or sulfamide. Each of these linkers adds at least one hydrogen bond donor, enhancing the possibility of peripheral selectivity. Direct replacement of the sulfonamide linker of the n-pentylsulfonamide 7 with an amide, carbamate or urea resulted in a loss of agonist activity in the cAMP hCB1 assay (16–19, Table 2, left section). However, conversion of the benzylsulfonamide 8 to the benzylamide 20 resulted in reasonable potency (~500 nM) but very low efficacy (<20%) in the cAMP hCB1 assay. Of significance, the cyclohexylsulfamide 21 is a partial agonist in the cAMP hCB1 assay (EC50 ~140 nM, 27%). Binding affinity (Ki) of this compound is ~1.5 µM as calculated using radioligand displacement of [3H]CP55940. Compound 21 has improved physical properties (TPSA = 91, cLogP = 4.2, H donors = 2) that favor peripheral selectivity and may thus represent a starting point for additional SAR investigations. These initial results show that the effects of changing the linker are dependent on what group is connected to it and may lead to compounds with the desired profile.
The effect of switching the substitution pattern of the phenyl core from meta to para was also investigated. The benzylsulfonamide 23 was inactive in the cAMP hCB1 assay. The benzylamide 24, however, was a good partial agonist in the cAMP hCB1 assay (~370 nM, 36%). With a hydrogen bond donor to help aid peripheral selectivity, 24 represents another potential starting point for additional SAR studies and supports additional evaluation of compounds that are para-substituted.
2.3. Pharmacokinetic Evaluation of Brain Exposure in Mice

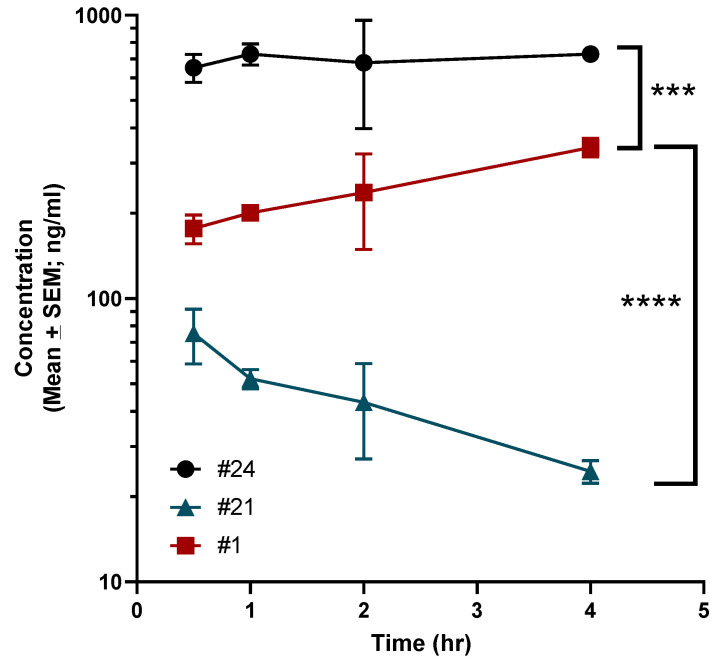

A brief pharmacokinetic (PK) study was undertaken in C57BL6 mice to assess brain levels of 1, 21 and 24. Animals were dosed with 3 mg/kg of each compound by intraperitoneal injection (IP). As demonstrated in Figure 3, compared to 1, 21 had vastly reduced brain penetration with a maximum (Cmax) concentration of ~75 ng/mL with a brain:plasma Cmax ratio of 0.17. In comparison, 1 demonstrated gradual brain accumulation over the time points that were evaluated with a Cmax of ~341 ng/mL with a brain:plasma Cmax ratio of 0.40. However, 24 had significant brain accumulation with a Cmax of ~730 ng/mL with brain:plasma Cmax ratio of 0.79.
3. Discussion
There have been many reports that describe the synthesis and characterization of full agonists of cannabinoid receptors. These compounds may be useful for treating important diseases. However, there are certain disadvantages as well. First and foremost, activation of central CB1 receptors can lead to dissociative effects and both synthetic and natural cannabinoids are addictive. Rapid development of tolerance is also an issue with these full agonist compounds [24]. While tolerance to marijuana and THC is noted in heavy users, the amount of time required for tolerance to develop is longer than what is noted with full agonists. There is a paucity of synthetic CB1 ligands that are partial agonists. This is likely because THC is one and is remarkably effective in treating various conditions, at least preclinically with some positive results noted in clinical trials [25]. Indeed, synthetic analogs of THC are approved drugs and marijuana is approved for medical use in a number of states here in the United States. Of the limited number of partial agonists that have been characterized, 1 is a centrally acting partial agonist that was developed by Bayer and shown to effectively treat neuropathic and inflammatory pain in animal models [10]. Of these two indications, neuropathic pain is particularly difficult to manage. Most agents used for this purpose produce deleterious effects. Many preclinical and clinical studies indicate that activation of the CB1 receptor is an attractive strategy for neuropathic pain [26]. Therefore, partial agonists targeting CB1 that have little to no brain penetration are attractive because such ligands would limit liabilities associated with activation of brain CB1 receptors.
Structure–activity relationships of 1 would be useful in developing better compounds with limited CNS penetration. Recent crystal structures of hCB1 and docking studies with 1 indicate that the sulfonate linker is near to a polar region of the binding pocket and could be replaced with a polar hydrogen bond donating linker to facilitate development of peripherally selective analogs. Initial results showed this to be the case but controlling the level of efficacy is challenging. Effects on potency and efficacy are interdependent on the linker, the attached group, and the substitution pattern of the core. While a clear picture of the SAR to develop peripheral partial agonists of 1 did not emerge, we identified two hCB1 partial agonists with improved physical properties. Combining a change in the core substitution pattern from meta to para with replacement of the sulfonate linker with an amide resulted in the benzylamide 24 which has a hydrogen bond donor and is a partial agonist in the cAMP hCB1 assay. Replacement of the linker with a sulfamide and exchange of the alkyl chain with a cyclohexyl group resulted in the sulfamide 21, also a partial agonist in the cAMP hCB1 assay. Compound 21 already has physical properties that strongly favor peripheral selectivity (TPSA = 91, cLogP = 4.2, H donors = 2). This was confirmed in PK studies wherein brain concentration of this compound was greatly diminished versus that of 1. Additional SAR studies based on 21 and 24 may provide a map to compounds with the desired profile. The activity and efficacy of these compounds at hCB2 were not examined and will form the basis of future studies along with possible in vivo examination of effects.
4. Material and Methods
Chemistry General. Purity and characterization of compounds were established by a combination of MS, LC/MS, NMR, HPLC and TLC analytical techniques, as described below. 1H spectra were recorded on a Bruker Avance DPX-300 (300 MHz) spectrometer in chloroform-d (7.26 ppm) or methanol-d4 (3.31 ppm) with tetramethylsilane (0.00 ppm) or solvent peaks as the internal reference unless otherwise noted. 13C spectra were recorded on a JEOP 400YH (100 MHz). Chemical shifts are reported in ppm relative to the solvent signal and coupling constant (J) values are reported in hertz (Hz). TLC was performed on EMD precoated silica gel 60 F254 plates. TLC spots were visualized with UV light or I2 detection. Low-resolution mass spectra were obtained using a single quadrupole PE Sciex API 150EX (ESI). Unless stated otherwise, all test compounds were at least 95% pure as determined by HPLC. HPLC method: a Waters 2695 Separation Module equipped with a Waters 2996 Photodiode Array Detector and a Phenomenex Synergi 4 μm Hydro-RP 80A C18 250 × 4.6 mm column using a flow rate of 1 mL/min starting with 1 min at 5% solvent B, followed by a 15 min gradient of 5–95% solvent B, followed by 9 min at 95% solvent B (solvent A, water with 0.1% TFA; solvent B, acetonitrile with 0.1% TFA and 5% water; absorbance monitored at 220 and 280 nm). LC/MS Instrument: an Agilent InfinityLab MSD single quadrupole mass spectrometer equipped with an API-ES and an Agilent Infinity II 1260 HPLC equipped with an Agilent Infinity 1260 variable wavelength detector and an Agilent Poroshell 120 SB-C18 2.7 μm 50 × 4.8 mm column. HPLC Method: With a flow rate of 1 mL/min, a 4.0 min gradient of 5–95% solvent B, followed by 2.5 min at 95% solvent B (solvent A, water with 0.1% formic acid; solvent B, acetonitrile with 0.1% formic acid and 5% water; absorbance monitored at 220 and 280 nm). MS Method: using atmospheric pressure ionization–electrospray, positive and negative ions were monitored in the range of 70–700 or 300–2000 (for compounds with a MW > 700).
General Procedure A: Sulfonamides, Sulfamides, Carbamates, Amides and Ureas of 3 from Sulfonyl Chlorides, Sulfamoyl Chlorides, Carbamoyl Chlorides, Acid Chlorides and Isocyanates, Respectively. To a solution of 3 (0.2 mmol, 1 equiv.) in THF (1 mL) was added the sulfonyl chloride, sulfamoyl chloride, carbamoyl chloride, acid chloride or isocyanate (0.24 mmol, 1.2 equiv.), followed by triethylamine (0.26 mmol, 1.3 equiv.). The mixture was stirred at rt for 15 h. Water (0.4 mL), ethyl acetate (3 mL) and then saturated NaHCO3 solution (0.8 mL) were added. After 10 min, the aqueous layer was removed. Celite (600 mg) was added to the organic layer, and the solvent was evaporated. Flash chromatography using silica gel with an ethyl acetate/hexanes gradient provided the purified sulfonamide, sulfamide, carbamate, amide, or urea.
General Procedure B: Phenyl Ethers 3 from 2-Fluorobenzonitriles. A mixture of 2-fluoro-6-trifluoromethylbenzonitrile or 2-fluorobenzonitrile (2 mmol), 3-aminophenol or 4-aminophenol (2.2 mmol, 1.1 equiv.), K2CO3 (6 mmol, 3 equiv.) and DMF (4 mL) was stirred at rt for 15 min and then at 80 °C for 4 h. Ethyl acetate (20 mL) was added, followed by water (4 mL) and brine (10 mL). After 10 min, the aqueous layer was removed, and the organic layer was washed with 0.8 M NaHCO3 solution (2 × 6 mL). Celite (3 g) was added to the organic layer and the solvent evaporated. Flash chromatography using silica gel with an ethyl acetate/hexanes gradient provided the purified phenyl ether 3.
2-(3-Aminophenoxy)-6-trifluoromethylbenzonitrile(3A). The title compound was prepared by the general procedure B from 2-fluoro-6-trifluoromethylbenzonitrile (380 mg, 2.0 mmol), 3-aminophenol (240 mg, 1.1 equiv.), and K2CO3 (820 mg, 3 equiv.) to provide 550 mg (99%) of a colorless oil. Rf = 0.35 (40% ethyl acetate/hexanes; UV active). LC/MS (m/z) 279.0 (M+1), >95% at 4.36 min.
2-(4-Aminophenoxy)-6-trifluoromethylbenzonitrile(3B). The title compound was prepared by the general procedure B from 2-fluoro-6-trifluoromethylbenzonitrile (380 mg, 2.0 mmol), 4-aminophenol (240 mg, 1.1 equiv.), and K2CO3 (820 mg, 3 equiv.) to provide 451 mg (82%) of a tan crystalline solid. Rf = 0.24 (40% ethyl acetate/hexanes; UV active). LC/MS (m/z) 279.0 (M+1), 85% at 3.94 min.
2-(3-Aminophenoxy)benzonitrile(3C). The title compound was prepared by the general procedure B from 2-fluorobenzonitrile (0.17 mL, 1.5 mmol), 3-aminophenol (180 mg, 1.1 equiv.), and K2CO3 (620 mg, 3 equiv.) to provide 270 mg (86%) of a colorless oil. Rf = 0.40 (40% ethyl acetate/hexanes; UV active). LC/MS (m/z) 211.0 (M+1), >97% at 3.84 min.
3-[2-Chloro-3-(trifluoromethyl)phenoxy]benzenamine(3D). A mixture of 2-chloro-3-trifluoromethylphenol (0.27 mL, 2.0 mmol), 3-fluoronitrobenzene (0.26 mL, 1.2 equiv.), K2CO3 (820 mg, 3 equiv.) and DMA (4 mL) was stirred at rt for 15 min and then at 70 °C for 2 h. Ethyl acetate (20 mL) was added, followed by water (4 mL) and brine (10 mL). After 10 min, the aqueous layer was removed, and the organic layer was washed with brine (2 × 6 mL). Celite (3 g) was added to the organic layer and the solvent evaporated. Flash chromatography using silica gel with an ethyl acetate/hexanes gradient provided 620 mg of a yellow oil. Rf = 0.44 (20% ethyl acetate/hexanes; UV active). To the solution of the obtained oil in ethanol (6 mL) was added SnCl2 dihydrate (2.2 g, 5 equiv.), and the mixture was heated at 50 °C for 15 h. Most of the solvent was evaporated (rotary evaporator) and CH2Cl2 (20 mL) was added, followed by slow addition of saturated NaHCO3 solution (20 mL, vigorous gas evolution). Then, 6 N NaOH (1 mL) was added, and the mixture was stirred vigorously for 30 min. Water (20 mL) was added and the layers separated (a solid is removed with the aqueous layer). The aqueous layer was extracted with CH2Cl2 (2 × 10 mL). Celite (3 g) was added to the combined organic layers and the solvent evaporated. Flash chromatography using silica gel with an ethyl acetate/hexanes gradient provided 459 mg (80%) of a clear oil. Rf = 0.26 (20% ethyl acetate/hexanes; UV active). LC/MS (m/z) 288.0 (M+1), >95% at 4.69 min.
N-{3-[2-Cyano-3-(trifluoromethyl)phenoxy]phenyl}-4,4,4-trifluorobutane-1-sulfonamide(4). The title compound was prepared by the general procedure A from 3A (50 mg, 0.18 mmol), 4,4,4-trifluorobutane-1-sulfonyl chloride (46 mg, 1.2 equiv.), and pyridine (0.030 mL, 2 equiv.) to provide 42 mg (53%) of an off-white crystalline solid, mp 96–97 °C. Rf = 0.34 (40% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.57–7.73 (m, 1H), 7.51 (d, J = 8.1 Hz, 1H), 7.41 (t, J = 8.4 Hz, 1H), 7.13 (d, J = 8.3 Hz, 1H), 7.04–7.08 (m, 2H), 6.89 (d, J = 8.5 Hz, 1H), 6.83 (s, 1H), 3.24 (t, J = 7.4 Hz, 2H), 2.21–2.43 (m, 2H), 2.05–2.20 (m, 2H). MS (m/z) 451.3 (M-1). HPLC 98% at 15.80 min.
N-{3-[2-Chloro-3-(trifluoromethyl)phenoxy]phenyl}-4,4,4-trifluorobutane-1-sulfonamide(5). The title compound was prepared by the general procedure A from 3D (44 mg, 0.15 mmol), 4,4,4-trifluorobutane-1-sulfonyl chloride (38 mg, 1.2 equiv.), and triethylamine (0.027 mL, 1.3 equiv.) to provide 43 mg (62%) of a colorless oil. Rf = 0.36 (30% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.46–7.63 (m, 1H), 7.28–7.42 (m, 2H), 7.14–7.24 (m, 1H), 6.95 (d, J = 7.7 Hz, 1H), 6.86 (s, 1H), 6.75 (d, J = 7.7 Hz, 1H), 6.58 (s, 1H), 3.20 (br s, 2H), 2.18–2.41 (m, 2H), 2.06–2.17 (m, 2H). MS (m/z) 460.3 (M-1). HPLC 96% at 17.00 min.
N-[3-(2-Cyanophenoxy)phenyl]-4,4,4-trifluorobutane-1-sulfonamide(6). The title compound was prepared by the general procedure A from 3C (32 mg, 0.15 mmol), 4,4,4-trifluorobutane-1-sulfonyl chloride (38 mg, 1.2 equiv.), and triethylamine (0.027 mL, 1.3 equiv.) to provide 17 mg (30%) of a colorless oil. Rf = 0.25 (30% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.68 (d, J = 7.7 Hz, 1H), 7.48–7.59 (m, 1H), 7.31–7.43 (m, 1H), 7.16–7.25 (m, 1H), 6.92–7.07 (m, 3H), 6.86 (d, J = 9.0 Hz, 1H), 6.62 (s, 1H), 3.22 (t, J = 7.4 Hz, 2H), 2.19–2.41 (m, 2H), 2.06–2.19 (m, 2H). MS (m/z) 383.3 (M-1). HPLC > 99% at 14.95 min.
N-{3-[2-Cyano-3-(trifluoromethyl)phenoxy]phenyl}pentane-1-sulfonamide(7). The title compound was prepared by the general procedure A from 3A (42 mg, 0.15 mmol), n-pentane-1-sulfonyl chloride (0.026 mL, 1.2 equiv.), and pyridine (0.027 mL, 2.2 equiv.) to provide 60 mg (97%) of a colorless oil. Rf = 0.49 (40% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.55–7.70 (m, 1H), 7.50 (d, J = 8.1 Hz, 1H), 7.39 (t, J = 8.5 Hz, 1H), 7.12 (d, J = 8.1 Hz, 1H), 6.98–7.08 (m, 2H), 6.87 (d, J = 8.5 Hz, 1H), 6.75 (s, 1H), 3.15 (t, J = 7.5 Hz, 2H), 1.74–1.91 (m, 2H), 1.21–1.47 (m, 4H), 0.89 (t, J = 7.4 Hz, 3H). MS (m/z) 413.4 (M+1), 411.4 (M-1). HPLC > 99% at 16.46 min.
N-{3-[2-Cyano-3-(trifluoromethyl)phenoxy]phenyl}-1-phenylmethanesulfonamide(8). The title compound was prepared by the general procedure A from 3A (45 mg, 0.15 mmol), 1-phenylmethanesulfonyl chloride (35 mg, 1.2 equiv.), and triethylamine (0.027 mL, 1.3 equiv.) to provide 23 mg (36%) of an off-white crystalline solid, mp 131–132 °C. Rf = 0.48 (40% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.62 (br s, 1H), 7.52 (br s, 1H), 7.36 (br s, 6H), 7.09 (d, J = 7.4 Hz, 1H), 6.89–6.98 (m, 1H), 6.84 (br s, 2H), 6.48 (s, 1H), 4.39 (s, 2H). MS (m/z) 431.2 (M-1). HPLC > 99% at 15.87 min.
N-{3-[2-Chloro-3-(trifluoromethyl)phenoxy]phenyl}-1-phenylmethanesulfonamide(9). The title compound was prepared by the general procedure A from 3D (44 mg, 0.15 mmol), 1-phenylmethanesulfonyl chloride (35 mg, 1.2 equiv.), and triethylamine (0.027 mL, 1.3 equiv.) to provide 23 mg (35%) of an off-white crystalline solid, mp 129–130 °C. Rf = 0.36 (30% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.48–7.60 (m, 1H), 7.21–7.46 (m, 8H), 6.89 (d, J = 7.5 Hz, 1H), 6.69–6.77 (m, 2H), 6.32 (s, 1H), 4.36 (s, 2H). MS (m/z) 440.4 (M-1). HPLC > 99% at 17.25 min.
N-[3-(2-Cyanophenoxy)phenyl]-1-phenylmethanesulfonamide(10). The title compound was prepared by the general procedure A from 3C (32 mg, 0.15 mmol), 1-phenylmethanesulfonyl chloride (35 mg, 1.2 equiv.), and triethylamine (0.027 mL, 1.3 equiv.) to provide 12 mg (22%) of a colorless oil. Rf = 0.25 (30% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.69 (d, J = 7.7 Hz, 1H), 7.48–7.59 (m, 1H), 7.27–7.41 (m, 6H), 7.15–7.24 (m, 1H), 6.89–7.00 (m, 2H), 6.79–6.88 (m, 2H), 6.34 (s, 1H), 4.38 (s, 2H). MS (m/z) 363.4 (M-1). HPLC > 98% at 15.00 min.
1-(2-Chlorophenyl)-N-{3-[2-cyano-3-(trifluoromethyl)phenoxy]phenyl}methanesulfonamide(11). The title compound was prepared by the general procedure A from 3A (42 mg, 0.15 mmol), 1-(2-chlorophenyl)methanesulfonyl chloride (41 mg, 1.2 equiv.), and pyridine (0.036 mL, 3 equiv.) to provide 43 mg (61%) of a white crystalline solid, mp 121–122 °C. Rf = 0.24 (30% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.55–7.69 (m, 1H), 7.49 (d, J = 7.5 Hz, 1H), 7.38–7.46 (m, 1H), 7.24–7.37 (m, 3H), 7.06 (d, J = 8.5 Hz, 1H), 6.94 (d, J = 8.7 Hz, 1H), 6.91 (s, 1H), 6.82 (s, 1H), 6.80 (d, J = 8.7 Hz, 1H), 4.63 (s, 2H). MS (m/z) 465.2 (M-1). HPLC 96% at 16.24 min.
1-(3-Chlorophenyl)-N-{3-[2-cyano-3-(trifluoromethyl)phenoxy]phenyl}methanesulfonamide(12). The title compound was prepared by the general procedure A from 3A (42 mg, 0.15 mmol), 1-(3-chlorophenyl)methanesulfonyl chloride (41 mg, 1.2 equiv.), and pyridine (0.036 mL, 3 equiv.) to provide 46 mg (66%) of an off-white crystalline solid, mp 144–145 °C. Rf = 0.28 (30% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.63 (t, J = 8.1 Hz, 1H), 7.51 (d, J = 7.9 Hz, 1H), 7.28–7.45 (m, 3H), 7.07–7.21 (m, 2H), 6.82–7.02 (m, 3H), 6.69 (s, 1H), 4.35 (s, 2H). MS (m/z) 465.2 (M-1). HPLC 96% at 16.38 min.
1-(4-Chlorophenyl)-N-{3-[2-cyano-3-(trifluoromethyl)phenoxy]phenyl}methanesulfonamide(13). The title compound was prepared by the general procedure A from 3A (42 mg, 0.15 mmol), 1-(4-chlorophenyl)methanesulfonyl chloride (41 mg, 1.2 equiv.), and pyridine (0.036 mL, 3 equiv.) to provide 45 mg (64%) of a white amorphous solid, mp 115–116 °C. Rf = 0.27 (30% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.58–7.71 (m, 1H), 7.52 (d, J = 7.5 Hz, 1H), 7.35–7.43 (m, 1H), 7.31 (d, J = 8.2 Hz, 2H), 7.20 (d, J = 8.2 Hz, 2H), 7.12 (d, J = 8.5 Hz, 1H), 6.90–7.00 (m, 2H), 6.86 (d, J = 7.4 Hz, 1H), 6.69 (s, 1H), 4.26–4.44 (m, 2H). MS (m/z) 465.2 (M-1). HPLC 95% at 16.47 min.
N-{3-[2-Cyano-3-(trifluoromethyl)phenoxy]phenyl}-3-(trifluoromethoxy)benzene-1-sulfonamide(14). The title compound was prepared by the general procedure A from 3A (42 mg, 0.15 mmol), 1-(3-trifluoromethoxyphenyl)methanesulfonyl chloride (0.032 mL, 1.1 equiv.), and triethylamine (0.025 mL, 1.2 equiv.) to provide 55 mg (73%) of a white crystalline solid, mp 120–121 °C. Rf = 0.26 (30% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.73 (d, J = 7.7 Hz, 1H), 7.39–7.68 (m, 5H), 7.28–7.38 (m, 1H), 6.83–7.06 (m, 4H), 6.77 (s, 1H). MS (m/z) 501.6 (M-1). HPLC > 99% at 16.74 min.
N-{3-[2-Cyano-3-(trifluoromethyl)phenoxy]phenyl}-4-(trifluoromethoxy)benzene-1-sulfonamide(15). The title compound was prepared by the general procedure A from 3A (42 mg, 0.15 mmol), 1-(4-trifluoromethoxyphenyl)methanesulfonyl chloride (0.032 mL, 1.1 equiv.), and triethylamine (0.025 mL, 1.2 equiv.) to provide 47 mg (62%) of a white crystalline solid, mp 164–165 °C. Rf = 0.28 (40% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.85 (d, J = 8.5 Hz, 2H), 7.54–7.68 (m, 1H), 7.50 (d, J = 7.5 Hz, 1H), 7.28–7.41 (m, 3H), 7.00 (d, J = 7.7 Hz, 1H), 6.83–6.97 (m, 3H), 6.80 (s, 1H). MS (m/z) 501.4 (M-1). HPLC > 99% at 16.80 min.
N-{3-[2-Cyano-3-(trifluoromethyl)phenoxy]phenyl}hexanamide(16). The title compound was prepared by the general procedure A from 3A (42 mg, 0.15 mmol), n-pentanecarbonyl chloride (0.025 mL, 1.2 equiv.), and triethylamine (0.027 mL, 1.3 equiv.) to provide 56 mg (99%) of a white crystalline solid, mp 95–96 °C. Rf = 0.46 (40% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.50–7.62 (m, 2H), 7.45 (d, J = 7.7 Hz, 1H), 7.32–7.40 (m, 1H), 7.22 (br s, 2H), 7.12 (d, J = 8.5 Hz, 1H), 6.85 (d, J = 6.6 Hz, 1H), 2.36 (t, J = 7.5 Hz, 2H), 1.67–1.76 (m, 2H), 1.31–1.40 (m, 4H), 0.91 (t, J = 7.5 Hz, 3H). MS (m/z) 377.3 (M+1), 375.3 (M-1). HPLC > 99% at 16.86 min.
Butyl N-{3-[2-Cyano-3-(trifluoromethyl)phenoxy]phenyl}carbamate(17). The title compound was prepared by the general procedure A from 3A (42 mg, 0.15 mmol), n-butyl chloroformate (0.021 mL, 1.2 equiv.), and triethylamine (0.027 mL, 1.3 equiv.) to provide 44 mg (78%) of a colorless oil. Rf = 0.24 (30% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.57 (t, J = 7.7 Hz, 1H), 7.45 (d, J = 7.7 Hz, 1H), 7.30–7.41 (m, 2H), 7.05–7.19 (m, 2H), 6.80 (dd, J = 8.1, 1.5 Hz, 1H), 6.68 (s, 1H), 4.16 (t, J = 7.4 Hz, 2H), 1.59–1.73 (m, 2H), 1.33–1.47 (m, 2H), 0.95 (t, J = 7.4 Hz, 3H). MS (m/z) 379.2 (M+1), 377.3 (M-1). HPLC > 99% at 17.21 min.
3-Butyl-1-{3-[2-cyano-3-(trifluoromethyl)phenoxy]phenyl}urea(18). The title compound was prepared by the general procedure A from 3A (42 mg, 0.15 mmol), n-butyl isocyanate (0.021 mL, 1.2 equiv.), and triethylamine (0.025 mL, 1.2 equiv.) to provide 51 mg (90%) of a colorless oil. Rf = 0.23 (40% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.56 (t, J = 7.7 Hz, 1H), 7.43 (d, J = 7.7 Hz, 1H), 7.27–7.36 (m, 2H), 7.02–7.19 (m, 2H), 6.79 (s, 1H), 6.73 (d, J = 7.9 Hz, 1H), 4.94 (br s, 1H), 3.16–3.32 (m, 2H), 1.43–1.55 (m, 2H), 1.27–1.42 (m, 2H), 0.92 (t, J = 7.2 Hz, 3H). MS (m/z) 378.3 (M+1), 376.2 (M-1). HPLC > 96% at 15.68 min.
3-Butyl-1-{3-[2-cyano-3-(trifluoromethyl)phenoxy]phenyl}-3-methylurea(19). To an ice-cold solution of 3A (42 mg, 0.15 mmol) in CH2Cl2 (1 mL) was added NaHCO3 (62 mg, 5 equiv.), followed by saturated NaHCO3 solution (0.3 mL). Triphosgene (45 mg, 1 equiv.) was added, and after 10 min, the ice bath was removed, and the mixture was stirred at rt for 1 h (gas evolution). Water (0.6 mL) was added and after 10 min, the aqueous layer was removed. The organic layer dried with sodium sulfate (20 min) and filtered. Toluene (0.5 mL) was added and most of the solvent evaporated. THF (1 mL) was added, and the mixture cooled in an ice bath. N-Methyl-n-butylamine (0.053 mL, 3 equiv.) was added, followed by triethylamine (0.042 mL, 2 equiv.). The mixture was stirred at rt for 20 h. Ethyl acetate (3 mL) was added, followed by saturated NaHCO3 solution (0.8 mL) and water (0.4 mL). After 10 min, the aqueous layer was removed. Celite (600 mg) was added to the organic layer and the solvent was evaporated. Flash chromatography using silica gel with an ethyl acetate/hexanes gradient provided 58 mg (99%) of a colorless oil. Rf = 0.22 (40% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.55 (t, J = 7.7 Hz, 1H), 7.37–7.47 (m, 2H), 7.28–7.37 (m, 1H), 7.05–7.20 (m, 2H), 6.70–6.84 (m, 1H), 6.41 (s, 1H), 3.34 (t, J = 7.4 Hz, 2H), 3.01 (s, 3H), 1.48–1.69 (m, 2H), 1.28–1.45 (m, 2H), 0.95 (t, J = 7.4 Hz, 3H). MS (m/z) x (M+1). HPLC > 99% at 16.33 min.
N-{3-[2-Cyano-3-(trifluoromethyl)phenoxy]phenyl}-2-phenylacetamide(20). The title compound was prepared by the general procedure A from 3A (42 mg, 0.15 mmol), phenylacetyl chloride (0.024 mL, 1.2 equiv.), and triethylamine (0.027 mL, 1.3 equiv.) to provide 61 mg (100%) of a white crystalline solid, mp 136–137 °C. Rf = 0.34 (40% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.55 (br s, 1H), 7.30–7.49 (m, 8H), 7.12–7.22 (m, 2H), 7.00–7.11 (m, 1H), 6.84 (br s, 1H), 3.74 (s, 2H). MS (m/z) 397.4 (M+1), 395.5 (M-1). HPLC > 99% at 16.07 min.
N-Cyclohexyl({3-[2-cyano-3-(trifluoromethyl)phenoxy]phenyl}m amino)sulfonamide(21). The title compound was prepared by the general procedure A from 3A (42 mg, 0.15 mmol), cyclohexylsulfamoyl chloride (45 mg, 1.5 equiv.), and triethylamine (0.027 mL, 1.3 equiv.) to provide 63 mg (96%) of a white amorphous solid, mp 199–200 °C. Rf = 0.46 (40% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.53–7.70 (m, 1H), 7.47 (d, J = 7.5 Hz, 1H), 7.30–7.42 (m, 1H), 7.08 (d, J = 8.5 Hz, 1H), 7.00 (br s, 3H), 6.81 (d, J = 7.5 Hz, 1H), 4.66 (d, J = 6.8 Hz, 1H), 3.13–3.38 (m, 1H), 1.77–1.96 (m, 2H), 1.65 (br s, 2H), 1.47–1.59 (m, 1H), 1.06–1.37 (m, 5H). 13C NMR (100 MHz, CDCl3) δ 161.2, 155.3, 139.7, 134.7, 134.2, 131.2, 120.6, 120.2, 115.8, 115.3, 112.3, 110.6, 101.1, 53.5, 33.8, 25.2, 24.7. MS (m/z) 438.3 (M-1). HPLC > 99% at 16.17 min.
N-{4-[2-Cyano-3-(trifluoromethyl)phenoxy]phenyl}pentane-1-sulfonamide(22). The title compound was prepared by the general procedure A from 3B (42 mg, 0.15 mmol), n-pentane-1-sulfonyl chloride (0.026 mL, 1.2 equiv.), and triethylamine (0.027 mL, 1.3 equiv.) to provide 53 mg (86%) of a white crystalline solid, mp 94–95 °C. Rf = 0.49 (40% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.59 (t, J = 8.1 Hz, 1H), 7.48 (d, J = 7.7 Hz, 1H), 7.29 (d, J = 8.9 Hz, 2H), 7.11 (d, J = 9.0 Hz, 2H), 7.07 (d, J = 8.7 Hz, 1H), 6.49 (s, 1 H), 2.96–3.21 (m, 2H), 1.77–1.94 (m, 2H), 1.24–1.48 (m, 4H), 0.90 (t, J = 7.4 Hz, 3H). MS (m/z) 413.1 (M+1), 411.3 (M-1). HPLC > 99% at 16.38 min.
N-{4-[2-Cyano-3-(trifluoromethyl)phenoxy]phenyl}-1-phenylmethanesulfonamide(23). The title compound was prepared by the general procedure A from 3B (42 mg, 0.15 mmol), 1-phenylmethanesulfonyl chloride (35 mg, 1.2 equiv.), and triethylamine (0.027 mL, 1.3 equiv.) to provide 28 mg (43%) of an off-white crystalline solid, mp 166–167 °C. Rf = 0.44 (40% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.55–7.68 (m, 1H), 7.48 (d, J = 7.7 Hz, 1H), 7.27–7.42 (m, 6H), 7.15 (d, J = 7.9 Hz, 2H), 7.00–7.13 (m, 3H), 6.47 (s, 1H), 4.37 (s, 2H). MS (m/z) 431.2 (M-1). HPLC > 99% at 15.89 min.
N-{4-[2-Cyano-3-(trifluoromethyl)phenoxy]phenyl}-2-phenylacetamide(24). The title compound was prepared by the general procedure A from 3B (42 mg, 0.15 mmol), phenylacetyl chloride (0.024 mL, 1.2 equiv.), and triethylamine (0.027 mL, 1.3 equiv.) to provide 49 mg (82%) of a white crystalline solid, mp 200–201 °C. Rf = 0.31 (40% ethyl acetate/hexanes; UV active). 1H NMR (300 MHz, CDCl3) δ 7.46–7.60 (m, 3H), 7.27–7.45 (m, 6H), 7.19 (br s, 1H), 6.93–7.11 (m, 3H), 3.77 (s, 2H). MS (m/z) 397.3 (M+1), 395.4 (M-1). HPLC > 99% at 15.91 min.
4.1. cAMP Accumulation Assay
The cAMP assays were performed in Chinese Hamster Ovary (CHO) cells (Perkin Elmer, Cat # ES-110-C) stably expressing the human CB1 receptor (hCB1) cultured under standard cell culture conditions (37 °C, 5% carbon dioxide, DMEM media with 1% Penicillin/Streptomycin and 400 µg/mL G418) using the Lance™ assay kit and manufacturer’s instructions were closely followed (Perkin Elmer). In brief, stimulation buffer containing 1X Hank’s Balanced Salt Solution (HBSS), 5 mM HEPES, 0.1% BSA stabilizer, and 0.5 mM final IBMX was prepared and titrated to pH 7.4 at rt. Serial dilutions of the test compounds and 300 nM forskolin, both prepared at 4× the desired final concentration in stimulation buffer, were added to a 96-well white ½ area microplate (PerkinElmer). The CHO-hCB1 cells were lifted with a non-enzymatic solution (Cell-stripper, Mediatech Inc., Orlando, FL, USA), and 4000 cells were added to each well. After incubating for 30 min at room temperature, Eu-cAMP tracer and uLIGHT-anti-cAMP working solutions were added per the manufacturer’s instructions. After incubation for 1 h, the TR-FRET signal (ex 337 nm, em 620 and 650 nm) was read on a CLARIO star multimode plate reader (BMG Biotech, Cary, NC, USA). Data were analyzed using Prism software (GraphPad, La Jolla, CA, USA). Nonlinear regression analysis was performed to fit data and obtain maximum response (Emax), EC50, correlation coefficient (r2), and other parameters. All experiments were performed in duplicate 2–3 times to ensure reproducibility and data are reported as mean ± standard error of mean unless noted otherwise.
4.2. Radioligand Displacement Assay
4.3. Pharmacokinetic Testing
Female C57BL/6 mice were bred in house and used at ~10 weeks of age for pharmacokinetic (PK) testing. Three animals were tested per time point. Doses were formulated in 2% NMP in canola oil, and all compounds were delivered at 3 mg/kg by intraperitoneal injection (IP). Tissues were taken at 0.5, 1, 2, and 4 h post dose. Animals were subjected to whole body perfusion using saline prior to tissue collection. Brain samples were homogenized with 50:50 ethanol:water (1:5, v/v). Forty µL of the homogenate, 10 µL of acetonitrile, and 150 µL of 100 ng/mL reserpine in acetonitrile containing 0.1% formic acid were vortexed and centrifuged. Plasma samples were diluted with 10 µL of acetonitrile, 150 µL of 100 ng/mL reserpine in acetonitrile containing 0.1% formic acid, vortexed and centrifuged. Samples were subjected to LC/MS/MS analysis. Standards were prepared in blank samples and used for calibration curves. Chromatography was performed using a Phenomenex Luna C18 column.
4.4. Computational Methods

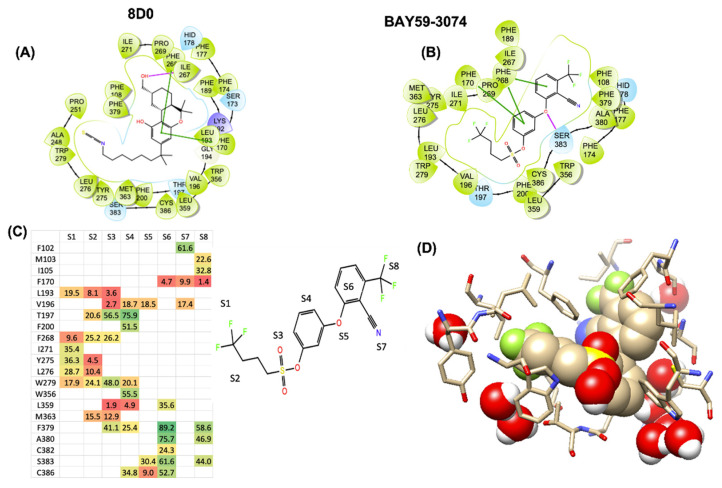

Docking and Induced Fit. Two parallel and independent approaches with different scoring functions, Schrodinger’s XP/Induced Fit [29] and Autodock VINA with an AMBER18 [30] molecular mechanics generalized Born surface area MMGBSA rescoring, were used to provide predictions for ligand configurations allowing for both ligand and receptor binding site flexibility. Both methods include desolvation components in the scoring function. Following initial GLIDE-XP docking, we probed the importance of binding site flexibility within a 5 Å window of any atom in the best docking poses using Schrodinger’s Induced Fit [29]. The docking box employed for VINA was ca 15 × 15 × 15 Å3 in spatial extent, while the default box size employed in computing the GLIDE-XP docking grid was based on the ligand size. We employ Autodock VINA’s scoring function scores based on hydrophobic contacts, hydrogen bonds, lack of steric clash. This informatics-based scoring function serves primarily as a means of selecting the most plausible collection of poses from a large number of sampled docked configurations which we rescore using AMBER-MMGBSA. We collected 20 poses per ligand with a high “exhaustiveness” setting of 80. Similarly, the GLIDE-XP workflow and scoring function was used to obtain up to 20 poses per ligand for post-docking minimization but retaining the best Emodel scored 5 poses in the final analysis. The GLIDE-XP scoring function contains terms such as desolvation, lipophilic/hydrophobic contact and cavity costs, in addition to physics based coulombic and van der Waals and ligand strain terms.
For the initial docking/induced-fit and MMGBSA-rescoring phase we chose to use the model completed 5XR8 structure employing simulated annealing with topological/stereochemical constraints in Modeller, followed by SCWRL rotameric sidechain adjustments for loop/terminus modeled residues. We then used AMBER18 employing the AMBER14SB forcefield to prepare the full-length All-H model as described in prior publications [31,32]. The structure prepared with TLEAP was then energy minimized for 8000 steps of conjugate gradient following a 400 steepest-descents minimization to remove initial inferior contacts.
Docked poses above were re-scored using an AMBER 18 MMGBSA and Prime/MMGBSA approaches. This was performed because the top ranked docked poses are often not the crystallographically observed pose as observed by us and others in PDB-Bind assessments [33], whereas frequently the lowest MMGBSA/MMPBSA scored pose has lowest RMSD to the known crystallographic solution and provides the best affinity correlations [34,35,36].
MD simulation. An MD simulation was employed to track pose stability and ligand induced receptor binding site changes employing AMBER18 using ff14SB parameterization for protein residues with GAFF generalized forcefield parameters for internal forcefields of the ligand. ANTECHAMBER and PARMGEN were used to incorporate AM1-BCC charges into the ligand antechamber topology and parameter files. The LIPID14 forcefield was used for parameterization of 150 Å × 150 Å × 143 Å box of DOPC lipids (initially 323 lipids top and bottom). Elastic band pulls of the N− and C− terminal regions and simulated annealing were used to prepare low energy more compact conformations beyond initial extended constructed conformations after the MODELLER/SCWRL preparation steps. The box was used to immerse the CB1/8D0 complex and dynamics was used a method of ‘refining’ the N−/C− and loop conformations following production dynamics. The complex system was then energy minimized by a combination of 800 steepest descents followed by 8000 conjugate gradient steps. The system was then slowly heated to 300K over 200 ps followed by 5 ns of early equilibration under NPT ensemble simulation conditions followed by production dynamics under NVT conditions for 850 ns after establishing equilibration from the standpoint of RMSD variations from the starting structure and energetic and fluctuation criteria.
Native Contact Time Dependent Pharmacophore. Native contact analysis was conducted employing AMBER cpptraj, bash scripting and C++ code to determine the percentage of time of used defined regions in the 8D0/AM841 ligand contacted residues in the binding site. The percentage time of each region of the ligand with amino acids was computed from 850 ns of production dynamics, and a representation of those percentages was presented in a colored heatmap representation.
Acknowledgments
We express our gratitude to the NIDA drug supply program for providing standard compounds. The authors wish to thank Tiffany Langston and Yun Lan Yue for excellent technical support. The authors would also like to thank Ann Decker and Elaine Gay for technical supervision of this work.
Abbreviations
cAMP, cyclic adenosine monophosphate; CB1, cannabinoid receptor 1; CB2, cannabinoid receptor 2; CHO, Chinese hamster ovary cells; CNS, central nervous system; DMA, dimethylacetamide; DMF, dimethylformamide; EtOH, ethanol; HPLC, high pressure liquid chromatography; GI, gastrointestinal; IP, intraperitoneal injection; PK, pharmacokinetic; MS, mass spectroscopy; MW, molecular weight; NASH, nonalcoholic steatohepatitis; NMR, nuclear magnetic resonance; rt, room temperature; SAR, structure–activity relationship; TFA, trifluoroacetic acid; THC, (−)-trans-Δ9-Tetrahydrocannabinol; THF, tetrahydrofuran; TLC, thin layer chromatography; TPSA, topological polar surface area; UV, ultraviolet.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27175672/s1, Table S1. Calculated Properties of Compounds: MW, cLogP, TPSA, HBD, and HBA, Figures S1–S5. HPLC and NMR data of key compounds.
Institutional Review Board Statement
All animal studies were performed in accordance with guidelines established by the Office of Laboratory Animal Welfare (OLAW) and protocols were approved by the institutional animal care and use committee (IACUC) at MISPRO Biotech and RTI International.
Informed Consent Statement
Not applicable.
Data Availability Statement
Not applicable.
Conflicts of Interest
The authors do not have known conflict of interest.
Sample Availability
Samples of the compounds are available from the authors.
Funding Statement
This research was supported by NIDDK/NIH through R01DK124615 to R.M.
