Semi-quantitative analysis of cannabinoids in hemp (Cannabis sativa L.) using gas chromatography coupled to mass spectrometry
Food Future Institute, Murdoch University, Murdoch, Western Australia 6150 Australia
Medicann Health Aust Pty Ltd., South Perth, Western Australia 6151 Australia
Solarbike, Fremantle, Western Australia 6160 Australia
Ecofibre Ltd., PO Box 108, Virginia, Queensland 4014 Australia
Ananda Food Pty Ltd., Beresfield, New South Wales 2322 Australia
Department of Biodiversity, Conservation and Attractions, Kensington, Western Australia 6151 Australia
Abstract
Background
Hemp (Cannabis sativa L.) is a producer of cannabinoids. These organic compounds are of increasing interest due to their potential applications in the medicinal field. Advances in analytical methods of identifying and quantifying these molecules are needed.
Method
This study describes a new method of cannabinoid separation from plant material using gas chromatography-mass spectrometry (GC-MS) as the analytical tool to detect low abundance cannabinoids that will likely have implications for future therapeutical treatments. A novel approach was adopted to separate trichomes from plant material to analyse cannabinoids of low abundance not observed in raw plant extract. Required plant sample used for analysis was greatly reduced compared to other methods. Derivatisation method was simplified and deconvolution software was utilised to recognise unknown cannabinoid compounds of low abundance.
Results
The method produces well-separated spectra and allows the detection of major and minor cannabinoids. Ten cannabinoids that had available standards could be identified and quantified and numerous unidentified cannabinoids or pathway intermediates based on GC-MS spectra similarities could be extracted and analysed simultaneously with this method.
Conclusions
This is a rapid novel extraction and analytical method from plant material that can identify major and minor cannabinoids using a simple technique. The method will be of use to future researchers seeking to study the multitude of cannabinoids whose values are currently not understood.
Untitled section
Keywords: Cannabinoids, GC-MS, Extraction, Trichomes, Low-abundance, Industrial hemp
Article notes
Untitled section
Received 2021 Jul 29; Accepted 2022 Sep 1; Collection date 2022.
Introduction
Over the last few years, a renewed interest in Cannabis sativa and its products has occurred worldwide due to the easing of legislation (Cox 2018; Mead 2017). Several countries, such as Canada, Germany, Thailand and Australia, have legalised Cannabis products for medicinal purposes (Cox 2018; Guiney 2017; Kumar et al. 2019). The psychoactive and therapeutic properties used for medicinal products are related to chemical compounds produced by C. sativa called cannabinoids. The more recognised active ingredients are the psychoactive delta-9-tetrahydrocannabinol (Δ9-THC or THC) and the therapeutic cannabidiol (CBD) (Small et al. 2003). Cannabis sativa is grouped into three different chemotypes based on the THC and CBD ratio and concentration: (1) a drug type with low CBD/THC (chemotype I); 2) a less common type with CBD/THC ranging between 0.5 and 3.0 (chemotype II); 3) and a no-drug type with high CBD/THC > 3.0 (chemotype III) more commonly called hemp (Pacifico et al. 2006; Small and Beckstead 1973). In Western Australia, hemp is defined as having a THC concentration of < 1% by dry weight (Allsop and Hall 2017; Department of Primary Industries and Regional Development 2020). However, hemp can contain numerous and substantial concentrations of cannabinoids other than THC and other types of molecules with pharmaceutical value, such as CBD and minor cannabinoids, terpenoids, flavonoids, and phenols (Calzolari et al. 2017; Citti et al. 2018). Recent studies are examining potential new pharmaceutical properties related to the idea of the ‘entourage effect’ through doses of a combination of cannabinoids (Booth et al. 2017; Russo 2018).

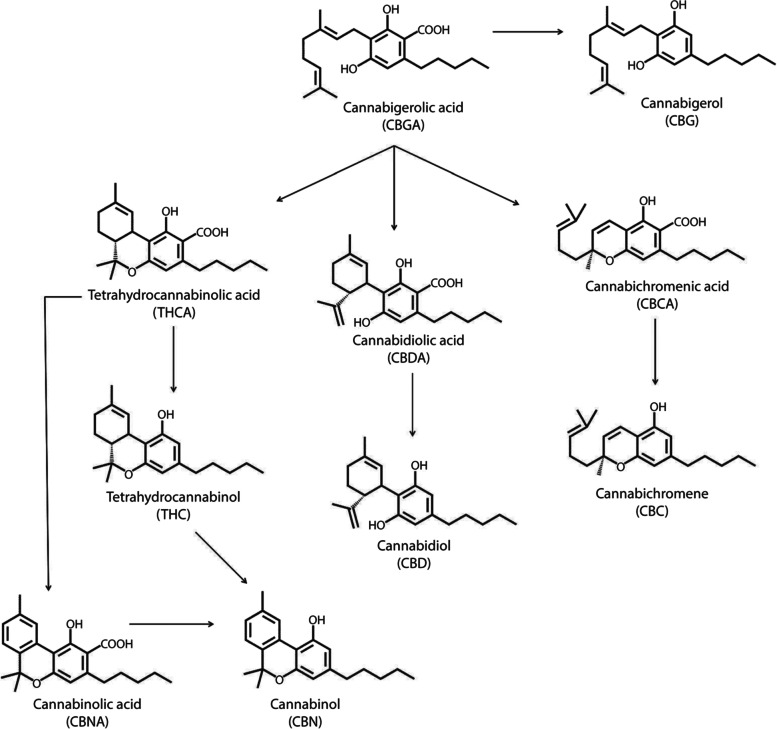

Cannabinoids are a group of more than 130 recognised C21 meroterpenoles or terpenophenolic compounds produced from fatty acids and isoprenoid precursors unique to the Cannabis genus (Carvalho et al. 2017; Citti et al. 2019; Hanus et al. 2016). Their roles within the plant are not fully understood (Pacifico et al. 2008). Twelve major cannabinoids are recognised to have therapeutic properties: Δ9-tetrahydrocannabivarin (THCV), cannabidiol (CBD), cannabigerol (CBG), Δ8-tetrahydrocannabinol (Δ8-THC), cannabichromene (CBC), cannabinol (CBN), cannabidiolic acid (CBDA), Δ9-tetrahydrocannabinolic acid (THCA), tetrahydrocannabivarin acid (THCVA), cannabigerolic acid (CBGA), cannabidivarin (CBDV), and Δ9-tetrahydrocannabinol (Δ9-THC) (Cardenia et al. 2018; Leghissa et al. 2018b). Additionally, a novel and important cannabinoid of low abundance, Δ9-tetrahydrocannabiphorol (Δ9-THCP), was recently discovered (Citti et al. 2019), which could help partly explain the psychoactive effect of Cannabis. Plant breeding can enhance the production of selected cannabinoids to produce a high-value crop (Small and Marcus 2003), so the ability to detect cannabinoids of low abundance or of currently unknown therapeutic value needs to be improved and simplified to give more detailed information about different chemotypes.
Understanding conditions that change the concentration of secondary metabolites and the plant biosynthesis process is of interest because such knowledge could improve the production of targeted cannabinoids. Cannabis sativa is known to produce carboxylated versions of cannabinoids; cannabidiol acid (CBDA) is the precursor of cannabidiol (CBD), as discovered by Schulz and Haffner in the 1960s (Cardenia et al. 2018; Hanus et al. 2016). Therefore, those cannabinoids need to undergo spontaneous decarboxylation through air drying or heat treatment to become an active ingredient for the endocannabinoid system (Aizpurua-Olaizola et al. 2016). It is possible to find cannabinoids and terpenes in various parts of the plant, both male and female, in the vegetative and flowering stages; however, the higher concentrations are found in resin secreted by epidermal glands called trichomes (Turner et al. 1980). Trichomes are abundant mostly around the female flower (Booth et al. 2017). However, the accumulation of cannabinoids is a process that changes over the growth cycle of C. sativa (Hanus and Dostálová 1994; Pacifico et al. 2008). For example, increased physiological age of hemp leaves resulted in an increase followed by a decrease in THC concentration (Andre et al. 2016; Bócsa et al. 1997; Khajuria et al. 2020). Furthermore, Δ9-THC is produced by its precursor THCA, and it oxidases into CBN (Fig. 1) (Leghissa et al. 2018b). Routine testing uses mature female flowers when the cannabinoid production of THC is roughly at its peak when pistillate stigmas turn dark orange on mature flowers (Small et al. 2003). However, the cannabinoid profile evolves during the plant life cycle, even though the phenotypical cannabinoid ratio (THCA/CBDA) tends to remain equal during the plant life cycle (Aizpurua-Olaizola et al. 2016). This is an essential aspect to consider if forensic studies have to identify whether the plant is a drug chemotype or not, and when the plant material should be tested.
Comprehension of the biomedical applications and biosynthesis process of cannabinoids in the plant (Fig. 1) are fundamental to understand the range of analytical methods that can be used to identify and quantify the number and quantity of cannabinoids within a sample. Due to the high variability of each cannabinoid content in C. sativa plants (Aizpurua-Olaizola et al. 2016), sample timing and preservation, extraction, and analytical instrument tuning are critical. Over the last few years, many studies have undertaken method development for cannabinoid detection (Elkins et al. 2019; Leghissa et al. 2018b; Nahar et al. 2020). Mostly, methanol (CH3OH) and ethanol (C2H5OH) are used for extraction, followed by analytical instrument methods for determination and quantification (Nahar et al. 2020). The most common analytical methods use high-performance liquid chromatography (HPLC) with an ultraviolet detector (HPLC-UV), or gas chromatography (GC) with electron ionisation (EI) coupled to mass spectrometry (MS) or a flame ionisation detector (FID) (Brighenti et al. 2017; Cardenia et al. 2018; Citti et al. 2018). The most used instrument for commercial testing is HPLC, as it is cost-effective, has a faster sample preparation and process than other instruments; however, GC-MS has a higher sensitivity for detection of chemical molecules and, also, due to the mass spectrometer, can be utilised for identification using compound libraries and, with the addition of the EI and FID, can detect volatile chemical compounds (Leghissa et al. 2018b). Considerations have been made about the hot injection of a GC-MS given the fact that the cannabinoids are decarboxylated by heat (Leghissa et al. 2018b). For this reason, derivatisation (silylation or methylation/esterification) must be undertaken pre-analysis (Fodor and Molnár-Perl 2017). The process stabilises the cannabinoid molecules attaching a methylic group to them, making the compound stable and easily detectable. In this process, several procedures have been reported with the utilisation of N-methyl-N-(trimethylsilyl)trifluoroacetamide (MSTFA), while other researchers have used the combination of N,O-bis(trimethylsilyl)trifluoroacetamide (BSTFA), or MSTFA (Fodor and Molnár-Perl 2017; Leghissa et al. 2018a; Nahar et al. 2020). In general, the use of GC-MS in a routine analysis was usually not considered, given the long run time. However, the development of Fast GC-MS methodology has made it commercially competitive (Cardenia et al. 2018). In forensic research for drug analysis, a Fast GC-MS method has been applied by Byrska and Zuba (2009), reducing the column length, increasing the carrier gas flow, and raising the MS oven temperature. A more recent study by Cardenia et al. (2018) tested a Fast GC-MS showing its potential to detect cannabinoids in hemp, the low THC varieties of C. sativa. However, in their extraction method, Cardenia et al. (2018) used large amounts of plant sample (around 25 g) and chemicals for extraction. In contrast to HPLC, a GC coupled with FID can be used to detect terpenes, the fragrant molecules that C. sativa produces, which are recognised to have medicinal value (Ibrahim et al. 2019). Since the discovery of the first cannabinoid (THC) (Mechoulam and Gaoni 1965), more than 130 cannabinoids have been identified (Carvalho et al. 2017; Citti et al. 2018, 2019; Leghissa et al. 2018b). The MS is a unique tool for untargeted and low abundance compounds, which could present therapeutic properties (Capriotti et al. 2021). However, most of these can be extracted in only very low amounts, and the commercial availability of quality synthesised cannabinoid standards with an extended range is a problem for identification (Carvalho et al. 2017).
This study describes the improvements made on earlier methods of cannabinoid detection, simplifies the identification process, and increases the detection of some minor cannabinoids, which usually occur at a lower concentration in the no drug chemotype (III) of C. sativa. Fast GC-MS has been previously used for narcotic drugs and psychotropic substances (Byrska and Zuba 2009) and cannabinoids with good results (Cardenia et al. 2018). A GC-MS was utilised, but purer cannabinoid extractions were also explored to improve the detection of low abundance cannabinoids in hemp. Also, to speed up and simplify extraction methods, a comparison of derivatisation reagents was investigated. In summary, this study aimed to improve the method for cannabinoid testing through an easier and leaner extraction method and higher detection of the low abundance metabolites on a Fast GC-MS, with a focus on hemp.
Materials and methods
Standard and reagents
Hexane, methanol, HPLC grade water, ethanol, 5-alpha-cholestane and N-methyl-N-(trimethylsilyl) trifluoroacetamide with 1% trimethylchlorosilane (MSTFA) were purchased from Sigma-Aldrich/Merk (Bayswater, VIC, Australia). Methanol was used as a solvent to extract cannabinoids from plant material. The derivatisation agents utilised were N-methyl-N-(trimethylsilyl)trifluoroacetamide (MSTFA) and N,O-bis(trimethylsilyl)trifluoroacetamide (BSTFA) that were purchased from Sigma-Aldrich/Merk (Bayswater, VIC, Australia). An Agilent 7890BGC+5977E MSD (Agilent Technologies Australia, Mulgrave, VIC, Australia) was utilised for the detection of the plant material compounds.
Certified cannabinoid standard were produced by Cayman Chemical (Ann Arbor, Michigan 48108 USA) and acquired by Cannalab (Perth, Western Australia). The cannabinoid standard (product code: 21305) contained tetrahydrocannabinolic acid (THCA), Δ9-tetrahydrocannabinol (Δ9-THC), cannabidiol (CBD), cannabidiolic acid (CBDA), cannabinol (CNB), cannabigerol (CBG), cannabigerolic acid (CBGA), cannabichromene (CBC), cannabidivarin (CBDV), and Δ8-tetrahydrocannabinol (Δ8-THC) at 250 μg/mL of each compound. However, synthetic standards for the qualification of the main cannabinoids (CBDV, CBD, CBC, CBDA, THCA, Δ9-THC, Δ8-THC, THCV, CBG, CBN, THCVA, and CBGA) other than the top 12 are not commercially available yet. Therefore, the identification of the low abundance and unidentified compounds was carried out with deconvolution software.

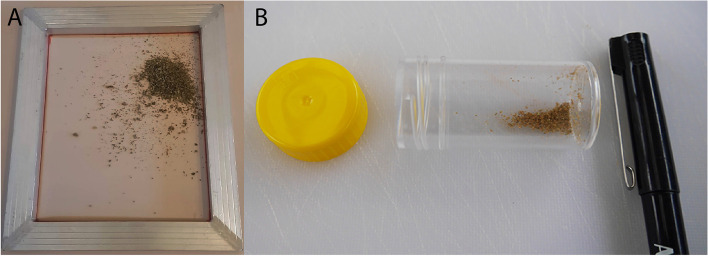

Separation of trichomes from plant material
Air-dried inflorescences from a mixture of two different C. sativa accessions (a chemotype I and a chemotype III), were collected and mixed to create a base with a wide range of cannabinoids. Glandular material that accumulates in the trichomes of C. sativa is highly concentrated in cannabinoids and becomes brittle at low temperatures. Frozen trichomes readily separate from the plant material and can be purified by filtration. Plant material was frozen for 30 min at – 4 oC. The dried and frozen plant material was then sieved through a 40-μm nylon mesh filter (Swiss Screens, Perth, Western Australia) (Fig. 2A). The trichomes fall through the filter, leaving the majority of plant material behind. This trichome-rich filtrate (Fig. 2B) contains a high concentration of cannabinoids. Between 3 and 4 mg of trichome filtrate is used for the extraction of cannabinoids.
Extraction of cannabinoids from trichomes and plant material
Dried plant material was ground using an electric spice grinder (the Coffee and Spice, model: BCG200BSS, Breville Group, Sydney NSW, Australia). For each sample, 10.5 ± 0.3 mg of dried plant material was weighed into 2 ml micro-centrifuge tubes. If using only trichome-rich extract, then 3.5 ± 0.1 mg of the material was used. To extract cannabinoids, 500 μl of methanol with 20 μg of 5-alpha-cholestane (internal standard) was added to each sample. This was followed by the addition of 500 μl of n-Hexane and 500 μl of water. Samples were agitated on a heat block at 40 °C for 5 min using an Eppendorf ThermoMixer C (Hamburg, Germany, Product nr. 232000083). Samples were then centrifuged at 28,000×g for 5 min to achieve phase separation with a ThermoFisher Sorvall ST1 Plus (Waltham, Massachusetts, USA, Product nr. 75009740). One hundred microliters of the upper organic layer (n-Hexane) was transferred to a GC-MS vial insert and allowed to dry under a gentle nitrogen stream at room temperature.
Derivatisation and analysis of cannabinoids
A 90 μl of MSTFA was added directly to the GC-MS vial insert containing extracted and dried cannabinoid sample. Silylation was performed at 60 oC for 25 min. One microliters of the derivatised sample was injected into an Agilent 7890BGC+5977E MSD under splitless mode. The injection inlet was set at 300 °C, and the GC purge valve was set to be switched on at 1 min after injection. An Agilent HP-5MS 15 m × 250 μm, 0.25 μm column was used for separation. Ultra-High Purity helium high flow was used as the carrier gas at a constant flow rate of 1.2 ml min−1. The initial oven temperature was held at 80 °C for 0.5 min, then ramped up to 250 °C at 40 °C min−1 and then to 300 °C at 10 °C min−1. The mass selective detector (MSD) transfer line, ion source, and quad-pole temperatures were 280, 280, and 150 °C, respectively.
Identification and analysis
Cannabinoids were identified by comparison to purchased standards and to spectra from publications (Cardenia et al. 2018; Feyerherm and Macherone 2015) and confirmed with the National Institute of Standards and Technology database (NIST 2018) (Shen et al. 2020). Library construction and quantitation of known compounds were performed by Agilent Mass Hunter Quantitative Analysis Software (ver. 6.0). Calibration curves were created using concentrations of available standards between 0 and 1250 ng/L on column using the above-mentioned extraction and derivatisation techniques (Fig. 3). Agilent GC-MS Mass Hunter Software was used for data acquisition and analysis. Samples were randomised and analysed in two independent analytical runs. The mass spectra of unknown compounds were deconvoluted through AMDIS_32 (ver. 2.64), and peaks with increased probability of representing cannabinoids or intermediates of synthetic cannabinoid pathways were identified based on their mass spectral quantification and qualification ions being present in over three cannabinoid standards used in this study. Peak detection, deconvolution, filtering, scaling, integration, and quantitation were conducted in the Mass Hunter Quantitative Analysis for GC-MS Software (Ver. 7.045.7). The method of cannabinoid extraction and analysis developed in this study enabled the quantification of cannabinoids of low abundance that will be targeted for future medicinal uses.
Method validation

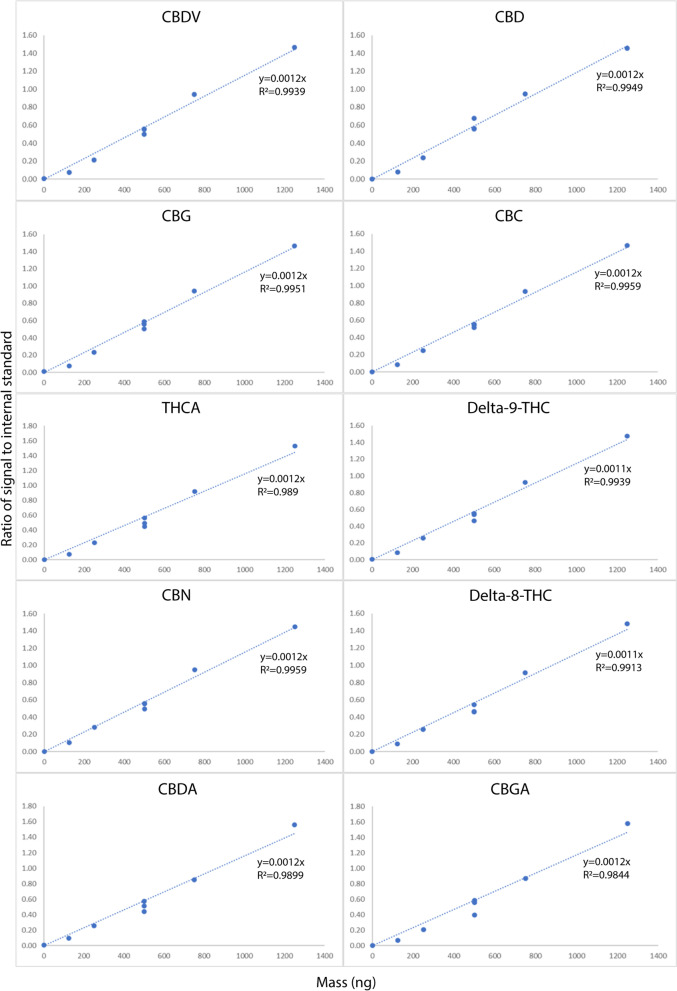

Cannabinoid quantification was based on the use of the cannabinoid standard and the accuracy was adjusted through the response linearity evaluated for each cannabinoid. The calibration curve created were calculated by injecting six increasing concentrations of cannabinoid standard (0; 125 ng/mL; 250 ng/mL; 500 ng/mL; 750 ng/mL; 1250 ng/mL) on the GC-MS (Fig. 3) column. The limit of detections (LOD) and quantification (LOQ) were calculated by the signal to noise ratio on mass (ng). Intraday and interday precision of the GC-MS instrument (RSD) were calculated with three technical repetitions of the mid cannabinoid standard concentration (500 ng/mL) (Table 1). Also, technical and pool sample repetitions (min n = 3) for each batch were injected every seven samples to test the continuous functionality and accuracy of the instrument.
| CBDV (mg/kg) | CBD (mg/kg) | CBG (mg/kg) | CBC (mg/kg) | Δ8-THC (mg/kg) | |
| Repeat-1 @ 500 ng | 0.55 | 0.56 | 0.56 | 0.55 | 0.55 |
| Repeat-2 @ 500 ng | 0.56 | 0.56 | 0.59 | 0.54 | 0.47 |
| Repeat-3 @ 500 ng | 0.50 | 0.68 | 0.51 | 0.51 | 0.46 |
| Average | 0.54 | 0.60 | 0.55 | 0.54 | 0.49 |
| 2xSD | 0.07 | 0.13 | 0.08 | 0.04 | 0.10 |
| RSD | 6% | 11% | 7% | 4% | 10% |
| LODb | 82.31 | 166.40 | 100.93 | 50.19 | 118.90 |
| LOQb | 274.36 | 554.65 | 336.42 | 167.30 | 396.32 |
| Δ9-THC (mg/kg) | CBDA (mg/kg) | CBN (mg/kg) | CBGA (mg/kg) | THCA (mg/kg) | |
| Repeat-1 @ 500 ng | 0.54 | 0.44 | 0.56 | 0.40a | 0.45 |
| Repeat-2 @ 500 ng | 0.55 | 0.57 | 0.55 | 0.59 | 0.56 |
| Repeat-3 @ 500 ng | 0.46 | 0.51 | 0.49 | 0.56 | 0.49 |
| Average | 0.52 | 0.51 | 0.53 | 0.57 | 0.50 |
| 2 × SD | 0.10 | 0.13 | 0.07 | 0.05 | 0.12 |
| RSD | 9% | 13% | 7% | 4% | 12% |
| LODb | 122.37 | 164.20 | 88.90 | 56.49 | 144.68 |
| LOQb | 407.91 | 547.33 | 296.34 | 188.30 | 482.28 |
Results

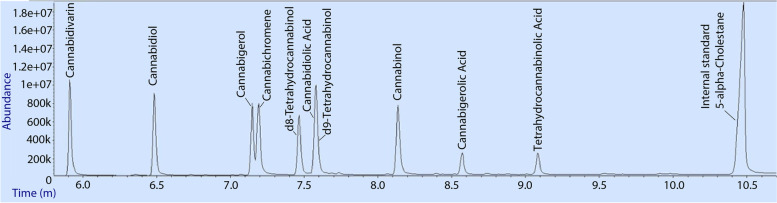

The developed analytical method was able to separate nine of the 10 cannabinoid standard mixture based on retention time alone (Fig. 4). Two compounds, CBDA and Δ9-THC coeluted with this analytical method and the power of the mass spectrometer was required to distinguish them. Retention times, quantification, and qualification ions suitable for the 10 cannabinoid standard compounds are shown in Table 2.
| Compound | Retention time (min) | Quantifier ion | Qualifier ions | Derivatisation group(s) |
|---|---|---|---|---|
| Cannabidivarin | 5.91 | 362 | 309, 273 | CBDV-1TMS |
| Cannabidiol | 6.48 | 390 | 337, 301 | CBD-2TMS |
| Cannabigerol | 7.15 | 337 | 391, 460 | CBG-2TMS |
| Cannabichromene | 7.19 | 303 | 246, 371 | CBC-1TMS |
| Δ8-tetrahydrocannabinol | 7.47 | 386 | 303, 330 | Δ8-THC-1TMS |
| Cannabidiolic acid | 7.56 | 491 | 559, 453 | CBDA-3TMS |
| Δ9-tetrahydrocannabinol | 7.58 | 371 | 386, 315 | Δ9-THC-1TMS |
| Cannabinol | 8.14 | 367 | 382, 310 | CBN-1TMS |
| Cannabigerolic acid | 8.57 | 561 | 417, 453 | CBGA-3TMS |
| Tetrahydrocannabinolic acid | 9.08 | 487 | 488, 502 | THCA-2TMS |
| a5-alpha-cholestane | 10.48 | 217 | 357, 372 | – |

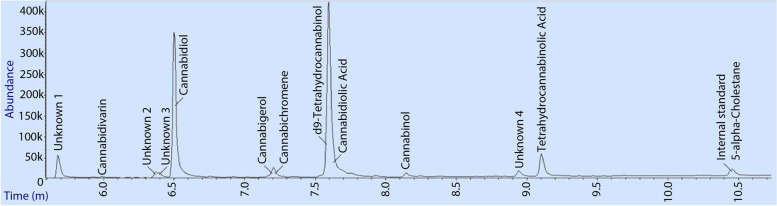

Identification and quantification of cannabinoids from an extract from 10.5 ± 0.3 mg of hemp apical plant material allowed identification and quantification of 8 of the 10 cannabinoids from the cannabinoid standard mixture (Fig. 5). It was also possible to quantify four unknown compounds that likely represented cannabinoids as either end-products or intermediates of a cannabinoid synthetic pathway based on the presence of unique spectral ions similar to those of known cannabinoids. The increased complexity of the plant metabolic matrix resulted in a partial coelution of CBG and CBC on one peak, and Δ9-THC and CBDA on another. These compounds could be identified and quantified based on their unique mass spectral profile (Fig. 5; Table 3).
| Compound | Retention time (min) | Quantifier ion | Qualifier ions | Sample 1 (mg/kg) | Sample 2 (mg/kg | Sample 3 (mg/kg) |
|---|---|---|---|---|---|---|
| Unknown 1 | 5.68 | 313 | 117, 129 | – | – | – |
| Cannabidivarin | 5.91 | 362 | 309, 273 | 2.6 | 2.6 | 1.6 |
| Unknown 2 | 6.37 | 341 | 129, 145 | – | – | – |
| Unknown 3 | 6.40 | 337 | 262, 129 | – | – | – |
| Cannabidiol | 6.48 | 390 | 337, 301 | 301.5 | 196.0 | 186.3 |
| Cannabigerol | 7.17 | 337 | 391, 460 | 6.5 | 4.5 | 4.3 |
| Cannabichromene | 7.19 | 303 | 246, 371 | 42.3 | 28.2 | 26.5 |
| Δ8-tetrahydrocannabinol | 7.47 (not detected) | 386 | 303, 330 | 1782.0 | 1096.3 | 996.3 |
| Δ9-tetrahydrocannabinol | 7.59 | 371 | 386, 315 | 1730.9 | 1079.9 | 972.3 |
| Cannabidiolic acid | 7.60 | 491 | 559, 453 | 1583.8 | 1095.3 | 987.6 |
| Cannabinol | 8.14 | 367 | 382, 310 | 22.1 | 11.9 | 13.7 |
| Cannabigerolic acid | 8.6 (trace) | 561 | 417, 453 | 16.3 | 15.1 | 11.2 |
| Unknown 4 | 8.94 | 419 | 487, 257 | – | – | – |
| Tetrahydrocannabinolic acid | 9.08 | 487 | 488, 502 | 9205.7 | 7354.1 | 6858.3 |
| a5-alpha-cholestane | 10.46 | 217 | 357, 372 | – | – | – |

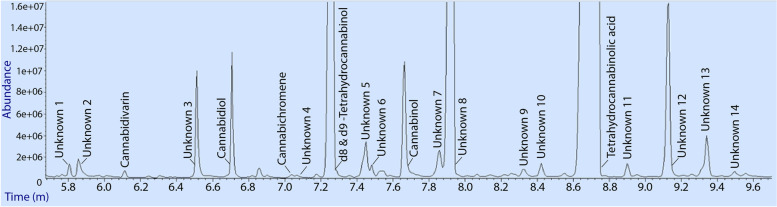

Retention times, quantification, and qualifying ions used for the analysis of cannabinoids and unknown compounds following extraction and derivatisation from a mixed flower plant material (flowers, young leaf, and trichomes) samples, are shown in Table 4. The same extraction and analytical method as described in the methodology section were applied to a smaller weight sample (3.5 ± 0.1 mg) of trichome extract. The total ion current of extraction performed on trichomes is shown in Fig. 6. Cannabinoid diversity was greatly increased in the trichome extraction used in this study. To obtain satisfactory peak shape and abundance, it was necessary to use a sufficient sample size that resulted in three dominant peaks being overloaded and unable to be quantified. These included a coeluting combination of Δ8-THC and Δ9-THC, THCA, and 14 unknowns (Fig. 6). The ability to analyse a greater number of unknown compounds that likely represent cannabinoids or components in synthetic cannabinoid pathways is greatly increased by applying an initial trichome extraction step. Retention times, quantification, and qualifying ions used for the analysis of cannabinoids and unknown compounds following extraction and derivatisation from a trichome sample from a mixed inflorescence accessions (the previous shown in Table 3) are shown in Table 4.
| Compound | Retention time (min) | Quantifier ion | Qualifier ions | Sample 1 (mg/kg) | Sample 2 (mg/kg) | Sample 3 (mg/kg) |
|---|---|---|---|---|---|---|
| Unknown 1 | 5.80 | 333 | 333, 292 | – | – | – |
| Unknown 2 | 5.86 | 313 | 328, 269 | – | – | – |
| Cannabidivarin | 6.11 | 362 | 309, 273 | 229 | 294 | 244 |
| Unknown 3 | 6.51 | 343 | 358, 315 | – | – | – |
| Cannabidiol | 6.71 | 390 | 337, 301 | 3006 | 3657 | 3362 |
| Cannabichromene | 7.04 | 303 | 246, 371 | 174 | 214 | 192 |
| Unknown 4 | 7.07 | 318 | 303, 156 | – | – | – |
| Δ8-tetrahydrocannabinol | 7.24 | 386 | 303, 330 | 7933 | 9733 | 8541 |
| Δ9-tetrahydrocannabinol | 7.24 | 371 | 386, 315 | 7697 | 9431 | 8385 |
| Unknown 5 | 7.45 | 303 | 318, 246 | – | – | – |
| Unknown 6 | 7.49 | 474 | 391, 403 | – | – | – |
| Cannabinol | 7.66 | 367 | 382, 310 | 275 | 368 | 313 |
| Unknown 7 | 7.86 | 391 | 433, 474 | – | – | – |
| Unknown 8 | 7.91 | 459 | 491, 559 | – | – | – |
| Unknown 9 | 8.32 | 455 | 367, 293 | – | – | – |
| Unknown 10 | 8.43 | 575 | 447, 500 | – | – | – |
| Tetrahydrocannabinolic acid | 8.67 | 487 | 488, 502 | 149776 | 171757 | 179447 |
| Unknown 11 | 8.90 | 503 | 413, 487 | – | – | – |
| Unknown 12 | 9.12 | 483 | 395, 321 | – | – | – |
| Unknown 13 | 9.34 | 419 | 156, 257 | – | – | – |
| Unknown 14 | 9.49 | 501 | 519, 355 | – | – | – |
Discussion
This study demonstrated a simple method of extraction and analysis of cannabinoids able to analyse and quantify 10 known cannabinoids and a further 14 compounds suggestive of cannabinoid chemistry based on GC-MS spectral profiles. The use of trichome separation enhanced the number of peaks representing cannabinoids, especially those present in low concentrations. As shown in Table 5, the extraction method presented here reduced the amount of chemicals and plant material required, decreased operator time from previous work, and allowed well separated and quantifiable peaks using GC-MS. Due to the low concentration of the non-abundant cannabinoids, GC-MS is an ideal analytical platform for cannabinoid analysis due to its high sensitivity (Leghissa et al. 2018b). Only the 10 cannabinoids from the certified standard mix could be identified with certainty. Compounds of low abundance were marked as unknown and identified as part of the cannabinoid group based on spectral profiles containing greater than two dominant fragmentation ions present in other known cannabinoids. Further development of this method will work toward a fully quantitative method, presented as recovery rate (%) using a known amount of standard spiked into a sample matrix. This method, in its current form, serves to provide semi-quantitative data and has been successfully employed to compare plant metabolic responses through cannabinoid analysis to various environmental challenges (De Prato et al. 2022a, b).
| Typology | Reference cited | Previous operation used | Improvement | Differences |
|---|---|---|---|---|
| Separation of material | Nil | – | Separation of trichomes from inflorescence plant material through freeze treatment and sieving | Detection of low abundance cannabinoids |
| Plant material | Nil | – | 3.5 ± 0.1 mg of trichomes material for extraction | Less plant material. Increased number of cannabinoids detection and avoiding GC-MS blockage |
| Plant material | (Cardenia et al. 2018) | 50 mg of plant material | 10.5 ± 0.3 mg of plant material | Less plant material |
| Chemicals and reagents | Cardenia et al. (2018) | Extraction of chloroform and methanol (1:9) | Extraction in methanol | Avoiding chloroform (toxic) |
| Chemicals and reagents | (Cardenia et al. 2018) | Extraction in 20 mL of solvent mix | Extraction in 1.5 mL of methanol | Less chemical used |
| Chemicals and reagents | (Cardenia et al. 2018) | Analysis from methanol | Analysis from n-Hexane | Easier for the operator and avoiding plant material filtering |
| Derivatisation | (Leghissa et al. 2018b) | Use of BSTFA | Comparison of BSTFA and MSTFA | Choice of MSTFA for better performance |
| Derivatisation | (Cardenia et al. 2018) | 50 μL of pyridine and 150 μL of derivatisation agent | Only 90 μL derivatisation agent | Less agent saves costs for routine analysis |
Cannabinoids, together with terpenes, are present in C. sativa plants throughout the plant cycle from the vegetative stage to seed ripening (Bócsa et al. 1997; Pacifico et al. 2008; Richins et al. 2018; Small et al. 2003). The concentration of these compounds tends to be higher in female plants, in younger flowers, and especially in the resin secreted by the trichomes (Casiraghi et al. 2018; Small and Naraine 2016; Small et al. 2003). Several studies have shown that the cannabinoid profile is affected by plant stress, nutrition, and environmental conditions (Coffman and Gentner 1975; Sikora et al. 2011; Small et al. 2003). The concentration of a single cannabinoid can change over a plant life cycle, and higher cannabinoid concentrations occur near flowers and bracts (Richins et al. 2018); this is where trichomes are situated (Casiraghi et al. 2018). Direct extraction from trichomes directly targets cannabinoids, avoiding unwanted metabolites and proteins. In the present study, trichomes were separated by freezing the plant material at – 4 °C for 30 min, and then gently shaking through a thin nylon mesh (40 μm). This allowed the brittle resin to be harvested, creating a clean cannabinoid-rich substance. This process led to improved detection of cannabinoids and reduced ion suppression at the analytical source. It should be noted that if the operator is interested solely in abundant cannabinoid analysis, such as THC and CBD only, then there is no need to extract trichomes; this step may be omitted, and, therefore, the total plant material should be used. If the aim is to analyse cannabinoids of low abundance or produce a cannabinoid-rich product devoid of the majority of plant material, this simple and effective method separates the trichomes from the remainder of the plant material. Removing plant material can increase the cannabinoid extraction fraction and reduce deleterious ion suppressive effects at the ion source of the mass spectrometer. This could be important in the medicinal field to identify minor metabolites and highlight their potential therapeutic effects.
Extraction of polyphenols and other compounds from plant material is a common practice in the food industry. However, different techniques are used, depending on the metabolite typology (Brglez Mojzer et al. 2016). Cannabinoids, as secondary metabolites of C. sativa, are terpenophenolic that can be grouped into terpenes and cannabinoids (Aizpurua-Olaizola et al. 2016). Terpenes are volatile and more delicate compounds that need to be extracted at low temperatures through hydro distilling (Ibrahim et al. 2019). Cannabinoids, however, have been extracted with solvents based on their polar/non-polar structure (Casiraghi et al. 2018). Indeed, for these bioactive compounds, a dynamic maceration by ethanol at room temperature has been demonstrated to be the easiest and cost-efficient (Citti et al. 2018; Pellati et al. 2018). For example, a mixture at 9:1 (v:v) of methanol and chloroform has been utilised by Cardenia et al. (2018) on hemp inflorescences. In the current study, chloroform utilisation was avoided as (a) it is hazardous to transport and store, and expensive; (b) too aggressive on the targeted chemicals, (c) it is harmful to operators with no extra benefit on extraction (Mudge et al. 2017; Pellati et al. 2018), and (d) when dealing with potential medicinal Cannabis, toxic solvents should be avoided (Citti et al. 2018). Also, cannabinoids can dissolve in non-polar compounds (Pellati et al. 2018). The method developed in the present study differs from previous ones because, after the first maceration in MeOH, purified water and n-Hexane were used for further extraction before centrifugation. This allowed the separation of the water and MeOH solution from the n-Hexane upper layer of the tube where cannabinoids were dissolved. Adding n-Hexane allows fewer sugar, chlorophylls, and polysaccharides in the extract than methanol (Citti et al. 2018), with a cleaner extraction of the cannabinoids and easing the operator operation on transfer to GC-MS vial. During this operation, possible contamination can be avoided while extracting only from the upper layer. The extraction ability of methanol and the non-polar filtering and lighter molecular weight characteristics of n-Hexane were utilised.
Over the last few years, GC, coupled with FID or MS has become popular for the identification and quantification of cannabinoids (Citti et al. 2018; Leghissa et al. 2018b; Nahar et al. 2020). Consequently, some government authorities have nominated GC-MS as the standard instrument (Casiraghi et al. 2018). MS has extremely high sensitivity and the options of using software and libraries for compound detection (Citti et al. 2018; Leghissa et al. 2018b). However, extra time for preparation by derivatisation is needed in comparison to HP-LC, which makes GC-MS unattractive for commercial routine analysis. Recent developments have improved these processes by using nitrogen or hydrogen as the carrier gas, together with higher gas flow, shorter and narrower columns, and shorter oven temperature increases (Nahar et al. 2020). FID has been used to quantify cannabinoids and terpenoids rapidly (Ibrahim et al. 2018; Nahar et al. 2020) but lacks in the ability to detect novel compounds and quantify coeluting compounds. Coupling GC to MS, whilst requiring higher operator skill and expense, provides the ability to detect untargeted molecules, which is a great advantage for metabolomics studies and to correlate primary metabolites and cannabinoids (Capriotti et al. 2021; Rashid et al. 2021), as shown in the present study. Utilisation of MS through metabolomics analysis can drive breeding programs (Bueno and Lopes 2020), which are presently highly sought in the Cannabis industry (Cosentino et al. 2012; Hall et al. 2012; Naim-Feil et al. 2021). In the present study, high flow helium and a fast oven ramping temperatures allowed our instrument run time to be under 15 min. Derivatisation is required to analyse THCA and CBDA by GCMS (Fodor and Molnár-Perl 2017) as cannabinoids in acidic form (i.e. THCA and CBDA) will experience decarboxylation at high temperatures. The efficacy of the derivatisation agents MSTFA-TMS and BSTFA-TMS were assessed during the method development of this study (data not shown), and we found less artefact and enhanced peak shape using MSTFA-TMS.
Most cannabinoids are present only in low quantities, their pharmacological effects have not been studied yet, and many potential compounds remain untargeted (Capriotti et al. 2021; Carvalho et al. 2017). For example, novel and important cannabinoids with psychoactive properties, such as Δ9-Tetrahydrocannabiphorol, were recently discovered through high resolution MS (Citti et al. 2019). Currently, for commercially available standards, only 11 cannabinoids of interest are synthesised for routine analysis (Carvalho et al. 2017), which makes it more difficult to identify low abundance cannabinoids. The method developed in the present study showed that the direct extraction from trichomes allowed the detection of a range of low abundance and untargeted cannabinoids, which could potentially have therapeutic properties. Further research is needed to determine the therapeutical implications of cannabinoids other than THC and CBD and this method highlights the abundance of a much greater range of commonly present cannabinoids in hemp. By using this method and semi-quantitative analysis, it would be possible to use principal component analysis studies tied with clinical trials to elucidate cannabinoids that can have medical significance other than the commonly studied THC and CBD.
Conclusions
The preliminary step of separating trichomes from plant material led to a greater amount of cannabinoids being detected than from raw plant material. The amount of plant material required and reagent required was greatly reduced from previous studies. Despite method development, two peaks coeluted, and the power of the mass spectrometer was required for their quantification. Further method development could involve oven ramping modifications or the use of a wax-based column to obtain separation of all standards. This would allow a transition to the use of an alternate and cheaper detection tool, such as FID. All compounds detected in this study had a unique retention time and quantifier and qualifier ion combination that could be used for identification and quantification. The future of C. sativa as a medicinal source of cannabinoids will involve the detection of individual low abundance cannabinoids and clinical trials using combinations of these cannabinoids. Future research will involve elucidating complete metabolic profile and synthesis steps towards the formation of secondary plant metabolites, such as cannabinoids.
Limitations
In Australia, the current legislation includes any substance with trace of THC under a ‘Schedule 8: Controlled Drug’ and the use, transformation and handling is under a permit and strictly regulated by law. Acquiring, storing and handling a cannabinoids standard is included in the abovementioned schedule which made fairly difficult acquiring and processing the results from this study. For this reason, we were be not able to acquire extra cannabinoid standard and research further on the cannabinoids present on our samples, even for research purpose.
Acknowledgements
The authors thank Phosphate Resource Limited (PRL) and the ARC Linkage LP140100690 for the project funding; Ecofibre Ltd. for providing tropical/subtropical hemp (Cannabis sativa L.) varieties, background information, and technical support; Emeritus Professor Jen McComb (Murdoch University) for final editing and suggestions.
Abbreviations
- BSTFA
- N,O-bis(trimethylsilyl)trifluoroacetamide
- CB1
- Endocannabinoid system 1
- CB2
- Endocannabinoid system 2
- CBC
- Cannabichromene
- CBD
- Cannabidiol
- CBDA
- Cannabidiolic acid
- CBDV
- Cannabidivarin
- CBG
- Cannabigerol
- CBGA
- Cannabigerolic acid
- CBN
- Cannabinol
- EI
- Electron ionisation
- FID
- Flame ionisation detector
- GC
- Gas chromatography
- HPLC
- High-performance liquid chromatography
- MS
- Mass spectrometry
- MSD
- Mass selective detector
- MSTFA
- N-methyl-N-(trimethylsilyl)trifluoroacetamide
- THCA
- Delta-9-tetrahydrocannabinolic acid
- THCV
- Delta-9-tetrahydrocannabivarin
- THCVA
- Tetrahydrocannabivarin acid
- TMCS
- Chlorotrimethylsilane
- TRPV1
- Transient receptor potential cation channel subfamily V member 1
- UV
- Ultraviolet detector
- Δ8-THC
- Delta-8-tetrahydrocannabinol
- Δ9-THC or THC
- Delta-9-tetrahydrocannabinol
- Δ9-THCP
- Delta-9-tetrahydrocannabiphorol
Funding
ARC Linkage LP140100690 for project funding.
Availability of data and materials
The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.
Declarations
Ethics approval and consent to participate
Not applicable.
Consent for publication
The authors consent for publication.
Competing interests
The authors declare that they have no conflict of interest.
Footnotes
Footnote Group
References
Untitled section
References
- Aizpurua-Olaizola O, Soydaner U, Ozturk E, Schibano D. Evolution of the cannabinoid and terpene content during the growth of Cannabis sativa plants from different chemotypes. J Nat Prod. 2016;79:324–331. doi: 10.1021/acs.jnatprod.5b00949.
- Allsop DJ, Hall WD. International aspects of Cannabis use and misuse: the Australian perspective. In: Preedy VR, editor. Handbook of cannabis and related pathologies. San Diego: Academic; 2017. pp. 101–109.
- Andre CM, Hausman JF, Guerriero G. Cannabis sativa: The plant of the thousand and one molecules. Front Plant Sci. 2016;7:1–17. doi: 10.3389/fpls.2016.00019.
- Bócsa I, Máthé P, Hangyel L. Effect of nitrogen on tetrahydrocannabinol (THC) content in hemp (Cannabis sativa L.) leaves at different positions. J Int Hemp Assoc. 1997;4:78–79.
- Booth JK, Page JE, Bohlmann J. Terpene synthases from Cannabis sativa. PLoS One. 2017;12:17–20. doi: 10.1371/journal.pone.0173911.
- Brglez Mojzer E, Knez Hrnčič M, Škerget M, Knez Ž, Bren U. Polyphenols: extraction methods, antioxidative action, bioavailability and anticarcinogenic effects. Molecules. 2016;21:901. doi: 10.3390/molecules21070901.
- Brighenti V, Pellati F, Steinbach M, Maran D, Benvenuti S. Development of a new extraction technique and HPLC method for the analysis of non-psychoactive cannabinoids in fibre-type Cannabis sativa L. (hemp) J Pharm Biomed Anal. 2017;143:228–236. doi: 10.1016/j.jpba.2017.05.049.
- Bueno PCP, Lopes NP. Metabolomics to characterize adaptive and signaling responses in legume crops under abiotic stresses. ACS Omega. 2020;5:1752–1763. doi: 10.1021/acsomega.9b03668.
- Byrska B, Zuba D. Application of fast gas chromatography to routine analysis of narcotic drugs and psychotropic substances. Prob Forensic Sci. 2009;79:303.
- Calzolari D, Magagnini G, Lucini L, Grassi G, Appendino GB, Amaducci S. High added-value compounds from Cannabis threshing residues. Ind Crop Prod. 2017;108:558–563. doi: 10.1016/j.indcrop.2017.06.063.
- Capriotti AL, Cannazza G, Catani M, Cavaliere C, Cavazzini A, Cerrato A, Citti C, Felletti S, Montone CM, Piovesana S, Laganà A. Recent applications of mass spectrometry for the characterization of cannabis and hemp phytocannabinoids: from targeted to untargeted analysis. J Chromatogr A. 2021;1655:462492. doi: 10.1016/j.chroma.2021.462492.
- Cardenia V, Gallina Toschi T, Scappini S, Rubino RC, Rodriguez-Estrada MT. Development and validation of a Fast gas chromatography/mass spectrometry method for the determination of cannabinoids in Cannabis sativa L. J Food Drug Anal. 2018;26:1283–1292. doi: 10.1016/j.jfda.2018.06.001.
- Carvalho Â, Hansen EH, Kayser O, Carlsen S, Stehle F. Designing microorganisms for heterologous biosynthesis of cannabinoids. FEMS Yeast Res. 2017;17:1–9. doi: 10.1093/femsyr/fox037.
- Casiraghi A, Roda G, Casagni E, Cristina C, Musazzi UM, Franzè S, Rocco P, Giuliani C, Fico G, Minghetti P. Extraction method and analysis of cannabinoids in cannabis olive oil preparations. Planta Med. 2018;84:242–249. doi: 10.1055/s-0043-123074.
- Citti C, Braghiroli D, Vandelli MA, Cannazza G. Pharmaceutical and biomedical analysis of cannabinoids: a critical review. J Pharm Biomed Anal. 2018;147:565–579. doi: 10.1016/j.jpba.2017.06.003.
- Citti C, Linciano P, Russo F, Luongo L, Iannotta M, Maione S, Laganà A, Capriotti AL, Forni F, Vandelli MA. A novel phytocannabinoid isolated from Cannabis sativa L. with an in vivo cannabimimetic activity higher than Δ9-tetrahydrocannabinol: Δ9-Tetrahydrocannabiphorol. Sci Rep. 2019;9:1–13. doi: 10.1038/s41598-019-56785-1.
- Coffman CB, Gentner WA. Cannabinoid profile and elemental uptake of Cannabis sativa L. as influenced by soil characteristics. Agron J. 1975;67:491–497. doi: 10.2134/agronj1975.00021962006700040010x.
- Cosentino SL, Testa G, Scordia D, Copani V. Sowing time and prediction of flowering of different hemp (Cannabis sativa L.) genotypes in Southern Europe. Ind Crop Prod. 2012;37:20–33. doi: 10.1016/j.indcrop.2011.11.017.
- Cox C. The Canadian Cannabis Act legalizes and regulates recreational cannabis use in 2018. Health Policy. 2018;122:205–209. doi: 10.1016/j.healthpol.2018.01.009.
- De Prato L, Ansari O, Hardy GESJ, Howieson J, O'Hara G, Ruthrof KX. The cannabinoid profile and growth of hemp (Cannabis sativa L.) is influenced by tropical daylengths and temperatures, genotype and nitrogen nutrition. Ind Crop Prod. 2022a;178:114605. 10.1016/j.indcrop.2022.114605.
- De Prato L, Ansari O, Hardy GESJ, Howieson J, O’Hara G, Ruthrof KX. Morpho-physiology and cannabinoid concentrations of hemp (Cannabis sativa L.) are affected by potassium fertilisers and microbes under tropical conditions. Ind Crop Prod. 2022b;182:114907. 10.1016/j.indcrop.2022.114907.
- Department of Primary Industries and Regional Development . Industrial Hemp Act 2004. 2020.
- Elkins AC, Deseo MA, Rochfort S, Ezernieks V, Spangenberg G. Development of a validated method for the qualitative and quantitative analysis of cannabinoids in plant biomass and medicinal cannabis resin extracts obtained by super-critical fluid extraction. J Chromatogr B. 2019;1109:76–83. doi: 10.1016/j.jchromb.2019.01.027.
- Feyerherm F, Macherone A. Detection of cannabinoids in oral fluid with the Agilent 7010 GC-MS/MS system. Wilmington: Agilent Technologies, Inc.; 2015.
- Fodor B, Molnár-Perl I. The role of derivatization techniques in the analysis of plant cannabinoids by gas chromatography mass spectrometry. Trends Anal Chem. 2017;95:149–158. doi: 10.1016/j.trac.2017.07.022.
- Guiney C. Cannabis legislation in Europe: an overview. In: Drugnet Ireland. Health Research Board; 2017. p. 10–1 https://www.drugsandalcohol.ie/27738/.
- Hall J, Bhattarai SP, Midmore DJ. Review of flowering control in industrial hemp. J Nat Fibers. 2012. 10.1080/15440478.2012.651848.
- Hanus L, Dostálová M. The effect of soil fertilization on the formation and the amount of cannabinoid substances in Cannabis sativa L. in the course of one vegetation period. Acta Univ Palacki Olomuc Fac Med. 1994;138:11–15.
- Hanus LO, Meyer SM, Munoz E, Taglialatela-Scafati O, Appendino G. Phytocannabinoids: a unified critical inventory. Nat Prod Rep. 2016;33:1357–1392. doi: 10.1039/C6NP00074F.
- Ibrahim EA, Gul W, Gul SW, Stamper BJ, Hadad GM, Salam RAA, Ibrahim AK, Ahmed SA, Chandra S, Lata H. Determination of acid and neutral cannabinoids in extracts of different strains of Cannabis sativa using GC-FID. Planta Med. 2018;84:250–259. doi: 10.1055/s-0043-124088.
- Ibrahim EA, Wang M, Radwan MM, Wanas AS, Majumdar CG, Avula B, Wang YH, Khan IA, Chandra S, Lata H, Hadad GM, Abdel Salam RA, Ibrahim AK, Ahmed SA, ElSohly MA. Analysis of terpenes in Cannabis sativa L. using GC/MS: method development, validation, and application. Planta Med. 2019;85:431–438. doi: 10.1055/a-0828-8387.
- Khajuria M, Rahul VP, Vyas D. Photochemical efficiency is negatively correlated with the Δ9- tetrahydrocannabinol content in Cannabis sativa L. Plant Physiol Biochem. 2020;151:589–600. doi: 10.1016/j.plaphy.2020.04.003.
- Kumar IV, Acuna T, Lisson S, Hardie M. 19th Australian Society of Agronomy Conference. 2019. Growth and development of industrial hemp (Cannabis sativa L.) in response to irrigation treatments; pp. 1–4.
- Leghissa A, Hildenbrand ZL, Foss FW, Schug KA. Determination of cannabinoids from a surrogate hops matrix using multiple reaction monitoring gas chromatography with triple quadrupole mass spectrometry. J Sep Sci. 2018;41:459–468. doi: 10.1002/jssc.201700946.
- Leghissa A, Hildenbrand ZL, Schug KA. A review of methods for the chemical characterization of cannabis natural products. J Sep Sci. 2018;41:398–415. doi: 10.1002/jssc.201701003.
- Mead A. The legal status of cannabis (marijuana) and cannabidiol (CBD) under U.S. law. Epilepsy Behav. 2017;70:288–291. doi: 10.1016/j.yebeh.2016.11.021.
- Mechoulam R, Gaoni Y. A total synthesis of dl-Δ1-tetrahydrocannabinol, the active constituent of hashish. J Am Chem Soc. 1965;87:3273–3275. doi: 10.1021/ja01092a065.
- Mudge EM, Murch SJ, Brown PN. Leaner and greener analysis of cannabinoids. Anal Bioanal Chem. 2017;409:3153–3163. doi: 10.1007/s00216-017-0256-3.
- Nahar L, Guo M, Sarker SD. Gas chromatographic analysis of naturally occurring cannabinoids: a review of literature published during the past decade. Phytochem Anal. 2020;31:135–146. doi: 10.1002/pca.2886.
- Naim-Feil E, Pembleton LW, Spooner LE, Malthouse AL, Miner A, Quinn M, Polotnianka RM, Baillie RC, Spangenberg GC, Cogan NO. The characterization of key physiological traits of medicinal cannabis (Cannabis sativa L.) as a tool for precision breeding. BMC Plant Biol. 2021;21:1–15. doi: 10.1186/s12870-021-03079-2.
- Pacifico D, Miselli F, Carboni A, Moschella A, Mandolino G. Time course of cannabinoid accumulation and chemotype development during the growth of Cannabis sativa L. Euphytica. 2008;160:231–240. doi: 10.1007/s10681-007-9543-y.
- Pacifico D, Miselli F, Micheler M, Carboni A, Ranalli P, Mandolino G. Genetics and marker-assisted selection of the chemotype in Cannabis sativa L. Mol Breed. 2006;17:257–268. doi: 10.1007/s11032-005-5681-x.
- Pellati F, Brighenti V, Sperlea J, Marchetti L, Bertelli D, Benvenuti S. New methods for the comprehensive analysis of bioactive compounds in Cannabis sativa L. (hemp) Molecules. 2018;23:2639. doi: 10.3390/molecules23102639.
- Rashid A, Ali V, Khajuria M, Faiz S, Gairola S, Vyas D. GC–MS based metabolomic approach to understand nutraceutical potential of Cannabis seeds from two different environments. Food Chem. 2021;339:128076. doi: 10.1016/j.foodchem.2020.128076.
- Richins RD, Rodriguez-Uribe L, Lowe K, Ferral R, O’Connell MA. Accumulation of bioactive metabolites in cultivated medical Cannabis. PLoS One. 2018;13:1–20. doi: 10.1371/journal.pone.0201119.
- Russo EB. The case for the entourage effect and conventional breeding of clinical cannabis: no “strain,” no gain. Front Plant Sci. 2018;9:1969. doi: 10.3389/fpls.2018.01969.
- Shen VK, Siderius DW, Krekelberg WP, Hatch HW. NIST standard reference simulation website - SRD 173. 2020. https://www.nist.gov/programs-projects/nist-standard-reference-simulation-website.
- Sikora V, Berenji J, Latković D. Influence of agroclimatic conditions on content of main cannabinoids in industrial hemp (Cannabis sativa L.) Genetika. 2011;43:449–456. doi: 10.2298/GENSR1103449S.
- Small E, Beckstead HD. Cannabinoid phenotypes in Cannabis sativa L. Nature. 1973;245:147–148. doi: 10.1038/245147a0.
- Small E, Naraine SGU. Size matters: evolution of large drug-secreting resin glands in elite pharmaceutical strains of Cannabis sativa (marijuana) Genet Resour Crop Evol. 2016;63:349–359. doi: 10.1007/s10722-015-0254-2.
- Small E, Marcus D. Tetrahydrocannabinol levels in hemp (Cannabis sativa L.) germplasm resources. Econ Bot. 2003;57:545–558. doi: 10.1663/0013-0001(2003)057[0545:TLIHCS]2.0.CO;2.
- Small E, Pocock T, Cavers PB. The biology of Canadian weeds. 119. Cannabis sativa L. Can J Plant Sci. 2003;83:217–237. doi: 10.4141/P02-021.
- Turner JC, Hemphill JK, Mahlberg PG. Trichomes and cannabinoid content of developing leaves and bracts of Cannabis sativa L. (Cannabaceae) Am J Bot. 1980;67:1397–1406. doi: 10.1002/j.1537-2197.1980.tb07774.x.
Associated Data
Data Availability Statement
The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.
