Tumors carrying BRAF-mutations over-express NAMPT that is genetically amplified and possesses oncogenic properties
Laboratory of Functional Genomics, Department of Medical Sciences, University of Turin, Via Nizza, 52, 10126 Torino, Italy
Koch Institute for Integrative Cancer Research, Massachusetts Institute of Technology, Cambridge, MA USA
Broad Institute of Harvard and MIT, Cambridge, MA USA
Department of Health Sciences, University of Florence, Florence, Italy
Department of Pathology and Laboratory Medicine, Maria Sklodowska-Curie National Research Institute of Oncology, Warsaw, Poland
Diagnostic Hematology Department, Institute of Hematology and Transfusion Medicine, Warsaw, Poland
Present Address: Department of Molecular Biotechnology and Health Sciences, University of Torino, Torino, Italy
Abstract
Background
Nicotinamide phosphoribosyltransferase (NAMPT), the rate-limiting enzyme in nicotinamide adenine dinucleotide (NAD) biosynthesis, is up-regulated in several cancers, including metastatic melanoma (MM). The BRAF oncogene is mutated in different cancer types, among which MM and thyroid carcinoma (THCA) are prominent. Drugs targeting mutant BRAF are effective, especially in MM patients, even though resistance rapidly develops. Previous data have linked NAMPT over-expression to the acquisition of BRAF resistance, paving the way for therapeutic strategies targeting the two pathways.
Methods
Exploiting the TCGA database and a collection of MM and THCA tissue microarrays we studied the association between BRAF mutations and NAMPT expression. BRAF wild-type (wt) cell lines were genetically engineered to over-express the BRAF V600E construct to demonstrate a direct relationship between over-activation of the BRAF pathway and NAMPT expression. Responses of different cell line models to NAMPT (i)nhibitors were studied using dose–response proliferation assays. Analysis of NAMPT copy number variation was performed in the TCGA dataset. Lastly, growth and colony forming assays were used to study the tumorigenic functions of NAMPT itself.
Results
The first finding of this work is that tumor samples carrying BRAF-mutations over-express NAMPT, as demonstrated by analyzing the TCGA dataset, and MM and THC tissue microarrays. Importantly, BRAF wt MM and THCA cell lines modified to over-express the BRAF V600E construct up-regulated NAMPT, confirming a transcriptional regulation of NAMPT following BRAF oncogenic signaling activation. Treatment of BRAF-mutated cell lines with two different NAMPTi was followed by significant reduction of tumor growth, indicating NAMPT addiction in these cells. Lastly, we found that several tumors over-expressing the enzyme, display NAMPT gene amplification. Over-expression of NAMPT in BRAF wt MM cell line and in fibroblasts resulted in increased growth capacity, arguing in favor of oncogenic properties of NAMPT.
Conclusions
Overall, the association between BRAF mutations and NAMPT expression identifies a subset of tumors more sensitive to NAMPT inhibition opening the way for novel combination therapies including NAMPTi with BRAFi/MEKi, to postpone and/or overcome drug resistance. Lastly, the over-expression of NAMPT in several tumors could be a key and broad event in tumorigenesis, substantiated by the finding of NAMPT gene amplification.
Supplementary Information
The online version contains supplementary material available at 10.1186/s12967-022-03315-9.
Untitled section
Keywords: NAMPT, Oncogene, Transformation, BRAF oncogenic signaling, MAPK, NAMPT inhibitors
Article notes
Untitled section
Received 2022 Jan 12; Accepted 2022 Feb 19; Collection date 2022.
Background
Nicotinamide phosphoribosyltransferase (NAMPT), the rate-limiting enzyme in nicotinamide adenine dinucleotide (NAD) biosynthesis, is over-expressed in a broad range of tumors [1–4]. Acting both at the intracellular and extracellular levels, NAMPT exerts a direct role on tumor cells increasing tumor aggressiveness and modifying interactions with the tumor microenvironment [2, 3, 5]. In general, NAMPT performs as a negative prognostic marker, with over-expression correlating with shorter time to treatment and inferior overall survival [2, 3]. Over-expression can be determined at mRNA and protein levels detected in patients by quantitative PCR and immunohistochemistry. In addition, NAMPT may also be quantified as an extracellular protein released in the circulation and detected using ELISA assay. Even though inhibiting NAMPT was proposed as a therapeutic strategy for cancer patients, NAMPT (i)nhibitors showed no objective tumor remission in early clinical trials. Beside the pharmacological limitations of old drugs and their potential toxicity, one of the main aspects leading to the failure of NAMPTi was attributed to the concomitant expression of other NAD-biosynthetic enzymes (NBEs) that could compensate for NAMPT inhibition, overcoming it [6, 7]. It is therefore becoming increasingly clear that it is necessary to carefully select tumors that are uniquely addicted to NAMPT activity to generate NAD and to potentially combine these inhibitors with other targeted therapies.
Using metastatic melanoma (MM) as disease model, we and others previously demonstrated that NAMPT is over-expressed during BRAFi resistance and patient relapse/progression, becoming a driver of targeted-therapy resistance [8–11]. Moreover, BRAFi-resistant MM cells are uniquely sensitive to NAMPTi in vitro, and in vivo [9], supporting a molecular connection between NAMPT and BRAF oncogenic pathways. The NAMPT promoter contains several binding sites for known transcription factors (TFs), among which cAMP response element-binding protein (CREB), signal transducer and activator of transcription (STATs), hypoxia inducible factor (HIF), nuclear factor-kB (NF-κB), ERK and MYC, all downstream of the RAS/BRAF pathway. However, the relationship between NAMPT over-expression in cancer and the activation of oncogenic pathways remains incompletely understood.
Activating mutations in BRAF have been described in MM (˜50%), thyroid (THCA, 30–50%), colorectal (CRC, 10%), non-small cell lung (NSCLC, 3%) cancers and in hairy cell leukemia (HCL, 100%) [12]. Initially described in 2002, BRAF mutations lead to constitutive activation of the kinase BRAF and, consequently, of the RAF-MEK-ERK signaling cascade, promoting cell proliferation and survival, while inhibiting apoptosis, ultimately driving cancer growth [13, 14]. As a result, several selective BRAFi are now being clinically used, also in combination with MEKi, with impressive results, particularly for patients with MM [15–17]. However, the clinical benefit of this treatment is inevitably limited by the onset of resistance [18, 19], underlining the need for additional therapeutic targets and combination therapies.
The aim of this work is to understand the connection between NAMPT expression and BRAF mutations and investigate the potential oncogenic activity of NAMPT itself. Here we demonstrate that mutations in the BRAF oncogene, as well as in other genes belonging to MAPK pathway, positively correlate with NAMPT expression. BRAF-mutated tumors become strictly dependent on this enzyme for NAD generation and are therefore more sensitive to NAMPTi. Based on these pre-clinical results, it may be possible to envisage using a combination of NAMPTi and BRAFi/MEKi in the treatment of patients with this type of tumors. In addition, we revealed oncogenic properties of NAMPT, independently of BRAF mutations, substantiated by the finding of gene amplification in human tumors and promotion of cell growth capacity upon NAMPT over-expression.
Materials and methods
Reagents
FK866 was from Selleckchem (Munich, DE), and GMX1778 was from Sigma (Milan, IT).
TCGA analysis
Genomic data shown in this paper are in whole or part based upon data generated by The Cancer Genome Atlas (TCGA) Research Network (http://cancergenome.nih.gov/). Details are included in Additional file 1: Methods.
Immunohistochemistry staining
Tissues samples
Formalin-fixed and paraffin-embedded (FFPE) MM representative samples (n = 165) were collected from patients diagnosed and treated in Maria Sklodowska-Curie National Research Institute of Oncology, Warsaw, Poland. All cases were molecularly characterized, as previously described [20]. FFPE THCA (thyroid papillary carcinoma) representative samples (n = 84) were collected from the section of Pathological Anatomy, Department of Health Sciences of the University of Florence. More detailed are included in Additional file 1: Methods.
High-density tissue microarrays (TMAs)
High-density TMAs were constructed from archival MM FFPE, including 3 representative 1.0 mm cores from each case using the automatic system (TMA Grand Master, 3DHistech*). In all TMAs positive and negative controls were enclosed (tonsil, testis, liver, appendix, and normal skin).
Immunohistochemistry
All MM samples and TMA were stained with the NAMPT antibody (mouse monoclonal, clone OMNI379, 20A-0034, 1:300, Adipogen, San Diego, CA), as described in Additional file 1: Methods. Tissues were digitally scanned at a 400× magnification (Aperio AT2 platform, Leica Biosystems, Wetzlar, DE) for the evaluation using a semi-quantitative NAMPT H-score analysis as described in Additional file 1: Methods.
Cell culture
BRAF V600E-mutated cell lines were M14 and A375 (MM) and 8305C and BHT-101 (THCA), while BRAF WT lines were MEL505 and Mewo (MM) and CAL-62 and ML-1 (THCA), all purchased from DSMZ (Braunschweig, DE) or ATCC (LGC Standards S.r.l. Italy distributor Sesto San Giovanni, Milan, IT), as for NIH-3T3. Cells were cultured as described in Additional file 1: Methods.
Transduction of BRAF WT cell lines with a BRAF V600E construct
The Tween-Myc-BRAF V600E-GFPtag lentivirus vector [21], kindly gift by Prof. Tiacci and Dr. Pettirossi (University and Hospital of Perugia, Perugia, IT), was used to induce over-expression of BRAF V600E in cells that naturally did not harbor BRAF V600E mutation. An empty Tween-GFPtag vector was used as control. GFP+ cells were flow sorted (FACSAriaIII, BD Biosciences) and expanded.
NAMPT over-expression
The previously obtained lentivirus vector for NAMPT-GFPtag [9] was used to over-express NAMPT in Mewo cell line (BRAF wt) and in NIH-3T3. An empty GFPtag vector was used as control. GFP+ cells were flow sorted using FACSAriaIII and expanded for further experiments.
RNA extraction and quantitative real‐time PCR (qRT‐PCR)
Western blot analysis
Confocal microscopy
Cells were cultured on glass cover slips in 24-well plates for 24 h. Staining with anti-NAMPT antibody (A300-779A, 1:200, Bethyl Laboratories, Montgomery, TX) was performed as described [9]. Slides were analyzed using a TCS SP5 laser scanning confocal microscope with an oil immersion 63× objective and acquired with LAS AF software (both from Leica Microsystems, Milan, IT). Images were processed with Photoshop (Adobe Systems, San Jose, CA). Pixel intensity was calculated using the ImageJ software (http://rsbweb.nih.gov/ij/).
Colony formation assay
Cells (500/well) were seeded into 6-well plates and cultured for 10–12 days in a complete medium. Cells were then fixed with 4% PFA [10 min, room temperature (RT)] and stained with crystal violet (20 min, RT, in the dark). The percentage of occupied colony areas was calculated with ImageJ/Fiji software.
Cell viability
Cell viability was evaluated after 72 h of treatment using an MTT assay kit (Thermo Fisher Scientific). Each sample was measured in triplicate and repeated at least three times.
Statistical analysis
Statistical comparisons were performed using Graph Pad Prism version 7.0 (Graph Pad Software Inc., La Jolla, CA) Statistical significance was determined by two-tailed Mann–Whitney U or unpaired/paired Student’s t test and one-way ANOVA test. Unless otherwise indicated, data in the Figures are presented as the mean ± SEM.
Statistical TCGA analyses were performed using R v3.5.1 (http://www.r-project.org) and Rstudio v1.1.463 (http://www.rstudio.com/). Correlation between gene mutation status and NAMPT expression has been calculated by both Kolmogorov–Smirnoff test for difference between the cumulative distributions and Mann–Whitney test for difference in the expression rank.
Correlations between NAMPT expression levels and other genes or NAMPT Copy Number Alteration (CNA) segment gain or loss (SGOL) scores have been calculated by means of Pearson correlation coefficient. Difference between mean NAMPT SGOL from 0 has been calculated by means of one sample t-test. The statistical analysis of the cumulative distribution function of CNA profile of primary and metastatic derived melanoma samples has been performed by means of a Kolmogorov–Smirnov test.
Array-CGH (aCGH) and SGOL scores
CNA SGOL scores at the single gene level were generated by means of cghMCR [22], DNAcopy [23] and CNTools [24] Bioconductor packages, starting from CGH array segmented data. CghMCR package allows the calculation of SGOL starting by segmented data, by means of a modified version of GISTIC algorithm. The segment function of DNAcopy package is used to segment the normalized data so that chromosome regions with the same copy number have the same segment mean values. Then, by means of CNTools, getRS function, the data returned by segment are organized in a matrix format. SGOL function of cghMCR is ultimately used to compute the SGOL scores for genes.
For all statistical tests, the 0.05 level of confidence was accepted for statistical significance. Significance was represented as: *p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001, ****p ≤ 0.0001.
Results

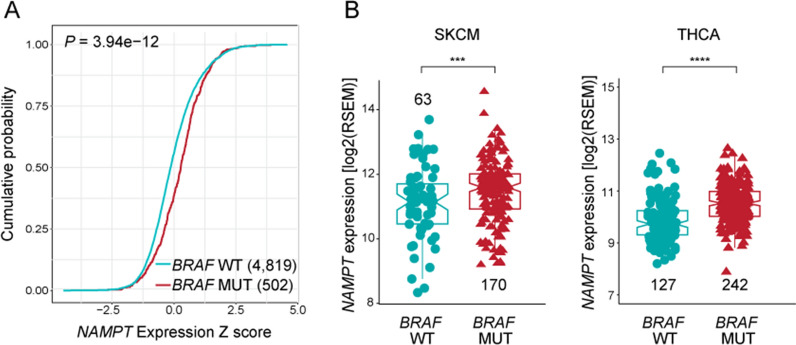

NAMPT expression levels are directly correlated to BRAF oncogenic mutations in patients
To highlight a possible association between NAMPT expression and BRAF mutations in human cancers, we analyzed the TCGA database showing that BRAF-mutated tumors (MUT, in red) display significantly higher levels of NAMPT, as reported by cumulative distribution function (P = 3.94 × 10–12, Fig. 1A). This observation was obtained globally considering all cancers, notwithstanding intrinsic tumor heterogeneity (Additional file 1: Fig. S1A). We then focused our analysis on melanoma [Skin Cutaneous Melanoma (SKCM) TCGA cohort] and THCA, as tumors with significant percentages of BRAF mutations (Additional file 1: Fig. S1B) [25, 26]. All annotated BRAF mutations were considered, with V600E being the most frequently represented (131/186, 70% for SKCM and 242/254, 95% in THCA). In the case of SKCM 20 cases (11%) were characterize by the V600K, a second activating mutation, while the remaining 35 cases (19%) presented with other BRAF mutations (Additional file 1: Fig. S1C). In some instances (12/254, 5% for THCA and 16/186, 9% for SKCM), the tumors displayed additional mutations in the RAS pathway (NRAS, NF1, and CKIT) and were discarded from the analyses presented in Fig. 1A. In both these tumor types, NAMPT expression was significantly higher in patients harboring BRAF mutations [SKCM: 170 BRAF-MUT vs. 63 BRAF-WT, P = 0.0006, and THCA: 242 BRAF-MUT vs. 127 BRAF-WT, P = 10–15 (Fig. 1B)].

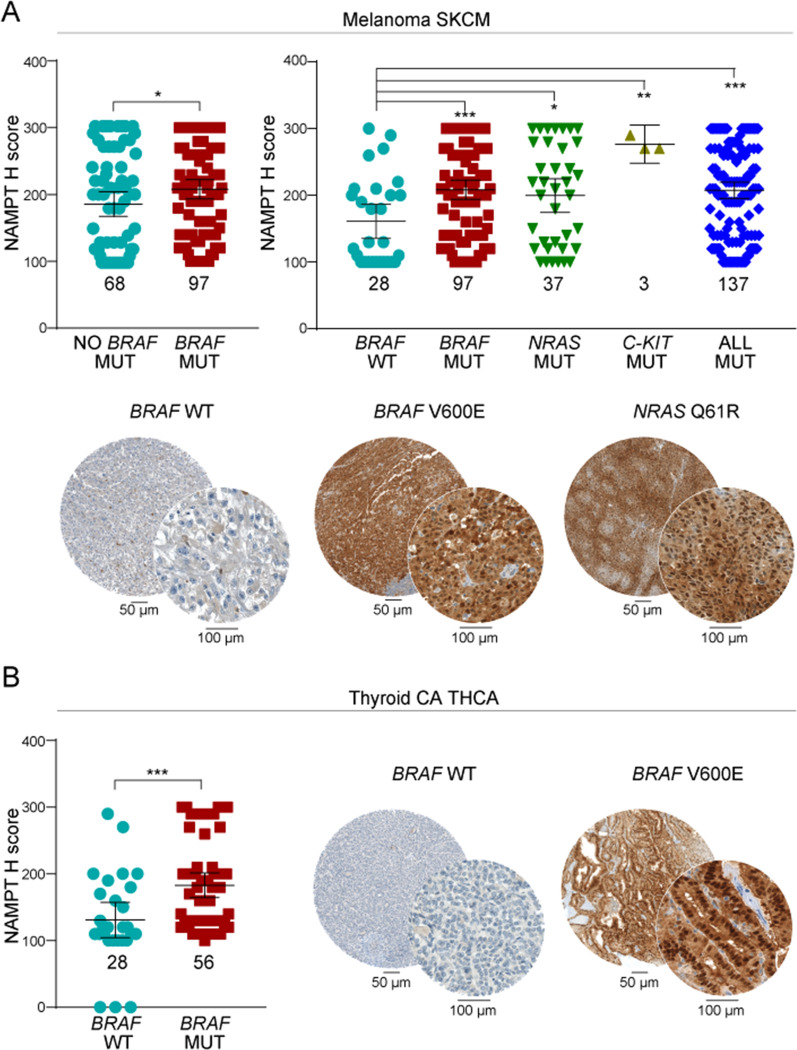

BRAF-mutated tumors over-express NAMPT at protein levels
The positive correlation between NAMPT expression and BRAF mutations in patients was then confirmed at protein level by comparing NAMPT staining in BRAF-WT and BRAF-mutated samples in MM tissue microarrays (TMA) and THCA whole slide sections.
In a MM cohort including 68 BRAF-WT and 97 BRAF-MUT tissue samples, a statistically significant increase of NAMPT staining, expressed as H score, was highlighted in BRAF-mutated cases (P < 0.05, Fig. 2A, left graph). Notably, when considering only the true WT cases (n = 28, i.e., excluding those with NRAS and c-KIT mutations), statistical significance markedly increased in all comparisons [28 WT cases vs. 97 BRAF-MUT (n = 97, P = 0.0008), or vs. NRAS-MUT (n = 37, P = 0.01), or vs. c-KIT-MUT (n = 3, P = 0.005), or vs. a combination of all mutations in BRAF, NRAS and c-KIT (n = 137, P = 0.0007)] (Fig. 2A, graph on the right). IHC analysis of NAMPT expression highlighted a strong reactivity for NAMPT in cases harboring these mutations (Fig. 2A, IHC representative images).
In THCA, only BRAF V600E mutation was analyzed, as it is the most commonly observed genetic abnormality in this tumor [27]. Consistent with MM samples, NAMPT staining was significantly increased in BRAF-MUT (n = 56) compared to BRAF-WT (n = 28) THCA cases (P = 0.0007, Fig. 2B).
Overall, these results demonstrate a positive and statistically significant correlation between BRAF mutational status and NAMPT mRNA and protein expression levels in patients’ tumors. In addition, mutations in other genes that insist on the MAPK/ERK pathway, such as NRAS and c-KIT, also lead to NAMPT over-expression.

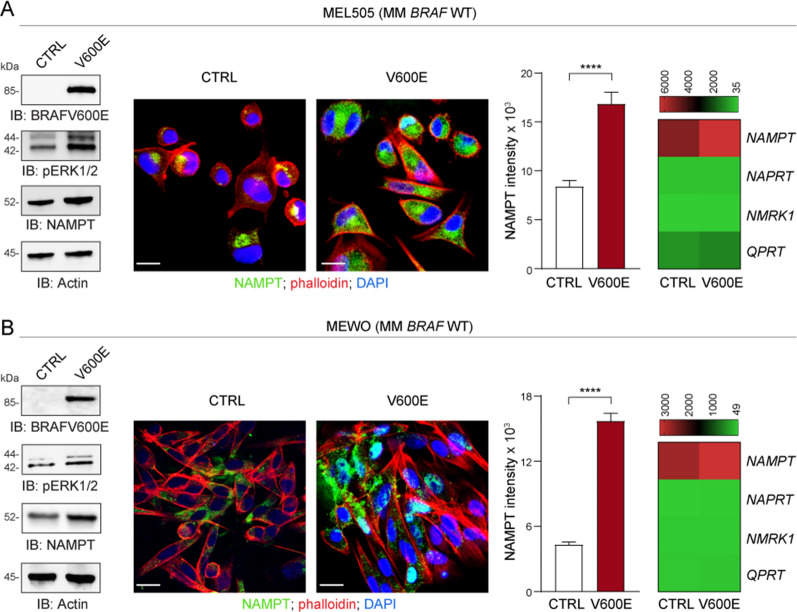

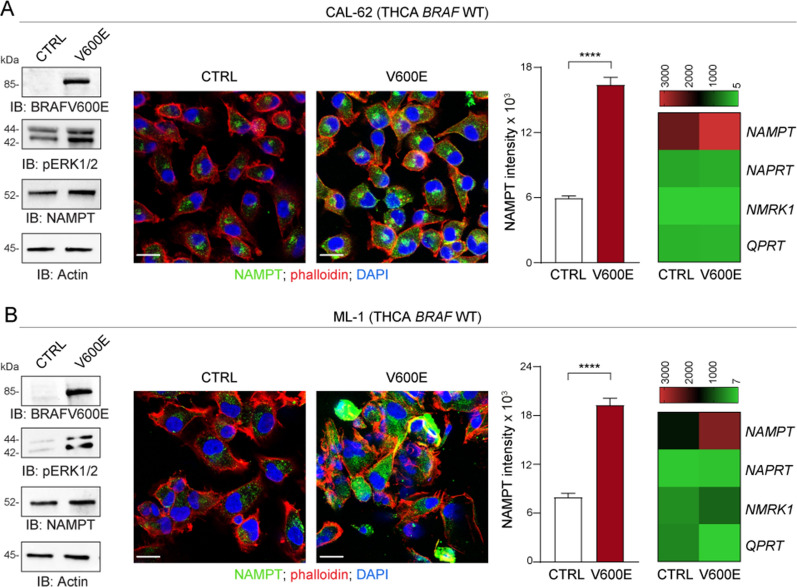

Activation of the BRAF oncogenic pathway leads to up-regulation of NAMPT expression in MM and THCA cell lines
To have a formal validation of the direct relationship between over-activation of the BRAF oncogenic pathway and NAMPT expression, two BRAF-WT MM cell lines (MEL505 and Mewo, Fig. 3A, B) and two BRAF-WT THCA cell lines (CAL-62 and ML-1, Fig. 4A, B) were infected with a lentivirus carrying the BRAF V600E construct, leading to the expected constitutive activation of the pathway, with increased baseline ERK phosphorylation (p-ERK) levels (Figs. 3 and 4). As demonstrated by RNA and protein analysis, NAMPT expression in these cells was significantly increased compared to control cells infected with an empty vector (Figs. 3 and 4). Up-modulation was specific for NAMPT, while the other three NBEs, i.e., NAPRT, NMRK1, and QPRT, were unaffected by infection with BRAF V600E (Figs. 3 and 4, heatmaps on the right). These findings indicate that the BRAF oncogenic pathway is directly responsible for NAMPT transcriptional and protein over-expression.

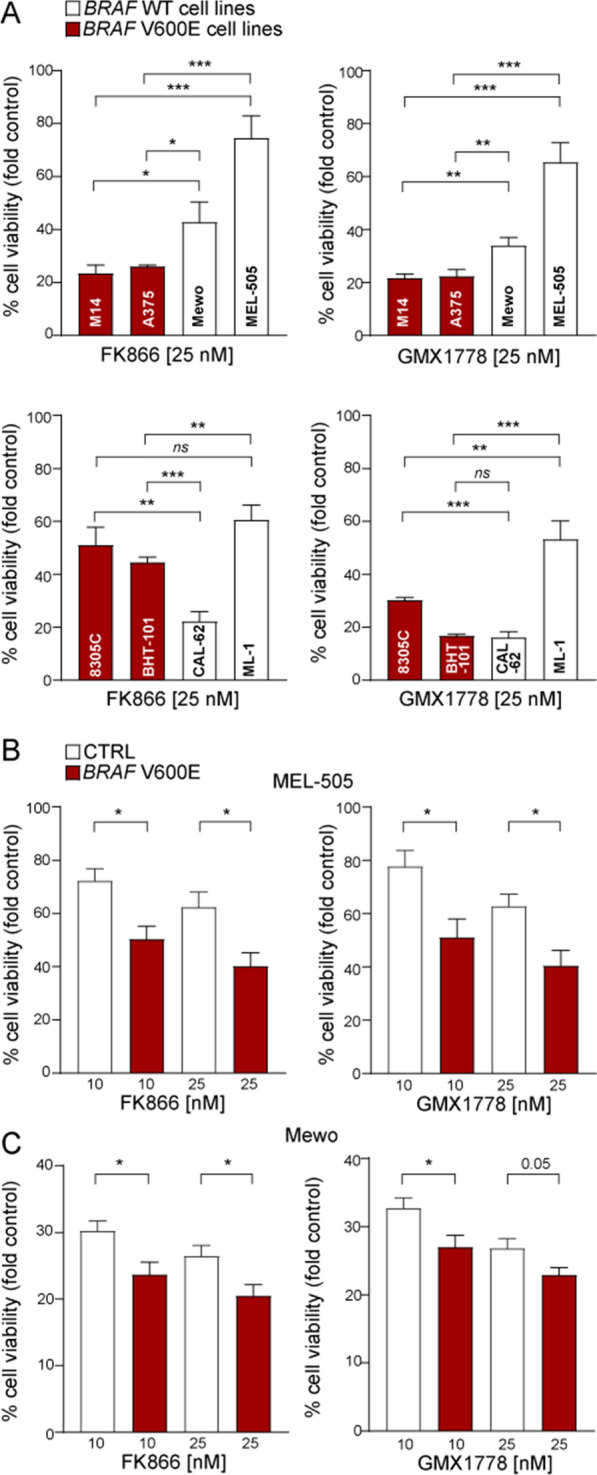

BRAF-mutated tumors are more sensitive to NAMPTi compared to the BRAF-WT ones
We then asked whether the direct impact of the BRAF oncogenic pathway on NAMPT expression could reflect a different sensitivity to NAMPTi between WT and BRAF-mutated cell lines. To understand if BRAF-mutated tumors rely on NAMPT activity and could therefore respond to NAMPTi, we compared the effects of two known NAMPTi (i.e., FK866 and GMX1778) in the BRAF-mutant vs BRAF-WT cell lines. Dose–response proliferation assays in BRAF-mutated MM cell lines (M14 in orange, A375 in red) and in BRAF-mutated THCA (BHT-101 in blue, 8305C in light blue), as shown in Additional file 1: Fig. S2A, demonstrated a significant response in term of reduction of cell viability in response to both NAMPTi (at doses < 10 nM) after 72 h in all BRAF-mutated cell lines compared to control cells. Selecting an intermediate dose of both NAMPTi (i.e., 25 nM), also previously employed in MM model [9], we obtained more sensitivity to NAMPTi in MM cell lines (M14, A375) carrying BRAF mutations than in the WT ones (MEL-505, Mewo, Fig. 5A, upper graphs). The same results were obtained in THCA cell lines (8305C, BHT-101 vs. ML-1). Unexpectedly CAL-62 cell line showed an high sensitivity to both NAMPTi (Fig. 5A, lower graphs), even if it is BRAF-WT. Analyzing differences in the mutational status of this THCA cell line compared to the other we noticed that CAL-62 cells carry an activating mutation in the KRAS (G12R, c.34G>C) oncogene, the third most common KRAS mutation in pancreatic ductal adenocarcinoma (PDAC) [28]. This kind of mutation belongs to the genetic alterations in epidermal growth factor receptor (EGFR) pathway, like BRAF and NRAS, suggesting that also different mutations in upstream genes that insist on the same oncogenic signaling pathway may influence responses to NAMPTi, making these cells highly sensitive to NAMPT targeting.
Consistently, using BRAF-WT MM cells infected with a lentivirus carrying the BRAF V600E construct, sensitivity to NAMPTi is markedly increased (red vs. white bars, Fig. 5B, C).
Overall, these data clearly demonstrate that BRAF-mutated tumors are highly sensitive to NAMPTi, highlighting a strong rationale to combine them with BRAFi/MEKi.

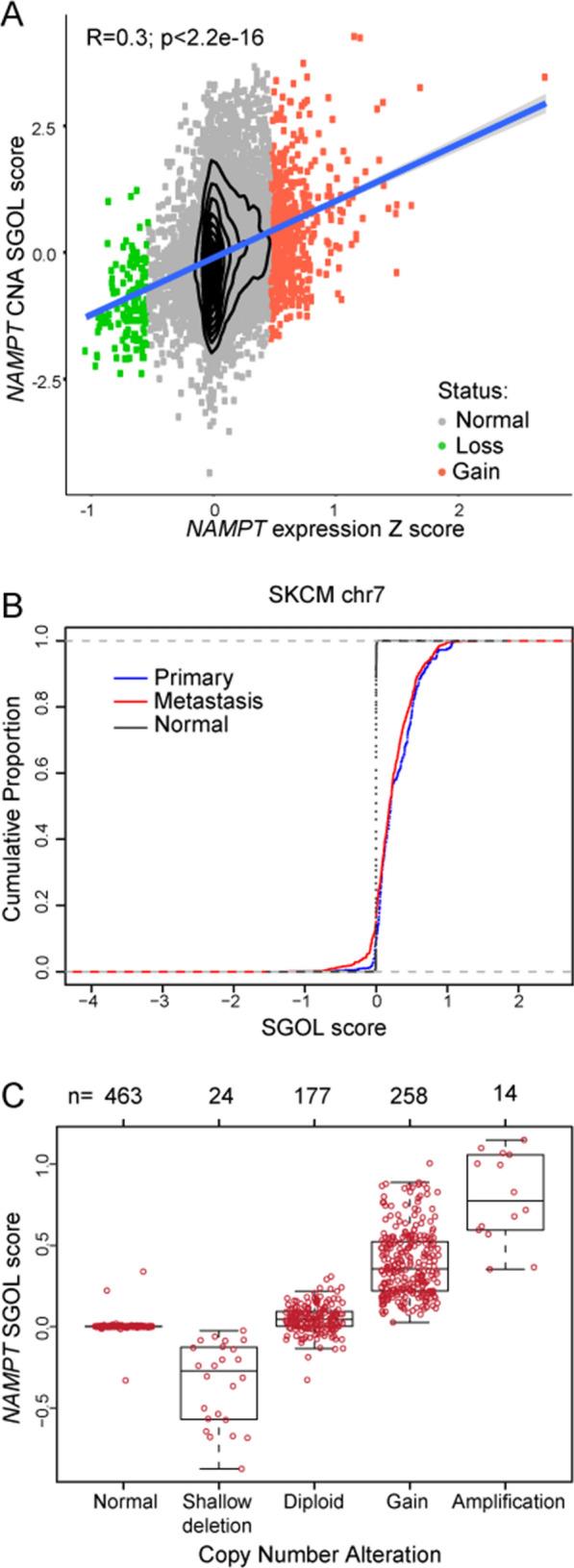

NAMPT is genetically amplified in cancers, including in patients with melanoma
NAMPT over-expression is a feature of several cancers, not only the BRAF-mutated ones. Moreover, the observation that NAMPT-regulated NAD metabolism impact many tumors’ cellular pathways is well established by several studies in these years [3, 5]. However, the role of NAMPT in tumorigenesis is not fully understood, prompting the question of whether NAMPT itself has oncogenic properties.
Gain-of-function mutations or genetic amplification convert proto-oncogenes into oncogenes. Therefore, we looked for NAMPT mutations and copy number alterations (CNA) interrogating the TCGA datasets. Very few mutations in NAMPT were found in all tumors, less than 1%, confirming previous results [29]. On the contrary, we revealed a significant NAMPT CNA at the 7q22 locus where NAMPT mapped in all tumor samples, assessed by array CGH and measured as Segments of Gain Or Loss (SGOL) score (Fig. 6A, P < 2.2e−16). NAMPT CNA positively correlates with its expression, across 33 different tumor types. Notably, the average NAMPT SGOL score across all tumor types in the TCGA cohort is always positive (Additional file 1: Fig. S3A), suggesting a general tendency toward amplification. NAMPT expression levels (Additional file 1: Fig. S3A, lower panels) parallel its CNA levels (Additional file 1: Fig. S3A, higher panel).
Focusing again on melanoma, we observed amplification of the whole chromosome 7 in melanoma samples, at variance with normal subjects (black line) showing no CNA in that chromosome, in line with previous results [30]. Interestingly, lower SGOL scores were more frequently observed in metastatic samples (red line), and higher scores were more frequently found in primary melanoma samples (blue line, P < 2.2e−16), as depicted in Fig. 6B, suggesting that amplification of chromosome 7 is an early event in melanoma development. Analyzing only NAMPT gene, it is evident that it is more frequently subjected to gain/amplification in melanoma compared to control-matched samples (Fig. 6C). No statistical differences were observed in the NAMPT SGOL score between primary and metastatic samples (data not shown). These observations are consistent with the possibility of a gain-of-function role for NAMPT in tumors, and specifically in melanoma.

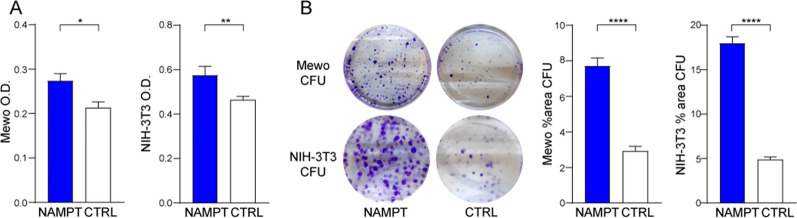

NAMPT over-expression in BRAF-WT melanoma cell line and in fibroblasts NIH-3T3 increases cell growth and the colony-formation capacity
To directly determine the pro-tumorigenic effect of NAMPT we over-expressed the enzyme in the melanoma Mewo cell line (BRAF-WT) and in NIH-3T3 (murine immortalized fibroblasts), very commonly exploited in this kind of experiments [31]. When testing the impact of NAMPT over-expression on their growth capacity, we observed that both Mewo and NIH-3T3 cells with NAMPT over-expression grew faster, as measured using the MTT assay (Fig. 7A). Loss of contact inhibition and high saturation density leading to uncontrolled proliferation are well-known features of transformed or malignant cells. In addition, by using colony-forming assays, we demonstrated that NAMPT over-expression leads to copious focus (colony-forming units, CFU) formation in Mewo and NIH-3T3 cells (Fig. 7B).
Together, these data suggest that NAMPT over-expression positively influences the capacity of melanoma cells to grow even independently from the mutations on the key oncogene BRAF. Additionally, our results on fibroblasts, paved the way to further studies to consolidate the notion to consider NAMPT a novel proto-oncogene in tumor.
Discussion
The combination of BRAFi and MEKi has shown clinical activity in MM [15–17, 32], but also in other cancers carrying BRAF mutations, such as THCA (specifically, the anaplastic subtype) and NSCLC [33]. On the contrary, BRAF-mutated CRC demonstrated a relative resistance to BRAFi, suggesting that responses may be tumor/histology dependent [33, 34]. The rationale to combine BRAFi and MEKi was to delay the MAPK-driven acquired resistance, resulting in significant improvement in response rates, progression-free survival and overall survival, and decreasing the toxicities due to paradoxical activation of the MAPK pathway, observed with BRAF inhibitor monotherapy in MM [33, 35]. However, relapse and resistance continue to occur in many patients [36], prompting investigation into alternative or complementary therapeutic strategies, such as the combination with immunotherapy [37, 38]. Driven by paradoxical reactivation of MEK/ERK pathway downstream of BRAF [39], resistance to targeted therapy was extensively studied in BRAF-mutated MM leading to cellular reprogramming at multiple levels, including metabolism and epigenome organization, promoting a dynamic deregulation of differentiation/mesenchymal/stemness transcriptional programs [18, 19, 40–42].
Recently, we and others demonstrated that NAMPT is one of the main players in driving BRAFi resistance and melanoma plasticity, mediating metabolic adaptation, reshuffling of the epigenetic landscape and forcing an invasive/mesenchymal/stemness phenotype [8, 9, 11]. Moreover, we reported that BRAFi-resistant tumors were completely sensitive to NAMPTi in xenograft model [9].
NAMPT gene expression is finely tuned at the transcriptional levels by MYC, HIF-1α, STAT3-5, and NF-KB, connecting BRAF mutational signature to increased NAMPT levels [9, 11, 29]. However, a direct association between NAMPT and BRAF mutations at mRNA and protein levels was never highlighted. By exploiting engineered cell lines expressing a BRAF V600E construct, the TCGA database, and high-density tissue microarrays of a large collection of MM and THCA samples we demonstrated a positive correlation between mutations in the BRAF oncogene and NAMPT over-expression in tumors. These observations imply that the MAP kinase pathway regulates NAMPT expression, opening to further studies on the functional role of this enzyme not only in MM, but also in other tumors relying on this pathway for growth and survival.
To date the only evidence connecting mutations in oncogenic genes and sensitivity to NAMPT inhibition concerns tumors carrying isocitrate dehydrogenase (IDH) mutations, which are profoundly sensitive to NAD depletion through NAMPT inhibition [43]. Our data indicate that also tumors harboring BRAF mutations are uniquely sensitive to NAMPT inhibition and could therefore benefit from the introduction of NAMPTi in clinical settings. The identification of a subset of tumors (BRAFmut/NAMPThigh) sensitive to NAMPT inhibition opens the way for a second life for NAMPTi, possibly to be used in combination with BRAFi/MEKi. We could envisage in the clinical practice to screen for BRAF mutations and for NAMPT expression by IHC, to identify the subset of patients with BRAF mutations and high NAMPT expression to be treated with a combination of NAMPTi in association with BRAFi/MEKi to postpone and/or overcome drug resistance.
The last piece of evidence of this paper supports a direct oncogenic role for NAMPT in tumors. Firstly, NAMPT gene was found amplified in several tumors with a direct correlation to its expression. In melanoma, we confirmed NAMPT amplification, as recently reported by Chowdhry et al. [29]. Furthermore, in agreement with these authors, we showed that MM is a type of tumor completely addicted to NAMPT, without significant amplification of NAPRT, as reported in other tumors [29]. Secondly, we found that the simple over-expression of NAMPT in BRAF wt MM cell line and in fibroblasts promotes an increased cell growth capacity. Overall, these findings, despite the need of further investigation, support the hypothesis that NAMPT amplification and over-expression may be a key event in tumorigenesis before or after the acquisition of driving mutations in other oncogenes and/or in tumor suppressor genes. For example, it is reasonable remind as in melanoma model, although mutated BRAF proteins possess elevated kinase activity and induce transformation in NIH-3T3 cells, oncogenic activation of BRAF V600E in melanocytes in vitro is insufficient for full malignant conversion due to activation of the protective mechanism of senescence [44]. This event could be bypassed during tumorigenesis in patients by concomitant mutations in BRAF oncogene and amplification/overexpression of NAMPT, as here shown.
Considered together, these data shed light on the molecular connection between BRAF mutations and expression of NAMPT, a key enzyme involved in NAD biosynthesis and metabolic reprogramming, revealing a novel function for it as proto-oncogene in tumors that merits further investigations.
Conclusions
Our findings demonstrate that NAMPT is over-expressed in BRAF-mutated tumors and functionally linked to the activation of the BRAF oncogenic pathway. This molecular relationship makes BRAF-mutated tumors particularly sensitive to NAMPT inhibition and strongly encourages future clinical investigation of NAMPTi plus BRAFi/MEKi in MM and in tumors rely on MAPK pathway activation. Lastly, our results support a novel finding to consider NAMPT itself a proto-oncogene in cancer driving cellular transformation.
Supplementary Information
Untitled section
Acknowledgements
Thanks are given to Prof. E. Tiacci (University of Perugia) for providing the BRAF V600E construct. Genomic data shown in this paper are in whole or part based upon data generated by The Cancer Genome Atlas (TCGA) Research Network (http://cancergenome.nih.gov/).
Abbreviations
- NAMPT
- Nicotinamide phosphoribosyltransferase
- MM
- Metastatiuc melanoma
- THCA
- Thyroid carcinoma
- TCGA
- The Cancer Genome Atlas
- NAD
- Nicotinamide adenine dinucleotide
- NBE
- NAD-biosynthetic enzymes
- TF
- Transcription factors
- CREB
- CAMP response element-binding protein
- STAT
- Signal transducer and activator of transcription
- HIF
- Hypoxia inducible factor
- NF-kB
- Nuclear factor-kB
- FFPE
- Formalin-fixed paraffin embedded
Funding
This study was supported by Italian Ministry of Education University and Research (MIUR), PRIN Project 2017CBNCYT, by Associazione Italiana Ricerca sul Cancro (AIRC), Investigator Grant—IG 2019 #23095, by ITN INTEGRATA program #813284 (to SD) and by Progetto strategico di Eccellenza Dipartimentale #D15D18000410001 (to the Dept. of Medical Sciences, University of Turin).
Availability of data and materials
All methods and materials used are described in the manuscript and data can be obtained from the corresponding authors upon reasonable request.
Declarations
Ethics approval and consent to participate
The use of Formalin-fixed and paraffin-embedded (FFPE) sections of human samples was approved by the Local Ethics Committee (16275_bio, University of Florence to Prof. Daniela Massi) according to the Helsinki Declaration.
Consent for publication
Not applicable.
Competing interests
The authors declare that they have no competing interests.
