Cannabis compounds exhibit anti-inflammatory activity in vitro in COVID-19-related inflammation in lung epithelial cells and pro-inflammatory activity in macrophages
grid.410498.00000 0001 0465 9329Institute of Plant Science, Agriculture Research Organization, Volcani Center, 7528809 Rishon LeZion, Israel
grid.22098.310000 0004 1937 0503The Mina & Everard Goodman Faculty of Life Sciences, Bar-Ilan University, 5290002 Ramat Gan, Israel
grid.410498.00000 0001 0465 9329Institute for Postharvest and Food Science, Agriculture Research Organization, Volcani Center, 7528809 Rishon LeZion, Israel
Abstract
Cannabis sativa is widely used for medical purposes and has anti-inflammatory activity. This study intended to examine the anti-inflammatory activity of cannabis on immune response markers associated with coronavirus disease 2019 (COVID-19) inflammation. An extract fraction from C. sativa Arbel strain (FCBD) substantially reduced (dose dependently) interleukin (IL)-6 and -8 levels in an alveolar epithelial (A549) cell line. FCBD contained cannabidiol (CBD), cannabigerol (CBG) and tetrahydrocannabivarin (THCV), and multiple terpenes. Treatments with FCBD and a FCBD formulation using phytocannabinoid standards (FCBD:std) reduced IL-6, IL-8, C–C Motif Chemokine Ligands (CCLs) 2 and 7, and angiotensin I converting enzyme 2 (ACE2) expression in the A549 cell line. Treatment with FCBD induced macrophage (differentiated KG1 cell line) polarization and phagocytosis in vitro, and increased CD36 and type II receptor for the Fc region of IgG (FcγRII) expression. FCBD treatment also substantially increased IL-6 and IL-8 expression in macrophages. FCBD:std, while maintaining anti-inflammatory activity in alveolar epithelial cells, led to reduced phagocytosis and pro-inflammatory IL secretion in macrophages in comparison to FCBD. The phytocannabinoid formulation may show superior activity versus the cannabis-derived fraction for reduction of lung inflammation, yet there is a need of caution proposing cannabis as treatment for COVID-19.
Introduction
Coronavirus disease 2019 (COVID-19) is an acute resolved disease following infection by SARS-CoV-2 with a mortality of ~ 3.7%. The leading cause of COVID-19 mortality is respiratory failure due to acute respiratory distress syndrome1. The disease progression of COVID-19 is often characterized by a two-phase immune response. A specific adaptive immune response is required during the first phase to eliminate the virus and to prevent disease progression to the more severe stage2. Therefore, development of strategies to increase the immune response during this first stage are critical.
The second phase is usually associated with a virally-induced cytokine storm syndrome1,2. The cytokine storm syndrome is characterized by elevated levels of several cytokines including interleukin (IL)-6 and IL-8, tumor necrosis factor alpha (TNFα) and C–C Motif Chemokine Ligand 2 (CCL2)3. Specific to the respiratory system, lung epithelial cells have been suggested to play a crucial role in the release of several pro-inflammatory cytokines including IL-6 and IL-84.
Cannabis sativa is widely used for medical purposes. Cannabis strains produce more than 500 compounds, including phytocannabinoids, terpenes and flavonoids5–7. Cannabinoids have been suggested to be immune modulators and to change the balance between pro- and anti-inflammatory cytokines8,9. Cannabinoids can also influence macrophage activity. For example, Δ9-tetrahydrocannabivarin (THCV) inhibits nitrite production and IL-1β protein levels in lipopolysaccharide activated macrophages10. Further, Δ9-tetrahydrocannabinol (THC) can inhibit macrophage phagocytosis by 90%11. Cannabidiol (CBD) is also suggested to have anti-inflammatory effects in various conditions12. For example, CBD increases intracellular calcium levels in rheumatoid arthritis synovial fibroblasts and reduces the production of IL-6 and IL-812. Because CBD shows anti-inflammatory activity, and is approved by the Food and Drug Administration (FDA) for the treatment of children with intractable epilepsy for seizure reduction, it has been suggested that CBD might alleviate COVID-19 related inflammation13. However, little is known regarding the effect of different cannabis compounds or their combinations on alveolar epithelial and immune cell inflammation.
Here, we identified cannabis compounds that exhibit anti-inflammatory activity in lung epithelial cells, yet substantially induce polarization, phagocytosis and IL expression in macrophages in vitro.
Results
Cannabis crude extract and fractions reduce the level of IL-8 and IL-6 in lung epithelial cell model
Inflorescence extracts of the high CBD C. sativa strain Arbel were used to examine cannabis activity in reducing TNFα induced inflammation in the lung epithelial cancer cell line A549.

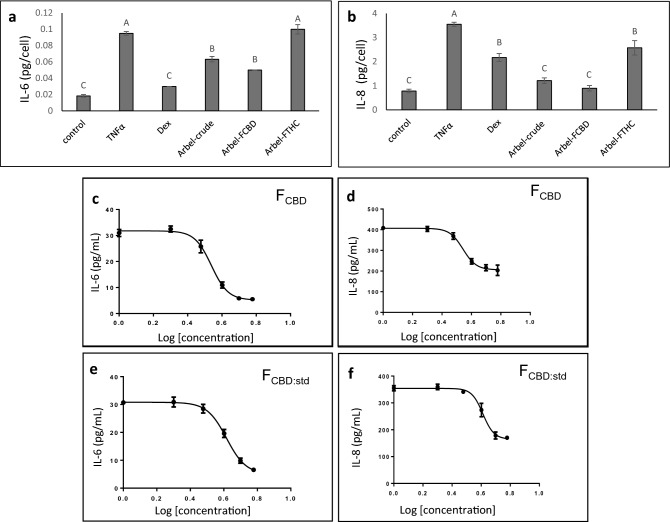

The crude extract led to a substantial reduction of IL-6 and IL-8 secretion levels at 5 µg/mL (Fig. 1a,b). Subsequently, high CBD (FCBD) and high THC (FTHC) fractions were examined for their anti-inflammatory activity (Fig. 1a, Supplementary Fig. S1). FTHC exhibited only low anti-inflammatory activity; however, FCBD showed considerable activity in the reduction of IL-6 and IL-8 secretion levels from lung epithelial cells, with an IC50 of 3.45 and 3.49 µg/mL respectively (Fig. 1c,d). FCBD reduced IL-8 levels more than dexamethasone at 4 µg/mL, and reduced IL-6 and IL-8 to levels similar to that of the crude extract (Fig. 1a,b). The crude extract and FTHC led to substantial cell death (61 and 42% viability, respectively), whereas FCBD at 5 µg/mL was comparatively less cytotoxic (76.7% viability; Supplementary Fig. S2).

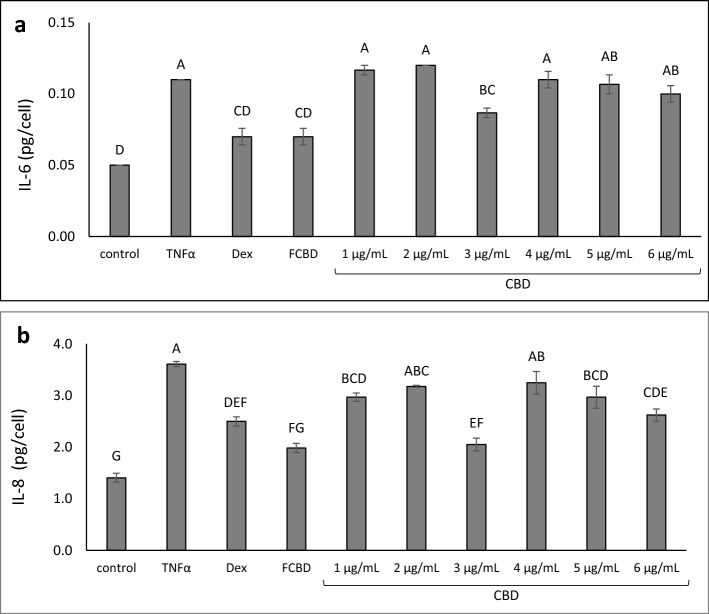

CBD (the main phytomolecule in FCBD) treatment alone exhibited an inverted bell shaped activity curve, i.e., 3.0 µg/mL reduced both IL-6 and IL-8 levels, similar to FCBD at 4.1 µg/mL (Fig. 2a,b). Higher or lower concentrations of CBD showed lower and/or nonsignificant reduction of IL-6 and IL-8 levels (Fig. 2a,b).
The combination of phytocannabinoid standards at the ratios found in fraction FCBD (FCBD:std) showed similar activity to FCBD in the lung epithelial cell model
Based on high-performance liquid chromatography (HPLC) and gas chromatography–mass spectrometry analysis, FCBD contains approximately 66% phytocannabinoids by total content. The phytocannabinoid assemblage included CBD (93.5%), CBG (6.1%) and a minute amount of THCV (0.4%) (Table 1; Supplementary Fig. S1). Additionally, multiple terpenes were detected in FCBD (Table 1; Supplementary Fig. S3). A combination of phytocannabinoid standards at the ratios found in fraction FCBD (FCBD:std) resulted in activity similar to that of the cannabis-derived fraction (IC50 of 4.1 μg/mL for IL-6 and IL-8; Fig. 1e,f).Phytocannabinoids % of phytocannabinoids % of total CBD 93.5 61.7 CBG 6.1 4.0 THCV 0.4 0.3
CB2 inverse agonist attenuated FCBD and FCBD:std activity in lung epithelial cell model

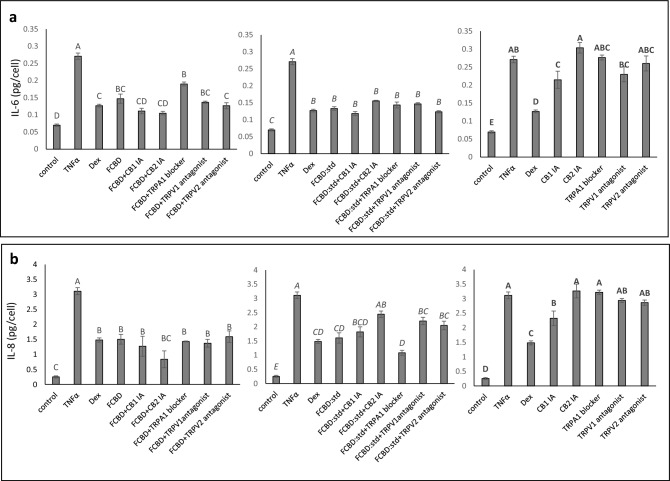

Treatment with CB1 or CB2 inverse agonists (IA), TRPA1 blocker, TRPV1 or TRPV2 receptor antagonists did not affect FCBD or FCBD:std activity on IL-6 secretion (Fig. 3a). Using CB2 IA and TRPV1and TRPV2 antagonists to a lesser extent, with FCBD:std treatments increased IL-8 secretion in A549 cells in comparison to FCBD:std alone (Fig. 3b). CB1 and CB2 IA, TRPA1 blocker or TRPV1 or TRPV2 receptor antagonists did not affect FCBD activity on IL-8 secretion (Fig. 3b). Treatment with CB2 IA, TRPA1 blocker or TRPV1 or TRPV2 receptor antagonists did not affect IL-6 or IL-8 levels, except for CB1 IA that led to reduction in IL-8 and IL-6 levels (Fig. 3; Supplementary Fig. S4).
FCBD treatment lead to reduction in CCL2, CCL7, ACE2 and IL-7 gene expression in lung epithelial cell model

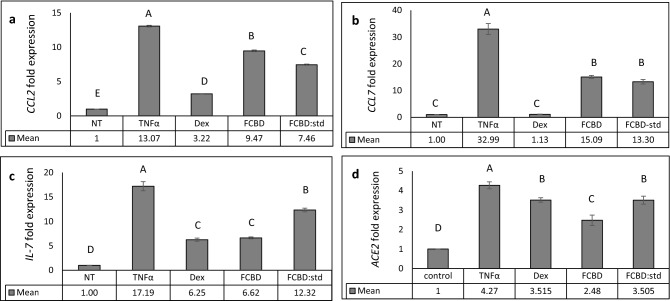

Quantitative PCR analysis demonstrated that FCBD or FCBD:std treatments reduced the mRNA steady state level of the pro-inflammatory cytokines CCL2 and CCL7 in TNFα treated A549 cells (Fig. 4a,b). However, the reduced expression of the two genes was less than those treated with dexamethasone (Fig. 4a,b). FCBD:std treatment led to only a 1.3-fold reduction in the expression level of IL-7, whereas FCBD and dexamethasone reduced IL-7 expression substantially (2.6- and 2.7-fold, respectively; Fig. 4c). Moreover, FCBD, FCBD:std and dexamethasone treatments reduced the expression level of angiotensin I converting enzyme 2 (ACE2), FCBD to a greater extent than dexamethasone or FCBD:std (Fig. 4d). Expression levels of these genes were examined also at 4 h post-FCBD treatment. FCBD reduction of CCL2 and CCL7 gene expression was not apparent at 4 h, although at 4 h FCBD treatment substantially reduced ACE-2 and IL-7 expression levels (Supplementary Fig. S5).
FCBD and FCBD:std treatments induce IL-6, IL-8 and CCL2 expression in a differentiated KG1 cell line

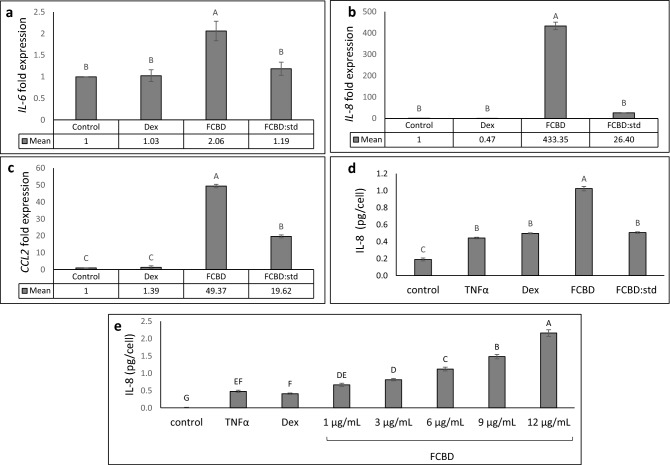

FCBD treatment increased IL-6, IL-8 and CCL2 expression in phorbol-12-myristate-13-acetate (PMA)-treated (differentiated KG1 cells) macrophages by ~ 2, ~ 433- and ~ 49-fold, respectively (Fig. 5a–c). FCBD:std increased CCL2 expression by ~ 20-fold (Fig. 5c) and IL-8 expression level by ~ 26-fold (Fig. 5b); however FCBD:std did not lead to increased IL-6 expression in macrophages (Fig. 5a). At the protein level in KG1 treated with TNFα, FCBD but not FCBD:std increased IL-8 secretion in macrophages (Fig. 5d). FCBD activity was dose dependent (Fig. 5e). Dexamethasone (at 8 and 4 µg/mL) did not decrease expression of IL-6, IL-8, CCL2, or IL-8 secretion in macrophages (Fig. 5a–e, respectively).
FCBD and FCBD:std attenuate macrophages polarization
To examine the effect of the treatments on macrophage phagocytosis we incubated PMA-treated macrophages with fluorescent-labeled silica 50–100 nm particles (FNP). In the control, most of the cells were non-polarized and featured a round structure (Table 2; Fig. 6), whereas the macrophage population treated for 16 h with FCBD (7 µg/mL) consisted of ~ 48% polarized cells (Table 2). Multiple silica particles and membrane pseudopods were detected in the polarized cells (Fig. 6). Likewise, treatment of the macrophage population with FCBD:std resulted in ~ 49% polarized cells (Table 2). Lower concentrations of FCBD (3.5 µg/mL) led to a somewhat reduced percentage of polarized cells (~ 45%) and macrophage treatment with CBD at the equivalent concentration (4.35 µg/mL) found in FCBD 7 µg/mL resulted in only ~ 18% polarized cells.Treatment % of polarized cells Total number of cells counted in all replicates (n = 5) Control 1.2 ± 0.83b 204 FCBD (7 µg/mL) 48.3 ± 6.9a 144 FCBD:std (7 µg/mL) 48.8 ± 11.3a 74 CBD (4.3 µg/mL) 17.9 ± 4.1ab 94 FCBD (3.5 µg/mL) 44.9 ± 12.4a 70
FCBD and FCBD:std attenuate expression of phagocytosis-associated receptors

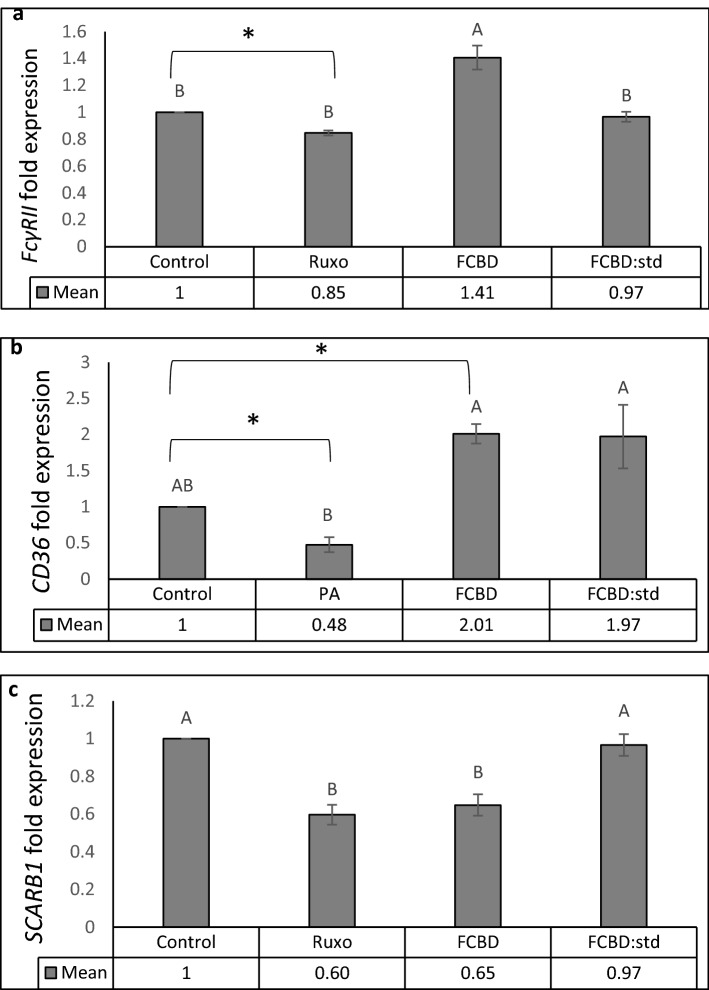

FCBD treatment, but not FCBD:std, increased expression of FcγRII and CD36 in comparison to the vehicle control (Fig. 7a,b). Treatment with ruxolitinib which inhibits monocyte activation (described by Ahmed et al.14) reduced FcγRII expression (Fig. 7a), and palmitic acid (PA) reduced expression of CD36 (Fig. 7b), in agreement with15. Expression of SCARB1 was reduced by FCBD and roxulitinib, but not by FCBD:std (Fig. 7c).
FCBD increases silica particl internalization in macrophages
Imaging flow cytometry analysis showed that FCBD increased the percentage of macrophage cells that internalized FNP (Table 3; Supplementary Fig. S6). The increase in percentage of positive cells by FCBD was higher in comparison to the vehicle control also for the fluorescent-labeled silica 30–70 nm particles (ENP) and for the IgG coated, fluorescent-labeled silica 30–70 nm particles (ENPG). FCBD:std and CBD treatments were less effective in increasing internalization (for FNP) or presence (ENP and ENPG) of the particles in cells in comparison to the FCBD treatment (Table 3; Supplementary Fig. S6).Treatment FNP ENP ENPG Control 100.0b 100.0a 100.0a FCBD 147.8 ± 13.4a 167.9 ± 11.2a 132.9 ± 30.3a FCBD:std 99.8 ± 0.8b 125.3 ± 10.2a 116.2 ± 3.1a CBD 118.85 ± 5.10ab 121.3 ± 24.0a 89.6 ± 3.9a
Discussion
We have identified a CBD rich fraction (FCBD) from the inflorescence extract of a high CBD cannabis strain with immune-modulation activity in alveolar epithelial and macrophage cell models. FCBD reduced IL-8 and IL-6 secretion in alveolar epithelial cells. IL-8 is one of the cytokines that characterizes the cytokine storm in severe COVID-19 patients; IL-6 is a prominent cytokine also involved in the cytokine storm and is secreted during the disease from alveolar epithelial cells3. In addition to CBD, FCBD contained CBG and minute amount of THCV. The IC50 of a combinations of active phytocannabinoid standards (FCBD:std) at the relative concentrations found in FCBD were similar to that of the original fraction in the alveolar epithelial cell model.
Treatment with CBD by itself led to a reduction in IL-6 and IL-8 levels in an inverse bell-shaped dose–response in alveolar epithelial cells; i.e., only 3 µg/mL was active whereas other CBD concentrations exhibited lower or no cell activity. These results are in line with an earlier publication suggesting that CBD has a bell-shaped dose–response for anti-inflammatory activity by Gallily et al.16. Notably, FCBD (i.e., combination of CBD with CBG and THCV) led to a dose-dependent response rather than a bell-shaped dose–response. These results are in accordance with16, suggesting that the addition of other phytomolecules to CBD (crude cannabis extract in the case of16) prevented its bell-shaped dose–response. The CBD bell-shaped dose–response is associated with a narrow therapeutic window, which is difficult to use effectively in clinical therapy. Therefore, the fact that FCBD has a dose-dependent response makes it better suited than CBD for patient care.
CBD is a negative allosteric modulator of CB1 signaling17. TRPA1 is a receptor in alveolar epithelial cells involved in the pathogenesis of several airway diseases including chronic obstructive pulmonary disease and asthma18. Both TRPV1 and TRPV2 interact with phytocannabinoids, including CBD, CBG and THCV19. Also, TRPV1, TRPV2 and TRPA1 were found to be associated with pulmonary inflammation20. Nevertheless, co-treatment with CB1 IA, TRPA1 blocker or TRPV1 or TRPV2 antagonist had no substantial effect on FCBD and FCBD:std activity. Only co-treatment with CB2 IA affected FCBD:std activity on IL-8 secretion. The involvement of receptors in FCBD and FCBD:std activity remains to be demonstrated.
In addition to reducing IL-6 and IL-8 levels, FCBD and FCBD:std reduced the expression levels of CCL2 and CCL7 in alveolar epithelial cells by 6 h treatment. The systemic cytokine profiles detected in severe COVID-19 patients includes increased production of inflammatory chemokines such as CCL221. Moreover, CCL2 and CCL7 were shown to be abundant in bronchoalveolar fluid from severe COVID-19 patients and were associated with recruitment of monocytes into the lungs21. Our results suggest that treatment with FCBD or FCBD:std may lead to reduced secretion of inflammatory cytokines associated with the disease, and possibly to a reduction of macrophage recruitment during the cytokine storm. However, dexamethasone was more effective than FCBD in reducing both CCL2 and CCL7 expression.
IL-7 was shown to raise lymphocyte counts in septic patients with low absolute lymphocyte counts22 and to restore protective immunity in patients that suffer from CD4+ T cell deficiency (e.g., as in the case of HIV infection23). It was suggested that treatment against SARS-CoV-2 infections should also attempt to increase IL-7 levels22. The fact that FCBD:std reduced IL-7 expression only to a minor extent in comparison to dexamethasone or FCBD suggests that using purified phytocannabinoids may have an advantage over cannabis-derived fractions for COVID-19-like inflammation.
The ACE2 receptor is a part of the dual renin-angiotensin system (RAS)24. ACE2 was shown to be involved with SARS-CoV-2 human infection; the ectodomain of the S protein of SARS-CoV-1 binds to the peptidase domain of ACE2 with relatively high affinity25. In cells of patients with severe symptoms of COVID-19, ACE2 was substantially upregulated 199-fold; this upregulation was suggested to be one of the factors leading to disruption of the RAS, as ACE2 is a part of the counteracting hypotensive axis of RAS. The increase in ACE2 and other key RAS components is predicted to elevate bradykinin levels in multiple tissues, leading to increases in vascular permeability and hypotension; the latter is highly associated with severe COVID-19 patients26. Indeed, a negative correlation was identified between ACE2 gene expression and COVID-19 mortality27. FCBD reduced the expression level of ACE2 at 4 and 6 h post treatment. FCBD:std and dexamethasone also reduced ACE2 expression but to a lesser extent. However, the ability of FCBD to reduce ACE2 expression should be examined at both the protein and functional levels (e.g., binding of the viral protein) to fully determine the effect FCBD may have on ACE2-related treatment of COVID-19 patients. In any case, such reduction of ACE2 expression should be considered with care as the advantages and disadvantages of this reduction are disputed24.
In the first phase of the disease, a specific adaptive immune response is needed to eliminate the virus and to prevent disease progression to more severe stages2. Indeed, the dysfunction of alveolar macrophages are among the abnormal characteristics in some severe COVID-19 patients28, and an abundance of increased inflammatory monocyte-derived macrophages replaces tissue-resident alveolar macrophages in patients with severe disease21. Additionally, during SARS-CoV-1 infections that provoke a disease course similar to those seen during infection with SARS-CoV-221, a marked reduction in macrophages phagocytosis activity was detected29. Also, phagocytosis was important in the antibody-mediated elimination of SARS-CoV-1 in a mouse model30.
Notably, FCBD and FCBD:std, and CBD to a lesser extent, led to a marked increase in macrophage polarization and to cell actin remodeling that corresponds to the growth of filopodia-like membrane structures31. FCBD reduced expression of SCARB1; SCARB1 encodes SR-B1 that is a scavenger receptor (class B) and is also responsible for phagocytosis of silica particles in macrophages32. However, FCBD treatment also led to an increase in FcγRII and CD36 gene expression. Phagocytosis is initiated by the ligation of Fcγ receptors to IgG-opsonins on the target cell33, whereas CD36 expression in macrophages was shown to be involved with lung fibrosisin in mice34. Alveolar macrophages play an important role in Fc receptor-mediated responses during acute virus infections and in phagocytosis-mediated clearance of respiratory virus infections35,36. CD36 is an important scavenger receptor for phagocytosis of Streptococcus pneumoniae, a primary bacterial agent associated with pneumonia, which is down regulated by influenza37. Indeed, FCBD led to a marked increase in the internalization of silica particles by macrophages, and in so doing, increased levels of phagocytosis.
Possibly, the increase in macrophage polarization and phagocytosis, and the upregulation of FcγRII and CD36 expression in these cells following FCBD treatment may facilitate phagocytosis-mediated clearance of respiratory viruses, and benefit the first phase of the immune response to SARS-CoV-2. However, it should be noted that macrophages themselves can be infected by the virus, as SARS-CoV-1 infects macrophages as a result of IgG-mediated phagocytosis that requires FcγRII receptor signaling pathways38. Advantages and disadvantages of increasing macrophage phagocytosis activity should be carefully considered3,21.
Notably, although FCBD:std treatment increased macrophage polarization, it did not increase the phagocytosis-associated gene expressions, nor phagocytosis. Hence, additional active compounds in the cannabis-derived FCBD and not in the phytocannabinoid standard mix that composed FCBD:std are responsible for this increased gene expression and phagocytosis activity. Indeed, FCBD contained multiple terpenes, some including γ-Curcumene and Guaiol at considerable percentages. The presence of terpenes in FCBD may account for the differences in activity between FCBD and FCBD:std.
During the second phase of COVID-19, pneumonia patients exhibit features of macrophage activation syndrome (MAS) in which macrophages play a major pro-inflammatory role by releasing pro-inflammatory cytokines such as IL-6, IL-8 and CCL23. Moreover, subsets of macrophages in patients with COVID-19 were found to express genes associated with IL-6, whereas expression of IL-6 was again associated with severe depletion of lymphocytes from the spleen and lymph nodes21. Notably, FCBD led to a marked increase of IL-8 expression and IL-8 protein levels in macrophages. It also led to an increase in IL-6 expression levels, above that induced by PMA39. These results suggest a substantial, in vitro, pro-inflammatory role for FCBD in macrophages. However, FCBD;std was less active in ILs induction, again demonstrating a notable difference between FCBD and FCBD:std, which may originate from the presence or absence, respectively, of terpenes.
To conclude, treatment with cannabis compounds CBD, CBG and THCV may have clinical value in reducing cytokine secretion in lung epithelial cells. However, treatment with FCBD containing terpenes in addition to these phytocannabinoids substantially induced macrophage phagocytosis and increased their IL levels. Yet, to confirm more specifically the pro-inflammatory effect of FCBD in macrophages it is necessary to perform the same experiments on primary alveolar macrophages (e.g., from mice). Nevertheless, these results suggest a pro-inflammatory role for cannabis extract that is higher than that of the phytocannabinoid standard mix. The latter maintained anti-inflammatory activity in the alveolar epithelial cells with relatively reduced pro-inflammatory activity in macrophages. Hence, the mix of phytocannabinoids shows superior activity versus the cannabis-derived fraction. Although more studies are needed of cannabis treatment in COVID patients, there needs to be caution in proposing cannabis treatment for these patients, as is presently being suggested in the media. The increase of macrophage-secreted IL-6 and IL-8 levels by cannabis-based treatment may potentially lead to a worsening of the "cytokine storm" identified in severe COVID-19 patients. It should be stressed, in agreement with Pastor et al.40, that for now, users and healthcare personnel should avoid the use of cannabis for COVID-19 prevention or treatment.
Material and methods
Extract preparation
High CBD Cannabis sativa strain Arbel (IMC, Israel) inflorescence was extracted using ethanol as described previously41 and decarboxylated by heating the dried crude extract to 220 °C for 10 min. The dried decarboxylated extract was weighed, and then resuspended in absolute methanol (volume of solvent added according to the desired concentration) and filtered through a 0.45 μm syringe filter.
Extract fractionation
A flash chromatography apparatus equipped with a diode array detector was used to fractionize the decarboxylated crude extract. An Ecoflex C-18 80 g (Flash Pure, Buchi, C-18, 50 µm spherical, max. pressure 180 psi) column was used for separation, with methanol and water as the mobile phase, as suggested by the manufacturer.
Chemical analyses
HPLC and gas chromatograph with mass selective detector (GCMS 8860 and GC/MSD 5977B, Agilent) analysis was carried out as previously described41. Qualitative and quantitative analysis of the phytocannabinoids in fractions was done in comparison to the standard calibration curves obtained from dissolving standards in methanol at different concentrations from 0 to 25 µg/mL.
Standard/material preparation and use
The cannabinoid standards at a concentration of 1 mg/mL in methanol used in this study included cannabidiol (CBD, Restek catalog no. 34011) cannabigerol (CBG, Restek catalog no. 34091) and tetrahydrocannabivarin (THCV, Restek catalog no. 34100). Inverse agonists (IA) to cannabinoid receptors type 1 (CB1) and 2 (CB2) used were Abcam products: CB1 (AM251, ab120088), CB2 (SR144528, ab146185), as was the TRPA1 blocker (HC-030031, ab120554). All IAs, as well as the TRPV1 antagonist (Abcam ab141772) and TRPV2 antagonist (Tranilast 1098/10) were dissolved in dimethyl sulfoxide (DMSO) at a concentration of 10 mM. Phorbol 12-myristate 13-acetate (PMA) (P1585; Sigma Aldrich, USA) was dissolved in DMSO at the stock concentration of 5 µg/mL. Dexamethozone (D4902; Sigma Aldrich, USA) was dissolved in methanol at the stock concentration of 1000 µg/mL. Ruxolitinib JAKAVI was dissolved in DMSO at the concentration of 5000 µg/mL, confirmed with GCMS and HPLC and was used at a final concentration of 2% (v/v). TNFα (300-01A; PeproTech, Rocky Hill, NJ, USA) was dissolved in water at the stock concentration of 100 µg/mL. (3-Aminopropyl) triethoxysilane (APTES), N-(3-Dimethylaminopropyl)-N(3-ethylcarbodiimide hydrochloride (EDC), and 5(6)- Carboxyfluorescein, 2-(4-Morpholino) ethanesulfonic acid (MES) were purchased from Sigma-Aldrich (USA). Analytical grade methanol was used at final concentration of 10% (v/v) according to the indicated concentration of the treatment. The highest methanol concentration in each experiment was used for vehicle control. Ultra-pure deionized water (MS grade) was used as received without further purification. Palmitic acid (PA, Sigma Aldrich; P0500, USA) was dissolved in methanol at the stock concentration of 0.5 mol/L and used at 150 µM.
Cell cultures
The lung cancer cell line A549 (ATCC® CCL-185™) was cultured in DMEM (01-055-1A, Biological Industries, Israel) growth media supplemented with 10% FBS, 1% glutamic acid, 1% pen-strep and plasmocin. Macrophage cell line KG1 (ATCC® CCL-246™) was cultured in IMDM (01-058-1A; Biological Industries, Israel) containing 20% FBS and 1% pen-strep and plasmocin. 10 ng/mL PMA in IMDM media supplemented with 5% FBS, 1% pen-strep and plasmocin was used as stimulating environment for the differentiation of KG1 cells. Differentiated cells with typical morphology were attached to the plate surface within 1–2 days of initiation42.
Determination of IL levels and cell viability
IL-6 and IL-8 levels were determined as described previously43 with the following modifications: A549 cells were plated at 5 × 104 cells per well in DMEM complete media (400 µL) in 24-well cell culture plate. They were allowed to attach and grow at 37 °C in air and 5% CO2 in a humidified incubator overnight with complete DMEM, and then the media was replaced with serum free DMEM. Cell excitation was performed with 300 ng/mL TNFα. Treatments were performed with cannabis crude extract, fraction or combination of compounds together with 100 µL serum free DMEM. IL-6 and IL-8 secretion levels were analyzed after 4 or 6 h of incubation for A549 or KG1 cell lines, respectively. Supernatant samples were collected and tested using IL-6 and IL-8 ELISA kits (DY206 and DY208 respectively, R&D Systems, Minneapolis, MN, USA). Dexamethasone was used as a positive control. For cell viability, an Alamar Blue (resazurin) assay was performed on each well as described previously43. For dose response assays, data points were connected by non-linear regression lines of the sigmoidal dose–response relation. GraphPad Prism version 6.1 (https://www.graphpad.com/scientific-software/prism/, GraphPad Software Inc., San Diego, USA) was employed to produce dose–response curves and IC50 doses were calculated using nonlinear regression analysis.
Salinization of silicon dioxide surfaces with APTES
To prepare the silica dispersion, 1 g of silica was added to 40 mL of methanol and stirred. Then, APTES (0.0045 mol) was slowly added to the solution. The reaction was carried out at ambient temperature for 45 min. After silanization, 50–100 nm or 30–70 nm particles were collected by centrifugation (9000 rpm, 10 min) washed 4 times with water, and dried at 35 °C under vacuum for 3 h44.
Labeling of amine functionalized silica nanoparticles with 5(6)-carboxyfluorescein and IgG
Stock solutions of 1 mg of EDC were prepared separately in 1 mL of 0.1 M MES (pH 4.5–5) buffer. 100 mg of the amine functionalized silica nanoparticles were added to 600 µL of the MES buffer followed by 200 µL of the EDC. The mixture was vortexed for 10 min. Then 100 µL 5(6)-Carboxyfluorescein (1 mg/mL) only (for 50–100 nm FNP or 30–70 nm ENP nanoparticles) or 100 µL 5(6)-Carboxyfluorescein (1 mg/mL) and IgG (10 mg/mL; for 30–70 nm ENPG nanoparticles) solutions were added. The final solution was then mixed by vortex for 3 h at ambient room temperature. Subsequently, the mixture was centrifuged and rinsed with MES buffer to remove excess reactants. EDC was used as a cross-linker to chemically attach the carboxyl group of the 5(6)-Carboxyfluorescein molecule and producing an amine-reactive O-acylisourea. For the fluorescent-IgG labelled silica nanoparticles this intermediate product reacted with the amino groups of the silica nanoparticles to yield an amide bond, releasing fluorescent-IgG labelled silica nanoparticles and urea as a by-product45. The fluorescent labelled (FNP or ENP) or fluorescent-IgG labelled (ENPG) silica nanoparticles were then dispersed again in the MES buffer for further analysis.
Cellular staining and confocal microscopy
Differentiated macrophages from KG1 cells (10 × 104 cells/plate; plated on the bottom of a glass cell culture dish) were incubated in 500 µL of 5% FBS-IMDM media with FNP, ENP or ENPG (40 µg/mL) and incubated at 37 °C for 4 h for phagocytosis. Macrophages that underwent phagocytosis were fixed with 3.7% formaldehyde solution and permeabilized with 0.1% Triton X-100 at room temperature. Fixed cells were blocked in PBS containing 1% bovine serum albumin. Cells were incubated with EasyProbes™ ActinRed 555 Stain for actin and Hoechst for nuclear staining (AP-FP032, GC-C057 respectively; ABP Bioscience Rockville, MD, USA). Cell microscopy and image acquisition was carried out using a Leica SP8 laser scanning microscope (Leica, Wetzlar, Germany), equipped with a 405, 488 and 552 nm solid state lasers, HCX PL APO CS 10×/0.40 or HC PL APO CS 63×/1.2 water immersion objectives (Leica, Wetzlar, Germany) and Leica Application Suite X software (LASX, Leica, Wetzlar, Germany). Hoechst, 5(6)-Carboxyfluorescein and ActinRed 555 emission signals were detected with PMT and HyD (hybrid) detectors in ranges of 415–490 nm, 500–535 nm and 565–660 nm, respectively.
Quantitative real-time PCR
Quantitative real time PCR (qPCR) was carried out as described previously41. Briefly, cells were treated with cannabis compounds or methanol (0.7% v/v) as vehicle control for 4 or 6 h. Cells were then harvested and total RNA was extracted. RNA was reverse-transcribed, primers were designed and PCR was performed. The expression of each target gene was normalized to the expression of Hypoxanthine Phosphoribosyltransferase 1 (HPRT1) mRNA in the 2−ΔΔCt and is presented as the ratio of the target gene to HPRT mRNA, expressed as 2−ΔCt, where Ct is the threshold cycle and ΔCt = Ct Target − Ct HPRT1. Experiments were repeated three times. The primers were:
- ACE2 (Gene ID: 59,272) (forward) 5′-AAGCACTCACGATTGTTGGG-3′ (reverse) 5′-CACCCCAACTATCTCTCGCT -3′;
- CCL2 (Gene ID: 6347) (forward) 5′-AAGGAGATCTGTGCTGACCC-3′ (reverse) 5′-GCTGCAGATTCTTGGGTTGT -3′;
- IL-6 (Gene ID: 3569) (forward) 5′-GAACTCCTTCTCCACAAGCG-3′ (reverse) 5′-GAAGAGGTGAGTGGCTGTCT-3′;
- CCL7 (Gene ID: 6354) (forward) 5′-CACCCTCCAACATGAAAGCC-3′ (reverse) 5′-GGTGGTCCTTCTGTAGCTCT -3′;
- IL-7 (Gene ID: 3574) (forward) 5′-CTGAAAGTACACTGCTGGCG-3′ (reverse) 5′-GAGTTGCCGAGTCTGTGTTG3′;
- FCγR2A (Gene ID: 2212) (forward) 5′-GCC AAT TCC ACT GAT CCT GT-3′ (reverse) 5′-CCTGGGGTTCAGAGTCATGT-3′;
- SCARB1 (Gene ID: 949) (forward) 5′-CTG TGG GTG AGA TCA TGT GG-3′ (reverse) 5′-GTT CCA CTT GTC CAC GAG GT-3′;
- CD36 (Gene ID: 948) (forward) 5′-AGA TGC AGC CTC ATT TCC AC-3′ (reverse) 5′-TGG GTT TTC AAC TGG AGA GG-3′;
- IL-8 (Gene ID: 3576) (forward) 5′-CAG GAA TTG AAT GGG TTT GC-3′ (reverse) 5′-AAA CCA AGG CAC AGT GGA AC-3′.
Imaging flow cytometry
Differentiated macrophages from KG1 cells (10 × 105 cells/plate; seeded on 6-well plate culture dish) were replaced with 2 mL of 5% FBS-IMDM media with FNP, ENP, or ENPG (40 µg/mL) and incubated at 37 °C for 4 h for phagocytosis. The cells were detached from the surface of the plate using a trypsin 0.25%:EDTA 0.05% solution (03-052-1A, Biological Industries, Israel) for 3 min, washed with DMEM complete media, centrifuged and transferred to 50 µL cold PBS kept on ice.
Cells were analyzed by multispectral imaging flow cytometry (ImageStream markII flow cytometer; Amnis Corp, part of EMD Millipore, Seattle, WA, USA). Fluorescence intensity of the Fluorescein labeled silica beads was measured in channel 2 of the cytometer (480 nm ex, 560 nm em). An 60× magnification with Olympus UplanFLN 60× dry objective 0.9NA was used for all samples. At least 4000 cells were collected for each sample and data were analyzed using a dedicated image analysis software (IDEAS 6.2; AmnisCorp). Cells were gated for single cells using the area and aspect ratio features, and for focused cells using the Gradient RMS feature. Cropped cells were further eliminated by plotting the cell area of the bright field image against the Centroid X feature (the number of pixels in the horizontal axis from the left corner of the image to the center of the cell mask). Cells were further gated for cells that were positive (for ENP, ENPG or FNP). Because of their larger size, only FNP beads could be further analyzed for bead internalization vs. those attached to the cell surface. This was done using the intensity feature (the sum of the background-subtracted pixel values within the masked area of the image) and max pixel (the largest value of the subtracted background pixel). FNP internalization was calculated by the internalization feature, i.e. the ratio of the intensity inside the cell to the intensity of the entire cell, mapped to a log scale. To define the internal mask for the cell, the object mask of the brightfield image was eroded by 8 pixels. Cells with an internalization score higher than 0.33 were gated as cells with internalized FNP.
Statistical analysis
Data were processed using the JMP statistical package (https://www.jmp.com/en_us/home.html, SAS Inc, NC, USA). Comparisons between two groups were made using the Student’s T-Test. Comparisons between more than 2 groups were made with analysis of variance (ANOVA) followed by Tukey–Kramer's honest significant difference (HSD) test as post hoc. Values are shown as mean ± standard error (sem). P values ≤ 0.05 were considered significant.
Supplementary Information
Untitled section
Supplementary Information
The online version contains supplementary material available at 10.1038/s41598-021-81049-2.
Acknowledgements
We thank Zach Dunseth for English editing, Hillary Voet for statistical consultation and Dean Yoselewitz and Hadar Peeri for assistance in conducting the experiment.
Data availability
The datasets generated during and/or analysed during the current study are available from the corresponding author on reasonable request.
Competing interests
The authors declare no competing interests.
