Inhibition of Wnt/β-Catenin pathway and Histone acetyltransferase activity by Rimonabant: a therapeutic target for colon cancer
Department of Pharmacy, University of Salerno, Fisciano, 84084 Italy
Institute of Endocrinology and Experimental Oncology, IEOS CNR, Naples, 80131 Italy
Department of Medicine, Surgery and Dentistry “Scuola Medica Salernitana”, University of Salerno, Baronissi, 84081 Italy
Abstract
In a high percentage (≥85%) of both sporadic and familial adenomatous polyposis forms of colorectal cancer (CRC), the inactivation of the APC tumor suppressor gene initiates tumor formation and modulates the Wnt/β-Catenin transduction pathways involved in the control of cell proliferation, adhesion and metastasis. Increasing evidence showed that the endocannabinoids control tumor growth and progression, both in vitro and in vivo. We evaluated the effect of Rimonabant, a Cannabinoid Receptor 1 (CB1) inverse agonist, on the Wnt/β-Catenin pathway in HCT116 and SW48 cell lines carrying the genetic profile of metastatic CRC poorly responsive to chemotherapies. In these models, Rimonabant inhibited the Wnt/β-Catenin canonical pathway and increased β-Catenin phosphorylation; in HCT116 cells, but not in SW48, the compound also triggered the Wnt/β-Catenin non canonical pathway activation through induction of Wnt5A and activation of CaMKII. The Rimonabant-induced downregulation of Wnt/β-Catenin target genes was partially ascribable to a direct inhibition of p300/KAT3B histone acetyltransferase, a coactivator of β-Catenin dependent gene regulation. Finally, in HCT116 xenografts, Rimonabant significantly reduced tumor growth and destabilized the nuclear localization of β-Catenin. Obtained data heavily supported the rationale for the use of cannabinoids in combined therapies for metastatic CRC harbouring activating mutations of β-Catenin.
Article notes
Untitled section
Received 2017 Mar 8; Accepted 2017 Aug 9; Collection date 2017.
Introduction
The majority of both sporadic and familial forms of adenomatous polyposis (FAP) in colorectal cancer (CRC) originates from inactivation of APC (Adenomatous Polyposis Coli) tumor suppressor gene. APC negatively regulates the levels of β-Catenin that transduces Wnt signals, mediates cell-cell adherent junctions through its interaction with E-cadherin, and stimulates cell proliferation. WNTs are able to modulate both the ‘canonical’ β-Catenin-dependent and the ‘non-canonical’ β-Catenin-independent Wnt signalling pathways1. In the canonical pathway, in the absence of Wnt ligands, GSK3 (Glycogen Synthase Kinase 3), casein kinase 1 α (CK1 α), axin and APC promote the phosphorylation of β-Catenin, its ubiquitylation and degradation. Interaction of Wnt ligands, such as Wnt3a, with Frizzled (Fzd) receptors and the Wnt co-receptor low density Lipoprotein Receptor-related Protein 5 (LRP5) or LRP6 activates the Dishevelled (Dvl) cytoplasmic phospho proteins, which inhibit β-Catenin phosphorylation and block its degradation. Then β-Catenin accumulates in the nucleus, binds to Lymphoid Enhancer-binding Factor (LEF) and T Cell Factor (TCF) proteins and acts as a transcriptional co-activator to modulate the expression of target genes2. Some WNTs, such as Wnt5A and Wnt11, fail to stabilize β-Catenin and can also induce a calcium flux and the activation of various pathways, such as PKC (Protein kinase C), CaMKII (Calcium/Calmodulin Dependent Protein Kinase II) and JNK (c-Jun N-terminal kinases)3. Moreover, Wnt5A inhibits Wnt3A-induced canonical pathway in a dose-dependent manner4. Wnt5A is frequently silenced in human CRC cell lines and in human primary tumors due to its promoter methylation, resulting thus as a potential epigenetic biomarker or therapeutic target for CRC5. Wnt/β-Catenin signalling regulates different cellular processes in both embryonic and adult stages and increasing evidence suggests that Wnt target genes are mainly cell and context specific. The multifaceted role of Wnt/β-Catenin pathway is a topic still debated and the analysis of the Wnt targetome6 and of β-Catenin target genes7 identified new players associated with CRC. Intriguingly, anandamide (AEA), a cannabinoid receptor 1 (CB1) agonist, inhibits cholangiocarcinoma growth through activation of the non-canonical Wnt pathway mediated by Wnt5A8 and, in human breast cancer cells, methyl-F-AEA reduces β-Catenin levels, inhibits the transcriptional activation of TCF responsive elements and decreases the expression of mesenchymal markers9. These data strongly suggest our hypothesis of a potential effect of cannabinoids on the Wnt/β-Catenin in CRC, but to date no data dissected these interactions. The endocannabinoid (EC) system possesses antitumor effects in vitro and in vivo 10–12. Δ9-tetrahydrocannabinol induces apoptosis in CRC by CB1-mediated inhibition of both RAS-MAPK/ERK and PI3K-Akt signalling and activation of BAD (BCL2 Associated Agonist of cell Death)10. In DLD1 and HT29 CRC cell lines, both CB1 and CB2 (cannabinoid receptor 2) receptor agonists induce apoptosis13. In the azoxymethane (AOM) induced aberrant crypt foci (ACF) model, the inhibition of EC hydrolysis decreases the development of precancerous lesions in the mouse colon14. Moreover, cannabinoids significantly reduce the proliferation of CRC cell lines15 and raise the expression of CB1 and estrogen receptors (ER)15, whose loss might promote and accelerate colorectal carcinogenesis in APCMin/+ mice16. Last but not least, cannabinoids improve the efficacy of chemotherapic drugs used in the clinical practice17, 18. A priority in the treatment of human cancer is the finding of strategies able to reduce the occurrence of resistance to chemotherapies or, alternatively, to identify new pathways as targets of drugs enabling to bypass these events. In this issue the ECs could represent good therapeutic chances acting at several levels. We previously found that among other cannabinoid compounds, Rimonabant (SR141716), an inverse agonist at the CB1 receptor, shows a powerful antitumor effect both in precancerous lesions and in CRC cell lines11, 17, 18. Here we dissected the role of Rimonabant in CRC analyzing, in vitro and in vivo, its effects on the Wnt/β-Catenin mediated signalling.
Results

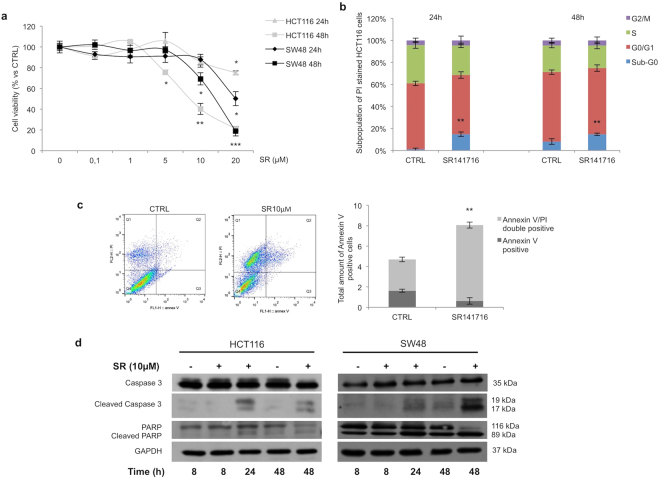

SR141716 inhibits proliferation in human CRC cells in vitro
We previously found that in CRC cell lines, DLD1 and SW620, SR141716 induced G2/M and S-G2/M arrest, respectively, without induction of apoptosis or necrosis11. Here we found that SR141716 inhibited HCT116 cell growth (Fig. 1a), induced a significant increase of Sub-G0/G1 cell phase, persistent until 48 hours (Fig. 1b) and raised the percentage of PI/Annexin V-FITC double stained cells (Fig. 1c). In both HCT116 and SW48 cell lines, the increase of Caspase 3- and PARP-cleaved protein levels starting from 24 hours (Fig. 1d and see Supplementary Fig. S1a) strongly suggested induction of apoptosis. This was also confirmed by results from human apoptosis antibody array, performed in HCT116 cells, revealing also an upregulation of Cytochrome C and of death receptors (TRAILR-1, -2 and -3) and downregulation of Bcl-2 and X-linked Inhibitor of Apoptosis Protein (XIAP) (see Supplementary Fig. S1b).

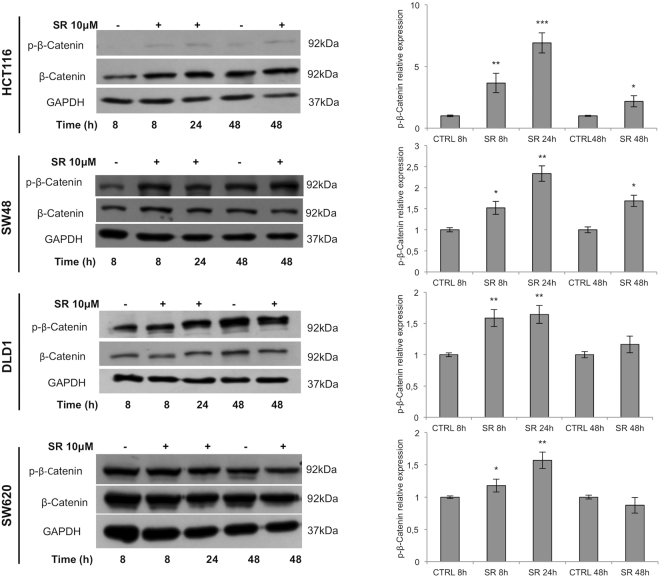

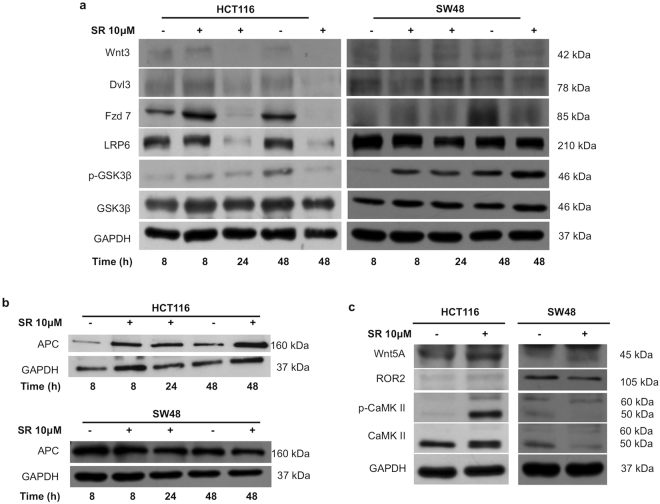

SR141716 inhibits canonical and activates non- canonical Wnt/β-Catenin pathway in CRC cell lines
In the absence of secreted Wnt ligands, the degradation complex destabilizes β-Catenin by phosphorylating it at Ser45 and Thr41/Ser37/Ser33. Ser33/Ser37 double phosphorylation (p-β-Catenin in the figures) marks β-Catenin for ubiquitin-mediated proteolysis19, 20. In HCT116 and SW48 cell lines, SR141716 increased p-β-Catenin starting from 8 hours of treatment (Fig. 2). To assess whether the observed effects represent a common mechanism in CRC, the expression of total and p-β-Catenin was also evaluated in DLD1 and SW620 cell lines where the compound induced a transient increase of the p-β-Catenin not persistent at 48 hours (Fig. 2). In HCT116 cell line, where the SR141716-mediated β-Catenin phosphorylation was more effective and persistent, the analysis of nuclear and cytoplasmic extracts from treated cells revealed a reduced amount of β-Catenin in the cytoplasm at 24 hours and a nuclear localization lower than control cells at both 24 and 48 hours (Fig. 3a and b). The immunofluorescence staining of SR141716-treated cells, substantially confirmed the β-Catenin localization and the reduction of its nuclear translocation (Fig. 3c). Wnt3 triggers the canonical β-Catenin signalling through the bound with Fzd7 and LRP5 or LRP6 in several cancers, including CRC1, 21. In HCT116, SR141716 was able to reduce Wnt3 protein levels and both Fzd7 and LRP6 co-receptor at the same time points. Furthermore, Dvl3 protein expression was inhibited by the treatment, suggesting that signal transduction across the plasma membrane and activation of Dvl3 not occurred. Despite with less extent, similar expression profiles were noticeable also in SW48 cell line, at least for Fzd7 and LRP6 (Fig. 4a and see Supplementary Fig. S2a). The β-Catenin phosphorylation- and degradation-complex also consists of GSK3 β whose activity can be inhibited by its Akt-mediated phosphorylation at Ser922. We observed that SR141716 induced a precocious phosphorylation of GSK3 β in both cell lines, persistent until 48 hours of treatment in SW48 but not in HCT116 (Fig. 4a and see Supplementary Fig. S2b). Finally, a significant increase of APC levels was also observed in HCT116 cells (Fig. 4b and see Supplementary Fig. S2c). Wnt5 downregulation has been associated with higher tumor grade and poor prognosis1, 5, 23, its overexpression inhibits canonical pathway and triggers the β-Catenin degradation or the inhibition of TCF/Lef-mediated transcription4, 24. Wnt5 interacts with ROR2 (Receptor Tyrosine Kinase Like Orphan Receptor 2) tyrosine kinase receptor activating actin-binding protein, filamin A, and the JNK signalling pathway25, 26. However, the non-canonical pathway triggers intracellular calcium flux, associated with CaMKII activation and canonical signalling inhibition. In HCT116 cells SR141716 increased protein levels of both Wnt5A and ROR2 at 8 hours of treatment and induced activation of CaMKII (Fig. 4c and see Supplementary Fig. S3). The results strongly support an SR141716-mediated inhibition of the canonical Wnt/β-Catenin signalling in both HCT116 and SW48 and a drug-induced activation of the non- canonical pathway triggered by Wnt5a in HCT116 cells.

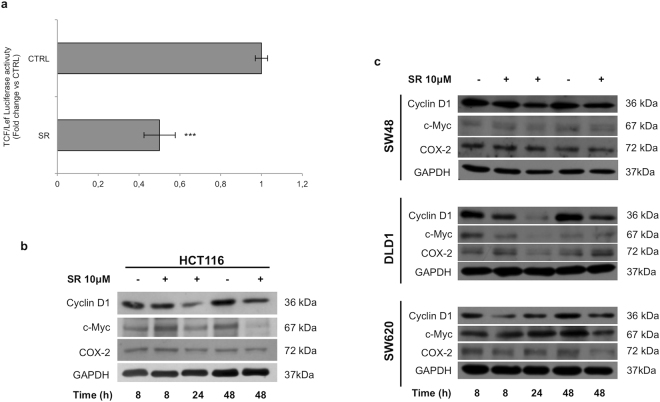

SR141716 downregulates Wnt/β-Catenin target gene expression
Aimed to confirm that SR141716 makes β-Catenin unable, or at least feeble, to activate the transcription of Wnt target genes, we performed luciferase assays in HCT116 cell line. In our model, the efficiency of the transient transfection was higher than 70% (see Supplementary Fig. S4a). In HCT116 cells, transiently transfected with the reporter containing tandem repeats of a specific Transcriptional Response Element (TRE) for TCF/Lef and treated with SR141716, the luciferase activity was significantly lowered of approximately 50% compared to untreated cells (Fig. 5a). Moreover, SR141716 was able to significantly reduce protein levels of some well known Wnt/β-Catenin target genes, such as Cyclin D1, c-Myc (Avian myelocytomatosis virus oncogene cellular homolog) and COX-2 (Cyclooxygenase-2), involved in CRC progression (Fig. 5b and c and see Supplementary Fig. S5).

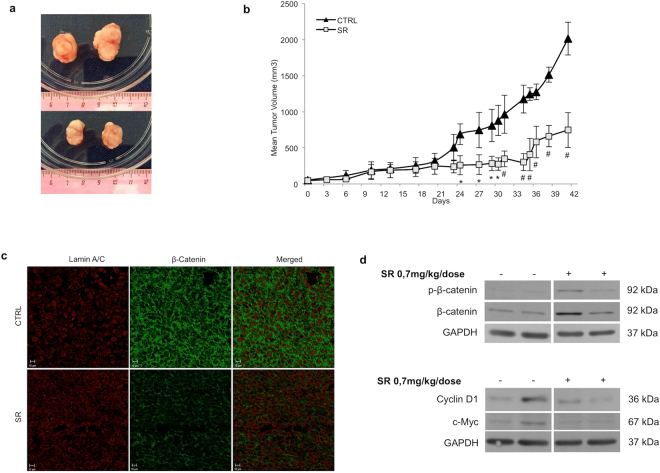

SR141716 induces regression of CRC in vivo
We tested SR141716 efficacy in vivo in a subcutaneous (s.c.) HCT116 xenograft model. Tumor cell suspension was injected s.c. into 20 female SCID mice and when the tumor reached approximately the size of 50–70 mm3, 10 mice in the treated group received the peri-tumoral injection of SR141716, while 10 mice in the control group received vehicle alone, three times a week for 6 weeks. The tumor sizes have been recorded on the first day of SR141716 treatment (day 0) and bi- or three-weekly at the indicated time points. Mice in the control group developed tumors beyond 2,0 cm3 on average by day 42. In contrast, the mice in SR141716 group developed much smaller tumors (Fig. 6a). In particular, starting from the thirtieth day of treatment, ANOVA analysis indicates a significant smaller tumor size in treated group compared with animals in the control group (p < 0.001) (Fig. 6b). Excised tumor sections were analyzed for β-Catenin localization in cellular compartments through immunofluorescence staining with specific antibodies for β-Catenin and for Lamin A/C (green and red fluorescence, respectively in Fig. 6c). The confocal microscopy demonstrated that in tissue sections from treated mice β-Catenin localized mainly in the cytoplasm whereas nuclear staining was almost devoid of specific β-Catenin signal (Fig. 6c and see Supplementary Fig. S6a). Finally, western blot analysis of total extracts from tissue specimens demonstrated that, despite the awaited tumor samples heterogeneity, the amount of p-β-Catenin, clearly detectable in the treated xenografts, was lost in control tumors. In contrast, the immunoreactivity for both Cyclin D1 and c-Myc, distinguishable in control samples, were just barely apparent in whole extracts from treated tumors (Fig. 6d). Quantification of western blot analysis, performed in samples from six tumors per condition, seems to sustain this feature even if it not reach statistical significance at least in our xenograft groups (see Supplementary Fig. S6b).

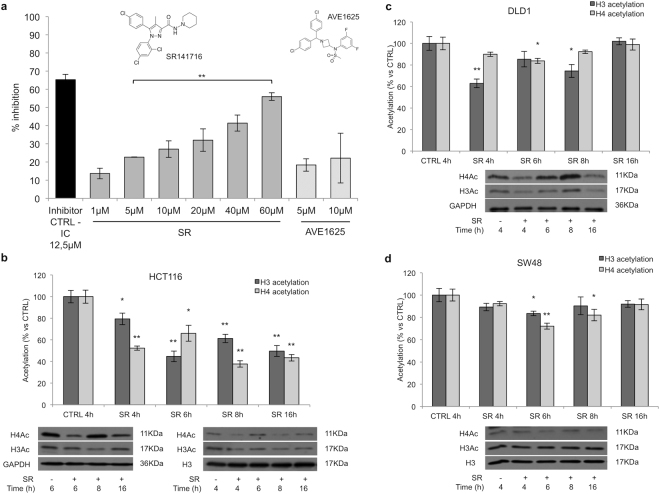

SR141716 inhibits p300/KAT3B activity and modulates histone acetylation in CRC cell lines
Obtained data substantially supported a drug-mediated inhibition of the canonical Wnt/β-Catenin signalling in CRC cell lines carrying stabilizing mutation of β-Catenin, such as HCT116 and SW48. Moreover, even though we found a direct inhibition of the TCF/Lef-mediated transcriptional activation in HCT116 but not in DLD1 and SW620 cell lines, in several models of human CRC the compound was able to decrease the expression of well known β-Catenin target genes (Fig. 5c and see Supplementary Fig. S5). We hypothesized that a member of the β-Catenin-TCF/Lef complex, other than β-Catenin, could be involved in the observed antitumor effects. Aimed to identify factors potentially able to interact with SR141716, we performed an in silico Inverse Virtual Screening testing the case-study compound on a panel of 306 proteins involved in cancer and inflammation events (see Supplementary Table S1). Briefly, this computational tool allows the analysis of different binding hypotheses between a single ligand and a high number of targets through molecular docking experiments, determining the selection of the most promising ligand-receptor favourite complexes after a normalization of the predicted binding affinities, and successfully directing the subsequent biological assays27–31. Concerning the first two identified targets (A2A 1st position, and ErbB4, 2nd position in the ranking) (see Supplementary Table S2) we first of all considered their expression in our panel of CRC cell lines. A2A (Adenosine A2a Receptor, ADORA2A) is a component of the Adenosine receptor family comprising four G-protein coupled receptors (A1, A2A, A2B and A3) linked to Ca2+ mobilization and Cyclic AMP increase. Low amount of A1, A2A, and A2B receptors have been detected in colon cancer cell lines cultured in normoxic condition, as in our experimental procedures32, 33, whereas both HCT116 and DLD1 cells expressed high levels of the A3 receptor subtype32–34. ErbB4/Her4 (Erb-B2 Receptor Tyrosine Kinase 4) is a member of the ErbB protein tyrosine kinase family, which also includes EGFR/ErbB1/Her1. Despite recently an over-expression of ErbB4 was found in human CRC tissues, in cultured colon cancer cell lines ErbB4 protein expression is difficult to detect and mainly unmistakable in poorly differentiated CRC cells such as HCT116 in our panel35, 36. Therefore, among the obtained results, we were intrigued by p300/KAT3B target at the 3rd position in the final ranking of predicted most affine proteins of SR14171637. Specifically, the careful analysis of the sampled docking poses enforced this result, showing a good accommodation of SR141716 in the p300/KAT3B binding site and supporting the potential inhibition of the histone acetyltransferase (HAT) activity exerted by the investigated compound. We found two interesting binding modes in which SR141716 is placed in p300/KAT3B occupying the ligand binding site (LBD) and exerting both polar and hydrophobic interactions. The analysis of the first pose, associated to the best docking score (ΔGbind = −11.2 kcal/mol), disclosed the arrangement of SR141716 in the deep part of the LBD supported by an edge-to-face π-π interaction between the pyrazole core and the indole moiety in the side chain of Trp1466, and an H-bond with the carbonyl oxygen in the backbone of Leu1398 (Fig. 7a). Further polar interactions were established with Ser1396, Asp1399, Ser1400, Arg1410, Gln1455, Lys1456, and hydrophobic contacts with Tyr1414, Leu1463, Trp1466, Tyr1467 (Fig. 7a and c). Another interesting binding mode (ΔGbind = −10.8 kcal/mol) showed the placement of the molecule in a more external part of the binding site, supported by halogen bonds between the dichloro-phenyl part of SR141716 and Arg1410 (Fig. 7b), while the edge-to-face π-π interaction between the pyrazole core and Trp1466 was again detected (Fig. 7b and d). The direct binding of SR141716 to the HAT catalytic domain (aa 1284–1673) of human recombinant p300/KAT3B was corroborated by the results of a surface plasmon resonance (SPR) assay, performed according to a well-established protocol38, 39. In fact, Fig. 7e clearly shows a direct interaction between SR141716 and p300/KAT3B, displaying a concentration dependent SPR signal not observed with the negative control (see Supplementary Fig. S7). Fluorometric in vitro assay suggested a dose-dependent inhibition of p300/KAT3B HAT activity by SR141716 (5 μM–60 μM) (Fig. 8a). Moreover, the compound decreased the amount of acetyl-Histone H3 and acetyl-Histone H4 in both purified histones and total lysates from SR141716-treated HCT116 cells (Fig. 8b). The decreased acetylation seems a reproducible effect triggered by Rimonabant in CRC cell lines irrespective of the mutational profile and Wnt/β-Catenin signalling and thus can be highlighted also in DLD1 and SW48 cell lines (Fig. 8c and d).
Discussion
The heterogeneous molecular profiles of CRC and the need to identify patients which could effectively take clinical advantage from combined chemotherapies, triggered the dissection of the mechanisms responsible for sensitivity and resistance to treatments. The majority of sporadic forms of CRC are characterized by deregulation of Wnt/β-Catenin signalling resulting in increased transcriptional activity of the β-Catenin. Despite the difficulties in to dissect the engagement of Wnt/β-Catenin pathway in the onset and progression of CRC, the study of these mechanisms is now emerging as a promising ground to identify potential targets of intervention for CRC treatment. The porcupine inhibitor LGK974, which blocks the palmitoylation and secretion of Wnt ligands40, has been recently inserted in a Phase II multi-centric clinical trial to assess the safety and antitumor efficacy of the triple combination of LGK974, LGX818 (a highly selective BRAFV600 inhibitor) and Cetuximab in BRAFV600-mutant metastatic CRC (clinical trial # NCT02278133).
Rimonabant, an inverse agonist at CB1 receptor, produced mitotic catastrophe and modulated the expression of Cyclin B1, PARP-1, Aurora B and phosphorylated p38/MAPK and Chk1, in CRC cell line11. The cannabinoid compounds are able to reduce the progression of CRC in vivo in the AOM-induced ACF model in mice11, 14 and improve the efficacy of chemotherapic drugs17, 18.
In this study, we hypothesized that cannabinoids could directly interact with the Wnt/β-Catenin pathway. We tested the antitumor efficacy of Rimonabant in HCT116 and SW48 CRC cell lines, expressing APC and BRAF wild type and harbouring β-Catenin mutation (loss of phosphorylation site S45 and S33Y, respectively) and PIK3CA activating mutations. Despite this genetic profile represents a small percentage of the human primary CRCs, the constitutive and simultaneous activation of KRAS and PIK3CA pathways, associated with β-Catenin stabilization, confers maximal resistance to Cetuximab41 and the mesenchymal phenotype reduces the sensitivity to Erlotinib42, features accounting for a significant number of metastatic cancers unresponsive to therapies.
In DLD1 and SW620 cells, carrying mutated form of tumor protein p53 (TP53), Rimonabant exerted cytotoxic effects without induction of apoptosis and through activation of mitotic catastrophe11. Unlike our previous results, here we found that Rimonabant also inhibits proliferation in TP53 wild-type highly invasive HCT116 and SW48 cell lines through induction of apoptosis clearly highlighted by an increase of Caspase 3 and PARP cleaved forms in treated cells.
Beside TP53 mutations, CRC cell lines used in this study have heterogeneous genetic features partially representatives of the broad diversity observed in CRC patients. All cells in the study, except SW48, express mutated KRAS. Allelic loss of APC has been found in SW620 and DLD1 (1338 and 1427 codon truncation, respectively) but not in APC wild-type HCT116 and SW48 cell lines which express stabilizing mutations of β-Catenin43. Finally, alterations in several tyrosine kinase genes dramatically establish the sensitivity of CRC cells and primary tumors to therapies43. These molecular profiles could explain the different Rimonabant-mediated effects observed in to Wnt/β-Catenin pathway.
In HCT116 and SW48 cells, Rimonabant induced a significant and stable increase of β-Catenin phosphorylation whereas this evidence seems provisional in other cell lines. These results strongly suggest the engagement of mechanisms able to antagonize β-Catenin phosphorylation and to induce its dephosphorylation.
The β-Catenin degradation complex includes protein phosphatase 2A (PP2A) and heat shock protein 105 (HSP105), two components recently identified as fine regulators of the balance between degradation and stabilization of β-Catenin. Although HSP105 does not possess intrinsic phosphatase activity, this protein seems essential to anchor PP2A into the degradation complex and to induce PP2A-mediated β-Catenin dephosphorylation44. In primary CRCs increased expression of HSP105 correlates with nuclear localization of β-Catenin and poor prognosis. Moreover, in SW480 CRC cells, characterized by stable accumulation of β-Catenin and truncated APC, the depletion of HSP105 decreased β-Catenin levels, reduced Wnt target genes expression and impaired cell proliferation through cleavage of PARP and Caspase 3, then substantially triggering apoptosis44. In our study we did not evaluate the HSP105 expression but we speculate that in SW620, a metastatic CRC cell line derived from the same patient originating SW480 cells, and presumably in DLD1, the transient phosphorylation of β-Catenin induced by Rimonabant could be ascribable to a prevailing phosphatase activity in the degradation complex.
In HCT116 and SW48, the antitumor effect of the compound was mediated by inhibition of the canonical Wnt/β-Catenin pathway thanks to which the stabilization of the phosphorylated form of β-Catenin localized the protein in the cytoplasm and inhibited its transcriptional effects. As expected, in DLD1 and, mainly, in SW620 cell lines, the Rimonabant-induced increase of p-β-Catenin did not seem associated to a stable inhibition of the canonical Wnt/β-Catenin signal, evaluated by luciferase reporter gene assay. These results originate from the different genetic profile of the used CRC cell lines and it is in agreement with the finding that APC truncations, in the SW620 and DLD1 cell lines, did not prevent β-Catenin phosphorylation but inhibited β-Catenin ubiquitination and degradation45. Moreover, despite all cell lines analyzed in this study expressed ROR2 receptor, LRP5 typically associated with prevalent function of the canonical Wnt/β-Catenin signal, was detectable in DLD1 and SW620 but not in HCT116 cells (see Supplementary Fig. S4b).
In HCT116 cell line, Rimonabant increased the activity of the non-canonical Wnt/β-Catenin pathway through up-regulation of Wnt5A and ROR2 receptor and activation of CaMKII. Intriguingly, the compound also raised the APC expression.
In CRCs, the loss of function of APC is mainly ascribable to truncated mutations rather than hypermethylation of the APC gene promoter46. On the other hand, Wnt5A is silenced in both CRC cell lines and in primary tumors due to its promoter methylation5. We previously demonstrated that in CRC cell lines, increased availability of cannabinoids, of both exogenous and endogenous sources, induced up-regulation of CB1-receptor expression by co-localization of PPAR γ and RXR α at the promoting region and increased the expression of β-ER15. These data allow us to hypothesize that the efficacy of the observed antitumor effects could be ascribable, at least in part, to a direct or indirect activity of Rimonabant as epigenetic modulator.
In this study, the inhibitory effects of Rimonabant were been also confirmed by decrease of the TCF/Lef transcriptional activity, in HCT116, and by a strong and persistent down-regulation of Wnt/β-Catenin target genes involved in the onset and progression of CRC. Surprisingly, the reduced expression of these targets seems a reproducible compound-mediated effect, but free-standing and not necessary linked to a direct inhibition of Wnt/β-Catenin signalling and genetic profiles of CRCs.
Despite its properties as inverse agonist at CB1 receptor, increasing evidence revealed that Rimonabant exerts CB1-independent pharmacological actions47–49. Aimed to identify new potential targets of the compound, we performed an in silico Inverse Virtual Screening on a panel of more than 300 proteins involved in cancer and inflammation and obtained results suggested at least three intriguing interactions.
Adenosine is a well known component of the tumor microenvironment and exerts pleiotropic effects in the control of tumor growth and in several phases of tumor progression such as neoangiogenesis, metastatic spreading and anti-tumor immunity50. The potential interaction of Rimonabant with A2A receptor, suggested by results from the Inverse Virtual Screening, is a not completely surprising data, at least in the central nervous system. In striatal neurons, CB1 and A2A receptors form heterodimers and functionally interact each-other in the control of pharmacological response to specific agonists51. Recently, in rodent model of Parkinson disease, neuroprotective effects of both Rimonabant and A2A antagonist MSX3, were showed52. In tumors, hypoxic growth increases both adenosine and A2A receptor expression50 and the higher tone of adenosine, released in the tumor microenvironment, induces a local immunosuppressive milieu through activation of A2A receptors in substantially all effectors of the immune response, such as NK, dendritic, TReg and T cells53.
In the present study, CRC cell lines used for in vitro experiments, cultured and treated in normoxic conditions, did not express A2A receptor but it is reasonable to speculate that in HCT116 xenografts Rimonabant counteracted, at least in part, the immunosuppressive stroma of the tumors and increased the anti-tumor response of immune cells, probably acting as antagonist at the A2A receptor. Even though we previously demonstrated that Rimonabant is able to increase the NK cell antitumor activity in glioma54, a direct interaction compound-A2A receptor needs to be carefully tested in immune cells and in aggressive cancer models.
ErbB4/Her4 (identified as the 2nd target in the Inverse Virtual Screening ranking) and members, other than EGFR/ErbB1/Her1, belonging to the ErbB/Her family of protein-tyrosine kinases, have recently received renewed interest from the scientific community35, 36, 55, 56. Cetuximab, a chimeric monoclonal antibody approved for the treatment of metastatic CRCs expressing EGFR (Epidermal Growth Factor Receptor) and wild type KRAS, inhibits several transcription pathways downstream EGFR. Despite Cetuximab, used as single agent or in combination with chemotherapies, significantly improved prognosis and median survival, several patients are resistant to the compound and accumulating evidence suggests that EGFR expression, routinely tested in tumor samples with immunohistochemical assays, failed to predict the responsiveness to EGFR-targeting treatment. In a recent paper Mitsui and co-workers36 showed that the expression of phosphorilated ErbB family members, but not of their total forms, correlated with worse overall survival in CRC patients. Although ErbB4 protein expression is solely detectable in more aggressive CRC cell lines35, 36, high levels of ErbB4 were found in about 43% of primary CRC tissue microarrays35, and the nuclear staining of its 80kDa cleaved fragment, able to participate in transcriptional events, correlated with poor prognosis35, 36. In a recent work, tumor tissue specimens from patients with metastatic CRC unresponsive to cetuximab coexpressed ErbB4 and kal1 C-terminal interacting tetrasponin (KITENIN)55. The Authors suggested an interesting EGFR-independent interaction KITENIN/ErbB4 able to stabilize c-jun and the transcription triggered by a c-jun-TCF4-β-Catenin complex55. According to previous reports, in our study only HCT116 express both ErbB4 and KITENIN but the inhibition of Wnt/β-Catenin mediated transcription seems a common event in Rimonabant-treated cells probably acting downstream ErbB4 containing complex. Of course, now we are unable to exclude, at least in HCT116, a potential interaction between Rimonabant and ErbB4, but we are testing this hypothesis in in vivo models.
Moreover, among a large set of tested proteins, Inverse Virtual Screening in silico approach suggested for the first time a direct interaction of SR141716 with p300/KAT3B, that was corroborated by results from SPR-assay highlighting a direct binding of the compound to the p300-HAT catalytic domain and the significant modulation of acetyl-Histone H3 and acetyl-Histone H4 found in CRC cell lines. p300/KAT3B and CREB binding protein (CBP/KAT3A) are transcriptional coactivators that influence Wnt/β-Catenin signalling through specific interaction with β-Catenin. Despite their high homology, extensive genome-wide surveys demonstrated that the two coactivators CBP/KAT3A and p300/KAT3B exert different functions in β-Catenin dependent gene regulation57, 58. Moreover, the small molecule windorphen, a selective inhibitor of p300-HAT, showed a robust anti-tumor effect in cancer cells harbouring stable WNT signalling activation59.
In our study, although further experiments are needed to clarify the specific mechanisms involved and to dissect selective HAT-inhibiting properties, the observed downregulation of Cyclin-D1, COX-2 and c-Myc seems very promising data.
An impressive amount of works analyzed the role of COX-2 in the onset and progression of CRC [reviewed in ref. 60]. COX-2 is the inducible form of cyclooxygenase enzymes and guilty of the production of prostaglandins, mainly PGE2, involved in inflammation and tumor framework. Transcription of COX-2 gene is controlled by several consensus sequences in the promoter region, and a TCF-binding elements have been identified as functional Wnt/β-Catenin responsive elements within the human COX-2 promoter in both colorectal and gastric cancer cell lines61, 62. On the other hand, COX-2/PGE2 pathway can inactivate the GSK3 β-mediated phosphorilation of β-Catenin and then trigger the activation of Wnt/β-Catenin signalling63. COX-2 is frequently overexpressed in CRCs, controlled by the hypoxia-inducible factor (HIF)-1 binding to an HIF-responsive element on its promoter, and triggers the expression of proangiogenic factors such as vascular endothelial growth factor (VEGF). Moreover, COX-2-selective inhibitors exert significant antitumor effects both in vitro and in vivo 60.
The disregulation of the APC/β-Catenin axis is a frequent and early occurrence in aberrant crypt foci (ACF) induced in carcinogen treated rodent colons and in human with increased risk for developing CRC such as FAP patients. We previously found that in the mouse model of azoxymethane-induced colon carcinogenesis, Rimonabant significantly decreased the ACF formation11. An interesting model depicted the interplay between COX-2/PGE2 and β-Catenin during CRC induction and progression60. Briefly, in normoxic conditions COX-2/PGE2 axis promotes the stimulation of β-Catenin/TCF-4 activity whereas during hypoxia, a common status occurring in the advanced stage of cancer, β-Catenin, displaced from TCF-4, interacts with HIF-1, improves its transcriptional activity and substantially increases the expression of HIF-1 targets such as VEGF60. In this scenario, Rimonabant would represent a very promising compound able to counteract CRC through a direct inhibition of Wnt/β-Catenin pathway and COX-2/PGE2 axis and indirectly through the modulation of the angiogenesis according to our previous data12. Concerning this last process, we speculate that all together the data do not make it possible to rule out the hypothesis of a Rimonabant-mediated inhibition of coactivators directly interacting with HIF-1 such as p300/KAT3B.
Finally, our results demonstrated, for the first time, the in vivo efficacy of SR141716 in reducing the HCT116 xenograft growth. In tissue specimens from xenografts, the increased expression of p-β-Catenin and down-regulation of c-Myc and Cyclin D1 represent an encouraging validation of the Rimonabant efficacy in vivo in tumors harboring β-Catenin mutation and provide enough direct evidence for the inhibition of the canonical Wnt/β-Catenin pathway and of β-Catenin target genes by cannabinoid compounds in human CRC.
Although further experiments are needed to completely dissect the interaction of cannabinoids with Wnt/β-Catenin pathway, we believe that to obtain relevant clinical results in the treatment of CRCs harbouring stabilizing mutation of β-Catenin, Rimonabant could represent a good chance to increase the efficacy of therapies.
Methods
Materials
SR141716 (Rimonabant) and AVE1625 were kindly donated by Sanofi-Aventis (Montpellier, France). It was dissolved in DMSO and added to cells cultures at the indicated concentrations. Anti-β-Catenin, anti-Dvl3, anti-Fzd7, anti-APC, anti-Wnt5A, anti-ROR2, anti-phospho-CaMKII anti LRP5 and anti-Histone H3 were from Abcam. Anti-Cyclin D1 and anti-Lamin A/C were purchased from Becton Dickinson and Sigma-Aldrich, respectively. Anti-acetyl-Histone H4 and anti-acetyl-Histone H3 were from Santa Cruz Biotechnology and Merck Millipore, respectively. Anti-Annexin V FITC conjugated was purchased from Miltenyi Biotec. Primary antibodies not previously reported, secondary HRP-linked goat anti-mouse or goat anti-rabbit IgG, were all from Cell Signalling Technology. All the cell culture reagents were from Sigma–Aldrich, Inc.
Cell cultures, treatments and viability assay
Human CRC cells DLD1, SW620, HCT116 and SW48 were obtained from the Interlab Cell Line Collection (IST, Genoa, Italy). Cells were routinely grown in RPMI-1640, in Dulbecco’s modified Eagle medium (DMEM), in McCoy’s 5 A or in DMEM/F12 medium, respectively, at 37 °C in a 5% CO2 atmosphere as described previously15, 18. Cells were exposed to various concentrations of SR141716 for the times showed in the figures and to evaluate cell viability the MTT assay was used as described previously18.
Cell cycle and apoptosis analysis
Cells were plated in 100 mm dishes, serum starved for 18 hours to synchronize at the G1/S interface and treated with SR141716 (10 μM) for the indicated time. Flow cytometry and FACS analysis were performed as described previously11. The cell cycle analysis was performed with ModFit LT v3.2 (Verity Software House, Inc.); 10000 events, corrected for debris and aggregate populations, were collected. To evaluate the apoptosis, at least 20000 events were collected, and the data were analyzed with FlowJo® software (BDIS).
Western blot analysis
Whole-cell lysates were prepared as described previously15. Subcellular fractionation was obtained by using NE-PER® Nuclear and Cytoplasmic Extraction Reagents (Thermo scientific, Pierce biotechnology). Frozen tumor pieces from xenografts were disrupted by gentle homogenization (Potter-Elvehjem Pestle) in cold RIPA buffer. 10–30 μg of proteins were loaded on SDS–polyacrylamide gels under reducing conditions and western blot analyses were performed as described previously15. Immunoreactive bands were quantified with Quantity One 1-D analysis software (Bio-Rad).
Reporter gene assays
Cells were transiently cotransfected with the TCF/Lef firefly luciferase construct (100 ng) and the Renilla luciferase vector (10 ng) (CignalTM TCF/LEF Reporter (GFP) assay; QIAGEN). Luciferase activity was measured using a Dual-luciferase assay system (Promega) and an EnSpire-2300 luminometer (Perkin Elmer). Relative firefly luciferase activity was obtained by normalizing it to that of Renilla luciferase activity.
Immunofluorescence staining
Cells were grown on slides in 12 well plates (3 × 104 cells/well). After treatment, cells were fixed in parafolmadehyde (PFA, 3,7% v/v in PBS), permeabilized in Triton X-100 (0,1% v/v in PBS), blocked with 4% Bovine Serum Albumin (BSA) and incubated with anti-β-Catenin (Abcam) and anti-lamin A/C (Sigma-Aldrich) primary antibodies, at 4 °C overnight. Immunofluorescence staining was performed with Alexa Fluor® 488 donkey anti-rabbit and Alexa Fluor® 594 goat anti-mouse IgG (Molecular Probes®) secondary antibodies. Samples were vertically scanned from the bottom of the coverslip with a total depth of 5 μm and a Plan-Apochromat oil-immersion objective (magnification 63X*1.7; 1.40 NA). A total of 10 z-line scans with a step distance of 0.5 μm were collected and single planes or maximum-intensity z-projection of stacks and an orthogonal projection (=xy, xz, yz planes for z-stacks series) were generated.
Fixed tumor pieces from xenografts were OCT-embedded, sectioned (10 μm), stained with primary and secondary antibodies (diluted in PBS/1% BSA/0,05% Triton-X-100).
A Zeiss LSM510 Laser Scanning Microscope (Carl Zeiss MicroImaging GmbH) for data acquisition was used.
Semiquantitative RT-PCR
Total RNA extraction, cDNA synthesis and reverse-transcription PCR were performed as described15. Primer pairs specific to human β-Catenin (5′-GTCCGCATGGAAGAAATAGTTGA-3′ forward and 5′-AGCTGGTCAGCTCAACTGAAAG-3′ reverse) or to human actin (5′-ACTGGGACGACATGGAGAA-3′ forward and 5′-ATCTTCATGAGGTAGTCAGTCA-3′ reverse) were used. All reactions were performed at least in triplicate; the PCR products were quantified with Quantity One 1-D analysis software (Bio-Rad) and results were normalized to those obtained from actin B.

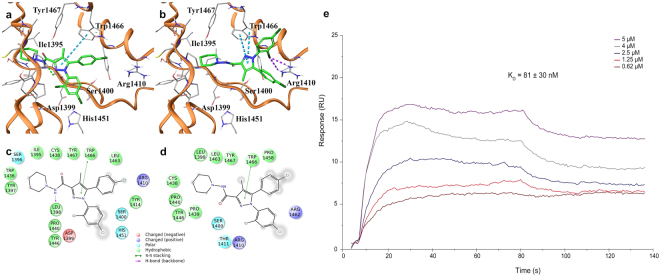

Inverse virtual Screening
The chemical structures of investigated compounds (SR141716, plus 30 “blank” compounds) were built with Maestro (version 10.2) Build Panel (Maestro, version 10.2, Schrödinger, LLC, New York, NY, 2015). Prior to perform molecular docking calculations, optimizations (Conjugate Gradient, 0.05 Å convergence threshold) of the structures were applied to identify possible three-dimensional models. Then, all the structures were converted in the pdbqt format using OpenBabel software (version 2.3.2)64, adding Gasteiger charges.
306 protein 3D structures were prepared downloading the pdb files from the Protein Data Bank database (www.rcsb.org, see Supplementary Table S1). For each structure, “non-structural” water molecules were removed, and the processed file was then converted in.pdbqt format, merging non polar hydrogens and adding Gasteiger charges. Information about the panel of proteins are reported in Table S1.
Molecular docking calculations were performed using the Autodock-Vina software65. In the configuration files linked to 3D structures of the protein, coordinates and dimensions along x,y,z axes of the grid related to the site of presumable pharmacological interest, with spacing of 1.0 Å between the grid points. The exhaustiveness value was set to 64, saving 10 conformations as maximum number of binding modes. For all the investigated compounds, all open-chain bonds were treated as active torsional bonds.
A first set of promising interacting proteins of SR141716 was selected setting a predicted binding affinity cutoff = −7.5 kcal/mol. The identified proteins (166 items) were then also screened against “blank” molecules, the latter needed for the normalization27–31 of the binding affinities of SR141716, as reported in equation 1:
where, for each target investigated, V represents the normalized value of SR141716, V0 is its predicted binding affinity from docking calculations (kcal/mol), VR is the average value of binding energy calculated on all the “blanks” (kcal/mol). It is important to note that V is a dimensionless number, and then it can be used to predict the interacting targets of a case-study compound, rather than to have precise indications about the related binding affinities. After the normalization process a final ranking was obtained, from the most to the less promising target. Normalized values and predicted binding energies for SR141716 are collected in Table S2 (see Supplementary Table S2), respectively. The ligand/protein complexes were visually inspected with Maestro (version 10.2). Illustrations of the 3D models were generated using Maestro (version 10.2).
Surface Plasmon Resonance
SPR analyses were performed on a Biacore 3000 optical biosensor equipped with research-grade CM5 sensor chips (Biacore AB). Recombinant p300/KAT3B (Enzo Life Sciences, catalogue number BML − SE451; GenBank accession number NM_001429) HAT domain was immobilized (30 μg/mL in 10 mM sodium acetate, pH 4.5) at a flow rate of 10 μL/min by using standard amine-coupling protocols to obtain a density of 15 kRU. Myoglobin was used as negative control, and one flow cell was left empty for background subtractions. Rimonabant, dissolved in DMSO (100%), was diluted in HBS-P (50 mM HEPES pH 7.4, 150 mM NaCl, 0.005% Tween 20) and injected at 0.62, 1.25, 2.5, 4 and 5 μM always maintaining a final 0.5% DMSO concentration. Binding experiments were performed at 25 °C by using a flow rate of 30 μL/min, with 120 s monitoring of association and 200 s monitoring of dissociation. Regeneration of the surfaces was performed, when necessary, by a 10 s injection of 1 mM NaOH. The simple 1:1 Langmuir binding fit model of the BIAevaluation software was used for determining equilibrium dissociation constant (KD) from kinetic dissociation (kd) and association (ka) constants.
Histone purification, p300/KAT3B activity assay and quantification of total Histone H3 and H4 acetylation
Total histones were extracted from cell lines (3 × 106) treated with SR141716 (10 μM) or vehicle alone using Histone extraction kit (Abcam) following the manufacturer’s protocol and stored at −80 °C until use. The protein concentration of the eluted histones was estimated using a Bradford protein detection kit (Bio-Rad, Hercules, CA) as previously described15. The p300/KAT3B enzymatic activity was performed using a KAT3B/p300 Inhibitor fluorometric assay kit (Abcam) according to the manufacturer’s protocol. Briefly, assay was performed with recombinant p300/KAT3B in the presence of SR141716, AVE1625, anacardic acid (used as inhibitor control) or vehicle alone. Histone H3 peptide and Acetyl CoA were used as acetylation substrates. The amount of fluorescence in the solution, amplified by a thiol detecting probe, was measured at Ex/Em = 392/482 nm with an EnSpire 2300 (Perkin Elmer) multimode plate reader. The results were expressed as percentage of inhibition compared to the enzyme control. Quantification of total acetyl-Histone H3 and H4 was performed in histone extracts, purified as earlier described, through a colorimetric ELISA assay, and in total nuclear extracts, using western blot assay. In both analysis, extracts from cell lines treated with SR141716 (10 μM) or with the vehicle alone, for the times shown in the figures, were evaluated in at last three independent experiments.
In vivo studies
Animals
20 female SCID mice (SHO, 6–8 weeks old) were obtained from Charles River, maintained under clean room conditions in sterile filter top cages with Alpha-Dri bedding and housed on high-efficiency particulate air (HEPA)-filtered ventilated racks. Animals received sterile rodent chow and water ad libitum. All experimental procedures were conducted in accordance with the Institute for Laboratory Animal Research Guide for the Care and Use of Laboratory Animals. The experimental protocols received the approval of the Ethical Committee of the Italian Board of Health (prot. n. 0031993 and n. 0031994, June, 6, 2013).
Subcutaneous xenograft models in athymic mice
HCT116 cells (1 × 106, suspended in 150 μl of PBS) were implanted subcutaneously into the right flank region of each mouse and allowed to grow to the size of approximately 50–70 mm3. SR141716 (0,7 mg/kg/dose in 150 μl of PBS/20% Glycerol) was administered three time a week by peri-tumoral injection for 6 weeks. Animals in the corresponding control group received PBS/20% Glycerol (150 μl) injected on the same schedule as SR141716. Mice were daily monitored for clinical signs and mortality. The dose of SR141716 was selected on the basis of previous studies where the compound showed to exert effects in vivo on tumor xenografts without reduction of spontaneous activity, impaired locomotion, signs of wasting or toxicity66. Progress of tumors was determined by two dimensional caliper measurements, and tumor volumes were calculated using a standard hemi ellipsoid formula: [length (mm) × width (mm)2]/2. Tumor volumes were analyzed using one-way ANOVA. At the end of the study, mice were humanely euthanized and tumors were resected and frozen immediately or fixed in 10% formalin for further analysis.
Statistical analysis
Data obtained from multiple experiments were calculated as means ± SD, if not otherwise specified, and analyzed for statistical significance by using the two tailed Student t-test, 1- or 2-way ANOVA for independent groups, with the Tukey or Bonferroni correction for multiple comparisons. All data shown are representative of at least three independent experiments performed in triplicate. Values of p < 0.05 were considered statistically significant.
Data availability statement
All data generated or analysed during this study are included in this published article (and its Supplementary Information files).
Electronic supplementary material
Untitled section
Acknowledgements
M.C.P. was supported by a research fellowship from FIRC (Fondazione Italiana Ricerca sul Cancro). The study was supported by Associazione Italiana Ricerca sul Cancro (Grant IG13312 and IG18999 to M.B.).
Untitled section
Competing Interests
The authors declare that they have no competing interests.
Footnotes
Footnote Group
References
Untitled section
References
- 1.Anastas JM, Moon RT. Wnt signalling pathways as therapeutic targets in cancer. Nat. Rev. Cancer. 2013;13:11–26. doi: 10.1038/nrc3419.
- 2.Kimelman D, Xu W. beta-catenin destruction complex: insights and questions from a structural perspective. Oncogene. 2006;25:7482–91. doi: 10.1038/sj.onc.1210055.
- 3.Kohn AD, Moon RT. Wnt and calcium signaling: β-catenin-independent pathways. Cell Calcium. 2005;38:439–46. doi: 10.1016/j.ceca.2005.06.022.
- 4.Mikels AJ, Nusse R. Purified wnt5a protein activates or inhibits beta-catenin-tcf signaling depending on receptor context. PLoS Biol. 2006;4:e115. doi: 10.1371/journal.pbio.0040115.
- 5.Ying J, et al. Wnt5a exhibits tumor-suppressive activity through antagonizing the wnt/beta-catenin signaling, and is frequently methylated in colorectal cancer. Clin Cancer Res. 2008;14:55–61. doi: 10.1158/1078-0432.CCR-07-1644.
- 6.Vlad A, Röhrs S, Klein-Hitpass L, Müller O. The first five years of the wnt targetome. Cell Signal. 2008;20:795–802. doi: 10.1016/j.cellsig.2007.10.031.
- 7.Herbst A, et al. Comprehensive analysis of β-catenin target genes in colorectal carcinoma cell lines with deregulated wnt/β-catenin signaling. BMC Genomics. 2014;15:74. doi: 10.1186/1471-2164-15-74.
- 8.DeMorrow S, et al. The endocannabinoid anandamide inhibits cholangiocarcinoma growth via activation of the noncanonical wnt signaling pathway. Am J Physiol Gastrointest Liver Physiol. 2008;295:G1150–8. doi: 10.1152/ajpgi.90455.2008.
- 9.Laezza C, et al. Anandamide inhibits the wnt/β-catenin signalling pathway in human breast cancer mda mb 231 cells. Eur J Cancer. 2012;48:3112–22. doi: 10.1016/j.ejca.2012.02.062.
- 10.Greenhough A, Patsos HA, Williams AC, Paraskeva C. The cannabinoid delta(9)-tetrahydrocannabinol inhibits ras-mapk and pi3k-akt survival signalling and induces bad-mediated apoptosis in colorectal cancer cells. Int J Cancer. 2007;121:2172–80. doi: 10.1002/ijc.22917.
- 11.Santoro A, et al. Rimonabant inhibits human colon cancer cell growth and reduces the formation of precancerous lesions in the mouse colon. Int J Cancer. 2009;125:996–1003. doi: 10.1002/ijc.24483.
- 12.Pisanti S, et al. Genetic and pharmacologic inactivation of cannabinoid cb1 receptor inhibits angiogenesis. Blood. 2011;117:5541–50. doi: 10.1182/blood-2010-09-307355.
- 13.Cianchi F, et al. Cannabinoid receptor activation induces apoptosis through tumor necrosis factor alpha-mediated ceramide de novo synthesis in colon cancer cells. Clin Cancer Res. 2008;14:7691–700. doi: 10.1158/1078-0432.CCR-08-0799.
- 14.Izzo AA, et al. Increased endocannabinoid levels reduce the development of precancerous lesions in the mouse colon. J Mol Med (Berl). 2008;86:89–98. doi: 10.1007/s00109-007-0248-4.
- 15.Proto MC, et al. Interaction of endocannabinoid system and steroid hormones in the control of colon cancer cell growth. J Cell Physiol. 2012;227:250–8. doi: 10.1002/jcp.22727.
- 16.Wang D, et al. Loss of cannabinoid receptor 1 accelerates intestinal tumor growth. Cancer Res. 2008;68:6468–76. doi: 10.1158/0008-5472.CAN-08-0896.
- 17.Gustafsson SB, Lindgren T, Jonsson M, Jacobsson SO. Cannabinoid receptor-independent cytotoxic effects of cannabinoids in human colorectal carcinoma cells: synergism with 5-fluorouracil. Cancer Chemother Pharmacol. 2009;63:691–701. doi: 10.1007/s00280-008-0788-5.
- 18.Gazzerro P, et al. Synergistic inhibition of human colon cancer cell growth by the cannabinoid cb1 receptor antagonist rimonabant and oxaliplatin. Oncol Rep. 2010;23:171–5.
- 19.Wu G, Huang H, Garcia Abreu J, He X. Inhibition of gsk3 phosphorylation of beta-catenin via phosphorylated pppspxs motifs of wnt coreceptor lrp6. PLoS One. 2009;4:e4926. doi: 10.1371/journal.pone.0004926.
- 20.Stamos JL, Weis WI. The β-catenin destruction complex. Cold Spring Harb Perspect Biol. 2013;5:a007898. doi: 10.1101/cshperspect.a007898.
- 21.Ueno K, Hirata H, Hinoda Y, Dahiya R. Frizzled homolog proteins, micrornas and wnt signaling in cancer. Int J Cancer. 2013;132:1731–40. doi: 10.1002/ijc.27746.
- 22.Jacobs KM, et al. Gsk-3 β: A bifunctional role in cell death pathways. Int J Cell Biol. 2012;2012:930710. doi: 10.1155/2012/930710.
- 23.McDonald SL, Silver A. The opposing roles of wnt-5a in cancer. Br J Cancer. 2009;101:209–14. doi: 10.1038/sj.bjc.6605174.
- 24.Ishitani T, et al. The tak1-nlk mitogen-activated protein kinase cascade functions in the wnt-5a/ca(2+) pathway to antagonize wnt/beta-catenin signaling. Mol Cell Biol. 2003;23:131–9. doi: 10.1128/MCB.23.1.131-139.2003.
- 25.Oishi I, et al. The receptor tyrosine kinase ror2 is involved in non-canonical wnt5a/jnk signalling pathway. Genes Cells. 2003;8:645–54. doi: 10.1046/j.1365-2443.2003.00662.x.
- 26.Nomachi A, et al. Receptor tyrosine kinase ror2 mediates wnt5a-induced polarized cell migration by activating c-jun n-terminal kinase via actin-binding protein filamin a. J Biol Chem. 2008;283:27973–81. doi: 10.1074/jbc.M802325200.
- 27.Lauro G, Romano A, Riccio R, Bifulco G. Inverse virtual screening of antitumor targets: pilot study on a small database of natural bioactive compounds. J Nat Prod. 2011;74:1401–1407. doi: 10.1021/np100935s.
- 28.Cheruku P, et al. Discovery and synthesis of namalide reveals a new anabaenopeptin scaffold and peptidase inhibitor. J Med Chem. 2012;55:735–742. doi: 10.1021/jm201238p.
- 29.Lauro G, Masullo M, Piacente S, Riccio R, Bifulco G. Inverse virtual screening allows the discovery of the biological activity of natural compounds. Bioorg Med Chem. 2012;20:3596–3602. doi: 10.1016/j.bmc.2012.03.072.
- 30.Gong J, et al. New steroids with a rearranged skeleton as (h) p300 inhibitors from the sponge theonella swinhoei. Org Lett. 2014;16:2224–7. doi: 10.1021/ol5007345.
- 31.Scrima M, et al. Structural evidence of n6-isopentenyladenosine as a new ligand of farnesyl pyrophosphate synthase. J Med Chem. 2014;57:7798–7803. doi: 10.1021/jm500869x.
- 32.Gessi S, et al. Adenosine receptors in colon carcinoma tissues and colon tumoral cell lines: focus on the a(3) adenosine subtype. J Cell Physiol. 2007;211:826–36. doi: 10.1002/jcp.20994.
- 33.Ma DF, et al. Hypoxia-inducible adenosine a2b receptor modulates proliferation of colon carcinoma cells. Hum Pathol. 2010;41:1550–7. doi: 10.1016/j.humpath.2010.04.008.
- 34.Ohana G, et al. Inhibition of primary colon carcinoma growth and liver metastasis by the a3 adenosine receptor agonist cf101. Br J Cancer. 2003;89:1552–8. doi: 10.1038/sj.bjc.6601315.
- 35.Williams CS, et al. Erbb4 is over-expressed in human colon cancer and enhances cellular transformation. Carcinog. 2015;36:710–8. doi: 10.1093/carcin/bgv049.
- 36.Mitsui K, et al. Localization of phosphorylated erbb1-4 and heregulin in colorectal cancer. BMC Cancer. 2014;14:863. doi: 10.1186/1471-2407-14-863.
- 37.Liu X, et al. The structural basis of protein acetylation by the p300/cbp transcriptional coactivator. Nat. 2008;451:846–50. doi: 10.1038/nature06546.
- 38.Milite C, et al. A novel cell-permeable, selective, and noncompetitive inhibitor of kat3 histone acetyltransferases from a combined molecular pruning/classical isosterism approach. J Med Chem. 2015;58:2779–98. doi: 10.1021/jm5019687.
- 39.Castellano S, et al. Identification of structural features of 2-alkylidene-1,3-dicarbonyl derivatives that induce inhibition and/or activation of histone acetyltransferases kat3b/p300 and kat2b/pcaf. ChemMedChem. 2015;10:144–57. doi: 10.1002/cmdc.201402371.
- 40.Liu J, et al. Targeting wnt-driven cancer through the inhibition of porcupine by lgk974. Proc Natl Acad Sci USA. 2013;110:20224–9. doi: 10.1073/pnas.1314239110.
- 41.Jhawer M, et al. Pik3ca mutation/pten expression status predicts response of colon cancer cells to the epidermal growth factor receptor inhibitor cetuximab. Cancer Res. 2008;68:1953–61. doi: 10.1158/0008-5472.CAN-07-5659.
- 42.Buck E, et al. Loss of homotypic cell adhesion by epithelial-mesenchymal transition or mutation limits sensitivity to epidermal growth factor receptor inhibition. Mol Cancer Ther. 2007;6:532–41. doi: 10.1158/1535-7163.MCT-06-0462.
- 43.Medico E, et al. The molecular landscape of colorectal cancer cell lines unveils clinically actionable kinase targets. Nat Commun. 2015;6:7002. doi: 10.1038/ncomms8002.
- 44.Yu N, et al. Hsp105 recruits protein phosphatase 2a to dephosphorylate β-catenin. Mol Cell Biol. 2015;35:1390–400. doi: 10.1128/MCB.01307-14.
- 45.Yang J, et al. Adenomatous polyposis coli (apc) differentially regulates beta-catenin phosphorylation and ubiquitination in colon cancer cells. J Biol Chem. 2006;281:17751–7. doi: 10.1074/jbc.M600831200.
- 46.Zhang HH, et al. Selective inhibition of proliferation in colorectal carcinoma cell lines expressing mutant apc or activated b-raf. Int J Cancer. 2009;125:297–307. doi: 10.1002/ijc.24289.
- 47.Raffa RB, Ward SJ. Cb1-independent mechanisms of δ9-thcv, am251 and sr141716 (rimonabant) J Clin Pharm Ther. 2012;37:260–5. doi: 10.1111/j.1365-2710.2011.01284.x.
- 48.Pertwee RG. Receptors and channels targeted by synthetic cannabinoid receptor agonists and antagonists. Curr Med Chem. 2010;17:1360–81. doi: 10.2174/092986710790980050.
- 49.Erdozain AM, Diez-Alarcia R, Meana JJ, Callado LF. The inverse agonist effect of rimonabant on g protein activation is not mediated by the cannabinoid cb1 receptor: evidence from postmortem human brain. Biochem. Pharmacol. 2012;83:260–8. doi: 10.1016/j.bcp.2011.10.018.
- 50.Di Virgilio F, Adinolfi E. Extracellular purines, purinergic receptors and tumor growth. Oncogene. 2017;36:293–303. doi: 10.1038/onc.2016.206.
- 51.Carriba P, et al. Striatal adenosine a2a and cannabinoid cb1 receptors form functional heteromeric complexes that mediate the motor effects of cannabinoids. Neuropsychopharmacol. 2007;32:2249–59. doi: 10.1038/sj.npp.1301375.
- 52.Cerri S, et al. Neuroprotective potential of adenosine a2a and cannabinoid cb1 receptor antagonists in an animal model of parkinson disease. J Neuropathol Exp Neurol. 2014;73:414–24. doi: 10.1097/NEN.0000000000000064.
- 53.Leone RD, Lo YC, Powell JD. A2ar antagonists: Next generation checkpoint blockade for cancer immunotherapy. Comput. Struct Biotechnol J. 2015;13:265–272. doi: 10.1016/j.csbj.2015.03.008.
- 54.Ciaglia E, et al. Cannabinoid receptor cb1 regulates stat3 activity and its expression dictates the responsiveness to sr141716 treatment in human glioma patients’ cells. Oncotarget. 2015;6:15464–81. doi: 10.18632/oncotarget.3895.
- 55.Bae JA, et al. An unconventional kitenin/erbb4-mediated downstream signal of egf upregulates c-jun and the invasiveness of colorectal cancer cells. Clin Cancer Res. 2014;20:4115–28. doi: 10.1158/1078-0432.CCR-13-2863.
- 56.Khelwatty SA, et al. Co-expression of her family members in patients with dukes’ c and d colon cancer and their impacts on patient prognosis and survival. PLoS One. 2014;9:e91139. doi: 10.1371/journal.pone.0091139.
- 57.Ramos YF, et al. Genome-wide assessment of differential roles for p300 and cbp in transcription regulation. Nucleic Acids Res. 2010;38:5396–408. doi: 10.1093/nar/gkq184.
- 58.Gaddis M, Gerrard D, Frietze S, J. FP. Altering cancer transcriptomes using epigenomic inhibitors. Epigenetics Chromatin. 2015;8:9. doi: 10.1186/1756-8935-8-9.
- 59.Hao J, et al. Selective small molecule targeting β-catenin function discovered by in vivo chemical genetic screen. Cell Rep. 2013;4:898–904. doi: 10.1016/j.celrep.2013.07.047.
- 60.Greenhough A, et al. The cox-2/pge2 pathway: key roles in the hallmarks of cancer and adaptation to the tumour microenvironment. Carcinog. 2009;30:377–86. doi: 10.1093/carcin/bgp014.
- 61.Araki Y, et al. Regulation of cyclooxygenase-2 expression by the wnt and ras pathways. Cancer Res. 2003;63:728–34.
- 62.Nuñez F, Bravo S, Cruzat F, Montecino M, De Ferrari GV. Wnt/β-catenin signaling enhances cyclooxygenase-2 (cox2) transcriptional activity in gastric cancer cells. PLoS One. 2011;6:e18562. doi: 10.1371/journal.pone.0018562.
- 63.Castellone MD, Teramoto H, Williams BO, Druey KM, Gutkind JS. Prostaglandin e2 promotes colon cancer cell growth through a gs-axin-beta-catenin signaling axis. Sci. 2005;310:1504–10. doi: 10.1126/science.1116221.
- 64.O’Boyle NM, et al. Open babel: An open chemical toolbox. J Cheminform. 2011;3:33. doi: 10.1186/1758-2946-3-33.
- 65.Trott O, Olson AJ. Software news and update autodock vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J Comput. Chem. 2010;31:455–461. doi: 10.1002/jcc.21334.
- 66.Sarnataro D, et al. The cannabinoid cb1 receptor antagonist rimonabant (sr141716) inhibits human breast cancer cell proliferation through a lipid raft-mediated mechanism. Mol. Pharmacol. 2006;70:1298–306. doi: 10.1124/mol.106.025601.
Associated Data
Supplementary Materials
Data Availability Statement
All data generated or analysed during this study are included in this published article (and its Supplementary Information files).
