Palmitoylethanolamide induces microglia changes associated with increased migration and phagocytic activity: involvement of the CB2 receptor
0000 0001 0790 385Xgrid.4691.aDepartment of Experimental Medicine, Section of Pharmacology L. Donatelli, Università degli Studi della Campania “Luigi Vanvitelli” (Ex SUN), 80138 Naples, Italy
0000 0001 0790 385Xgrid.4691.aDepartment of Women, Child and General and Specialistic Surgery, Università degli Studi della Campania “Luigi Vanvitelli” (Ex SUN), 80138 Naples, Italy
0000 0001 0790 385Xgrid.4691.aDepartment of Experimental Medicine, Section of Microbiology and Clinical Microbiology, Università degli Studi della Campania “Luigi Vanvitelli” (Ex SUN), 80138 Naples, Italy
0000 0001 1940 4177grid.5326.2Institute of Biomolecular Chemistry, Consiglio Nazionale delle Ricerche, Pozzuoli, Italy
Endocannabinoid Research Group, Institute of Biomolecular Chemistry, C.N.R., Pozzuoli, Italy
0000 0001 0724 3038grid.47422.37Department of Science and Technology, University of Sannio, Benevento, Italy
Abstract
The endogenous fatty acid amide palmitoylethanolamide (PEA) has been shown to exert anti-inflammatory actions mainly through inhibition of the release of pro-inflammatory molecules from mast cells, monocytes and macrophages. Indirect activation of the endocannabinoid (eCB) system is among the several mechanisms of action that have been proposed to underlie the different effects of PEA in vivo. In this study, we used cultured rat microglia and human macrophages to evaluate whether PEA affects eCB signaling. PEA was found to increase CB2 mRNA and protein expression through peroxisome proliferator-activated receptor-α (PPAR-α) activation. This novel gene regulation mechanism was demonstrated through: (i) pharmacological PPAR-α manipulation, (ii) PPAR-α mRNA silencing, (iii) chromatin immunoprecipitation. Moreover, exposure to PEA induced morphological changes associated with a reactive microglial phenotype, including increased phagocytosis and migratory activity. Our findings suggest indirect regulation of microglial CB2R expression as a new possible mechanism underlying the effects of PEA. PEA can be explored as a useful tool for preventing/treating the symptoms associated with neuroinflammation in CNS disorders.
Introduction
Microglial cells are the resident immune cells responsible for maintaining homeostasis in the Central Nervous System (CNS). The activation of microglia is part of an early defense mechanism following injury or disease1. In pathological conditions, these cells assume an activated state characterized by morphological rearrangement, proliferation, chemotaxis towards the site of damage, and release of mediators2. Increasing evidence indicates that microglial activation is heterogeneous. In fact, depending on the phenotype assumed, microglia can elicit either cytotoxic or neuroprotective effects3. In addition to the inflammatory component, microglia are also considered to be the professional phagocytes in the CNS, responsible for removing dying or apoptotic cells, myelin debris, and bacteria4. The majority of pathogens that reach the brain are physiologically eliminated or sequestered in a latent form by microglia. However, highly virulent strains can produce a progressive inflammatory response associated with increased expression of cytokines and dysregulation of microglia cells, which is an hallmark of early stage neurodegeneration5.
It is well known that microglia express components of the endocannabinoid (eCB) system, including receptors, ligands, and metabolic enzymes. In particular, the cannabinoid (CB) type 2 receptor (CB2R) is tightly regulated on microglial surfaces during several pathological states6, 7. Indeed, selective CB2R stimulation inhibits microglial reactivity and promotes a neuroprotective phenotype8, 9.
Palmitoylethanolamide (PEA) is an eCB-like compound, which belongs to the class of long chain fatty acid ethanolamides that have been shown to have cytoprotective and anti-inflammatory activity. This is achieved by inhibition of the release of pro-inflammatory molecules from mast cells, monocytes, and macrophages10, 11. PEA is produced by neurons and glial cells in the CNS and is involved in the endogenous neuroprotective mechanisms that are activated following tissue damage or inflammation12–14. PEA exerts anti-inflammatory and analgesic effects through several molecular and cellular mechanisms15–17. Although it does not bind to CB receptors with high affinity18, selective blockers of CB1 or CB2 receptors have been shown to inhibit a multitude of its effects in vivo 19, 20. In fact, PEA has been shown to act on several targets, including GPR55, transient receptor potential vannilloid type-1 (TRPV1) channels, fatty acid amide hydrolase (FAAH), and, last but not least, peroxisome proliferator-activated receptor-α (PPAR-α)21, 22. However, the mechanism by which PEA acts on these receptors is highly debated. The apparent multitarget action of PEA inspired us to investigate the possible mechanisms underlying the role of CBRs activation in response to PEA-mediated effects.
In the present study, we aimed to determine if PEA affects eCB signaling, by focusing on the expression of CB2R in microglia cells, because of the well established role of this receptor in immune cells6. Using pharmacological, biochemical, and computational approaches, we investigated the involvement of PPAR-α in CB2R regulation in response to PEA. Additionally, the capability of PEA to regulate the ability of microglia to migrate and phagocytose as a possible consequence of CB2R activation was also evaluated. The subsequent discovery of a further mechanism of action for PEA paves the way to investigate its possible implication in several chronic neuroinflammatory diseases.
Results

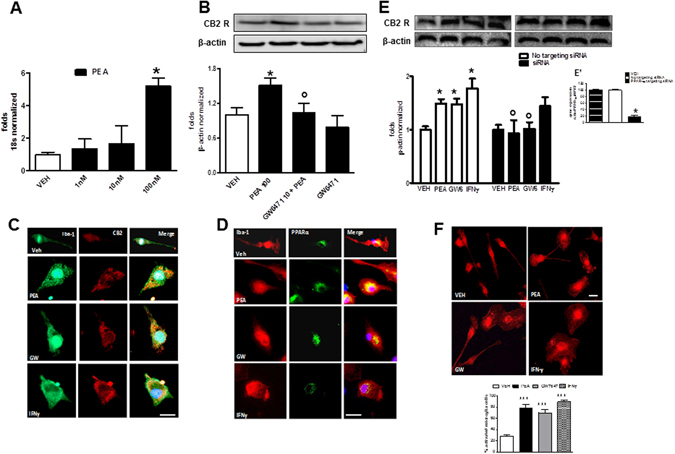

PEA enhances CB2R expression via PPAR-α activation
Control experiments verified that PEA treatment (1–100 nM for 24 hours) did not induce significant disruption of cellular integrity, as measured by release of the cytoplasmic enzyme lactate dehydrogenase (LDH) (not shown).
We therefore examined the effect of a 24 hour incubation of rat microglia with 1, 10, and 100 nM PEA on CB2R expression. IFNγ (300 U/mL for 24 hours) was used as a positive control23. No difference between untreated or vehicle-treated cells (0.01% DMSO) was observed (not shown). We found that the highest concentration of PEA (100 nM) significantly increased CB2 mRNA and protein levels in microglia compared to the levels in vehicle-treated cells (Fig. 1A and B). The involvement of PPAR-α in the PEA-mediated effect was evaluated by assessing the ability of the synthetic PPAR-α selective agonist GW7647 to modulate CB2R expression. CB2R expression was significantly higher in microglia treated with GW7647 (1 µM for 24 hours) than in vehicle-treated cells (Fig. S1A). Pre-treatment (15 min before) with the PPAR-α antagonist GW6471 (10 µM for 24 hours) completely blocked the enhancement of CB2R protein expression induced by both PEA and GW7647 (Figs 1B and S1A). The treatment with GW6471 alone did not significantly change CB2R expression, as compared with the vehicle (Fig. 1B). By immunocytochemical analysis, we also showed CB2R expression in cultured microglia. In particular, we observed the expression of CB2R in the cytosol of microglia incubated with PEA, GW7647 or IFNγ, whereas little staining was detected in vehicle-treated cells (Fig. 1C). Likewise, we found the presence of PPAR-α in the cytosol and, as punctate staining, also in the perinuclear area of resting or treated microglia (Fig. 1D).
Finally, we observed that all treatments induced morphological changes that are typically associated with an activated microglial state, such as increased soma diameters and shorter process lengths24. In contrast, vehicle-treated cells were in a ‘resting’ condition (Fig. 1F).
To investigate the involvement of PPAR-α in PEA effect on CB2R expression, we silenced PPAR-α mRNA expression in microglia and measured CB2R expression in the presence of PEA. Silencing PPAR-α gene expression with a specific siRNA led to a significant reduction in PPAR-α expression (81% reduction), whereas a non-targeting siRNA did not affect PPAR-α gene expression (Fig. 1E’). The receptor modulation observed in cells treated with the non-targeting siRNA was comparable to that observed in the absence of any siRNA treatment. In PPAR-α-silenced cells, incubation with PEA or GW7647 failed to increase CB2R expression, as compared to the levels of CB2R in cells treated with a non-targeting siRNA (Fig. 1E). CB2R antibody specificity was assessed in presence of the relative blocking peptide by western blotting and immunocytochemistry (Fig. S1B and C).
PEA increases CB2R expression in a human macrophage cell culture
Unable to investigate microglia in humans, we explored the possibility of PEA-induced CB2R modulation in human macrophages, based on the evidence that resident microglia and blood-derived-macrophages are derived from the same cell lineage. Similar to the results from our microglia studies, we observed that under basal conditions (untreated or vehicle-treated cells), macrophages expressed low CB2R levels and treatment with PEA (100 nM) significantly increased both CB2 mRNA and protein expression (Fig. S2A and B). In particular, we observed a cyclic expression of mRNA transcripts in 2 and 12 hours-treated cells which was correlated with increased protein levels detected at 4 hours and possibly in the time interval between the 12 and 24 hours.
Treatment with GW7647 (1 µM for 4 hours) significantly enhanced CB2R expression and this effect was inhibited by GW6471 pre-treatment (10 µM for 4 hours) (Fig. S2C). Interestingly, a decrease in IFNγ-induced CB2R expression was observed in the presence of GW6471, suggesting possible cross-talk between PPAR-α and the IFNγ pathway in CB2R modulation (Fig. S2C). The quantification of CB2R protein expression was complemented by a double immunofluorescence experiment through which we demonstrated a merged fluorescence signal of CB2R and vimentin-labeled macrophages (Fig. S2D).

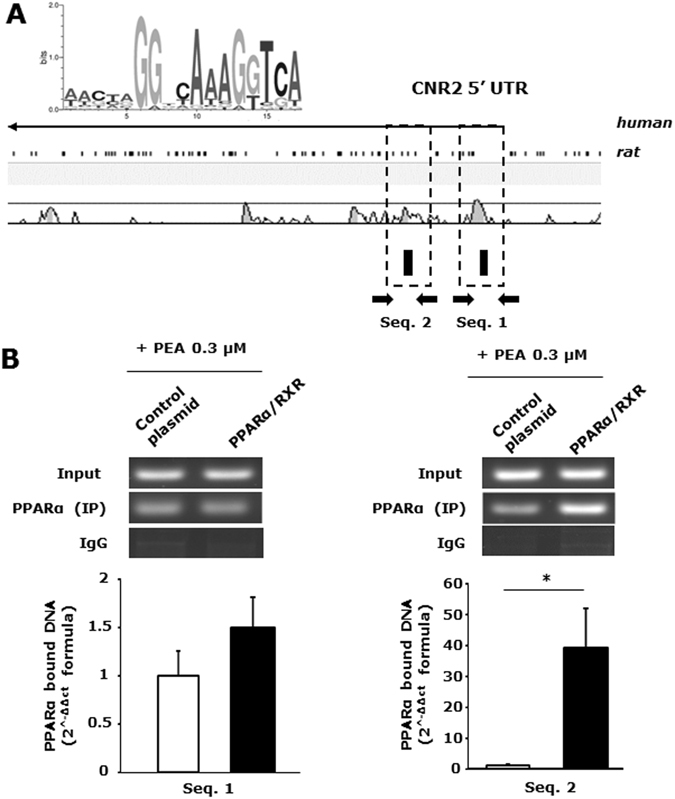

Cnr2 is directly regulated by PEA-mediated PPAR-α activation: bioinformatic analysis and chromatin immunoprecipitation assay
In view of the PEA-induced increased levels of CB2R mRNA and protein observed in microglia, we explored the possibility of a direct regulation of the transcription of Cnr2 (the gene encoding for CB2R) by PPAR-α. As nuclear receptors, PPARs forms heterodimers with the retinoid X receptor (RXR)25. Therefore, we used bioinformatic tools to search for putative consensus sequences for PPARα/RXR within the Cnr2 gene, as well in its upstream untranslated 3′ and 5′-UTR region.
The Cnr2 sequence shows many differences between the two species26, and for this reason we searched for putative PPARα/RXR sequence-rich sites located within conserved regions, and identified putative binding sequences within two conserved regions located at the 5′UTR region of Cnr2 (named sequence 1 and 2, Fig. 2A). Besides the two conserved regions identified at 5′UTR portion of the Cnr2, we found other putative PPARα/RXR sequences in non-conserved regions of both human and rat CB2.
Chromatin immunoprecipitation (Chip) analysis was performed to prove that, once stimulated with PEA, the nuclear receptor PPARα/RXR effectively binds the putative responsive sequences identified within Cnr2. Human embryonic kidney (HEK293) cells were transiently transfected with control (pcDNA3) or PPARα/RXR encoding plasmids. After 24 hours, transfected HEK293 cells were treated with PEA (0.1 or 0.3 µM for 24 hours). Afterwards, the genomic DNA was isolated from control and PPARα/RXR transfected cells. Then, the DNA was sonicated to obtain fragments between 400–500 bp and used for the immune-affinity reaction using a specific anti-PPAR-α antibody (see experimental procedure section). Subsequently, PPAR-α-immunoprecipitated DNA fragments were used for qPCR analysis using a specific pair of primers able to amplify the genomic portions of interest within the Cnr2 sequence containing the putative PPAR-α binding sites (black arrows, Fig. 2A). We found that upon stimulation with PEA 0.3 µM, PPAR-α binds with high affinity to only one of the two conserved regions identified in Cnr2 (Fig. 2B). Furthermore, we found a similar result upon exposure of PPARα/RXR transfected HEK293 cells to PEA 0.1 µM, although to a lesser extent, thus suggesting a plausible dose dependent effect exterted on PPARa/RXR heterodimerization/activation (data not shown).

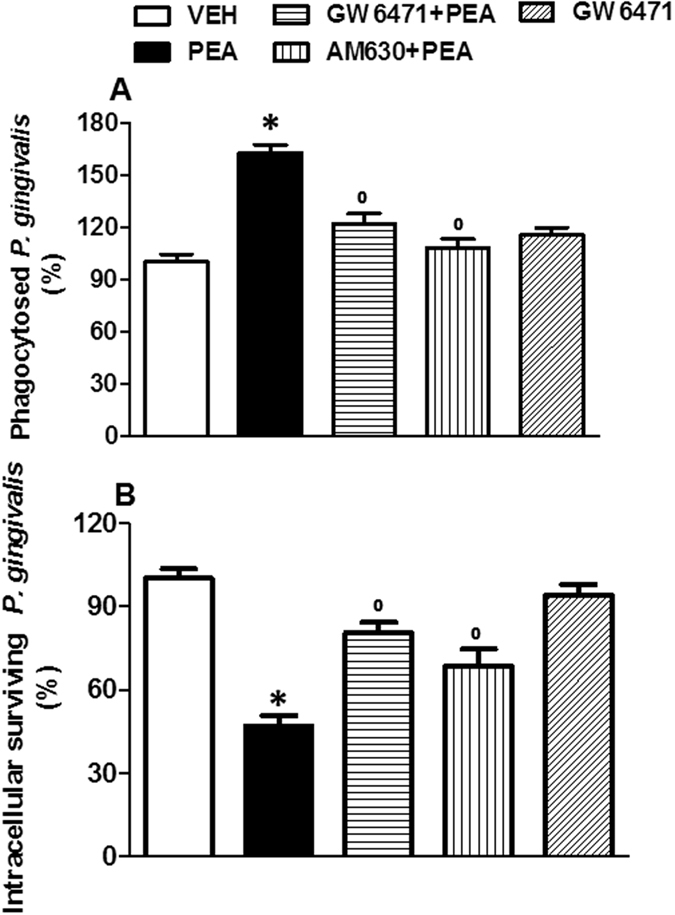

PEA enhances phagocytosis and intracellular killing of P. gingivalis by microglial cells
To assess the effect of PEA on the phagocytosis of P. gingivalis by microglia, cells were cultured with P. gingivalis and incubated with PEA or vehicle. No significant difference was observed between untreated and vehicle-treated cells (not shown). The numbers of ingested P. gingivalis after 24 hours of PEA treatment are shown in Fig. 3. We observed that PEA (100 nM) induced a significant enhancement of ingestion of bacteria as compared to vehicle-treated cells (Fig. 3A). In particular, in cells pretreated with PEA, the amount of phagocytosed P. gingivalis was 60% higher than that in control. When blocking PPAR-α with GW6471 (10 µM), the phagocytic activity was normalized; similar results were obtained by blocking CB2R (AM630, 100 nM) (Fig. 3A). Additionally, we observed that PEA treatment resulted in a decreased number of surviving P. gingivalis after 4 hours of incubation compared to the control (~46%). The pretreatment with GW6471 or AM630 significantly reduced PEA-mediated effects compared to untreated cells (Fig. 3B). GW6471 alone (10 µM) did not change the phagocytosis or intracellular killing of P. gingivalis as compared with vehicle (Fig. 3A and B).

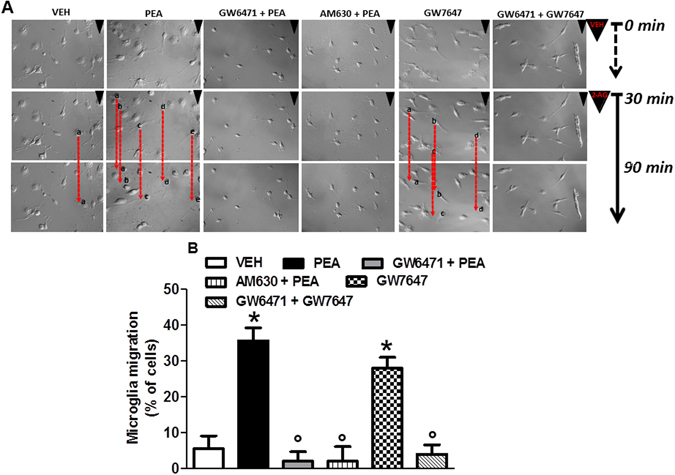

PEA induces microglia migration through CB2R
To assess the possible capability of PEA to induce and/or potentate microglia motility/migration we used a time-lapse experiment in which microglia migrate towards a source of 2-arachidonoylglycerol (2-AG) [100 µM, one of the two major eCBs]. Minimum microglial migration was observed under physiological conditions. PEA incubation (100 nM for 24 hours) significantly increased the migratory activity as compared to vehicle-treated cells. Interestingly, the pre-treatment with AM630 (100 nM) or GW6471 (10 µM) blocked 2-AG-induced chemotaxis, confirming the involvement of CB2R and PPAR-α in this process. In a similar fashion to PEA, the synthetic PPAR-α agonist also improved microglial migration, suggesting that the cannabinoid-induced microglial chemotaxis through CB2R could be selectively mediated by PPAR-α (Fig. 4). Conversely, we observed that pre-treatment with the CB1R antagonist AM251 (500 nM for 24 hours) did not modify PEA-mediated migration (Fig. S4).
Microglial cells produce sufficient amounts of 2-AG to tonically activate the PEA-induced upregulated CB2R in the presence of P. gingivalis
Next, we measured by isotope-dilution LC-MS the amounts of 2-AG produced by microglial cells stimulated with vehicle, P. gingivalis and P. gingivalis plus PEA (100 nM). We found that levels of 2-AG were much higher than those of the other endocannabinoid, anandamide, and potentially sufficient to tonically activate CB2R (39.6 ± 8.0 vs. 1.2 ± 0.2 pmol/mg lipid extract, equivalent to 17.9 ± 3.4 vs. 0.5 ± 0.06 nM in 1 ml of culture, means ± SD, n = 3; each ml of culture contained 5 × 105 cells), particularly if these receptors are upregulated (Fig. S5). Following P. gingivalis or P. gingivalis plus PEA incubation, we found that 2-AG levels were not significantly increased (up to 53.6 ± 12.7 and 74.04 ± 12.7 pmol/mg of extracted lipids, respectively, means ± SD, n = 3), whereas anandamide levels were significantly increased only following co-incubation with P. gingivalis plus PEA (up to 1.0 ± 0.16 and 2.7 ± 0.2 pmol/mg of extracted lipids, respectively, means ± SD, n = 3). Importantly, PEA was also detected and abundant in microglia under our experimental conditions (20.1 ± 2.3 and 17.6 ± 5.6 pmol/mg of extracted lipids, respectively in vehicle and P. gingivalis-stimulated cells, means ± SD, n = 3, equivalent to 9.2 ± 1.3 and 6.1 ± 1.8 nM, respectively, per 1 ml of cultured cells) (Fig. S5).
Discussion
The present study adds another piece to the intricate mosaic of the proposed mechanisms for the pleiotropic effects of PEA. In particular, we show that this endogenous fatty acid ethanolamide affects cannabinoid signaling by upregulating CB2R expression in mononuclear phagocytic cells. A significant increase in CB2R expression was observed in cultured rat microglia and human macrophages following incubation with PEA. Pharmacological, biochemical and computational analyses revealed that CB2R upregulation occurs through a PPAR-α-mediated genomic mechanism. Furthermore, we provide evidence for the involvement of CB2R in PEA-induced microglial phagocytosis and migration in vitro.
Previous evidence suggests a role for CB2R in PEA-mediated effects under different pathological conditions with particular regard to chronic pain states19, 20, 27. PEA, which does not directly activate CB1R or CB2R28, shows anti-inflammatory properties that can be blocked by the selective CB2 antagonist SR14452822. These findings have suggested that these PEA-mediated effects may result from direct stimulation of yet uncharacterized CB2-like receptors. Moreover, an ‘entourage hypothesis’, which states that the effects of PEA are due to enhancement of eCBs, and thus are a consequence of CBR or TRPV1 stimulation, has been also proposed29. However, the mechanism by which PEA interacts with CB2R is unknown. Here we show, for the first time, that PEA increases CB2R expression through a genomic mechanism involving the activation of the best established direct target for this lipid compound, i.e. PPAR-α. Because selective stimulation of CB2R is associated with analgesia and the release of anti-inflammatory cytokines30–32, our findings may explain the involvement of CB2R in the therapeutic effects of PEA, which are often observed in pathologies involving specific immune responses. In fact, the presence of CB2R in immune cells, including microglia, has been conclusively established6. Microglia closely resemble tissue macrophages and are key sensors of CNS injury caused by different diseases33–37. They are known to rapidly proliferate under activation and exert both pro- and anti-inflammatory effects38 in the inflammatory response. Milligan and Watkins39 suggested that the neuroprotective microglia (M2 phenotype) overexpress both CB1R and CB2R, which concurrently control the release of pro- and anti-inflammatory cytokines. However, the role of CBRs in microglia physiology has not been fully clarified. Here, we show that microglia increase CB2R expression following PEA treatment under physiological conditions, thereby assuming a hypertrophic morphology. In fact, using IFNγ as a positive control23, we found that treatment with PEA significantly increased CB2R levels in microglia, in association with cytoskeletal rearrangements that are typical of morphological cell activation. Indeed, as shown by immunofluorescence, PEA-treated cells exhibited larger somata (diameter) and shorter processes than control cells. A stringent analysis of surface antigens may identify possible changes in the M1/M2 cell profile induced by PEA.
The involvement of PPAR-α in the effects of PEA was evaluated by assessing the ability of the synthetic PPAR-α-selective agonist GW7647 to up-regulate CB2R. We found that GW7647 significantly increases CB2R expression levels compared to those in non-treated cells, and pre-treatment with the PPAR-α antagonist GW6471 blocks this effect. The requirement for PPAR-α in PEA-induced CB2R up-regulation was shown by silencing PPAR-α mRNA. Indeed, in PPAR-α-silenced microglia (which exhibit a ~80% reduction in PPAR-α mRNA levels), incubation with PEA or GW7647 failed to increase CB2R expression.
Our results suggest that the mechanism underlying PEA-induced CB2R up-regulation involves the activation of PPAR-α. To obtain conclusive evidence for this hypothesis, we performed ChiP assay by transfecting PPAR-α in HEK293 cells, a common cell model used to perform heterologous expression studies40, and evaluated the possible induction of a physical interaction between PPAR-α and Cnr2 by PEA. We found that upon stimulation with PEA, PPAR-α binds with high affinity a specific region identified in the Cnr2 gene. Thus, our results clearly show a straight gene regulation operated by PEA, although this drug could modulate several other pharmacological targets. Interestingly, compared with microglia, a higher dose of PEA (300 nM) was necessary to induce appreciable changes in HEK293 cells. This could be explained by assuming that primary microglia contain constitutively a more efficacious PPAR-α signaling system.
Unable to investigate resident microglia cells in humans, we decided to evaluated possible the PEA-induced CB2R modulation in blood-derived human macrophages, because of the similarity of the derived-cell lineage between microglia and macrophages. Indeed, similar to microglia, in human macrophage cells cultures we also observed that PEA and GW7647 increased CB2R expression. However, in these cells, the enhancement of protein expression was observed after a shorter incubation period (4 hours) than that observed in microglia (24 hours). This different time course of CB2R expression might be consequence of the different cell type used (human macrophages vs rat microglia) and, hence, of the possible different PPAR-α expression levels, as well as, localization/expression of the CB2R protein. Interestingly, decreased IFNγ-induced CB2R expression was observed in the presence of the PPAR-α antagonist, suggesting the existence of a cross-talk between the PPAR-α and IFNγ pathways in CB2R modulation in human macrophages.
In agreement with its anti-inflammatory/neuroprotective activities, previous studies proved the capability of PEA to increase resistance against systemic infections in vivo 41–44. Indeed, short-term PEA exposure (30 min) stimulates E. coli uptake in macrophages and microglia45–47. Our findings confirm the ability of PEA to increase microglia phagocytosis of the periodontal P. gingivalis pathogens. We have choosen P. gingivalis because these bacteria or their virulent factors are not only a source of chronic infections and inflammation, but can also reach the brain systemically over time and, by priming the resident immune cells (such as microglia), trigger neuroinflammatory processes associated with early stages of dementia47. In this study, we showed that treatment with PEA increases phagocytosis and enhances intracellular bacteria killing by microglia. Moreover, we demonstrated that the effects of PEA were mediated by both PPAR-α and CB2R activation. Our findings suggest that PEA or CB2R agonists may prevent some forms of brain infection, and, consequently, inflammatory neurodegeneration, by promoting microglial phagocytosis. Conversely, a recent study by Redlich and colleagues (2012)46 showed that the ability of PEA to induce phagocytosis does not depend on PPAR-α stimulation. This discrepancy may be due to the different bacterial strains (Streptococcus pneumonia or E. coli vs P. gingivalis) and cell lines (mouse vs rat) used in the two studies. Additionally, prolonged PEA treatment might promote CB2R activation, as shown here and elsewhere, also by merely enhancing eCB levels48, and thus induce phagocytosis through a PPAR-α-independent mechanism. At any rate, the present findings provide for the first time a molecular mechanism for PEA capability to increase resistance against systemic infections, an effect that has been known for decades and has been already exploited in the clinic in the past when PEA was marketed as “impulsin”49.
The recruitment of phagocytic cells to sites of damage is a crucial step in inflammation and antimicrobial immune responses. Microglia cell migration can be triggered by a pool of chemoattractant factors acting at G-coupled receptors, which include chemokines, nucleotides, and bioactive lipids (i.e. eCBs)50–53. In this context, CB receptor modulators (synthetic compounds or phytocannabinoids) have been shown to regulate macrophage/microglial cell activity and migration in several conditions54–57. Our present data reveal that the increased CB2R expression mediated by PEA manifests also an enhanced capability of microglia to migrate towards a high (μM) local concentration of extracellular 2-AG source. On the other hand, we found that, following stimulation with PEA and P. gingivalis, lower (nM) concentrations of 2-AG are present in microglia, which, alone or together with the other eCB, anandamide, might activate the PEA-upregulated CB2R and trigger phagocytosis, but would not be sufficiently high to prevent microglia migration towards an external source of eCBs. Indeed, although it is always difficult to predict to what extent the global concentrations of very lipophilic compounds (such as the eCBs and PEA) that are detected in an experimental set-up reflect the local concentration at their targets (CBRs and PPAR-α, respectively) in a biological setting, we can surmise, from our present findings and previous data on its functional activity at CB2R58, 59, that only microglial 2-AG might tonically stimulate the CB2R upregulated by PEA, and that also PEA coming from neighboring cells is necessary to exert the upregulation of CB2R.
In conclusion, the present study provides evidence for a new mechanism of action for PEA. Our data indicate that PEA may act indirectly on CB2R, not only by increasing endogenous ligand content29, 60, but also by regulating receptor expression. Moreover, we demonstrated that PEA induces a microglial morphological change associated with enhanced phagocytosis and migratory activity in which CB2R plays a role. These findings suggest that PEA, by targeting CB2R, may be a useful tool for preventing the consequences of neuroinflammation in CNS disorders, and explain the clinical use in the late 1970’s of this compound against infections.
Experimental Procedures
Cell cultures and transfection
-Microglial Cells. Primary microglia were prepared according to our previous studies61, 62 (Supplemental Experimental Procedures). Briefly, cortices from SD postnatal rats were dissociated and suspended in Dulbecco’s modified Eagle medium (DMEM). The cell suspension was filtered and plated in tissue culture flasks precoated with poly-D-lysine. Cells were harvested as floating cell suspensions following shaking after 10–12 days. Cell viability was determined by measuring the lactate dehydrogenase (LDH assay kit, Sigma, UK) according to the manufacturers’ instructions. In all experiments no significant difference was observed between untreated and vehicle-treated cells (DMSO 0.01%). The experimental procedures were conducted in conformity with protocols approved by the Animal Ethics Committee of the Second University of Naples. Animal care was in compliance with the IASP and European Community (E.C. L358/1 18/12/86) guidelines on the use and protection of animals in experimental research.
- Human Embryonic Kidney-293 (HEK293) cells were grown in 60-mm plastic Petri dishes in Eagle’s Minimum Essential Medium (EMEM) containing 10% FBS, nonessential amino acids (0.1 mM), penicillin (50 U/ml), and streptomycin (100 µg/ml) in a humidified atmosphere at 95% O2, 5% CO2 at 37 °C. After plating, the cells were transfected on the next day with plasmids encoding murine PPAR-α (Addgene, Plasmid #22751) and retinoid X receptor (RXR Addgene, Plasmid #8882) cDNAs by use of Lipofectamine LTX (Life Tecnology) following manufacturer’s instructions. One day after transfection, PEA was added to the culture medium for 24 hours.
- Macrophages. Eight healthy volunteers were enrolled as whole blood donors for macrophages cultures after written informed consent with the approval of the Ethic Committee of the Second University of Naples (Supplemental Experimental Procedures).
All procedures were carried out in accordance with the national legislation and the Declaration of Helsinki.
Immunocytochemistry
Cells were fixed in 4% paraformaldehyde for 20 min, followed by ice-cold 100% methanol for 3 min. Fixed cells were incubated for 2 h with primary antibodies against Iba-1 (rabbit anti-ionized calcium binding adapter molecule 1; 1:1000 dilution; Wako Chemicals, Germany), or Vimentin (mouse anti-Vimentin; 1:500 dilution; Santa Cruz Biotechnology), CB2R (goat anti-CB2 1:200 dilution; Santa Cruz Biotechnology) or PPAR-α (mouse anti PPAR-α 1:400 diluition, Abcam). Following this incubation, cells were washed and incubated for 45 min with the secondary antibody solution (donkey anti-rabbit or donkey anti-goat or donkey anti-mouse IgG-conjugated Alexa Fluor TM 488 and 568; 1:1000 dilution; Molecular Probes). Coverslips were mounted using Vectashield mounting media (Vector Laboratories, Burlingame, CA). Activated cells were detected by measuring the cell soma and processes length. Resting and activated microglia were classified based on the following criteria: resting microglia displayed small somata bearing long, thin, ramified processes, whereas activated microglia exhibited marked cellular hypertrophy and retraction of processes such that the process length was lower than the diameter of the soma compartment. Data were expressed as percentage of activated cells. All experiments were performed in triplicate.
Real Time Polymerase Chain Reaction
To quantify the expression levels of CB2R mRNA, three serial complementary DNA (cDNA) dilutions (1:5) obtained from reverse transcription of 100 ng total mRNA (High Capacity cDNA Reverse Transcription kit; Applied Biosystems, Foster City, CA, USA) were amplified by Real Time polymerase chain reaction (Real Time PCR or qPCR) with SYBR green as fluorophore. The housekeeping gene β-actin was used as endogenous control. Real Time-PCR products were analyzed using the SDS software (Applied Biosystems, Foster City, CA, USA) (Supplemental Experimental Procedures).
RNA extraction and RT-PCR
Total RNA was extracted from homogenized cells using a RNA Tri-Reagent (Molecular Research Center Inc., Cincinnati, OH) according to the manufacturer’s protocol. The extracted RNA was subjected to DNase I treatment at 37 °C for 30 min. The total RNA concentration was determined by UV spectrophotometry. The mRNA levels of the genes under analysis were measured by RT-PCR amplification. RT minus controls were carried out to check potential genomic DNA contamination. These RT minus controls were performed without using the reverse transcriptase enzyme in the reaction mix. Sequences for the mRNAs from GeneBank (DNASTAR INC., Madison, WI) were used to design primer pairs for RT-PCRs (OLIGO 4.05 software, National Biosciences Inc., Plymouth, MN). Each RT-PCR was repeated at least three times to achieve the best possible reproducibility data. The measured mRNA levels were normalized with respect to hypoxanthine-guanine phosphoribosyltransferase (HPRT), chosen as housekeeping gene. The HPRT gene expression did not change in several experimental conditions. To our knowledge there is no molecular evidence for variation in HPRT mRNA-levels in this model. The gene expression values were expressed as arbitrary units ± SE. Amplification of genes of interest and HPRT were performed simultaneously. PCR products were resolved into 2.0% agarose gel. A semi-quantitative analysis of mRNA levels was carried out by the Gel Doc EZ UV System (Bio-Rad, Hercules, CA).
Protein Extraction and Western Blotting Analysis
For protein extraction, cells or tissues were collected in RIPA buffer (Thermo Fisher Scientific Inc., Rockford, IL, USA), and proteins were extracted according to the manufacturer’s protocol. Protein concentrations were determined using the Bradford reagent (Sigma-Aldrich, St Louis, MO, USA). Samples were run on a 12% or 15% sodium dodecyl sulfate–polyacrylamide gel and transferred to nitrocellulose membranes. Membranes strips were blocked in 5% milk, 13 Tris-buffered saline, and 0.05% Tween-20 and incubated, firstly overnight with primary antibodies to detect CB2R (1:200; Abcam, Cambridge, UK) or PPARα (PPAR-α 1:400 diluition, Abcam) and then with the relative secondary antibody. A blocking peptide for the anti-CB2R antibody (1:100 diluition, Abcam) in control microglia cells or spleen was used to validate the specificity of the antibody. An anti-β-tubulin monoclonal antibody (1:5000 dilution; Santa Cruz Biotechnology Santa Cruz, CA, USA) was used to check for identical protein loading. Reactive bands were detected by chemiluminescence (SuperSignal, West Femto, Pierce, USA) and visualized on a X-ray film (Fuji Corporation, Tokyo, Japan) or on a C-DiGit® Blot Scanner (LI-COR Biosciences, Nebraska, USA) or on a ChemiDoc station (Bio-Rad, Hercules, CA, USA). Images were captured, stored, and analyzed using “Image studio Digits ver. 5.0” software.
Gene silencing
PPAR-α mRNA was silenced by using a human PPAR-α siRNA reagent (PPAR-a silencer select Pre-designed siRNA, Ambion, USA). Cell transfection was performed according to manufacturer’s protocol. Briefly, microglial cells were obtained as described above and plated on 24-multiwell plates with D-MEM and 10% FBS at density 500.000 cells/well. Cells were then transfected by using 1 μM non-targeting or experimental siRNA combined in 1%-supplemented FBS medium. Cells were incubated at 37 °C in a CO2 incubator for 3 days, after which they were collected for bio-molecular examination or treated with PEA (100 nM), GW7647 (1 μM), and IFNγ (300 U/mL) for 24 hours in order to evaluate CB2R protein expression. Transfection minus controls were carried out using non-targeting siRNA in order to check the efficiency of transfection.
Bioinformatic analysis and chromatin immunoprecipitation assays
Putative PPAR/RXR consensus sequence identification was performed by using Genomatix software. The ChIP assay was performed by the use of ChiP Kit (Sigma-Aldrich MI, IT; cat. n. CHP1) following the manufacturer’s instructions. The genomic DNA was sonicated, immunoprecipitated with an anti-PPARα antibody certified for ChiP analysis (Abcam; ab2779) and subsequently released from histones by following the previously described procedure63. Immunoprecipitated DNA was then analyzed by qPCR (40–45 cycles) using specific primers able to amplify each of PPAR/RXR-rich regions identified (Forward: GTC AGG TAC CTC TCA GCT CC; Reverse CTG TAA GGG GAT AAT GCA CC the sequence 1; Forward: GGT GCA TTA TCC CCA TTT TAC AG; Reverse: GTG AGT GTG AGG AGG TCT GG for the sequence 2). In addition, for each primer pair, non-immunoprecipitated DNA was used as input for normalization. All ChIP assays were performed in triplicate for at least three different biological preparations (Fig. S3).
Phagocytosis assay and intracellular survival assay
Pretreated microglia with PEA (100 nM), and/or GW6471 (10 µM), and/or AM630 (100 nM) for 24 hours were infected with P. gingivalis cells. Ingested bacteria were serially diluted and spread on plates for viable counts. To monitor survival, microglial cells were incubated with P. gingivalis for 90 min. Thereafter, cells were washed and the extracellular bacteria destroyed. The amounts of intracellular bacteria were determined as CFU by quantitative plating of serial dilutions on TS agar (Supplemental Experimental Procedures).
Migration assay
The migration assay was performed in PEA or PPAR-α agonist-treated cells, in presence of the PPAR-α selective antagonist GW6471 (10 µM) or the CB2R selective antagonist AM630 100 nM), or the CB1 selective antagonist AM251 (500 nM). The movement of microglia was recorded each 5 min for 90 min starting from the application of 2-AG as the chemo-attractant ligand (Supplemental Experimental Procedures).
Electronic supplementary material
Untitled section
Acknowledgements
We would to thank Shimos Alameen and Carmela Belardo for technical support.
Notes
Competing Interests
The authors declare that they have no competing interests.
