Cost and cost-effectiveness of swab-based molecular testing for tuberculosis in the Philippines, Uganda, Vietnam, and Zambia
Tuberculosis Research Laboratory, Research Services, De La Salle Medical and Health Sciences Institute, Dasmariñas City, Philippines
Department of Infectious Disease and Tropical Medicine, Heidelberg University Hospital, Heidelberg, Germany
Center for Promotion of Advancement of Society, Hanoi, Viet Nam
Centre for Infectious Disease Research in Zambia, Lusaka, Zambia
South African Centre for Epidemiological Modelling and Analysis (SACEMA), Center for Epidemic Response and Innovation, School of Data Science, Stellenbosch University, Stellenbosch, South Africa
Center for Tuberculosis, University of California, San Francisco, United States of America
Department of Medicine, Division of Pulmonary Diseases and Critical Care Medicine, University of California Irvine, Irvine, United States of America
German Centre for infection Research (DZIF), partner site Heidelberg University Hospital, Heidelberg, Germany
Makerere University College of Health Sciences, Kampala, Uganda
†Corresponding author: Dr Florian Marx M.D. Ph.D., Department of Infectious Disease and Tropical Medicine, Heidelberg, University Hospital, Im Neuenheimer Feld 672, 69120 Heidelberg, Germany; Phone: +49 6221 5637874; Email: florian.marx@uni-heidelberg.deAbstract
Background
Tongue swabs (TS) offer a promising alternative to sputum-based molecular testing for tuberculosis. As part of the Tongue Swab Yield (TSwaY) study, we assessed the cost and cost-effectiveness of integrating TS-based testing using MiniDock MTB (Guangzhou Pluslife Biotech Co., Ltd., China) into primary healthcare in four high-burden countries.
Methods
Cost data were collected from primary healthcare facilities in the Philippines, Uganda, Vietnam, and Zambia. We evaluated three MiniDock MTB strategies: (1) TS-only, replacing sputum Xpert Ultra; (2) limited combined, with Xpert Ultra first-line and TS added for sputum-scarce individuals; (3) extended combined, with TS also added for those with negative or indeterminate sputum results. Additionally, we simulated an integrated combined strategy using MiniDock MTB to test sputum swabs (if available) and TS for sputum-scarce individuals. Incremental cost-effectiveness ratios (ICERs) for each scenario were estimated relative to the next least costly strategy. Net monetary benefits (NMB) were evaluated across willingness-to-pay (WTP) thresholds. Best estimates were based on observed diagnostic yield, with 95% uncertainty intervals from probabilistic simulation.
Findings
Among 1370 participants, TS-only was least costly but yielded the fewest diagnoses (62 [95% UI: 48;75] at USD 300 [95% UI: 244;388] per diagnosis). The standard of care, sputum Xpert Ultra, was extendedly dominated by TS-based strategies. Limited combined yielded 12 (95% UI: -1;22) additional diagnoses at an incremental USD 1,507 per diagnosis compared with TS-only; extended combined yielded 15 (95% UI: 8;22) additional diagnoses at an incremental USD 1,004 (95% UI: 661;1,655) per diagnosis compared with limited combined. The simulated integrated combined sputum swab and TS testing using MiniDock MTB had the highest NMB at WTP thresholds above USD 161 per additional diagnosis.
Interpretation
Our findings support integrating swab-based testing with MiniDock MTB into diagnostic algorithms in high-burden settings to increase case detection at minimal additional cost.
Funding
Gates Foundation.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
This study was funded by the Gates Foundation.
Summary of Updates:
Introduction
Rapid molecular tests offer substantial advantages over traditional diagnostic methods for the bacteriological confirmation of tuberculosis (TB), raising hopes of improving case detection and accelerating access to curative treatment. Scaling up molecular testing has therefore been a key priority for national TB programmes over the past decade. Widespread adoption of Xpert MTB/RIF and its successor, Xpert MTB/RIF Ultra (“Xpert Ultra”; Cepheid, USA), has enhanced TB detection in routine settings.1,2 However, high costs, infrastructure limitations, and poor adherence to diagnostic algorithms have constrained implementation and impact.1-3
A key challenge for currently recommended rapid molecular tests is their reliance on sputum samples. In high TB burden countries, several studies have reported sputum scarcity, defined as the inability to expectorate sputum for diagnostic evaluation, in 18–35% of adults evaluated for TB.4-7 These limitations contribute to the suboptimal diagnostic yield of sputum-based diagnostics and highlight the urgent need for accurate and affordable non-sputum diagnostic tools to support earlier detection and treatment.8,9
Tongue swabs have emerged as a promising alternative to sputum-based molecular testing for TB, particularly because they are easier and more acceptable to collect.10-13 Building on this, novel swab-based near–point-of-care (POC) platforms have been developed.14 One such system is the MTB Nucleic Acid Test Card (MiniDock MTB; Guangzhou Pluslife Biotech, China), a qualitative molecular assay designed to detect the Mycobacterium tuberculosis complex (MTBC). The test runs on the Pluslife Integrated Nucleic Acid Testing Device (MiniDock PM001 Ultra), a compact, isothermal platform that enables rapid, low-cost testing. Sample preparation is handled by the Pluslife Thermolyse, an automated unit combining bead-beating and thermal lysis to directly process sputum or tongue swab specimens.14,15 Early diagnostic accuracy studies have shown that tongue swab assays have high specificity and sensitivity exceeding that of sputum smear microscopy, though lower than sputum Xpert Ultra.14 However, tongue swab-based testing could improve diagnostic yield when offered to individuals who are unable to produce sputum and would otherwise remain untested with sputum-based assays.7,8
Beyond test performance, economic considerations are essential to guide implementation decisions.16 MiniDock MTB is anticipated to be substantially less expensive than current World Health Organization (WHO)-recommended sputum-based diagnostics, offering potential cost savings through lower device and cartridge costs, reduced staffing needs, and simpler logistics.14 Its operational simplicity may also support decentralized implementation, particularly in peripheral health settings. As a result, tongue swab-based molecular testing using MiniDock MTB could represent a more affordable and accessible alternative to sputum-based approaches. However, empirical evidence on the cost and cost-effectiveness of this approach remains limited. Early health-economic evaluations are needed to inform optimal integration into routine TB diagnostic services.
This health-economic evaluation was conducted as part of the Tongue Swab Yield (TSwaY) study, a multi-country, pragmatic cross-sectional study in primary healthcare centers that assessed novel tongue swab-based approaches using the MiniDock MTB platform.17 We aimed to evaluate the cost and cost-effectiveness of integrating tongue swab-based testing using MiniDock MTB into primary healthcare in four high-burden countries. In addition, we used simulation to assess the health and cost implications of an integrated, single-platform diagnostic strategy in which MiniDock MTB would be used to test sputum swabs from individuals able to produce sputum and tongue swabs from those who were sputum-scarce.
Methods
Study Overview and Design
We conducted a health-economic evaluation of tongue swab-based molecular TB testing using MiniDock MTB in four high-burden countries. Details of TSwaY study procedures have been reported elsewhere.17 We collected cost data to compare tongue swab MiniDock MTB with sputum Xpert Ultra and assessed the cost-effectiveness of integrating tongue swab-based testing into routine diagnostic services. We followed the Consolidated Health Economic Evaluation Reporting Standards to report the results of our study.18
Study population and setting
The TSwaY study was conducted in outpatient health centers providing primary diagnostic and treatment services for individuals with presumptive TB in the Philippines, Vietnam, Uganda, and Zambia. A total of 1,639 individuals who presented to study health centers were enrolled based on either unexplained cough for two or more weeks, or a TB risk factor (TB contact, history of mining, or HIV infection), plus an abnormal WHO-endorsed TB screening test (chest x-ray, or for PLHIV, serum C-reactive protein [CRP] >5 mg/dL).17 Individuals who were presenting for TB treatment after being diagnosed with TB elsewhere, already received treatment for TB, started on treatment for extra-pulmonary TB only, or were unable or unwilling to provide informed consent were excluded.17 For this cost-effectiveness analysis, we included only participants aged 15 years and older (n = 1,370), representing 84% of the total study population. This age restriction was applied as diagnostic procedures and performance differ in children, and the study was not powered for this subgroup.
Interventions and comparator
This analysis compared three strategies for integrating tongue swab-based testing into routine diagnostic services for the bacteriological confirmation of TB, using observed yield data from the TSwaY study (Supplementary Table S1).
First, we evaluated a tongue swab-only strategy, in which sputum Xpert Ultra would be fully replaced by tongue swab testing using MiniDock MTB. Because MiniDock MTB does not detect rifampicin resistance, we assumed a reflex testing algorithm: individuals with a positive tongue swab result would undergo sputum Xpert Ultra testing for rifampicin resistance, where possible. For those unable to provide sputum, no further drug resistance testing was assumed.
Second, under the limited combined strategy, sputum Xpert Ultra would be used for individuals able to produce sputum, while tongue swab MiniDock MTB would be offered only to those unable to do so.
Third, under the extended combined strategy, both sputum (where possible) and tongue swab samples would be collected from all individuals. Sputum would be tested using Xpert Ultra, and tongue swab MiniDock MTB would be used for individuals unable to produce sputum (as in the limited strategy) and for those with negative or indeterminate sputum results.
All three strategies were applied retrospectively to individual-level data from the TSwaY study to compare diagnostic yield and cost with those of sputum Xpert Ultra alone, the current standard of care. Consistent with the TSwaY study protocol, only the test result of each participant’s first sample was included, and trace-positive Xpert Ultra results were excluded from the definition of bacteriologically confirmed TB. All testing was assumed to be conducted onsite.
Simulated integrated sputum swab and tongue swab strategy
In a fourth, simulated scenario, we evaluated an integrated single-platform diagnostic approach in which MiniDock MTB would be used to test sputum swabs as the primary sample type, with tongue swabs collected from individuals unable to produce sputum. This “integrated combined” strategy was included to explore the health and cost implications of a same-platform approach that does not rely on Xpert Ultra. Operationally, sputum would be requested from all individuals, and a swab dipped into the sputum specimen would be tested using MiniDock MTB. Those unable to produce sputum would instead provide a tongue swab for MiniDock MTB testing. This strategy closely mirrors the limited combined strategy but replaces sputum Xpert Ultra with sputum swab MiniDock MTB testing.
Per-test cost estimates for sputum-swab MiniDock MTB testing were derived from the primary costing analysis. Because sputum swab testing was not conducted in the TSwaY study, diagnostic yield was estimated post hoc by applying an estimate of relative yield compared with sputum Xpert Ultra. This relative yield was sampled from pooled data from two early evaluations of sputum-swab MiniDock MTB accuracy conducted within the R2D2 TB Network (www.r2d2tbnetwork.org). One of these evaluations has been published,19 and the other is documented in an unpublished internal report shared confidentially with the study team. In these evaluations, sputum swab MiniDock MTB results were concordant with sputum Xpert Ultra results in 62 of 64 and 285 of 304 participants, respectively. Further methodological details are provided in the Supplementary Information.
Costing and cost-effectiveness analysis
We estimated the cost of sputum Xpert Ultra and tongue swab MiniDock MTB-based molecular testing per individual evaluated for TB, expressed in 2024 US dollars, from a healthcare system perspective. Average per-test costs reflected 2024 estimates for TB diagnostic services in each of the four study countries and included human resources, consumables for sample collection and processing, device purchase and maintenance, and test cartridges. Salary and time inputs were derived from site data and staff interviews. All costs were converted to 2024 US dollars using average 2024 exchange rates from the International Monetary Fund; no inflation adjustment was required.20
Probabilistic per-test cost estimates were derived by sampling from specified ranges of itemized cost inputs. Using diagnostic yield and sample provision data from the TSwaY study, we calculated total costs for each strategy.
We first assessed the three diagnostic strategies directly informed by empirical yield data from TSwaY. We then extended the analysis to include the simulated integrated combined strategy as an alternative to the limited combined strategy. The extended combined strategy was not included in this comparison because no data were available to estimate the diagnostic yield of sequential testing with MiniDock MTB using both sputum and tongue swabs among people with negative and indeterminate sputum results. This precluded a meaningful extension of the extended combined strategy to a single-platform scenario.
The primary outcome was the incremental cost-effectiveness ratio (ICER), defined as the incremental cost per additional bacteriologically confirmed TB diagnosis, compared with the next least costly, non-dominated strategy. Best estimates reported were based on observed diagnostic yield, or simulated yield for the integrated combined strategy. Uncertainty intervals were generated using Monte Carlo simulation with 1,000 probabilistic model iterations. For each iteration, TB diagnoses were resampled using a nonparametric paired bootstrap at the individual level, preserving within-person correlation between sputum and tongue swab results.21 Sampled diagnostic outcomes were then combined with independently sampled cost estimates. We report 95% uncertainty intervals (95% UI) as the 2.5th and 97.5th percentiles of the resulting distribution.
We also estimated the probability that each strategy would be optimal at different willingness-to-pay (WTP) threshold per bacteriologically confirmed TB diagnosis. A strategy was defined as optimal at WTP threshold ω if it maximized net monetary benefit (NMB), calculated as ω × (number of diagnoses) – (total cost). The probability of each strategy being optimal was derived from the Monte Carlo simulation.
Analyses were conducted for the overall study population aged ≥ 15 years, as well as separately for each country.
In a sensitivity analysis, we accounted for incomplete sputum processing – particularly in Zambia – by assuming that unprocessed sputum samples had the same positivity rate as processed ones and recalculated diagnostic yield and ICERs accordingly.
Ethical considerations
Written informed consent was obtained from all study participants in the TSwaY study. Ethical approval, including for the health-economic analysis, was obtained from institutional review boards and/or research ethics committees at the University of California San Francisco (USA), University of Heidelberg (Germany), De La Salle Medical and Health Sciences Institute (Philippines), Uganda National Council for Science and Technology (Uganda), Hanoi Lung Hospital (Vietnam), and University of Zambia (Zambia).
Role of the Funding Source
The funder, Gates Foundation, provided input on study design but was not involved in the collection, analysis, or interpretation of data, in the writing of the report, or in the decision to submit the manuscript for publication.
Results

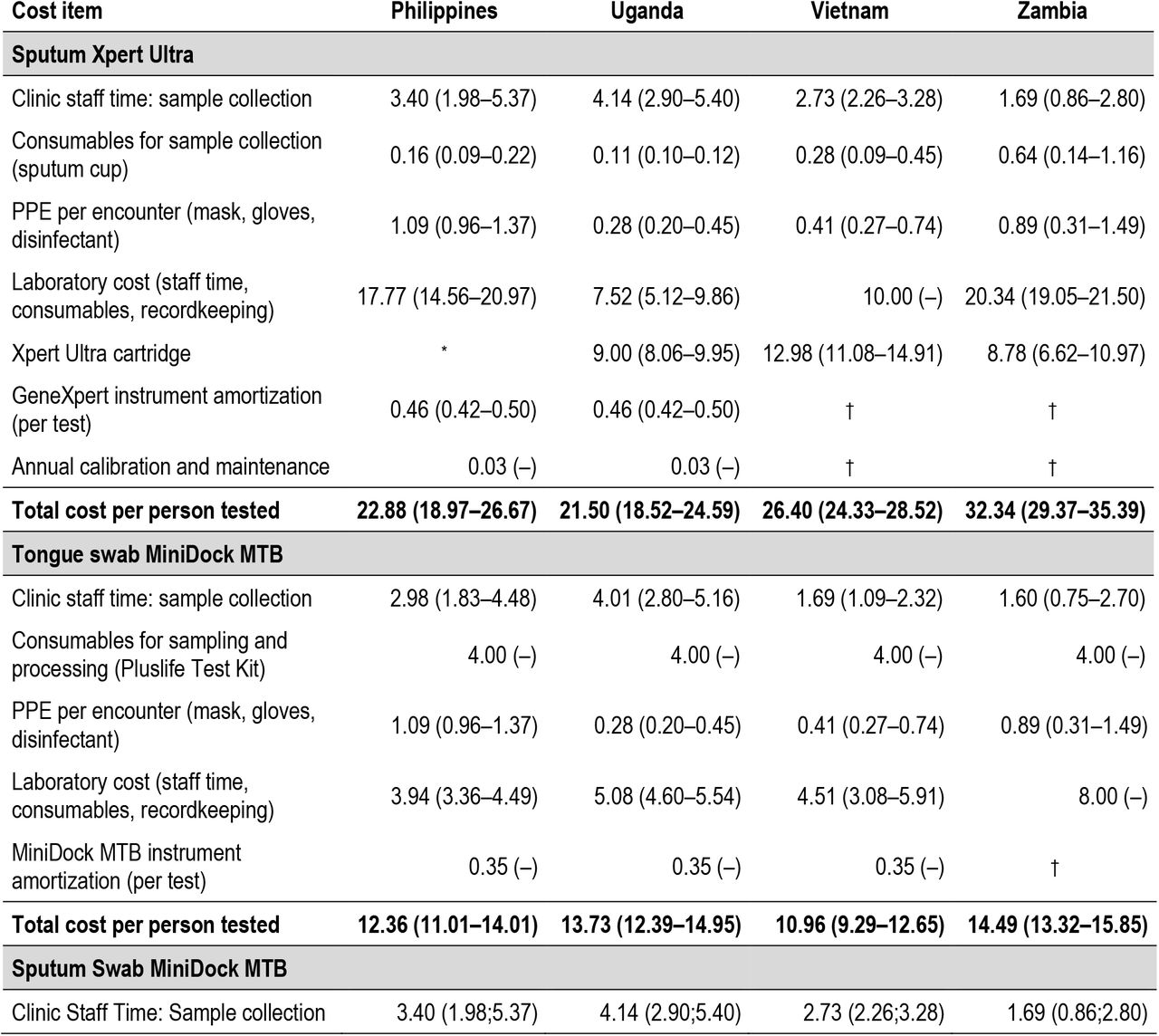

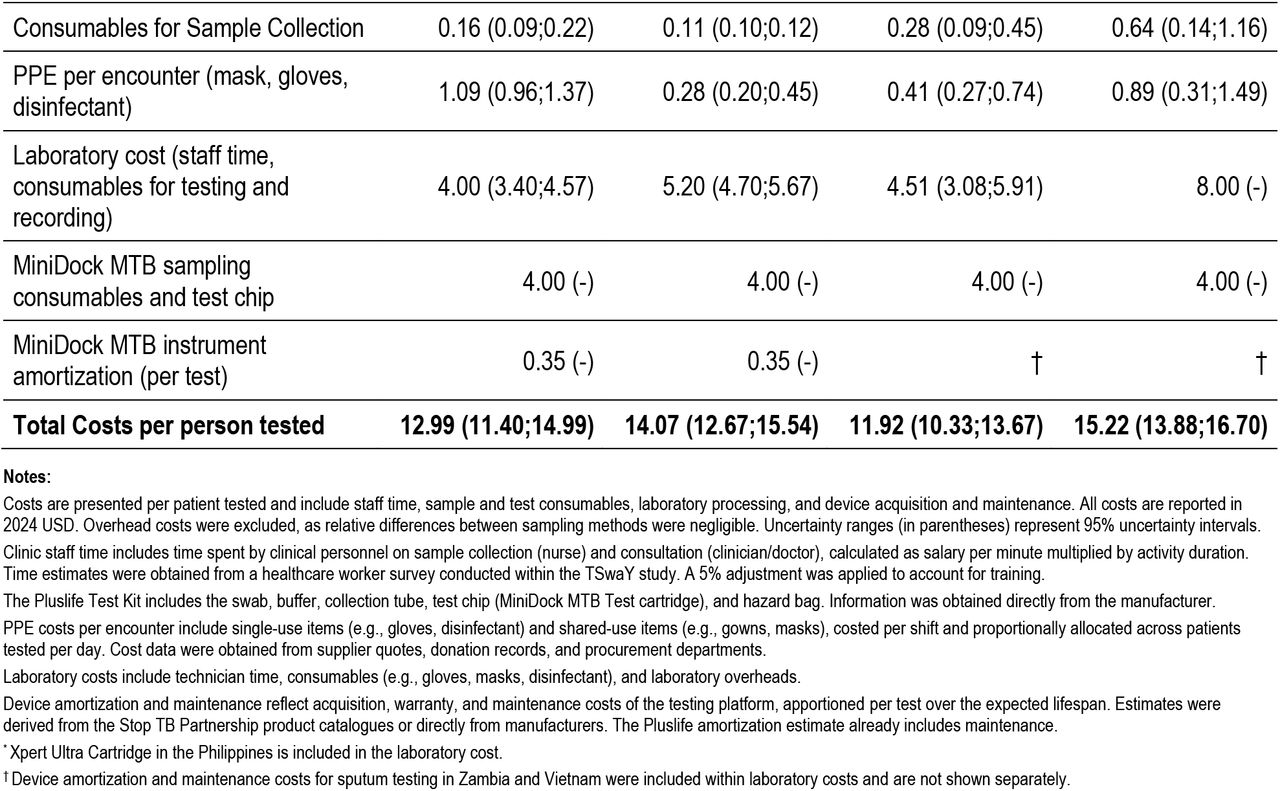

Across the four high-burden countries, tongue swab-based molecular testing using MiniDock MTB was associated with substantially lower per-test costs compared to sputum-based testing with Xpert Ultra (Table 1). Absolute cost reductions ranged from USD 12.55 to USD 17.85, representing a 47.8–55.1% decrease. These differences were primarily driven by lower device and cartridge costs for MiniDock MTB relative to Xpert Ultra. Per-test costs for MiniDock MTB using sputum swabs were only marginally higher than for tongue swabs (Table 1).

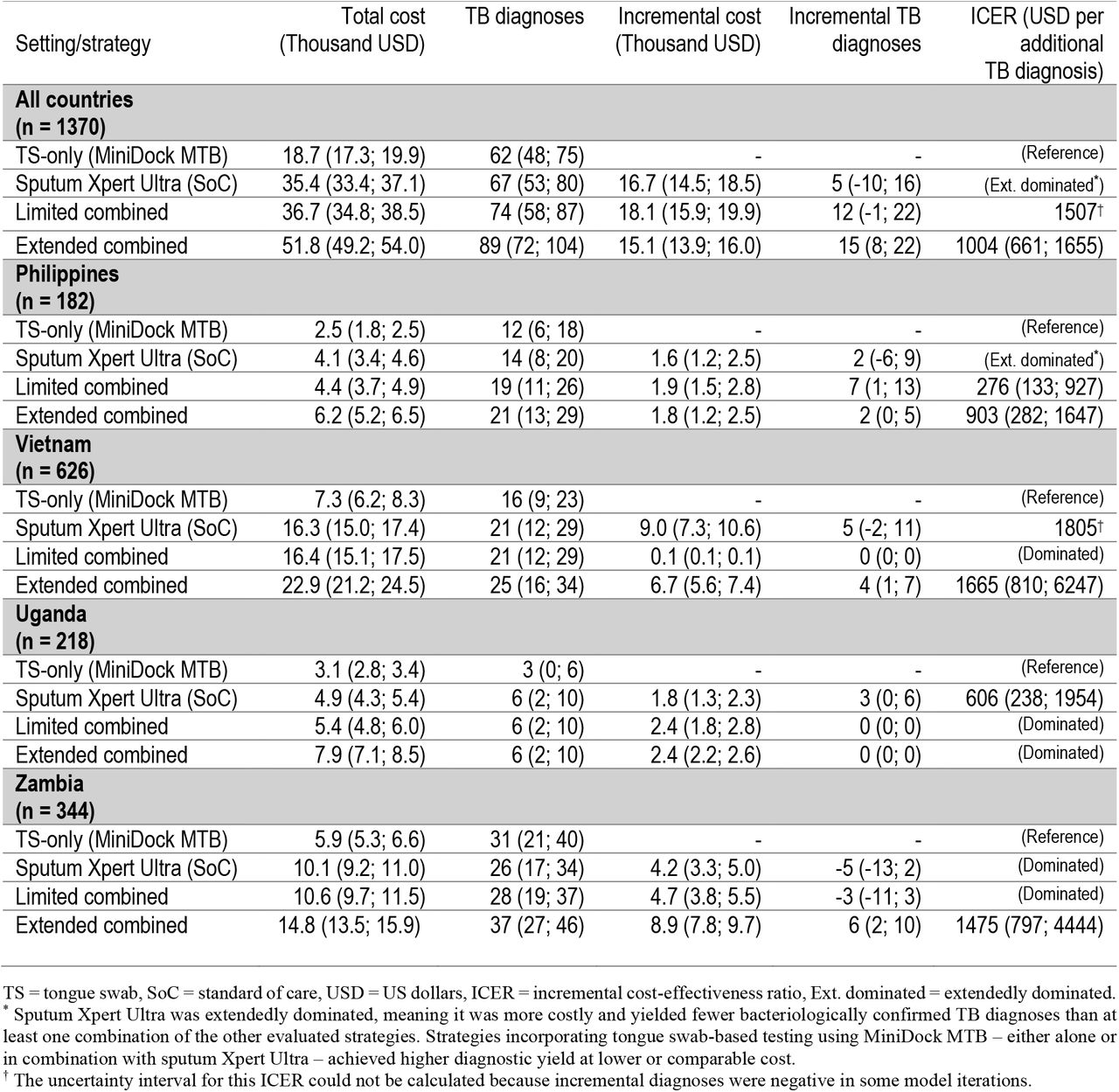

Under the current standard of care, sputum Xpert Ultra yielded 67 (95% UI: 53 to 80) bacteriologically confirmed TB diagnoses at an estimated cost of USD 528 (95%UI: 424 to 687) per diagnosis. This strategy was extendedly dominated by alternatives incorporating tongue swab MiniDock MTB.
Full replacement of sputum Xpert Ultra with tongue swab MiniDock MTB (tongue swab-only) was the least costly approach but yielded the fewest bacteriologically confirmed TB diagnoses: 62 (95% UI: 48 to 75) at a cost of USD 300 (95% UI: 244 to 388) per diagnosis (Table 2). The limited combined strategy yielded 12 (95% UI: -1 to 22) additional diagnoses at an incremental cost of USD 1,507 per additional diagnosis compared with tongue swab-only. When compared directly with sputum Xpert Ultra (standard of care), the limited combined strategy yielded 7 (95% UI: 2 to 12) additional diagnoses at an incremental cost of USD 198 (95% UI 108 to 469) per diagnosis (Supplementary Table S2). The extended combined strategy yielded 15 (95% UI: 8 to 22) additional diagnoses at an incremental cost of USD 1,004 (95% UI: 661 to 1,655) per additional diagnosis compared with the limited combined strategy (Table 2).

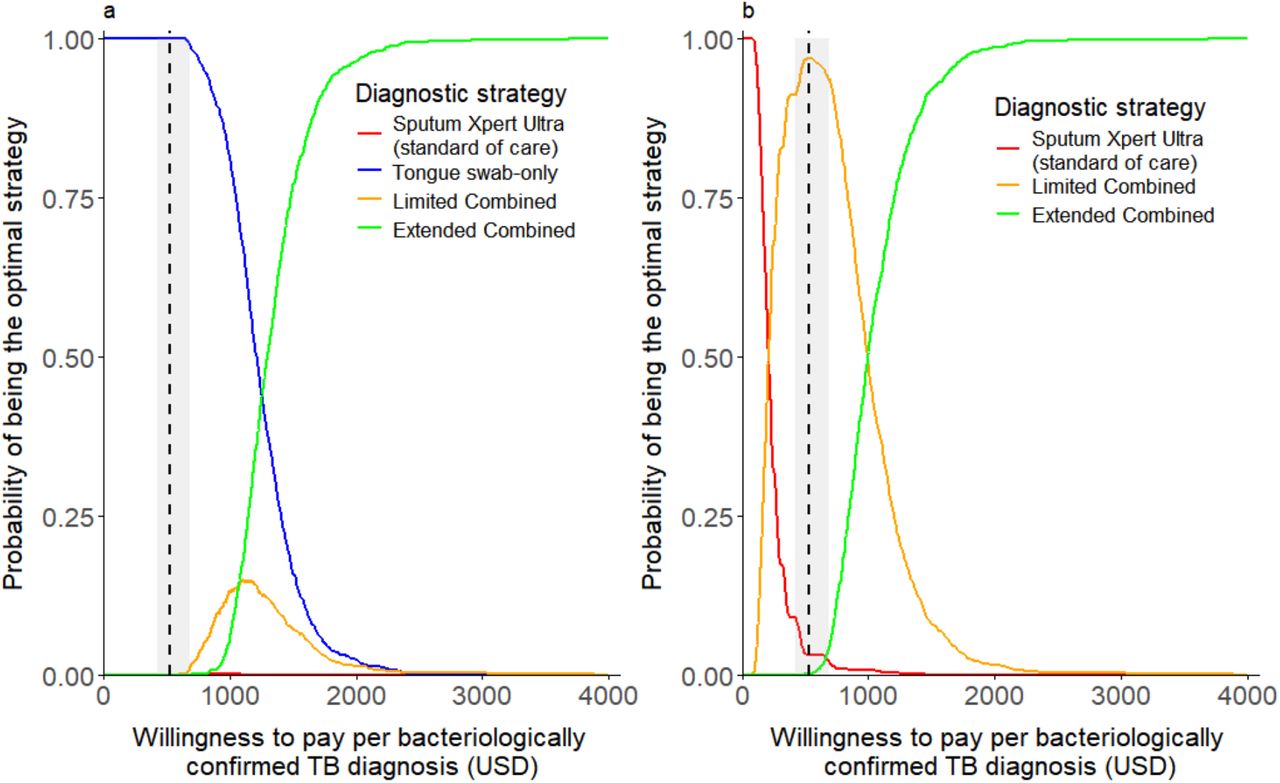

At lower WTP thresholds, the tongue swab-only strategy had the highest probability of yielding the greatest NMB (Figure 1a). As WTP increased, this probability declined, and the extended combined strategy became the most cost-effective option beyond USD 1,256 per diagnosis. When the tongue swab-only strategy was excluded from this analysis – given its lower diagnostic yield than the standard of care – the limited combined strategy had the highest probability of being optimal between USD 200 and USD 1,000 per diagnosis (Figure 1b). Across all WTP thresholds, sputum Xpert Ultra alone was consistently outperformed by at least one tongue swab-inclusive strategy (Figure 1a,b).
Country-level results varied due to differences in per-test costs and diagnostic yield (Table 2; Supplementary Figures S1 and S2).

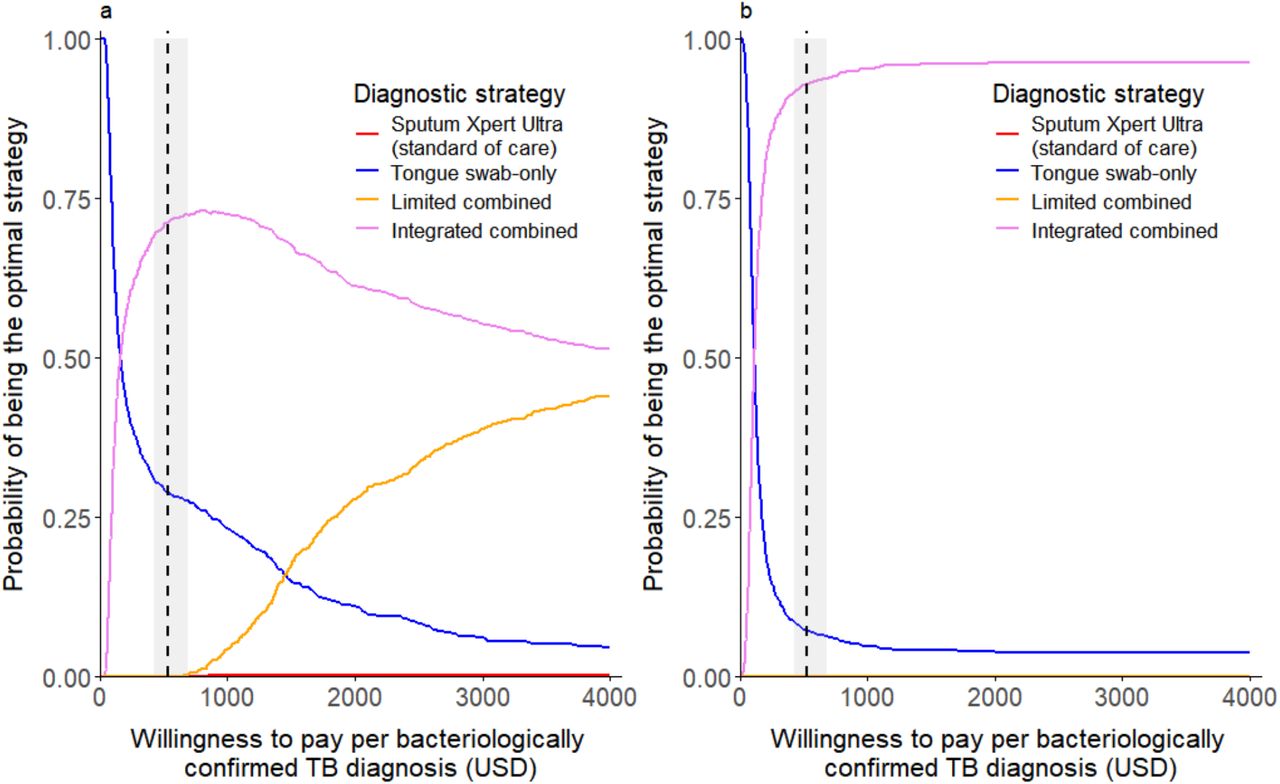

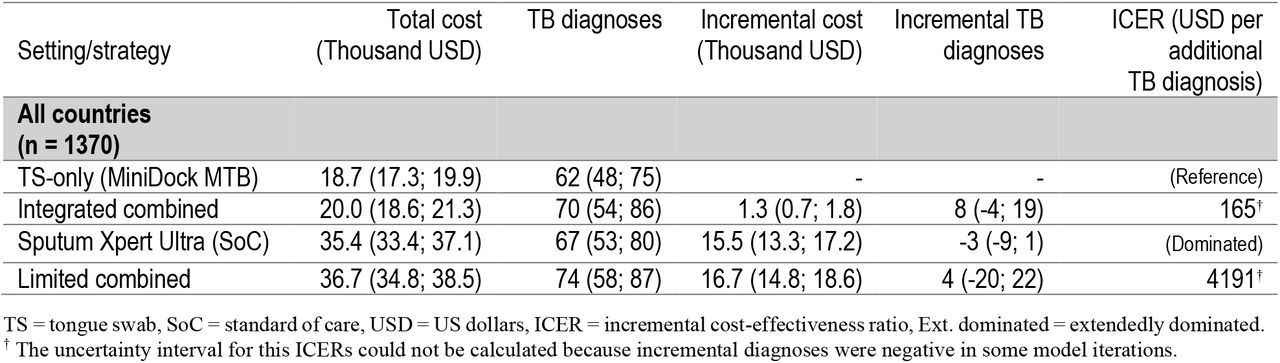

Incorporating the simulated integrated combined strategy, in which MiniDock MTB was used to test either a sputum swab (if available) or a tongue swab for sputum-scarce individuals, yielded 8 (95% UI: –4 to 19) additional diagnoses at an incremental cost of USD 165 per additional diagnosis compared with the tongue swab-only strategy. This strategy strictly dominated the standard of care (sputum Xpert Ultra) which was more costly and yielded fewer diagnosis than the integrated combined strategy (Table 3). Across all WTP thresholds, single-platform MiniDock MTB strategies consistently outperformed those involving Xpert Ultra. The tongue swab-only strategy had the highest probability of yielding the greatest net monetary benefit at WTP values up to USD 161, while the integrated combined strategy became optimal at higher thresholds (Figure 2a). If the diagnostic yield of sputum swab testing were assumed to match that of sputum Xpert Ultra, the threshold at which the integrated combined strategy became optimal would fall to USD 115 (Figure 2b).
Sensitivity analysis in which we assumed that all sputum samples were tested did not meaningfully change the results (Supplementary Table S3).
Discussion
In this study, we estimated the cost and cost-effectiveness of integrating tongue swab MiniDock MTB testing into routine TB diagnostic services in four high-burden countries. Our analysis found that MiniDock MTB testing using tongue swabs is more affordable than sputum Xpert Ultra, driven by lower costs for devices, cartridges, and maintenance. When used in combination with sputum Xpert Ultra, tongue swab testing increased diagnostic yield at reasonable additional cost. Across all WTP thresholds per bacteriologically confirmed TB diagnosis, sputum Xpert Ultra – the current standard of care – was consistently outperformed by strategies incorporating tongue swab MiniDock MTB.
We found that replacing sputum Xpert Ultra entirely with tongue swab MiniDock MTB (tongue swab-only) would be cost-saving but resulted in slightly fewer TB diagnoses. Combined testing strategies, where sputum Xpert Ultra remains the primary test and tongue swab testing is added for those unable to produce sputum (limited combined), or additionally for those with negative or indeterminate sputum results (extended combined), increased the number of bacteriologically confirmed TB diagnoses at incremental costs that fall within widely accepted cost-effectiveness thresholds. The extended combined strategy had the highest probability of being optimal at WTP values above USD 1,256 per additional diagnosis. Although this exceeds the current cost per diagnosis, it remains below or within the range of per-capita GDP in all four countries (USD 1,073–4,717) and well within established thresholds for cost-effectiveness.22 Assuming each bacteriologically confirmed TB diagnosis averts 2–3 disability-adjusted life years (DALYs)23, the corresponding WTP threshold would fall well below 0.5x GDP per capita in all settings.
To examine the potential of a streamlined, single-platform diagnostic workflow, we incorporated a simulated “integrated combined” strategy that would use MiniDock MTB to test sputum swabs as the primary sample and tongue swabs for those unable to produce sputum. This strategy increased the number of confirmed diagnoses at minimal additional cost compared to tongue swab-only testing and strictly dominated the standard of care. Notably, MiniDock MTB-based one-platform strategies – either tongue swab-only or integrated combined – outperformed all strategies that included Xpert Ultra at any WTP threshold. These findings support the potential cost-effectiveness and operational feasibility of consolidating TB molecular testing on a single, portable platform, offering particular advantages for the decentralization of care.
A key strength of this analysis is its use of empirical diagnostic and costing data, allowing for context-specific estimates with high relevance to national TB programmes. However, several limitations must be acknowledged. First, the TSwaY study did not include testing against a microbiological gold standard such as culture. As such, some diagnoses may have been false positives. However, this is unlikely to substantially affect our conclusions, given the high specificity of both Xpert Ultra and MiniDock MTB in prior evaluations. Second, all sampling in TSwaY was performed by trained research staff, and the yield of tongue swabs in routine care could vary. On the other hand, given known challenges with sputum collection in real-world settings, tongue swab testing may perform even better operationally than estimated here. Third, we assumed onsite testing for both modalities, which does not fully account for potential operational advantages of tongue swab testing – especially its suitability for decentralized use. If confirmed, these advantages could further reduce loss to follow-up and delays in treatment initiation. Fourth, our analysis was limited to bacteriologically confirmed TB and did not consider broader clinical outcomes, including empiric treatment. Lastly, we adopted a healthcare system perspective and did not account for patient-incurred costs.
In conclusion, our health-economic evaluation provides robust support for integrating tongue swab and sputum swab MiniDock MTB testing into TB diagnostic pathways in high-burden settings. Tongue swab-based molecular testing can serve as a practical and cost-effective complement to sputum-based testing, with added operational flexibility. An integrated strategy using MiniDock MTB for both specimen types could further streamline workflows, reduce infrastructure needs, and improve access to timely diagnosis. Future research should evaluate the performance and feasibility of such approaches in diverse populations and settings, including children, people living with HIV, and lower-burden areas. With growing momentum toward decentralized and person-centered TB care, tongue swab-based diagnostics – alone or integrated with sputum-based diagnostics – may play an important role in expanding access to effective TB testing globally.
Supporting information
Data Availability
All data required to reproduce this health-economic analysis are provided in this manuscript and the supplementary material. De-identified participant data from the TSwaY principal study that underlie the results reported in this article, study protocol, statistical analytical plan, and/or analytic code are available upon reasonable request from researchers with a methodologically sound proposal. Proposals should be directed to moec@hs.uci.edu; to gain access, data requestors will need to sign a data access agreement.
Declaration of interests
We declare no competing interests.
Acknowledgments
We gratefully acknowledge the individuals who participated in the TSwaY study and also extend our sincere thanks to the administrative teams and clinical staff at the participating health centers for their support and dedication. We thank the TSwaY study team for supporting this analysis. We are grateful to David Dowdy and Jason Andrews for helpful feedback on the manuscript.
Funding
This study was funded by the Gates Foundation.
Data availability statement
All data required to reproduce this health-economic analysis are provided in this manuscript and the supplementary material. De-identified participant data from the TSwaY study that underlie the results reported in this article, study protocol, statistical analytical plan, and/or analytic code to researchers who provide a methodologically sound proposal. Proposals should be directed to moec@hs.uci.edu; to gain access, data requestors will need to sign a data access agreement.
