Nitric oxide positively affects endometrial receptivity via FAAH and NAPE-PLD in vitro
S E Melford et al.
Nitric oxide, endocannabinoids and human endometrial receptivity
Endocannabinoid Research Group, Reproductive Sciences Section, Department of Cancer Studies and Molecular Medicine, University of Leicester, Leicester, UK
Correspondence should be addressed to S E Melford: sm1056@le.ac.ukSummary
Objective
To determine if models of human 'receptive' and 'non-receptive endometrium' differ in their responses to nitric oxide (NO) supplementation by measuring the levels of the enzymes of the endocannabinoid system (ECS) (fatty acid amide hydrolase (FAAH) and N-acylphosphatidylethanolamine-specific phospholipase D (NAPE-PLD)), which control the 'anandamide tone' essential for successful pregnancy.
Design
A study of FAAH and NAPE-PLD expression (using human endometrium) through the menstrual cycle and an in vitro using a model of 'receptive' (Ishikawa) and 'non-receptive' (HEC-1A) human endometrial cell lines treated with the NO-donating compound S-nitroso-N-acetylpenicillamine (SNAP).
Results
Immunoreactivity measured by optimised H-score for both FAAH and NAPE-PLD was reduced in secretory (receptive) endometrium compared to proliferative (non-receptive) endometrium (P = 0.0009 and <0.0001, respectively). FAAH and NAPE transcript levels were significantly higher in untreated Ishikawa cells than in HEC-1A cells (P = 0.0228 and 0.0001, respectively). Treatment of cultures with SNAP resulted in an increase in the amount of FAAH mRNA produced by Ishikawa cells and a decrease in NAPE-PLD mRNA. No effect of SNAP was observed in HEC-1A cells. Similarly, FAAH protein was significantly decreased in endometria representative of the receptive endometrium.
Conclusion
These data suggest that NO most likely affects the expression of ECS enzymes in the implantation site of a receptive endometrium; a phenomenon not seen in a non-receptive endometrium. These effects are most marked with FAAH expression, suggesting that FAAH may play the more critical role in ensuring the correct 'anandamide tone' for successful embryo implantation than NAPE-PLD.
Lay summary
Embryo implantation into the wall of the uterus is only successful when the inner wall of the uterus (the endometrium) is ‘receptive’, because if it is ‘non-receptive’, implantation will fail. Previous work showed that enzymes of the 'endocannabinoid system' are critical for implantation by maintaining the correct level of a fat called anandamide. This is by balancing its synthesis (by N-acylphosphatidylethanolamine specific phospholipase D, NAPE-PLD) and degradation (by fatty acid amide hydrolase, FAAH). Using immortalised cell lines as models of ‘receptive’ and ‘non-receptive’ human endometrium, we demonstrate a key stimulator of implantation, nitric oxide, has a positive effect on implantation by both increasing the mRNA levels of the degrading enzyme (FAAH) and decreasing the expression of the synthesising enzyme (NAPE-PLD). These effects are most marked with the degrading enzyme, suggesting that FAAH plays a more critical role than NAPE-PLD in ensuring the correct 'anandamide tone' for successful embryo implantation.
Introduction
For several decades immense interest has centred on factors that influence the process of early pregnancy events. Numerous factors including progesterone, prostaglandins, homeobox genes, endocannabinoids (such as anandamide), integrins and cytokines have all been identified as playing important roles in blastocyst implantation (Melford et al. 2014). Many of these factors interact with each other to either support or hinder successful implantation. For example, progesterone is known to upregulate the production or expression of cyclooxygenase-2 (COX-2), leukaemia inhibitory factor (LIF), integrin β proteins and the homeobox gene A10 (HOX-A10), and causes a fall in levels of the endocannabinoid, anandamide (AEA) at the implantation site (Yu et al. 1997, Kozak & Marnett 2002, Karasu et al. 2011, Melford et al. 2014) – actions which favour successful implantation.
Other endocannabinoids, such as 2-arachidonyolglycerol (2-AG), have also been identified as playing an important role in successful implantation and early pregnancy success, especially in rodents (Habayeb et al. 2002, Taylor et al. 2007, Sun & Dey 2008, Maccarrone 2009, Bambang et al. 2010). This class of molecules (endocannabinoids) are unsaturated fatty acid derivatives of arachidonic acid that act as endogenous ligands for cannabinoid receptors that also bind exocannabinnoids/phytocannabinoids from the Cannabis sativa plant. These endocannabinoids, their receptors and the metabolizing enzymes are collectively referred to as the endocannabinoid system (ECS). The main ligands of the ECS are N-acylethanolamines (NAEs), of which the most studied is AEA. Other members of the NAE family include N-palmitoylethanolamine (PEA), N-oleoylethanolamine (OEA), N-stearoylethanolamine (SEA) and N-linoleoylethanolamide (LEA) (Hanus et al. 1993, Wang & Ueda 2009). To date, only AEA has been shown to play a key role in human embryo implantation (Maia et al. 2020), however, it is suspected that both OEA and PEA have an 'entourage effect' on levels of AEA (Bambang et al. 2010), where these molecules are preferentially degraded by the enzyme fatty acid amide hydrolase (FAAH), resulting in an aberrant increase in AEA concentration at the implantation site causing subsequent miscarriage (Maccarrone et al. 2001, Habayeb et al. 2008, Taylor et al. 2011). The expression of FAAH has been shown to be regulated indirectly by progesterone and Th2 cytokines (Maccarrone et al. 2001). N-acylphosphatidylethanolamines (NAPEs) are the main precursors of NAEs and are generated by the activity of a type-D phospholipase (PLD), N-acylphoshatidylethanolamine-specific phospholipase D (NAPE-PLD), which hydrolyses NAPEs to NAEs (Guo et al. 2005).
It has been shown in murine studies that a careful balance in the activities of NAPE-PLD and FAAH required to ensure that the appropriate levels of AEA are available during implantation (Paria et al. 1996, Guo et al. 2005). This is referred to as the 'anandamide tone' and is crucial for successful implantation (Wang et al. 1999), because it has been demonstrated that higher AEA concentrations inhibited not only the development of mouse two-cell embryos into blastocysts and zona-hatching of blastocysts from eight-cell embryos in vitro (Schmid et al. 1997), but also that mouse blastocysts exposed in culture to low levels of AEA (7 nM) exhibited accelerated trophoblast differentiation and outgrowth, whereas inhibition of trophoblast differentiation was observed at higher (28 nM) doses (Wang et al. 2006). Further support for the notion of 'anandamide tone' being important for embryo implantation comes from the studies of Guo et al. (2005) who demonstrated that NAPE-PLD expression was significantly lower at the implantation site when compared to the peri-implantation site, and furthermore proposed that the embryo might play a role in regulating these levels. Although similar studies on human blastocysts have not yet been performed, these data suggest that the 'anandamide tone' might also be important for human implantation.
There is increasing evidence that the interaction between nitric oxide pathways and the ECS play important roles in the success or failure of implantation (Aban et al. 2018). While the link between AEA signalling and human implantation is far from fully understood (Maia et al. 2020), previous data showed that AEA-induced Ca2+ ion signalling in endothelial cells occurs through integrin protein aggregation, a process that is dependent on nitric oxide (NO) synthase activity (Waldeck-Weiermair et al. 2008). Similarly, the production of NO is essential to successful human implantation (Khorram 2002) in that increased NO production in the mid-luteal phase acts synergistically with progesterone to enhance receptivity whilst continued expression at the end of the menstrual cycle results in increased endometrial tissue loss through apoptosis and menstruation (Chwalisz & Garfield 2000). These data are similar to the pattern of AEA production in the endometrium, where excess AEA concentrations are associated with implantation failure (El-Talatini et al. 2009b). Furthermore, NO production and/or release has been shown to influence the activation of CB1 and CB2 (the main receptors involved in the ECS) (Lipina & Hundal 2017) in a variety of tissues, including rat placentae. These data suggest a possible link between AEA signalling, NO signalling, and endometrial receptivity.
We, therefore, set out to determine if the expression of the ECS enzymes FAAH and NAPE-PLD are regulated throughout the menstrual cycle and especially during the ‘window of implantation’, and to examine and compare the effects of NO on the production of FAAH and NAPE-PLD in a model of human 'receptive endometrium'.
Materials and methods
In vivo expression of ECS enzymes
Knowing that the expression of NAPE-PLD differs in the implantation and inter-implantation zones of the murine endometrium (Paria et al. 1996, Schmid et al. 1997, Guo et al. 2005, Maccarrone 2009), we first explored the expression of NAPE-PLD and FAAH in the human endometrium. This study was reviewed and approved by the Leicestershire, Northamptonshire and Rutland Research Ethics Committee (LREC #06816). All patients who donated endometrial biopsies gave their informed signed written consent to their tissue being used in this study. Endometrial biopsies were taken throughout the menstrual cycle, and immunohistochemistry performed as we previously described (Habayeb et al. 2008, El-Talatini et al. 2009a) using commercial rabbit polyclonal FAAH antibodies (1 in 2000 dilution; Cat no: FAAH11-A; Alpha Diagnostics Inc., San Antonio, TX, USA) and rabbit polyclonal NAPE-PLD antibodies (1 in 200 dilution; Cat no: ABIN110270, Cayman Chemicals).
Histomorphometric analysis of 10 representative images from each tissue section was performed as we previously described (Gebeh et al. 2012) using image analysis software (ImageScope, version 10.2.2.2319; Aperio software distributed by Leica Microsystems). The number of samples used in each phase of the cycle are listed in the legend to Fig. 1.
Choice of receptive and non-receptive human endometrial cell lines
To simulate a 'receptive' human endometrium, the Ishikawa cell line (an endometrial adenocarcinoma cell line) was chosen (Castelbaum et al. 1997, Hannan et al. 2010) because it has features possessed by receptive endometrial cells in vivo including the expression of oestrogen, progesterone, androgen and luteinising hormone receptors (in vivo endometrial cells also express chorionic gonadotrophin) (Hannan et al. 2010). In addition, these cells increase their expression of the integrins α2β1, α3β1, α6β4 and decrease that of αvβ3 and the progesterone receptor, in response to oestrogen and progesterone, characteristic of the implantation site of the human endometrium (Castelbaum et al. 1997). All these features mean that Ishikawa cells are considered a good model of an adhesive and receptive endometrium (Castelbaum et al. 1997).
HEC-1A cells (another endometrial adenocarcinoma cell line) were chosen to simulate a 'non-receptive' human endometrium because they have been identified as being a poorly adhesive cell line (Hannan et al. 2010), but otherwise are closely matched to Ishikawa cells in so far as possessing both oestrogen and progesterone receptors (but not androgen receptors) (Horne et al. 2006).
Cell culture
Ishikawa cells (5 × 105) were cultured in 2 mL of DMEM:F12 with glutamax, 10% fetal calf serum and 1% penicillin/streptomycin, while HEC-1A cells (5 × 105) were cultured in 2 mL of McCoy’s 5a Medium Modified with 10% fetal calf serum. Both cell types were cultured independently in an incubator maintained at 37°C with 5% CO2 in air, for 24 h to achieve 50% confluence. Once the cells had reached 50% confluence, the culture medium was replaced with the respective medium augmented with different concentrations of the nitric oxide (NO)-donating compound S-nitroso-N-acetylpenicillamine (SNAP; 0–2000 µM, Zhan et al. 2018); n = 6 for each concentration used. The cells were then re-incubated for a further 48 h, before their RNA was prepared.
Total cellular RNA extraction and quantification
Total cellular RNA was extracted using the mirVanaTMmiRNA Isolation Kit (Life Technologies) according to the manufacturer’s protocol and its quantity and quality assessed using a Nanodrop spectrophotometer (Thermo Scientific). Genomic DNA contamination was then removed from each sample using Turbo-DNAse (Thermo Fisher Scientific) according to the manufacturer’s instructions. Next, the RNA concentration was standardised to 10 µg/100 µL and incubated at 37°C for 30 min before the reaction was inactivated (using inactivation buffer supplied in the TURBO-DNasefree kit). RT was performed using a Multiscribe kit (Thermo Fisher Scientific) and the resulting cDNA stored at −20°C.
Quantitative real-time PCR
The relative levels of cellular transcripts for NAPE-PLD and FAAH were analysed using Taqman probes for human NAPE-PLD (Hs00419593_ml), human FAAH (Hs01038660_ml) with human GAPDH (Hs02786624_gl) as the internal endogenous control (Applied Biosystems, ThermoFisher Scientific) in a StepOne qPCR system (ThermoFisher Scientific). All reactions were in a final volume of 20 µL and consisted of 2 µL of cDNA, 10 mL of Taqman Universal PCR Master mix (Applied Biosystems, and 8 mL of DNase-free water. The reactions were run on a StepOne Plus instrument (Applied Biosystems). The thermocycler conditions were as follows: 2 min at 50°C, 10 min at 95°C, and then 40 cycles of 15 s at 95°C and 1 min at 60°C. All reactions were performed in triplicate (both biological and technical). Cq values from the reactions were taken directly from the PCR machine and Relative Expression calculated using the 2−ΔΔct method (Livak & Schmittgen 2001).
Statistical analyses
Histomorphometric (H-score) data and enzyme transcript levels are presented as the mean ± s.d. for the indicated number of samples shown in the figure and legends. Statistical differences for the histomorphometric analyses were performed using one-way ANOVA with Dunnett’s multiple comparison test for the expression values through the menstrual cycle and Student’s unpaired t-test with Welch correction for unequal variances) when comparing 'receptive' to 'non-receptive' endometria. Statistical analysis for basal transcript levels in the two cell types was performed using Student’s unpaired t-test, whilst significance for the effect of SNAP on FAAH and NAPE-PLD transcript levels was determined using one-way ANOVA with Tukey’s multiple comparison test. Pearson’s linear correlation analysis was used to determine the relationships between FAAH or NAPE-PLD transcript levels and SNAP concentration. In all cases, a P-value <0.05 was considered to be statistically significant. All data analyses were performed using Prism version 7:00 for Windows (GraphPad, www.graphpad.com).
Results
Expression of ECS enzymes in receptive and non-receptive endometrium – in vivo studies

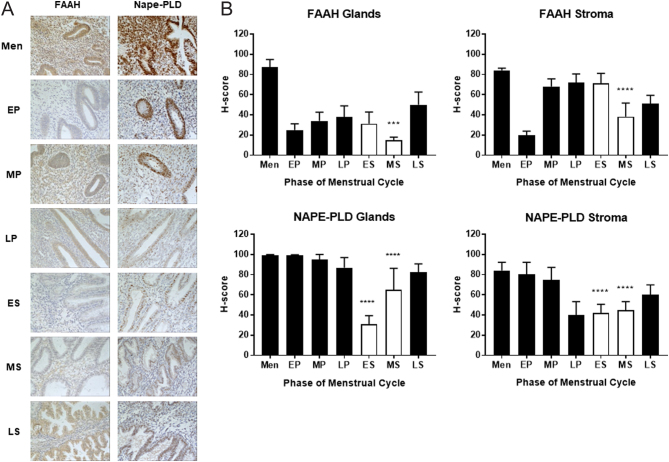

The expression of ECS enzymes were analysed throughout the menstrual cycle by immunohistochemistry, using target-specific commercial antibodies (Fig. 1A). The staining patterns show that changes in enzyme expression occurred during the 'receptive' stage of the cycle (early/mid-luteal phase). FAAH immunoreactivity (measured by unbiased H-score; (Fig. 1B) was reduced in both the glandular epithelial and stromal cells of receptive endometria (mid-secretory phase (MS); P = 0.0009; P < 0.0001) when compared to that of the non-receptive endometria (mid-proliferative phase (MP)) in glandular epithelial and stromal cells, respectively). NAPE-PLD immunoreactivity was also reduced in glandular epithelial and stromal cell compartments during the receptive phase of the menstrual cycle (early secretory (ES) vs MP P < 0.0001; MS vs MP P < 0.0001), respectively.

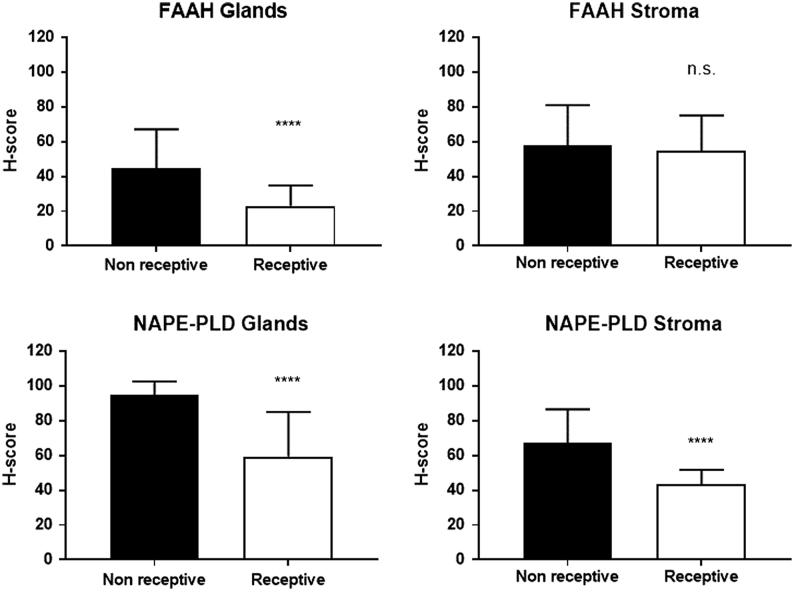

When the expression of NAPE-PLD or FAAH was categorised based on whether the endometria were either 'receptive' or 'non-receptive', the same phenomenon was identified (Fig. 2). Both FAAH and NAPE-PLD immunoreactivities were reduced in the glandular epithelial cells of receptive endometria (P < 0.0001) when compared to that of the non-receptive endometria. There was no change in the amount of FAAH expressed in the stroma. By contrast, the amount of NAPE-PLD immunoreactivity was significantly (P < 0.0001) lower in the stromal compartment of receptive endometria when compared to that found in the non-receptive endometria.
Transcript levels of the ECS enzymes in untreated Ishikawa and HEC-1A cells

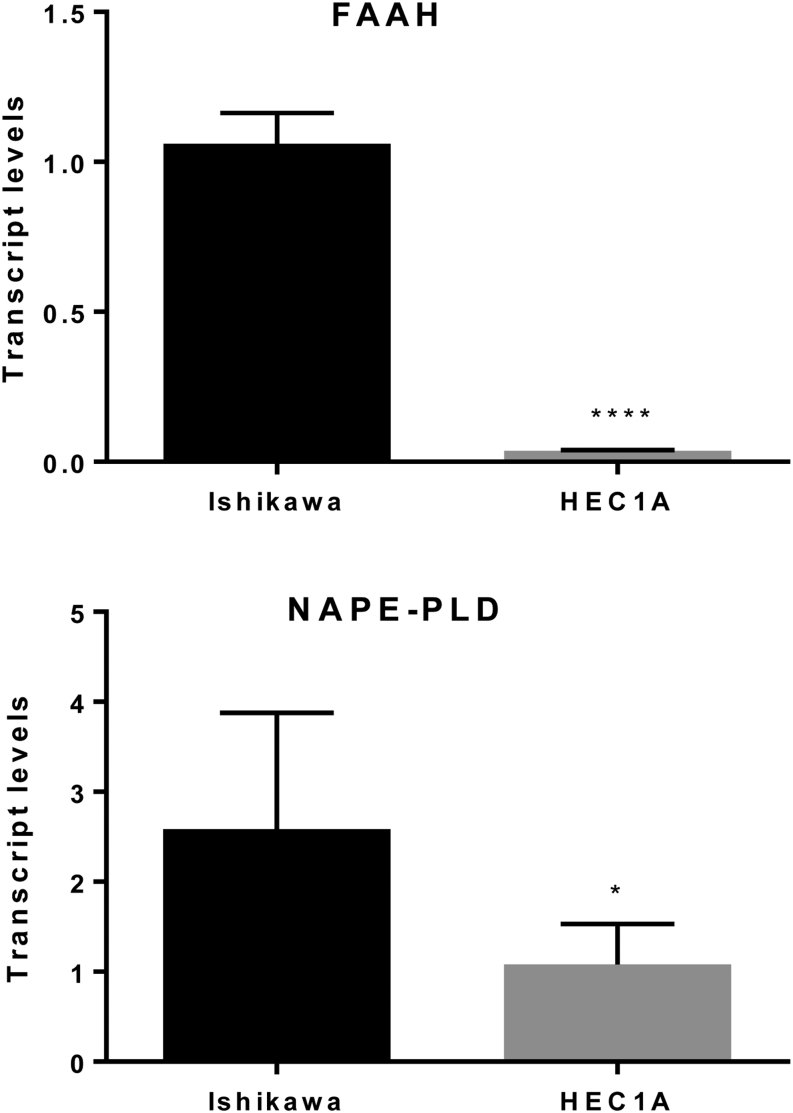

Having shown that the expression of NAPE-PLD and FAAH differs between the receptive and non-receptive phases of the menstrual cycle, we used the in vitro studies to explore the effects of NO on the expression of these two enzymes. First, we measured the relative levels of the transcripts for FAAH and NAPE-PLD in the two cell lines. FAAH and NAPE-PLD have been shown to be expressed in endometrial carcinoma (Ayakannu et al. 2019) and Ishikawa cells (Fonseca et al. 2018). However, it was necessary to confirm that HEC-1A cells also express FAAH and NAPE-PLD (Fig. 3). The data confirmed that NAPE-PLD and FAAH transcripts are produced by both Ishikawa and HEC-1A cells, however, the amount of transcripts for both enzymes was significantly higher in Ishikawa (receptive) cells than in HEC-1A (non-receptive) cells, (NAPE-PLD, P = 0.0228; FAAH, P < 0.0001).
The effect of NO supplementation on FAAH and NAPE-PLD transcript levels

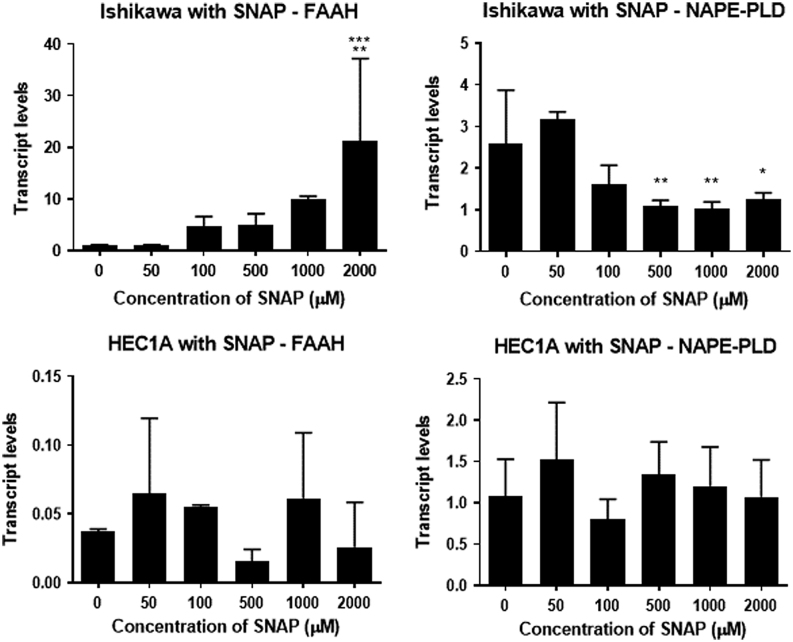

The relative amount of FAAH mRNA produced by Ishikawa cells increased in a SNAP dose-dependent manner (Fig. 4), with a significant difference from the untreated control being observed at 2000 µM (P < 0.001). Additionally, the highest SNAP concentration (2000 µM) produced a significantly higher level of FAAH transcripts when compared to all of the other tested SNAP concentrations (except that of 1000 µM; 0 µM – P < 0.001; 50 µM – P < 0.001; 100 µM – P <0.01; 500 µM – P <0.01) suggesting that a maximum effect of SNAP on FAAH mRNA levels in Ishikawa cells is somewhere between 1000 and 2000 µM.
This finding was not replicated when treating HEC-1A cells with SNAP (Fig. 4) where there was no effect on the relative amounts of FAAH mRNA produced (P > 0.05) suggesting that HEC-1A cells produce very little FAAH mRNA and the amount of RNA remained constant during treatment with increasing SNAP concentrations.
Treating Ishikawa cells with SNAP also affected the amount of NAPE-PLD mRNA with a gradual decrease in NAPE-PLD mRNA produced by Ishikawa cells that was significant at concentrations above 500 µM (Fig. 4). There was a significant (P < 0.01) difference in NAPE-PLD mRNA levels between the non-treated cultures at the lowest concentration of SNAP (0 and 50 µM) and the higher concentrations (1000 and 2000 µM), where SNAP treatment significantly reduced the amounts of NAPE-PLD mRNA in relation to both the untreated control and the lowest SNAP dose.
Furthermore, no effect of increasing concentrations of SNAP on the relative amounts of NAPE-PLD mRNA produced by HEC-1A cells was observed (P = 0.2170) (Fig. 4). The mean relative amount of NAPE-PLD mRNA remained close to 1.0 (0.80–1.52), and there was no significant change from this value suggesting that the expression levels of NAPE-PLD and GAPDH were similar (P = 0.1862).
Comparison of the ECS enzymes ratio in Ishikawa and HEC-1A cells

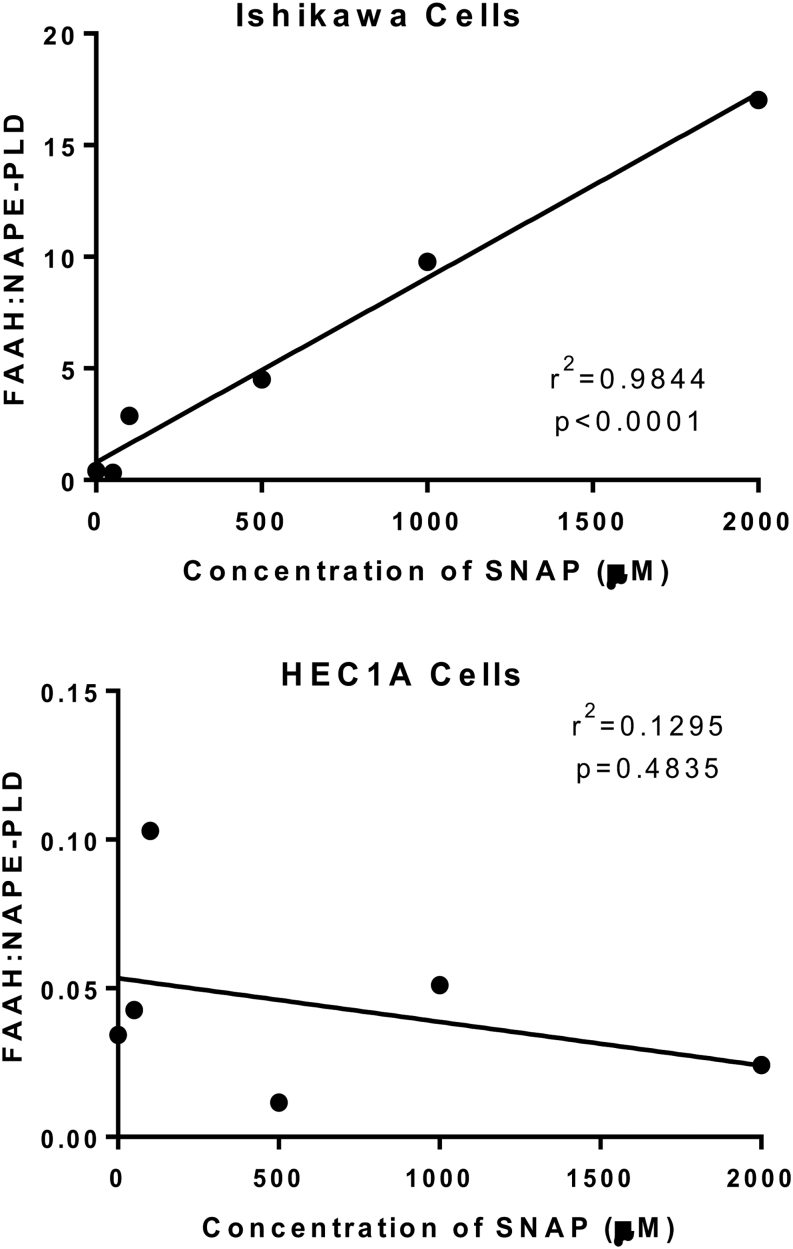

Having identified a strong correlation between the upregulation in the amount of FAAH mRNA and downregulation of NAPE-PLD mRNA in response to SNAP concentrations in Ishikawa cells, the next step was to examine the possible regulatory mechanism between SNAP treatment and enzyme transcript levels by comparing the ratio of mean relative amounts of NAPE-PLD to FAAH against SNAP concentration (Fig. 5). The data showed a strong dose-dependent correlation (r = 0.9844, P < 0.0001; Pearson’s correlation) for Ishikawa cells, but no correlation for HEC-1A cells (r = 0.1295, P = 0.4835) suggesting a common regulatory pathway for both enzymes in the Ishikawa cells but not in the HEC-1A cells.
Discussion
Several important findings have been described as a result of this work. First, this is the first time it has been shown that HEC-1A cells express both of the ECS regulatory enzymes FAAH and NAPE-PLD. Secondly, while the relative amounts of mRNA were higher in 'receptive' than 'non-receptive' cells, a comparison of the NAPE-PLD:FAAH ratio in 'receptive' and 'non-receptive' cell lines, indicated that the amount of NAPE-PLD mRNA produced was 10× higher in the non-receptive cells (29.13 in HEC-1A cells) than in the receptive cells (2.43 in Ishikawa cells). Although the activities of the enzymes have not been evaluated, this first may suggest that regulating the 'anandamide tone' is important in embryo implantation because this ratio of the enzymes (and thus the overall concentration of AEA) would result in a higher concentration of AEA in the non-receptive endometrium. Thirdly, is the finding that treatment of Ishikawa cells with SNAP (and its resultant supplementation with NO) affected the amount of both FAAH and NAPE mRNA produced in a dose-dependent manner. This phenomenon was not seen when the experiment was repeated with HEC-1A cells. When considering endometrial receptivity, these results suggest that there may be an interaction between NO and the enzymes of the ECS in a 'receptive endometria' cell line that is not seen in a 'non-receptive endometria' cell line.
One limitation of the present study was that this work was limited to measuring amounts of NAPE-PLD and FAAH transcripts in the cell lines. A natural progression would be to identify whether NO had the same effect on enzyme protein expression, and if these findings translated into altered enzyme activity. However, such studies are difficult because effective methods for accurate measurement of these parameters do not yet exist (Weller 2016). However, in vivo examination of FAAH and NAPE-PLD protein expression using previously validated histomorphometric analysis of FAAH and NAPE-PLD immunoreactivity (Karasu et al. 2011, Gebeh et al. 2012), indicated that during the window of implantation (ES and MS phases of the menstrual cycle), the expression of NAPE-PLD was decreased in line with the notion that loss of NAPE-PLD expression would result in the observed reduction in anandamide production by the endometrium during the receptive phase of implantation (Paria et al. 1996, Guo et al. 2005). Although FAAH expression also decreased during these phases, those changes were the reciprocal of the NAPE-PLD expression in the ES and MS phases of the menstrual cycle (see white bars in the gland data of Fig. 1B), suggesting that ECS enzyme activity during the implantation process is complex, but results in a lower AEA concentration supportive of implantation, but not involving the blastocyst as suggested (Guo et al. 2005).
From animal studies, it is known that the expression of both NAPE-PLD and FAAH varies between the implantation zone and inter-implantation zone, and this is vital in providing the required 'anandamide tone' to enable successful implantation (Bambang et al. 2010). It is also already known that the production of NO regulates various physiological reproductive processes such as implantation, decidualisation and myometrial relaxation (Duran-Reyes et al. 1999, Chwalisz & Garfield 2000, Vercelli et al. 2009). When considering the link between 'anandamide tone' and NO, it has been shown that high levels of AEA triggered increased NO synthesis (Vercelli et al. 2009). The results of the present study suggest that NO may be playing a key role in maintaining this 'anandamide tone' – with low levels of NO encouraging NAE synthesis (by increasing NAPE-PLD transcript levels) and high levels of NO encouraging NAE degradation (by increasing FAAH transcript levels). It is also noteworthy that the supplementation of NO by SNAP exerted a much greater effect on the relative amount of FAAH mRNA by Ishikawa cells than that for NAPE-PLD mRNA. While there is no doubt that both enzymes play a key role in maintaining an appropriate 'anandamide tone', these results suggest that FAAH may be more influential in the control necessary for human endometrial receptivity. We believe this is the first documented evidence that NO supplementation may play a role in helping to maintain a suitable anandamide tone essential for human embryo implantation.
An acceptable weakness of our study is that we used monolayer cultures of immortalised endometrial epithelial cells. It would be ideal to use cultured human endometrial secretory and proliferative phase cells as well as primary cultures of cells isolated from both implantation and non-implantation sites taken from human pregnancies, but such cultures are yet to be possible (as far as we are aware). Despite this limitation, we feel confident that our data provide an important observation, which should increase understanding of the modulation of the role of 'anandamide tone' in the regulation of implantation.
Conclusion
There appears to be a link between the endocannabinoid system and NO when considering human endometrial receptivity, with our results suggesting that an appropriate level of NO may have a role in maintaining an appropriate 'anandamide tone', which is necessary for successful embryo implantation. We have also provided evidence that FAAH appears to be more influential in this process than NAPE-PLD.
