Cannabinoid type 2 receptor (CB2R) distribution in dermatomyositis skin and peripheral blood mononuclear cells (PBMCs) and in vivo effects of LenabasumTM
Department of Dermatology, Corporal Michael J. Crescenz Veterans Affairs Medical Center, Philadelphia, PA USA
Department of Dermatology, Perelman School of Medicine, University of Pennsylvania, Philadelphia, PA USA
Department of Pathology, SUNY Downstate Health Sciences University, Brooklyn, NY USA
Department of Medicine, Division of Dermatology, Albert Einstein College of Medicine and Montefiore Medical Center, Bronx, NY USA
Corbus Pharmaceuticals, Inc., Norwood, MA USA
Abstract
Background
Lenabasum is a cannabinoid type 2 receptor (CB2R) reverse agonist that demonstrates anti-inflammatory effects in vivo and in vitro in dermatomyositis (DM) and is currently being investigated for therapeutic potential. The purpose of our study is to investigate CB2R distribution as well as the effects of lenabasum in DM.
Methods
Immunohistochemistry staining (IHC) was utilized to examine immune cell and cytokine production changes in lesional DM skin biopsies from lenabasum and placebo-treated patients. CB2R expression in various immune cell populations within DM skin was investigated with image mass cytometry (IMC), whereas flow cytometry elucidated CB2R expression in DM peripheral blood mononuclear cells (PBMCs) as well as cytokine production by CB2R-expressing cell populations.
Results
After 12 weeks of lenabasum treatment, IHC staining showed that CD4+ T cells, CB2R, IL-31, IFN-γ, and IFN-β cytokines were downregulated. IFN-γ and IFN-β mRNA decreased in lesional DM skin but not in PBMCs. IMC findings revealed that CB2R was upregulated in DM lesional skin compared to HC skin and DM PBMCs (p<0.05). In DM skin, CB2R was upregulated on dendritic cells, B cells, T cells, and macrophages while dendritic cells had the greatest expression in both DM skin and PBMCs (p<0.05). These CB2R+ cells in the skin produce IL-31, IL-4, IFN-γ, and IFN-β.
Conclusion
Our findings of differential CB2R expression based on location and cell type suggest modes by which lenabasum may exert anti-inflammatory effects in DM and highlights dendritic cells as potential therapeutic targets.
Supplementary Information
The online version contains supplementary material available at 10.1186/s13075-021-02665-x.
Untitled section
Keywords: CB2R, Dermatomyositis, Image mass cytometry, Lenabasum, Dendritic cells
Article notes
Untitled section
Received 2021 Jul 20; Accepted 2021 Oct 27; Issue date 2022.
Introduction
Dermatomyositis (DM) is a rare chronic systemic autoimmune disease that primarily affects the skin, muscle, and lungs [1]. Skin disease is observed in virtually all DM patients, whether they have amyopathic or classic DM [2]. Cutaneous features of DM include a heliotrope rash, Gottron papules, shawl sign, and V-neck sign, among other skin findings [3]. Pruritus is also known to be a common clinical feature [4, 5]. DM skin lesions substantially reduce patients’ quality of life (QoL) because they are associated with visible disfigurement, persistent pruritus, and photosensitivity [5]. Antimalarials are first-line therapy for DM. However, they are often ineffective and cause adverse drug reactions [6–8]. Systemic therapies for antimalarial-refractory DM include glucocorticoids, immunosuppressives, and intravenous immunoglobulin (IVIG) but are associated with numerous side effects [8]. The decreased QoL of DM patients combined with the inadequacy of current treatments highlight the therapeutic need for effective and safer treatment options.
Lenabasum, a nonpsychoactive, nonimmunosuppressive cannabinoid type 2 receptor (CB2R) reverse agonist, is currently being investigated as a potential treatment option for DM. Cannabinoid receptors are G-protein coupled receptors with two major subtypes: cannabinoid type 1 receptors (CB1R) expressed mainly in the central (CNS) and peripheral nervous system (PNS), and CB2R primarily distributed throughout immune and hematopoietic cells, myocytes, epithelial cells, fibroblasts, osteoblasts, skin keratinocytes, and the PNS [9]. Lenabasum is a preferential CB2R agonist with a 12.3-fold greater affinity for CB2R than CB1R [10] and inefficient penetration into the CNS [10–12], resulting in its nonpsychoactive effects. Lenabasum also activates peroxisome proliferator-activated receptor γ (PPARγ), a nuclear hormone receptor, leading to changes in the transcription of target genes involved in cell differentiation and inflammation, either downstream of CB2R activation or via direct binding [13, 14]. This may also contribute to the suppression of inflammatory cytokine production.
Exogenous synthetic cannabinoids represent a novel approach to modulating inflammation, as the activation of CB2R has been shown to reduce several key pro-inflammatory cytokines implicated in DM, including type I IFNs, IL-1, IL-6, IL-17, and TNF-α [15–19]. Furthermore, clinical trials of orally administered lenabasum found no marijuana-like psychoactive effects or serious adverse effects [20]. Previously in our lab, we demonstrated lenabasum’s anti-inflammatory effects on DM through in vitro studies. We investigated lenabasum’s effect on TNF-α, IFN-α, and IFN-β production by peripheral blood mononuclear cells (PBMCs) from DM blood and found that moderate and high concentrations of lenabasum suppressed TNF-α secretion, while all lenabasum doses (low, moderate, and high) suppressed IFN-α and IFN-β production [21]. We also found that lenabasum significantly suppressed IL-31, a cytokine implicated in the pruritus of DM, and IL-4 production by PBMCs [4].
However, we had not previously explored the distribution of the CB2R among various immune cells within the scope of DM or examined differences in CB2R expression between healthy controls (HC) and DM patients. Furthermore, differences between CB2R expression in DM skin and blood remain largely unknown. Although some of lenabasum’s in vitro effects on cytokine production have been demonstrated through previous studies, further knowledge of CB2R’s distribution in DM is crucial to understanding lenabasum’s mechanism of action. Additionally, this understanding of CB2R distribution in DM may provide further insight into DM pathogenesis by identifying cells that are modulated by lenabasum, given significant clinical improvement with treatment. This insight may also be applicable to other diseases driven by cell types affected by lenabasum. The purpose of our study is to use flow cytometry and the novel technique of image mass cytometry (IMC) to elucidate CB2R distribution in DM skin and blood to better understand the targets of lenabasum.
Results

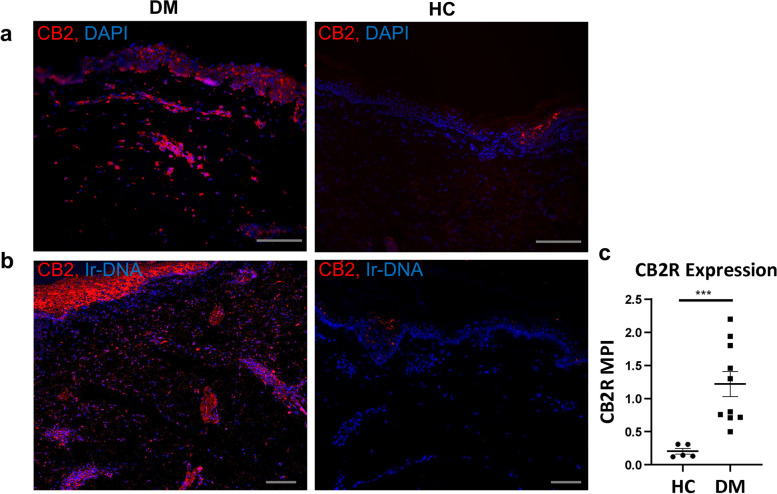

CB2R expression is increased in dermatomyositis skin compared to healthy control skin
To evaluate CB2R expression in DM skin, we first utilized immunofluorescence (IF) staining and observed increased expression of the CB2R marker in DM skin compared to HC skin (Fig. 1a, red). We then utilized IMC to further characterize the inflammatory infiltrates of 5 HC and 10 DM patients with moderate-severe disease. Through IMC, we confirmed increased expression of the CB2R marker in DM skin compared to HC Skin (Fig. 1b, red). Statistical analysis comparing mean pixel intensity (MPI) demonstrated IMC CB2R expression in DM lesional skin to be significantly greater than in HC skin (p<0.001, Fig. 1c).

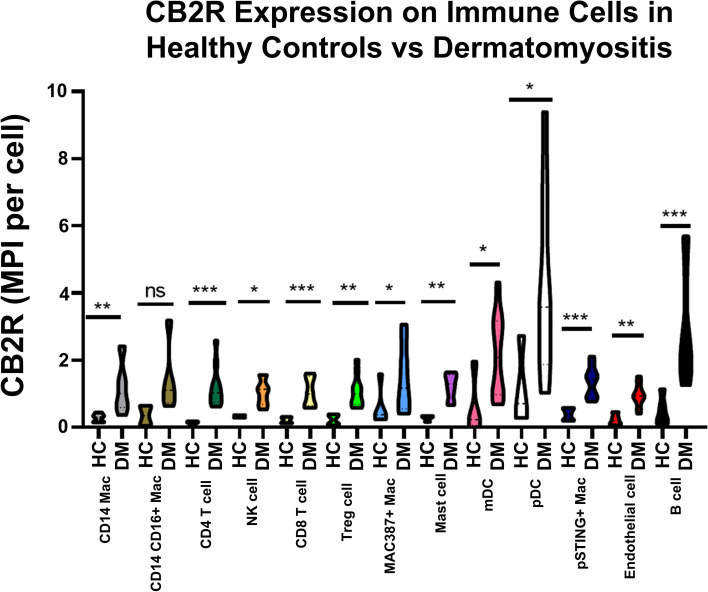

Dendritic cells and B cells demonstrate increased expression of CB2R among immune cell populations in DM inflammatory skin infiltrate
We further utilized IMC to evaluate CB2R expression among 13 unique immune cell populations in DM inflammatory infiltrate and quantified expression based on MPI. The immune populations are listed here in decreasing order according to percent composition of the inflammatory infiltrate: CD14+ macrophages (Mac), CD11c+ myeloid dendritic cells (mDCs), CD14+CD16+ Mac, CD4+ T cells, MAC387+ Mac, mast cells, CD8+ T cells, FOXP3+ T cells, pSTING+ Mac, BDCA2+ pDCs, CD56hi NK cells, and B cells [22]. We found dendritic cells and B cells express the greatest percentage of CB2R among immune cell populations in the DM inflammatory infiltrate. CB2R expression in pDCs was significantly greater when compared to all other immune cells (p<0.05, Fig. 2) except mDCs and B cells (p>0.05). B cells expressed significantly increased CB2R compared to CD14+ macrophages, CD14+CD16+ macrophages, T cells, and NK cells (p<0.05) with no difference compared to CB2R expression on pDCs, mDCs, and pSTING+ macrophages (p>0.05).
Comparison of CB2R expression in DM versus HC immune cell populations revealed a statistically significant increase in CB2R expression on all cell populations (p<0.05, Fig. 1b) except CD14+CD16+ Mac (Fig. 2, p=0.053) in DM lesional skin. CB2R expression on DM lymphocytes and dendritic cells in the skin was further explored using flow cytometry on eluted cells from eight DM lesional skin biopsies; two biopsies were stained with the dendritic cells panel, two were stained with the lymphocyte panel, and four biopsies were stained with both panels. Flow cytometry results corroborated IMC findings and showed a trend to a greater percentage of pDCs (60.3% ± 70.98%) expressing CB2R compared to mDCs (28.10% ± 35.6%) and CD4 T cells (26.0% ± 24.0%), although not statistically significant. Again, no difference was noted between pDC and mDC expression of CB2R.

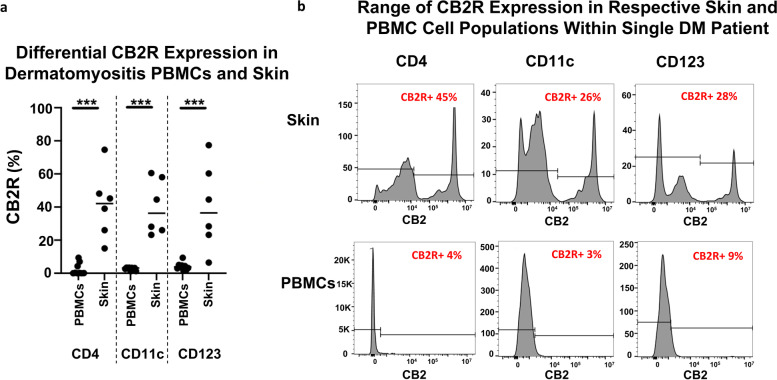

CB2R expression is greater in DM skin compared to DM PBMCs
Given the significant expression of CB2R in DM skin, we compared expression in DM peripheral blood versus DM lesional skin via flow cytometry. We isolated the PBMCs and lesional skin cells of 6 HC and 6 DM patients and found higher overall expression of CB2R in eluted DM skin cells (28.10% ± 40.05%) compared to DM PBMCs (2.097% ±3.18%) (p<0.0001). When stratified by cell type, DM CD4+ T cells, mDCs (CD11c), and pDCs (CD123) from the skin had significantly greater CB2R expression than their peripheral blood counterparts as well (p<0.05, Fig. 3a, b). Fluorescent minus one (FMO) controls and gating strategy for CB2R positivity are depicted in Fig. S2.

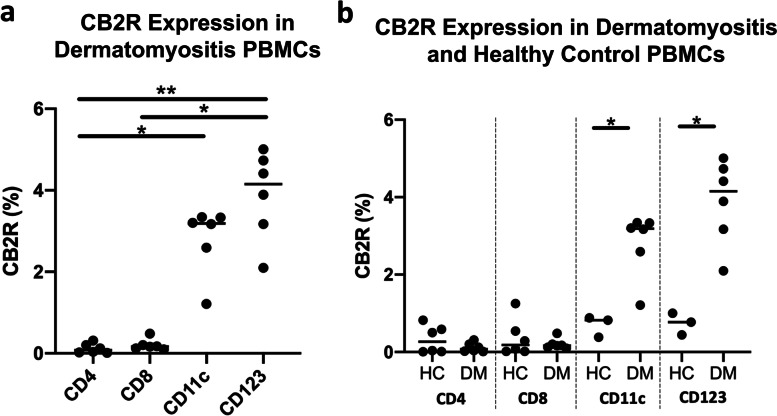

CB2R expression is greater on PBMC dendritic cells compared to lymphocytes
We evaluated CB2R expression on dendritic cells in the peripheral blood and compared it to that of lymphocyte populations. CB2R expression was significantly greater on mDCs and pDCs when compared to CD4+ T cells (p<0.01 and p<0.05, respectively, Fig. 4a) and on pDCs compared to CD8+ T cells (p<0.05, Fig. 4a). When CB2R expression on CD4+ T cells, CD8+ T cells, mDCs, and pDCs was compared between HC and DM patients, significantly greater expression was noted on DM mDCs (p<0.05) and pDCs (p<0.05) compared to HC mDCs and pDCs (Fig. 4b). No significant differences in CB2R expression were noted between DM and HC CD4+ and CD8 T+ cells (Fig. 4b).

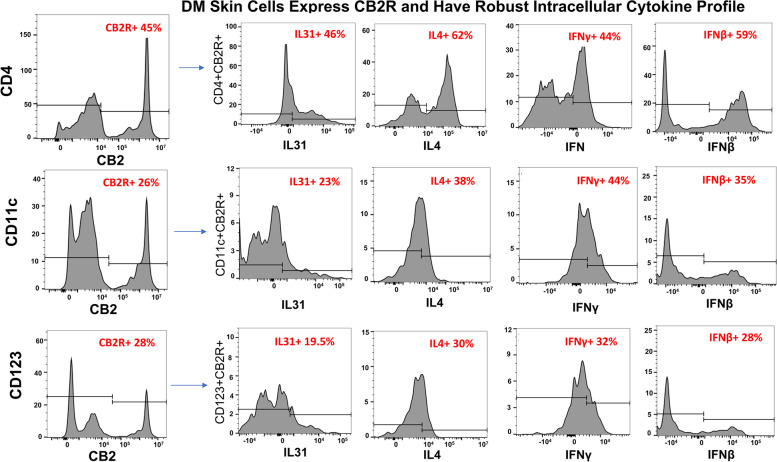

CD4+ T, CD11c+, and CD123+ cells expressing CB2R in DM skin produce IL-31, IL-4, IFN-γ, and IFN-β
Flow cytometric analysis of the lymphocyte and dendritic cell populations eluted from DM lesional skin demonstrated that the CD4 T+ cells, mDCs, and pDCs robustly express CB2R (Fig. 5). When CB2R expression among these populations was further stratified by intracellular cytokine production (Fig. 5), all three populations were found to produce IL-31, IL-4, IFN-γ, and IFN-β. CD4+ lymphocytes expressing CB2R were shown to produce the largest percentage of IL-31. Both dendritic cells and CD4 T+ cells expressing CB2R produced IL-4, IFN-γ, and IFN-β. These results were confirmed in three patient skin biopsies, with FMO controls and gating strategy are depicted in Fig. S3.

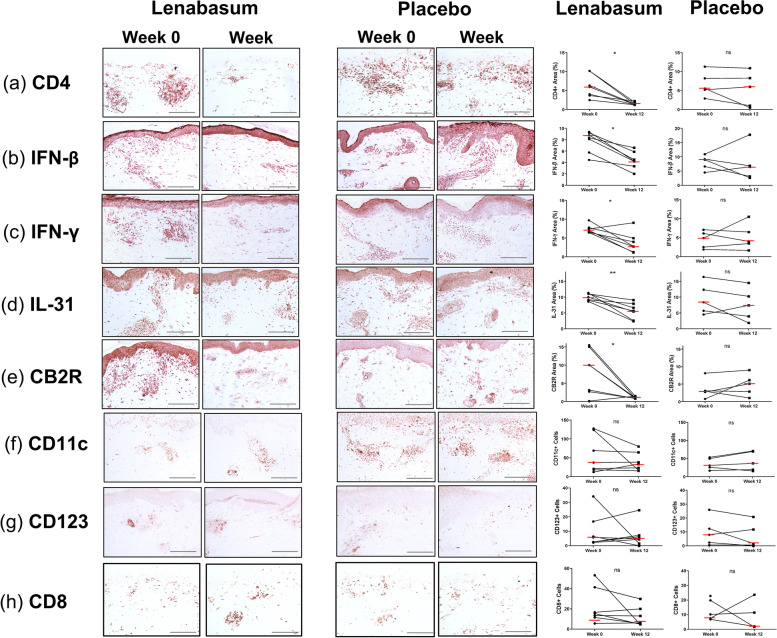

Lenabasum reduces CD4+ T cell population and downregulates Type 1 IFN expression in lesional DM skin
Skin biopsies and PBMCs from DM patients in the phase 2 randomized, double-blind, placebo-controlled trial were investigated at baseline and after 12 weeks of treatment with oral lenabasum. Immunohistochemistry (IHC) staining of skin biopsies revealed decreased CD4+, IFN-β, IFN-γ, IL-31, and CB2R protein expression in lenabasum-treated subjects at 12 weeks (p<0.05, Fig. 6), with no differences in the placebo group (p>0.05, Fig. 6a–e). There were no significant changes in the number of mDCs, pDCs, or CD8 T cells (p>0.05, Fig. 6f–h). RNA extraction and quantitative real-time PCR of skin additionally found IFN-β and IFN-γ mRNA decreased significantly in the lenabasum-treated group (p<0.05, Fig. S1) but not in the placebo group, with no differences found for IL-31 and IL-4 mRNA (p>0.05, Fig. S1). PBMC mRNA was similarly compared in the lenabasum-treated group and placebo group; however, no significant differences were found for IFN-β, IFN-γ, IL-31, and IL-4 mRNA (p>0.05, Fig. S1).
Discussion
The therapeutic potential of the CB2R is increasingly being recognized for its immunomodulatory properties. Several studies have confirmed the anti-inflammatory effects of CB2R activation in inflammatory diseases through murine models [23–29]. Certain CB2R agonists have been shown to limit chemotaxis and migration of immune cells such as monocytes and dendritic cells [30–32]. The anti-inflammatory properties of CB2R agonists, including lenabasum, are now being investigated in clinical trials [33, 34].
Here we show lenabasum modulated the immune environment within 12 weeks via a decrease in CD4+ T cells and pathogenic cytokines in DM such as IFN-β, IFN-γ, and IL-31 within the skin. Importantly, such differences were not observed in the mRNA of PBMCs (Fig. S1), suggesting a CB2R-based specificity. The lack of decrease in IL-4 and IL-31 mRNA in Lenabasum -treated skin may be attributed to CB2R-mediated post-transcriptional modifications such as mRNA stability, protein translation efficiency, protein half-life modification, and induction of inhibitors, as IL-4 and IL-31 protein levels did decrease. There are no known studies that describe CB2R distribution within the scope of DM and so we further investigated CB2R distribution using QRT-PCR, IHC, IF, IMC, and flow cytometry in HC and DM patients to identify the target immune cell populations and possible mechanisms of action of lenabasum.
The CB2R is largely activation-dependent and is expressed on almost all immune cells; it regulates migration, proliferation, and effector functions [35]. Previous studies on rat models have demonstrated that a setting of inflammation leads to CB2R upregulation [36, 37]. To date, in humans, much of the data regarding CB2R expression has been obtained via PBMCs of healthy donors [38, 39]. However, based on the differential cytokine changes in skin compared to PBMCs after lenabasum treatment and due to the receptor’s activation-dependent nature, we suspected the distribution of CB2R expression in DM may differ in circulation versus skin depending on local disease activity and inflammation.
Consistent with our hypothesis that CB2R may be upregulated in the setting of local inflammation in DM, we found CB2R expression was significantly increased in lesional DM skin compared to normal HC skin. This effect is also evident by the increased CB2R expression in DM skin compared to blood, possibly due to increased production of local inflammatory cytokines [40]. Additionally, our study showed CB2R downregulation with lenabasum treatment, as CB2R expression decreased significantly in lesional DM skin following 12 weeks of treatment with lenabasum and no change occurred in the placebo group. Through IMC we observed increased CB2R expression on skin immune cells, particularly, dendritic cells and B cells. Lenabasum treatment decreased this CB2R expression in lesional DM skin following 12 weeks of treatment, which was not observed with placebo. This reduction in CB2R expression may be due to the effects of the reverse agonist resulting in downregulation of pathologic CB2R expression at a cellular level, as occurs with tachyphylaxis, or alternatively on a global level due to decreased infiltrating cells. Long-term suppression of CB2R expression may be desirable as this may reduce inflammatory relapse, but the specific mechanisms require further investigation.
CB2R expression on dendritic cells has been demonstrated previously using blood-derived dendritic cells [41], but here we show upregulated in vivo expression in the skin through IMC. Our observations of hierarchical CB2R expression on pDCs, B cells, mDCs, then macrophages, and finally, T cells is similar to patterns observed in secondary lymphoid tissue [39] with the major finding in our study suggesting dendritic cells express the highest density of CB2R per cell.
Although pDCs were identified as the major expressor of CB2R, it is important to note that our study found no difference in CB2R expression between mDCs and pDCs, suggesting the equal importance of both dendritic cell populations when considering lenabasum’s effect. Furthermore, pDCs are significantly less prevalent than CD4+ T cells and mDCs in DM skin [42]. It is thus possible that CD4+ T cells and mDCs express more CB2R overall, despite fewer CB2R expressed per cell, than the relatively rare pDCs and B cells populations in DM skin. This expression pattern highlights the possible use of CB2R agonists in modulating T cell and dendritic cell functions, especially those involving the type I IFN response, which has been implicated in DM pathogenesis [43]. One study has demonstrated the suppressive capabilities of CB2R selective agonists on pDC production of IFN-α and TNF-α [21, 44], which are elevated in autoimmune conditions such as systemic lupus erythematosus and may also be implicated in DM pathogenesis [43, 45]. Increased CB2R expression on mDCs and pDCs in DM skin may be a particularly important finding for other cutaneous autoimmune diseases in which dendritic cells contribute to the type I IFN axis. These findings suggest a potentially powerful therapeutic target, as dendritic cells are known to amplify the adaptive immune response via activation and proliferation.
Despite the extremely low prevalence of B cells in DM skin, our study found that they express CB2R. Since autoantibody production is a critical component of DM pathogenesis and previous studies demonstrated CB2R’s regulation of B cell migration, memory response, and antibody production [35, 46], CB2R expression in this population warrants further investigation. The increased CB2R expression in this population may serve as another modifiable therapeutic axis for targeting autoimmune memory responses in DM, despite being relatively rare in DM skin.
The cytokines decreased with lenabasum treatment (IFN-β, IFN-γ, and IL-31) were all found in CB2R expressing CD4+ T cells, mDCs, and pDCs. This suggests lenabasum may modulate disease activity via its effects on the CB2R expressed on multiple immune cell populations, which include downregulation of multiple cytokines in a single cell, particularly IFN-β, which is thought to drive disease activity [43]. Lenabasum treatment also decreased the number of infiltrating skin CD4+ T cells, which may be due to CB2R-mediated downregulation of cell migration; this could serve as another mechanism by which cytokine production may be suppressed. Lenabasum does not appear to alter mDC or pDC cell infiltration, but may still influence their cytokine production. The effects of lenabasum on cytokine production and migration of these populations will be investigated in the future.
This study complements previous reports of mDCs and CD4 T cells producing IFN-β and constituting a high percentage of the DM infiltrate by demonstrating upregulation of CB2R [22]. This upregulation of CB2R may lead to increased cell migration and cytokine production, resulting in skin lesions. The increased expression on dendritic cells suggests an amplification effect whereby an initial insult (viral, ultraviolet light exposure, or trauma) may upregulate dendritic cell CB2R expression, which, in turn, promotes recruitment and stimulation of secondary immune cells. Individuals may also be predisposed to CB2R upregulation via the effects of other medications, herbal supplements, or genetic predispositions. This local upregulation of CB2R expression provides evidence for trials of topical or injectable lenabasum as it may suppress locally inflammatory dendritic cells while permitting central regulatory cell infiltration. Knowing the distribution of CB2R is essential for identifying patients and diseases targetable by lenabasum, as skin biopsies may demonstrate CB2R dominance, suggesting a predictable response. Lenabasum's effects in other inflammatory diseases mediated by dendritic cells and B cells should also be investigated, as it may offer therapeutic benefit in these conditions.
Our study is not without limitations. The small sample size of IMC studies warrants further investigation, as CB2R expression may differ in rare human skin populations like B cells. As human dendritic cells have been identified as the center of a dysregulated autoimmune response in DM and cutaneous lupus erythematosus [22, 42, 47], future studies should focus on the effects of CB2R modulation in these cells. Moreover, the effects of lenabasum on PPARγ need to be further investigated, as this pathway has significant effects on immune cell function and was not evaluated in this study.
Conclusion
In this study, we have identified effects of lenabasum in skin lesions and discovered novel patterns of expression of CB2R in DM skin and blood by which the drug may act. Lenabasum was found to downregulate CD4 T cells, CB2R, and cytokines contributing to DM pathogenesis in the skin. Upregulation of CB2R on immune cells in skin and blood, and in particular dendritic cells highlight targets of lenabasum. By demonstrating CB2R expression on key immune cells and highlighting effects on pathways we may better direct this emerging therapy to identify DM patients with susceptible lesions. Knowledge of CB2R distribution and the effects of Lenabasum may also translate to other autoimmune skin diseases and will be of importance to the field of dermatology as this drug is further developed.
Materials and methods
Patients
All patients and healthy controls (HC) were recruited from the Department of Dermatology at the University of Pennsylvania (Institutional Review Board approved). All subjects signed informed consent before participating in this study. All DM patients were diagnosed by VPW using either European League Against Rheumatism/American College of Rheumatology (ACR) or Sontheimer criteria. In our IHC and mRNA study, lesional skin from DM patients with moderate-severe, refractory, skin-predominant DM on stable standard-of-care treatments was recruited for a double-blind, placebo-controlled, randomized trial. Demographics are detailed in Table S1. These patients initially received lenabasum 20 mg daily for 4 weeks, then subsequently received 20 mg twice daily for an additional 8 weeks. Biopsies were obtained at weeks 0 and 12. In the remaining studies, lesional skin biopsies and peripheral blood samples were obtained from DM patients in a longitudinal database who were not enrolled in the trial and were not necessarily refractory to standard of care therapy. In our IMC analysis, lesional skin biopsies were obtained from 5 HC and 10 DM patients with newly diagnosed moderate-severe DM. Demographics are detailed in Table S2. In our flow cytometry analysis, 7 lesional skin biopsies were obtained from DM patients. Demographics are detailed in Table S3. Blood samples were obtained from a total of 11 HC and 17 DM patients and certain HC and DM samples were stained with multiple FC panels. Demographics are detailed in Table S4.
Immunohistochemical staining
Immunofluorescence staining
Image mass cytometry
Antibody conjugation and image acquisition
Prior to the processing of tissue, antibodies were conjugated to different metal isotopes using the Maxpar Antibody Labeling Kit (Fluidigm, San Francisco, CA). Tissue sections were incubated in a cocktail of 17 metal-conjugated antibodies (listed in Table S6) and processed with the Hyperion Imaging System (Fluidigm, San Francisco, CA). Regions of interest (ROI) up to 2 × 1 mm were ablated at a frequency of 200 Hz. For further details, see Supplementary methods.
Image processing and data analysis
The resulting MCD image files were exported to 32-bit TIFF files using MCD ViewerTM (Fluidigm). Cell segmentation was performed using a nuclear app-based algorithm in Visiopharm (Westminster, CO). The resulting mask and TIFF files were imported into histoCAT (Fluidigm), where per object MPI data was generated. The phonograph algorithm was used for unsupervised clustering of cell populations. MPI for different cell populations and related heatmaps were gathered using histoCAT. Colocalization images were created using ImageJ.
RNA extraction and quantitative real-time reverse transcriptase polymerase chain reaction (QRT-PCR)
Flow cytometry
PBMC isolation
PBMCs were isolated by density gradient over Ficoll-Hypaque (Sigma-Aldrich, St. Louis, MO) by standard procedures isolated PBMCs at 1 × 106 cells/mL were cultured in RPMI culture medium supplemented with 10% fetal bovine serum, 1% L-glutamine, and 1% penicillin-streptomycin.
Elution of skin cells
Biopsies were minced and digested overnight in 0.08% Trypsin and subsequently digested in 0.125 mg/mL Liberase TL (Sigma-Aldrich) in DMEM media for 2 h at 37°C the following day. Samples were then mashed through 70-mm cell strainers and washed with a medium. Eluted PBMCs were then counted and samples with 1 × 106 cells/mL were selected for culture and staining.
Stimulation of cells, staining, and acquisition of data
Cells to be stained with lymphocyte antibodies were stimulated with a cell activation cocktail (2 mg/mL) containing phorbol myristate acetate/ionomycin/Brefeldin A (Biolegend-423303, San Diego, CA) for 4 h at 37°C. Cells to be stained with dendritic cell antibodies were stimulated with R848 (1ug/mL) (Invivogen- tlrl-r848, San Diego, CA) and Brefeldin A (1mg/mL) (Biolegend-42060) for 5 h at 37°C. Detailed staining protocol is included in Supplementary methods. Subsequent to staining, single-cell suspensions underwent flow cytometric analysis on a BD FACS Canto (5 samples) or BD FACS Symphony (2 samples) (BD Biosciences, San Jose, CA) and were analyzed with the FlowJo software (BD Biosciences). The intensity of the staining was measured by percent of parent population, and gating was determined by the mean fluorescence intensity (MFI) values. To distinguish between specifically stained cells and background fluorescence, we used appropriate controls, including unstimulated samples and fluorescence-minus-one controls [48]. We defined this MFI value as a cut-off and considered a cell as positive for a given marker if their MFI exceeded this cut-off value and cells with MFI values below this cut-off value were referred to as cytokine-negative cells. Further data regarding gating process can be found in the Supplementary methods.
Statistical analysis
The Wilcoxon signed-rank test, Mann-Whitney test, Kruskal-Wallis test, and Bonferroni’s multiple comparisons test were used. Statistical analysis was performed using GraphPad Prism V8 software (GraphPad Software, Inc., La Jolla, CA).
Supplementary Information
Untitled section
Acknowledgements
Not applicable
Abbreviations
- DM
- Dermatomyositis
- CB2R
- Cannabinoid type 2 receptor
- CB1R
- Cannabinoid type 1 receptor
- mDC
- Myeloid dendritic cell
- pDC
- Plasmacytoid dendritic cell
- IFN
- Interferon
- IL
- Interleukin
- pPPARγ
- Phosphorylated peroxisome proliferator-activated γ
- pSTING
- Phosphorylated stimulator of interferon genes
- IHC
- Immunohistochemical
- IF
- Immunofluorescence
- IMC
- Image mass cytometry
- MPI
- Mean pixel intensity
Funding
This project is supported by the Department of Veterans Affairs Veterans Health Administration, Office of Research and Development, Biomedical Laboratory Research and Development, the Myositis Association (TMA), Core A of the Penn Skin Biology and Diseases Resource-based Center, funded by 1P30AR069589-01 (Millar), the National Institutes of Health (NIAMS) [R21 AR066286], and National Institute of Health [R01AR076766] and Veterans Affairs Merit Review [I01BX000706] to VPW.
Availability of data and materials
Datasets related to this article are available upon request to the corresponding author.
Declarations
Ethics approval and consent to participate
All patients and HC were recruited from the Department of Dermatology at the University of Pennsylvania (Institutional Review Board approved). All subjects signed informed consent before participating in this study.
Consent for publication
Not applicable
Competing interests
VPW has received research clinical trial grants from Corbus Pharmaceuticals. BW is a Chief Medical Officer and Head of Research at Corbus Pharmaceuticals.
Footnotes
Footnote Group
Contributor Information
Barbara White, Email: barbarawhitemd@yahoo.com.
Victoria P. Werth, Email: werth@pennmedicine.upenn.edu
References
Untitled section
References
- 1.Krathen MS, Fiorentino D, Werth VP. Dermatomyositis. Curr Dir Autoimmun. 2008;10:313–332. doi: 10.1159/000131751.
- 2.Iaccarino L, Ghirardello A, Bettio S, Zen M, Gatto M, Punzi L, Doria A. The clinical features, diagnosis and classification of dermatomyositis. J Autoimmun. 2014;48-49:122–127. doi: 10.1016/j.jaut.2013.11.005.
- 3.Da Silva DM, Patel B, Werth VP. Dermatomyositis: a diagnostic dilemma. J Am Acad Dermatol. 2018;79(2):371–373. doi: 10.1016/j.jaad.2017.12.074.
- 4.Kim HJ, Zeidi M, Bonciani D, Pena SM, Tiao J, Sahu S, Werth VP. Itch in dermatomyositis: the role of increased skin interleukin-31. Br J Dermatol. 2018;179(3):669–678. doi: 10.1111/bjd.16498.
- 5.Goreshi R, Chock M, Foering K, Feng R, Okawa J, Rose M, Fiorentino D, Werth V. Quality of life in dermatomyositis. J Am Acad Dermatol. 2011;65(6):1107–1116. doi: 10.1016/j.jaad.2010.10.016.
- 6.Pelle MT, Callen JP. Adverse cutaneous reactions to hydroxychloroquine are more common in patients with dermatomyositis than in patients with cutaneous lupus erythematosus. Arch Dermatol. 2002;138(9):1231–1233. doi: 10.1001/archderm.138.9.1231.
- 7.Ang GC, Werth VP. Combination antimalarials in the treatment of cutaneous dermatomyositis: a retrospective study. Arch Dermatol. 2005;141(7):855–859. doi: 10.1001/archderm.141.7.855.
- 8.Anyanwu CO, Chansky PB, Feng R, Carr K, Okawa J, Werth VP. The systemic management of cutaneous dermatomyositis: results of a stepwise strategy. Int J Womens Dermatol. 2017;3(4):189–194. doi: 10.1016/j.ijwd.2017.05.001.
- 9.Rom S, Persidsky Y. Cannabinoid receptor 2: potential role in immunomodulation and neuroinflammation. J Neuroimmune Pharmacol. 2013;8(3):608–620. doi: 10.1007/s11481-013-9445-9.
- 10.Tepper MA, Zurier RB, Burstein SH. Ultrapure ajulemic acid has improved CB2 selectivity with reduced CB1 activity. Bioorg Med Chem. 2014;22(13):3245–3251. doi: 10.1016/j.bmc.2014.04.062.
- 11.Loev B, Bender PE, Dowalo F, Macko E, Fowler PJ. Cannabinoids. Structure-activity studies related to 1,2-dimethylheptyl derivatives. J Med Chem. 1973;16(11):1200–1206. doi: 10.1021/jm00269a002.
- 12.Burstein SH, Audette CA, Breuer A, Devane WA, Colodner S, Doyle SA, Mechoulam R. Synthetic nonpsychotropic cannabinoids with potent antiinflammatory, analgesic, and leukocyte antiadhesion activities. J Med Chem. 1992;35(17):3135–3141. doi: 10.1021/jm00095a007.
- 13.O'Sullivan SE. An update on PPAR activation by cannabinoids. Br J Pharmacol. 2016;173(12):1899–1910. doi: 10.1111/bph.13497.
- 14.Liu J, Li H, Burstein SH, Zurier RB, Chen JD. Activation and binding of peroxisome proliferator-activated receptor gamma by synthetic cannabinoid ajulemic acid. Mol Pharmacol. 2003;63(5):983–992. doi: 10.1124/mol.63.5.983.
- 15.Kong W, Li H, Tuma RF, Ganea D. Selective CB2 receptor activation ameliorates EAE by reducing Th17 differentiation and immune cell accumulation in the CNS. Cell Immunol. 2014;287(1):1–17. doi: 10.1016/j.cellimm.2013.11.002.
- 16.Kozela E, Juknat A, Kaushansky N, Rimmerman N, Ben-Nun A, Vogel Z. Cannabinoids decrease the th17 inflammatory autoimmune phenotype. J Neuroimmune Pharmacol. 2013;8(5):1265–1276. doi: 10.1007/s11481-013-9493-1.
- 17.Selvi E, Lorenzini S, Garcia-Gonzalez E, Maggio R, Lazzerini PE, Capecchi PL, Balistreri E, Spreafico A, Niccolini S, Pompella G, et al. Inhibitory effect of synthetic cannabinoids on cytokine production in rheumatoid fibroblast-like synoviocytes. Clin Exp Rheumatol. 2008;26(4):574–581.
- 18.Parker J, Atez F, Rossetti RG, Skulas A, Patel R, Zurier RB. Suppression of human macrophage interleukin-6 by a nonpsychoactive cannabinoid acid. Rheumatol Int. 2008;28(7):631–635. doi: 10.1007/s00296-007-0489-0.
- 19.Zurier RB, Rossetti RG, Burstein SH, Bidinger B. Suppression of human monocyte interleukin-1beta production by ajulemic acid, a nonpsychoactive cannabinoid. Biochem Pharmacol. 2003;65(4):649–655. doi: 10.1016/s0006-2952(02)01604-0.
- 20.Burstein SH. Ajulemic acid: potential treatment for chronic inflammation. Pharmacol Res Perspect. 2018;6(2):e00394. doi: 10.1002/prp2.394.
- 21.Robinson ES, Alves P, Bashir MM, Zeidi M, Feng R, Werth VP. Cannabinoid reduces inflammatory cytokines, tumor necrosis factor-α, and type I interferons in dermatomyositis in vitro. J Invest Dermatol. 2017;137(11):2445–2447. doi: 10.1016/j.jid.2017.05.035.
- 22.Patel JMS, Li Y, Bax C, Werth VP. Highly multiplexed mass cytometry identifies the immunophenotype in the skin of Dermatomyositis. J Investig Dermatol. 2021;141:2151–2160. doi: 10.1016/j.jid.2021.02.748.
- 23.Krustev E, Reid A, McDougall JJ. Tapping into the endocannabinoid system to ameliorate acute inflammatory flares and associated pain in mouse knee joints. Arthritis Res Ther. 2014;16(5):437. doi: 10.1186/s13075-014-0437-9.
- 24.Comelli F, Giagnoni G, Bettoni I, Colleoni M, Costa B. The inhibition of monoacylglycerol lipase by URB602 showed an anti-inflammatory and anti-nociceptive effect in a murine model of acute inflammation. Br J Pharmacol. 2007;152(5):787–794. doi: 10.1038/sj.bjp.0707425.
- 25.Costola-de-Souza C, Ribeiro A, Ferraz-de-Paula V, Calefi AS, Aloia TP, Gimenes-Júnior JA, de Almeida VI, Pinheiro ML, Palermo-Neto J. Monoacylglycerol lipase (MAGL) inhibition attenuates acute lung injury in mice. PLoS One. 2013;8(10):e77706. doi: 10.1371/journal.pone.0077706.
- 26.Naidu PS, Kinsey SG, Guo TL, Cravatt BF, Lichtman AH. Regulation of inflammatory pain by inhibition of fatty acid amide hydrolase. J Pharmacol Exp Ther. 2010;334(1):182–190. doi: 10.1124/jpet.109.164806.
- 27.Booker L, Kinsey SG, Abdullah RA, Blankman JL, Long JZ, Ezzili C, Boger DL, Cravatt BF, Lichtman AH. The fatty acid amide hydrolase (FAAH) inhibitor PF-3845 acts in the nervous system to reverse LPS-induced tactile allodynia in mice. Br J Pharmacol. 2012;165(8):2485–2496. doi: 10.1111/j.1476-5381.2011.01445.x.
- 28.Alhouayek M, Lambert DM, Delzenne NM, Cani PD, Muccioli GG. Increasing endogenous 2-arachidonoylglycerol levels counteracts colitis and related systemic inflammation. FASEB J. 2011;25(8):2711–2721. doi: 10.1096/fj.10-176602.
- 29.Wen J, Ribeiro R, Tanaka M, Zhang Y. Activation of CB2 receptor is required for the therapeutic effect of ABHD6 inhibition in experimental autoimmune encephalomyelitis. Neuropharmacology. 2015;99:196–209. doi: 10.1016/j.neuropharm.2015.07.010.
- 30.Do Y, McKallip RJ, Nagarkatti M, Nagarkatti PS. Activation through cannabinoid receptors 1 and 2 on dendritic cells triggers NF-kappaB-dependent apoptosis: novel role for endogenous and exogenous cannabinoids in immunoregulation. J Immunol. 2004;173(4):2373–2382. doi: 10.4049/jimmunol.173.4.2373.
- 31.Adhikary S, Kocieda VP, Yen JH, Tuma RF, Ganea D. Signaling through cannabinoid receptor 2 suppresses murine dendritic cell migration by inhibiting matrix metalloproteinase 9 expression. Blood. 2012;120(18):3741–3749. doi: 10.1182/blood-2012-06-435362.
- 32.Rajesh M, Mukhopadhyay P, Bátkai S, Haskó G, Liaudet L, Huffman JW, Csiszar A, Ungvari Z, Mackie K, Chatterjee S, et al. CB2-receptor stimulation attenuates TNF-alpha-induced human endothelial cell activation, transendothelial migration of monocytes, and monocyte-endothelial adhesion. Am J Physiol Heart Circ Physiol. 2007;293(4):H2210–H2218. doi: 10.1152/ajpheart.00688.2007.
- 33.Spiera R, Hummers L, Chung L, Frech TM, Domsic R, Hsu V, Furst DE, Gordon J, Mayes M, Simms R, Lafyatis R, Martyanov V, Wood T, Whitfield ML, Constantine S, Lee E, Dgetluck N, White B. Safety and Efficacy of Lenabasum in a Phase II, Randomized, Placebo-Controlled Trial in Adults With Systemic Sclerosis. Arthritis Rheumatol. 2020;72(8):1350-60.
- 34.Werth V, Hejazi E, Pena S, Harber J, Okawa J, Feng R, et al. FRI0470 A phase 2 study of safety and efficacy of lenabasum (JBT-101), a cannabinoid receptor type 2 agonist, in refractory skin-predominant dermatomyositis. Annals of the Rheumatic Diseases. 2018;77:763-64.
- 35.Basu S, Dittel BN. Unraveling the complexities of cannabinoid receptor 2 (CB2) immune regulation in health and disease. Immunol Res. 2011;51(1):26–38. doi: 10.1007/s12026-011-8210-5.
- 36.Concannon RM, Okine BN, Finn DP, Dowd E. Differential upregulation of the cannabinoid CB2 receptor in neurotoxic and inflammation-driven rat models of Parkinson’s disease. Exp Neurol. 2015;269:133–141. doi: 10.1016/j.expneurol.2015.04.007.
- 37.Ashton JC, Glass M. The cannabinoid CB2 receptor as a target for inflammation-dependent neurodegeneration. Curr Neuropharmacol. 2007;5(2):73–80. doi: 10.2174/157015907780866884.
- 38.Bouaboula M, Rinaldi M, Carayon P, Carillon C, Delpech B, Shire D, Le Fur G, Casellas P. Cannabinoid-receptor expression in human leukocytes. Eur J Biochem. 1993;214(1):173–180. doi: 10.1111/j.1432-1033.1993.tb17910.x.
- 39.Galiègue S, Mary S, Marchand J, Dussossoy D, Carrière D, Carayon P, Bouaboula M, Shire D, Le Fur G, Casellas P. Expression of central and peripheral cannabinoid receptors in human immune tissues and leukocyte subpopulations. Eur J Biochem. 1995;232(1):54–61. doi: 10.1111/j.1432-1033.1995.tb20780.x.
- 40.Jean-Gilles L, Braitch M, Latif ML, Aram J, Fahey AJ, Edwards LJ, Robins RA, Tanasescu R, Tighe PJ, Gran B, et al. Effects of pro-inflammatory cytokines on cannabinoid CB1 and CB2 receptors in immune cells. Acta Physiol (Oxf) 2015;214(1):63–74. doi: 10.1111/apha.12474.
- 41.Matias I, Pochard P, Orlando P, Salzet M, Pestel J, Di Marzo V. Presence and regulation of the endocannabinoid system in human dendritic cells. Eur J Biochem. 2002;269(15):3771–3778. doi: 10.1046/j.1432-1033.2002.03078.x.
- 42.Chen M, Quan C, Diao L, Xue F, Xue K, Wang B, Li X, Zhu X, Zheng J, Cao H. Measurement of cytokines and chemokines and association with clinical severity of dermatomyositis and clinically amyopathic dermatomyositis. Br J Dermatol. 2018;179(6):1334–1341. doi: 10.1111/bjd.17079.
- 43.Wong D, Kea B, Pesich R, Higgs BW, Zhu W, Brown P, Yao Y, Fiorentino D. Interferon and biologic signatures in dermatomyositis skin: specificity and heterogeneity across diseases. PLoS One. 2012;7(1):e29161. doi: 10.1371/journal.pone.0029161.
- 44.Henriquez JE, Crawford RB, Kaminski NE. Suppression of CpG-ODN-mediated IFNα and TNFα response in human plasmacytoid dendritic cells (pDC) by cannabinoid receptor 2 (CB2)-specific agonists. Toxicol Appl Pharmacol. 2019;369:82–89. doi: 10.1016/j.taap.2019.02.013.
- 45.Niewold TB, Kariuki SN, Morgan GA, Shrestha S, Pachman LM. Elevated serum interferon-alpha activity in juvenile dermatomyositis: associations with disease activity at diagnosis and after thirty-six months of therapy. Arthritis Rheum. 2009;60(6):1815–1824. doi: 10.1002/art.24555.
- 46.Basu S, Ray A, Dittel BN. Cannabinoid receptor 2 is critical for the homing and retention of marginal zone B lineage cells and for efficient T-independent immune responses. J Immunol. 2011;187(11):5720–5732. doi: 10.4049/jimmunol.1102195.
- 47.Zeidi M, Kim HJ, Werth VP. Increased myeloid dendritic cells and TNF-α expression predicts poor response to hydroxychloroquine in cutaneous lupus erythematosus. J Invest Dermatol. 2019;139(2):324–332. doi: 10.1016/j.jid.2018.07.041.
- 48.Hulspas R, O'Gorman MR, Wood BL, Gratama JW, Sutherland DR. Considerations for the control of background fluorescence in clinical flow cytometry. Cytometry B Clin Cytom. 2009;76(6):355–364. doi: 10.1002/cyto.b.20485.
Associated Data
Supplementary Materials
Data Availability Statement
Datasets related to this article are available upon request to the corresponding author.
