The endocannabinoid N-arachidonoyl dopamine is critical for hyperalgesia induced by chronic sleep disruption
grid.38142.3c000000041936754XDepartment of Anesthesia, Critical Care and Pain Medicine, Massachusetts General Hospital, Harvard Medical School, Boston, MA USA
grid.189504.10000 0004 1936 7558Department of Pathology, Tuft University School of Medicine, Boston, MA USA
https://ror.org/04ydmy275grid.266685.90000 0004 0386 3207College of Science and Mathematics, University of Massachusetts Boston, Boston, MA USA
grid.38142.3c000000041936754XDepartment of Radiology, Massachusetts General Hospital, Harvard Medical School, Boston, MA USA
grid.253264.40000 0004 1936 9473Summer Intern Program of the Department of Anesthesia, Critical Care and Pain Medicine, Massachusetts General Hospital, currently at Brandeis University, Boston, MA USA
https://ror.org/04qh86j58grid.496416.80000 0004 5934 6655Center for Neuroscience, Korea Institute of Science and Technology, Seoul, South Korea
grid.38142.3c000000041936754XMartinos Center for Biomedical Imaging, Department of Radiology, Massachusetts General Hospital, Harvard Medical School, Boston, MA USA
grid.38142.3c000000041936754XDepartment of Anesthesiology, Perioperative and Pain Medicine, Brigham and Women’s Hospital, Harvard Medical School, Boston, MA USA
grid.116068.80000 0001 2341 2786McGovern Institute for Brain Research and Department of Brain and Cognitive Sciences, Massachusetts Institute of Technology, Cambridge, MA USA
grid.9227.e0000000119573309Present Address: Zhongshan Institute for Drug Discovery, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai, China
Abstract
Chronic pain is highly prevalent and is linked to a broad range of comorbidities, including sleep disorders. Epidemiological and clinical evidence suggests that chronic sleep disruption (CSD) leads to heightened pain sensitivity, referred to as CSD-induced hyperalgesia. However, the underlying mechanisms are unclear. The thalamic reticular nucleus (TRN) has unique integrative functions in sensory processing, attention/arousal and sleep spindle generation. We report that the TRN played an important role in CSD-induced hyperalgesia in mice, through its projections to the ventroposterior region of the thalamus. Metabolomics revealed that the level of N-arachidonoyl dopamine (NADA), an endocannabinoid, was decreased in the TRN after CSD. Using a recently developed CB1 receptor (cannabinoid receptor 1) activity sensor with spatiotemporal resolution, CB1 receptor activity in the TRN was found to be decreased after CSD. Moreover, CSD-induced hyperalgesia was attenuated by local NADA administration to the TRN. Taken together, these results suggest that TRN NADA signaling is critical for CSD-induced hyperalgesia.
Web Summary
Generalized body pain and headaches are common experience after sleep disruption. How does sleep disruption lead to generalized pain is unknown. Here, authors reveal that N-arachidonoyl dopamine, an endocannabinoid, is critically implicated in pain perception after sleep disruption.
Introduction
Chronic pain affects 11–40% of all adults1 and is linked to a wide range of comorbidities, including anxiety, depression, and sleep disorders2–4. Notably, one-third of US adults report experiencing sleep disorders or inadequate sleep5,6, and adults with chronic pain are more likely to experience sleep disorders7. Both epidemiological and clinical evidence suggests that chronic sleep disruption (CSD) promotes pain8, which is consistent with the common life experience of generalized hyperalgesia following a single night of sleep deprivation9,10. Despite empirical, clinical, and epidemiological evidence of the link between disturbed sleep and pain, the mechanisms through which CSD induces hyperalgesia are largely unknown11.
In a seminal study, Alexandre et al. established a mouse model of CSD which involved minimal stress, and observed significantly increased pain sensitivity (referred to as ‘CSD-induced hyperalgesia’)12.The neural substrates that mediate CSD-induced hyperalgesia have only begun to be unraveled, but implicate the nucleus accumbens, the hypothalamus-pituitary-adrenal axis, as well as adenosine and nitric oxide signaling8,12–16. The thalamic reticular nucleus (TRN) has unique integrative functions in sensory processing and nociception17–19, attention/arousal and sleep spindle generation8,20–25. We hypothesized that the TRN may be involved in CSD-induced hyperalgesia. Using a mouse model of CSD, we report that the TRN played an important role in CSD-induced hyperalgesia, through its projections to the ventroposterior region (VP) of the thalamus. Chemogenetic activation of TRN neurons that projected to the VP of the thalamus attenuated CSD-induced hyperalgesia; chemogenetic inhibition of neurons in the VP receiving projections from the TRN also attenuated CSD-induced hyperalgesia. A metabolomic screening revealed that the level of N-arachidonoyl dopamine (NADA), an endocannabinoid, was decreased in the TRN after CSD. Moreover, endocannabinoid receptor 1 (CB1 receptor) activity decreased after CSD, and CSD-induced hyperalgesia was attenuated by local NADA administration to the TRN, demonstrating a critical role for NADA in CSD-induced hyperalgesia.
Results
The TRN is critical for CSD-induced hyperalgesia

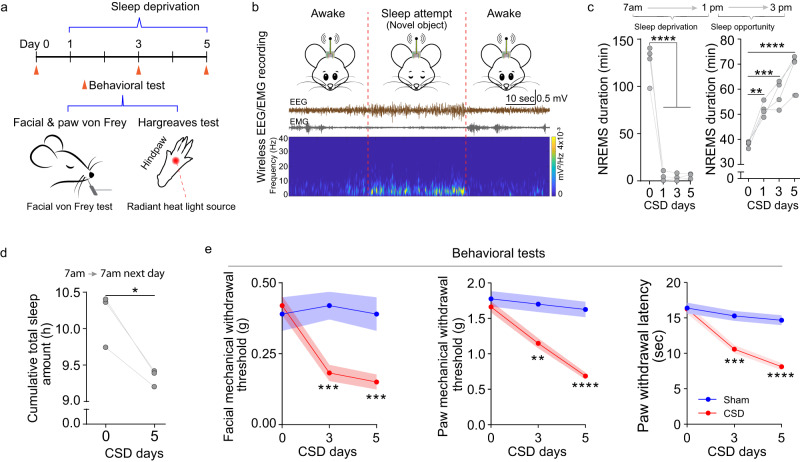

We hypothesized that the TRN may play an important role in CSD-induced hyperalgesia because of its unique integrative functions in sensory processing and nociception17–19, attention/arousal and sleep spindle generation8,20–25. To test this hypothesis, we first adopted a CSD model as described12. Mice were deprived of sleep between 7 am and 1 pm daily for 5 consecutive days (Fig. 1a) by introducing novel objects when sleep attempts occurred (Fig. 1b). The degree of sleep deprivation was validated using a wireless electroencephalogram (EEG) recording as previously reported26. Immediately following CSD sessions, mice were allowed to sleep in their normal environment, during which wireless EEG was monitored between 1 and 3 pm. Results showed that the non-REM sleep duration of these mice was significantly increased after CSD sessions (Fig. 1c, Supplementary Fig. 1a), presumably due to compensatory mechanisms related to sleep homeostasis27. The increased non-REM sleep following CSD session was consistent with previous reports12,28. Notably, despite this compensation, total sleep time decreased significantly in mice that underwent CSD when compared with controls (Fig. 1d, Supplementary Fig. 1b), consistent with previously reported results12. Pain-related behavioral tests were conducted between 1–2 pm following CSD sessions, and mice displayed significantly decreased facial and hindpaw mechanical withdrawal thresholds and a decreased hindpaw thermal withdrawal latency, consistent with CSD-induced hyperalgesia in widespread areas of the body (Fig. 1e). In humans, sleep disruption leads to both high self-reported pain scores and increased pain sensitivity to mechanical and thermal stimuli, in widespread areas of the body10,29–31.

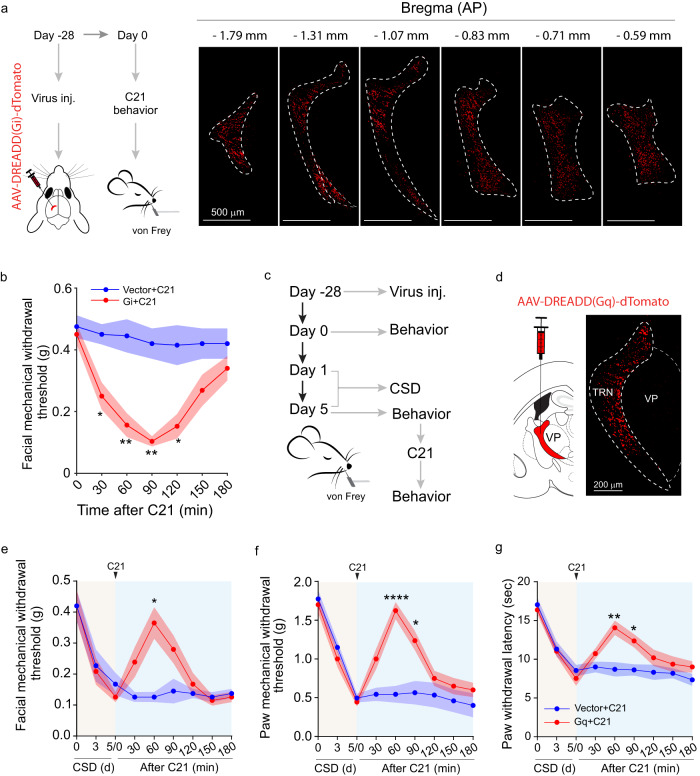

To examine the potential role of the TRN in this phenomenon, TRN neurons were targeted using a viral targeting strategy32. TRN neurons mostly are GABAergic projection neurons22,33,34. Dlx promoter has been shown to efficiently target GABAergic neurons for functional manipulation32. To inhibit TRN neurons, an inhibitory type of designer receptors exclusively activated by designer drugs (DREADDs)35, AAV-Dlx-Gi DREADDs-dTomato, was used (Fig. 2a, Supplementary Fig. 2a). To confirm the inhibitory effects of Gi DREADDs, a mixture of AAV-Dlx-Gi DREADDs-dTomato and AAV-Dlx-GCaMP6f was injected into the TRN of well-rested ‘naive’ mice. Fiber photometry imaging of the TRN showed that Gi DREADDS led to decreased calcium activities (Supplementary Fig. 2b, c), consistent with decreased TRN activities. When TRN was inhibited using AAV-Dlx-Gi DREADDs, there were significantly decreased facial and hindpaw mechanical withdrawal thresholds and hindpaw thermal withdrawal latency (Fig. 2b, Supplementary Fig. 2d, e), suggesting that TRN inhibition led to hyperalgesia. Additionally, we tested if activation of TRN neurons could alleviate CSD-induced hyperalgesia. For this, an excitatory DREADDs AAV-Dlx-Gq DREADDs was injected into the TRN (Fig. 2c, d). These mice subsequently underwent CSD. Chemogenetic activation of TRN neurons using Gq DREADDs significantly increased the facial and hindpaw mechanical withdrawal thresholds and hindpaw thermal withdrawal latency (Fig. 2e–g), suggesting that TRN activation attenuated CSD-induced hyperalgesia. In addition to chemogenetic approaches, we also used optogenetic approaches to inhibit and active TRN as described36,37. Similar to the experiments using chemogenetics, optogenetic TRN inhibition led to hyperalgesia in ‘naive’ mice (Supplementary Fig. 3a–d), whereas optogenetic TRN activation led to attenuation of CSD-induced hyperalgesia (Supplementary Fig. 3e–h). Thus, using both chemogenetic and optogenetic manipulation to activate or inhibit TRN, our results implicate a role for the TRN in CSD-induced hyperalgesia.
The TRN-to-VP circuit is implicated in CSD-induced hyperalgesia

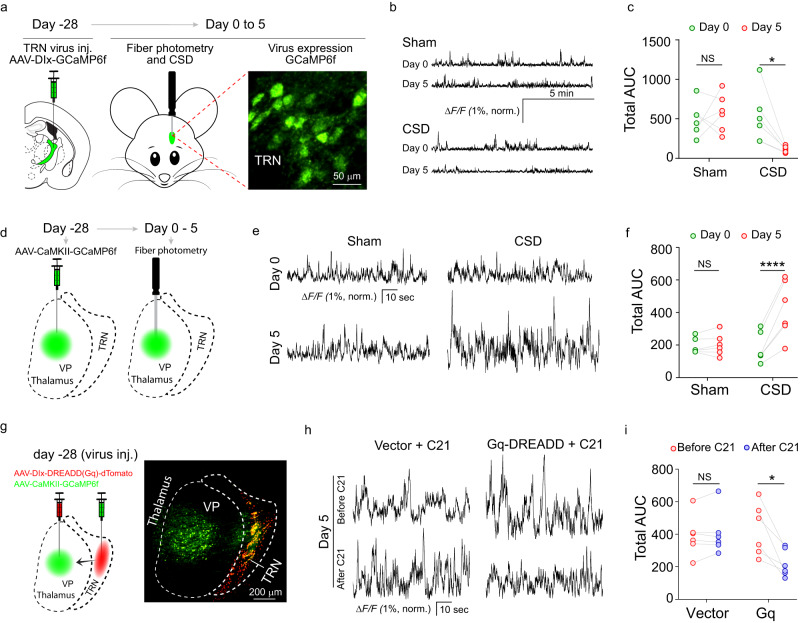

To directly assess TRN neuronal dynamics in CSD-induced hyperalgesia, the calcium sensor GCaMP6f was expressed in the TRN by AAV-hDlx-GCaMP6f (Fig. 3a). Fiber photometry was performed to image calcium dynamics prior to and after five sessions of sleep deprivation (Fig. 3a, Supplementary Fig. 4a). TRN neuronal activity was captured with calcium dynamics and area under the curve of calcium traces was used for quantification (Fig. 3b, c). The results showed that TRN neuron activity decreased significantly after CSD when compared with pre-CSD baseline (Fig. 3c), further supporting TRN’s involvement in CSD-induced hyperalgesia.

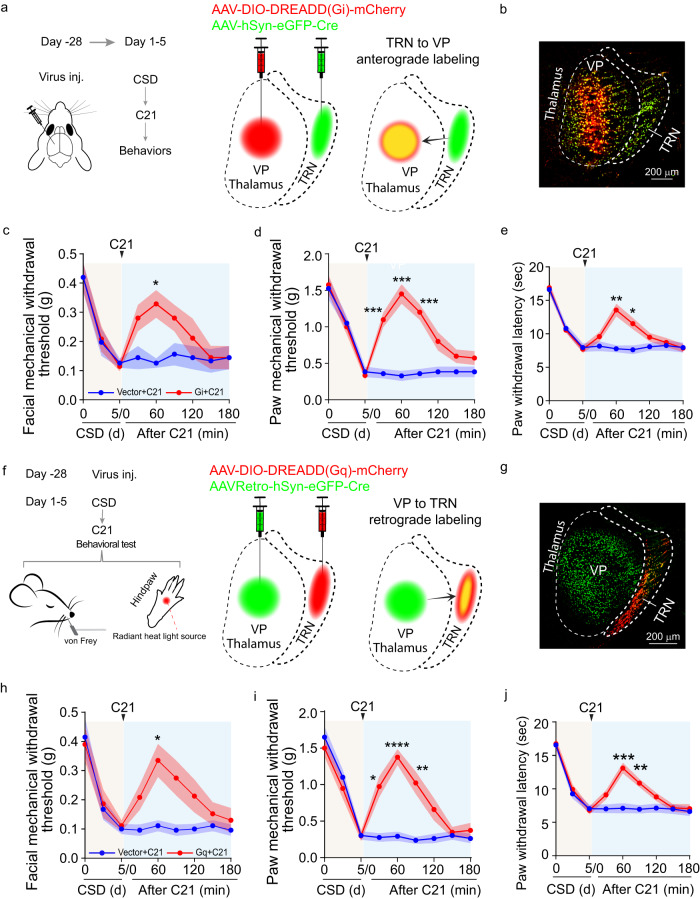

The TRN is known for its topographic projections to various thalamic subnuclei. For example, the somatosensory TRN projects to the ventrobasal complex of the thalamus, including the VP38–41. To confirm that the TRN projects to the VP, AAV1-hSyn-eGFP (nls), which expresses GFP with a nuclear localization signal42, was used. AAV1 has been shown to mediate anterograde transsynaptic tagging which enables probing of neural circuitry43,44. Projections from the TRN to the VP would therefore lead to the expression of nuclear GFP in VP neurons. Our results indeed showed that injection of AAV1-hSyn-eGFP (nls) led to robust expression of GFP in the VP (Supplementary Fig. 4b). When these neurons were co-stained for glutamate, nearly all GFP-positive neurons were also positive for glutamate (Supplementary Fig. 4c–e). TRN is enriched for PV expressing neurons, which are absent in mouse thalamus25. Using a previously established strategy25, AAV1-hSyn-DIO-GFP was injected into the TRN of PV-Cre mice. This injection led to robust expression of GFP in the TRN and the VP region, confirming TRN to VP projections (Supplementary Fig. 5a, b). To corroborate these findings, AAVretro-hSyn-eGFP (nls) was injected into the VP (Supplementary Fig. 6a), and robust GFP expression was found in the TRN region, consistent with the TRN to VP projections. When co-stained for GABA, nearly all retrogradely targeted GFP-positive neurons were also positive for GABA (Supplementary Fig. 6b). As a validation of the AAVretro targeting strategy, we also examined the spinal trigeminal nucleus, a region known to relay to the VP, and found that GFP-positive cells were present in this region (Supplementary Fig. 6c, d). As such, both anterograde and retrograde tracing confirmed that the TRN projects to the VP.
After CSD, c-Fos expression in the VP region increased, suggesting activation of this brain region in CSD (Supplementary Fig. 7a–c). To directly assess VP neural activities, GCaMP6f was expressed in the VP using AAV8-CaMKII-GCaMP6f for fiber photometry examination of calcium dynamics. The calcium dynamics in the VP were increased, consistent with an increase of VP neuronal activity (Fig. 3d–f). We postulated that the observed increase of VP neuronal activity after CSD was due to decreased TRN neuronal activity. If so, increasing TRN neuronal activity would dampen VP hyperactivity after CSD. To test this, AAV8-hDlx-Gq DREADDs and AAV9-CaMKII-GCaMP6f were injected into the TRN and VP, for activating TRN neurons and imaging VP neuronal dynamics, respectively (Fig. 3g). In mice subjected to CSD, DREADDs-mediated activation of the TRN was accompanied by a decrease in neural dynamics in the VP (Fig. 3h, i), confirming a functional impact of the TRN on VP neural activity. The functional impact of the TRN on VP neural activity was also confirmed using optogenetic TRN activation, which alleviated CSD-induced VP hyperactivities (Supplementary Fig. 8a, b). To further study the behavioral implication of the functional impact, AAV1-hSyn-eGFP-Cre was injected into the TRN, and Cre-dependent AAV8-DIO-Gi DREADDs was injected into the VP (Fig. 4a, b). Due to the anterograde transsynaptic transmission of AAV1, this set up enabled Gi DREADDs expression in VP neurons that were receiving inputs from the TRN. In mice subjected to CSD, chemogenetic inhibition of VP neurons receiving inputs from the TRN significantly increased the withdrawal parameters, including the facial (Fig. 4c) and hindpaw (Fig. 4d) mechanical withdrawal thresholds and hindpaw thermal withdrawal latency (Fig. 4e). These results suggest that the TRN to VP projection is functionally important for CSD-induced hyperalgesia. To confirm this, a parallel set of experiments were performed. AAVretro-hSyn-eGFP-Cre was injected into the VP, and Cre-dependent AAV8-DIO-Gq DREADDs were injected into the TRN in mice subjected to CSD. TRN neurons that were retrogradely targeted from the VP expressed the Gq DREADDs (Fig. 4f, g). Chemogenetic activation of these neurons significantly increased the nociceptive thresholds, including the facial (Fig. 4h) and hindpaw (Fig. 4i) mechanical withdrawal thresholds and hindpaw thermal withdrawal latency (Fig. 4j). As such, both anterograde and retrograde targeting experiments suggest that TRN projections to the VP likely play an important role in CSD-induced hyperalgesia.
Besides VP neural activities in awake and resting state, we also measured its activities in response to mechanical stimulation. Von Frey (mechanical stimulation) led to significantly higher neural activities in mice that underwent CSD than in well-rested ‘naive’ mice (Supplementary Fig. 9a, b). More importantly, the VP hyperreactivities were dampened by chemogenetic activation of the TRN (Supplementary Fig. 9c, d).
The level of N-arachidonoyl dopamine (NADA), an endocannabinoid, is decreased in the TRN after CSD

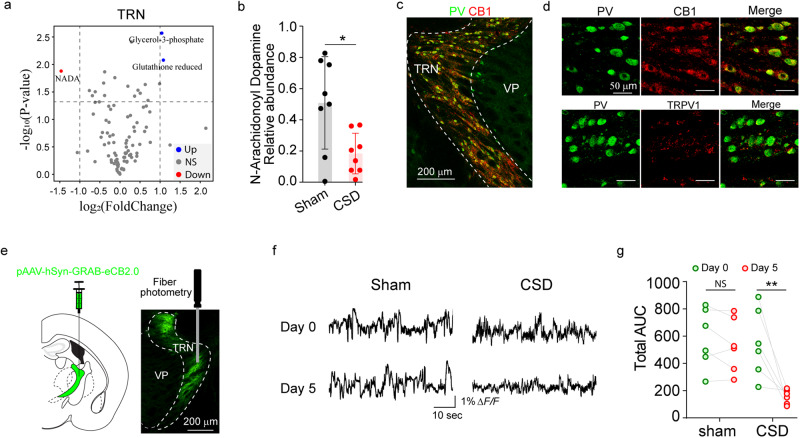

A targeted metabolomic screening was performed to evaluate the metabolomic changes in the TRN induced by CSD. Mice that underwent CSD were compared with control mice for their metabolites, using a fold change of two and p value of 0.05 as cutoffs. N-arachidonoyl dopamine (NADA) levels were decreased in the TRN in the CSD group compared with the control group (Fig. 5a, b, Supplementary Fig. 10a, Supplementary data 1). Levels of glycerol-3-phosphate and reduced glutathione in the TRN were increased in the CSD group. In the thalamus and the primary somatosensory cortex, adenosine monophosphate, adenine, and inosine monophosphate levels were increased in the CSD group (Supplementary Fig. 10b, c), consistent with the known role of nucleotides, including purines, in nociception and pain45,46. NADA is an endocannabinoid that acts as an agonist for both cannabinoid receptor 1 (CB1 receptor) and transient receptor potential V1 (TRPV1)47–49. Immunofluorescence staining for CB1 and TRPV1 showed that TRPV1 expression was negligible, whereas CB1 receptor was abundantly expressed in the TRN (Fig. 5c, d). We hypothesized that decreased levels of NADA in the TRN would lead to decreased CB1 receptor activity after CSD. A recently developed sensor for CB1 receptor activity with spatiotemporal resolution, GRAB-eCB2.050, was used to assess TRN CB1 receptor activity. Specifically, AAV8-hSyn-GRAB-eCB2.0 was expressed in the TRN for fiber photometry examination (Fig. 5e, Supplementary Fig. 10d–f). CB1 receptor agonist ACEA51 increased TRN GRAB-eCB2.0 activities in a control experiment (Supplementary Fig. 11a, b), validating its utility in reporting CB1 receptor activities. CSD led to a significant decrease in CB1 receptor activity as quantified by area under the curve of CB1 receptor activity traces (Fig. 5f, g). The decreased TRN CB1 receptor activity was consistent with the decreased levels of NADA after CSD.
NADA in the TRN is critical for CSD-induced hyperalgesia

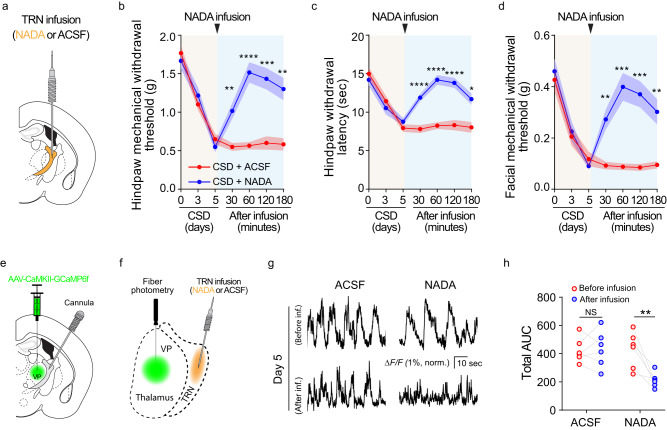

CSD led to decreased NADA levels and decreased CB1 receptor activities in the TRN (Fig. 5), raising the possibility that decreased NADA levels in the TRN might be linked to CSD-induced hyperalgesia. To test this, the TRN was cannulated for NADA administration (Fig. 6a, Supplementary Fig. 12a). In mice subjected to CSD, administration of NADA led to decreased nociceptive sensitivity, in the form of higher hindpaw mechanical withdrawal threshold (Fig. 6b), higher hindpaw thermal withdrawal latency (Fig. 6c), and higher facial mechanical withdrawal threshold (Fig. 6d), when compared with administration of artificial cerebral spinal fluid (ACSF) as control. These results suggest that exogenous supplementation of NADA to the TRN could attenuate CSD-induced hyperalgesia. When a CB1 receptor antagonist was coadministered, the inhibition of CSD-induced hyperalgesia by NADA was largely abrogated (Supplementary Fig. 13a–d), supporting a critical role of NADA-CB1 receptor in CSD-induced hyperalgesia.
We showed that CSD-induced hyperalgesia was accompanied by increased VP neural dynamics, due to decreased TRN activities (Fig. 3b, c). To examine the neural dynamics associated with NADA administration, the TRN was cannulated for NADA administration, and the VP was injected with AAV9-CaMKII-CCaMP6f (Fig. 6e, Supplementary Fig. 14a, b) for neural dynamics assessment with fiber photometry (Fig. 6f, Supplementary Fig. 14c). In mice subjected to CSD, ACSF did not significantly change VP neural activity, whereas NADA significantly dampened VP hyperactivity induced by CSD (Fig. 6g, h). The dampened VP neural dynamics were consistent with NADA’s ability to attenuate CSD-induced hyperalgesia.
Discussion
Patients with chronic pain often report comorbid sleep disorders3,8,11. Sleep disruption itself induces nociception and exaggerates pain perception. As such, CSD-induced hyperalgesia adds to the challenges of effective pain treatment. In this report, we adopted a mouse model of CSD and found that the TRN was important for CSD-induced hyperalgesia, through its projections to the VP—a brain region relays somatosensory information. More interestingly, metabolomic experiments revealed that the endocannabinoid NADA was critical for CSD-induced hyperalgesia, as TRN administration of NADA attenuated CSD-induced hyperalgesia and dampened the exaggerated VP neural activities in CSD, the effect of which could be blocked using a CB1 antagonist. These findings provide mechanistic insights into the neuronal circuitry underlying CSD-induced hyperalgesia, and implicate endocannabinoids as potential mechanistic targets for future study.
NADA is an N-acryl amino acid, and these amino acids were recently recognized to be bioactive lipids linked to metabolism and nociception52. Previously, NADA has been shown to exhibit systematic anti-inflammatory effects which was likely mediated by neuronal TRPV153. The TRN displayed negligible TRPV1 expression, consistent with highly restricted expression of TRPV1 in the adult central nervous system54,55. As such, our observed effects of NADA were unlikely mediated by TRPV1. The pharmacological effects of NADA have been examined which showed both pronociceptive and antinociceptive properties48,56,57. However, the physiological roles of NADA are largely unknown. Our results suggest that NADA is physiologically important and that CSD leads to decreased NADA levels which underlies hyperalgesia.
Our findings that TRN is critical for CSD-induced hyperalgesia is consistent with TRN’s unique role in both sensory processing and sleep8,20–25. In our report, NADA was decreased after CSD, and this decrease was only found in the TRN, but not in the somatosensory cortex or thalamus, unraveling brain region-specific changes induced by CSD. Mechanistically, this role of TRN is likely mediated by its projections to the VP. Moreover, both decreased NADA levels and dampened CB1 receptor activities in the TRN are consistent with a critical role of TRN NADA signaling in CSD-induced hyperalgesia.
CB1 receptors located at the presynaptic terminals negatively regulate neuronal activities through retrograde signaling58,59, which implies that decreased NADA levels would enhance TRN activities. This might seem at odds with our observation of decreased NADA and TRN activities. It is plausible that non-retrograde endocannabinoid signaling pathways were implicated in our observations. For example, CB1 receptor has been shown to localize in mitochondrial membrane60–62, which plays fundamental roles in neuronal energy metabolism and host behaviors. For example, CB1 receptor has been shown to protect mitochondria function and alleviate oxidative stress63–65. In line with these reports, our TRN metabolomics data showed that upregulated metabolites after CSD include glycerol-3 phosphate and glutathione (Fig. 5a), both of which are key molecules implicated in energy metabolism and oxidative stress66,67. Sleep loss has been shown to increase oxidative stress in both flies and mice68.
The endocannabinoids are pleiotropic signaling molecules implicated in many neurological disorders, including Parkinson disease, Alzheimer disease, multiple sclerosis, epilepsy, etc.69. Our results provide insights into NADA, an endocannabinoid, in CSD-induced hyperalgesia and potential therapeutic strategies for heightened pain perception in individuals with chronic sleep disturbance.
Methods
Animal
All experimental procedures and animal use were reviewed and approved by the Institutional Animal Care and Use Committee (IACUC) of Massachusetts General Hospital. All performed experiments were conforming to the guidelines established by National Institutes of Health and the International Association for the Study of Pain. Adult male and female C57/BL6 and PV-Cre knockin (Jax 008069) mice (20–25 grams) were purchased from the Jackson Laboratory (ME). All experimental equipment used between different sexes testing were cleaned and disinfected. Mice were housed in the same condition with n = 4 per cage with males and females separated. Animal room was climate-controlled with 12-hour light–dark cycles (lights on at 07:00 am, lights off at 07:00 pm) at a stable temperature of 23 ± 1 °C and a consistent humidity of 50 ± 5%, food and water were available ad libitum. CB1 receptor antagonist SR141716A (Tocris, Catlog 0923) was injected at 10 mg/kg intraperitoneally. CB1 receptor agonist arachidonyl-2’-chloroethylamide (Santa cruz, CAS 220556-69-4) was administered at 7.5 mg/kg intraperitoneally.
Chronic sleep deprivation
Chronic sleep deprivation procedure was performed as previously described12 with minor modifications. Specifically, all mice underwent five consecutive days of sleep deprivation sessions from 7:00 am to 1:00 pm. Baseline behaviors were tested one day prior to sleep deprivation, repeated behavioral tests were conducted between 1:00 pm to 2 pm at day 3 and day 5 of sleep deprivation sessions respectively. At the onset of sleep deprivation session, all the mice were kept awake by providing new home cage with new nesting beddings. Mice cages were placed in the same room with minimum external disturbance during each sleep deprivation session. When necessary, slightly tapping the cage or providing novel objects in the animal cages. The quality of sleep deprivation was validated using wireless EEG and EMG to assure that mice were staying fully awake during each session. In order to promote activity with wakefulness, unalike objects with dissimilar shape or texture were used for each session. Mice were immediately allowed to sleep at day 1, 2 and 4 for the next 17, and for the next 16 h at day 3 and 5 after behavioral test until the next sleep deprivation session. For Fig. 1e CSD-induced hyperalgesia, male and female mice at equal numbers were used. For other experiments, male mice were used.
EEG and EMG
Electrodes implantation for EEG and EMG was performed 3 weeks prior to sleep deprivation, mouse was anesthetized by isoflurane inhalation (3% for induction and 1.2−1.5% for maintenance). Mouse was placed on a stereotaxic frame and the dorsal fur of mouse head was removed using a micro sessors. Four handmade electrodes made of 0.8 mm diameter micro screws (custom order, Asia Bolt, South Korea) were fixed into the holes drilled in the mouse skull, caring not to damage the cortical area by inserting screws too deep. Two screw electrodes were implanted on the frontal area (AP 1.9 mm, ML 1 mm) and posterior area above the hippocampus (AP 2.2 mm, ML2.2 mm). Two ground and reference screw electrodes were fixed into the Interparietal bone above the cerebellum. For EMG recording, a tungsten wire electrode (PFA-Coated Tungsten Wire, A-M systems, USA) inserted and hooked in neck muscles near occipital bone. All electrodes were secured and attached to the skull permanently with dental cement (C&B-Metabond, #171032. Parkell. Edgewood, NY USA). After surgery, antibiotics were applied, and mice had a recovery period for 3 weeks. CBRAIN device (2.6 g headstage, designed by Choi et al.26 is used for wireless EEG signal monitoring and acquisition. Animals were habituated to the CBRAIN at least two days before experiment. EEG and EMG signals were continuously transmitted to a computer, monitored in real-time and recorded at 256 Hz in group-housed freely moving animals, starting at light-on time. Because of battery limitations, animals were perturbed a few seconds in every 6 h of recording while changing the fully charged CBRAIN devices.
EEG signals were viewed and analyzed off-line using the MATLAB (Mathworks Inc., USA). The raw text files loaded and reconstructed the period of missed data majorly caused by transmit errors of Bluetooth. The counter signal generated in CBRAIN was recorded together with physiological signals and used for identifying the missed data points. For preprocessing, signals were smoothed at every 2-s data points (512 points) to detrend any slow fluctuation and noises. The raw signals of EEG and EMG were plotted together for sleep scoring. Sleep stages were manually scored for every second. Time-frequency analyses were processed using the Built-in MATLAB function (spectrogram), which applied FFT to 1-s data point with 0.1-s moving window.
Mechanical withdrawal threshold
All mice were acclimated to the behavioral examiner and testing environment 30−40 min for 3 consecutive days prior to baseline behavioral testing. Behavior was tested for the contralateral side of TRN manipulations. For facial mechanical withdrawal threshold test, each mouse was placed in a customized enclosure (6 × 6 × 6 m) with the top, bottom and four walls made of metal mesh. For hindpaw mechanical withdrawal threshold test, mice were individually placed in standard plexiglass enclosures with mesh grid floor. After 20–30 min of acclimation, mechanical sensitivity was measured using a graded series of von Frey filaments by inserting through mesh walls for facial sensitivity testing and mesh floor for plantar sensitivity testing. Starting with the filament generating the lowest force, the stimuli were applied within the trigeminal nerve or sciatic nerve territory of the animal for 1 s at 10 s intervals. Brisk withdraw of the head/hindpaw, escaping or biting upon the stimuli was defined as positive withdrawal response and at least three positive responses out of 5 applications was defined as withdrawal threshold, and 2 g was defined as the final threshold if mice exhibited negative responses to all stimuli applications.
Hindpaw withdrawal latency
Thermal latency to heat stimuli was assessed using Hargreaves procedure70 with minor modifications. Prior to the testing, all mice were individually placed in standard Plexiglas enclosures on a preheated glass platform (28−29 °C) 20−30 min for acclimatization daily for 3 consecutive days. Emission of radiant heat source under the glass and perpendicularly focused to the midplantar surface. Paw withdrawal latency was defined as the duration (seconds) from the initiation of heat exposure to the hindpaw withdrawal, and 20 s was set as a cutoff time to avoid hindpaw injury.
Virus injection and optical fiber implantation
Mice were anesthetized with oxygen mixed with isoflurane (3% for induction and 1.5% for maintenance) while monitoring respiratory rate. Eye lubricant was applied to moisten the eyes of mice. Ketorolac tromethamine (Althenex, Schaumburg, IL USA) was administrated (5 mg/kg) intraperitoneally every 12 h for 2 consecutive days to minimize postoperative pain. The head fur between outer canthus and concha level was shaved, then the mouse was mounted onto a stereotactic frame with ear bars. The front teeth were placed over the incisor bar. Mouse snout was then covered by a metal anesthetic mask delivering anesthetic gases. The skin was prepared with Povidone-Iodine solution (Aplicare, INC., Neriden, CT USA) followed by 70% alcohol swab (BD, Franklin Lakes, USA). After application of Lidocaine (0.1–0.2 ml, 1%), a skin flap overlying the dorsal skull was removed. Periosteum of the parietal skull and connective tissues was cleaned using cotton swabs dipped in saline.
For TRN injection, 10–15 nl of AAV9-hDlx-Gi DREADD-dTomato-Fishell-5 (Addgene, plasmid #83896), pAAV9-hDlx-GqDreadd-dTomoto-Fishell-4 (Addgene, plasmid # 83897), AAV-hDlx-dTomato (from Qian Chen) in Fig. 2 and Supplementary Fig. 2; pAAV8-Dlx-GCaMP6f-Fishell-2 (Addgene, plasmid #83899), AAV1-hSyn-HI-eGFP(nls) (from Qian Chen), AAV8-hSyn-DIO-hM3D(Gq)-mCherry (Addgene, plasmid # 44361) in Fig. 3 and Supplementary Fig. 4; pAAV8-hSyn-GRAB-eCB2.0 (Addgene, plasmid #164604) in Fig. 5 and Supplementary Fig. 10 were injected at bregma −1.31 mm, 2.15 mm to midline and 3.1–3.5 mm in depth. Immediately after virus injection, optical fiber (RWD Life Science, 200um core, 0.39 NA, OD 1.25 mm) was vertically implanted into the thalamus reticular nucleus in depth of 3.2 mm in Figs. 3, 5 and Supplementary Figs. 2, 3, 8, 10 and 11. Cannula fiber was fixed onto the mouse skull using adhesive luting cement (C&B-Metabond, #171032. Parkell. Edgewood, NY USA). All viruses were used at 0.5–1 × 1013 GC/ml.
For ventral posterior nuclei of thalamus injection, 20 nl of pENN.AAV9.CamKII.GCaMP6f.WPRE.SV40 (Addgene, Plasmid #100834) in Figs. 3, 6 and Supplementary Figs. 8, 9 and 14; AAV8-hSyn-DIO-hM4D(Gi)-mCherry (Addenge, plasmid # 44362), AAV1-hSyn-eGFP-nls (from Qian Chen) and pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40(Addgene, plasmid #105540) in Fig. 4 and S6 were injected at bregma – 1.55 mm, 1.7 mm to midline, 3.2 to 3.7 mm in depth. Optical fiber was implanted into the ventral posterior nuclei of thalamus in depth of 3.3 mm following virus injection. And adhesive luting cement was applied to fix the cannula fiber on the head skull. All viruses were used at 0.5–1 × 1013 GC/ml. For virus injection to the TRN and VP, behavioral testing was performed for the contralateral face and hindlimb.
Fiber photometry
Fluorescent signals were recorded at desired time points using a multichannel fiber photometry system (Thinker Tech Nanjing Bioscience Inc, Nanjing China) as previously described71–73. Specifically, optical fiber was prepared for imaging following virus injection 4 weeks ahead. For the fiber photometry imaging, the light beam of 473 nm LED (Cree XP-E LED) was reflected at a dichroic mirror (MD498, Thorlabs), the beam was focused through a ×20 objective lens (NA 0.4, Olympus) and then coupled to an optical commutator (Doric lenses). The individual optical fiber guided the light between the commutator and the implanted optical fiber in mice. Before starting imaging, the light intensity was set at to the low level of 0.01–0.02 mW at the tip of the optical fiber to minimize photobleaching. Fluorescent signal was generated by GCaMP excitation in mice and the signal was collected by the optical fiber. The GCaMP fluorescence signal was bandpass filtered (MF525-39, Thorlabs) and detected by the sensor of a CMOS (DCC3240M, Thorlabs) camera of the system. A Lab view program (Thinker Tech Nanjing Bioscience Inc, Nanjing China) was customized to control the CMOS camera and record calcium signal at a frequency of 50 HZ. Each mouse was imaged for 5–10 min at a time to minimize phototoxicity and bleaching.
TRN cannulation and infusion
For TRN administration of NADA and behavioral examination, mice were anesthetized with isoflurane (3% for induction and 1.5% for maintenance) in oxygen. Mouse was placed onto a stereotactic frame and the head was positioned and fixed with two ear bars. Using an anesthetic musk to tighten the mouse snout over the incisor bar of the stereotactic frame, breathing rate was monitored during the procedure. The fur and skin on the top of mouse head was removed following skin preparation with Povidone-Iodine solution (Aplicare, INC., Neriden, CT USA) followed by 70% alcohol swab (BD, Franklin Lakes, USA). Using a scalp, the periosteum of the parietal skull was cleaned. Following craniotomy with a dental drill, a 26-gauge stainless steel guide cannula (C315GS, P1 Technologies, Roanoke, VA) was vertically inserted into the TRN at the coordinators of bregma −1.31 mm, 2.15 mm to midline and 3.2 mm in depth, the canula was covered by a dummy cannula (C315DCS, P1 Technologies). On the day of NADA administration and behavioral testing, the dummy cannula was removed and 33-gauge stainless steel internal cannula (C315IS, P1 Technologies) was inserted into the guide cannula. 20 nl of ACSF or NADA (0.6 mg/kg) dissolved in ACSF was slowly infused into the TRN. After that, mice were allowed to return to home cage and tested at desired time points.
TRN infusion for imaging of ventral posterior nuclei of thalamus: following virus injection and optical fiber implantation in the ventral posterior nuclei of thalamus, a guide cannula was inserted into TRN with a 300 angle to vertical line at bregma—1.31 mm, 3.5 mm to midline and 2.6 mm in depth alone the angle. Both fiber ferrule and guide cannula were fixed on the dorsal skull with adhesive luting cement. On the day of experiment, between imaging sessions, either ACSF or NADA in ACSF (0.6 mg/kg) was slowly infused into the TRN. After TRN NADA administration, behavioral testing was performed for the contralateral face and hindlimb.
Optogenetic manipulations of the TRN
TRN manipulations were facilitated by TRN microinjection of AAV-hSyn-eNpHR3.0-EYFP (Addgene 26972) or pAAV-mDlx-ChR2-mCherry (Addgene 83898). Optical cannulae were implanted into the TRN. Optogenetic manipulations were conducted using a IOS465 Intelligent Optogenetics System (RWD Life Sciences, San Diego, CA). For ChR2 experiments, wavelength of 465 nm was used. For eNpHR3.0 experiments, wavelength of 589 nm was used. Stimulation was conducted using 50 Hz frequency, pulse-width 2 ms (duty cycle: 10%) as described36.
Fluorescence/immunofluorescence imaging
Mouse was deeply anesthetized with 3–5% isoflurane for at least 5 minutes and perfused with 10 ml ice cold ×1 PBS followed by 30 ml 4% PFA, brain was extracted and immersed in 4% PFA at 4 °C overnight. Then the brain was transfer into ×1 PBS for section. Using a vibratome (VT1000S, Leica), the brain was sliced with 50 μm in thickness. Slices covering bregma −0.5 mm to −2.0 mm were collected. Slices of mice brain injected virus was immediately used for fluorescence imaging using a confocal microscope (AXR, NIKON, Japan). For immunostaining, selected slices were blocked in 6% goat serum and 2% bovine serum albumin (BSA) in PBS with 0.2% Triton X-100 (Blocking solution) for one hour at room temperature followed by primary antibody (rabbit anti-VGLUT, MilliporeSigma, Catlog# G6642, 1:1000 dilution; rabbit anti-GABA, Sigma-Aldrich, Catlog# A2052,1:500 dilution; Guinea pig anti-TRPV1, Invitrogen, Catlog #PA129770, 1:500 dilution; rabbit anti-CB1 receptor, Invitrogen, Catlog# PA585080, 1:200 dilution; mouse anti-GFP polyclonal, Invitrogen, Catlog# A6455, 1:500 dilution; mouse anti-Parvalbumin, EMD Millipore Corporation, Catlog# MAB1572, 1:500 dilution; rabbit anti-c-Fos, Cell Signaling Technologies, Catlog#2250, 1:500 dilution) incubation in blocking solution at 4 °C for overnight. Slices were washed with 1× PBS 10 min for three times. Then the slices were incubated with second antibodies (Goat anti-rabbit Cy3, Jackson ImmunoResearch, Catlog# 111–165-003, 1:2000 dilution; Donkey anti-mouse FITC, Jackson ImmunoResearch, Catlog# 715-545-020, 1:1000 dilution; Goat anti-Guinea pig Cy3, Jackson ImmunoResearch, Catlog#: 106-165-003, 1:2000 dilution) at room temperature for one hour. Slices were mounted with DAPI (AbCam 104139) followed by image acquisition using a confocal microscope (AXR, NIKON, Japan). Images were later analyzed with ImageJ (NIH).
Fiber photometry imaging analysis
The produced data by fiber photometry was processed and analyzed as described previously73,74. All data was analyzed using MATLAB (2018b, MathWorks, Cambridge, Unite Kingdom) embedded in Fiber Photometry machine (Thinker Tech Nanjing Bioscience Inc, Nanjing China) and 5 min of imaging data for each mouse was analyzed73. Changes of fluorescence intensity (ΔF/F0) was calculated as ΔF/F0 = (Vsignal–F0)/F0, F0 was defined the baseline fluorescence signal averaged over a 2.0-s-long control time window and Vsignal was the peak value of the fluorescence signal. And the values were normalized between 0 and 1 using the formular of Vsignal = (ΔF/F–min(ΔF/F))/(max(ΔF/F)–min(ΔF/F)), using a 50% cutoff, the total area under the curve (AUC) of ΔF/F0 was calculated for comparison.
Gi and Gq DREADD activation for behavioral studies
C21 (Tocris, Catlog 5548, MN, 1 mg/kg) was intraperitoneally injected to the mice underwent DREADD/vector injection.
Reporting summary
Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
Untitled section
Supplementary information
Source data
Supplementary information
The online version contains supplementary material available at 10.1038/s41467-023-42283-6.
Acknowledgements
The authors acknowledge MGH IACUC and the animal facility for their kind support; Scot Mackeil from MGH Bioengineer Lab for anesthesia equipment maintenance and validation; Department of Anesthesia, Critical Care and Pain Medicine of MGH for generous support. The authors thank Dr. Tong Zhu for critical discussion, and Shelley Turok, David Duarte, and Ariel Mueller for administrative support. Shiqian Shen lab received support from NIH R61NS116423, NIH R35GM128692, NIH R01 AG 070141, NIH R03 AG067947, and NIH R61 NS126029. Part of this work was supported by NSF EAGER 2334666. Weihua Ding received support from the Borsook Project. The K. Lisa Yang and Hock E. Tan Center for Molecular Therapeutics in Neuroscience at MIT supported this work in Guoping Feng lab.
Peer review
Peer review information
Nature Communications thanks Alban Latremoliere, Alexander Groh and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. A peer review file is available.
Data availability
The construct of AAV-hSyn-GFP (nls) will be deposited to Addgene for access. Original imaging is available upon request. Source data are provided in this paper.
Competing interests
The authors declare no competing interests.
