Tumor-associated macrophages in colon cancer immunotherapy: mechanisms, natural product interventions, and microenvironment remodeling
1 Department of Rheumatology and Immunology, Hospital of Chengdu University of Traditional Chinese Medicine, Chengdu, China
2 College of Basic Medicine, Chengdu University of Traditional Chinese Medicine, Chengdu, Sichuan, China
3 Sichuan Provincial Engineering Technology Research Center of Natural Small Molecule Drug, Tianfu Traditional Chinese Medicine (TCM) Innovation Harbor, Chengdu University of Traditional Chinese Medicine, Chengdu, China
4 Traditional Chinese Medicine (TCM) Regulating Metabolic Diseases Key Laboratory of Sichuan Province, Hospital of Chengdu University of Traditional Chinese Medicine, Chengdu, China
5 Sichuan Provincial Engineering Research Center of Innovative Re-development of Famous Classical Formulas, Tianfu Traditional Chinese Medicine (TCM) Innovation Harbour, Chengdu University of Traditional Chinese Medicine, Chengdu, China
*Correspondence: Chuan Zheng, zhengchuan@cdutcm.edu.cn; Yongxiang Gao, drgaoyx@cdutcm.edu.cn; Huan Yao, Huanyao6620@hotmail.com; Huanyao@cdutcm.edu.cnAbstract
Colon cancer persists as a major global health burden due to therapy resistance and metastasis, with tumor-associated macrophages (TAMs) in the microenvironment driving progression through immune evasion and angiogenesis. This review highlights plant-derived therapeutics targeting TAMs to disrupt protumor signaling. Key phytochemicals (e.g., Curcumin, Cucurbitacin B, Astragaloside IV) suppress M2 polarization via NF-κB/STAT3 inhibition, block VEGF/HIF-1α-mediated angiogenesis, and enhance antitumor immunity by downregulating PD-L1. Cannabidiol, Hydroxygenkwanin regulate TAM metabolism. Dietary agents like sulforaphane and β-glucans modulate TAM-gut microbiome crosstalk. Nanoparticle-encapsulated phytochemicals enhance TAM-targeted delivery, while clinical translation requires standardized phytopreparations and biomarker-guided trials. We propose integrating validated botanical adjuvants (e.g., Fucoidan for TLR4 inhibition, dihydroisotanshinone I for CCL2 suppression) with immunotherapies to remodel immunosuppressive niches. Phytotherapy offers a multifaceted strategy to overcome TAM-driven therapeutic barriers in colon cancer, emphasizing plant-based precision medicine to augment conventional treatments.
1Introduction
Colon cancer is the fourth most lethal malignancy worldwide. It is estimated that there will be 2 million new cases of colorectal cancer globally in 2020 By 2040, it is projected to reach 3.2 million new cases, with the greatest relative increase occurring in countries in transition and in younger age groups, resulting in a significant burden of disease (1). Despite efforts to lower the screening age and implement early interventions in certain countries, the high fatality rate of colon cancer remains a daunting challenge.
Currently, treatments for colon cancer include surgery, radiotherapy, chemotherapy, immunotherapy, and targeted therapy, however, the efficacy is limited and there are many adverse effects (2, 3). For instance, although chemotherapeutic drugs like 5-Fluorouracil (5-FU) demonstrate evident anticancer efficacy, their detrimental side effects including neurological symptoms, bone marrow suppression, and gastrointestinal reactions intensify patients’ discomfort. Moreover, the development of drug resistance has further compounded the constraints of their clinical utilization (4). Immunotherapy has shown unique advantages in current cancer therapies, especially immune checkpoint inhibitors. The US Food and Drug Administration (FDA) approved anti-PD-1 (Pembrolizumab and Nivolumab) as monotherapy or in combination with cytotoxic T-lymphocyte-associated protein-4 (CTLA-4) inhibitor (Ipilimumab) for the treatment of colon cancer with high microsatellite instability (MSI-H) or mismatch repair deficiency (DMMR), unfortunately, only 5-15% of colon cancer patients benefit (5, 6). New drug development against colon cancer is challenging given the limited efficacy of current treatments and the inevitable off-target effect (7).
Natural products are widely sourced and structurally diverse, with excellent pharmacological activity, demonstrating significant advantages in the treatment of colorectal cancer. Several synthetic derivatives derived from natural products have been used in clinical anti-cancer treatments, such as the semi-synthetic water-soluble camptothecin derivative, irinotecan (8). Many botanical active compounds have shown anti-colon cancer activity, including improving the tumor inflammatory microenvironment, inhibiting tumor cell proliferation, migration, and angiogenesis, as well as regulating the gut microbiota (9–11).
It is known that tumor microenvironment (TME) is critical for cancer progression, of which immune cell subsets are key components. Macrophages, as important members of the immune system, are involved in inflammatory responses and immune regulation, while dynamically changing in response to various signals in TME (12, 13). Studies have shown that in mouse models of colon cancer, macrophages may lose their ability to phagocytose tumor cells and even be used by tumor cells to promote their growth and proliferation (14, 15). Targeted regulation of the activity of macrophages, promotion of its phagocytosis of tumor cells and immunomodulatory function has become a new research hotspot in current cancer therapy. Moreover, because of the stability of the genome of macrophages, they are relatively less likely to develop drug resistance compared to tumor cells (16). Existing reports have found that natural compounds such as Astragaloside, Curcumin can exert anti-colorectal cancer effects by modulating macrophage activity (17, 18). Further investigation into the immune regulatory roles of phytochemicals will help provide more effective treatment options for colon cancer patients. Therefore, this review summarizes the mechanisms by which macrophages are involved in the development of colon cancer and the potential strategies of targeting macrophages with natural products for the treatment of colon cancer.
2Overview of macrophages
2.1Basic biological characteristics of macrophages
Macrophages are innate immune cells of bone marrow and embryonic origin that phagocytose foreign substances or their own components and present them to T cells to activate adaptive immune responses. In addition, macrophages also participate in tissue homeostasis, repair and remodeling by expressing a variety of receptors, cytokines, chemokines, and protein hydrolases (19).
Depending on the tissue-specific microenvironmental signals macrophages acquire different phenotypes, mainly including M1 phenotype (classical activation) and M2 phenotype (alternative activation) (20, 21). M1 macrophages can be activated by bacterial lipopolysaccharide (LPS) and type 1 helper T (Th1) cytokines such as interferon-γ (IFN-γ) and tumor necrosis factor-α (TNF-α), releasing pro-inflammatory cytokines e.g., interleukin(IL)-1β, IL-6, IL-12, and TNF-α, as well as chemokines e.g., C-X-C Motif Chemokine Ligand (CXCL) 9 and CXCL10, and it is capable of presenting antigens via MHC class II molecules (20, 22). M1 macrophage surface markers mainly include CD80, CD86 and CD16/32. M1 macrophages are often considered to have proinflammatory, antitumor, and adaptive immune activation capabilities (23, 24).
M2 macrophages can be activated by Th2-type cytokines IL-4 and IL-13, producing anti-inflammatory factors such as IL-10 and Transforming growth factor beta (TGF-β), as well as chemokines e.g., C-C Motif Chemokine Ligand (CCL)1, CCL17, CCL18, CCL22, and CCL24, with surface markers CD163, CD206, and CD209 (25). M2 macrophages have the function of promoting the resolution of inflammation and participate in tissue repair through angiogenesis at the later stages of inflammation (26–28). Polarized M2 macrophages are divided into M2a, M2b, M2c and M2d subpopulations. The characteristics of the different subtypes of M2 macrophages are listed in Table 1 . M2a and M2b types are involved in immune regulation by promoting the Th2 cell response, while the M2c type is associated with immune response suppression and tissue remodeling (43). The M2d type is activated mainly by tumor cells, tumor-associated factors, or chemotherapeutic agents, and is sometimes referred to as TAMs. This type of macrophage has immunosuppressive and tumor-promoting functions (44, 45) and specifically expresses IL-10. and vascular endothelial growth factor (VEGF) to participate in tumor progression and angiogenesis (44, 46) ( Figure 1A ).
| Phenotype | Stimulating factors | Surface markers | Key secreted molecules | Biological roles | Ref. |
|---|---|---|---|---|---|
| M2a | IL-4, IL-13 | CD206, CD209, Dectin-1, MHC-II | IL-10, TGF-β, PDGF, IGF, Arg-1, Fizz1, Ym1, CCL17, CCL18, CCL22 | induce Th2 response, tissue repair, monocyte recruitment | (27, 29–31; 32) |
| M2b | Immune complexes + LPS | CD86, MHC-II | IL-10, TNF-α, IL-1β, CCL1 | induce Th2 response, mediate pro- and anti-inflammatory response | (33–35) |
| M2c | IL-10, TGF-β, glucocorticoids, PGE2 | CD163, CD206, MerTK | IL-10, TGF-β, Arg-1 | promote immunosuppression and clearance of debris | (36–39) |
| M2d | IL-6, A2R-agonists, TLR-agonists, LPS | CD163 | VEGF, IL-10, IL-6, M-CSF, iNOS, CCL2 | support tumor progression and angiogenesis | (27, 40–42) |
2.2Polarization of tumor-associated macrophages
TME serves as the internal environment in which tumor cells are produced and live and regulates tumor initiation and progression. It consists of non-cancerous cells (a variety of immune cells, cancer-associated fibroblasts, endothelial cells), as well as non-cellular components (cytokines, chemokines, proteins, extracellular vesicles, etc.) (47), and the network formed by these elements builds the tumor-promoting environment (48, 49). Monocytes in the peripheral blood are recruited into the highly structured TME and differentiate into TAMs under the influence of chemokines secreted by tumors, such as colony stimulating factor 1 (CSF-1), CCL2, and CCL5 (50, 51). Significant macrophage accumulation has been found in both tumor mouse models and tumor patient tissue samples (46, 52).
TAMs polarization is usually influenced by complex environmental factors in the TME, such as hypoxia, low pH and variable extracellular matrix (ECM) composition (53, 54). In fact, in the early stage of tumor, the immune system promotes macrophages and T cells to clear tumor cells to play anti-tumor and pro-immune response roles (55), and the majority of infiltrating macrophages at this stage are of the M1 phenotype and secrete pro-inflammatory factors (56). For example, granulocyte colony-stimulating factor (G-CSF) polarizes macrophages to a pro-inflammatory phenotype by promoting IL-10 production and reducing IL-12 in colon cancer TME (57). However, as the tumor progresses and the tumor cells continue to interact with the TME, most TAMs are “educated” to become “bad” macrophages that promote tumor growth and metastasis, and then the TAMs take on a predominantly M2 phenotype, creating an immunosuppressive environment and mediating the Th2 immune response (58). Although the M1/M2 polarization model offers a foundational framework for classifying macrophages, it falls short in capturing the phenotypic diversity and plasticity of TAMs. In recent years, researchers have employed surface markers such as F4/80+CD68+ and F4/80+CD206+ to delineate distinct TAM subsets (59). Complementing this approach, clustering analyses derived from single-cell RNA sequencing have identified four novel TAM subpopulations across various solid tumors: FCN1+, SPP1+, C1Q+, and CCL18+ macrophages. (60, 61). These advancements contribute to a more nuanced understanding of TAM lineage hierarchies and their functional heterogeneity within the tumor microenvironment. TAMs as one of the abundantly infiltrating immune cells in TME, affect tumor angiogenesis and lymphangiogenesis, tumor cell immune escape, immune regulation, and tumor invasion and metastasis (50, 62) ( Figure 1A ).
3Core roles of TAMs in colon cancer progression

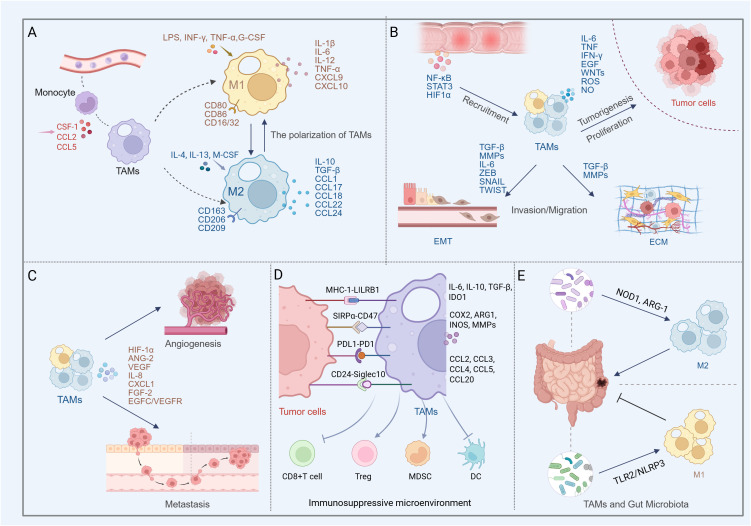

As described in the previous section, TAMs play an important role in the development of tumors. Current studies consider TAMs to be a diverse macrophage population with characteristics of both M1 and M2 subpopulations, rather than being categorized solely by M1/M2 phenotype. In different tumors, the plasticity of macrophages may enable them to play different roles. Several studies have confirmed that macrophage infiltration in the early stage of tumor invasion has a positive impact on the prognosis of colon cancer (63, 64). However, many studies now support the opposite view that TAMs promote malignant progression of colon cancer and play an immunosuppressive role in the TME of colon cancer, as we will describe below.
3.1Promotion of tumor proliferation, invasion, and epithelial-mesenchymal transition
The inflammatory micro-environment involved and mediated by TAMs is closely related to the occurrence and development of colon cancer (65). Activation of cytokines and chemokines produced by chronic inflammation of tissues, as well as transcription factors such as nuclear factor kappa-B (NF-κB), signal transducer and activator of transcription 3 (STAT3), hypoxia-inducible factor 1α (HIF1α), promotes macrophage recruitment and initiates macrophage host responses (66–68).Macrophages subsequently produce inflammatory mediators (IL-6, TNF, IFN-γ), growth factors such as epidermal growth factor (EGF) and WNTs, proteases, reactive oxygen species (ROS), as well as nitric oxide (NO) that may activate proto-oncogenes to promote tissue carcinogenesis (69–71). Not only that, these substances produced by TAMs can also promote colon cancer growth. Studies have found that CCL2, IL-1α and IL-6 secreted by TAMs can promote the proliferation of colon cancer cells (72), and the release of the matrix metalloproteinase (MMP) 1 accelerates the transition of the tumor cell cycle from the G0/G1 phase to the S phase and G2/M phase (73).CSF1 is an important cytokine involved in macrophage proliferation and differentiation, and CSF1 produced by colon cancer cells contributes to the recruitment and infiltration of TAMs. In turn, IL-8 produced by TAMs can activate the PKC pathway on which CSF1 production depends (74).
Epithelial-mesenchymal transition (EMT) is an important development process that is activated during tumor cell migration and invasion (75). Activation of EMT prompts colon tumor cells to lose cell polarity and intercellular adhesion, and to acquire a mesenchymal appearance and greater infiltration and migration capabilities (76). In TME, several EMT-associated transcription factors (ZEB, SNAIL, and TWIST) synergize with signaling pathways in tumor cells (77–79) to induce EMT in response to stimulation by TGF-β, WNT, NOTCH, hypoxia (80–82), etc. TAMs have been demonstrated to have a key role in EMT in colon cancer. M2 macrophages overexpress MMP2 and MMP9, which can induce EMT (83). TGF-β is an important factor in EMT (84). M2 macrophages secrete a large amount of TGF-β, which promotes the expression of mesenchymal marker proteins (Vimentin) and reduces the expression of epithelial marker proteins (E-cadherin) during EMT in colon cancer cells (85). In addition, Wei et al. reported that TAM-derived IL-6 induced the EMT program by regulating the JAK2/STAT3/miR-506-3p/FoxQ1 axis to promote colon cancer cell invasion and migration (86). In colorectal cancer, the number of infiltrating TAMs is positively correlated with the expression of the activating transcription factor SANIL in cancer cells (76). TAMs also promote tumor invasion by up-regulating the expression of S100A8 and S100A9 in cancer cells (87).
Structural support for tumor development is provided by the ECM, including its main components collagen, glycoproteins and proteoglycans (88–90). Afik et al. found that in an orthotopic colorectal cancer model, TAMs promote the deposition, cross-linking, and linearization of collagen fibers to remodel tumor ECM composition and structure and promote tumor development (91).
Colon cancer cells can also activate matrix degradation-related signals to induce TAMs to produce tissue proteases, MMPs and serine proteases, etc., to promote ECM degradation and accelerate the invasion and migration of colon cancer cells (76, 88) ( Figure 1B ).
3.3Establishment of immunosuppressive microenvironment
During colon cancer progression, the body’s anti-tumor immunity is suppressed, and tumor cells effectively evade anti-tumor immunity by deriving a tumor-immunosuppressive microenvironment, which involves inducing deletion or functional impairment of tumor-reactive T-cells (99) and recruiting immunosuppressive cell populations such as regulatory T-cells (Tregs) and myeloid-derived suppressor cells (MDSCs) (100). TAMs participate in and regulate the tumor immunosuppressive microenvironment by secreting cytokines and altering their phenotype (predominantly M2 macrophages) (101).
TAMs exert immunosuppressive functions through the secretion of inhibitory factors, such as IL-10, TGF-β, and Indoleamine 2,3-Dioxygenase 1 (IDO1) (68, 102), some enzymes, such as COX2, Arginase 1 (ARG1), Inducible nitric oxide synthase (INOS), and MMPs (101), as well as the release of chemokines (e.g., CCL2, CCL3, CCL4, CCL5, and CCL20) (68, 103, 104). The release of these factors not only directly inhibits the activity of T cells (105), but also promotes the recruitment of Tregs and MDSCs in the TME. For example, TAMs promote the aggregation of CCR6+ Treg cells by secreting CCL20 (106), and secreted CCL5 inhibits the killing of HT29 cells by T cells by stabilizing PD-L1, which in turn promotes immune escape (107). In tissue samples from colon cancer patients, the number of Treg cells and macrophages was significantly higher in cancerous tissues than in precancerous tissues (108). The infiltration of a large number of M2 macrophages is associated with poor prognosis, while the infiltration of CD8+ T cells is associated with improved patient survival (109). It was found that cytotoxic T cell responses could be enhanced to prevent colon cancer metastasis by inhibiting TGF-β produced by M2 macrophages (110). In addition, infiltration of high-density CXCR6+ TAMs promote the overexpression of IL-6, which would inhibit the activation of CD8+ T cells, thus contributing to immunosuppression (111). Ding et al. demonstrated that targeted inhibition of MDSCs could improve the immune microenvironment of colon cancer, not only promoting the maturation of dendritic cells and tumor infiltration of CD8+ T cells, but also reducing the number of Tregs and M2 macrophages (112) ( Figure 1D ).
3.4Phagocytosis checkpoints and tumor immune evasion
Macrophages, as “professional” phagocytes in the innate immune system, play the role of scavengers. However, to evade clearance, tumor cells usually overexpress anti-phagocytic membrane proteins with “don’t eat me” signals, such as CD47, CD24, MHC-I, and PD-L1. These antiphagocytic proteins may interact with receptors on macrophages (e.g., SIRPα, Siglec-10, LILRB1, and PD-1) to evade phagocytosis. The anti-phagocytic signals generated by these binding are known as “Phagocytosis checkpoints”. Targeting phagocytosis checkpoints such as CD47-SIRPα, CD24-Siglec-10, MHC-LILRB1, PD1-PDL1 and thereby modulating immune escape in colon cancer cells has also been demonstrated.
Studies have found that using blocking antibodies targeting CD47 overexpressed on colon cancer cells and SIRPα on TAMs can inhibit the migration of colon cancer cells (113–115). In addition, phagocytic activity of macrophages was enhanced after anti-SIRPα antibody treatment (116). Interestingly, under hypoxic conditions, TAMs showed decreased SIRPα expression accompanied by increased phagocytic activity, whereas colon cancer cells showed elevated expression of CD47 and exhibited greater invasiveness (117). Therefore, it can be hypothesized that the regulation of the CD47-SIRPα axis in colon cancer may be affected by hypoxia.
CD24 serves as a critical “don’t eat me” signal molecule expressed by tumor cells. Several studies have indicated that its overexpression in colorectal cancer cells is associated with early-stage tumor metastasis (118). In colon cancer xenograft mouse models, treatment with anti-CD24 antibodies effectively suppressed the tumor growth (119, 120). Interestingly, Nersisyan et al. reported that reduced CD24 expression or gene loss in colon cancer patients was linked to shorter overall survival (121). These findings suggest that CD24 may function as a stage-specific driver during colorectal tumorigenesis—upregulated in early disease and potentially regulated later by shifts in immune cell activity. Zhao et al. further found a negative correlation between CD24 expression and multiple immune-related pathways, including TNF-α, NF-κB, and IFN-γ signaling (122). Siglec-10 has also been identified as an early driver gene in colorectal malignancies, with mutations observed in both multiple colonic adenomas and colorectal tumors (123). Single-cell RNA sequencing data revealed an enrichment of FOLR2+ LYVE1+ macrophages in KRAS/TP53 double-mutant colon cancer, where tumor cells appear to engage in immunosuppressive crosstalk with macrophages via the CD24–Siglec-10 axis. (124). Blocking the CD24–Siglec-10 anti-phagocytic axis effectively activates macrophage-mediated phagocytosis in the MC38 colon cancer model (125).
In colorectal cancer DLD1 cells, MHC-I expression suppresses macrophage-mediated phagocytosis and promotes immune evasion, primarily through its interaction with LILRB1 on TAMs. In vivo studies have shown that CRISPR-mediated knockout of MHC-I molecules in tumor cells suppresses tumor growth in a macrophage-dependent manner (126). However, in tumor tissues from patients with colon cancer liver metastases, high expression of MHC-I (β2m) on tumor cells has been associated with improved overall survival and increased T cell infiltration (126). The dual role of MHC-I in tumor immune evasion may stem from its capacity to engage both innate and adaptive immune responses. When functioning as an antigen-presenting molecule to cytotoxic T lymphocytes, MHC-I may no longer interact effectively with LILRB1. Additionally, some studies have reported that reduced MHC expression on tumor cell surfaces impairs antigen presentation, which may, in turn, enhance macrophage-mediated phagocytosis (127).
PD-1/PD-L1 inhibitors have been shown to effectively reverse T cell immune tolerance. In addition to T cells, PD-1 is also expressed on other immune cells, including macrophages, B cells, NK cells, and dendritic cells. Notably, increasing attention has been directed toward the functional role of PD-1/PD-L1 signaling in TAMs (128). Studies have reported that colon cancers with MSI-H tend to exhibit elevated PD-L1 expression, and that PD-1 levels on TAMs increase as the disease progresses (14, 129). PD-1 expression on macrophages has been implicated in promoting polarization toward the immunosuppressive M2 phenotype. In murine models of colorectal cancer, PD-1 blockade has been shown to reduce the infiltration of M2 macrophages within the TME (130). The PD-1/PD-L1 axis is considered part of an anti-phagocytic signaling pathway. In both colon cancer patients and mouse models, high PD-1 expression on TAMs has been associated with reduced phagocytic activity against tumor cells. Disruption of this axis can induce M1 polarization of macrophages and promote CD8+ T cell activation, thereby enhancing antitumor immunity (14). ( Figure 1D ).
3.6Exosomal crosstalk with colon cancer cells
Autocrine and paracrine signaling mediated by cytokines and chemokines plays a pivotal role in the communication between tumor cells and TAMs. Both tumor cells and TAMs are capable of internalizing exosomes secreted by one another, thereby releasing their endosomal contents. This exchange contributes to the regulation of macrophage polarization and influences key tumor behaviors, including invasion, metastasis, and immune evasion ( Table 2 ) ( Figure 2 ).
| Exosomes type | Cargos | Name | Mechanism | Biological function | Ref. |
|---|---|---|---|---|---|
| Tumor cells–derived | miRNA | miR-1246 | ↑ TGF-β, IL-10, MMP | promote M2 polarization, EMT, tumorgenesis | (136) |
| ↑ β-catenin, IL-6, p-STAT3, TGF-β1 | promote M2 polarization | (137) | |||
| miRNA | miR-92a-3p | ↑ p-ERK, TGF-β, VEGFA, ↓ TNF-α | promote M2 polarization, tumor cell invasion, migration, angiogenesis | (138) | |
| circRNA | circ_0020095 | ↑ IGF2BP1, ↓ IRAK1 | inhibit M1 polarization, promote tumor cell proliferation, invasion, migration | (139) | |
| lncRNA | lncXIST | ↓ miR-17-5p,↑ PDGFRA, ↑ p-AKT, p-ERK, p-STAT3, p-STAT6 | promote M2 polarization, tumor cell proliferation, invasion, migration | (140) | |
| protein | HSP90B1 | ↓ TNF-α, IL-6, IL-12, ↑ IL-10, TGF-β, CCL-1 | promote M2 polarization, inhibit CD8+ T cell viability, promote liver metastasis | (141) | |
| protein | HSP70 | ↓ IL-10, ↑ TNF-α, IFN-γ | promote immune response, CD8+ T cell infiltration | (142) | |
| TAMs-derived | miRNA | miR-21-5p | ↓ BRG1 | promote tumor cell invasion, migration | (143) |
| miRNA | miR-155-5p | ↓ BRG1 | promote tumor cell invasion, migration | (143) | |
| ↑ IL-6, ↓ ZC3H12B | promote tumor cell proliferation, anti-apoptosis, immune escape, inhibit CD3+ T cell proliferation | (144) | |||
| miRNA | miR-183-5p | ↓ THEM4, ↑ p-AKT, p-NF-κB | promote tumor cell proliferation, invasion, migration, anti-apoptosis | (145) | |
| miRNA | miR-186-5p | ↓ DLC1, ↑ β-catenin | promote tumor cell proliferation, invasion, migration, EMT | (146) | |
| miRNA | miR-501-3p | ↓ SETD7, ↑ DNMT1, ↓ SOCS3 | promote tumor cell invasion, migration | (147) | |
| protein | FTH1 | / | promote tumor cell proliferation | (148) |

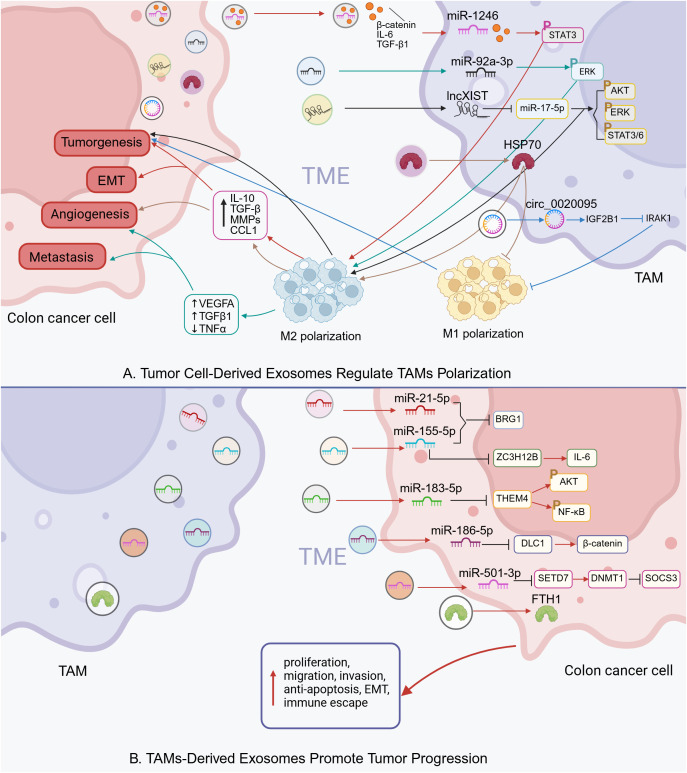

In colon cancer, exosomes released by TAMs and colon cancer cells jointly contribute to the regulation of tumor immunity. Specifically, colon cancer cells can secrete exosomes containing various non-coding RNAs—including microRNAs (miRNAs), long non-coding RNAs, and circular RNAs, which influence TAM polarization. For instance, exosomal miR-1246 and miR-92a-3p derived from tumor cells have been shown to activate STAT3 and ERK signaling pathways in TAMs, promoting their polarization toward an immunosuppressive M2 phenotype (137, 149). Similarly, circ_0020095 facilitates tumor cell invasion and migration by downregulating IRAK1 expression and suppressing M1 polarization (139). In addition to RNA cargo, tumor-derived exosomes can also transport specific proteins that modulate the immune response. HSP90B1, delivered via exosomes from colorectal cancer cells, has been associated with poor prognosis in advanced colorectal cancer and contributes to liver metastasis by promoting the conversion of M1 to M2 macrophages (141). Notably, treatment targeting HSP70-positive exosomes produced by colorectal cancer cells has been reported to enhance antitumor immune responses, suggesting that TAMs possess functional plasticity (142).
On the other hand, TAMs can also influence tumor progression through the transfer of RNA and protein molecules encapsulated within exosomes. For example, M2 macrophages have been shown to promote colon cancer cell proliferation by delivering ferritin heavy chain (FTH1) protein via exosomes (148). Additionally, TAM-derived exosomes exhibit high levels of miR-21-5p and miR-155-5p, which target and suppress the expression of BRG1 in tumor cells, thereby enhancing their malignant properties and facilitating immune evasion (143).
3.7Interaction with gut microbiota
Evidence suggests that chronic low-grade inflammation due to gut microbial dysbiosis as well as impaired intestinal barriers are important factors driving colon cancer development (150–152). Infiltrating bacterial products can construct an immunosuppressive TME by shaping TAMs (153). Fewer macrophages were found in the intestinal wall of germ-free mice compared to SPF mice (154, 155). Enrichment of Fusobacterium nucleatum, Bacteroides fragilis, Escherichia coli, and Enterococcus faecalis has been observed in the feces or tumor tissues of colorectal cancer patients (156–159). The establishment of chronic inflammation promotes colorectal cancer development. In APCmin/+ mice, Fusobacterium nucleatum facilitates the recruitment and infiltration of specific myeloid cell subsets into tumor tissue, producing NF-kB-related pro-inflammatory characteristics (160, 161). In a mouse model infected with Citrobacter rodentium, macrophage-derived ornithine decarboxylase promotes M1 macrophages activation, leading to increased mucosal inflammation in the colon (162). Gut microbes also promote colon carcinogenesis by modulating macrophage immunoreactivity. In Fusobacterium nucleatum-fed mouse models with intestinal tumors, M2-like macrophage accumulation has been observed within tumor tissues, showing significant suppressive activity against CD4+ T cells (160). Additionally, bacterial products such as muramyl peptides activate NOD1, maintaining ARG-1 overexpression and promoting colorectal tumor formation by modulating the immunosuppressive activity of MDSCs and TAMs (153). However, most current studies have focused on the crosstalk between tumorigenic bacteria and TAMs, and the role of some beneficial bacterial species is easily overlooked. For example, Akkermansia muciniphila, a probiotic with strong adhesion to the intestinal epithelial cell surface, can mediate M1 macrophages accumulation in a TLR2/NLRP3-dependent manner to inhibit colorectal tumorigenesis (163) ( Figure 1E ).
4Therapeutic strategies targeting TAMs in colon cancer
Historically, natural products have provided many active molecules with novel structures for new drug development. Many anticancer compounds derived from natural products or their derivatives, such as paclitaxel and vincristine, have played an important role in the clinical treatment of cancer. Recent preclinical studies have further confirmed that natural products can effectively prevent and treat colon cancer by targeting TAMs. We summarize various natural products, including monomeric compounds, synthetic formulations based on natural products, combination therapies of natural products with existing anti-cancer drugs, nanoparticle-based drugs, traditional Chinese medicine, and dietary interventions. The primary mechanisms by which these natural products target TAMs include: inhibition of the inflammatory tumor microenvironment, regulation of macrophage polarization (such as inducing M1 polarization and suppressing M2 polarization) ( Figure 3 ), modulation of metabolism, enhancement of macrophage phagocytic function, and modulation of other immune cells through TAMs, thereby effectively inhibiting immunosuppressive TME. These aspects will be discussed in detail in the following sections.
4.1Botanical compounds and medicinal plants

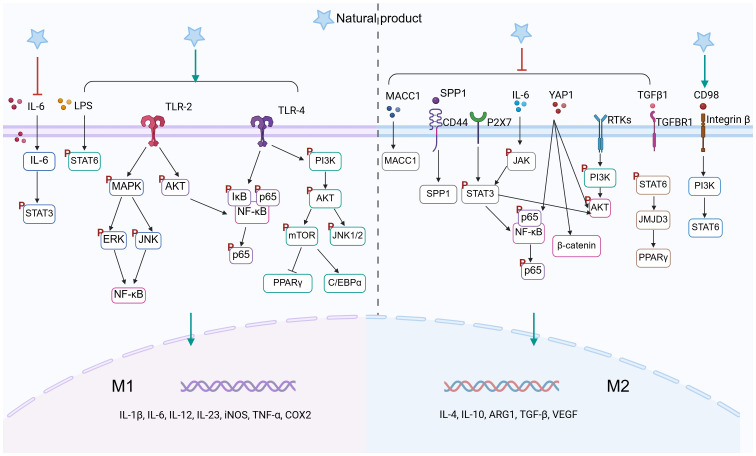

Studies have confirmed that botanical compounds exhibit significant pharmacological and biological activities in the treatment of colon cancer (164, 165). Among these, polysaccharides, polyphenols, saponins, quinones, and terpenoids have been found to exert anti-tumor effects by modulating TAMs. The specific mechanisms of action are summarized in the table below ( Table 3 ).
| Categories | Compound | Sources | Pharmacological function | In vivo model and administration dose | In vitro model | Molecular mechanisms | Effect on the macrophages | Anti-tumor function | Ref. |
|---|---|---|---|---|---|---|---|---|---|
| Polyphenols | Procyanidins | Litchi | anti-inflammation, anticancer, antioxidation | female BALB/c mice: CT26 tail vein injection | / | ↓ CD68, ARG1, CD206, CCL2 | decrease TAMs infiltration | suppress tumor growth and lung metastasis, activate T cell immunity, alleviate macrophages induced inflammation | (166) |
| Curcumin | Curcumae longae Rhizoma | anticancer, antioxidation, immune modulation | / | THP-1 SW620, HCT116 | ↓ IL-10, ARG1, CD163, MACC1 | inhibit M2 polarization | suppress tumor cell proliferation and migration | (167) | |
| Piceatannol | seeds of Euphorbia lagascae | anti-inflammation, anticancer, antioxidation | male BALB/c athymic nude mice: SW480 and M2-like macrophages subcutaneous injection, 10, 50 mg/kg | THP-1 SW480 | ↓ CD163, TGF-β1, ARG1, Fibronectin | inhibit M2 polarization | suppress tumor growth and EMT | (168) | |
| Luteolin | ResedaodorataL. | anti-inflammation, anticancer, antioxidation | / | THP-1 SW480, SW620 | ↓ IL-6, p-STAT3 | inhibit M1 polarization | suppress tumor cell proliferation and invasion | (169) | |
| Cannabidiol | Cannabis | neuroprotective, anti-inflammation, anticancer, anti-emetic | C57BL/6J: MC38 subcutaneous injection, 10 mg/kg | BMDM MC38 | ↓ CD206, ↑ CD86, iNOS, ↓ ATP, MDA, OXPHOS, β-oxidation, p-P13K, p-AKT, ↑ glycolysis | promote M1 polarization, inhibit M2 polarization | suppress tumor growth, modulate the suppressive TME, reduce Tregs and enhance CD8+ T and NK cell infiltration | (170) | |
| Polyphenols-rich components from seaweeds | Seaweeds,Gracilaria | anti-inflammation, anticancer | / | RAW264.7 CCD-18Co, HCT116 | ↓ NO, IL-1, IL-6, TNF-α, iNOS, COX2, ↑ HO-1 | regulate TAMs pro-inflammatory activity | suppress tumor cell proliferation, promote apoptosis and cell cycle arrest | (171) | |
| Non-extractable phenolics from strawberry | Strawberry | anti-inflammation, anticancer, anti-diabetes | / | RAW264.7 HCT116 | ↓ iNOS, c-FOS, ↑ HO-1 | reduce TAMs inflammation | suppress tumor cell proliferation, migration, induce cell cycle arrest in G2/M phase, promote apoptosis | (172) | |
| Hydroxygenkwanin | Dracocephalum moldavica L. | anticancer, anti-inflammation, antioxidation | C57BL/6J: MC38 intraperitoneally injection, 0.1, 0.25, 0.5 mg/kg | BMDM MC38 | ↑ TNF-α, iNOS, IL-6, IL-1β, p-STAT5, p-NF-κB, ↓ARG1, CD206, Ym1, JMJD3, p-STAT6, PPAR-γ | promote M1 polarization, inhibit M2 polarization | suppress tumor growth and peritoneal metastasis through the modulation of macrophages | (173) | |
| Tetrahydrocurcumin | Curcuma longa L. | anticancer, anti-inflammation, antioxidative | AOM/DSS mice: 50, 100, 200 mg/kg | THP-1 HCT116, MC38 | ↓ CD206, ARG1, IL-10, SPP1, ↑ iNOS, IL-1β, TNF-α | inhibit M2 polarization | suppress tumorgenesis and progression via modulating the SPP1/CD44 axis and activating ERK signaling pathway | (174) | |
| Polysaccharides | Fucoidan | Brown algae | anticancer, immune modulation, antioxidation | male BALB/C mice: HCT116 subcutaneous injection, 200, 500 mg/kg | RAW264.7 HCT116, RKO | ↑ CD86, ↓ CD206, ↑ TLR4, p-P13K, p-AKT, p-mTOR, C/EBPα, glycolysis, ↓PPAR-γ | promote M1 polarization | inhibit tumor growth, promote tumor cell apoptosis | (175) |
| Polysaccharides from Nostoc commune | Nostoc commune Vaucher | antioxidation, anti-inflammation, anti- carcinogenesis | BALB/c mice: CT26 xenograft, 200 mg/kg | BMDM SW480, SW620, DLD-1, CT26, HT-29, HCT116 | ↑ TNF-α, IL-1β, IL-6, IL-12β, p-AKT, p-JNK1/2, ↓ IKB-α | promote M1 polarization | inhibit tumor growth, promote tumor cell apoptosis | (176) | |
| Safflower polysaccharide | Safflower petals | anti-inflammation, anticancer, immune modulation | AOM/DSS mice: 50 mg/kg | RAW264.7 HCT116, SW480, LoVo, RKO, MC38 | ↑ iNOS, IL-23, CD16, CD80, p-p65, p-IKBα, TNF-α, IL-6, NO | promote M1 polarization | suppress tumor growth and induce tumor cell apoptosis via regulating macrophage polarization | (177) | |
| Cnidium officinale polysaccharide | Cnidium officinale | anti-inflammation, anti-anemia | / | RAW264.7 HCT116 | ↑NO, TNF-α, IL-1β, IL-6, IL-10, p-p65, p-p38, p-JNK, p-ERK1/2 | enhance pro-inflammatory activity of macrophages | promote tumor immune response | (178) | |
| Beta-1,6 glucan | Armillaria mellea | anti-inflammation, anticancer, immune modulation, antioxidation | female BALB/c mice: CT26 subcutaneous injection, 10, 20 mg/kg | RAW264.7 CT26, DLD-1, HCT116 | ↑ NO, TNF-α, IL-6,iNOS, ↓ IL-10, CD206, Ym1, ARG1, IKBα, ↑ p-p65, p-ERK, p-JNK | promote the polarization of M2 to M1 | suppress tumor growth, promote tumor cell apoptosis | (179) | |
| Ganoderma lucidum polysaccharide | Ganoderma lucidum | anti-inflammation, anticancer, immune modulation | APCmin/+ mice: 750 mg/kg | / | ↓ IL-1β, IFN-γ, FOXP3, TNF-α, ↑ IL-4, IL-10, IL-12, IL-13 | promote the polarization of M1 to M2 | reduce polyps, prevent colon tumorigenesis, regulate gut microbiota | (180) | |
| Polysaccharides from ginseng leaves | Ginseng leaves | anticancer, immune modulation | BALB/c mice: colon 26-M3.1 tail vein injection, 4-500 μg/mice | peritoneal exudate macrophages Colon 26-M3.1 | ↑ TNF-α, IL-12 | activate macrophage | suppress tumor growth and metastasis | (181) | |
| Saponins | panaxynol | American ginseng | anti-inflammation, immune modulation, antioxidation | AOM/DSS mice: 2.5 mg/kg | BMDM | ↓ IL-6, IL-13, TGF-β1 | decrease M2 infiltration | suppress tumor growth, promote tumor cell apoptosis | (182) |
| Ginsenoside-Rp1 | Panax ginseng | anti-inflammation, immune modulation, antioxidation | / | J774A.1 CT26 | ↓ NO, IL-1β | inhibit TAMSs activation | suppress tumor cell proliferation | (183) | |
| Astragaloside IV | Astragalus membranaceus | anti-inflammation, antioxidation, lowering blood pressure | female BALB/C mice: CT26 subcutaneous injection, 15 mg/kg | BMDM CT26 | ↓ ARG1,Mrc1, TGF-β, IL-10, VEGF-α, ↑ IL-12, Nos2, IFN-γ, TNF-α | promote the polarization of M2 to M1 | suppress tumor growth and activate immune response | (184) | |
| Gypenoside | Gynostemma pentaphyllum | anti-inflammation, antioxidation, metabolic Regulation | APCmin/+ mice: 300 mg/kg | / | ↓ iNOS↓, CXCL10, ↑ Ym-1, CD206, Trem2, ARG1 | promote the polarization of M1 to M2 | reduce polyps, prevent colon tumorigenesis | (180) | |
| Terpenoids | Diterpene ent-polyalthic acid | Copaifera reticulata Ducke oleoresin | analgesic, antioxidation, anticancer | male Wistar rats: 1,2-dimethylhydrazine intraperitoneal injection, 80 mg/kg | peritoneal macrophages | ↓ NO, PGE2 | inhibit TAMs infiltration | suppress colon carcinogenesis and DNA damage | (185) |
| dihydroisotanshinone I | Salvia miltiorrhiza Bunge | anticancer, cardioprotective effects | BALB/c-nu nude mice: HCT116 xenograft, 30 mg/kg | RAW264.7 HCT116, HT-29 | CCL2↓ | suppress TAMs activation | suppress tumor cell recruitment ability of macrophage, promote tumor cell apoptosis | (186) | |
| Triptolide | Tripterygium wilfordii Hook. F | anti-inflammation, antimicrobial, antifibrosis, anticancer | BALB/c mice: CT26 subcutaneous injection, 0.1, 0.2, 0.4 mg/kg | RAW264.7 HT29, CT116 | ↓ ARG1, CD206, IL-10, CXCL12 | decrease TAMs infiltration, inhibit M2 polarization | suppress tumor growth and remodel TME through NF‐κB p65 and ERK1/2 axis | (187) | |
| Oridonin | Rabdosia rubescens | anticancer, anti-angiogenesis | male BALB/c nude mice: HCT116 subcutaneous injection, 40 mg/kg | / | ↓ CD206 | decrease M2 infiltration | suppress tumor growth and angiogenesis through JAK2/STAT3 signaling pathway | (188) | |
| Cucurbitacin B | Muskmelon pedicel | anticancer, anti-inflammation, antioxidation | C57BL/6 mice: CT26 subcutaneous injection, 0.5, 1 mg/kg | RAW264.7, THP-1 HCT116, CT26 | ↓ Ym1, Fizz1, ARG1, CCR2, p-JAK, p-STAT3 | inhibit M2 polarization | suppress tumor growth, inhibit tumor cell invasion and migration, regulate TME | (H. 189) | |
| Oleuropein | Olea europaea L. leaves | anti-inflammation, immune modulation, antioxidation | PIRC rats: 100 mg/kg | RAW264.7 HCT116 | ↓ iNOS, IL-1β, IL-6, TGF-β, COX2 | suppress TAMs activation | suppress tumorgenesis, promote tumor cell apoptosis | (190) | |
| Quinones | Emodin | Rheum palmatum, Polygonum cuspidatum, and polygonum multiflorum | anti-inflammation, anticancer | APCmin/+ and AOM/DSS mice: 40, 80 mg/kg | BMDM C26 | ↓ P2X7, p-STAT3 | decrease M2 proliferation | reduce polyp and tumorgenesis, regulate TME | (191) |
| Bullatacin | Annonaceae | anticancer | / | SW480, HT-29 | ↑ CRT, HSP90, HMGB1 | promote macrophage phagocytosis | promote immunogenic tumor cell death by activating endoplasmic reticulum stress | (192) |
4.1.1Polyphenols: remodeling immune microenvironment and inhibiting inflammation
Polyphenols are the most common plant-based bioactive constituents of the diet and are widely found in fruits, vegetables, cereals, coffee and green tea. Numerous experimental studies have demonstrated that polyphenols (e.g., procyanidins (166), curcumin (167), piceatannol (168), luteolin (169)) have significant anti-inflammatory, anti-tumor, pro-apoptotic, and immunomodulatory effects in colon cancer. Mechanistic studies indicate that these effects are primarily achieved through the regulation of TAM polarization, downregulation of inflammatory signaling, enhancement of immune responses, modulation of macrophage metabolism, and regulation of the gut microbiota. For example, single-cell sequencing analysis has shown that cannabidiol, a non-psychoactive compound from cannabis, promotes TAM glycolysis while inhibiting FAO and oxidative phosphorylation OXPHOS. It also regulates the PI3K/AKT pathway, promoting M1 polarization of TAMs to exert anti-colon cancer effects (170). Meanwhile, some polyphenol-rich extracts/non-extractable polyphenolic substances are also of interest. For example, polyphenol-rich components from edible seaweeds (171) and non-extractable phenolic from strawberries (172) were able to inhibit the pro-inflammatory activity of LPS-stimulated macrophages, induce cell cycle arrest in HCT116 human colon cancer cells, and promote their apoptosis.
4.1.2Polysaccharides: activating M1 polarization and modulating signaling pathways
Natural polysaccharides have a wide range of biological activities, with anti-tumor, antioxidant, liver protection, immunomodulation and other functions. Because of their good therapeutic effects and mild adverse reactions, they have received extensive attention in the field of biomedicine. Many natural polysaccharides, such as fucoidan, safflower polysaccharides, cnidium officinale polysaccharides, and ganoderma lucidum polysaccharide, are effective in preventing and controlling colon cancer by regulating the signaling pathway, influencing the macrophage phenotype and function, enhancing immune response, and maintaining intestinal homeostasis.
Polysaccharides from algae have been extensively studied, for example, fucoidan extracted from brown algae activates the TLR4-mediated PI3K/AKT/mTOR signaling axis, promoting M1 polarization and infiltration of TAMs, thereby altering the immunosuppressive TME (175). Polysaccharides from Nostoc commune Vaucher can inhibit colon cancer cell proliferation by activating NF-κB, AKT/JNK1/2 signaling pathway, upregulating the expression of inflammatory factors, and enhancing the phagocytic activity of TAMs (176). Studies have shown that safflower polysaccharide (108), Cnidium officinale polysaccharide (178) and Beta-1,6 glucan (179) can activate the NF-κB and MAPK signaling pathways in colon cancer, promote the activation of M1 macrophages in the TME to generate immune responses. Shin et al. found that treatment of colon cancer model mice with the polysaccharides from ginseng leaves exhibited antitumor activity, and it promoted the secretion of TNF-α and IL-12 from macrophages in peritoneal exudates (181). Adenomatous polyps are considered precancerous lesions of sporadic colon cancer, and Ganoderma lucidum polysaccharide were effective in improving the inflammatory intestinal barrier in APCmin/+ mice reducing the formation of adenomatous polyps by decreasing the infiltration of inflammatory TAMs (180).
4.1.3Saponins and terpenoids: modulation TAMs recruitment and suppressing M2 polarization
Studies on the regulation of TAMs in colon cancer by saponin compounds are mainly focused on ginsenosides. Ginsenosides have a variety of pharmacological activities and biological effects, such as anti-inflammatory, antioxidant, immunomodulatory, anti-tumor, and pro-apoptotic. Panaxynol, isolated from ginsenosides, promotes tumor cell apoptosis by effectively inhibiting M2 polarization in colon cancer TME (182). Furthermore, ginsenoside-Rp1 inhibits phenotypic variation in CT26 colon cancer cells by suppressing LPS-stimulated macrophage activation (183). Astragaloside IV (184) and jiaogulan saponins (180) extracted from traditional Chinese medicine, were able to reduce the formation of intestinal polyps and tumors by modulating the ratio of pro-inflammatory to anti-inflammatory macrophages in the TME.
From the current reports, it has been found that terpenoids improve colon cancer outcomes by interfering with TAMs including 1) prevention of colon precancerous lesions, 2) inhibition of tumor cell recruitment, proliferation, migration, and angiogenesis, 3) promotion of apoptosis, and 4) activation of immune response. Copaifera reticulata Ducke oleoresin, widely used in Brazilian folk medicine, has wound healing-promoting and anti-inflammatory effects. Its main chemical component, diterpene ent-polyalthic acid, reduces DNA damage and preneoplastic lesions induced by the carcinogen, also reduces NO and PGE2 production in mouse TAMs, demonstrating the potential for preventing the development of colon cancer (185). Dihydroisotanshinone I, a bioactive compound in Salvia miltiorrhiza Bunge can hinder the recruitment of TAMs to colon cancer cells by inhibiting the secretion of CCL2 from TAMs (186). Jiang et al. found that tretinoin inhibited NF-κB and ERK1/2 signaling and reduced M2 macrophage polarization remodeling TME by downregulating CXCL12 expression (187). Oridonin has excellent anti-angiogenic effects in colon cancer, reduces M2 macrophage infiltration, and also improves the hypoxic environment (188).
4.1.4Quinones: inducing immunogenic cell death
Quinones are widely distributed in nature and are categorized into four major subclasses, including benzoquinone, naphthoquinone, phenanthrenequinone and anthraquinone. There are limited reports on whether quinones can prevent colon cancer by affecting TAMs, which have only been reported in Bullatacin. Emodin is a naturally occurring anthraquinone compound isolated from herbs such as rhubarb, Tigen stick as well as Tuber Fleeceflower Root, and has a variety of biological activities including anti-inflammatory, antioxidant, and antitumor. Studies have confirmed the role of Emodin in regulating colonic TME, not only by decreasing the proportion of M2 macrophages, but also by reducing inflammatory activation through inhibition of the P2X7 receptor (191). Bullatacin, a natural quinone compound isolated from the plant Lycopersiconaceae, induces immunogenic cell death (ICD) in tumor cells. Fan et al. demonstrated that treatment with Bullatacin promotes the accumulation of the “eat me” signaling proteins, CRT and HSP90, on the surface of colorectal tumor cells. It triggers ICD by activating the endoplasmic reticulum stress (ERS) signaling pathway and promotes phagocytosis of tumor cells by macrophages (192).
4.2Natural product–based synthetic agents
Natural compounds face limitations in clinical applications, such as unstable efficacy, poor solubility, and challenges in standardization. To overcome these issues, synthetic modifications can be employed to create novel drug formulations by knocking out or altering certain unstable structures of the compounds. We summarize the role and mechanisms of existing synthetic formulations based on natural products targeting TAMs in colon cancer ( Table 4 ).
| Drug | Pharmacological function | Combination agent | In vivo model and administration dose | In vitro model | Effect on macrophages | Anti-tumor function | Ref. |
|---|---|---|---|---|---|---|---|
| Aspirin | antiplatelet, anti-inflammation, antipyretic | / | AOM/DSS, AOM mice: 25, 50 mg/kg | / | ↓ macrophages infiltration, iNOS | inhibit tumorgenesis, inflammation, angiogenesis | (193) |
| Fenretinide | anticancer, chemoprevention, retinal protection | / | APCmin/+ mice: 20mg/kg | RAW264.7 HCT116, SW260, SW480, Colo205 | ↓M2 polarization, Fizz1, PPAR-γ, p-STAT6 | inhibit tumorgenesis, angiogenesis | (194) |
| Plinabulin | anticancer, immune modulation, anti-angiogenesis | / | C57BL/6N mice: MC38 subcutaneous inoculation, 7mg/kg | PBMC, BMDM MC38 Hut78 | ↑ M1 polarization, IL-1β, IL-6, IL12p40, ↓ IL-10, IL-4, ↑ active JNK pathway, Fas-L | inhibit tumor growth, induce tumor cell death through Fas/Fas-L pathway | (195) |
| Mannose-methyl-β-cyclodextrin | anticancer, immune modulation | / | BALB/c male mice: colon-26 subcutaneous inoculation, 10mg/kg | RAW264.7 Colon-26 | ↓ the amount of M2, ↑ intracellular uptake via MR | inhibit tumor growth, promote tumor cell autophagy | (196) |
| (Z)-1-(3-((1H-pyrrol-2-yl)methylene)-2-oxoindolin-6-yl)-3-(isoxazol-3-yl)urea derivatives, compound 21 | anticancer | / | C57BL/6 mice: MC38 subcutaneous inoculation, 5, 10, 20mg/kg | THP-1 MC38, HCT116 | ↓ M2 polarization, IL-10, ARG1, CHIL3, VEGF, ↑ IL-12, TNF-α, IL-6, ↓ CSF-1R | inhibit tumor growth through suppressing CSF-1R and p-AKT signaling | (197) |
| Astragaloside IV | immune modulation, anti-inflammatory, antioxidant | aPD-1 | BALB/c female mouse: CT26 axillary fat pad injection, Astragaloside IV: 15 mg/kg, aPD-1: 2.5mg/kg | BMDM CT26 | ↑ M1 polarization, IFN-γ, IL-12, TNF-α, ↓ Arg1, TGF-β, IL-10, VEGF-A | inhibit tumor growth | (184) |
| the sesquiterpene lactone-rich fraction of I. helenium (SFIH) | anticancer, anti-inflammation, immune modulation | aPD-1 | C57BL/6 female mice: MC38 subcutaneous inoculation, SFIH: 50mg/kg, aPD-1: 200μg | / | ↑ M1 infiltration | inhibit tumor growth, activate adaptive immune response | (198) |
| Lobeline | anticancer, neuroregulatory effect | aPD-1 | C57BL/6 mice: MC38 subcutaneous inoculation, Lobeline: 25mg/kg, aPD1: 5mg/kg | / | ↑ M1 polarization, ↓ M2 polarization | inhibit tumor growth through regulating MAPK14/p53/Slurp1 signaling pathway, activate adaptive immune response | (149) |
| Imprime PGG | anticancer, immune modulation | aPD-1 | C57BL/6 mice: MC38 subcutaneous inoculation, Imprime: 1.2mg, aPD-1: 0.1mg | / | ↑ M1 polarization, TNF-α, PD-L1, | inhibit tumor growth, activate NK cells and DC cells, promote T cells expansion | (199) |
| Chinese yam polysaccharide (CYP) | hypoglycemic, hypolipidemic, immune modulation | aPD-1 | C57BL/6 mice: MC38 intraperitoneal injection, BALB/c mice: CT26 intraperitoneal injection, CYP: 100 mg/kg, aPD-1: 200 μg | / | ↓ M2 polarization, ARG1, IL-10 | inhibit tumor growth, regulate intestinal microbiota-related metabolites, reprogram TME | (200) |
| 7S,15R-Dihydroxy-16S,17S-Epoxy-Docosapentaenoic Acid (diHEP-DPA) | anticancer, retinal protection, lipid metabolism regulation | 5-FU | BALB/c female mice: CT26 xenograft, diHEP-DPA: 10, 20μg/kg, 5-FU: 20mg/kg | THP-1 HT29, HCT116 | ↓ M2 infiltration, MMP2, MMP9, VEGF, IL-6, TNF-α, NF-κB signaling pathway, ↑ phagocytic activity via CD47/SIRPα axis | inhibit tumor growth, EMT, inhibit cancer stem cells activation through ROS/STAT3 signaling pathway | (201, 202) |
| Ovatodiolide | anticancer, anti-inflammation | 5-FU | BALB/c mice: CT26 xenograft, Ovatodiolide: 5mg/kg, 5-FU: 30mg/kg | THP-1 HCT116, DLD-1 | ↓ M2 polarization, ARG1, CD23, YAP1, β-catenin, AKT, NF-κB, IL-6 | inhibit tumorigenesis and colon sphere generation | (203) |
Aspirin, derived from salicylic acid, is a classic non-steroidal anti-inflammatory drug. Long-term low-dose administration of aspirin (25 mg/kg daily in healthy mice, equivalent to 100 mg in human subjects) significantly reduces macrophage infiltration in colon tumors, shrinks tumor size, and decreases the formation of prostaglandin E2 (PGE2) in the colon (193).Modified mannose β-cyclodextrin (Man-MβCD) can be recognized by mannose receptors (MR) on TAMs, enhancing the cytotoxic activity of M2 macrophages while promoting tumor cell autophagy (196).Plinabulin, a microtubule inhibitor synthesized from a natural product isolated from marine Fusarium fungi through structural optimization, is undergoing global Phase III clinical trials for tumor treatment. In vivo studies have shown that Plinabulin (7 mg/kg) induces M1 polarization in macrophages through the JNK signaling pathway, effectively inhibiting tumor growth in MC38 colon cancer-bearing mice (195).The synthetic retinoid derivative fenretinide demonstrates advantages in chemoprevention, significantly reducing tumor occurrence in APCmin/+ mice by inhibiting STAT6 signaling and decreasing M2 macrophage-driven angiogenesis in tumor tissues (194).Blocking CSF-1/CSF-1R signaling to regulate TAM polarization is a promising therapeutic approach. A synthesized compound 21 from a series of (Z)-1-(3-((1H-pyrrol-2-yl)methylene)-2-oxoindolin-6-yl)-3-(isoxazol-3-yl)urea derivatives exhibits excellent CSF-1R inhibitory activity (IC50 = 2.1nM), promoting M1 macrophage infiltration and enhancing anti-tumor immune responses (197).
While synthetic formulations effectively improve the efficacy and stability of natural products, the high research and development costs, along with complex clinical trial processes, remain significant obstacles to their widespread application. Improving the production methods of synthetic formulations, such as utilizing advanced techniques like computer-aided drug design, can aid in the development of synthetic formulations based on natural products.
4.3Combination therapy: immune checkpoint inhibitors and multitarget synergy
Currently, immune checkpoint inhibitors (ICIs, immune checkpoint inhibitors) are working in microsatellite instable/mismatch repair deficient patients that account for about 5-10% of CRC cases. Optimized combination therapy strategies could expand the use of anti-PD-1/PD-L1-based immunotherapy in colon cancer. Although current immunotherapies are mostly centered on T cells, more and more reports support that the effector function of innate immunity is also important for cancer treatment ( Table 4 ).
Several studies have explored the synergistic effects of natural products combined with anti-PD-1 (aPD-1) immunotherapy in colon cancer, primarily through the inhibition of TAMs’ M2 polarization and the activation of T-cell immune responses. For example, Astragaloside IV (AS-IV) from Astragalus membranaceus, sesquiterpene lactones from Arctium lappa, and the natural Chinese yam polysaccharide (CYP) have been shown to shift TAMs from the immune-suppressive M2 phenotype to the anti-tumor M1 phenotype. When used in combination with aPD-1, these natural products enhance the tumor immune response, increase the infiltration of CD8+ T cells, and inhibit tumor growth (184, 198, 200). Additionally, CYP has been found to effectively regulate the disruption of gut microbiota and metabolic products associated with aPD-1 treatment (200).
Another promising strategy involves combining natural compounds with conventional chemotherapy agents such as 5-FU. While 5-FU is a cornerstone in the treatment of colon cancer, its efficacy is limited due to the development of chemoresistance. 7S,15R-Dihydroxy-16S,17S-Epoxy-Docosapentaenoic Acid (diHEP-DPA), a DHA derivative, has been shown to overcome 5-FU resistance when used in combination, inhibiting TAM infiltration, reducing the accumulation of cancer stem cells (CSCs), and suppressing EMT (201, 202). Similarly, Ovatodiolide enhances anti-tumor effects when combined with 5-FU by inhibiting the YAP1 oncogenic pathway and preventing M2 TAM polarization (203).
The combination of natural products with existing cancer therapies (such as ICIs and chemotherapy) offers multiple advantages, particularly in enhancing current therapeutic efficacy, overcoming resistance, and reducing side effects. However, current research has primarily focused on the combination of natural products with anti-PD-1 immunotherapy, with limited studies on the use of other immunotherapies in combination with natural products for colon cancer treatment. Future research should explore the synergistic effects of different immune checkpoint inhibitors with natural products to provide more treatment options for clinical practice.
4.4Nanomedicine strategies involving natural products
Nanomedicines have shown great potential in cancer treatment and have become a promising strategy to overcome the pharmacokinetic limitations of natural compounds. Despite substantial evidence supporting the superior antitumor effects of natural products, their clinical application remains limited due to issues such as poor solubility, low bioavailability, and insufficient systemic stability. The rapid development of functional nanomaterials has enabled nanomedicines to effectively address these challenges by facilitating accurate drug release, enhancing tumor penetration, and improving retention through the enhanced permeability and retention (EPR) effect, all while reducing toxicity and side effects (204). Common carriers include biomimetic delivery platforms (e.g., erythrocyte membranes, leukocyte membranes, stem cell membranes, and extracellular vesicles), liposomes, polymeric particles, and inorganic nanoparticles. Preclinical studies suggest that TAM-targeting nanomedicines exhibit good safety, enhanced stability, and improved anticancer performance in colon cancer treatment ( Table 5 ).
| Type | Biofilm/host material | Drugs | Experimental model | Effect on the macrophages | Function | Ref. |
|---|---|---|---|---|---|---|
| RSV-NPs@RBCm | erythrocyte membrane | Resveratrol | in vitro and in vivo | ↑ escape macrophage phagocytosis | suppress tumor growth via promoting tumor cells ferroptosis | (205) |
| HPA/AS/CQ@Man-EM | erythrocyte membrane/PLGA | Artesunate and Chloroquine | in vitro and in vivo | ↑ M1 polarization, TNF-α, IFN-γ, IL-6, IRF5, LC3II/LC3I, NF-κB, p-p38↓ M2 polarization, TGF-β, ARG1, IL-10 | suppress tumor growth and angiogenesis via upregulating ROS level and downregulating VEGF protein level | (206) |
| GDNPs | extracellular vesicle-liked nanoparticles | Ginseng | in vitro and in vivo | ↓ M2 polarization, ARG1 | suppress tumor growth, promote proliferation and activation of T cells through mTOR-bet axis | (207) |
| M1EVs | macrophage 1-derived extracellular vesicles | Oxaliplatin, Retinoic acid, and Libidibia ferrea | in vitro and in vivo | ↓ M2 polarization, IL-10, TGF-β, CCL22, STAT3/NF-κB/AKT pathway | suppress tumor growth, EMT, metastasis, promote CD8+ T cells infiltration | (208) |
| CaZCH NPs | hyaluronic acid- modified | Ca2+, Curcumin and H2O2 | in vitro and in vivo | ↑ M1 polarization | suppress tumor growth, induce tumor cells immunogenic ferroptosis, alleviate the immunosuppressive TME | (209) |
| MPLO@HA | hyaluronic acid- modified | Metformin, Oxaliplatin and Lauric acid | in vitro and in vivo | ↑ M1 polarization, IL-12, ↓ IL-10 | suppress tumor growth, induce tumor cells ICD, inhibit Tregs and MDSCs | (210) |
| M2 peptide-modified nanoliposomes containing crocin | liposome | Crocin | in vitro and in vivo | ↑ M1 polarization, TNF-α, IL-12β | suppress tumor growth | (211) |
| LNPs | liposome | Mulberry Leaf | in vitro and in vivo | ↑ M2 polarization, IL-10, ↓ TNF-α, IL-6, CD98, ↑ Galectin-3, PI3K/STAT6 pathway | suppress tumor progression, alleviate inflammation | (212) |
| TS-NP | egg phosphatidylcholine | Tocopheryl succinate | in vivo | ↓ M2 polarization, VEGF-A, IL-10 | suppress tumor growth and metastasis | (213) |
| Apt-2cNP | PLGA | Betulinic acid | in vitro and in vivo | ↑ M1 polarization | suppress tumor growth, induce tumor cells apoptosis and autophagy, promote immune cells activation | (214) |
| CHO-PLGA-RA NPs | PLGA NPs coated with cholesterol | Retinoic acid | in vitro and in vivo | ↓ M2 polarization, NF-κB, STAT3, IL-10, TGF-β | suppress tumor growth, EMT, metastasis, promote CD8+ T cells infiltration | (215) |
| EBNPs | poly (ethylene oxide)-poly (butylene oxide) | Linoleic acid conjugated SN38 | in vitro | ↑ escape macrophage phagocytosis | suppress tumor growth, promote tumor cells apoptosis | (216) |
| SeNps | selenium nanoparticles | Lactobacillus casei ATCC 393 | in vitro | ↑ macrophage phagocytosis of tumor cells | promote tumor cells apoptosis and ICD | (217) |
| LNT-UA | / | Ursolic acid and Lentinan | in vitro and in vivo | ↑ M1 polarization, IFN-γ, TNF-α, ↓ IL-10 | suppress tumor growth and metastasis, induce tumor cells ICD, promote activation of DC and recruitment of T cells | (218) |
4.4.1Biomimetic delivery systems
Cell membrane-coated nanoparticles, which mimic the structure of cell membranes, can enhance biocompatibility and improve drug targeting. For example, erythrocyte membrane-coated nanoparticles (RSV-NPs@RBCm) effectively evade macrophage phagocytosis, extend the circulation time of drugs in the bloodstream, and improve tumor-targeted delivery through tumor-penetrating peptides (205). Extracellular vesicle-like nanoparticles derived from fresh ginseng can inhibit M2 polarization, modulating arginine metabolism to affect the mTOR-T-bet axis, thereby effectively alleviating T cell exhaustion (207). Furthermore, macrophage-derived extracellular vesicle nanoparticles possess excellent biocompatibility, enabling efficient drug loading and inhibition of colorectal cancer cell proliferation, migration, and resistance (208).
4.4.2Liposomes
Liposomes, due to their excellent biocompatibility and biodegradability, are widely used as classic nanocarriers. Their structure consists of an outer lipid bilayer and an internal hydrophilic core. For example, saffron extract-loaded liposomes modified with M2 peptides specifically target M2 macrophages in the colorectal TME, inducing their polarization to the M1 phenotype, thereby exerting antitumor effects (211). Additionally, tocopheryl succinate succinate nanoparticles synthesized with egg phosphatidylcholine prevent peritoneal dissemination caused by colon cancer through intraperitoneal injection. This mechanism may involve the suppression of M2 macrophages, reducing the release of IL-10 and VEGF, and improving the TME (213).
4.4.3Inorganic nanomaterials
Inorganic nanomaterials, such as metal nanoparticles, metal oxides, and carbon-based nanomaterials, are widely utilized in tumor therapy due to their biological stability and targeting capabilities. For instance, CaZCH NPs, which respond to the acidic conditions of the tumor microenvironment, release active substances that promote the infiltration of M1 macrophages and enhance antitumor immune responses by inducing ICD (209).
4.4.4Polymeric nanomaterials
Poly(lactic-co-glycolic acid) (PLGA) is a biodegradable and controlled-release drug delivery system approved by the FDA for sustained drug formulations. Natural product-based formulations, such as Apt-2cNP and CHO-PLGA-RA NPs, utilize PLGA as a carrier to modulate TAM polarization within the colorectal TME, inhibiting the NF-κB/STAT3 signaling pathway associated with M2 polarization and reshaping the immunosuppressive microenvironment (214, 215). Moreover, EBNPs avoid macrophage phagocytosis, effectively promoting cancer cell uptake, and achieving targeted inhibition of colon cancer cells (216).
Studies show that macrophage-targeting nanomedicines based on natural products have significant advantages. However, challenges remain, including instability in distribution, inter-individual variations in the EPR effect, and off-target effects. Furthermore, the heterogeneity of TAMs (including different subtypes, such as resident vs. recruited, anti-inflammatory vs. pro-inflammatory) influences therapeutic outcomes. The pharmacokinetic interactions between nanomedicines, tumor cells, and macrophages require further investigation. Additionally, animal models cannot fully replicate the complexity of the human tumor microenvironment. Future research should focus on improving the selective delivery of nanoparticles, reducing off-target toxicity, and enhancing therapeutic outcomes through more accurate pharmacokinetic modeling. Furthermore, in-depth studies on TAM heterogeneity and strategies for targeting different TAM subtypes will contribute to advancing the clinical application of nanomedicines.
4.5Traditional Chinese medicine formulas: multitarget synergistic antitumor effects
Traditional Chinese medicines effectively inhibit the development of colon cancer through various pathways, such as enhancing immune response and inhibiting tumor proliferation and metastasis. Garcinia yunnanensis, a traditional Chinese medicine, has anticancer and anti-inflammatory effects, and after Garcinia yunnanensis treatment of APCmin/+ colon cancer model mice, JNK, STAT3 and ERK signaling were inhibited, M2 macrophage infiltration in the TME was reduced, and the size of tumors was reduced (219). Yi-Yi-Fu-Zi-Bai-Jiang-San (YYFZBJS) is a commonly used traditional Chinese medicine formula for treating inflammatory diseases. YYFZBJS can alter the pro-tumor effects of M2 macrophages by inhibiting inflammation-related signaling pathways in colon cancer and delay the development of the disease by reshaping the gut microbiota (220). Si-Jun-Zi Decoction (SJZ) is a well-known Chinese herbal formula that can regulate human immunity. After 3 weeks of treatment with full dose (45 g/kg) of modified SJZ in mice with colorectal cancer, the expression level of GM-CSF in plasma and the number of splenic macrophages were significantly increased, and the nude mice had better body defenses and colorectal cancer survival rate, and the modified SJZ also reduced the hepatic metastasis of colorectal cancer by activating the innate immunity (221).
The development of malignant tumors can have a deleterious effect on the patient’s mood and even accelerate tumor metastasis, and some traditional Chinese medicines can slow down this process. Xiao-Yao-San, is widely used clinically for the relief of symptoms associated with depression. Treatment of colorectal model mice with Xiao-Yao-San reduced the recruitment of M2 macrophages and MDSCs, and inhibited the expression of TGF-β, IL-6, MMP-9 and VEGF. Not only that, Xiao-Yao-San can also effectively inhibit liver metastasis of chronic stress colon tumors (222). Hereby, the natural products, with their excellent activity, safety and novel structures, offer more possibilities for the development of novel anti-colon cancer drugs.
4.6Probiotics and gut microbiome regulation
Probiotics are defined by the World Health Organization (WHO) as “active microorganisms that, when ingested in sufficient quantities, are beneficial to the health of the host”. Probiotics stabilize the intestinal barrier and modulate intestinal immunity. Extensive research has shown that the consumption of probiotics (e.g. Lactobacillus plantarum, Lactobacillus acidophilus, and Bacillus subtilis) can alter the distribution of cellular junctional proteins, reduce the absorption of potentially cancer-causing compounds, and improve the poor prognosis of colon cancer (223–226).
lactobacilli, a probiotic used with high frequency in the treatment of diseases. Hradicka et al. found that Lactobacillus has immunomodulatory activity, remodels macrophage polarization, and reduces colon tumor tissue volume and total tumor number (227). Lactobacillus acidophilus lysate in combination with CTLA-4 helps to enhance anti-tumor immune response in colon cancer mice by decreasing Treg and M2 macrophage infiltration, and increasing the number of CD8+ T cells in the TME (228). Saccharomyces cerevisiae (S. cerevisiae) is a conventional yeast used in food products and a probiotic that maintains intestinal homeostasis. Beta-glucan, a major component of the cell wall of S. cerevisiae, inhibits colon tumor activity by suppressing intestinal ecological dysregulation and activating macrophages (229). Loigolactobacillus coryniformis NA-3 induces NO, IL-6, TNF-α, and ROS production in colonic TAMs and significantly inhibits the proliferation of colonic tumor cells (230). Notably, appropriate dosage and sufficient intestinal residence time are crucial for probiotics to exert anticancer immune effects (231). In addition, several studies have confirmed that the use of probiotics can help alleviate gastrointestinal adverse reactions such as diarrhea and nausea caused by chemotherapeutic drugs and improve patients’ treatment tolerance (231–233).
4.7Dietary intervention
Dietary intervention is an emerging strategy for disease prevention and treatment. A Western diet characterized by high intake of red meat and high fat has been shown to significantly increase the risk of colorectal cancer (234). In contrast, diets rich in dietary fiber have a protective effect on the gut, not only providing an energy source for gut microbes, but also helping to maintain gut homeostasis and barrier integrity. Compared to normal-diet colon cancer model mice, ketogenic diet induces oxidative stress within colon tumors, promotes conversion of M2 macrophages to M1-type, and downregulates MMP expression to inhibit colon tumor progression (235). In addition, some dietary intake can also alleviate colon cancer progression to some extent. Feeding a diet rich in Oleuropein-Rich Leaf Extract to colon cancer model rats abrogated the overexpression of iNOS in rat tumors and inhibited the pro-inflammatory behaviors of macrophages in rats with loaded tumors, suppressing tumor proliferation (190). 3-Hydroxybutyrate (3HB) has various utilities as an oral food supplement, such as energy supply, anti-inflammation, neuroprotection, and can be used to improve alcoholic fatty liver, osteoporosis, and Alzheimer’s disease. Li et al. found that 3HB could regulate colon TME, modulate the proportion of infiltrating macrophages, and reduce the level of MDSCs, as well as inhibit the NF-κB pathway that reduces inflammatory factor release (236). Sea cucumber, a marine animal rich in bioactive molecules, is a dietary nutrient with anti-inflammatory and antibacterial effects. Adding sea cucumber extract Frondanol A5 to the feed fed to APCmin/+mice significantly reduced the volume of colon tumors, increased the phagocytosis efficiency of mouse peritoneal macrophages, and provided prevention for intestinal tumorigenesis (237).
5Challenges and future perspectives
In this review, we summarize the potential of targeted modulation of TAMs in colon cancer prevention, occurrence, metastasis and drug resistance. The main pathways include modulation of TAMs infiltration in TME, remodeling of TAMs polarization, modulation of key signaling pathways in TAMs, promotion of phagocytic activity of TAMs, and activation of immunomodulatory function of TAMs. Potential therapeutic strategies include drug treatments based on natural products and dietary interventions ( Figure 4 ). Colon carcinogenesis is a heterogeneous process with a diverse array of somatic molecular alterations influenced by diet, environmental and microbial exposures, and host immunity. With the deepening of research on colon cancer and the emergence of new therapeutic modalities, especially targeted therapies and immunotherapies, coupled with increasing early interventions, colon cancer has made great progress in diagnosis and treatment. However, toxic side effects, drug resistance, off-target effects, high metastasis and recurrence rates resulting from treatment are still important factors threatening human health.
Based on the current challenges in colon cancer treatment, it is particularly important to improve efficacy and overcome drug resistance without exacerbating immune-related side effects. A growing body of findings suggests that targeting macrophages for colon cancer treatment is a promising therapeutic approach.
However, there are some unresolved issues in the current studies on macrophages in colon cancer, and despite the large number of studies supporting that macrophage infiltration is suggestive of a poor prognosis, there are still data supporting the opposite result, which may be related to the lack of clarity of macrophage markers as well as difficulty in identifying the phenotype. Due to the tumor heterogeneity and plasticity of macrophages, the mechanism of how to inhibit macrophages from being “educated” by TME to perform their scavenging role to phagocytose tumor cells needs to be explored in greater depth. Macrophages signaling pathways and key regulatory factors affecting macrophages in colon cancer also need to be further revealed.

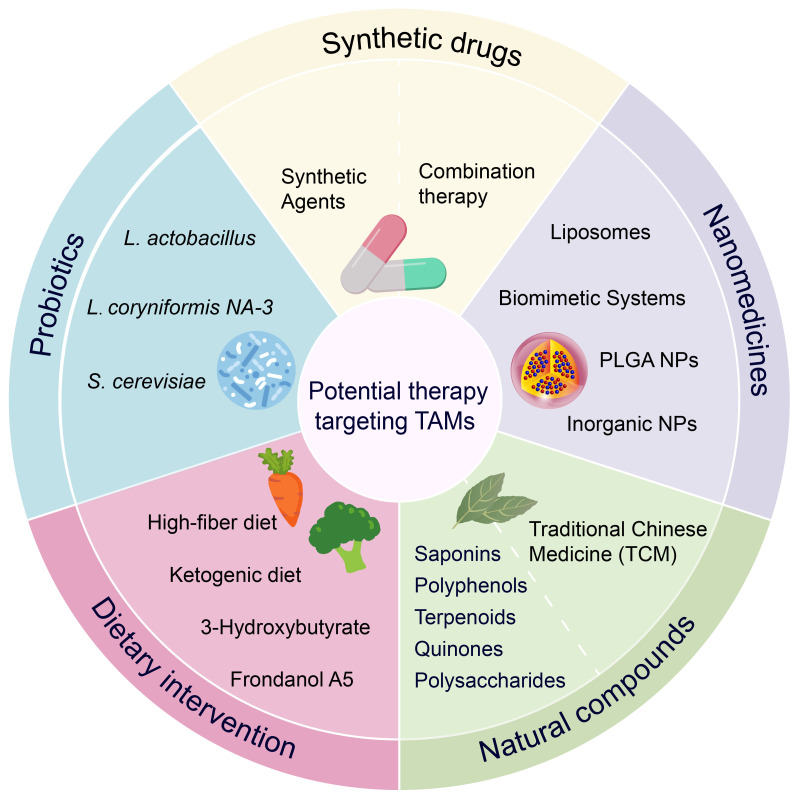

We have summarized potential natural drugs for targeting TAMs in the treatment of colon cancer. These include botanical active compounds, natural product-based synthetic formulations, therapies combined with existing anticancer treatments (such as ICIs and chemotherapy), natural product-based nanomedicines, probiotics, traditional Chinese medicine, and dietary interventions. These therapeutic strategies have addressed issues such as single efficacy, off-target effects, and drug resistance to some extent. Compared with traditional chemotherapy drugs, natural products tend to have fewer adverse effects and toxicities. Additionally, some traditional medicines can inhibit the growth of colon tumors by improving the body’s stress response. However, there are several challenges regarding the clinical application of natural products. Many phytochemicals exhibit poor solubility, resulting in low bioavailability. The bioavailability of some natural compounds remains unclear, and their metabolic pathways and transformation processes in vivo are not fully understood. Although progress has been made in improving the drug delivery efficiency and bioavailability of natural product-based nanomedicines and synthetic formulations, most studies are still in the basic experimental stage, and sufficient clinical data to support widespread application is lacking.
Natural products targeting TAMs for colon cancer treatment show great potential. Future research should focus on addressing key issues such as solubility, delivery efficiency, and bioavailability of natural products, and conduct more clinical trials to verify their efficacy and safety. As cancer biology continues to advance, these challenges are expected to be overcome through further technological innovations and research, ultimately contributing to cancer treatment and human health.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
