Crosstalk between Chemokine Receptor CXCR4 and Cannabinoid Receptor CB2 in Modulating Breast Cancer Growth and Invasion
Crosstalk between CXCR4 and CB2 in Breast Cancer
Department of Pathology and Comprehensive Cancer Center, The Ohio State University, Columbus, Ohio, United States of America
University of Nebraska Medical Center, United States of America
* E-mail: Ramesh.Ganju@osumc.eduAbstract
Background
Cannabinoids bind to cannabinoid receptors CB1 and CB2 and have been reported to possess anti-tumorigenic activity in various cancers. However, the mechanisms through which cannabinoids modulate tumor growth are not well known. In this study, we report that a synthetic non-psychoactive cannabinoid that specifically binds to cannabinoid receptor CB2 may modulate breast tumor growth and metastasis by inhibiting signaling of the chemokine receptor CXCR4 and its ligand CXCL12. This signaling pathway has been shown to play an important role in regulating breast cancer progression and metastasis.
Methodology/Principal Findings
We observed high expression of both CB2 and CXCR4 receptors in breast cancer patient tissues by immunohistochemical analysis. We further found that CB2-specific agonist JWH-015 inhibits the CXCL12-induced chemotaxis and wound healing of MCF7 overexpressing CXCR4 (MCF7/CXCR4), highly metastatic clone of MDA-MB-231 (SCP2) and NT 2.5 cells (derived from MMTV-neu) by using chemotactic and wound healing assays. Elucidation of the molecular mechanisms using various biochemical techniques and confocal microscopy revealed that JWH-015 treatment inhibited CXCL12-induced P44/P42 ERK activation, cytoskeletal focal adhesion and stress fiber formation, which play a critical role in breast cancer invasion and metastasis. In addition, we have shown that JWH-015 significantly inhibits orthotopic tumor growth in syngenic mice in vivo using NT 2.5 cells. Furthermore, our studies have revealed that JWH-015 significantly inhibits phosphorylation of CXCR4 and its downstream signaling in vivo in orthotopic and spontaneous breast cancer MMTV-PyMT mouse model systems.
Conclusions/Significance
This study provides novel insights into the crosstalk between CB2 and CXCR4/CXCL12-signaling pathways in the modulation of breast tumor growth and metastasis. Furthermore, these studies indicate that CB2 receptors could be used for developing innovative therapeutic strategies against breast cancer.
Introduction
Cannabinoids exert their effects by binding with two heptahelical Gαi/Gαo-protein-coupled receptors, CB1 and CB2. CB1 receptors are expressed predominantly in the central nervous system, whereas CB2 receptor is mainly expressed by the cells of the immune system [1], [2]. Many selective agonists which have significantly higher affinities for their specific receptors have been developed. CB1-specific agonists include synthetic cannabinoids methanandamide (Met-f-AEA), arachidonylcyclopropylamide (ACPA), and arachidonyl-2-chloroethylamide (ACEA), whereas synthetic cannabinoids JWH-015 and JWH-133 specifically bind to cannabinoid receptor CB2. Cannabinoids have been shown to inhibit proliferation and growth of various cancers including breast, liver, prostate, skin, and lung in in vitro and in vivo mouse models [3], [4], [5], [6], [7]. Cannabinoids have also been shown to directly induce apoptosis by causing cell cycle arrest in neoplastic cells [8], [9]. Furthermore, experimental evidence has shown that cannabinoids may also inhibit angiogenesis in vitro and in vivo [3], [5], [7], [10], [11], [12], [13]. Although cannabinoid receptors have been shown to modulate several signaling pathways involved in the control of cell survival, not much is known about their role in the regulation of chemokine receptor CXCR4-mediated signaling in tumors [5], [6], [14].
Chemokine receptor CXCR4 is a seven membrane spanning G-protein coupled receptor and has been shown to be overexpressed on various malignant cancers including breast cancer [15], [16]. CXCR4 binds to its cognate ligand CXCL12, also known as stromal-derived factor 1-α (SDF1α). The CXCR4/CXCL12 receptor axis has been shown to play an important role in metastasis of CXCR4-expressing tumor cells to organs and tissues that produce high amounts of CXCL12 such as the liver, bone, lymph nodes, lungs, and brain [17], [18], [19]. Overexpression of CXCR4 is associated with metastasis and poor prognosis of breast cancer [20], [21], [22], [23], [24], [25]. CXCR4/CXCL12 axis has been shown to enhance tumor growth by modulating tumor stroma through activation of cancer-associated fibroblasts and recruitment of CXCR4-positive endothelial precursor cells, thereby enhancing angiogenesis [26]. Targeting CXCR4 with neutralizing antibodies and small molecule antagonists has been shown to inhibit breast tumor growth and metastasis in vitro and in vivo [19], [27], [28], [29], [30].
CXCL12/CXCR4 signaling axis has also been shown to modulate focal adhesion complexes which regulate cell migration [31]. Focal adhesions are the primary links between the cell and the extracellular matrix (ECM), formed by focal adhesion kinase (FAK) and vinculin, which connect integrins to the actin cytoskeleton [32]. Appropriate regulation of fiber association and disassociation, mediated by FAK and vinculin, is important for controlling cellular migration and signaling [32]. Actin stress fibers are anchored in focal adhesions and are responsible for cell traction and ECM reorganization [33].
In the present study, we have analyzed the effects of synthetic non-psychoactive cannabinoid JWH-015 that specifically binds to CB2 receptors on breast cancer and have shown that this compound inhibits CXCL12/CXCR4-induced breast cancer invasive properties in vitro. In addition, we have shown that it inhibits growth in in vivo mouse model systems. Furthermore, our signaling studies in breast cancer cell lines as well as in tumors derived from experimental mice have revealed that synthetic cannabinoids inhibit tumorigenesis by suppressing the phosphorylation of CXCR4 and its downstream target, ERK. This study provides novel insights about anti-tumorigenic effects of CB2 receptors in breast cancer through modulation of CXCR4/CXCL12 signaling axis. Furthermore, these studies suggest that CB2 could be developed as a potential therapeutic target against breast cancer growth and metastasis.
Materials and Methods
Reagents and antibodies
Cell culture reagents were purchased from Gibco Laboratories (Grand Island, NY). The following reagents and antibodies used in this study were purchased from different sources: anti-CB2 (Affinity Bioreagents, Golden, CO, USA); JWH-015 (Tocris Cookson, Ellisville, MO); human CXCL12 and murine CXCL12 (Peprotech); vinculin (Sigma); pCXCR4/CXCR4 (Abcam); pERK/ERK (Santa Cruz); Phalloidin-568 (Invitrogen); and Ki67 (NeoMarkers).
Cell culture
MCF-7/CXCR4 (kindly provided by Dr. Ann Richmond, Vanderbilt University School of Medicine, Nashville, TN) [34] and SCP2, a subclone of MDA-MB-231 cells (kindly provided by Dr. Joan Massagué, Memorial Sloan-Kettering Cancer Center, New York, NY) [35], and NT2.5 cells (obtained from Dr. Gustavo Leone laboratory, The Ohio State University) [36] were cultured in DMEM containing 10% heat-inactivated fetal bovine serum (FBS), 5 units/mL penicillin, and 5 mg/mL streptomycin.
Western blot analysis
Cells plated in 100 cm2 dishes were lysed in lysis buffer (50 mM Tris–HCl, 150 mM NaCl, 0.5% Triton X-100, 0.5% deossicolic acid, 10 mg/ml leupeptin, 2 mM phenylmethylsulfonyl fluoride, 10 mg/ml aprotinin) and tumor samples were homogenized in cell lysis buffer (Cell Signaling Technologies, Beverly, MA, USA). 50 µg of proteins was loaded on 4–12% SDS–polyacrylamide gels (Invitrogen) under reducing conditions, transferred to nitrocellulose membranes (BioRad) and blocked with 5% milk. Membranes were incubated overnight with primary antibody, washed three times, and incubated for 1 h at RT with horseradish peroxidase-conjugated secondary antibody. The membranes then were washed and stained using a chemiluminescence system (ECL-Amersham Biosciences) and exposed to X-ray film (Kodak).
Confocal Microscopy
Confocal microscopy was carried out as described previously [4], [5]. Briefly, cells were plated on 2-mm glass coverslips coated with 15 mg/ml of poly-L-lysine and cultured in complete DMEM for 24 h. After treatment with JWH-015 and stimulation with CXCL12, cells were fixed with 4% paraformaldehyde, blocked with 5% normal goat serum for 60 min, incubated in FITC-labeled anti-vinculin (Sigma) or Phalloidin-568 for 2 h at RT. Images were acquired using Leica Axiovert S100 TV microscope (Carl Zeiss, Oberkochen, Germany).
Chemotactic Assays
Chemotactic assays were performed using transwell chambers (Costar 8.0 µm pore size) as described previously [4], [5]. Briefly, serum starved MCF-7/CXCR4, SCP2 and NT2.5 cells were pretreated with JWH-015 or vehicle (20 µM) overnight. Top chambers were loaded with 150 µL of 1×106 cells/ml in serum-free medium and bottom chambers contained serum-free medium in the presence or absence of CXCL12 (100 ng/ml). Cells that migrated across the membrane after 6 h were counted by fixing in 37% formaldehyde and 25% glutaraldehyde in PBS and staining with 0.1% crystal violet in PBS for 30 minutes. The number of migratory cells per membrane was measured by light microscopy, counted in 5 fields and the percentage of migration determined.
Wound healing Assay
Wound healing assays were performed as described previously [4]. Briefly, cells were grown to 70% confluence in complete DMEM. Monolayers were wounded by scratching with a sterile plastic 200 µL micropipette tip, washed, and incubated in DMEM with 0.1% FBS in the presence or absence of JWH-015 or vehicle and CXCL12 (100 ng/ml). After 18 or 24 h, cells were fixed with 4% paraformaldehyde in PBS for 5 min at RT and photographed using a low-magnification phase-contrast microscope. The extent of migration into the wound area was evaluated qualitatively using ImageJ software.
Flow cytometry assay
Cells were grown in 6-well plates for 24 h, incubated in 2 mM EDTA, removed from plates, and fixed with ice cold 70% ethanol in PBS. After centrifugation, pellets were resuspended and stained with primary antibodies for 30 min. Samples were analyzed by flow cytometry (BD FACS Calibur) at RT in the dark.
Animal Studies
In vivo experiments were done in compliance with the guidelines and protocols approved by Institutional Animal Care and Use Committee of The Ohio State University (2007A0233-R1). FVB mice (Charles River Laboratories Inc.) were used for orthotopic tumor studies at 4 to 6 wk of age. Tumors were induced by injecting NT 2.5 cells 3×106 (100 µL) into the #4 mammary gland of FVB mice. When tumors were palpable, the animals were assigned randomly to various groups (n = 5) and injected peritumorally with JWH-015 (5 mg/kg) or vehicle on alternate days for 4 wk. Tumors were measured every wk with external calipers and tumor volume was calculated according to the formula V = 0.52×a 2×b, where a is the smallest superficial diameter and b is the largest superficial diameter [5], [37].
Female heterozygous PyMT mice (n = 5) were treated either with JWH-015 (5 mg/kg body weight) or vehicle, daily for 28 days. After 8 wk, mice were sacrificed and tumors were dissected, weighed, and divided into pieces, which were snap frozen in liquid nitrogen for protein analysis [5].
Immunohistochemistry
Tissue microarrays from paraffin-embedded formalin fixed breast cancer tissue specimens were prepared as described earlier [5]. These tissue microarrays were obtained from the Human Tissue Resource Network, Department of Pathology, The Ohio State University. Samples were stained with CXCR4 antibody (Abcam) in a 1∶100 dilution and CB2 antibody (Affinity Bio-Reagent) in a 1∶200 dilution and detected using a kit (Vector Laboratories) as described earlier [5]. Slides were visualized with 3,3′-diaminobenzidine chromogen for the intensity and analysis of CXCR4 and CB2 expression.
Samples from tumor xenografts of mice were dissected, embedded in OCT (Tissue-Tek) and stained using standard immunohistochemistry techniques as per the manufacturer's recommendation (Vector Laboratories), using the primary antibody against Ki-67 (Neomarkers) at a dilution of 1∶100. Slides were stained with secondary antibodies and detected as described earlier [4], [5].
Statistical analysis
Student's two-tailed t test was used to compare vehicle and cannabinoid-treated groups. p<0.05 was considered to be statistically significant. For all graphs, *indicates P<0.05; **indicates P<0.01.
Results
Primary breast cancer tissues express CB2 and CXCR4

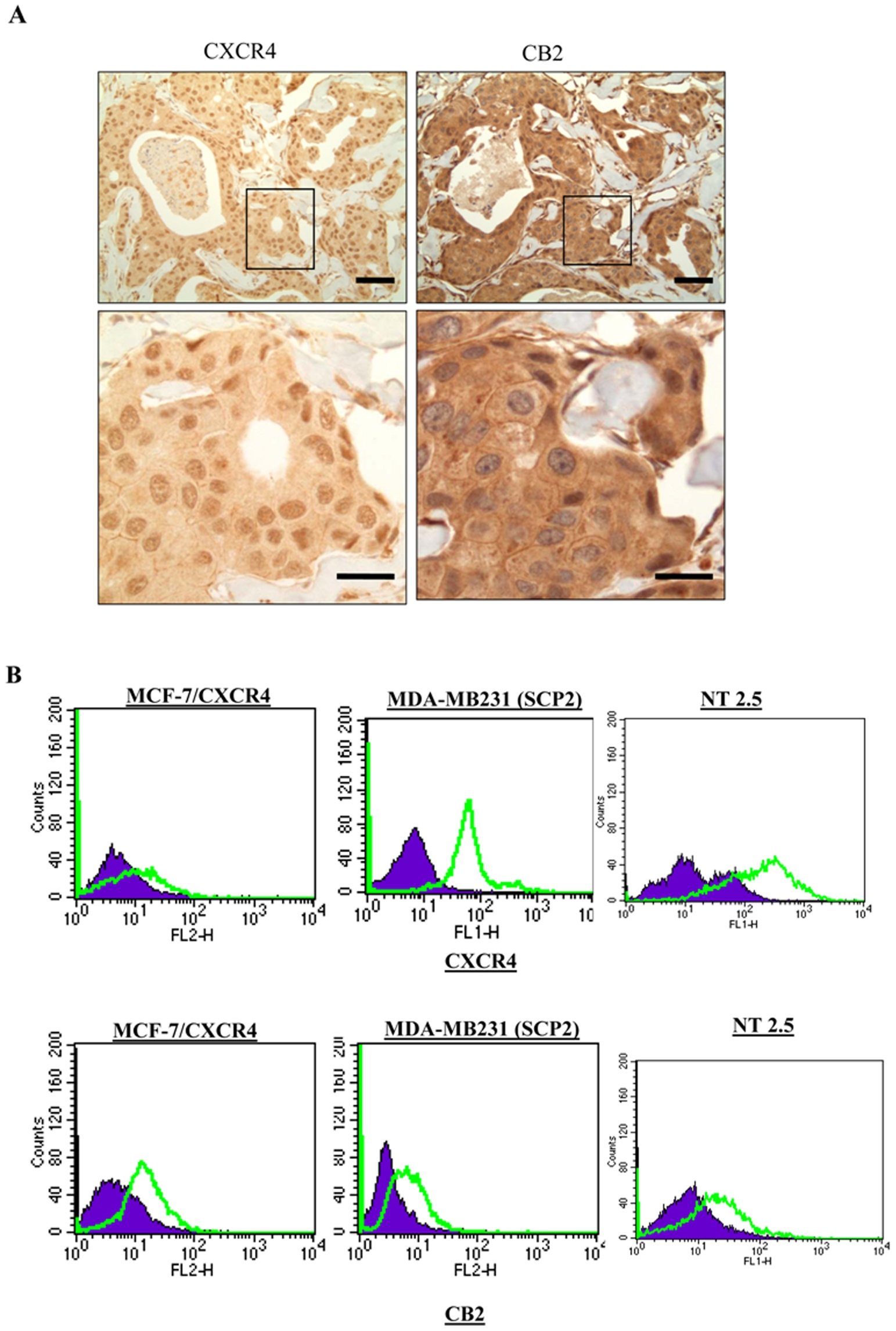

Cannabinoids have been shown to exert their effects through cannabinoid receptors CB1 and CB2. However, not much is known about the role of CB2 receptors in modulating CXCR4-mediated effects in breast cancer. To elucidate the role of CB2 and CXCR4 in breast cancer, we assessed their expression in tumor samples from 82 breast cancer patients using tissue microarrays. We observed expression of CB2 (58%) and CXCR4 (90%) in these cases (Fig. 1A). In addition, MCF-7/CXCR4 (MCF-7 overexpressing CXCR4), SCP2 (highly metastatic MDA-MB-231 clone), and NT 2.5 cells (derived from MMTV-neu mice) were shown to express both CXCR4 and CB2 (Fig. 1B) by Flow cytometry.
CB2 agonist JWH-015 inhibits CXCL12-induced migration and invasion of breast cancer cells

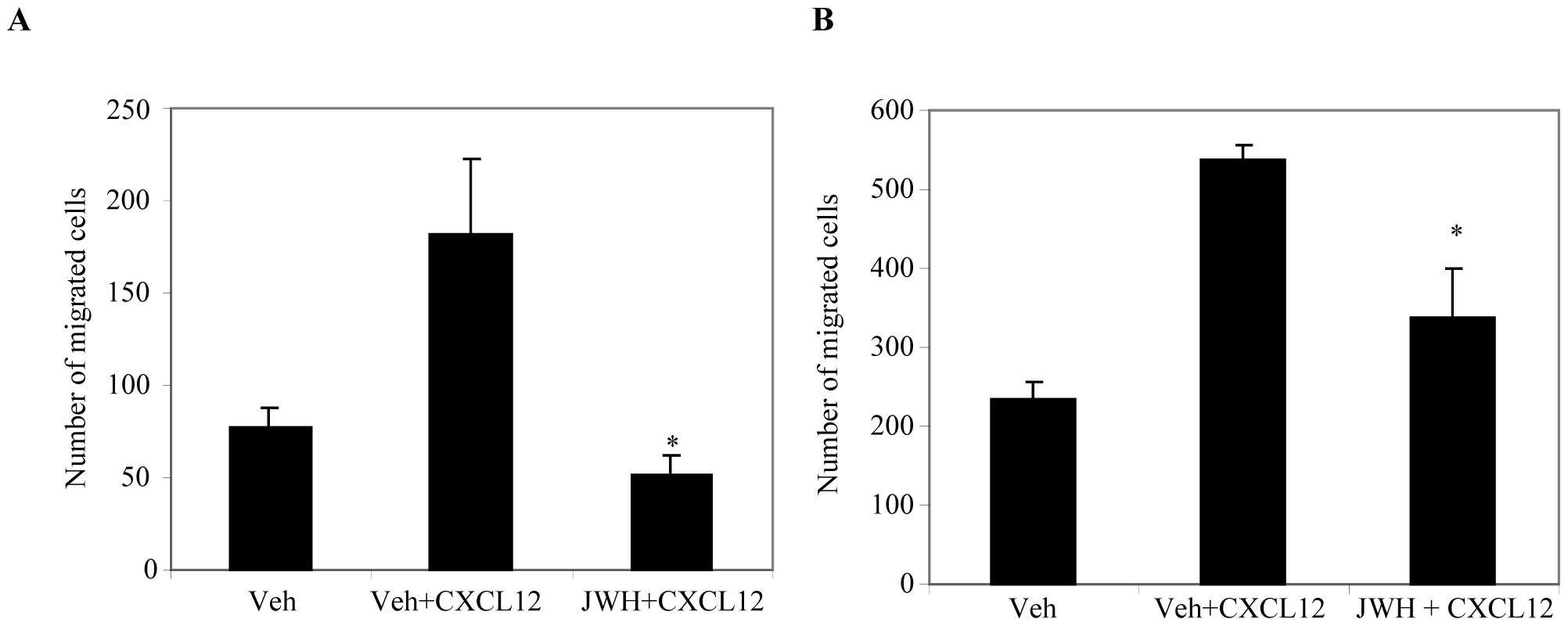

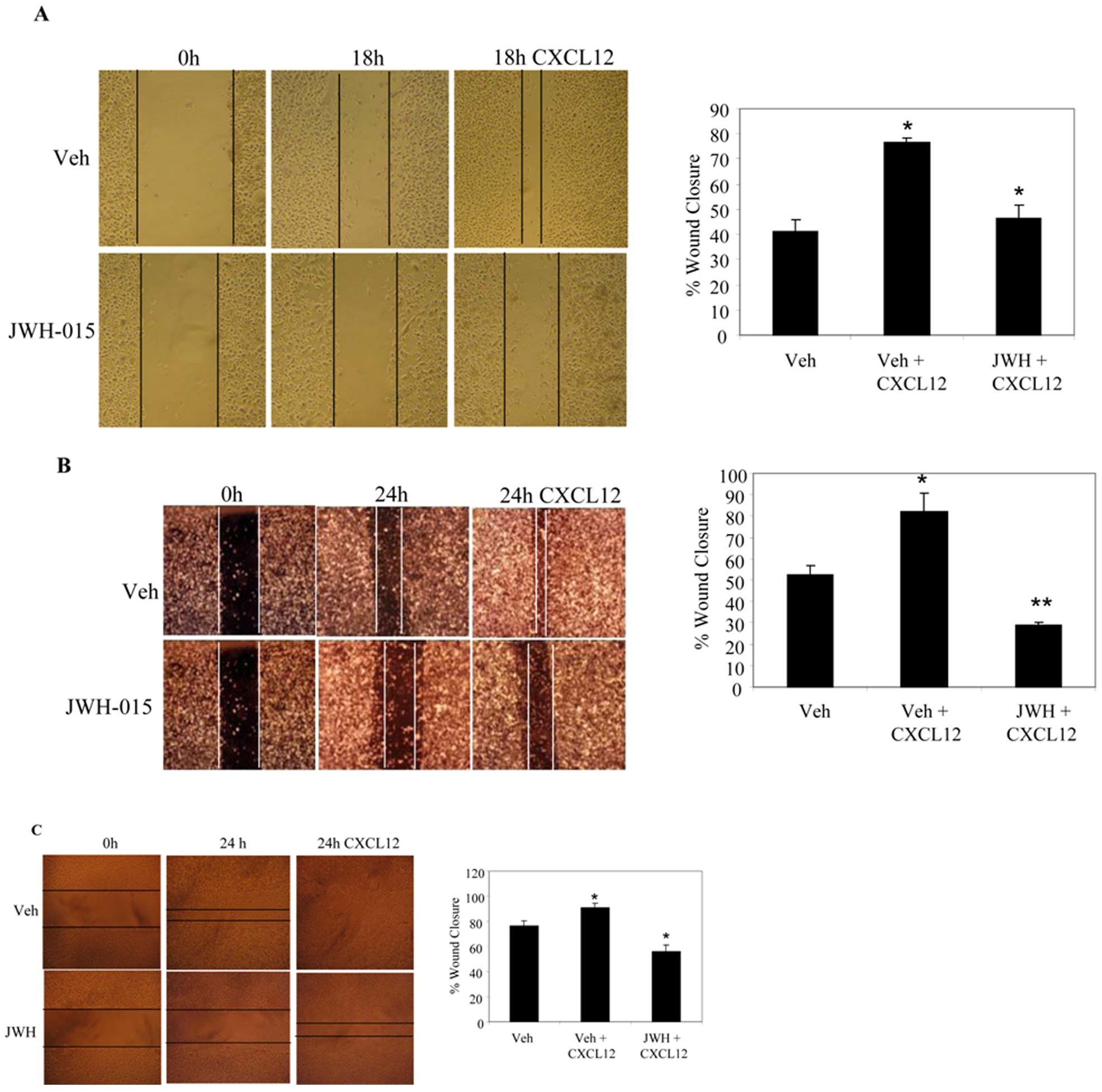

CXCR4/CXCL12 signaling axis has been shown to promote migration and invasion of breast cancer cells to distant sites of metastasis such as the lung, brain, bone, lymph nodes, and liver [19], [31], [38]. Hence, to evaluate the potential of CB2 as a possible therapeutic target, the effect of CB2 agonist JWH-015 on CXCL12-induced cell migration was investigated. As shown in Fig. 2, JWH-015 (20 µM) showed significant inhibition of CXCL12-induced migration of MCF-7/CXCR4 and SCP2 cells. We further analyzed the effect of JWH-015 on CXCL12-induced invasion using wound healing assays. We observed a significant inhibition of CXCL12-induced wound healing in MCF-7/CXCR4, SCP2, and NT 2.5 after overnight pretreatment with JWH-015 (20 µM) compared to the vehicle-treated cells (Fig. 3). Thus these results suggest that CB2 receptor specific agonists significantly reduced CXCL12/CXCR4-induced migration and invasion of breast cancer cells.
CB2 agonist JWH-015 inhibits CXCR4/CXCL12-mediated signaling in breast cancer cells

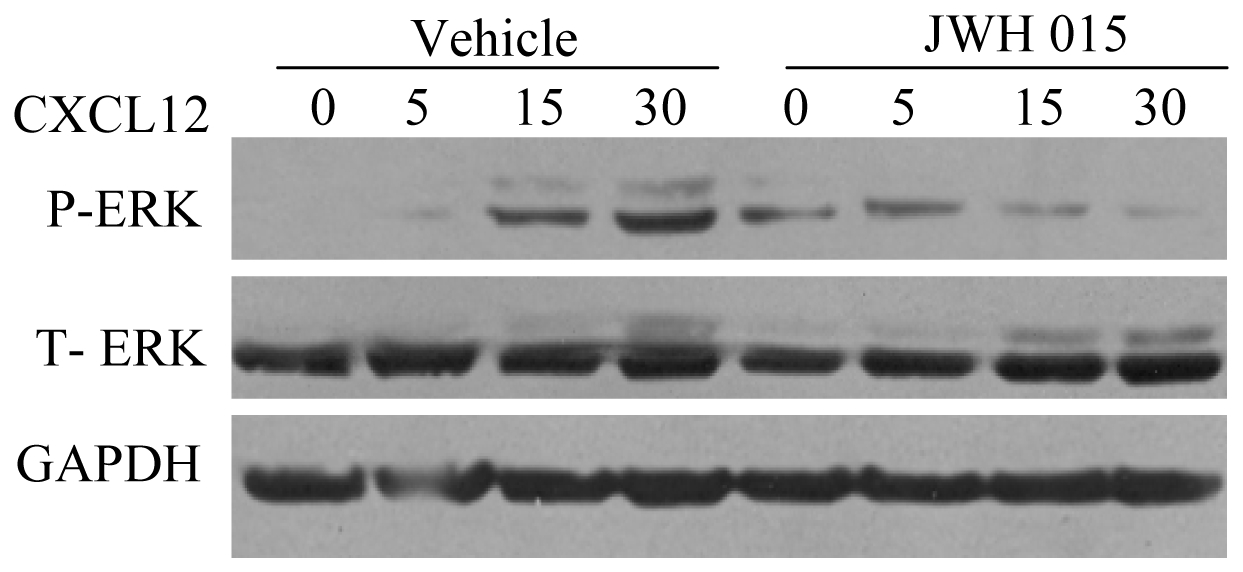

CXCR4/CXCL12 has been shown to induce growth and migration of different types of cells by activating various signaling pathways including activation of p44/p42 ERK [15], [34], [39]. We analyzed the effect of JWH-015 on CXCL12-induced signaling and observed that it inhibits phosphorylation of p44/p52 MAPK in SCP2 cells (Fig. 4).
CXCL12 has also been shown to modulate focal adhesion complexes which regulate cell migration [31]. We analyzed the effect of JWH-015 on CXCL12-induced focal adhesion formation and actin stress fiber formation in various breast cancer cell lines. As shown in Fig. 5A, JWH-015 inhibited focal adhesion formation as detected by changes in vinculin on the cellular membrane using immunofluorescence in MCF-7/CXCR4 cells. In addition, we observed that JWH-015 inhibited CXCL12-mediated actin stress fiber formation in SCP2 cells (Fig. 5B). These studies indicate that CB2-specific agonists may modulate cell migration by inhibiting actin stress fiber and focal adhesion formation.
CB2 agonist JWH-015 inhibits tumor growth in syngenic mouse models by downregulation of CXCR4-mediated signaling

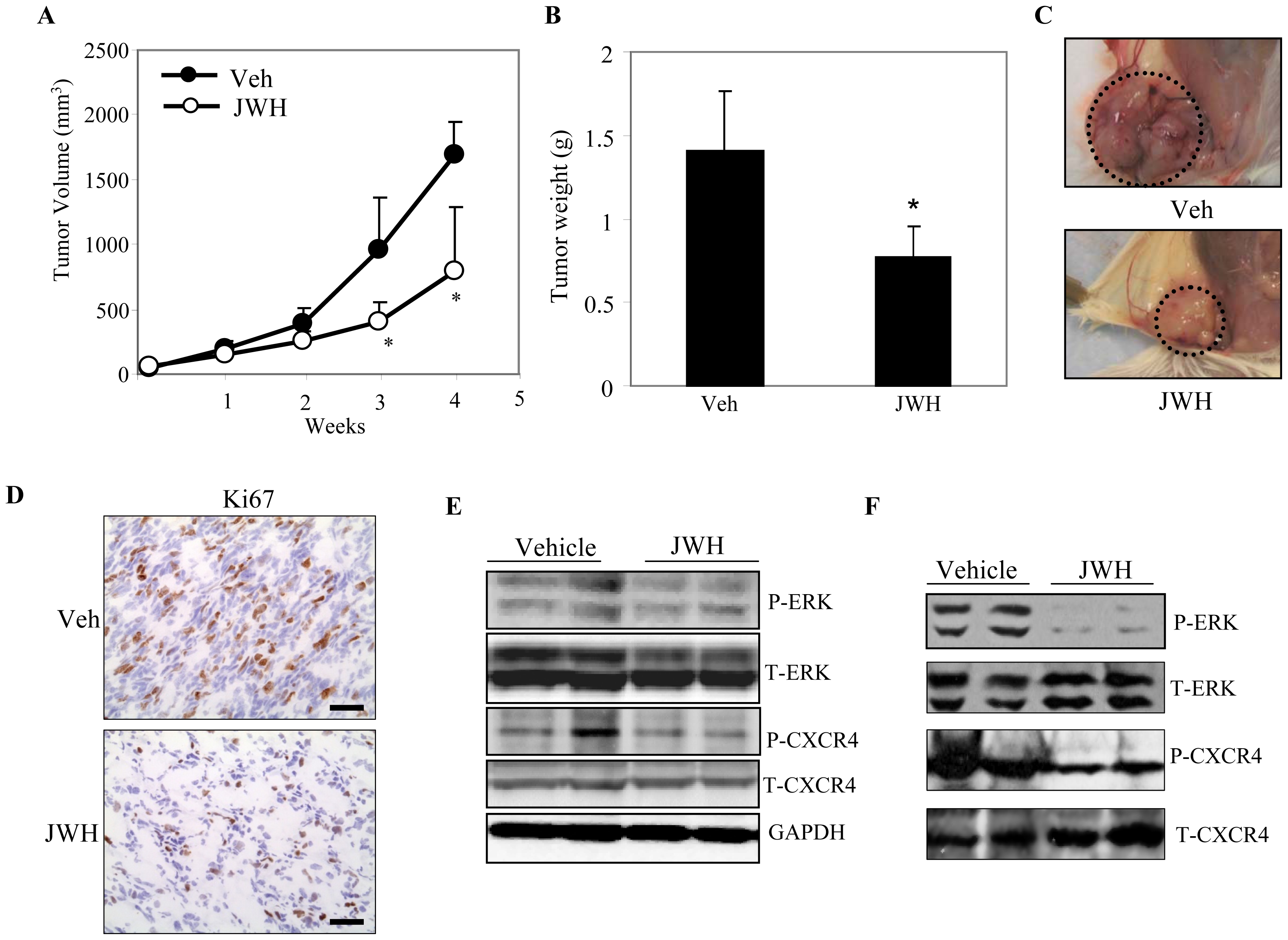

To further analyze the effect of CB2 agonists on in vivo growth and proliferation, we induced tumors by injecting NT 2.5 cells into syngenic (FVB) mice and treated them with JWH-015 or vehicle for 4 wk. NT 2.5 cells have been derived from MMTV-neu mouse models (FVB) and have been used for analyzing breast tumor growth in syngenic mouse models [36]. We observed a significant inhibition of tumor formation in JWH-015 treated mice compared to the vehicle treated group (Fig. 6A to C). In addition, there was a significant decrease in proliferation as indicated by downregulation of Ki67 (proliferation marker) immunostaining in JWH-015-treated compared to the vehicle-treated tumors (Fig. 6D) [40]. To further elucidate the mechanism of inhibition, we analyzed the tumors extracted from JWH-015 or vehicle treated mice. We observed a significant decrease in the phosphorylation of CXCR4 and ERK in tumors treated with JWH-015 compared to vehicle treated tumors (Fig. 6E). However, no change in total protein levels of ERK and CXCR4 were observed in JWH-015 compared to vehicle-treated tumors.
We have previously reported a delay and inhibition of highly aggressive spontaneous mammary tumor formation in transgenic PyMT mice after treatment with JWH-015 compared to the vehicle-treated group [5]. To further confirm the effect of JWH-015 on phosphorylation of ERK and CXCR4 in vivo, we analyzed the cell lysates of tumors derived from JWH-015 or vehicle-treated PyMT mice. We observed a significant decrease in the phosphorylation of CXCR4 and ERK in tumors extracted from JWH-015 treated mice compared to the vehicle treated group (Fig. 6F). Taken together, these results suggest that JWH-015 inhibits tumor growth in vivo. Furthermore, these studies indicate that the inhibition of tumorigenesis may be caused by a decrease of CXCR4 phosphorylation that may lead to lower ERK phosphorylation and thereby reduce proliferation.
Discussion
Breast cancer is the second leading cause of cancer death in women in the United States. Despite recent advances in hormonal therapies, mortality still remains high due to breast cancer metastasis to other organs. Synthetic cannabinoids that bind to cannabinoid receptors CB1 and CB2 have been shown to inhibit migration, metastasis, and invasion of various cell types including breast cancer cells [4], [5], [6], [37], [41]. However, not much is known about the mechanisms by which CB1 and CB2 mediate their inhibitory effects. The majority of breast cancers have been shown to overexpress chemokine receptor CXCR4, which has been correlated with poor prognosis [34]. Furthermore, high CXCR4 expression was also correlated to poor clinical outcome in triple negative breast cancers, which are difficult to treat [39], [42]. Here, we report for the first time that CB2 specific synthetic agonist inhibits CXCL12-induced migration and invasion of breast cancer cell lines in vitro. Furthermore, we have shown that this compound inhibits tumor growth in vivo and downmodulates CXCR4 phosphorylation and downstream signaling.
We observed expression of CXCR4 (90%) and CB2 (58%) in primary human tumor breast cancer samples by tissue microarray analysis. We also found that both CXCR4 and CB2 receptors are expressed on various breast cancer cell lines, including the highly invasive triple negative breast cancer cell line SCP2. Although CXCR4 and CB2 have previously been shown to be expressed by breast cancer tissues, this is the first report showing co-expression of these receptors on breast cancer tissues and cells.
CXCR4 and its cognate ligand CXCL12 have been shown to play an important role in regulating metastasis of breast cancer to specific organs [19], [39], [43]. Our results show that CB2 agonist JWH-015 significantly inhibits CXCL12-induced cell migration and wound healing in breast cancer cells. Previously, CB2 agonists have been shown to modulate CXCL12-induced migration of T-cells [44]. Wound healing and cell migration have been shown to play an important role in regulating breast cancer cell metastasis. These results suggest that CB2 receptor activation may modulate breast cancer metastasis by inhibiting the CXCR4/CXCL12 signaling axis.
The molecular mechanisms involved in CB2-mediated inhibition of migration/invasion induced by CXCR4/CXCL12 are not well characterized. We have shown that JWH-015 inhibits CXCL12-induced phosphorylation of p44/p42 ERK in breast cancer cells. CXCL12 has been shown to induce various signaling pathways including p44/p42 ERK in breast cancer and other cell types [15], [34], [39], [45], [46], [47], [48], [49]. Previously, ERK has been shown to regulate migration of several cell types [47], [50]. We also observed that JWH-015 inhibits CXCL12-induced focal adhesion formation along with a decrease in actin stress fibers in breast cancer cells. Focal adhesions and actin stress fibers have been shown to play an important role in cell migration and metastasis [51], [52]. Focal adhesions contain transmembrane integrin receptors that join the ECM to actin stress fibers [32], [33], [51]. Actin stress fibers are anchored in focal adhesions and are responsible for cell traction and ECM reorganization [33]. The actin cytoskeleton plays an important role in defining cell shape, morphology, and regulating cellular migration. FAK and vinculin are responsible for focal adhesion turnover and can be monitored for altered cellular behavior [32], [51]. Inhibition of FAK and vinculin causes a significant decrease in normal cell spreading and migration of breast cancer cells [32]. Increased actin stress fiber polymerization has been correlated with enhanced cell wound healing and motility [53]. Our results suggest that JWH-015-mediated effects of p44/p42 ERK, focal adhesion formation, and actin stress fiber polymerization may lead to reduced CXCL12-induced motility and wound healing capability of breast cancer cells.
Mouse models are valuable tools for exploring and understanding molecular mechanisms of breast cancer progression and metastasis. In this study we used syngenic MMTV-neu mouse models to analyze the effect of JWH-015 on breast cancer tumor growth in vivo. We observed a significant reduction in orthotopic tumor growth in mice treated with JWH-015 compared to vehicle controls. These studies are consistent with previous studies using PyMT and MMTV-neu transgenic mouse models for breast cancer [5], [41]. We showed that JWH-015 significantly inhibits breast cancer growth and proliferation in mice injected with NT 2.5 cells. Further, analyses of tumors derived from syngenic and PyMT transgenic mouse models indicated that JWH-015 inhibited phosphorylation of CXCR4 and ERK without decreasing total protein expression. This is the first report indicating that CB2 agonist JWH-015 inhibits CXCR4 phosphorylation in vivo. These studies suggest that CB2 may crosstalk with CXCR4 receptors to downregulate their signaling mechanisms.
The results of this study suggest that CB2-specific non-psychoactive synthetic cannabinoid JWH-015 inhibits CXCL12-induced migration and invasive properties of breast cancer cells. Furthermore, elucidation of signaling mechanisms reveals that JWH-015 inhibits CXCL12-induced CXCR4 and ERK phosphorylation, focal adhesion formation and actin stress fiber polymerization. Thus, we conclude that CB2-specific synthetic cannabinoids that do not possess psychoactivity can be developed to design novel therapies against breast cancer growth and metastasis by blocking CXCR4/CXCL12-induced signaling.
Acknowledgements
We thank Komal Rombani and Terrence Tung for technical help.
