In Vitro Metabolite Profiling of ADB-FUBINACA, A New Synthetic Cannabinoid
aChemistry and Drug Metabolism Section, Clinical Pharmacology and Therapeutics Branch, Intramural Research Program, National Institute on Drug Abuse, National Institutes of Health, 251 Bayview Blvd, Suite 200 Room 05A727, Baltimore, MD 21224, USA;
bNational Board of Forensic Medicine, Linköping, Sweden. Division of Drug Research, Department of Medical and Health Sciences, Linköping University, Linköping, Sweden;
c University of Maryland School of Medicine, Baltimore, MD 21224, USA
*Address correspondence to this author at the Chemistry and Drug Metabolism Section, Clinical Pharmacology and Therapeutics Branch, Intramural Research Program, National Institute on Drug Abuse, National Institutes of Health, 251 Bayview Blvd, Suite 200 Room 05A727, Baltimore, MD 21224, USA; University of Maryland School of Medicine, Baltimore, MD 21224, USA; Tel: +1-443-740-2527; Fax: +1-443-740-2823;, E-mail: marilyn.huestis@gmail.comAbstract
Metabolite profiling of novel psychoactive substances (NPS) is critical for documenting drug consumption. N-(1-amino-3,3-dimethyl-1-oxobutan-2-yl)-1-(4-fluorobenzyl)-1H-indazole-3-carboxamide (ADB-FUBINACA) is an emerging synthetic cannabinoid whose toxicological and metabolic data are currently unavailable. We aimed to determine optimal markers for identifying ADB-FUBINACA intake. Metabolic stability was evaluated with human liver microsome incubations. Metabolites were identified after 1 and 3 h incubation with pooled human hepatocytes, liquid chromatography- high resolution mass spectrometry in positive-ion mode (5600+ TripleTOF®, Sciex) and several data mining approaches (MetabolitePilot™, Sciex). Metabolite separation was achieved on an Ultra Biphenyl column (Restek®); full-scan TOF-MS and information-dependent acquisition MS/MS data were acquired. ADB-FUBINACA microsomal half-life was 39.7 min, with a predicted hepatic clearance of 9.0 mL/min/kg and a 0.5 extraction ratio (intermediate-clearance drug). Twenty-three metabolites were identified. Major metabolic pathways were alkyl and indazole hydroxylation, terminal amide hydrolysis, subsequent glucuronide conjugations, and dehydrogenation. We recommend ADB-FUBINACA hydroxyalkyl, hydroxydehydroalkyl and hydroxylindazole metabolites as ADB-FUBINACA intake markers. N-dealkylated metabolites are not specific ADB-FUBINACA metabolites and should not be used as definitive markers of consumption. This is the first ADB-FUBINACA in vitro metabolism study; in vivo experiments enabling pharmacokinetic and pharmacodynamics studies or urine from authentic clinical/forensic cases are needed to confirm our results.
1INTRODUCTION
Synthetic cannabinoids (SCs) are novel psychoactive substances (NPS) eliciting cannabimimetic psychoactive effects [1]. SCs were originally produced for biomedical research but now are abused, leading many countries to schedule these drugs as controlled substances [2-5]. Clandestine laboratories continue producing new compounds that mimic effects of scheduled NPS to circumvent legislation. More than 130 SCs were identified to date [6]. Little pharmacological or toxicological data are available when substances first appear. Analytical methods require constant updating, and pharmacodynamic and pharmacokinetic studies must be conducted for the continual emergence of NPS. With its patent filed only in 2009, ADB-FUBINACA, N-(1-amino-3,3-dimethyl-1-oxobutan-2-yl)-1-(4-fluorobenzyl)-1H-indazole-3-carboxamide (Fig. 1) is one of the newest SC [7]. In 2013, the drug was identified for the first time in illegal herbal blends in Japan, in association with two other SCs ADBICA and XLR-11 [8]. The drug was reported for the first time in Europe in the same year in Hungary [6] as Facebook logo shaped tablets, and in biological samples from patients who swallowed or crushed and insufflated the product [9, 10].

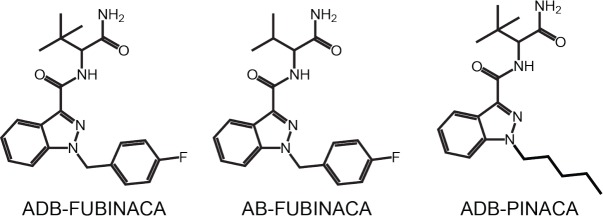

There are currently no in vivo human or animal ADB-FUBINACA pharmacodynamic data. In vitro experiments demonstrated potent CB1 cannabinoid receptor binding (Ki = 0.36 nM, EC50 = 0.98 – 1.2 nM) [7, 11] and CB2 (EC50 = 3.5 nM) [11]. CB1 binding affinity that correlates with cannabinoid psychoactive effects [12] is 140 times stronger than for THC, comparable to other indole and indazole SCs with an aminomethylbutanamide or aminodimethylbutanamide structure [11]. Affinity for CB1 receptors is slightly lower for the desmethyl and indole analogs, AB-FUBINACA (scheduled) [13] and ADB-FUBICA, and higher with the N-pentyl and N-fluoropentyl analogs, ADB-PINACA (scheduled) [13] and 5F-ADB-PINACA [11]. ADB-FUBINACA reportedly produces drowsiness, respiratory deprivation, CO2 retention, hypotonia, hypothermia, vomiting, sinus tachycardia, mydriasis, extrapyramidal movement disorder, hyperkinesis, acoustic and visual hallucinations, agitation and mixed symptoms [2, 10]. Structural analogs were involved in several intoxication and fatalities [14-19], with the first ADB-FUBINACA death reported in 2016 [20].
ADB-FUBINACA pharmacodynamic and pharmaco-kinetic studies are still lacking. Many SCs are active at low doses and extensively metabolized with little to no parent compound found in urine, making urinary metabolite detection critical for documenting consumption in forensic and clinical cases [21-25]. One ADB-FUBINACA human liver microsome (HLM) in vitro metabolism study identified a single hydroxyalkyl metabolite [26]. Identifying the SC responsible for resultant toxicities also is important for educating the public on the drug’s dangers.
Our aim was to determine ADB-FUBINACA human metabolism to improve analytical identification of this new SC in biological samples. In vitro HLM [27-29] and human hepatocytes incubations [30-33] with high resolution mass spectrometry (HRMS) analysis proved useful for predicting human SC metabolism. Human hepatocytes contain all required hepatic metabolic enzymes and endogenous cofactors and provide the natural orientation of membrane enzymes, better predicting metabolite production in in vivo conditions than enzymes alone or HLM [34].
2EXPERIMENTAL
2.1Chemicals and Reagents
ADB-FUBINACA and diclofenac standards were purchased from Cayman Chemical (Ann Arbor, MI, USA) and Toronto Research Chemicals (Toronto, Canada) respectively. LC-MS grade water, methanol, and formic acid (Optima™ LC/MS) were acquired from Fisher Scientific (Fair Lawn, NJ, USA), and trypan blue and LC-MS grade acetonitrile from Sigma-Aldrich® (St. Louis, MT, USA). Distilled water was produced by an ELGA PURELAB® Ultra Analytic purifier (Siemens Water Technologies, Lowell, MA, USA). Fifty-donor pooled HLM, ten-donor-pooled cryopreserved human hepatocytes, InVitroGRO™ hepatocyte thawing (HT) medium, and InVitroGRO™ Krebs-Henseleit buffer (KHB) were obtained from BioreclamationIVT (Westbury, NY, USA). Solutions A (NADPH regeneration system) and B (glucose-6-phosphate dehydrogenase) were purchased from BD Biosciences (San Jose, CA, USA).
3RESULTS
4DISCUSSION
CONCLUSION

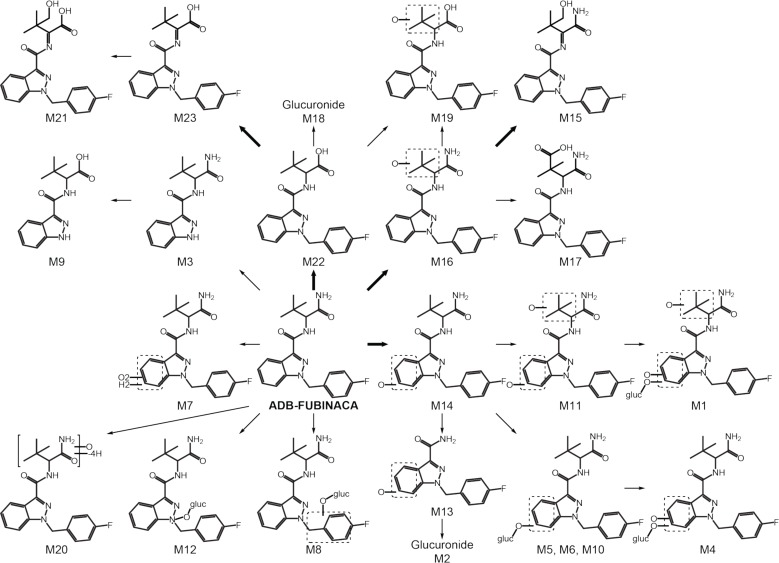

The first ADB-FUBINACA metabolic profile is presented. ADB-FUBINACA pharmacokinetics were determined in human liver microsomes: ADB-FUBINACA was predicted as an intermediate-clearance compound with a 37.9 min microsomal half-life. ADB-FUBINACA metabolism was studied following human hepatocyte incubations: 23 meta-bolites were detected; M16 (ADB-FUBINACA hydroxyalkyl), M15 (ADB-FUBINACA hydroxydehydroalkyl) and M14 (ADB-FUBINACA hydroxylindazole) were detected with the most intense MS signals and are suggested as ADB-FUBINACA markers. Urine hydrolysis should be performed to improve detection capability.
Experiments were conducted to improve ADB-FUBINACA metabolite identification in human matrices for forensic or clinical cases. Identification of major metabolite markers is critical to guide synthesis efforts of manufacturers to provide suitable analytical standards and for further pharmacodynamic and pharmacokinetic studies. In the past, HLM and hepatocyte incubation approaches proved useful to predict human metabolism [27-33]. However, in vivo data are necessary to confirm results.
ACKNOWLEDGEMENTS
The authors would like to thank Tim Moeller of Bioreclamation IVT for his assistance with the incubations. This research was supported by the Intramural Research Program of the National Institute on Drug Abuse, National Institutes of Health.
SUPPLEMENTARY MATERIAL
CONFLICT OF INTEREST
The authors confirm that they do not have any conflicts of interest with this article contents.
| Parent Compound | ADB-FUBINACA |
|---|---|
| Formula | C21H23N4O2F |
| Theoretical m/z (positive mode) | 383.1878 |
| Biotransformations | |
| C7H5F loss, C6H11NO loss, C6H12N2O loss, NH loss, amide hydrolysis, carboxylation, defluorination, defluorobenzylation, desaturation, glucuronidation, glutathione conjugation, hydrogenation, amide hydrolysis to carboxylic acid, internal hydrolysis, ketone formation, hydroxylation, sulfation, and combinations | |
| Chromatographic parameters | |
| Min peak width | 2.5 s |
| Min chromatographic intensity | 500 cps |
| Retention time window | 1 to 13 min |
| MS parameters | |
| m/z tolerance | 50 ppm |
| Min MS peak intensity | 100 cps |
| Mass range window | 150 to 800 m/z |
| Isotopic pattern intensity tolerance | 20% |
| Isotopic pattern m/z tolerance | 25 ppm |
| MS/MS parameters | |
| m/z tolerance | 50 ppm |
| Min MS/MS peak intensity | 50 cps |
| Characteristic product ions | Find at least 1 |
| Neutral loss | Find at least 1 |
| ID | Biotransformation | [M+H]+ | RT (min) | Elemental Composition | Mass Error (ppm) |
Diagnostic
Product Ions (m/z) | Incubation (1 h) | Incubation (3 h) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Peak Area | Rank | Peak Area | Rank | |||||||
| ADB-FUBINACA | 383.1890 | 6.58 | C21H23N4O2F | 3.3 | 109, 253, 270, 338, 366 | 4.8 x 106 | 2.3 x 106 | |||
| M1 | Aliphatic hydroxylation + indazole dihydroxylidation + glucuronidation | 607.2061 | 2.91 | C27H31N4O11F | 2.5 | 109, 285, 461, 590 | N.D. | 7.9 x 103 | 21 | |
| M2 | N-Dealkylation + indazole hydroxylidation + glucuronidation | 462.1314 | 3.53 | C21H20N3O8F | 1.5 | 109, 269, 286, 445 | 2.3 x 104 | 12 | 4.9 x 104 | 16 |
| M3 | Methylenefluorophenyl loss | 275.1509 | 3.65 | C14H18N4O2 | 2.5 | 145, 162, 230, 258 | 8.4 x 104 | 8 | 1.3 x 105 | 13 |
| M4 | Indazole dihydroxylation + glucuronidation | 591.2107 | 3.72 | C27H31N4O10F | 1.8 | 109, 267, 285, 370, 461, 546, 574 | 5.7 x 104 | 10 | 2.3 x 105 | 8 |
| M5 | Indazole hydroxylation + glucuronidation | 575.2160 | 3.86 | C27H31N4O9F | 2.1 | 109, 269, 354, 445, 530, 558 | 1.6 x 104 | 15 | 1.3 x 105 | 12 |
| M6 | Indazole hydroxylation + glucuronidation | 575.2159 | 3.93 | C27H31N4O9F | 2.0 | 109, 269, 354, 445, 530, 558 | 1.2 x 105 | 6 | 2.3 x 105 | 9 |
| M7 | Dihydrodiol formation | 417.1946 | 3.95 | C21H25N4O4F | 3.2 | 109, 241, 287, 372, 400 | 9.3 x 104 | 7 | 2.6 x 105 | 6 |
| M8 | Methylbenzene hydroxylation + glucuronidation | 575.2160 | 4.17 | C27H31N4O9F | 2.1 | 125, 145, 269, 354, 530, 558 | 8.4 x 104 | 9 | 1.7 x 105 | 11 |
| M9 | Methylenefluorophenyl loss + amide hydrolysis | 276.1350 | 4.42 | C14H17N3O3 | 2.5 | 145, 162, 230 | N.D. | 7.9 x 103 | 22 | |
| M10 | Indazole hydroxylation + glucuronidation | 575.2156 | 4.44 | C27H31N4O9F | 1.4 | 109, 269, 354, 445, 530, 558 | 2.0 x 104 | 14 | 5.2 x 104 | 15 |
| M11 | Aliphatic hydroxylation + indazole hydroxylation | 415.1791 | 4.48 | C21H23N4O4F | 3.6 | 109, 269, 340, 398 | 7.4 x 103 | 19 | 2.0 x 104 | 20 |
| M12 | N-hydroxylation + glucuronidation | 575.2154 | 4.69 | C27H31N4O9F | 1.0 | 109, 253, 324, 338, 382, 558 | 2.1 x 104 | 13 | 8.4 x 104 | 14 |
| M13 | N-Dealkylation + indazole hydroxylation | 286.0986 | 4.76 | C15H12N3O2F | 0.0 | 109, 269 | 6.1 x 103 | 20 | N.D. | |
| M14 | Indazole hydroxylation | 399.1836 | 5.45 | C21H23N4O3F | 2.2 | 109, 269, 286, 354 | 1.7 x 105 | 5 | 3.4 x 105 | 5 |
| M15 | Aliphatic hydroxylation + dehydrogenation | 397.1678 | 5.60 | C21H21N4O3F | 1.9 | 109, 253, 270, 324, 361 | 4.5 x 105 | 2 | 8.5 x 105 | 2 |
| M16 | Aliphatic hydroxylation | 399.1838 | 5.63 | C21H23N4O3F | 2.9 | 109, 253, 324, 382 | 1.6 x 106 | 1 | 1.7 x 106 | 1 |
| M17 | Aliphatic carboxylation | 413.1635 | 5.65 | C21H21N4O4F | 3.7 | 109, 253, 324, 368, 396 | 1.1 x 104 | 18 | 4.2 x 104 | 17 |
| M18 | Amide hydrolysis + glucuronidation | 560.2041 | 5.92 | C27H30N3O9F | 0.3 | 109, 253, 270, 338, 366, 384 | 1.5 x 104 | 16 | 3.2 x 104 | 19 |
| M19 | Amide hydrolysis + aliphatic hydroxylation | 400.1677 | 6.06 | C21H22N3O4F | 2.5 | 109, 253, 324 | 1.5 x 104 | 17 | 2.6 x 105 | 7 |
| M20 | Not identified (+O, -4H) | 395.1525 | 6.48 | C21H19N4O3F | 2.9 | 109, 253 | 5.4 x 104 | 11 | 2.0 x 105 | 10 |
| M21 | Amide hydrolysis + aliphatic hydroxylation + dehydrogenation | 398.1513 | 6.75 | C21H20N3O4F | 0.7 | 109, 253, 324, 352 | 3.1 x 103* | 21 | 3.3 x 104 | 18 |
| M22 | Amide hydrolysis | 384.1726 | 7.17 | C21H22N3O3F | 2.1 | 109, 253, 338 | 1.8 x 105 | 4 | 3.7 x 105 | 4 |
| M23 | Amide hydrolysis + dehydrogenation | 382.1572 | 7.43 | C21H20N3O3F | 2.7 | 109, 253, 324 | 1.8 x 105 | 3 | 6.6 x 105 | 3 |
