Magnetic resonance imaging features of bile duct adenoma
1 Department of Magnetic Resonance Imaging, The First Affiliated Hospital of Zhengzhou University, Zhengzhou, China
2 Magnetic Resonance Imaging (MRI) Collaboration, Siemens Healthcare Ltd., Beijing, China
3 Department of Magnetic Resonance Imaging, the First Affiliated Hospital of Henan Polytechnic University, Jiaozuo, Henan, China
*Correspondence: Jingjing Liu, liujingjing198631@126.com; Xuemei Gao, Gaoxuemei1964@163.comAbstract
Objectives
To evaluate the magnetic resonance imaging (MRI) features of bile duct adenoma.
Methods
The data of 28 patients [with 32 pathologically confirmed bile duct adenomas, including 15 with malignant change (malignant group) and 17 without malignant change (benign adenoma group)] were retrospectively reviewed. Abdominal MRI was performed for all patients; in addition, dynamic enhanced MRI was performed for 18 lesions. The MRI features, including lesion location, maximum size, morphology, signal characteristics, enhancement type, and appearance of the bile duct, were assessed by two abdominal radiologists. Apparent diffusion coefficient (ADC) values were measured and compared.
Results
Of the 32 bile duct adenomas, 22 (68.75%) involved the common bile duct (CBD). While 14/32 (43.75%) lesions presented as focal eccentric-type masses, 9/32 (28.13%) presented as plaque-like masses, 4/32 (12.50%) as bile duct casting masses, and 5/32 (15.62%) as infiltrative masses. A frond-like superficial appearance was seen in 8/32 (25%) lesions. Infiltrative masses were significantly more common in the malignant group than in the benign adenoma group (P = 0.015). While 23/32 (71.88%) lesions were isointense on T1-weighted imaging (T1WI), 24/32 (75%) were hyperintense on T2-weighted imaging (T2WI). Bile duct dilatation was present upstream of the lesion in all cases. Bile duct dilatation at the lesion was seen in 24/32 (75%) cases and downstream of the lesion in 6/32 (18.75%) cases. Of the 18 lesions that underwent dynamic enhanced MRI, 14 (77.78%) showed moderate enhancement and 13 (72.22%) showed persistent enhancement. On diffusion-weighted imaging (DWI), 27/32 (84.37%) lesions showed hyperintensity. Mean ADC value was comparable between the malignant group and the benign adenoma group (P = 0.156).
Conclusions
Bile duct adenoma primarily presents as intraductal growth in the CBD, usually with bile duct dilatation at the lesion site or upstream to it. Most lesions are isointense on T1WI, are hyperintense on T2WI and DWI, and show moderate enhancement. A superficial frond-like appearance of the lesion and bile duct dilatation at the lesion or downstream to it might be characteristics of bile duct adenoma. An infiltrative appearance might indicate malignant transformation.
Introduction
Benign tumors of the bile duct are rarer than malignant ones. Bile duct adenomas, first reported by Carrolli in 1959, account for two-thirds of all benign biliary tumors (1) and for 0.1% of all biliary tract surgeries (2). Bile duct adenomas arise from the bile duct epithelium. The incidence and pathogenesis remain unclear (3). Because of the risk of recurrence and progression to cholangiocarcinoma, curative resection is the treatment of choice for bile duct adenomas (4). However, preoperative diagnosis is difficult because clinical symptoms and laboratory tests are nonspecific (5). Definitive diagnosis requires pathological examination, which is invasive, and the materials used for pathological puncture are limited (6).
Magnetic resonance imaging (MRI), with its high soft-tissue resolution, is an important noninvasive modality for the diagnosis of hepatobiliary disease (7), but the MRI characteristics of bile duct adenoma have not yet been clearly defined. In the report on bile duct adenoma by Aslam et al. (8), the pictures show hypointensity on the T1-weighted image (T1WI) and hyperintensity on the T2-weighted image (T2WI), but the authors did not describe in detail the signal characteristics of bile duct adenomas.
The aim of this retrospective study was to analyze the MRI features of bile duct adenomas diagnosed at our center.
Methods
This cross-sectional retrospective study was approved by our hospital’s institutional review board, with a waiver of the need for informed consent.
Patients
The study sample was selected by searching our institution’s pathology database to identify all patients diagnosed with bile duct adenoma from the year 2008 to 2022. Patients were included in this study if they 1) were ≥18 years old and 2) had pathologically confirmed bile duct adenoma. Patients who did not undergo preoperative MRI and those with concurrent cholangiocarcinoma or history of liver surgery were excluded. A total of 28 patients (with 32 bile duct adenomas overall) met the eligibility criteria. The clinical data of the patients and the imaging features of the lesions were recorded.
Image acquisition
MRI was performed using a 3T MRI system (MAGNETOM Prisma, Siemens Healthcare, Erlangen, Germany) equipped with an 18-channel phased-array body coil. Patients were asked to abstain from solid food and water for 4–6 h before the imaging examination. The scan sequences included the following: 1) coronal T2WI (single-shot turbo spin-echo; TR = 1,400 ms; TE = 87 ms; refocusing flip angle = 150°; matrix size = 256 × 256; slice thickness/gap = 5.0/1.5 mm); 2) axial T2WI (fat-suppressed turbo-spin-echo sequence; TR = 3,000 ms; TE = 87 ms; refocusing flip angle = 100°; matrix size = 256 × 256; slice thickness 5.0 mm with 1.5 mm gap); 3) diffusion-weighted imaging (DWI; b-value = 50, 800 s·mm-2; TR = 5,600, TE = 58.0, refocusing flip angle = 140°; matrix size = 128 × 128); and 4) coronal and axial T1WI (Dixon sequence; TR = 3.97 ms; TE = 1.29 and 2.52 ms; flip angle = 9.0°; matrix size = 182 × 320; slice thickness = 3.0 mm with a 0.6-mm gap). In addition, dynamic T1WI was performed for 18 patients; arterial (25–40 s), portal venous (45–90 s), and delayed phase (3–5 min) images were obtained after contrast media injection (Magnevist; Schering, Berlin, Germany; 0.1 mmol/kg body weight) at a rate of 2 mL/s.
Imaging analysis
Two senior board-certified abdominal radiologists (with 7–10 years of experience) blinded to the clinical information retrospectively reviewed the abdominal MR images. Conclusions were arrived at by consensus. The radiologists recorded the 1) lesion location; 2) lesion morphology (focal eccentric-type mass, plaque-like mass, bile duct casting mass, or infiltrative mass, i.e., invasion of the bile duct muscle layer or growth out of the duct; Figure 1 ); 3) growth pattern; 4) signal intensity on T1WI, T2WI, and DWI (hyperintense, hypointense, or isointense as compared to the signal intensity of normal liver parenchyma); 5) enhancement degree of the adenoma in the phase with the highest degree of reinforcement (slight enhancement, moderate enhancement, or obvious enhancement as compared to that of normal hepatic parenchyma); 6) enhancement pattern (stable and persistent, wash-in and wash-out, or progressive reinforcement); and 7) appearance types of the bile duct.
The maximum size of the lesion on axial and coronal T2WI was recorded. The apparent diffusion coefficient (ADC) value of the lesion was measured at the level of its greatest extent. For ADC mapping, the region of interest (ROI) was placed to include only the solid part of the lesion, avoiding areas of liquefaction, necrosis, or bleeding as far as possible.
The diameter of the extrahepatic bile duct (EBD) was measured at the level of maximum dilatation. Dilatation was defined as 1) diameter >7 mm in patients <60 years old and without a history of cholecystectomy; 2) diameter >9 mm in patients aged ≥60 years and without a history of cholecystectomy; or 3) diameter >10 mm in patients with a history of cholecystectomy (9).
Statistical analysis
Statistical analysis was performed with SPSS 21.0 (IBM Corp., Armonk, NY, USA). Qualitative data were expressed as percentages and compared using the chi-square test or Fisher exact test. Quantitative data were expressed as means ± standard deviation and compared using the independent-sample t-test. P < 0.05 was considered statistically significant.
Results
Clinical data
Out of 56 patients initially identified from the pathology department database, 28 were excluded because of incomplete preoperative imaging examinations. The remaining 28 patients (18 men, 10 women) formed the study cohort. Table 1 shows the baseline demographic and clinical characteristics of the patients.
| Clinical data | Data |
|---|---|
| Age, years, mean ± SD | 63.19 ± 10.72 |
| Sex, n (%) | |
| Male | 17 (60.71) |
| Female | 11 (32.29) |
| Laboratory data, mean ± SD | |
| ALT (U/L) | 102.96 ± 107.62 |
| AST (U/L) | 76.74 ± 67.19 |
| ALP (U/L) | 378.96 ± 344.80 |
| GGT (U/L) | 502.23 ± 549.33 |
| Direct bilirubin (µmol/L) | 89.87 ± 22.11 |
| Indirect bilirubin (µmol/L) | 24.23 ± 54.23 |
| CA19-9 (U/mL) | 1,198.96 ± 2,633.66 |
| Pathologic findings, n (%) | |
| Tubular | 2 (6.25) |
| Papillary | 1 (3.13) |
| Tubulopapillary | 29 (90.62) |
| Invasion of bile duct muscle layer, n (%) | |
| Yes | 5 (15.63) |
| No | 27 (84.38) |
| Clinical symptoms, n (%) | |
| Jaundice | 12 (42.86) |
| Abdominal pain | 6 (21.43) |
| Intermittent fever | 5 (17.86) |
| Abdominal distension | 1 (3.57) |
| Pruritus | 1 (3.57) |
| Anorexia | 1 (3.57) |
| Asymptomatic | 4 (14.29) |
Imaging findings

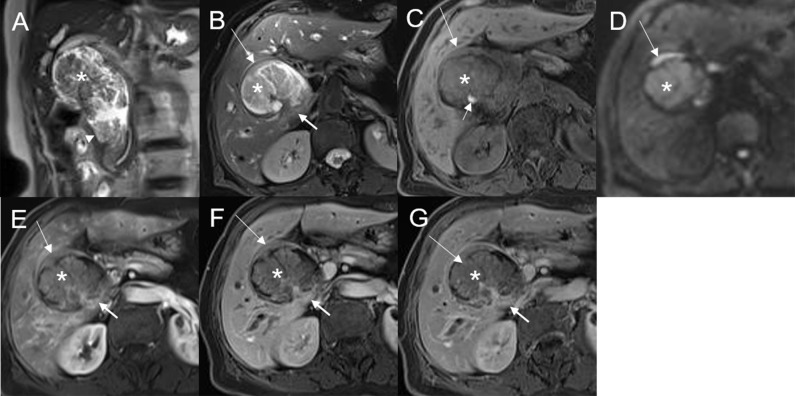

The 28 patients had a total of 32 lesions; while 26 patients had single lesions, 2 patients had three lesions each (one patient had dual plaque-like masses and an infiltrative mass, and the other patient had three plaque-like masses; Figure 2 ).

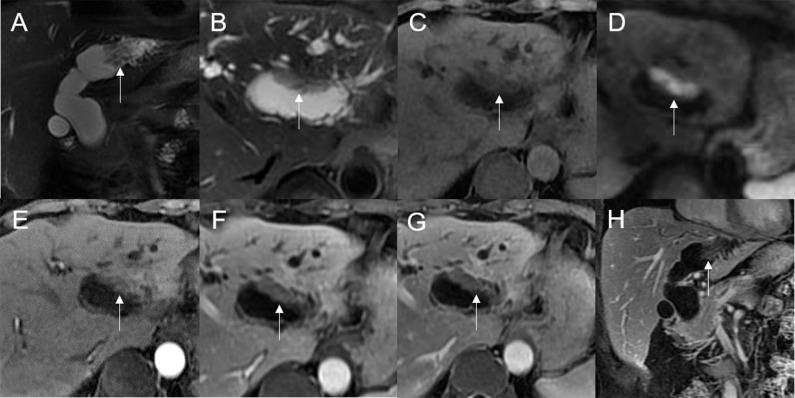

Of the lesions, 22/32 (68.75%) involved the common bile duct (CBD); while 13/32 (40.63%) lesions involved the distal CBD, 7/32 (21.88%) involved the CBD and the common hepatic duct (CHD), 2/32 (6.25%) involved only the CHD, and 1/32 (3.13%) involved only the left intrahepatic bile duct ( Table 2 ). According to location, the lesions were divided into two groups: a distal CBD group (n = 13) and a non-distal CBD group (n = 19). Mean lesion size was significantly greater in the non-distal CBD group (36.91 ± 19.26 mm vs. 18.23 ± 6.80 mm, P = 0.001; Table 3 ).
| MRI finding | n (%) |
|---|---|
| Morphological classification | |
| Eccentric-type | 14 (43.75) |
| Bile duct casting | 4 (12.50) |
| Plaque-like | 9 (28.13) |
| Infiltrative | 5 (15.62) |
| Site | |
| CBD/distal CBD | 22 (68.75)/13 (40.63) |
| CHD | 2 (6.25) |
| CBD and CHD | 7 (21.88) |
| Left hepatic duct | 1 (3.13) |
| T1WI | |
| Isointensity | 23 (71.88) |
| Hypointensity | 9 (28.12) |
| Speckled hyperintensity | 3 (9.38%) |
| T2WI | |
| Isointensity | 8 (25.00) |
| Hyperintensity | 24 (75.00) |
| Frond-like | 8 (25.00) |
| Enhancement degree | |
| Obvious | 2 (11.11) |
| Moderate | 14 (77.80) |
| Slight | 2 (11.11) |
| Enhancement pattern | |
| Stable and persistent | 13 (72.22) |
| Wash-in and wash-out | 5 (27.78) |
| Dilatation of bile duct | |
| Upstream of lesion | 32 (100.00) |
| At the lesion | 24 (75.00) |
| Downstream of lesion | 6 (18.75) |
| Dilatation of pancreatic duct | 0 (0) |
| DWI lesion signal | |
| Isointense | 5 (15.63) |
| hyperintense | 27 (84.37) |
| DWI signal of bile duct surrounding the lesion | |
| Hyperintense | 2 (6.25) |
| Isointense | 30 (93.75) |
| ADC, ×10-3mm2·s-1, mean ±SD | 1.65 ± 0.38 |
| Clinical information | Distal CBD (n = 13) | Non-distal CBD (n = 19) | χ2/t | P | ||
|---|---|---|---|---|---|---|
| Age, years, mean ± SD | 59.15 ± 11.70 | 65.80 ± 9.28 | -1.676 | 0.106 | ||
| Sex | ||||||
| Male | 3 | 8 | 2.673 | 0.102 | ||
| Female | 10 | 7 | ||||
| Laboratory data, mean ± SD | ||||||
| ALT (U/L) | 138.75 ± 102.79 | 70.58 ± 96.00 | 1.875 | 0.071 | ||
| AST (U/L) | 90.67 ± 72.46 | 70.84 ± 65.77 | 0.786 | 0.438 | ||
| ALP (U/L) | 344.27 ± 268.15 | 491.67 ± 118.66 | -0.893 | 0.380 | ||
| GGT (U/L) | 539.92 ± 598.08 | 478.50 ± 525.66 | 0.233 | 0.817 | ||
| TBil (µmol/L) | 139.13 ± 125.33 | 72.04 ± 112.07 | 1.551 | 0.132 | ||
| Direct bilirubin (µmol/L) | 112.39 ± 101.01 | 62.48 ± 109.22 | 1.281 | 0.211 | ||
| Indirect bilirubin (µmol/L) | 40.49 ± 75.46 | 8.23 ± 9.73 | 1.532 | 0.151 | ||
| CA19-9 (U/L) | 116.40 ± 102.58 | 1,140.63 ± 2,234.75 | -1.887 | 0.077 | ||
| Morphological classification, n | ||||||
| Eccentric-type | 0.051 | 0.821 | ||||
| Positive | 6 | 8 | ||||
| Negative | 7 | 11 | ||||
| Bile duct casting | 0.200 | |||||
| Positive | 4 | 0 | ||||
| Negative | 9 | 19 | ||||
| Infiltrative | >0.99 | |||||
| Positive | 2 | 3 | ||||
| Negative | 11 | 16 | ||||
| Plaque-like | 0.050 | |||||
| Positive | 1 | 8 | ||||
| Negative | 12 | 11 | ||||
| Maximum size of lesion, mm, mean ± SD | 18.23 ± 6.80 | 36.91 ± 19.26 | -3.889 | 0.001 | ||
| Speckled hyperintensity on T1WI, n | ||||||
| Positive | 1 | 3 | 0.629 | |||
| Negative | 12 | 16 | ||||
| Frond-like | ||||||
| Positive | 1 | 7 | 0.101 | |||
| Negative | 12 | 12 | ||||
| Enhancement pattern | ||||||
| Stable and persistent | 6 | 7 | 0.596 | |||
| Wash-in and washout | 1 | 4 | ||||
| Bile duct dilatation downstream of lesion | ||||||
| Positive | 0 | 6 | 0.059 | |||
| Negative | 13 | 13 | ||||
| Signal of lesion on DWI | ||||||
| Isointense | 4 | 1 | 0.132 | |||
| Hyperintense | 9 | 18 | ||||
| ADC, ×10-3mm2·s-1, mean ± SD | 1.57 ± 0.25 | 1.70 ± 0.44 | -1.008 | 0.323 | ||

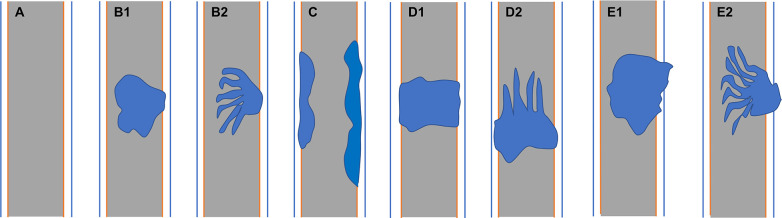

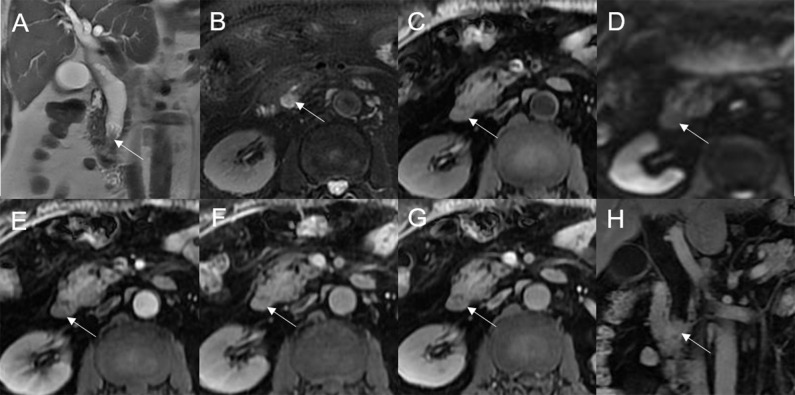

Mean lesion size in the whole sample was 30.83 ± 20.93 mm. All patients presented with an intraluminal ductal mass. While 14/32 (43.75%) lesions presented morphologically as focal eccentric-type masses ( Figure 3 ), 9/32 (28.13%) presented as plaque-like masses, 4/32 (12.50%) as bile duct casting masses, and 5/32 (15.62%) as infiltrative masses. In addition, 8/32 (21.88%) lesions showed a frond-like superficial appearance accompanied by other morphologically categorized appearances other than plaque-like superficial ( Figures 4 , 5 ; Table 2 ).
Bile duct dilatation upstream of the lesion was present in all cases. Bile duct dilatation downstream of the lesion was present in 6/32 (18.75%) cases ( Figure 6 ) and at the lesion in 24/32 (75%) cases. In 8/32 (25%) cases, there was a stricture in the bile duct lumen at the lesion, along with an enlarged bile duct diameter; while four were cases of bile duct casting masses, the other four were cases of plaque-like masses.

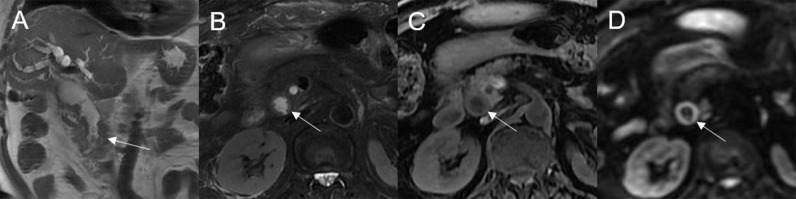

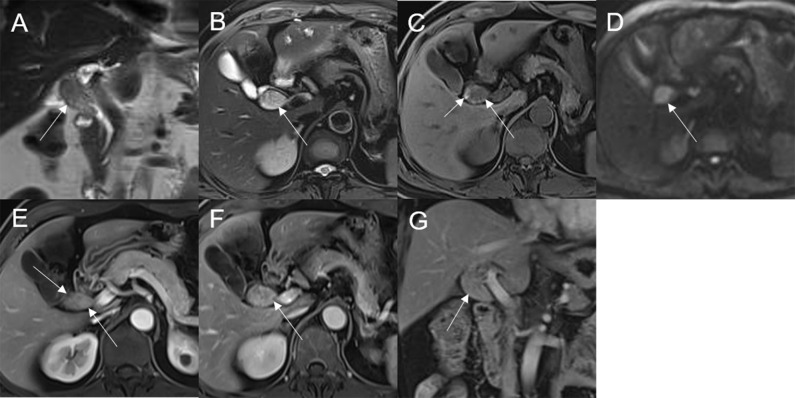

On standard MRI scanning, 24/32 (75%) lesions showed hyperintensity and 9/32 (25%) showed isointensity on T2WI, while 9/32 (28.12%) lesions showed isointensity and 23/32 (71.88%) showed hyperintensity on T1WI. In addition, 3/32 (9.38%) lesions showed speckled hyperintensity on T1WI ( Figure 7 ).

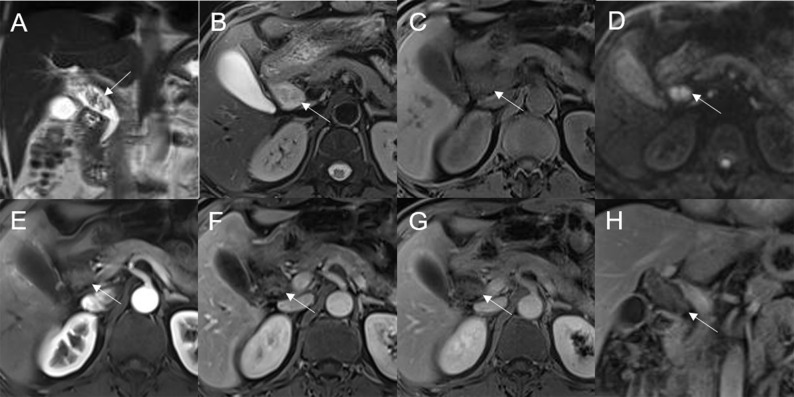

On dynamic enhanced MRI, 14/18 (77.78%) lesions showed moderate enhancement, 2/18 (11.11%) showed obvious enhancement, and 2/18 (11.11%) showed slight enhancement. While 13/18 (72.22%) lesions showed stable and persistent enhancement, 5/18 (27.78%) showed wash-in and wash-out enhancement ( Table 2 ).
On DWI (b = 800 s·mm-2), 5/32 (15.63%) adenomas showed isointensity ( Figure 2 ) and 27/32 (84.37%) showed hyperintensity. In 2/32 (6.25%) cases, the bile duct wall around the lesion showed hyperintensity on DWI ( Figure 8 ). The mean ADC value of the lesions was 1.65 ± 0.38 × 10-3 mm2·s-1 ( Table 2 ).
Imaging findings in the malignant group versus benign adenoma group

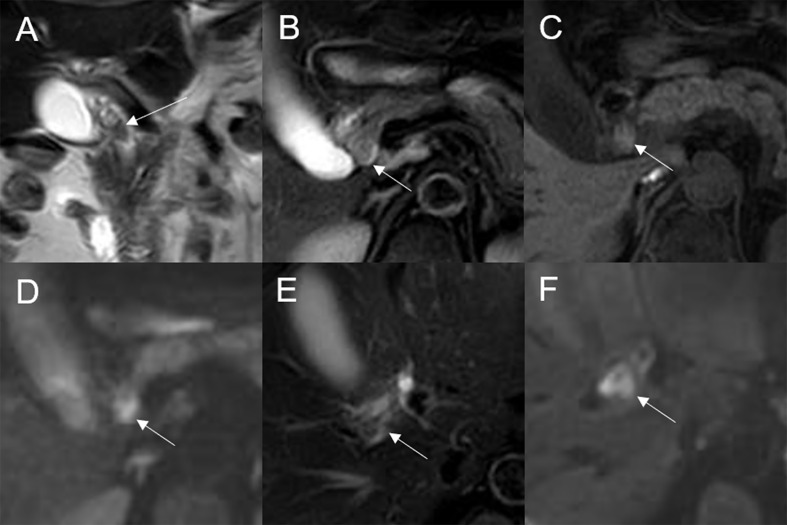

According to whether or not malignant change was present, the adenomas were divided into two groups: a malignant group (n = 15) and a benign adenoma group (n = 17). Plaque-type lesions were significantly more common in the benign adenoma group, while infiltrative lesions were significantly more common in the malignant group (P = 0.018 and P = 0.015, respectively; Table 4 ).
| Clinical information | Benign adenoma group (n = 17) | Malignant group (n = 15) | χ2/t | P |
|---|---|---|---|---|
| Age, years, mean ± SD | 64.60 ± 12.55 | 60.54 ± 8.34 | -0.991 | 0.331 |
| Sex | ||||
| Male | 3 | 8 | 3.743 | 0.053 |
| Female | 11 | 6 | ||
| Laboratory data | ||||
| ALT (U/L) | 107.82 ± 123.09 | 83.79 ± 73.06 | 0.0642 | 0.526 |
| AST (U/L) | 76.47 ± 67.41 | 81.00 ± 71.05 | -1.799 | 0.084 |
| ALP (U/L) | 438.29 ± 414.88 | 303.36 ± 224.39 | -0.970 | 0.342 |
| GGT (U/L) | 611.38 ± 556.53 | 437.00 ± 566.63 | -0.849 | 0.403 |
| TBil (µmol/L) | 111.33 ± 127.20 | 83.80 ± 114.46 | -0.632 | 0.532 |
| Direct bilirubin (µmol/L) | 85.04 ± 96.74 | 83.04 ± 119.79 | 0.718 | 0.479 |
| Indirect bilirubin (µmol/L) | 31.93 ± 69.91 | 10.92 ± 8.69 | 1.476 | 0.161 |
| CA19-9 (U/L) | 816.18 ± 2,273.69 | 679.80 ± 1,414.76 | 0.195 | 0.847 |
| Site | ||||
| Distal CBD | 6 | 7 | 0.252 | 0.616 |
| Non-distal CBD | 11 | 8 | ||
| Maximum size of lesion | 28.53 ± 21.04 | 30.02 ± 15.22 | -0.230 | 0.819 |
| Morphological classification | ||||
| Eccentric-type | ||||
| Positive | 7 | 7 | 0.098 | >0.990 |
| Negative | 10 | 8 | ||
| Bile duct casting | ||||
| Positive | 2 | 2 | >0.990 | |
| Negative | 15 | 13 | ||
| Plaque-like | ||||
| Positive | 8 | 1 | 0.018 | |
| Negative | 9 | 14 | ||
| Infiltrative | ||||
| Positive | 0 | 5 | 0.015 | |
| Negative | 17 | 10 | ||
| Speckled hyperintensity on T1WI | ||||
| Positive | 1 | 3 | 0.319 | |
| Negative | 16 | 12 | ||
| Frond-like | ||||
| Positive | 4 | 4 | >0.990 | |
| Negative | 13 | 11 | ||
| Enhancement pattern | ||||
| Stable and persistent | 6 | 7 | >0.990 | |
| Wash-in and washout | 2 | 3 | ||
| Bile duct dilatation downstream of lesion | ||||
| Positive | 4 | 2 | 0.659 | |
| Negative | 13 | 13 | ||
| DWI signal of lesion | ||||
| Isointense | 2 | 3 | 0.645 | |
| Hyperintense | 15 | 12 | ||
| DWI signal of bile duct surrounding the lesion | ||||
| Hyperintense | 0 | 2 | 0.480 | |
| Isointense | 17 | 13 | ||
| ADC, ×10-3mm2·s-1, mean ± SD | 1.77 ± 0.36 | 1.55 ± 0.38 | -1.464 | 0.156 |
Discussion
The 1991 World Health Organization classification of benign bile duct tumors divides adenomas into three types: tubular adenomas, papillary adenomas, and ductal papillary adenomas (10). In our cohort, tubulopapillary adenomas were the predominant type (90.62%).
Patients with bile duct adenoma present with symptoms such as abdominal pain, jaundice, fever, dyspepsia, nausea, vomiting, fatigue, and pruritus. Pancreatitis may occur if the lesion compresses the pancreatic duct (11). Consistent with previous reports (12), we found that patients usually have elevated levels of blood bilirubin, liver enzymes, and alkaline phosphatase. In this study, the mean age at diagnosis was 63.8 years, with men being more commonly affected (male:female ratio, 1.6:1). Previous studies have reported inconsistent results on the incidence of adenoma in men versus women (13) possibly due to the low incidence of the disease and small sample sizes. Most patients have only a single lesion (92.86% in our cohort), but multiple lesions may also occur (5, 14). Only two of our patients had multiple lesions.
Bile duct adenoma may arise anywhere in the bile duct. Extrahepatic bile ducts are involved in most cases (the distal extrahepatic biliary tree was frequently involved among our patients). However, the intrahepatic bile duct, cystic duct, gallbladder, or pancreatic duct may also be involved (15). In our patients, bile duct adenoma mainly occurred in large bile ducts, including the CBD, CHD, and the left hepatic duct. The distal CBD was most commonly affected in our cohort, as has been reported in other studies (11). Lesions in the distal CBD tended to be smaller than those in the non-distal CBD probably because earlier onset of obstructive symptoms led to earlier detection. Sex distribution, laboratory results, and other imaging findings were comparable between the distal and non-distal CBD groups.
Anum et al. classified intraductal papillary neoplasm of the bile duct (IPNB) morphologically as intraluminal polypoid, patellar, invasive, or lobulated with mural nodules (8). Struyve et al. (16) reported that bile duct adenoma is accompanied by bile duct dilatation with multiple irregular filling defects. However, the expression of bile duct adenoma morphology might be incomplete due to the small number of previous cases. In our patients, bile duct adenoma presented as intraductal focal eccentric-type mass, plaque-like mass, bile duct casting mass, or infiltrative mass. Bile duct adenoma presenting as a bile duct casting mass has not been previously reported. Interestingly, we found that two growth morphologies could simultaneously occur in the same patient. There have been earlier reports of bile duct adenoma with frond-like appearance (17). In this study, the superficial frond-like appearance was seen in a few lesions (25%) other than plaque-like lesions.
In our patients, bile duct adenomas were isointense or hypointense relative to the normal liver on T1WI and isointense or hyperintense on T2WI. Among the 32 lesions studied, most showed isointensity on T1WI and hyperintensity on T2WI. Speckled hyperintensity on T1WI was seen in three lesions, probably indicating intralesional hemorrhage. After contrast injection, most lesions showed moderate enhancement, but other levels of enhancement were seen in a few. Stable and persistent enhancement was most common, but wash-in and wash-out pattern was also seen in some cases. These findings are consistent with previous reports (18). On DWI, most lesions were hyperintense, but other signal intensities were also seen.
In a previous imaging-based study, 60% of patients with extrahepatic bile duct adenoma had bile duct dilatation (11); however, the authors did not provide a detailed description of features of the dilated duct. In this study, bile duct dilatation was seen upstream of the lesion in all cases; while dilatation at the lesion site was common, dilatation downstream of the lesion was seen in only a few cases. Among the six cases with downstream bile duct dilatation, two lesions were secreting mucus with a doughy or jelly-like consistency, which may have blocked the distal bile duct. There have been previous reports of this phenomenon in patients with IPNB but not in patients with bile duct adenoma (19). Four of the six cases of downstream dilatation were in patients with multiple adenomas, with the dilatation being due to blockage of the bile duct by the distal lesion. Stricture of the bile duct lumen at the lesion site, with overall increase in bile duct diameter and upstream dilatation, was seen in all cases of bile duct casting masses and several cases of plaque-like masses. As mentioned earlier, in cases of plaque-like masses, bile duct dilatation at the lesion site was because of duct obstruction by lesions or secretions downstream.
Bile duct adenomas are benign epithelial tumors with potential for malignant transformation (2). In our study, malignant transformation was identified in 15 of the 32 lesions. Age, sex, and laboratory data were not significantly associated with malignant transformation. In the absence of specific clinical features or laboratory parameters, diagnosis of malignancy can be challenging. A previous study reported that an elevation in carbohydrate antigen 19-9 (CA19-9) may be indicative of malignant transformation of adenoma (20). However, we found no significant difference in CA19-9 between the malignant group and the benign adenoma group in our study; this may have been due to the limited number of cases. The value of CA19-9 for the diagnosis of malignant transformation needs further exploration.
Previous studies have found that large gastrointestinal adenomas are easier to manage than smaller ones (21). However, in this study, we found no significant difference in lesion size between the malignant group and the benign adenoma group. This may have been because the small size of the bile duct lumen results in early clinical symptoms, with detection of the tumor before it becomes large. Plaque-like masses were more common in the benign adenoma group, while infiltrative masses were seen only in the malignant group. Thus, infiltrative behavior may indicate malignant transformation. In two cases in this study, the bile duct wall surrounding the lesion showed hyperintensity on DWI, and pathology confirmed malignant change in the lesion with invasion of the bile duct. This sign was present only in the malignant group. However, there was no significant difference in this sign between the malignant group and the benign adenoma group. Additionally, the other signal characteristics, dilated shape of the bile duct, DWI, enhancement degree, and mode of bile duct adenoma development have limited ability to distinguish malignant transformation of adenoma.
In the clinic, bile duct adenoma has to be distinguished from cholangiocarcinoma and hepatocellular carcinoma (HCC). Cholangiocarcinoma presents as a mass-forming, periductal-infiltrating, and intraductal-growing lesion, often accompanied by upstream dilatation of the bile duct. Frond-like superficial appearance and dilatation downstream of the lesion are not seen. The periductal-infiltrating type of cholangiocarcinoma presents with thickening of the bile duct wall and narrowing of the bile duct lumen at the lesion site. The intraductal-growing type of cholangiocarcinoma is relatively rare; it presents as a papillary tumor with dilatation of the duct at the lesion site and may be difficult to differentiate from the eccentric-type bile duct adenoma. The mass-forming type of cholangiocarcinoma presents as an extramural growth in the bile duct area; the bile duct within the lesion is not clearly displayed on imaging. In addition, intrahepatic cholangiocarcinoma may be accompanied by hepatic capsular retraction and targetoid appearance (22). Meanwhile, HCC usually occurs in the background of liver cirrhosis and is typically accompanied by elevated serum alpha-fetoprotein level. The tumor avidly enhances in the arterial phase, with “wash-out” and/or capsule appearance in the portal venous or delayed phase. It rarely involves bile ducts, so bile duct dilatation is not often seen (23). In comparison, bile duct adenoma mostly occurs in large bile ducts; intrahepatic bile duct adenomas are relatively uncommon. It displays intraductal growth, sometimes with a frond-like superficial appearance, and may be associated with bile duct dilatation at the lesion site or upstream and/or downstream of the lesion.
This study has several limitations. First, this was a retrospective analysis of data from a single center; therefore, selection bias cannot be ruled out. Second, the differences in MRI features between various pathological types could not be investigated due to limited pathological data. Third, few patients had postoperative follow-up imaging, so there were limited data on recurrence and any further treatment delivered. Finally, CT examination was not routinely performed for the patients; therefore, the CT manifestations of bile duct adenoma and the combined efficacy of CT and MRI were not analyzed.
Conclusion
Bile duct adenoma most commonly occurs in the distal common bile duct, usually showing intraductal growth and isointensity on T1WI and hyperintensity on T2WI, with mostly stable, persistent, and moderate enhancement. These tumors usually show hyperintensity on DWI and are associated with bile duct dilatation upstream of the lesion. In addition, bile duct dilatation downstream of the lesion may be a feature of bile duct adenoma. Adenoma presenting as an infiltrative mass or with DWI hyperintensity of the bile duct wall surrounding the lesion may be an indication of malignant transformation.
