CB1 Receptor Activation on VgluT2-Expressing Glutamatergic Neurons Underlies Δ9-Tetrahydrocannabinol (Δ9-THC)-Induced Aversive Effects in Mice
0000 0004 0533 7147grid.420090.fMolecular Targets and Medications Discovery Branch, Intramural Research Program, National Institute on Drug Abuse, Baltimore, MD 21224 USA
0000 0004 1803 4911grid.410740.6Beijing Institute of Pharmacology and Toxicology, Beijing, 100850 China
0000 0000 9372 4913grid.419475.aLaboratory of Clinical Investigation, Intramural Research Program, National Institute on Aging, Baltimore, MD 21224 USA
Abstract
Cannabis can be rewarding or aversive. Cannabis reward is believed to be mediated by activation of cannabinoid CB1 receptors (CB1Rs) on GABAergic neurons that disinhibit dopaminergic neurons in the ventral tegmental area (VTA). However, little is known about the mechanisms underlying cannabis aversion in rodents. In the present study, CB1Rs are found not only on VTA GABAergic neurons, but also on VTA glutamatergic neurons that express vesicular glutamate transporter 2 (VgluT2). We then used Cre-Loxp transgenic technology to selectively delete CB1Rs in VgluT2-expressing glutamatergic neurons (VgluT2-CB1 −/−) and Cre-dependent viral vector to express light-sensitive channelrhodopsin-2 into VTA glutamatergic neurons. We found that photoactivation of VTA glutamatergic neurons produced robust intracranial self-stimulation (ICSS) behavior, which was dose-dependently blocked by DA receptor antagonists, but enhanced by cocaine. In contrast, Δ9-tetrahydrocannabinol (Δ9-THC), the major psychoactive component of cannabis, produced dose-dependent conditioned place aversion and a reduction in the above optical ICSS in VgluT2-cre control mice, but not in VgluT2-CB1 −/− mice. These findings suggest that activation of CB1Rs in VgluT2-expressing glutamate neurons produces aversive effects that might explain why cannabinoid is not rewarding in rodents and might also account for individual differences in the hedonic effects of cannabis in humans.
Introduction
Humans have used marijuana (cannabis sativa) for thousands of years for medical and recreational purposes. With on-going legalization of cannabis in the USA, its consumption is now dramatically increasing1. Cannabis use and abuse is thought to be associated with its psychostimulant, euphoric and relaxing effects2,3. However, not all users enjoy cannabis and some experience dysphoria, anxiety, and depression after its use4,5. Cannabis may also produce euphoria, pleasure, or relaxation at one time but depression, fear, or anxiety at another6,7. Although these effects have been known for some time, the mechanism underlying these biological effects was not known until the 1970s when Δ9-tetrahydrocannabinol (Δ9-THC) was identified as the primary psychoactive ingredient of cannabis8, and until the 1990s when cannabinoid CB1 and CB2 receptors were identified as the major targets9,10. It is now generally accepted that the psychoactive effects of cannabis are mediated through CB1Rs in the brain11, and its euphorigenic effects are mediated by Δ9-THC-induced activation of the mesolimbic dopamine (DA) system2,3,12, which originates in the ventral tegmental area (VTA) in the midbrain and projects mainly to the nucleus accumbens (NAc) and prefrontal cortex (PFC) in the forebrain12.
Electrophysiological and anatomic evidence demonstrates that VTA DA neurons receive inhibitory GABAergic and excitatory glutamatergic input13–15. Activation of CB1Rs on VTA GABAergic neurons or GABAergic afferent terminals leads to a reduction in GABA release and DA neuron disinhibition (or activation)12,16, suggesting that cannabis reward might be mediated by activation of CB1Rs on VTA GABAergic neurons2,3. This is supported by findings that Δ9-THC increases DA release in the NAc as assessed by in vivo microdialysis in rats17,18 or PET imaging studies in humans19,20, although other studies were not able to show this increase in DA21. Δ9-THC is self-administered by squirrel monkeys22,23, showing that it has rewarding effects, but it is not self-administered in rodents24,25 or rhesus monkeys26,27.
In addition, electrophysiological evidence demonstrates that functional CB1Rs are also expressed in VTA glutamatergic terminals28,29. Retrograde release of endocannabinoids can decrease VTA DA neuron activity by inhibiting glutamatergic input12,30,31, suggesting that cannabis might produce aversion by activating CB1R in VTA glutamatergic neurons or glutamatergic afferent terminals. However, there is no anatomic evidence indicating whether CB1R is expressed in VTA glutamatergic neurons. Strikingly, in rodents, cannabinoid agonists are either not rewarding or produce overt aversive effects that overshadow any rewarding effects24,25,32. The mechanisms underlying such effects are poorly understood. Given that high densities of local glutamatergic neurons are found in the VTA33, where they form functional synapses onto VTA dopaminergic neurons34, we hypothesized that CB1Rs may also be expressed in local glutamatergic neurons, and activation of CB1Rs in VTA glutamatergic neurons or glutamatergic afferent terminals may mediate the aversive effects of cannabis.
In the present study, we used both the Cre-Loxp recombination and optogenetic techniques to test this glutamatergic CB1R hypothesis. In this pursuit, we first created CB1-floxed mice and then generated conditional CB1-knockout mice (VgluT2-CB1−/−) in glutamatergic neurons that express vesicular glutamate transporter 2 (VgluT2). We then used immunohistochemistry and RNAscope in situ hybridization assays to examine whether CB1Rs are expressed in VTA GABAergic neurons and glutamatergic neurons. Next, conditioned place preference and intracranial self-stimulation (ICSS) maintained by optical activation of VTA glutamatergic neurons were employed to evaluate the effects of Δ9-THC on brain reward function. We found that activation of CB1Rs in VTA glutamatergic neurons by Δ9-THC produced dose-dependent conditioned place aversion and a significant reduction in optical ICSS, suggesting a cell type-specific CB1R-mediated mechanism underlying Δ9-THC-induced aversion in mice.
Results
CB1R-immunostaining in the VTA
We first used immunohistochemical assays (IHC) to detect CB1R expression in the VTA-containing midbrain. Figure S1-A shows CB1- and TH-immunostaining, illustrating that CB1Rs (green) are highly expressed in the substantia nigra pars reticulata (SNr), not in the VTA or substantia nigra pars compacta (SNc). However, under high magnification, CB1-immunostaining was found in the VTA and SNc, but mainly in cell membranes and nerve fibers, not in cell bodies of neurons (Fig. S1-B). Such patterns of CB1R-staining prevented the further use of IHC to dissect the phenotype(s) of neurons that express CB1Rs since nerve fibers from different types of neurons were intertwined.
Generation of VgluT2-CB1‒/‒ mice
To dissect the role of CB1Rs in different phenotypes of VTA neurons in cannabis reward and aversion, we first created CB1flox/flox mice in order to generate conditional CB1R-knockout (CB1 ‒/‒) mice in glutamatergic neurons that express VgluT2 (i.e., VgluT2-CB1 ‒/‒ mice). Figure S2-A shows the CB1 allele in wild-type mice. Figure S2-B shows CB1-floxed-neo allele in the heterozygous CB1flox/wt mice to generate CB1flox/flox mice (Fig. S2-C)35. VgluT2-CB1 ‒/‒ mice were obtained by crossing CB1flox/flox mice with VgluT2-Cre mice in which Cre recombinase is expressed under VgluT2 promotors. The homozygous VgluT2-CB1 ‒/‒ mice and their wildtype (WT) control VgluT2-Cre littermates (VgluT2-CB1 +/+) were viable and fertile. No significant differences in general health conditions (feeding, locomotion, body weight) were observed between VgluT2-CB1 −/− mice and VgluT2-Cre mice.
CB1 mRNA RNAscope ISH assays
We then used RNAscope, a highly sensitive and specific in situ hybridization assay36, to examine CB1 mRNA expression in cell bodies of VTA neurons. There are two major subtypes of glutamatergic neurons in the brain – cortical glutamatergic neurons that express VgluT1 and subcortical glutamatergic neurons that express VgluT237. Figure S3-A shows representative images (under low magnification) of VgluT2 mRNA (red) and CB1 mRNA (green) in the brain at the midbrain level, illustrating that VgluT2 is mainly expressed in subcortical regions including the red nucleus (RN) and VTA, while CB1 mRNA is mainly expressed in the hippocampus and cerebral cortex in control VgluT2-Cre mice (also see Fig. S3-B). However, compared with that seen in the control mice (Fig. S3-B), CB1 mRNA expression in VgluT2-CB1 −/− mice was reduced significantly in both the cortical (including hippocampus) and subcortical regions, particularly in subcortical areas where CB1 mRNA was abolished (Fig. S3-C).

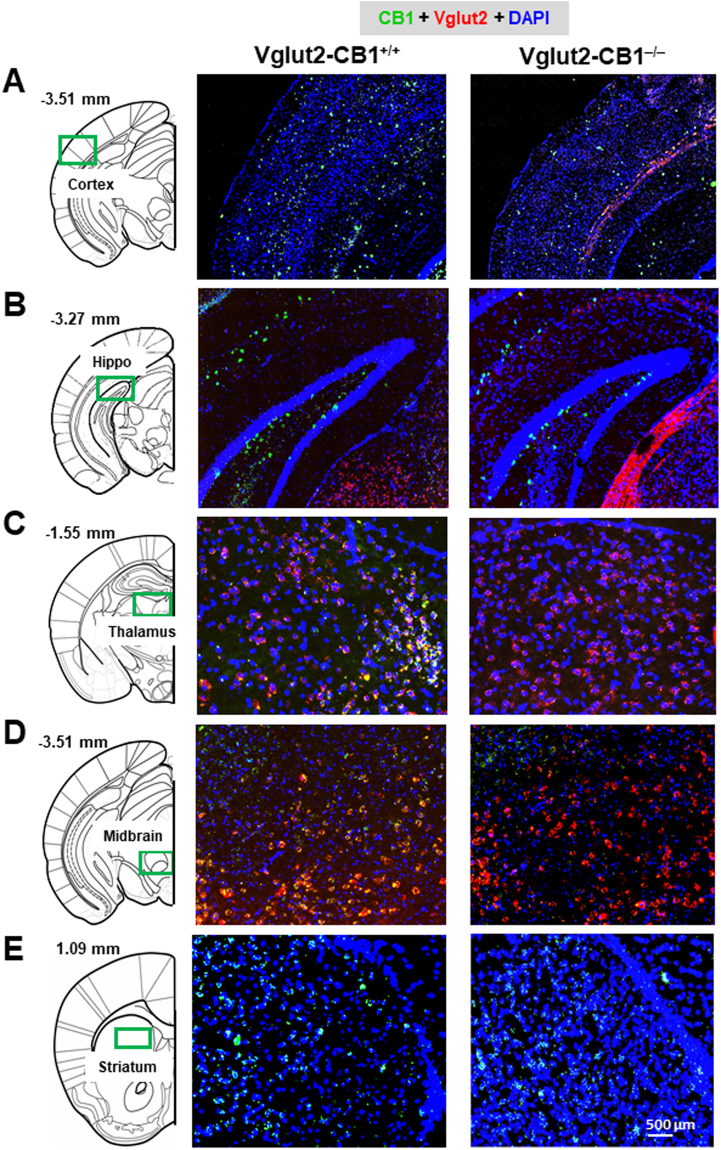

Figure 1 shows CB1 mRNA expression in different brain regions under higher magnification, illustrating that CB1 mRNA levels were decreased in the cortex (Fig. 1A) and hippocampus (Fig. 1B), but absent in the subcortical areas such as thalamus (Fig. 1C) and midbrain (Fig. 1D) in VgluT2-CB1
−/− mice. There was no significant change in CB1 mRNA expression in the striatum between the two mouse strains (Fig. 1E). These findings are consistent with VgluT2 distributions in the brain37, indicating that the selective CB1R deletion occurs only in VgluT2-expressing glutamatergic neurons in mice.
CB1 mRNA is expressed in VTA GABAergic and glutamatergic neurons

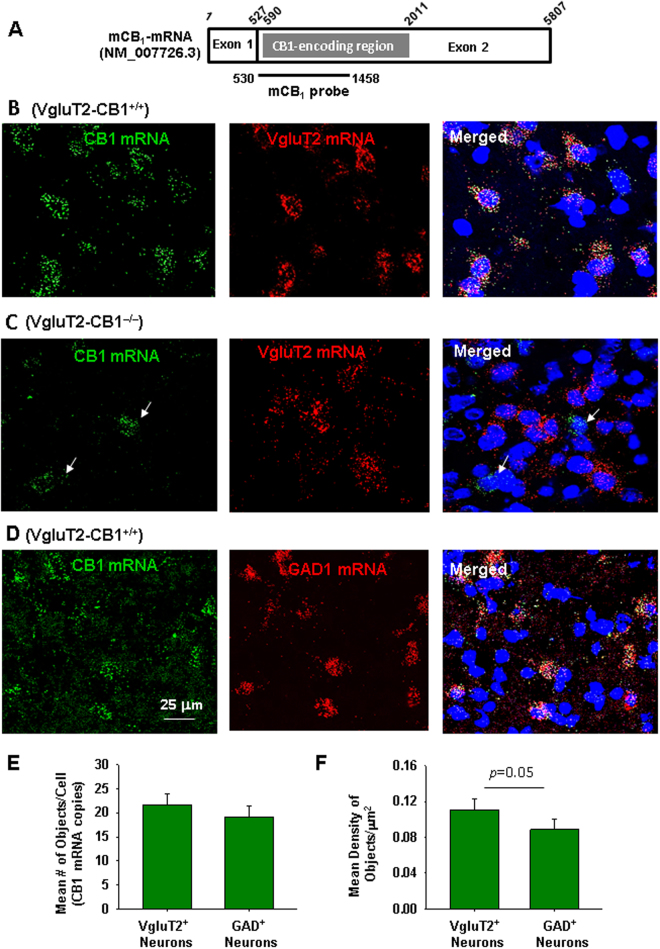

A double-staining RNAscope technique was used to examine the cellular distribution of CB1 mRNA in the VTA. Figure 2A shows the mouse CB1 mRNA structure and the target gene region of the CB1 probe used to detect CB1 mRNA in the present study. Figure 2(B,C) shows representative RNAscope in situ hybridization (ISH) results, illustrating that CB1 mRNA (green) was detected in almost all VgluT2-positive glutamatergic neurons (red) in the VTA of VgluT2-Het littermates (Fig. 2B), but not in the VTA of VgluT2-CB1‒/‒ mice (Fig. 2C). Figure 2D shows that low-to-moderate densities of CB1 mRNA were also detected in VTA GABAergic neurons that express glutamic acid decarboxylase 1 (GAD1). Figure 2(E,F) shows mean CB1 mRNA levels in both VTA VgluT2+ glutamatergic and GAD1+ GABAergic neurons, illustrating no significant difference in staining objects per cell (Fig. 2E, t = 0.79, p > 0.05), but a marginally significant difference in staining density per cell (Fig. 2F, t = 1.38, p = 0.05), suggesting that CB1 mRNA level is higher in VTA glutamatergic neurons than in VTA GABAergic neurons.
Δ9-THC produces conditioned place aversion in mice
We then used the conditioned place preference (CPP) or aversion (CPA) procedures to compare the rewarding or aversive effects of Δ9-THC between VgluT2-CB1

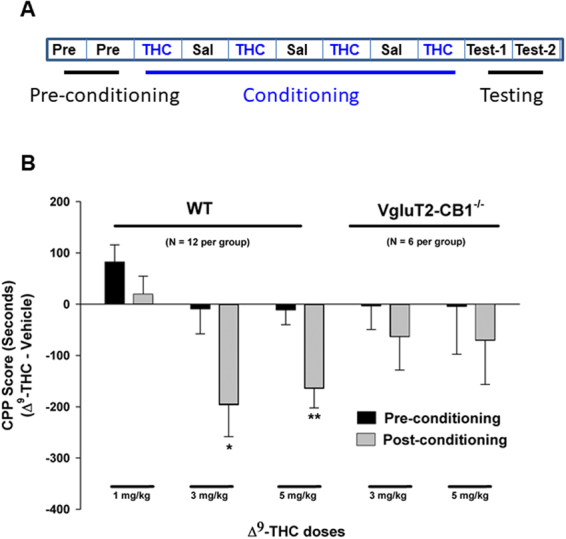

‒/‒ mice and their wildtype control littermates. Figure 3A shows the general experimental procedure. Systemic administration of Δ9-THC (1, 3, 5 mg/kg, i.p.) produced dose-dependent conditioned place aversion in wildtype littermates (Fig. 3B, left panels). However, this effect was significantly attenuated in VgluT2-CB1
‒/‒ mice (Fig. 3B, right panels).
Photoactivation of VTA glutamatergic neurons is rewarding

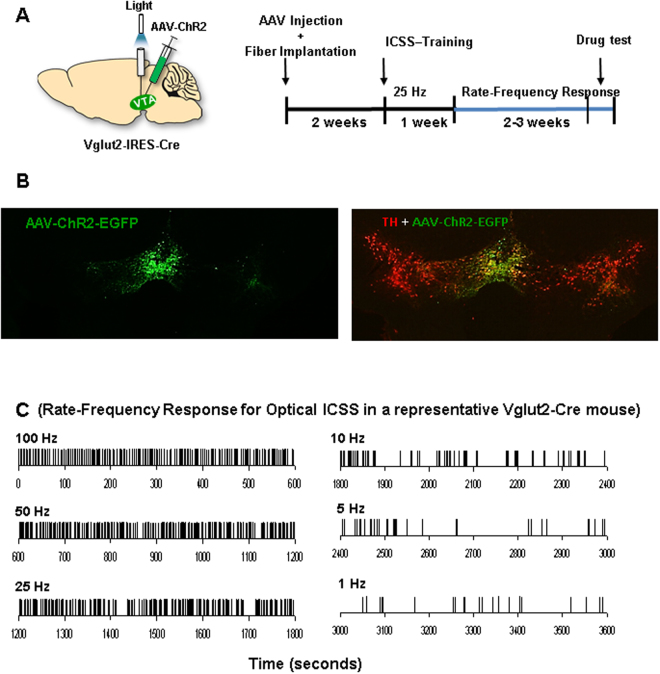

To confirm the above behavioral finding, we next observed the effects of Δ9-THC on optical brain-stimulation reward in both genotypes of mice. Since electrical stimulation used in classical intracranial self-stimulation (ICSS) non-specifically activates all neurons and/or fibers in the target area, electrical ICSS cannot be used to study such cell type-specific mechanisms underlying cannabis reward or aversion. Therefore, we established a new animal model of optical ICSS (oICSS) maintained by optical activation of VTA glutamatergic neurons in VgluT2-Cre mice. Figure 4A shows the experimental procedures and the time course of the oICSS experiments, illustrating that the AAV-DIO-ChR2-EGFP vector that expresses light-sensitive channelrhodopsin 2 (ChR2) and fluorescent EGFP was microinjected into the VTA in VgluT2-Cre mice, and then an optical fiber was implanted into the VTA ipsilaterally. Figure 4B shows a representative immunostaining image of EGFP and TH, illustrating VgluT2 promoter-driven ChR2-EGFP expression within the medial VTA. Figure 4C shows representative active lever responses observed within a session from a single animal under different stimulation frequencies (from high to low). Response-contingent photoactivation of VTA glutamatergic neurons induced robust active lever presses in a stimulation frequency-dependent manner – the higher the stimulation frequency, the more the active lever presses, and vice versa. These findings suggest that photostimulation of VTA glutamatergic neurons is rewarding.
oICSS: A new animal model for studying brain reward function

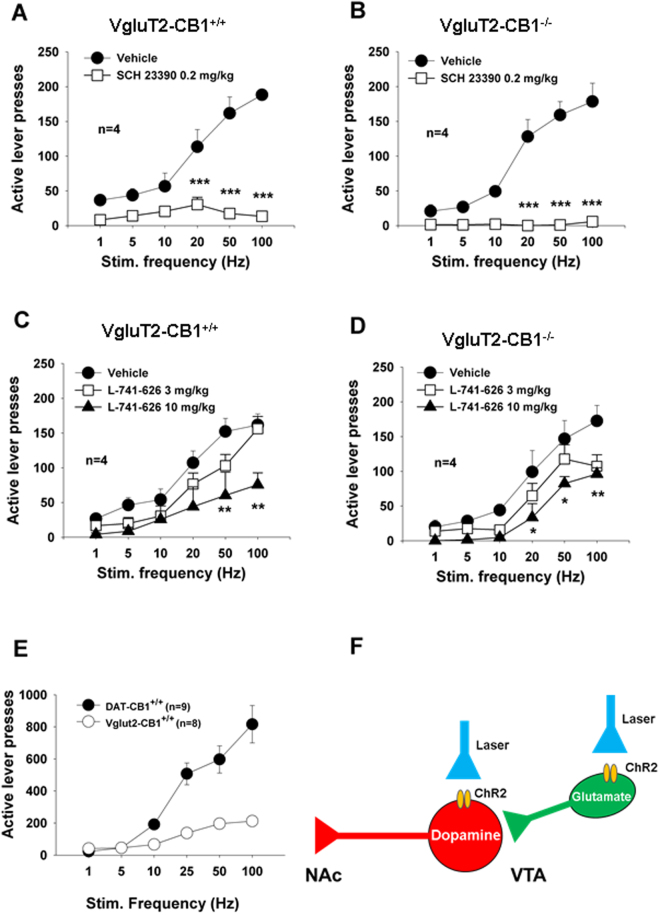

To determine whether this glutamate-based oICSS can be used as a new animal model to study brain reward function and the pharmacological action of addictive drugs in the brain, we used the same strategies as used in electrical ICSS in this study: first, we determined whether oICSS displays a typical sigmoid “S”-shape rate-frequency function; and second, we determined whether DA receptor antagonists attenuate, and/or a DA-enhancer (cocaine) enhances oICSS by shifting the rate-frequency curve rightward or leftward, respectively38. Figure 5 shows mean rate-frequency function curves, illustrating typical sigmoid “S”-shape curves under vehicle treatment conditions in both wildtype littermates (Fig. 5-A,C) and VgluT2-CB1−/− mice (Fig. 5-B,D). There was no significant difference in oICSS rate-frequency function between the two strains of mice, suggesting that selective deletion of CB1Rs in VgluT2-positive glutamatergic neurons does not alter the basal level of brain reward function. Strikingly, this glutamate-based oICSS was dose-dependently blocked by SCH 23390 (a selective D1 receptor antagonist) or L-741,626 (a selective D2 receptor antagonist), suggesting that the oICSS was mediated indirectly by activation of the mesolimbic DA system (also see Fig. 6C). Two-way ANOVAs for repeated measures over drug dose and stimulation frequency revealed statistically significant drug treatment main effects (Fig. 5A: F
1,3 = 61.04, p < 0.01; Fig. 5B: F
1,3 = 280.15, p < 0.001; Fig. 5C: F
2,6 = 13.23, p < 0.01; Fig. 5D: F
2,6 = 27.39, p < 0.001). To further confirm this DA-dependency, we used the same optogenetic approach to directly stimulate VTA DA neurons in DAT-Cre mice. We found that photoactivation of VTA DA neurons induced more robust ICSS behavior than photoactivation of VTA glutamatergic neurons (Fig. 5E: F
1,15 = 22.08, p < 0.001), suggesting that VTA glutamate neuron activation-induced oICSS behavior is mediated indirectly by activation of VTA dopaminergic neurons (Figs 5F and 6C).

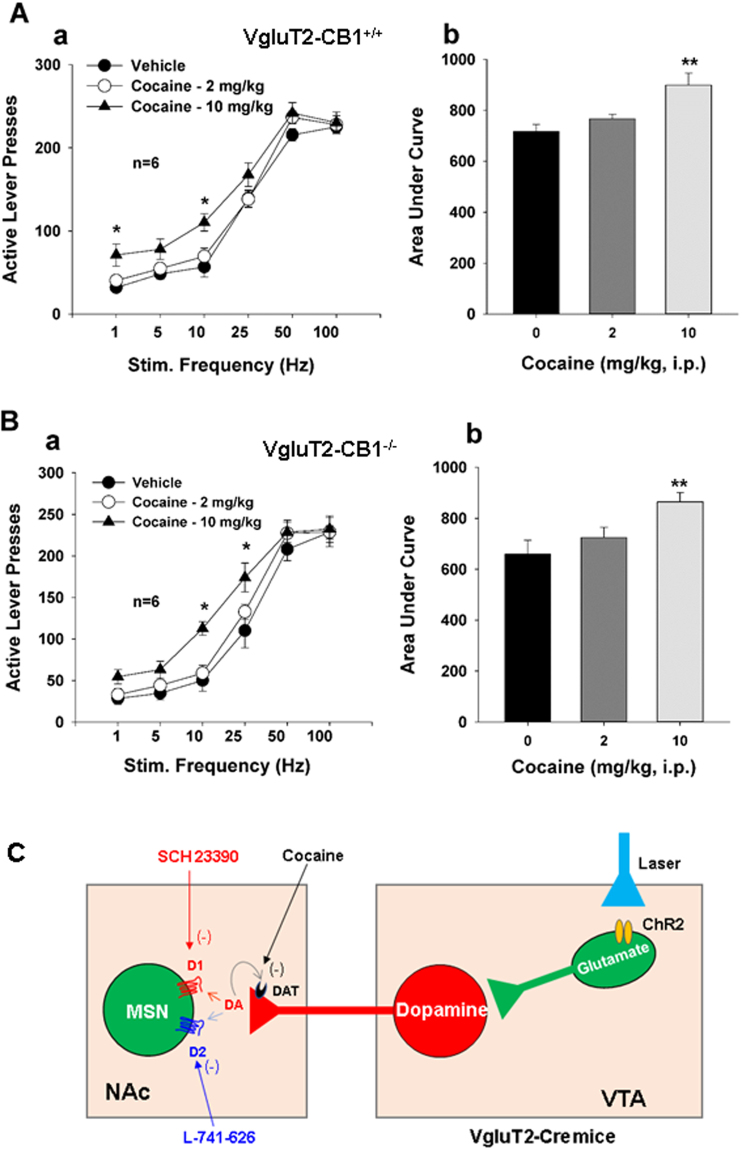

We then examined whether cocaine produces enhanced brain-stimulation reward effects in oICSS similarly as seen in electrical ICSS38. Figure 6 shows that systemic administration of cocaine (2, 10 mg/kg, i.p., 15 min prior to testing) dose-dependently shifted the rate-frequency response curve leftward and upward in both WT and VgluT2-CB1 −/− mice. This is consistent with our previous finding with electrical ICSS38,39. Two-way ANOVA for repeated measures over cocaine dose and stimulation frequency revealed a significant cocaine treatment main effect in both WT mice (Fig. 6-Aa: F 2,10 = 9.27, p < 0.01) and VgluT2-CB1−/− mice (Fig. 6-Ba: F 2,10 = 11.15, p < 0.01). One-way ANOVA for repeated measures over cocaine dose revealed a significant increase in the area under curve (AUC) after cocaine administration (Fig. 6-Ab, F 2,10 = 9.26, p < 0.01; Fig. 6-Bb, F 2,10 = 11.17, p < 0.01), compared to the vehicle treatment group. These data suggest that, in the presence of cocaine, less stimulation strength (Hz) is required to maintain the optical brain-stimulation behavior. Figure 6C shows the proposed mechanisms through which DA receptor antagonists or cocaine modulates oICSS maintained by optical activation of VTA glutamatergic neurons.
Δ9-THC inhibits glutamate-based optical ICSS behavior

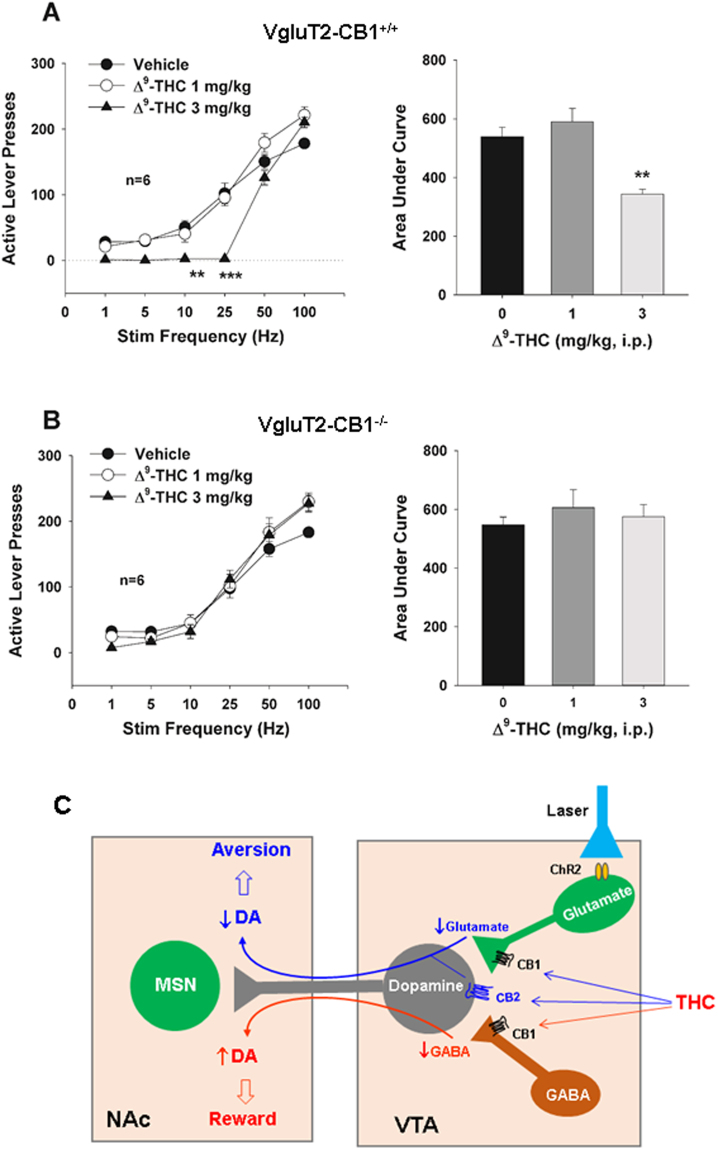

We then examined the effects of Δ9-THC on VTA glutamate neuron activation-induced oICSS. Figure 7 shows that Δ9-THC dose-dependently shifted the rate-frequency function curve downward and rightward only in WT mice (Fig. 7A-a), but not in VgluT2-CB1‒/‒ mice (Fig. 7B-a). Two-way ANOVA for repeated measures over Δ9-THC dose and stimulation frequency revealed a statistically significant Δ9-THC treatment main effect (Fig. 7A-a: F
2,10 = 15.05, p < 0.001) in WT mice, but not in VgluT2-CB1−/− mice (Fig. 7B-a, F
2,10 = 1.001, p > 0.05). These findings suggest that, in the presence of Δ9-THC, higher stimulation strength (Hz) is required to maintain the optical ICSS behavior. We note that Δ9-THC appears more effective in inhibiting optical ICSS maintained by low-frequency (1, 5, 10, 25 Hz) than by high-frequency (50, 100 Hz) optical stimulation (Fig. 7A-a), suggesting that the effects of Δ9-THC are reversed by increasing VTA glutamate release or stimulation strength. Figure 7C shows a schematic diagram illustrating that activation of CB1Rs in VTA glutamatergic neurons may mediate Δ9-THC-induced aversion since selective deletion of CB1Rs in glutamatergic neurons in VgluT2-CB1−/− mice attenuates Δ9-THC-induced reduction in oICSS in this study.
Δ9-THC inhibits basal and glutamate-enhanced locomotion

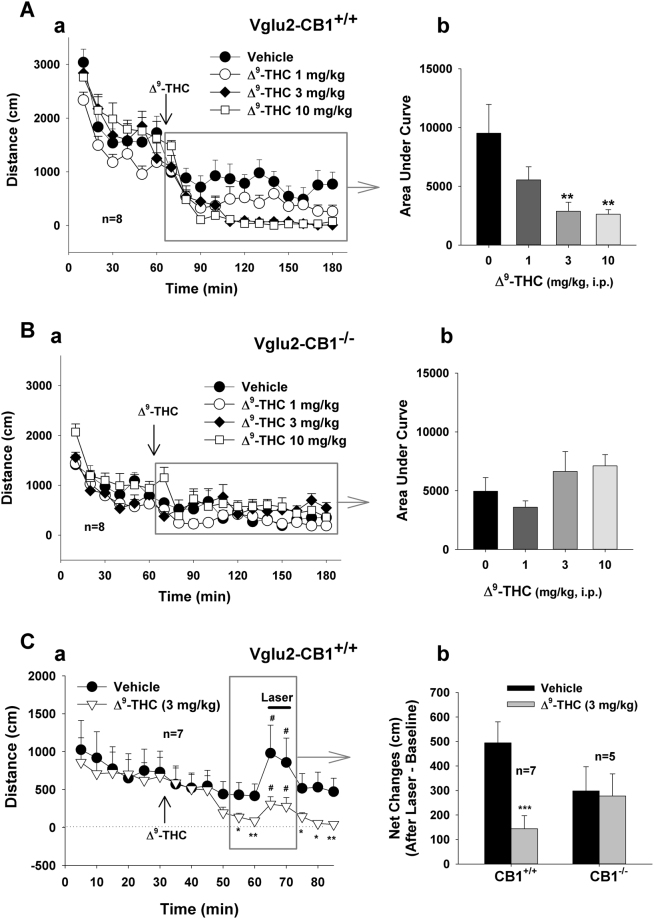

Finally, we examined whether the inhibitory effects of Δ9-THC on oICSS generalize to other actions of Δ9-THC. Figure 8-A,B shows that systemic administration of Δ9-THC (1, 3, 10 mg/kg, i.p.) significantly decreased basal levels of locomotion in a dose-dependent manner in WT littermates (Fig. 8A), but not in VgluT2-CB1‒/‒ mice (Fig. 8B). One-way ANOVA for repeated measures over drug dose revealed a statistically significant treatment main effect in WT mice (Fig. 8A-b: F
3,18 = 8.51, p < 0.001), but not in VgluT2-CB1‒/‒ mice (Fig. 8B-b: F
3,18 = 2.44, p > 0.05). Unexpectedly, VgluT2-CB1‒/‒ mice displayed a significantly lower basal level of locomotion (before Δ9-THC administration) than WT mice (Fig. 8A
versus Fig. 8B), suggesting that CB1R expression in VgluT2-positive glutamate neurons contributes to maintaining basal locomotor activity.
Figure 8-Ca shows that Δ9-THC, at 3 mg/kg, not only decreased basal locomotion, but also significantly attenuated the locomotor response to photostimulation of VTA glutamate neurons.
Figure 8-Cb shows the mean net increase in distance traveled (cm per 5 min) after VTA glutamate neuron activation, indicating a significant reduction in evoked locomotor response after Δ9-THC administration in WT littermates (F1,6 = 16.88, p < 0.001), but not in VgluT2-CB1‒/‒ mice (F 1,4 = 0.38, p > 0.05).
Discussion
The major findings in the present study include: 1) CB1R mRNA was detected in both VTA glutamatergic neurons and GABAergic neurons with the density higher in glutamatergic neurons than in GABAergic neurons; 2) systemic administration of Δ9-THC produced significant conditioned place aversion in wildtype littermates, but not in VgluT2-CB1 −/− mice; 3) optical activation of VTA glutamatergic neurons is rewarding, as assessed by optical ICSS, which was dose-dependently enhanced by cocaine, but attenuated by DA receptor antagonists, suggesting DA-dependent reward substrate; 4) Δ9-THC dose-dependently inhibited VTA glutamate neuron activation-induced optical ICSS in wildtype littermates, but not in VgluT2-CB1 −/− mice, suggesting an effect mediated by activation of CB1Rs in VgluT2-expressing glutamate neurons; and finally, 5) Δ9-THC also inhibited basal or VTA glutamate neuron activation-enhanced locomotion. Taken together, the present findings indicate for the first time that endocannabinoid mechanisms associated with VgluT2-expressing glutamatergic neurons mediate hedonic and locomotor effects of Δ9-THC in mice.
With regard to the present cannabinoid findings, it is well known that cannabis can be rewarding or dysphoric in both humans and experimental animals24,25. Electrical ICSS is a commonly used behavioral procedure to study brain reward functions. In this model, animals press a lever to deliver brief electrical pulses to a discrete brain region via an implanted electrode. Most addictive drugs lower the stimulation threshold for electrical ICSS, indicating enhanced rewarding efficacy of the ICSS and implying a summation between the rewarding effects of the electrical ICSS and the pharmacological rewarding effects of the addictive drugs. However, the effects of cannabinoids on brain reward has been a matter of debate. In some studies, Δ9-THC produced a significant reduction in the electrical ICSS threshold in rats39,40, suggesting enhanced brain-stimulation reward (BSR). However, in other studies, Δ9-THC or other cannabinoid agonists either had no effect on electrical BSR41 or produced a reduction in electrical ICSS (i.e., aversion) in rats42–44. Conflicting findings have also been reported in studies using the CPP model [see reviews by24,25]. In the intravenous drug self-administration models, Δ9-THC does not support robust self-administration in rodents24,25 or rhesus monkeys26,27, although Δ9-THC was reported to be able to maintain intravenous self-administration in squirrel monkeys22,23. The mechanisms underlying such conflicting findings are unclear. Since VTA DA neurons receive both excitatory glutamatergic and inhibitory GABAergic inputs16,30,45, we hypothesized that the hedonic effects of cannabis may depend on the final net effect of two opposing actions or different CB1R distributions in both VTA GABAergic and glutamatergic neurons and their afferent terminals (Fig. 7C). If more CB1Rs are expressed in VTA GABAergic neurons or GABAergic afferents), cannabis will be rewarding since GABAergic disinhibition of VTA DA neurons is dominant. In contrast, if more CB1Rs are expressed in VTA glutamatergic neurons or glutamatergic afferents, cannabis will be aversive since CB1R activation-induced reduction of glutamatergic inputs to VTA DA neurons is dominant. Congruently, if CB1R levels are equivalent on both neuronal types, cannabis will have no effect on brain reward function (Fig. 7C). This hypothesis may well explain why Δ9-THC or cannabinoids are rewarding in some species, for example, in squirrel monkeys in which more CB1Rs might be expressed in VTA GABAergic neurons or GABAergic afferent terminals, but are ineffective or aversive in other species such as rats and mice in which more CB1Rs might be expressed in VTA glutamatergic neurons or glutamatergic afferent terminals.
Early autoradiography, IHC and ISH assays indicated that CB1Rs are mainly expressed in cerebral cortex, hippocampus, globus pallidus, substantia nigra pars reticulata, and cerebellum, while a low density of CB1Rs is found in the VTA11,46–48. Although CB1R-immunostaining was detected in GABAergic interneurons in hippocampus, hypothalamus and cerebellum11,49,50, little anatomic evidence indicates whether CB1Rs are expressed in VTA GABAergic interneurons or glutamatergic neurons. In addition, the manner by which cannabis produces anhedonic or aversive effects has remained elusive. In the present study, we used double-labeling highly sensitive RNAscope ISH assays indicating that CB1R mRNA is expressed in both glutamatergic and GABAergic neurons within the VTA, but with higher densities in VTA glutamatergic neurons than in VTA GABAergic neurons, which provides the first direct evidence suggesting that CB1Rs in glutamatergic neurons may play a dominant role in controlling VTA DA neuron activity. This finding may also explain why Δ9-THC and other CB1 agonists are generally not rewarding, but aversive in rodents as reported previously24,25,32 and in the present study.
Another important finding is that the aversive effects of Δ9-THC are mediated by activation of CB1Rs in VgluT2-expressing glutamatergic neurons. This conclusion is supported by several lines of evidence. First, Δ9-THC produced conditioned place aversion in wildtype littermates, but not in VgluT2-CB1 −/− mice; second, Δ9-THC significantly inhibits brain-stimulation reward produced by optical activation of VTA glutamatergic neurons only in wildtype littermates, but not in VgluT2-CB1 −/− mice; third, Δ9-THC significantly inhibits basal levels of locomotion by activation of CB1Rs in VgluT2-expressing glutamatergic neurons; and lastly, higher densities of CB1R mRNA were found in VTA glutamatergic neurons than in VTA GABAergic neurons. Together, these findings are consistent with a recent report that selective deletion of CB1Rs in cortical principal (possibly glutamatergic) neurons, but not in GABAergic neurons, significantly attenuated Δ9-THC’s classical “tetrad effects” – analgesia, hypothermia, catalepsy, and hypolocomotion51.
We note that selective deletion of CB1Rs in VgluT2-expressing glutamatergic neurons significantly attenuated Δ9-THC-induced place aversion, but it did not reveal conditioned place preference in VgluT2-CB1 ‒/‒ mice. In other words, in the absence of CB1Rs in VTA glutamatergic neurons or glutamatergic afferents terminals, Δ9-THC should produce CPP or enhanced oICSS in VgluT2-CB1 ‒/‒ mice. But this is not the case in the present study. There are two possible explanations. First, VTA DA neurons may also receive VgluT1-expressing glutamatergic inputs from other brain regions, where high densities of CB1Rs are also expressed11,46,50; second, we have recently reported that cannabinoid CB2Rs are also expressed in VTA DA neurons and functionally inhibit VTA DA neuron activity and DA-related behavior in both rats and mice52,53. Thus, activation of CB1Rs in VgluT1-expressing glutamatergic terminals and/or CB2Rs in VTA DA neurons may antagonize the rewarding effects produced by CB1R activation in GABAergic neurons (Fig. 7C). We also note that Δ9-THC, at 3 mg/kg, did not inhibit high-frequency optical stimulation-induced ICSS, suggesting that higher Δ9-THC doses may be required. However, the locomotor inhibition produced by higher doses of Δ9-THC prevented testing higher doses of Δ9-THC in this behavioral study. Although Δ9-THC also dose-dependently inhibited levels of locomotion during periods of no optical stimulation, suggesting potential sedative effects, the reduction in optical ICSS is unlikely due to Δ9-THC-induced sedation or locomotor impairment since 3 mg/kg Δ9-THC failed to inhibit oICSS in both WT and VgluT2-CB1 ‒/‒ mice. The finding that Δ9-THC also inhibits basal locomotion in wildtype littermates, but not in VgluT2-CB1 −/− mice, provides additional evidence that CB1Rs on VgluT2-expressing glutamatergic neurons play an important role in mediating cannabis-mediated rewarding and psychomotor-stimulating actions in mice.
Surprisingly, VgluT2-CB1 −/− mice displayed a significant reduction in basal levels of locomotion, which seemingly conflicts with the finding that activation of CB1Rs by Δ9-THC inhibits locomotion. The present finding observed in conditional VgluT2-CB1 ‒/‒ mice is consistent with that in constitutive CB1-knockout mice (i.e., global CB1 ‒/‒) that display a significant reduction in basal locomotion and in locomotor/DA responses to cocaine compared to WT mice54. One possible interpretation is that endocannabinoids affect basal levels of locomotion not only through CB1Rs in the mesolimbic DA system, but also through CB1Rs in acetylcholine or other locomotion-related neurotransmitter systems. The reduction in basal locomotion observed in VgluT2-CB1 ‒/‒ mice could be a final net effect of multiple actions in different neurotransmitter systems.
A third important discovery is that oICSS may be used as a new animal model to study cell type-specific brain reward mechanisms. In this study, we used the same criteria as used in electrical ICSS38,44, we successfully established a stable rate-frequency function curve of oICSS produced by optical activation of VTA glutamatergic neurons. We found that systemic administration of cocaine significantly enhanced oICSS as assessed by a leftward shift of the rate-frequency curve. This is consistent with findings observed in electrical ICSS38. In contrast, DA receptor antagonists significantly inhibited oICSS and shifted the rate-frequency curve to the right, suggesting that the oICSS produced by activation of VTA glutamate neurons is mediated indirectly by activation of VTA DA neurons. This is further supported by the finding that VTA axon terminals expressing VgluT2 form synapses on VTA DA neurons, and photoactivation of VTA VgluT2 neurons supports oICSS and produces conditioned place preference by increasing glutamate release onto VTA DA neurons34. Since oICSS is mediated by selective activation of a specific phenotype of neurons in the brain, it is superior to electrical ICSS in studying cell type-specific neural circuitries underlying brain reward or aversion as well as pharmacological action of a test compound.
Although CB1 mRNA was detected in both VTA glutamatergic neurons and GABAergic neurons, it is unlikely that the present findings reflect CB1R mechanisms only within the VTA, since higher densities of CB1Rs are expressed in other brain regions outside the VTA9,11,46. Given that VTA DA neurons also receive glutamatergic afferents from the medial prefrontal cortex, the pedunculopontine region, and the subthalamic nucleus13,55; and VTA DA neurons also receive GABAergic afferents from the ventral striatum, ventral pallidum, and rostromedial tegmental nucleus (RMTg)15, the aversive effects of Δ9-THC observed in the present study are most likely the final outcome of opposing actions in VTA GABAergic versus glutamatergic neurons and/or GABAergic versus glutamatergic afferents from other brain regions.
In the present study, we did not examine the role of CB1Rs in VTA GABAergic neurons or GABAergic afferents in cannabis reward since Δ9-THC is not rewarding in mice as assessed by the mouse CPP model. The presently-used oICSS techniques cannot be used to address this question since optical activation of VTA GABAergic neurons in Vgat-Cre mice cannot induce motivated ICSS behavior as shown in our pilot study. This is not surprising since optical activation of VTA GABAergic neurons increases GABA release that, in turn, inhibits VTA DA neurons (Fig. 7C). Therefore, additional behavioral models, involving conditional CB1-/- mice in brain GABAergic neurons, are required to further address the above GABAergic hypothesis of cannabis reward.
In conclusion, the present findings demonstrate for the first time that CB1Rs in cell type-specific (VgluT2-expressing) glutamatergic neurons play an important role in the hedonic effects of Δ9-THC. Given that optical ICSS is mediated by direct activation of VTA dopaminergic or glutamatergic neurons and displays a similar sigmoid “S”-shape rate-frequency function as seen in classical electrical ICSS, oICSS may be used as a new animal model to study cell type-specific neural circuitries underlying brain reward and aversion, and the pharmacological actions of addictive or anti-addictive drugs in the brain.
Methods
Animals
Adult VgluT2-CB1 −/− mice (CB1flox/flox;VgluT2-Cre+/−) and their wild-type littermates (VgluT2-Cre +/−), aged 4–16 weeks, were used in the all behavioral experiments, and maintained on a 12 h light-dark cycle with food and water available ad libitum. All experimental procedures were conducted in accordance with the Guide for the care and use of laboratory animals of the U.S. National Research Council and were approved by the animal care committee of the National Institute on Drug Abuse of the National Institutes of Health. More details about the generation of conditional CB1 knockout (cKO) mice were provided in the Supplement.
Immunohistochemistry Assays
We used fluorescent immunochemistry to examine CB1R expression in the VTA. Methods in detail are described in the Supplementary Information.
RNAscope in situ hybridization assays
All the RNA probes that target CB1, VgluT2 or GAD1 were designed and provided by Advanced Cell Diagnostics (Hayward, CA). Complete experimental methods are described in the Supplementary Information.
Conditioned place preference or aversion
Classical conditioned place preference experimental procedures were as described previously (Xi et al., 2011). A three-chamber place preference apparatus (Med Associates) was used in this study. Three groups of wild-type mice (n = 12 each group) and two groups of VgluT2-CB1 −/− mice were used to study Δ9-THC-induced (1, 3, 5 mg per kg) conditioned place preference or aversion. More details are provided in the Supplementary Information.
Optical intracranial self-stimulation
For oICSS experiments, mice were injected with AAV-EF1α-DIO-ChR2-EGFP) or the control virus (AAV2-EF1α-DIO-EGFP) and implanted with bilateral custom-made optical fiber targeted to the VTA. Behavioral training and testing occurred in mouse operant chambers (Med Associates) interfaced with optogenetic stimulation equipment. Complete experimental methods are described in the Supplementary Information.
Data Analysis
All data are presented as mean ± SEM. One-way ANOVA or two-way ANOVA for repeated measures was used to analyze the difference between WT and VgluT2- CB1 −/− mice in terms of active lever presses, or travel distance. Paired comparisons between WT and VgluT2-CB1 −/− groups were carried out using the Student–Newman–Keuls method.
Electronic supplementary material
Untitled section
Acknowledgements
We thank Drs. Amy Newman, Yavin Shaham, and Zuzana Justinova at NIDA IRP for insightful discussion and careful reading of the manuscript. We thank Dr. K. Deisseroth (Stanford University) for providing optogenetic constructs and Dr. Antonello Bonci at NIDA IRP for providing VgluT2-Cre transgenic mice. This work was supported by the Intramural Research Program (IRP) at the National Institute on Drug Abuse (NIDA) and the Intramural Research Program (IRP) at the National Institute on Aging (NIA).
Notes
Competing Interests
The authors declare that they have no competing interests.
