Chain Substituted Cannabilactones with Selectivity for the CB2 Cannabinoid Receptor
Center for Drug Discovery and Department of Pharmaceutical Sciences, Northeastern University, Boston, MA 02115, USA; s.alapafuja@northeastern.edu (S.O.A.); t.ho@northeastern.edu (T.C.H.); tong.f@husky.neu.edu (F.T.); othmanb@gmail.com (O.B.)
Department of Chemistry & Chemical Biology, Northeastern University, Boston, MA 02115, USA
*Correspondence: s.nikas@northeastern.edu (S.P.N.); a.makriyannis@northeastern.edu (A.M.); Tel.: +1617-373-3125 (S.P.N.); +1617-373-4200 (A.M.)Abstract
In earlier work, we reported a novel class of CB2 selective ligands namely cannabilactones. These compounds carry a dimethylheptyl substituent at C3, which is typical for synthetic cannabinoids. In the current study with the focus on the pharmacophoric side chain at C3 we explored the effect of replacing the C1′-gem-dimethyl group with the bulkier cyclopentyl ring, and, we also probed the chain’s length and terminal carbon substitution with bromo or cyano groups. One of the analogs synthesized namely 6-[1-(1,9-dihydroxy-6-oxo-6H-benzo[c]chromen-3-yl) cyclopentyl] hexanenitrile (AM4346) has very high affinity (Ki = 4.9 nM) for the mouse CB2 receptor (mCB2) and 131-fold selectivity for that target over the rat CB1 (rCB1). The species difference in the affinities of AM4346 between the mouse (m) and the human (h) CB2 receptors is reduced when compared to our first-generation cannabilactones. In the cyclase assay, our lead compound was found to be a highly potent and efficacious hCB2 receptor agonist (EC50 = 3.7 ± 1.5 nM, E(max) = 89%). We have also extended our structure-activity relationship (SAR) studies to include biphenyl synthetic intermediates that mimic the structure of the phytocannabinoid cannabinodiol.
1. Introduction
The two G-protein coupled receptors (GPCRs) termed cannabinoid receptor 1 (CB1) and cannabinoid receptor 2 (CB2) are principal components of the endocannabinoid biosignaling system and molecular targets for the psychoactive constituent of cannabis Δ9-tetrahydrocannabinol (Δ9-THC) [1,2,3]. Both CB1 and CB2 also bind the FDA approved drug Nabilone and many other exogenous (plant-derived and synthetic) cannabinoids. The CB1 receptor retains a high (≥97%) degree of amino acid sequence identity across mouse, rat, and human [4]. In contrast, the human CB2 receptor displays only 82% and 81% amino acid identity with mouse [5] and rat [6] respectively. The CB1 receptor was found to be localized primarily in the brain and it is one of the most abundant GPCRs in the central nervous system (CNS) [4]. This receptor is also found in peripheral tissues and organs [7]. Activation of the central CB1 receptors mediates most of the cannabinoid psychotropic and behavioral effects. Conversely, the CB2 receptors are detectable at very low levels in brain and they are expressed predominantly in immune cells and in the periphery [8]. Nevertheless, the CB2 receptors may be induced in the CNS under pathologic conditions. Collaborative efforts, including our laboratory, have led to the first crystal structures of the agonist and antagonist bound human CB1, while recently we published the first crystal structure of the human CB2 receptor in a complex with the antagonist AM10257. This breakthrough work provides a molecular basis for predicting the binding modes of cannabinoids with their target proteins, and offers invaluable information for target-based drug design [9,10,11,12].
Selective CB2 receptor activation is a very promising method of modulating the endocannabinoid system because the pharmacologic effects are devoid of centrally mediated liabilities that are correlated with CB1 receptor modulation either directly by exogenous cannabinoids or indirectly through functional interactions with other receptor systems [13]. Selective CB2 activation would decrease CB1 associated ataxia, hypothermia, mood and memory disturbances, and abuse potential [14,15,16,17,18,19]. Currently, the CB2 receptor has emerged as an attractive therapeutic target for the treatment of inflammatory and neuropathic pain, as well as neurodegenerative disorders [20,21,22,23], and cancer [24,25,26].

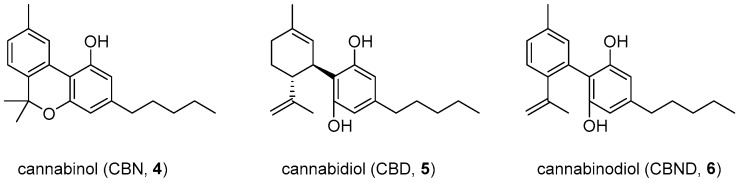

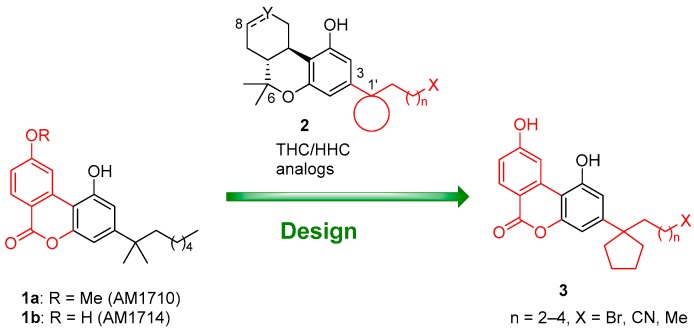

Our group has identified the cannabilactones (Figure 1), as a new class of CB2 agonists with structural similarities to the 6,6-dimethyl counterpart and phytocannabinoid cannabinol (Figure 2). Two first generation analogs within this class of compounds namely AM1714 and AM1710 (Figure 1) have become important pharmacological tools in establishing proof of concept for the usefulness of the CB2 receptor activation approach [27,28,29,30,31,32,33]. Both these CB2 selective agonists are found to possess potent peripheral analgesic activity in several animal models of inflammatory and neuropathic pain. Moreover, functional studies with a lead compound have highlighted the potential of the cannabilactone based CB2 agonists to behave as neutral antagonists/low potency inverse agonists at CB1, a unique property which imparts very high functional selectivity for CB2 over CB1 [30,31,33]. Thus, from a medicinal chemistry perspective, the class of cannabilactone compounds remains an attractive structural motif for further development of CB2 selective and efficacious agonists.
The present work is informed by our findings with analogs of (−)-Δ8-tetrahydrocannabinol (THC) and (−)-hexahydrocannabinol (HHC) with cyclic moieties at the C1′ position of the side chain pharmacophore [34,35,36,37] (Figure 1). These studies have shown that analogs with six- to eight-atoms-long side chains substituted at C1′ with a cyclopentyl ring exhibit remarkably high affinities for CB1 and CB2 receptors. Taken together, in this study our design replaces the 1′,1′-gem-dimethyl group in the cannabilactone scaffold with the larger and sterically more confined cyclopentyl group (Figure 1). Additionally, we have explored the pharmacophoric limits of side chain length, while the polar characteristics have been enhanced by incorporating bromo- and cyano-substituents at the terminal carbon atom [37,38]. All synthesized compounds were assessed for their binding affinities at rat CB1 (rCB1) and mouse CB2 (mCB2) receptors while the most promising analogs were also tested in human CB2 (hCB2) to identify potential species differences between the mouse and human clone. One of the analogs synthesized namely AM4346 has very high affinity (Ki = 4.9 nM) and 131-fold selectivity for mCB2 over rCB1 and behaves as a potent CB2 agonist in the cyclase assay. The species difference in the affinities of AM4346 between the mouse and the human CB2 receptors is reduced when compared to our first-generation compound AM1714, while AM4346 is endowed with enhanced polarity due to the presence of the cyano group. Additionally, we extended our SAR to include the biphenyl synthetic intermediates 23a–23d as they encompasses the biaryl subunit which is a privileged structure (biaryls found in 4.3% of known drugs), and also, they have structural similarities with the phytocannabinoid cannabidiol and its oxidative metabolite cannabinodiol (Figure 2) [39,40,41,42].
2. Results and Discussion
2.1. Chemistry

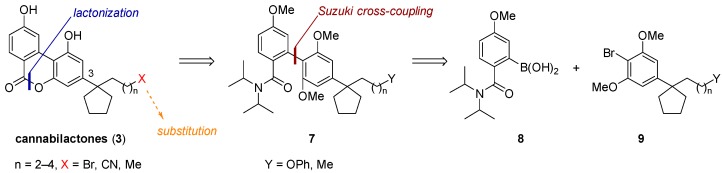

We conjectured that cannabilactones would be assessible from biphenyl compounds 7 via lactonization (Scheme 1). The bromo- or cyano-group on the C3-side chain of cannabilactones would be introduced to either the biphenyl or the cannabilactone template via substitution. Disconnection of biphenyl compounds 7 through a Suzuki coupling led to boronic acid 8 and aryl bromides 9.

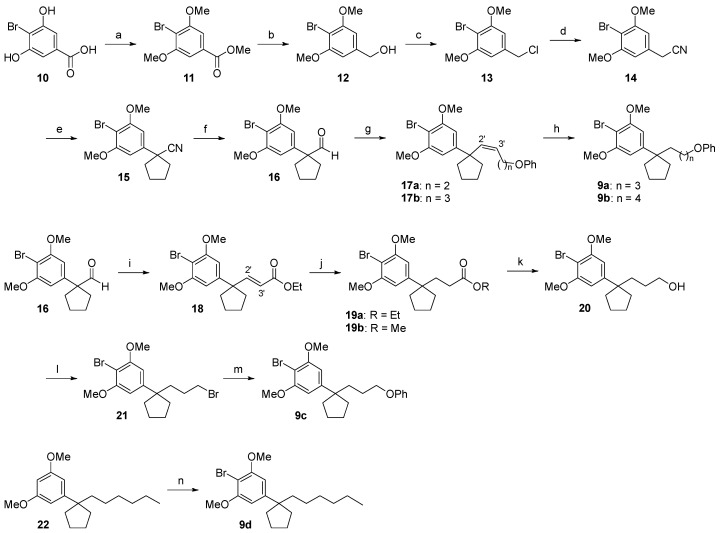

The synthesis of aryl bromides 9a–9d is summarized in Scheme 2. Bromides 9a–9c were prepared in a general approach starting from commercially available 4-bromo-3,5-dihydroxybenzoic acid (10). Following the procedure of Luning et al. [43], etherification of the phenolic hydroxyl groups as well as, esterification of the carboxylic acid was accomplished in a single step by refluxing a mixture of 10, potassium carbonate, and dimethyl sulfate in acetone. Reduction of the resulting ester 11 with diisobutylaluminum hydride (DIBAL-H) gave benzylic alcohol 12. Although the conversion of 12 to the benzyl chloride has been reported [44], we adopted a more convenient and higher yielding approach. This involved refluxing a mixture of 12 and triphenylphosphine in dry carbon tetrachloride for two hours [35,45,46] to give 13 in 93% yield. Treatment of 13 with sodium cyanide in dimethyl sulfoxide afforded benzyl nitrile 14 in 87% yield [35,44]. Sequential deprotonation of 14 using potassium bis(trimethylsilyl)amide and cyclobisalkylation using 1,4-dibromobutane in tetrahydrofuran (THF) at 0 °C produced cyclopentyl nitrile 15 in 70% yield [35,47]. This was transformed to aldehyde 16 in 85% yield with DIBAL-H at −78 °C [48].
a Reagents and conditions: (a) Me2SO4, K2CO3, acetone, reflux, 92%; (b) DIBAL-H, THF, rt, 1 h, 85%; (c) Ph3P, CCl4, reflux, 93%; (d) NaCN, DMSO, rt, overnight, 87%; (e) KHMDS, 1,4-dibromobutane, THF, 0 °C, 5 min, 70%; (f) DIBAL-H, CH2Cl2, −78 °C, 1 h, 85%; (g) (3-phenoxypropyl)- or (4-phenoxybutyl)triphenylphosphonium bromide, KHMDS, THF, 0 °C, 10 min, 94% for 17a and 93% for 17b; (h) H2, Pd/C, EtOAc, rt, 12 h, 95% for 9a and 94% for 9b; (i) triethyl phosphonoacetate, NaH, THF, 92%; (j) for 19a: H2, Pd/C, EtOAc, 30 psi, 95%; for 19b: Mg/MeOH, 0 °C, 2 h, then rt, 12 h, 80%; (k) DIBAL-H, THF, rt, 1 h, 86% from 19a, 85% from 19b; (l) Ph3P/CBr4, 0 °C → rt, 85%; (m) NaOPh, DMSO, rt, 20 h, 50%; (n) Br2, CCl4, 0 °C, 1 h, 78%.
Wittig olefination of aldehyde 16 with (3-phenoxypropyl)- and (4-phenoxybutyl) triphenylphosphonium bromides gave exclusively cis-alkenes 17a and 17b, respectively, in 93–94% yields. The geometry of the newly formed double bond in 17a and 17b was assigned based on the 1H NMR spectra of crude products (3JH2′−H3′ ~ 11.3 Hz). Reduction of these alkenes by catalytic hydrogenation afforded the corresponding aryl bromides 9a and 9b. Wittig olefination of aldehyde 16 with (2-phenoxyethyl)triphenylphosphonium bromide was not successful because vinyltriphenylphosphonium bromide was generated under the reaction conditions [49]. To prepare aryl bromide 9c, a slightly modified route was followed. Horner-Wardsworth-Emmons olefination of aldehyde 16 with commercially available triethyl phosphonoacetate [50,51,52] produced exclusively trans-conjugated ester 18 in 92% yield (3JH2′−H3′ ~ 15.8 Hz). Palladium-catalyzed hydrogenation of 18 in ethyl acetate required high pressure (30 psi) to produce ethyl ester 19a in 95% yield, whereas exposure of 18 to magnesium turnings in methanol gave methyl ester 19b in 80% yield [53]. Reduction of either 19a or 19b with DIBAL-H at room temperature gave alcohol 20 (85–86% yield). This was followed by treatment of 20 with triphenylphosphine and carbon tetrabromide to afford 21 in 85% yield. Phenoxide displacement of 21 in dimethyl sulfoxide provided aryl bromide 9c in moderate yield (50%). Additionally, aryl bromide 9d was prepared via bromination of resorcinol dimethyl ether 22 [35] using bromine in carbon tetrachloride (78% yield) [54].

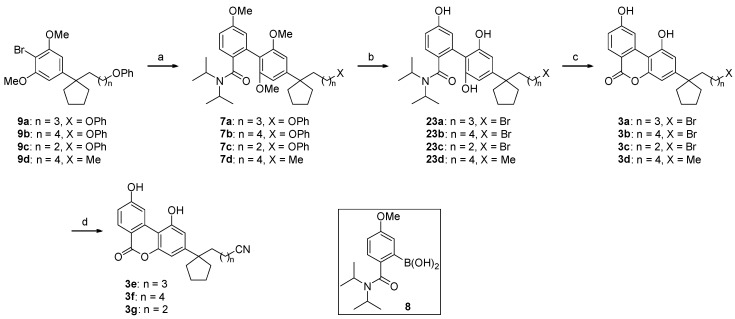

With aryl bromides 9a–9d in hand, we proceeded to complete the synthesis of cannabilactones (Scheme 3). Suzuki cross-coupling of aryl bromides 9a–9d with boronic acid 8, which was prepared from commercially available 4-methoxybenzoic acid [55,56], furnished the sterically hindered biphenyls 7a–7d in 48–50% yields.
a Reagents and conditions: (a) 8, Ba(OH)2, DME/H2O, Pd(Ph3P)4, 80 °C, 6 h, 48% for 7a from 9a, 50% for 7b from 9b, 50% for 7c from 9c, and 50% for 7d from 9d; (b) BBr3, CH2Cl2, −78 °C, rt, 12 h, 92% for 23a from 7a, 90% for 23b from 7b, 91% for 23c from 7c, and 89% for 23d from 7d; (c) AcOH, reflux, 24 h, 89% for 3a from 23a, 90% for 3b from 23b, 91% for 3c from 23c, and 91% for 3d from 23d; (d) NaCN, DMSO, rt, 24 h, 72% for 3e from 3a, 69% for 3f from 3b, and 70% for 3g from 3c.
Exposure of 7a–7d to boron tribromide led to trihydroxybiphenyl intermediates 23a–23d in 89–92% yields, in which cleavage of all methyl ether groups and of the phenolic ether with introduction of the bromide in the case of 7a–7c took place in a single step. Acetic acid mediated lactonization of polyphenols 23a–23d afforded cannabilactones 3a–3d in 89–91% yields. Subsequent exposure of 3a–3c to sodium cyanide in dimethyl sulfoxide gave nitriles 3e–3g.
2.2. Affinity for Cannabinoid Receptors
The abilities of the cannabilactone analogs 3a–3g to displace the radiolabeled CB1/CB2 agonist CP-55,940 from membranes prepared from rat brain (a source of CB1) and HEK293 cells expressing mouse CB2 were determined as described earlier [38,57,58]. Inhibition constant values (Ki) from the respective competition binding curves are listed in Table 1 in which our first generation cannabilactone analog AM1714 is included for comparison. The current data of AM1714 for mCB2 are slightly different when compared to those we published earlier [27]. This is because the compound was first assayed in a different mCB2 receptor preparation, e.g., mouse spleen membrane.
It should also be noted that the rat, mouse, and human CB1 receptors have 97–99% sequence identity across species and, as shown earlier (see for example [12,37,38,57]), are not expected to exhibit variations in their Ki values. However, the CB2 receptor shows less homology (~82%) between species than does CB1 (97–99%), and that variability could cause species-related differences in affinity. Indeed, in our original work on the cannabilactone class of compounds, we have identified species-specific variation in CB2 affinity [27]. For this reason, the key compounds were also assayed using membranes from HEK293 cells expressing human CB2 (hCB2). Data from the latter preparation are listed in Table 2.
As shown in Table 1, replacement of the C1′-gem-dimethyl group with the bulkier, more sterically confined cyclopentyl ring produces cannabilactone analogs with enhanced affinity and selectivity for the mCB2 relative to the rCB1 receptors. We also observe that this trend for mCB2 selectivity can be optimized by varying the length of the side chain and the substituent at the terminal carbon atom. Thus, analogs carrying five- to seven-atoms long side chains terminated with a bromine atom or a cyano group (3c, 3a, 3b, 3g, and 3e) exhibit 16- to 26-fold selectivity for mCB2 over rCB1. The more lipophilic C1′-gem-dimethyl-heptyl (1b) and C1′-cyclopentyl-heptyl (3d) analogs have comparable affinity (Ki = 4.7 ± 1.8 nM and 8.4 ± 2.5 nM) and selectivity (21- to 32-fold) for mCB2 over rCB1. Within these series, however, analog AM4346 with its longer chain (eight atoms) and C6′-cyano substituent has optimal properties: maximal binding affinity for mCB2 and minimal affinity for rCB1. In fact, AM4346 exhibits a remarkable 131-fold selectivity for mCB2 over rCB1.
The binding affinities for the human CB2 (hCB2) receptor of the three key analogs AM1714, AM4348, and AM4346 are listed in Table 2. We observe that although all analogs exhibit somewhat reduced affinity for hCB2 as compared to mCB2 (Table 1), the C1′-cyclopentyl-analogs show a pronounced reduction in the affinity differences between mCB2 and hCB2 as compared to C1′-gem-dimethyl analog. Thus, AM1714 has 18-fold greater affinity for mCB2 than for hCB2, but this preference is reduced to 3-fold for AM4348 and 7-fold for AM4346. With a roughly 19-fold preference, analog AM4346 has the highest selectivity for hCB2 over rCB1.
Synthesized as precursors to cannabilactones, binding affinities of the intermediate biphenyl compounds 23a–23d for rCB1 and mCB2 were also determined (Table 3). To our surprise, these biphenyl analogs bind mCB2 with high affinity and substantial selectivity for that receptor over rCB1. In this series, the C1′-cyclopentyl-heptyl analog AM4347 has both the greatest binding affinity (Ki = 5.7 ± 1.5 nM) for mCB2 and the highest selectivity (60-fold) for that receptor over rCB1.
2.3. Functional Characterization
Functional characterization of three key cannabilactones (AM1710, AM1714, and AM4346) for the hCB2 receptor was carried out by measuring the decrease in forskolin stimulated cAMP, as detailed earlier [38,57]. Data are listed in Table 4 in which the standard cannabinoid agonist CP-55,940 is included for comparison. Our testing results show that all three compounds potently decreased the levels of cAMP, indicating that within this signaling mechanism these compounds behaved as potent agonists at the hCB2 receptor with the C1′-cyclopentyl-analog AM4346 being more potent (EC50 = 3.7 ± 1.5 nM, E(max) = 89%) than the C1′-gem-dimethyl-analogs AM1710 and AM1714 (EC50 = 10.5 ± 2.5 nM, E(max) = 73% and EC50 = 36.9 ± 6.8 nM, E(max) = 77% respectively).
In the same assay, one of the biphenyl analogs, compound 23d (AM4347), failed to show any responses in concentrations up to 2 μM.
3. Experimental Section
Materials: all reagents and solvents were purchased from Aldrich Chemical Company, unless otherwise specified, and used without further purification. All anhydrous reactions were performed under a static argon atmosphere in flame-dried glassware using scrupulously dry solvents. Flash column chromatography employed silica gel 60 (230–400 mesh). All compounds were demonstrated to be homogeneous by analytical TLC on pre-coated silica gel TLC plates (Merck, 60 F245 on glass, layer thickness 250 μm), and chromatograms were visualized by phosphomolybdic acid staining. Melting points were determined on a micro-melting point apparatus and are uncorrected. IR spectra were recorded on a Perkin Elmer Spectrum One FT-IR spectrometer. NMR spectra were recorded in CDCl3, unless otherwise stated, on a Bruker Ultra Shield 400 WB plus (1H at 400 MHz, 13C at 100 MHz) or on a Varian INOVA-500 (1H at 500 MHz) spectrometers and chemical shifts are reported in units of δ relative to internal TMS. Multiplicities are indicated as br (broadened), s (singlet), d (doublet), t (triplet), q (quartet), m (multiplet) and coupling constants (J) are reported in hertz (Hz). Low and high-resolution mass spectra were performed in School of Chemical Sciences, University of Illinois at Urbana-Champaign. Mass spectral data are reported in the form of m/z (intensity relative to base = 100).
4-Bromo-3,5-dimethoxybenzyl chloride (13). To a stirred solution of 4-bromo-3,5-dimethoxyphenylmethanol (12) (4.74 g, 19.2 mmol) in anhydrous carbon tetrachloride (200 mL) at room temperature under an argon atmosphere was added triphenylphosphine (11.6 g, 42.2 mmol). The reaction mixture was refluxed for 45 min and then cooled to room temperature with spontaneous precipitation of triphenylphosphine oxide. To this suspension was added anhydrous hexane, the white precipitate was filtered off, washed with hexane, and the combined filtrate was evaporated under reduced pressure. The residue purified by flash column chromatography on silica gel (20% diethyl ether in petroleum ether) to give compound 13 (4.74 g, 93% yield) as a colorless oil which crystallized on standing. mp 65–67 °C (lit [44]. mp 69 °C); 1H NMR (500 MHz, CDCl3) δ 6.60 (s, 2H, 2-H, 6-H), 4.55 (s, 2H, -CH2Cl), 3.92 (s, 6H, OMe). The 4-bromo-3,5-dimethoxyphenylmethanol (12) was synthesized in two steps from commercially available 4-bromo-3,5-dihydroxybenzoic acid (10), following previously reported procedures [43].
4-Bromo-3,5-dimethoxyphenylacetonitrile (14). To a stirred suspension of sodium cyanide (2.9 g, 40.8 mmol) in DMSO (80 mL) at room temperature was added a solution of 13 (4.3 g, 16.2 mmol) in DMSO (80 mL) over a period of 10 min. The reaction mixture was stirred vigorously overnight and then diluted by adding ice, saturated aqueous NaCl solution and diethyl ether. The organic layer was separated, and the aqueous phase was extracted with diethyl ether. The combined organic layer was washed with brine, dried over MgSO4 and the solvent was evaporated under reduced pressure. The residue purified by flash column chromatography on silica gel (50 % diethyl ether in petroleum ether) to give 14 in 87% yield (3.6 g). mp 123–125°C (lit [44]. mp 125–126 °C); 1H NMR (500 MHz, CDCl3) δ 6.52 (s, 2H, 2-H, 6-H), 3.92 (s, 6H, OMe), 3.74 (s, 2H, -CH2CN).
1-(4-Bromo-3,5-dimethoxyphenyl)cyclopentanecarbonitrile (15). To a solution of 14 (3.42 g, 13.36 mmol) in anhydrous THF (120 mL), at 0 °C under an argon atmosphere, was added potassium bis(trimethylsilyl)amide (8 g, 40.2 mmol). The resulting slurry was stirred at the same temperature for 10 min, and then a solution of 1,4-dibromobutane (3.46 g, 16 mmol) in anhydrous THF (20 mL) was added dropwise. The reaction was stirred for an additional 10 min at 0 °C and then quenched by adding saturated aqueous NH4Cl solution (80 mL). The mixture was warmed to room temperature and diluted with diethyl ether (200 mL). The organic layer was separated and the aqueous phase extracted with diethyl ether. The combined organic layer was washed with brine and dried over MgSO4 and the solvent evaporated under reduced pressure. The residue was purified by flash column chromatography on silica gel (25% diethyl ether in hexane) to give 15 as a white solid in 70% yield (2.9 g). mp 135-138 °C; 1H NMR (500 MHz, CDCl3) δ 6.65 (s, 2H, 2-H, 6-H), 3.92 (s, 6H, OMe), 2.54–2.45 (m, 2H of the cyclopentane ring), 2.14–2.04 (m, 4H of the cyclopentane ring), 2.02–1.94 (m, 2H of the cyclopentane ring); mass spectrum m/z (relative intensity) 311 (M++2, 99), 309 (M+, 100), 270 (80), 268 (81), 257 (6), 255 (6), 245 (7), 243, (7), 218 (10), 216 (10), exact mass calculated for C14H16BrNO2 309.0364, found 309.0362.
1-(4-Bromo-3,5-dimethoxyphenyl)cyclopentanecarboxaldehyde (16). To a stirred solution of 15 (1.40 g, 4.52 mmol) in dry CH2Cl2 (50 mL), at −78 °C, under an argon atmosphere, was added diisobutylaluminum hydride (1 M solution in hexanes, 12 mL) dropwise. The reaction mixture was stirred at the same temperature for 1 h, and then quenched by the dropwise addition of potassium sodium tartrate (10% solution in water). The mixture was warmed to room temperature and stirred vigorously for 1 h. The organic layer was separated, and the aqueous phase extracted with diethyl ether. The combined organic layer was washed with brine, dried over MgSO4 and concentrated in vacuo. The crude product was purified by flash column chromatography on silica gel (25% diethyl ether in hexane) to give 16 as a white solid in 85% yield (1.2 g). mp 88–91 °C; 1H NMR (400 MHz, CDCl3) δ 9.39 (s, 1H, CHO), 6.44 (s, 2H, 2-H, 6-H), 3.90 (s, 6H, OMe), 2.56–2.47 (m, 2H of the cyclopentane ring), 1.95–1.86 (m, 2H of the cyclopentane ring), 1.84–1.73 (m, 2H of the cyclopentane ring), 1.72–1.62 (m, 2H of the cyclopentane ring); mass spectrum m/z (relative intensity), 314 (M++2, 20), 312 (M+, 21), 285 (100), 283 (100), 270 (6), 268 (6); exact mass calculated for C14H17BrO3 312.0361, found 312.0361.
2-Bromo-1,3-dimethoxy-5-[1-(1,2-cis-4-phenoxy-buten-1-yl)cyclopentyl]benzene (17a). To a stirred suspension of 3-(phenoxypropyl)triphenylphosphonium bromide (2.30 g 4.82 mmol) in dry THF (50 mL) at 0 °C, under an argon atmosphere was added potassium bis(trimethylsilyl)amide (0.94 g, 4.72 mmol). To the resulting slurry was added a solution of 16 (0.30 g, 0.96 mmol) in dry THF (5 mL) dropwise. Stirring was continued for an additional 10 min at the same temperature and the reaction was quenched by adding saturated aqueous NH4Cl (20 mL). The mixture was warmed to room temperature and diluted with diethyl ether (40 mL). The organic layer was separated and the aqueous phase extracted with diethyl ether. The combined organic layer was washed with brine, dried over MgSO4 and the solvent evaporated under reduced pressure. The residue was chromatographed through a column of silica gel (10% diethyl ether in petroleum ether) to give 17a as a colorless liquid in 94% yield (390 mg); 1H NMR (400 MHz, CDCl3) δ 7.23 (t, J = 8.1 Hz, 2H, 3-H, 5-H, OPh), 6.91 (t, J = 8.1 Hz, 1H, 4-H, OPh), 6.75 (d, J = 8.1 Hz, 2H, 2-H, 6-H, OPh), 6.61 (s, 2H, ArH), 5.90 (d, J = 11.3 Hz, 1H, 2′-H), 5.46 (dt, J = 11.3 Hz, J = 7.3 Hz, 1H, 3′-H), 3.86 (s, 6H, OMe), 3.74 (t, J = 6.6 Hz, 2H, 5′-H)), 2.20 (q, J = 6.8 Hz, 2H, 4′-H), 2.19-1.93 (m, 4H of the cyclopentane ring), 1.85–1.70 (m, 4H of the cyclopentane ring); mass spectrum m/z (relative intensity) 432 (M++2, 68), 430 (M+, 67), 338 (62), 309 (35), 258 (65), 231 (90), 229 (90), 176 (52), 121 (100), 90 (78), 77 (72); exact mass calculated for C23H27BrO3 430.1144, found 430.1146.
2-Bromo-1,3-dimethoxy-5-[1-(1,2-cis-5-phenoxy-penten-1-yl)cyclopentyl]benzene (17b). The synthesis was carried our as described for 17a using (4-phenoxybutyl)triphenylphosphonium bromide (3.18 g, 6.47 mmol) in anhydrous THF (40 mL), potassium bis(trimethylsilyl)amide (1.72 g, 6.36 mmol), and a solution of 16 (0.42 g, 1.35 mmol) in anhydrous THF (5 mL). The crude product obtained after work up was chromatographed through a column of silica gel (10% diethyl ether in petroleum ether) to give 17b as a colorless liquid in 93% yield (0.56 g). 1H NMR (400 MHz, CDCl3) δ 7.26 (t, J = 8.0 Hz, 2H, 3-H, 5-H, OPh), 6.91 (t, J = 8.0 Hz, 1H, 4-H, OPh), 6.79 (d, J = 8.0 Hz, 2H, 2-H, 6-H, OPh), 6.60 (s, 2H, ArH), 5.79 (d, J = 11.3 Hz, 1H, 2′-H), 5.37 (dt, J = 11.3 Hz, J = 7.3 Hz, 1H, 3′-H), 3.86 (s, 6H, OMe), 3.70 (t, J = 6.5 Hz, 2H, 6′-H), 2.05–1.87 (m, 6H, 4H of the cyclopentane ring and 4′-H, overlapping), 1.80-1.78 (m, 4H of the cyclopentane ring), 1.63 (qt, J = 6.9 Hz, 2H, 5′-H); mass spectrum m/z (relative intensity) 446 (M++2, 9), 444 (M+, 9), 348 (12), 314 (21), 312 (21), 285 (99), 283 (100), 252 (12), 231 (25), 229 (25), 204 (44), 176 (27), 133 (8), 94 (48), 67 (49); exact mass calculated for C24H29BrO3 444.1300, found 444.1301.
2-Bromo-1,3-dimethoxy-5-[1-(4-phenoxybutyl)cyclopentyl]benzene (9a). A mixture of 17a (360 mg, 0.84 mmol) and 10% Pd/C (54 mg) in ethyl acetate (20 mL) was stirred vigorously under hydrogen atmosphere (room temperature overnight). The catalyst was removed by filtration through celite and the filtrate was evaporated under reduced pressure to give the product 9a as a viscous liquid (346 mg, 95% yield) which was used in the next step without further purification. 1H NMR (400 MHz, CDCl3) δ 7.26 (t, J = 8.1 Hz, 2H, 3-H, 5-H, OPh), 6.91 (t, J = 8.1 Hz, 1H, 4-H, OPh), 6.83 (d, J = 8.1 Hz, 2H, 2-H, 6-H, OPh), 6.49 (s, 2H, ArH), 3.87 (s, 6H, OMe), 3.85 (t, J = 6.4 Hz, 2H, 5′-H), 1.95–1.88 (m, 2H of the cyclopentane ring), 1.87–1.79 (m, 2H of the cyclopentane ring), 1.77–1.59 (m, 8H, 4H of the cyclopentane ring and 4H of the 4-phenoxybutyl group), 1.22–1.14 (m, 2H of the 4-phenoxybutyl group); mass spectrum m/z (relative intensity) 434 (M++2, 24), 432 (M+, 24), 342 (16), 340 (16), 285 (100), 283 (97), 231 (24), 229 (24), 204 (32), 176 (18), 149 (19), 91 (21), 67 (34); exact mass calculated for C23H29BrO3 432.1300, found 432.1303.
2-Bromo-1,3-dimethoxy-5-[1-(5-phenoxypentlyl)cyclopentyl]benzene (9b). The title compound was synthesized as described for 9a, using 17b (550 mg, 1.26 mmol) and 10% Pd/C (80 mg) in EtOAc (20 mL) and gave 9b as a white solid in 94% yield (529 mg). mp 65–67 °C; 1H NMR (500 MHz, CDCl3) δ 7.26 (t, J = 8.0 Hz, 2H, 3-H, 5-H, OPh), 6.92 (t, J = 8.0 Hz, 1H, 4-H, OPh), 6.84 (d, J = 8.0 Hz, 2H, 2-H, 6-H, OPh), 6.49 (s, 2H, ArH), 3.88 (s, 6H, OMe), 3.86 (t, J = 6.5 Hz, 2H, 6′-H), 1.94–1.86 (m, 2H of the cyclopentane ring), 1.85–1.77 (m, 2H of the cyclopentane ring), 1.75–1.63 (m, 6H, 4H of the cyclopentane ring and 2H of the 5-phenoxypentyl group, overlapping), 1.62–1.56 (m, 2H, 2′-H), 1.34 (qt, J = 7.6Hz, 2H of the 5-phenoxypentyl group), 1.10–1.00 (m, 2H of the 5-phenoxypentyl group); mass spectrum m/z (relative intensity) 448 (M++2, 7), 446 (M+, 8), 381 (5), 331 (6), 279 (12), 231 (14), 149 (55), 119 (34), 69 (100); exact mass calculated for C24H31BrO3 446.1457, found 446.1457.
trans-3-[1-(4-Bromo-3,5-dimethoxyphenyl)cyclopentyl]acrylic acid ethyl ester (18). To a solution of triethyl phosphonoacetate (2.78 g, 12.42 mmol) in dry THF (50 mL), at 0 °C, under an argon atmosphere, was added sodium hydride (497 mg, 12.42 mmol, 60% dispersion in mineral oil). The mixture was stirred for 15 min at the same temperature and a solution of 16 (1.11 g, 3.55 mmol) in dry THF (10 mL) was added dropwise. Stirring was continued for an additional 10 min, and the reaction was quenched by adding saturated aqueous NH4Cl (20 mL). The mixture was warmed to room temperature and diluted with diethyl ether (100 mL). The organic phase was separated and the aqueous phase extracted with diethyl ether. The combined organic layer was washed with brine, dried over MgSO4 and evaporated under reduced pressure. The crude product was purified by flash column chromatography on silica gel (35% diethyl ether in hexane) to give 18 as a white solid in 92% yield (1.25 g). mp 68–72 °C; 1H NMR (400 MHz, CDCl3) δ 7.04 (d, J = 15.8 Hz, 1H, >CH=CH<), 6.48 (s, 2H, ArH), 5.62 (d, J = 15.8 Hz, 1H, >CH=CH<), 4.16 (q, J = 7.1 Hz, 2H, OCH2CH3), 3.88 (s, 6H, OMe), 2.18–2.08 (m, 2H of the cyclopentane ring), 2.07–1.96 (m, 2H of the cyclopentane ring), 1.84–1.72 (m, 4H of the cyclopentane ring), 1.27 (t, J = 7.1 Hz, 3H, OCH2CH3); mass spectrum m/z (relative intensity) 384 (M++2, 100), 382 (M+, 100), 353 (16), 339 (22), 337 (22); exact mass calculated for C18H23BrO4 382.0780, found 382.0778.
3-[1-(4-Bromo-3,5-dimethoxyphenyl)cyclopentyl]propionic acid ethyl ester (19a). A mixture of 18 (0.5 g, 1.3 mmol) and 10% Pd/C (100 mg) in ethyl acetate (20 mL) was placed in a Parr apparatus (Parr Instrument Co, Moline, IL) and treated with hydrogen at 30 psi for 6 h. The catalyst was removed by filtration through a pad of celite and the filtrate was evaporated under reduced pressure to give 19a as a white solid (472 mg, 95% yield) which was used in the next step without further purification. mp 78–80 °C; 1H NMR (500 MHz, CDCl3) δ 6.48 (s, 2H, ArH), 4.03 (q, J = 7.1 Hz, 2H, OCH2CH3), 3.89 (s, 6H, OMe), 2.04–1.98 (m, 2H, 3′-H), 1.96–1.89 (m, 4H, 2H of the cyclopentane ring and 2′-H, overlapping), 1.86–1.65 (m, 6H of the cyclopentane ring), 1.20 (t, J = 7.1 Hz, 3H, OCH2CH3); mass spectrum m/z (relative intensity), 386 (M++2, 16), 384 (M+, 15), 341 (8), 339 (8), 285 (37), 283 (36), 231 (8), 229 (8), 204 (15), 176 (9), 115 (7), 101 (9), 77 (20), 67 (100); exact mass calculated for C18H25BrO4 384.0936, found 384.0934.
3-[1-(4-Bromo-3,5-dimethoxyphenyl)cyclopentyl]propionic acid methyl ester (19b). A mixture of 18 (0.7 g, 1.83 mmol) and magnesium turnings (132 mg, 5.5 mmol), in dry methanol (20 mL) was stirred at 0 °C for 2 h and at room temperature for an additional 12 h. The solvent was evaporated under reduced pressure and the residue diluted with water (20 mL) and diethyl ether (50 mL). To this mixture was added 5% aqueous HCl (10 mL), the organic layer was separated, and the aqueous layer extracted with diethyl ether. The combined ethereal layer was successively washed with NaHCO3 and brine, dried over MgSO4 and evaporated under reduced pressure to give the product 19b as a white solid (543 mg, 80% yield) which was used in the next step without further purification. mp 71–74 °C; 1H NMR (500 MHz, CDCl3) δ 6.49 (s, 2H, ArH), 3.91 (s, 6H, OMe), 3.60 (s, 3H, COOCH3), 2.09–2.02 (m, 2H, 3′-H), 1.99–1.90 (m, 4H, 2H of the cyclopentane ring and 2′-H, overlapping), 1.88–1.65 (m, 6H, of the cyclopentane ring); mass spectrum m/z (relative intensity) 372 (M++2, 98), 370 (M+, 100), 341 (19), 339 (20); exact mass calculated for C17H23BrO4 370.0780, found 370.0783.
3-[1-(4-Bromo-3,5-dimethoxyphenyl)cyclopentyl]propan-1-ol (20). To a stirred solution of 19b (520 mg, 1.4 mmol) in dry THF (20 mL), at room temperature, under an argon atmosphere, was added diisobutylaluminum hydride (3.7 mL, 1M solution in hexanes) over a period of 15 min. The mixture was stirred at the same temperature for 1 h, and then cooled to 0 °C, and the reaction was quenched by dropwise addition of aqueous potassium sodium tartrate (10% solution in water, 10 mL). The resulting mixture was warmed to room temperature, diluted with ethyl acetate (10 mL) and stirred vigorously for 1h. The organic layer was separated, and the aqueous phase extracted with ethyl acetate. The combined organic layer was washed with brine, dried over MgSO4 and concentrated in vacuo. The residue was purified by flash column chromatography on silica gel (40% ethyl acetate in hexane) to give 20 as a colorless liquid in 85% yield (408 mg). 1H NMR (500 MHz, CDCl3) δ 6.51 (s, 2H, ArH), 3.91 (s, 6H, OMe), 3.53 (t, J = 6.4 Hz, 2H, 4′-H), 1.98-1.91 (m, 2H of the cyclopentane ring), 1.89–1.83 (m, 2H of the cyclopentane ring), 1.81–1.63 (m, 6H, 4H of the cyclopentane ring and 2′-H, overlapping, especially 1.66, m, 2′-H), 1.34–1.26 (m, 2H, 3′-H); mass spectrum m/z (relative intensity) 342 (M+, 100), 297 (26), 285 (10), 283 (10); exact mass calculated for C16H23BrO3 342.0831, found 342.0829. This compound was also synthesized by using 19a (462 mg, 1.2 mmol) in anhydrous THF (10 mL) and diisobutylaluminum hydride (3 mL, 1M solution in hexanes) and gave 354 mg (86% yield) of product (20).
2-Bromo-1,3-dimethoxy-5-[1-(3-bromopropyl)cyclopentyl]benzene (21). To a stirred solution of 20 (400 mg, 1.17 mmol) and carbon tetrabromide (465 mg, 1.40 mmol) in anhydrous CH2Cl2 (10 mL) at 0 °C, under a nitrogen atmosphere, was added triphenylphosphine (368 mg, 1.40 mmol) portionwise. After the addition was completed, the reaction mixture was stirred for an additional 20 min, whereupon the solvent was removed in vacuo. The residue was purified by flash column chromatography on silica gel (10% diethyl ether in hexane) to give 21 as a colorless liquid in 85% yield (403 mg). 1H NMR (500 MHz, CDCl3) δ 6.48 (s, 2H, ArH), 3.89 (s, 6H, OMe), 3.27 (t, J = 6.4 Hz, 2H, 4′-H), 1.96–1.88 (m, 2H of the cyclopentane ring), 1.86–1.64 (m, 8H, 6H of the cyclopentane ring and 2′-H, overlapping), 1.60–1.52 (m, 2H, 3′-H); mass spectrum m/z (relative intensity) 408 (M++4, 13), 406 (M++2, 29), 404 (M+, 14), 327 (26), 325 (26), 285 (99), 283 (100), 233 (29), 231 (29), 204 (45), 289 (18), 176 (25), 109 (24), 67 (36); exact mass calculated for C16H22Br2O2 403.9987, found 403.9987.
2-Bromo-1,3-dimethoxy-5-[1-(3-phenoxypropyl)cyclopentyl]benzene (9c). To a stirred solution of 21 (250 mg, 0.62 mmol) in DMSO (6 mL) at room temperature, under an argon atmosphere, was added sodium phenoxide trihydrate (530 mg, 3.10 mmol). The reaction mixture was stirred vigorously for 24 h and then diluted by adding ice water (5 mL) and diethyl ether. The organic layer was separated, and the aqueous phase was extracted with diethyl ether. The combined organic layer was washed with brine, dried over MgSO4 and evaporated under reduced pressure. Purification by flash column chromatography on silica gel (10% diethyl ether in hexane) gave 9c as a colorless liquid in 50% yield (130 mg). 1H NMR (500 MHz, CDCl3) δ 7.24 (t, J = 7.5 Hz, 2H, 3-H, 5-H, OPh), 6.91 (t, J = 7.5 Hz, 1H, 4-H, OPh), 6.81 (d, J = 7.5 Hz, 2H, 2-H, 6-H, OPh), 6.51 (s, 2H, ArH), 3.89 (s, 6H, OMe), 3.80 (t, J = 6.5 Hz, 2H, 4′-H), 1.97-1.91 (m, 2H of the cyclopentane ring), 1.89–1.83 (m, 2H of the cyclopentane ring), 1.79–1.65 (m, 6H, 4H of the cyclopentane ring and 2′-H, overlapping), 1.53–1.46 (m, 2H, 3′-H); mass spectrum m/z (relative intensity) 420 (M++2, 21), 418 (M+, 21), 327 (62), 325 (62), 285 (71), 283 (71), 231 (99), 229 (100), 204 (38), 151 (47), 109 (10), 67 (35); exact mass calculated for C22H27BrO3 418.1144, found 418.1142.
2-Bromo-1,3-dimethoxy-5-(1-hexylcyclopentyl)benzene (9d). To a solution of 22 (1 g, 3.45 mmol) in anhydrous carbon tetrachloride (40 mL) at 0 °C, under an argon atmosphere was added bromine (7 mL, 1 M solution in CCl4). The reaction mixture was stirred at the same temperature for 20 min and the solvent was removed in vacuo. The residue was purified by flash column chromatography on silica gel (5% diethyl ether in hexane) to give 9d as a white solid in 78% yield (0.99 g). mp 38–40 °C; 1H NMR (500 MHz, CDCl3) δ 6.49 (s, 2H, ArH), 3.89 (s, 6H, OMe), 1.91–1.85 (m, 2H of the cyclopentane ring), 1.84–1.76 (m, 2H of the cyclopentane ring), 1.75–1.60 (m, 4H of the cyclopentane ring), 1.58–1.50 (m, 2H, 2′-H), 1.25–1.09 (m, 6H, 4′-H, 5′-H, 6′-H), 1.01-0.93 (m, 2H, 3′-H), 0.83 (t, J = 7.2 Hz, 3H, 7′-H). mass spectrum m/z (relative intensity) 370 (M++2, 30), 368 (M+, 30), 285 (100), 283 (98), 233 (20), 231 (20), 204 (36), 176 (21), 67 (25); exact mass calculated for C19H29BrO2 368.1351, found 368.1351.
4′-[1-(4-Phenoxybutyl)cyclopentyl]-2′,5,6′-trimethoxy-N,N-diisopropyl-[1,1′-biphenyl]-2-carboxamide (7a). A degassed mixture of 9a (135 mg, 0.31 mmol), boronic acid 8 (125 mg, 0.45 mmol), Ba(OH)2 (160 mg, 0.93 mmol), and Pd(PPh3)4 (70 mg, 0.06 mmol) in DME (5 mL)/water (1 mL) was flushed with argon, and heated in a sealed tube at 80 °C for 6 h with vigorous stirring. The reaction mixture was cooled to room temperature and diluted with EtOAc (30 mL) and the catalyst removed by filtration through celite. The filtrate was diluted with brine, and the organic layer was separated, dried (MgSO4), and concentrated in vacuo. Purification by flash column chromatography on silica gel (30% diethyl ether in hexane) gave 7a as a viscous liquid in 48% yield (87 mg). IR (neat) 2927, 2857, 1625, 1607, 1576, 1337, 1241, 1128, 1032 cm−1; 1H NMR (400 MHz, CDCl3) δ 7.29 (t, J = 7.3 Hz, 2H, 3-H, 5-H, -OPh group), 7.27 (d, J = 7.2 Hz, 1H, 3-H, Ph-Ph group), 6.95 (t, J = 7.3 Hz, 1H, 4-H, -OPh group), 6.92–6.86 (d and dd overlapping, 3H, 2-H, 6-H of the -OPh group and 4-H of the Ph-Ph group), 6.82 (d, J = 2.5 Hz, 1H, 6-H, Ph-Ph group), 6.52 (s, 1H, 3′-H or 5′-H, Ph-Ph group), 6.51 (s, 1H, 5′-H or 3′-H, Ph-Ph group), 3.89 (t, J = 6.4 Hz, 2H, -CH2OPh), 3.84 (s, 3H, OMe), 3.74 (s, 3H, OMe), 3.73 (s, 3H, OMe), 3.71 (qt, J = 6.5 Hz, 1H, -CH(CH3)2), 3.16 (qt, J = 6.5 Hz, 1H, -CH(CH3)2), 2.08-1.97 (m, 2H of the cyclopentane ring), 1.91–1.60 (m, 10H, 6H of the cyclopentane ring and 4H of the 4-phenoxybutyl group, overlapping), 1.46 (d, J = 6.5 Hz, 3H, -CH(CH3)2), 1.38–1.25 (m, 2H of the 4-phenoxybutyl group), 1.10 (d, J = 6.5 Hz, 3H, -CH(CH3)2), 0.92 (d, J = 6.5 Hz, 3H, -CH(CH3)2), 0.58 (d, J = 6.5 Hz, 3H, -CH(CH3)2); mass spectrum m/z (relative intensity) 588 (M++1, 22), 587 (M+, 54), 586 (29), 556 (10), 487 (84), 395 (100), 323 (12), 283 (15), 262 (44), 183 (20), 91 (11), 67 (9); exact mass calculated for C37H49NO5 587.3611, found 587.3612.
4′-[1-(5-Phenoxypentyl)cyclopentyl]-2′,5,6′-trimethoxy-N,N-diisopropyl-[1,1′-biphenyl]-2-carboxamide (7b). The synthesis was carried out as described for 7a, using 9b (260 mg, 0.58 mmol), 8 (242 mg, 0.87 mol), Ba(OH)2 (300 mg, 1.74 mmol), and tetrakis(triphenylphosphine)palladium(0) (48 mg, 0.04 mmol) in DME (5 mL) and water (2 mL). The crude product obtained after workup was chromatographed through a column of silica gel (40% ethyl acetate in petroleum ether) to give 7b as a viscous liquid in 50% yield (175 mg). IR (neat) 2924, 2855, 1624, 1602, 1572, 1335, 1241, 1127, 1030 cm−1; 1H NMR (400 MHz, CDCl3) δ 7.19 (t, J = 7.3 Hz, 2H, 3-H, 5-H, -OPh group), 7.18 (d, J = 7.0 Hz, 1H, 3-H, Ph-Ph group), 6.85 (t, J = 7.3 Hz, 1H, 4-H, -OPh group), 6.82–6.77 (d and dd overlapping, 3H, 2-H, 6-H of the -OPh group and 4-H of the Ph-Ph group), 6.72 (d, J = 2.6 Hz, 1H, 6-H, Ph-Ph group), 6.41 (s, 1H, 3′-H or 5′-H, Ph-Ph group), 6.40 (s, 1H, 5′-H or 3′-H, Ph-Ph group), 3.82 (t, J = 6.5 Hz, 2H, -CH2OPh), 3.73 (s, 3H, OMe), 3.64 (s, 3H, OMe), 3.63 (s, 3H, OMe), 3.61 (qt, J = 6.6 Hz, 1H, -CH(CH3)2), 3.06 (qt, J = 6.6 Hz, 1H, -CH(CH3)2), 1.95–1.83 (m, 2H of the cyclopentane ring), 1.81–1.51 (m, 10H, 6H of the cyclopentane ring and 4H of the 5-phenoxypentyl group, overlapping), 1.37 (d, J = 6.6 Hz, 3H, -CH(CH3)2), 1.25 (qt, J = 7.7 Hz, 2H of the 5-phenoxypentyl group), 1.10–0.95 (m and d overlapping, 5H, especially 1.03, d, J = 6.6 Hz, 3H, -CH(CH3)2), 0.82 (d, J = 6.6 Hz, 3H, -CH(CH3)2), 0.47 (d, J = 6.6 Hz, 3H, -CH(CH3)2); mass spectrum m/z (relative intensity) 602 (M++1, 56), 601 (M+, 84), 600 (49), 570 (20), 530 (9), 501 (100), 407 (12), 323 (16), 297 (22), 269 (53), 257 (32), 95 (10), 67 (10); exact mass calculated for C38H51NO5 601.3767, found 601.3765.
4′-[1-(3-Phenoxypropyl)cyclopentyl]-2′,5,6′-trimethoxy-N,N-diisopropyl-[1,1′-biphenyl]-2-carboxamide (7c). The synthesis was carried out as described for 7a, using 9c (90 mg, 0.21 mmol), 8 (108 mg, 0.39 mol), Ba(OH)2 (125 mg, 0.74 mmol) and tetrakis(triphenylphosphine)palladium(0) (48mg, 0.04mmol) in DME (5 mL) and water (1 mL). The crude product obtained after workup was chromatographed through a column of silica gel (40% ethyl acetate in petroleum ether) to give 7c as a viscous liquid in 50% yield (60 mg). IR (neat) 2932, 2858, 1624, 1605, 1575, 1342, 1243, 1127, 1032 cm−1; 1H NMR (500 MHz, CDCl3) δ 7.26 (t, J = 7.7 Hz, 2H, 3-H, 5-H, -OPh group), 7.25 (d, J = 8.5 Hz, 1H, 3-H, Ph-Ph group), 6.92 (t, J = 7.7 Hz, 1H, 4-H, -OPh group), 6.87 (dd, J = 8.5 Hz, J = 3.0 Hz, 1H, 4-H of the Ph-Ph group), 6.83 (d, J = 7.7 Hz, 2H, 2-H, 6-H of the -OPh group), 6.79 (d, J = 3.0 Hz, 1H, 6-H, Ph-Ph group), 6.52 (s, 1H, 3′-H or 5′-H, Ph-Ph group), 6.50 (s, 1H, 5′-H or 3′-H, Ph-Ph group), 3.81 (t, J = 6.7 Hz, 2H, -CH2OPh), 3.80 (s, 3H, OMe), 3.72 (s, 3H, OMe), 3.71 (s, 3H, OMe), 3.69 (qt, J = 6.5 Hz, 1H, -CH(CH3)2), 3.14 (qt, J = 6.5 Hz, 1H, -CH(CH3)2), 2.04–1.94 (m, 2H of the cyclopentane ring), 1.88–1.81 (m, 2H of the cyclopentane ring), 1.80–1.65 (m, 6H, 4H of the cyclopentane ring and –CH2CH2CH2OPh, overlapping), 1.60–1.52 (m, 2H, –CH2CH2CH2OPh), 1.44 (d, J = 6.5 Hz, 3H, -CH(CH3)2), 1.07 (d, J = 6.5 Hz, 3H, -CH(CH3)2), 0.90 (d, J = 6.5 Hz, 3H, -CH(CH3)2), 0.57 (d, J = 6.5 Hz, 3H, -CH(CH3)2); mass spectrum m/z (relative intensity) 574 (M++1, 23), 573 (M+, 65), 572 (36), 542 (13), 500 (11), 473 (82), 415 (19), 379 (22), 323 (13), 269 (100), 241 (23), 149 (32), 100 (27); exact mass calculated for C36H47NO5 573.3454, found 573.3455.
4′-(1-Hexyl-cyclopentyl)-2′,5,6′-trimethoxy-N,N-diisopropyl-[1,1′-biphenyl]-2-carboxamide (7d). The synthesis was carried out as described for 7a, using 9d (90 mg, 0.21 mmol), 8 (108 mg, 0.39 mol), Ba(OH)2 (125 mg, 0.74 mmol), and tetrakis(triphenylphosphine)palladium(0) (48 mg, 0.04 mmol) in DME (5 mL) and water (1 mL). The crude product obtained after workup was chromatographed through a column of silica gel (40% ethyl acetate in petroleum ether) to give 7d as a viscous liquid in 50% yield (60 mg). IR (neat) 2929, 2857, 1605, 1578, 1345 cm−1; 1H NMR (400 MHz, CDCl3) δ 7.26 (d, J = 8.4 Hz, 1H, 3-H, Ph-Ph group), 6.87 (dd, J = 8.4 Hz, J = 2.6 Hz, 1H, 4-H, Ph-Ph group), 6.79 (d, J = 2.6 Hz, 1H, 6-H, Ph-Ph group), 6.48 (s, 1H, 3′-H or 5′-H, Ph-Ph group), 6.47 (s, 1H, 5′-H or 3′-H, Ph-Ph group), 3.81 (s, 3H, OMe), 3.72 (s, 3H, OMe), 3.71 (s, 3H, OMe), 3.69 (qt, J = 6.5 Hz, 1H, -CH(CH3)2), 3.17 (qt, J = 6.5 Hz, 1H, -CH(CH3)2), 1.97–1.88 (m, 2H of the cyclopentane ring), 1.84–1.76 (m, 2H of the cyclopentane ring), 1.75-1.59 (m, 4H of the cyclopentane ring), 1.57–1.52 (m, 2H, 2′-H, hexyl group), 1.46 (d, J = 6.5 Hz, 3H, -CH(CH3)2), 1.30-1.13 (m, 6H, 4′-H, 5′-H, 6′-H, hexyl group), 1.09 (d, J = 6.5 Hz, 3H, -CH(CH3)2), 1.10-1.01 (m, 2H, 3′-H, hexyl group), 0.90 (d, J = 6.5 Hz, 3H, -CH(CH3)2), 0.87 (t, J = 7.1 Hz, 3H, 7′-H, hexyl group), 0.56 (d, J = 6.5 Hz, 3H, -CH(CH3)2); mass spectrum m/z (relative intensity) 524 (M++1, 8), 523 (M+, 24) 522 (18), 492 (6), 450 (5), 423 (100), 337 (5), 269 (5), 235 (5), 192 (8), 135 (35), 94 (27), 57 (19); exact mass calculated for C33H49NO4 523.3662, found 523.3664.
4′-[1-(4-Bromobutyl)cyclopentyl]-2′,5,6′-trihydroxy-N,N-diisopropyl-[1,1′-biphenyl]-2-carboxamide (23a). To a stirring solution of 7a (80.0 mg, 0.14 mmol) in anhydrous CH2Cl2 (5 mL), at −78 °C, under an argon atmosphere, was added boron tribromide (0.7 mL, 1 M solution in CH2Cl2). The mixture was gradually warmed to room temperature and stirred for an additional 12 h. Unreacted boron tribromide was destroyed by the addition of methanol at 0 °C. The resulting mixture was warmed to room temperature and volatiles were removed in vacuo. The residue was diluted with ethyl acetate and washed with saturated NaHCO3 and brine. The organic layer was dried over MgSO4 and the solvent evaporated under reduced pressure. The crude product obtained after workup was purified by flash column chromatography on silica gel (50% diethyl ether in petroleum ether) to give 23a as a white solid in 92% yield (68 mg). mp 183–185 °C; IR (neat) 3305 (br, OH), 2928, 2852, 1631, 1616, 1570, 1340 cm−1; 1H NMR (400 MHz, CDCl3) δ 7.92 (br s, 1H, OH), 7.12 (d, J = 8.1 Hz, 1H, 3-H, Ph-Ph group), 6.88 (dd, J = 8.1 Hz, J = 2.5 Hz, 1H, 4-H of the Ph-Ph group), 6.77 (d, J = 2.5 Hz, 1H, 6-H, Ph-Ph group), 6.54 (d, J = 1.2 Hz, 1H, 3′-H or 5′-H, Ph-Ph group), 6.46 (d, J = 1.2 Hz, 1H, 5′-H or 3′-H, Ph-Ph group), 6.19 (br s, 1H, OH), 4.54 (br s, 1H, OH), 3.79 (qt, J = 6.8 Hz, 1H, -CH(CH3)2), 3.30 (qt, J = 6.8 Hz, 1H, -CH(CH3)2), 3.26 (t, J = 6.5 Hz, 2H, -CH2Br), 1.93–1.85 (m, 2H of the cyclopentane ring), 1.76–1.53 (m, 10H, 6H of the cyclopentane ring and 4H of the 4-bromobutyl group, overlapping), 1.44 (d, J = 6.8 Hz, 3H, -CH(CH3)2), 1.30–1.21 (m, 2H of the 4-bromobutyl group), 1.07 (d, J = 6.8 Hz, 3H, -CH(CH3)2), 1.06 (d, J = 6.8 Hz, 3H, -CH(CH3)2), 0.86 (d, J = 6.8 Hz, 3H, -CH(CH3)2); mass spectrum m/z (relative intensity) 533 (M++2, 7), 531 (M+, 7), 451 (16), 433 (10), 431 (10), 351 (18), 295 (21), 268 (8), 241 (12), 102 (32), 86 (100); exact mass calculated for C28H38BrNO4 531.1984, found 531.1980.
4′-[1-(5-Bromopentyl)cyclopentyl]-2′,5,6′-trihydroxy-N,N-diisopropyl-[1,1′-biphenyl]-2-carboxamide (23b). The synthesis was carried out as described for 23a, using 7b (165 mg, 0.27 mmol) and BBr3 (1.7 mL, 1M solution in CH2Cl2) in anhydrous CH2Cl2 (5 mL). The crude product obtained after workup was purified by flash column chromatography on silica gel (50% diethyl ether in petroleum ether) to give 23b as a white solid in 90% yield (130 mg). mp 190–192 °C; IR (neat) 3312 (br, OH), 2925, 2857, 1632, 1615, 1567, 1343 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.16 (br s, 1H, OH), 7.11 (d, J = 8.4 Hz, 1H, 3-H, Ph-Ph group), 6.84 (dd, J = 8.4 Hz, J = 2.7 Hz, 1H, 4-H of the Ph-Ph group), 6.68 (d, J = 2.7 Hz, 1H, 6-H, Ph-Ph group), 6.59 (d, J = 1.3 Hz, 1H, 3′-H or 5′-H, Ph-Ph group), 6.47 (d, J = 1.3 Hz, 1H, 5′-H or 3′-H, Ph-Ph group), 6.37 (br s, 1H, OH), 4.74 (br s, 1H, OH), 3.70 (qt, J = 7.0 Hz, 1H, -CH(CH3)2), 3.34 (qt, J = 7.0 Hz and t J = 6.8 Hz overlapping, 3H, -CH(CH3)2, -CH2Br), 1.94–1.85 (m, 2H of the cyclopentane ring), 1.79–1.52 (m, 10H, 6H of the cyclopentane ring and 4H of the 5-bromopentyl group, overlapping), 1.46 (d, J = 7.0 Hz, 3H, -CH(CH3)2), 1.28 (qt, J = 6.9 Hz, 2H of the 5-bromopentyl group), 1.07 (d, J = 7.0 Hz, 3H, -CH(CH3)2), 1.06 (d, J = 7.0 Hz, 3H, -CH(CH3)2), 1.05–0.97 (m, 2H of the 5-bromopentyl group), 0.87 (d, J = 7.0 Hz, 3H, -CH(CH3)2); mass spectrum m/z (relative intensity) 547 (M++2, 8), 545 (M+, 8), 465 (8), 447 (17), 445 (16), 367 (8), 335 (16), 295 (23), 267 (8), 241 (15), 101 (24), 86 (100); exact mass calculated for C29H40BrNO4 545.2141, found 545.2145.
4′-[1-(3-Bromopropyl)cyclopentyl]-2′,5,6′-trihydroxy-N,N-diisopropyl-[1,1′-biphenyl]-2-carboxamide (23c). The synthesis was carried out as described for 23a, using 7c (52 mg, 0.09 mmol) and BBr3 (0.6 mL, 1M solution in CH2Cl2) in anhydrous CH2Cl2 (5 mL). The crude product obtained after workup was purified by flash column chromatography on silica gel (50% diethyl ether in petroleum ether) to give 23c as a white solid in 91% yield (42 mg). mp 178–180 °C; IR (neat) 3312 (br, OH), 2924, 2855, 1630, 1617, 1572, 1335 cm−1; 1H NMR (500 MHz, CDCl3) δ 8.14 (br s, 1H, OH), 7.13 (d, J = 8.5 Hz, 1H, 3-H, Ph-Ph group), 6.86 (dd, J = 8.5 Hz, J = 2.7 Hz, 1H, 4-H of the Ph-Ph group), 6.65 (d, J = 2.7 Hz, 1H, 6-H, Ph-Ph group), 6.60 (d, J = 1.5 Hz, 1H, 3′-H or 5′-H, Ph-Ph group), 6.48 (d, J = 1.5 Hz, 1H, 5′-H or 3′-H, Ph-Ph group), 6.30 (br s, 1H, OH), 4.72 (br s, 1H, OH), 3.71 (qt, J = 7.0 Hz, 1H, -CH(CH3)2), 3.33 (qt, J = 7.0 Hz, 1H, -CH(CH3)2), 3.23 (t, J = 6.5 Hz, 2H, -CH2Br), 1.98–1.88 (m, 2H of the cyclopentane ring), 1.78–1.62 (m, 8H, 6H of the cyclopentane ring and -CH2CH2CH2Br, overlapping), 1.59–1.53 (m, 2H, -CH2CH2CH2Br), 1.45 (d, J = 7.0 Hz, 3H, -CH(CH3)2), 1.07 (d, J = 7.0 Hz, 6H, -CH(CH3)2), 0.87 (d, J = 7.0 Hz, 3H, -CH(CH3)2); mass spectrum m/z (relative intensity) 519 (M++2, 4), 517 (M+, 4), 437 (28), 336 (56), 296 (22), 294 (24), 241 (9), 102 (43), 86 (100); exact mass calculated for C27H36BrNO4 517.1828, found 517.1830.
4′-(1-Hexyl-cyclopentyl)-2′,5,6′-trihydroxy-N,N-diisopropyl-[1,1′-biphenyl]-2-carboxamide (23d). The synthesis was carried out as described for 23a, using 7d (57 mg, 0.11 mmol) and BBr3 (0.7 mL, 1M solution in CH2Cl2) in anhydrous CH2Cl2 (5 mL). The crude product obtained after workup was purified by flash column chromatography on silica gel (50% diethyl ether in petroleum ether) to give 23d as a white solid in 89% yield (47 mg). mp 185–187 °C; IR (neat) 3295 (br, OH), 2925, 2858, 1632, 1617, 1565, 1340 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.00 (br s, 1H, OH), 7.15 (d, J = 8.5 Hz, 1H, 3-H, Ph-Ph group), 6.89 (dd, J = 8.5 Hz, J = 2.7 Hz, 1H, 4-H of the Ph-Ph group), 6.75 (d, J = 2.7 Hz, 1H, 6-H, Ph-Ph group), 6.60 (d, J = 1.5 Hz, 1H, 3′-H or 5′-H, Ph-Ph group), 6.47 (d, J = 1.5 Hz, 1H, 5′-H or 3′-H, Ph-Ph group), 5.63 (br s, 1H, OH), 4.64 (br s, 1H, OH), 3.71 (qt, J = 7.0 Hz, 1H, -CH(CH3)2), 3.31 (qt, J = 7.0 Hz, 1H, -CH(CH3)2), 1.95-1.85 (m, 2H of the cyclopentane ring), 1.78–1.59 (m, 6H of the cyclopentane ring), 1.57–1.49 (m, 2H, 2′-H), 1.47 (d, J = 7.0 Hz, 3H, -CH(CH3)2), 1.25–1.10 (m, 6H, 4′-H, 5′-H, 6′-H), 1.08 (d, J = 7.0 Hz, 3H, -CH(CH3)2), 1.07 (d, J = 7.0 Hz, 3H, -CH(CH3)2), 1.04-0.97 (m, 2H, 3′-H), 0.87 (d, J = 7.0 Hz, 3H, -CH(CH3)2), 0.82 (t, J = 7.2 Hz, 3H, 7′-H). mass spectrum m/z (relative intensity) 482 (M++1, 15), 481 (M+, 37), 86 (100); exact mass calculated for C30H43NO4 481.3192, found 481.3191.
3-[1-(4-Bromobutyl)cyclopentyl]-1,9-dihydroxy-6H-dibenzo[b,d]pyran-6-one (3a). A stirred solution of 23a (50 mg, 0.094 mmol) in glacial acetic acid (4 mL) and water (1 mL) was refluxed for 24 h. The reaction mixture was cooled to room temperature and diluted with aqueous NaHCO3 solution (5 mL) and ethyl acetate (20 mL). The organic phase was separated, and the aqueous phase extracted with ethyl acetate. The combined organic layer was washed with brine, dried over MgSO4 and concentrated in vacuo. The residue was purified by flash column chromatography on silica gel (60% diethyl ether in hexanes) to give 3a as a white solid in 89%yield (36 mg). mp 96–98 °C; IR (neat) 3272 (br, OH), 2941, 1670 (>C=O), 1611, 1272, 1110 cm−1; 1H NMR (400 MHz, CDCl3) δ 8.45 (d, J = 2.4 Hz, 1H, 10-H), 8.33 (d, J = 8.7 Hz, 1H, 7-H), 7.01 (dd, J = 8.7 Hz, J = 2.4 Hz, 1H, 8-H), 6.88 (d, J = 1.6 Hz, 1H, 4-H or 2-H), 6.64 (d, J = 1.6 Hz, 1H, 2-H or 4-H), 6.32–5.50 (br s, 2H, OH), 3.29 (t, J = 6.8 Hz, 2H, -CH2Br), 1.97–1.87 (m, 2H of the cyclopentane ring), 1.86–1.51 (m, 10H, 6H of the cyclopentane ring and 4H of the 4-bromobutyl group, overlapping), 1.21–1.10 (m, 2H of the 4-bromobutyl group); 13C NMR (100 MHz, CD3OD) δ 165.2, 163.9, 157.7, 154.0, 153.0, 138.9, 133.3, 117.0, 113.9, 113.1, 111.6, 107.9, 105.8, 52.4, 42.0, 38.7, 34.5, 34.2, 25.2, 24.2; mass spectrum m/z (relative intensity) 432 (M++2, 8), 430 (M+, 8), 350 (11), 321 (33), 295 (100), 267 (15), 91(3). exact mass calculated for C22H23BrO4 430.0780, found 430.0778.
3-[1-(5-Bromopentyl)cyclopentyl]-1,9-dihydroxy-6H-dibenzo[b,d]pyran-6-one (3b). The synthesis was carried out as described for 3a using 23b (55 mg, 0.10 mmol) in glacial acetic acid (4 mL) and water (1 mL) and gave 3b as a white solid in 90% yield (40 mg). mp 101-103 °C; IR (neat) 3275 (br, OH), 2923, 1668 (>C=O), 1607, 1272, 1105 cm−1; 1H NMR (500 MHz, CDCl3) δ 8.37 (d, J = 2.1 Hz, 1H, 10-H), 8.27 (d, J = 8.3 Hz, 1H, 7-H), 6.94 (dd, J = 8.3 Hz, J = 2.1 Hz, 1H, 8-H), 6.81 (d, J = 1.1 Hz, 1H, 4-H or 2-H), 6.56 (d, J = 1.1 Hz, 1H, 2-H or 4-H), 6.02 (br s, 1H, OH), 5.87 (br s, 1H, OH), 3.24 (t, J = 6.7 Hz, 2H, -CH2Br), 1.89–1.80 (m, 2H of the cyclopentane ring), 1.76–1.48 (m, 10H, 6H of the cyclopentane ring and 4H of the 5-bromopentyl group, overlapping), 1.22 (qt, J = 6.5 Hz, 2H of the 5-bromopentyl group), 1.01–0.89 (m, 2H of the 5-bromopentyl group); 13C NMR (100 MHz, CD3OD) δ 165.2, 163.9, 157.7, 154.0, 153.2, 138.9, 133.3, 116.9, 113.9, 113.1, 111.6, 107.9, 105.8, 52.4, 42.8, 38.7, 34.3, 33.9, 29.8, 25.8, 24.2; mass spectrum m/z (relative intensity) 446 (M++2, 10), 444 (M+, 10), 364 (11), 335 (28), 295 (100), 267 (16), 241 (42), 91(5), 67 (14); exact mass calculated for C23H25BrO4 444.0936, found 444.0930.
3-[1-(3-Bromopropyl)cyclopentyl]-1,9-dihydroxy-6H-dibenzo[b,d]pyran-6-one (3c). The synthesis was carried out as described for 3a using 23c (30 mg, 0.058 mmol) in glacial acetic acid (4 mL) and water (1 mL) and gave 3c as a white solid in 91% yield (22 mg). mp 105–106 °C; IR (neat) 3285 (br, OH), 2928, 1668 (>C=O), 1610, 1272, 1110 cm−1; 1H NMR (500 MHz, CDCl3) δ 8.49 (d, J = 2.0 Hz, 1H, 10-H), 8.32 (d, J = 8.3 Hz, 1H, 7-H), 7.00 (dd, J = 8.3 Hz, J = 2.0 Hz, 1H, 8-H), 6.67 (d, J = 1.4 Hz, 1H, 4-H or 2-H), 6.52 (d, J = 1.4 Hz, 1H, 2-H or 4-H), 6.35–5.89 (br s, 2H, OH), 3.25 (t, J = 6.5 Hz, 2H, -CH2Br), 1.96–1.86 (m, 2H of the cyclopentane ring), 1.77–1.60 (m, 8H, 6H of the cyclopentane ring and -CH2CH2CH2Br, overlapping), 1.57–1.52 (m, 2H, -CH2CH2CH2Br), mass spectrum m/z (relative intensity) 418 (M++2, 6), 416 (M+, 6), 336 (9), 307 (25), 295 (100), 267 (18), 91(3); exact mass calculated for C21H21BrO4 416.0623, found 416.0627.
3-(1-Hexyl-cyclopentyl]-1,9-dihydroxy-6H-dibenzo[b,d]pyran-6-one (3d). The synthesis was carried out as described for 3a, using 23d (40 mg, 0.083 mmol) in glacial acetic acid (4 mL) and water (1 mL), and gave 3d as a white solid in 91% yield (28 mg). mp 153–155 °C; IR (neat) 3278 (br, OH), 2925, 1667 (>C=O), 1614, 1384, 1275, 1108 cm−1; 1H NMR (500 MHz, CDCl3) δ 8.41 (d, J = 2.4 Hz, 1H, 10-H), 8.33 (d, J = 8.7 Hz, 1H, 7-H), 7.00 (dd, J = 8.7 Hz, J = 2.4 Hz, 1H, 8-H), 6.90 (d, J = 1.6 Hz, 1H, 4-H or 2-H), 6.61 (d, J = 1.6 Hz, 1H, 2-H or 4-H), 5.65 (br s, 1H, OH), 5.50 (br s, 1H, OH), 1.94–1.87 (m, 2H of the cyclopentane ring), 1.82–1.62 (m, 6H of the cyclopentane ring), 1.60–1.52 (m, 2H, 2′-H), 1.24–1.12 (m, 6H, 4′-H, 5′-H, 6′-H), 1.03–0.94 (m, 2H, 3′-H), 0.82 (t, J = 6.9 Hz, 3H, 7′-H); 13C NMR (100 MHz, CD3OD) δ 165.2, 164.0, 157.7, 153.9, 153.3, 139.0, 133.3, 116.9, 113.9, 113.0, 111.7, 107.9, 105.7, 52.5, 43.0, 38.8, 32.9, 31.0, 26.5, 24.3, 23.7, 14.4; mass spectrum m/z (relative intensity) 381 (M++1, 6), 380 (M+, 18), 295 (4), 270 (23), 241 (11), 205 (71), 149 (62), 135 (80), 91 (63), 83 (54), 69 (37), 59 (100); exact mass calculated for C24H28O4 380.1988, found 380.1986.
3-[1-(4-Cyanobutyl)cyclopentyl]-1,9-dihydroxy-6H-dibenzo[b,d]pyran-6-one (3e). To a stirring solution of 3a (30 mg, 0.07 mmol) in anhydrous DMSO (5 mL), at room temperature, under an argon atmosphere, was added and NaCN (17 mg, 0.35 mmol). The reaction mixture was stirred vigorously for 24 h and then diluted by adding ice water (2 mL) and diethyl ether (10 mL). The organic layer was separated, and the aqueous phase was extracted with diethyl ether (2 × 5 mL). The combined organic layer was washed with brine, dried over MgSO4 and concentrated under reduced pressure. The crude material was purified by flash column chromatography on silica gel (40% ethyl acetate in petroleum ether) gave 3e as a white solid in 72% yield (19 mg). mp 138–140 °C; IR (neat) 3275 (br, OH), 2925, 2853, 2259 (w, C≡N), 1684 (>C=O), 1602, 1270, 1107 cm−1; 1H NMR (400 MHz, CDCl3) δ 9.82 (br s, 1H, OH), 9.78 (br s, 1H, OH), 8.60 (d, J = 2.3 Hz, 1H, 10-H), 8.22 (d, J = 8.7 Hz, 1H, 7-H), 6.98 (dd, J = 8.7 Hz, J = 2.3 Hz, 1H, 8-H), 6.78 (d, J = 1.7 Hz, 1H, 4-H or 2-H), 6.77 (d, J = 1.7 Hz, 1H, 2-H or 4-H), 2.24 (t, J = 7.1 Hz, 2H, -CH2CN), 1.99–1.89 (m, 2H of the cyclopentane ring), 1.80–1.57 (m, 8H, 6H of the cyclopentane ring and 2H of the 4-cyanobutyl group, overlapping), 1.53 (qt, J = 7.6 Hz, 2H of the 4-cyanobutyl group), 1.23–1.11 (m, 2H of the 4-cyanobutyl group); mass spectrum m/z (relative intensity) 378 (M++1, 8), 377 (M+, 27), 368 (5), 309 (5), 295 (100), 279 (98), 241 (27), 224 (31), 205 (20), 91 (13), 67 (14); exact mass calculated for C23H23NO4 377.1627, found 377.1625.
3-[1-(5-Cyanopentyl)cyclopentyl]-1,9-dihydroxy-6H-dibenzo[b,d]pyran-6-one (3f). The synthesis was carried out as described for 3e, using 3b (31 mg, 0.07 mmol) and NaCN (17 mg, 0.35 mmol) in DMSO (5 mL), and gave 3f as a white solid in 69% yield (19 mg). mp 176–178 °C; IR (neat) 3281 (br, OH), 2923, 2854, 2259 (w, C≡N), 1683 (>C=O), 1618, 1598, 1271, 1216, 1103 cm−1; 1H NMR (500 MHz, CDCl3) δ 8.45 (d, J = 2.0 Hz, 1H, 10-H), 8.33 (d, J = 8.2 Hz, 1H, 7-H), 7.02 (dd, J = 8.2 Hz, J = 2.0 Hz, 1H, 8-H), 6.88 (d, J = 1.2 Hz, 1H, 4-H or 2-H), 6.65 (d, J = 1.2 Hz, 1H, 2-H or 4-H), 6.20 (br s, 1H, OH), 5.87 (br s, 1H, OH), 2.26 (t, J = 6.8 Hz, 2H, -CH2CN), 1.97-1.90 (m, 2H of the cyclopentane ring), 1.81–1.52 (m, 10H, 6H of the cyclopentane ring and 4H of the 5-cyanopentyl group, overlapping), 1.35 (qt, J = 7.3 Hz, 2H of the 5-cyanopentyl group), 1.10–1.03 (m, 2H of the 5-cyanopentyl group); 13C NMR (100 MHz, CD3OD) δ 165.2, 163.9, 157.7, 154.0, 153.1, 138.9, 133.3, 121.2, 116.9, 113.9, 113.1, 111.6, 107.9, 105.8, 52.4, 42.7, 38.7, 30.4, 26.4, 25.9, 24.2, 17.3; mass spectrum m/z (relative intensity) 392 (M++1, 15), 391 (M+, 44), 349 (4), 306 (100), 295 (15), 266 (11), 252 (28), 240 (12), 190 (4), 149 (6), 67 (10); exact mass calculated for C24H25NO4 391.1784, found 391.1781.
3-[1-(3-Cyanopropyl)cyclopentyl]-1,9-dihydroxy-6H-dibenzo[b,d]pyran-6-one (3g). The synthesis was carried out as described for 3e, using 3c (18 mg, 0.043 mmol) and NaCN (11 mg, 0.22 mmol) in DMSO (5 mL) and gave 3g as a white solid in 70% yield (13 mg). mp 118–120 °C; IR (neat) 3285 (br, OH), 2928, 2853, 2260 (w, C≡N), 1683 (>C=O), 1599, 1272, 1105 cm−1; 1H NMR (500 MHz, CDCl3) δ 8.47 (d, J = 2.1 Hz, 1H, 10-H), 8.31 (d, J = 8.3 Hz, 1H, 7-H), 6.98 (dd, J = 8.3 Hz, J = 2.1 Hz, 1H, 8-H), 6.64 (d, J = 1.3 Hz, 1H, 4-H or 2-H), 6.49 (d, J = 1.3 Hz, 1H, 2-H or 4-H), 6.22 (br s, 1H, OH), 5.78 (br s, 1H, OH), 2.23 (t, J = 6.7 Hz, 2H, -CH2CN), 1.94-1.83 (m, 2H of the cyclopentane ring), 1.74–1.56 (m, 8H, 6H of the cyclopentane ring and -CH2CH2CH2CN, overlapping), 1.55–1.49 (m, 2H, -CH2CH2CH2CN); mass spectrum m/z (relative intensity) 364 (M++1, 7), 363 (M+, 22), 336 (67), 309 (24), 295 (100), 279 (48), 241 (47), 165 (10), 129 (24); exact mass calculated for C22H21NO4 363.1471, found 363.1470.
Radioligand binding assays: the affinities (Ki) of the new compounds for rat CB1 receptor as well as for mouse and human CB2 receptors were obtained by using membrane preparations from rat brain or HEK293 cells expressing either mCB2 or hCB2 receptors, respectively, and [3H]CP-55,940 as the radioligand, as previously described [38,57]. Results from the competition assays were analyzed using nonlinear regression to determine the IC50 values for the ligand [59]; Ki values were calculated from the IC50 (Prism by GraphPad Software, Inc.). Each experiment was performed in triplicate and Ki values determined from three independent experiments and are expressed as the mean of the three values.
cAMP assay: [57,60] HEK293 cells stably expressing hCB2 receptors were used for the studies. The cAMP assay was carried out using PerkinElmer’s Lance ultra cAMP kit following the protocol of the manufacturer. Briefly, the assays were carried out in 384-well plates using 1000–1500 cells/well. The cells were harvested with non-enzymatic cell dissociation reagent Versene, washed once with HBSS and resuspended in the stimulation buffer. The various concentrations of the test compound (5 μL) in forskolin (2 μM final concentration) containing stimulation buffer were added to the plate followed by the cell suspension (5 μL). Cells were stimulated for 30 min at room temperature. Eu-cAMP tracer working solution (5 μL) and Ulight-anti-cAMP working solution (5 μL) were then added to the plate and incubated at room temperature for 60 min. The data were collected on a Perkin-Elmer Envision instrument. The EC50 values were determined by non-linear regression analysis using GraphPad Prism software (GraphPad Software, Inc., San Diego, CA, USA).
4. Conclusions
This study expands on earlier work on the CB2-selective cannabilactone prototype. We explored the effects of modifications to the pharmacophoric side chain. In particular, we replaced the C1′-gem-dimethyl group in AM1714 with the bulkier cyclopentyl ring, varied the chain’s length, and substituted a bromo or cyano group for the terminal carbon. We identified the analog 6-[1-(1,9-dihydroxy-6-oxo-6H-benzo[c]chromen-3-yl)cyclopentyl]hexanenitrile (AM4346) as a high-affinity ligand to mCB2 (Ki = 4.9 nM) with 131-fold selectivity for mCB2 over rCB1. Moreover, the species difference in the affinities of AM4346 between the mouse and the human CB2 receptors is reduced when compared to our first-generation compound AM1714. Importantly, in the cyclase assay AM4346 was found to be a highly potent and efficacious hCB2 receptor agonist (EC50 = 3.7 ± 1.5 nM, E(max) = 89%). Our lead cannabilactone analog, AM4346, is also endowed with enhanced polarity due to the incorporation of the cyano group. Extension of our SAR to include the biphenyl synthetic intermediates has revealed new compounds that bind mCB2 with high affinity and substantial selectivity for that receptor over rCB1.
Funding
This research was funded by the National Institute on Drug Abuse: grand numbers DA009158, DA045020, and DA041307-01.
Conflicts of Interest
The authors declare no conflict of interest.
Figures, Schemes and Tables
| Compound | R | Ki (nM) 1 | rCB1/mCB2 | |
|---|---|---|---|---|
| rCB1 | mCB2 | |||
|
1b
AM1714 | 100 ± 24 | 4.7 ± 1.8 | 21.3 | |
|
3c
AM4354 | 405 ± 122 | 24.3 ± 3.9 | 16.7 | |
|
3a
AM4350 | 390 ± 132 | 20.8 ± 5.9 | 18.8 | |
|
3b
AM4345 | 370 ± 130 | 16.3 ± 5.2 | 22.7 | |
|
3g
AM4355 | 290 ± 64 | 17.9 ± 5.8 | 16.2 | |
|
3e
AM4351 | 304 ± 73 | 11.8 ± 4.1 | 25.7 | |
|
3f
AM4346 | 640 ± 152 | 4.9 ± 1.2 | 130.6 | |
|
3d
AM4348 | 266 ± 58 | 8.4 ± 2.5 | 31.7 | |
| Compound | R | Ki (nM) 1 | rCB1/hCB2 | hCB2/mCB2 | |
|---|---|---|---|---|---|
| rCB1 | hCB2 | ||||
|
1b
AM1714 | 100 ± 24 | 83.6 ± 23.2 | 1.2 | 17.7 | |
|
3f
AM4346 | 640 ± 152 | 33.8 ± 10.4 | 18.9 | 6.9 | |
|
3d
AM4348 | 266 ± 58 | 28.0 ± 9.7 | 9.5 | 3.3 | |
| Compound | R | Ki (nM) 1 | rCB1/mCB2 | |
|---|---|---|---|---|
| rCB1 | mCB2 | |||
|
23c
AM4353 | 229 ± 70 | 10.5 ± 3.5 | 21.8 | |
|
23a
AM4349 | 702 ± 220 | 22.4 ± 4.5 | 31.3 | |
|
23b
AM4344 | 745 ± 215 | 17.4 ± 4.8 | 42.8 | |
|
23d
AM4347 | 341 ± 100 | 5.7 ± 1.5 | 59.8 | |
| Compound | EC50 (nM)1 (classification) | E(max) (%) 2 |
|---|---|---|
| hCB2 | ||
| CP-55,940 | 3.4 ± 1.2 (agonist) | 100 |
|
1a
AM1710 | 10.5 ± 2.5 (agonist) | 73 |
|
1b
AM1714 | 36.9 ± 6.8 (agonist) | 77 |
|
3f
AM4346 | 3.7 ± 1.5 (agonist) | 89 |
