Label-free viability assay using in-line holographic video microscopy
1Spheryx, Inc., New York, NY 10016 USA
Abstract
Total holographic characterization (THC) is presented here as an efficient, automated, label-free method of accurately identifying cell viability. THC is a single-particle characterization technology that determines the size and index of refraction of individual particles using the Lorenz–Mie theory of light scattering. Although assessment of cell viability is a challenge in many applications, including biologics manufacturing, traditional approaches often include unreliable labeling with dyes and/or time consuming methods of manually counting cells. In this work we measured the viability of Saccharomyces cerevisiae yeast in the presence of various concentrations of isopropanol as a function of time. All THC measurements were performed in the native environment of the sample with no dilution or addition of labels. Holographic measurements were made with an in-line holographic microscope using a 40 objective lens with plane wave illumination. We compared our results with THC to manual counting of living and dead cells as distinguished with trypan blue dye. Our findings demonstrate that THC can effectively distinguish living and dead yeast cells by the index of refraction of individual cells.
Untitled section
Subject terms: Optical imaging, Microscopy, Cell death
Article notes
Untitled section
Received 2021 Nov 29; Accepted 2022 Jul 20; Collection date 2022.
Introduction
The use of yeast cells, particularly Saccharomyces cerevisiae, is ubiquitous in both industry and academia1–3 for applications from cell-based experiments to protein manufacturing. For example, in medical research yeast serves as a model organism to study genetic mutations relevant in cancer4–6. In biopharmaceutical research and manufacturing, yeast cells are employed as mini-factories for the production of proteins of interest7–9. Additionally, in one of the most well-known applications, yeast is used in consumer product research and manufacturing to optimize beer, wine and bread-making10–13.
Cell viability is a key parameter of interest in many of these applications14. While numerous methods of measuring viability of yeast exist, most share one limitation: the need to stain cells with a dye. Dye-based methods, such as the trypan blue (TB) exclusion assay, rely on healthy cell membranes being impermeable to the dye while the membranes of dead or damaged cells allow the dye to diffuse into the cell15. Although this method is useful, it usually involves tedious sample preparation and manual cell counting. Manual cell counting suffers from low statistics and is prone to human error. Furthermore, the TB exclusion assay has been shown to overestimate viability and be unreliable for certain cell samples with a viability less than 70%-80%16–18.
Additionally, with any dye-based staining viability measurements, there is a danger that the dye can interact either with the cells or with another experimental variable in unintended ways. As an example, trypan blue has been shown to adversely interact with cells, often rupturing them and thus rendering viability measurements unreliable19. Although the shortcomings of label-based viability assays are well known, few label-free alternatives exist20.
In this work we introduce a label free, automated technique to reliably measure the viability of yeast using Total Holographic Characterization® (THC). THC is a technology, based on holographic video microscopy, developed to detect, count, and characterize subvisible particles in suspension21. Here we assessed yeast viability using xSight, which implements THC and combines holographic microscopy with microfluidic sample handling to provide precise measurements of particle size and refractive index. The use of single-use microfluidic sample chips ensures that there is no cross-contamination between samples and no cleaning is required. Each measurement is automated and takes approximately 15 min to complete.
Holographic imaging has been utilized with living cells in previous studies22–35. Several studies measured and tracked important cell biophysical parameters, such as cell volume, cell thickness and dry mass22,23,28,31,32. The limitation of these approaches, however, is the need for media exchanges and manipulation of media osmolarity to stimulate changes in cell volume and refractive index. The present work performs measurements in the native environment of the cells without any need for media exchanges or modifications. Significant advancement has also been made in measuring the refractive index of individual mammalian cells using quantitative phase imaging with digital holographic microscopy31,32. In these studies, refractive index was correlated with cell size and used to distinguish two human pancreatic cancer cell lines. In the studies that measured whole cell refractive index, however, no correlation to cell viability was reported. Those who have assessed cell health using holographic techniques have done so in mammalian cells under specific conditions such as P. falciparum infections29, exposure to cadmium30, exposure to a variety of organic nanoparticles33 and other toxic compounds34,35. In this work we measure whole cell refractive index of yeast in a single medium in its native environment. We show that refractive index of cells can be rapidly determined with THC and used to accurately assess viability with this novel, label-free, automated technique.
To demonstrate THC as a new technology for viability studies, we used alcohol to gradually kill yeast cells, as has been done in previous yeast viability studies36,37. We show the viability changes of Saccharomyces cerevisiae under various concentrations of isopropanol and compare our results with staining using trypan blue.
Results
Holographic approach to yeast viability

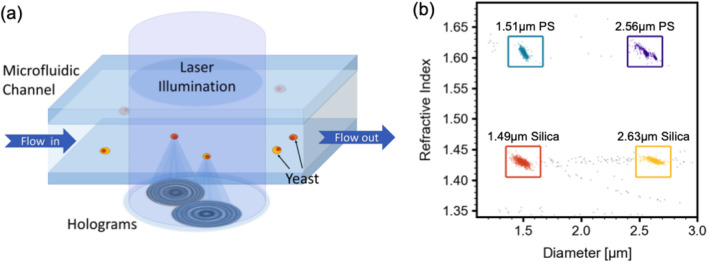

We employ holographic video microscopy21,38–47 to assess yeast viability. In our approach, particles in suspension (such as yeast cells) flow through a microfluidic chip as they are illuminated by a collimated laser beam. Laser light scattered by the particles interferes with the incident laser light, forming an interference pattern called a hologram. A schematic of this technology is shown in Fig. 1a.
The holograms are recorded on a camera and fit to Lorenz–Mie theory of light scattering40,48–50. A fast, multi-parameter optimization of the fit then yields various particle parameters including particle size, refractive index, and the 3-dimensional position that correspond to that hologram. We do not reconstruct the 3-dimensional image of each particle, but extract morphological information about each particle from the symmetry of its 2-dimensional hologram. A key advantage of this approach, based on holographic video microscopy, is that in addition to particle size, THC quantifies the refractive index of each particle, which is indicative of its composition. For example, Fig. 1b shows a scatter plot of a sample that consists of a mix of four different particles species: two sizes of polystyrene microspheres and two sizes of silica microspheres. Each point on the plot represents a single particle detected by xSight during measurement. On the horizontal axis is the measured particle diameter and on the vertical axis is the measured particle refractive index. The colored boxes are user-defined regions of interest corresponding to different species of particles. The points are colored according to which region they fall into. From the scatter plot, one can easily observe 4 main particle distributions with two at a refractive index of approximately 1.61 in cyan and violet and two at a refractive index of approximately 1.43 in orange and yellow. Those pairs of distributions are polystyrene and silica microspheres, respectively. The refractive index of polystyrene in water when illuminated with a blue laser is 1.61 and a refractive index of 1.43 is consistent with porous silica. It is important to note that with a standard particle sizer, only two populations would be visible in this sample: one at a particle diameter of around m and one at a particle diameter of around m. Since THC measures refractive index in addition to size, particles of the same size but different composition can be easily distinguished, such as the m silica and m polystyrene spheres (in orange and cyan respectively) and the m silica and m polystyrene spheres (in yellow and violet respectively).
This technology has similarly been used to distinguish bacteria from plastic beads and oil in water51 since each of those species is composed of materials of different refractive indexes. A study of porous silica particles showed that THC is able to detect subtle changes in particle composition52,53. The ability to detect small changes in particle composition is due to the effective sphere model and the effective medium theory52,54. THC characterizes each particle that flows through the viewing region of the microfluidic chip and analyzes it assuming that it is a sphere. THC finds an effective sphere with a hologram most similar to the hologram of the particle being analyzed. When an individual particle’s composition is heterogeneous, such that various components of a particle have different indexes of refraction, the THC fitting algorithm will produce a refractive index for that particle that is an average of the refractive indexes of its various components. In the example of a porous silica particle in water, the refractive index of a given particle will be somewhere between the refractive index of the silica matrix and the refractive index of the water that fills its pores. To what extent the resulting effective refractive index will be closer to silica or closer to water depends on the particle’s porosity. Hence it is possible to extract morphological information from the behaviour of the particle refractive index in media of varying refractive indexes. Quantitative morphological information about particle porosity has been studied in porous plastics, protein aggregates, and nanoparticle agglomerates52,55. Additionally various particle shapes have been imaged and modeled with THC including colloidal fractals56, porous spheres52,53, rod-shaped E. coli51, microsphere dimers57, and transparent disks58. In our approach, while the scattering of each particle is fit to a model of a sphere, non-spherical particles of diverse shapes are suitable for analysis with THC.
Yeast cells are also heterogeneous particles with various cell components acting as scattering materials with different refractive indexes. Since cell death often involves physiological changes in cell structure and composition, these changes are expected to alter the refractive index and the shape of the cells, and therefore should be detected by analysis with THC.
Distinguishing live and dead cells by refractive index

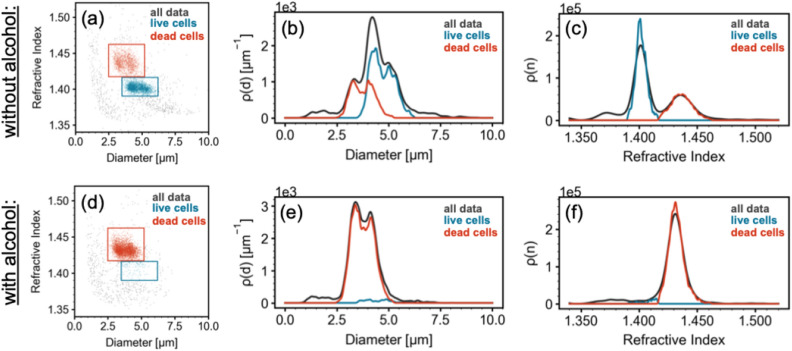

A typical scatter plot of THC results from a yeast sample before introduction of alcohol is shown in Fig. 2a. The orange and cyan boxes are user-defined regions corresponding to dead and live yeast cells respectively. The points are colored according to which region they fall into. The orange points correspond to particles identified as dead cells, the cyan points correspond to particles identified as live cells and the gray are other particles identified as debris (see Discussion below). In the sample, shown in Fig. 2a, 51.4% of all detected particles are identified as live cells, 29.7% are identified as dead cells and 18.9% as debris.
As can be seen in Fig. 2a, while the live and dead cells overlap in size, their refractive indexes are distinct. In this sample live cells were found in the size range of m to m and refractive indexes between 1.39 and 1.416. Dead cells appeared at slightly smaller sizes: 2.5–5.2m and significantly larger refractive indexes: between 1.417 and 1.462. The overlap in size and distinction in refractive index of live and dead cells is further illustrated in Fig. 2b,c. These plots are size and refractive index density distributions respectively. The size density curve in Fig. 2b, for example, is related to the probability for a particle to have a particular size. The area under the curve over any particle size range represents the number of particles that can be found in that size range. These curves are more informative and more reliable alternatives to histograms. In these graphs, the gray curves represent all particles, the orange curves represent dead cells, and the cyan curves represent live cells. In Fig. 2b the overlap of the orange and cyan curves indicates that many live and dead cells have the same size. The overlap of the size distributions shows that identifying viability by cell size alone is not reliable. Based on Fig. 2c, the orange refractive index density curve and the cyan refractive index density curve show minimal overlap suggesting that live and dead yeast cells are distinguishable by the index of refraction. In Fig. 2c, the peak of the cyan curve is near 1.4 indicating that the most common refractive index of live cells is around 1.4 while the peak of the orange curve is near 1.435 indicating that the most common refractive index of dead cells around 1.435.
Figure 2d–f show results of the same yeast sample but 71 min after the addition of isopropanol at 15% by volume. As seen in Fig. 2d, the majority of points are orange, indicating that most of the cells have died with this exposure to alcohol. In this sample, only 2.9% of all detected particles are identified as live cells, 82.4% are identified as dead cells and 14.7% as debris. This result is represented by Fig. 2e, f where the gray curves and the orange curves overlap suggesting that the majority of identified particles correspond to dead cells. While the cyan curve is present and dominant in Fig. 2c, it is almost entirely missing in Fig. 2f confirming the dearth of live cells in a 15% isopropanol solution after 71 min.
Comparing viability results using holographic imaging and the TB exclusion assay
To explore how yeast respond to different concentrations of isopropanol over time and to compare our holographic approach to the TB exclusion assay, we exposed yeast samples to 0%, 15% and 20% isoproponal by volume, and measured the resulting viability over time using both xSight and trypan blue. Figure 3 shows the results of these studies.

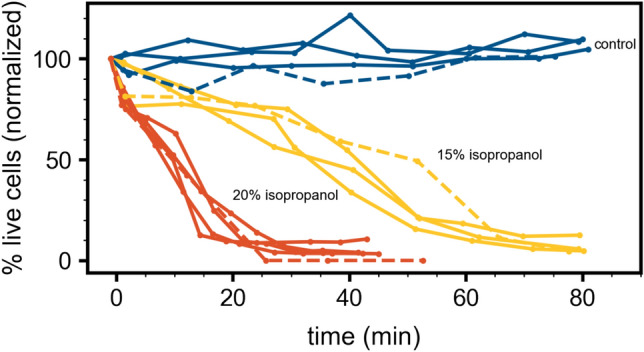

In the graph in Fig. 3, the horizontal axis is the time after alcohol was added to the yeast mixture and the vertical axis is the percentage of live cells normalized by the live percentage before the alcohol is added. In Fig. 3 the solid curves represent measurements with THC and the dashed curves are measurements made with the TB exclusion assay. The blue curves correspond to normalized viability of yeast samples without alcohol. While some fluctuation in those curves is observed, all curves are similar to each other and show no loss of viability over the course of 80 min. The yellow curves represent results for samples with added 15% alcohol by volume. A similar decrease in normalized viability over time is seen in all of the yellow curves. The orange curves represent results for samples with added 20% alcohol by volume and show a faster drop in viability as a function of time. Across all conditions, the dashed curves are similar to the solid curves suggesting strong agreement in normalized viability changes between THC and the TB exclusion assay.
Note that while normalized viability results are consistent between THC results and TB staining results, the absolute viabilities can vary. In fact, we find a consistent overestimate of absolute viability using TB as compared to holographic results. Six consecutive measurements of a yeast sample with THC yielded an average viability of . The same sample measured with TB staining resulted in an average viability of . In addition to a higher viability measurement, consistent with an undercounting of dead cells, TB staining also showed a higher variability between measurements. This observation is consistent with other studies that reported such limitations in the TB staining approach16.
Traditional staining assay is often inconclusive
Staining of Saccharomyces cerevisiae with TB showed a mixed population of live and dead cells prior to treatment with alcohol. As shown in Fig. 4a, in a single grid, a combination of live cells (unstained and labeled in blue) as well as dead cells (stained and labeled in orange) are visible. While the viability categorization is clear in Fig. 4a, it is less clear in Fig. 4b, particularly in the cases circled in gray. Cells that partially absorb the dye and those that cluster together pose a challenge for staining-based viability assays.
The presence of ambiguously stained cells, as in Fig. 4b can also contribute to the above-mentioned higher variability in staining measurements than in measurements with THC.
Morphological changes in cells detected with THC

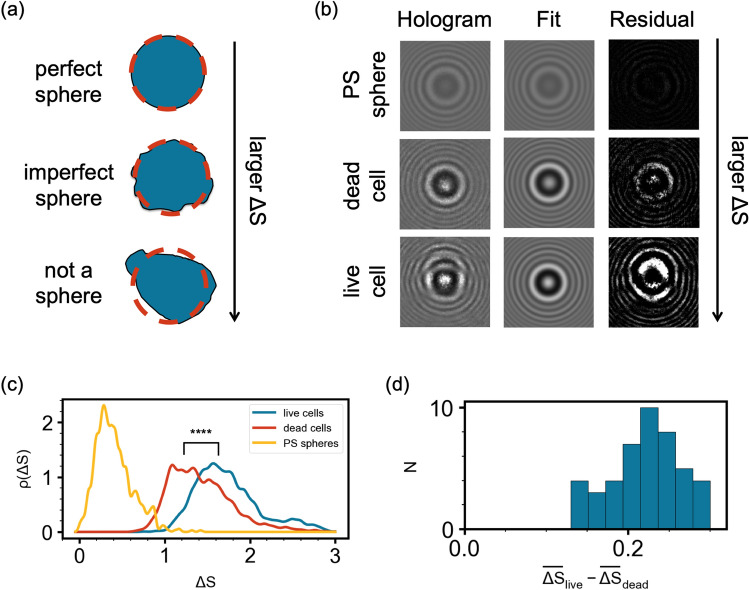

In addition to measuring particle size and refractive index, THC also analyzes particle morphology. More specifically, the symmetry of the hologram corresponding to a given particle is indicative of the symmetry of the particle itself. A perfectly spherical particle is expected to have a nearly perfectly symmetric hologram, while particles that deviate from spheres show deviations from symmetry in their holograms. These deviations from the expected symmetry, , are analyzed and quantified with THC. Figure 5a below shows a schematic of three particle shapes with increasing deviation from symmetry, . In Fig. 5b, the first column shows examples of holograms of a 1.54 m polystyrene sphere, a dead yeast cell and a live yeast cell. The second column of Fig. 5b shows the fits of each of those holograms to Lorenz–Mie theory of light scattering. The third column shows the residuals between the holograms and their respective fits. The metric is in turn computed based on the residuals from the fits. Higher residuals correspond to greater deviation from symmetry and contribute to higher values.
Morphology analysis of live and dead yeast cells with THC shows that dead cells are more spherical than live cells. Figure 5c shows three probability density distributions of : that of polystyrene microspheres in yellow, that of dead yeast cells in orange, and that of live yeast cells in cyan. The symmetry deviations of polystyrene microspheres are closest to indicating a high degree of spherical symmetry as expected. The orange curve, corresponding to dead yeast cells, contains 2295 cells and is farther from , while the cyan curve, corresponding to live cells, contains 1916 cells and is farthest from . The means are significantly different () between the live and the dead cell populations. The result that is smaller for dead cells than live cells indicates that dead yeast cells are more spherically-symmetric than live cells. Figure 5d shows a histogram of differences between the mean for live cells, , and the mean for dead cells, . The histogram contains data from 45 samples of yeast exposed to various concentrations of alcohol. Since for each sample, dead yeast cells appeared more spherical than live cells in each measurement. While this finding in yeast has not been reported previously, such morphological changes have been identified in cancer cells exposed to pH changes that lead to their cell death59 and spherical shape has been correlated with cell death in E. coli60.
Discussion
Our results indicate that yeast cell viability can be effectively assessed using THC. On average yeast cells reduced in size and increased in refractive index upon exposure to high concentration alcohol and upon eventual cell death. While we observe an average decrease in the size of dead cells compared to live ones, size alone is insufficient to distinguish the live and dead populations. Our results demonstrate that the cell index of refraction is a more effective distinguishing identifier of cell viability. This conclusion is also consistent with morphological cell changes. If cells shrink due to expulsion of low index of refraction water and the remaining cell sub-components have a higher index of refraction than water, then the net index of refraction of the cell will increase as observed in our measurements. THC characterizes each particle that flows through the xSight microfluidic chip and analyzes it as a sphere. The multi-parameter optimization finds an effective sphere with a hologram most similar to the hologram of the particle being analyzed52,54. A smaller cell with stronger scattering components will be identified as a smaller particle with an increased refractive index. This scenario is consistent with our results. Similar changes in optical properties of cells in response to external stress, such as osmotic pressure, have been reported in other studies22,31.
In addition to assessing viability, our holographic approach is also a promising way to study the progression towards cell death or other stress responses. Since many morphological changes can manifest as changes in cell size and refractive index, THC can be a powerful tool to quantitatively track those changes in real time. For example, a number of studies have explored the use of holography to determine the toxicity of various compounds by observing biophysical changes in mammalian cells29,30,33–35. Our approach, using THC, is an exciting complimentary tool to existing technologies. It may offer a fast assessment of changes in size and refractive index of living cells in their native environment in response to the toxins of interest.
In addition to identifying live and dead cells, our technology identified a third population of particles labeled in gray in Fig. 2a,d). Those particles were largely smaller or lower index than what we identified as yeast cells. It is possible that those are cell fragments. They could also be aggregates either of materials produced by the yeast in solution or contaminants from other sources. The combination of size and refractive index of many of these particles is consistent with what has been observed for protein aggregates with THC55,61,62. Further research is needed to conclusively identify those particles.
In this work we have explored the response of Saccharomyces cerevisiae to various concentrations of isporpopanol. Other studies have investigated cell viability in response to stresses such as other alcohols, osmotic pressure, and heat36,37,63,64. THC is a promising approach to study viability under those conditions as well. It offers a complimentary approach to other developing technologies that utilize other scattering techniques. Holographic changes in cells upon death should similarly be observed in other cell types such as bacteria and animal cells. THC should be a useful tool to study a wide range of biological systems.
Conclusion
Our results present a powerful approach to assessing yeast viability using holographic video microscopy. Cell death in response to alcohol exposure was concurrent with a population increase in cell refractive index suggesting that this optical parameter is effective in identifying live and dead cells. The proposed holographic approach is fast, automated, and label-free, eliminating many of the limitations of traditional staining-based viability assays. The methodology is objective and does not require user identification of each cell once refractive index regions are identified. Therefore, THC can be extended to high-throughput, automated viability analysis in a variety industrial applications.
Methods
Yeast preparation
The yeast solution was made using glucose (SIGMA brand, item G8270-1KG), filtered deionized (DI) water, and dry instant yeast (Amish Market store brand, New York, NY). A glucose stock mixture was made by mixing 25g of DI water with 0.5g of glucose until the glucose was fully dissolved. Once dissolved, the glucose mixture was filtered with a 60cc luer lock disposable m syringe filter (Millex brand). If not made for immediate use, the glucose mixture was stored in a C refrigerator.
The glucose solution was diluted with filtered DI water in a 1:1 proportion, using 4mL of each, in a 30mL vial. Using dry instant yeast, 4–7 pellets were placed into the diluted glucose mixture and the vial was shaken by hand and vortexed until all the yeast pellets were dissolved. The yeast solutions was incubated (Benchmark, Roto-Therm mini) at C. Once the incubator was at temperature, the yeast mixture was placed into the incubator for 30 min. After 30 min, the mixture was removed from the incubator and shaken briefly to dissolve any remaining yeast. A fresh yeast mixture was made for each day of experiments.
Three alcohol concentrations were tested: 0% isopropanol (control), 15% isopropanol by volume in glucose solution, and 20% isopropanol by volume in glucose solution. Each alcohol concentration was prepared by placing the solution in a 10mL vial and bringing the final volume to a total of 2mL. For the control and for 15% isopropanol solution, the samples were measured over approximately 90 min. For the 20% isopropanol solution, the samples were measured over approximately 45 min. For the control, the stopwatch was started after the solution was vortexed. For the 15% and 20% alcohol solutions, the stopwatch was started () once the alcohol was placed into the 10mL vial with the yeast solution. For each condition, the viability was measured once before the alcohol was introduced and then consecutively after the addition of alcohol.
Holographic Video Microscopy
Holographic video microscopy21,40,62 measurements were made using xSight (Spheryx, Inc.), Spheryx’s implementation of THC. For each measurement, a L volume of sample was placed into one of the eight reservoirs on an xCell, a disposable microfluidic sample chip (Spheryx, Inc.). Flow of the sample through the microfluidic channel was established automatically in xSight by application of a vacuum seal and a pump, creating a uniform Poiseuille flow21,57. A collimated laser beam with a vacuum wavelength of 638 nm illuminated the viewing region of the xCell while the sample flowed. Light scattered by particles in the sample interfered with incident light creating holograms that were recorded on a camera for further analysis. Each hologram was analyzed with THC resulting in a multi-parameter fit for the size, refractive index, and the three-dimensional position of each particle.
For each sample, sample viscosity and refractive index of the medium (water with glucose) were measured and entered into xSight. The refractive index of the medium was measured with a hand-held refractometer (Antago, pocket refractometer). Pressing the START button initiated the measurement. The measurement ensues automatically and lasts approximately 15 min for each sample.
The first measurement of the yeast solution, before the addition of alcohol, was labeled as time point “” and was used to normalize the rest of the viability curve. All other time points were recorded as when the START button was pressed. The volume measured for each sample was L.
The boxes that circumscribed the live and dead yeast populations were user-defined regions of interest enabled by the xSight software. Once the regions of interest were defined, the results of the live and dead cell analyses were automatically computed producing the concentration, the median size and the median refractive index of each population. The regions were determined to delineate the distinct populations. The viability of each sample was then recorded based on the automatically computed statistics of each region.
Staining measurements with trypan blue
Staining measurements were prepared in micro-centrifuge tubes (uLab Scientific). L of yeast sample and L of the dye were mixed into the tube and allowed to stand for 2 min. After 2 min, L of the dyed sample was placed onto an Improved Neubauer Hemocytometer (Fristaden Labs). A cover slip was placed on top of the hemocytometer and viewed under a microscope (AmScope) with 10x magnification. On the hemocytometer, the cells on eight of 4x4 grid boxes were counted for the staining viability analysis. After the counting was completed, the hemocytometer was cleaned using isopropanol and DI water and dabbed with a Kimwipe. The hemocytometer was allowed to air dry fully before performing the next measurement. As with THC, the time of the first measurement, before alcohol was introduced, was labeled “”. The start of the staining experiment () was marked when the dye was introduced into the sample.
Acknowledgements
Research reported in this publication was supported in part by the National Center For Advancing Translational Sciences of the National Institutes of Health under Award Number R44TR001590. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health.
Competing interests
All of the authors are employed by Spheryx, Inc. the manufacturer of xSight and xCells which were used to perform the research reported in this publication.
Footnotes
Footnote Group
References
Untitled section
References
- 1.Parapouli M, Vasileiadis A, Afendra A-S, Hatziloukas E. Saccharomyces cerevisiae and its industrial applications. AIMS Microbiol. 2020;6:1–32. doi: 10.3934/microbiol.2020001.
- 2.Botstein D, Fink GR. Yeast: An experimental organism for 21st century biology. Genetics. 2011;189:695–704. doi: 10.1534/genetics.111.130765.
- 3.Duina AA, Keeney JB, Miller ME. Budding yeast for budding geneticists: A primer on the saccharomyces cerevisiae model system. Genetics. 2014;197:33–48. doi: 10.1534/genetics.114.163188.
- 4.Guaragnella N, et al. The expanding role of yeast in cancer research and diagnosis: insights into the function of the oncosuppressors p53 and brca1/2. FEMS Yeast Res. 2014;14:2–16. doi: 10.1111/1567-1364.12094.
- 5.Pray L. LH Hartwell’s yeast: A model organism for studying somatic mutations and cancer. Nat. Educ. 2008;1:183.
- 6.Ferreira R, Limeta A, Nielsen J. Tackling cancer with yeast-based technologies. Trends Biotechnol. 2018;37:66. doi: 10.1016/j.tibtech.2018.11.013.
- 7.Gomes A, Carmo T, Carvalho L, Bahia F, Skorupa Parachin N. Comparison of yeasts as hosts for recombinant protein production. Microorganisms. 2018;6:38. doi: 10.3390/microorganisms6020038.
- 8.Huang M, Bao J, Hallstrom BM, Petranovic D, Nielsen J. Efficient protein production by yeast requires global tuning of metabolism. Nat. Commun. 2017 doi: 10.1038/s41467-017-00999-2.
- 9.Hyunah K, Yoo S, Kang HA. Yeast synthetic biology for the production of recombinant therapeutic proteins. FEMS Yeast Res. 2014;15:66. doi: 10.1111/1567-1364.12195.
- 10.Lodolo EJ, Kock JL, Axcell BC, Brooks M. The yeast saccharomyces cerevisiae-the main character in beer brewing. FEMS Yeast Res. 2008;8:1018–1036. doi: 10.1111/j.1567-1364.2008.00433.x.
- 11.Briggs, D. E., Boulton, C. A., Brookes, P. A. & Stevens, R. Brewing: Science and Practice (Woodhead Publishing, 2004).
- 12.Maicas S. The role of yeasts in fermentation processes. Microorganisms. 2020;8:1142. doi: 10.3390/microorganisms8081142.
- 13.Fleet G. Yeasts in foods and beverages: Impact on product quality and safety. Curr. Opin. Biotechnol. 2007;18:170–5. doi: 10.1016/j.copbio.2007.01.010.
- 14.Kwolek-Mirek M, Zadrag-Tecza R. Comparison of methods used for assessing the viability and vitality of yeast cells. FEMS Yeast Res. 2014;14:1068–1079. doi: 10.1111/1567-1364.12202.
- 15.Strober W. Trypan blue exclusion test of cell viability. Curr. Protoc. Immunol. 2015 doi: 10.1002/0471142735.ima03bs111.
- 16.Chan LL, Kuksin D, Laverty DJ, Saldi S, Jean Q. Morphological observation and analysis using automated image cytometry for the comparison of trypan blue and fluorescence-based viability detection method. Cytotechnology. 2014;67:461–473. doi: 10.1007/s10616-014-9704-5.
- 17.Mascotti K, McCullough J, Burger SR. Hpc viability measurement: Trypan blue versus acridine orange and propidium iodide. Transfus. 2000;40:693–696. doi: 10.1046/j.1537-2995.2000.40060693.x.
- 18.Tennant J. Evaluation of the trypan blue technique for determination of cell viability. Transplantation. 1964;2:686–694. doi: 10.1097/00007890-196411000-00001.
- 19.Chan LL, Rice W, Qiu J. Observation and quantification of the morphological effect of trypan blue rupturing dead or dying cells. PLoS ONE. 2020;15:66. doi: 10.1371/journal.pone.0227950.
- 20.Mernier G, Piacentini N, Tornay R, Buffi N, Renaud P. Cell viability assessment by flow cytometry using yeast as cell model. Sens. Actuators B Chem. 2009;154:160–163. doi: 10.1016/j.snb.2009.11.066.
- 21.Cheong FC, et al. Flow visualization and flow cytometry with holographic video microscopy. Opt. express. 2009;17:13071–13079. doi: 10.1364/OE.17.013071.
- 22.Midtvedt D, Olsen E, Hook F, Jeffries GD. Label-free spatio-temporal monitoring of cytosolic mass, osmolarity, and volume in living cells. Nat. Commun. 2019;10:66. doi: 10.1038/s41467-018-08207-5.
- 23.Gorbenko D, et al. Quantification of changes in cellular morphology during cell necrosis obtained from 3d refractive index distributions. J. Phys.: Conf. Ser. 2019;1236:012015. doi: 10.1088/1742-6596/1236/1/012015.
- 24.Rommel CE, et al. Contrast-enhanced digital holographic imaging of cellular structures by manipulating the intracellular refractive index. J. Biomed. Opt. 2010;15:1–10. doi: 10.1117/1.3449567.
- 25.Cheong FC, et al. Rapid, high-throughput tracking of bacterial motility in 3d via phase-contrast holographic video microscopy. Biophys. J. 2015;108:1248–1256. doi: 10.1016/j.bpj.2015.01.018.
- 26.Feizi A, et al. Rapid, portable and cost-effective yeast cell viability and concentration analysis using lensfree on-chip microscopy and machine learning. Lab Chip. 2016 doi: 10.1039/C6LC00976J.
- 27.Rappaz B, Breton B, Shaffer E, Turcatti G. Digital holographic microscopy: A quantitative label-free microscopy technique for phenotypic screening. Combin. Chem. High Throughput Screen. 2013;14:66. doi: 10.2174/13862073113166660062.
- 28.Bélanger E, Lévesque SA, Rioux-Pellerin A, Lavergne P, Marquet P. Measuring absolute cell volume using quantitative-phase digital holographic microscopy and a low-cost, open-source, and 3D-printed flow chamber. Front. Phys. 2019;7:172. doi: 10.3389/fphy.2019.00172.
- 29.Ugele M, et al. Label-free, high-throughput detection of p. falciparum infection in sphered erythrocytes with digital holographic microscopy. Lab Chip. 2018;18:66. doi: 10.1039/C8LC00350E.
- 30.Mugnano M, et al. In vitro cytotoxicity evaluation of cadmium by label-free holographic microscopy. J. Biophoton. 2018;11:e201800099. doi: 10.1002/jbio.201800099.
- 31.Kastl L, Isbach M, Dirksen D, Schnekenburger J, Kemper B. Quantitative phase imaging for cell culture quality control: label-free cell culture quality control. Cytom. A. 2017;91:66. doi: 10.1002/cyto.a.23082.
- 32.Min J, et al. Quantitative phase imaging of cells in a flow cytometry arrangement utilizing Michelson interferometer-based off-axis digital holographic microscopy. J. Biophoton. 2019;12:66. doi: 10.1002/jbio.201900085.
- 33.Eder KM, et al. Label-free digital holographic microscopy for in vitro cytotoxic effect quantification of organic nanoparticles. Cells. 2022;11:66. doi: 10.3390/cells11040644.
- 34.Kühn J, et al. Label-free cytotoxicity screening assay by digital holographic microscopy. Assay Drug Dev. Technol. 2013;11:101–107. doi: 10.1089/adt.2012.476.
- 35.Makdasi E, et al. Whole-cell multiparameter assay for ricin and abrin activity-based digital holographic microscopy. Toxins. 2019 doi: 10.3390/toxins11030174.
- 36.Pratt PL, Bryce JH, Stewart GG. The effects of osmotic pressure and ethanol on yeast viability and morphology. J. Inst. Brew. 2003;109:218–228. doi: 10.1002/j.2050-0416.2003.tb00162.x.
- 37.Odumeru JA, D’Amore T, Russel I, Stewart GG. Effects of heat shock and ethanol stress on viability of a Saccharomyces uvarum (carlsbergensis) brewing yeast strain during fermentation of high gravity wort. J. Ind. Microbiol. 1992;10:111–116. doi: 10.1007/BF01583843.
- 38.Gabor D. A new microscopic principle. Nature. 1948;161:777–778. doi: 10.1038/161777a0.
- 39.Sheng J, Malkiel E, Katz J. Digital holographic microscope for measuring three-dimensional particle distributions and motions. Appl. Opt. 2006;45:3893–3901. doi: 10.1364/AO.45.003893.
- 40.Lee S-H, et al. Characterizing and tracking single colloidal particles with video holographic microscopy. Opt. Express. 2007;15:18275–18282. doi: 10.1364/OE.15.018275.
- 41.Cheong FC, Krishnatreya BJ, Grier DG. Strategies for three-dimensional particle tracking with holographic video microscopy. Opt. Express. 2010;18:13563–13573. doi: 10.1364/OE.18.013563.
- 42.Perry R, Meng G, Dimiduk T, Fung J, Manoharan V. Real-space studies of the structure and dynamics of self-assembled colloidal clusters. Faraday Discuss. 2012;159:66. doi: 10.1039/c2fd20061a.
- 43.Wang A, et al. Using the discrete dipole approximation and holographic microscopy to measure rotational dynamics of non-spherical colloids. J. Quant. Spectrosc. Radiat. Transf. 2013 doi: 10.1016/j.jqsrt.2013.12.019.
- 44.Schnars U, Jüptner W. Direct recording of holograms by a ccd target and numerical reconstruction. Appl. Opt. 1994;33:179–81. doi: 10.1364/AO.33.000179.
- 45.Cuche E, Marquet P, Depeursinge C. Simultaneous amplitude-contrast and quantitative phase-contrast microscopy by numerical reconstruction of Fresnel off-axis holograms. Appl. Opt. 2000;38:6994–7001. doi: 10.1364/AO.38.006994.
- 46.Ovryn B, Izen S. Imaging of transparent spheres through a planar interface using a high-numerical-aperture optical microscope. J. Opt. Soc. Am. A Opt. Image Sci. Vision. 2000;17:1202–13. doi: 10.1364/JOSAA.17.001202.
- 47.Xu W, Jericho M, Meinertzhagen I, Kreuzer H. Digital in-line holography of microspheres. Appl. Opt. 2002;41:5367–75. doi: 10.1364/AO.41.005367.
- 48.Bohren CF, Huffman DR. Absorption and Scattering of Light by Small Particles. New York: Wiley; 1983.
- 49.Mishchenko, M. I., Travis, L. D. & Lacis, A. A. Scattering, Absorption, and Emission of Light by Small Particles (Cambridge University Press, 2001).
- 50.Gouesbet, G. & Grehan, G. Generalized Lorenz–Mie Theories (Springer, 2011).
- 51.Philips L, et al. Holographic characterization of contaminants in water: Differentiation of suspended particles in heterogeneous dispersions. Water Res. 2017;122:66. doi: 10.1016/j.watres.2017.06.006.
- 52.Odete MA, et al. The role of the medium in the effective-sphere interpretation of holographic particle characterization data. Soft Matter. 2019 doi: 10.1039/c9sm01916b.
- 53.Cheong FC, Xiao K, Pine D, Grier D. Holographic characterization of individual colloidal spheres’ porosities. Soft Matter. 2011;7:6816–6819. doi: 10.1039/C1SM05577A.
- 54.Markel VA. Introduction to the Maxwell Garnett approximation: Tutorial. J. Opt. Soc. Am. A Opt. Image Sci. Vis. 2016;33:1244–1256. doi: 10.1364/JOSAA.33.001244.
- 55.Winters A, et al. Quantitative differentiation of protein aggregates from other subvisible particles in viscous mixtures through holographic characterization. J. Pharm. Sci. 2020 doi: 10.1016/j.xphs.2020.05.002.
- 56.Wang C, Cheong FC, Ruffner DB, Zhong X, Ward MD, Grier DG. Holographic characterization of colloidal fractal aggregates. Soft Matter. 2016;12(42):8774–80. doi: 10.1039/c6sm01790h.
- 57.Altman LE, Quddus R, Cheong FC, Grier DG. Holographic characterization and tracking of colloidal dimers in the effective-sphere approximation. Soft Matter. 2021 doi: 10.1039/D0SM02262D.
- 58.Ruffner D, Cheong FC, Blusewicz J, Philips L. Lifting degeneracy in holographic characterization of colloidal particles using multi-color imaging. Opt. Express. 2018;26:13239. doi: 10.1364/OE.26.013239.
- 59.Nakao S, Kojima K, Sudo Y. Phototriggered apoptotic cell death (pta) using the light-driven outward proton pump rhodopsin archaerhodopsin-3. J. Am. Chem. Soc. 2022;144:3771–3775. doi: 10.1021/jacs.1c12608.
- 60.Young KD. Why spherical Escherechia coli dies: The inside story. J. Bacteriol. 2008;190:1497–1498. doi: 10.1128/JB.01975-07.
- 61.Kasimbeg PN, Cheong FC, Ruffner DB, Blusewicz JM, Philips LA. Holographic characterization of protein aggregates in the presence of silicone oil and surfactants. J. Pharm. Sci. 2019;108:155–161. doi: 10.1016/j.xphs.2018.10.002.
- 62.Wang C, et al. Holographic characterization of protein aggregates. J. Pharm. Sci. 2016;105:1074–1085. doi: 10.1016/j.xphs.2015.12.018.
- 63.Gibson BR, Lawrence SJ, Leclaire JPR, Powell CD, Smart KA. Yeast responses to stresses associated with industrial brewery handling. FEMS Microbiol. Rev. 2007;31:535–569. doi: 10.1111/j.1574-6976.2007.00076.x.
- 64.Hohmann, S. & Mager, W. Yeast Stress Responses (Springer, 2003).
