Low-Cost 3D-Printed Molds for PMMA Cranioplasty: Case Series and Workflow Analysis
1Department of Neurosurgery, Hospital DF Santojanni, Ciudad Autónoma Buenos Aires, ARG
2Department of Neurosurgery. Hospital de Niños Pedro de Elizalde, Ciudad Autónoma Buenos Aires, ARG
*Corresponding author: Tomas Gondra, tomasgondra@gmail.comABSTRACT
BACKGROUND
Cranioplasty is an essential procedure to restore cranial integrity, protect neural structures, and improve cosmetic outcomes. However, commercially available implants are often costly, limiting their accessibility in public healthcare systems. Three-dimensional (3D) printing offers a low-cost alternative for producing patient-specific solutions.
METHODS
A retrospective case series of eight patients undergoing cranioplasty using customized polymethylmethacrylate (PMMA) implants fabricated with 3D-printed molds was conducted. Computed tomography (CT) scans were used for segmentation and digital modeling. Patient-specific molds were designed and printed preoperatively. Variables analyzed included design time, printing time, intraoperative workflow, and clinical outcomes.
RESULTS
Design time ranged from approximately 1 hour for small defects to 3 hours for larger defects. Printing time ranged from 2–3 hours for smaller defects and up to 8–10 hours for larger reconstructions. Satisfactory aesthetic outcomes were achieved in 7 of 8 patients (87.5%). No major implant-related complications were observed.
CONCLUSION
Low-cost 3D printing for PMMA cranioplasty is a feasible, accessible, and effective technique for cranial reconstruction, particularly in resource-limited settings.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
This study did not receive any funding
INTRODUCTION
Cranioplasty is a commonly performed neurosurgical procedure aimed at restoring cranial defects following trauma, tumor resection, or decompressive craniectomy. In addition to its protective role, cranioplasty has been associated with improved neurological recovery and cosmetic outcomes [1]. Despite the availability of various reconstructive materials, including titanium, polyetheretherketone (PEEK), and prefabricated polymethylmethacrylate (PMMA) implants, their high cost and limited accessibility remain significant barriers in public healthcare systems, particularly in low- and middle income countries. As a result, alternative strategies that balance affordability, customization, and surgical efficiency are needed. Recent advances in three-dimensional (3D) printing have enabled the development of patient-specific solutions at a substantially lower cost [2,3,4]. In this context, the use of 3D-printed molds for intraoperative PMMA implant fabrication represents a practical and accessible approach. The aim of this study is to present a case series of customized PMMA cranioplasties using low-cost 3D-printed molds and to evaluate their feasibility, workflow, and clinical outcomes.
MATERIALS AND METHODS
Study Design
A retrospective case series of consecutive patients undergoing cranioplasty using customized polymethylmethacrylate (PMMA) implants fabricated with 3D-printed molds was conducted.
Study Setting and Patients
The study was performed at a tertiary public hospital. Eight consecutive patients with cranial defects of post-traumatic origin were included. Patients were selected based on the presence of a cranial defect requiring reconstruction and the feasibility of preoperative 3D planning. No patients were excluded once the technique was adopted.
Imaging Acquisition and Processing
All patients underwent preoperative volumetric computed tomography (CT) scanning. DICOM data were imported into dedicated software for segmentation and 3D reconstruction of cranial anatomy. The cranial defect was digitally reconstructed, and a patient-specific mold was designed based on the expected anatomical contour.
3D Modeling and Printing

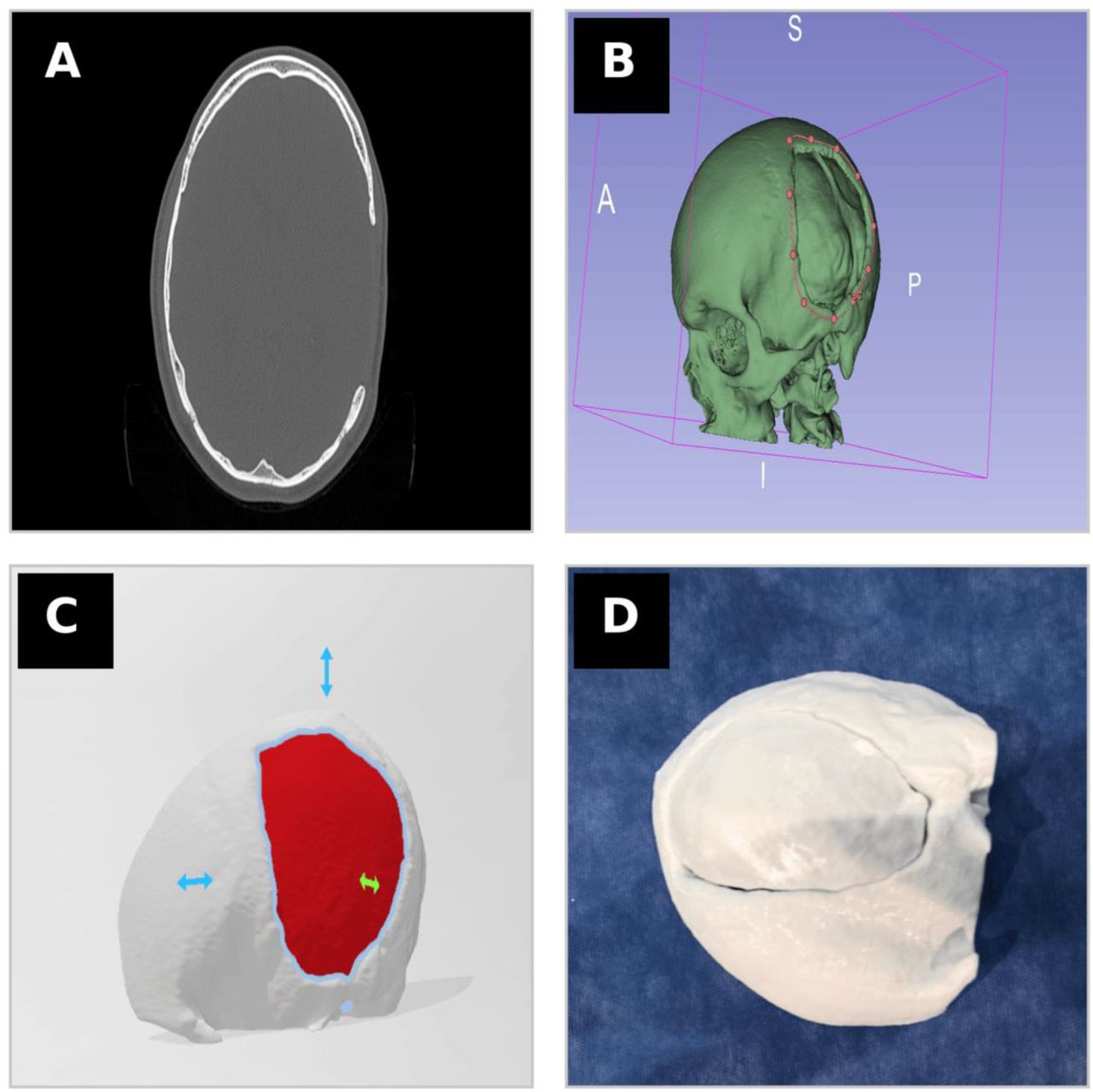

Digital models were processed to create negative molds suitable for intraoperative PMMA shaping. The molds were fabricated using low-cost fused deposition modeling (FDM) 3D printers. Printing parameters were adjusted according to defect size and complexity. The final printed molds were prepared and sterilized according to institutional protocols. The workflow for implant design, segmentation, and fabrication is illustrated in Figure 1.
Surgical Technique
Standard cranioplasty procedures were performed. PMMA was prepared intraoperatively and shaped using the customized 3D-printed molds to achieve accurate anatomical reconstruction. The implant was then positioned and fixed using standard fixation techniques.
Variables and Outcomes
The following variables were analyzed: preoperative design time, printing time, intraoperative handling and need for adjustments, aesthetic outcome (subjective surgeon assessment), and perioperative complications. Data were analyzed descriptively. Continuous variables are presented as ranges, and categorical variables as proportions. No statistical comparisons were performed due to the small sample size.
RESULTS
A total of eight patients underwent cranioplasty using customized PMMA implants fabricated with 3D-printed molds.
Workflow Metrics
The preoperative digital design time varied according to defect size, averaging approximately 1 hour for smaller defects and up to 3 hours for larger or more complex defects. Similarly, 3D printing time ranged from 2-3 hours for smaller defects to 8-10 hours for larger reconstructions.
Intraoperative Findings
The use of patient-specific molds allowed accurate shaping of the PMMA implants with minimal need for intraoperative adjustments. Implant fitting was considered satisfactory in all cases. The technique facilitated a streamlined intraoperative workflow by reducing manual modeling and improving reproducibility. The intraoperative fabrication and placement of the implant are illustrated in Figure 2.
Clinical Outcomes

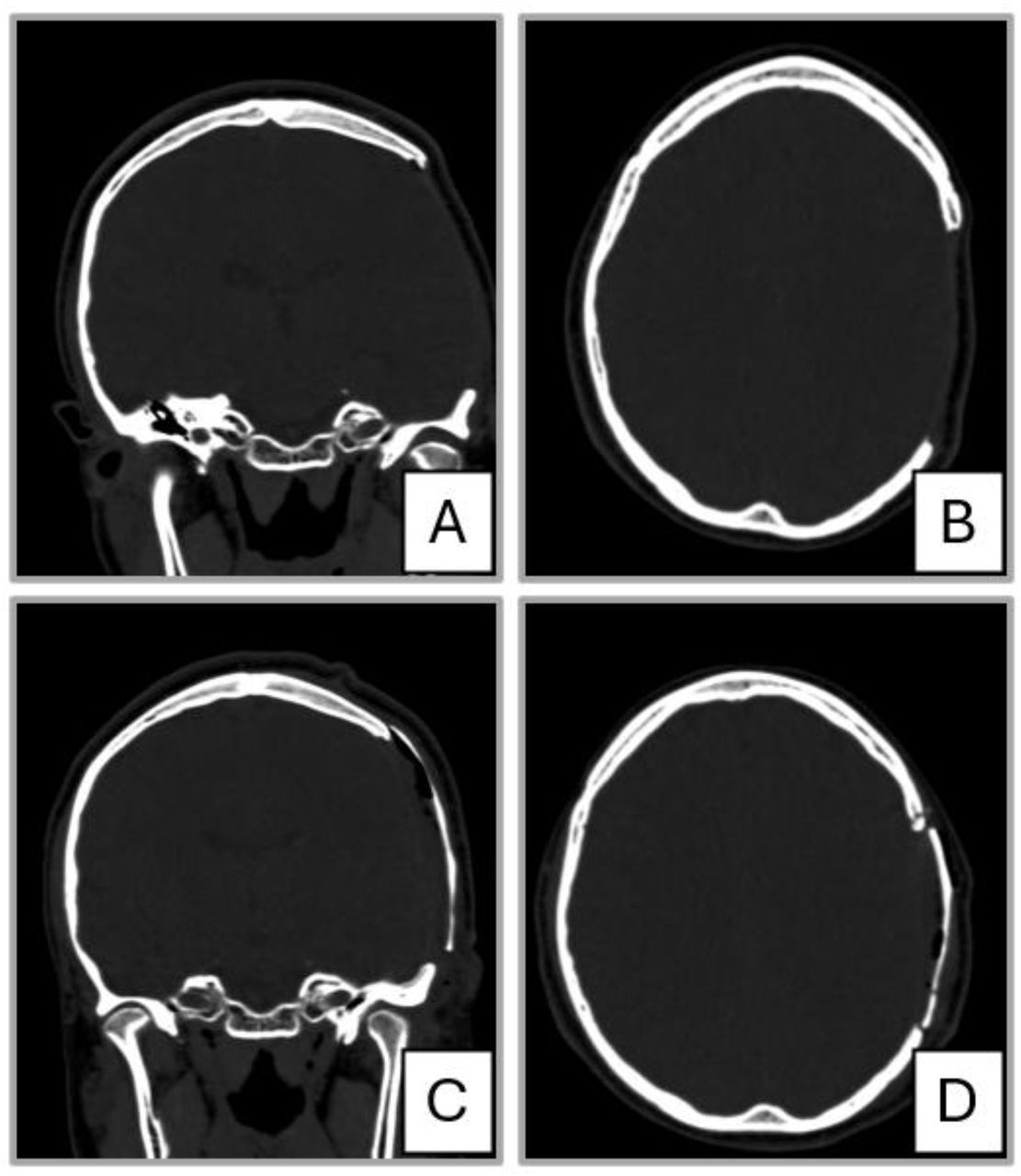

Satisfactory aesthetic outcomes were achieved in 7 out of 8 patients (87.5%), based on the operating surgeon’s subjective assessment. Postoperative CT outcomes are illustrated in Figure 3. Clinical photographs were not included due to the difficulty of ensuring complete patient anonymity while adequately demonstrating surgical outcomes. Therefore, imaging findings were prioritized for objective evaluation.
No major implant-related complications were observed during the perioperative period. No postoperative infections or implant removals were recorded.

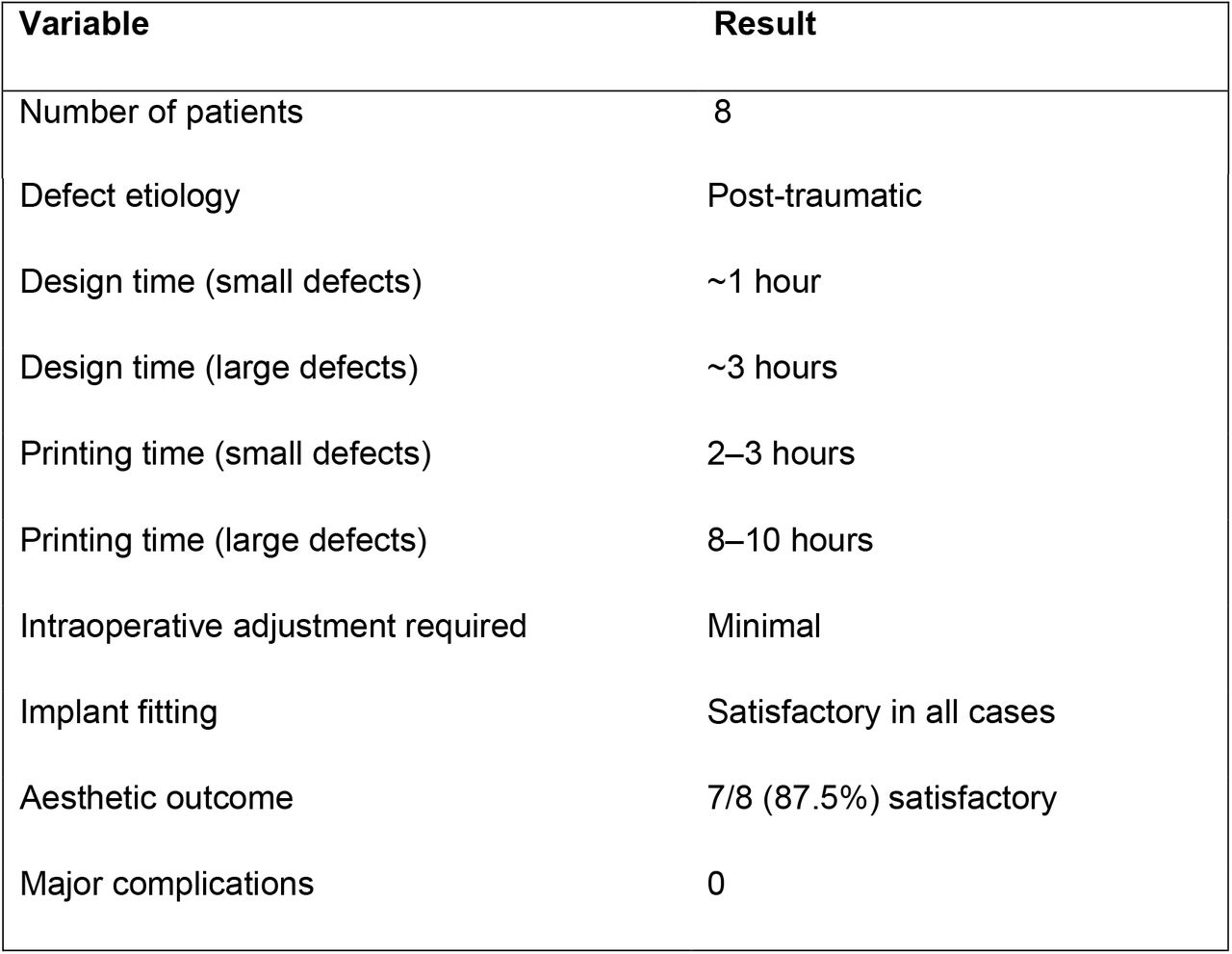

A summary of workflow metrics and clinical outcomes is presented in Table 1.
DISCUSSION
The use of low-cost 3D printing in cranioplasty has emerged as a valuable alternative to commercially available implants, particularly in settings with limited resources. Our experience supports the feasibility and practicality of this approach, demonstrating that patient-specific PMMA implants can be produced with satisfactory aesthetic and clinical outcomes. Previous studies have demonstrated the viability of low-cost 3D-printed solutions for cranial reconstruction [2,3]. Our findings are consistent with these reports, reinforcing the concept that technological accessibility has significantly expanded the possibilities for personalized neurosurgical care. One of the main advantages observed in our series is the improvement in implant accuracy and fit. Traditional freehand intraoperative modelling of PMMA can be time-consuming and highly dependent on surgeon experience. In contrast, the use of a predesigned mold allows for more predictable results, reduces intraoperative manipulation, and improves reproducibility. [4] From a practical standpoint, the trade-off between increased preoperative planning time and reduced intraoperative complexity appears favourable. In our series, design and printing times were reasonable and could be integrated into routine surgical workflows without delaying patient care. Another relevant aspect is cost-effectiveness. Previous studies comparing autologous bone flaps and synthetic implants have highlighted the economic and clinical implications of cranioplasty materials [3,5,6]. This approach is particularly relevant in low- and middle-income settings, where access to commercially available implants remains limited. In this context, low-cost 3D printing represents a particularly attractive alternative, especially in public healthcare systems where access to prefabricated implants is limited. [4,7] Despite these advantages, this study has several limitations. First, the sample size is small, which limits the generalizability of the findings. Second, the absence of a control group prevents direct comparison with other reconstruction techniques. Third, aesthetic outcomes were assessed subjectively, without standardized objective measurements. Finally, the successful implementation of this technique depends on the availability of basic technological resources and a certain degree of technical expertise. However, as 3D printing becomes increasingly accessible, its integration into routine neurosurgical practice is likely to expand.
CONCLUSIONS
Customized PMMA cranioplasty using low-cost 3D-printed molds is a safe, feasible, and cost-effective technique for cranial reconstruction. This approach allows accurate implant fabrication, improves intraoperative workflow, and provides satisfactory aesthetic outcomes. Its implementation may be particularly valuable in resource-limited settings, where access to commercially manufactured implants is restricted. Further studies with larger cohorts and comparative designs are required to validate these findings. This technique represents a practical and scalable alternative for patient specific cranial reconstruction in public healthcare systems.
