Structure of the Cannabis sativa olivetol‐producing enzyme reveals cyclization plasticity in type III polyketide synthases
Cannabis sativa olivetol synthase
L. J. Kearsey et al.
Manchester Institute of Biotechnology and School of Chemistry The University of Manchester UK
BBSRC/EPSRC Synthetic Biology Research Centre SYNBIOCHEM The University of Manchester UK
EPSRC/BBSRC Future Biomanufacturing Research Hub The University of Manchester UK
Present address: Immunocore Limited Abingdon Oxfordshire OX14 4RY UK
*CorrespondenceN. S. Scrutton, Manchester Institute of Biotechnology and School of Chemistry, The University of Manchester, Manchester M1 7DN, UK
Tel: +44 (0) 161 306 5152
E‐mail: nigel.scrutton@manchester.ac.uk
Website: http://www.mib.ac.uk
Abstract
Untitled section
In the native pathway to therapeutic cannabinoid biosynthesis in Cannabis sativa, the three‐step production of a key intermediate, olivetolic acid, is catalysed by the enzymes tetraketide synthase (TKS; linear tetraketide intermediate production in two stages) and olivetolic acid cyclase (OAC; final C2 → C7 aldol condensation). In the absence of OAC, a nonenzymatic C2 → C7 decarboxylative aldol condensation of the tetraketide intermediate occurs forming olivetol. TKS is a type III polyketide synthase, and the question arises why it is unable to form olivetolic acid directly, but instead forms this unwanted side product. We determined the TKS, CoA complex structure, and performed structurally guided mutagenesis studies to identify potential residues responsible for cyclization pathway discrimination in type III polyketide synthases. Prior studies suggested an ‘aldol switch’ is necessary to allow linear tetraketide intermediate release prior to cyclization, thereby enabling subsequent olivetolic acid production by OAC. However, our studies do not support the presence of a universal or predictable ‘aldol switch’ consensus sequence. Instead, we propose the mode of ordered active site water activation between type III polyketide synthases catalysing different cyclization mechanisms is subtle and homologue‐specific. Our work indicates that subtle structural variations between homologous enzymes can have a major mechanistic impact on the catalytic outcome. This highlights the importance of embedding high‐resolution structural analysis of multiple enzyme homologues with classical site‐directed mutagenesis studies when investigating highly similar enzymes with different mechanistic pathway outcomes.
Enzymes
TKS, http://www.chem.qmul.ac.uk/iubmb/enzyme/EC2/3/1/206.html; OAC, http://www.chem.qmul.ac.uk/iubmb/enzyme/EC4/4/1/26.html; chalcone synthase, http://www.chem.qmul.ac.uk/iubmb/enzyme/EC2/3/1/74.html; stilbene synthase, http://www.chem.qmul.ac.uk/iubmb/enzyme/EC2/3/1/95.html; 2‐PS, http://www.chem.qmul.ac.uk/iubmb/enzyme/EC2/3/1/-.html.
Accession numbers
The atomic coordinates and structure factors for the crystal structure of TKS have been deposited in the Protein Data Bank with accession number http://www.rcsb.org/pdb/search/structidSearch.do?structureId=6GW3.
Graphical
Tetraketide synthase from Cannabis sativa is a type III polyketide synthase involved in cannabinoid production. Unlike chalcone and stilbene synthases, it cannot catalyse classical cyclization reactions to generate chalcone or stilbene acid products. Instead, it releases a linear tetraketide product that undergoes a non‐enzymatic C2→C7 decarboxylative aldol condensation to form a stilbene. In this study by Nigel Scrutton and co‐authors, structure determination and mutagenesis studies are performed to investigate mechanistic details of this Cannabis sativa tetraketide synthase.
Boxed Text
- ∆9‐THC
- tetrahydrocannabinol
- 2‐PS
- 2‐pyrone synthase
- APT
- aromatic prenyltransferase
- CBD
- cannabidiol
- CBDAS
- cannabidiolic acid synthase
- CBGA
- cannabigerolic acid
- CHS
- chalcone synthase
- CSD
- sulfinic acid
- HTAL
- hexanoyl triacetic acid lactone
- LC/MS
- liquid chromatography mass spectrometry
- OAC
- olivetolic acid cyclase
- OLA
- olivetolic acid
- PDAL
- pentyl diacetic lactone
- STS
- stilbene synthase
- TB
- Terrific broth
- THCAS
- tetrahydrocannabinolic acid synthase
- TKS
- tetraketide synthase
Introduction
Cannabinoids are a class of secondary metabolites found exclusively in the plant species Cannabis sativa 1. Tetrahydrocannabinol and cannabidiol (CBD) are the two main cannabinoids currently investigated for their therapeutic potential 2. They are most commonly prescribed to manage the side effects of nausea and vomiting associated with chemotherapy 3. Additional therapeutic uses are becoming more commonplace, including the treatment of anorexia in HIV patients and the reduction of spasticity in multiple sclerosis 4. In addition, olivetolic acid, the precursor of the monoaromatic cannabinoids tetrahydrocannabinol and CBD, is known to possess antimicrobial, cytotoxic and photo‐protective activities 5, 6.

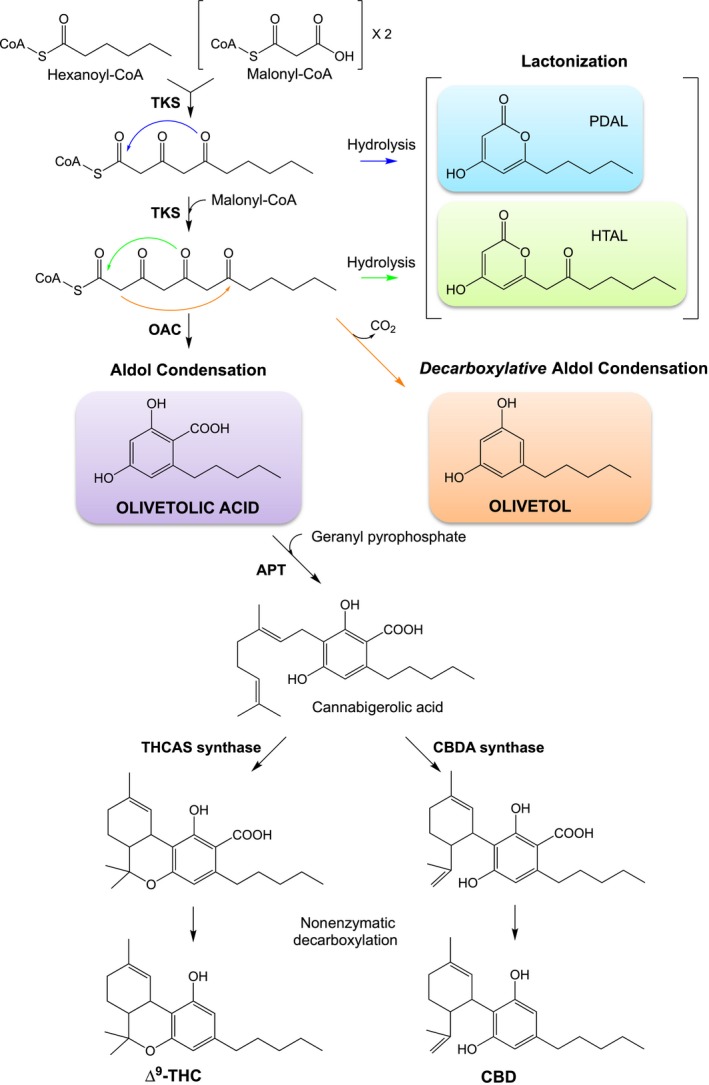

The biosynthetic pathway for the production of tetrahydrocannabinol and CBD begins with the iterative condensation of three malonyl‐CoA and one hexanoyl‐CoA molecule to form a linear tetraketide intermediate (Scheme 1) 7, 8. This is catalysed by a tetraketide synthase (TKS), also known as olivetol synthase 8. Olivetolic acid cyclase (OAC) then performs C2 → C7 aldol condensation of the linear tetraketide intermediate to form olivetolic acid as the major product 7. Cannabigerolic acid (CBGA) is subsequently formed by the addition of geranyl pyrophosphate by aromatic prenyltransferase (APT). This is followed by a reaction with either tetrahydrocannabinolic acid synthase (THCAS) or cannabidiolic acid synthase (CBDAS), and a nonenzymatic decarboxylation to generate tetrahydrocannabinol and CBD, respectively (Scheme 1) 9.
TKS is a member of the type III polyketide synthase family 10, with high sequence similarity to the well characterized chalcone synthase (CHS; 66%) 11 and stilbene synthase (STS; 60%) 12. These enzymes undergo similar malonyl‐CoA loading and extension steps to generate an enzyme‐bound linear tetraketide intermediate (Scheme 2), but vary in the number of condensations and the type of starter molecule. In one case, 2‐pyrone synthase (2‐PS) catalyses only two chain extending condensations to form a triketide intermediate prior to cyclization (Scheme 2A) 13. This family of enzymes also utilize different cyclization mechanisms to generate distinct chemical scaffolds. For example, with coumaroyl‐CoA as the starter molecule, CHS performs a C6 → C1 intramolecular Claisen cyclization of the tetraketide intermediate to form the chalcone, naringenin 11. The reactions of STS with the same substrates diverge after tetraketide intermediate formation, with cleavage of the C1 thioester linkage occurring between the product and the catalytic triad cysteine, known as the ‘aldol switch’. This in turn leads to a nonenzymatic C2 → C7 decarboxylative aldol condensation reaction that forms resveratrol (Scheme 2A) 12. However, for type III polyketide synthases additional C5oxy → C1 lactonization reactions of the triketide and tetraketide intermediates can occur, leading to a ‘derailment’ of the normal catalytic cycle (Scheme 2A).

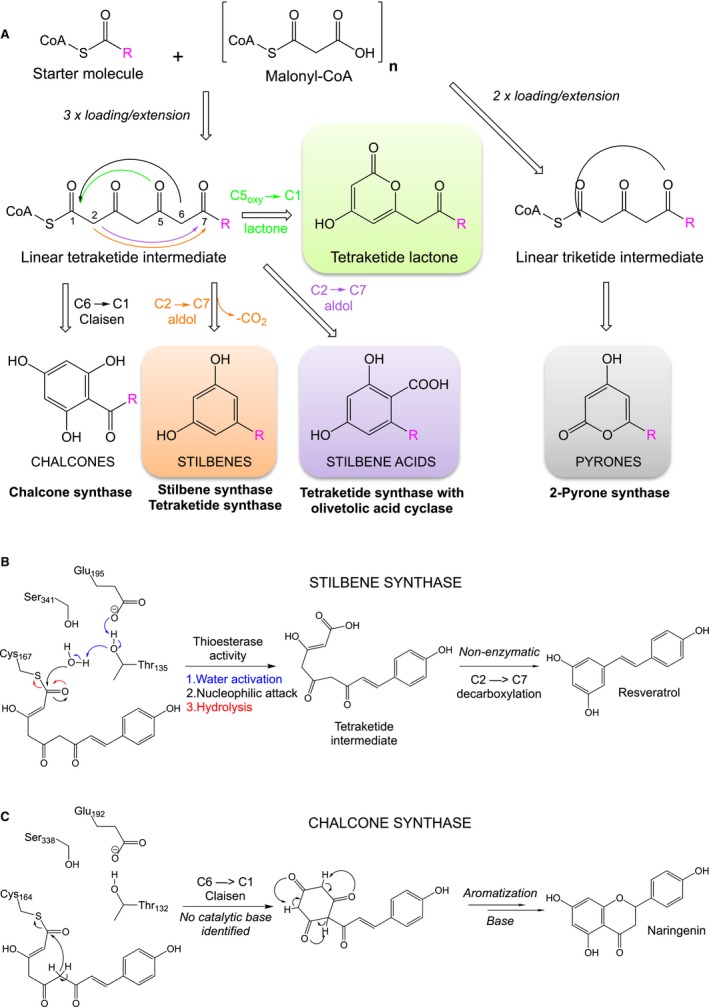

In the case of cannabinoid biosynthesis, cyclization of the tetraketide intermediate to olivetolic acid is a C2 → C7 aldol condensation catalysed by OAC (Scheme 2A). As no functional complex has been detected between TKS and OAC 9, this suggests the linear tetraketide intermediate must be released from TKS to interact with OAC. Therefore, TKS may possess an STS‐like mechanism of C1 thioester cleavage (Scheme 2B) 12. In the absence of OAC, olivetol is the major product presumably via a nonenzymatic STS‐like C2 → C7 decarboxylative aldol condensation of the released tetraketide intermediate (Scheme 1) 12.
Here, we have determined the crystal structure of TKS in the presence of CoA. We have also performed a structure‐guided mutagenesis study to investigate why the tetraketide intermediate is released, enabling OAC to catalyse olivetolic acid production. Comparative structural analyses between TKS, CHS and STS were performed to investigate the nature of the ‘aldol switch’ 12 in TKS. This was to gain insight into why STS‐like C2 → C7 decarboxylative aldol condensation most likely occurs with TKS instead of a CHS‐like C6 → C1 Claisen cyclization (Scheme 2C) 14. A variety of residues lining the substrate‐binding site of TKS were then targeted by mutagenesis to determine whether they impacted on the relative proportions of the products formed in the presence and absence of OAC.
Results and Discussion
Product profile of TKS

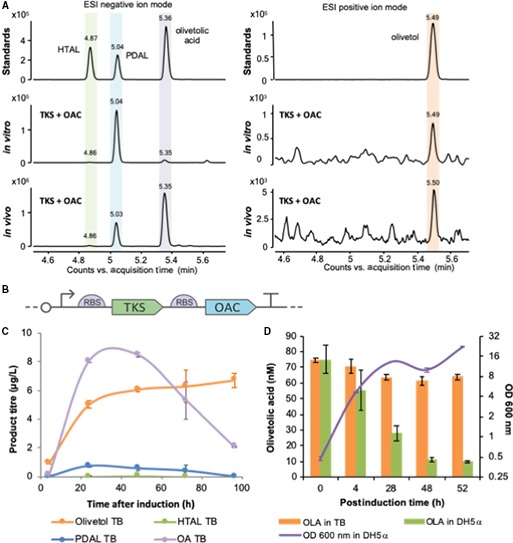

The low catalytic rate of purified TKS with hexanoyl‐CoA (< 0.02 s−1) 8 necessitated biotransformations to be performed for 16 h, followed by product identification (Figs 1A and S1) and quantification by liquid chromatography mass spectrometry (LC‐MS). A major product generated by TKS with malonyl‐CoA and hexanoyl‐CoA was identified as olivetol (416 ± 96 nm), as seen in previous studies 8. This is likely produced via an STS‐like nonenzymatic C2 → C7 decarboxylative aldol condensation of the tetraketide intermediate after release from TKS (Scheme 2). Similar quantities of pentyl diacetic lactone (PDAL) were detected; however, the exact concentration PDAL produced was variable and dependent on the enzyme batch (Table S1). PDAL formation occurs via lactonization of the linear triketide intermediate 15 and is considered to be a premature ‘derailment’ by‐product (Scheme 1) 1. A similar reaction with the tetraketide intermediate generated trace titres of the equivalent lactone hexanoyl triacetic acid lactone (HTAL; 5.4 ± 3.7 nm). These low levels of HTAL relative to olivetol agree with prior kinetic studies that suggested that nonenzymatic decarboxylative aldol condensation proceeds with a higher efficiency than lactonization 1. As expected, no olivetolic acid was detected; however, small titres (13.7 ± 4.0 nm or 3.1 μg·L−1) were present in comparable in vitro reactions with both TKS and OAC.
We assembled a dual enzyme construct expressing both TKS and OAC under the control of a single inducible tetR promoter (Fig. 1B) 16. In vivo studies were performed to investigate the product profile of this plasmid construct in Escherichia coli. Interestingly, a difference was seen in the relative proportions of olivetolic acid between in vitro and in vivo reactions (Fig. 1A). The PDAL production level differs from previous in vivo studies in E. coli that detected only trace levels of PDAL.

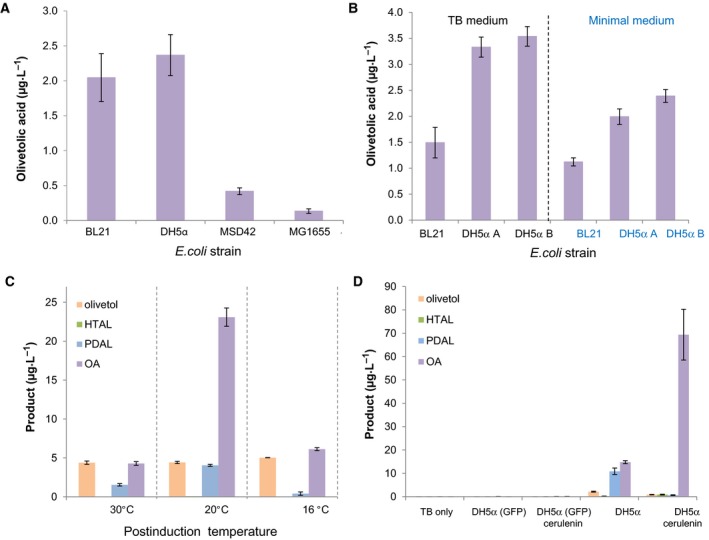

Olivetolic acid production was relatively low under both in vivo and in vitro conditions. Higher titres have been obtained previously (up to 80 mg·L−1) when co‐expressing auxiliary genes involved in up‐regulating precursor supply and optimizing fermentation conditions 9. We performed olivetolic acid production optimization trials targeting the medium composition, host strain, incubation temperature and harvesting time after induction. The best conditions were using E. coli strain DH5α as the expression host grown in Terrific broth (TB) media at 20 °C after induction, which successfully increased the olivetolic acid titres 5‐ to 10‐fold (10–20 μg·L−1; Fig. 2A–C). A further five‐fold increase in olivetolic acid titres was obtained (70 μg·L−1) by the addition of 20 μg·mL−1 of cerulenin, a known inhibitor of the fatty acid biosynthesis enzyme, FabF (Fig. 2D) 17. This increases the availability of intracellular malonyl‐CoA, one of the substrates for TKS 17. However, olivetolic acid titres showed a two‐fold decrease 48 h after induction (Fig. 1C). This had been observed previously 9 and olivetolic acid is likely to be degraded by E. coli. This was further confirmed by observing a reduction in olivetolic acid loss in TB media alone vs olivetolic acid in the same media containing an E. coli DH5α culture (Fig. 1D) 9.
We have demonstrated that our TKS and OAC construct expressed in E. coli generate product profiles typical of these enzymes described in earlier studies 7, 8, 9, 18. The production of olivetol instead of olivetolic acid production by TKS alone is consistent with an STS‐like mechanism of cleavage of the C1 thioester linkage between the product and the catalytic triad cysteine (aldol switch) prior to nonenzymatic cyclization. Therefore, further studies into the mode of TKS polyketide intermediate release will be performed in the absence of OAC to eliminate any potential linear polyketide scavenging.
Structural investigation into olivetol vs olivetolic acid production
Our studies have confirmed that TKS is an STS‐like member of the type III polyketide synthases that catalyses C2 → C7 decarboxylative aldol condensation to form olivetol. It cannot generate either olivetolic acid or the equivalent Claisen condensation‐like product. Prior structural and mechanistic studies of CHS and STS identified an aldol switch as being responsible for the differences in the type of cyclization reaction catalysed between highly structurally similar enzymes with the same substrates 12, 15. This involves the presence of a Ser338‐stabilized water molecule, coordinated through a hydrogen‐bonding network with Glu192 and the Thr132 side chain hydroxyl (Fig. 3A,B). This in turn activates it for a thioesterase‐like cleavage of the tetraketide intermediate C1‐Cys164 (CHS numbering) linkage (Scheme 2B). Key to this hydrolysis is the subtle repositioning of the Thr132 side chain hydroxyl, which was caused by a crystallographically determined displacement of a loop of residues 131–137 12, 15. This displacement was seen in the crystal structure of a CHS variant exhibiting STS‐like activity, where 18 amino acids located in loops that differed in conformation between CHS and STS were altered to the equivalent residues found in STS (Fig. 3B) 12. These residues were selected for mutation due to their location in loops with different backbone conformations between CHS and STS.
The potential for water‐mediated cleavage at C1 precyclization is a key factor in determining the type of condensation reaction catalysed. Earlier biomimetic studies found that when C1 was part of a (thio)ester bond, C6 → C1 Claisen cyclization predominates, while C2 → C7 aldol cyclization is favoured when C1 is a free acid 19, 20. Therefore, with STS and TKS, cleavage of the tetraketide intermediate must precede cyclization, in the latter case making it available to interact with OAC to produce olivetolic acid.

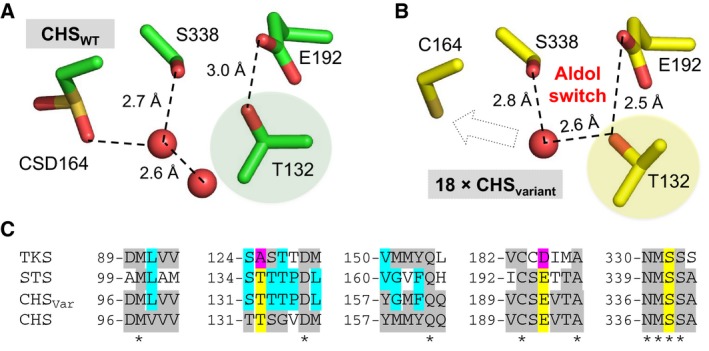

A sequence alignment between TKS, STS, CHS wild‐type and an STS‐like CHS variant showed the highly conserved Thr132 and Glu192 residues implicated in the key water hydrogen‐bonding network are substituted for alanine and aspartate in TKS (A125 and D185, respectively; Fig. 3C). Therefore, an STS‐like aldol switch is not present in TKS, due to the substitution of the key hydrogen‐bonding Thr132 for the nonpolar aliphatic residue alanine (Fig. 3C).
This suggests a novel hydrogen‐bonding network for water activation must be present. To investigate this, we determined the co‐crystal structure of TKS in complex with CoA to a high resolution (1.4 Å) to investigate the potential mechanism of active site water activation required to facilitate tetraketide intermediate release from the enzyme. Earlier crystallization and preliminary X‐ray diffraction studies of TKS have been reported, but no crystal structure was solved 21.

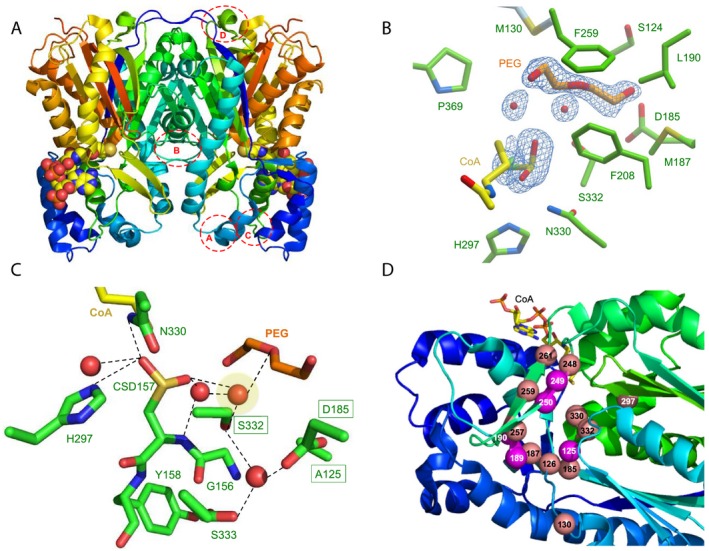

The overall structure adopts a classical thiolase αβαβα five‐layered core (Fig. 4A), and most closely resembles CHS 22 (Dali Z score 63.7, rmsd of 0.7 Å over 380 Cα). It contains two dimers in the asymmetric unit, with no significant difference in conformation observed between the four monomers. Only four minor regions in TKS show significant structural deviations from STS (Fig. 4A; loops A–D), highlighting the overall conformational similarity within the type III polyketide synthases. The crystallographic data summary and refinement parameters can be found in Table 1.
| Parametersa | TKS‐CoA (PDB http://www.rcsb.org/pdb/search/structidSearch.do?structureId=6GW3) |
|---|---|
| Space group | P 1 21 1 |
| Cell dimensions | |
| a, b, c (Å) | 71.56, 123.29, 87.94 |
| α, β, γ (o) | 90, 109.55, 90 |
| Resolution range (Å) | 82.87–1.39 (1.43–1.39) |
| Wavelength (Å) | 0.928 |
| Total reflections | 938 425 (39 561) |
| Unique reflections | 280 655 (13 838) |
| Multiplicity | 3.3 (2.9) |
| Completeness (%) | 98.40 (96.4) |
| Mean I/σI | 13.7 (2.1) |
| Wilson B‐factor (Å2) | 26.98 |
| R merge | 0.043 (0.420) |
| R meas | 0.051 (0.521) |
| CC1/2 | 1.0 (0.8) |
| R work | 0.118 (0.205) |
| R free | 0.155 (0.240) |
| RMS deviations | |
| Bond angles (°) | 1.79 |
| Bond lengths (Å) | 0.021 |
| Ramachandran plot | |
| Allowed region (%) | 98.13 |
| Additionally allowed region (%) | 1.8 |
| Outliers (%) | 0.07 |
| Average B‐factor | 21.96 |
The overlapping initiation/elongation/cyclization cavity is bi‐lobed and contains the conserved Cys157‐His297‐Asn330 catalytic triad. One lobe of this cavity forms the starter molecule‐binding site, while the second accommodates the growing polyketide chain 11. The CoA ligand is positioned with the sulfur moiety in close proximity to the catalytic Cys157 (Fig. 4B). The latter is oxidized to the level of sulfinic acid (CSD) in the crystals, with one of its oxygen atoms occupying the oxyanion hole, mimicking the thioester carbonyl oxygen of bound substrates. Similar modifications have been observed in wild‐type CHS structures (Fig. 3A) 14. The active site region responsible for binding the expanding thioester polyketide moiety is predominantly lined by hydrophobic residues, with the exception of Asp185. Additional electron density was visible within this hydrophobic pocket and was modelled as polyethylene glycol and associated water molecules (Fig. 3B). In view of the multiple conformations of some residues lining the TKS active site, in particular Met187 and Leu257, the volume of the active site is likely to be malleable and able to adapt to the growing polyketide substrate. In the absence of an enzyme–polyketide complex, it is therefore difficult to speculate what structural features underpin product specificity in TKS.
A closer look at the hydrogen‐bonding network in the active site surprisingly shows that it resembles CHS more than STS. The substitution of key conserved STS residues Thr135 and Glu195 for Ala and Asp, respectively, prevents the formation of an aldol switch‐like hydrogen‐bonding network in TKS. In its place, the putative catalytic water molecule (Fig. 4C; shaded) is coordinated to both Ser332, CSD157 and networked through other water molecules in the place of an STS‐like aldol switch. A similar set of interactions is seen in CHS between the catalytic water, CSD164, Ser338 and a second water molecule (Fig. 3A). However, CHS likely does not catalyse tetraketide release prior to cyclization, so the differences in the degree of water activation between TKS, STS and CHS are likely to be subtle and enzyme homologue‐specific. This goes against the idea of a conserved hydrogen‐bonding network ‘switch’ between CHS‐ and STS‐like enzymes as previously suggested 12. Alternatively, it may be differences in the conformation of the tetraketide intermediate that favours one mechanism over the other. No co‐crystal structures are currently available containing the tetraketide (or triketide) intermediates, so it is difficult to make firm conclusions as to the exact discrimination between the mode of water activation in TKS compared to CHS.
Site‐directed mutagenesis
We performed alanine scanning mutagenesis of 11 residues lining the polyketide binding region of TKS as a complementary approach to investigate key amino acid determinants for catalytic activity (Fig. 4D) 15. This included active site residues S332 and D185 that are structurally implicated in the water activating hydrogen‐bonding network. Soluble protein was obtained for only four of these variants (D185A, M187A, F259A and L261A), and biotransformations were performed in the presence/absence of OAC to see whether the product profiles were altered. All four variants were inactive, suggesting these residues play a more critical role in enzyme stability and/or catalytic activity than initially thought.
The next approach was to target active site residues that are not highly conserved in the type III polyketide synthases, to see whether these residues are important for discriminating between the cyclization reactions catalysed. We generated four variants of TKS (A125T, C189V, L190T and G249D) where the TKS residue was changed to the equivalent one in CHS (Fig. 3C). Prior studies with CHS showed that altering Gly256 to alanine significantly altered the size of the active site binding product, reducing the yield of cyclized product 11. Therefore, an equivalent variant was generated in TKS (G250A), to see whether there was any impact on olivetol production. In each case, soluble protein was obtained for each variant (Fig. 5 inset), and comparative biotransformations revealed all the enzymes were active and produced primarily olivetol and PDAL (Table S2). Similar to the wild‐type enzyme, only trace levels of HTAL were detected, and near equivalent ratios of olivetol and olivetolic acid were generated in the presence of OAC (Fig. 5). Interestingly, the titres of olivetol were not dramatically impacted by the production of olivetolic acid (OAC‐containing reactions), even though they both utilize the same pool of tetraketide intermediate. No evidence of Claisen cyclization products was detected by LC‐MS, even in the case of variants with CHS substituted residues. Therefore, individual changes to these nonconserved active site residues have not caused a fundamental change in the type of cyclization reaction catalysed.

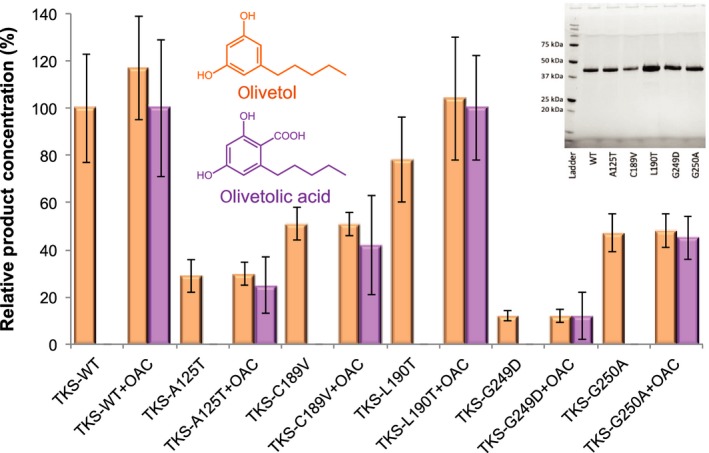

Surprisingly, the L190T variant had very little impact on olivetol titres, after allowing for batch‐specific variations (Fig. 5). In contrast, when the opposite mutation was performed for CHS (T197L), there was a dramatic reduction in naringenin production from malonyl‐CoA and coumaroyl‐CoA, suggesting this substitution had impacted on its cyclization ability 13. A more dramatic decrease in olivetol (and olivetolic acid) production was detected with the other variants, especially G249D and A125T (8‐ and 3‐fold, respectively). These two small nonpolar residues are located adjacent to the site occupied by PEG in the crystal structure, so the introduction of both steric bulk and charged/polar residues has likely impacted significantly on substrate‐binding. Variants C189V and G250A showed only a ~ 2‐fold reduction in olivetol production, possibly due to the smaller change in steric bulk and the maintenance of a more nonpolar CHS‐like substrate‐binding environment. The ratio of olivetolic acid vs olivetol titres of each variant is similar, suggesting these mutations have directly impacted on the tetraketide intermediate production. This is presumably via altering the binding conformation and/or binding strength of one or both substrates.
Earlier studies demonstrated the plasticity of CHS by the successful switching of the Claisen cyclization reaction to instead possess STS‐like 12 or 2‐PS‐like activity 13 (Scheme 2A) by the substitution of either 18 or 3 amino acids in the enzyme, respectively. In the latter case, the conserved residues were T197L, G256L and S338I (L190, G250 and S332 in TKS, respectively), and this variant no longer accepted its native substrate coumaroyl‐CoA. Instead, it accepted the 2‐PS substrate acetyl‐CoA and produced methylpyrone 13. In the case of TKS single variants, no such alteration in the type of tetraketide condensation reaction was seen. This suggests these residues are either not key players in discriminating between the potential condensation reactions that can be catalysed, or multiple site changes are required to activate the cyclization plasticity seen with other type III polyketide synthases.
Conclusions
A key challenge in the understanding of the mechanism(s) of action of type III polyketide synthases is identifying the residues responsible for multiple pathway discrimination and the formation of multiple products. This is particularly challenging given the multistep nature of the catalysis and the high sequence and structural identity between homologues displaying alternative cyclization mechanisms to generate distinct chemical scaffolds. The apparent plasticity of TKS with only minor alterations in amino acid sequences demonstrates the subtle nature of the mechanistic discrimination. This involves interplay between multiple residues, an inherently flexible active site designed to accommodate a growing scaffold and easily convertible cyclization mechanism(s) with minimal intervention.
Understanding and predicting the behaviour of individual enzyme homologues is important when designing and optimizing synthetic biology routes towards secondary metabolite production. In the case of microbially sourced therapeutic cannabinoid production, structurally guided mechanistic investigations into multiple cyclization pathway discrimination by polyketide synthases are key to engineering increased yield and purity of target pathway intermediates, thereby impacting the overall titres of tetrahydrocannabinol and CBD. This study has highlighted that the key product discriminating water activating hydrogen‐bonding network or ‘aldol switch’ between CHS and STS/TKS is homologue specific, with no apparent universal STS‐like consensus sequence or mode of catalytic base activation to allow database prediction of decarboxylative aldol cyclization over Claisen condensation. In these types of cases, a combination of classical mechanistic studies coupled with structurally guided mutagenesis of different homologues is required to investigate the cooperative effect of the subtle structural and/or electronic changes required to direct the predominant pathway route(s).
Materials and methods
Materials and equipment
Olivetolic acid (2,4‐dihydroxy‐6‐pentylbenzoic acid) standard was purchased from ChemCruz (Santa Cruz biotechnology, Dallas, TX, USA). All other chemicals and solvents were purchased from commercial suppliers and were of analytical grade or better. Media components were obtained from Formedium (Norfolk, UK). Oligonucleotide synthesis and DNA sequencing were performed by Eurofins MWG (Ebersberg, Germany). The strains and plasmid information can be found in Table S3. All oligonucleotide sequences for gene cloning and mutagenesis can be found in Tables S2 and S3, respectively. LC‐MS analysis was performed on an Agilent Technologies (Cheshire, UK) 6560 Ion Mobility Q‐TOF coupled with a 1290 Infinity II UHPLC with a BEH C18 column (130 Å, 1.7 µm, 2.1 mm × 50 mm; Waters, Hertfordshire, UK). Quantitative analysis was carried out on a triple quadrupole tandem mass spectrometer (Xevo TQ‐S; Waters MS Technologies) connected to an Acquity UPLC system with the above BEH C18 column.
Gene synthesis, sub cloning and mutagenesis
The genes encoding TKS (UniProtKB: http://www.uniprot.org/uniprot/B1Q2B6) and OAC (UniProtKB: http://www.uniprot.org/uniprot/I6WU39) from C. sativa were synthesized by GeneArt (Regensburg, Germany), employing codon optimization for increased E. coli expression. TKS was subcloned by GeneArt into pETM11, incorporating an N‐terminal TEV cleavable His6‐tag. OAC was subcloned into pET42a, which added both a glutathione‐S‐transferase (GST) and a His6‐tag to the N terminus of the protein. The latter was performed by In‐Fusion cloning (Table S4; Clontech laboratories, Takara Bio, Mountain View, CA, USA) according to the manufacturer’s protocols. A dual expression construct was generated (pBbB2c‐TKS‐OAC) by combining both TKS and OAC and ribosomal binding sites custom designed for E. coli into BioBrick vector pBbB2c 16, controlled by a single anhydrotetracycline‐inducible promoter. The individual genes and linearized plasmid backbone (pBbB2c) were amplified by PCR (Table S4) using Phusion Hot Start Flex X2 (New England Biolabs, Ipswich, MA, USA). DNA assembly was performed using the ligase cycling reaction 23.
Alanine scanning mutagenesis was performed for TKS in pETM11 using QuikChange mutagenesis (Novagen, Merck Millipore, Darmstadt, Germany) according to the manufacturer’s protocol (Table S5). The residues targeted were S126, M130, D185, M187, I248, L257, F259, L261, H297, N330 and S332. Additional variants of TKS were generated, namely A125T, C189V, L190T, G249D and G250A. Each mutagenesis was performed using the Q5 site‐directed mutagenesis kit (New England Biolabs) according to the manufacturer’s protocol (Table S5).
In each case, the correct assembly and/or presence of the designed mutations were confirmed by DNA sequencing. The plasmids encoding N‐His6‐TKS (wild‐type and variants) and GST‐His6‐OAC were transformed into E. coli strains BL21(DE3) (New England Biolabs) and ArcticExpress(DE3) (Agilent Technologies), respectively, for protein overexpression. For the dual enzyme plasmid, the E. coli NEB5α (New England Biolabs) strain used for in vivo studies.
Protein expression and purification
Both TKS and OAC cultures (6 L) were produced in http://www.rcsb.org/pdb/search/structidSearch.do?structureId=2xYT broth (Formedium) containing kanamycin (40 μg·mL−1). Cultures were agitated (200 r.p.m.) at 37 °C until an OD600 nm of 0.6–0.8 was achieved. Protein overexpression was induced by the addition of IPTG (0.1 mm), and cultures were agitated overnight at 16 °C. Cells were harvested by centrifugation (8000 g) for 10 min at 4 °C. The cell pellets (2 mL·g−1 pellet) were resuspended in TKS buffer (25 mm Tris pH 8 containing 150 mm NaCl and 5% glycerol) followed by sonication to lyse the cells. Each overexpressed protein was purified using a HisTrap HP column (5 mL; GE Healthcare, Chicago, IL, USA), pre‐equilibrated in TKS buffer. The column was washed stepwise with increasing concentrations of imidazole (10 mL each; 0–50 mm) in TKS buffer. Recombinant protein was eluted with TKS buffer containing 200 mm imidazole (30 mL). Removal of the N‐His6‐tag from each enzyme was performed by TEV protease cleavage (1 : 500 w/w) overnight in TKS buffer containing dithiothreitol (1 mm) at 4 °C. Both the TEV protease and cleaved His6‐tags were removed by passage through the HisTrap HP column. TKS and OAC eluted in the flow through, while the tag and TEV protease bound to the column. For the TKS variants, purification of each enzyme occurred as above, except for the TEV protease cleavage step. Protein purity was assessed by SDS/PAGE using 12% Mini‐PROTEAN TGX stain‐free precast gels (Bio‐Rad, Hertfordshire, UK). The concentration of each purified enzyme was determined by a Nanodrop (Thermo Fisher, Waltham, MA, USA) or the DC protein assay (Bio‐Rad), according to the manufacturers’ protocols.
TKS crystallization and structure determination
Co‐crystallization of TKS (10 mg·mL−1) with CoA (2 mm) was performed in 0.2 m potassium nitrate containing 20% w/v PEG 3350 for 72 h at 4 °C using the sitting drop vapour diffusion technique. Crystals were cryo‐protected in the mother liquor containing 20% glycerol, followed by flash freezing in liquid nitrogen. The X‐ray data were collected from a single cryo‐protected crystal at Diamond Light Source (Oxford, UK) on beamline I04‐1. The dataset was processed by an automated pipeline implemented in xia2 24, using xds 25 and xscale. Structure determination was performed by molecular replacement in Phaser 26 using CHS (PDB http://www.rcsb.org/pdb/search/structidSearch.do?structureId=1BI5) as the search model. A combination of automated and manual rebuilding in Coot 27 and refinement in Refmac 28 was used to produce each of the refined models. The structures were validated using Molprobity 29 and PDB_REDO 30. The atomic coordinates and structure factors (PDB http://www.rcsb.org/pdb/search/structidSearch.do?structureId=6GW3) have been deposited in the Protein Data Bank, Research Collaboratory for Structural Bioinformatics, Rutgers University, New Brunswick, NJ (http://www.rcsb.org/).
In vitro biotransformations
Reactions (250 μL) were performed in TKS buffer containing 10 μm hexanoyl‐CoA, 30 μm malonyl‐CoA and 10 μm purified wild‐type and variant TKS with/without 10 μm OAC. After an overnight incubation at 25 °C, the organic soluble intermediates and products of the reactions (200 μL aliquots) were extracted with ethyl acetate (200 μL) and centrifuged at 17 900 g for 10 min to separate the phases. The organic layer was recovered, and the solvent was removed using a centrifugal evaporator (Genevac EZ‐2 plus, Suffolk, UK). The products were resuspended in 50% (v/v) methanol (150 μL), filtered using a PTFE (Supelco 0.2 μm, Sigma Aldrich, Dorset, UK) or PVDF membrane (Millex 0.22 μm, Merck Millipore, Dorset, UK) and analysed by LC/MS. Reactions were performed with technical triplicates of biological replicates (six samples per data point).
In vivo biosynthesis
In vivo production of olivetolic acid and by‐products was performed using the E. coli strain NEB5α expressing the two‐enzyme construct pBbB2c‐TKS‐OAC. Individual colonies were selected from a freshly transformed culture cultivated overnight on an LB‐chloramphenicol agar plate (25 μg·mL−1 chloramphenicol). Starter cultures (5 mL) were grown overnight in TB (tryptone 20 g·L−1 and yeast extract 24 g·L−1) supplemented with glycerol (4 g·L−1) and chloramphenicol (25 μg·mL−1) at 37 °C. These cultures were used to inoculate fresh TB medium (25 mL; starting OD600nm of 0.1) and incubated at 37 °C until the OD600 nm reached 0.8. Recombinant protein expression was induced with anhydrotetracycline (200 nm) ± cerulenin (20 μg·mL−1), followed by a further incubation at 16–30 °C for 24 h at 200 r.p.m. Cells were harvested periodically (e.g. 4, 24, 48, 72 and 96 h after induction) by centrifugation for 10 min at 4300 g. The intermediates and products were extracted from both the cell and the culture supernatant with an equal volume of ethyl acetate. Organic compounds were dried, resuspended in methanol (200–400 μL; 50%) and analysed by LC/MS as described below. Data points are averages of three biological replicates.
Mass spectrometry analysis of products
The compounds olivetolic acid, olivetol, PDAL and HTAL were identified from in vitro and in vivo reactions by LC/MS using a 6560 Ion Mobility Q‐TOF coupled with 1290 Infinity II UHPLC with an Acquity UPLC BEH C18 Column. In this method, the compounds (5 μL) were separated using a mobile phase gradient of solvent A (0.05% formic acid in water) to solvent B (0.05% formic acid in acetonitrile) at a flow rate of 0.6 mL·min−1 and a column temperature of 50 °C. In this method, an initial (1–3 min) equilibration in 5% solvent B was followed by a 20‐min gradient to 95% solvent B. Data were acquired in full MS mode, in individual negative acquisitions and scan range of 100–1200 m/z. Individual compounds were detected at the following m/z values: HTAL 223.098, PDAL 181.087, olivetolic acid 223.098 and CBGA 359.223 in negative mode, with olivetol 179 in positive mode.
Quantitative analysis was performed on a triple quadrupole tandem mass spectrometer (Xevo TQ‐S; Waters MS Technologies) connected to an Acquity UPLC system (H‐Class; Waters) with compound separation on a BEH C18 column. Compounds were separated using a mobile phase gradient of 70–98% solvent C (0.05% formic acid in methanol) with solvent A, at a flow rate of 0.6 mL·min−1 and a column temperature of 45 °C. To separate HTAL, PDAL and olivetolic acid, an initial 70% solvent C was followed by a rapid 0.7‐min gradient to 98% solvent C. To identify olivetol, the initial conditions were 40% C for 3.5 min followed by a gradient to 98% C for 0.5 min. The MS parameters were optimized with a desolvation gas flow of 1000 L·h−1, a capillary voltage of 1000 V, desolvation temperature of 600 °C and a source temperature of 150 °C. The MRM transition of 223.01 > 179.12 was used for the quantification of olivetolic acid, 223.07 > 125.09 for HTAL, 181.13 > 97.10 for PDAL, 181.09 > 111.14 for olivetol.
Conflicts of interest
'The authors declare no conflict of interest.
Supporting information
Acknowledgements
This is a contribution from the EPSRC/BBSRC Future Biomanufacturing Research Hub (EP/S01778X/1) and the BBSRC/EPSRC Synthetic Biology Research Centre SYNBIOCHEM (BB/M017702/1). The work was supported by the UK Biotechnology and Biological Sciences Research Council (BBSRC) LK and NP were funded by PhD studentships supported by BBSRC, and Twist Biosciences and Prozomix Ltd.
