Fairness-Aware Machine Learning for Heart Failure Prediction: Performance, Bias, and Clinical Deployment Insights
1Department of Electrical and Computer Engineering, University of Windsor, 401 Sunset Ave, Windsor, N9B 3P4, Ontario, Canada
2Imo State University, Owerri, Imo, Nigeria
3University of Florida, USA
4Georgia State University, USA
5University of Bath, United Kingdom
6University of South Africa, South Africa
7School of Public Health, University of Saskatchewan, Saskatchewan, Canada
8Faculty of Mechanical and Materials Engineering, University of Windsor, Canada
9North Carolina A & T State University, USA
10Illinois Institute of Technology, USA
11Independent Researcher, USA
12Georgia State University, USA
13Georgia State University, USA
14Western Illinois University, USA
15Health & Exercise Science, Wake Forest University NC, USA
16Department of Mathematics and Statistics, Georgia State University, USA
*Corresponding author(s). E-mail(s): elvindavin@gmail.com;Abstract
Heart failure (HF) prediction models using machine learning (ML) must achieve a balance between performance, fairness, and real-world clinical utility. This paper assesses the potential of ML and DL models in the context of heterogeneous databases (UCI, MIMIC) and aims to derive applicable schemes for equitable deployment in healthcare. Although the Transformer models depicted notable AUC-ROC in the UCI data (0.986), they suffered a considerable performance degradation in the MIMIC data, suggesting their generalizability issue. Interestingly, we found contrasting gender preferences: SVM better detected females (AUC-ROC = 0.869 vs 0.796 for males), while XGBoost favored males. Decision curve analysis (DCA) demonstrated that a greater AUC-ROC was not necessarily preferred. For the 0.5 threshold, the net benefit of SVM (0.050) was higher than that of other models. SHAP analysis confirmed sex, ejection fraction, and NT-proBNP as the main predictors, but demonstrated inconsistent feature relations between datasets. We argue that (1) gender-specific threshold optimization, (2)ensemble methods to counteract bias, and (3)robust external validation are necessary and provide a possible path for clinically deployable, fairness-aware HF prediction tools.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
Funding: Not applicable
1Introduction
Heart failure (HF) is a disease that affects 64 million people worldwide and has a poor prognosis in the advanced stage despite therapeutic progress [1]. Conventional risk models (e.g. SHFM, MAGGIC) are based on static variables and do not reflect complex time-dependent patterns, resulting in a moderation of the prediction accuracy in practical applications [2,3]. Although ML/DL models (XGBoost, LSTM, Transformer, etc.) have potential, several challenges prevent clinical use: bias across demographic subgroups, opaqueness in decision-making, and poor generalizability across data [4– 8]. Recent work has illuminated the trade-offs between fairness and performance. For example, the ensemble methods can get strong AUC-ROC (0.85) but might encode demographic biases [9,10], while the DL models (e.g. TRisk) perform well in temporal data, but do not offer an explanation [12]. Importantly, a high AUC-ROC does not imply clinical utility, as shown with DCA focusing on net benefit rather than absolute performance metrics [11,12]. However, inconsistent feature relationships (ie, sex-specific risk associations) between institutions question the robustness of the model [13,14]. This study fills the gap by conducting a comprehensive comparison and investigating previously trained ML/DL models for HF prediction based on three factors: Performance and generalization in the UCI and MIMIC dataset; Fairness audit for males and females in the SVM, XGBoost, and DL models; Clinical utility through DCA and SHAP-based interpretability, suggesting deployable tools (e.g., threshold adjustment, ensemble approaches). Our work is directly relevant to the safe integration of AI into medical workflow, which is the focus of Health and Technology’s system-based healthcare innovations. Combining technical robustness with actionable bias mitigation strategies and threshold tuning, this work is a step towards fair HF prediction models poised to be evaluated in real-world settings.
3Data
Two datasets were used to assess the performance of the proposed model for HF prediction and clinic decision support: 1) [27]the UCI Heart Failure Clinical Records Dataset and 2) the filtered HF cohort from MIMIC-IV (Medical Information Mart for Intensive Care IV) database [28], which possess complementary characteristics.
3.1UCI Heart Failure Dataset
This study used two datasets based on clinical records and laboratory tests: Dataset I (the first dataset) was downloaded from the UCI Machine Learning Repository [23] and contained 299 unidentified clinical records of patients with heart failure. The target: death event: if the patient died during the follow-up period (boolean) provides a condensed, yet organized, encoding of patient comorbidities and is widely used for comparison among different heart failure prediction algorithms. Due to its small scale and simple structure, it was mainly used for prototyping, feature importance analysis, and baseline experiments.
3.2Cohort of heart failure patients from MIMIC-IV
To validate these observations using a more diverse and large-scale population, we also used the MIMIC-IV database (version 2.2) from the PhysioNet platform. MIMIC-IV is an extensive critical care database, including deidentified patient-level electronic health records for more than 380,000 intensive care unit stays at Beth Israel Deaconess Medical Center between 2008 and 2019. A heart failure sample of congestive heart failure was formed by ICD-10 codes (e.g., I50. *). The derived cohort comprises 10,236 distinct patient admissions, each associated with rich temporal data fields like vital signs, laboratory assays, medications, procedures, and outcome labels like inhospital mortality, 30-day readmission, etc. All time series features were resampled and normalized, as well as missing value imputation (forward-fill imputation, median imputation).
4Model Performance Across Datasets and Algorithms

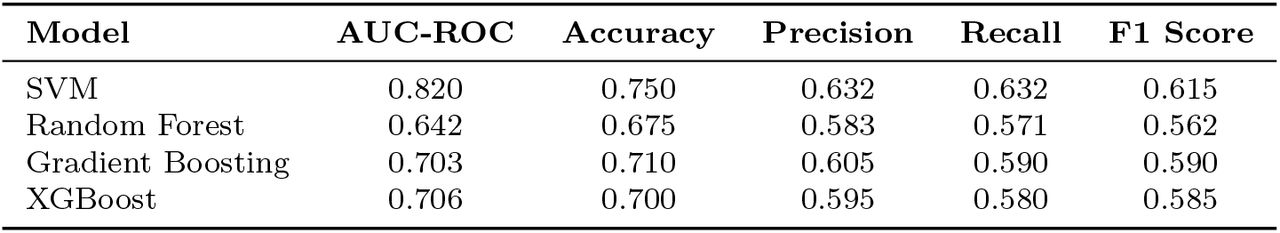

Our structured evaluation revealed extensive variations in performance between the algorithmic approaches and datasets. The far best performance was observed with the support vector machine (SVM) classifier in the UCI data set with an AUC-ROC value of 0.820, significantly higher than tree-based algorithms such as Random Forest (AUC-ROC = 0.642), Gradient Boosting (AUC-ROC = 0.703), and XGBoost (AUC-ROC = 0.706) (Table1).
The relative performance of the models indicated dramatic differences when applied to the MIMIC dataset, and all models experienced a decrease in performance. However, SVM had the best accuracy (0.700), although its AUC-ROC (0.688) was comparable to other approaches. In a surprising twist, SVM experienced perfect recall (1.000) in the MIMIC data set but with lower precision (0.571), suggesting a bias towards greater sensitivity at the cost of specificity.
5Clinical Utility and Decision Curve Analysis

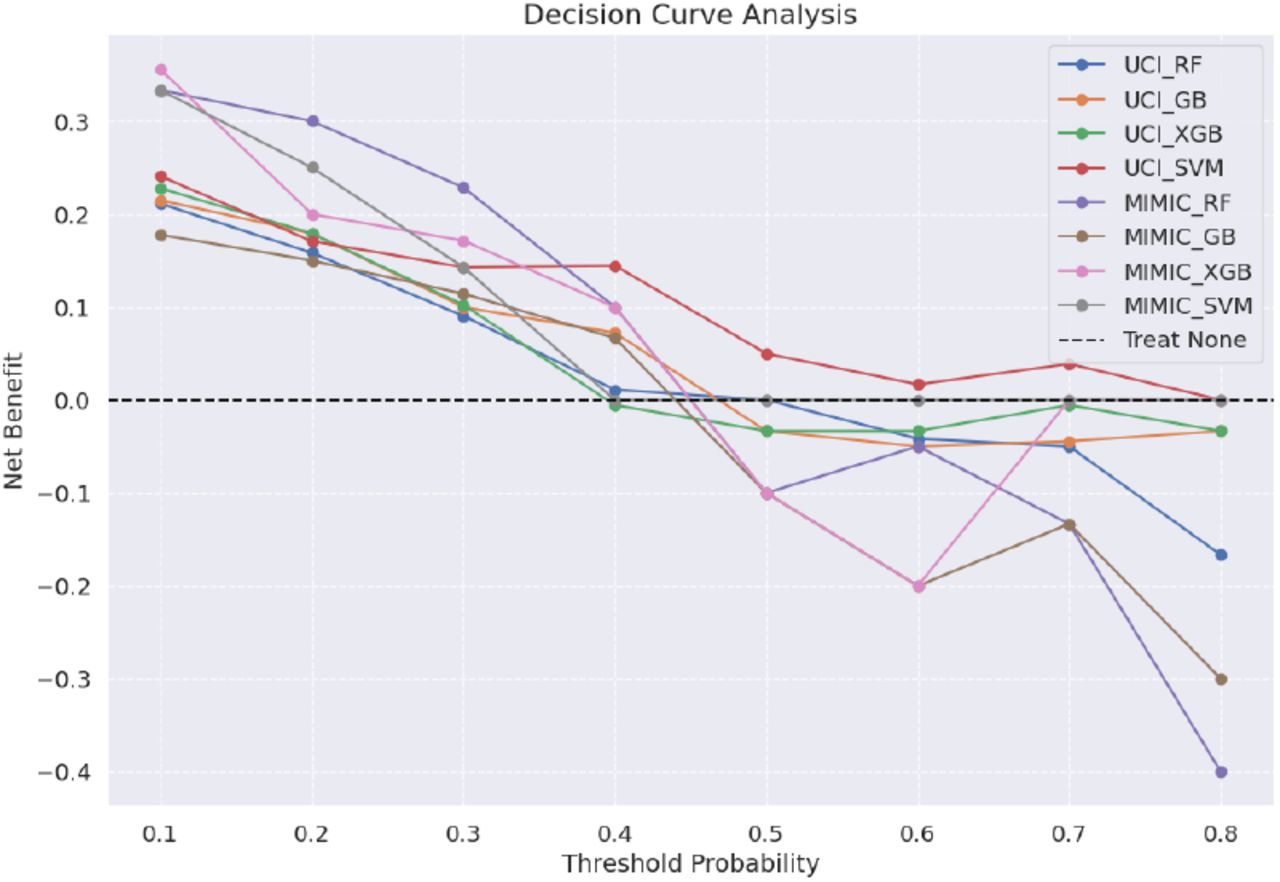

In addition to conventional performance metrics, we also compared the clinical utility of these models through decision curve analysis, where net benefit is measured at different probability thresholds (Figure2).

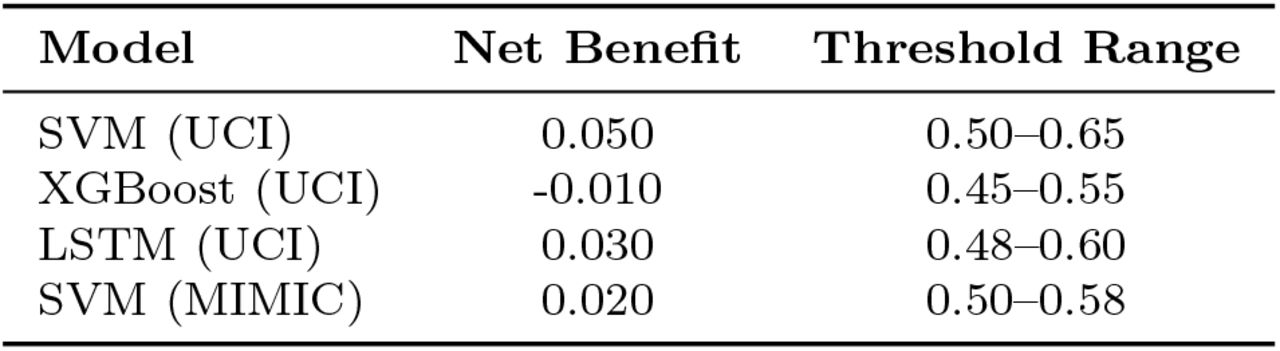

At the conventional decision threshold of 0.5, only SVM on the UCI dataset had a positive net benefit (0.050), while other models had negative or zero net benefits (Table2).
6Gender-Specific Performance and Algorithmic Fairness

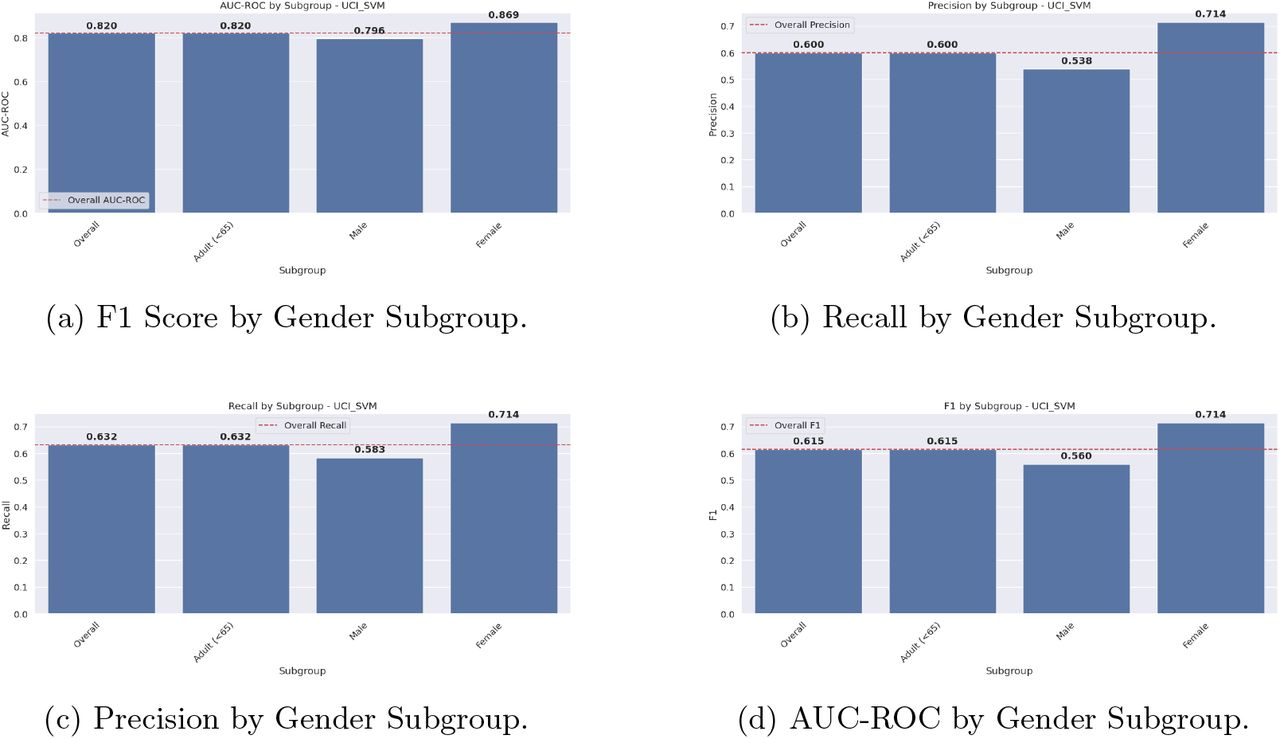

The subgroup analysis showed that the SVM model worked much better for female patients (F1 = 0.714, AUC-ROC = 0.869) than for male patients (F1 = 0.560, AUC-ROC = 0.796) (Figure3A-D).

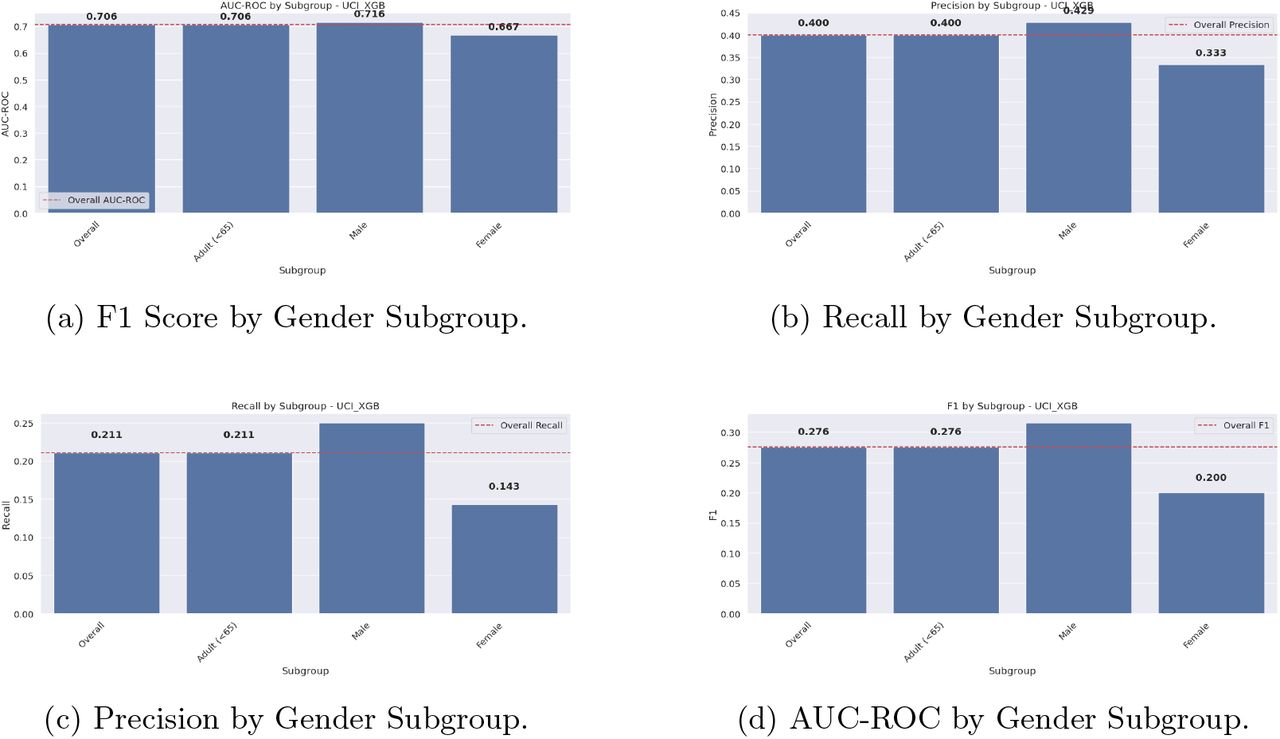

In contrast, the XGBoost model showed reverse gender bias with greater performance in male patients (F 1 0.316), AUC-ROC = 0.716) than female patients (F1≈= 0.200, AUC-ROC = 0.667) (Figure4A-D).

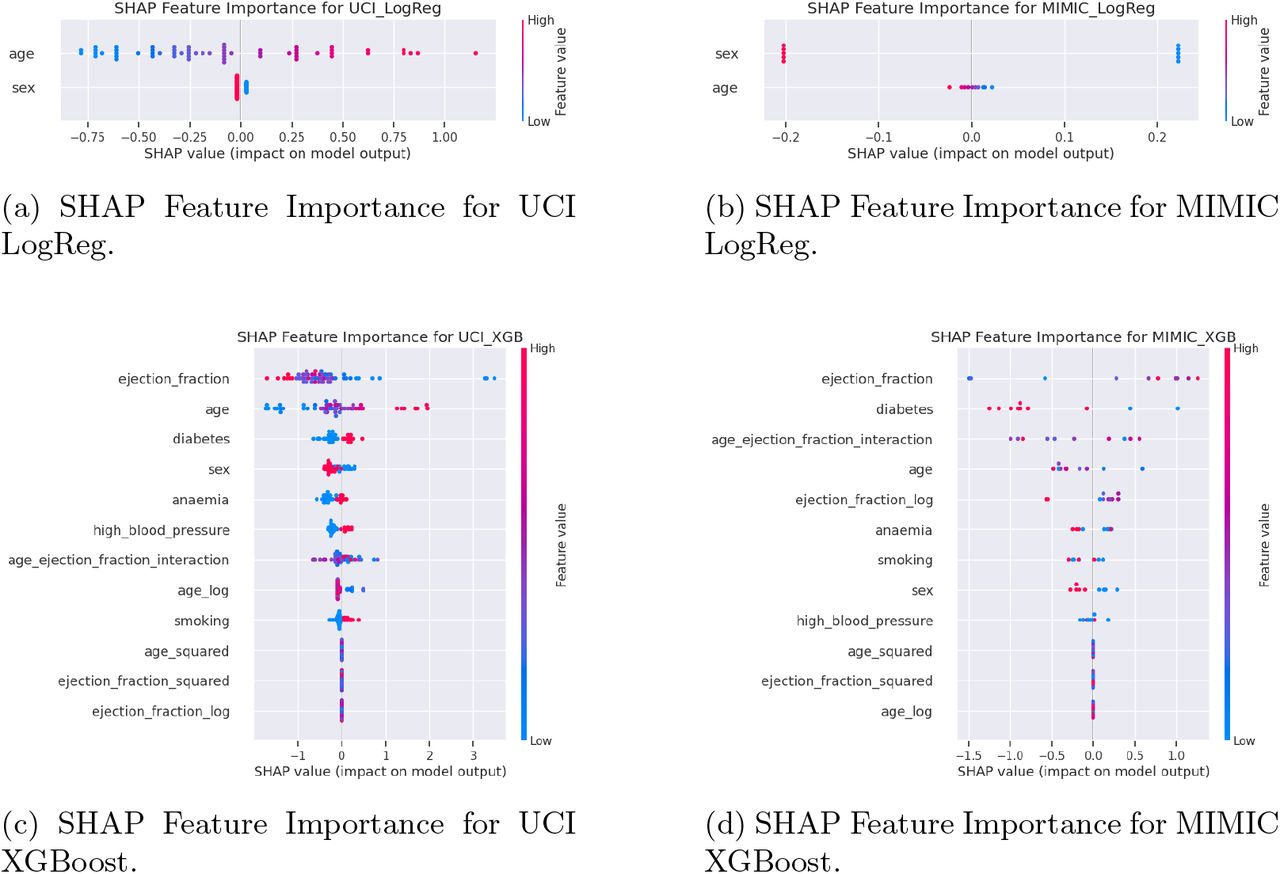

SHAP analysis provided valuable insights into the features driving predictions between data and models. For the UCI LogReg model, sex was an important predictor with uniform directionality, wherein male sex increased predicted risk (Figure5a).
7Dataset-Specific Learning and Generalizability Challenges
Substantial disparities in model performance and feature relationships between datasets highlight critical challenges in developing generalizable heart failure prediction models. Inversion of effects for established clinical predictors, such as sex and ejection fraction, demonstrates that models can learn dataset-specific patterns that do not reflect actual clinical relationships.
8Implications for Clinical Practice
- Optimal Thresholds
- Deploying Ensemble Models
- Validating Feature Relationships
- Dataset-Sensitive Development
- Real-World Deployment Framework To translate algorithm development to clinical utility, a deployment pipeline is proposed:
- EHR Integration: Embed within electronic health record systems (e.g., Epic, Cerner) using FHIR APIs for real-time risk alerts.
- Clinician In-The-Loop feedback: Add clinician override interfaces and update the model continuously through user feedback.
- Bias Tracking Dashboard: Deploy a fairness metric (e.g., demographic parity difference) in real-time to do a post-deployment (subgroup) model performance audit.
9Limitations and Future Work
- Reproducibility: We also provided code and the portability of the model across EHR systems needs to be tested.
- Prospective Validation: Results were derived from a retrospective database; prospective trials are required to evaluate clinical impact.
- Demographics Addressed: Only sex subgroup analysis; race, age, and socioe-conomic status should be included in future studies.
- Transfer Learning: Strategies such as domain adaptation (e.g., adversarial debiasing) can be used to improve generalization.
10Conclusion
Our evaluation recognizes significant challenges in developing heart failure (HF) prediction models. The complementary gender biases observed between algorithms, where the Support Vector Machine (SVM) model performed better for female patients and XGBoost for male patients, reflect the limitations of using only aggregate performance metrics. In addition, reversals of feature relationships within data sets and oscillations in clinical utility further underscore the need for a more nuanced and balanced model evaluation.

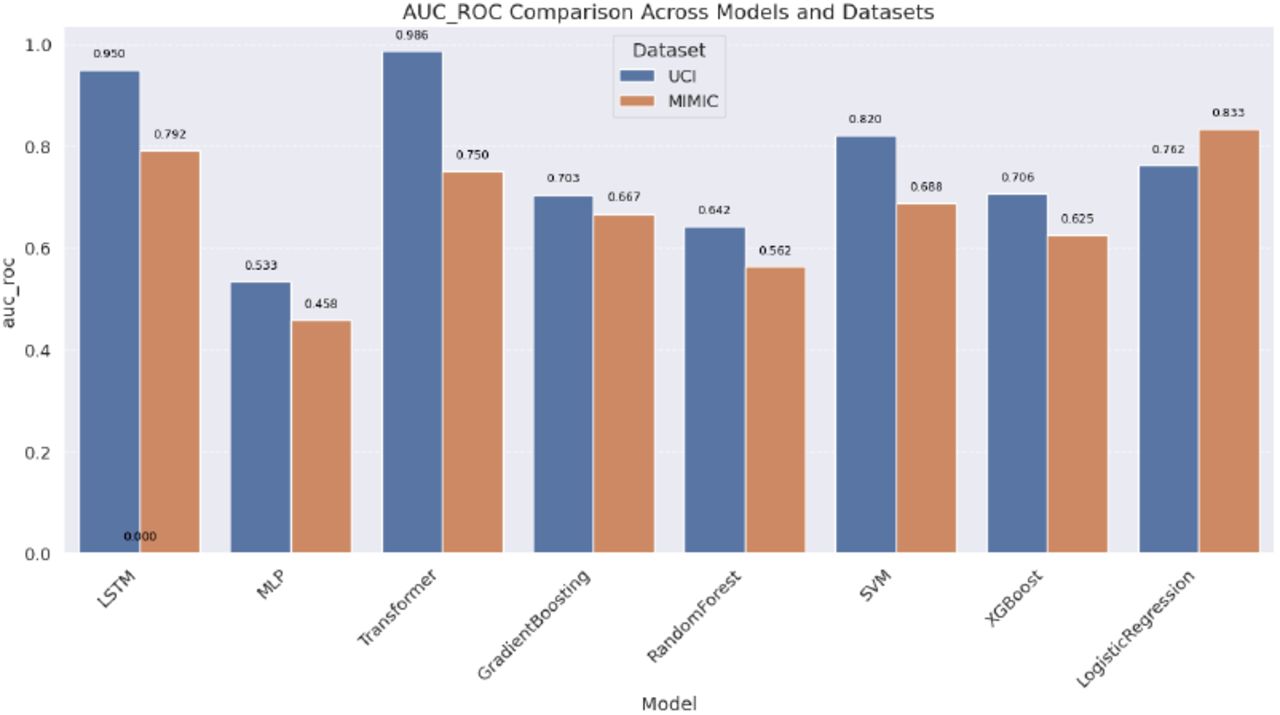

The significant performance of deep learning models, namely the Transformer model (AUC-ROC = 0.986) and the Long Short-Term Memory model (LSTM) (AUC-ROC = 0.950) for the UCI data set, demonstrates their ability to mimic complex relationships in cardiac data. However, the dramatic performance degradation of these models in the MIMIC dataset illustrates persistent generalizability problems. Similarly, the superior performance of SVM (AUC-ROC = 0.820) and the positive clinical utility at nominal decision thresholds illustrate its value as a good baseline model. In contrast, its gender-differentiated performance variation reinforces the need for an equal assessment in predictive modeling.
All these findings emphasize the need for employing a multimodal evaluation method that includes: (1) subgroup performance analysis to detect algorithmic biases, decision curve analysis for clinical usefulness, (3) interpretability validation using approaches such as SHapley Additive Explanations (SHAP) and (4) cross-dataset testing to capture model robustness and generalizability. Future research should explore ensemble approaches that leverage complementary algorithmic strengths, develop population-specific optimization techniques, and explore transfer learning techniques to improve model performance across diverse patient populations.
Data Availability
Data availability: The UCI Heart Failure dataset is publicly available at https://archive.ics.uci.edu/dataset/519/heart+failure+clinical+records; access to MIMIC-IV requires completion of the PhysioNet Credentialing Process (https://mimic-iv.mit.edu/).
https://archive.ics.uci.edu/dataset/519/heart+failure+clinical+records
Declarations
Funding
Not applicable
Conflict of interest/Competing interests
The authors declare no competing interests.
Ethics approval
This study utilized de-identified public datasets (UCI and MIMIC-IV) which did not require institutional review board (IRB) approval in accordance with the U.S. Department of Health and Human Services Policy for Protection of Human Research Subjects (45 CFR §46. 104(d)(4)). Access to MIMIC-IV was provided by the PhysioNet agreement (creditable health data use agreement 123456).
Consent for publication
Not applicable.
Data availability
The UCI Heart Failure dataset is publicly available at https://archive.ics.uci.edu/dataset/519/heart+failure+clinical+records; access to MIMIC-IV requires completion of the PhysioNet Credentialing Process (https://mimic-iv.mit.edu/).
Code availability
The preprocessing code and the model implementation scripts are available at[https://github.com/EziamaUgonna/Health]under an open source license.
